Kosetsu Tsukuda and Masataka Goto
National Institute of Advanced Industrial Science and Technology (AIST)
Japan
ACM SIGIR 2020
Query/Task Satisfaction and
Grid-based Evaluation Metrics
Under Different Image Search Intents
Search intent in image search 2
Intent: Intent:
I want to see photos of
my favorite actor Tom Cruise.
I want to learn
what Jupiter looks like.
Jupiter Tom Cruise
People use web image search with various search intents:
from serious demands for study or work to just passing time
Learn Entertain

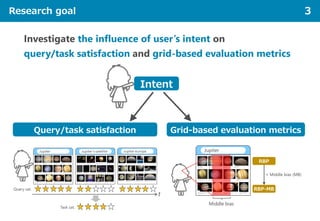

Research goal 3
Investigate the influence of user’s intent on
query/task satisfaction and grid-based evaluation metrics
Intent
Query/task satisfaction Grid-based evaluation metrics
Query/task satisfaction
Query/task satisfaction 5
I want to learn about Jupiter.
Jupiter Jupiter’s satellite Jupiter europa
Query sat.
t
Task sat.
 Under a search intent, a user addresses a specific image search task
 A task consists of one or more queries submitted by the user
 The user gains satisfaction for each query and the task
Relationship between intents, query satisfaction, and task satisfaction 6
 Task difficulty would vary according to user’s search intent
 Query satisfaction would influence the task satisfaction
Learn Entertain
Task sat. Task sat.
RQ1 7
What are the characteristics of the query satisfaction
and the task satisfaction and what is the relationship
between them under different image search intents?
Answering this question enables us to
 understand user behavior at a deeper level
 reveal an appropriate approach to support the users according to their intent
Publicly available dataset 8
 Dataset developed through a field study [Wu et al. WSDM’19]
 29 users, 447 tasks, and 1,758 queries
 A user provided a 5-level satisfaction feedback for each query and task
 Assessors annotated 1 intent from each of 4 taxonomies to a task
Taxonomy 1
Locate
Learn
Entertain
Taxonomy 2
Work&Study
Daily-life
Taxonomy 3
Specific
General
Taxonomy 4
Mental Image
Navigation
Analysis 9
 Number of unsatisfied queries before the first satisfied query
 Influence of query satisfaction on task satisfaction
2 unsatisfied queries The first satisfied query
Avg of query sat.
Max of query sat.
Task sat.
Avg/Max of query sat.
Tasksat.
Avg
Max
Learn
Take-home messages for RQ1 10
 Users who have more demanding intents (Learn and Work&Study)
tend to have low query/task satisfaction
 Because such users struggle to get satisfied results by the first query
in a task, helping them to submit their first query in a task is one
possible way to increase their satisfaction
 For users who want to learn something and look for general information
rather than specific one, submitting many satisfied queries contributes
to increase the task satisfaction
 Therefore, it is beneficial to support such user’s search process
even after they found a desired image
Grid-based evaluation metric
Grid-based evaluation metric 12
Jupiter
 Xie et al. proposed a grid-based evaluation metric for image search [TheWebConf’19]
 The metric considers “middle bias,” which indicates that users tend to pay
more attention to images in the middle horizontal position on the SERP
 The metric is implemented by expanding an evaluation metric for
general web search such as RBP (Rank-Biased Precision)
Middle bias
RBP
RBP-MB
+ Middle bias (MB)
�𝑀𝑀 = �
𝑖𝑖=0
∞
�
𝑗𝑗=0
𝑖𝑖−1
𝐶𝐶𝑗𝑗 1 − 𝐶𝐶𝑖𝑖 �
𝑗𝑗=0
𝑖𝑖
𝑅𝑅𝑗𝑗
𝑀𝑀𝑀𝑀𝑀𝑀 = �
𝑖𝑖=0
∞
�
𝑗𝑗=0
𝑖𝑖−1
𝑓𝑓 𝑐𝑐 𝑖𝑖 𝐶𝐶𝑗𝑗 1 − 𝐶𝐶𝑖𝑖 �
𝑗𝑗=0
𝑖𝑖
𝑅𝑅𝑗𝑗
RQ2 13
How do image search intents affect the
performance of the grid-based evaluation metric?
Answering this question is beneficial for improving the evaluation metric
Jupiter
Analysis 14
 Dataset includes relevance scores for each pair of a query and an image
 We can compute RBP/RBP-MB for each query
 We compute Peason’s Correlation between a metric and query satisfaction
 A good evaluation metric is highly correlated with query satisfaction
RBP
RBP-MB
Query sat.
RBP/RBP-MB
Querysat.
RBP
RBP-MB
Learn
0.324
0.479
49 92 88 37
66 71 90 60
5673 81 91
Take-home messages for RQ2 15
 When users want to learn something or find images for daily life, or when
users know how the image content looks like before submitting a query,
it is effective to incorporate the middle bias behavior into the evaluation metric
 For other intents, there is still room for improvement in evaluation metric by,
for example, developing intent-aware metrics.
Intent RBP RBP-MB
Locate 0.304 0.304
Learn 0.401 0.429*
Entertain 0.360 0.379
Work&Study 0.299 0.299
Daily-life 0.334 0.372*
Specific 0.389 0.399
General 0.272 0.286
Mental Image 0.377 0.411*
Navigation 0.314 0.319
Pearson’s Correlation between evaluation metrics and query satisfaction (*: 𝑝𝑝 < 0.01)
