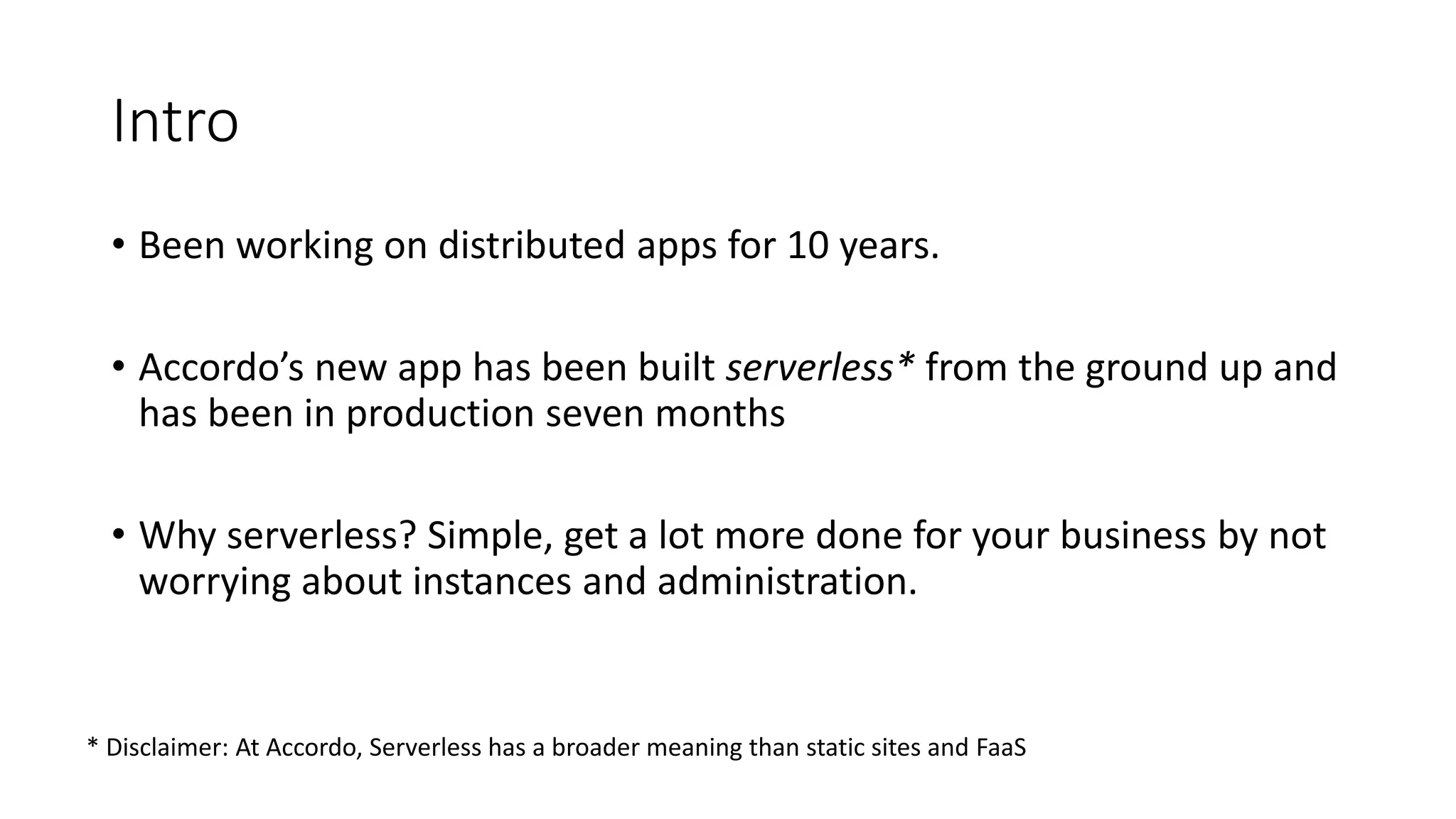

2. Intro
• Been working on distributed apps for 10 years.
• Accordo’s new app has been built serverless* from the ground up and
has been in production seven months
• Why serverless? Simple, get a lot more done for your business by not
worrying about instances and administration.
* Disclaimer: At Accordo, Serverless has a broader meaning than static sites and FaaS

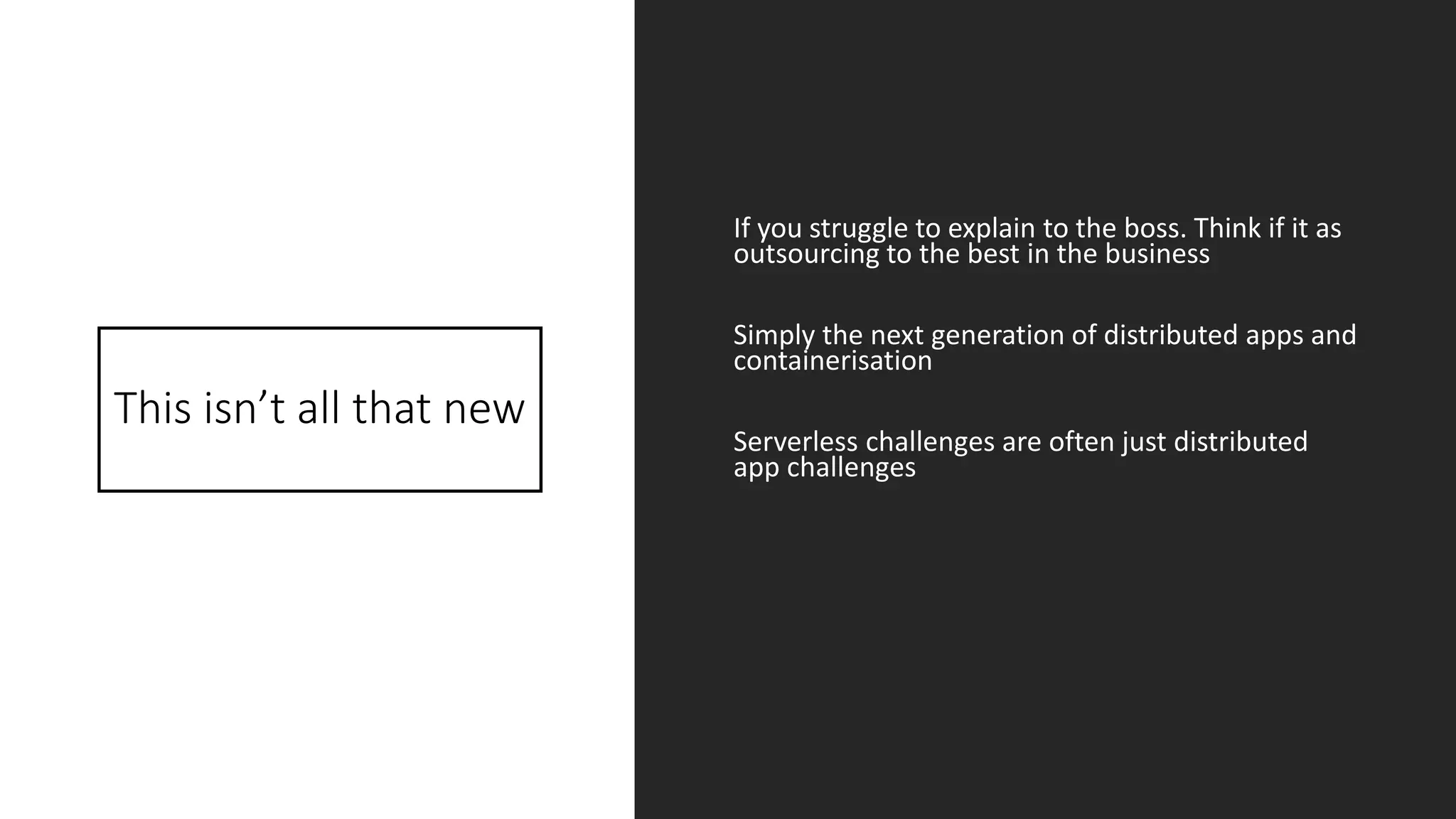

3. This isn’t all that new
If you struggle to explain to the boss. Think if it as
outsourcing to the best in the business
Simply the next generation of distributed apps and
containerisation
Serverless challenges are often just distributed
app challenges

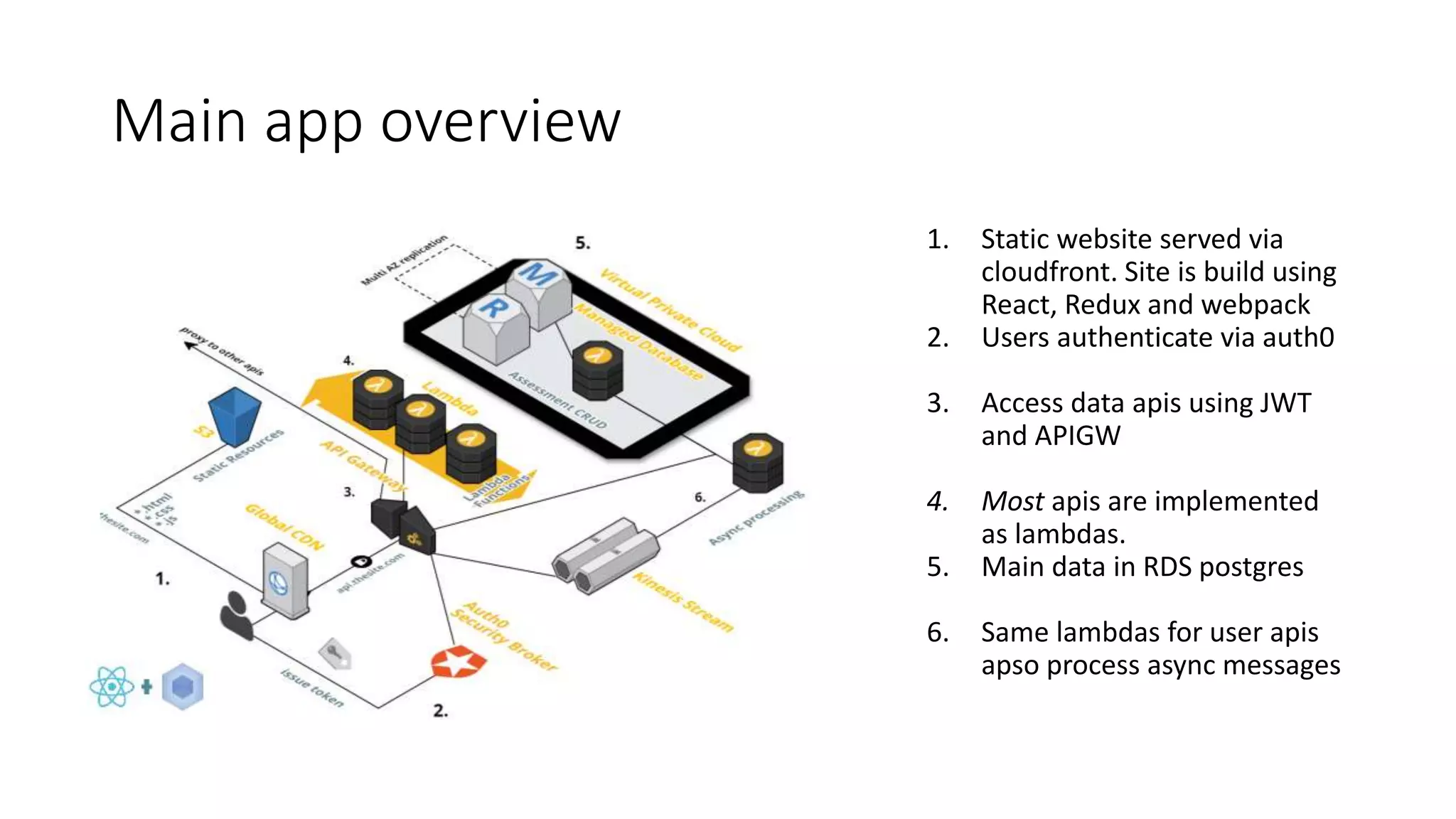

4. Main app overview
1. Static website served via
cloudfront. Site is build using
React, Redux and webpack
2. Users authenticate via auth0
3. Access data apis using JWT
and APIGW
4. Most apis are implemented
as lambdas.
5. Main data in RDS postgres
6. Same lambdas for user apis
apso process async messages

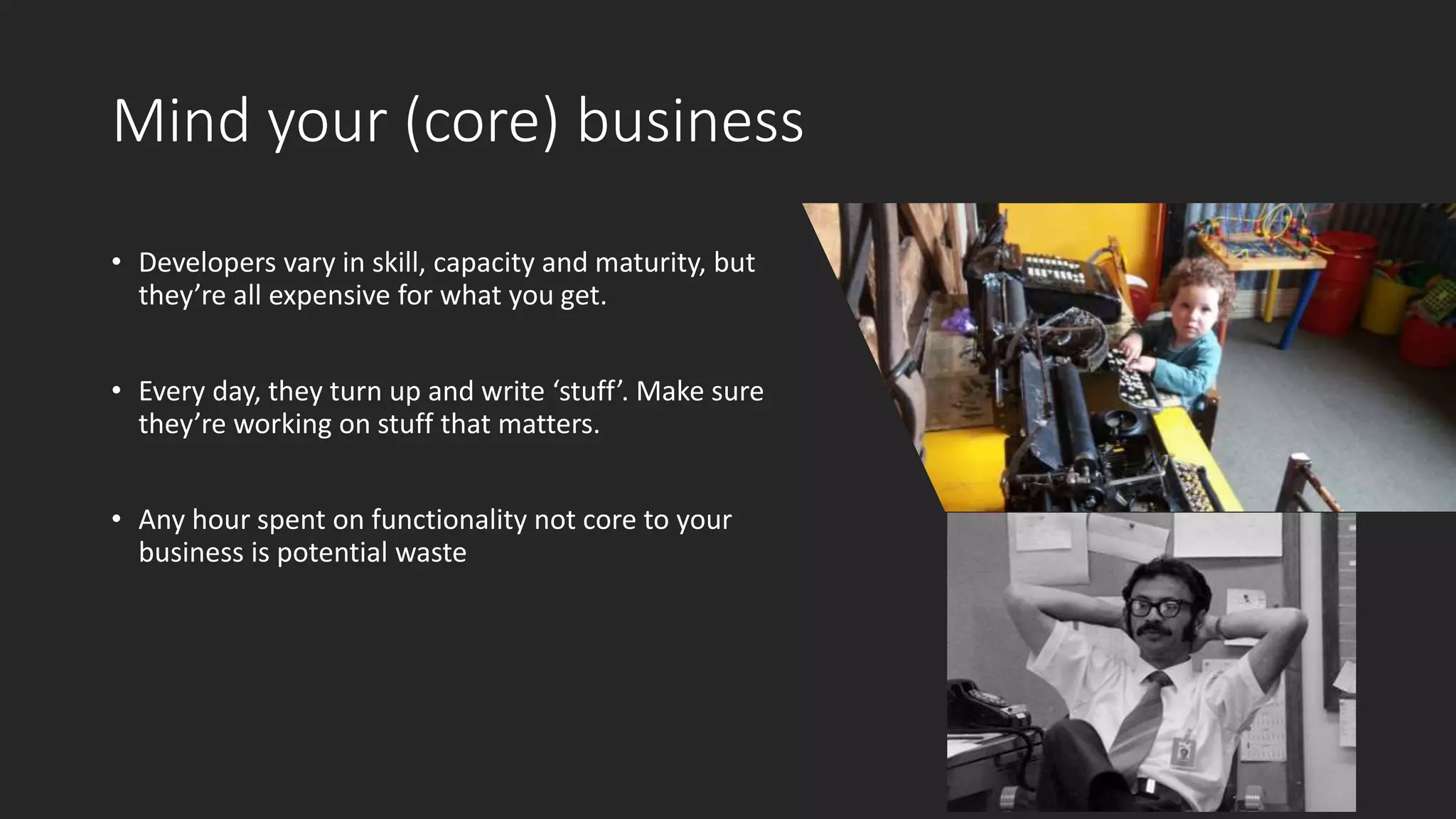

6. Mind your (core) business
• Developers vary in skill, capacity and maturity, but
they’re all expensive for what you get.
• Every day, they turn up and write ‘stuff’. Make sure
they’re working on stuff that matters.
• Any hour spent on functionality not core to your
business is potential waste

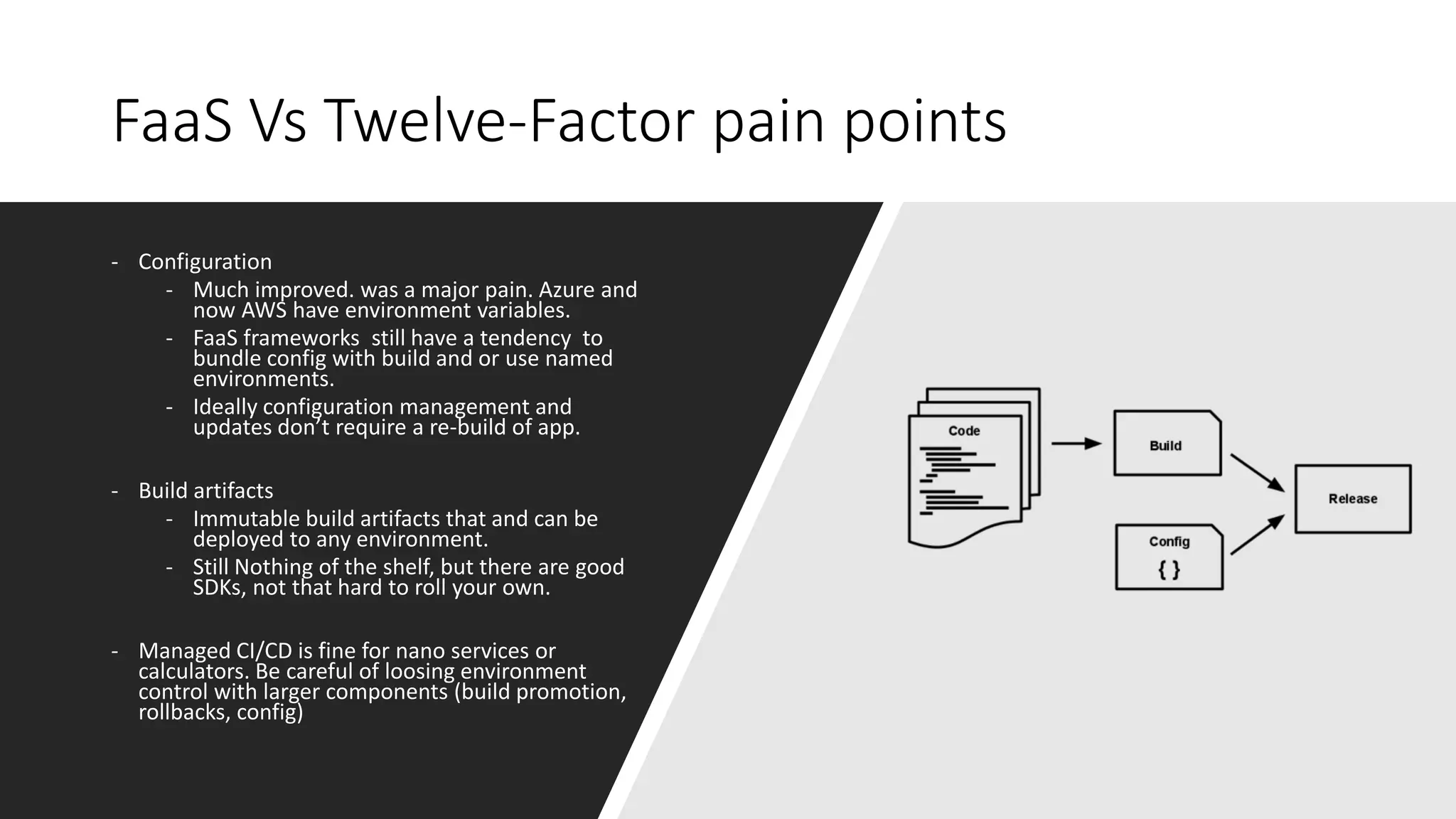

9. FaaS Vs Twelve-Factor pain points
- Configuration
- Much improved. was a major pain. Azure and
now AWS have environment variables.
- FaaS frameworks still have a tendency to
bundle config with build and or use named
environments.
- Ideally configuration management and
updates don’t require a re-build of app.
- Build artifacts
- Immutable build artifacts that and can be
deployed to any environment.
- Still Nothing of the shelf, but there are good
SDKs, not that hard to roll your own.
- Managed CI/CD is fine for nano services or
calculators. Be careful of loosing environment
control with larger components (build promotion,
rollbacks, config)

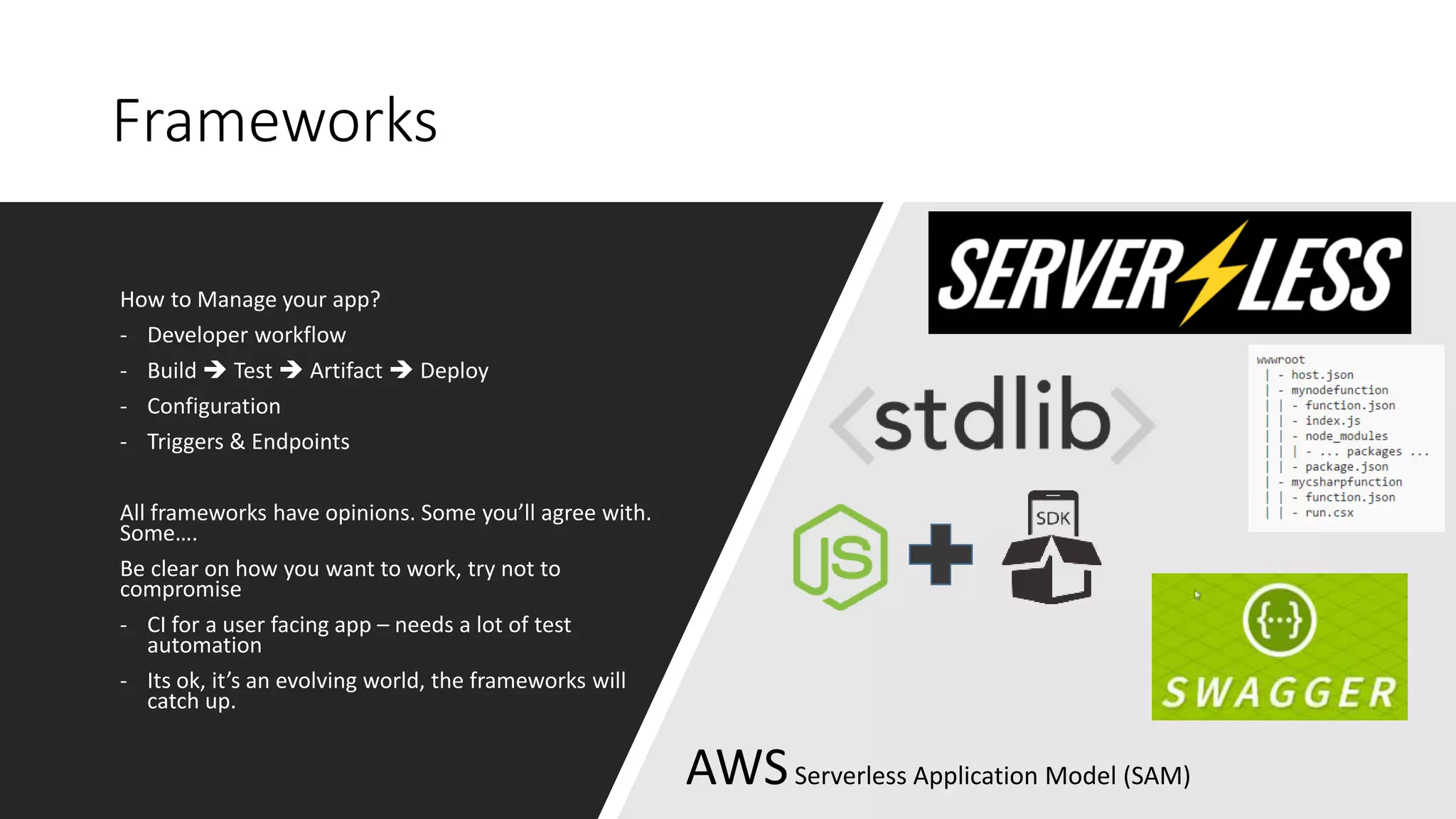

10. Frameworks
How to Manage your app?
- Developer workflow
- Build Test Artifact Deploy
- Configuration
- Triggers & Endpoints
All frameworks have opinions. Some you’ll agree with.
Some….
Be clear on how you want to work, try not to
compromise
- CI for a user facing app – needs a lot of test
automation
- Its ok, it’s an evolving world, the frameworks will
catch up.
AWSServerless Application Model (SAM)

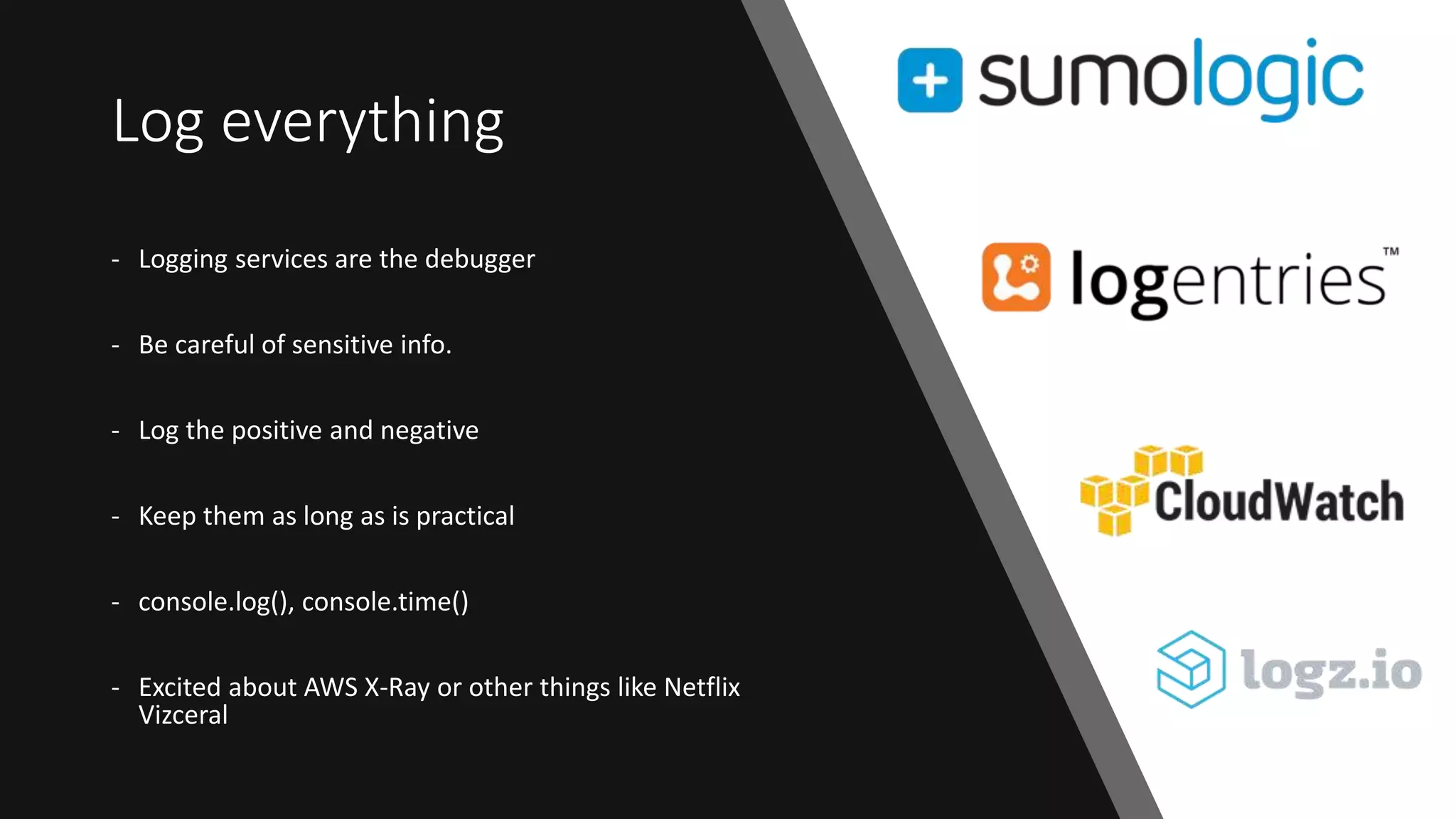

11. Log everything
- Logging services are the debugger
- Be careful of sensitive info.
- Log the positive and negative
- Keep them as long as is practical
- console.log(), console.time()
- Excited about AWS X-Ray or other things like Netflix
Vizceral

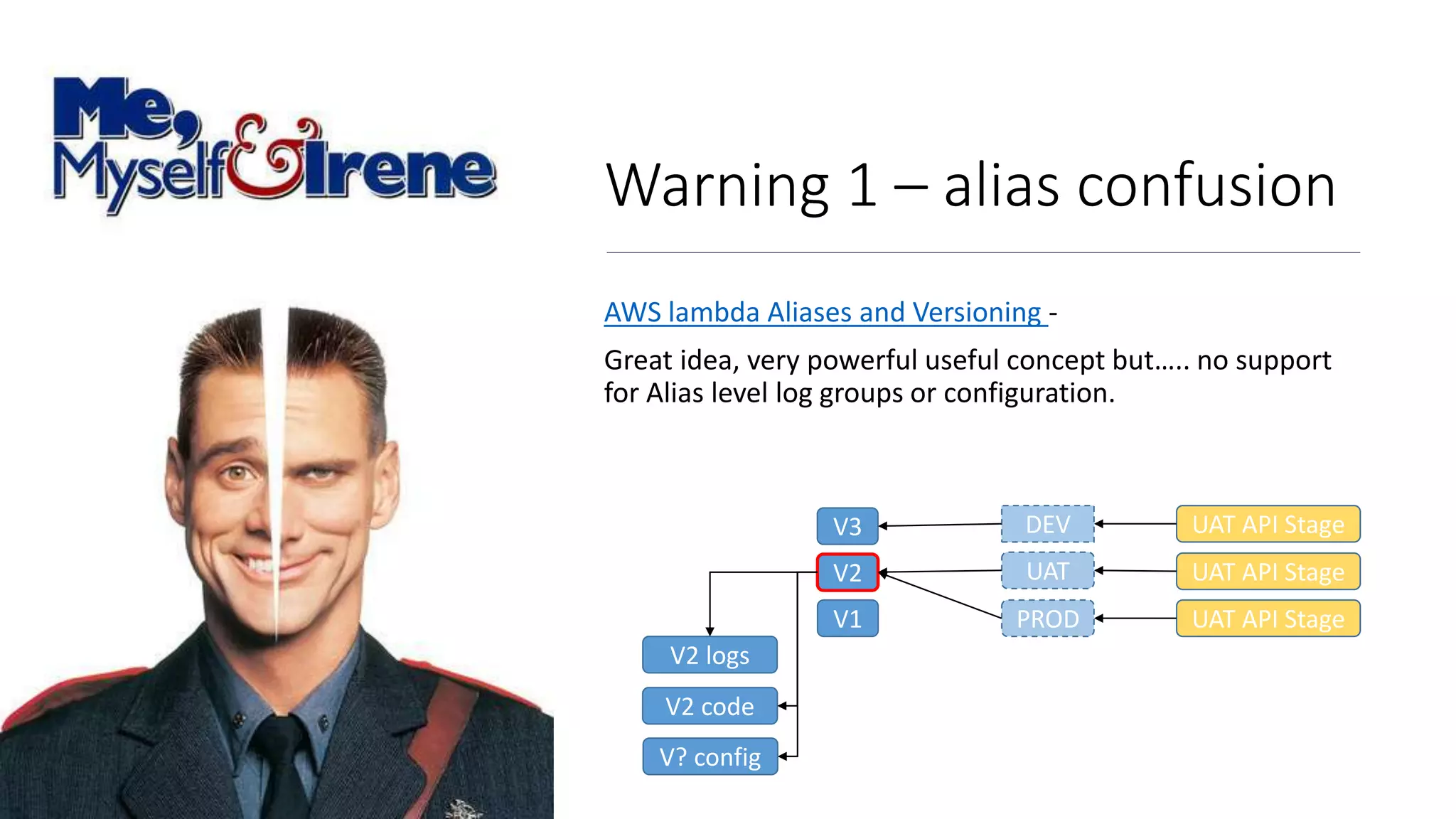

12. Warning 1 – alias confusion
AWS lambda Aliases and Versioning -
Great idea, very powerful useful concept but….. no support
for Alias level log groups or configuration.
V3
V2
V1
DEV
UAT
PROD
UAT API Stage
UAT API Stage
UAT API Stage
V2 logs
V2 code
V? config

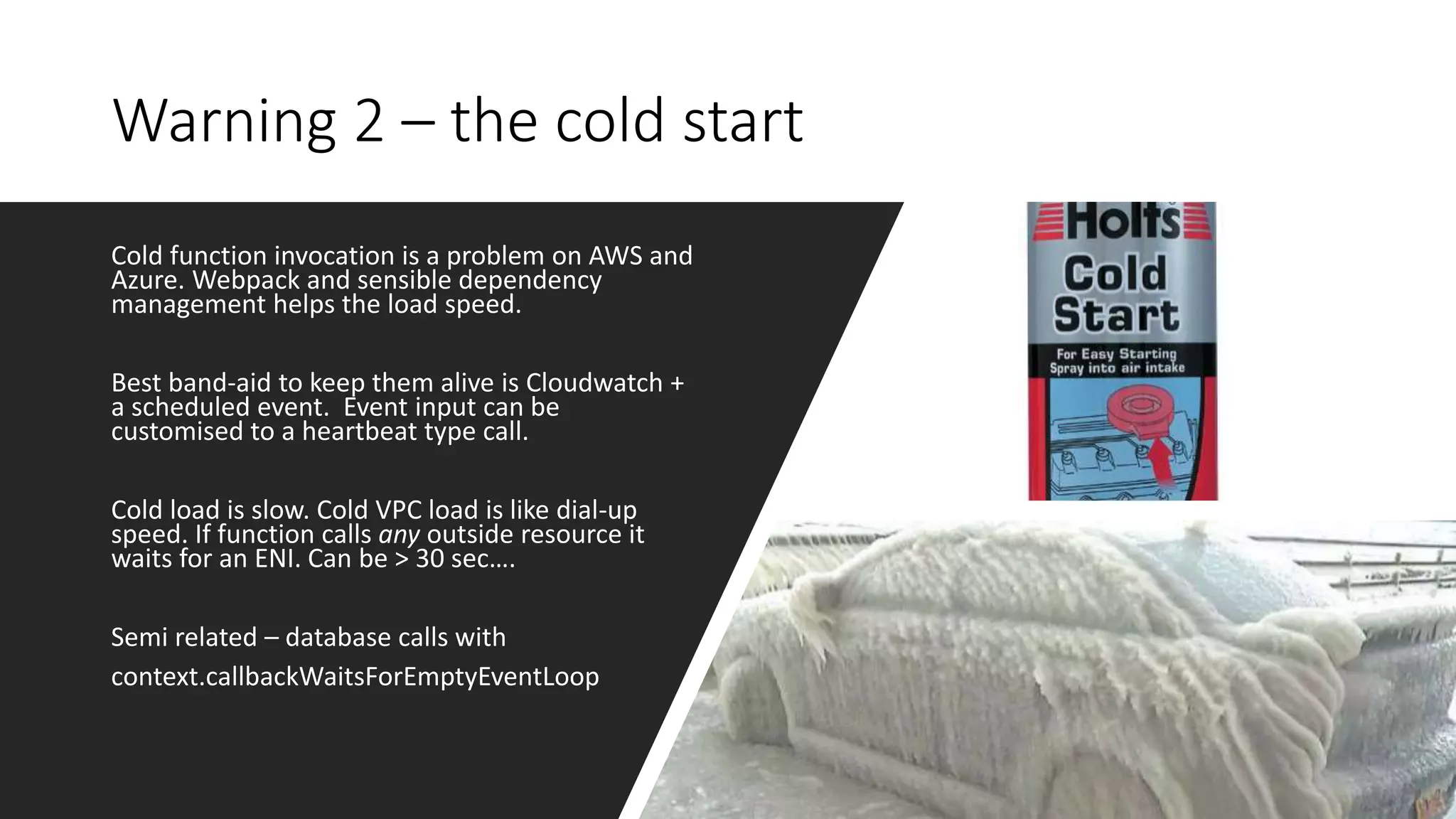

13. Warning 2 – the cold start
Cold function invocation is a problem on AWS and
Azure. Webpack and sensible dependency
management helps the load speed.
Best band-aid to keep them alive is Cloudwatch +
a scheduled event. Event input can be
customised to a heartbeat type call.
Cold load is slow. Cold VPC load is like dial-up
speed. If function calls any outside resource it
waits for an ENI. Can be > 30 sec….
Semi related – database calls with
context.callbackWaitsForEmptyEventLoop

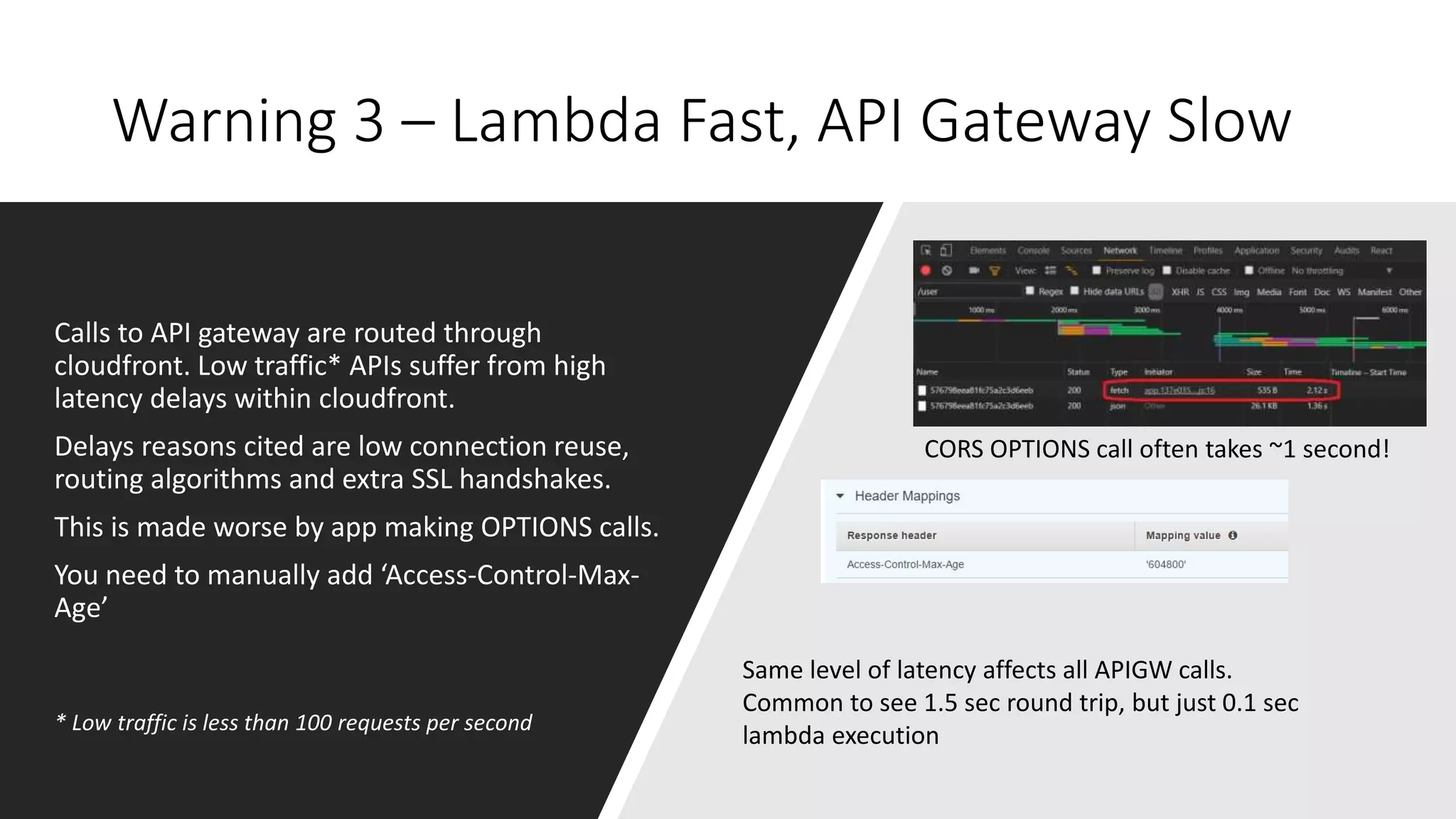

14. Warning 3 – Lambda Fast, API Gateway Slow
Calls to API gateway are routed through
cloudfront. Low traffic* APIs suffer from high
latency delays within cloudfront.
Delays reasons cited are low connection reuse,
routing algorithms and extra SSL handshakes.
This is made worse by app making OPTIONS calls.
You need to manually add ‘Access-Control-Max-
Age’
CORS OPTIONS call often takes ~1 second!
* Low traffic is less than 100 requests per second
Same level of latency affects all APIGW calls.
Common to see 1.5 sec round trip, but just 0.1 sec
lambda execution
15. Top 3 Integrations
Fastly - Consider a better CDN
Auth0 - Authenticate with anything…
Segment – Integrate with anything
Real-time CDN lets you purge content near
instantly - less than 150ms!
Cache API responses
One integration to rule them all…
Developer first, anything is possible

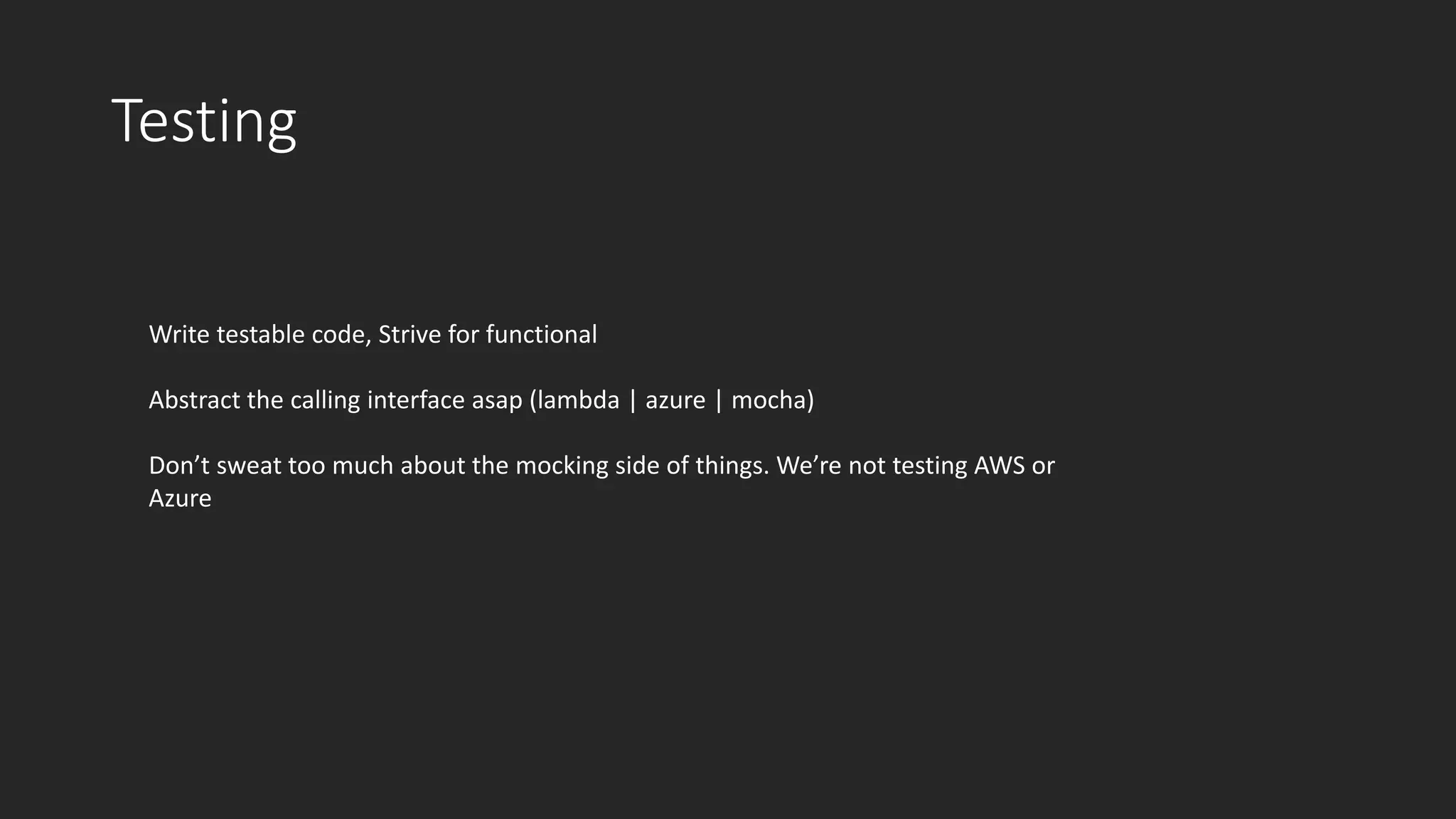

16. Testing
Write testable code, Strive for functional
Abstract the calling interface asap (lambda | azure | mocha)
Don’t sweat too much about the mocking side of things. We’re not testing AWS or
Azure

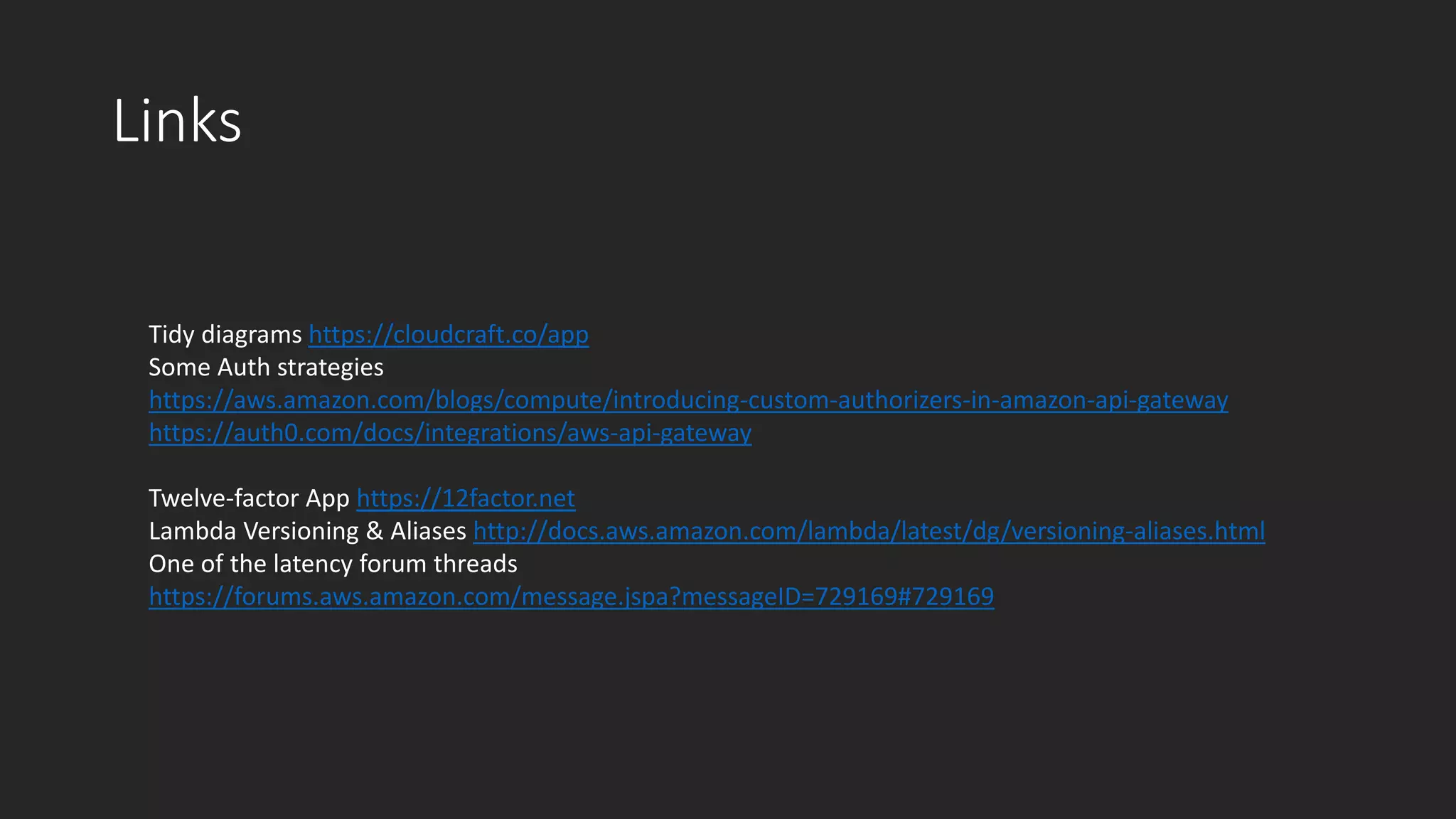

17. Links
Tidy diagrams https://cloudcraft.co/app
Some Auth strategies
https://aws.amazon.com/blogs/compute/introducing-custom-authorizers-in-amazon-api-gateway
https://auth0.com/docs/integrations/aws-api-gateway
Twelve-factor App https://12factor.net
Lambda Versioning & Aliases http://docs.aws.amazon.com/lambda/latest/dg/versioning-aliases.html
One of the latency forum threads
https://forums.aws.amazon.com/message.jspa?messageID=729169#729169
Story of running your app;
Dedicated machines hosted machines on demand provisioning scripts auto scaling & load balancing??? infrastructure as code Docker Docker as a service just my code!!!!???

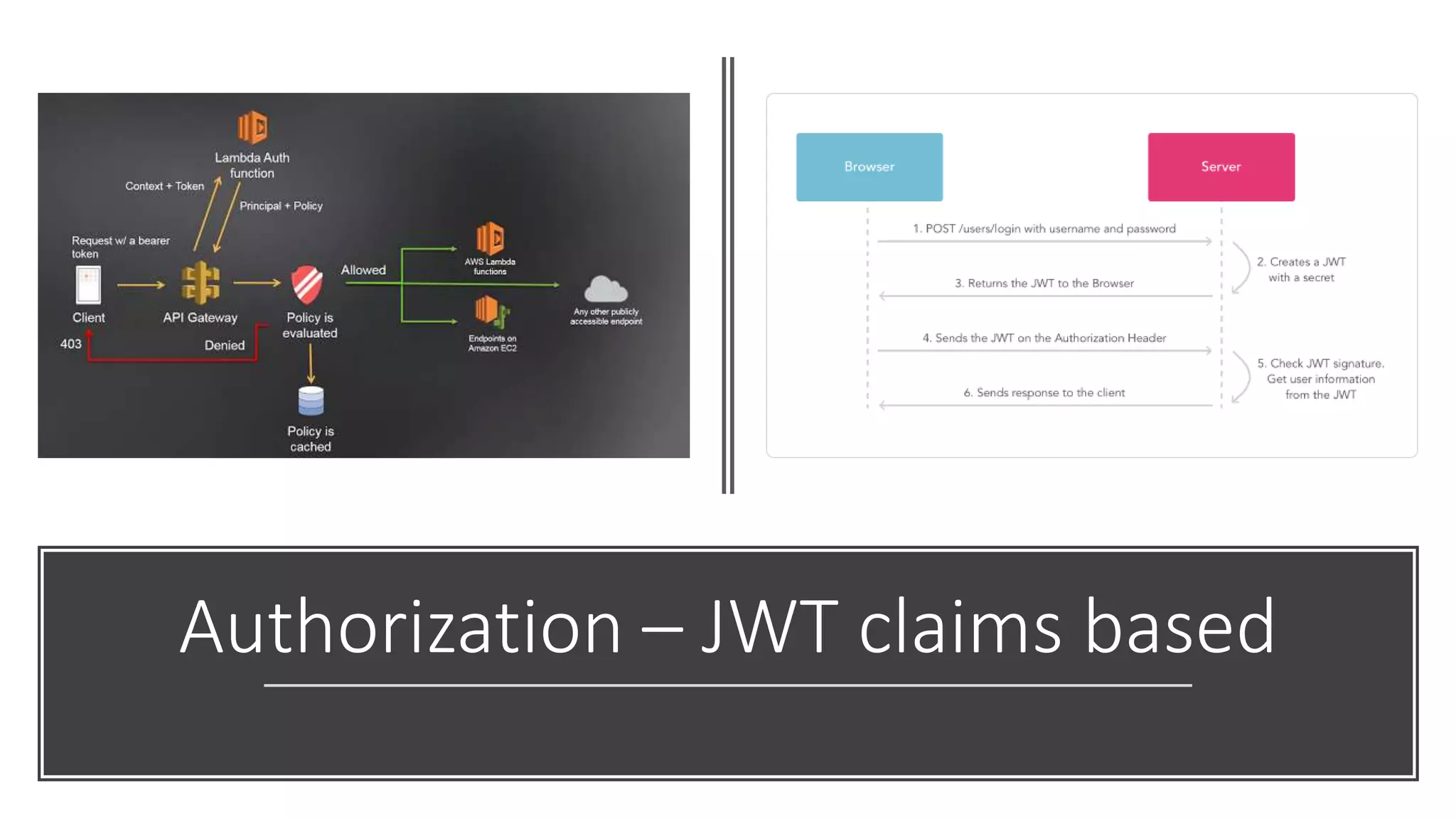

API authorization via custom lambda, JWT, generate user specific policy
Web app is React-Redux, webpack
Nice diagramming - https://cloudcraft.co/app
New products, young company. You need to focus on building something useful, focus on finding something useful. Don’t get distracted by developers making problems
https://stockfresh.com/image/6706947/concentrated-software-developer-eating-pizza-and-coding
New products, young company. You need to focus on building something useful, focus on finding something useful. Don’t get distracted by developers.
Must be able to send any build to any environment
Can rollback.
Working in teams vs deploy from your machine?
Release approvals?
Distributed teams?
AB testing?
Currently on log entries, looking at logz.io
You’ll quickly outgrow cloudwatch or azure logs.
Logs = errors, activity, anomalies, baseline performance
Immutable versions – great idea. Instant rollbacks. Confidence in ‘what’s in there will work’
Instant deploys – just sway an alias to point from V1 to V2
The split brain lambda instance. Who am I? We pulled config from S3 and cached it in a global var.
Separate config per invoked ARN. Invoked as ‘PROD’, apply the prod config, continue. It was messy.
Problem still there with env vars. Would need to load all vars. That leads to named environments etc
In the end having production and and UAT going to sale cloudwatch log stream was just too messy. We abandoned it and now deploy an entire lambda per environment.
If your function is directly responding to a user consider keeping them alive.
If in VPC, it’s essential.
Azure has classic deployment mode. Seems a step backwards. We have generic a generic ‘keep alive’ function
Semi-related if making a database connection experiment with context.callbackWaitsForEmptyEventLoop
With Sequalize and some other libs, this setting can cause the lambda to wait for the connection to time out even though you have your response already. One connection, short timeout, don’t wait.
Double latency - https://forums.aws.amazon.com/message.jspa?messageID=729169#729169
AWS have discussed making Cloudfront part optional for small low volume APIs
Double latency - https://forums.aws.amazon.com/message.jspa?messageID=729169#729169
CDN behaviour is very important to the static app, and becoming so for APIs. More locations, faster purging or invalidating. Controlling response headers
Realtime API can cache app reference data and dramatically reduce load times to get your app running sooner. GETs, OPTIONS
Auth0: Super flexible platform, Extendable through webtasks, You name it - they support it, Very responsive & helpful support. Cost effective.
Segment – So many tools, so many script bundles. Marketing and experimentation teams have shifting opinions and demands. Put on one integration. Back end, front end, your partner services all sending to one stream.
Serverless work in progress;
- Step functions for file processing
- Two-way notifications over websockets and IoT topics
