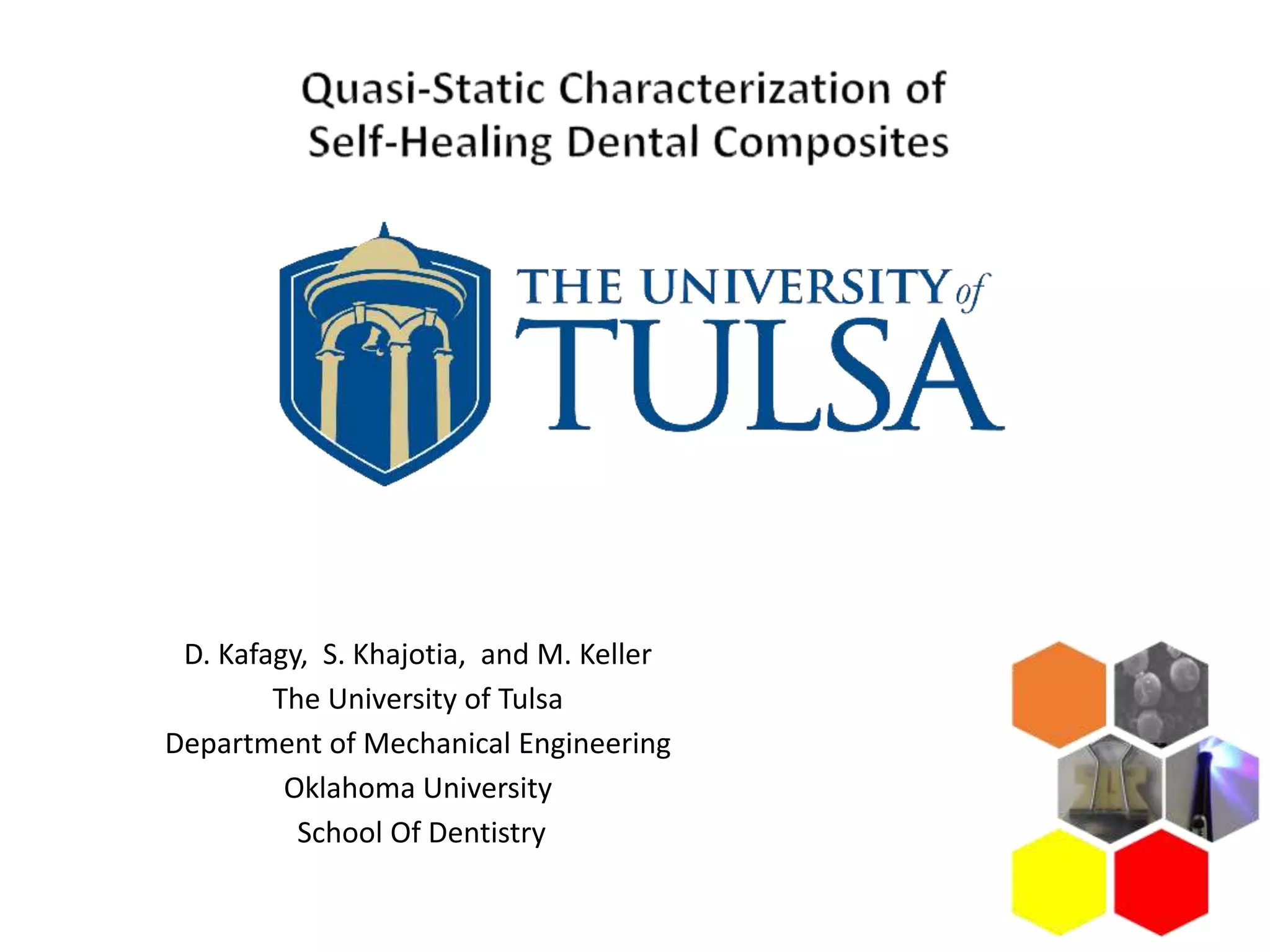

1. D. Kafagy, S. Khajotia, and M. Keller
The University of Tulsa
Department of Mechanical Engineering
Oklahoma University
School Of Dentistry

2. Introduction
2
Blausen gallery 2014
Sectional
Anatomy of
Human Teeth
1st Molar

3. Outline
3
Motivation & Significance
Research Aims
Research Approach
Experimental & FEA Methods
Results
Conclusions

4. Research Aims
Synthesis self-healing dental
resin composites
Characterization of self-healing
dental composites using quasi-
static and fatigue tests
Development and validation a
new testing specimen
4

5. Motivation and Significance
5
Amalgam filling
1830
Resin based dental
composites filling
1990-2000
Synthetic resins used as
restorative or adhesives

6. Motivation and Significance
6
Restoration Failure
Thermal
Stresses
Hot/Cold
PH changes
& Humidity
Crack initiation
& Propagation
(5-2500) N
Chewing
Cyclic load
Restoration Failure
Additional dental procedures & cost

7. Dental Composites
Dental resin composites
Polymer matrix : Bis-GMA, & other
Monomers
Reinforcement: Filler material (silica)
A photo initiator
50-80%
Reinforcement
Matrix
7

8. Self-Healing Technology using microcapsules
8
Self-Healing in resin based
dental composites
Physical
Energy
Chemical
Response
Physical
Response
8

9. Making of healing microcapsules
Microcapsules
Diameter range
(50-60) µm
9
Activator (resin)
Initiator (BPO)
Emulsion
Process
9

10. Experimental & FEA
Finite element analysis (FEA)
Dental resin composites
Miniatures of tapered doubled
cantilever beam (TDCB)
Quasi-static & fatigue tests
Healing microcapsules
10

11. Why cTDCB Specimens
11
 cTDCB specimen has independent crack length
 As the crack propagate the specimen width getting wider
 dc/da = constant
Experimental testing of the
compliances at several crack
lengths of the cTDCB

12. FEA of the cTDCB
12

13. Quasi-Static Test of Dental Composites Specimens
13
Load frame and specimens grips
Tensile load were applied to the specimens
LabVIEW virtual program was used to control the test

14. Types of Self-healing Specimens (Tested)
14
Pure dental composites
Injected healed- of pure dental composites
Virgin in-situ dental composites with 5% microcapsules
Healed in-situ dental composites with 5%
microcapsules

15. Control specimen healing (injection)
15
Pure dental composites (No microcapsules)
Injected with healing components in fluid form (activator &
initiator)
The injected specimens were kept under water for 24 hours
The healed specimens were tested again

16. In-situ specimen (self-healing)
16
Dental composites with microcapsules
Healing components in (activator & initiator)
microcapsules
The in-situ specimens were kept under water for 24 hours
The self-healed specimens were tested again

17. 0
10
20
30
40
50
60
70
80
0.0
0.1
0.2
0.2
0.3
0.4
0.4
0.5
0.6
0.7
0.7
0.8
0.9
0.9
1.0
1.1
1.2
1.2
1.3
1.4
1.4
1.5
Virgin pure dental composite
Injected healed
Virgin in-situ
Healed in-situ
Displacement (mm)
Load(N)
Results of the Quasi-Static Test

18. Conclusions
cTDCB specimens suitable for our research because of the crack length independency
and low cost.
The addition of 5 wt% microcapsules to the dental composite served to increase the
virgin toughness by 40%.
18

19. Conclusions
The in-situ self-healing of a dental composite using microcapsules was successfully
demonstrated
The measured healing efficiency in the in-situ self-healing specimens were in range of
10.31% to 36.62%.
19

20. Future Work
Fatigue test of resin dental composite using healing control and in-situ.
Optimization of size and percentage of self-healing microcapsules with dental
composites.
Characterization of self-healing dental material under various clinical conditions
FEA of self-healing dental composites and molar teeth
20

21. Acknowledgment
21

22. 22
