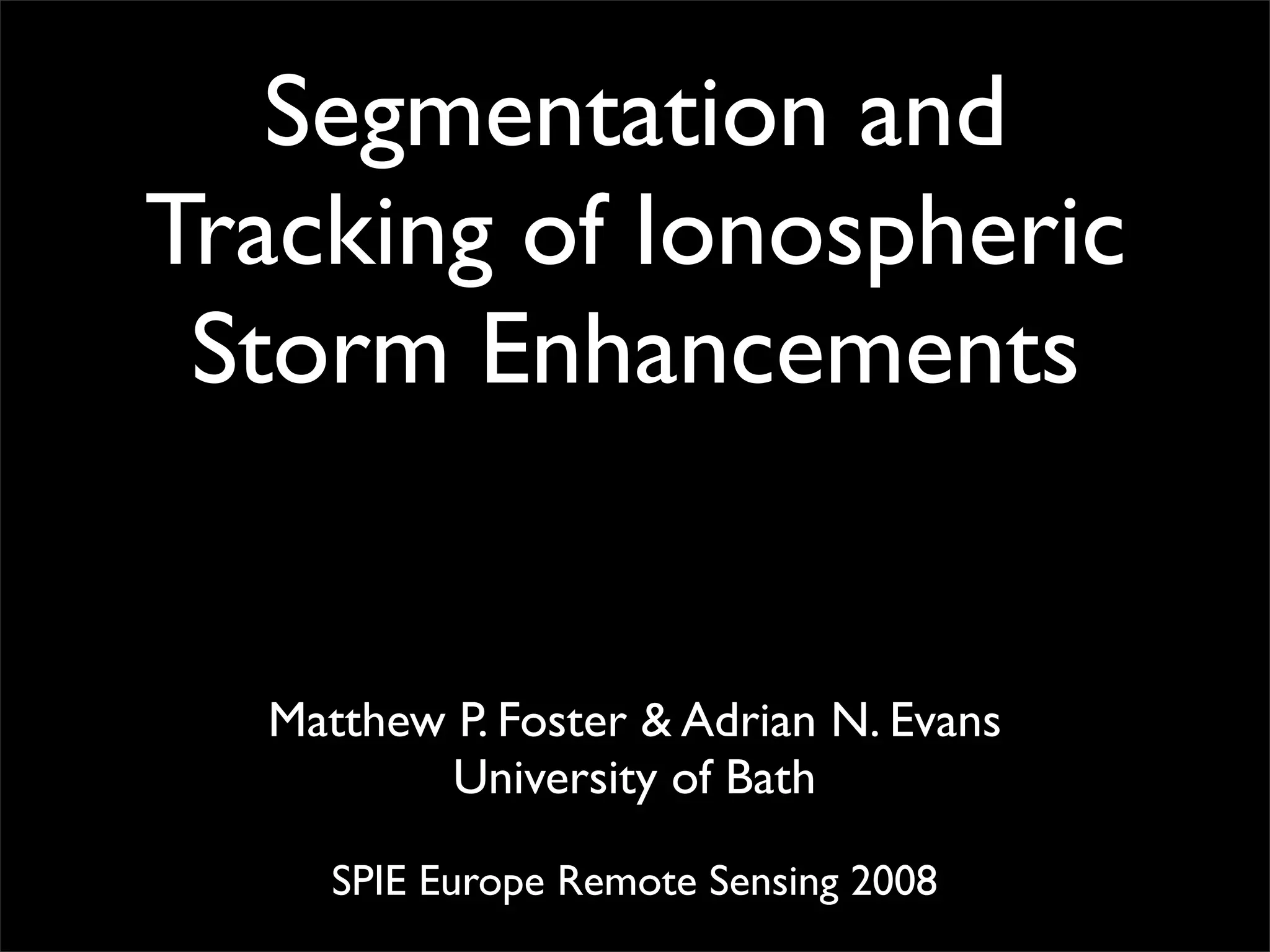

SlideShare a Scribd company logo
1 of 34
Download to read offline
Segmentation and
Tracking of Ionospheric
 Storm Enhancements


  Matthew P. Foster  Adrian N. Evans
          University of Bath

     SPIE Europe Remote Sensing 2008

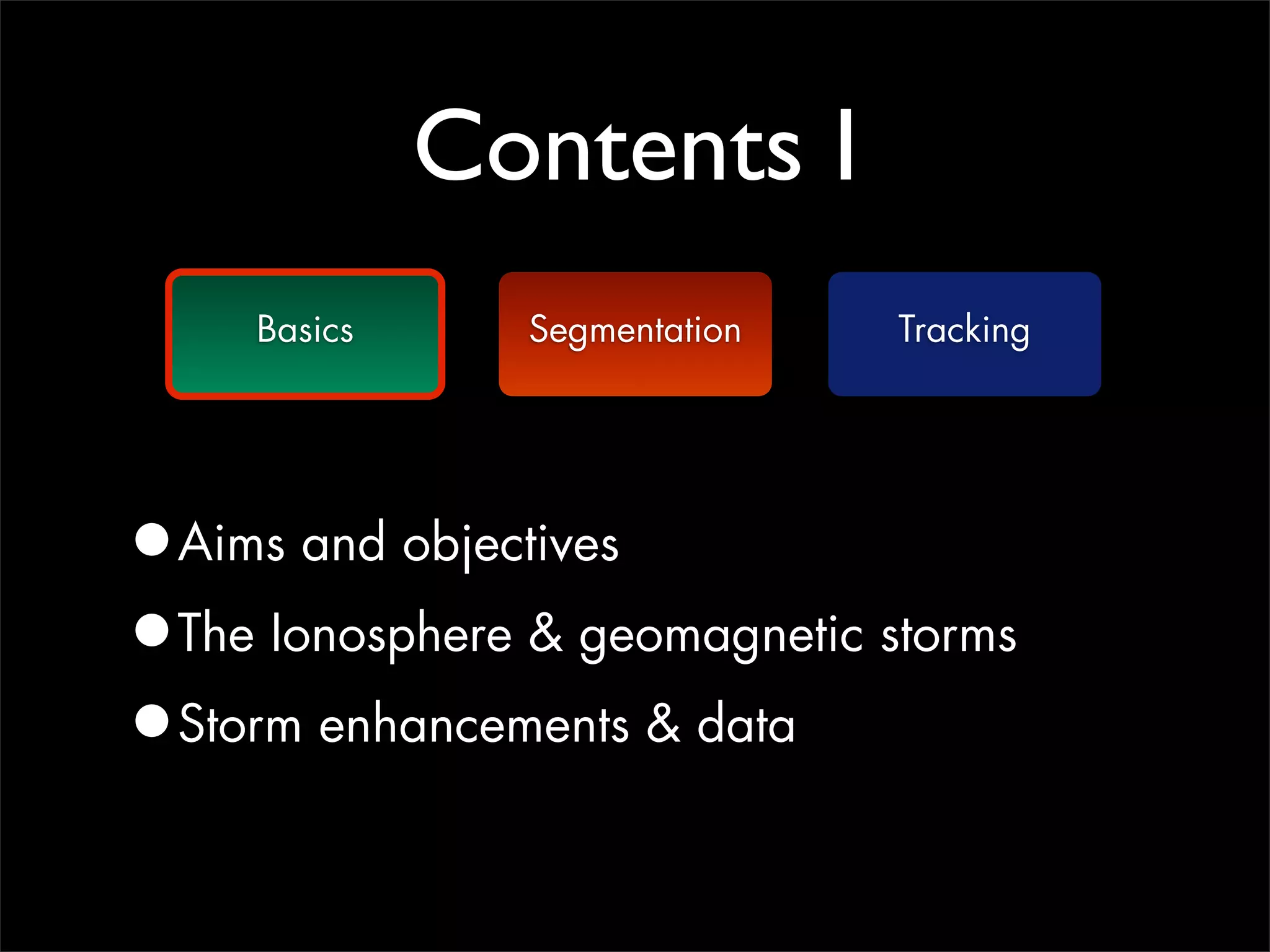

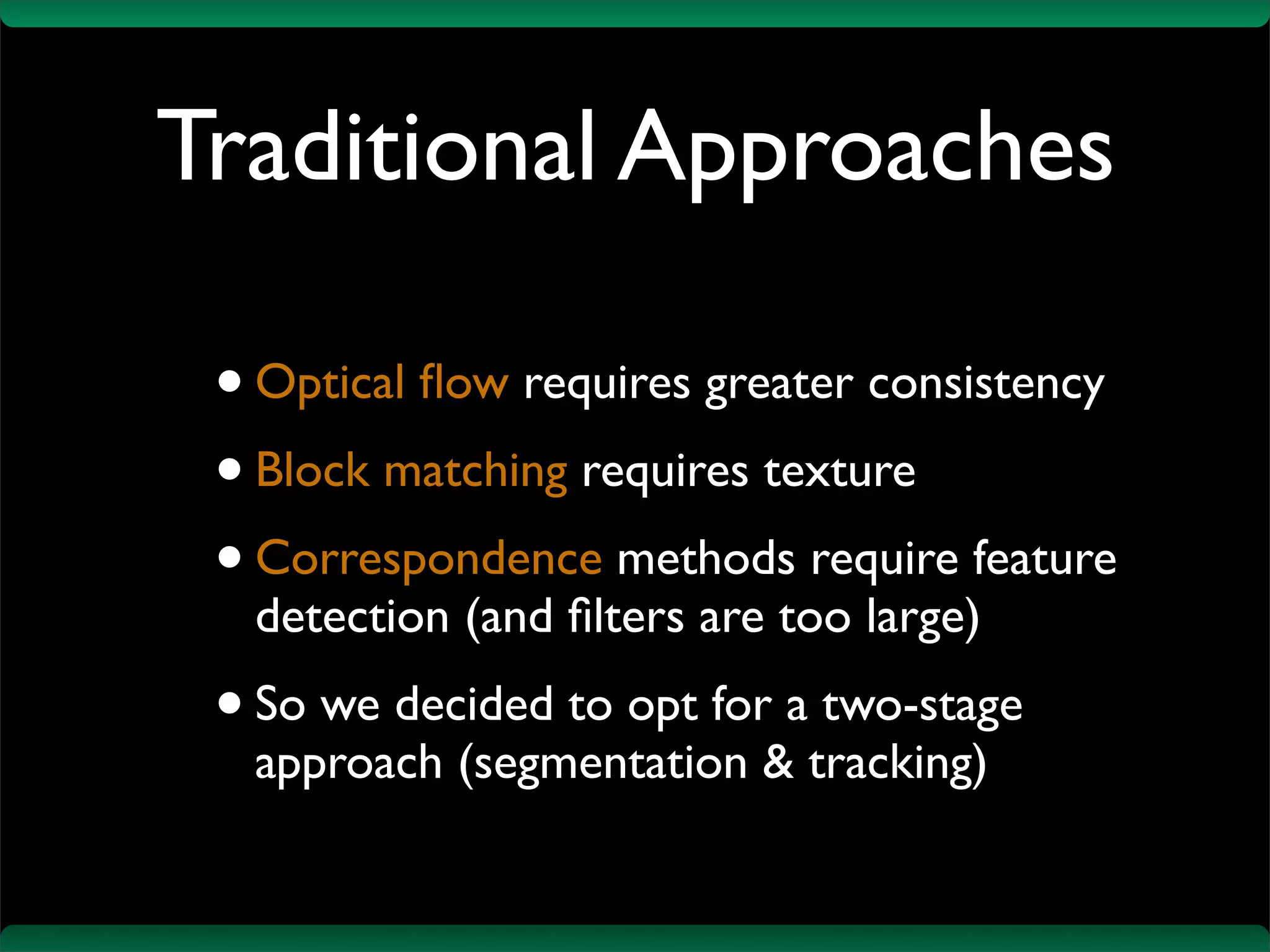

Contents I
     Basics     Segmentation   Tracking

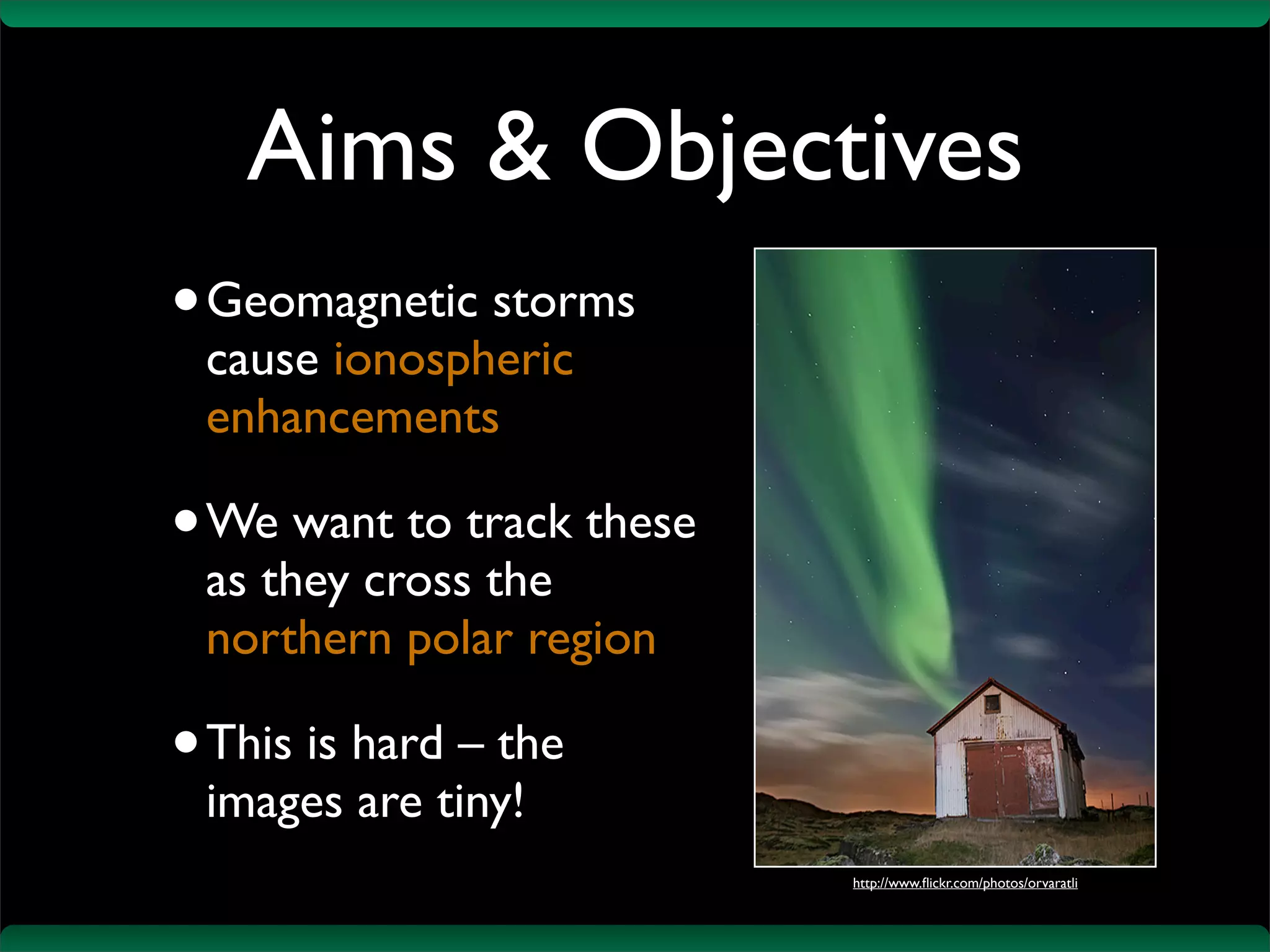

•Aims and objectives

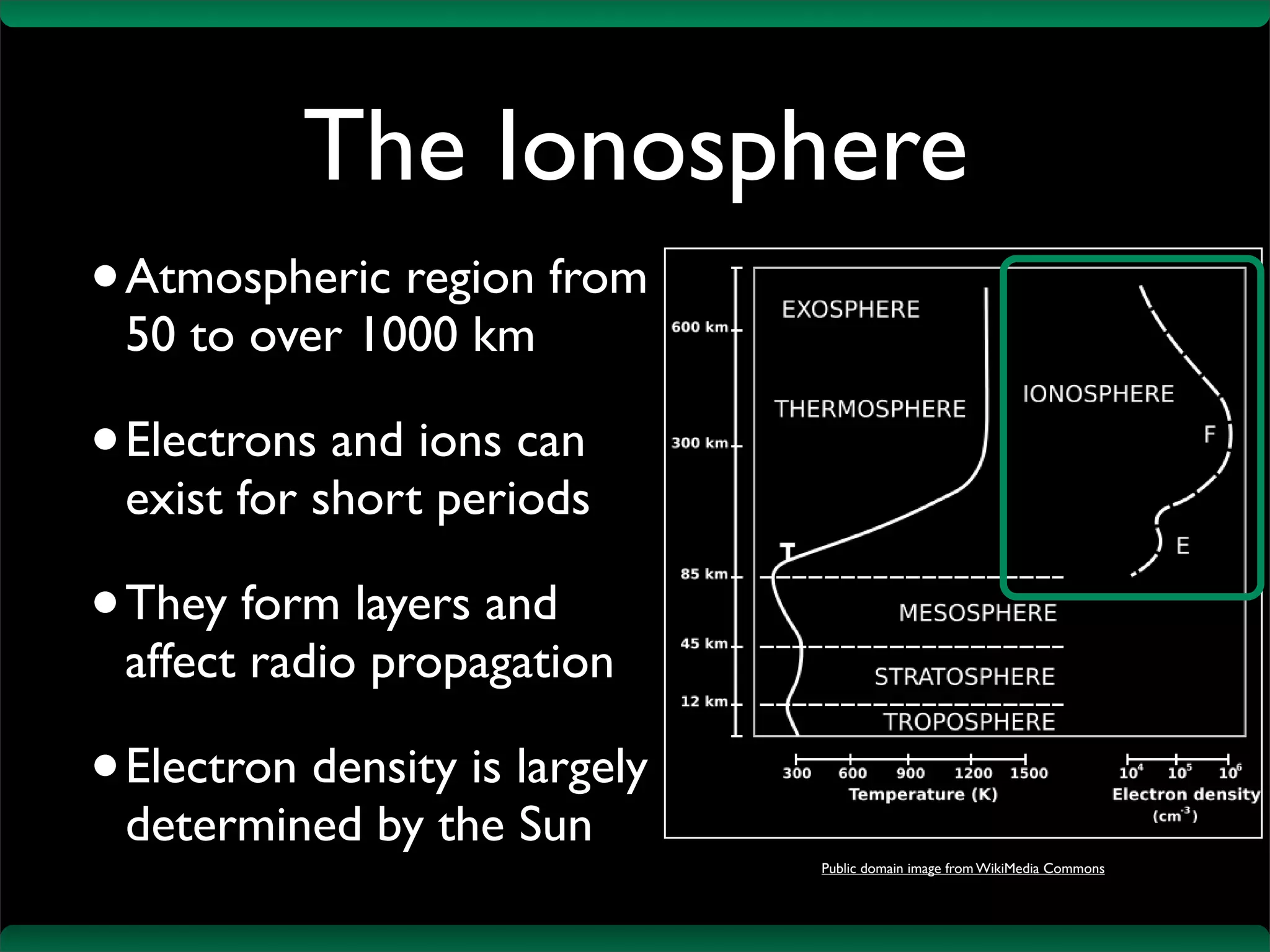

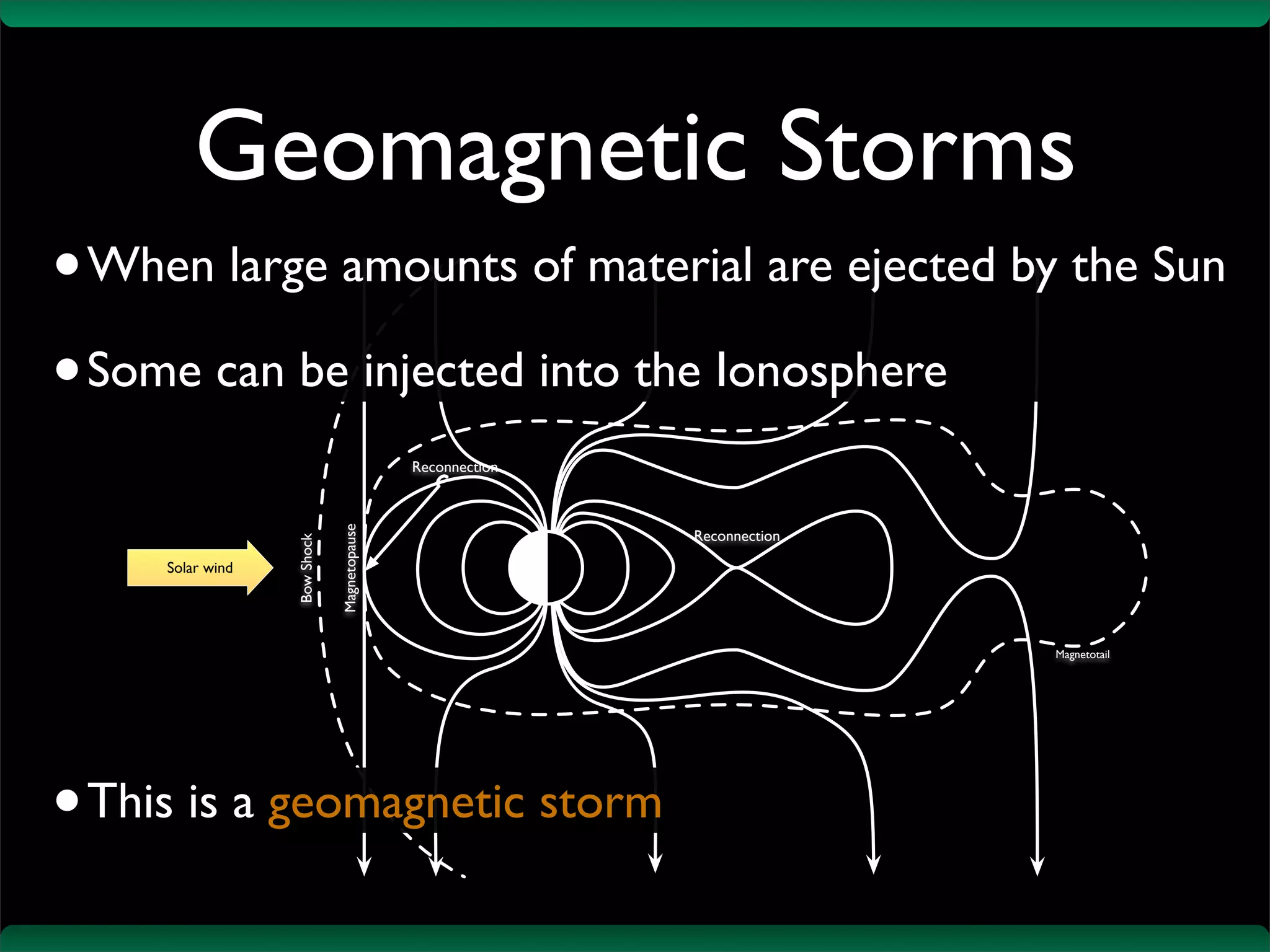

•The Ionosphere  geomagnetic storms

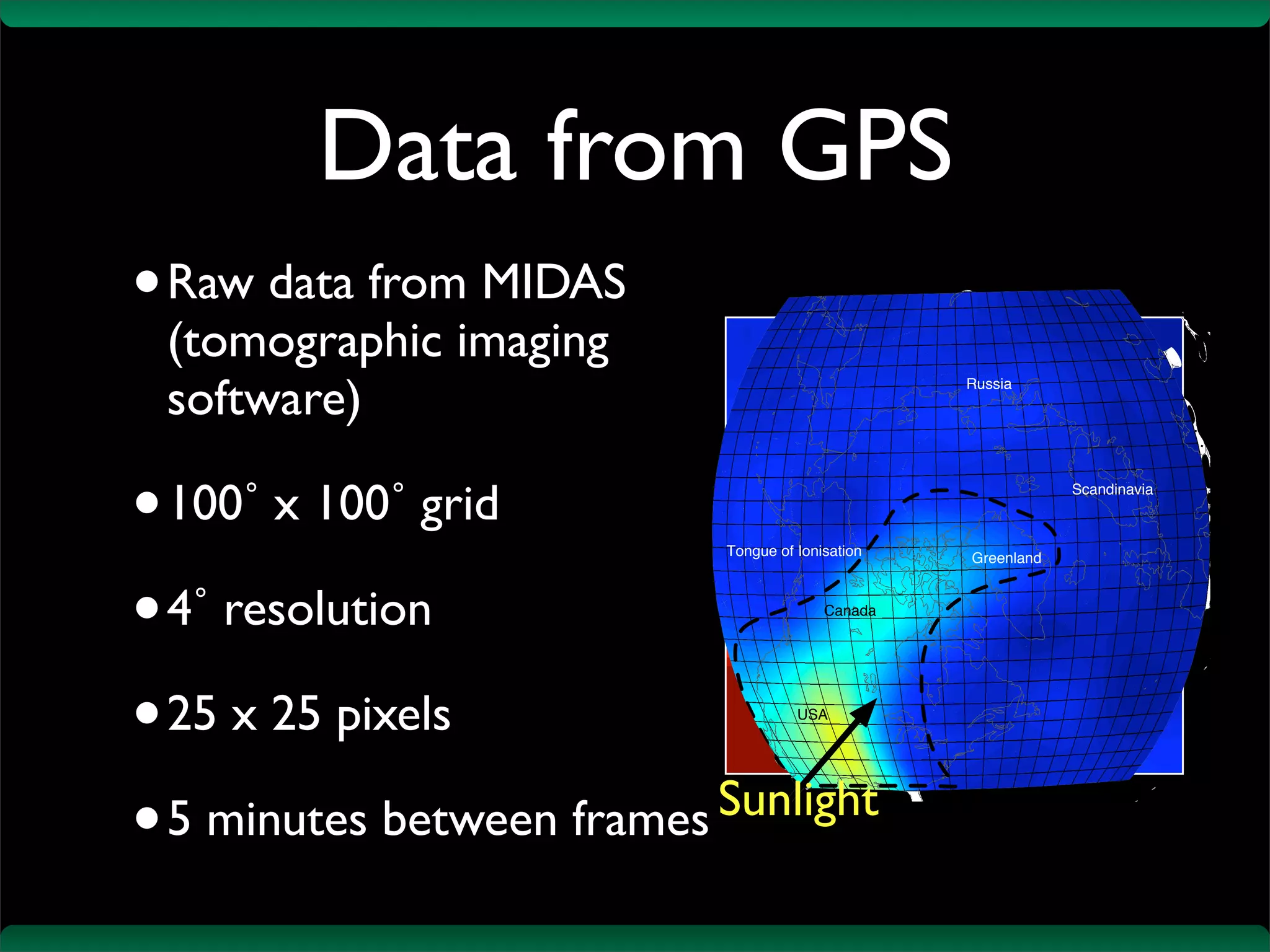

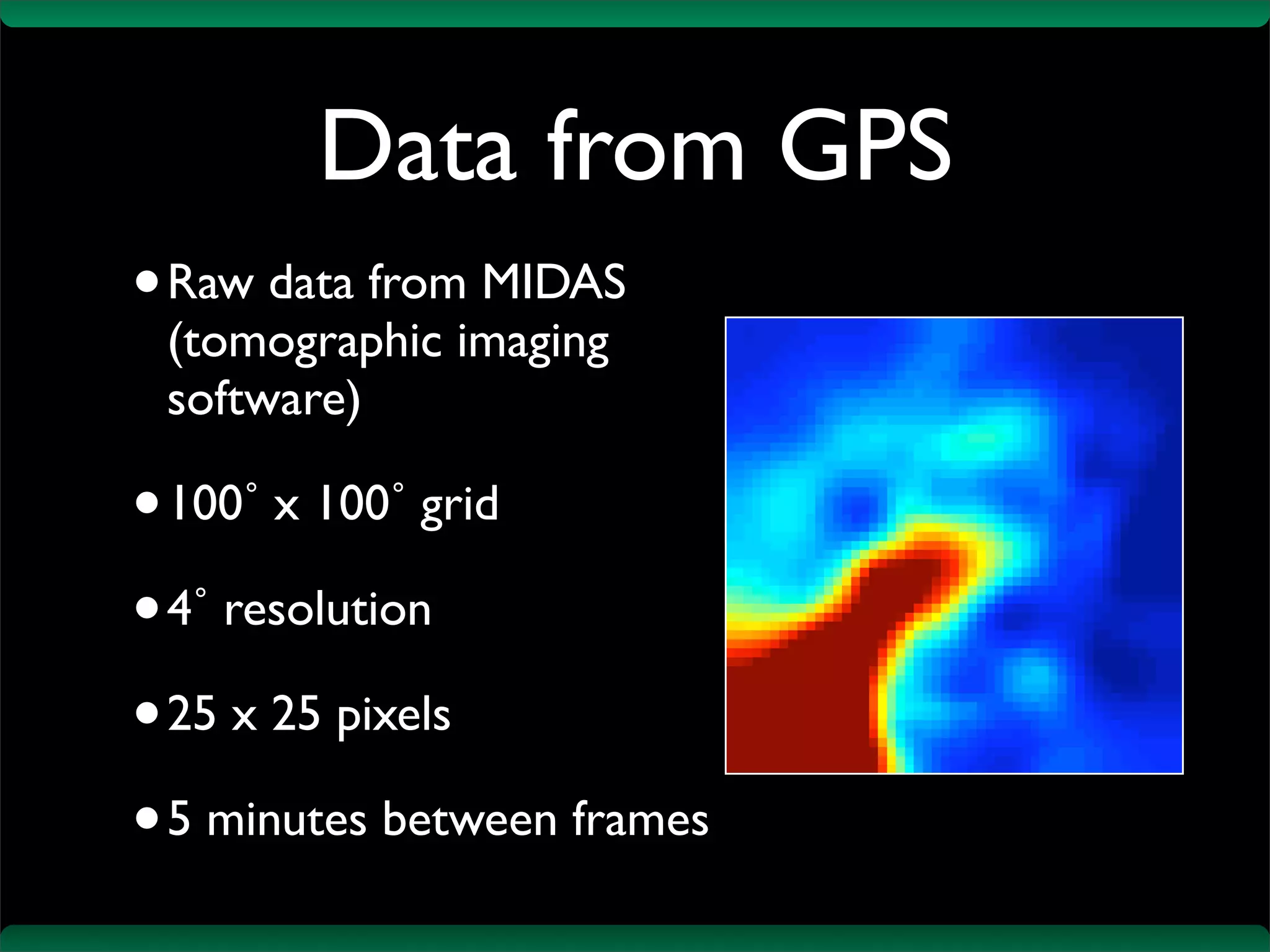

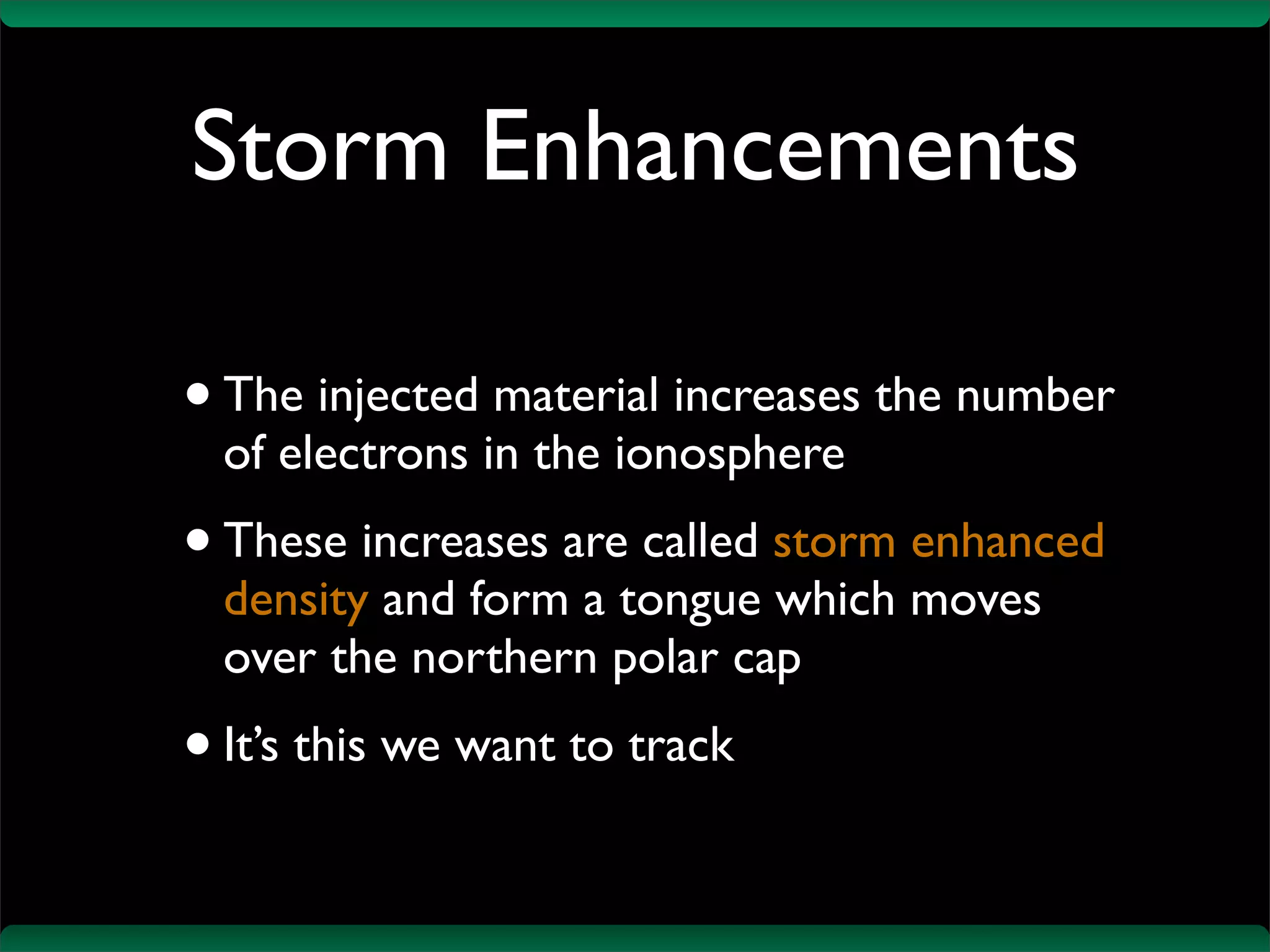

•Storm enhancements  data
Contents II
     Basics      Segmentation   Tracking

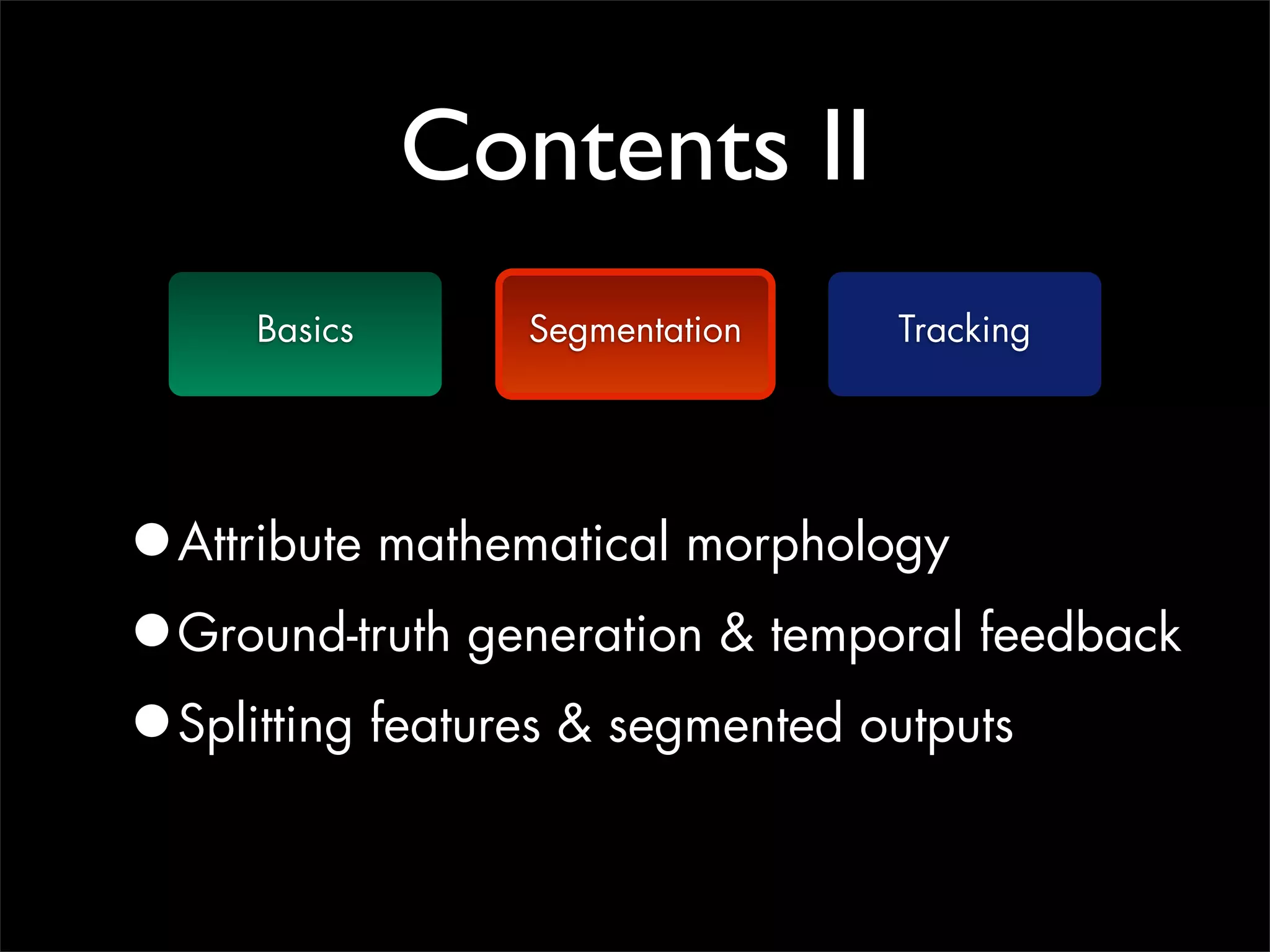

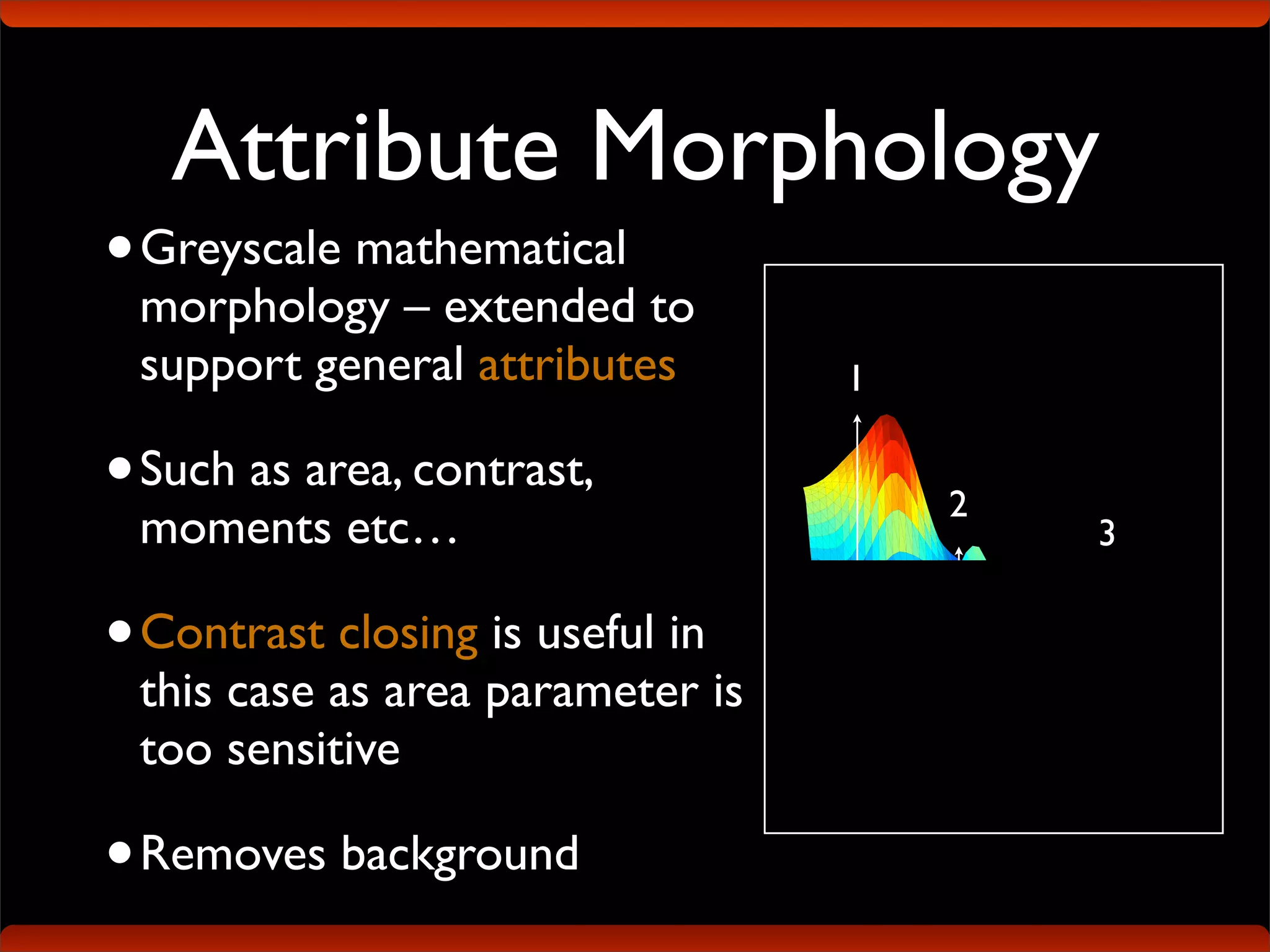

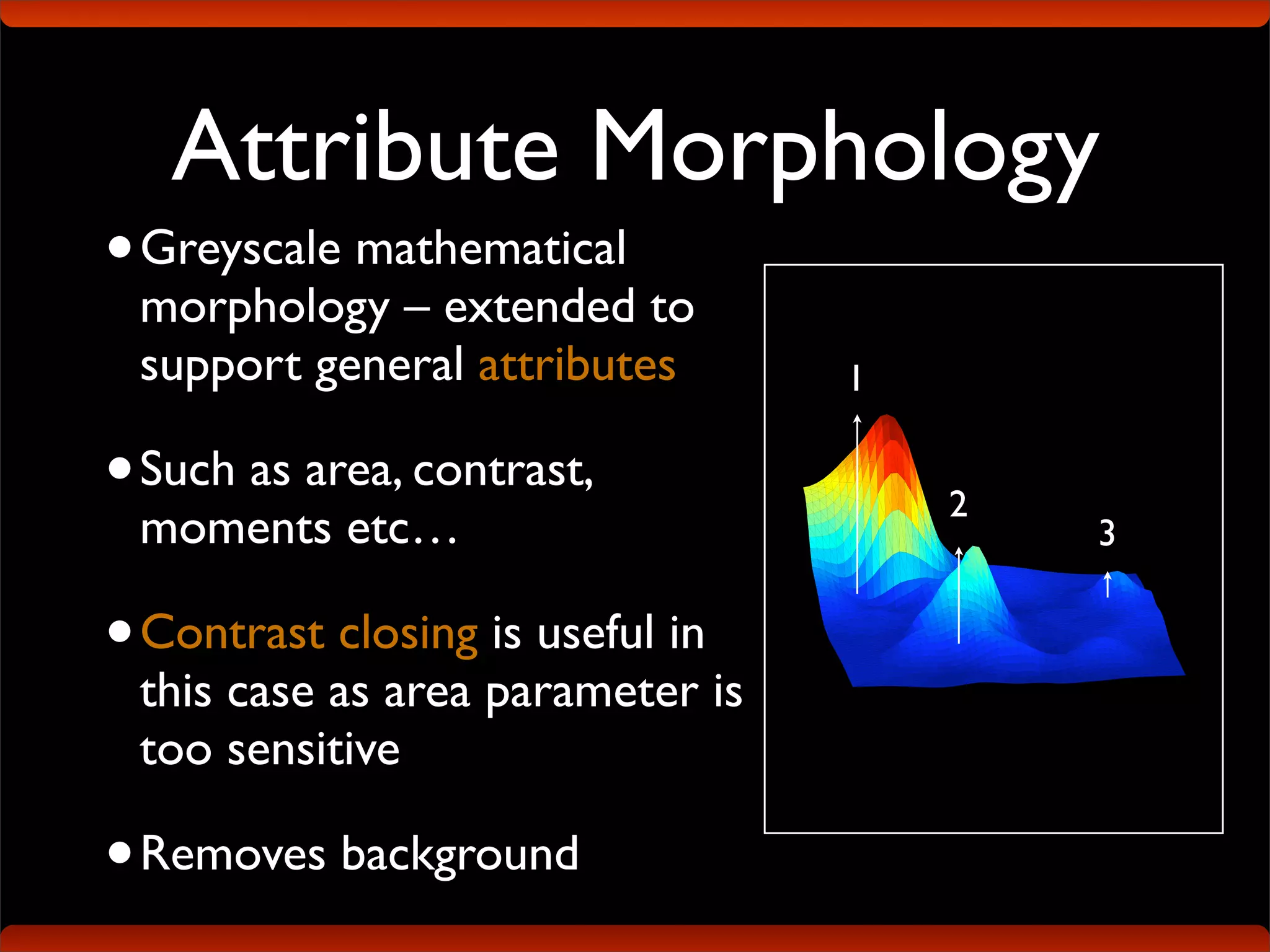

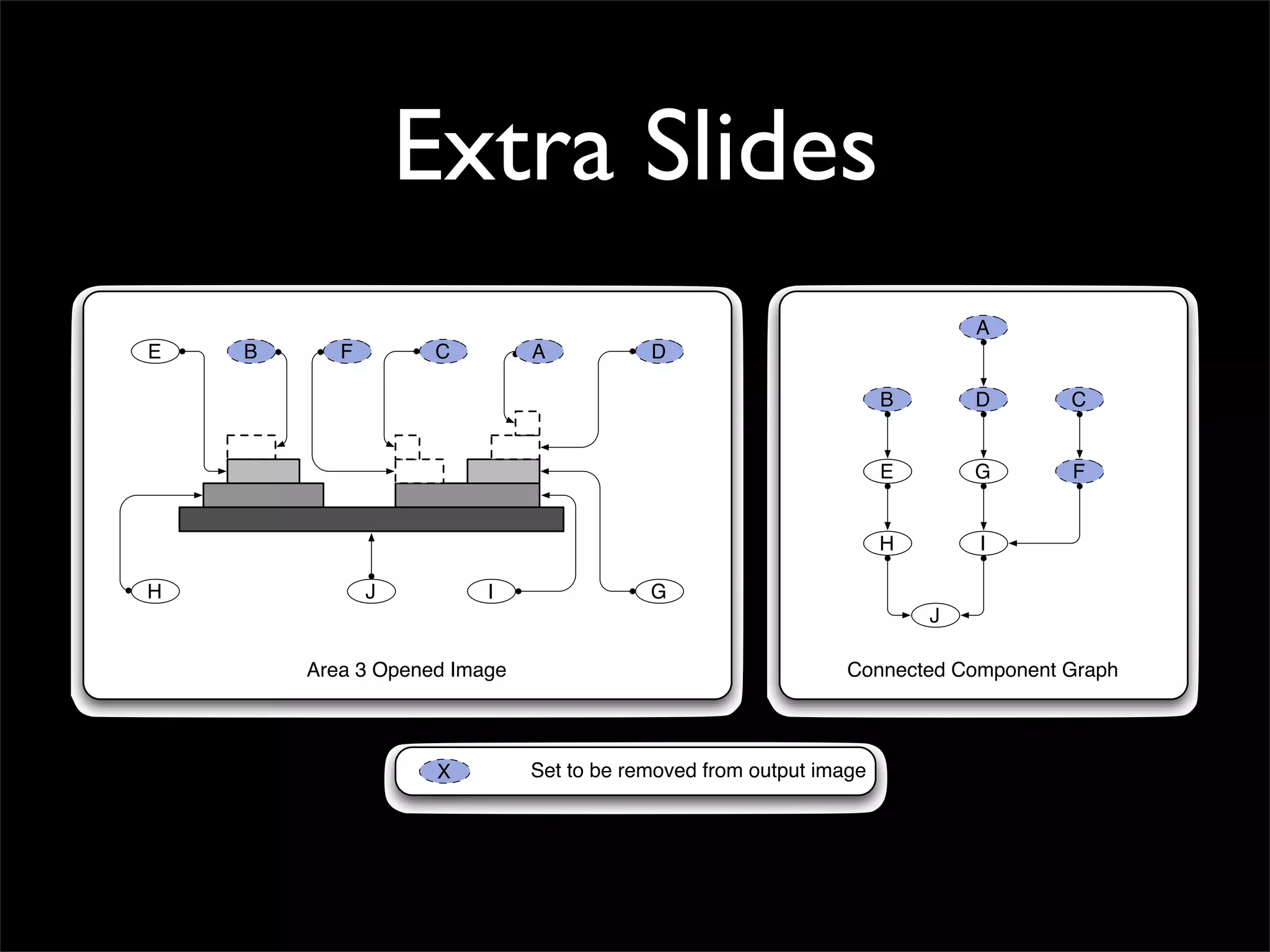

•Attribute mathematical morphology

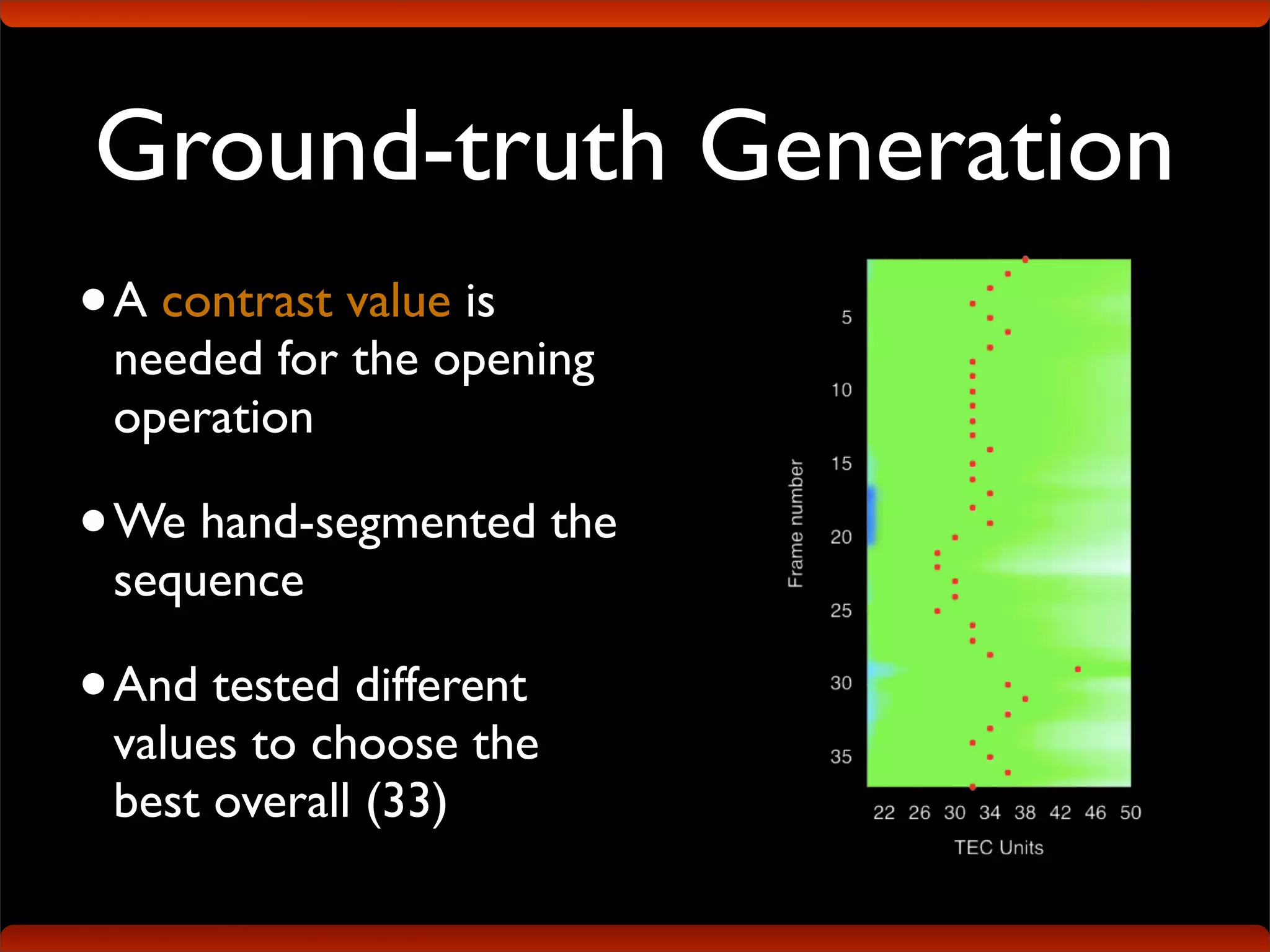

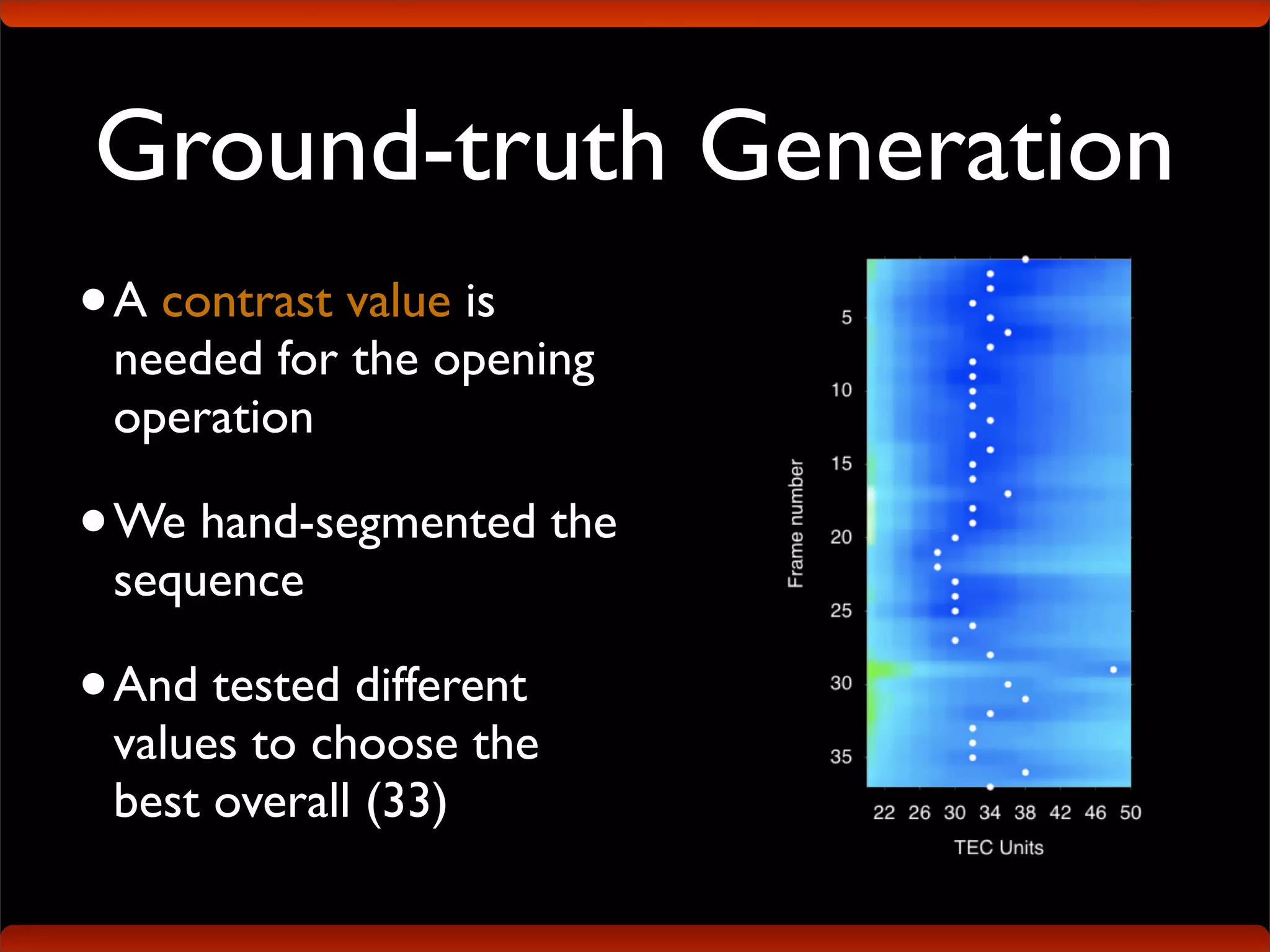

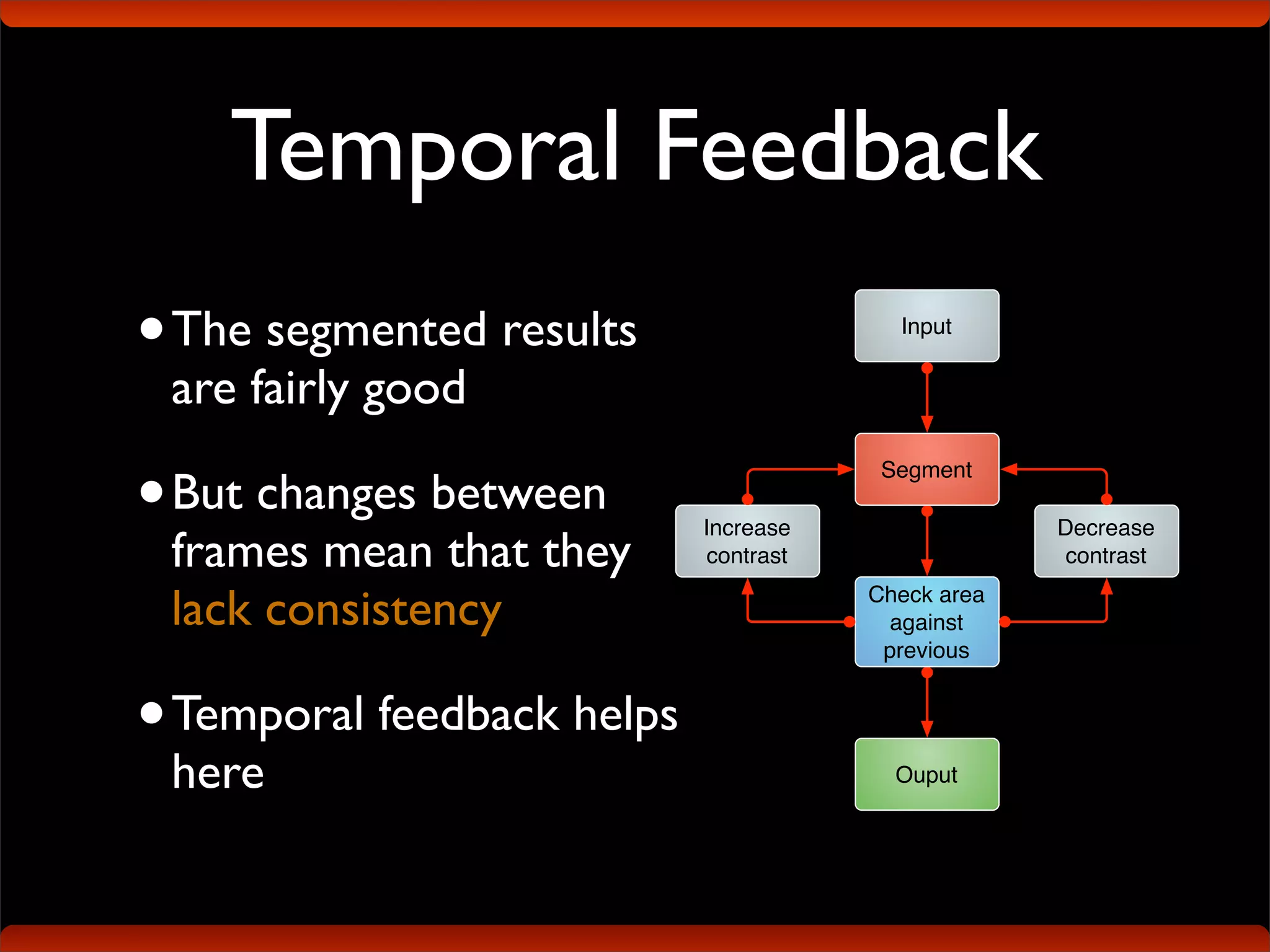

•Ground-truth generation  temporal feedback

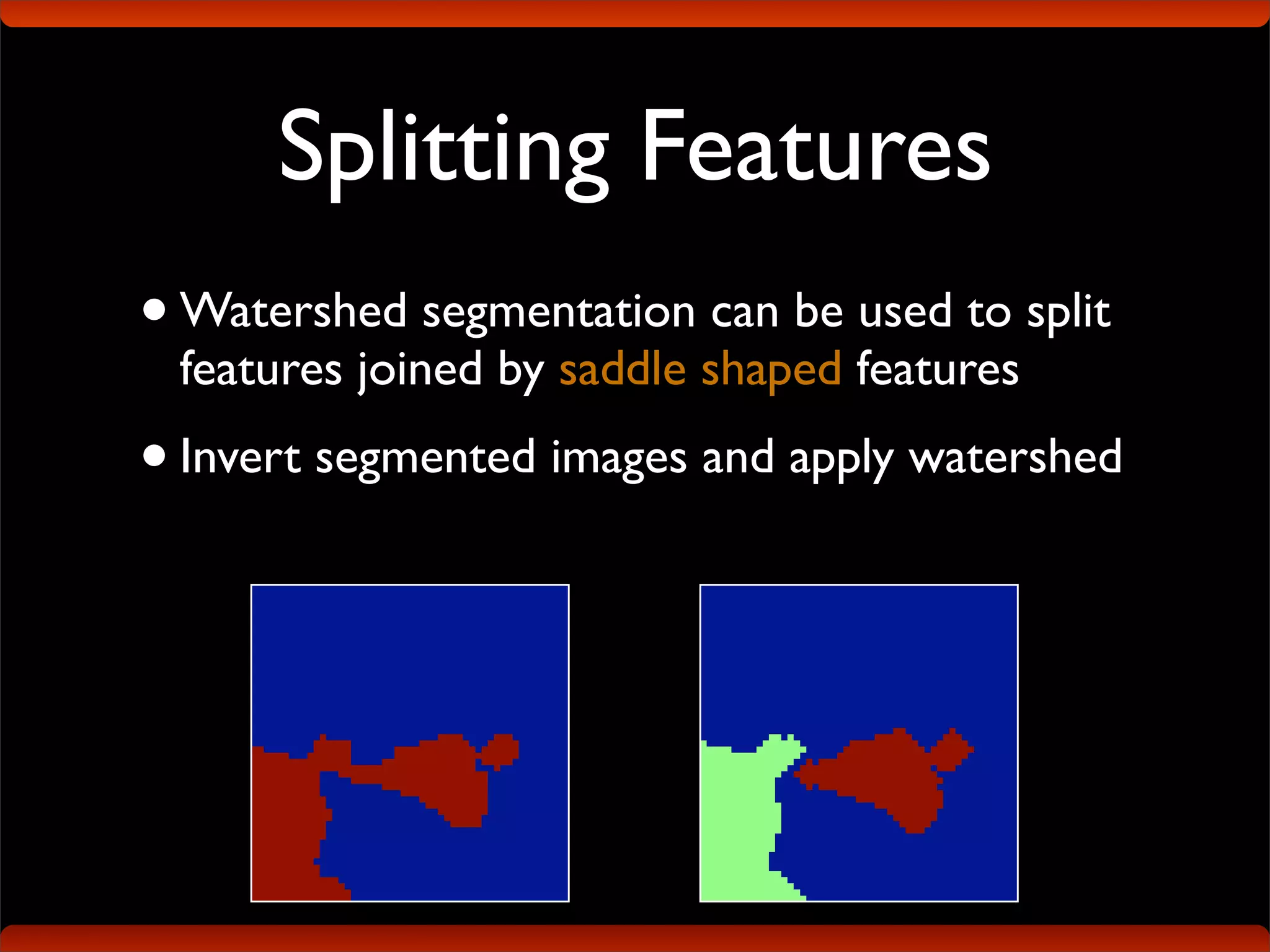

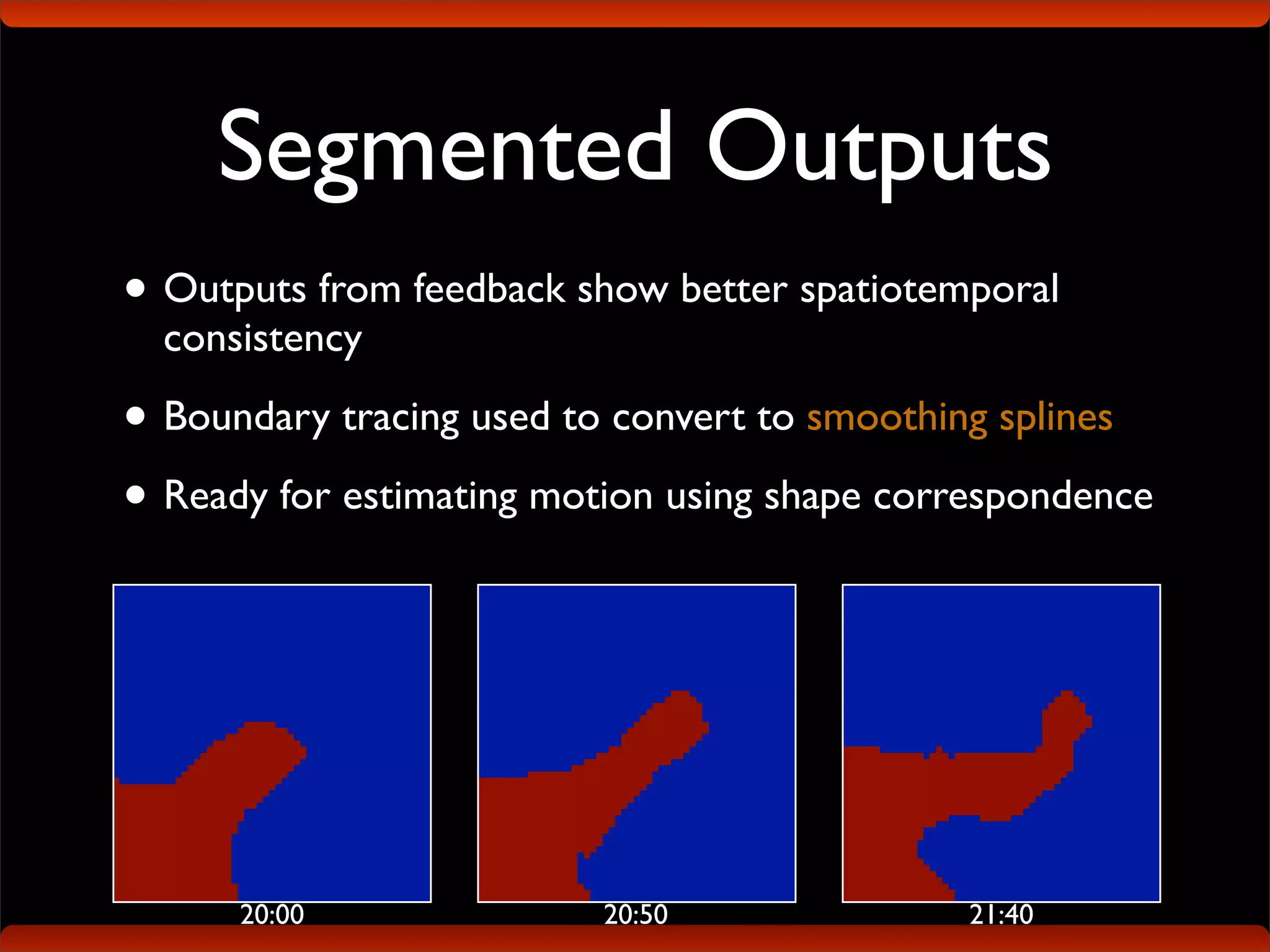

•Splitting features  segmented outputs
Contents III
     Basics      Segmentation   Tracking

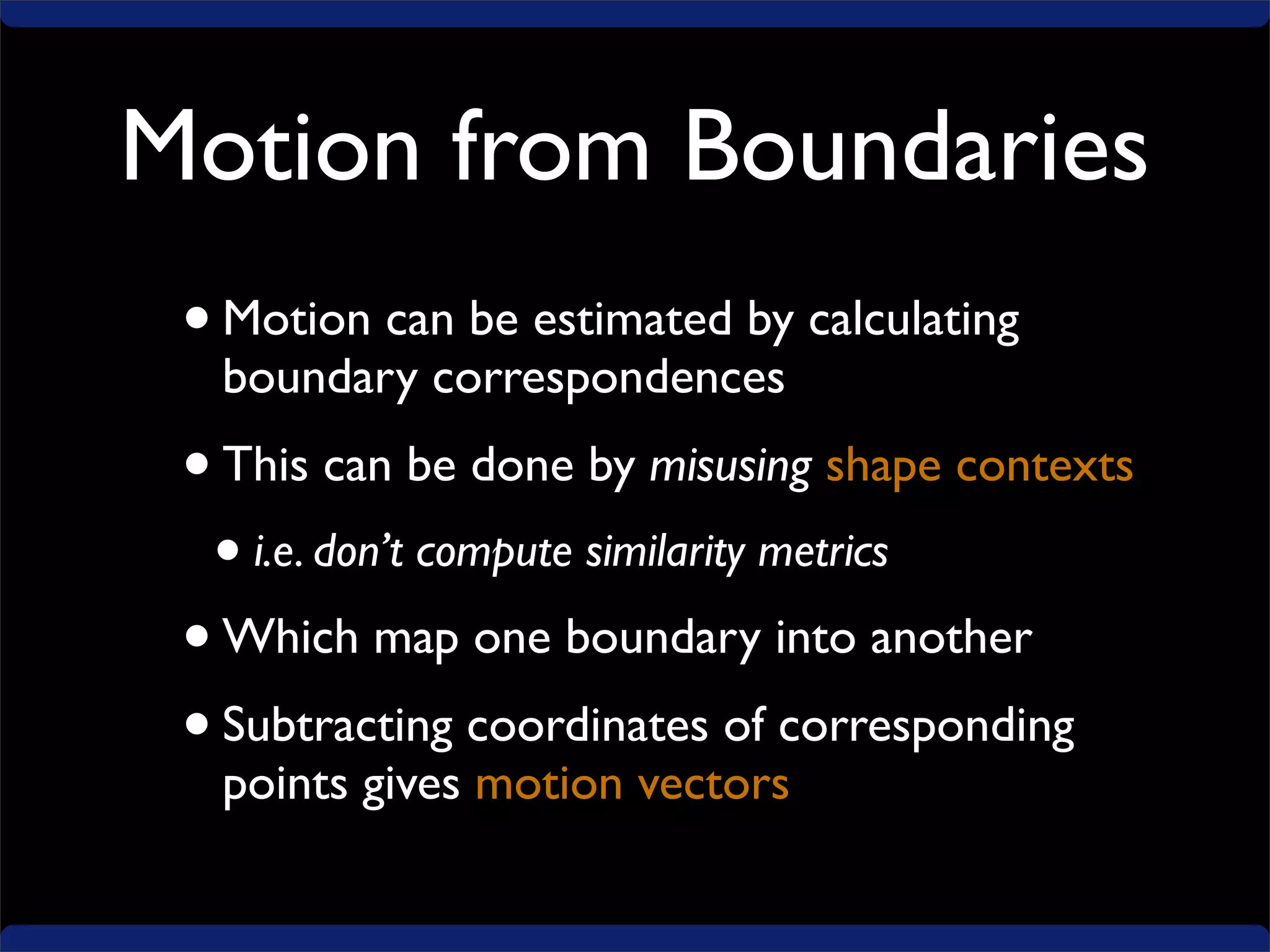

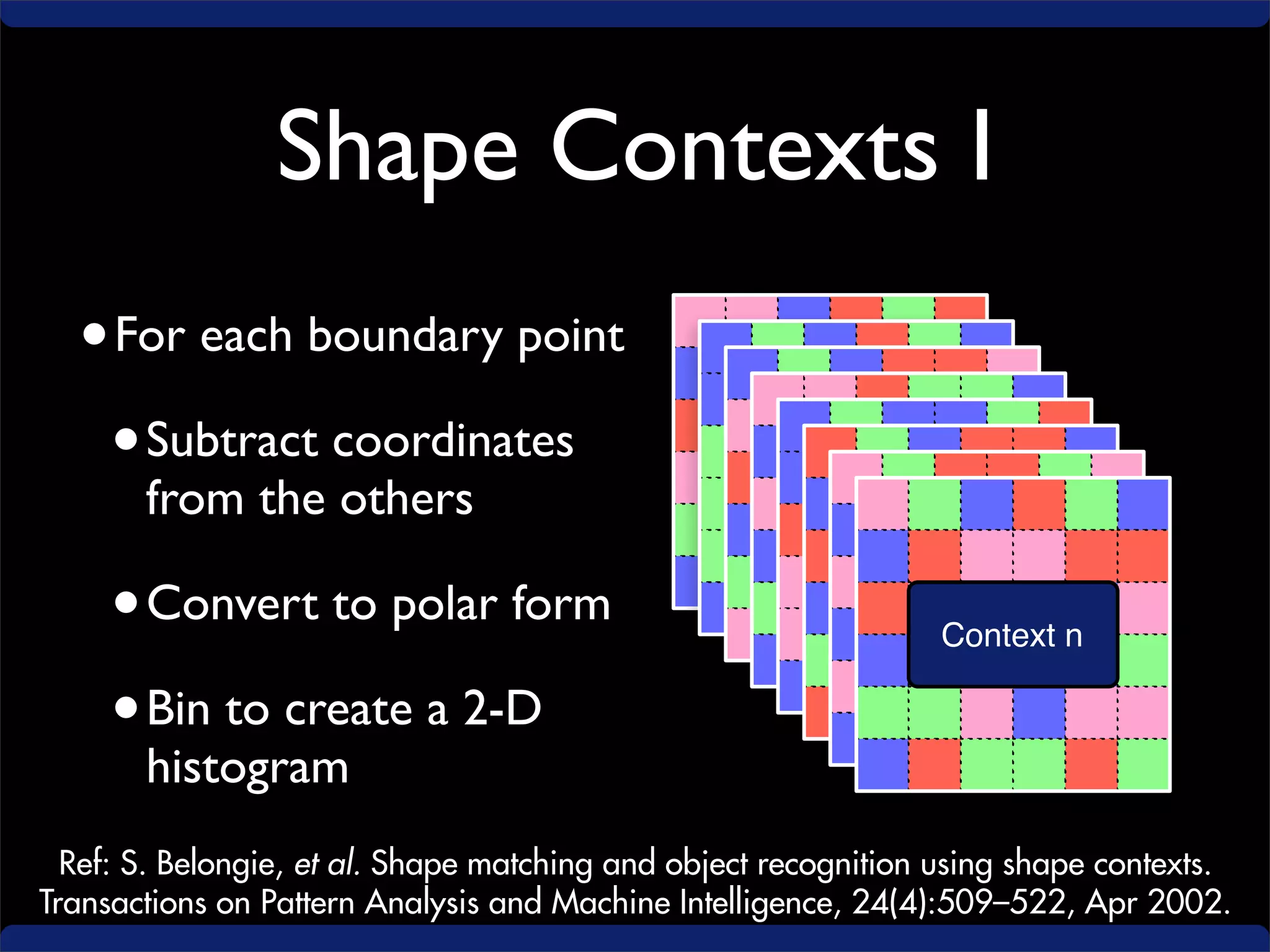

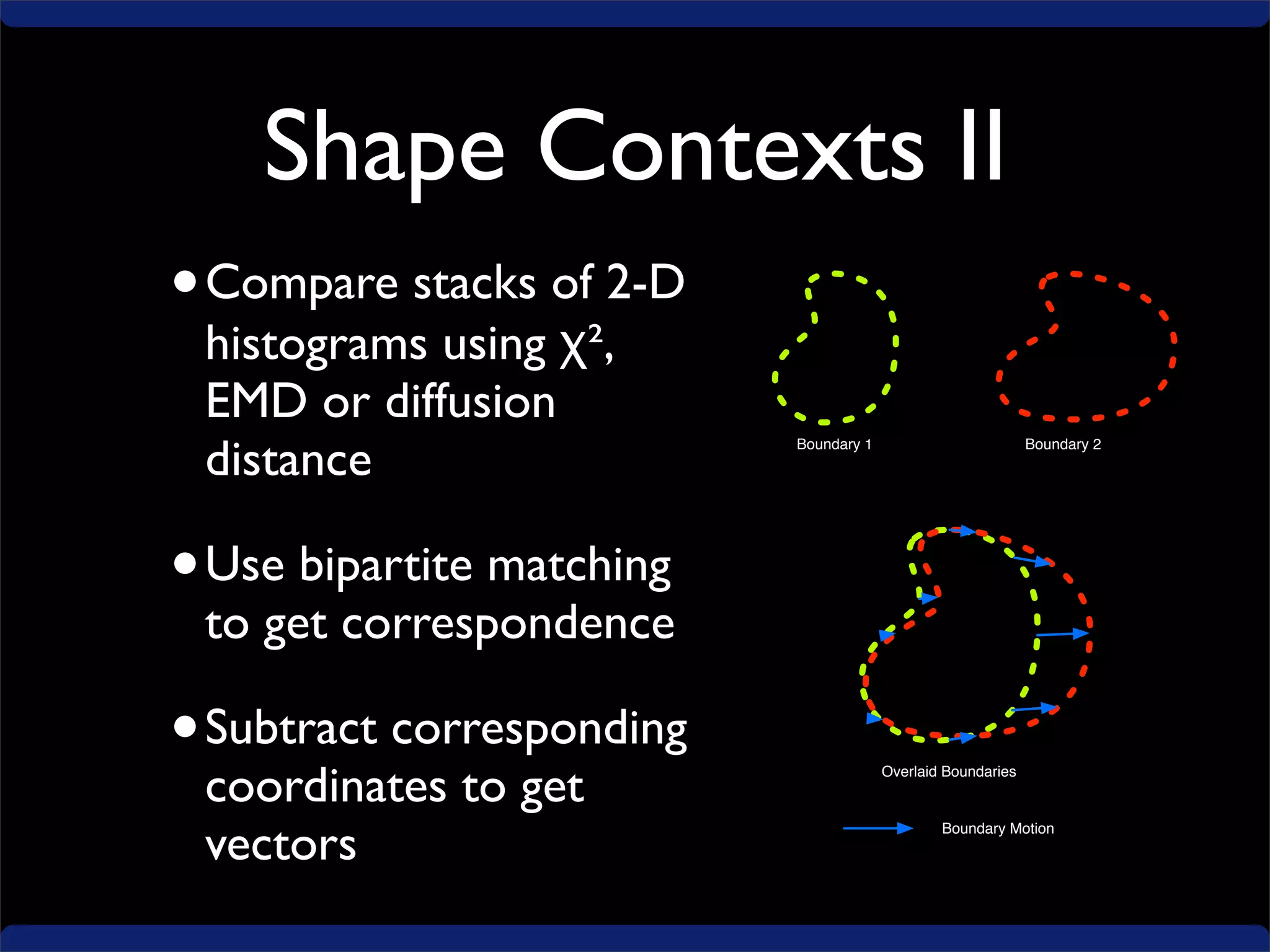

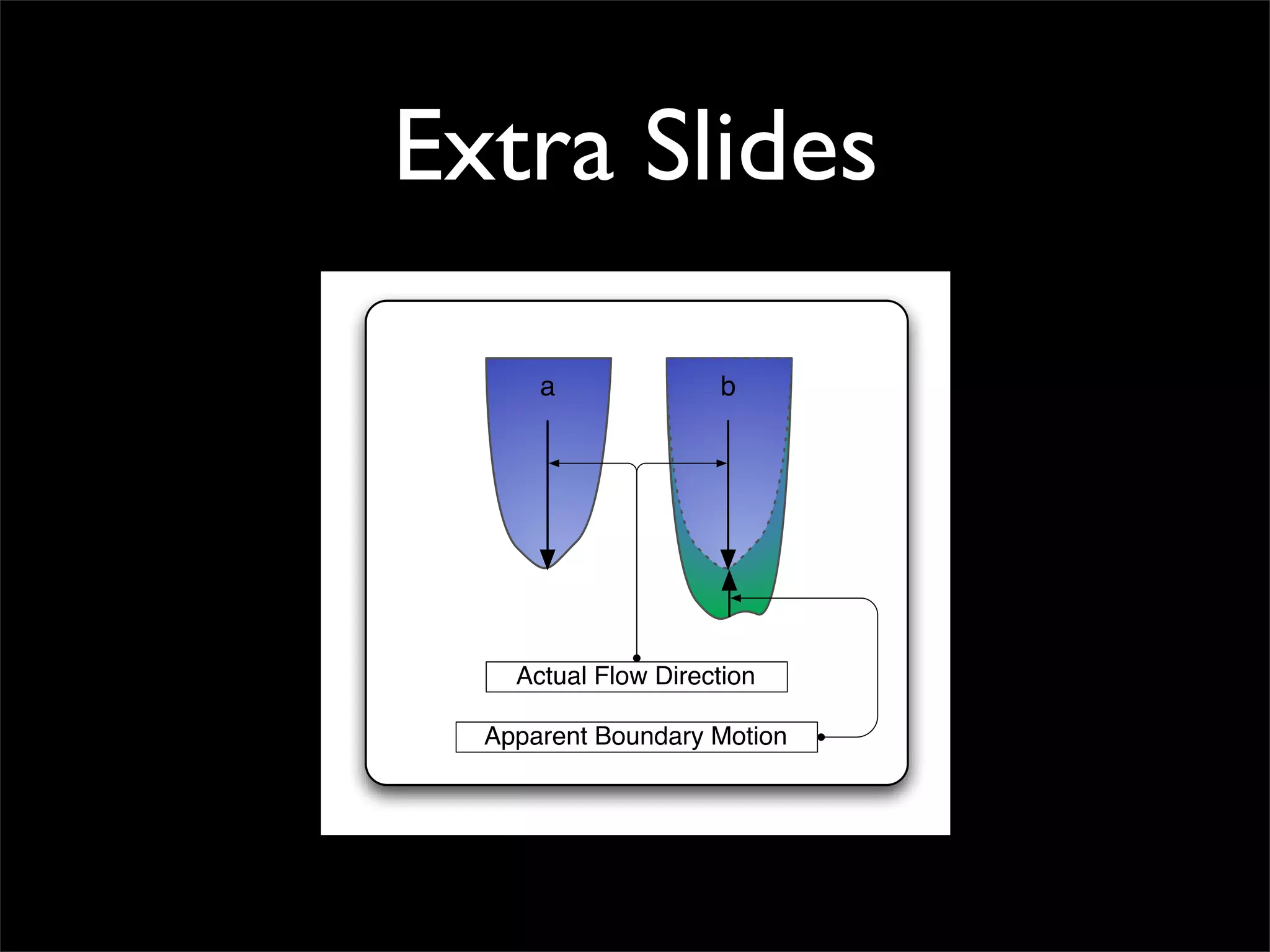

•Motion from boundaries using shape contexts

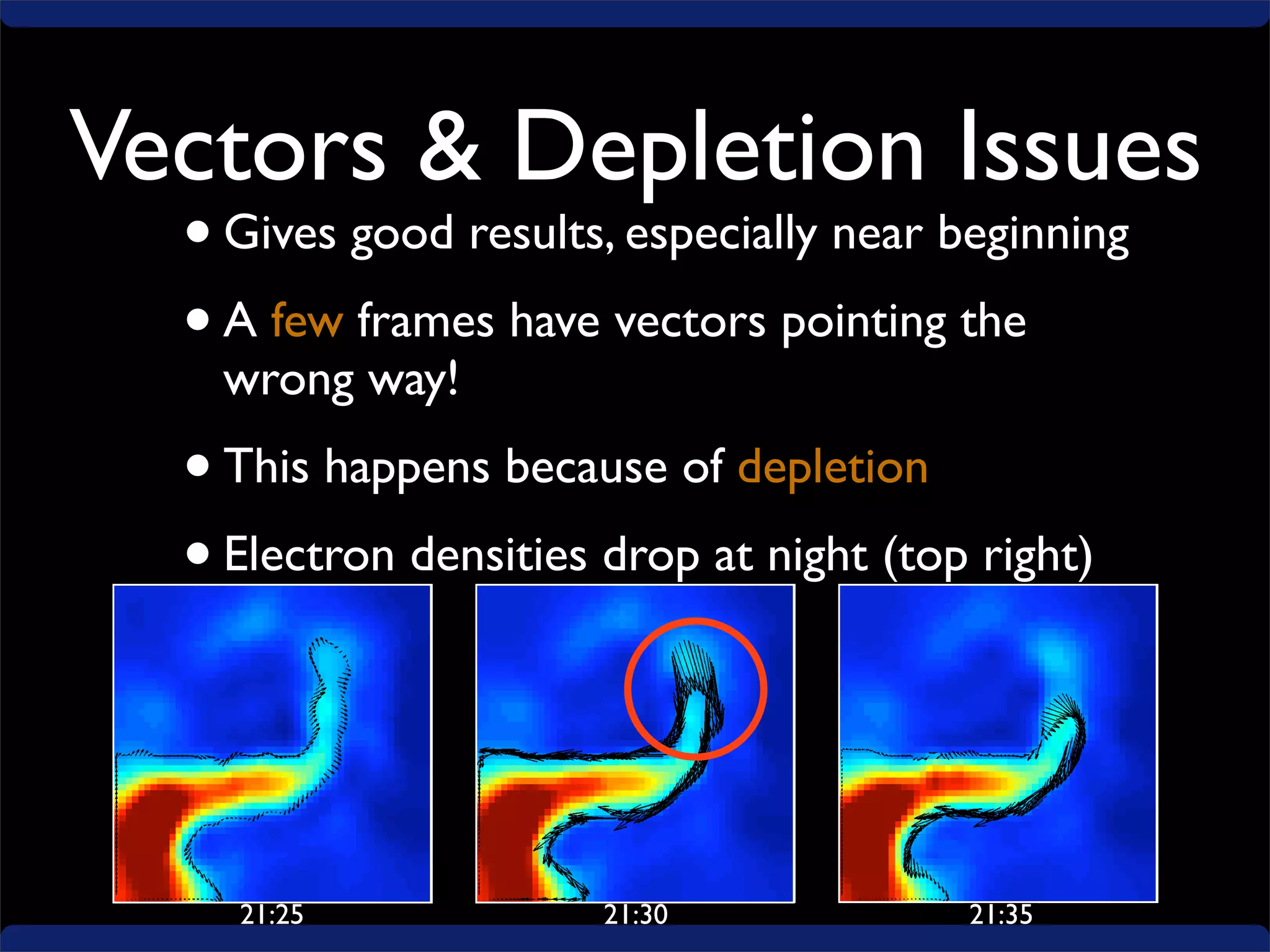

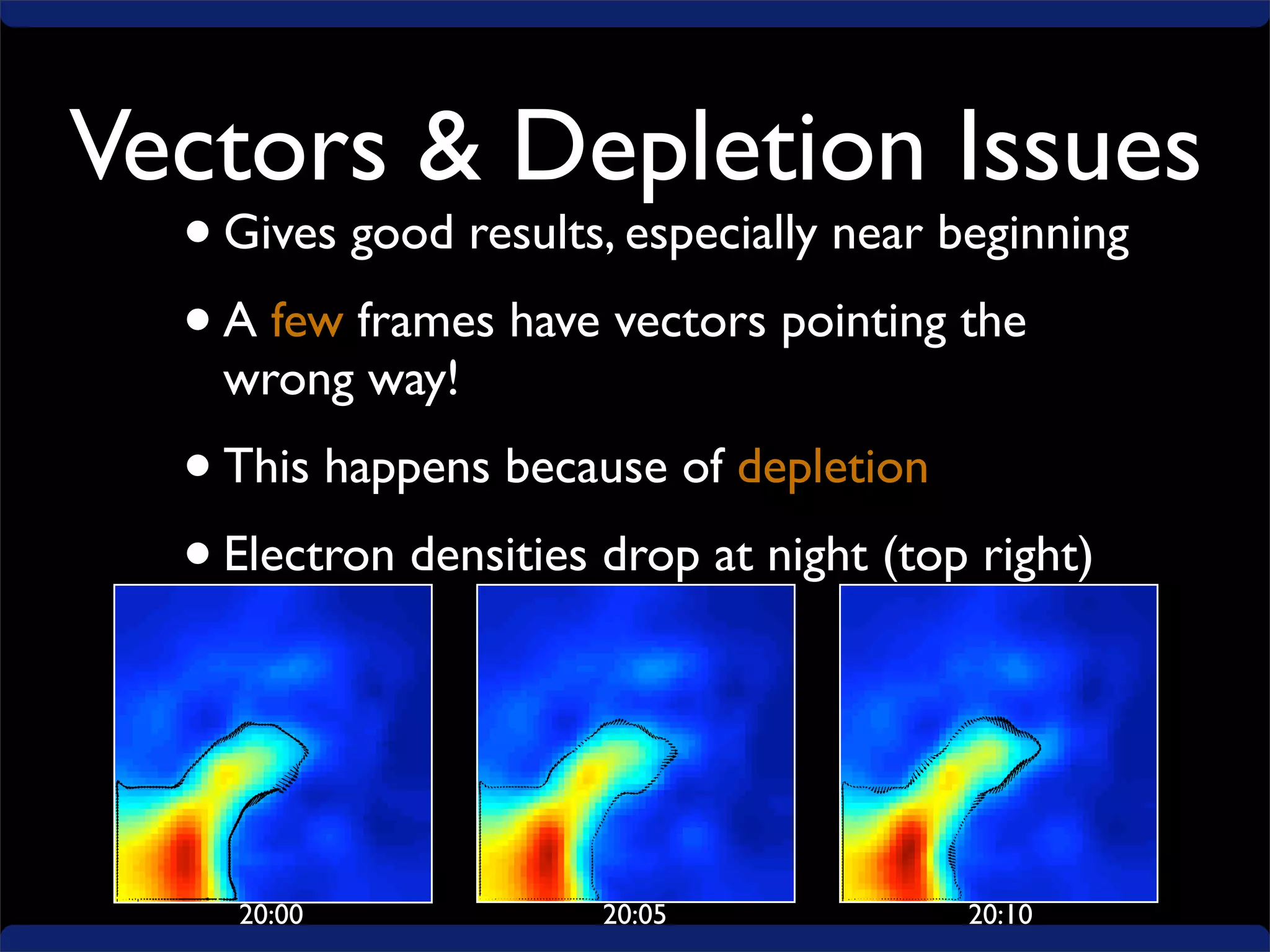

•Depletion issues

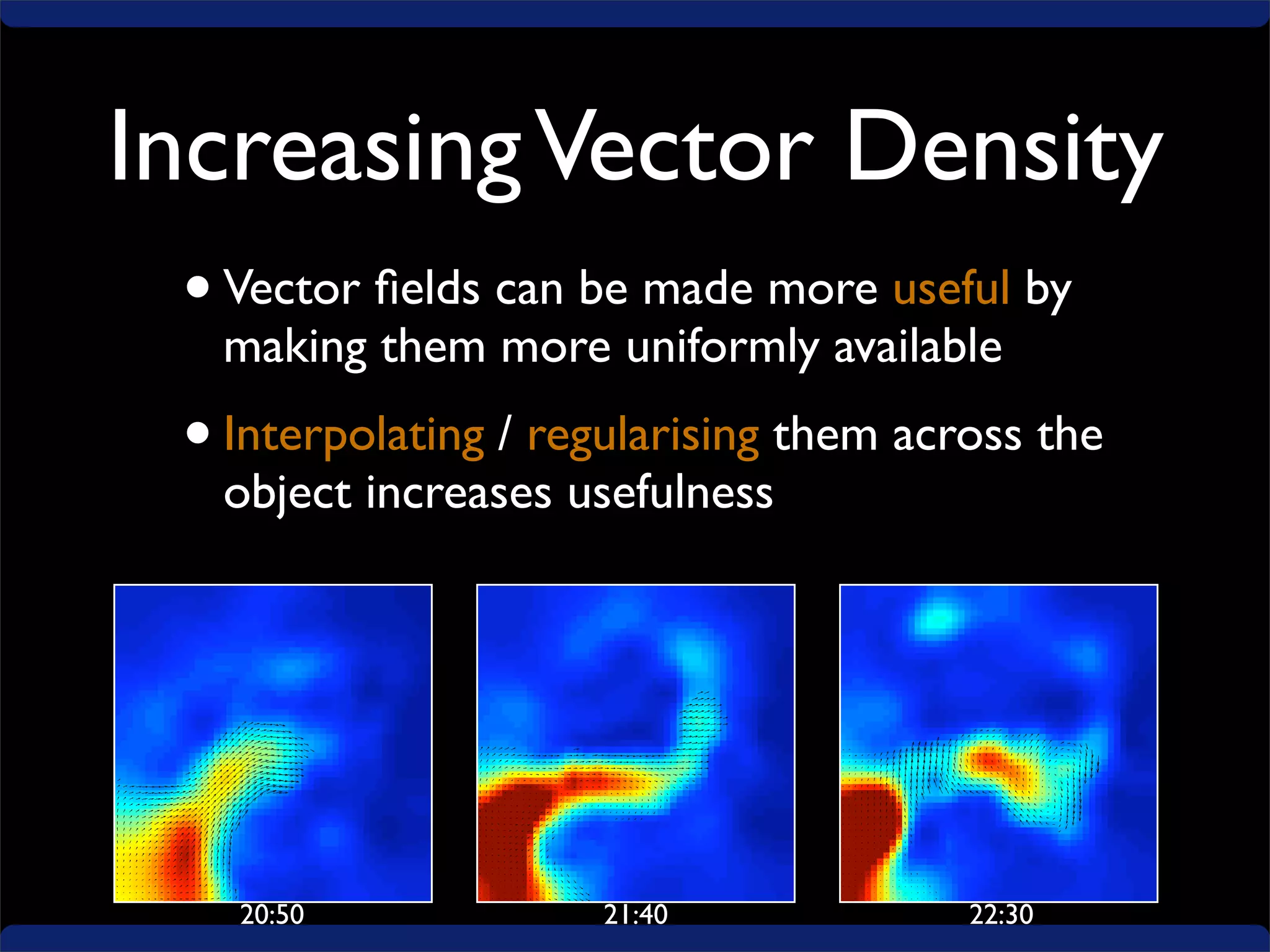

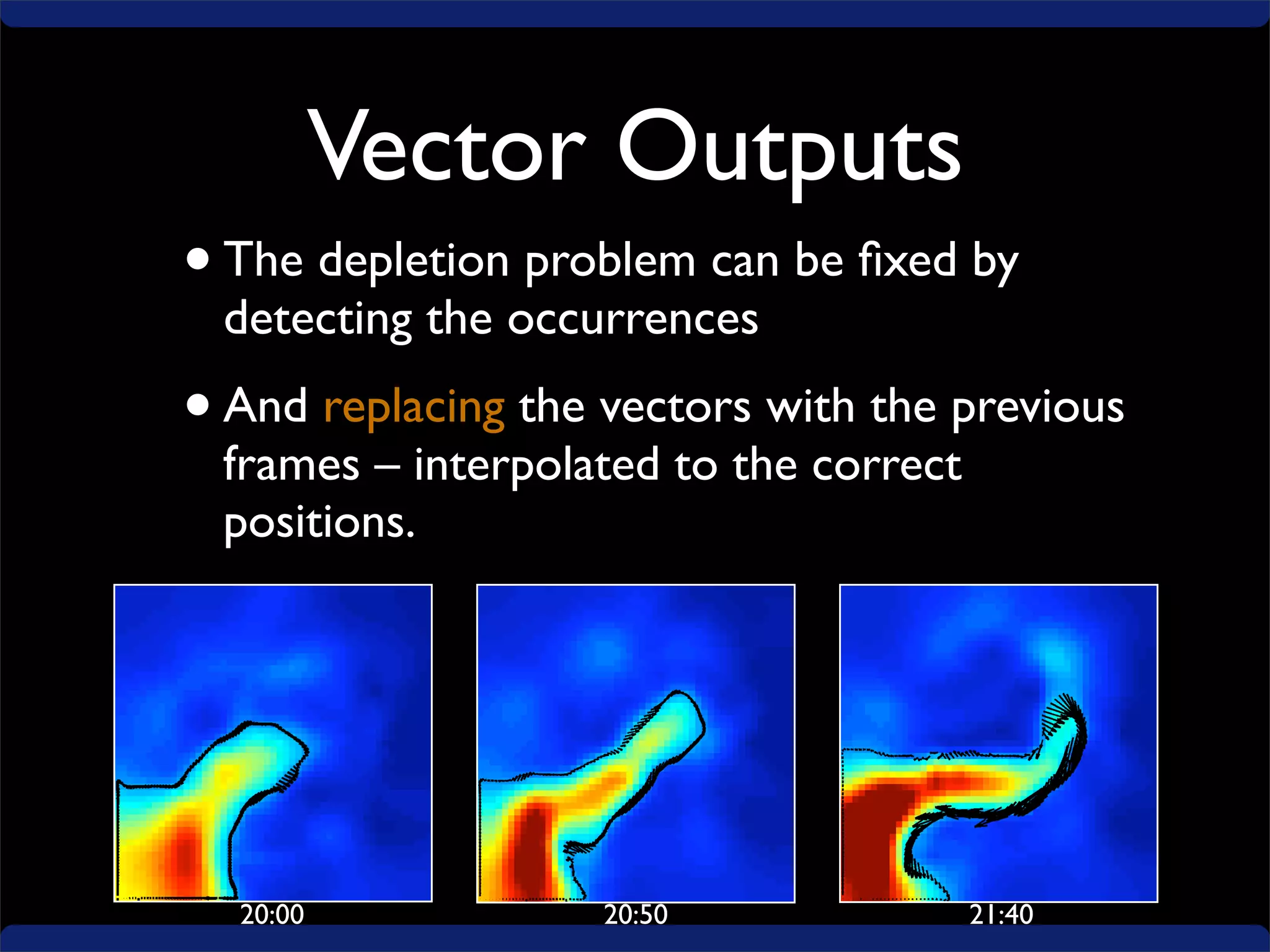

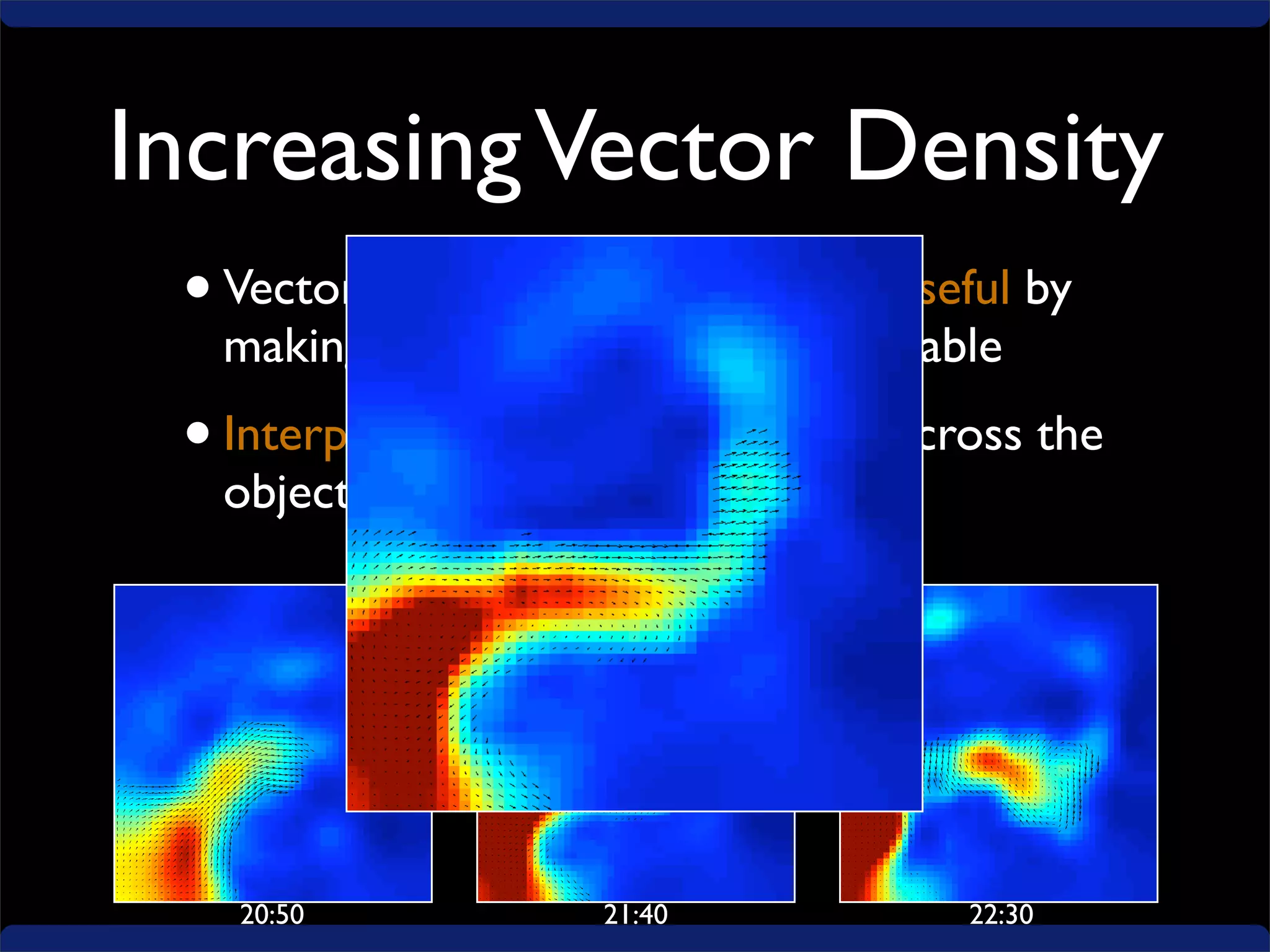

•Vector outputs

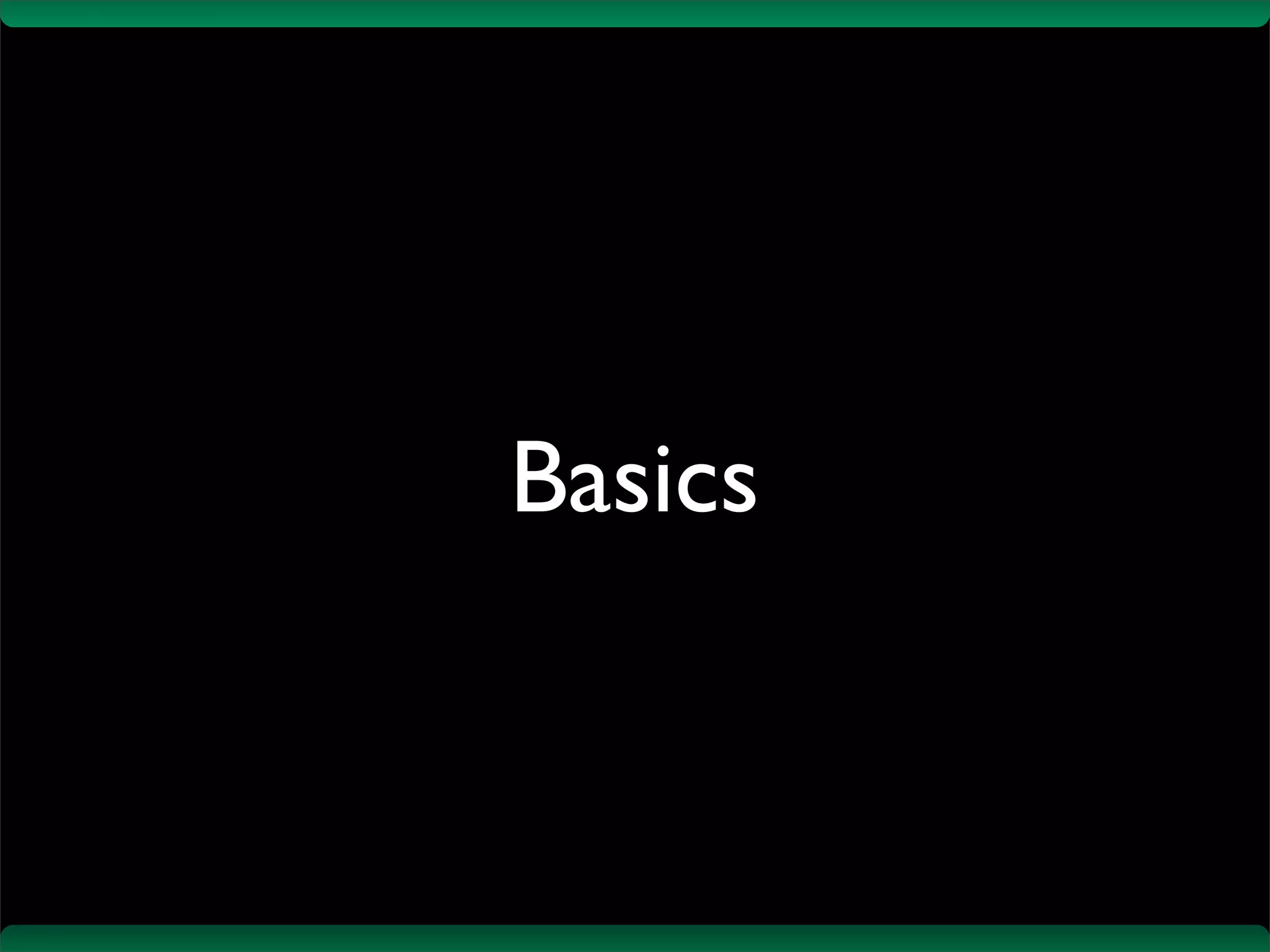

Basics
