1. Naveen Kumar
M.E., ECE (Regular)

2. Outline
 Web Security
 Introduction to SSL/TLS
 Secure Socket Layer (SSL)
 Where, What and How about SSL
 Architecture
 The Four Protocols
 Simple Handshake process
 Transport Layer Security (TLS)
 TLS Overview
 Public Key Certificates
 Implementation & Applications of SSL/TLS
 Summary
 References
December 1, 2012 NITTTR, Chandigarh 2

3. “Use your mentality, Wake up to reality”
---From the song, “I've got you under my skin”
by Cole Porter
December 1, 2012 NITTTR, Chandigarh 3

4. Reality!!!
December 1, 2012 NITTTR, Chandigarh 4

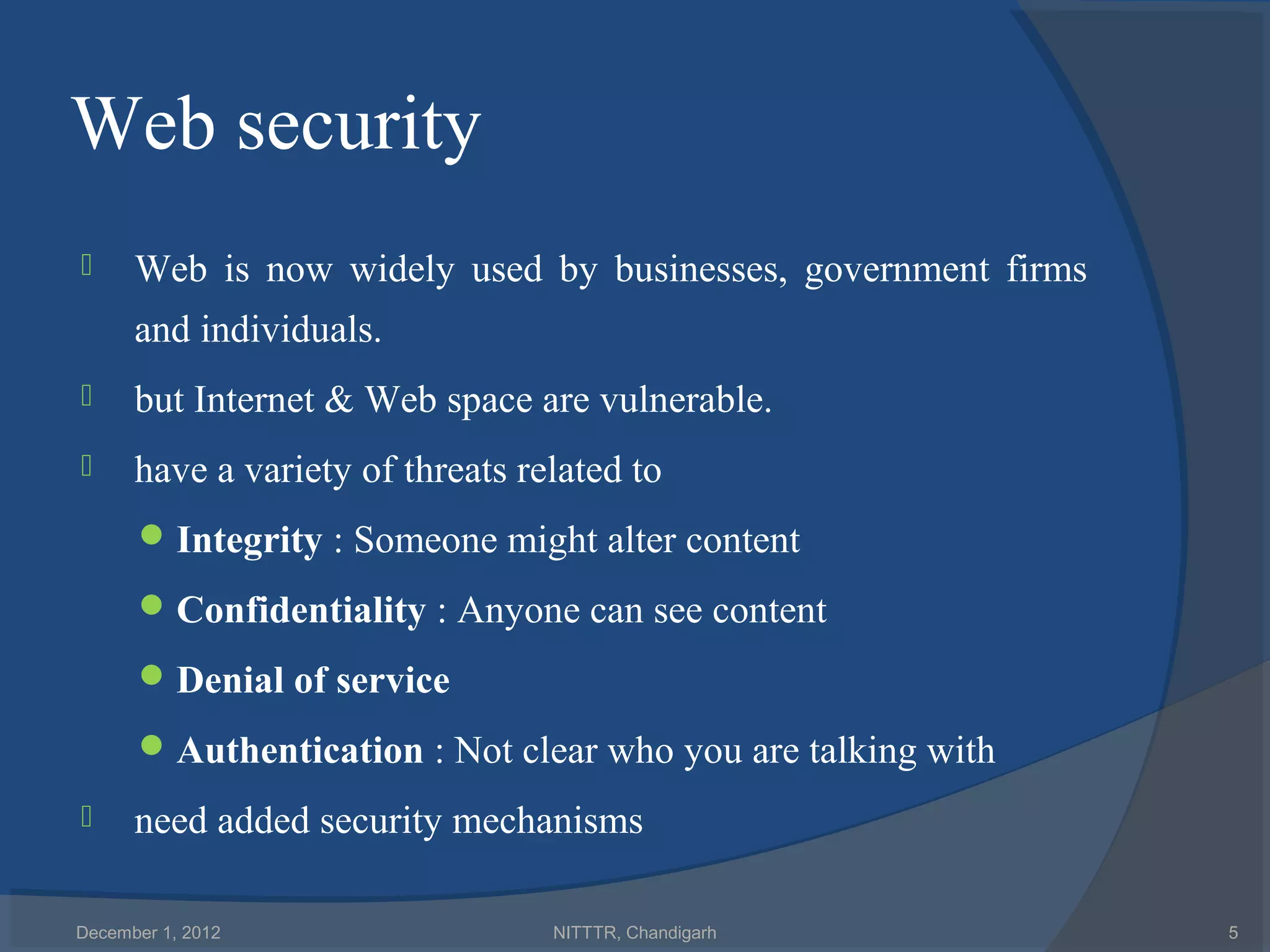

5. Web security
 Web is now widely used by businesses, government firms
and individuals.
 but Internet & Web space are vulnerable.
 have a variety of threats related to
 Integrity : Someone might alter content
 Confidentiality : Anyone can see content
 Denial of service
 Authentication : Not clear who you are talking with
 need added security mechanisms
December 1, 2012 NITTTR, Chandigarh 5

6. Introduction (contd.)
 Secure Sockets Layer (SSL)
Developed by Netscape Corporation
Versions 1, 2, and 3 (released in 1996)
 Transport Layer Security (TLS)
Successor of SSL
IETF standards track protocol, based on SSL 3.0
 Last updated in RFC 5246 (2008)
December 1, 2012 NITTTR, Chandigarh 6

7. Introduction (contd.)
 Transport Layer Security (TLS) and its
predecessor, Secure Sockets Layer (SSL), are
cryptographic protocols that provide security for
communications over networks such as the
Internet.
 TLS and SSL encrypt the segments of network
connections at the Transport Layer end-to-end.
December 1, 2012 NITTTR, Chandigarh 7

8. SECURE
SOCKET LAYER
(SSL)
December 1, 2012 NITTTR, Chandigarh 8

9. Where SSL fits?
HTTP SMTP POP3 HTTPS SSMTP SPOP3
80 25 110 443 465 995
Port
Secure Socket Layer
No.
Transport
Network
Data Link
December 1, 2012 NITTTR, Chandigarh 9

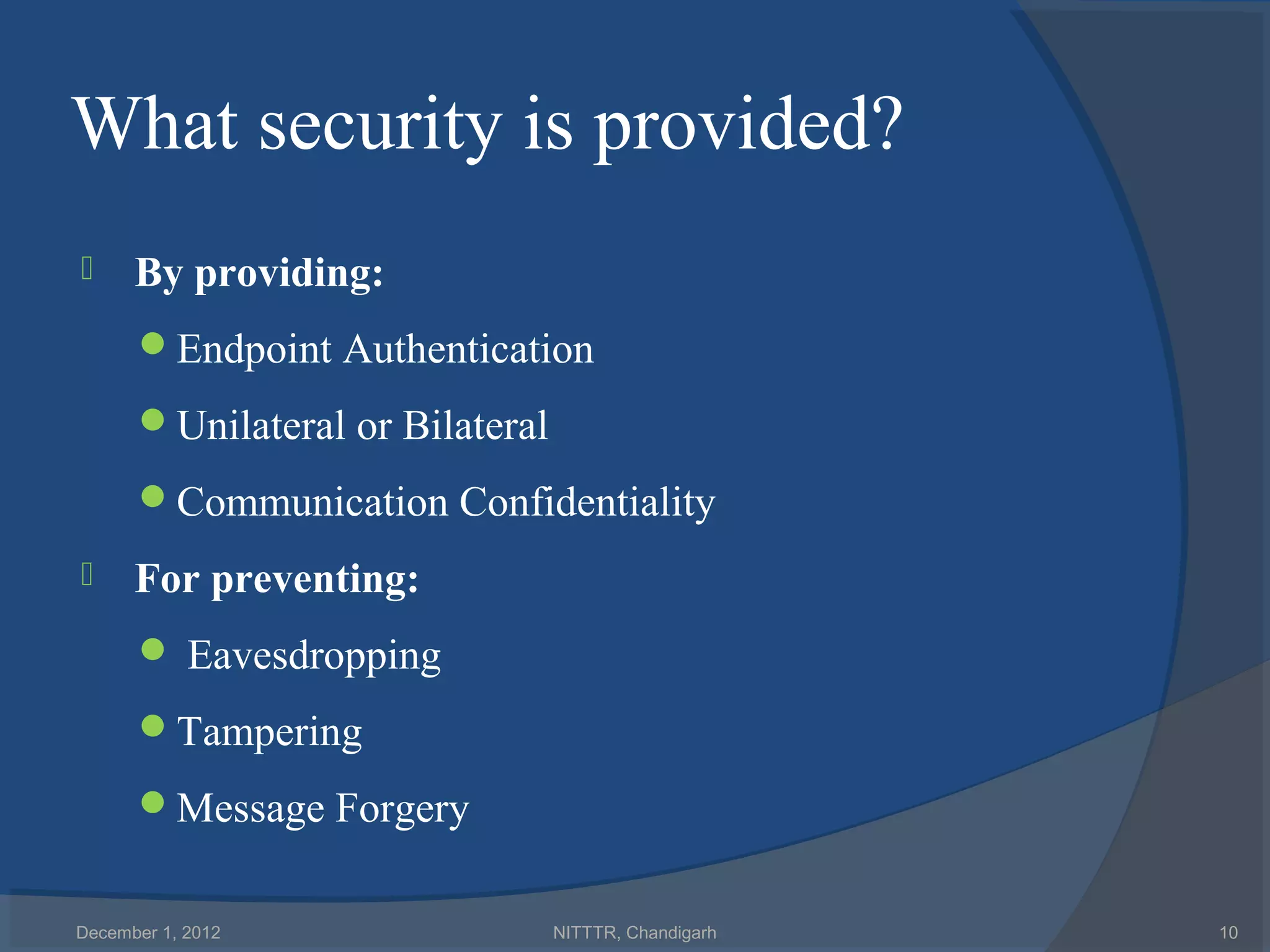

10. What security is provided?
 By providing:
Endpoint Authentication
Unilateral or Bilateral
Communication Confidentiality
 For preventing:
 Eavesdropping
Tampering
Message Forgery
December 1, 2012 NITTTR, Chandigarh 10

11. How security is provided?
December 1, 2012 NITTTR, Chandigarh 11

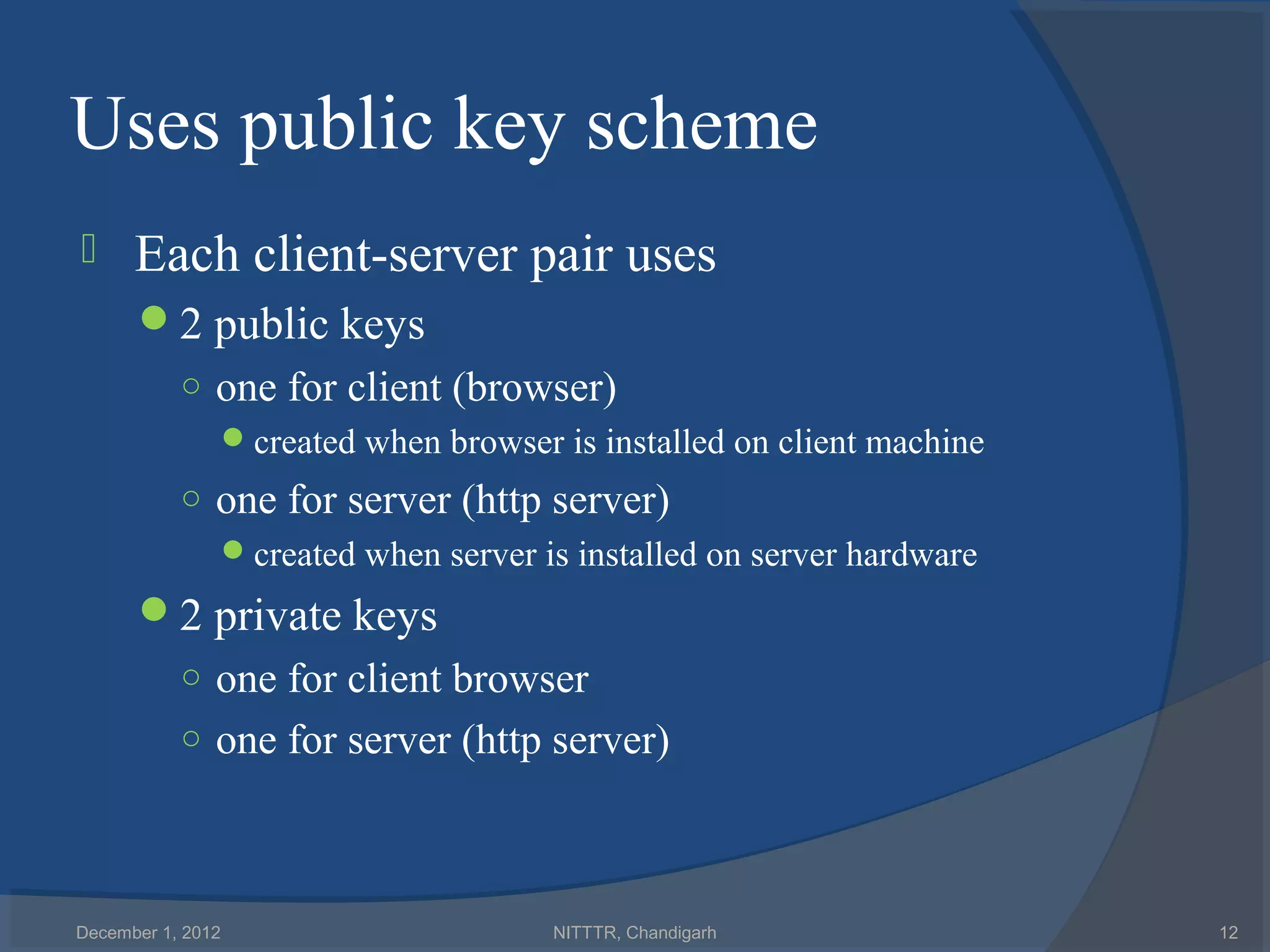

12. Uses public key scheme
 Each client-server pair uses
2 public keys
○ one for client (browser)
 created when browser is installed on client machine
○ one for server (http server)
 created when server is installed on server hardware
2 private keys
○ one for client browser
○ one for server (http server)
December 1, 2012 NITTTR, Chandigarh 12

13. Cipher Suite
 Common Cipher Suite algorithms:
 Encryption algorithm
○ RC4,Triple DES,AES, IDEA, DES, Camellia
 Message authentication code (MAC) algorithm
○ Authentication by RSA, DSA, ECDSA
○ Hashing by MD5, SHA
 Key exchange algorithm
○ RSA, Diffie-Hellman, ECDH, SRP, PSK
 Pseudorandom function (PRF)
December 1, 2012 NITTTR, Chandigarh 13

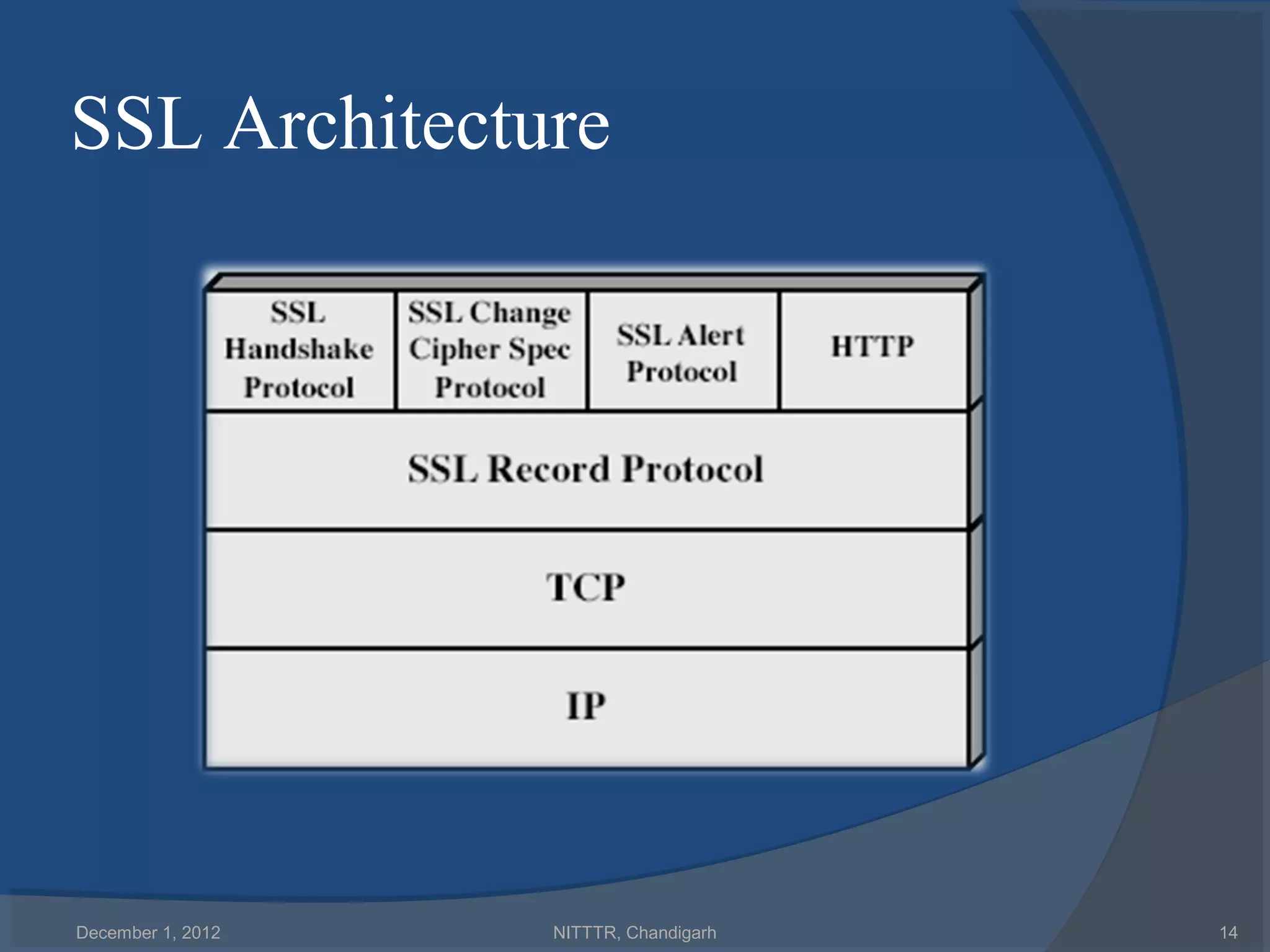

14. SSL Architecture
December 1, 2012 NITTTR, Chandigarh 14

15. SSL Architecture (Contd.)
 SSL session
 an association between client & server
 created by the Handshake Protocol
 define a set of cryptographic parameters
 may be shared by multiple SSL connections
 SSL connection
 a transient, peer-to-peer, communications link
 associated with 1 SSL session
December 1, 2012 NITTTR, Chandigarh 15

16. The Four Upper Layer Protocols
 Application Encryption Protocol
Encrypt/Decrypt application data
 Change Cipher Spec Protocol
Alert to a change in communication variables
 Alert Protocol
Messages important to SSL connections
 Handshaking Protocol
Establish communication variables
December 1, 2012 NITTTR, Chandigarh 16

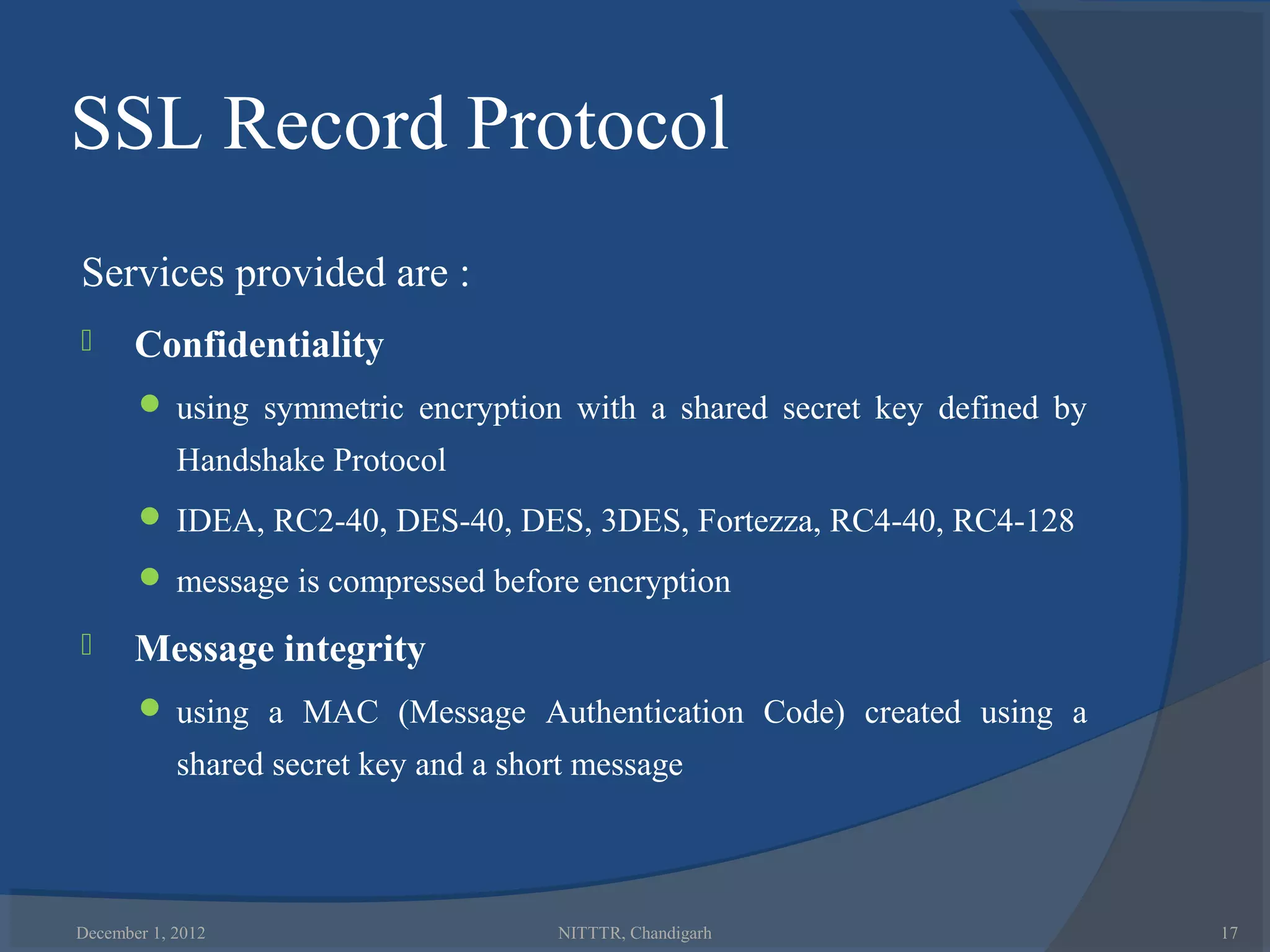

17. SSL Record Protocol
Services provided are :
 Confidentiality
 using symmetric encryption with a shared secret key defined by
Handshake Protocol
 IDEA, RC2-40, DES-40, DES, 3DES, Fortezza, RC4-40, RC4-128
 message is compressed before encryption
 Message integrity
 using a MAC (Message Authentication Code) created using a
shared secret key and a short message
December 1, 2012 NITTTR, Chandigarh 17

18. SSL Record Protocol (Contd.)
December 1, 2012 NITTTR, Chandigarh 18

19. SSL Change Cipher Spec Protocol
 one of 3 SSL specific protocols which use the
SSL Record protocol
 a single message
 Purpose of message
Cause copy of pending state to current state.
Updates cipher suite to be used on the current
connection .
December 1, 2012 NITTTR, Chandigarh 19

20. SSL Alert Protocol
 conveys SSL-related alerts to peer entity
 Consists of two bytes
 1st byte : warning or fatal
 2nd byte: code for specific alerts
 specific alert types
 unexpected message, bad record mac, decompression failure,
handshake failure, illegal parameter
 close notify, no certificate, bad certificate, unsupported certificate,
certificate revoked, certificate expired, certificate unknown
 compressed & encrypted like all SSL data
December 1, 2012 NITTTR, Chandigarh 20

21. SSL Handshake Protocol (1/10)
 The most complex part of SSL.
 allows server & client to:
authenticate each other
to negotiate encryption & MAC algorithms
to negotiate cryptographic keys to be used
 comprises a series of messages in phases
Establish Security Capabilities
Server Authentication and Key Exchange
Client Authentication and Key Exchange
Finish
December 1, 2012 NITTTR, Chandigarh 21

22. Simple Handshake process (2/10)
 The client(Alice) and server(Bob) must agree on various
parameters to establish the connection
 Alice request a secure connections and presents a list of Cipher Suites
 Bob picks the strongest supported Cipher Suite
 Bob sends back his digital certificate
○ Including the certificate authority and his public key
 By encrypting using the server’s public key, Alice send a random
number to Bob securely
 Alice and Bob generate key material from the random number
 Secure connection established
December 1, 2012 NITTTR, Chandigarh 22

23. Simple Handshake process (3/10)
December 1, 2012 NITTTR, Chandigarh 23

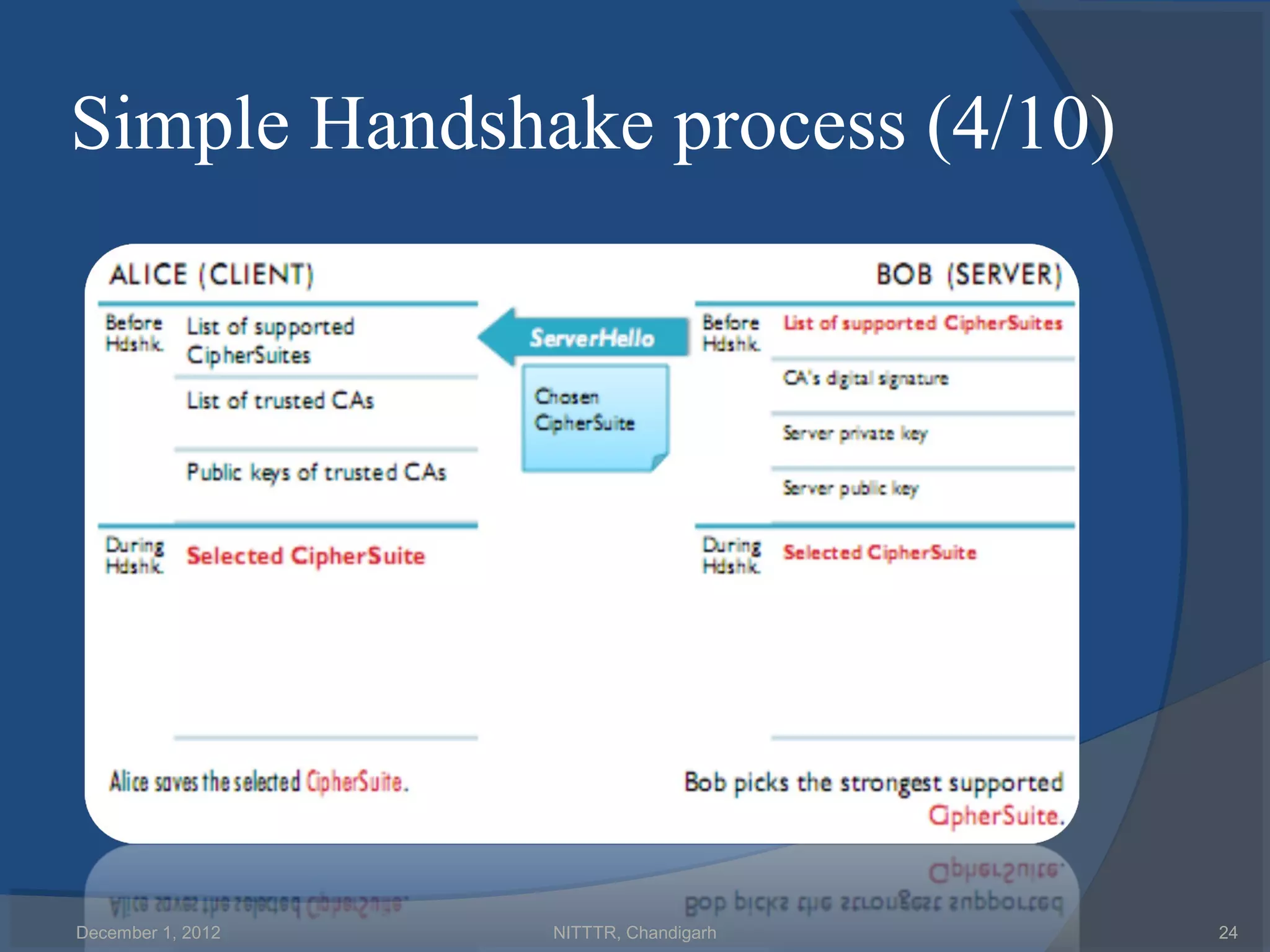

24. Simple Handshake process (4/10)
December 1, 2012 NITTTR, Chandigarh 24

25. Simple Handshake process (5/10)
December 1, 2012 NITTTR, Chandigarh 25

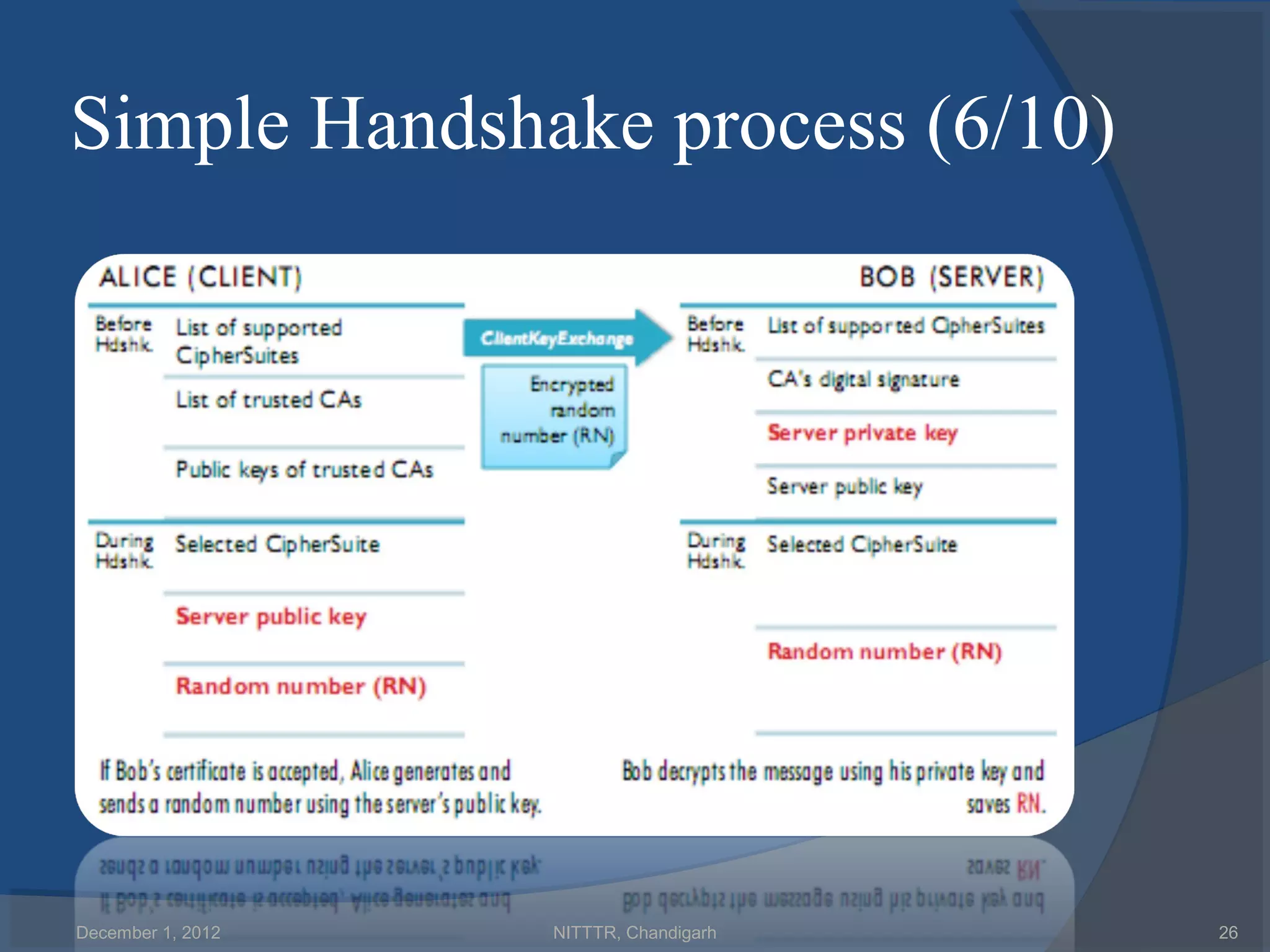

26. Simple Handshake process (6/10)
December 1, 2012 NITTTR, Chandigarh 26

27. Simple Handshake process (7/10)
December 1, 2012 NITTTR, Chandigarh 27

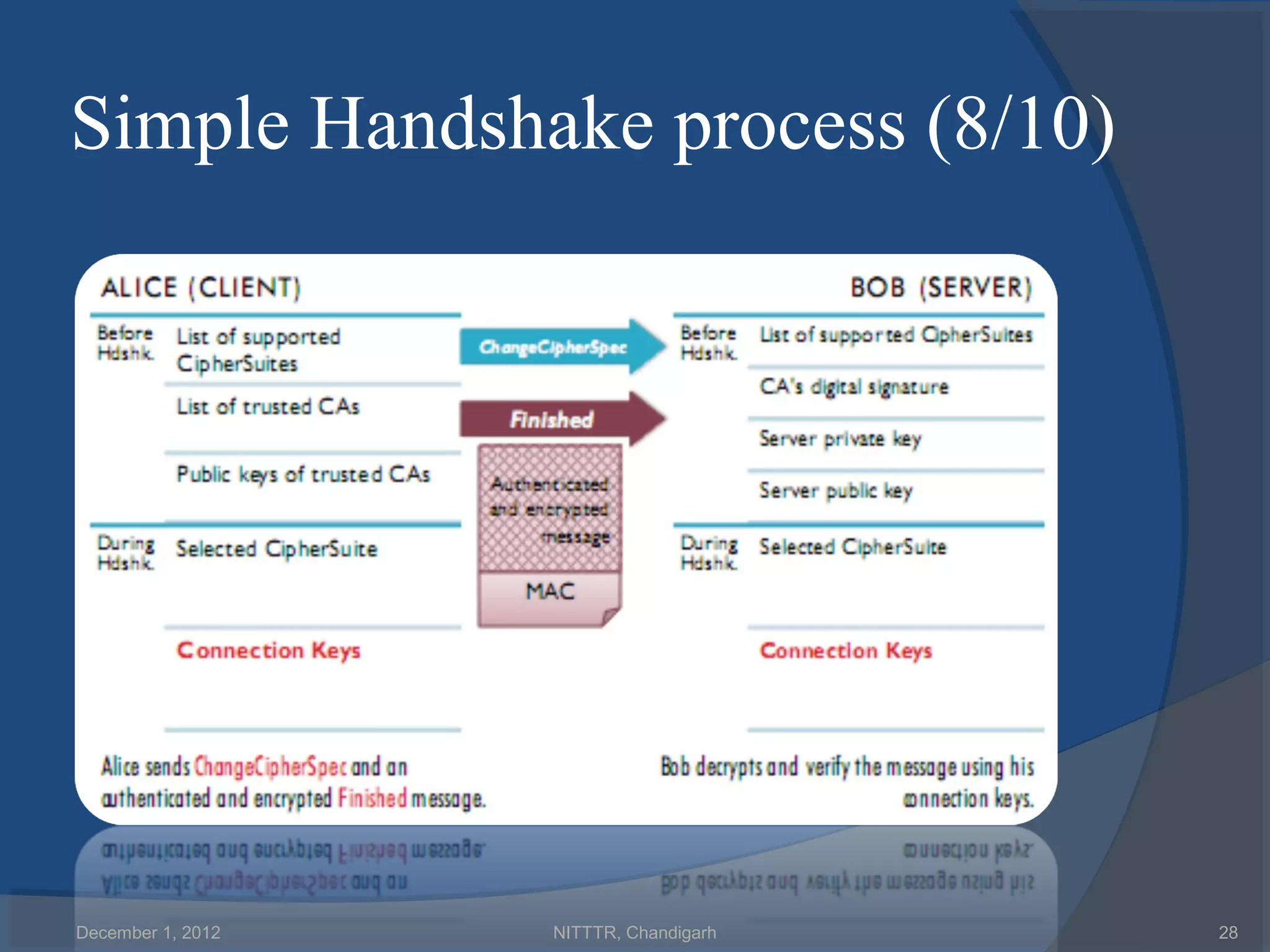

28. Simple Handshake process (8/10)
December 1, 2012 NITTTR, Chandigarh 28

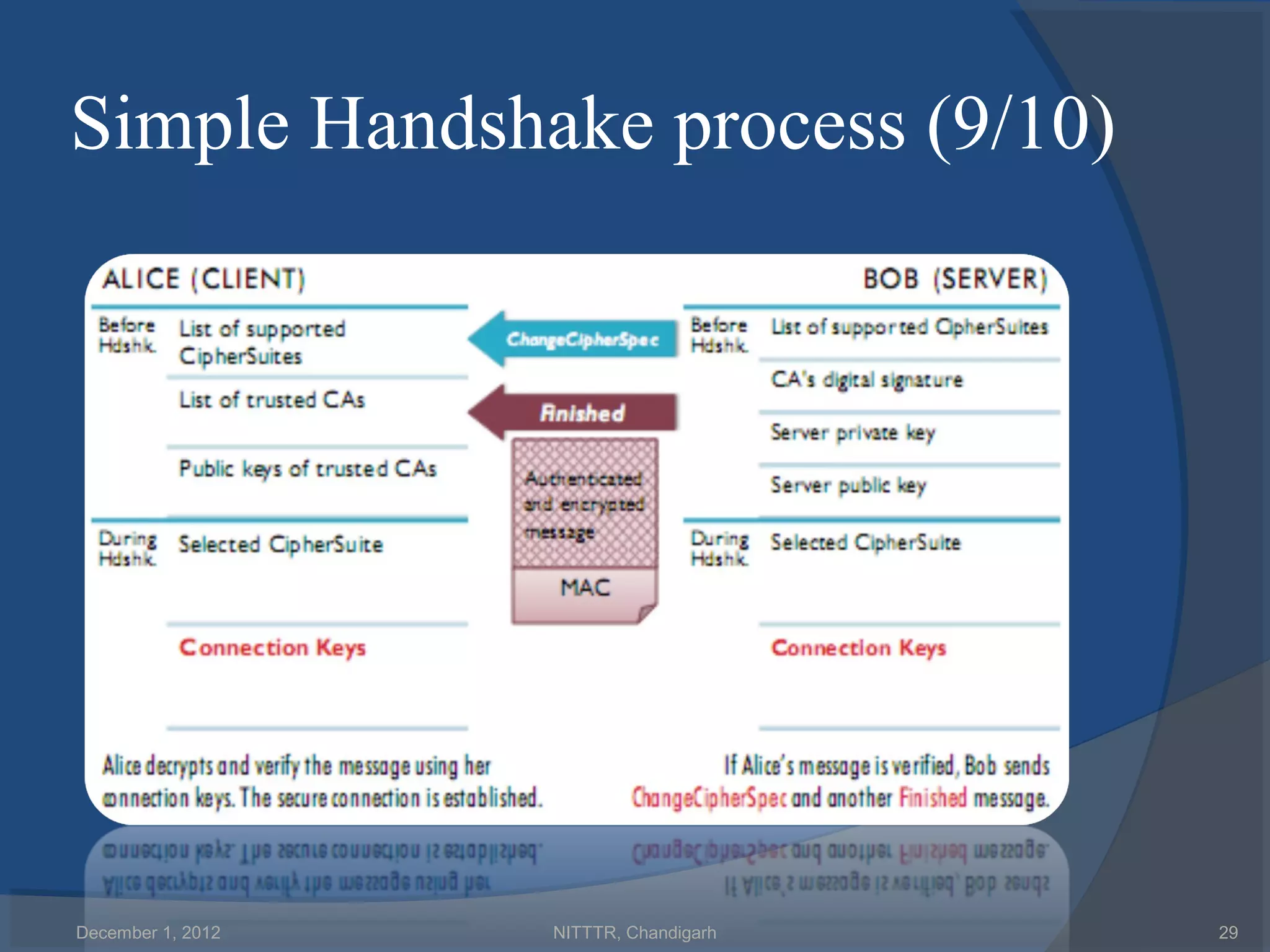

29. Simple Handshake process (9/10)
December 1, 2012 NITTTR, Chandigarh 29

30. SSL Handshake Protocol (10/10)
December 1, 2012 NITTTR, Chandigarh 30

31. TLS (Transport Layer Security)
 IETF standard RFC 2246 similar to SSLv3
 with minor differences
in record format version number
uses HMAC for MAC
a pseudo-random function expands secrets
has additional alert codes
some changes in supported ciphers
changes in certificate negotiations
changes in use of padding
December 1, 2012 NITTTR, Chandigarh 31

32. Changes from SSL 3.0 to TLS
 Fortezza removed
 Additional Alerts added
 Modification to hash calculations
 Protocol version 3.1 in ClientHello,
ServerHello
32
December 1, 2012 NITTTR, Chandigarh

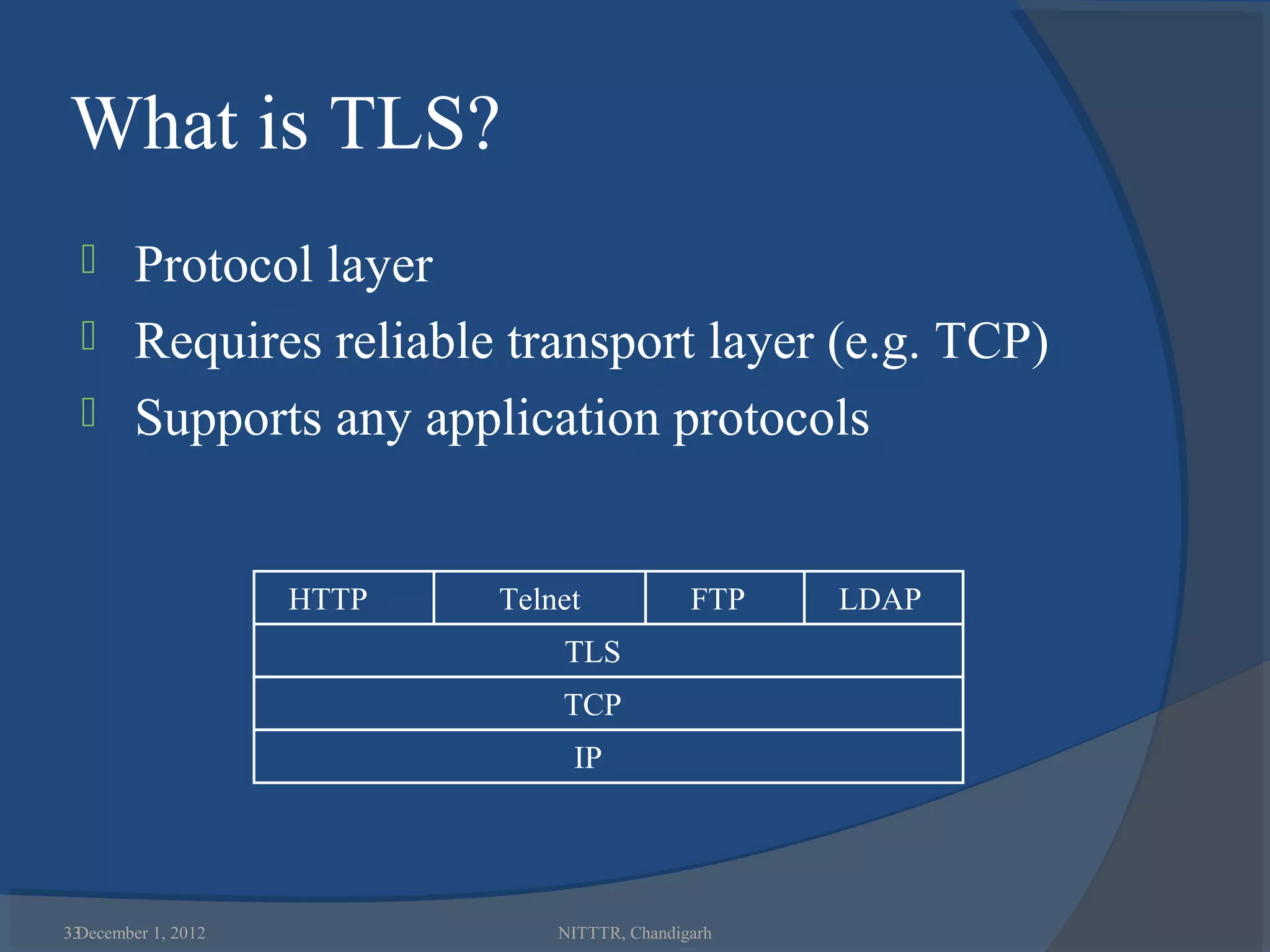

33. What is TLS?
 Protocol layer
 Requires reliable transport layer (e.g. TCP)
 Supports any application protocols
HTTP Telnet FTP LDAP
TLS
TCP
IP
33
December 1, 2012 NITTTR, Chandigarh

34. TLS: Privacy
 Encrypt message so it cannot be read
 Use conventional cryptography with shared
key
DES, 3DES
RC2, RC4
IDEA
A B
Message $%&#!@ Message
34
December 1, 2012 NITTTR, Chandigarh

35. TLS:Key Exchange
 Need secure method to exchange secret key
 Use public key encryption for this
“key pair” is used - either one can encrypt and
then the other can decrypt
slower than conventional cryptography
share one key, keep the other private
 Choices are RSA or Diffie-Hellman
35
December 1, 2012 NITTTR, Chandigarh

36. TLS: Integrity
 Compute fixed-length Message
Authentication Code (MAC)
Includes hash of message
Includes a shared secret
Include sequence number
 Transmit MAC with message
36
December 1, 2012 NITTTR, Chandigarh

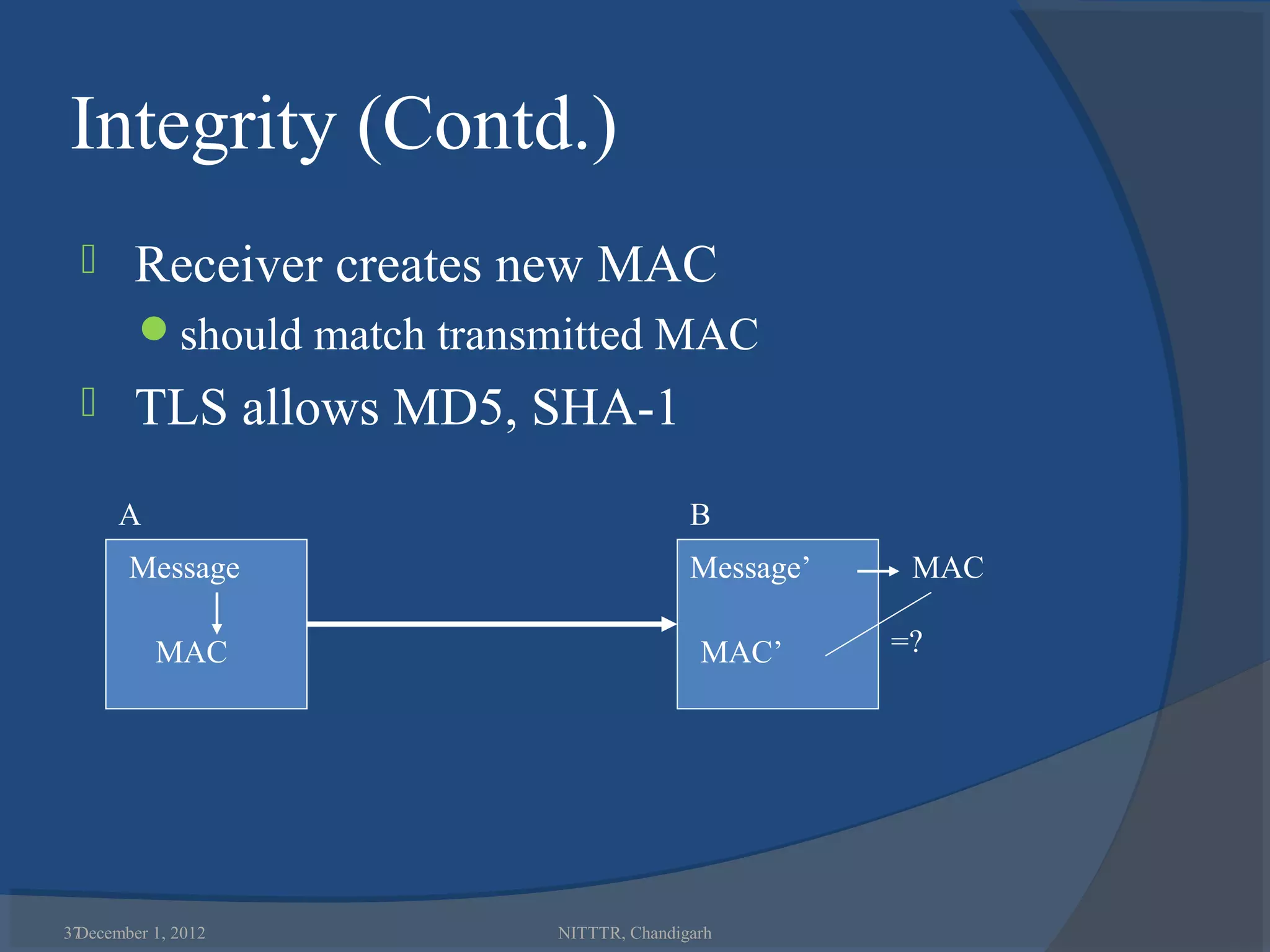

37. Integrity (Contd.)
 Receiver creates new MAC
should match transmitted MAC
 TLS allows MD5, SHA-1
A B
Message Message’ MAC
MAC MAC’ =?
37
December 1, 2012 NITTTR, Chandigarh

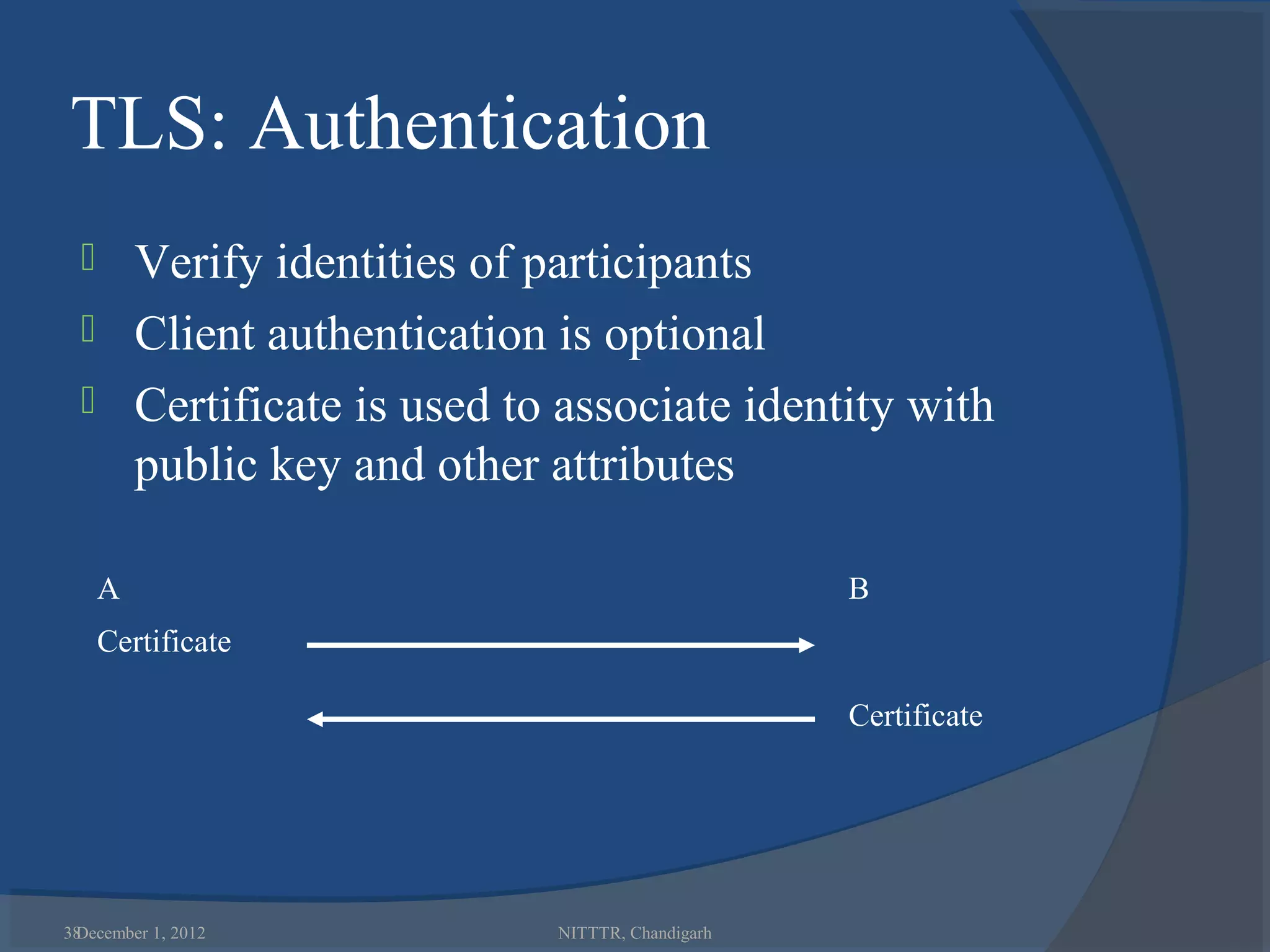

38. TLS: Authentication
 Verify identities of participants
 Client authentication is optional
 Certificate is used to associate identity with
public key and other attributes
A B
Certificate
Certificate
38
December 1, 2012 NITTTR, Chandigarh

39. TLS: Architecture
 TLS defines Record Protocol to transfer
application and TLS information
 A session is established using a Handshake
Protocol
Handshake Change Alert
Protocol Cipher Spec Protocol
TLS Record Protocol
39
December 1, 2012 NITTTR, Chandigarh

40. TLS: Record Protocol
40
December 1, 2012 NITTTR, Chandigarh

41. TLS: Handshake
 Negotiate Cipher-Suite Algorithms
Symmetric cipher to use
Key exchange method
Message digest function
 Establish and share master secret
 Optionally authenticate server and/or client
41
December 1, 2012 NITTTR, Chandigarh

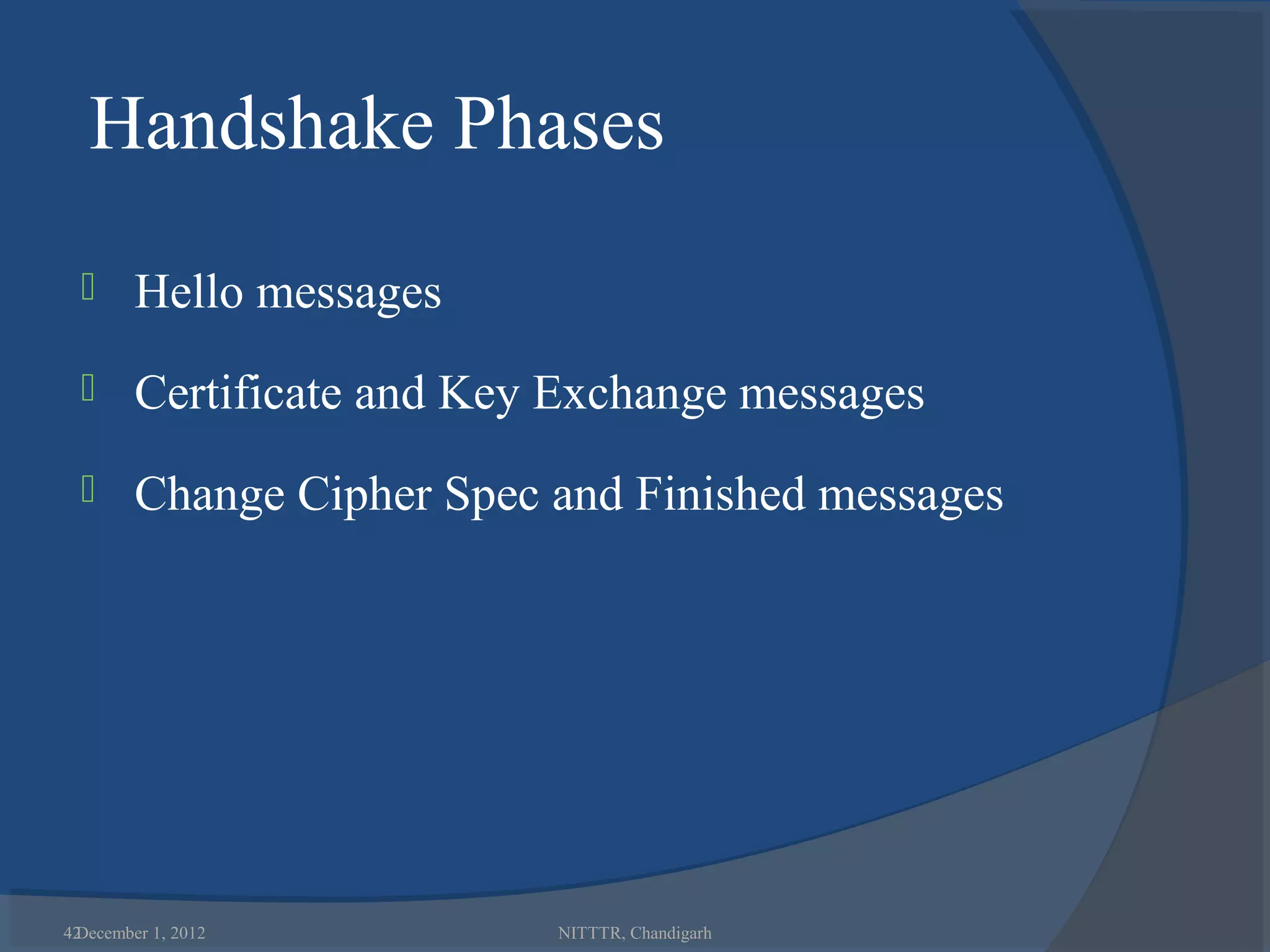

42. Handshake Phases
 Hello messages
 Certificate and Key Exchange messages
 Change Cipher Spec and Finished messages
42
December 1, 2012 NITTTR, Chandigarh

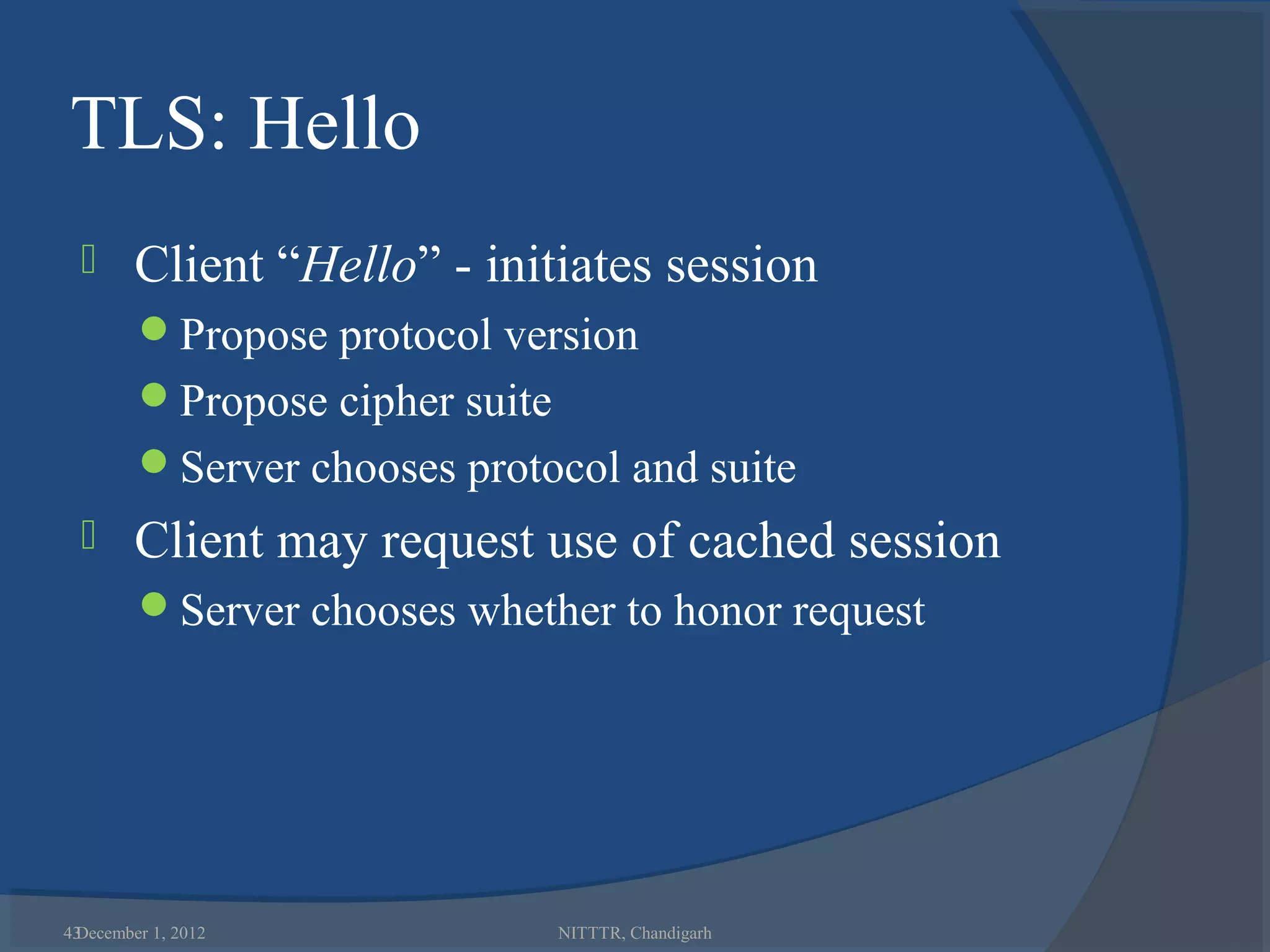

43. TLS: Hello
 Client “Hello” - initiates session
Propose protocol version
Propose cipher suite
Server chooses protocol and suite
 Client may request use of cached session
Server chooses whether to honor request
43
December 1, 2012 NITTTR, Chandigarh

44. TLS: Key Exchange
 Server sends certificate containing public key
(RSA) or Diffie-Hellman parameters
 Client sends encrypted “pre-master” secret to
server using Client Key Exchange message
 Master secret calculated
Use random values passed in Client and Server Hello
messages
44
December 1, 2012 NITTTR, Chandigarh

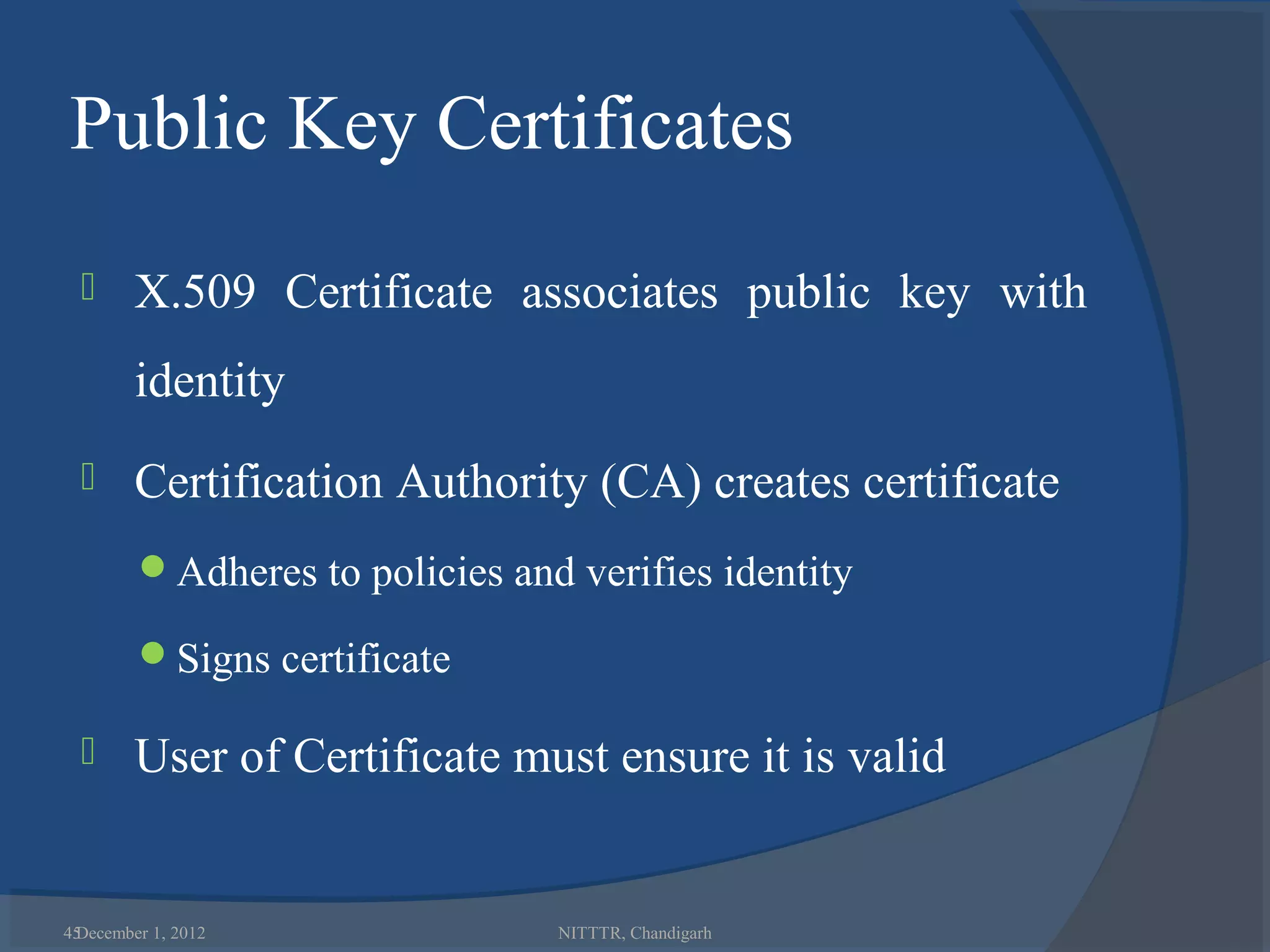

45. Public Key Certificates
 X.509 Certificate associates public key with
identity
 Certification Authority (CA) creates certificate
Adheres to policies and verifies identity
Signs certificate
 User of Certificate must ensure it is valid
45
December 1, 2012 NITTTR, Chandigarh

46. Validating a Certificate
 Must recognize accepted CA in certificate
chain
One CA may issue certificate for another CA
 Must verify that certificate has not been
revoked
CA publishes Certificate Revocation List (CRL)
46
December 1, 2012 NITTTR, Chandigarh

47. X.509 Certificate Issues
 Certificate Administration is complex
Hierarchy of Certification Authorities
Mechanisms for requesting, issuing, revoking
certificates
 X.500 names are complicated
 Description formats are cumbersome
(ASN.1)
47
December 1, 2012 NITTTR, Chandigarh

48. TLS: HTTP Application
 HTTP is most common TLS application
https://
 Requires TLS-capable web server
 Requires TLS-capable web browser
Netscape Navigator
Internet Explorer
Cryptozilla
○ Netscape Mozilla sources with SSLeay
48
December 1, 2012 NITTTR, Chandigarh

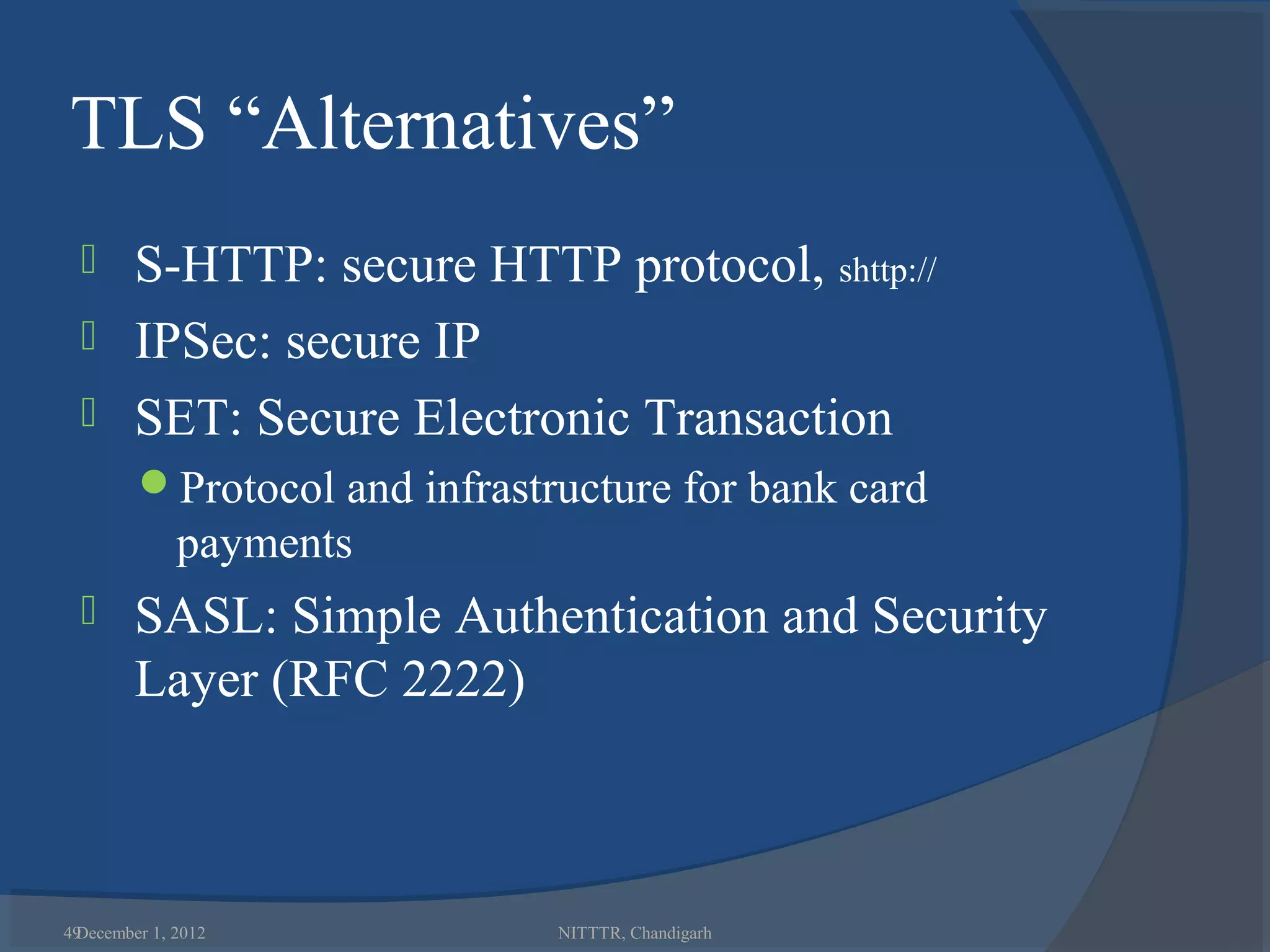

49. TLS “Alternatives”
 S-HTTP: secure HTTP protocol, shttp://
 IPSec: secure IP
 SET: Secure Electronic Transaction
Protocol and infrastructure for bank card
payments
 SASL: Simple Authentication and Security
Layer (RFC 2222)
49
December 1, 2012 NITTTR, Chandigarh

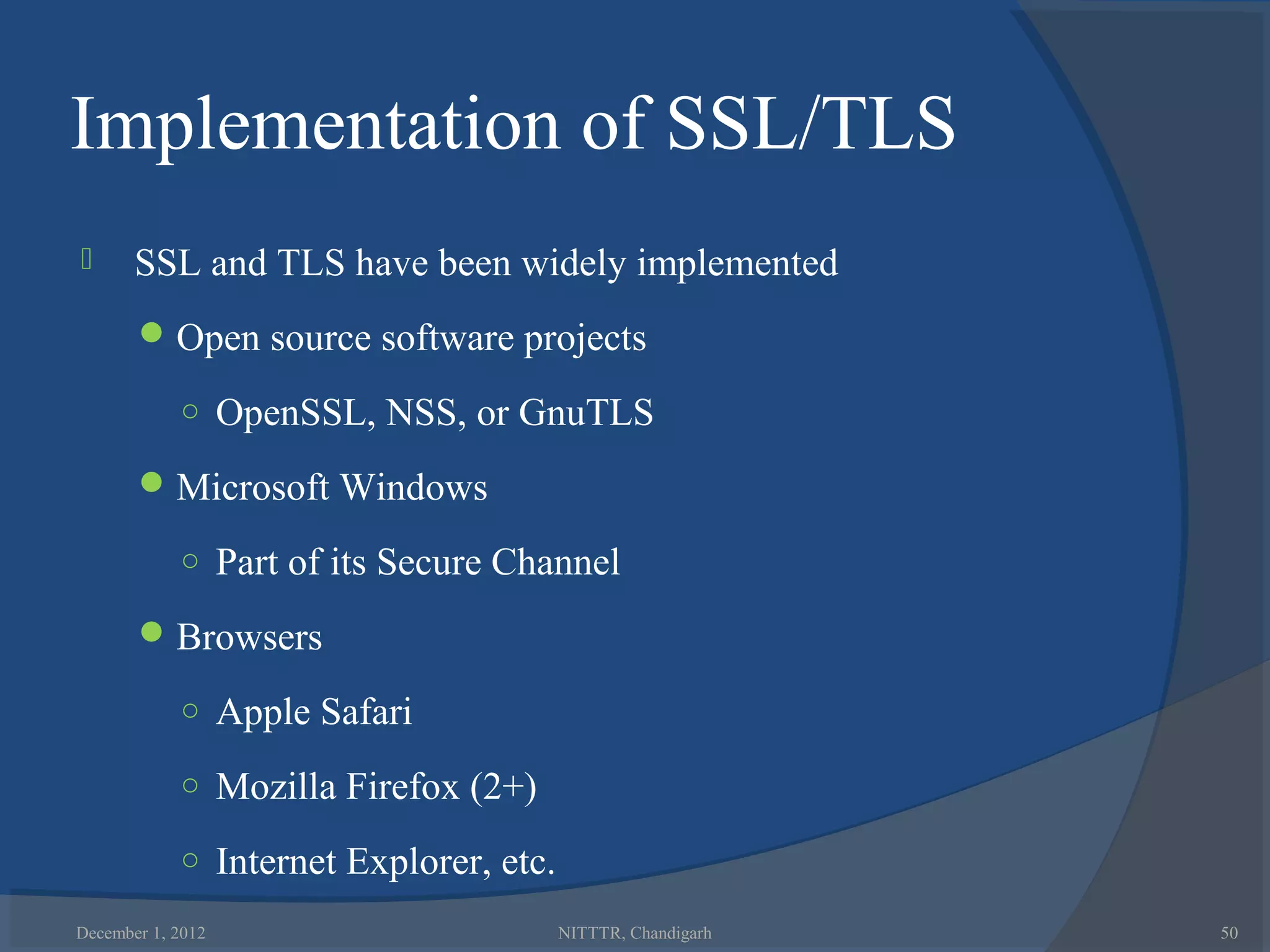

50. Implementation of SSL/TLS
 SSL and TLS have been widely implemented
 Open source software projects
○ OpenSSL, NSS, or GnuTLS
 Microsoft Windows
○ Part of its Secure Channel
 Browsers
○ Apple Safari
○ Mozilla Firefox (2+)
○ Internet Explorer, etc.
December 1, 2012 NITTTR, Chandigarh 50

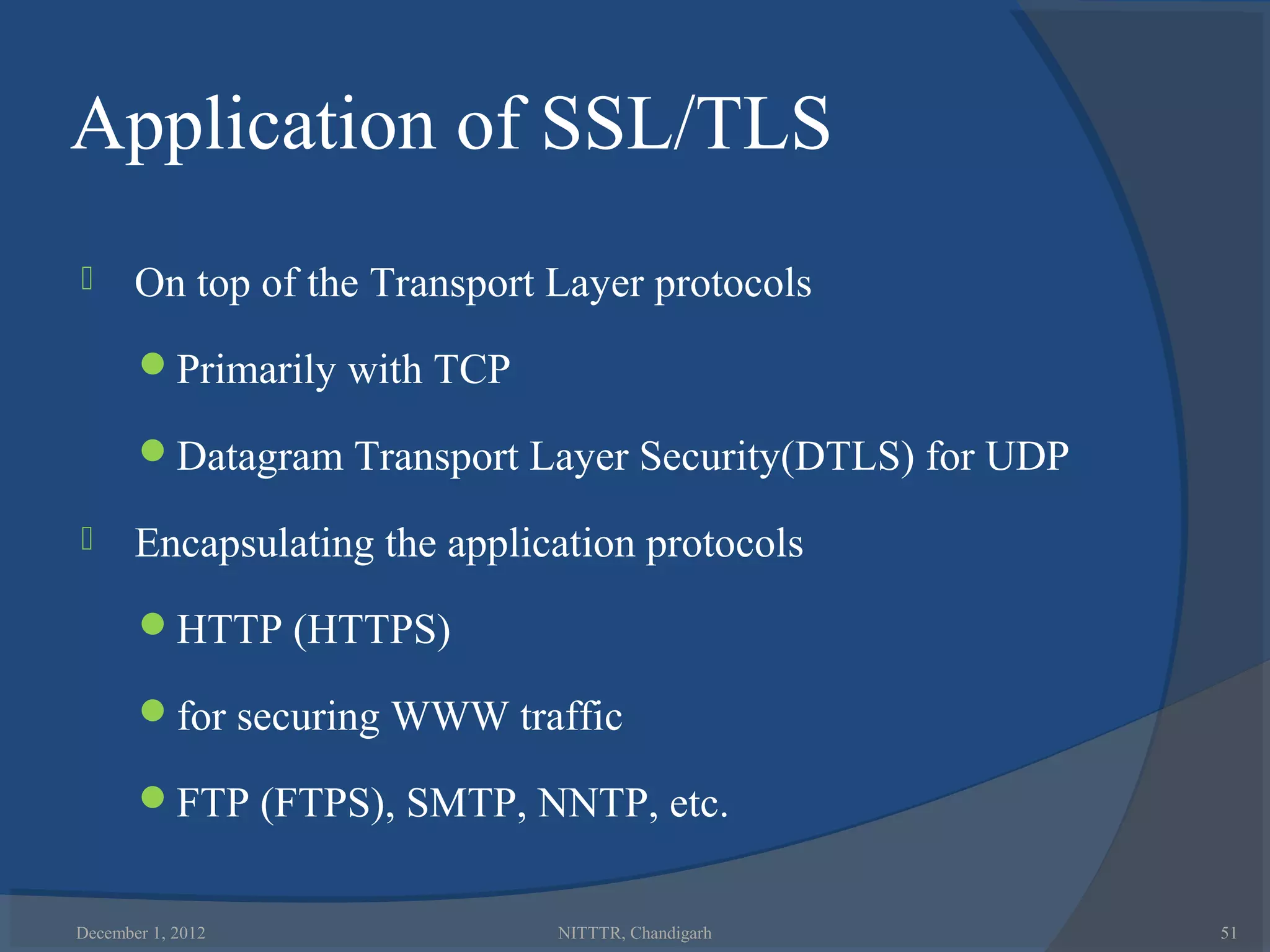

51. Application of SSL/TLS
 On top of the Transport Layer protocols
Primarily with TCP
Datagram Transport Layer Security(DTLS) for UDP
 Encapsulating the application protocols
HTTP (HTTPS)
for securing WWW traffic
FTP (FTPS), SMTP, NNTP, etc.
December 1, 2012 NITTTR, Chandigarh 51

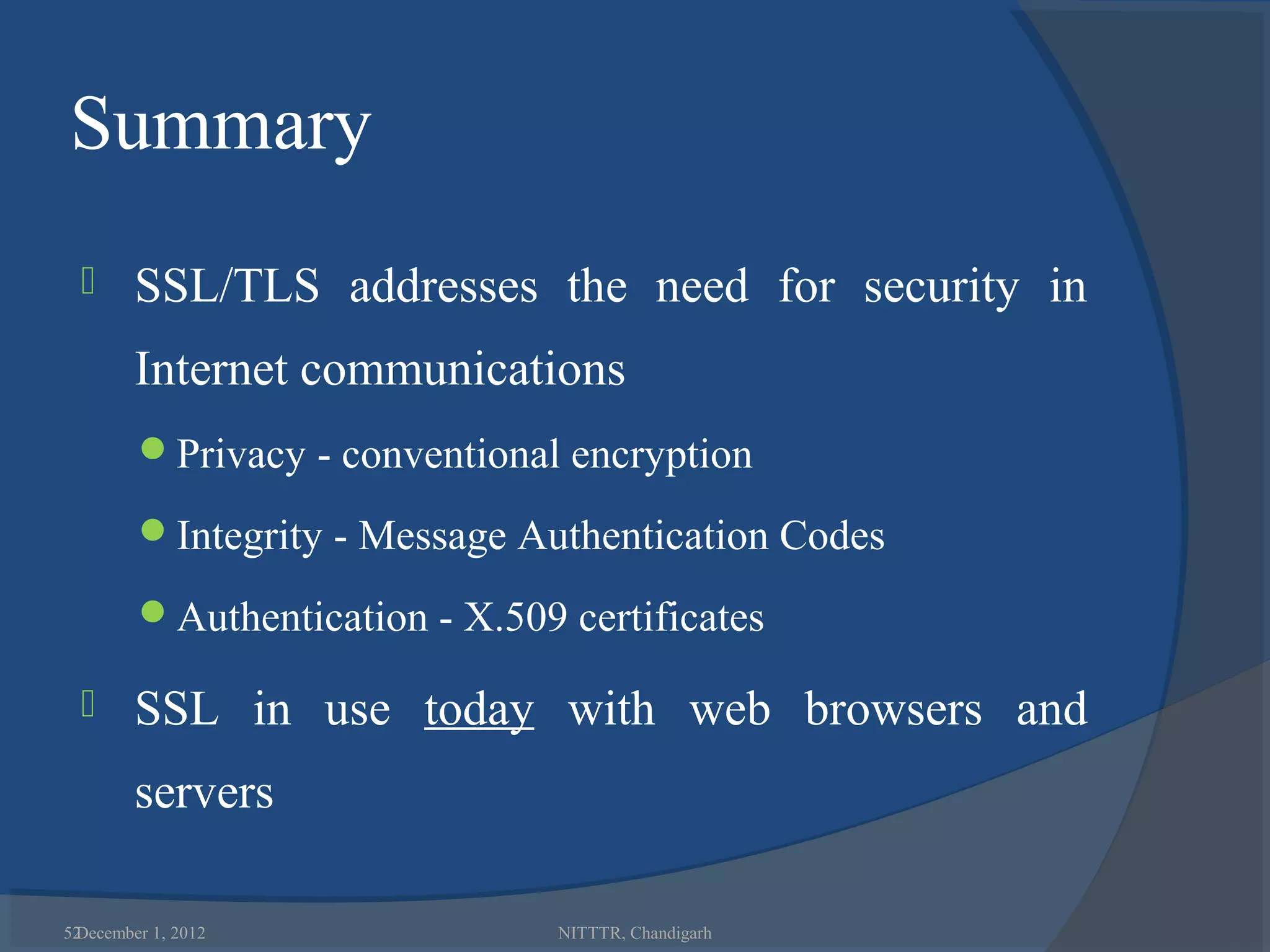

52. Summary
 SSL/TLS addresses the need for security in
Internet communications
Privacy - conventional encryption
Integrity - Message Authentication Codes
Authentication - X.509 certificates
 SSL in use today with web browsers and
servers
52
December 1, 2012 NITTTR, Chandigarh

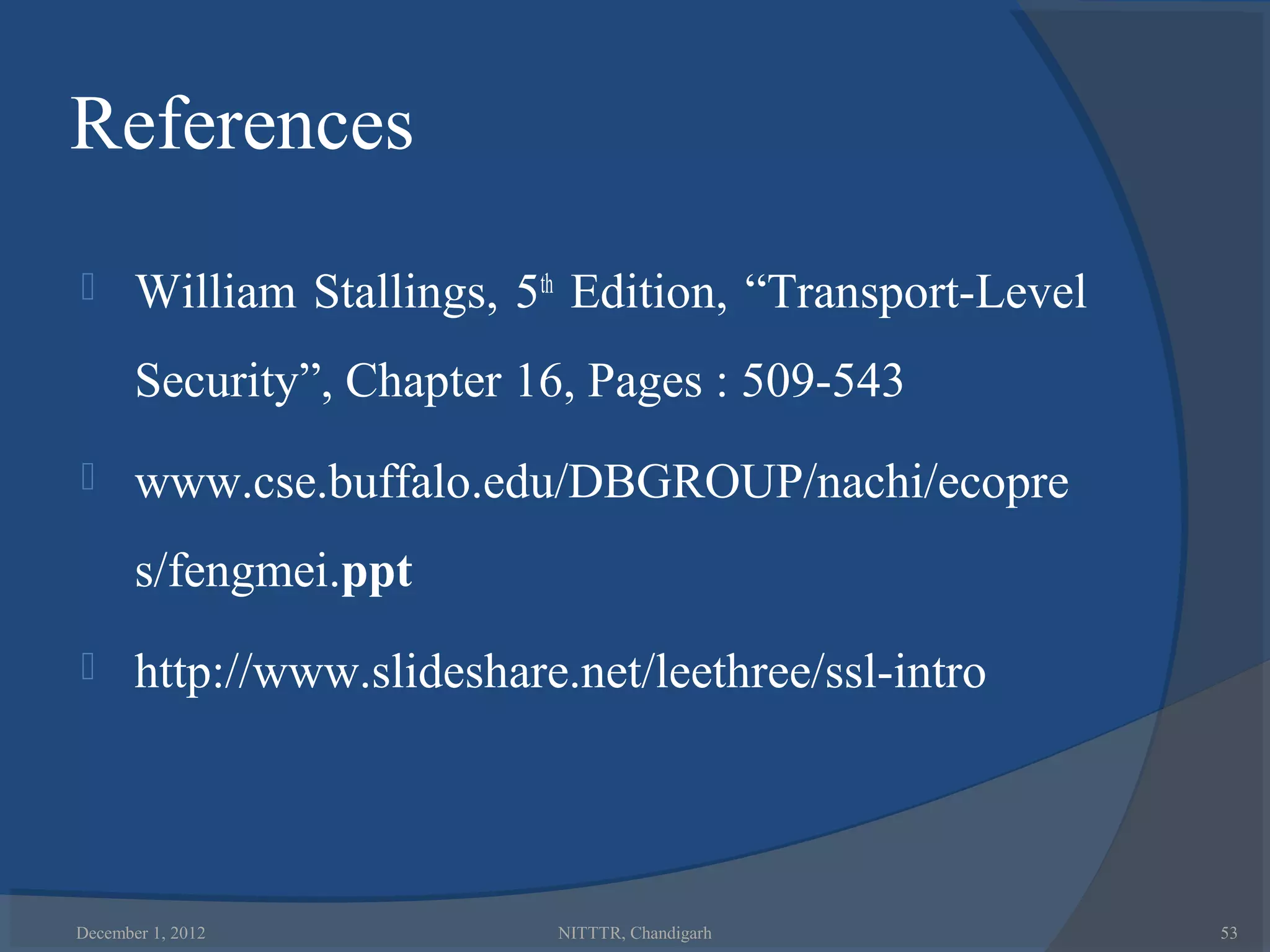

53. References
 William Stallings, 5th Edition, “Transport-Level
Security”, Chapter 16, Pages : 509-543
 www.cse.buffalo.edu/DBGROUP/nachi/ecopre
s/fengmei.ppt
 http://www.slideshare.net/leethree/ssl-intro
December 1, 2012 NITTTR, Chandigarh 53

54. December 1, 2012 NITTTR, Chandigarh 54
