Seat Reservation
Version: 1.1.0
Website: http://magenkit.com/magento-plugins/magento-seat-reservation.html
Support: supporto@magenkit.com

2. 2

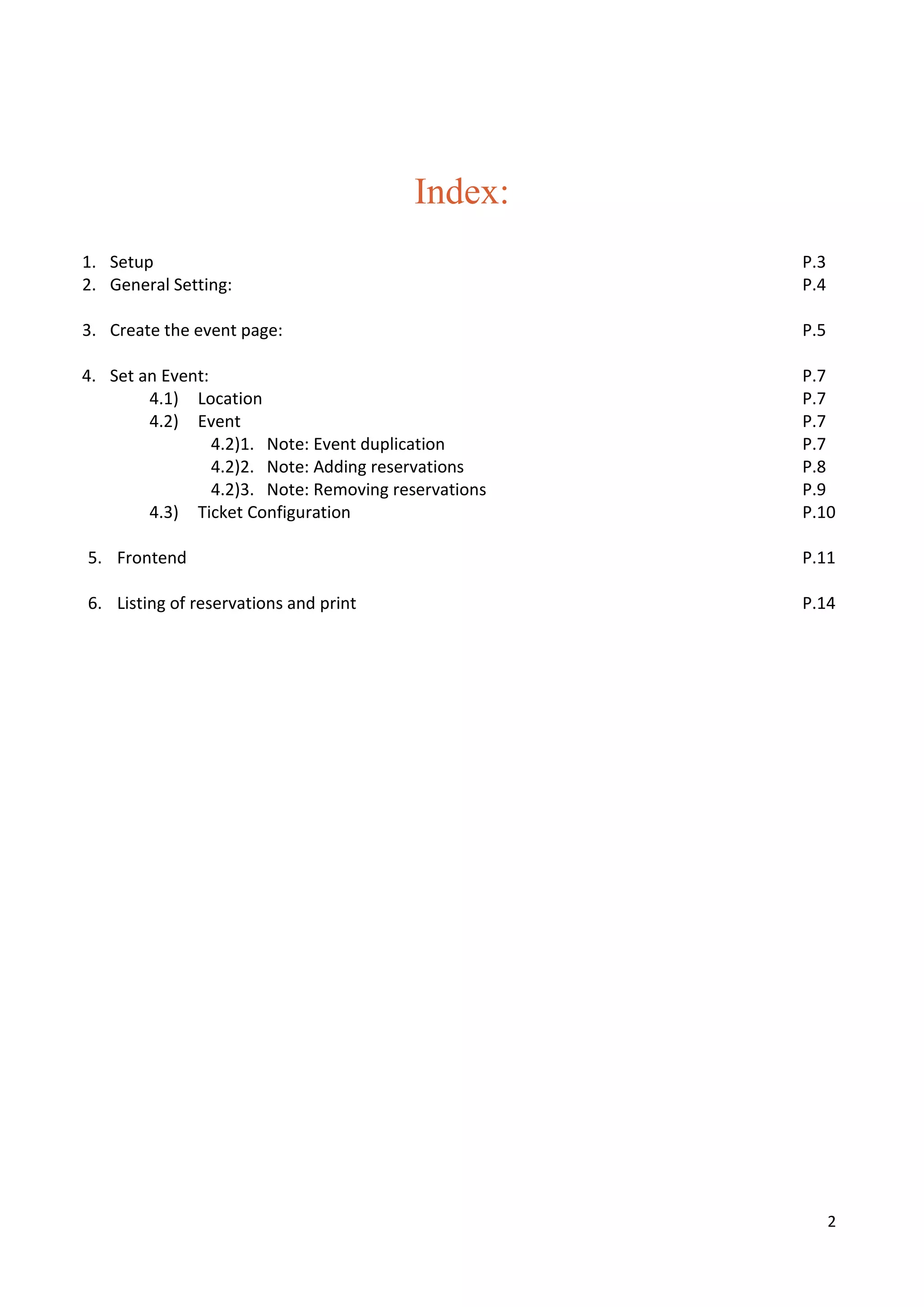

Index:
1. Setup P.3
2. General Setting: P.4
3. Create the event page: P.5
4. Set an Event: P.7
4.1) Location P.7
4.2) Event P.7
4.2)1. Note: Event duplication P.7
4.2)2. Note: Adding reservations P.8
4.2)3. Note: Removing reservations P.9
4.3) Ticket Configuration P.10
5. Frontend P.11
6. Listing of reservations and print P.14

3. 3

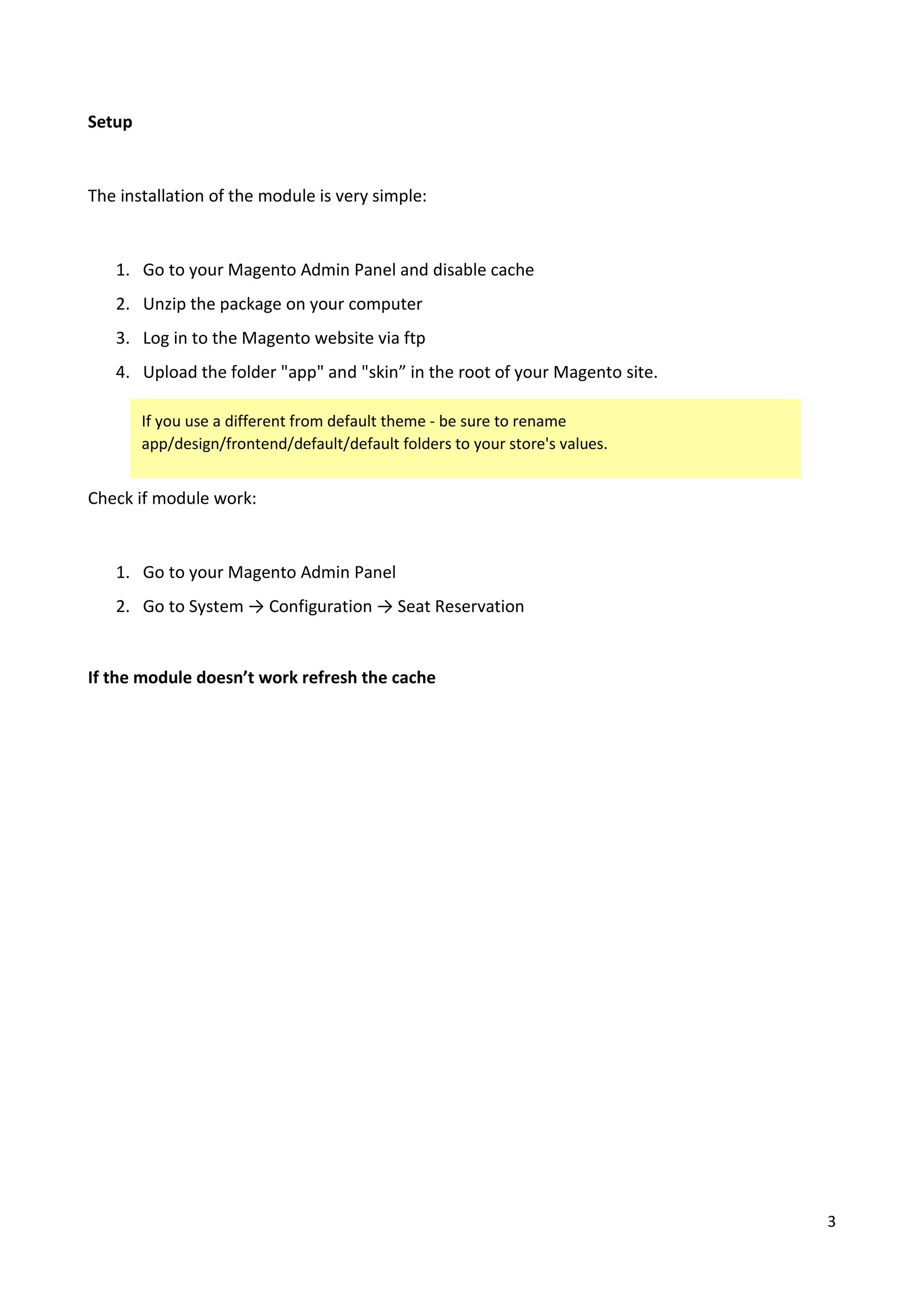

Setup
The installation of the module is very simple:
1. Go to your Magento Admin Panel and disable cache
2. Unzip the package on your computer
3. Log in to the Magento website via ftp
4. Upload the folder "app" and "skin” in the root of your Magento site.
Check if module work:
1. Go to your Magento Admin Panel
2. Go to System → Configuration → Seat Reservation
If the module doesn’t work refresh the cache
If you use a different from default theme - be sure to rename
app/design/frontend/default/default folders to your store's values.

4. 4

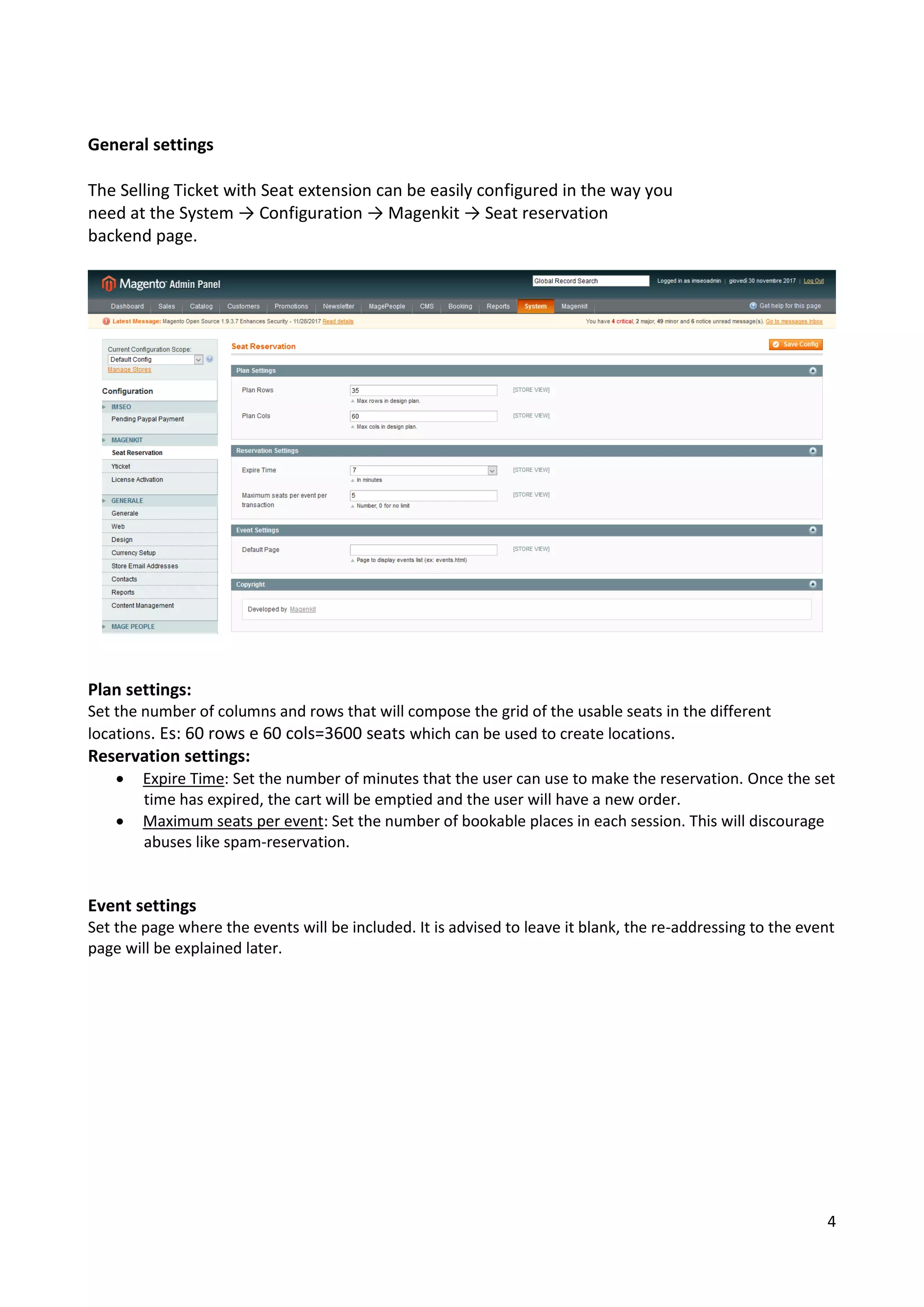

General settings
The Selling Ticket with Seat extension can be easily configured in the way you
need at the System → Configuration → Magenkit → Seat reservation
backend page.
Plan settings:
Set the number of columns and rows that will compose the grid of the usable seats in the different
locations. Es: 60 rows e 60 cols=3600 seats which can be used to create locations.
Reservation settings:
• Expire Time: Set the number of minutes that the user can use to make the reservation. Once the set
time has expired, the cart will be emptied and the user will have a new order.
• Maximum seats per event: Set the number of bookable places in each session. This will discourage
abuses like spam-reservation.
Event settings
Set the page where the events will be included. It is advised to leave it blank, the re-addressing to the event
page will be explained later.

5. 5

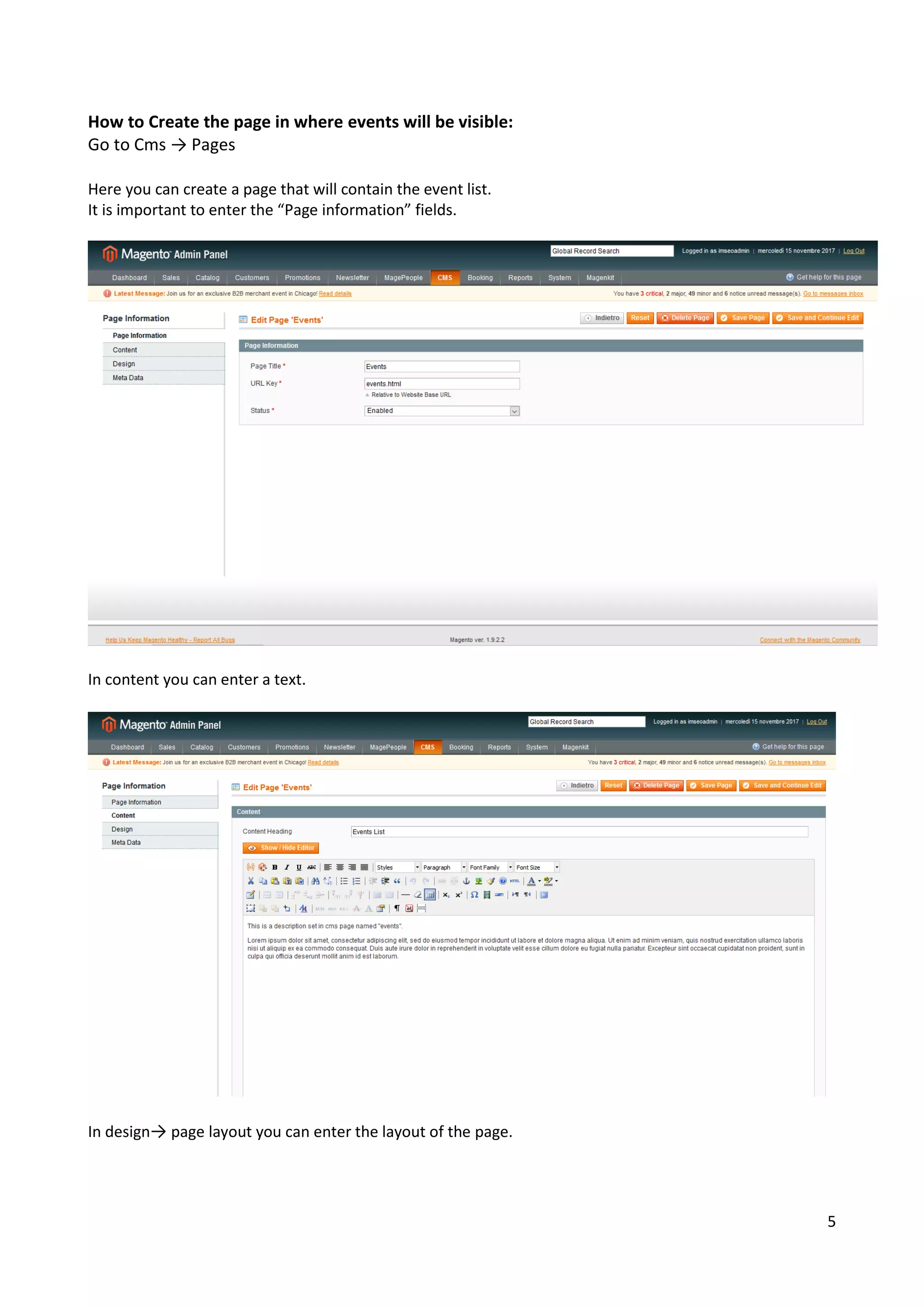

How to Create the page in where events will be visible:
Go to Cms → Pages
Here you can create a page that will contain the event list.
It is important to enter the “Page information” fields.
In content you can enter a text.
In design→ page layout you can enter the layout of the page.

6. 6

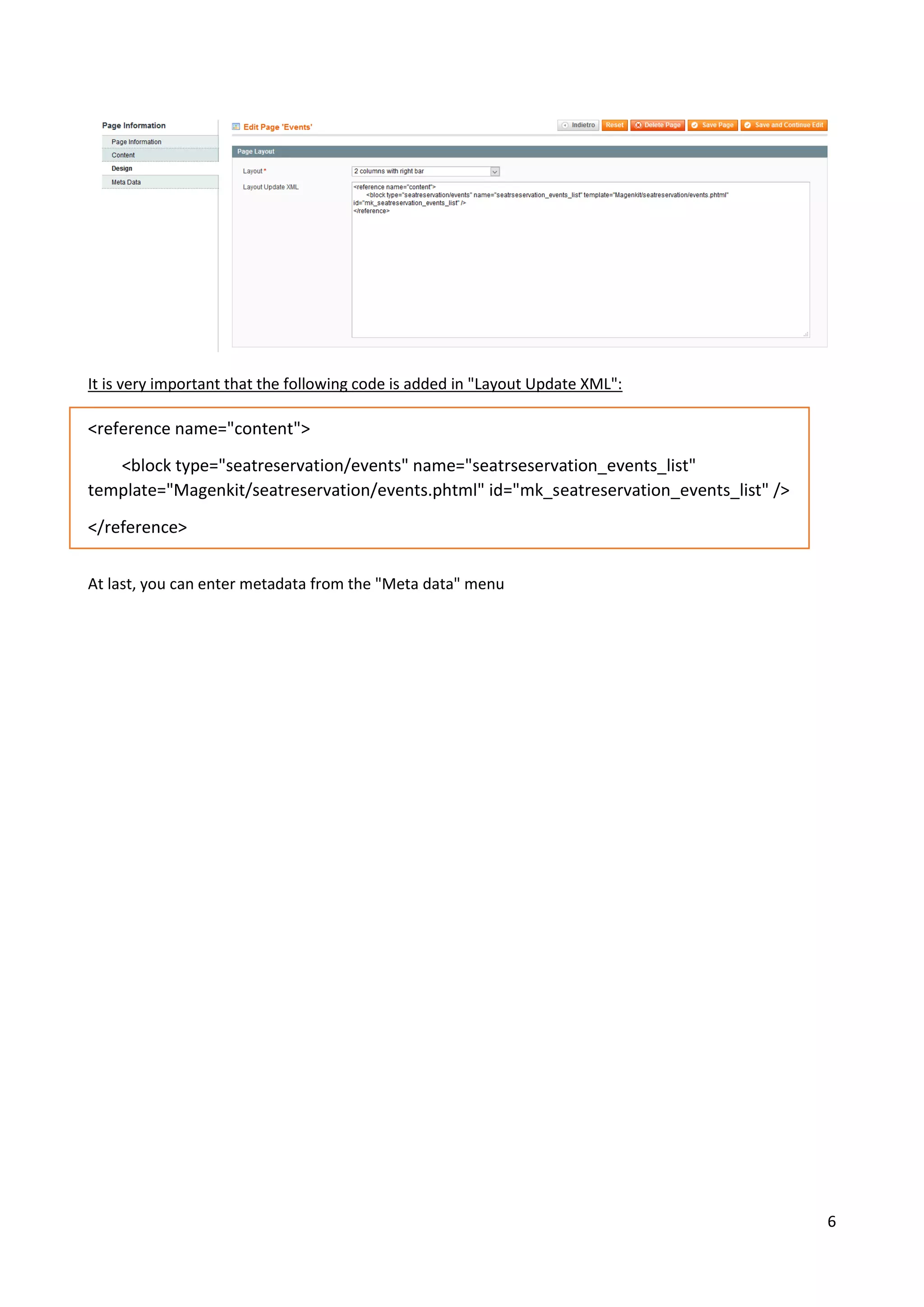

It is very important that the following code is added in "Layout Update XML":
<reference name="content">
<block type="seatreservation/events" name="seatrseservation_events_list"
template="Magenkit/seatreservation/events.phtml" id="mk_seatreservation_events_list" />
</reference>
At last, you can enter metadata from the "Meta data" menu

7. 7

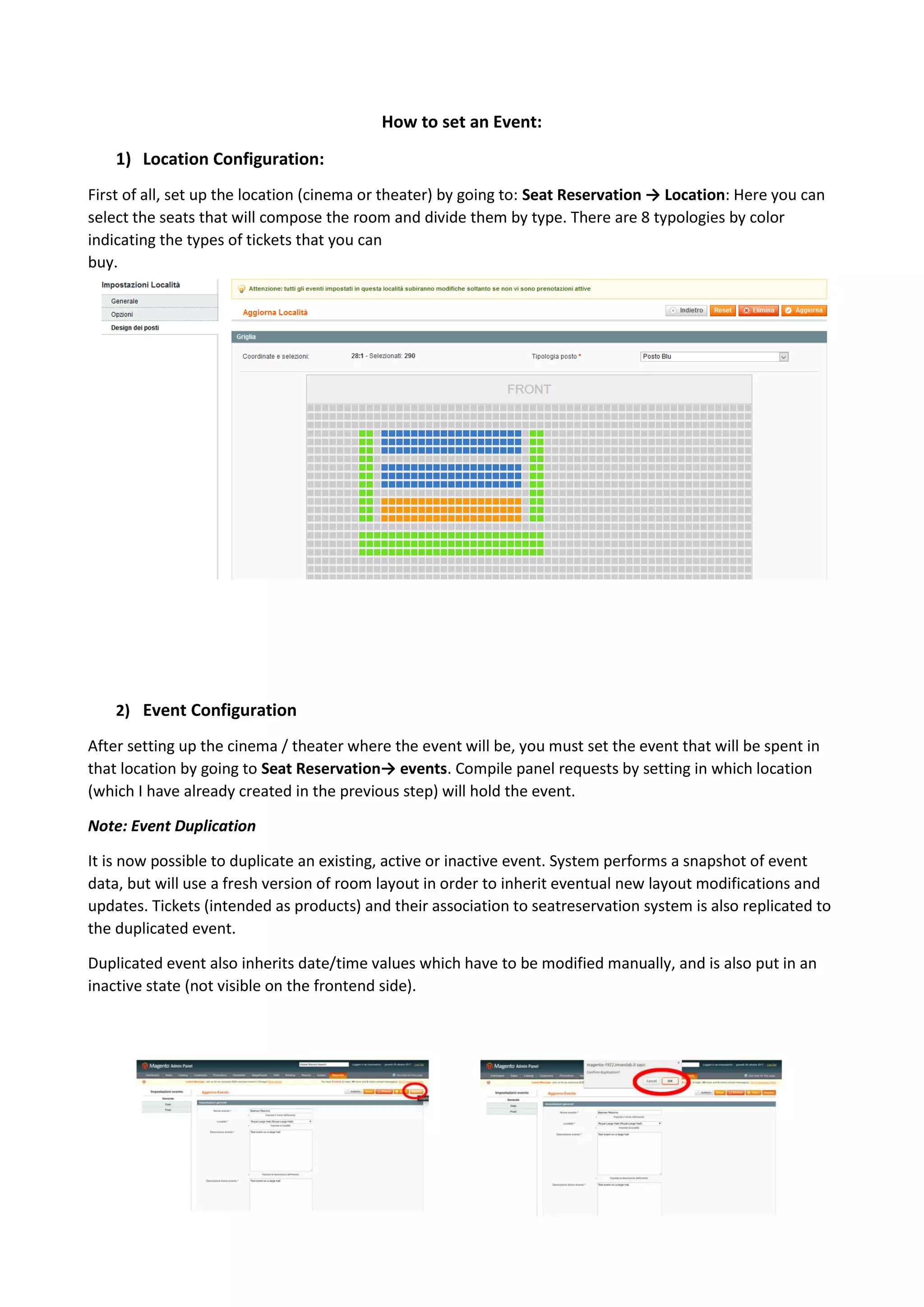

How to set an Event:
1) Location Configuration:
First of all, set up the location (cinema or theater) by going to: Seat Reservation → Location: Here you can
select the seats that will compose the room and divide them by type. There are 8 typologies by color
indicating the types of tickets that you can
buy.
2) Event Configuration
After setting up the cinema / theater where the event will be, you must set the event that will be spent in
that location by going to Seat Reservation→ events. Compile panel requests by setting in which location
(which I have already created in the previous step) will hold the event.
Note: Event Duplication
It is now possible to duplicate an existing, active or inactive event. System performs a snapshot of event
data, but will use a fresh version of room layout in order to inherit eventual new layout modifications and
updates. Tickets (intended as products) and their association to seatreservation system is also replicated to
the duplicated event.
Duplicated event also inherits date/time values which have to be modified manually, and is also put in an
inactive state (not visible on the frontend side).

8. 8

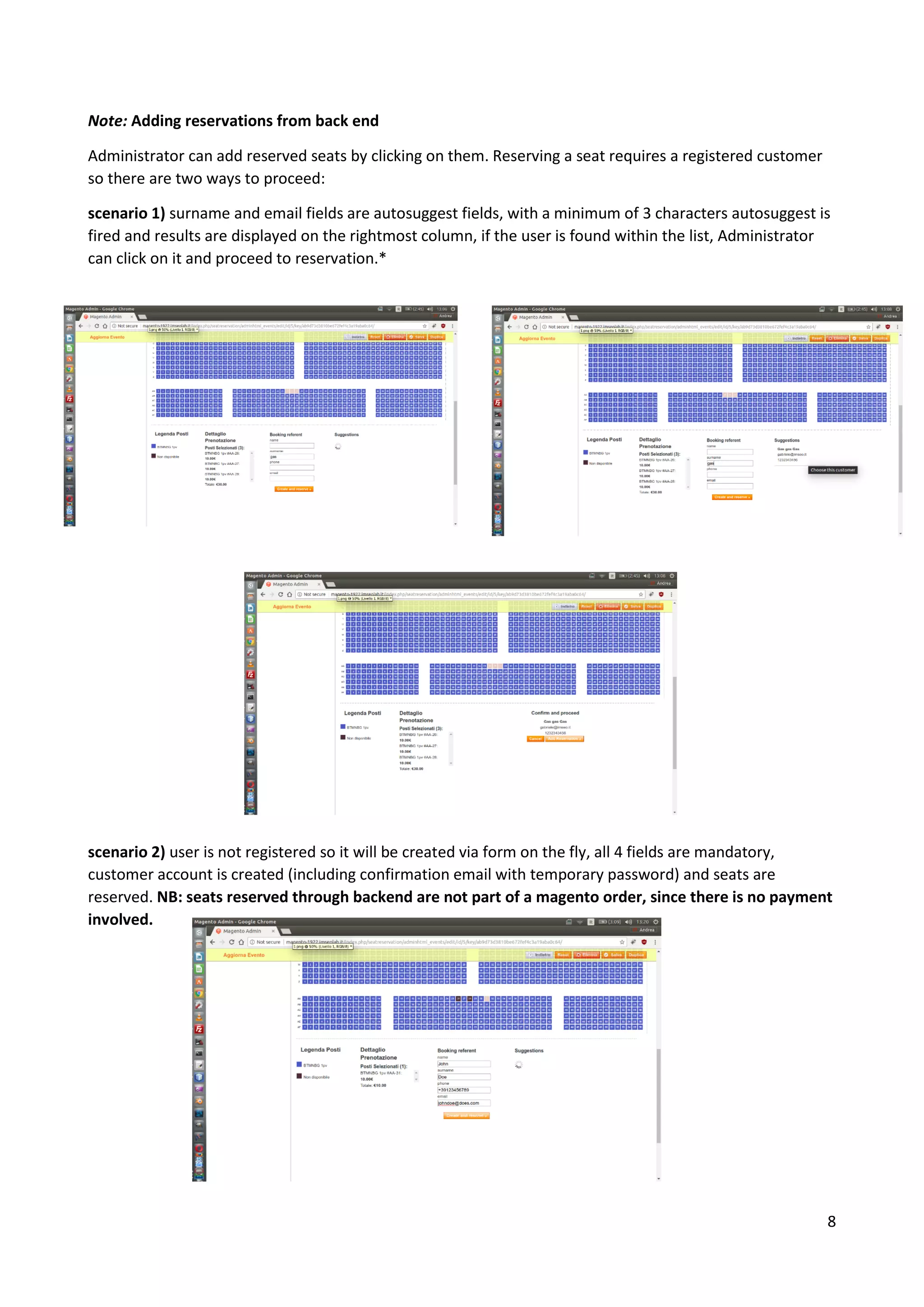

Note: Adding reservations from back end
Administrator can add reserved seats by clicking on them. Reserving a seat requires a registered customer
so there are two ways to proceed:
scenario 1) surname and email fields are autosuggest fields, with a minimum of 3 characters autosuggest is
fired and results are displayed on the rightmost column, if the user is found within the list, Administrator
can click on it and proceed to reservation.*
scenario 2) user is not registered so it will be created via form on the fly, all 4 fields are mandatory,
customer account is created (including confirmation email with temporary password) and seats are
reserved. NB: seats reserved through backend are not part of a magento order, since there is no payment
involved.

9. 9

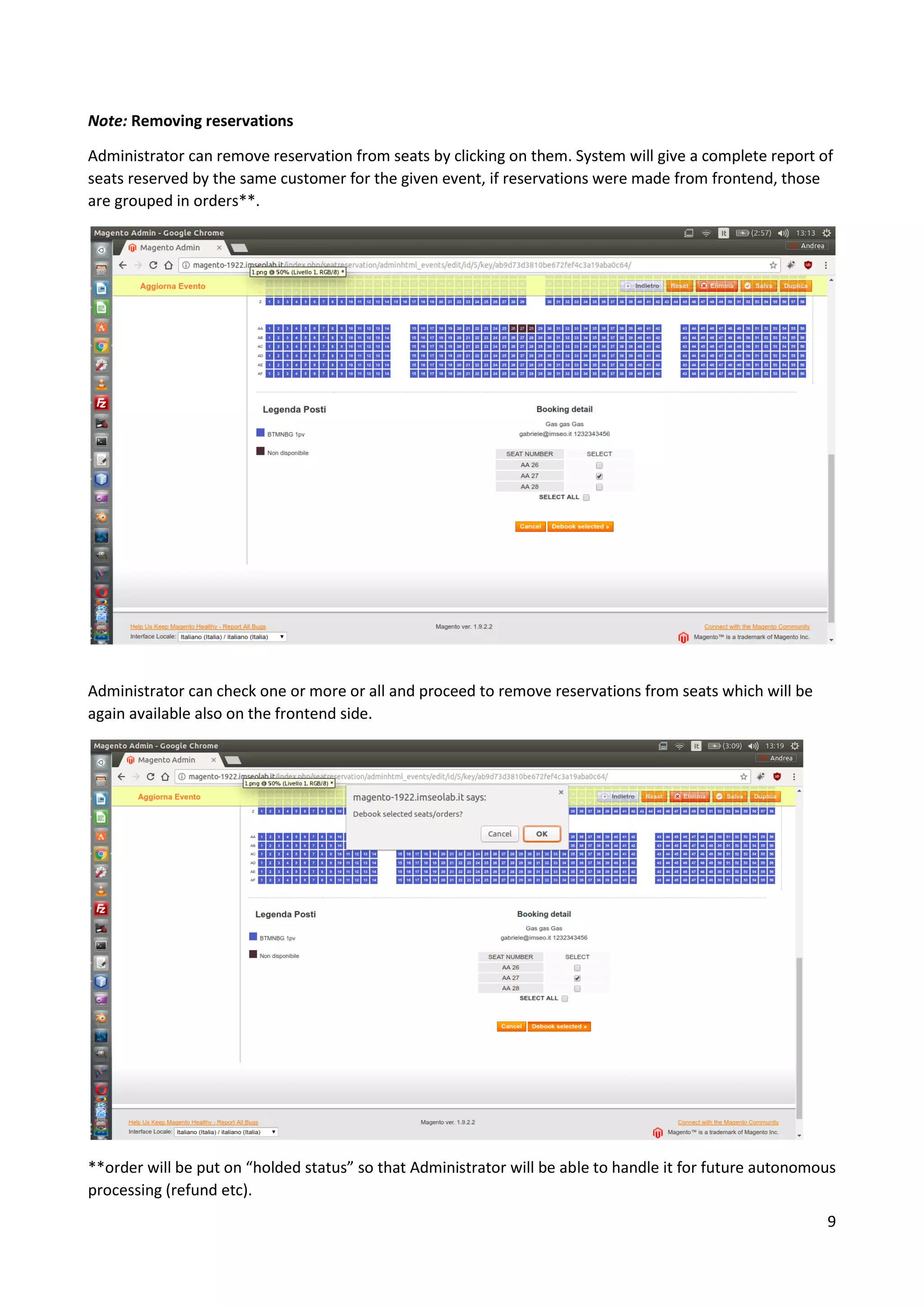

Note: Removing reservations
Administrator can remove reservation from seats by clicking on them. System will give a complete report of
seats reserved by the same customer for the given event, if reservations were made from frontend, those
are grouped in orders**.
Administrator can check one or more or all and proceed to remove reservations from seats which will be
again available also on the frontend side.
**order will be put on “holded status” so that Administrator will be able to handle it for future autonomous
processing (refund etc).

10. 10

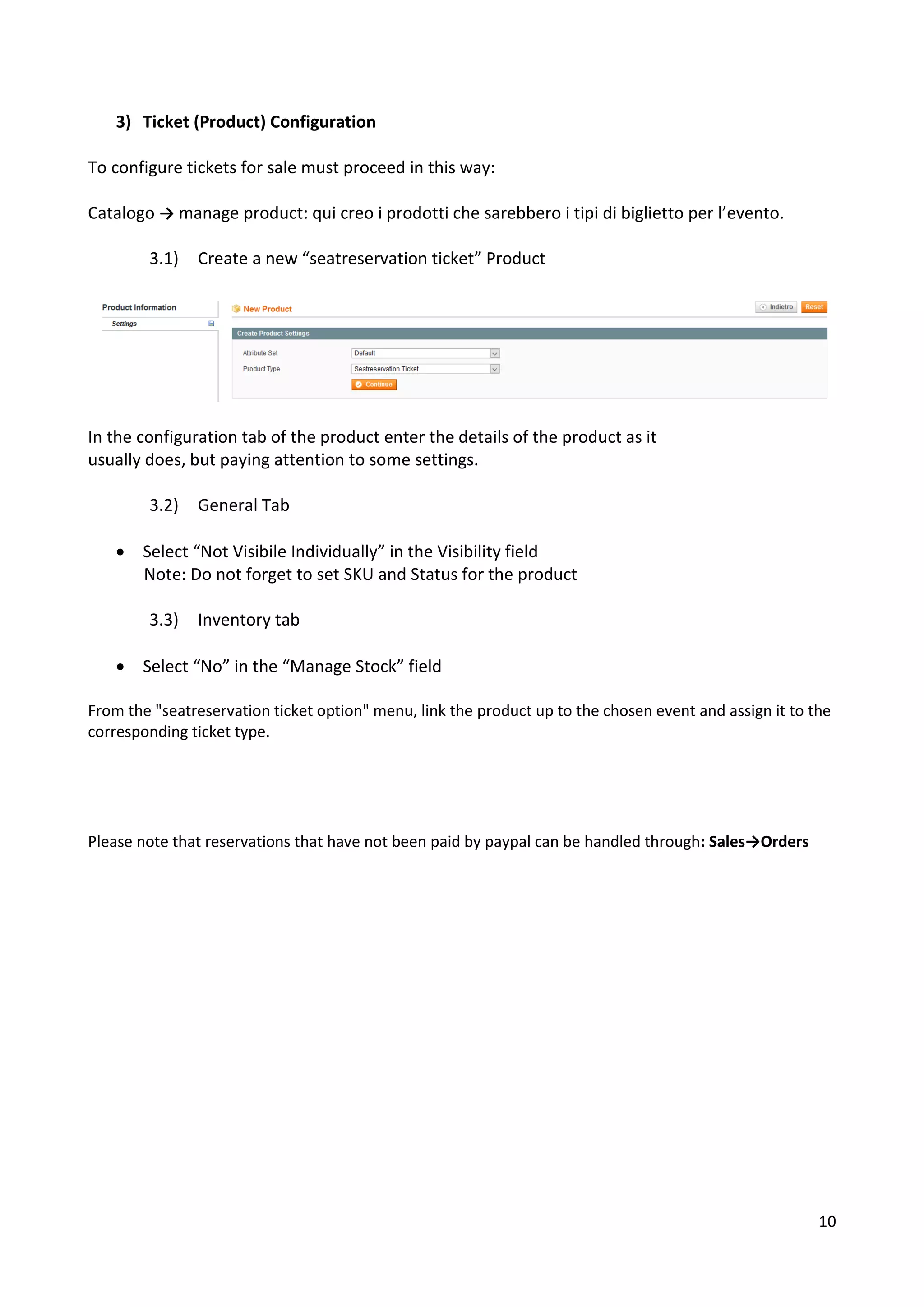

3) Ticket (Product) Configuration
To configure tickets for sale must proceed in this way:
Catalogo → manage product: qui creo i prodotti che sarebbero i tipi di biglietto per l’evento.
3.1) Create a new “seatreservation ticket” Product
In the configuration tab of the product enter the details of the product as it
usually does, but paying attention to some settings.
3.2) General Tab
• Select “Not Visibile Individually” in the Visibility field
Note: Do not forget to set SKU and Status for the product
3.3) Inventory tab
• Select “No” in the “Manage Stock” field
From the "seatreservation ticket option" menu, link the product up to the chosen event and assign it to the
corresponding ticket type.
Please note that reservations that have not been paid by paypal can be handled through: Sales→Orders

11. 11

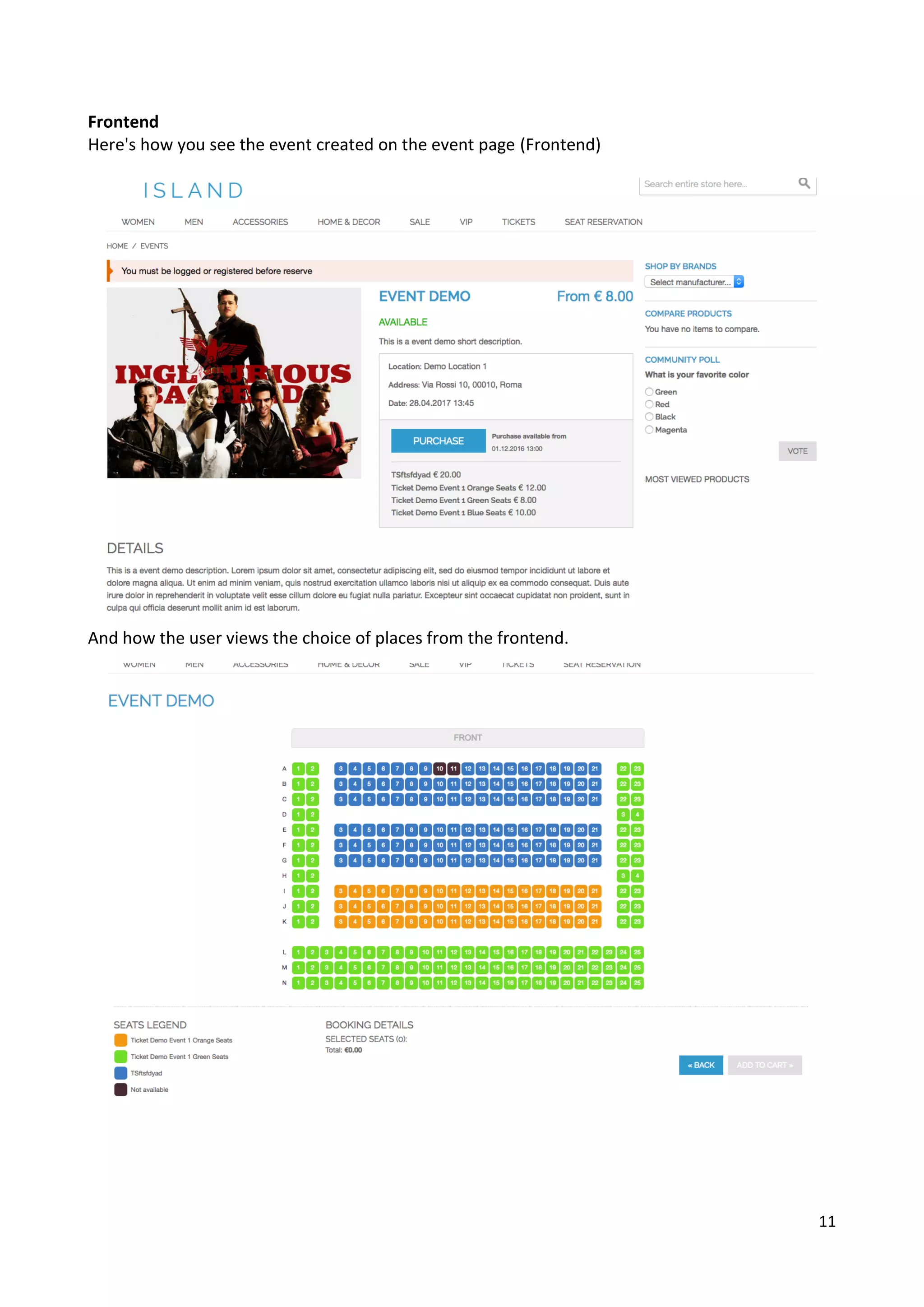

Frontend
Here's how you see the event created on the event page (Frontend)
And how the user views the choice of places from the frontend.

12. 12

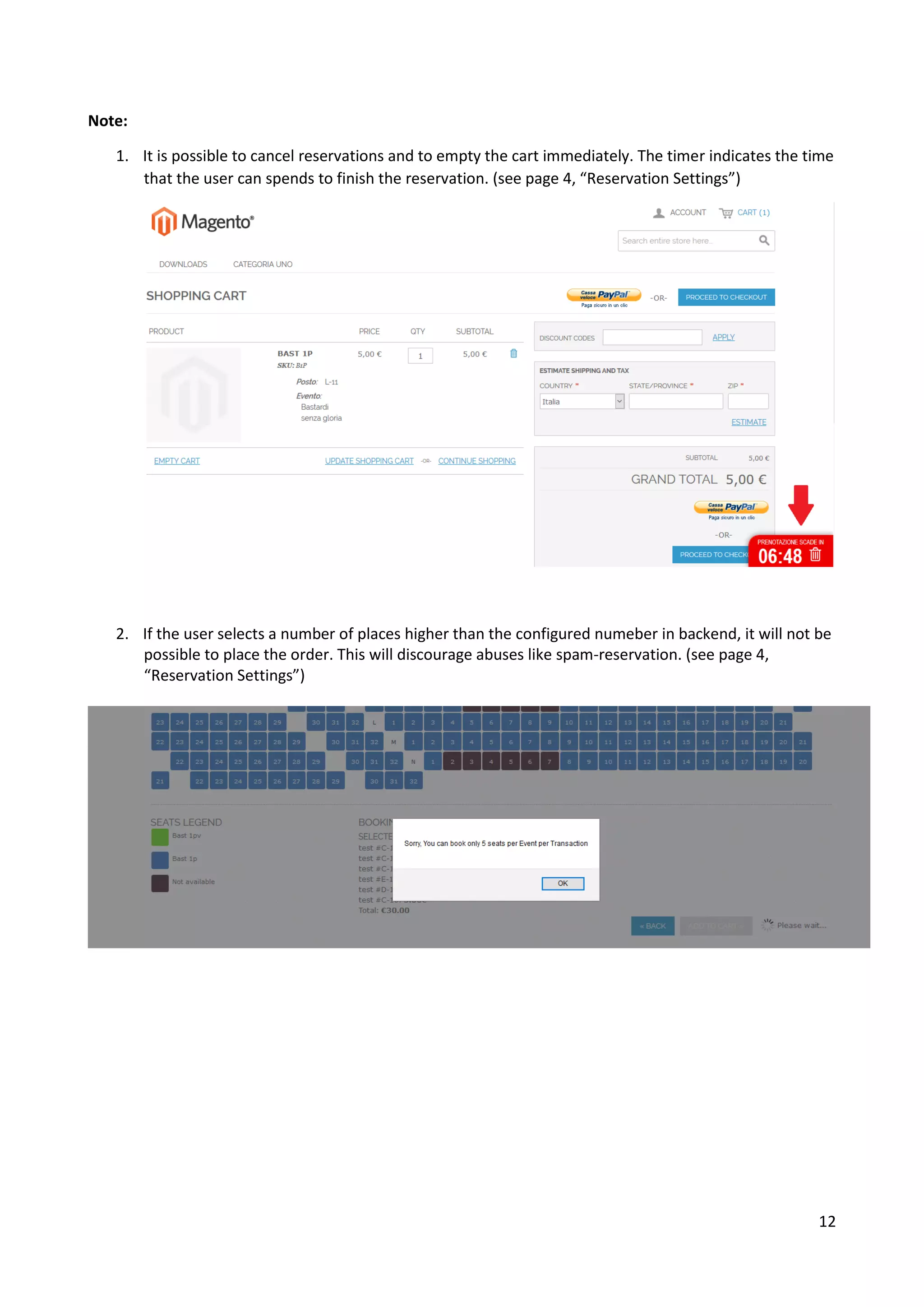

Note:
1. It is possible to cancel reservations and to empty the cart immediately. The timer indicates the time
that the user can spends to finish the reservation. (see page 4, “Reservation Settings”)
2. If the user selects a number of places higher than the configured numeber in backend, it will not be
possible to place the order. This will discourage abuses like spam-reservation. (see page 4,
“Reservation Settings”)

13. 13

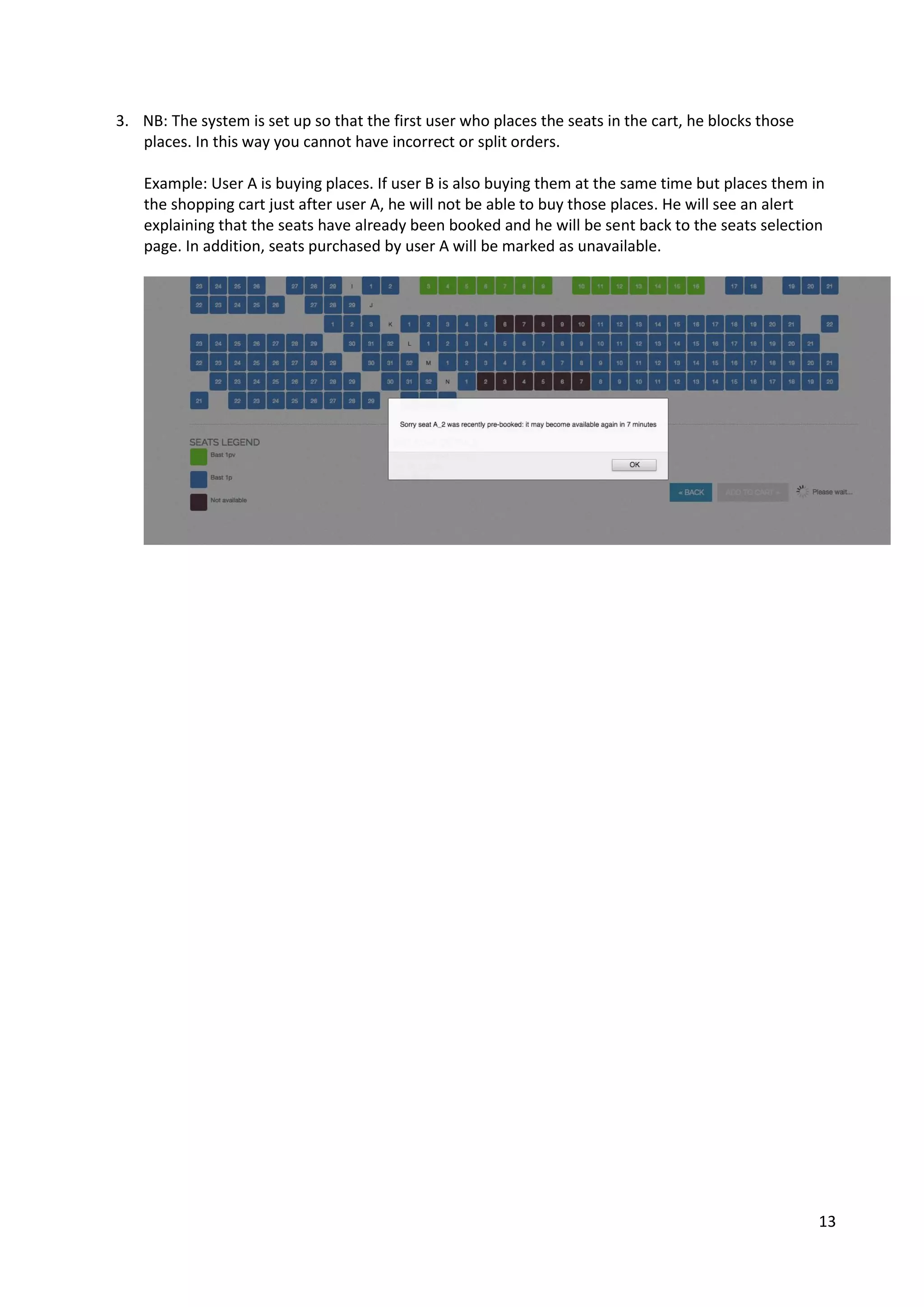

3. NB: The system is set up so that the first user who places the seats in the cart, he blocks those
places. In this way you cannot have incorrect or split orders.
Example: User A is buying places. If user B is also buying them at the same time but places them in
the shopping cart just after user A, he will not be able to buy those places. He will see an alert
explaining that the seats have already been booked and he will be sent back to the seats selection
page. In addition, seats purchased by user A will be marked as unavailable.

14. 14
Listing of reservations and print
From the event list page Administrator can access to grid-style reservations table.
You can view the status of the bookings from the last column of the event list. If an "error" status is
displayed, you can find out the type of error by clicking on it, then you will land on the event setting page,
from which it will be possible to resolve the mistake.
Print:
It displays a list of reserved seats and the associated customer. If the reservation was done via backend,
there is no direct link to the order. The view is now printable.
