This document provides specifications for the PJ WX4130NJ WX4130 ultra short throw projector. It has a resolution of 1,024,000 pixels with an aspect ratio of 16:10. It can project images between 48 to 80 inches from just 11.7 to 24.9cm away. The projector weighs 3.0kg and has built-in speakers, wired and wireless connectivity, and supports Windows and Mac operating systems. The PJ WX4130N model adds enhanced network features like support for both wired and wireless LAN connections.

1. PJ WX4130NPJ WX4130SystemSingle panel type DLP® systemResolution1,024,000 pixels (1,280 x 800) Panel shapeSize0.65 typeAspect ratio16:10Luminous flux (brightness)2,500lmColour reproduction16,770,000 coloursContrast Ratio2,500:1Size of projected image48 to 80" Projection distance (from rear of unit to projection surface) 11.7 to 24.9cmLampHigh-pressure mercury lamp (standard mode: 225 W, Eco mode: 170 W) RGB compatible signals (analog, digital) Real displayWXGA (1280 x 800), XGA (1,024 x 768), SVGA (800 x 600 only), VGA (640 x 480) Compressed representationUXGA (1600 x 1200), SXGA (1280 x 1024) Input signalsNTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60, component image (480i/p, 576i/p, 720p, 1080i/p) Analog RGB compatible scanning frequency*1Horizontal15 to 100 kHzVertical23 to 85 HzUSB memory compatible file format*2Still image: JPEG, Moving image: MPEG2 InterfaceImage inputMini D-Sub 15-pin x 1, HDMI type A x 1, RCA x 1Audio input3.5Ф stereo mini pin jack x 1USBType-A x 1 (USB2.0 High-Speed) Wired LANRJ45 (10BASE-T/100BASE-TX/1000BASE-T x 1) Wireless LANIEEE 802.11a/b/g/n compliant*3 Supported OSRICOH PJ Network Utility Type AWindows® XP SP3 or later (Home/Professional) Windows Vista® SP2 or later (Ultimate/Business/Home Premium/Home Basic) *4Windows® 7 (Ultimate/Enterprise/Professional/Home Premium) *4 RICOH JPEG Conversion Tool Type AWindows® XP SP3 or later (Home/Professional) Windows® XP 64-bit Edition (SP2 or later) (Professional) Windows Vista® SP2 or later (Ultimate/Business/Home Premium/Home Basic) *4Windows® 7 (Ultimate/Enterprise/Professional/Home Premium) *4Projector Management UtilityWindows® XP SP3 or later (Home/Professional) Windows Vista® SP2 or later (Ultimate/Business/Home Premium/Home Basic) *5 Windows® 7 (Ultimate/Enterprise/Professional/Home Premium) *5Built-in speaker2 W monoDimensions (W x D x H) 257 x 144 x 221 mm (including protrusions) Weight3.0 kgPower consumptionWhile operatingStandard mode: 300 W or less, Eco mode: 228 W or lessStandard mode: 291 W or less, Eco mode: 222 W or lessIn standbyRegular standby mode: 0.17 W or lessNetwork standby mode: 0.46 W or less*60.17 W or lessOperating environment While operatingAmbient temperature: 5 to 35ºC, humidity: 30 to 70% (no condensation) Power100 to 240 V, 50 Hz/60 Hz

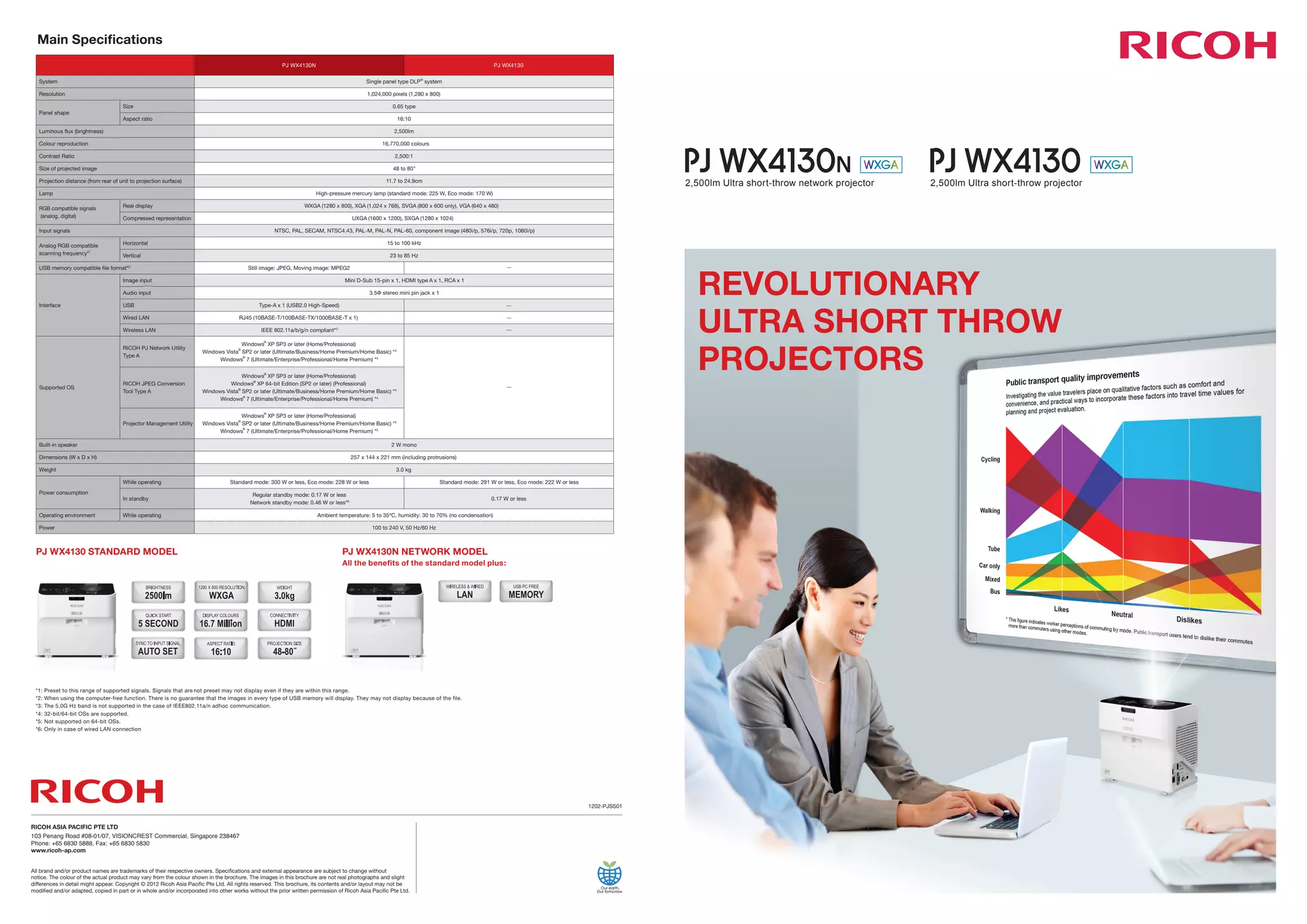

Main Specifications
PJ WX4130 STANDARD MODEL
PJ WX4130N NETWORK MODEL
RICOH ASIA PACIFIC PTE LTD
103 Penang Road #08-01/07, VISIONCREST Commercial, Singapore 238467
Phone: +65 6830 5888, Fax: +65 6830 5830
www.ricoh-ap.com
1202-PJSS01
All brand and/or product names are trademarks of their respective owners. Specifications and external appearance are subject to change without notice. The colour of the actual product may vary from the colour shown in the brochure. The images in this brochure are not real photographs and slight differences in detail might appear. Copyright © 2012 Ricoh Asia Pacific Pte Ltd. All rights reserved. This brochure, its contents and/or layout may not be modified and/or adapted, copied in part or in whole and/or incorporated into other works without the prior written permission of Ricoh Asia Pacific Pte Ltd.
2,500lm Ultra short-throw network projector2,500lm Ultra short-throw projector
All the benefits of the standard model plus:
REVOLUTIONARY
ULTRA SHORT THROW PROJECTORS
*1: Preset to this range of supported signals. Signals that are not preset may not display even if they are within this range. *2: When using the computer-free function. There is no guarantee that the images in every type of USB memory will display. They may not display because of the file. *3: The 5.0G Hz band is not supported in the case of IEEE802.11a/n adhoc communication. *4: 32-bit/64-bit OSs are supported. *5: Not supported on 64-bit OSs. *6: Only in case of wired LAN connection

2. Lightweight and Ultra Close-Range Projection
Easy to transport from one point to another point. Space saving
with minimal projection distance required.
Outstanding Environmental Performance
Eco mode helps reduce power consumption by up to 25%
during operation and uses only 0.17 W* when in standby mode.
* In regular standby mode.
AV Mute Freeze
Pause your presentation anytime using the remote control.
Enlarged Image Display
Easily enlarge projected images using the remote control.
Wall Colour Correction
Adjust the colour of the projected image according to the screen
background colour.
Automatic Distortion Adjustment
Automatically correct distortion, allowing images to be projected
with correct geometry.
Quick Start/Quick Shutdown
Require just 3 second* start-up time. And when you are done,
just unplug the projector.
* Time until screen display
Kensington Lock
Equipped with a Kensington lock as a standard accessory to help
prevent theft.
Password Setting Key Lock
Prevent unauthorised use of the projector or adjustment while
operating the projector.
User Logo Function
Display your company logo or standby message while projector is
starting up or when there is no input signal.
3D Ready
Project and view 3D images with the unique DLP Link Technology.
• Support Both Wired and Wireless LAN
Connect to wired or wireless LAN easily using RICOH’s
Network Utility.
• PC-Free Presentation
Save files to a USB memory drive and plug it into the USB
terminal port for computer-free presentations.
• Multiscreen Function
Project images onto four different projectors from one
computer.
• Projection Server Function
JPEG files stored on a Web server can be downloaded
and projected from the projector.
• Project Management Utility
Control or change the settings for multiple network
projectors. With PJLink compatibility, you can also manage
other brands network projectors that are
PJLink-compatible.#
• @Remote Compatibility
To ensure the smooth running of projectors, the @Remote
remote diagnostics service monitors network projectors
remotely over the internet to provide operating status
reports.*
+ Free download from the AppStore / iTunes website
http://itunes.apple.com/us/app/ricoh-tamago-presenter/id432471595?mt=8
* Please check with your local Ricoh sales office for the product/service availability.
^ Applicable for WX4130N model only.
# PJLink is a standardised open protocol established by the Japan Business Machine and Information
System Industries Association (JBMIA) for controlling projectors on a network.
Enhanced network
connectivity features^
* In the mirror reflection type ultra short-throw projector range. As of November 2011, researched by Ricoh.

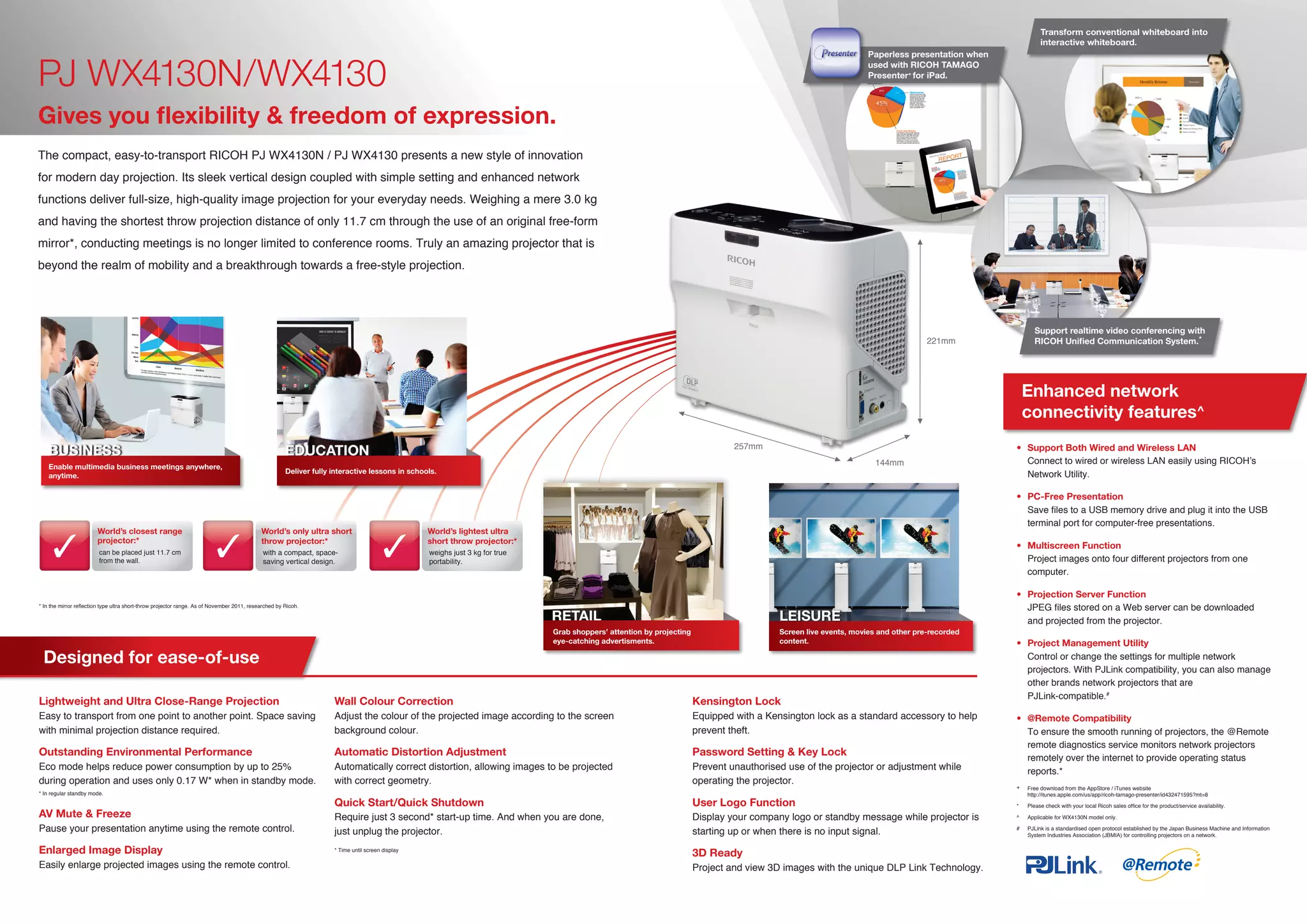

PJ WX4130N/WX4130
The compact, easy-to-transport RICOH PJ WX4130N / PJ WX4130 presents a new style of innovation
for modern day projection. Its sleek vertical design coupled with simple setting and enhanced network
functions deliver full-size, high-quality image projection for your everyday needs. Weighing a mere 3.0 kg
and having the shortest throw projection distance of only 11.7 cm through the use of an original free-form
mirror*, conducting meetings is no longer limited to conference rooms. Truly an amazing projector that is
beyond the realm of mobility and a breakthrough towards a free-style projection.
Designed for ease-of-use
Gives you flexibility freedom of expression.
retail
Screen live events, movies and other pre-recorded
content.
LEISURE
Enable multimedia business meetings anywhere,
anytime.
Deliver fully interactive lessons in schools.
can be placed just 11.7 cm
from the wall.
World’s closest range
projector:*
with a compact, space-saving
vertical design.
World’s only ultra short
throw projector:*
weighs just 3 kg for true
portability.
World’s lightest ultra
short throw projector:*
257mm
221mm
144mm
Paperless presentation when
used with RICOH TAMAGO
Presenter+ for iPad.
EDUCATION
Transform conventional whiteboard into
interactive whiteboard.
Support realtime video conferencing with
RICOH Unified Communication System.*
BUSINESS
Grab shoppers’ attention by projecting
eye-catching advertisments.
