Service Aware Policy Controller
PART - 02
Mustafa Golam
Data BundleConfiguration

Agenda
How to Access SAPC
Functional View
Platform
Functional View
Functional View
Functional View

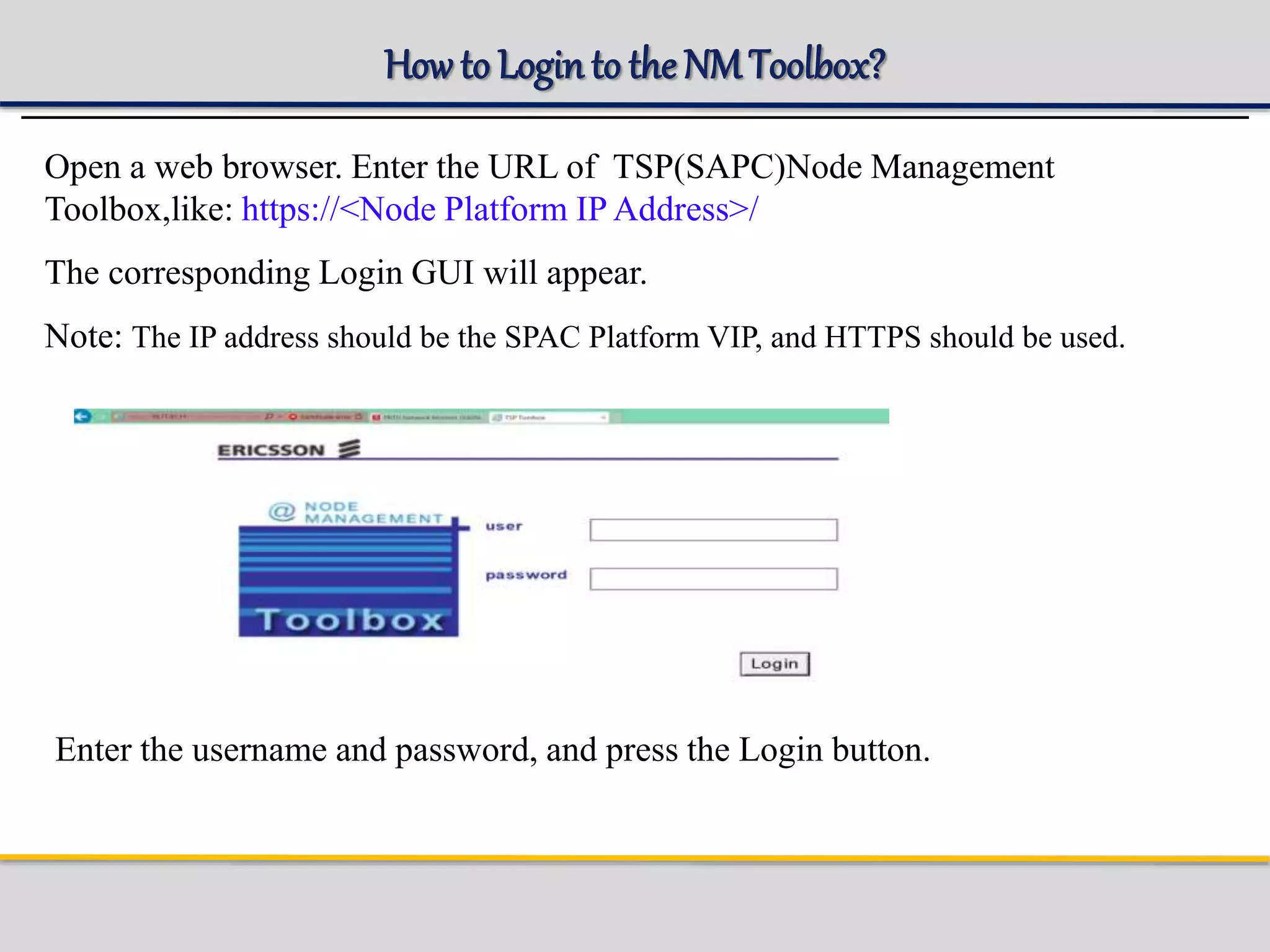

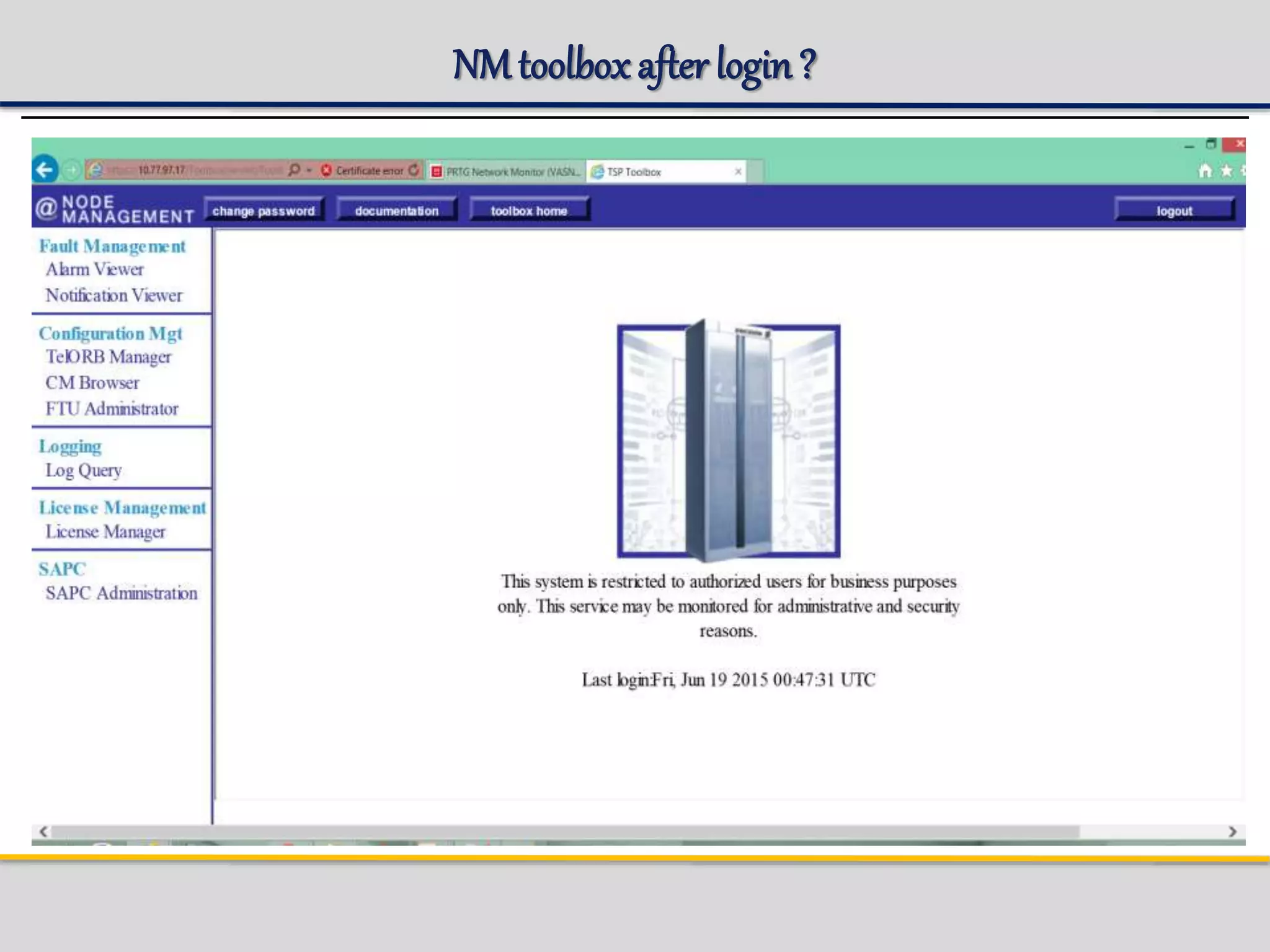

How to Loginto the NMToolbox?
Open a web browser. Enter the URL of TSP(SAPC)Node Management
Toolbox,like: https://<Node Platform IP Address>/
The corresponding Login GUI will appear.
Note: The IP address should be the SPAC Platform VIP, and HTTPS should be used.
Enter the username and password, and press the Login button.

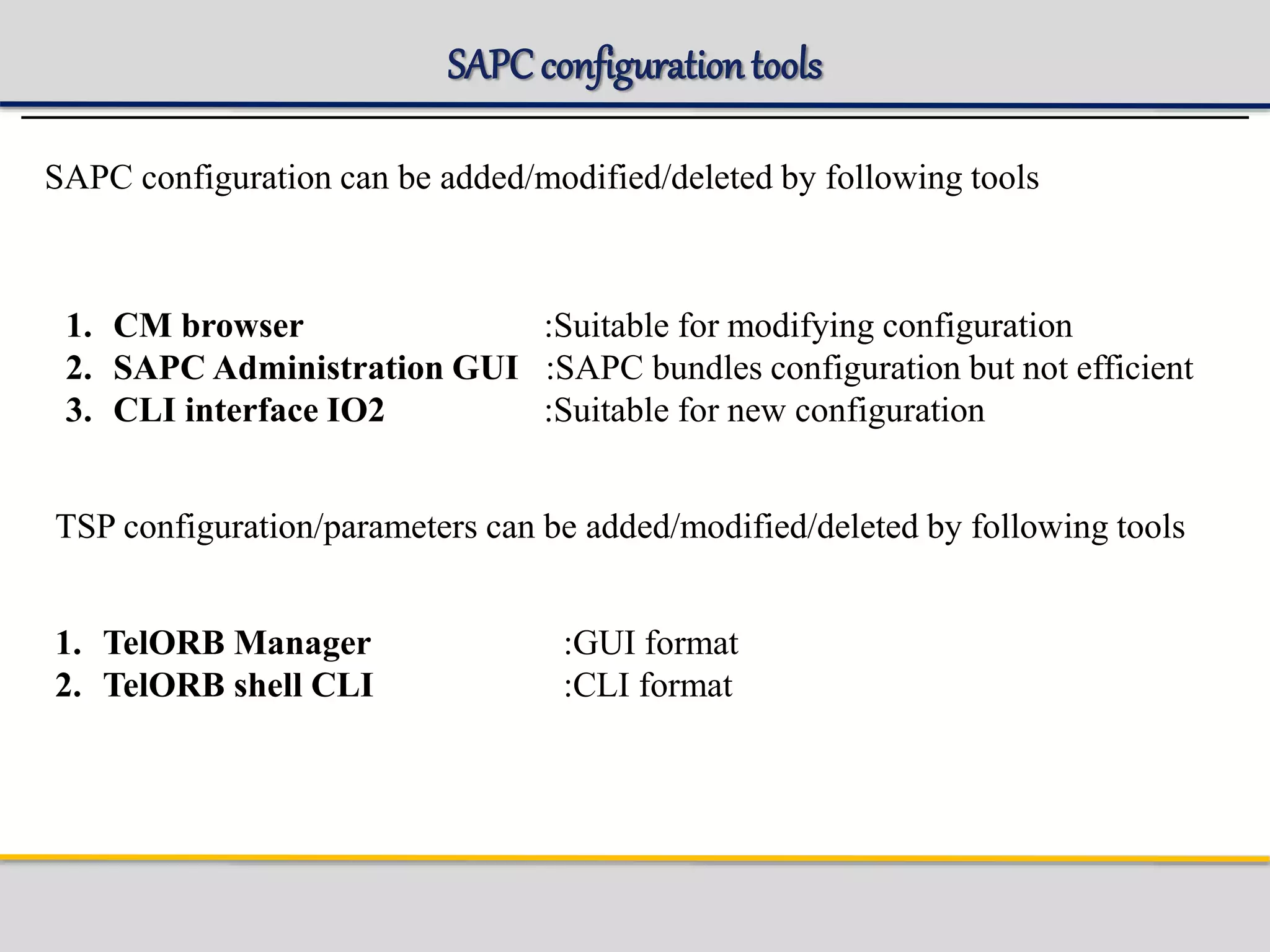

SAPC configurationtools
SAPC configuration can be added/modified/deleted by following tools
1. CM browser :Suitable for modifying configuration
2. SAPC Administration GUI :SAPC bundles configuration but not efficient
3. CLI interface IO2 :Suitable for new configuration
TSP configuration/parameters can be added/modified/deleted by following tools
1. TelORB Manager :GUI format
2. TelORB shell CLI :CLI format

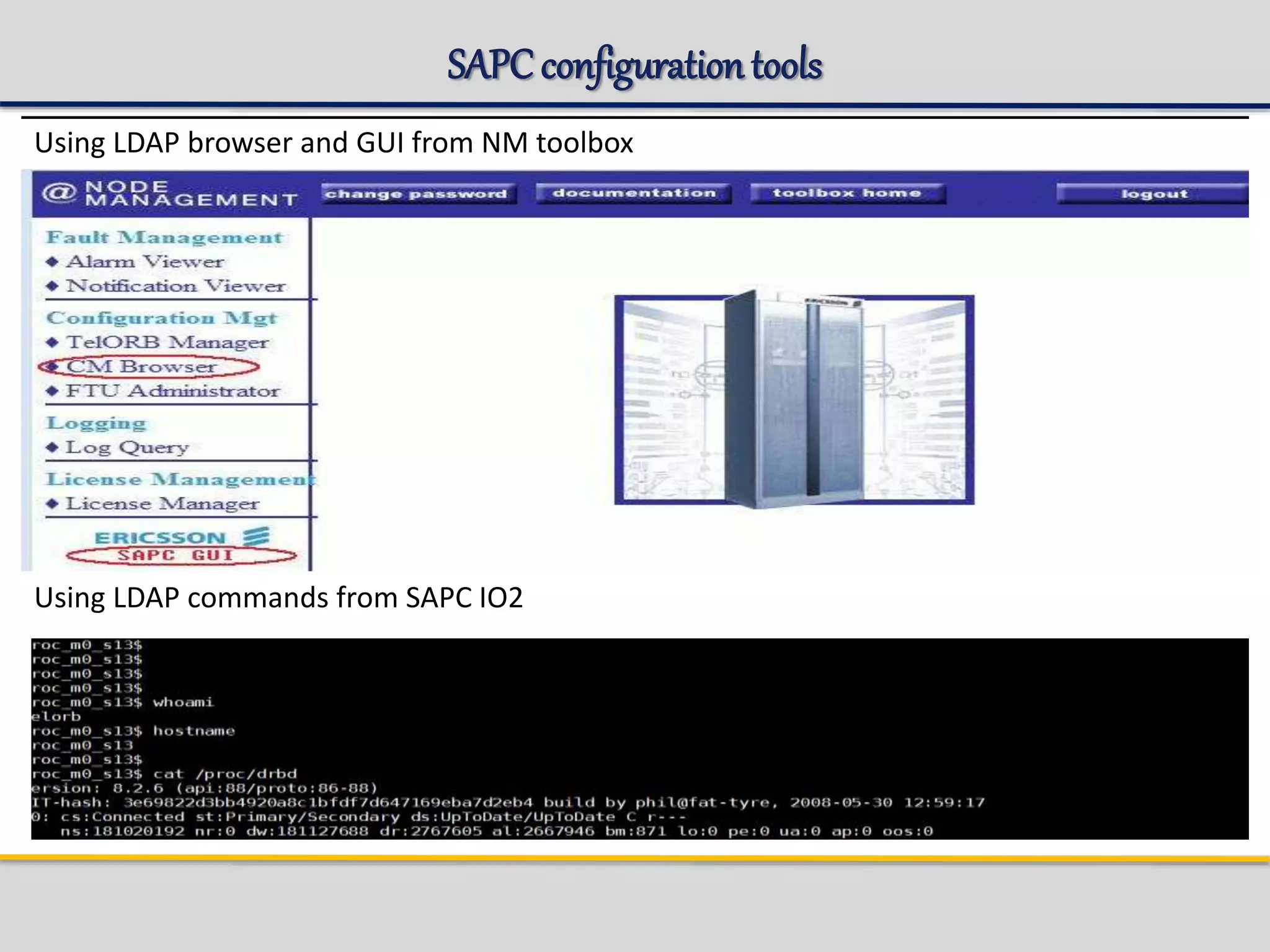

SAPC configurationtools
Using LDAP commands from SAPC IO2
Using LDAP browser and GUI from NM toolbox

How to accessthe CMBrowser

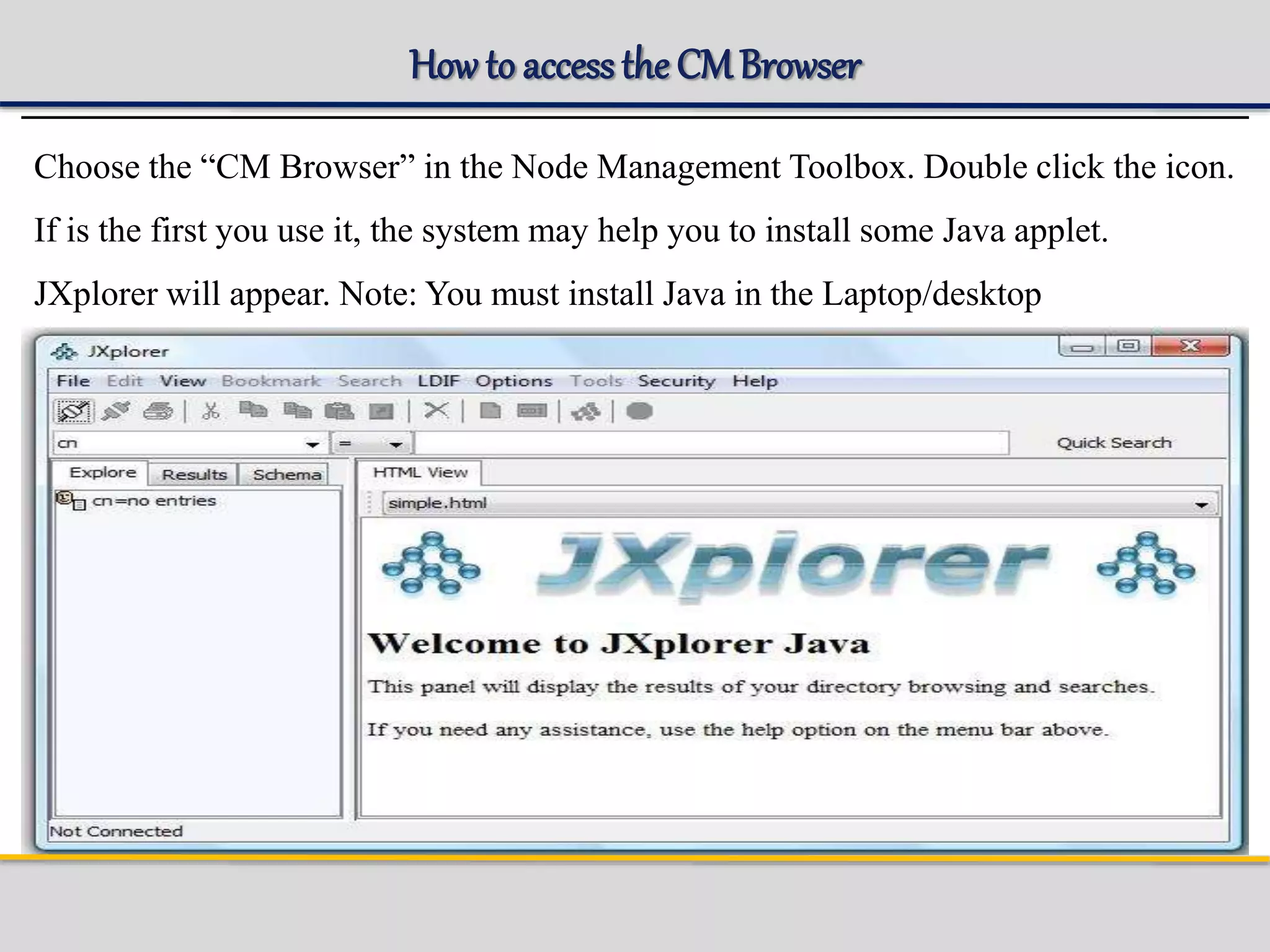

Choose the “CM Browser” in the Node Management Toolbox. Double click the icon.
If is the first you use it, the system may help you to install some Java applet.
JXplorer will appear. Note: You must install Java in the Laptop/desktop

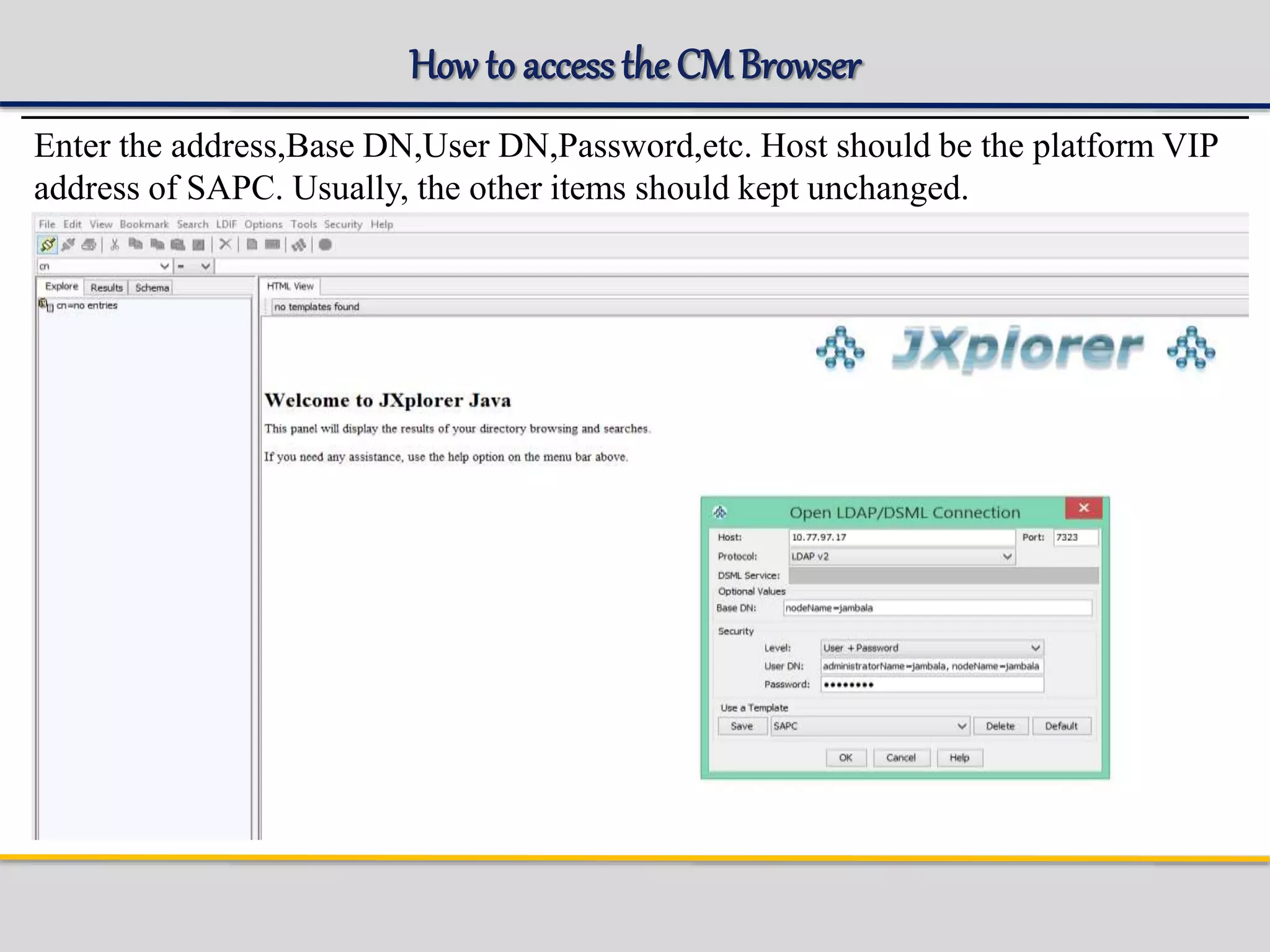

Enter the address,Base DN,User DN,Password,etc. Host should be the platform VIP
address of SAPC. Usually, the other items should kept unchanged.

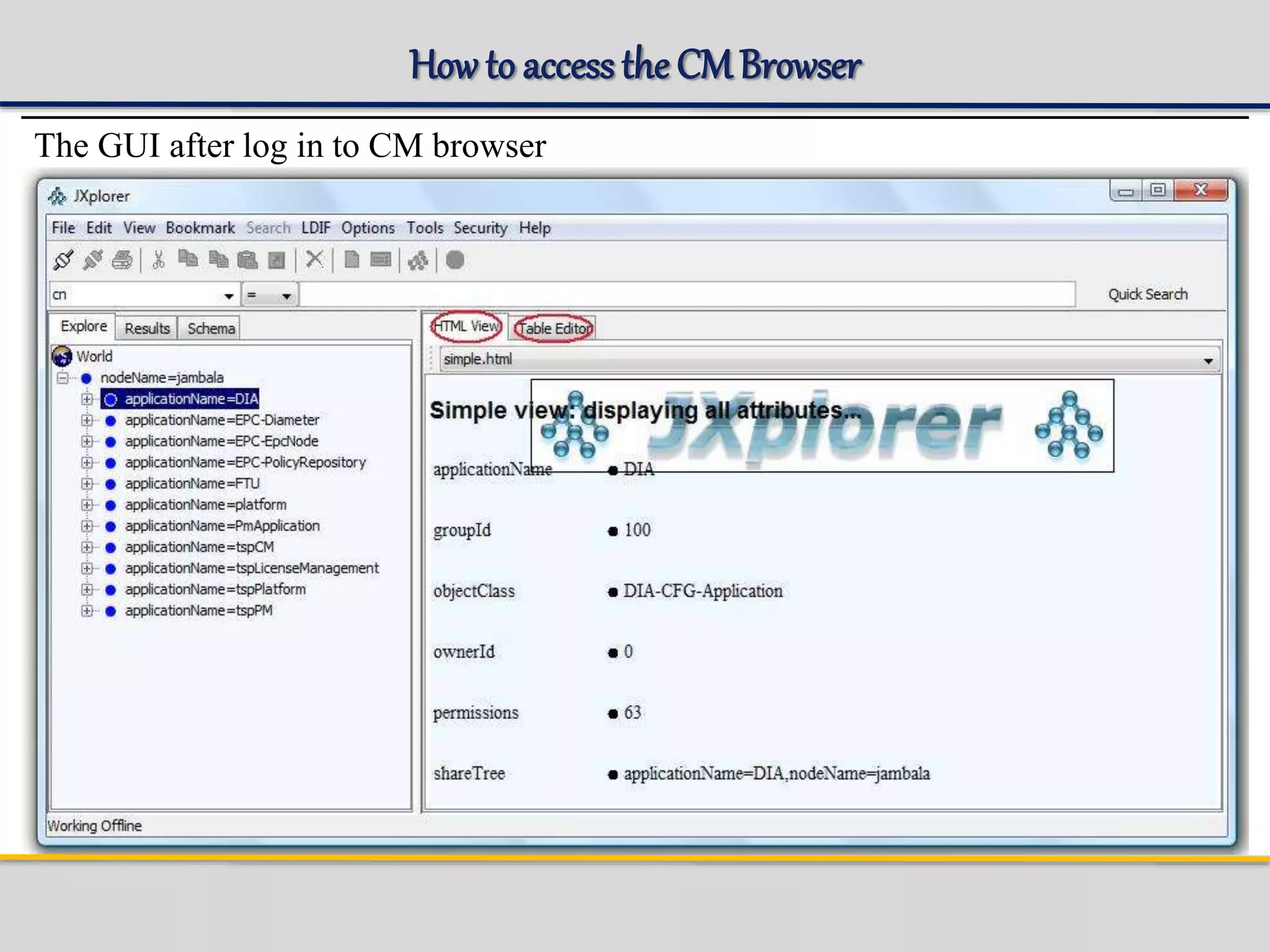

The GUI after log in to CM browser

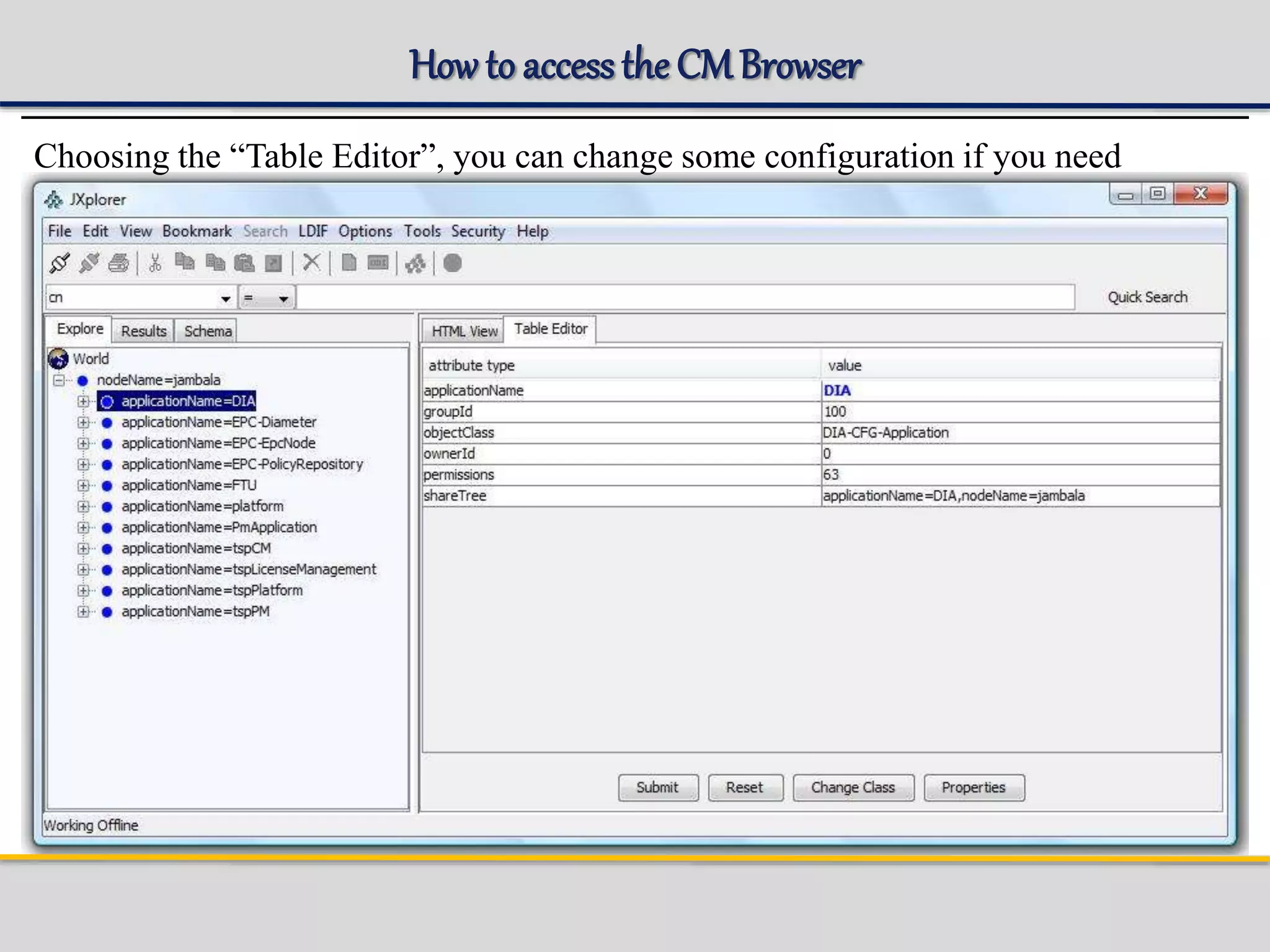

Choosing the “Table Editor”, you can change some configuration if you need

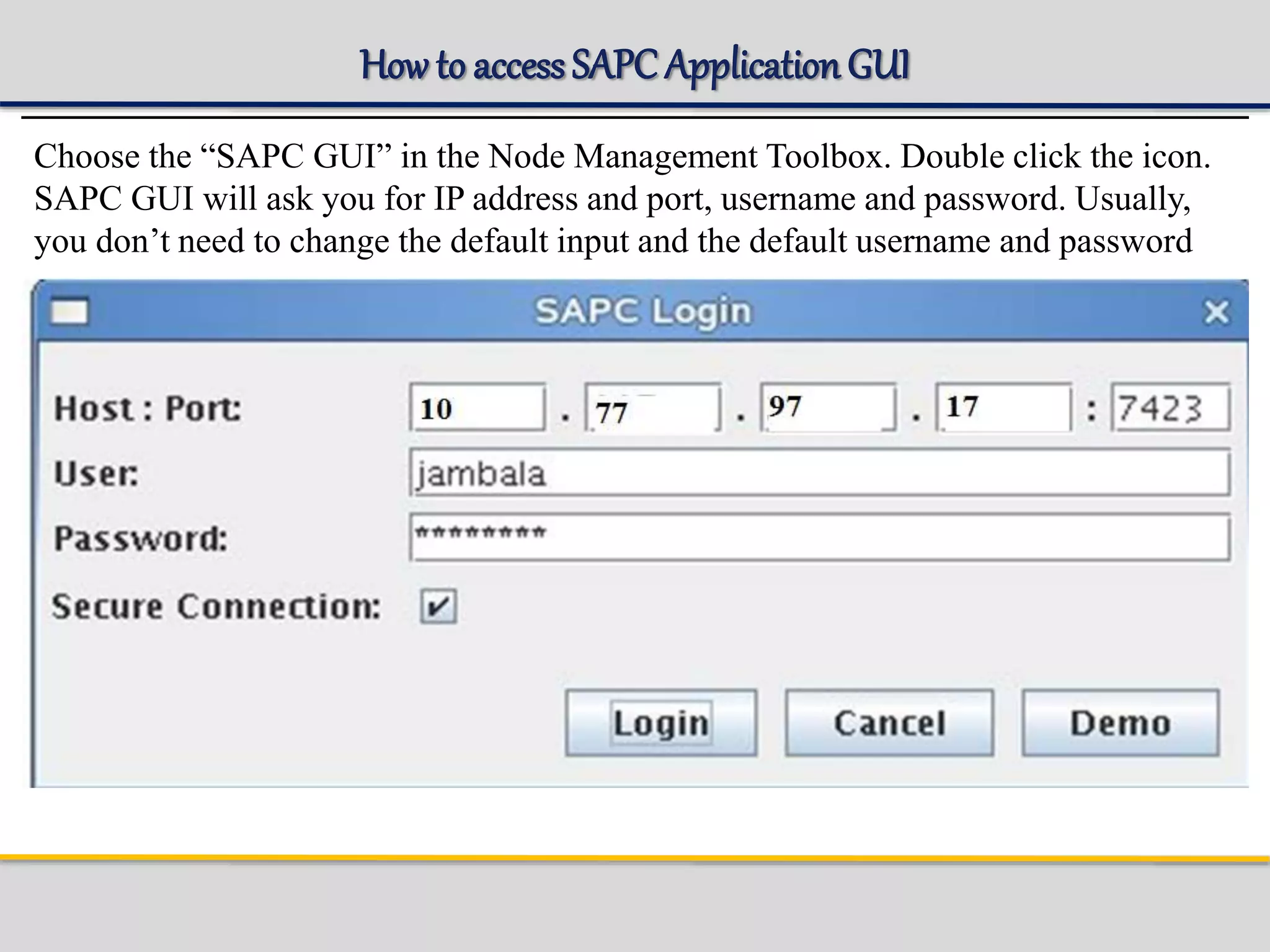

How to accessSAPC ApplicationGUI
Choose the “SAPC GUI” in the Node Management Toolbox. Double click the icon.
SAPC GUI will ask you for IP address and port, username and password. Usually,
you don’t need to change the default input and the default username and password

How to accessSAPC ApplicationGUI

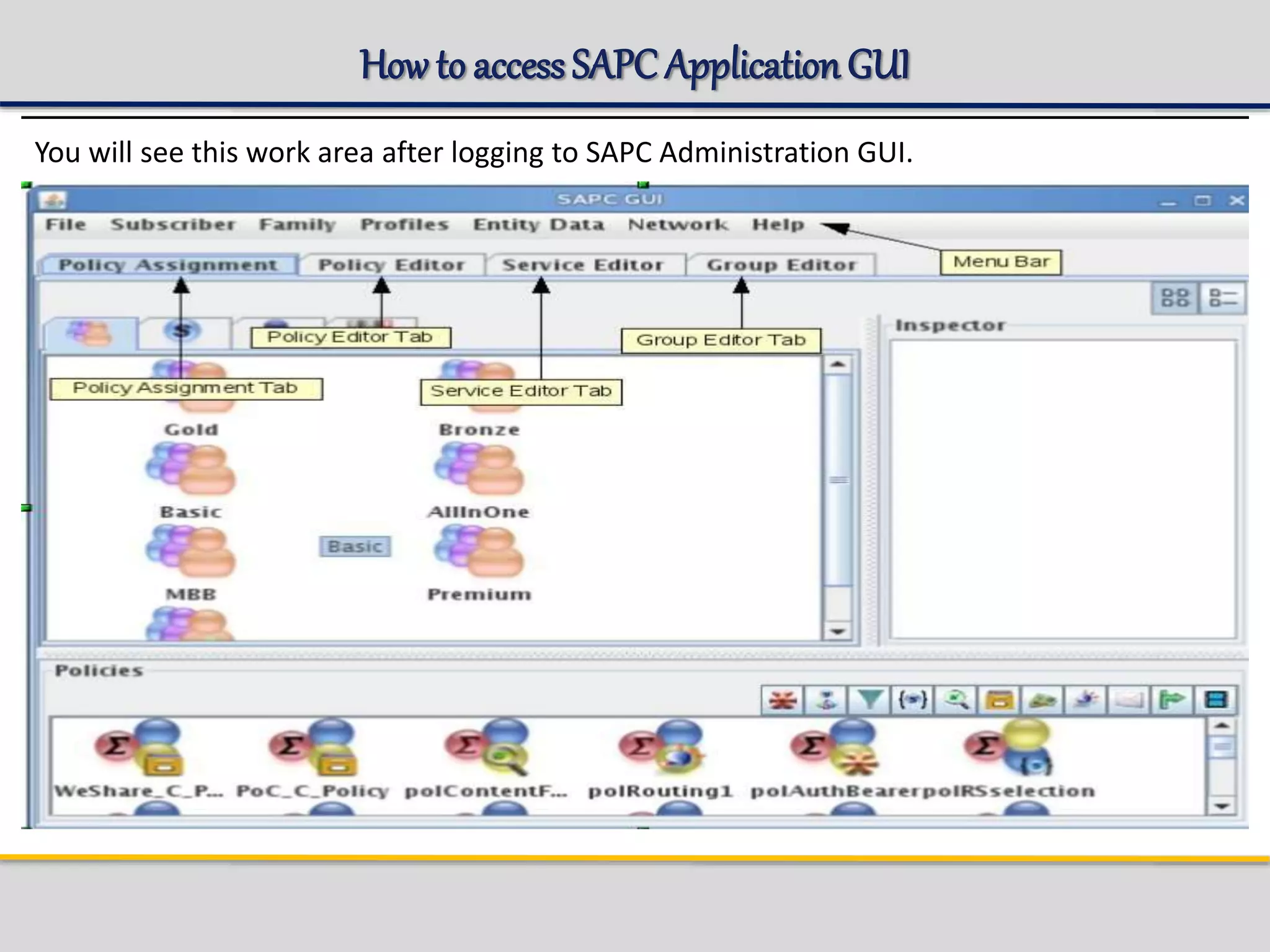

You will see this work area after logging to SAPC Administration GUI.

Agenda
How to Access SAPC
How to Configure Basic Node property
Platform
Functional View
Functional View
Functional View

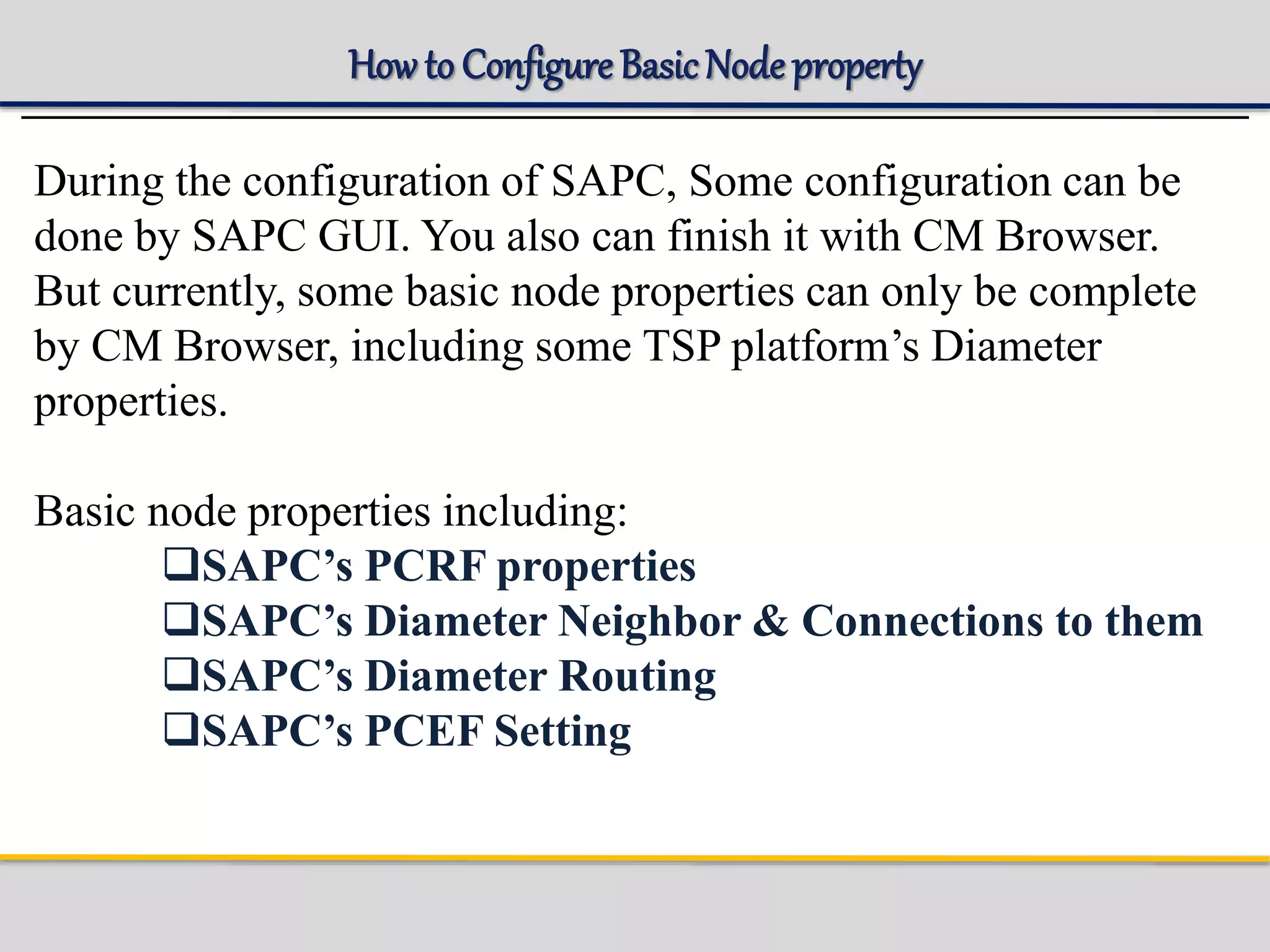

How to ConfigureBasicNode property
During the configuration of SAPC, Some configuration can be
done by SAPC GUI. You also can finish it with CM Browser.
But currently, some basic node properties can only be complete
by CM Browser, including some TSP platform’s Diameter
properties.
Basic node properties including:
SAPC’s PCRF properties
SAPC’s Diameter Neighbor & Connections to them
SAPC’s Diameter Routing

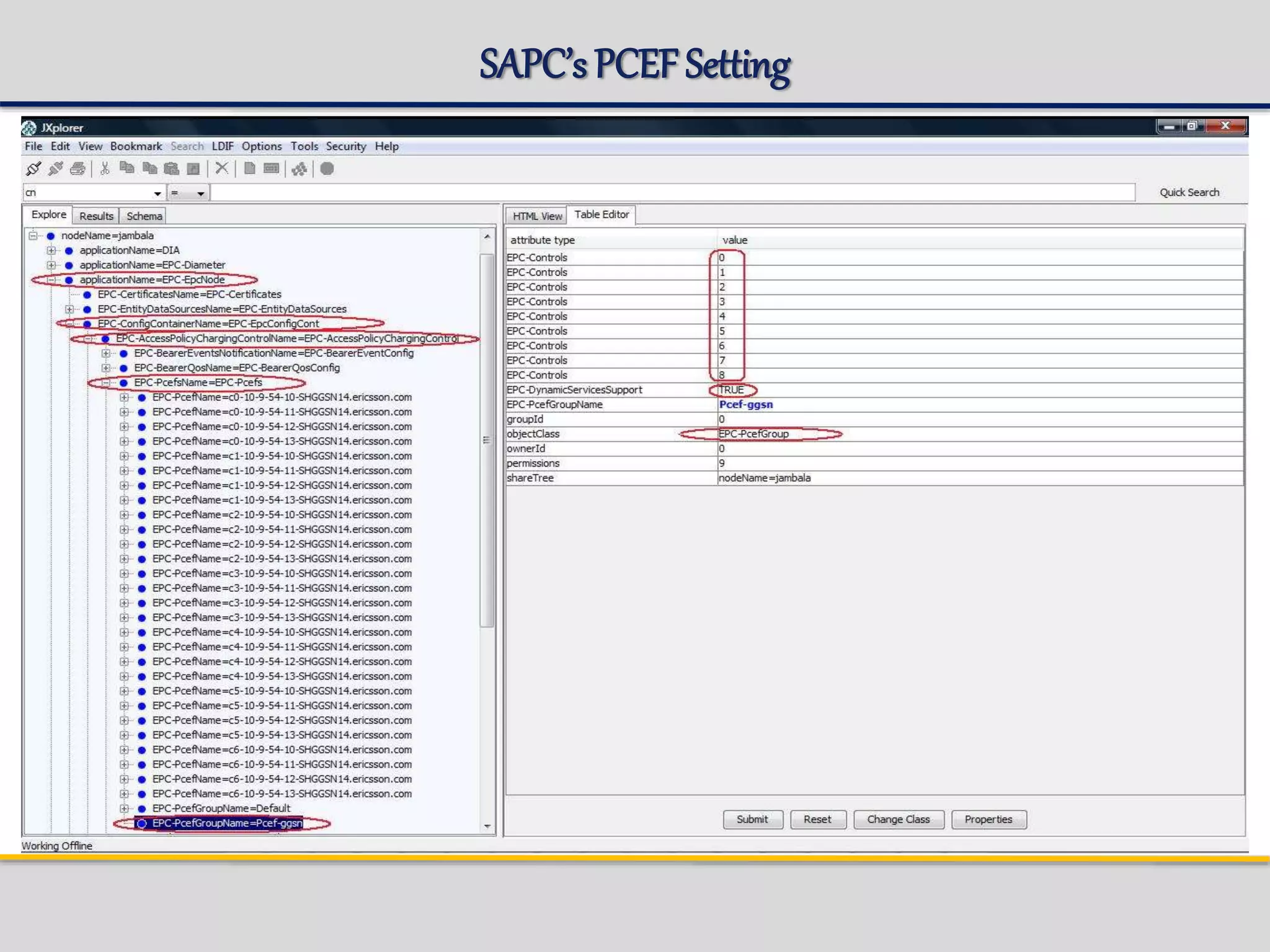

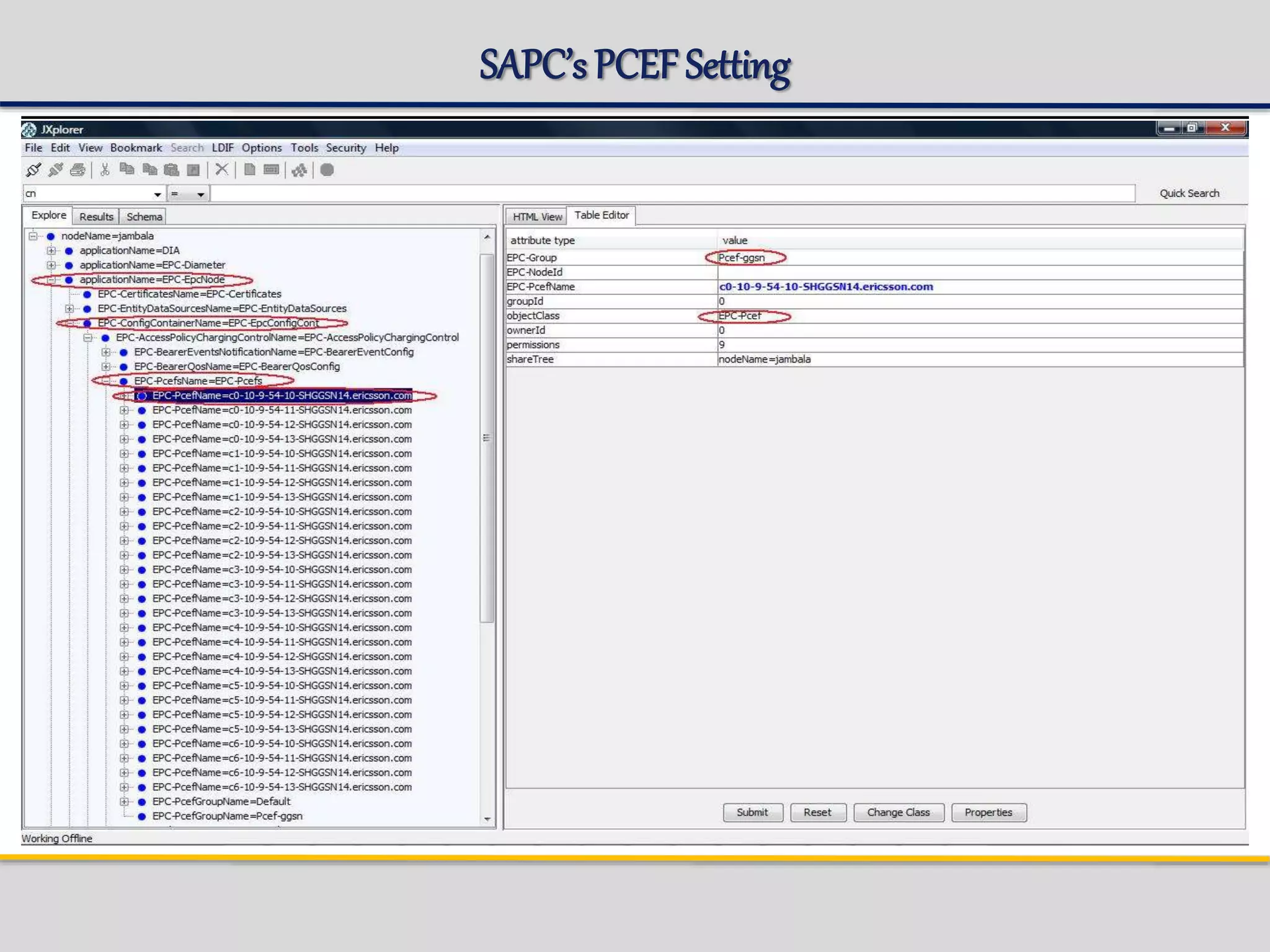

SAPC’s PCEF Setting

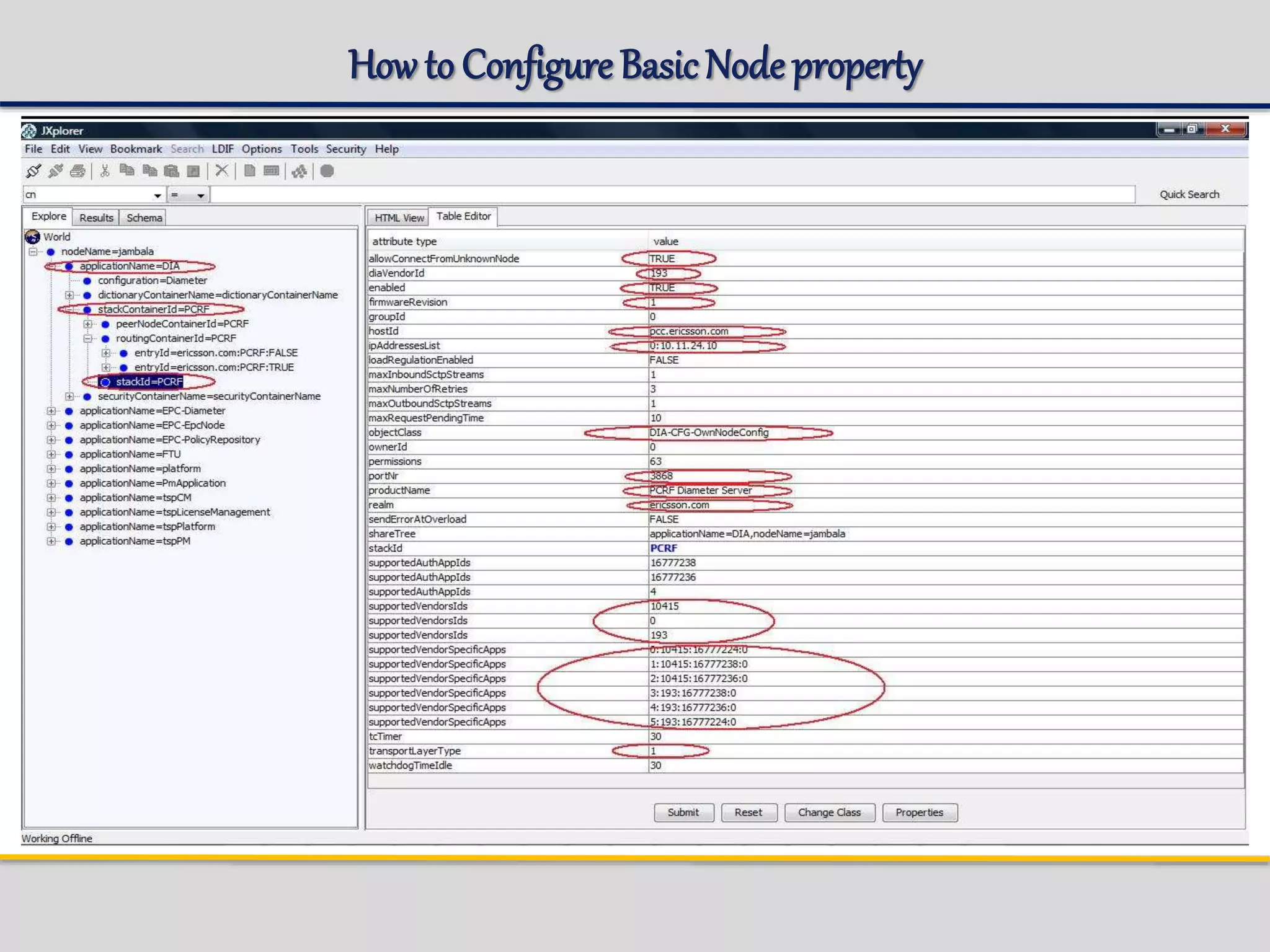

How to ConfigureBasicNode property

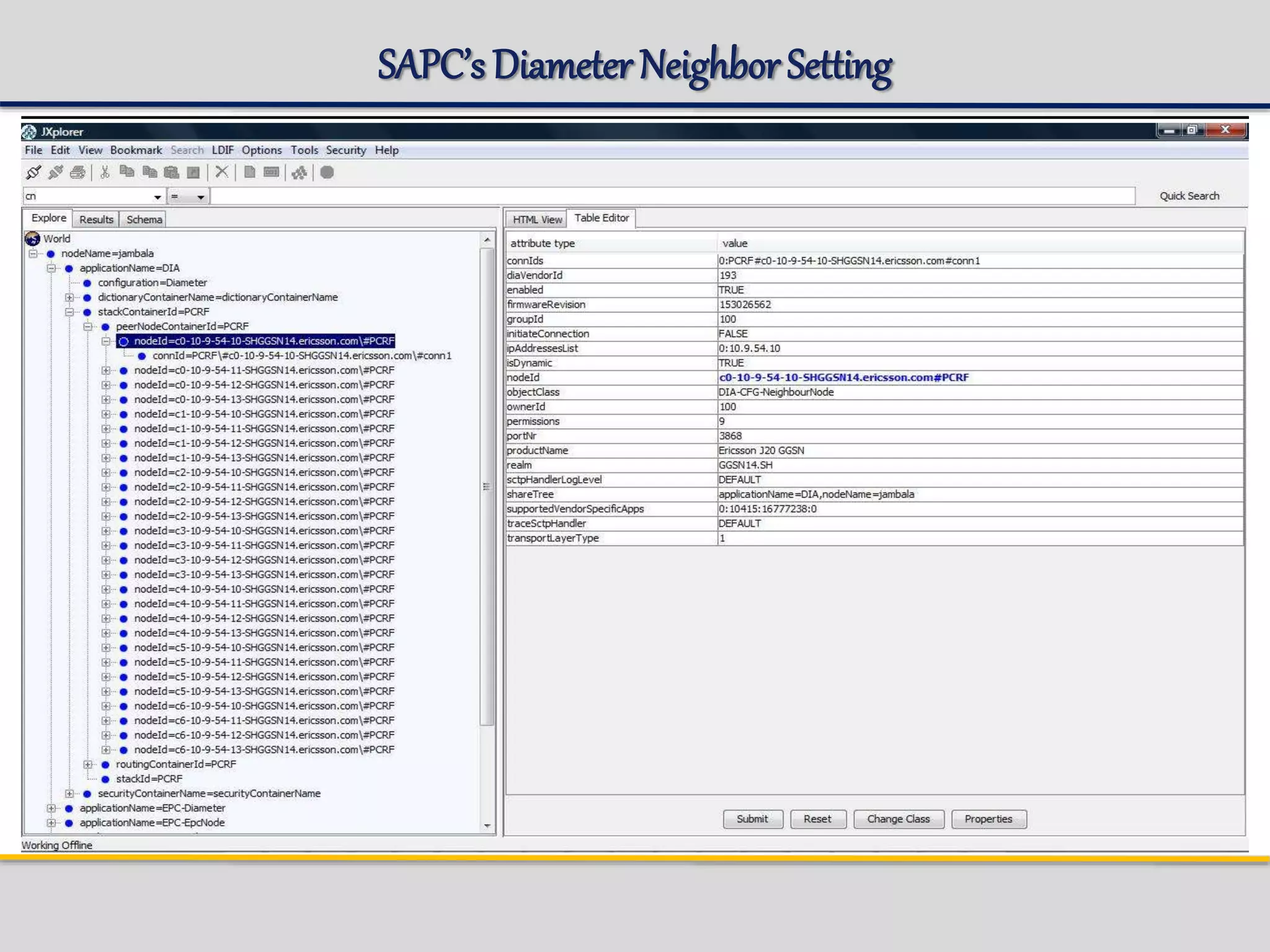

SAPC’s Diameter Neighbor Setting

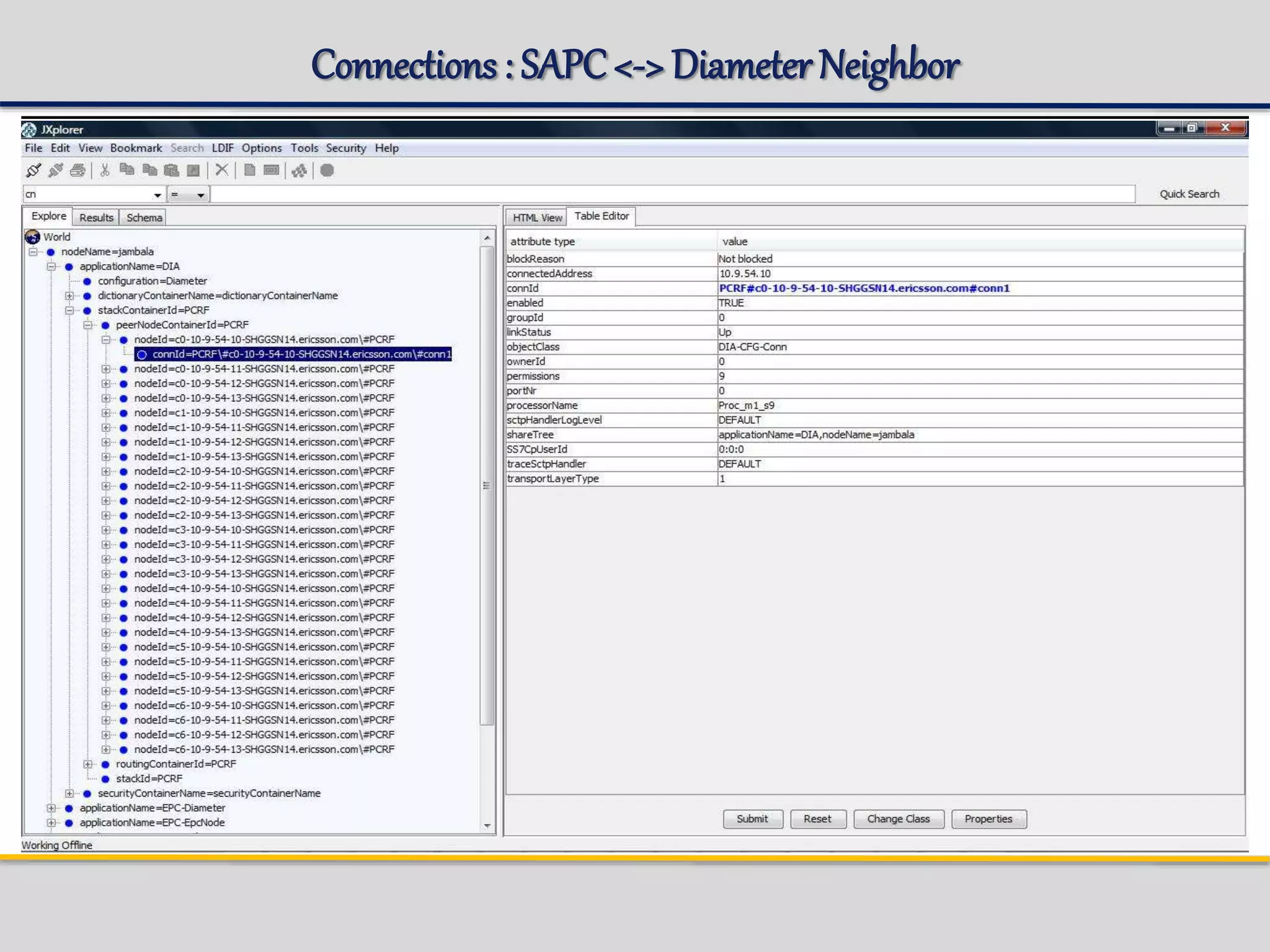

Connections : SAPC<-> Diameter Neighbor

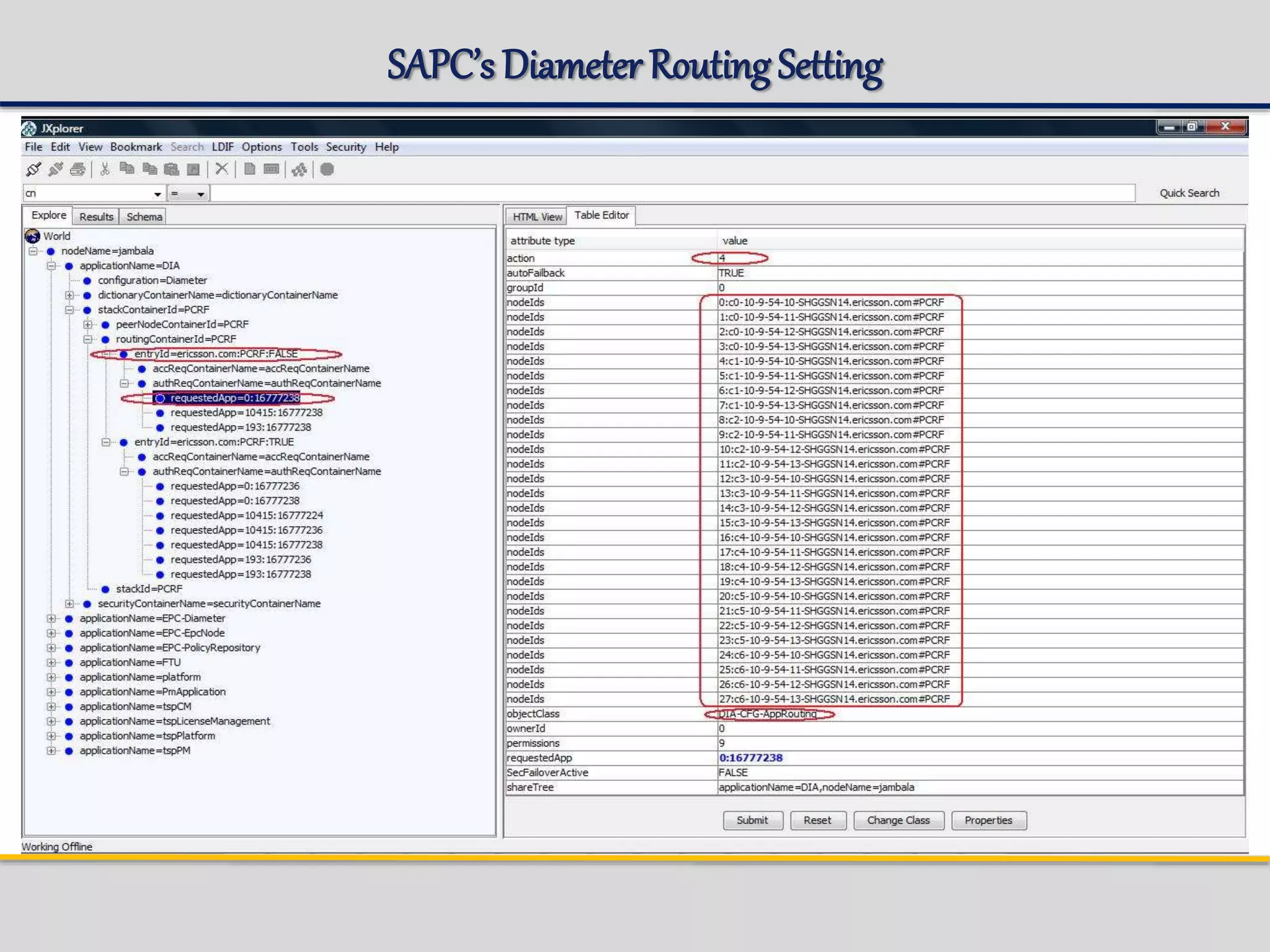

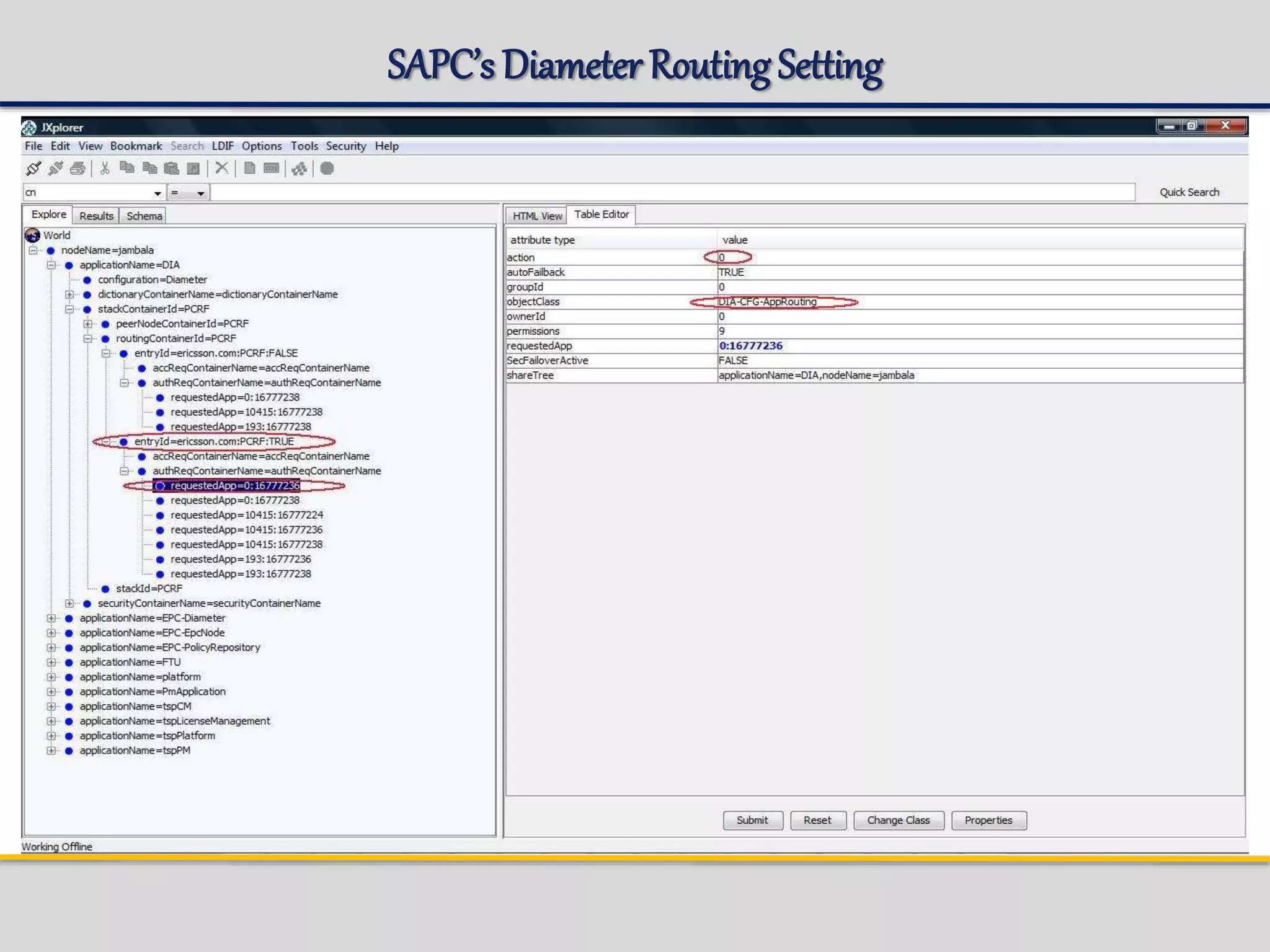

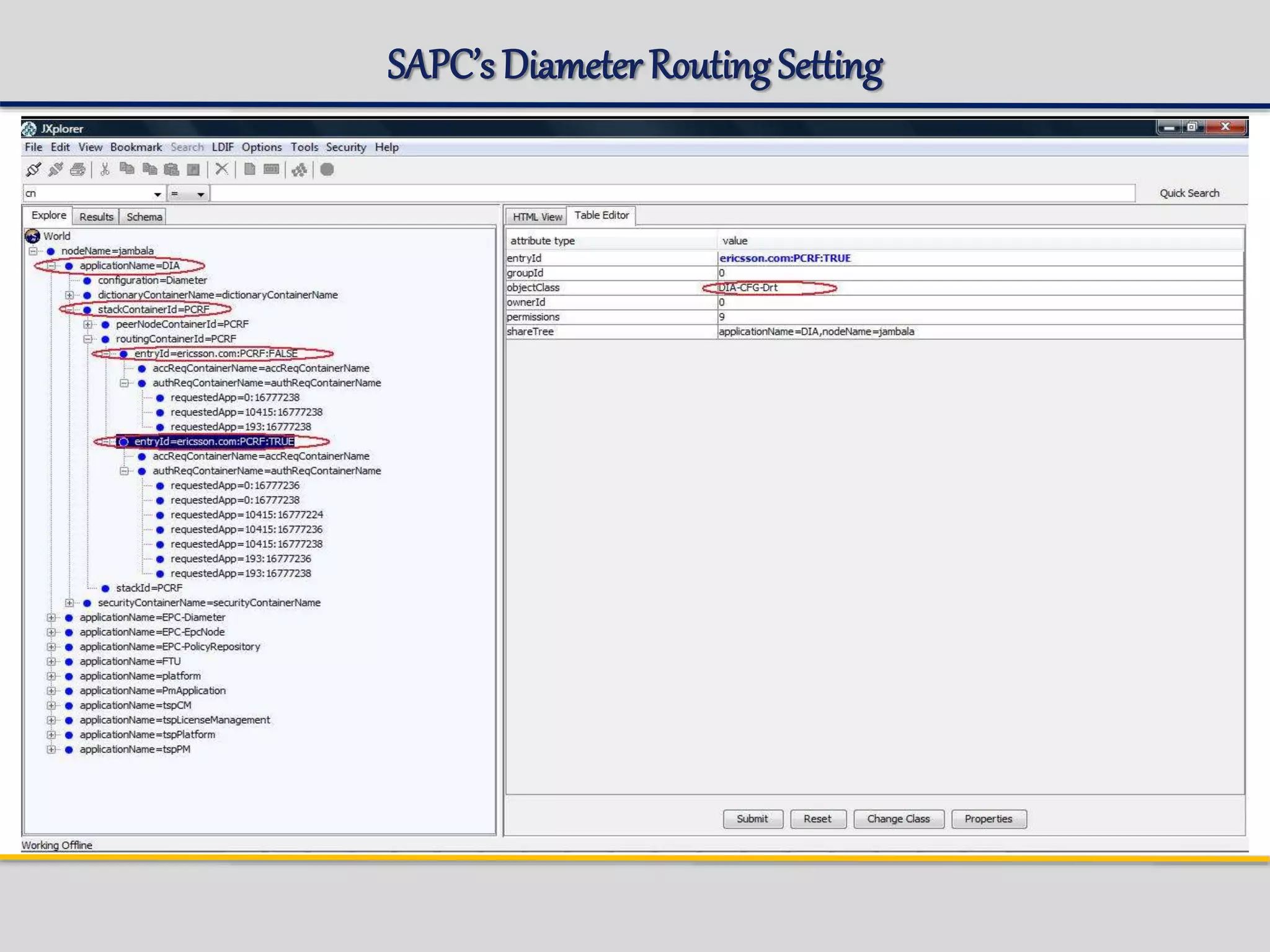

SAPC’s Diameter Routing Setting

Agenda
How to Access SAPC
Platform
Basic Concept SAPC Application
Functional View
Functional View

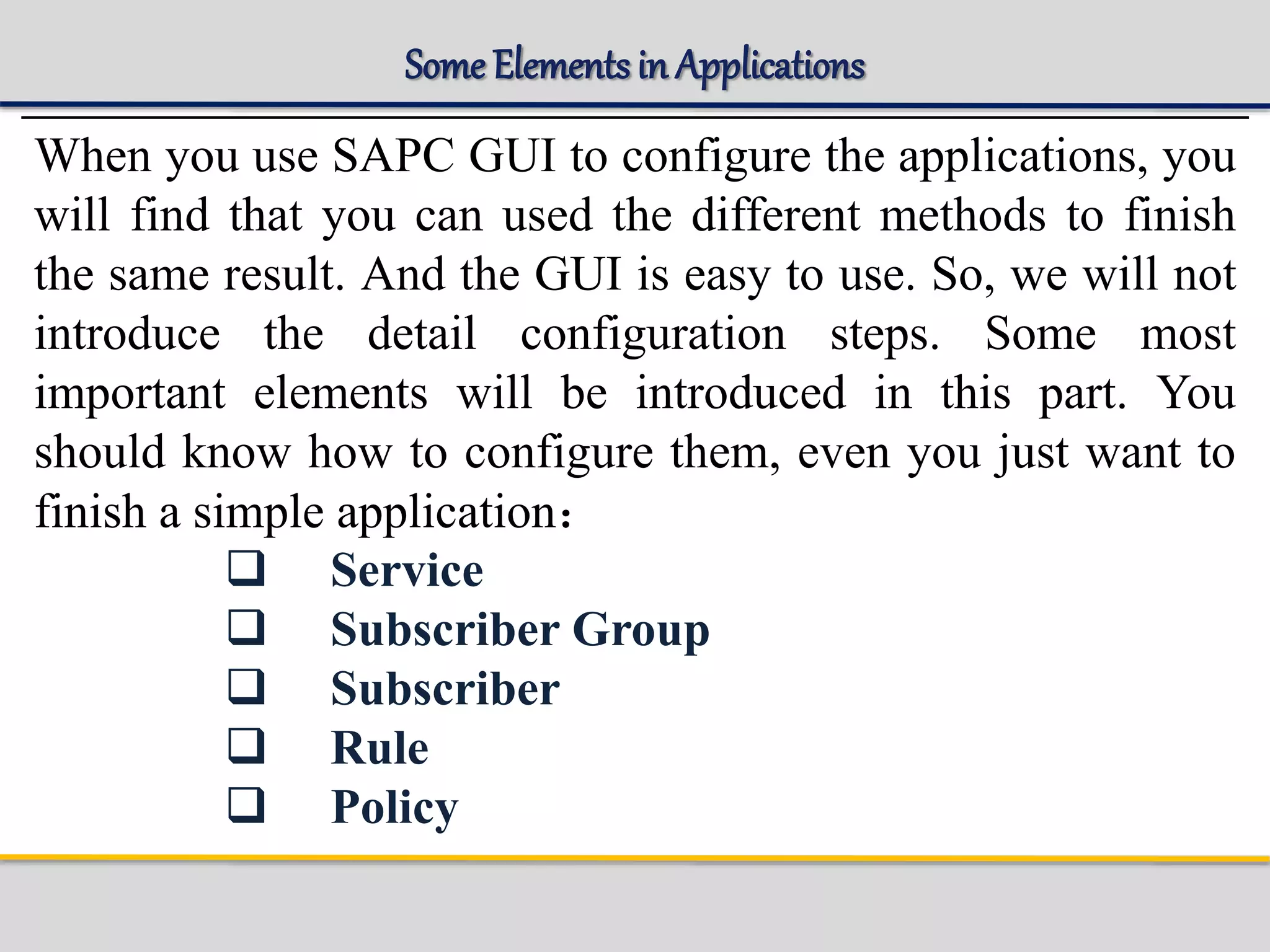

Some Elementsin Applications
When you use SAPC GUI to configure the applications, you
will find that you can used the different methods to finish
the same result. And the GUI is easy to use. So, we will not
introduce the detail configuration steps. Some most
important elements will be introduced in this part. You
should know how to configure them, even you just want to
finish a simple application：

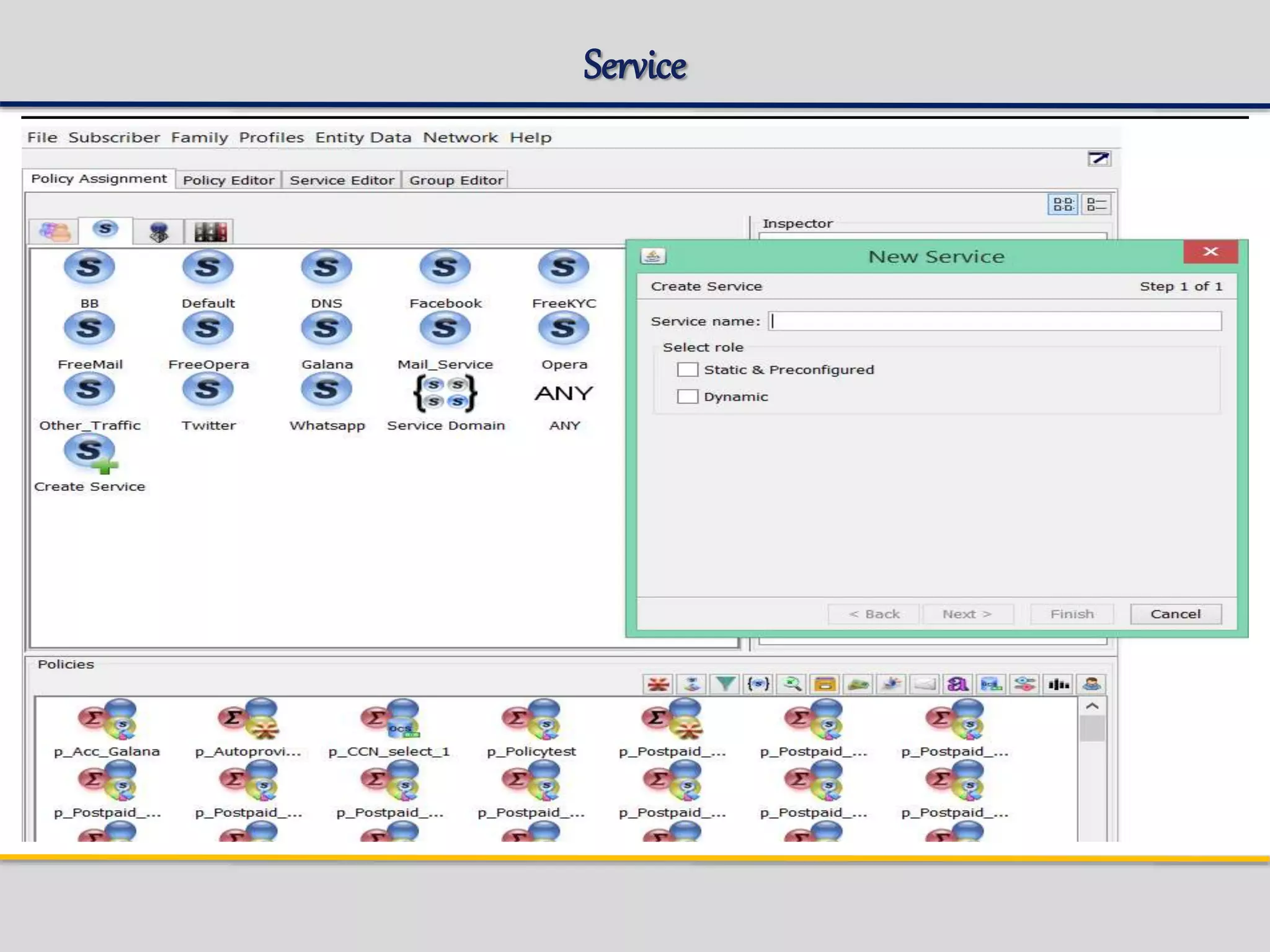

 Service
 Subscriber Group
 Subscriber
 Rule
 Policy

Agenda
How to Access SAPC
Platform
SAPC Data Bundle Configuration Tree
Functional View

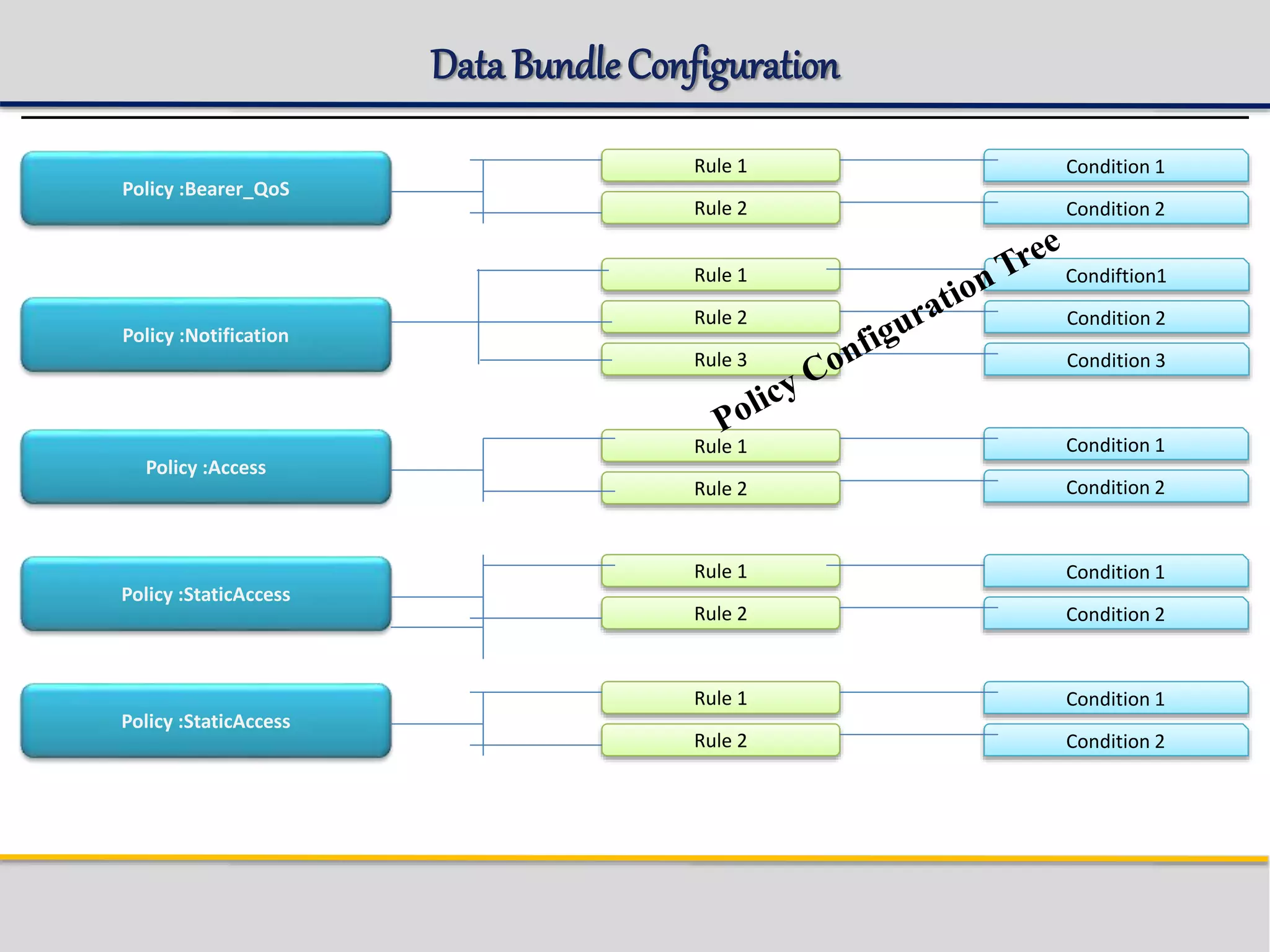

Configuration Tree
SubscriberGroup Limit Usage
SubjectGroupPolicyLocators
SubjectResourceId: _ANY_
ContextName :Notification
SubjectResourceId:_ServiceDo
main_
ContextName :Access
SubjectResourceId: Service 1
ContextName:StaticAccess
SubjectResourceId: Service 2
ContextName:StaticAccess
Policy :Notification
Policy :RuleSpace
Policy :StaticAccess
SubjectResourceId: _Bearer_
ContextName :QoS Policy :Bearer QoS
Services

Policy :Notification
Policy :Access
Rule 1
Rule 2
Rule 3
Rule 1
Rule 2
Rule 1
Rule 2
Rule 1
Rule 2
Condiftion1
Condition 2
Condition 3
Condition 1
Condition 2
Condition 1
Condition 2
Condition 1
Condition 2
Policy :Bearer_QoS
Rule 1
Rule 2
Condition 1
Condition 2

Agenda
How to Access SAPC
Platform
SAPC Data Bundle Configuration Tree
SAPC Data Bundle Configuration Example

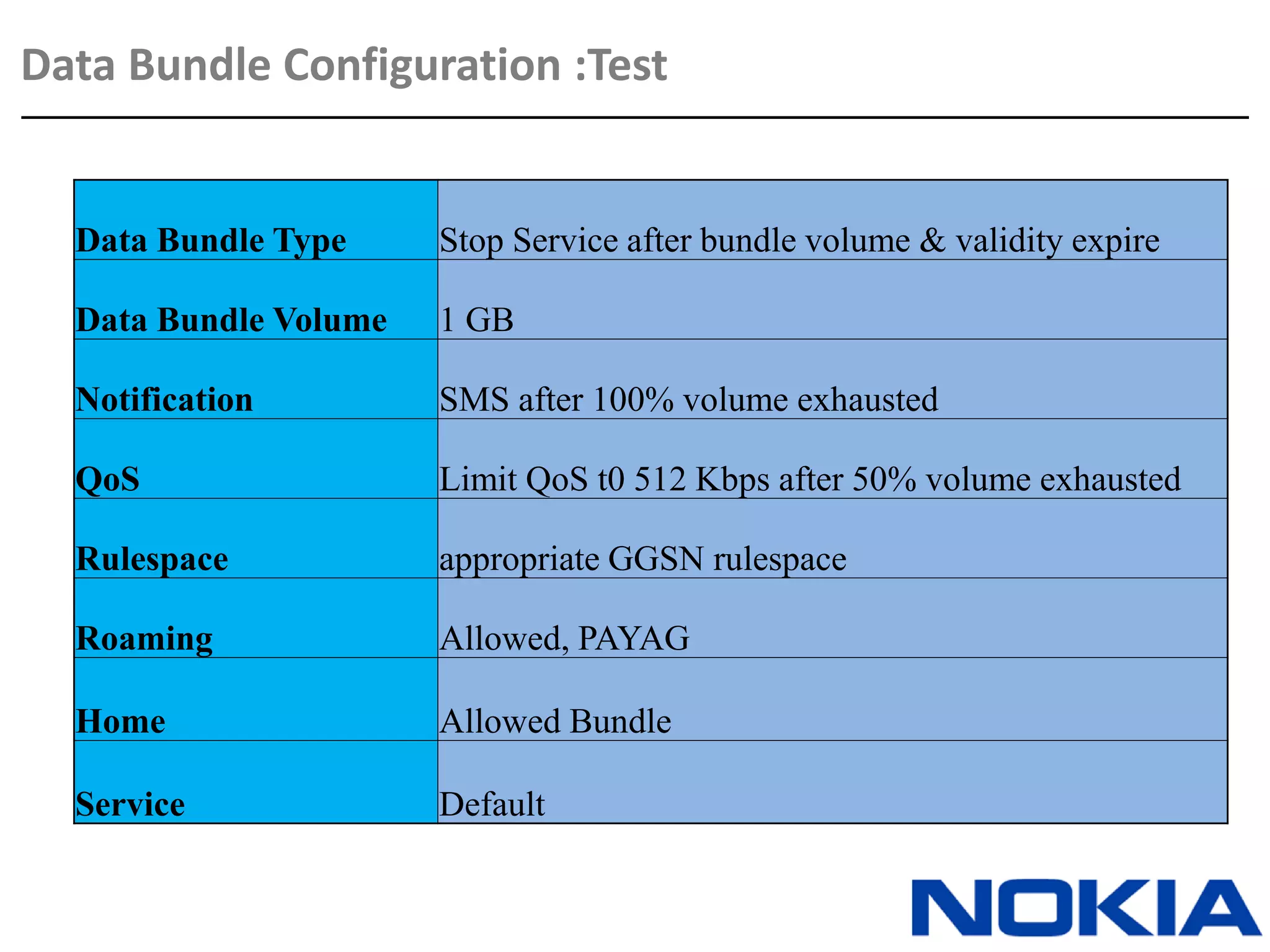

Data Bundle Configuration :Test
Data Bundle Type Stop Service after bundle volume & validity expire
Data Bundle Volume 1 GB
Notification SMS after 100% volume exhausted
QoS Limit QoS t0 512 Kbps after 50% volume exhausted
Rulespace appropriate GGSN rulespace
Roaming Allowed, PAYAG
Home Allowed Bundle
Service Default

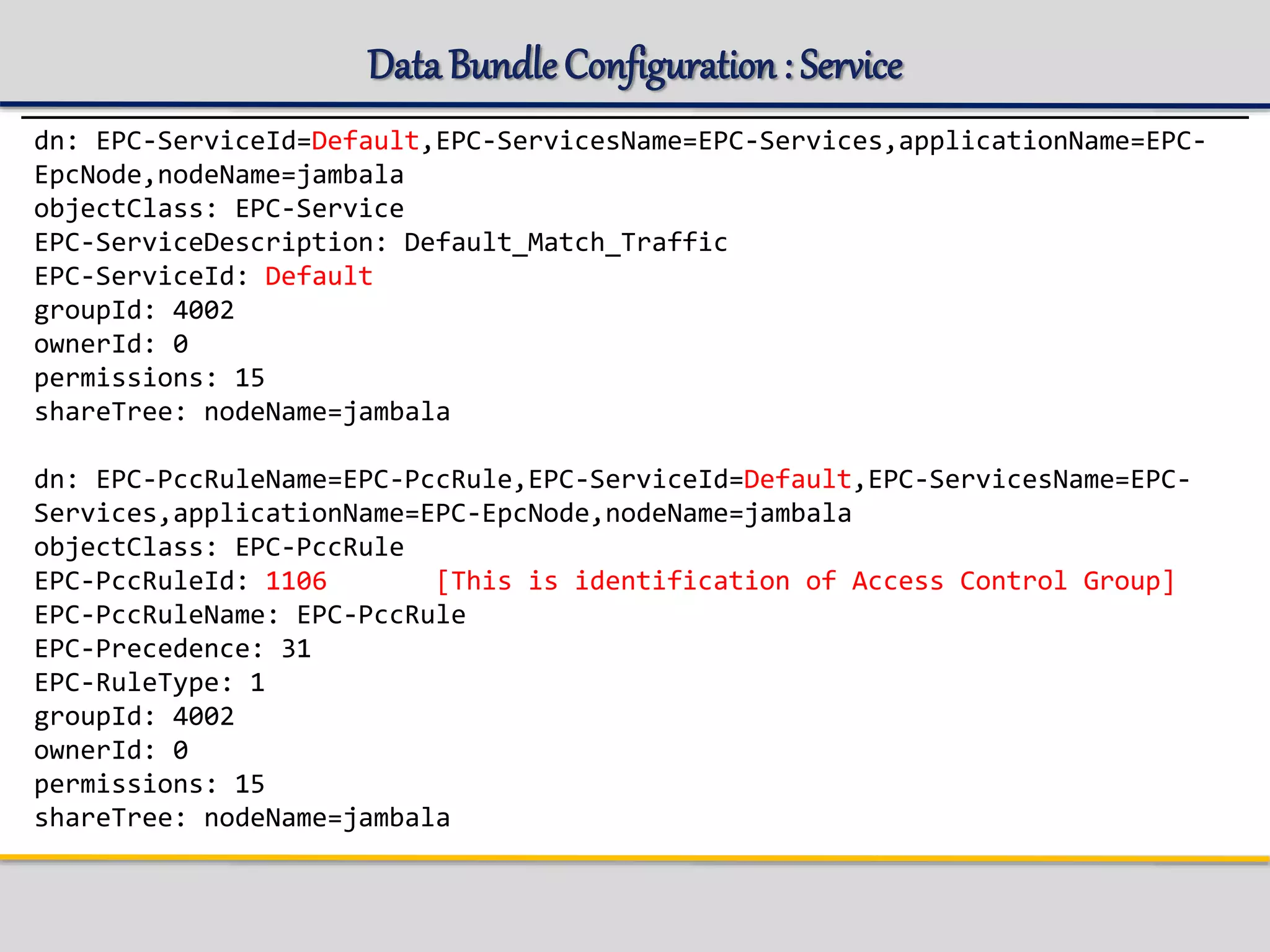

Data BundleConfiguration: Service
dn: EPC-ServiceId=Default,EPC-ServicesName=EPC-Services,applicationName=EPC-
EpcNode,nodeName=jambala
objectClass: EPC-Service
EPC-ServiceDescription: Default_Match_Traffic
EPC-ServiceId: Default
groupId: 4002
ownerId: 0
permissions: 15
shareTree: nodeName=jambala
dn: EPC-PccRuleName=EPC-PccRule,EPC-ServiceId=Default,EPC-ServicesName=EPC-
Services,applicationName=EPC-EpcNode,nodeName=jambala
objectClass: EPC-PccRule
EPC-PccRuleId: 1106 [This is identification of Access Control Group]
EPC-PccRuleName: EPC-PccRule
EPC-Precedence: 31
EPC-RuleType: 1
groupId: 4002
ownerId: 0
permissions: 15

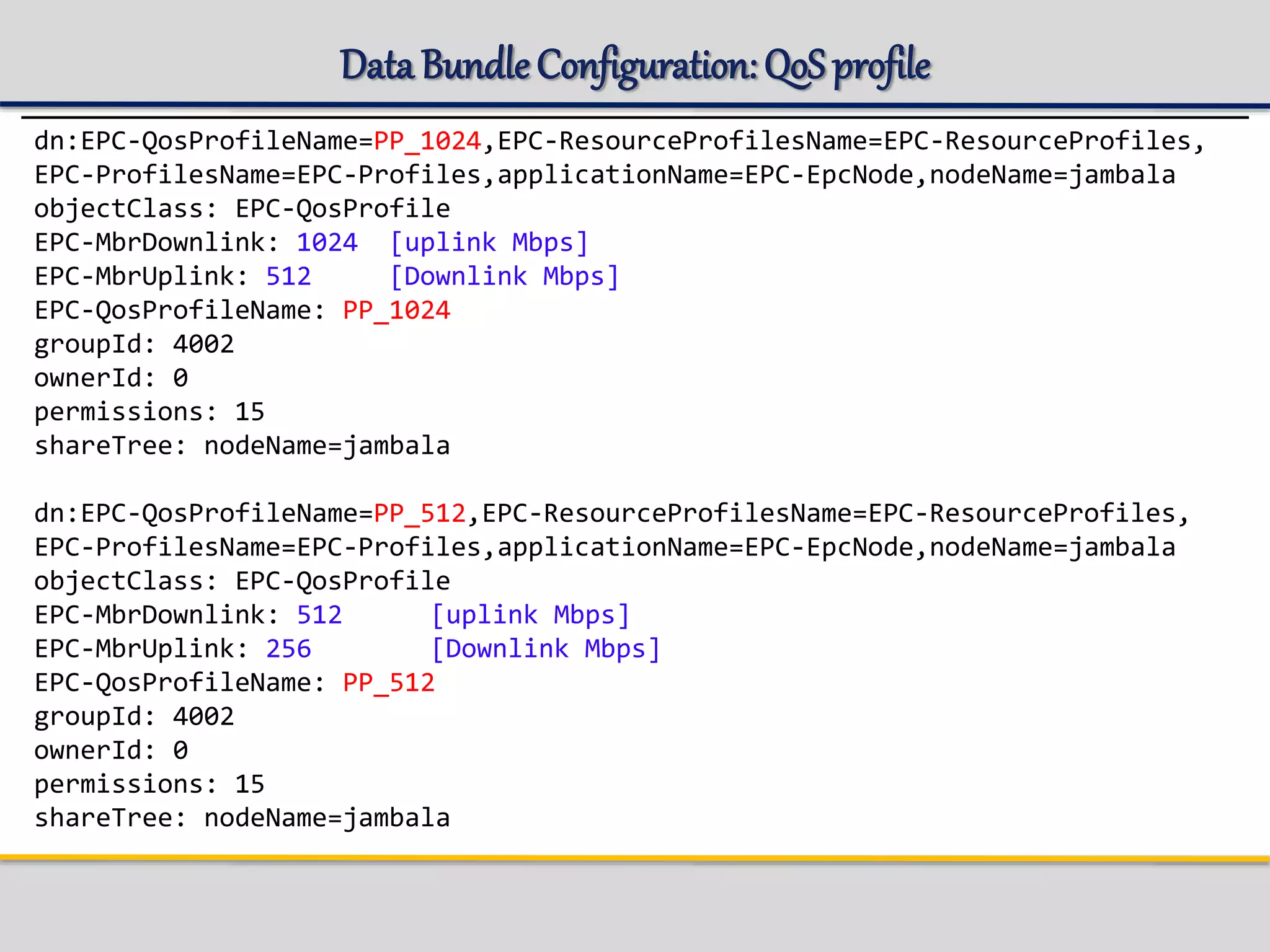

Data BundleConfiguration: QoS profile
dn:EPC-QosProfileName=PP_1024,EPC-ResourceProfilesName=EPC-ResourceProfiles,
EPC-ProfilesName=EPC-Profiles,applicationName=EPC-EpcNode,nodeName=jambala
objectClass: EPC-QosProfile
EPC-MbrDownlink: 1024 [uplink Mbps]
EPC-MbrUplink: 512 [Downlink Mbps]
EPC-QosProfileName: PP_1024
groupId: 4002
ownerId: 0
permissions: 15
dn:EPC-QosProfileName=PP_512,EPC-ResourceProfilesName=EPC-ResourceProfiles,
EPC-ProfilesName=EPC-Profiles,applicationName=EPC-EpcNode,nodeName=jambala
objectClass: EPC-QosProfile
EPC-MbrDownlink: 512 [uplink Mbps]
EPC-MbrUplink: 256 [Downlink Mbps]
EPC-QosProfileName: PP_512
groupId: 4002
ownerId: 0
permissions: 15

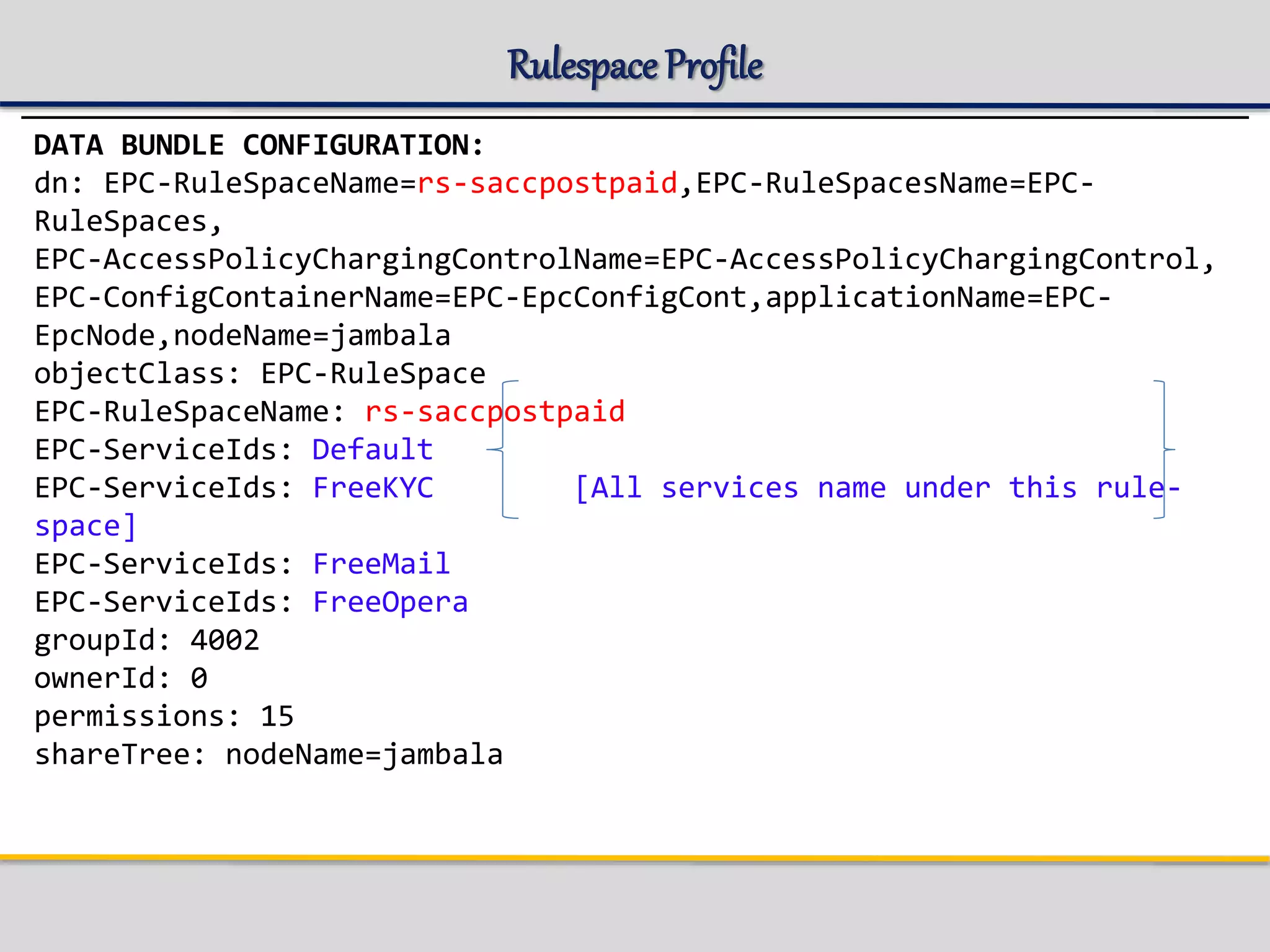

Rulespace Profile
DATA BUNDLE CONFIGURATION:
dn: EPC-RuleSpaceName=rs-saccpostpaid,EPC-RuleSpacesName=EPC-
RuleSpaces,
EPC-AccessPolicyChargingControlName=EPC-AccessPolicyChargingControl,
EPC-ConfigContainerName=EPC-EpcConfigCont,applicationName=EPC-
EpcNode,nodeName=jambala
objectClass: EPC-RuleSpace
EPC-RuleSpaceName: rs-saccpostpaid
EPC-ServiceIds: Default
EPC-ServiceIds: FreeKYC [All services name under this rule-
space]
EPC-ServiceIds: FreeMail
EPC-ServiceIds: FreeOpera
groupId: 4002
ownerId: 0
permissions: 15

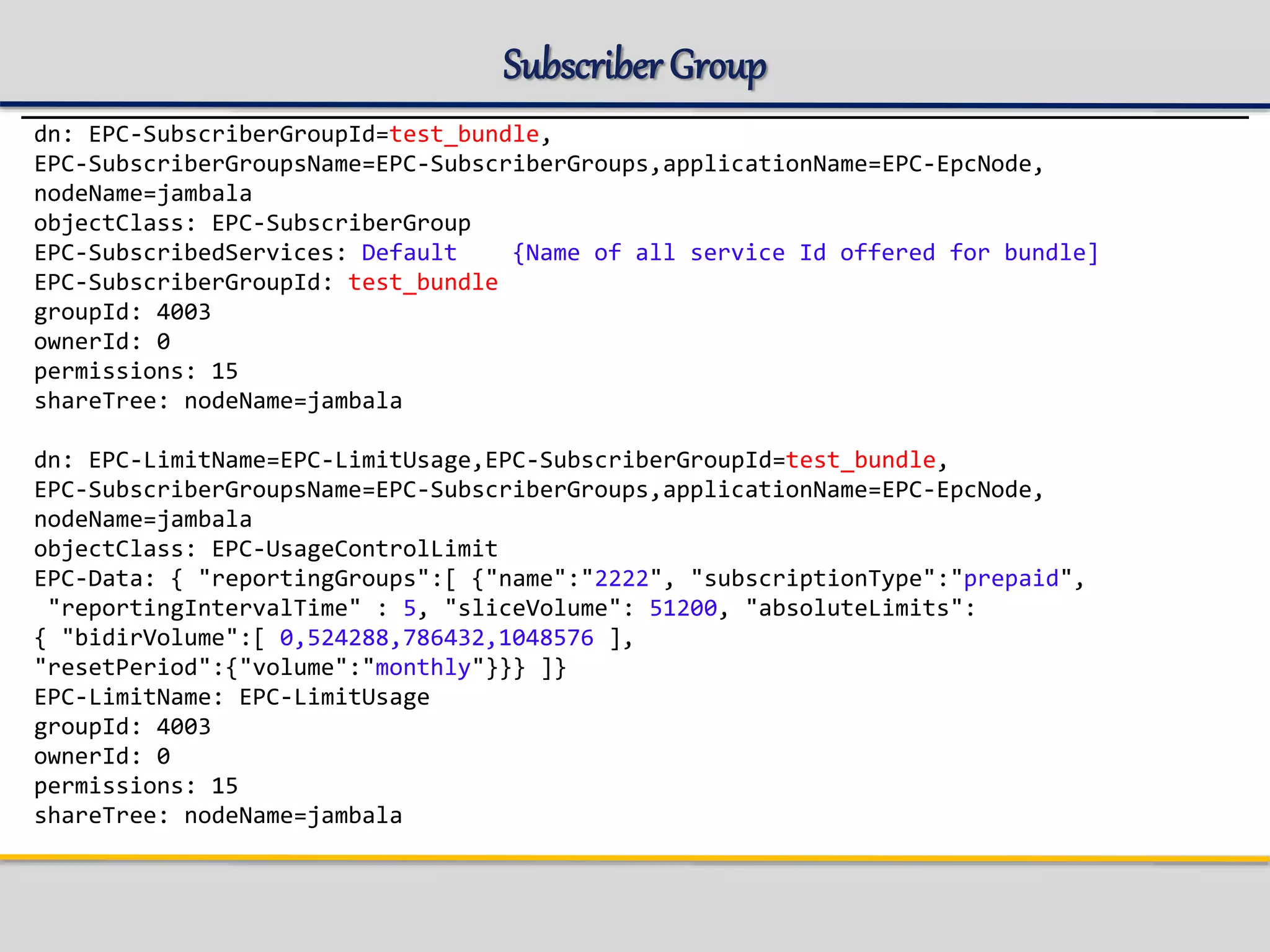

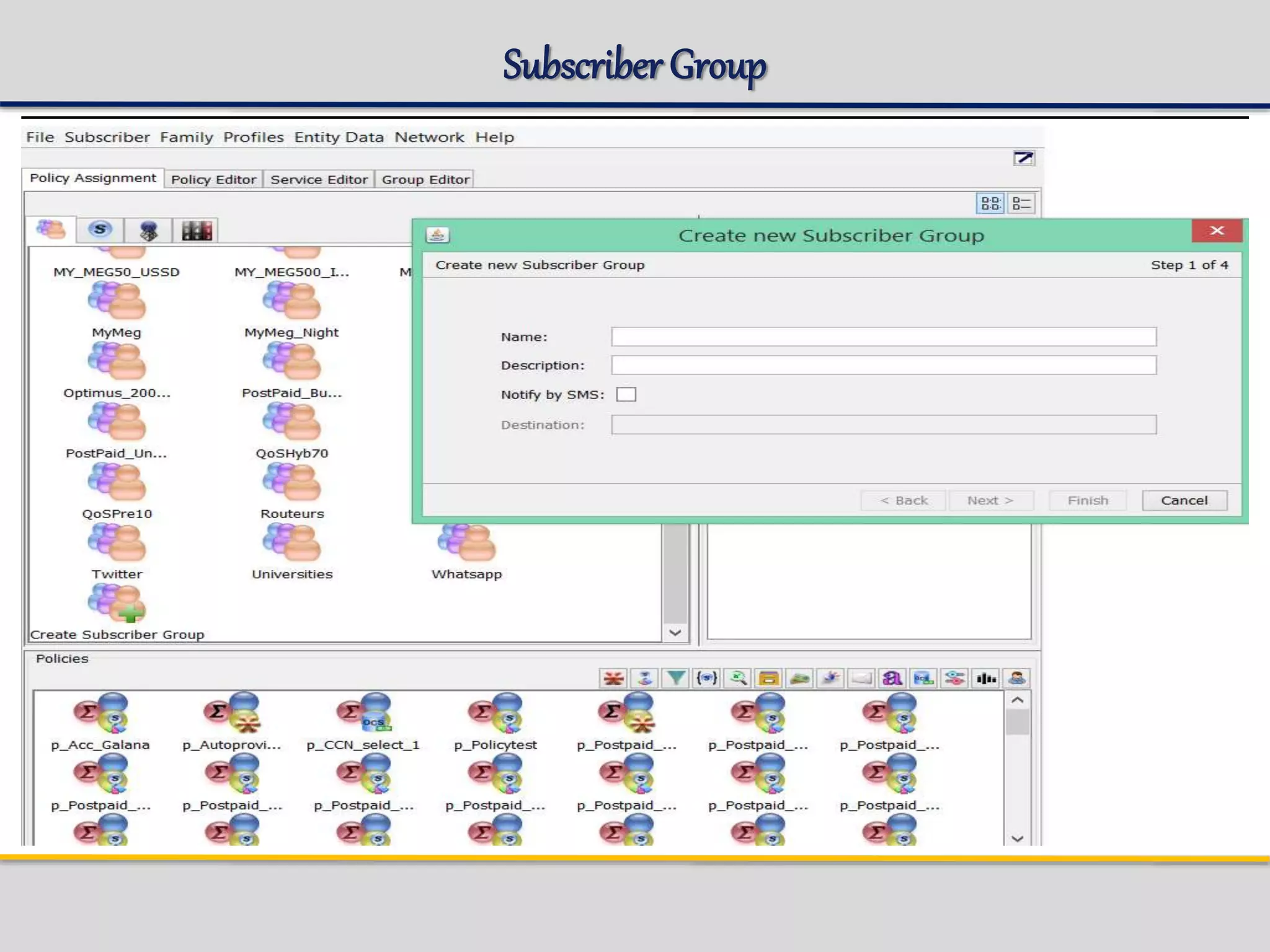

Subscriber Group
dn: EPC-SubscriberGroupId=test_bundle,
EPC-SubscriberGroupsName=EPC-SubscriberGroups,applicationName=EPC-EpcNode,
nodeName=jambala
objectClass: EPC-SubscriberGroup
EPC-SubscribedServices: Default {Name of all service Id offered for bundle]
EPC-SubscriberGroupId: test_bundle
groupId: 4003
ownerId: 0
permissions: 15
dn: EPC-LimitName=EPC-LimitUsage,EPC-SubscriberGroupId=test_bundle,
EPC-SubscriberGroupsName=EPC-SubscriberGroups,applicationName=EPC-EpcNode,
nodeName=jambala
objectClass: EPC-UsageControlLimit
EPC-Data: { "reportingGroups":[ {"name":"2222", "subscriptionType":"prepaid",
"reportingIntervalTime" : 5, "sliceVolume": 51200, "absoluteLimits":
{ "bidirVolume":[ 0,524288,786432,1048576 ],
"resetPeriod":{"volume":"monthly"}}} ]}
EPC-LimitName: EPC-LimitUsage
groupId: 4003
ownerId: 0
permissions: 15

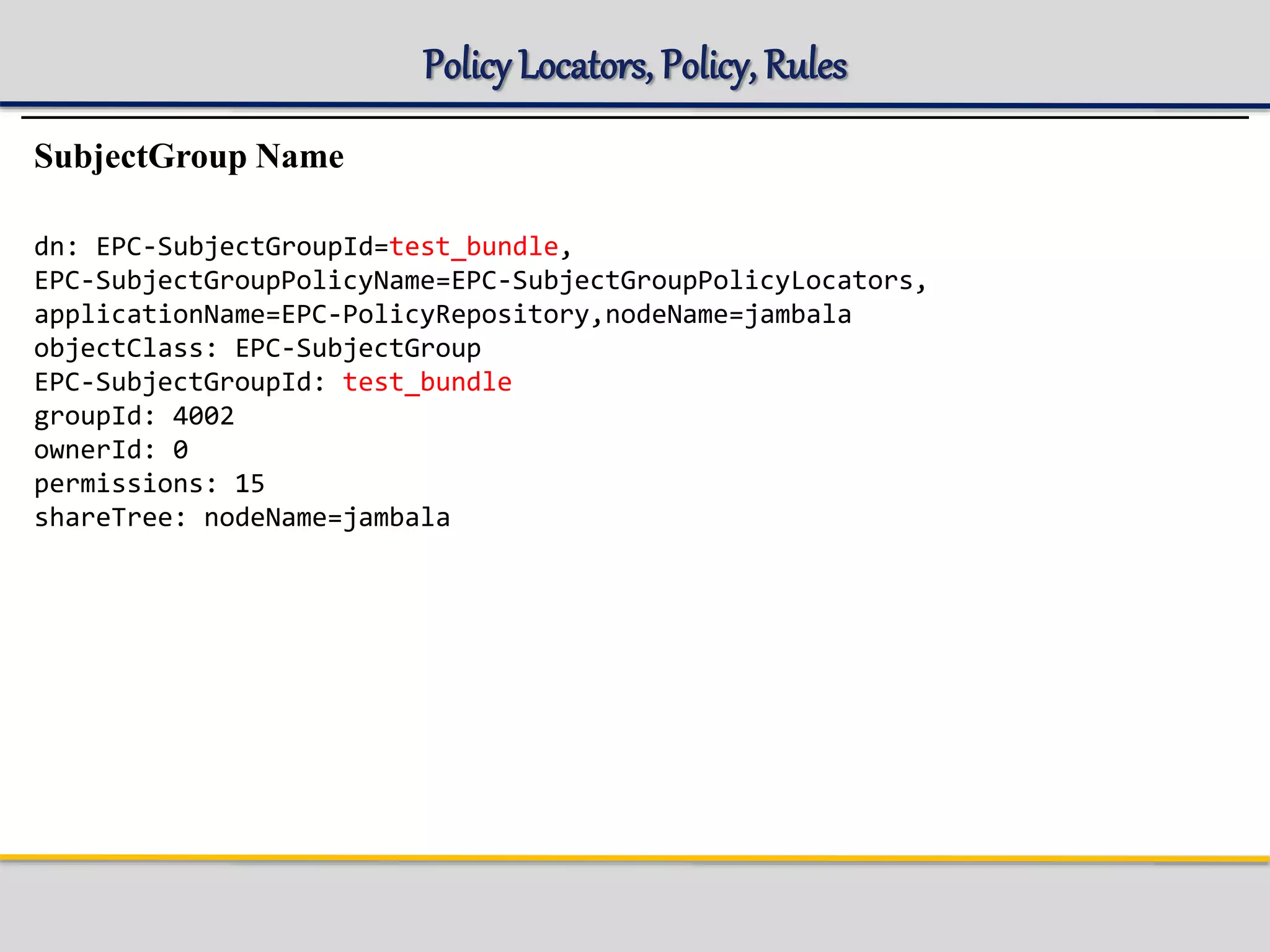

Policy Locators, Policy, Rules
SubjectGroup Name
dn: EPC-SubjectGroupId=test_bundle,
EPC-SubjectGroupPolicyName=EPC-SubjectGroupPolicyLocators,
applicationName=EPC-PolicyRepository,nodeName=jambala
objectClass: EPC-SubjectGroup
EPC-SubjectGroupId: test_bundle
groupId: 4002
ownerId: 0
permissions: 15

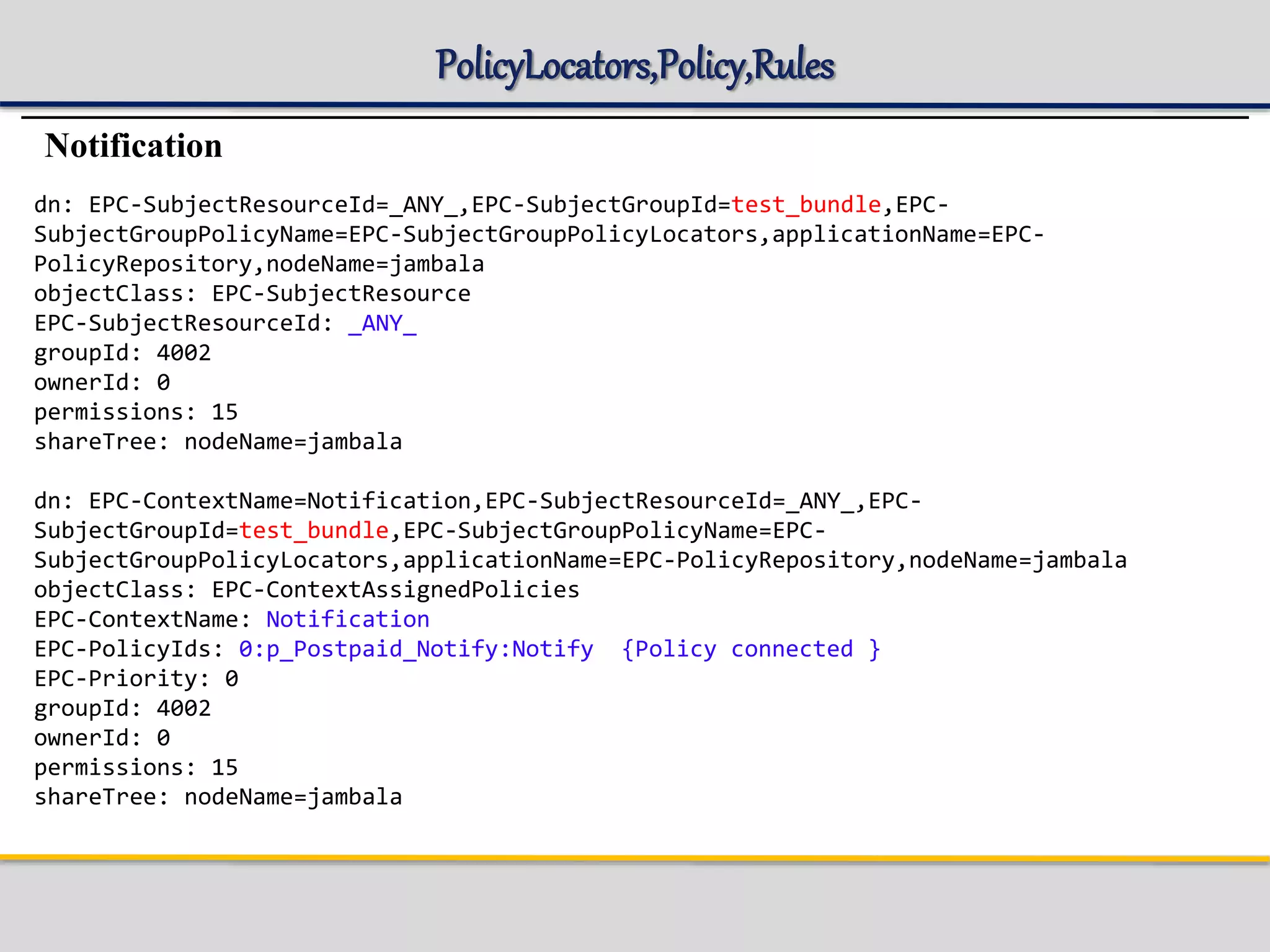

PolicyLocators,Policy,Rules
Notification
dn: EPC-SubjectResourceId=_ANY_,EPC-SubjectGroupId=test_bundle,EPC-
SubjectGroupPolicyName=EPC-SubjectGroupPolicyLocators,applicationName=EPC-
PolicyRepository,nodeName=jambala
objectClass: EPC-SubjectResource
EPC-SubjectResourceId: _ANY_
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-ContextName=Notification,EPC-SubjectResourceId=_ANY_,EPC-
SubjectGroupId=test_bundle,EPC-SubjectGroupPolicyName=EPC-
SubjectGroupPolicyLocators,applicationName=EPC-PolicyRepository,nodeName=jambala
objectClass: EPC-ContextAssignedPolicies
EPC-ContextName: Notification
EPC-PolicyIds: 0:p_Postpaid_Notify:Notify {Policy connected }
EPC-Priority: 0
groupId: 4002
ownerId: 0
permissions: 15

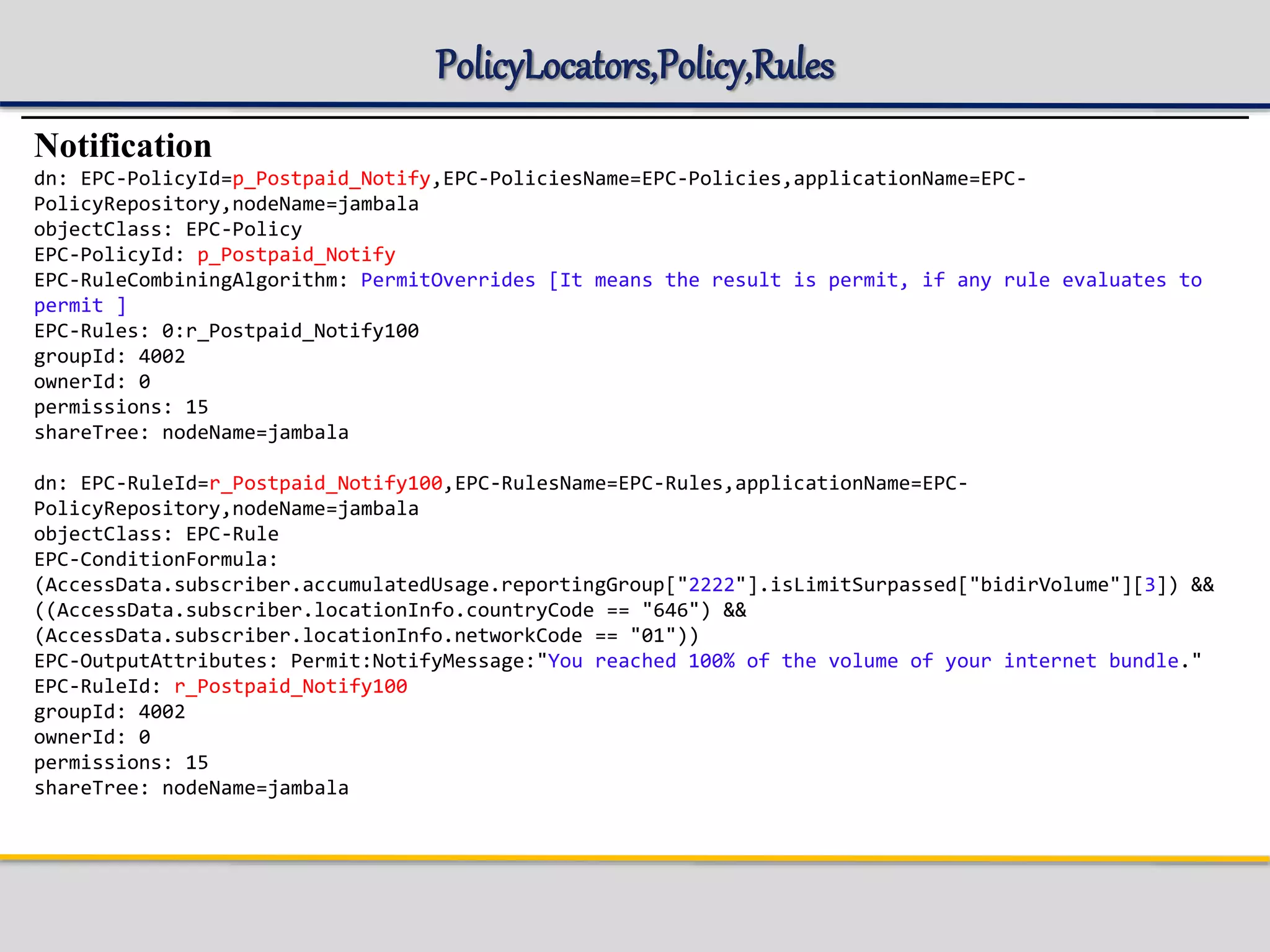

Notification
dn: EPC-PolicyId=p_Postpaid_Notify,EPC-PoliciesName=EPC-Policies,applicationName=EPC-
objectClass: EPC-Policy
EPC-PolicyId: p_Postpaid_Notify
EPC-RuleCombiningAlgorithm: PermitOverrides [It means the result is permit, if any rule evaluates to
permit ]
EPC-Rules: 0:r_Postpaid_Notify100
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-RuleId=r_Postpaid_Notify100,EPC-RulesName=EPC-Rules,applicationName=EPC-
objectClass: EPC-Rule
EPC-ConditionFormula:
(AccessData.subscriber.accumulatedUsage.reportingGroup["2222"].isLimitSurpassed["bidirVolume"][3]) &&
((AccessData.subscriber.locationInfo.countryCode == "646") &&
(AccessData.subscriber.locationInfo.networkCode == "01"))
EPC-OutputAttributes: Permit:NotifyMessage:"You reached 100% of the volume of your internet bundle."
EPC-RuleId: r_Postpaid_Notify100
groupId: 4002
ownerId: 0
permissions: 15

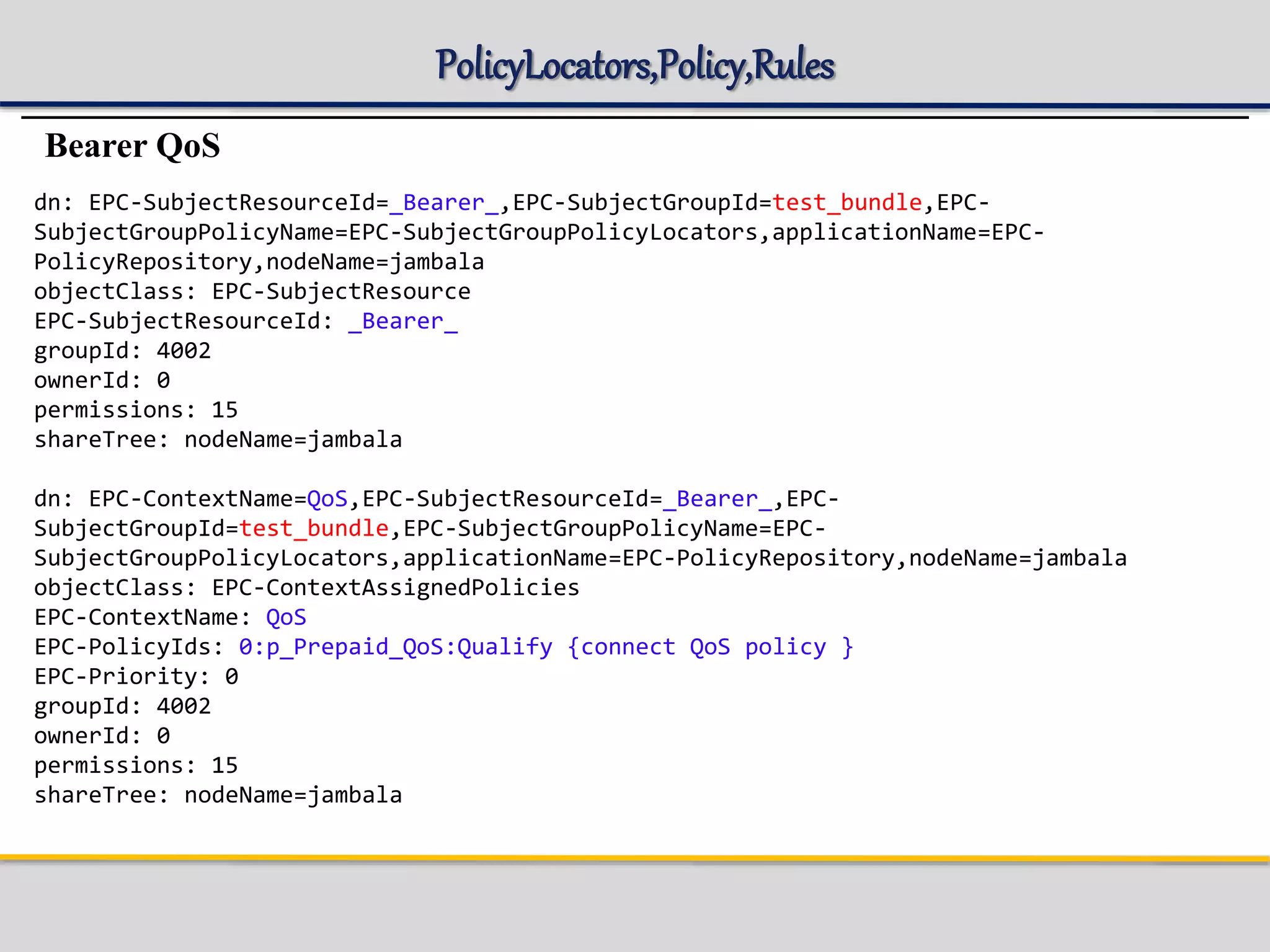

Bearer QoS
dn: EPC-SubjectResourceId=_Bearer_,EPC-SubjectGroupId=test_bundle,EPC-
EPC-SubjectResourceId: _Bearer_
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-ContextName=QoS,EPC-SubjectResourceId=_Bearer_,EPC-
EPC-ContextName: QoS
EPC-PolicyIds: 0:p_Prepaid_QoS:Qualify {connect QoS policy }
EPC-Priority: 0
groupId: 4002
ownerId: 0
permissions: 15

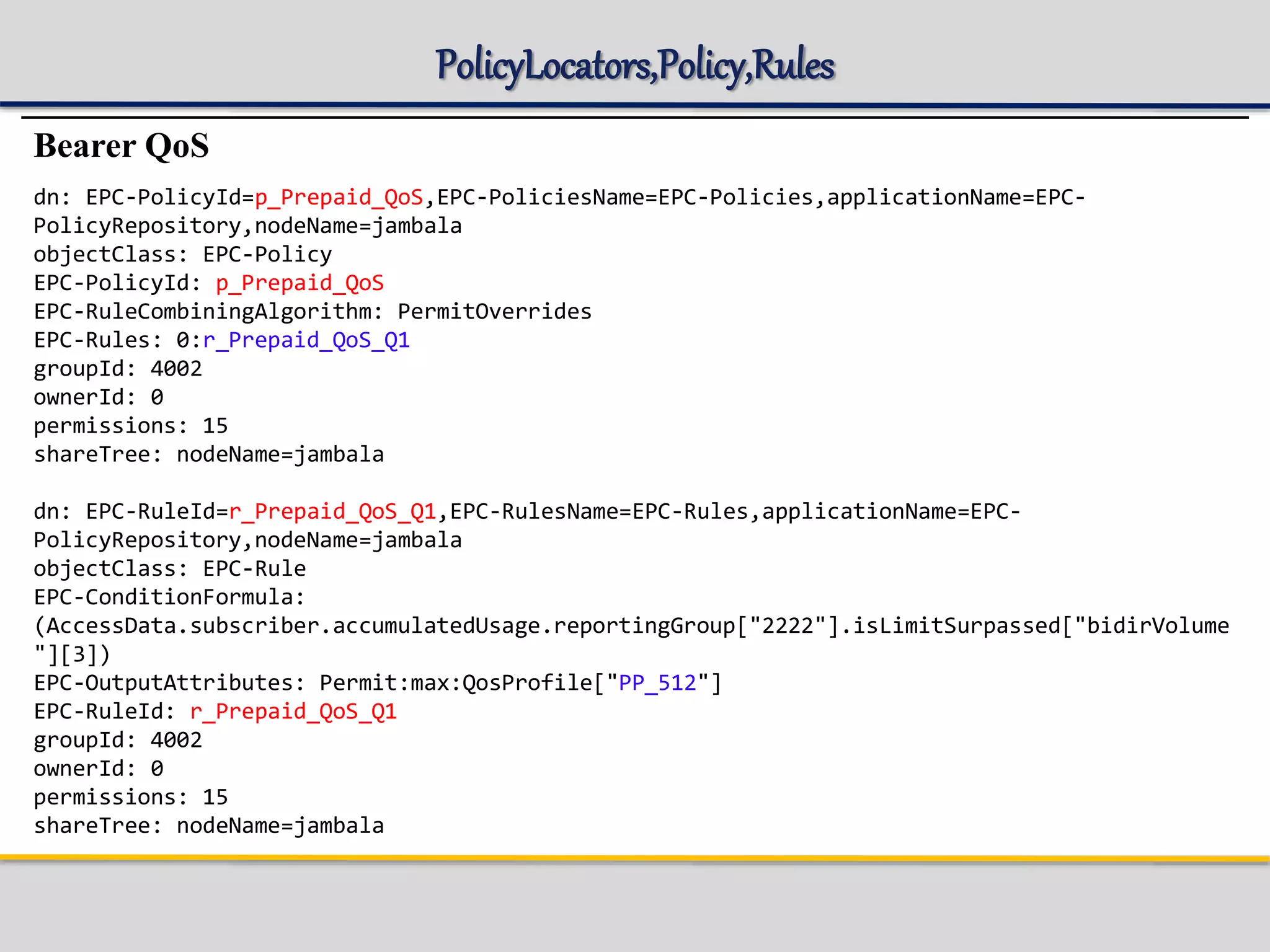

Bearer QoS
dn: EPC-PolicyId=p_Prepaid_QoS,EPC-PoliciesName=EPC-Policies,applicationName=EPC-
EPC-PolicyId: p_Prepaid_QoS
EPC-RuleCombiningAlgorithm: PermitOverrides
EPC-Rules: 0:r_Prepaid_QoS_Q1
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-RuleId=r_Prepaid_QoS_Q1,EPC-RulesName=EPC-Rules,applicationName=EPC-
EPC-ConditionFormula:
(AccessData.subscriber.accumulatedUsage.reportingGroup["2222"].isLimitSurpassed["bidirVolume
"][3])
EPC-OutputAttributes: Permit:max:QosProfile["PP_512"]
EPC-RuleId: r_Prepaid_QoS_Q1
groupId: 4002
ownerId: 0
permissions: 15

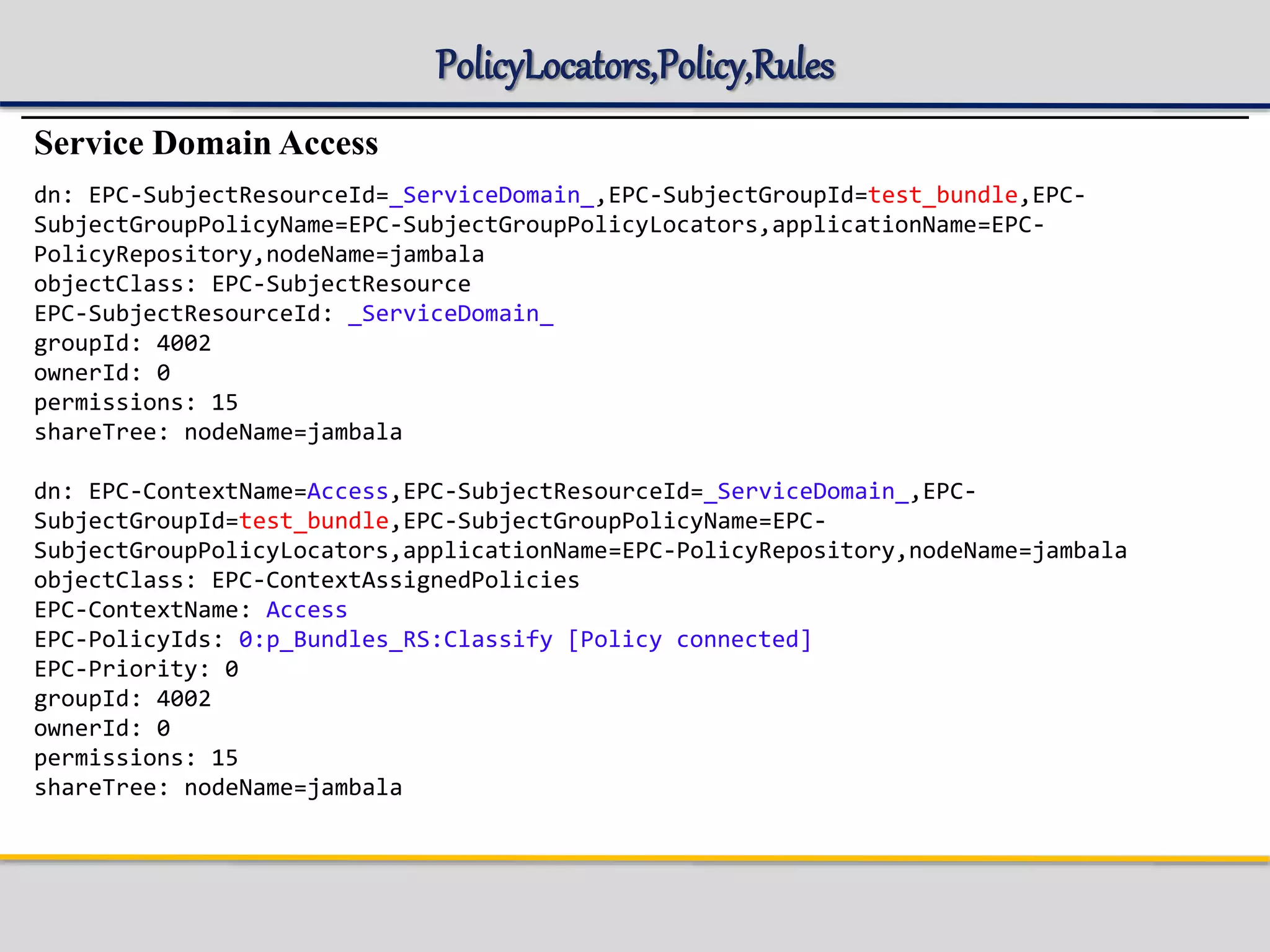

Service Domain Access
dn: EPC-SubjectResourceId=_ServiceDomain_,EPC-SubjectGroupId=test_bundle,EPC-
EPC-SubjectResourceId: _ServiceDomain_
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-ContextName=Access,EPC-SubjectResourceId=_ServiceDomain_,EPC-
EPC-ContextName: Access
EPC-PolicyIds: 0:p_Bundles_RS:Classify [Policy connected]
EPC-Priority: 0
groupId: 4002
ownerId: 0
permissions: 15

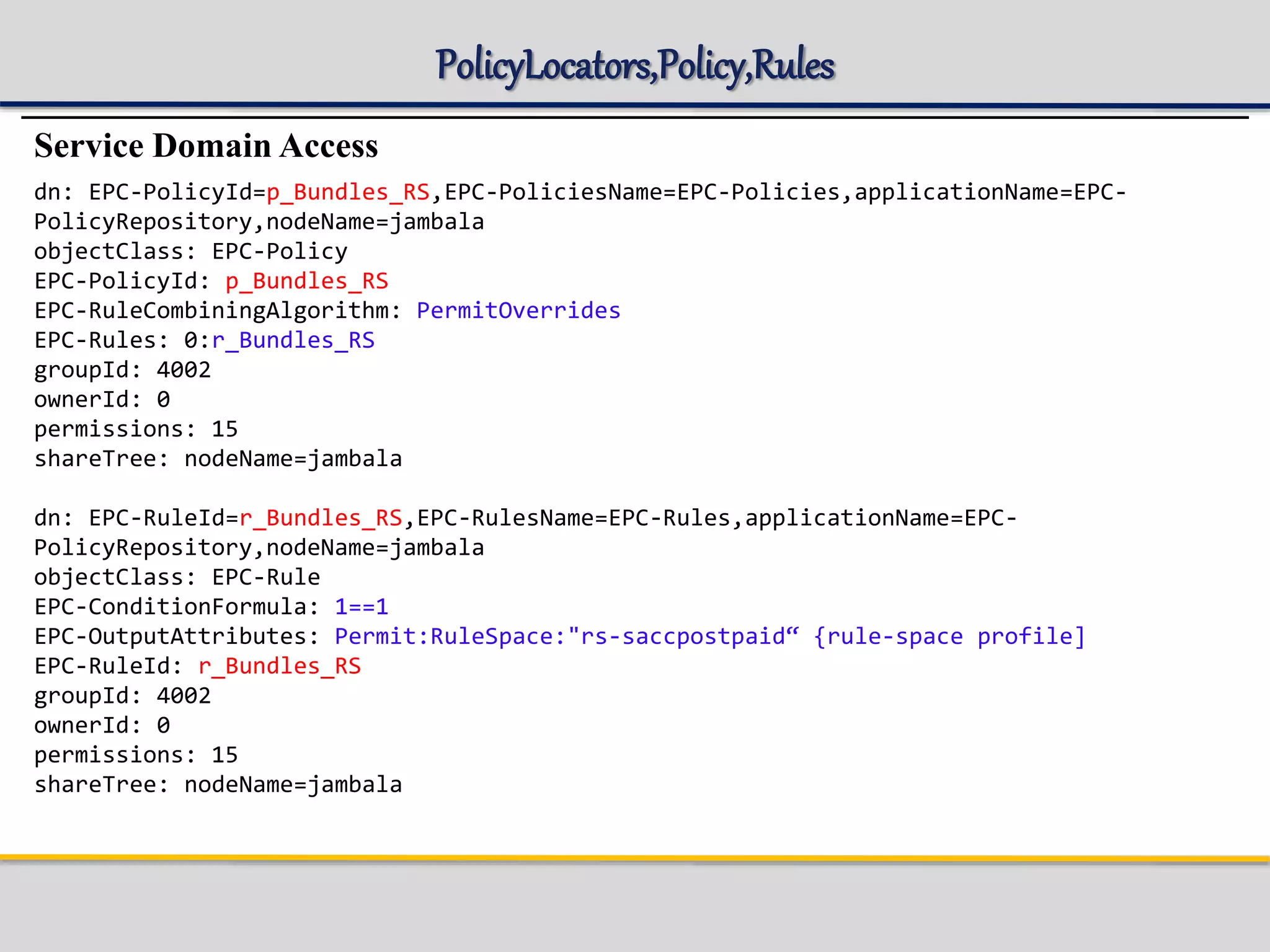

Service Domain Access
dn: EPC-PolicyId=p_Bundles_RS,EPC-PoliciesName=EPC-Policies,applicationName=EPC-
EPC-PolicyId: p_Bundles_RS
EPC-Rules: 0:r_Bundles_RS
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-RuleId=r_Bundles_RS,EPC-RulesName=EPC-Rules,applicationName=EPC-
EPC-ConditionFormula: 1==1
EPC-OutputAttributes: Permit:RuleSpace:"rs-saccpostpaid“ {rule-space profile]
EPC-RuleId: r_Bundles_RS
groupId: 4002
ownerId: 0
permissions: 15

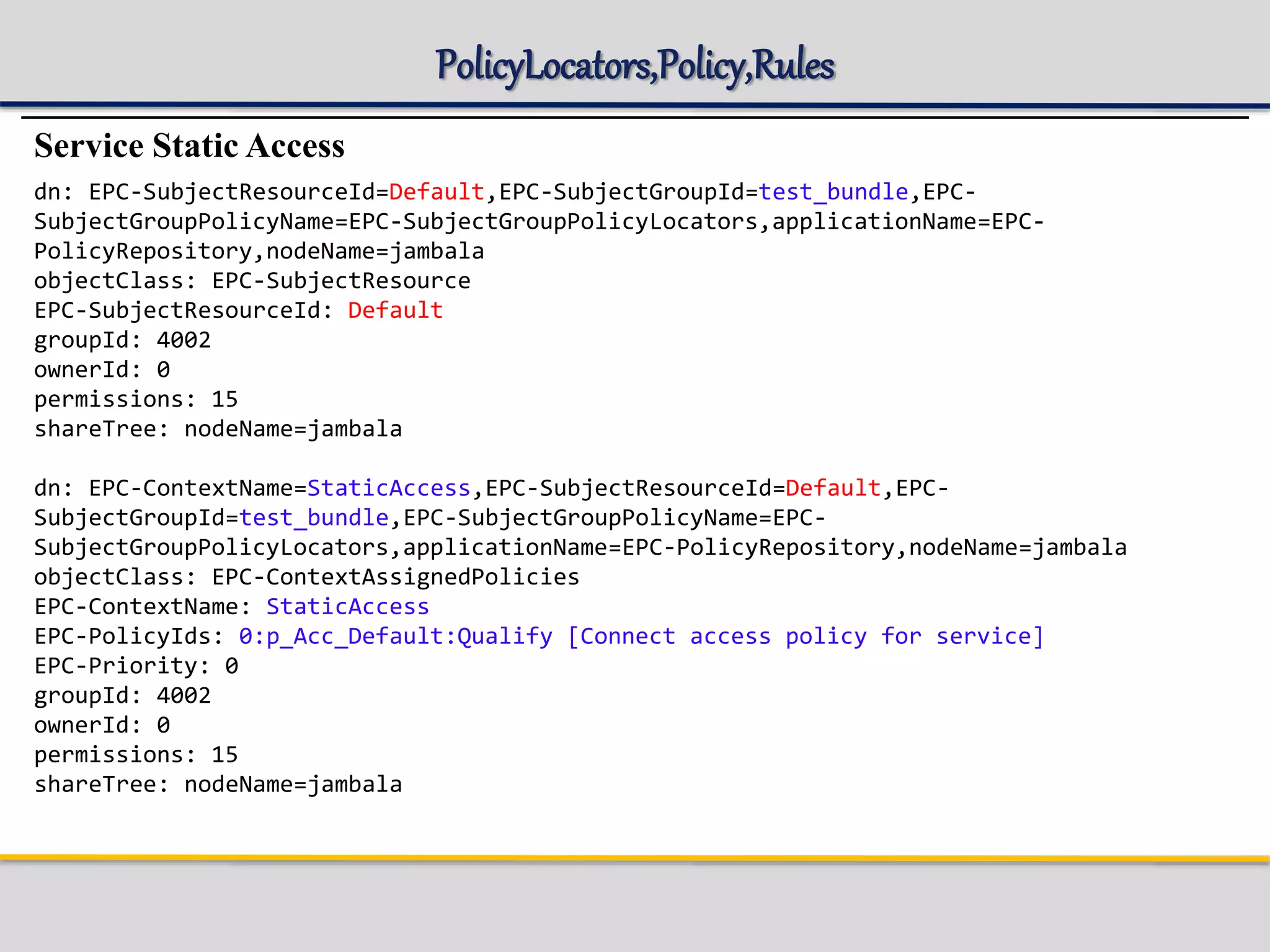

Service Static Access
dn: EPC-SubjectResourceId=Default,EPC-SubjectGroupId=test_bundle,EPC-
EPC-SubjectResourceId: Default
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-ContextName=StaticAccess,EPC-SubjectResourceId=Default,EPC-
EPC-ContextName: StaticAccess
EPC-PolicyIds: 0:p_Acc_Default:Qualify [Connect access policy for service]
EPC-Priority: 0
groupId: 4002
ownerId: 0
permissions: 15

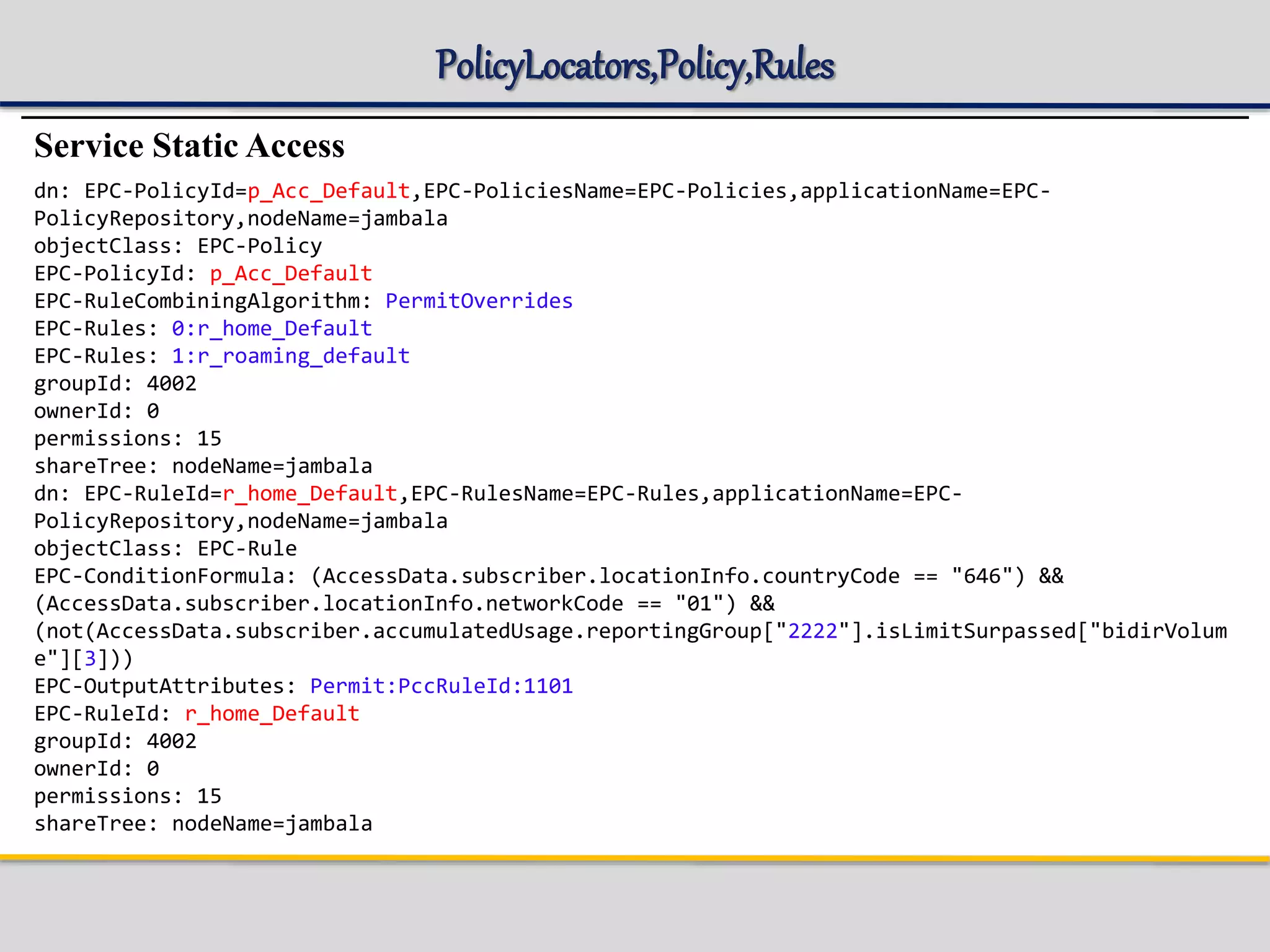

Service Static Access
dn: EPC-PolicyId=p_Acc_Default,EPC-PoliciesName=EPC-Policies,applicationName=EPC-
EPC-PolicyId: p_Acc_Default
EPC-Rules: 0:r_home_Default
EPC-Rules: 1:r_roaming_default
groupId: 4002
ownerId: 0
permissions: 15
dn: EPC-RuleId=r_home_Default,EPC-RulesName=EPC-Rules,applicationName=EPC-
EPC-ConditionFormula: (AccessData.subscriber.locationInfo.countryCode == "646") &&
(AccessData.subscriber.locationInfo.networkCode == "01") &&
(not(AccessData.subscriber.accumulatedUsage.reportingGroup["2222"].isLimitSurpassed["bidirVolum
e"][3]))
EPC-OutputAttributes: Permit:PccRuleId:1101
EPC-RuleId: r_home_Default
groupId: 4002
ownerId: 0
permissions: 15

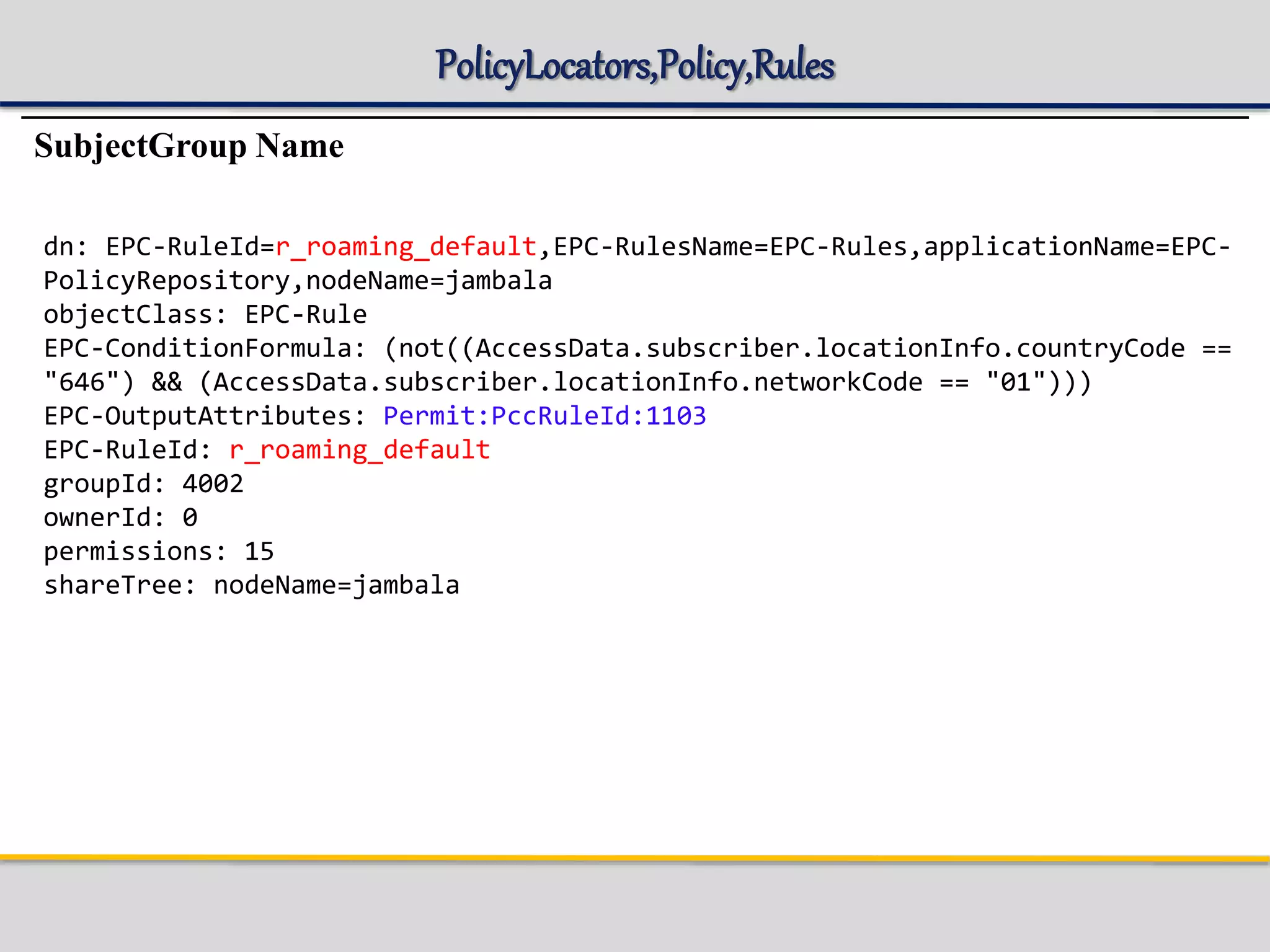

SubjectGroup Name
dn: EPC-RuleId=r_roaming_default,EPC-RulesName=EPC-Rules,applicationName=EPC-
EPC-ConditionFormula: (not((AccessData.subscriber.locationInfo.countryCode ==
"646") && (AccessData.subscriber.locationInfo.networkCode == "01")))
EPC-OutputAttributes: Permit:PccRuleId:1103
EPC-RuleId: r_roaming_default
groupId: 4002
ownerId: 0
permissions: 15

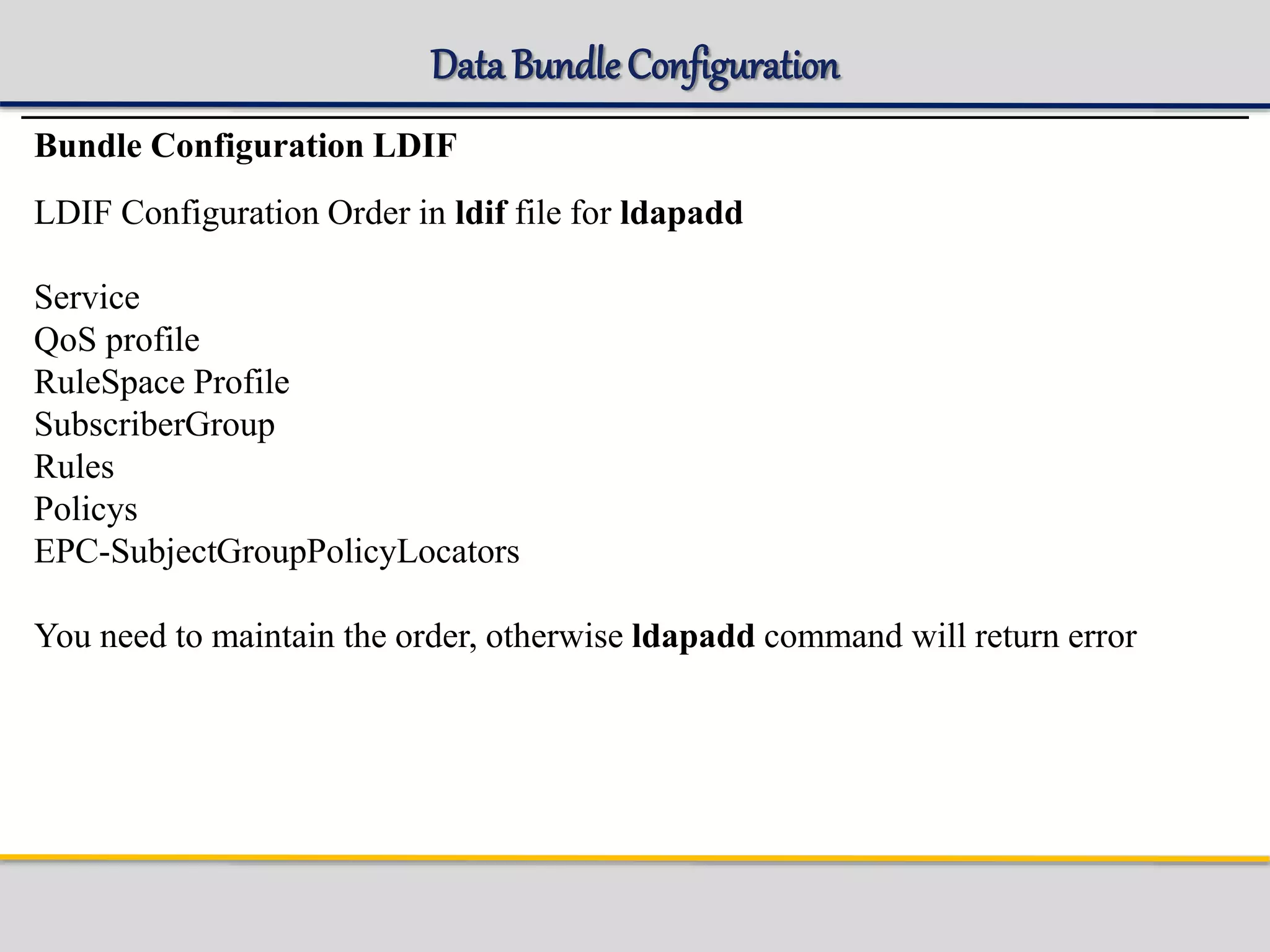

Bundle Configuration LDIF
LDIF Configuration Order in ldif file for ldapadd
Service
QoS profile
RuleSpace Profile
SubscriberGroup
Rules
Policys
EPC-SubjectGroupPolicyLocators
You need to maintain the order, otherwise ldapadd command will return error

FurtherStudy
3GPP Documentation
kb.juniper.net/
https://www.youtube.com/watch?v=YQRSa0JgmWQ
https://www.youtube.com/watch?v=R-6sgxD4KQo
https://www.youtube.com/watch?v=Riicg93L9eQ
https://www.youtube.com/watch?v=drdI6ylciW4
Google

When you’re confused
Q&A Part 2

Sapc upcc-pcrf- part 2 tbp

More Related Content

What's hot

Recently uploaded

Sapc upcc-pcrf- part 2 tbp
