![Ver. 1 Components for function “callcar”
9/7/18 powered by BH_Lin 3
callcar
Address
Booking
Time
Call Car
Choose
Contact
Cost
Rating
Total: 15
General
Rating
Get Car
Status
Picker Edit Prof Cost
mission.
Booking[Detail]
mission.
Booking[List]
mission.
Cancel
mission.
CancelReason
mission.
MoreCar
mission.
ShareFriend](https://image.slidesharecdn.com/uddhbjlpquywytosqfob-signature-8d0ce2c90b7d12c9766596ff2111acb51cc111639b92a1b71657ca55027cf7d7-poli-180906182844/85/Sample-APK-Analysis-4-55688-3-320.jpg)
![Ver. 1 Launch the app.
9/7/18 powered by BH_Lin 8
dbx.taiwantaxi/
.activities.OpenActivity
dbx.taiwantaxi/
.activities.AutoLoginActivity
if user logged
in
09-06 23:15:12.507 I/ActivityManager( 1703):
START u0 {act=android.intent.action.MAIN
cat=[android.intent.category.LAUNCHER]
flg=0x10200000
cmp=dbx.taiwantaxi/.activities.AutoLoginActi
vity bnds=[839,1692][1039,1936]} from uid
10023](https://image.slidesharecdn.com/uddhbjlpquywytosqfob-signature-8d0ce2c90b7d12c9766596ff2111acb51cc111639b92a1b71657ca55027cf7d7-poli-180906182844/85/Sample-APK-Analysis-4-55688-8-320.jpg)
![Ver. 1 Launch the app.
9/7/18 powered by BH_Lin 9
dbx.taiwantaxi/
.activities.OpenActivity By View Pager.
[1]
[2]
[3]
[4]
[5]
[6]](https://image.slidesharecdn.com/uddhbjlpquywytosqfob-signature-8d0ce2c90b7d12c9766596ff2111acb51cc111639b92a1b71657ca55027cf7d7-poli-180906182844/85/Sample-APK-Analysis-4-55688-9-320.jpg)
![Ver. 1 Registration
9/7/18 powered by BH_Lin 12
dbx.taiwantaxi/
.activities.RegisterActivity
[1]
[2]
[3]
[4]
[5]
[6]
[7]
E/API (10539):
"https://appbkendprod.taiwantaxi.com.tw:6488
/AppApi/CustInfo/Register"
E/API (10539): "{"Result":{"State":0,"Msg":" "}}"
tel:02-55783939](https://image.slidesharecdn.com/uddhbjlpquywytosqfob-signature-8d0ce2c90b7d12c9766596ff2111acb51cc111639b92a1b71657ca55027cf7d7-poli-180906182844/85/Sample-APK-Analysis-4-55688-12-320.jpg)
![Ver. 1 Tutorial.
9/7/18 powered by BH_Lin 14
dbx.taiwantaxi/
.activities.WelcomeActivity
[1] [2] [3] [4]
By View Pager.](https://image.slidesharecdn.com/uddhbjlpquywytosqfob-signature-8d0ce2c90b7d12c9766596ff2111acb51cc111639b92a1b71657ca55027cf7d7-poli-180906182844/85/Sample-APK-Analysis-4-55688-14-320.jpg)
Uploaded byLin BH
Sample APK Analysis 4 - 55688

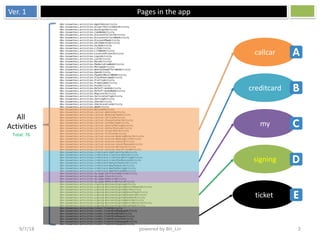

The document lists various activities and components within the dbx.taiwantaxi Android app. It begins by listing 76 total activities, then breaks them down into groups for different app functions - including 15 components for the "callcar" function, 8 for "creditcard", 4 for "my", 9 for "signing", and 5 for "ticket". It then provides more details on the flow of launching the app, login/registration, responding API data, tutorials, the app's main page and tabs, and setting options.
Sample APK Analysis 4 - 55688
- 1. Ver. 1 55688 9/7/18powered by BH_Lin 1 https://play.google.com/store/apps/details?id=dbx.taiwantaxi&hl=zh_TW
- 2.
- 3. Ver. 1 Componentsfor function “callcar” 9/7/18 powered by BH_Lin 3 callcar Address Booking Time Call Car Choose Contact Cost Rating Total: 15 General Rating Get Car Status Picker Edit Prof Cost mission. Booking[Detail] mission. Booking[List] mission. Cancel mission. CancelReason mission. MoreCar mission. ShareFriend
- 4. Ver. 1 Componentsfor function “creditcard” 9/7/18 powered by BH_Lin 4 Add Credit Card Credit Card Edit Credit Card Setting Credit Pay Receipt Manual Pay EditWay Pay Query Way Pay Rating Way Pay ScanQR creditcard Total: 8 Group A. Group B.
- 5. Ver. 1 Componentsfor function “my” 9/7/18 powered by BH_Lin 5 page. EditFavorAddress my page. Favor page. MyRecord page. MyRecordDetail Total: 4
- 6. Ver. 1 Componentsfor function “signing” 9/7/18 powered by BH_Lin 6 BusinessSigning BusinessSigning DetailRemark BusinessSigning Fare BusinessSigning ManualPay signing BusinessSigning Password BusinessSigning Payment BusinessSigning Record BusinessSigning RecordDetail BusinessSigning ScanPay Total: 9
- 7. Ver. 1 Componentsfor function “ticket” 9/7/18 powered by BH_Lin 7 TicketInfo Happygo Ticket TicketBind Happygo Ticket Discount TicketBind Uupon TicketBind Otp TicketInfo Uupon ticket
- 8. Ver. 1 Launchthe app. 9/7/18 powered by BH_Lin 8 dbx.taiwantaxi/ .activities.OpenActivity dbx.taiwantaxi/ .activities.AutoLoginActivity if user logged in 09-06 23:15:12.507 I/ActivityManager( 1703): START u0 {act=android.intent.action.MAIN cat=[android.intent.category.LAUNCHER] flg=0x10200000 cmp=dbx.taiwantaxi/.activities.AutoLoginActi vity bnds=[839,1692][1039,1936]} from uid 10023

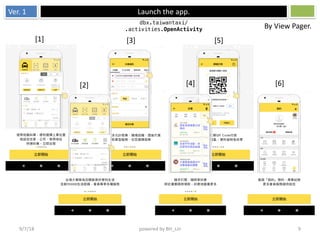

- 9. Ver. 1 Launchthe app. 9/7/18 powered by BH_Lin 9 dbx.taiwantaxi/ .activities.OpenActivity By View Pager. [1] [2] [3] [4] [5] [6]
- 10. Ver. 1 PermissionRequired. 9/7/18 powered by BH_Lin 10 09-06 23:30:08.377 I/ActivityManager( 1703): START u0 {act=android.content.pm.action.REQUEST_PERMISSIONS pkg=com.google.android.packageinstaller cmp=com.google.android.packageinstaller/com.android.packageinstaller.permission.ui.GrantPermis sionsActivity (has extras)} from uid 10094 <uses-permission android:name= "android.permission.ACCESS_COARSE_LOCATION"/> <uses-permission android:name= "android.permission.ACCESS_FINE_LOCATION"/> <uses-permission android:name= "android.permission.ACCESS_LOCATION_EXTRA_COMMANDS"/> <uses-permission android:name="android.permission.CALL_PHONE"/> <uses-permission android:name="android.permission.READ_PHONE_STATE"/>
- 11. Ver. 1 Login 9/7/18powered by BH_Lin 11 dbx.taiwantaxi/ .activities.LoginActivity E/API (10539): "https://appbkendprod.taiwantaxi.com.tw:6488//CustInfo/ForgetPw" E/Network (10539): "https://appbkendprod.taiwantaxi.com.tw/ api/AppLogin"
- 12. Ver. 1 Registration 9/7/18powered by BH_Lin 12 dbx.taiwantaxi/ .activities.RegisterActivity [1] [2] [3] [4] [5] [6] [7] E/API (10539): "https://appbkendprod.taiwantaxi.com.tw:6488 /AppApi/CustInfo/Register" E/API (10539): "{"Result":{"State":0,"Msg":" "}}" tel:02-55783939
- 13. Ver. 1 api/AppLoginResponding Data 9/7/18 powered by BH_Lin 13 E/Network (10539): "https://appbkendprod.taiwantaxi.com.tw/ api/AppLogin" Response: 1.appSettingInfo:{UnionPilot: "@4305", DisInterval: 5, FeeSetting: Array(5), AppThemeVer: 0} 2.code:0 3.creditInfo:{IsAccountBanned: false, CI: null} 4.dispatchInfo: 1. AccessToken:"2b6210a4201d4488979bc5200201f62a" 2. Expired:"2018-09-07T00:58:52.51" 3. Signature_App:"y74VZ7EModUqGy8Q7gyDj8dWR3Y=" 4. Signature_Cancel:"aewX8LbVfYjQR4qFveu8e3efz/M=" 5. Signature_Dri:"e5hYIDrre8H1q9qLyUo77Ym5gSk=" 6. Signature_Est:"f7846uOacn5z3K3UI1P2jzr+XuQ=" 7. Signature_GetIn:"vbAQG1TRj3GtFQV2xqcGlvEJe3c=" 8. Signature_Msg:"arB+CZSgJ5f9mOTide4DV057q1c=" 9. Signature_None:"zKsIJZqKpbBQ8ZEXSy5Oak2rKy4=" 10. Signature_Order:"kTy3OhenBwOBNAXSkm6jUV02bZs=" 11. Signature_Pmt:"tdeTOxnyCuMjRhkbamn7r4c8GxQ=" 12. Signature_Query:"yQMTDzY83Z/QNkZFRK9KPjQSkKs=" 13. Signature_Set:"HCwHD5k0rKLu6xhHb5YXfDwHSEo=" 14. __proto__:Object 5.dispatchInfoEx: 1. AccessToken:"6c013ae8b51a416a8e937c384910b85d" 2. Expired:"2018-09-07T00:58:52.543" 3. Signature_Cancel:"tkUKAiu+9FmD/36lO0d0iqeuljQ=" 4. Signature_GetIn:"s+/Qfye0EL7fBaBUScppcSLMJh8=" 5. Signature_Order:"VrmIUWdaz3yEWv+Y7Hhm+uiUgFs=" 6. Signature_Query:"OXJc1k4kxLrhlJOk8/n1zcF5S2E=" 7. __proto__:Object 6.memberInfo:{CUSTNAME: " ", SEX: "M", EMAIL: "binghuanlin@gmail.com", PaidType1: "0", PaidType2: "0", …} 7.msg:null 8.ok:true

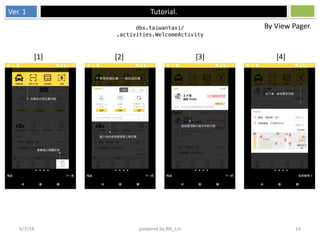

- 14. Ver. 1 Tutorial. 9/7/18powered by BH_Lin 14 dbx.taiwantaxi/ .activities.WelcomeActivity [1] [2] [3] [4] By View Pager.
- 15. Ver. 1 TheMain Page. 9/7/18 powered by BH_Lin 15 dbx.taiwantaxi/ .activities.MainActivity2 Action Bar Tab Control Content View Home Page Discover ## Fragments: Notification Profile
- 16. Ver. 1 Tabson Main Page. 9/7/18 powered by BH_Lin 16 MainFragment DiscoverFragment NotificationFragment MyFragment
- 17. Ver. 1 Settingfrom myFragment 9/7/18 powered by BH_Lin 17 SettingDialog BackgroundGPSDialog PrivacyDialog ActivityNoticeDialog About55688
- 18. Ver. 1 ActionItems on Main Page 9/7/18 powered by BH_Lin 18 dbx.taiwantaxi/ .activities. LocationPickerActivity dbx.taiwantaxi/ .activities.creditcard. CreditCardSettingActivity dbx.taiwantaxi/ .activities. DiscountCollectActivity
