Building technology and materials architecture

1. Safety Doors

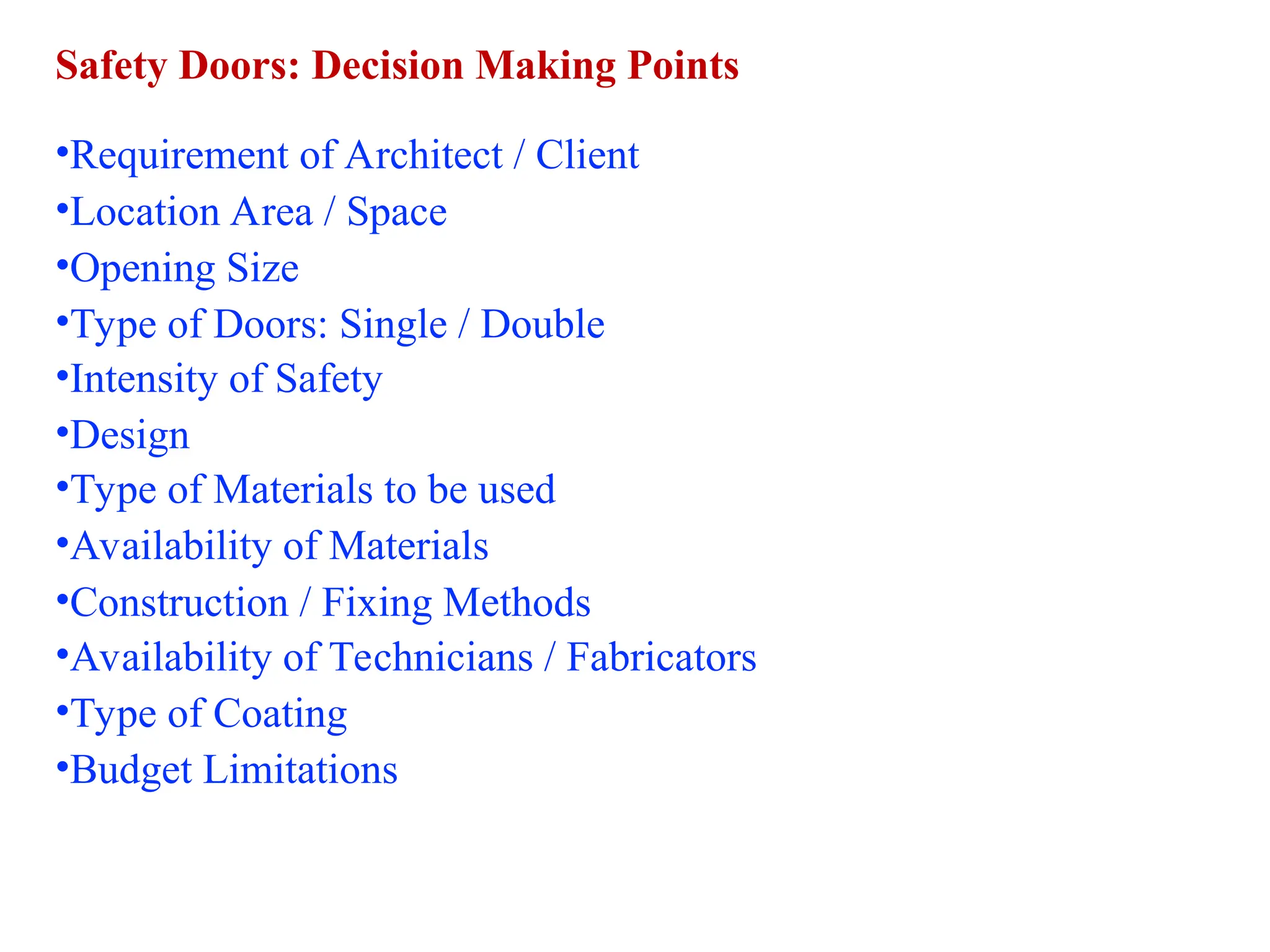

2. Safety Doors: Decision Making Points
•Requirement of Architect / Client
•Location Area / Space
•Opening Size
•Type of Doors: Single / Double
•Intensity of Safety
•Design
•Type of Materials to be used
•Availability of Materials
•Construction / Fixing Methods
•Availability of Technicians / Fabricators
•Type of Coating
•Budget Limitations

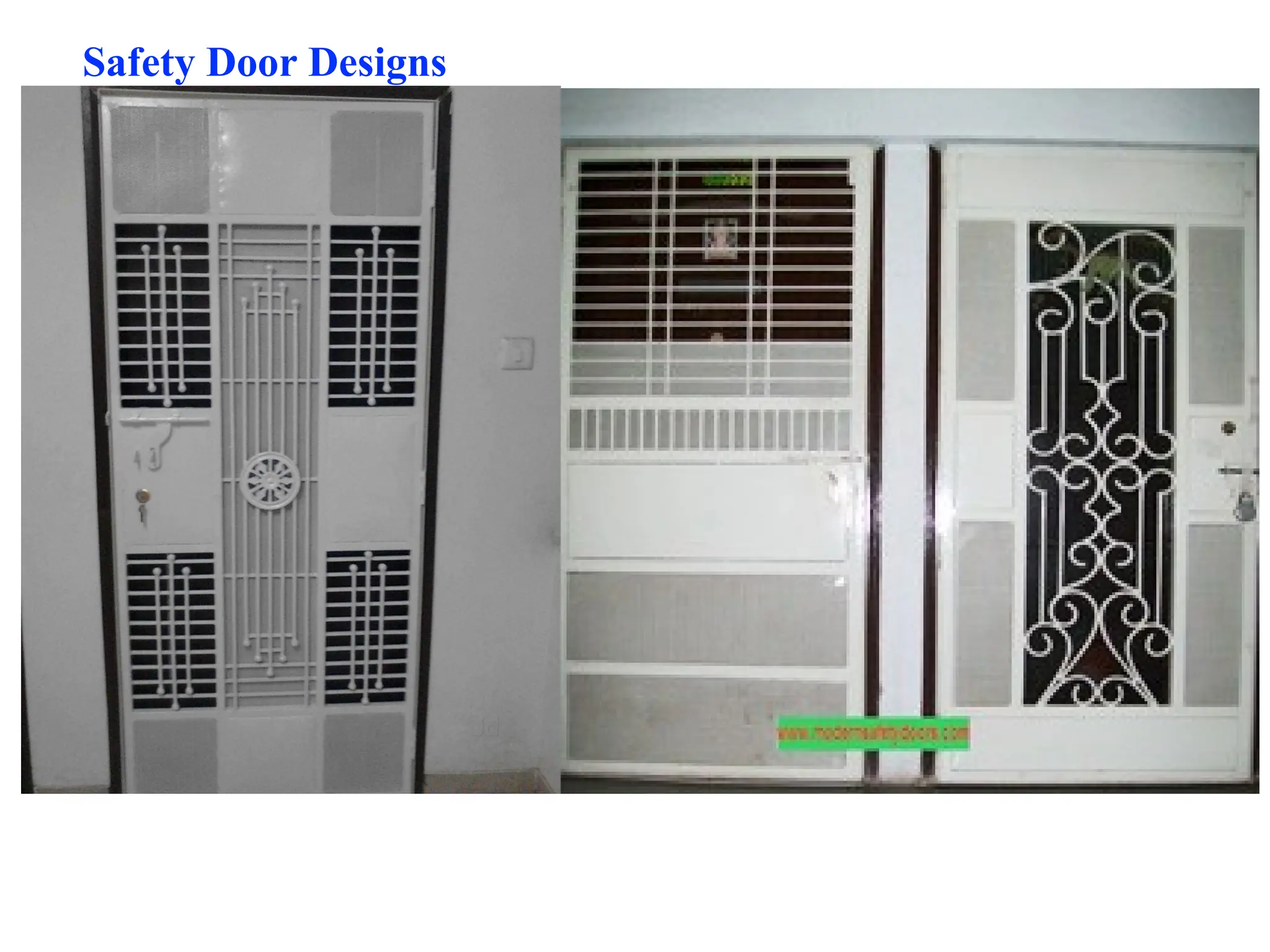

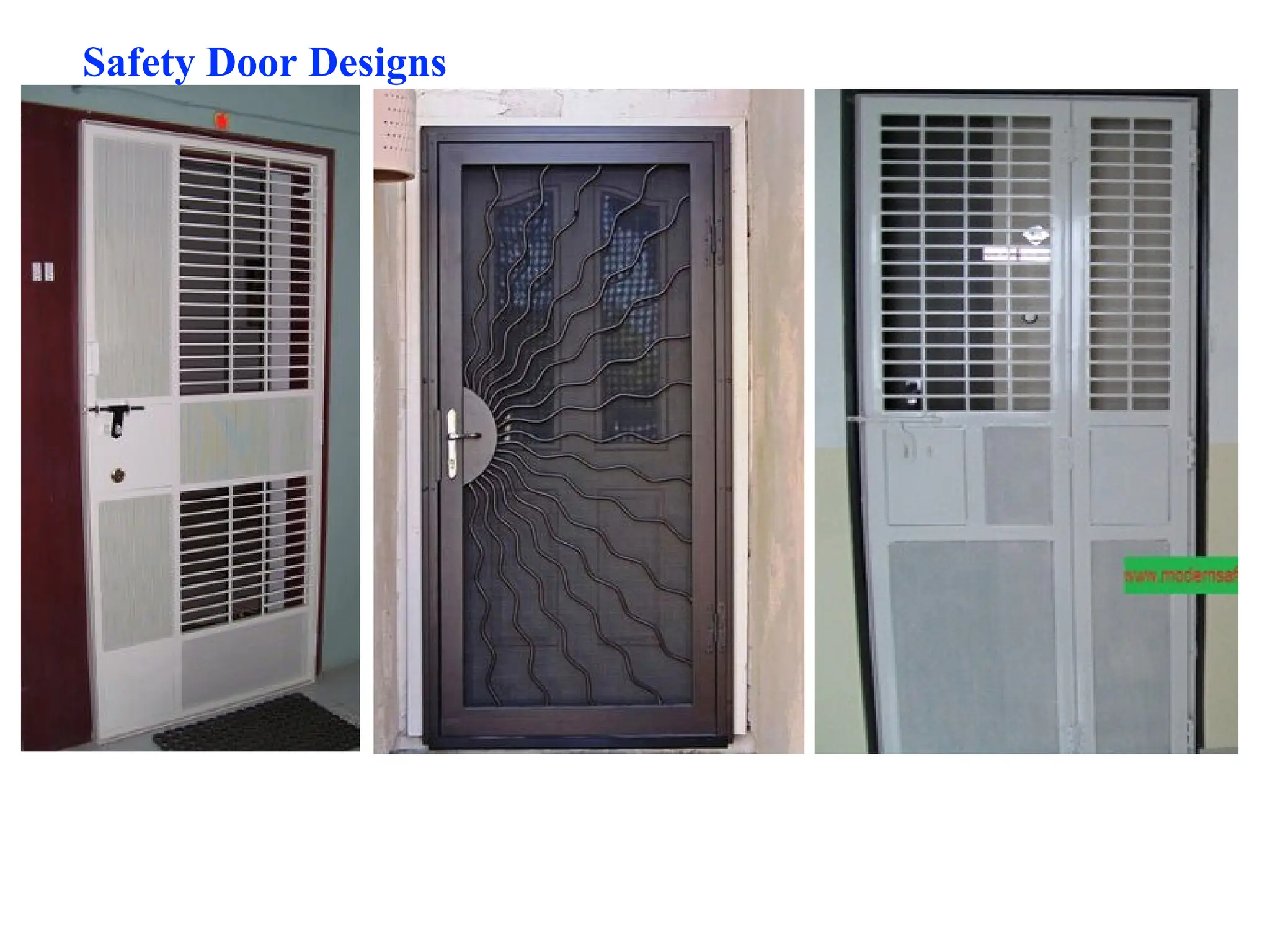

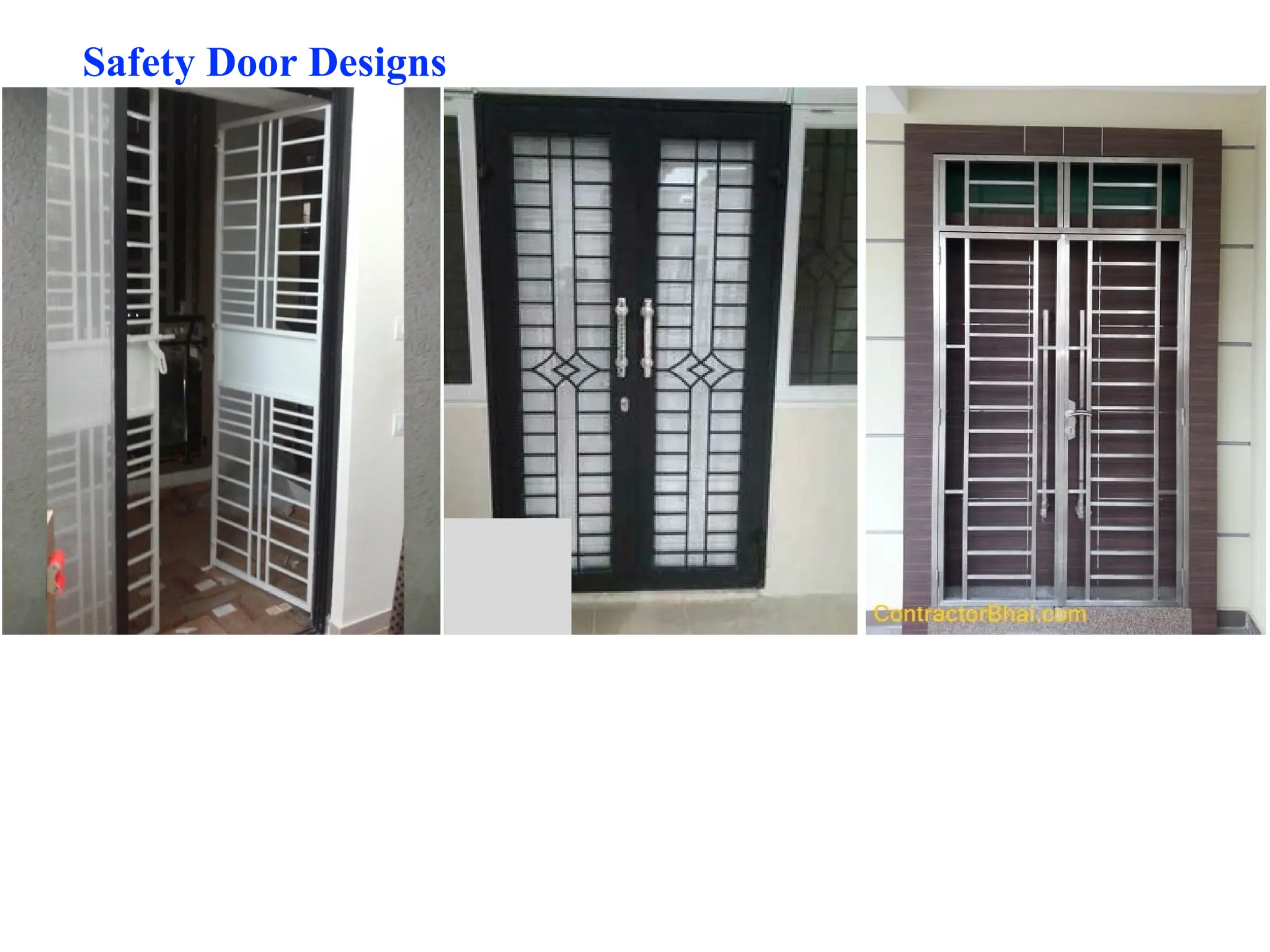

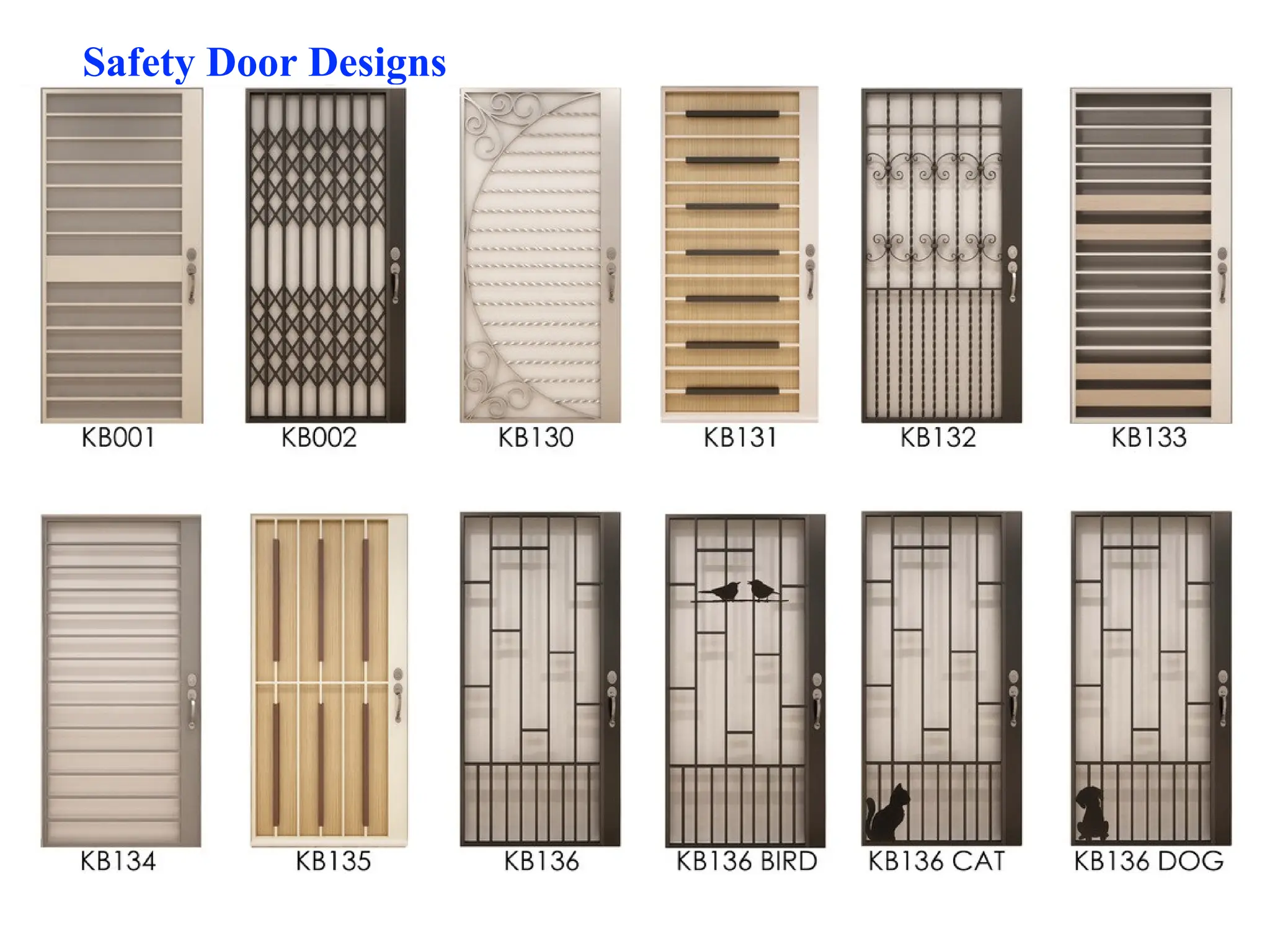

3. Safety Door Designs

4. Safety Door Designs

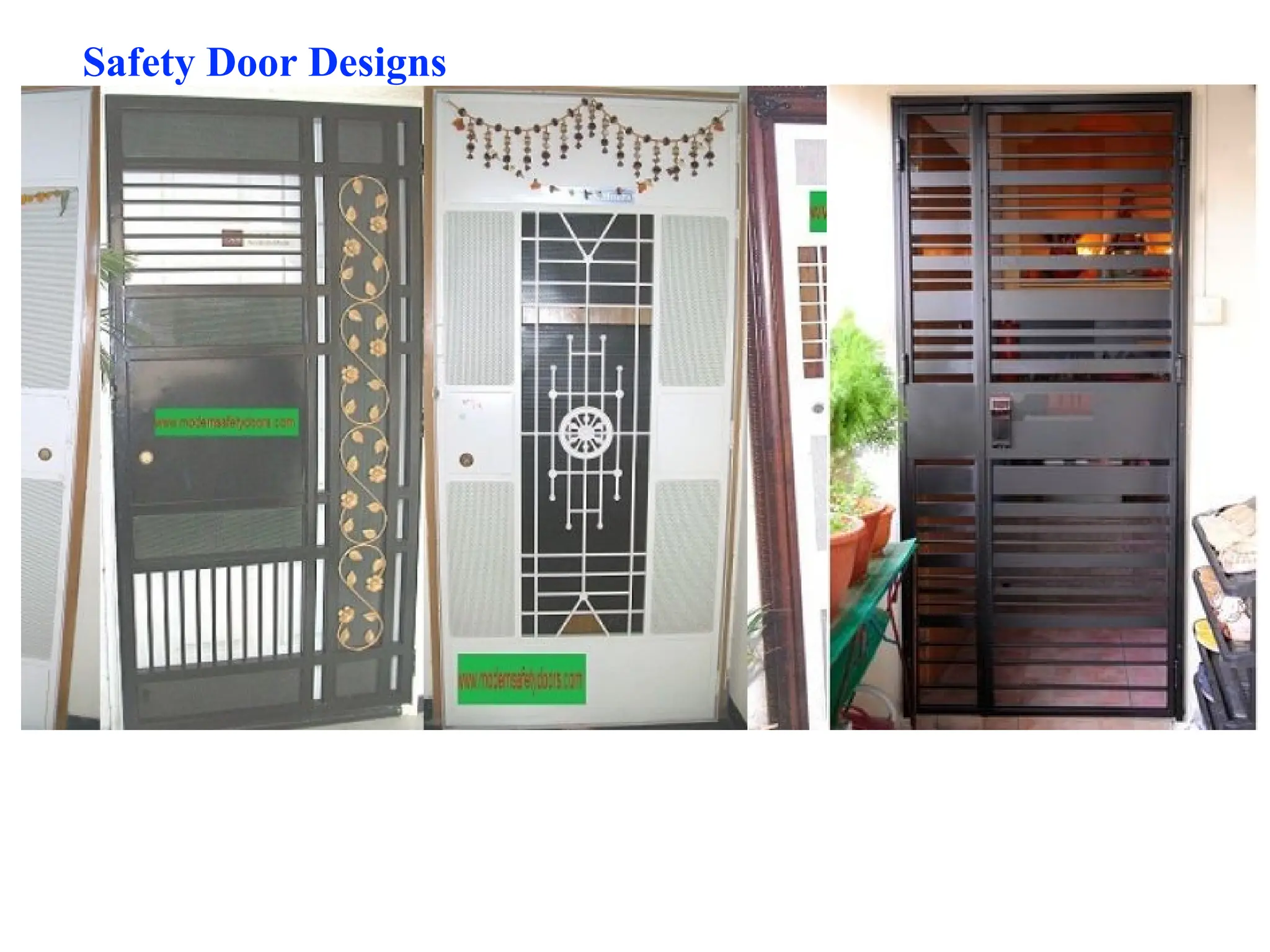

5. Safety Door Designs

6. Safety Door Designs

7. Safety Door Designs

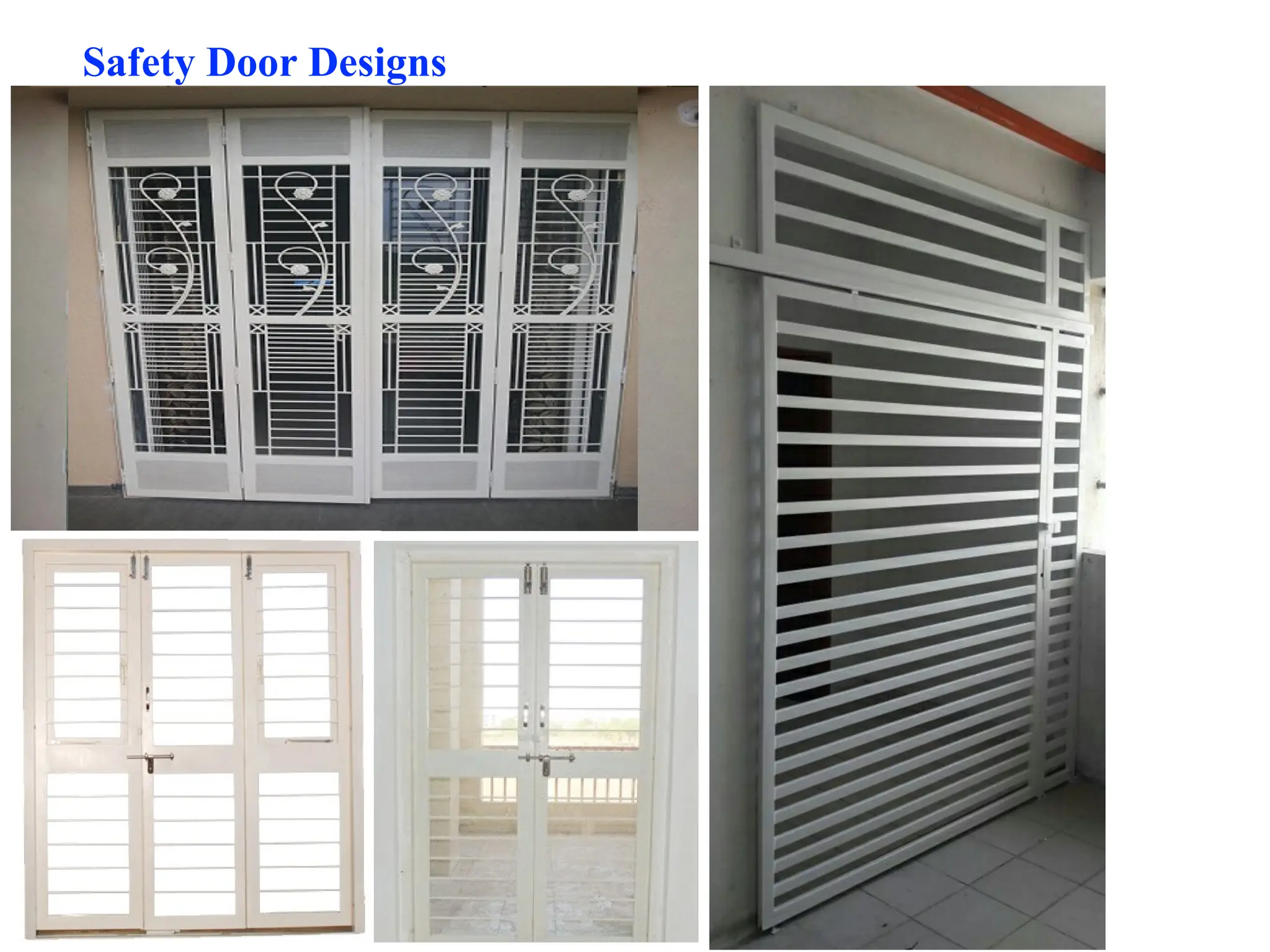

8. Safety Door Designs

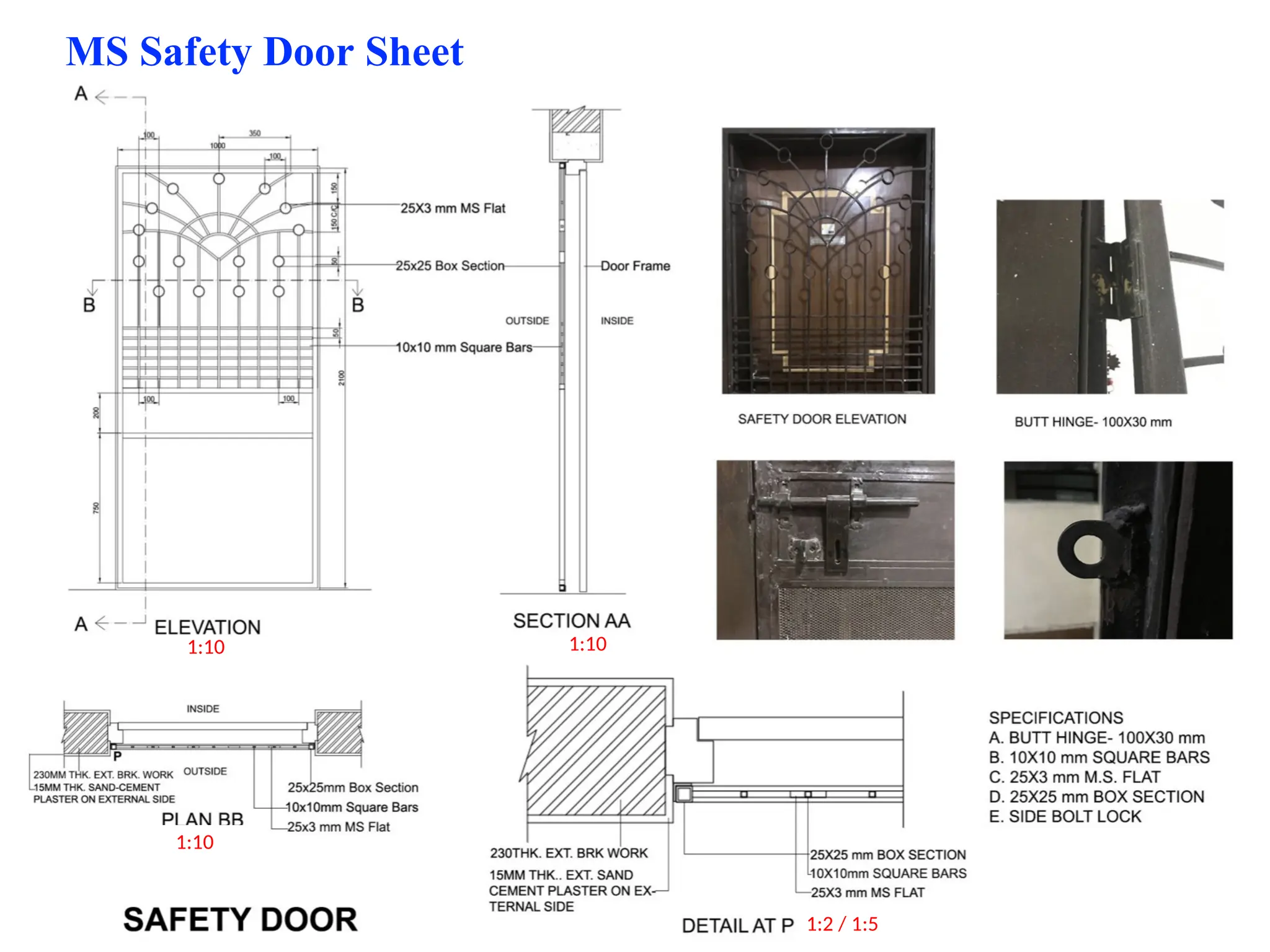

9. 1:10
1:10
1:10
MS Safety Door Sheet
1:2 / 1:5

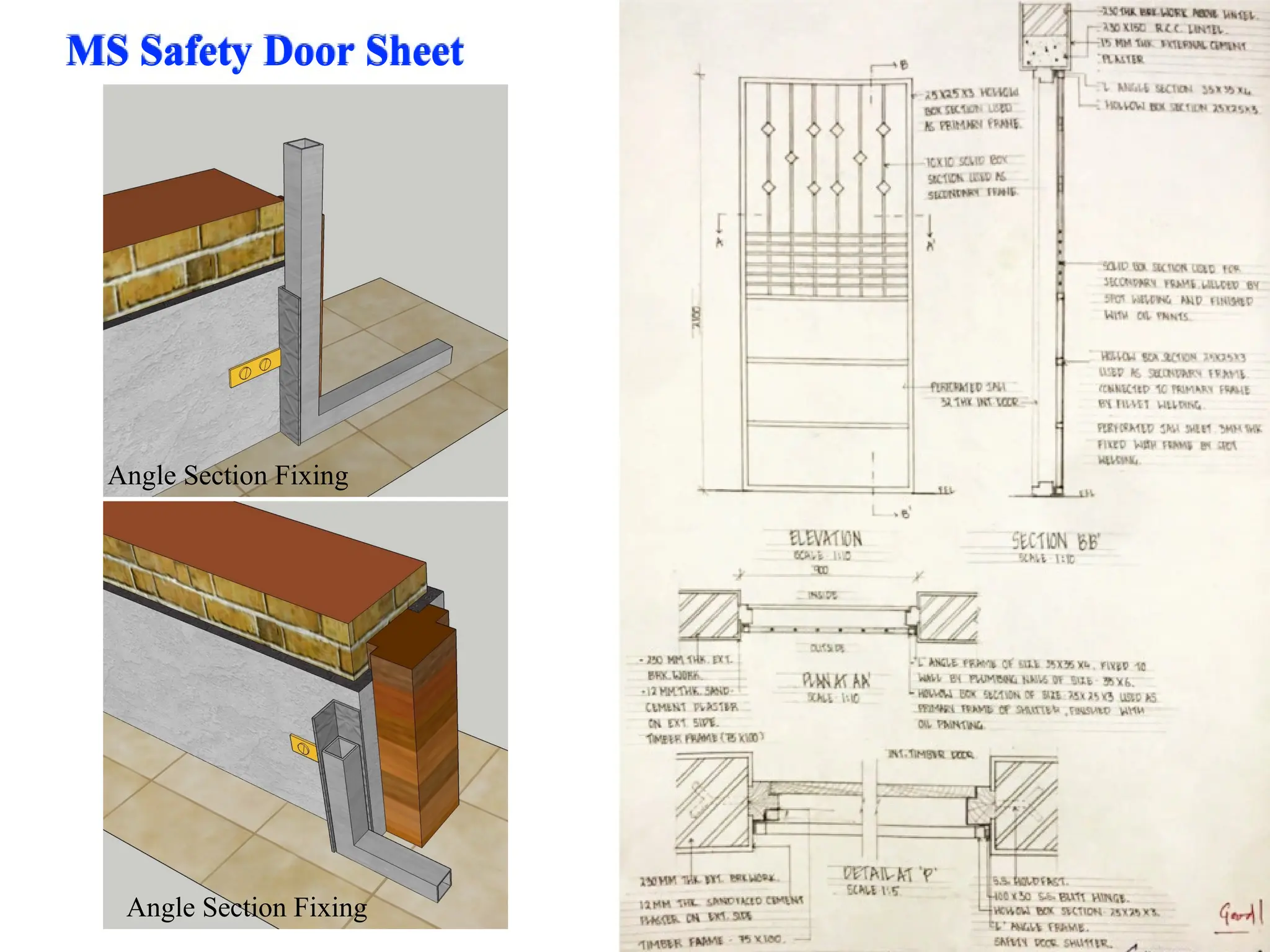

10. MS Safety Door Sheet
Angle Section Fixing
Angle Section Fixing

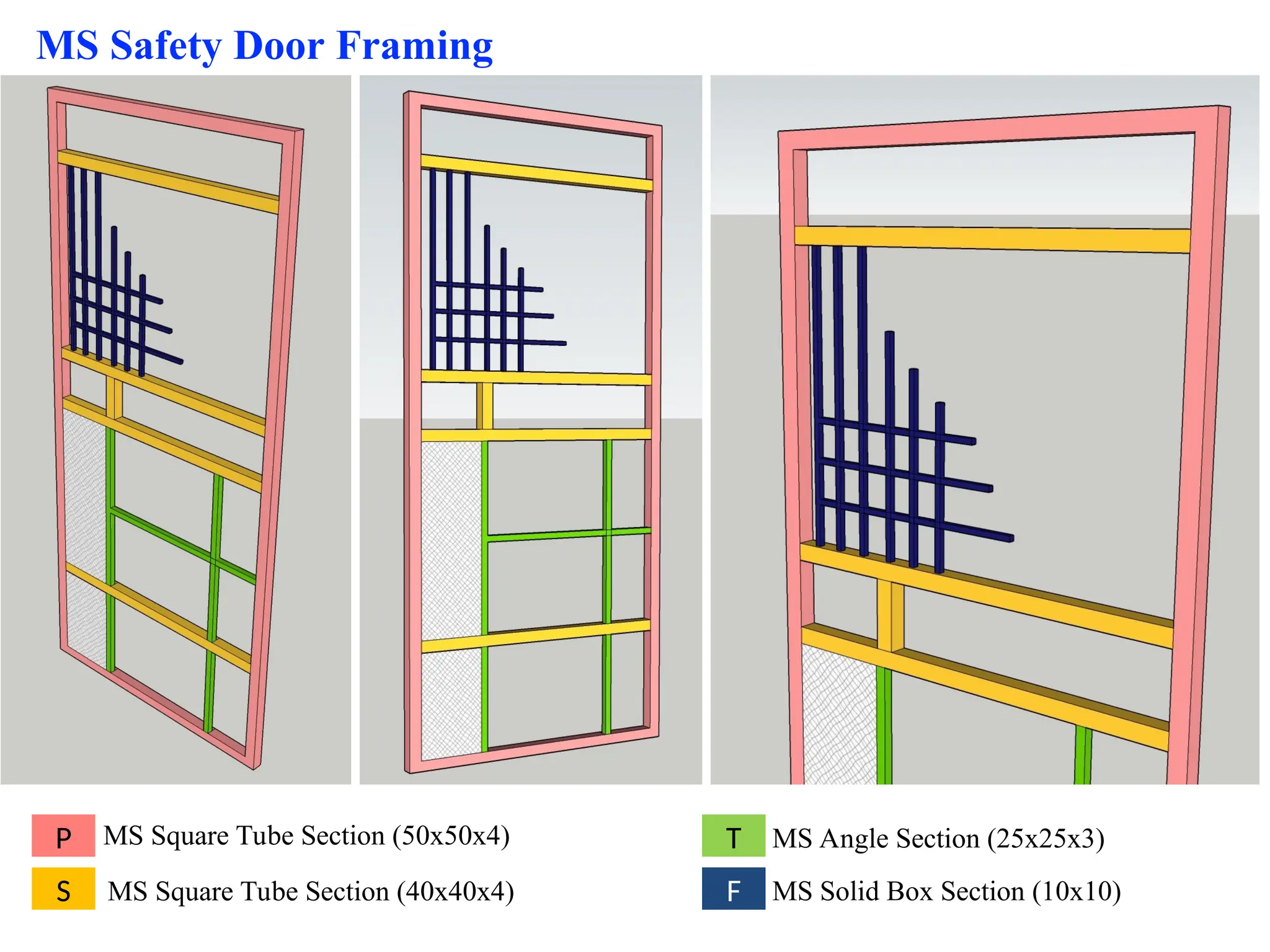

11. MS Safety Door Framing
P
S
T
F
MS Square Tube Section (50x50x4)
MS Square Tube Section (40x40x4)
MS Angle Section (25x25x3)
MS Solid Box Section (10x10)

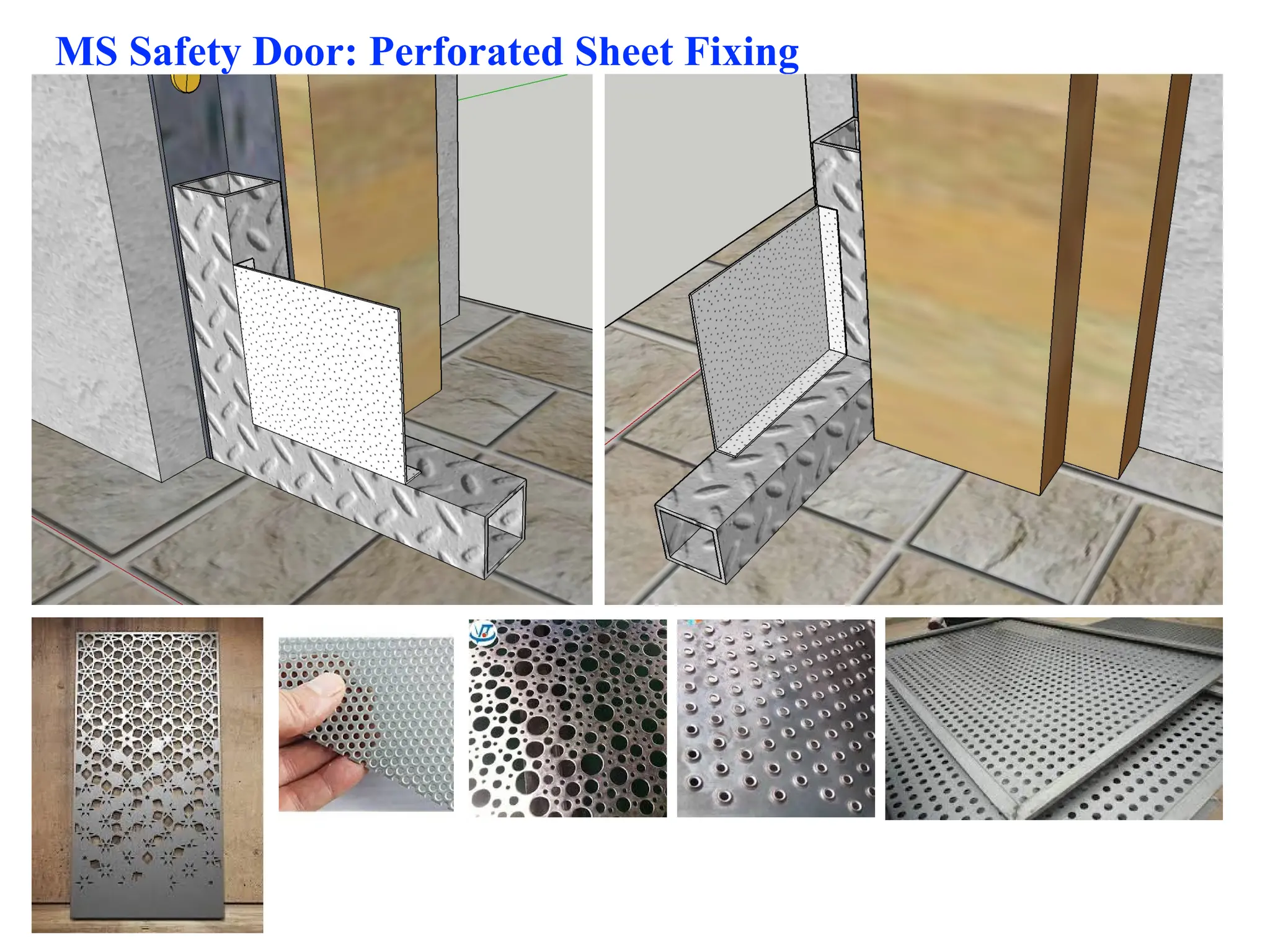

12. MS Safety Door: Perforated Sheet Fixing

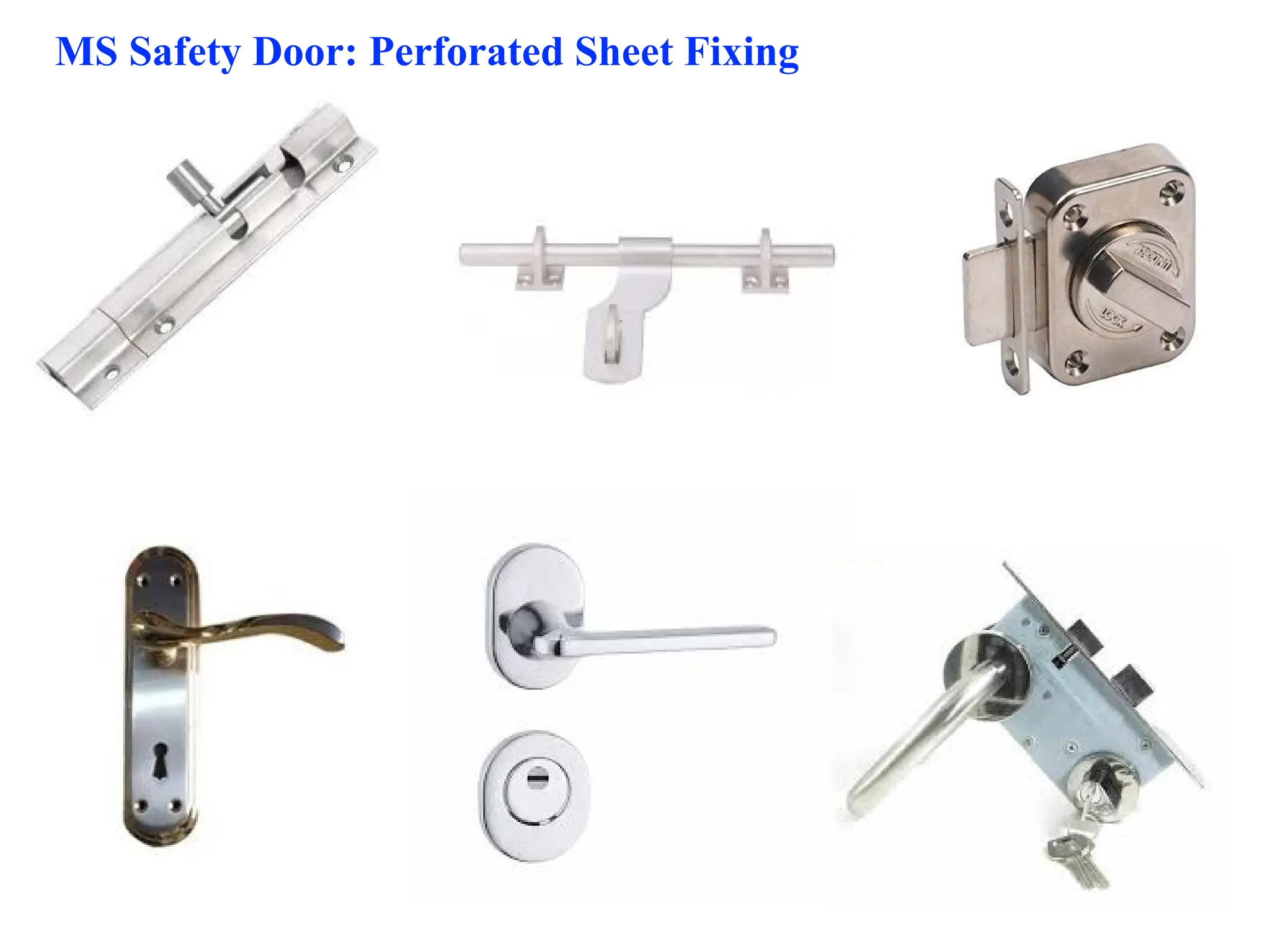

13. MS Safety Door: Perforated Sheet Fixing

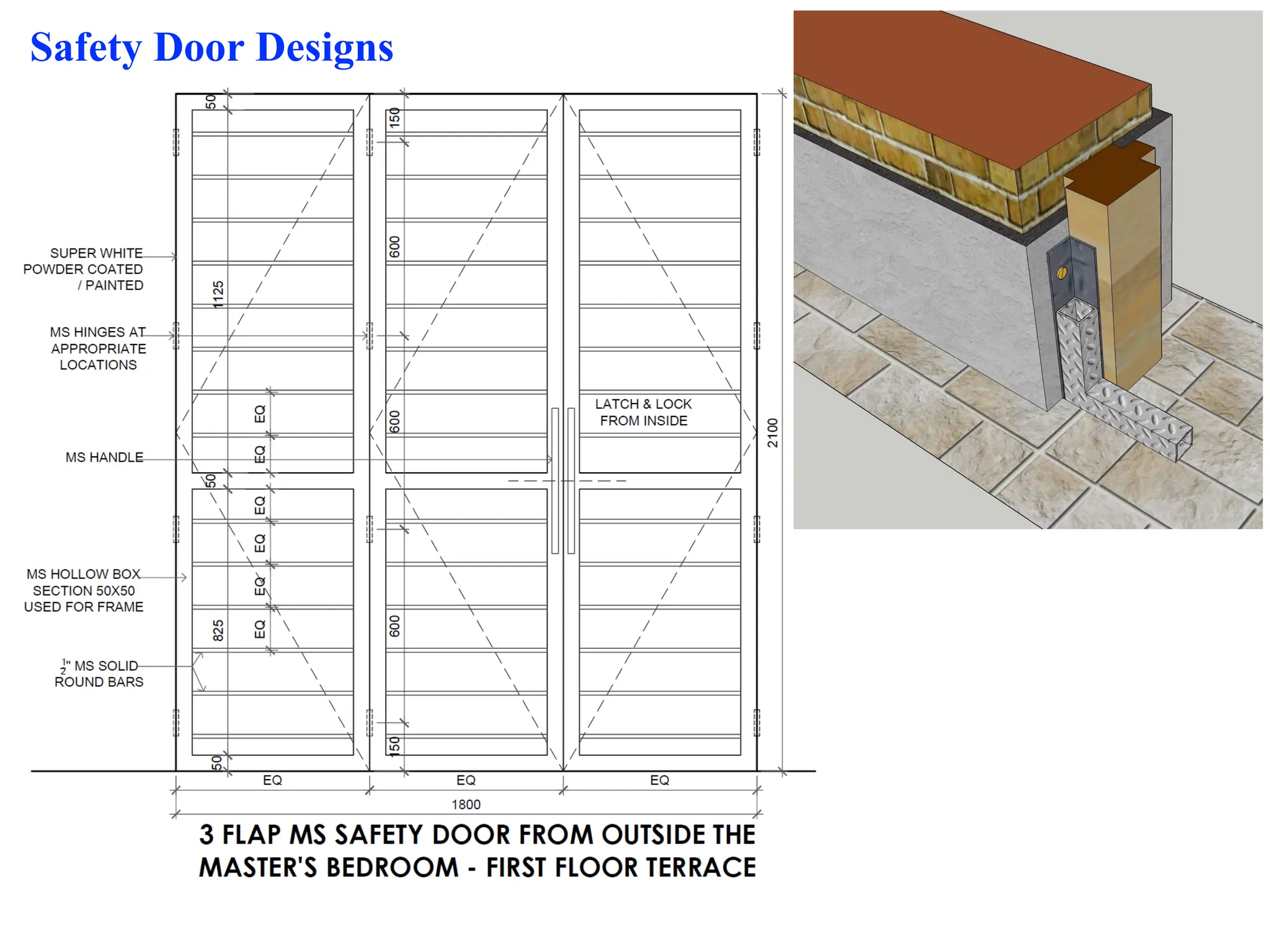

14. Safety Door Designs

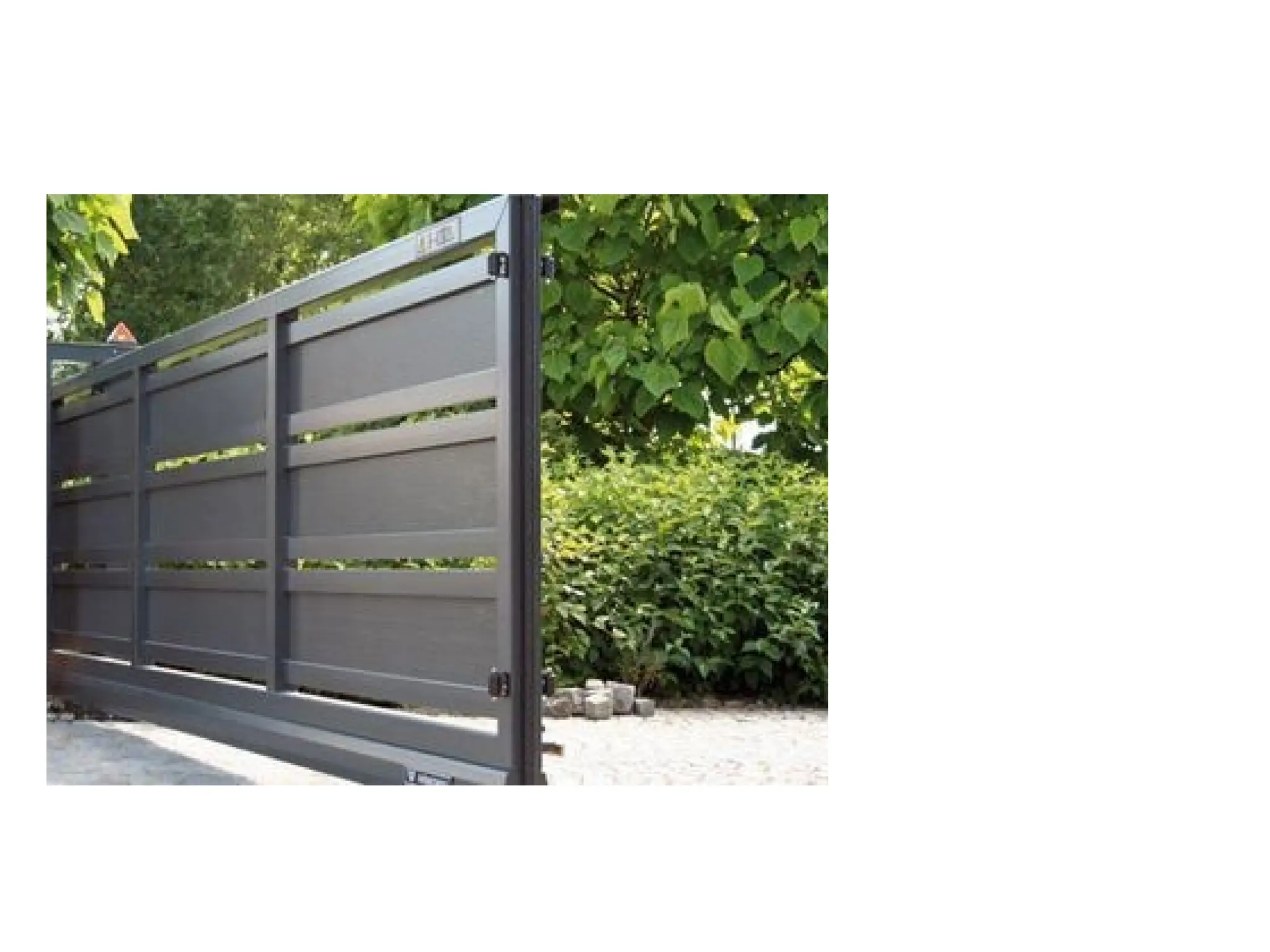

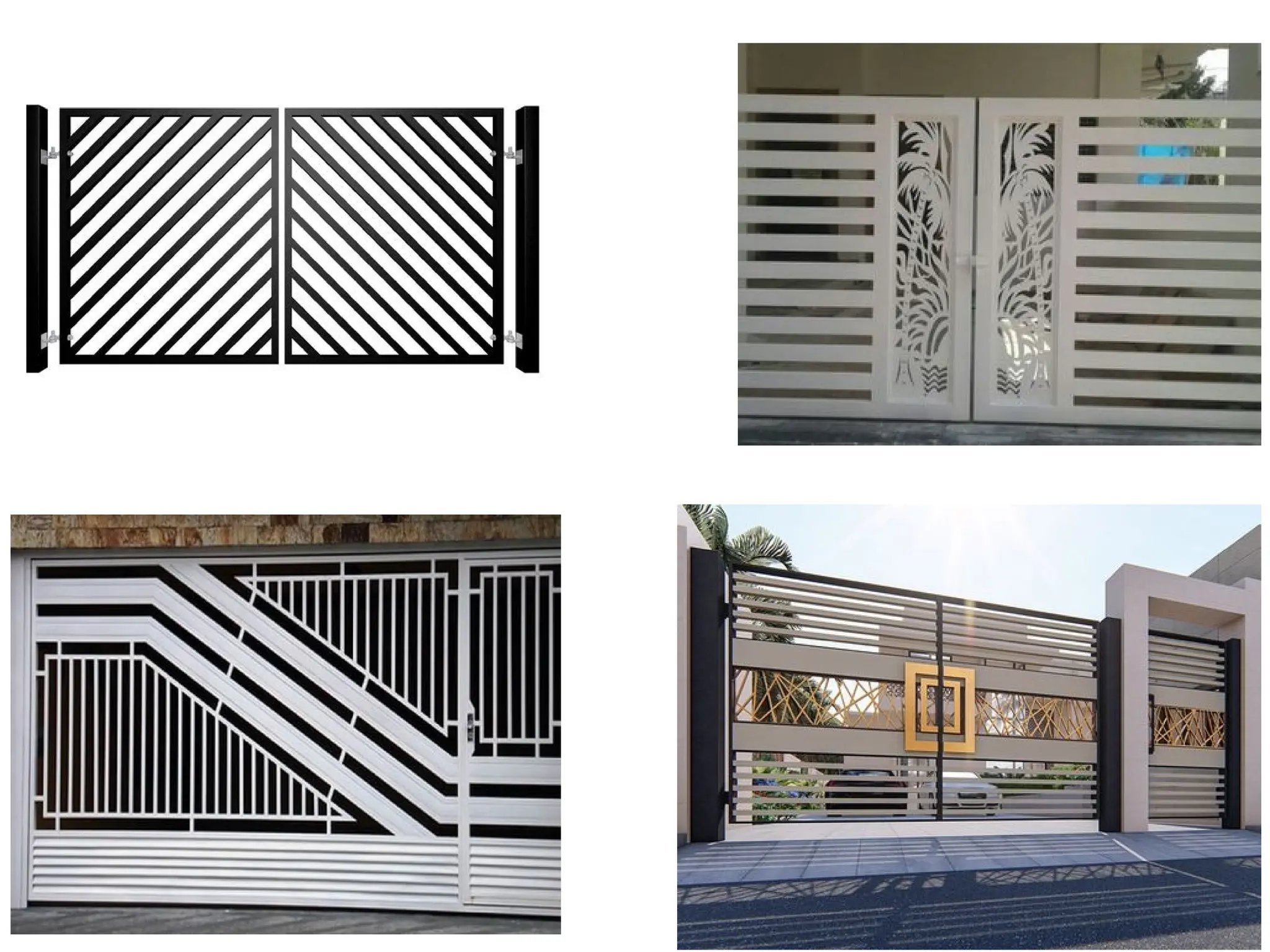

15. sliding gate

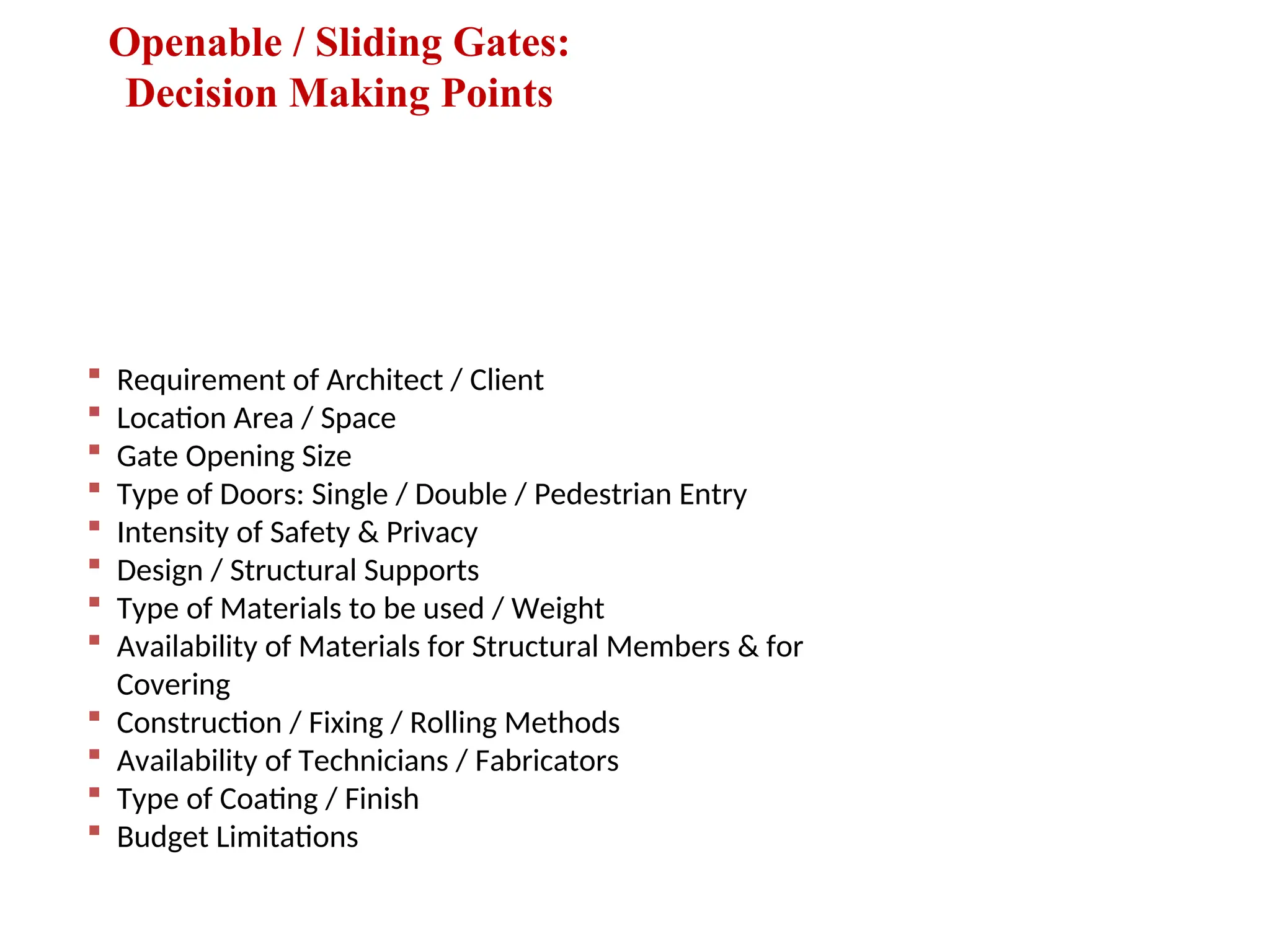

16. Openable / Sliding Gates:
Decision Making Points
 Requirement of Architect / Client
 Location Area / Space
 Gate Opening Size
 Type of Doors: Single / Double / Pedestrian Entry
 Intensity of Safety & Privacy
 Design / Structural Supports
 Type of Materials to be used / Weight
 Availability of Materials for Structural Members & for
Covering
 Construction / Fixing / Rolling Methods
 Availability of Technicians / Fabricators
 Type of Coating / Finish
 Budget Limitations

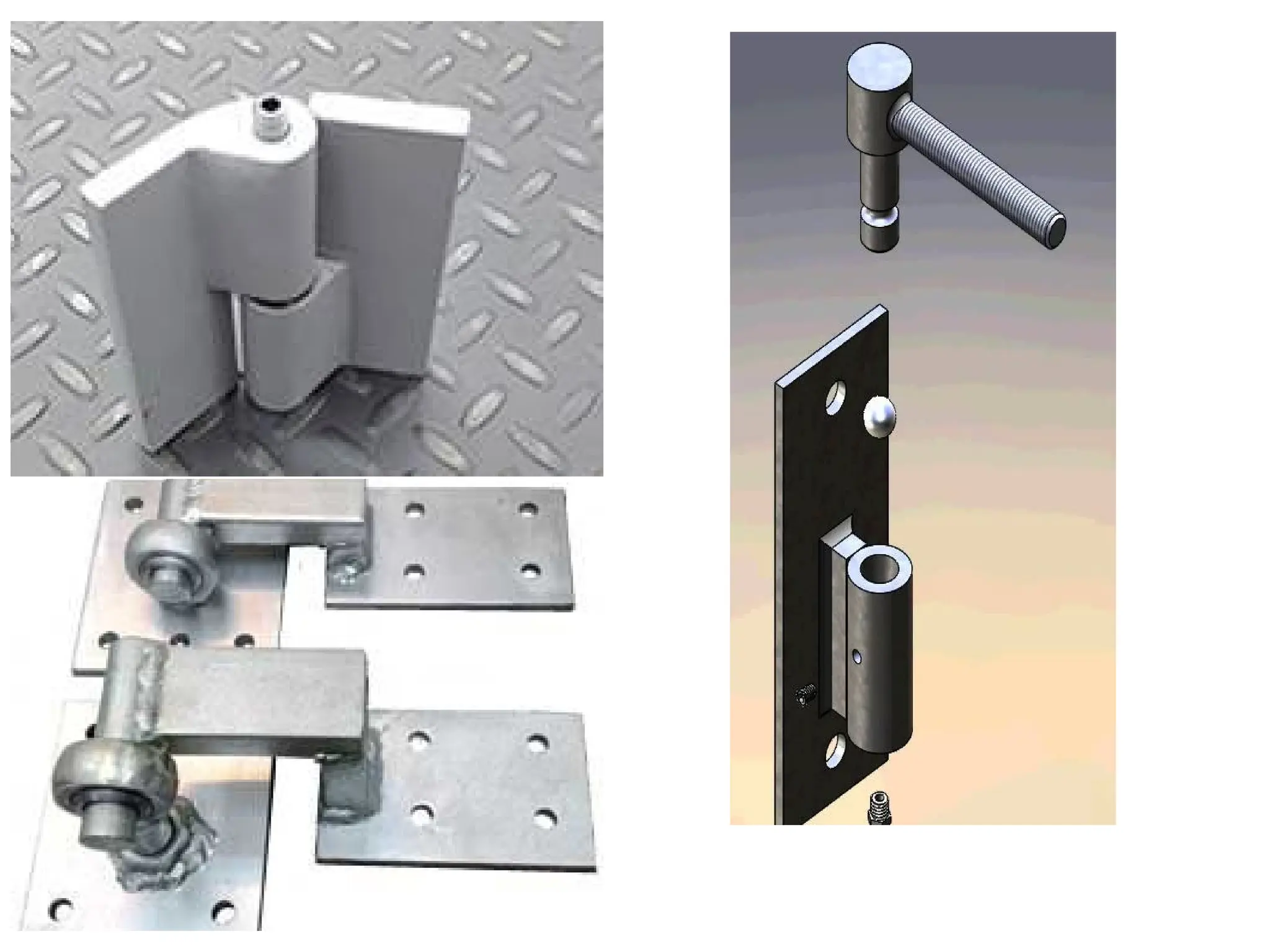

19. Hinges

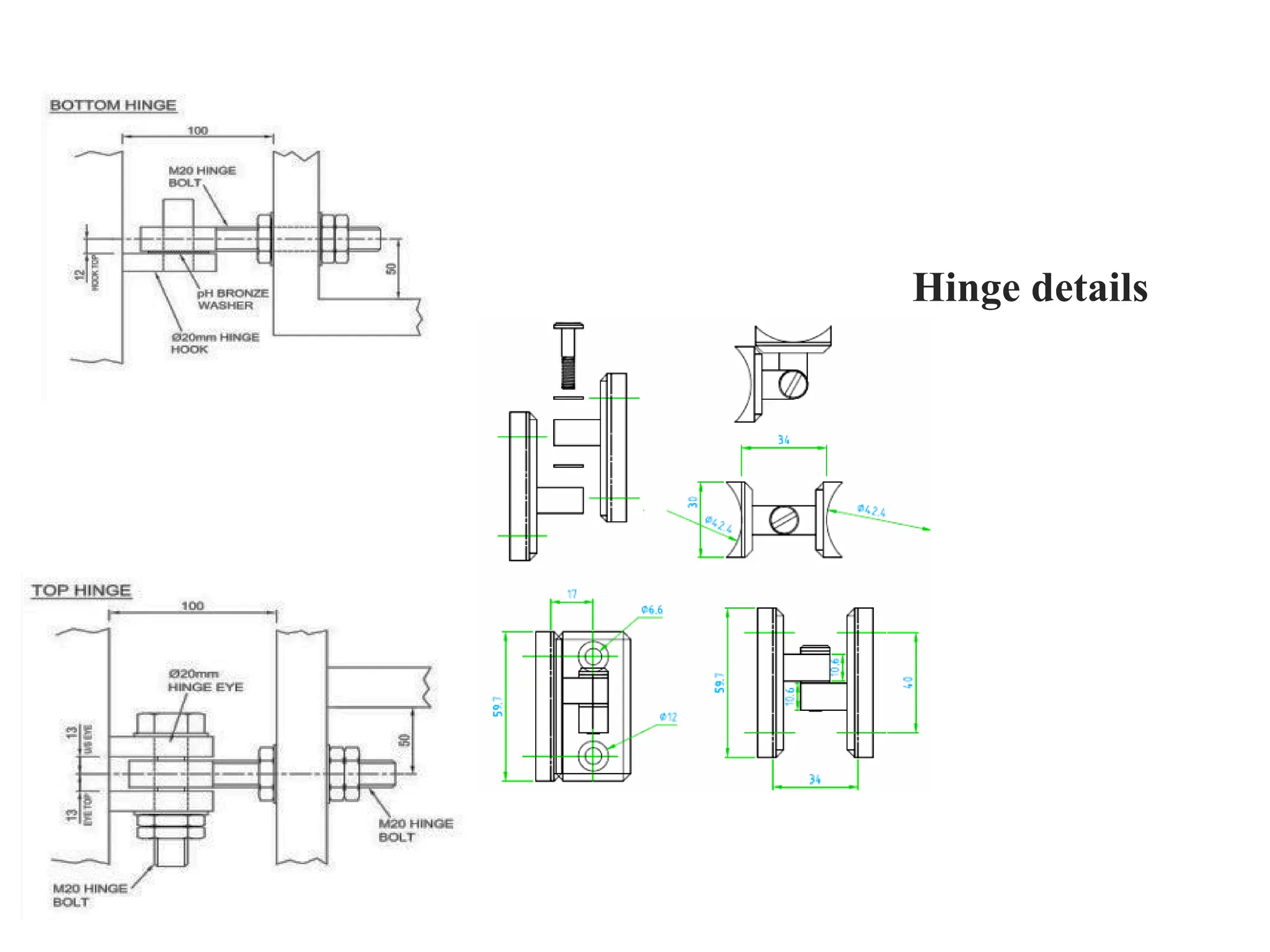

20. Hinge details

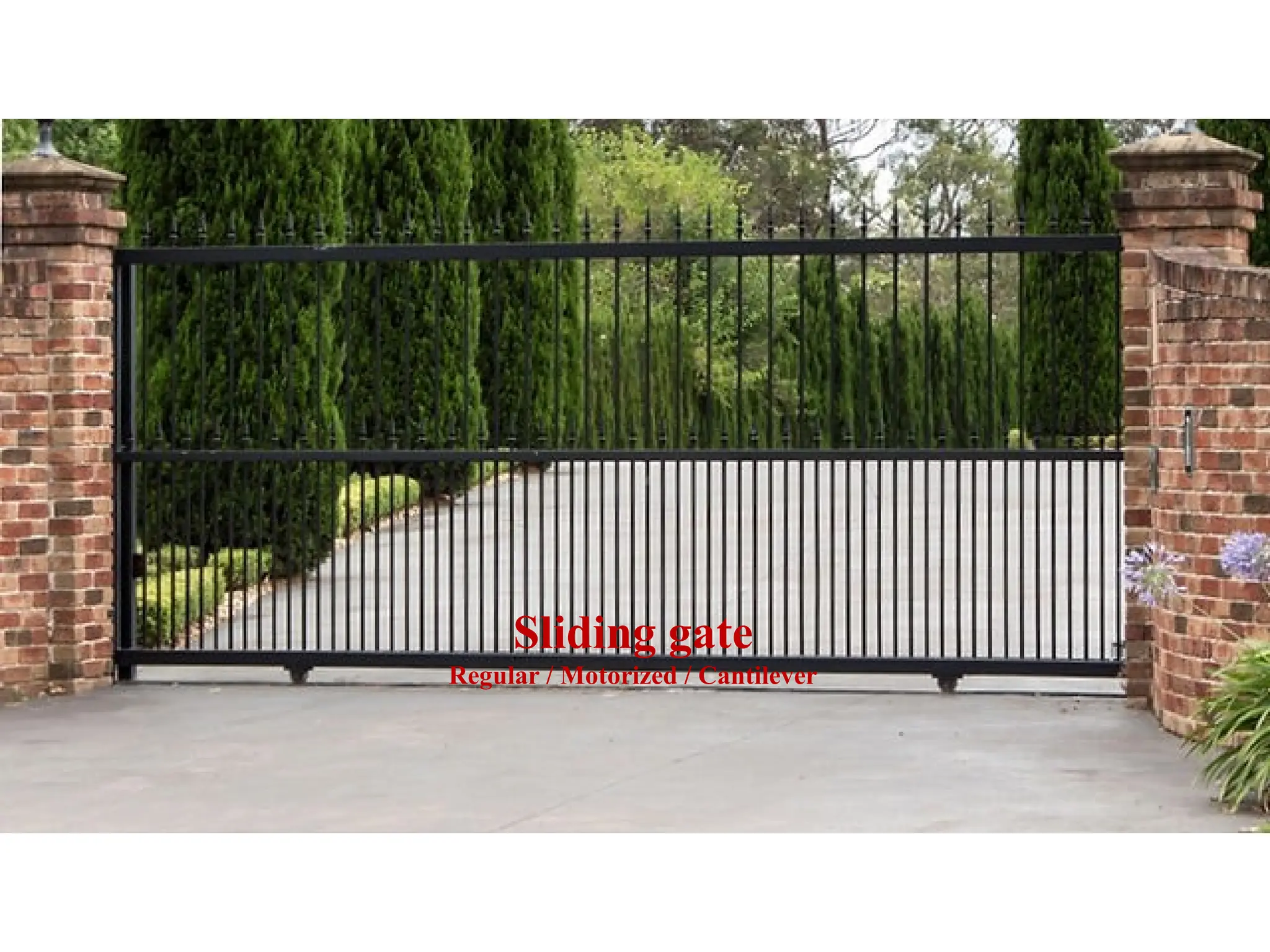

21. Sliding gate
Regular / Motorized / Cantilever

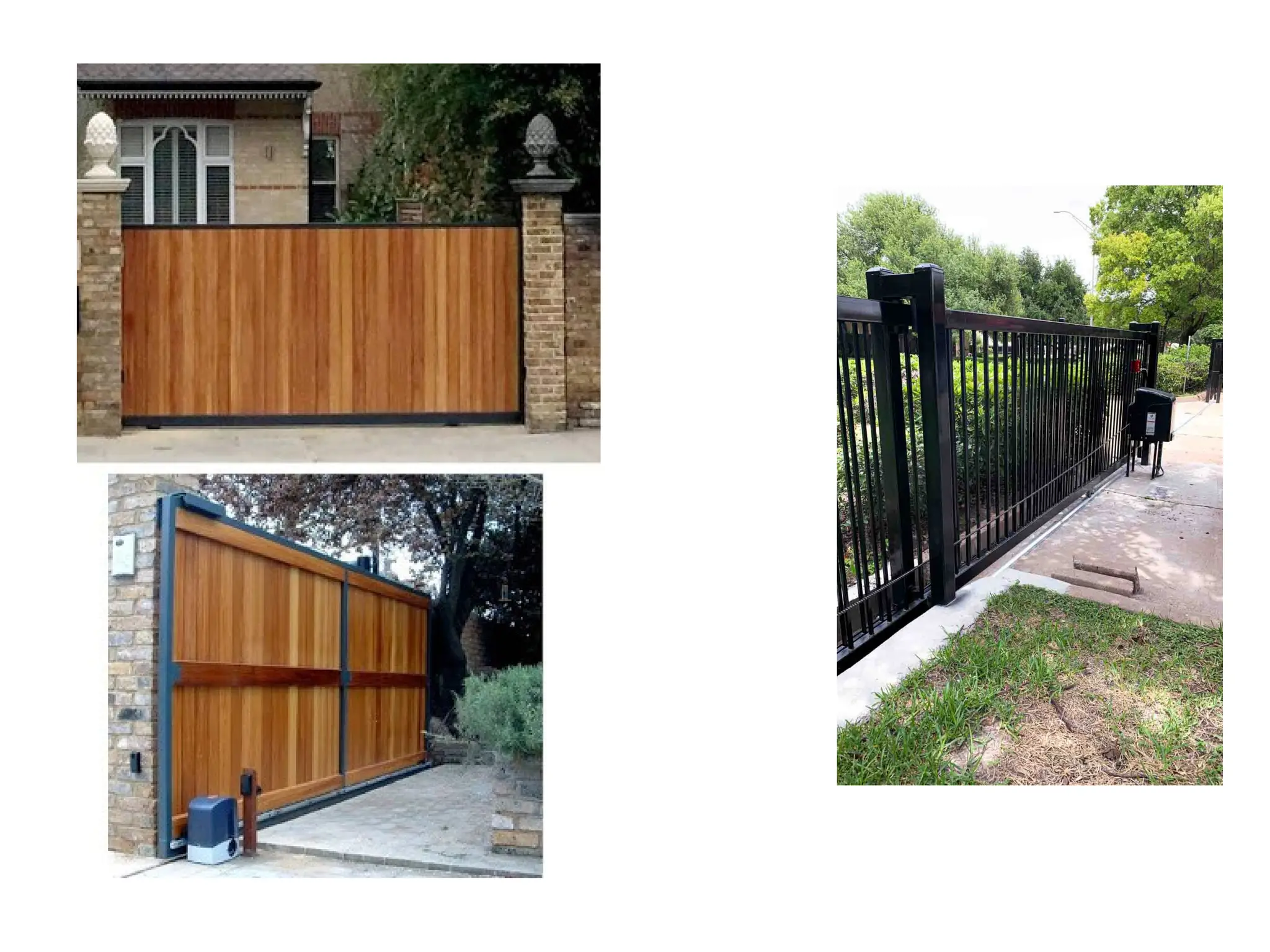

22. Sliding gate
designs

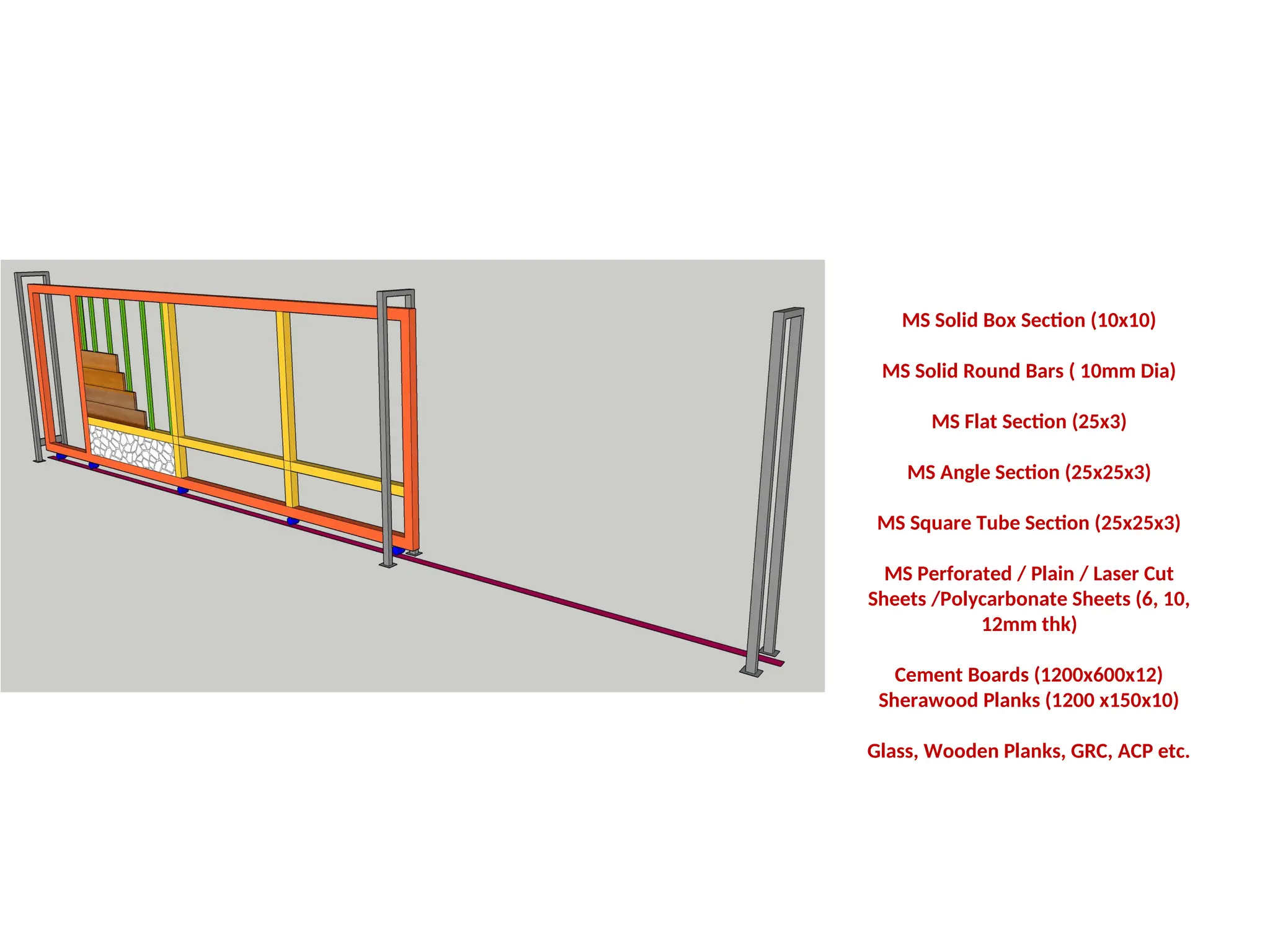

23. MS Solid Box Section (10x10)
MS Solid Round Bars ( 10mm Dia)
MS Flat Section (25x3)
MS Angle Section (25x25x3)
MS Square Tube Section (25x25x3)
MS Perforated / Plain / Laser Cut
Sheets /Polycarbonate Sheets (6, 10,
12mm thk)
Cement Boards (1200x600x12)
Sherawood Planks (1200 x150x10)
Glass, Wooden Planks, GRC, ACP etc.

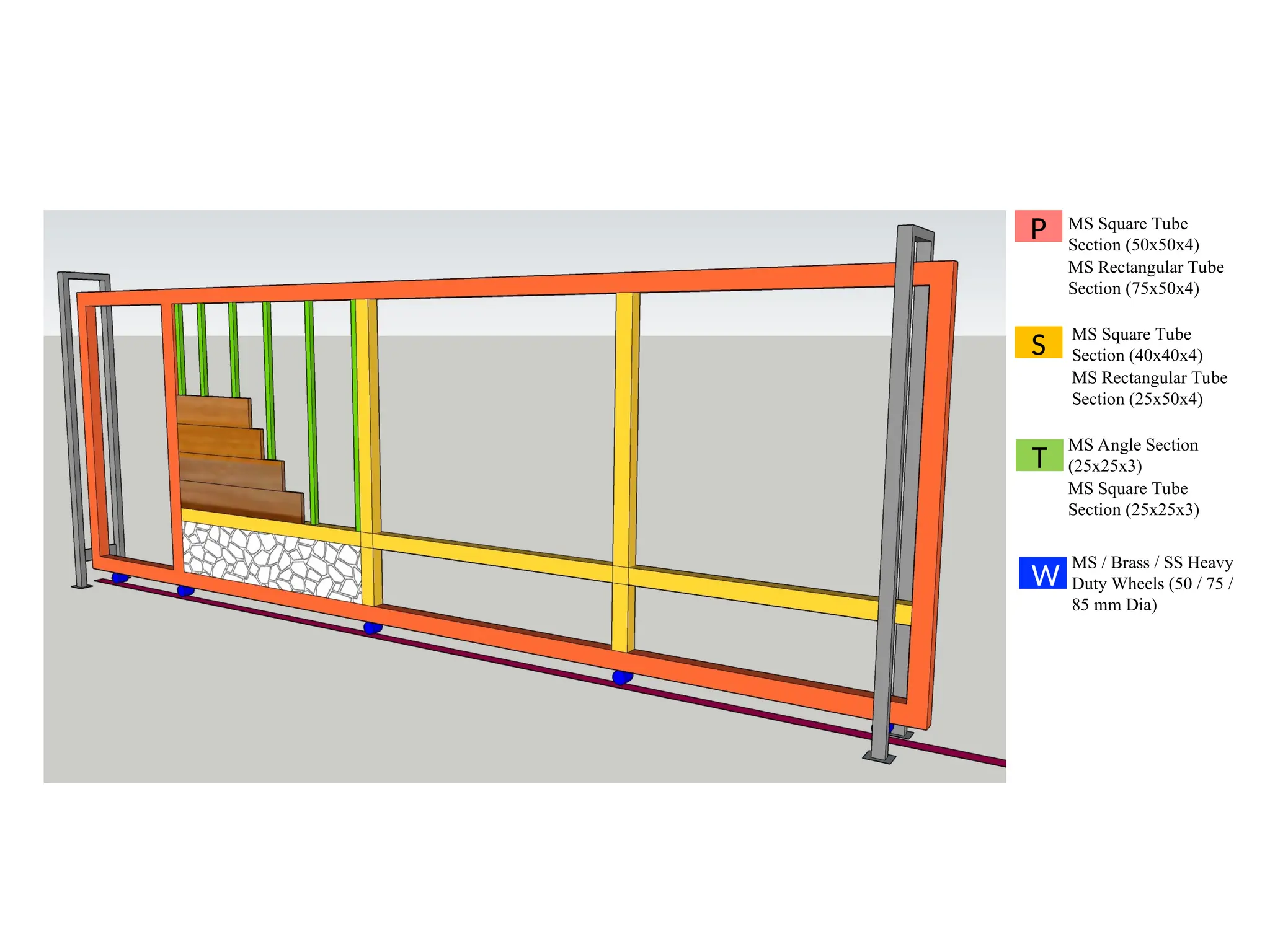

24. P
S
T
MS Square Tube
Section (50x50x4)
MS Rectangular Tube
Section (75x50x4)
MS Square Tube
Section (40x40x4)
MS Rectangular Tube
Section (25x50x4)
MS Angle Section
(25x25x3)
MS Square Tube
Section (25x25x3)
W
MS / Brass / SS Heavy
Duty Wheels (50 / 75 /
85 mm Dia)

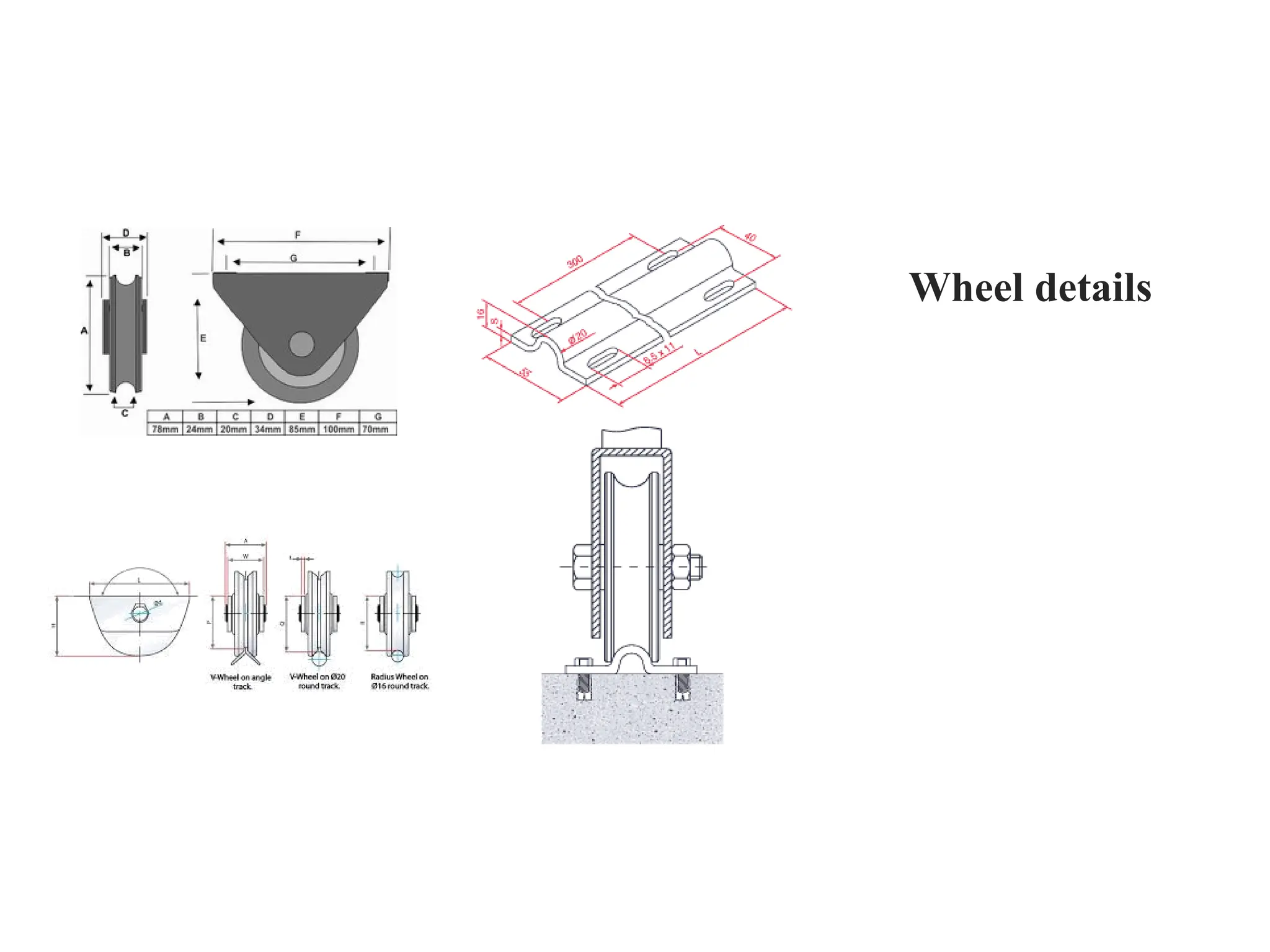

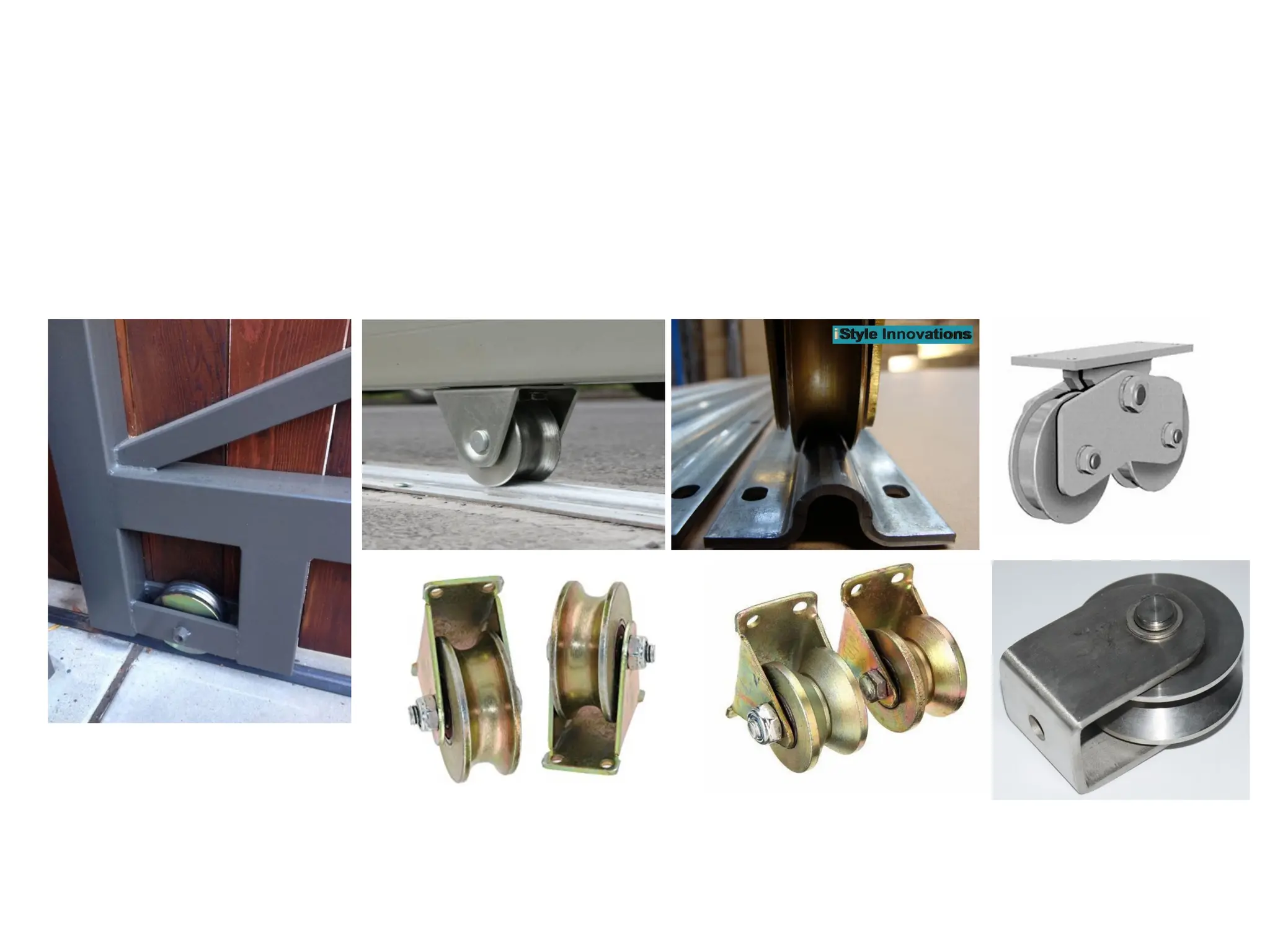

28. Wheel details

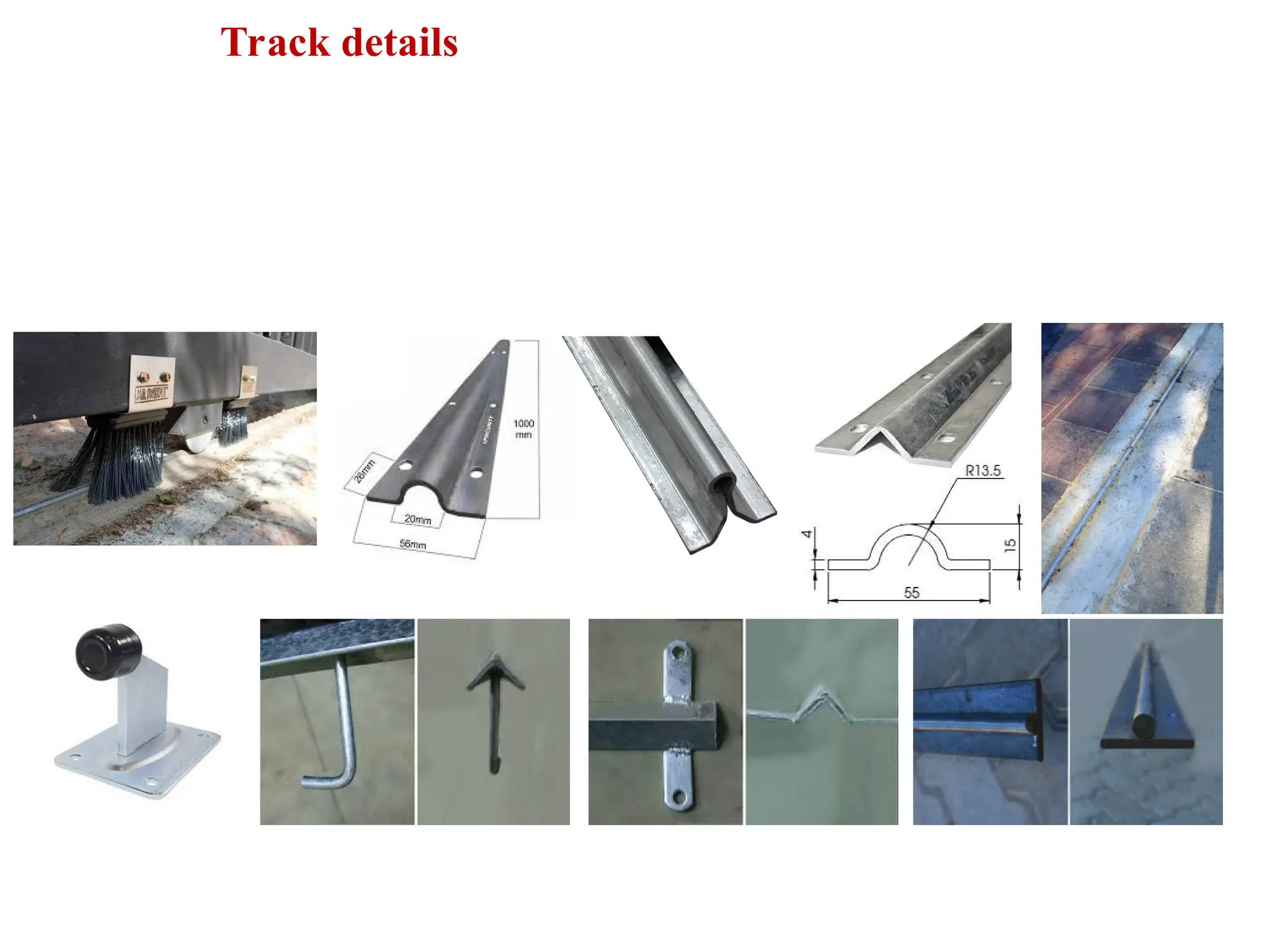

29. Track details

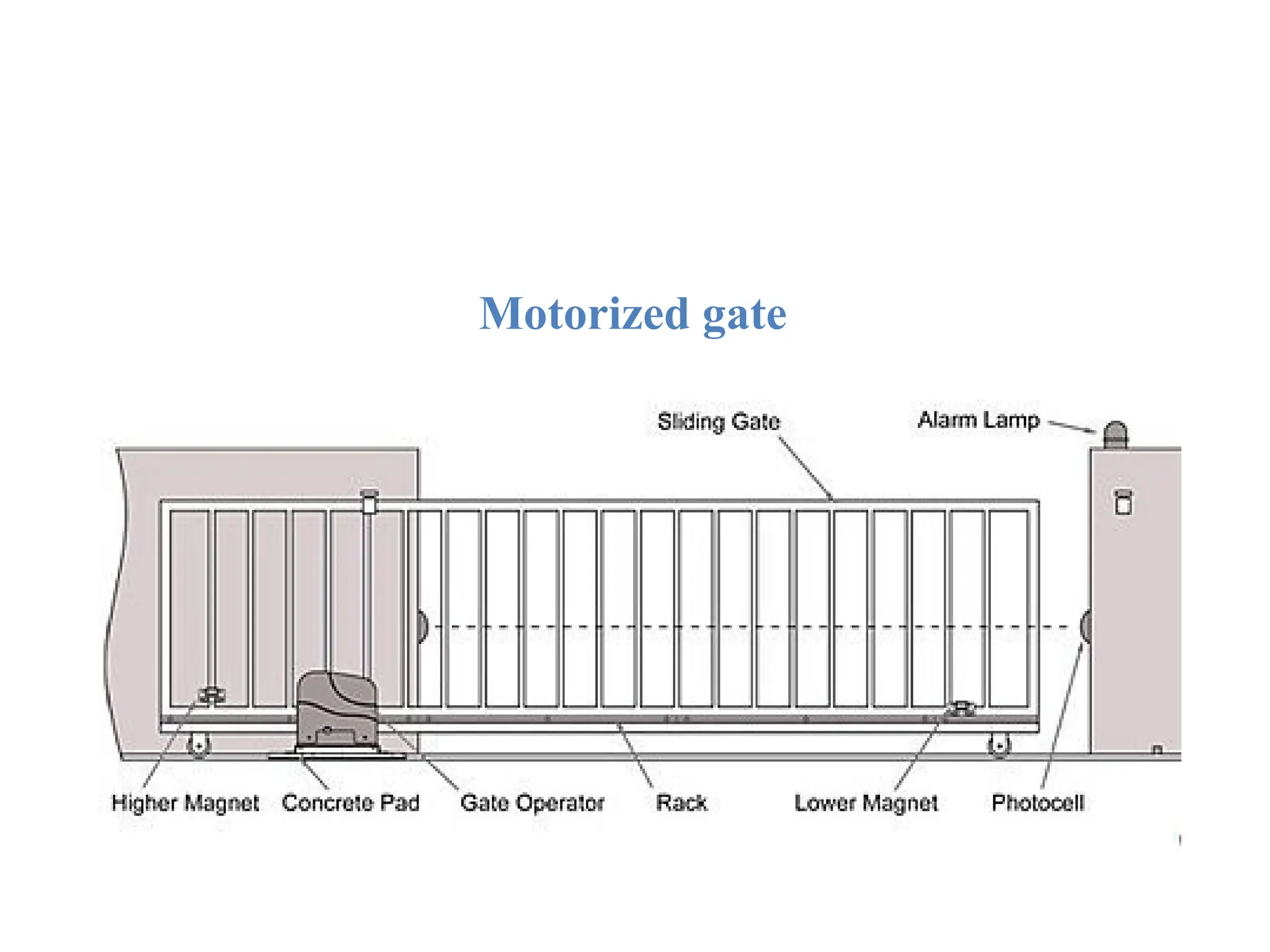

30. Motorized gate

31. Automated gate

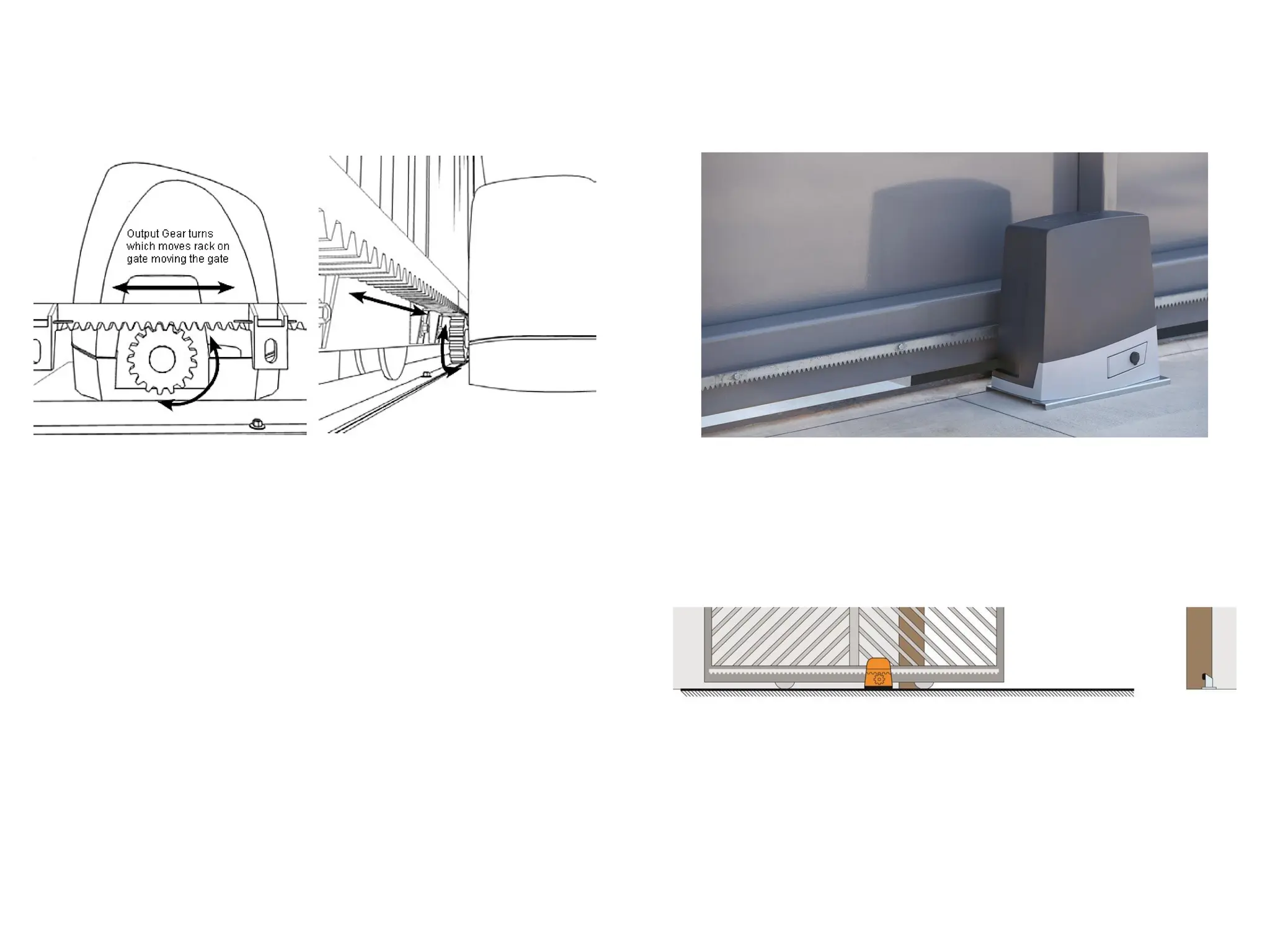

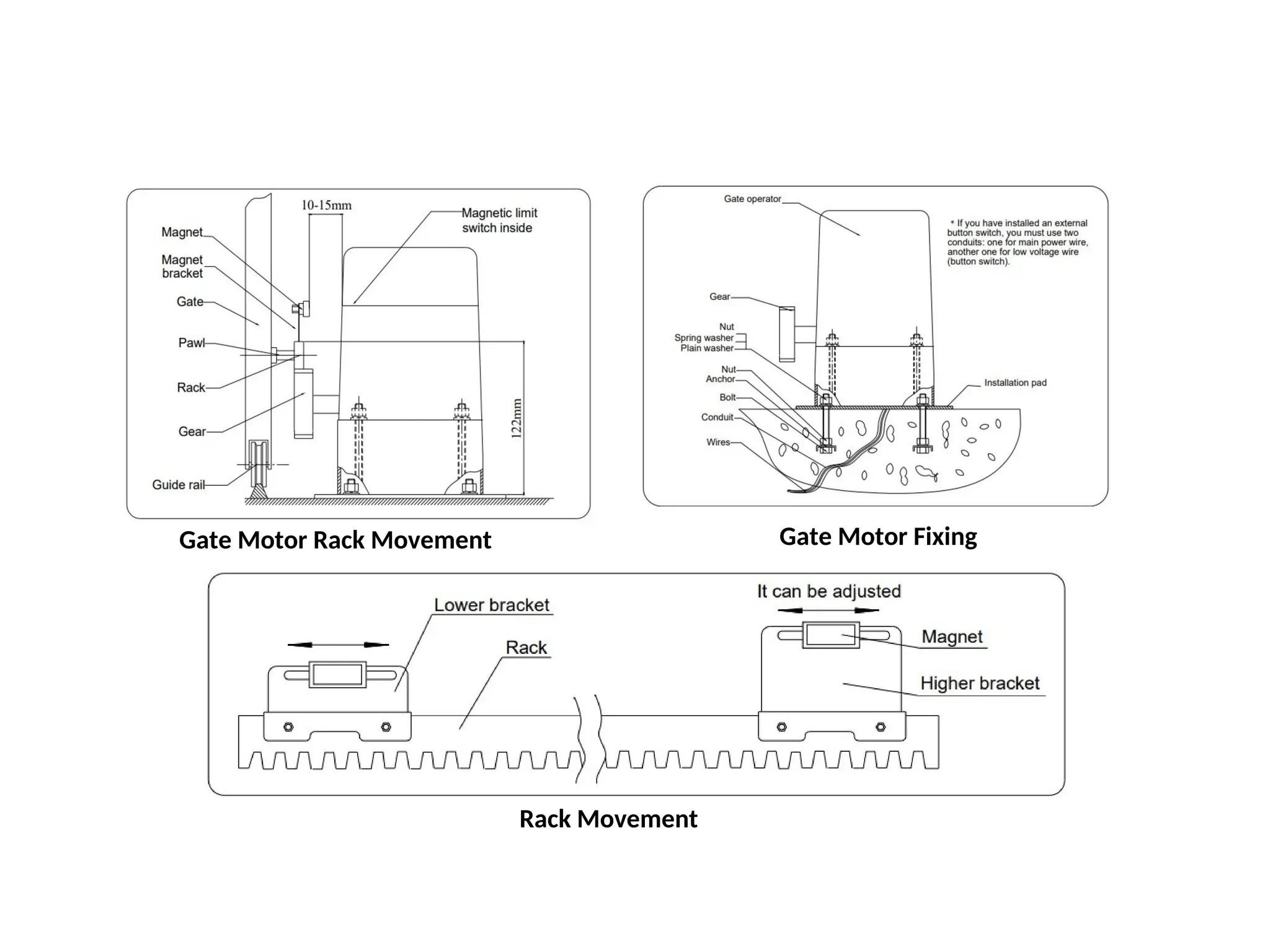

32. Gate Motor Fixing
Gate Motor Rack Movement
Rack Movement

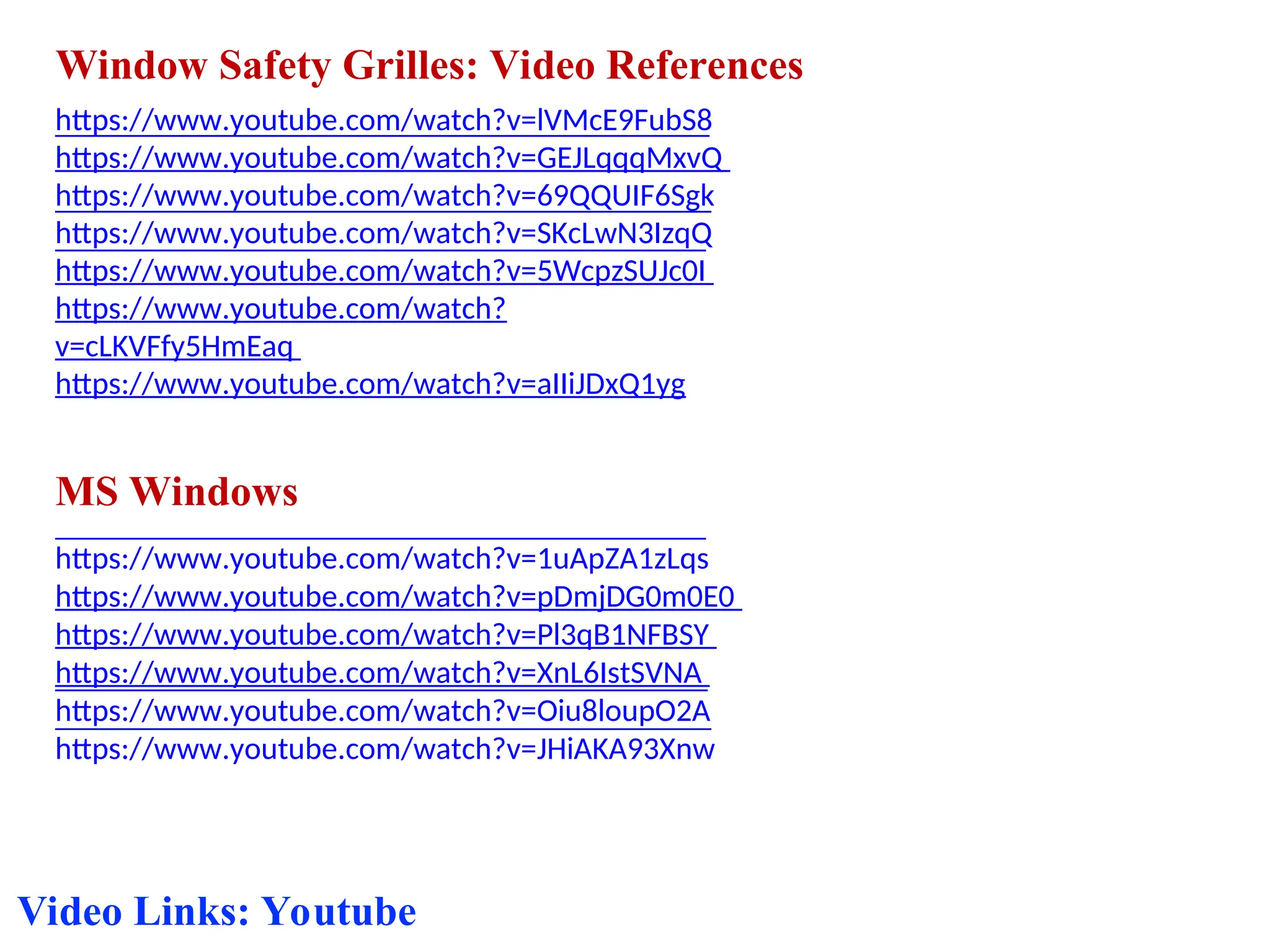

36. Window Safety Grilles: Video References
https://www.youtube.com/watch?v=lVMcE9FubS8
https://www.youtube.com/watch?v=GEJLqqqMxvQ
https://www.youtube.com/watch?v=69QQUIF6Sgk
https://www.youtube.com/watch?v=SKcLwN3IzqQ
https://www.youtube.com/watch?v=5WcpzSUJc0I
https://www.youtube.com/watch?
v=cLKVFfy5HmEaq
https://www.youtube.com/watch?v=aIIiJDxQ1yg
MS Windows
https://www.youtube.com/watch?v=1uApZA1zLqs
https://www.youtube.com/watch?v=pDmjDG0m0E0
https://www.youtube.com/watch?v=Pl3qB1NFBSY
https://www.youtube.com/watch?v=XnL6IstSVNA
https://www.youtube.com/watch?v=Oiu8loupO2A
https://www.youtube.com/watch?v=JHiAKA93Xnw
Video Links: Youtube
