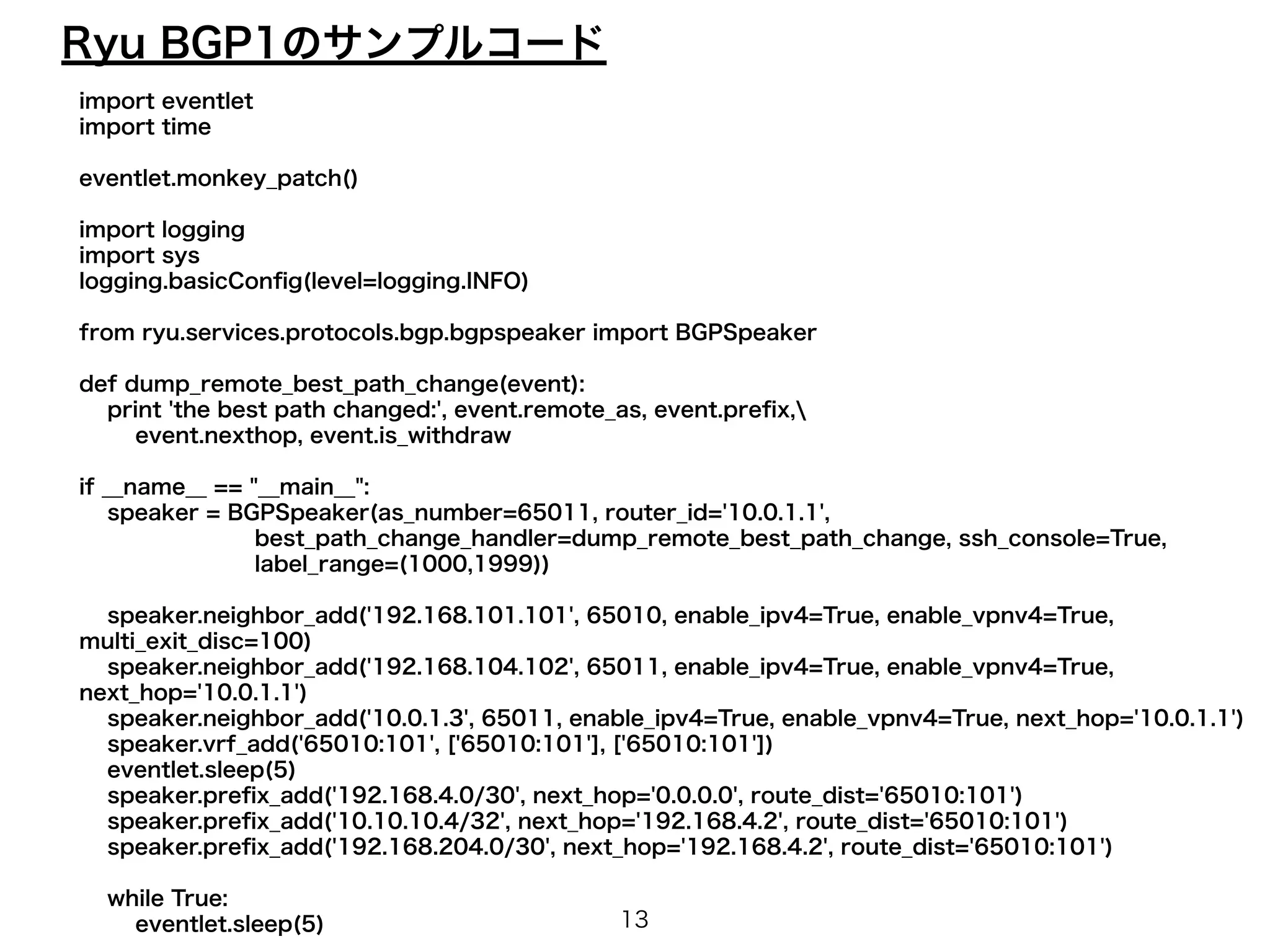

![Ryu BGP1のサンプルコード
import eventlet
import time
!
eventlet.monkey_patch()
!
import logging
import sys
logging.basicConfig(level=logging.INFO)
!
from ryu.services.protocols.bgp.bgpspeaker import BGPSpeaker
!
def dump_remote_best_path_change(event):
print 'the best path changed:', event.remote_as, event.prefix,
event.nexthop, event.is_withdraw
!
if __name__ == "__main__":
speaker = BGPSpeaker(as_number=65011, router_id='10.0.1.1',
best_path_change_handler=dump_remote_best_path_change, ssh_console=True,
label_range=(1000,1999))
!
speaker.neighbor_add('192.168.101.101', 65010, enable_ipv4=True, enable_vpnv4=True,
multi_exit_disc=100)
speaker.neighbor_add('192.168.104.102', 65011, enable_ipv4=True, enable_vpnv4=True,
next_hop='10.0.1.1')
speaker.neighbor_add('10.0.1.3', 65011, enable_ipv4=True, enable_vpnv4=True, next_hop='10.0.1.1')
speaker.vrf_add('65010:101', ['65010:101'], ['65010:101'])
eventlet.sleep(5)
speaker.prefix_add('192.168.4.0/30', next_hop='0.0.0.0', route_dist='65010:101')
speaker.prefix_add('10.10.10.4/32', next_hop='192.168.4.2', route_dist='65010:101')
speaker.prefix_add('192.168.204.0/30', next_hop='192.168.4.2', route_dist='65010:101')
!
while True:
eventlet.sleep(5)
13](https://image.slidesharecdn.com/ryubgpininterasmplsvpn-140831082344-phpapp02/75/InterAS-MPLS-VPN-with-RyuBgp-13-2048.jpg)

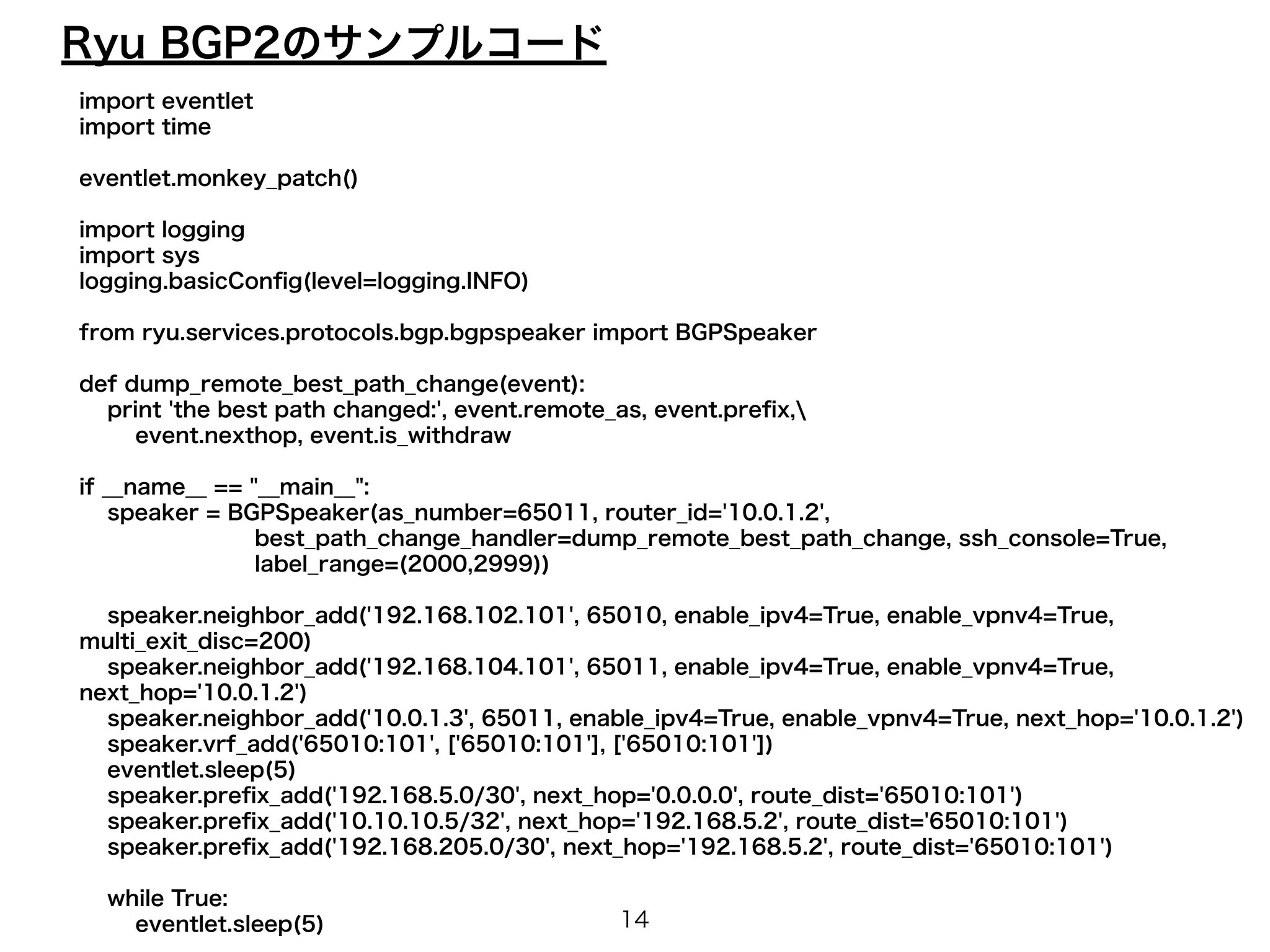

![Ryu BGP2のサンプルコード
import eventlet
import time
!
eventlet.monkey_patch()
!
import logging
import sys
logging.basicConfig(level=logging.INFO)
!
from ryu.services.protocols.bgp.bgpspeaker import BGPSpeaker
!
def dump_remote_best_path_change(event):
print 'the best path changed:', event.remote_as, event.prefix,
event.nexthop, event.is_withdraw
!
if __name__ == "__main__":
speaker = BGPSpeaker(as_number=65011, router_id='10.0.1.2',
best_path_change_handler=dump_remote_best_path_change, ssh_console=True,
label_range=(2000,2999))
!
speaker.neighbor_add('192.168.102.101', 65010, enable_ipv4=True, enable_vpnv4=True,
multi_exit_disc=200)
speaker.neighbor_add('192.168.104.101', 65011, enable_ipv4=True, enable_vpnv4=True,
next_hop='10.0.1.2')
speaker.neighbor_add('10.0.1.3', 65011, enable_ipv4=True, enable_vpnv4=True, next_hop='10.0.1.2')
speaker.vrf_add('65010:101', ['65010:101'], ['65010:101'])
eventlet.sleep(5)
speaker.prefix_add('192.168.5.0/30', next_hop='0.0.0.0', route_dist='65010:101')
speaker.prefix_add('10.10.10.5/32', next_hop='192.168.5.2', route_dist='65010:101')
speaker.prefix_add('192.168.205.0/30', next_hop='192.168.5.2', route_dist='65010:101')
!
while True:
eventlet.sleep(5)
14](https://image.slidesharecdn.com/ryubgpininterasmplsvpn-140831082344-phpapp02/75/InterAS-MPLS-VPN-with-RyuBgp-14-2048.jpg)
![PE1 P1
PE2
P2
ASBR3
CE4
CE3
CE1
CE2
RR
AS 65010(既設)
AS 65001
AS 65002
ASBR4
PE3
AS 65011(増設) CE5
bgpd> show rib vpnv4
Status codes: * valid, > best
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Labels Next Hop Reason Metric LocPrf Path
*> 65010:101:192.168.5.0/30 [2000] 10.0.1.2 Only Path 100 ?
*> 65010:101:10.10.10.5/32 [2001] 10.0.1.2 Only Path 100 ?
*> 65010:101:192.168.205.0/30 [2001] 10.0.1.2 Only Path 100 ?
*> 65010:101:192.168.1.0/30 [28] 192.168.101.101 Only Path 100 65010 ?
*> 65010:101:192.168.2.0/30 [29] 192.168.101.101 Only Path 100 65010 ?
*> 65010:101:192.168.202.0/24 [30] 192.168.101.101 Only Path 100 65010 65002 i
*> 65010:101:10.10.10.1/32 [31] 192.168.101.101 Only Path 100 65010 65001 ?
*> 65010:101:10.10.10.2/32 [32] 192.168.101.101 Only Path 100 65010 65002 ?
*> 65010:101:192.168.201.0/24 [33] 192.168.101.101 Only Path 100 65010 65001 i
*> 65010:101:192.168.4.0/30 [1000] 0.0.0.0 Only Path ?
*> 65010:101:10.10.10.4/32 [1001] 192.168.4.2 Only Path ?
*> 65010:101:192.168.204.0/30 [1001] 192.168.4.2 Only Path ?
*> 65010:101:192.168.3.0/30 [19] 10.0.1.3 Only Path 0 100 ?
*> 65010:101:192.168.203.0/24 [20] 10.0.1.3 Only Path 0 100 ?
*> 65010:101:10.10.10.3/32 [18] 10.0.1.3 Only Path 0 100 ?
bgpd>
Ryu BGP1
Ryu BGP2
LocalPreference
が付与できない
18](https://image.slidesharecdn.com/ryubgpininterasmplsvpn-140831082344-phpapp02/75/InterAS-MPLS-VPN-with-RyuBgp-18-2048.jpg)

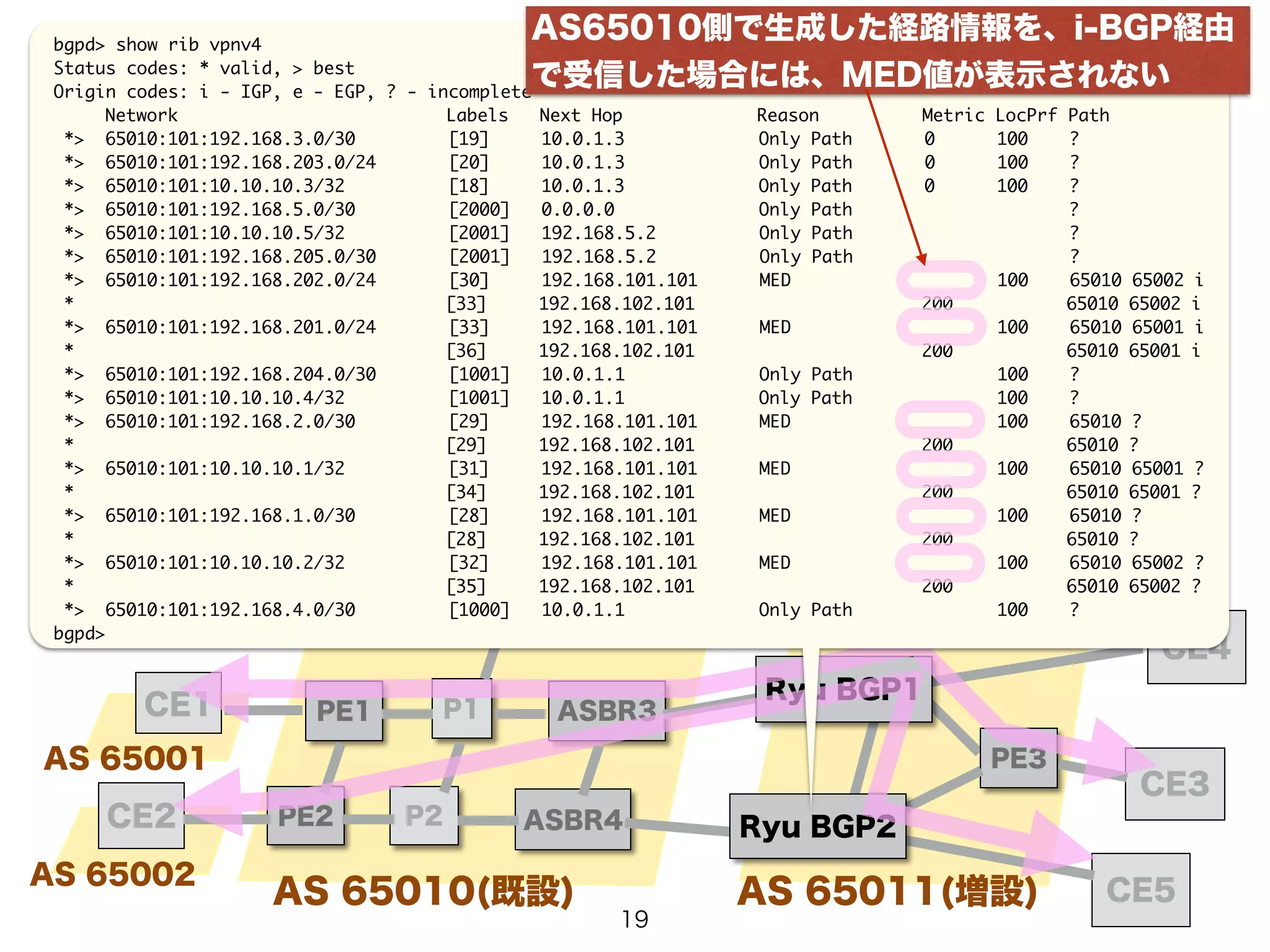

![PE1 P1
PE2
P2
AS65010側で生成した経路情報を、i-BGP経由
で受信した場合には、MED値が表示されない
ASBR3
CE4
CE3
CE1
CE2
RR
AS 65010(既設)
AS 65001
AS 65002
ASBR4
PE3
Ryu BGP1
Ryu BGP2
AS 65011(増設) CE5
bgpd> show rib vpnv4
Status codes: * valid, > best
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Labels Next Hop Reason Metric LocPrf Path
*> 65010:101:192.168.3.0/30 [19] 10.0.1.3 Only Path 0 100 ?
*> 65010:101:192.168.203.0/24 [20] 10.0.1.3 Only Path 0 100 ?
*> 65010:101:10.10.10.3/32 [18] 10.0.1.3 Only Path 0 100 ?
*> 65010:101:192.168.5.0/30 [2000] 0.0.0.0 Only Path ?
*> 65010:101:10.10.10.5/32 [2001] 192.168.5.2 Only Path ?
*> 65010:101:192.168.205.0/30 [2001] 192.168.5.2 Only Path ?
*> 65010:101:192.168.202.0/24 [30] 192.168.101.101 MED 100 65010 65002 i
* [33] 192.168.102.101 200 65010 65002 i
*> 65010:101:192.168.201.0/24 [33] 192.168.101.101 MED 100 65010 65001 i
* [36] 192.168.102.101 200 65010 65001 i
*> 65010:101:192.168.204.0/30 [1001] 10.0.1.1 Only Path 100 ?
*> 65010:101:10.10.10.4/32 [1001] 10.0.1.1 Only Path 100 ?
*> 65010:101:192.168.2.0/30 [29] 192.168.101.101 MED 100 65010 ?
* [29] 192.168.102.101 200 65010 ?
*> 65010:101:10.10.10.1/32 [31] 192.168.101.101 MED 100 65010 65001 ?
* [34] 192.168.102.101 200 65010 65001 ?
*> 65010:101:192.168.1.0/30 [28] 192.168.101.101 MED 100 65010 ?
* [28] 192.168.102.101 200 65010 ?
*> 65010:101:10.10.10.2/32 [32] 192.168.101.101 MED 100 65010 65002 ?
* [35] 192.168.102.101 200 65010 65002 ?
*> 65010:101:192.168.4.0/30 [1000] 10.0.1.1 Only Path 100 ?
bgpd>
19](https://image.slidesharecdn.com/ryubgpininterasmplsvpn-140831082344-phpapp02/75/InterAS-MPLS-VPN-with-RyuBgp-19-2048.jpg)
Uploaded byToshiki Tsuboi
InterAS MPLS-VPN with RyuBgp
InterAS MPLS-VPNにおけるボーダールータとして、Ryu SDN FrameworkにおけるBGP機能を配備した場合の動作を試してみました
InterAS MPLS-VPN with RyuBgp
- 1. Inter-AS環境におけるボーダールータとして Ryu BGP機能を試してみた 2014.8.31 @ttsubo 1
- 2. 試してみたいこと Ryu BGPを使ったポリシールーティングが どの程度、動作するのか？ これまでの経緯は、 こちらのブログ記事を参考にしてください http://ttsubo.hatenablog.com/entry/2014/08/16/000248 2
- 3.

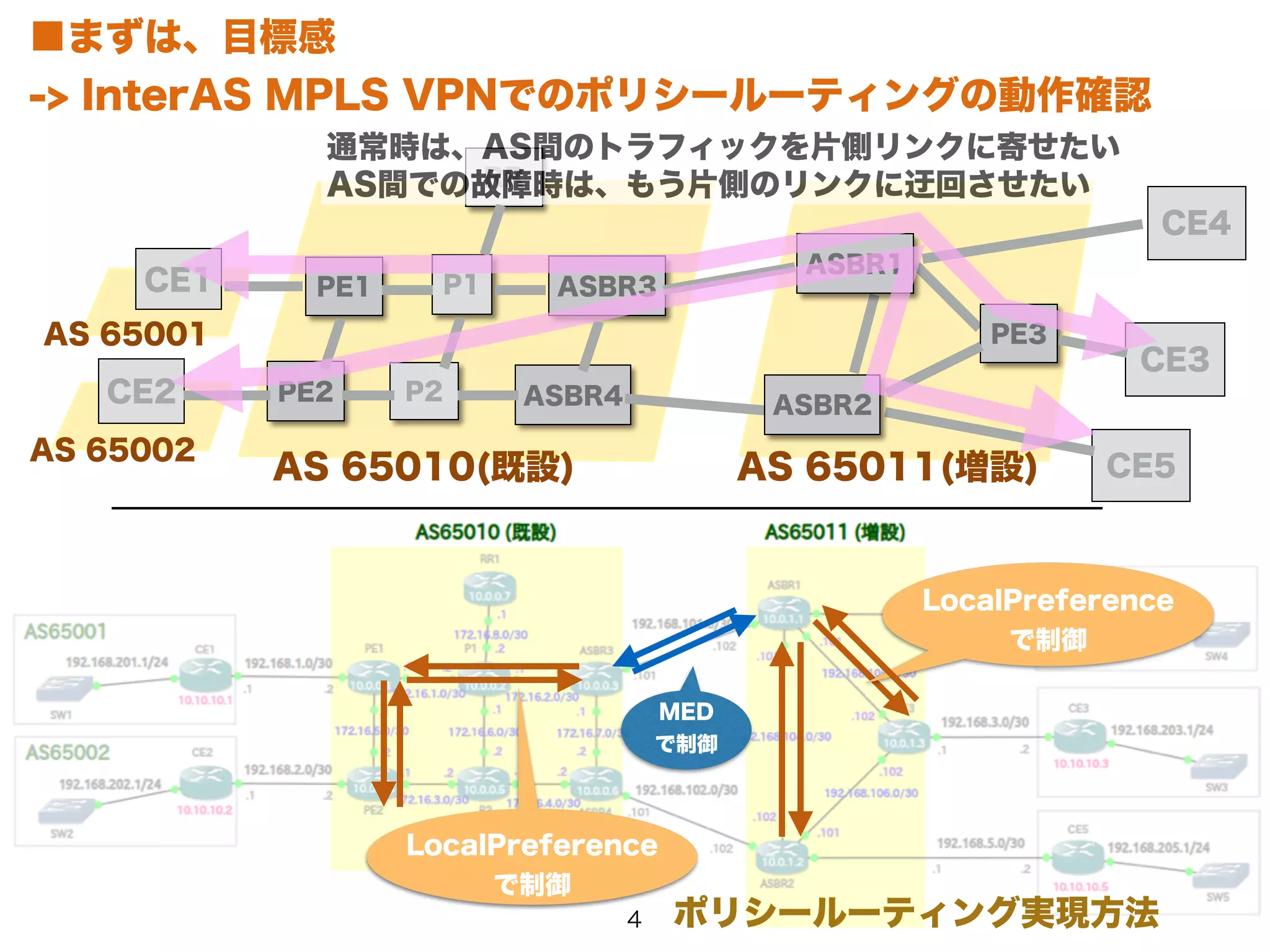

- 4. ■まずは、目標感 -> InterASMPLS VPNでのポリシールーティングの動作確認 通常時は、AS間のトラフィックを片側リンクに寄せたい AS間での故障時は、もう片側のリンクに迂回させたい PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 ASBR1 ASBR2 AS 65011(増設) CE5 LocalPreference で制御 MED で制御 LocalPreference で制御 4 ポリシールーティング実現方法

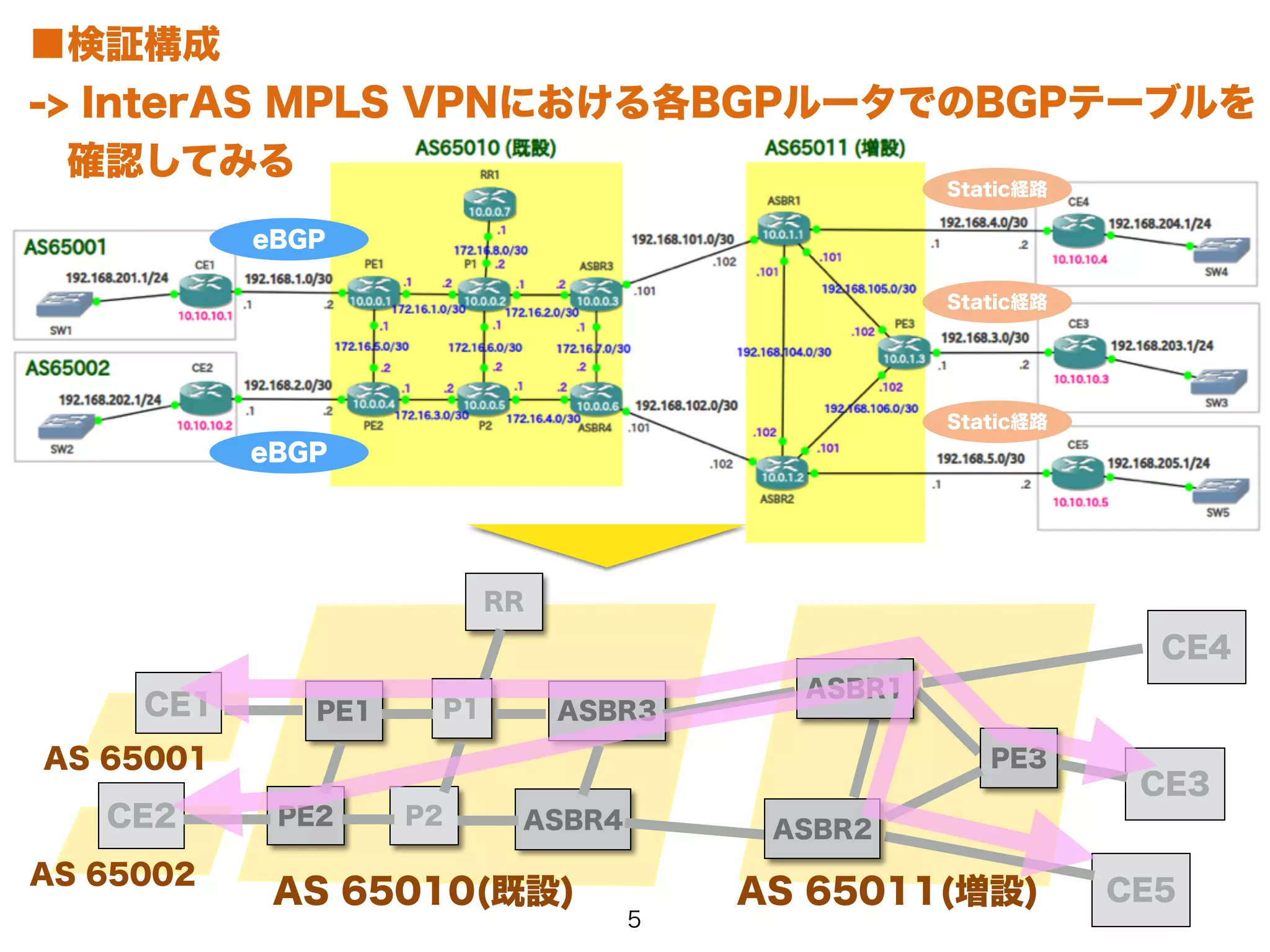

- 5. ■検証構成 -> InterASMPLS VPNにおける各BGPルータでのBGPテーブルを 確認してみる eBGP eBGP Static経路 Static経路 Static経路 PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 ASBR1 ASBR2 AS 65011(増設) CE5 5

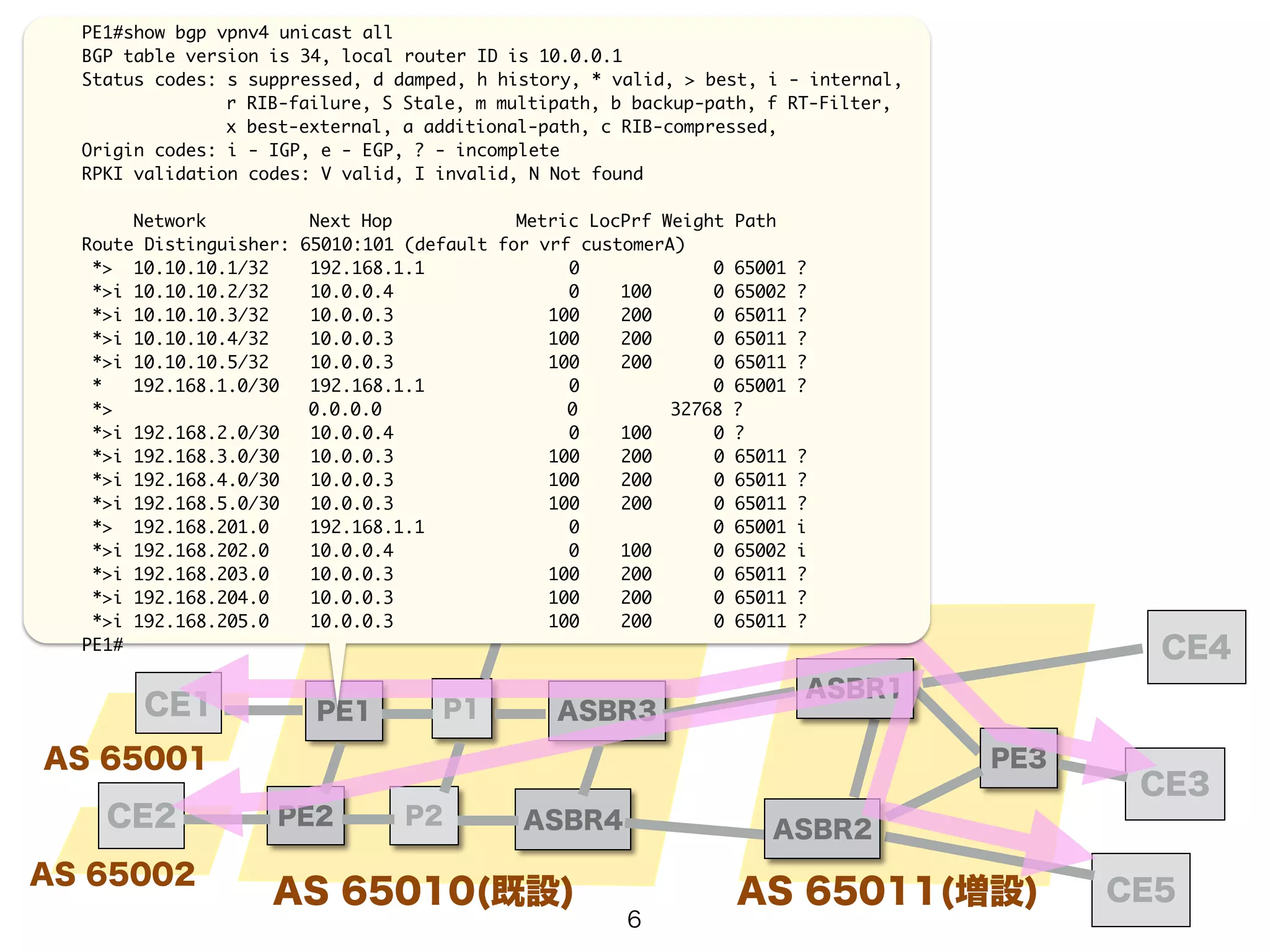

- 6. PE1#show bgp vpnv4unicast all BGP table version is 34, local router ID is 10.0.0.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 ASBR1 ASBR2 AS 65011(増設) CE5 Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 (default for vrf customerA) *> 10.10.10.1/32 192.168.1.1 0 0 65001 ? *>i 10.10.10.2/32 10.0.0.4 0 100 0 65002 ? *>i 10.10.10.3/32 10.0.0.3 100 200 0 65011 ? *>i 10.10.10.4/32 10.0.0.3 100 200 0 65011 ? *>i 10.10.10.5/32 10.0.0.3 100 200 0 65011 ? * 192.168.1.0/30 192.168.1.1 0 0 65001 ? *> 0.0.0.0 0 32768 ? *>i 192.168.2.0/30 10.0.0.4 0 100 0 ? *>i 192.168.3.0/30 10.0.0.3 100 200 0 65011 ? *>i 192.168.4.0/30 10.0.0.3 100 200 0 65011 ? *>i 192.168.5.0/30 10.0.0.3 100 200 0 65011 ? *> 192.168.201.0 192.168.1.1 0 0 65001 i *>i 192.168.202.0 10.0.0.4 0 100 0 65002 i *>i 192.168.203.0 10.0.0.3 100 200 0 65011 ? *>i 192.168.204.0 10.0.0.3 100 200 0 65011 ? *>i 192.168.205.0 10.0.0.3 100 200 0 65011 ? PE1# 6

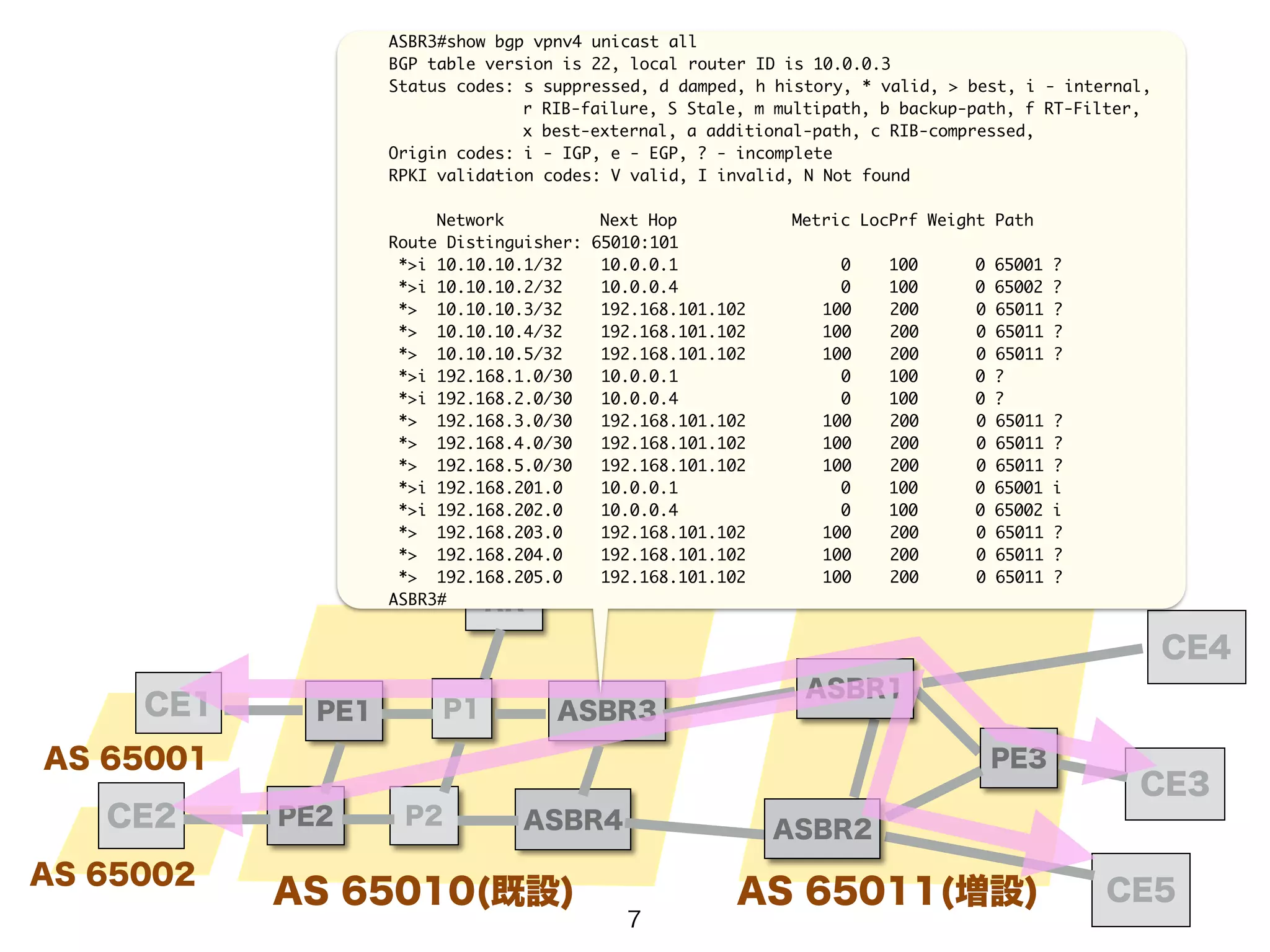

- 7. ASBR3#show bgp vpnv4unicast all BGP table version is 22, local router ID is 10.0.0.3 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 *>i 10.10.10.1/32 10.0.0.1 0 100 0 65001 ? *>i 10.10.10.2/32 10.0.0.4 0 100 0 65002 ? *> 10.10.10.3/32 192.168.101.102 100 200 0 65011 ? *> 10.10.10.4/32 192.168.101.102 100 200 0 65011 ? *> 10.10.10.5/32 192.168.101.102 100 200 0 65011 ? *>i 192.168.1.0/30 10.0.0.1 0 100 0 ? *>i 192.168.2.0/30 10.0.0.4 0 100 0 ? *> 192.168.3.0/30 192.168.101.102 100 200 0 65011 ? *> 192.168.4.0/30 192.168.101.102 100 200 0 65011 ? *> 192.168.5.0/30 192.168.101.102 100 200 0 65011 ? *>i 192.168.201.0 10.0.0.1 0 100 0 65001 i *>i 192.168.202.0 10.0.0.4 0 100 0 65002 i *> 192.168.203.0 192.168.101.102 100 200 0 65011 ? *> 192.168.204.0 192.168.101.102 100 200 0 65011 ? *> 192.168.205.0 192.168.101.102 100 200 0 65011 ? ASBR3# PE1 P1 PE2 P2 r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 ASBR1 ASBR2 AS 65011(増設) CE5 7

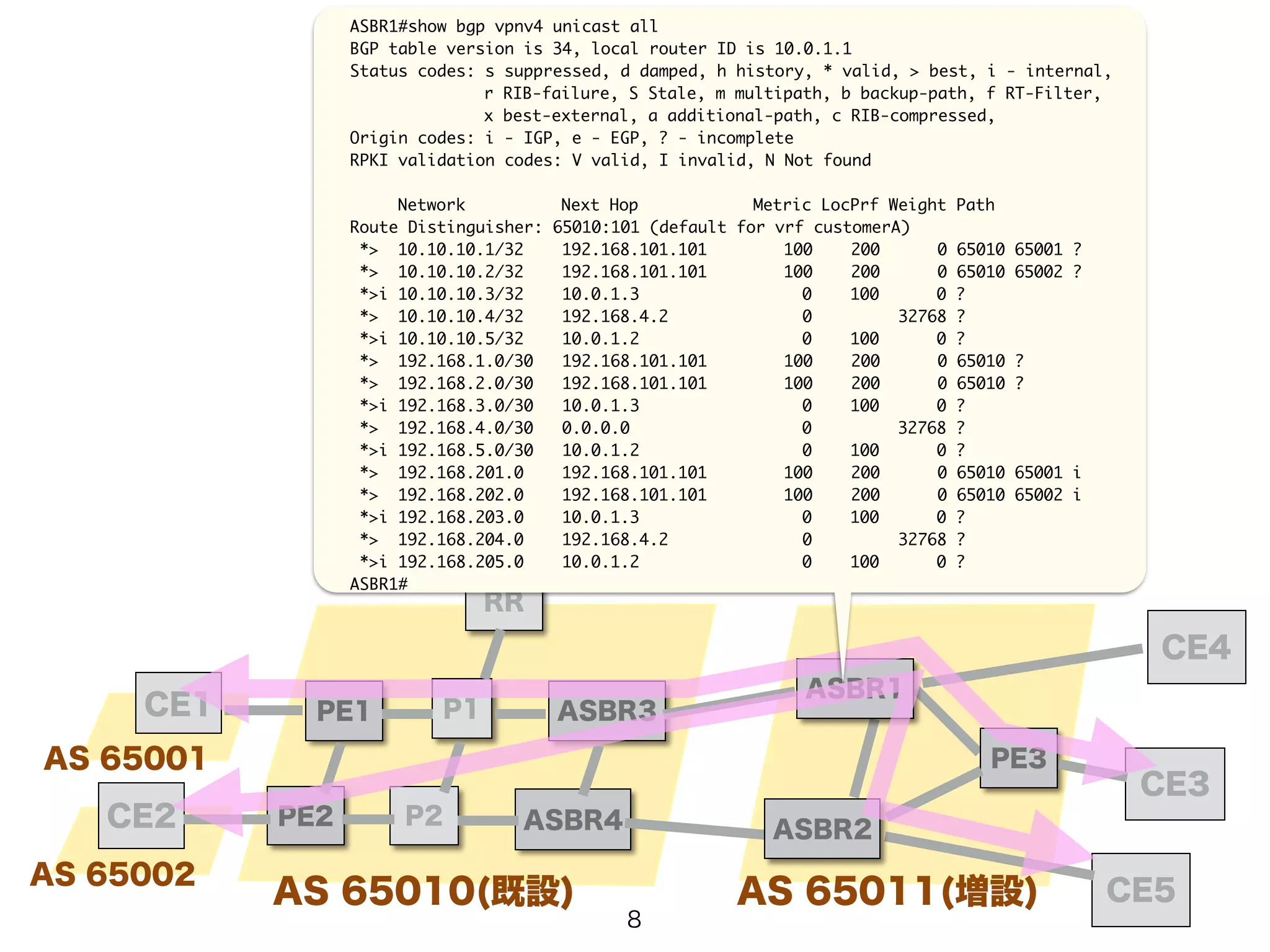

- 8. ASBR1#show bgp vpnv4unicast all BGP table version is 34, local router ID is 10.0.1.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 (default for vrf customerA) *> 10.10.10.1/32 192.168.101.101 100 200 0 65010 65001 ? *> 10.10.10.2/32 192.168.101.101 100 200 0 65010 65002 ? *>i 10.10.10.3/32 10.0.1.3 0 100 0 ? *> 10.10.10.4/32 192.168.4.2 0 32768 ? *>i 10.10.10.5/32 10.0.1.2 0 100 0 ? *> 192.168.1.0/30 192.168.101.101 100 200 0 65010 ? *> 192.168.2.0/30 192.168.101.101 100 200 0 65010 ? *>i 192.168.3.0/30 10.0.1.3 0 100 0 ? *> 192.168.4.0/30 0.0.0.0 0 32768 ? *>i 192.168.5.0/30 10.0.1.2 0 100 0 ? *> 192.168.201.0 192.168.101.101 100 200 0 65010 65001 i *> 192.168.202.0 192.168.101.101 100 200 0 65010 65002 i *>i 192.168.203.0 10.0.1.3 0 100 0 ? *> 192.168.204.0 192.168.4.2 0 32768 ? *>i 192.168.205.0 10.0.1.2 0 100 0 ? ASBR1# PE1 P1 PE2 P2 r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 ASBR1 ASBR2 AS 65011(増設) CE5 8

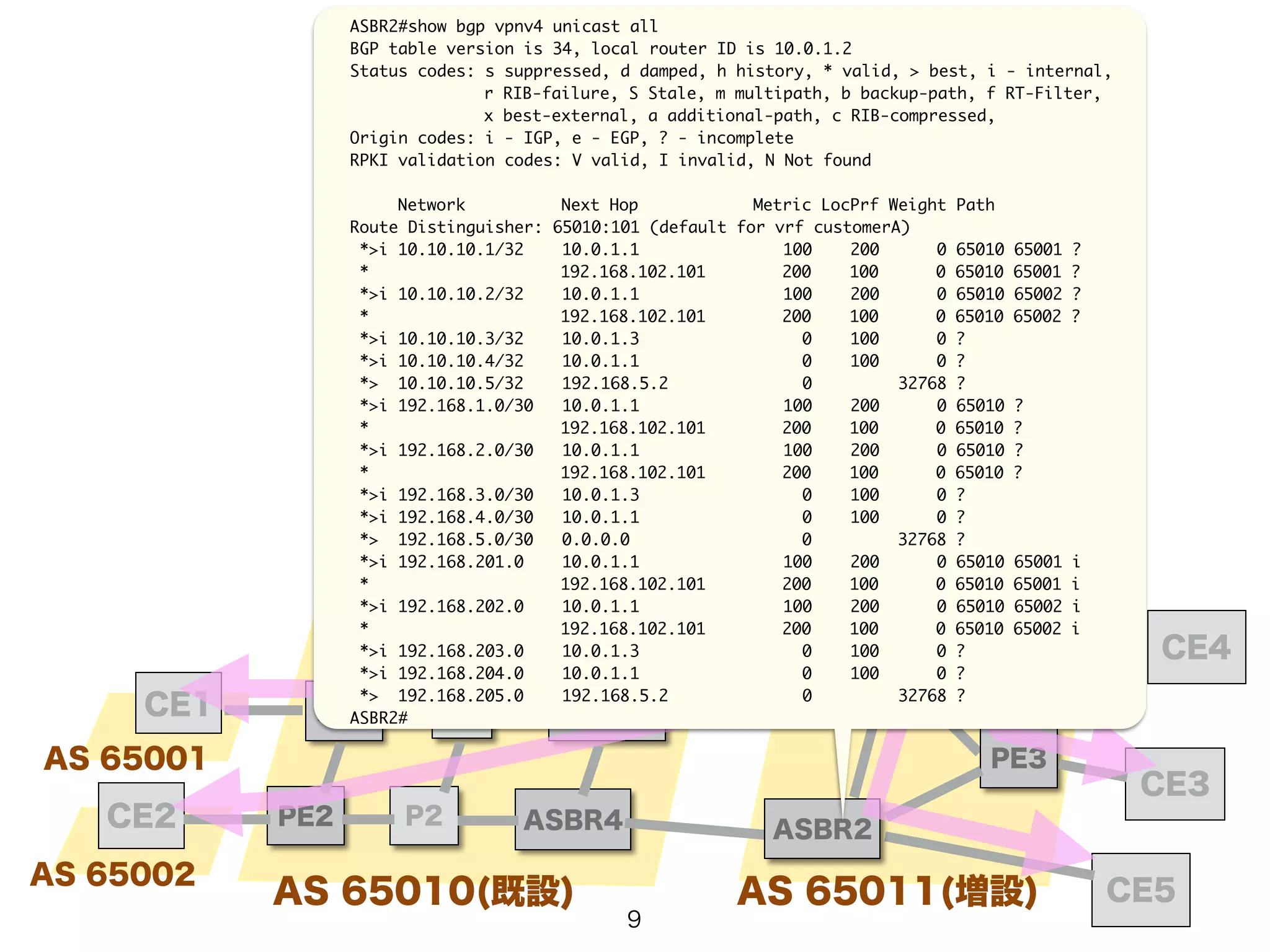

- 9. ASBR2#show bgp vpnv4unicast all BGP table version is 34, local router ID is 10.0.1.2 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 (default for vrf customerA) *>i 10.10.10.1/32 10.0.1.1 100 200 0 65010 65001 ? * 192.168.102.101 200 100 0 65010 65001 ? *>i 10.10.10.2/32 10.0.1.1 100 200 0 65010 65002 ? * 192.168.102.101 200 100 0 65010 65002 ? *>i 10.10.10.3/32 10.0.1.3 0 100 0 ? *>i 10.10.10.4/32 10.0.1.1 0 100 0 ? *> 10.10.10.5/32 192.168.5.2 0 32768 ? *>i 192.168.1.0/30 10.0.1.1 100 200 0 65010 ? * 192.168.102.101 200 100 0 65010 ? *>i 192.168.2.0/30 10.0.1.1 100 200 0 65010 ? * 192.168.102.101 200 100 0 65010 ? *>i 192.168.3.0/30 10.0.1.3 0 100 0 ? *>i 192.168.4.0/30 10.0.1.1 0 100 0 ? *> 192.168.5.0/30 0.0.0.0 0 32768 ? *>i 192.168.201.0 10.0.1.1 100 200 0 65010 65001 i * 192.168.102.101 200 100 0 65010 65001 i *>i 192.168.202.0 10.0.1.1 100 200 0 65010 65002 i * 192.168.102.101 200 100 0 65010 65002 i *>i 192.168.203.0 10.0.1.3 0 100 0 ? *>i 192.168.204.0 10.0.1.1 0 100 0 ? *> 192.168.205.0 192.168.5.2 0 32768 ? ASBR2# PE1 P1 PE2 P2 r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 ASBR1 ASBR2 AS 65011(増設) CE5 9

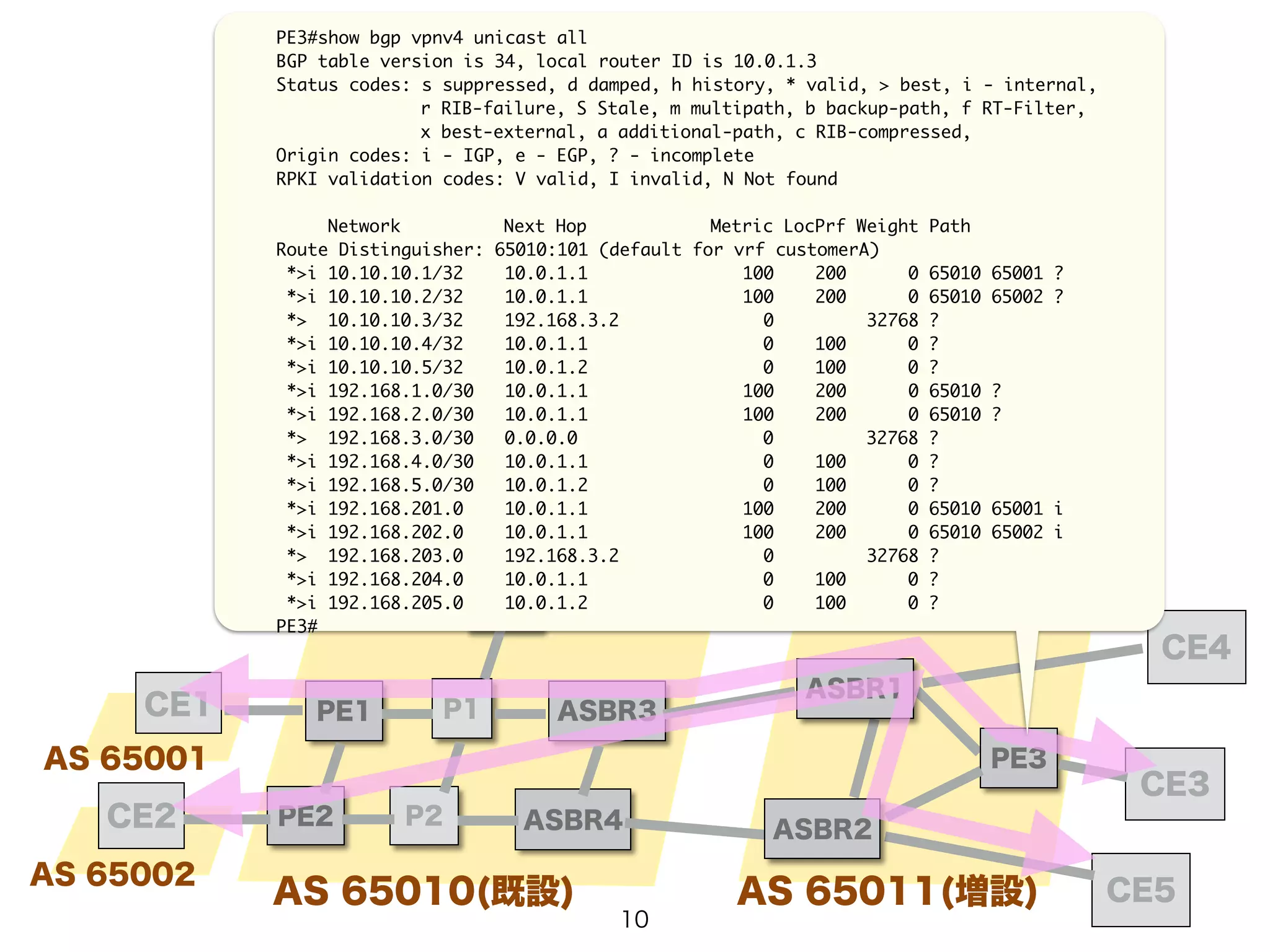

- 10. PE3#show bgp vpnv4unicast all BGP table version is 34, local router ID is 10.0.1.3 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 (default for vrf customerA) *>i 10.10.10.1/32 10.0.1.1 100 200 0 65010 65001 ? *>i 10.10.10.2/32 10.0.1.1 100 200 0 65010 65002 ? *> 10.10.10.3/32 192.168.3.2 0 32768 ? *>i 10.10.10.4/32 10.0.1.1 0 100 0 ? *>i 10.10.10.5/32 10.0.1.2 0 100 0 ? *>i 192.168.1.0/30 10.0.1.1 100 200 0 65010 ? *>i 192.168.2.0/30 10.0.1.1 100 200 0 65010 ? *> 192.168.3.0/30 0.0.0.0 0 32768 ? *>i 192.168.4.0/30 10.0.1.1 0 100 0 ? *>i 192.168.5.0/30 10.0.1.2 0 100 0 ? *>i 192.168.201.0 10.0.1.1 100 200 0 65010 65001 i *>i 192.168.202.0 10.0.1.1 100 200 0 65010 65002 i *> 192.168.203.0 192.168.3.2 0 32768 ? *>i 192.168.204.0 10.0.1.1 0 100 0 ? *>i 192.168.205.0 10.0.1.2 0 100 0 ? PE3# PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 ASBR1 ASBR2 AS 65011(増設) CE5 10
- 11.

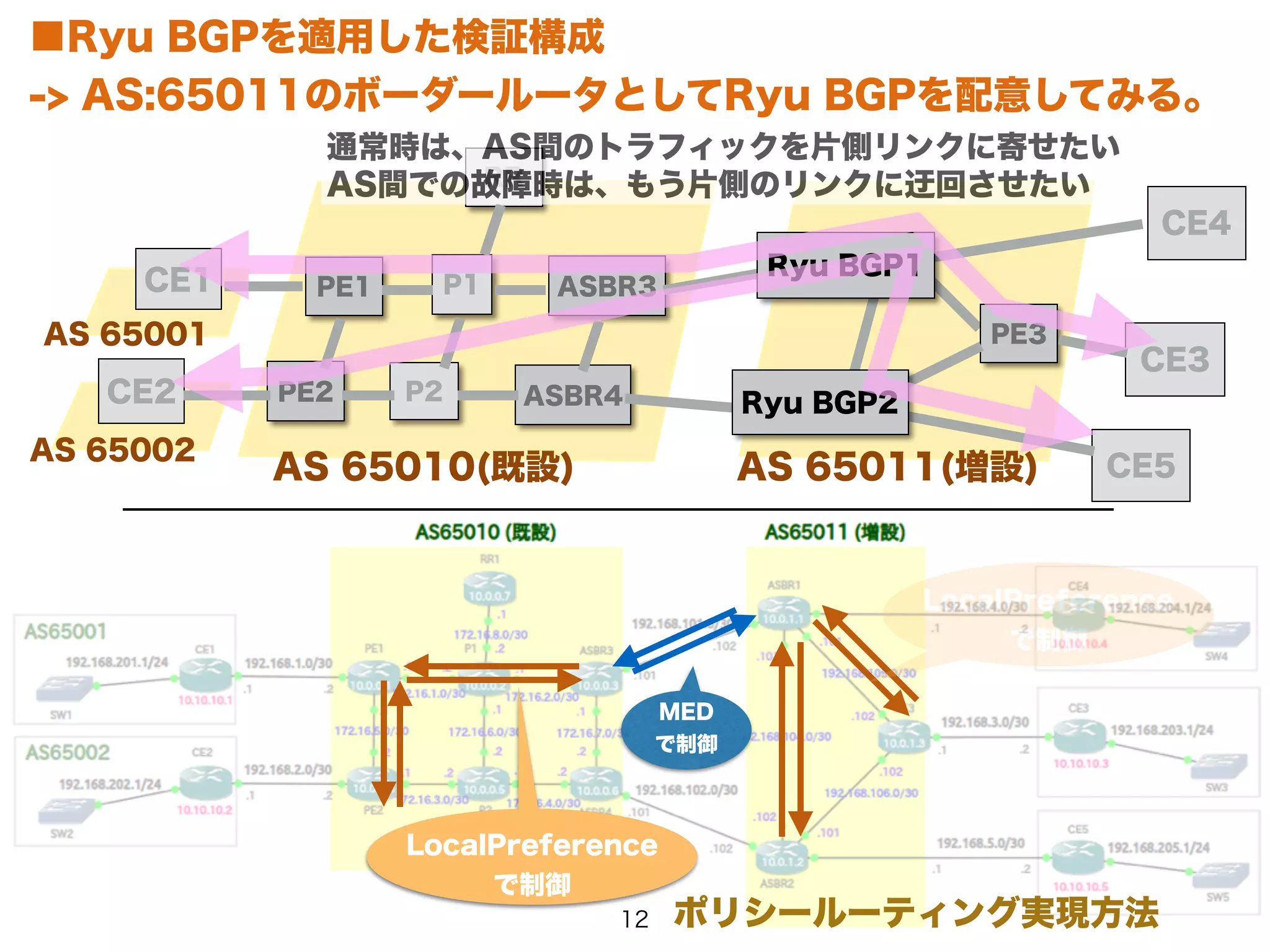

- 12. ■Ryu BGPを適用した検証構成 ->AS:65011のボーダールータとしてRyu BGPを配意してみる。 通常時は、AS間のトラフィックを片側リンクに寄せたい AS間での故障時は、もう片側のリンクに迂回させたい PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 Ryu BGP1 Ryu BGP2 AS 65011(増設) CE5 MED で制御 LocalPreference で制御 LocalPreference で制御 ポリシールーティング実現方法 12
- 13. Ryu BGP1のサンプルコード importeventlet import time ! eventlet.monkey_patch() ! import logging import sys logging.basicConfig(level=logging.INFO) ! from ryu.services.protocols.bgp.bgpspeaker import BGPSpeaker ! def dump_remote_best_path_change(event): print 'the best path changed:', event.remote_as, event.prefix, event.nexthop, event.is_withdraw ! if __name__ == "__main__": speaker = BGPSpeaker(as_number=65011, router_id='10.0.1.1', best_path_change_handler=dump_remote_best_path_change, ssh_console=True, label_range=(1000,1999)) ! speaker.neighbor_add('192.168.101.101', 65010, enable_ipv4=True, enable_vpnv4=True, multi_exit_disc=100) speaker.neighbor_add('192.168.104.102', 65011, enable_ipv4=True, enable_vpnv4=True, next_hop='10.0.1.1') speaker.neighbor_add('10.0.1.3', 65011, enable_ipv4=True, enable_vpnv4=True, next_hop='10.0.1.1') speaker.vrf_add('65010:101', ['65010:101'], ['65010:101']) eventlet.sleep(5) speaker.prefix_add('192.168.4.0/30', next_hop='0.0.0.0', route_dist='65010:101') speaker.prefix_add('10.10.10.4/32', next_hop='192.168.4.2', route_dist='65010:101') speaker.prefix_add('192.168.204.0/30', next_hop='192.168.4.2', route_dist='65010:101') ! while True: eventlet.sleep(5) 13
- 14. Ryu BGP2のサンプルコード importeventlet import time ! eventlet.monkey_patch() ! import logging import sys logging.basicConfig(level=logging.INFO) ! from ryu.services.protocols.bgp.bgpspeaker import BGPSpeaker ! def dump_remote_best_path_change(event): print 'the best path changed:', event.remote_as, event.prefix, event.nexthop, event.is_withdraw ! if __name__ == "__main__": speaker = BGPSpeaker(as_number=65011, router_id='10.0.1.2', best_path_change_handler=dump_remote_best_path_change, ssh_console=True, label_range=(2000,2999)) ! speaker.neighbor_add('192.168.102.101', 65010, enable_ipv4=True, enable_vpnv4=True, multi_exit_disc=200) speaker.neighbor_add('192.168.104.101', 65011, enable_ipv4=True, enable_vpnv4=True, next_hop='10.0.1.2') speaker.neighbor_add('10.0.1.3', 65011, enable_ipv4=True, enable_vpnv4=True, next_hop='10.0.1.2') speaker.vrf_add('65010:101', ['65010:101'], ['65010:101']) eventlet.sleep(5) speaker.prefix_add('192.168.5.0/30', next_hop='0.0.0.0', route_dist='65010:101') speaker.prefix_add('10.10.10.5/32', next_hop='192.168.5.2', route_dist='65010:101') speaker.prefix_add('192.168.205.0/30', next_hop='192.168.5.2', route_dist='65010:101') ! while True: eventlet.sleep(5) 14

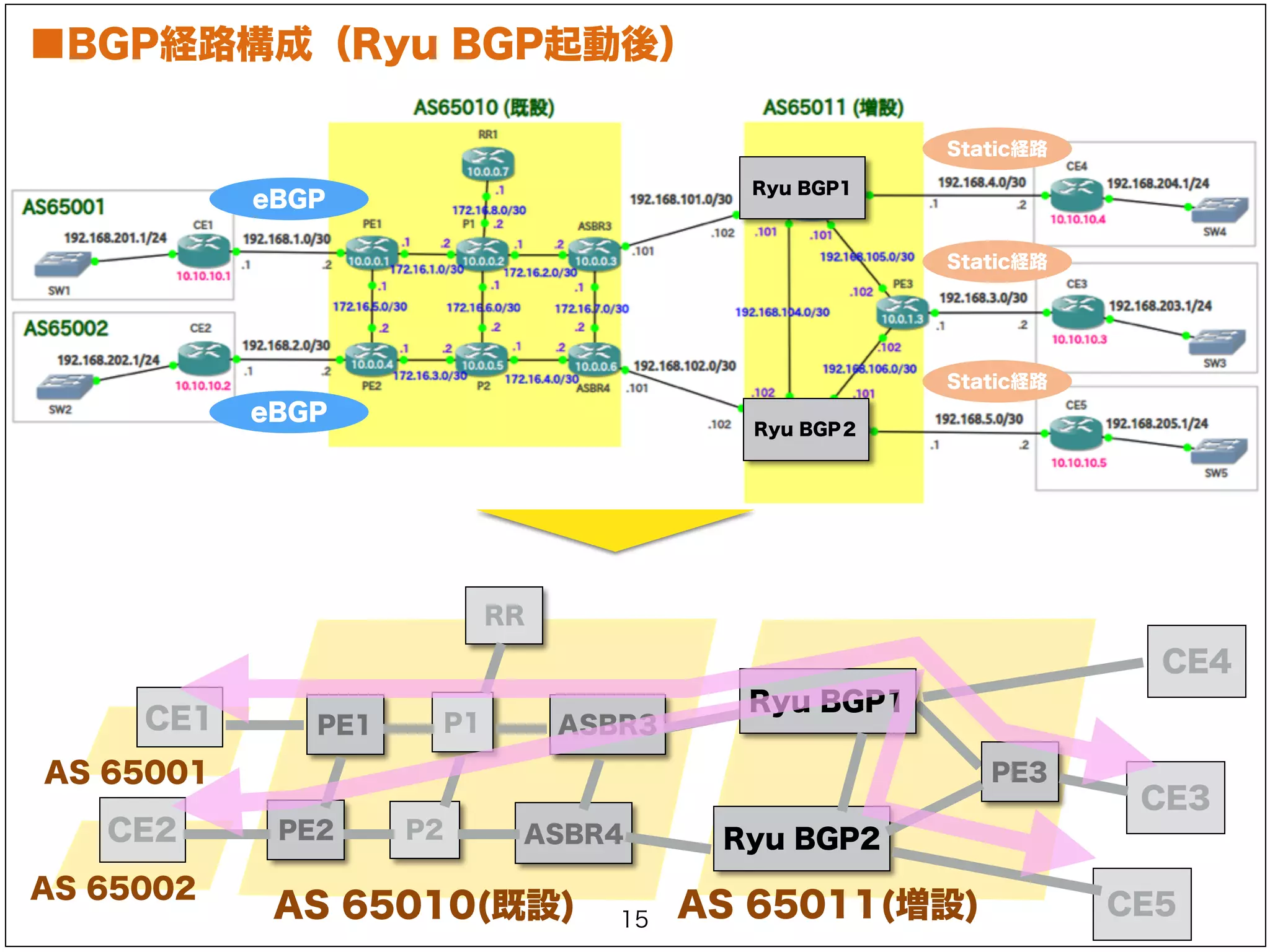

- 15. ■BGP経路構成（Ryu BGP起動後） eBGP eBGP Ryu BGP1 Ryu BGP２ Static経路 Static経路 Static経路 PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 Ryu BGP1 Ryu BGP2 PE3 15 AS 65011(増設) CE5

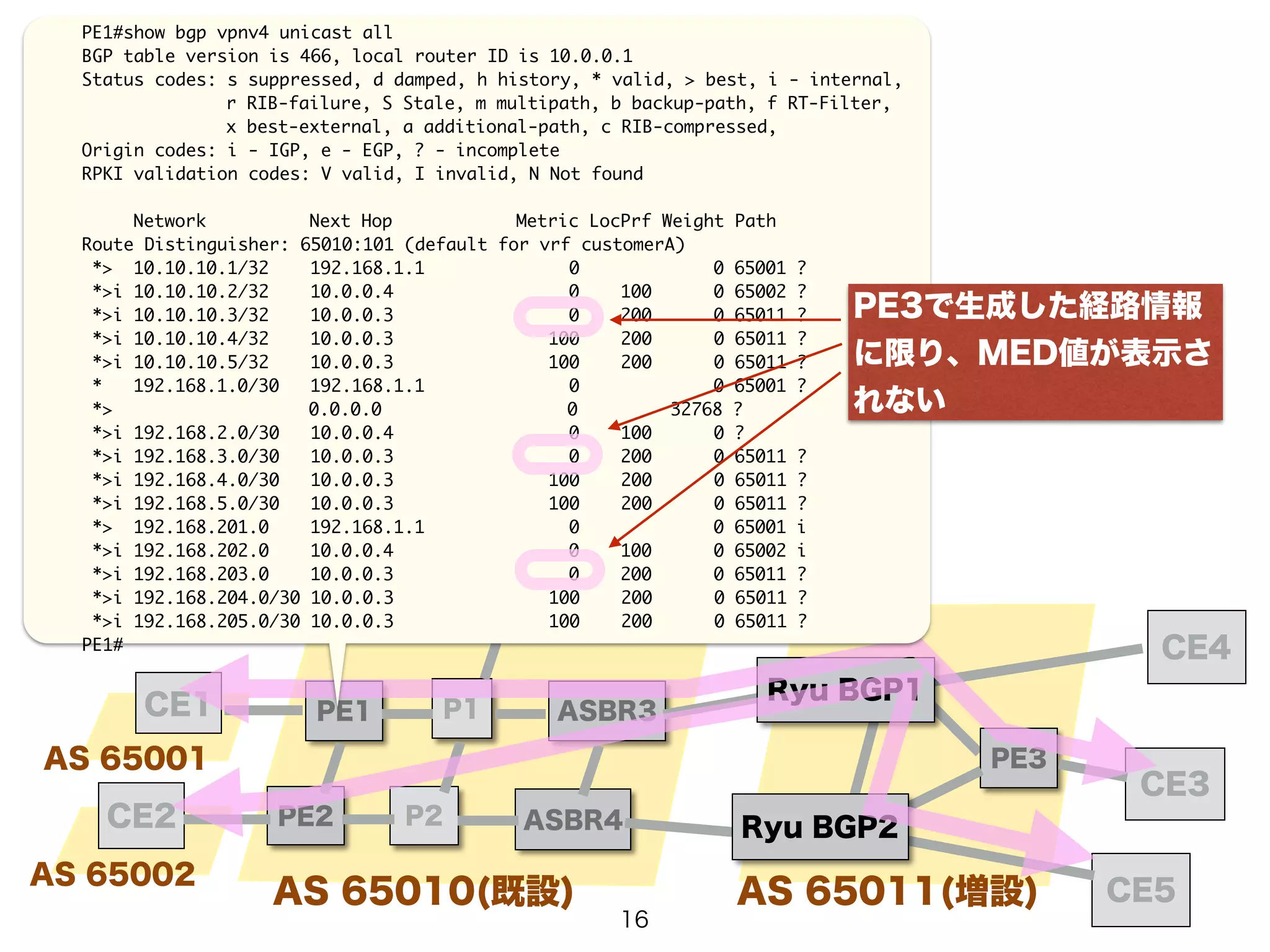

- 16. PE1#show bgp vpnv4unicast all BGP table version is 466, local router ID is 10.0.0.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 Ryu BGP1 Ryu BGP2 AS 65011(増設) CE5 Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 (default for vrf customerA) *> 10.10.10.1/32 192.168.1.1 0 0 65001 ? *>i 10.10.10.2/32 10.0.0.4 0 100 0 65002 ? *>i 10.10.10.3/32 10.0.0.3 0 200 0 65011 ? *>i 10.10.10.4/32 10.0.0.3 100 200 0 65011 ? *>i 10.10.10.5/32 10.0.0.3 100 200 0 65011 ? * 192.168.1.0/30 192.168.1.1 0 0 65001 ? *> 0.0.0.0 0 32768 ? *>i 192.168.2.0/30 10.0.0.4 0 100 0 ? *>i 192.168.3.0/30 10.0.0.3 0 200 0 65011 ? *>i 192.168.4.0/30 10.0.0.3 100 200 0 65011 ? *>i 192.168.5.0/30 10.0.0.3 100 200 0 65011 ? *> 192.168.201.0 192.168.1.1 0 0 65001 i *>i 192.168.202.0 10.0.0.4 0 100 0 65002 i *>i 192.168.203.0 10.0.0.3 0 200 0 65011 ? *>i 192.168.204.0/30 10.0.0.3 100 200 0 65011 ? *>i 192.168.205.0/30 10.0.0.3 100 200 0 65011 ? PE1# PE3で生成した経路情報 に限り、MED値が表示さ れない 16

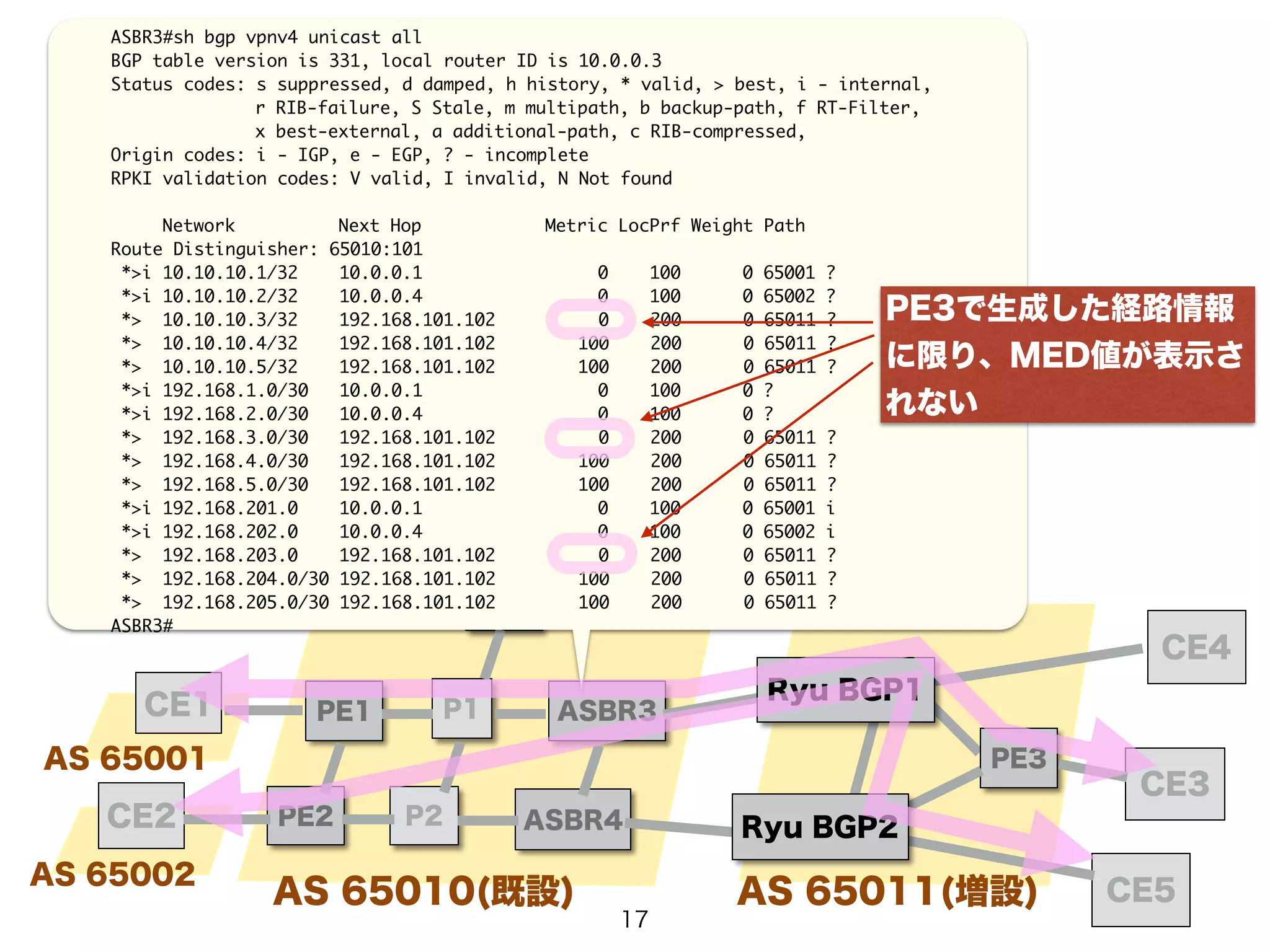

- 17. ASBR3#sh bgp vpnv4unicast all BGP table version is 331, local router ID is 10.0.0.3 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, PE1 P1 PE2 P2 ASBR3 PE3で生成した経路情報 に限り、MED値が表示さ れない CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 AS 65011(増設) CE5 Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 *>i 10.10.10.1/32 10.0.0.1 0 100 0 65001 ? *>i 10.10.10.2/32 10.0.0.4 0 100 0 65002 ? *> 10.10.10.3/32 192.168.101.102 0 200 0 65011 ? *> 10.10.10.4/32 192.168.101.102 100 200 0 65011 ? *> 10.10.10.5/32 192.168.101.102 100 200 0 65011 ? *>i 192.168.1.0/30 10.0.0.1 0 100 0 ? *>i 192.168.2.0/30 10.0.0.4 0 100 0 ? *> 192.168.3.0/30 192.168.101.102 0 200 0 65011 ? *> 192.168.4.0/30 192.168.101.102 100 200 0 65011 ? *> 192.168.5.0/30 192.168.101.102 100 200 0 65011 ? *>i 192.168.201.0 10.0.0.1 0 100 0 65001 i *>i 192.168.202.0 10.0.0.4 0 100 0 65002 i *> 192.168.203.0 192.168.101.102 0 200 0 65011 ? *> 192.168.204.0/30 192.168.101.102 100 200 0 65011 ? *> 192.168.205.0/30 192.168.101.102 100 200 0 65011 ? ASBR3# Ryu BGP1 Ryu BGP2 17

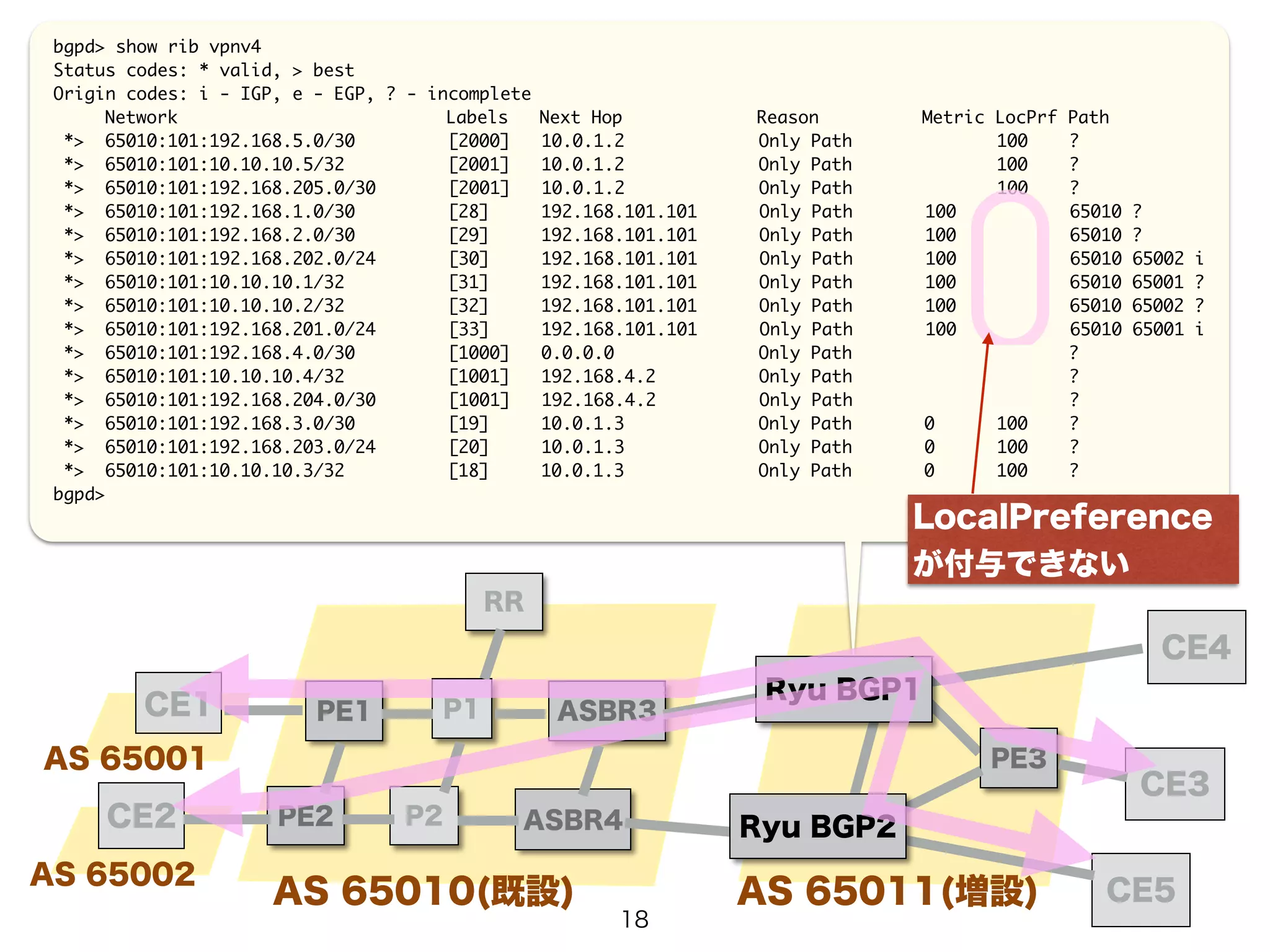

- 18. PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 AS 65011(増設) CE5 bgpd> show rib vpnv4 Status codes: * valid, > best Origin codes: i - IGP, e - EGP, ? - incomplete Network Labels Next Hop Reason Metric LocPrf Path *> 65010:101:192.168.5.0/30 [2000] 10.0.1.2 Only Path 100 ? *> 65010:101:10.10.10.5/32 [2001] 10.0.1.2 Only Path 100 ? *> 65010:101:192.168.205.0/30 [2001] 10.0.1.2 Only Path 100 ? *> 65010:101:192.168.1.0/30 [28] 192.168.101.101 Only Path 100 65010 ? *> 65010:101:192.168.2.0/30 [29] 192.168.101.101 Only Path 100 65010 ? *> 65010:101:192.168.202.0/24 [30] 192.168.101.101 Only Path 100 65010 65002 i *> 65010:101:10.10.10.1/32 [31] 192.168.101.101 Only Path 100 65010 65001 ? *> 65010:101:10.10.10.2/32 [32] 192.168.101.101 Only Path 100 65010 65002 ? *> 65010:101:192.168.201.0/24 [33] 192.168.101.101 Only Path 100 65010 65001 i *> 65010:101:192.168.4.0/30 [1000] 0.0.0.0 Only Path ? *> 65010:101:10.10.10.4/32 [1001] 192.168.4.2 Only Path ? *> 65010:101:192.168.204.0/30 [1001] 192.168.4.2 Only Path ? *> 65010:101:192.168.3.0/30 [19] 10.0.1.3 Only Path 0 100 ? *> 65010:101:192.168.203.0/24 [20] 10.0.1.3 Only Path 0 100 ? *> 65010:101:10.10.10.3/32 [18] 10.0.1.3 Only Path 0 100 ? bgpd> Ryu BGP1 Ryu BGP2 LocalPreference が付与できない 18
- 19. PE1 P1 PE2 P2 AS65010側で生成した経路情報を、i-BGP経由 で受信した場合には、MED値が表示されない ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 Ryu BGP1 Ryu BGP2 AS 65011(増設) CE5 bgpd> show rib vpnv4 Status codes: * valid, > best Origin codes: i - IGP, e - EGP, ? - incomplete Network Labels Next Hop Reason Metric LocPrf Path *> 65010:101:192.168.3.0/30 [19] 10.0.1.3 Only Path 0 100 ? *> 65010:101:192.168.203.0/24 [20] 10.0.1.3 Only Path 0 100 ? *> 65010:101:10.10.10.3/32 [18] 10.0.1.3 Only Path 0 100 ? *> 65010:101:192.168.5.0/30 [2000] 0.0.0.0 Only Path ? *> 65010:101:10.10.10.5/32 [2001] 192.168.5.2 Only Path ? *> 65010:101:192.168.205.0/30 [2001] 192.168.5.2 Only Path ? *> 65010:101:192.168.202.0/24 [30] 192.168.101.101 MED 100 65010 65002 i * [33] 192.168.102.101 200 65010 65002 i *> 65010:101:192.168.201.0/24 [33] 192.168.101.101 MED 100 65010 65001 i * [36] 192.168.102.101 200 65010 65001 i *> 65010:101:192.168.204.0/30 [1001] 10.0.1.1 Only Path 100 ? *> 65010:101:10.10.10.4/32 [1001] 10.0.1.1 Only Path 100 ? *> 65010:101:192.168.2.0/30 [29] 192.168.101.101 MED 100 65010 ? * [29] 192.168.102.101 200 65010 ? *> 65010:101:10.10.10.1/32 [31] 192.168.101.101 MED 100 65010 65001 ? * [34] 192.168.102.101 200 65010 65001 ? *> 65010:101:192.168.1.0/30 [28] 192.168.101.101 MED 100 65010 ? * [28] 192.168.102.101 200 65010 ? *> 65010:101:10.10.10.2/32 [32] 192.168.101.101 MED 100 65010 65002 ? * [35] 192.168.102.101 200 65010 65002 ? *> 65010:101:192.168.4.0/30 [1000] 10.0.1.1 Only Path 100 ? bgpd> 19

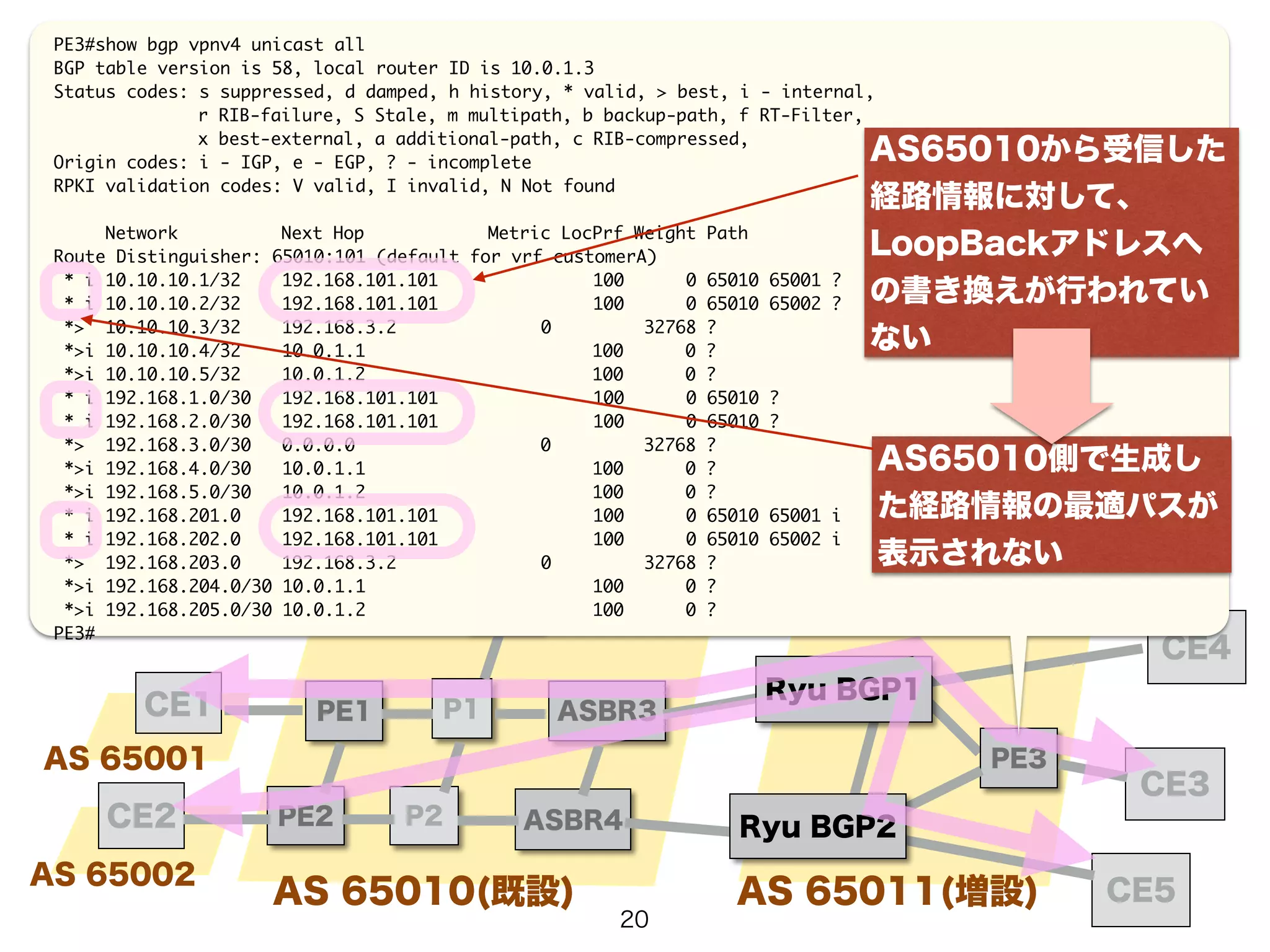

- 20. PE3#show bgp vpnv4unicast all BGP table version is 58, local router ID is 10.0.1.3 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, PE1 P1 PE2 P2 ASBR3 CE4 CE3 CE1 CE2 RR AS 65010(既設) AS 65001 AS 65002 ASBR4 PE3 Ryu BGP1 Ryu BGP2 AS 65011(増設) CE5 Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found ! Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65010:101 (default for vrf customerA) * i 10.10.10.1/32 192.168.101.101 100 0 65010 65001 ? * i 10.10.10.2/32 192.168.101.101 100 0 65010 65002 ? *> 10.10.10.3/32 192.168.3.2 0 32768 ? *>i 10.10.10.4/32 10.0.1.1 100 0 ? *>i 10.10.10.5/32 10.0.1.2 100 0 ? * i 192.168.1.0/30 192.168.101.101 100 0 65010 ? * i 192.168.2.0/30 192.168.101.101 100 0 65010 ? *> 192.168.3.0/30 0.0.0.0 0 32768 ? *>i 192.168.4.0/30 10.0.1.1 100 0 ? *>i 192.168.5.0/30 10.0.1.2 100 0 ? * i 192.168.201.0 192.168.101.101 100 0 65010 65001 i * i 192.168.202.0 192.168.101.101 100 0 65010 65002 i *> 192.168.203.0 192.168.3.2 0 32768 ? *>i 192.168.204.0/30 10.0.1.1 100 0 ? *>i 192.168.205.0/30 10.0.1.2 100 0 ? PE3# AS65010側で生成し た経路情報の最適パスが 表示されない 20 AS65010から受信した 経路情報に対して、 LoopBackアドレスへ の書き換えが行われてい ない
- 21. わかったこと、 > 現段階のRyuBGPは、i-BGPピアに関わる機能配備には 適用が困難そうだと感じた。 > 現段階のRyu BGPは、BGPピアの終端点への配備を 前提とした機能具備がなされている。 > BGPピアの中継点に配備する場合には、BGPパラメータ の伝搬に関わる留意点を想定する必要がある。 > OSPFルーティングドメイン等との連携については、 使い手が自前で準備する必要がある。 -> NextHopへの到達性への対応も別途必要 -> データプレーン連携に関わる対応も別途必要 ちなみに、今回は、すべて静的ルーティング設定を事前に 行うことで対応した。
