A 30' introduction to Rust, presented at the Rome Rust meetup on May 10, 2017. A visual explanation of ownership, borrowing, and lifetime.

1. An Introduction to Rust
Rust Roma - Meetup
May 10, 2017

2. Who I am
Claudio Capobianco
wbigger@gmail.com
@settevolte

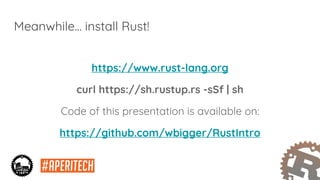

3. Meanwhile… install Rust!
https://www.rust-lang.org
curl https://sh.rustup.rs -sSf | sh
Code of this presentation is available on:
https://github.com/wbigger/RustIntro

4. When and why I did meet Rust
Last September, within my startup.
We were looking for a replacement for C/C++ code for our
multi-platform software library for IoT.
We considered Rust, Go, and Swift.

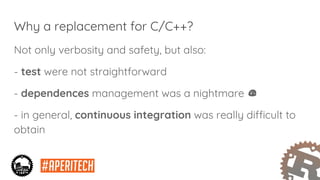

5. Why a replacement for C/C++?
Not only verbosity and safety, but also:
- test were not straightforward
- dependences management was a nightmare
- in general, continuous integration was really difficult to
obtain

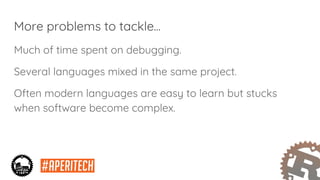

6. More problems to tackle...
Much of time spent on debugging.
Several languages mixed in the same project.
Often modern languages are easy to learn but stucks
when software become complex.

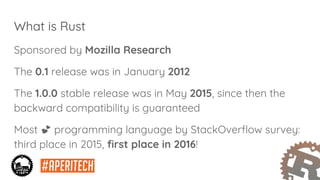

7. What is Rust
Sponsored by Mozilla Research
The 0.1 release was in January 2012
The 1.0.0 stable release was in May 2015, since then the
backward compatibility is guaranteed
Most programming language by StackOverflow survey:
third place in 2015, first place in 2016!

8. Rust goal
Ruby,
Javascript,
Python, ...C C++ Java
Control Safety

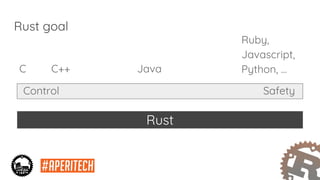

9. Rust goal
Rust
Ruby,
Javascript,
Python, ...C C++ Java
Control Safety

10. Just to mention a few:
and many others, look at https://www.rust-lang.org/en-US/friends.html
RUST is already in production!

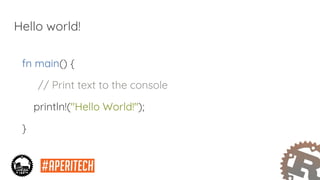

11. Hello world!
fn main() {
// Print text to the console
println!("Hello World!");
}

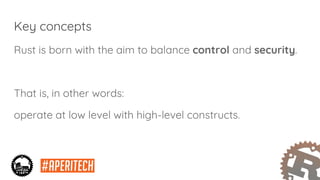

12. Key concepts
Rust is born with the aim to balance control and security.
That is, in other words:
operate at low level with high-level constructs.

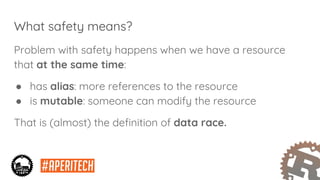

13. What safety means?
Problem with safety happens when we have a resource
that at the same time:
● has alias: more references to the resource
● is mutable: someone can modify the resource
That is (almost) the definition of data race.

14. What safety means?
Problem with safety happens when we have a resource
that at the same time:
● has alias: more references to the resource
● is mutable: someone can modify the resource
That is (almost) the definition of data race.
alias + mutable =

15. The Rust Way
Rust solution to achieve both control and safety is to push
as much as possible checks at compile time.
This is achieved mainly through the concepts of
● Ownership
● Borrowing
● Lifetimes

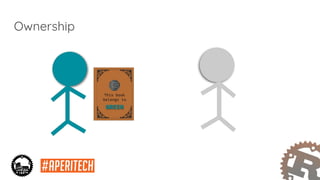

16. Ownership

17. Ownership

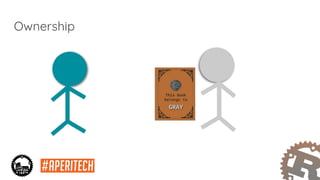

18. Ownership

19. Ownership
Green doesn’t own
the book anymore
and cannot use it

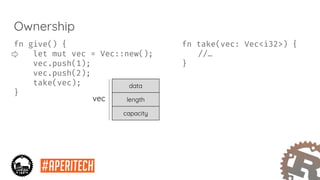

20. fn take(vec: Vec<i32>) {
//…
}
Ownership
fn give() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
take(vec);
}
data
length
capacity
vec

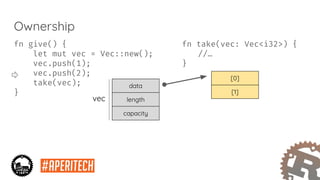

21. fn take(vec: Vec<i32>) {
//…
}
Ownership
fn give() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
take(vec);
}
data
length
capacity
[0]
[1]
vec

22. fn take(vec: Vec<i32>) {
//…
}
Ownership
fn give() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
take(vec);
}
data
length
capacity
[0]
[1]
vec
data
length
capacity
vec
take ownership

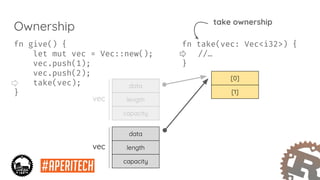

23. fn take(vec: Vec<i32>) {
//…
}
Ownership
fn give() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
take(vec);
}
data
length
capacity
[0]
[1]
vec
data
length
capacity
vec

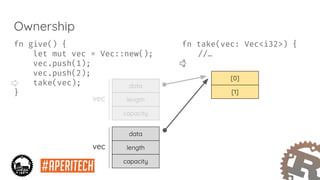

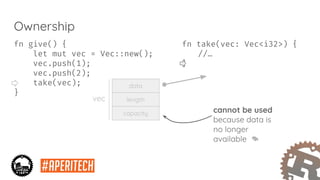

24. fn take(vec: Vec<i32>) {
//…
}
Ownership
fn give() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
take(vec);
}
data
length
capacity
vec
cannot be used
because data is
no longer
available

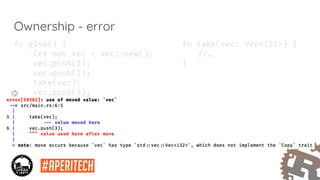

25. fn take(vec: Vec<i32>) {
//…
}
Ownership - error
fn give() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
take(vec);
vec.push(3);
}

26. Borrowing

27. Borrowing with &T
one or more references to a resource

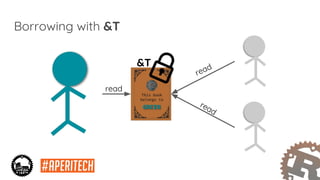

28. Borrowing with &T
read
read
read
&T

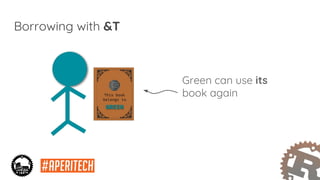

29. Borrowing with &T
Green can use its
book again

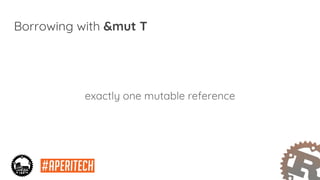

30. Borrowing with &mut T
exactly one mutable reference

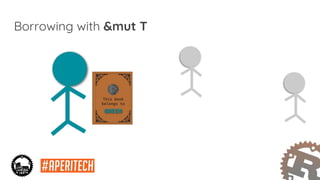

31. Borrowing with &mut T

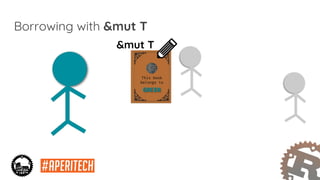

32. Borrowing with &mut T
&mut T

33. Borrowing with &mut T
&mut T

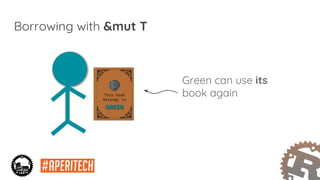

34. Borrowing with &mut T
Green can use its
book again

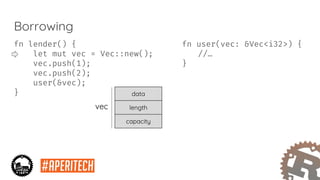

35. fn user(vec: &Vec<i32>) {
//…
}
Borrowing
fn lender() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
user(&vec);
} data
length
capacity
vec

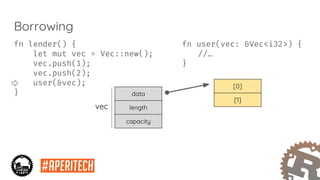

36. Borrowing
data
length
capacity
[0]
[1]
vec
fn user(vec: &Vec<i32>) {
//…
}
fn lender() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
user(&vec);
}

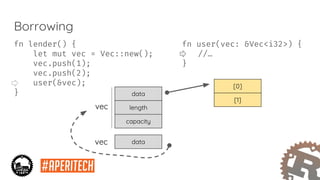

37. Borrowing
data
length
capacity
[0]
[1]
vec
datavec
fn user(vec: &Vec<i32>) {
//…
}
fn lender() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
user(&vec);
}

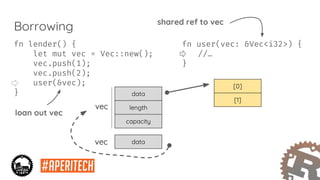

38. fn lender() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
user(&vec);
}
fn user(vec: &Vec<i32>) {
//…
}
Borrowing
data
length
capacity
[0]
[1]
vec
datavec
shared ref to vec
loan out vec

39. fn lender() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
user(&vec);
}
fn user(vec: &Vec<i32>) {
vec.push(3);
}
Borrowing
data
length
capacity
[0]
[1]
vec
datavec
what happens if I
try to modify it?
loan out vec

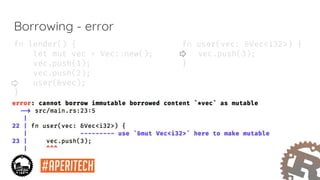

40. Borrowing - error
fn lender() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
user(&vec);
}
fn user(vec: &Vec<i32>) {
vec.push(3);
}

41. Lifetimes

42. Lifetimes
Remember that the owner has always the ability to destroy
(deallocate) a resource!
In simplest cases, compiler recognize the problem and
refuse to compile.
In more complex scenarios compiler needs an hint.

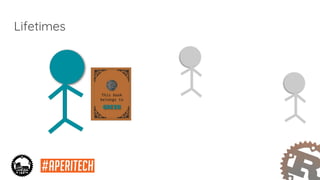

43. Lifetimes

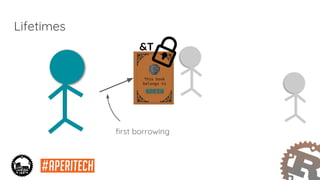

44. Lifetimes
&T
first borrowing

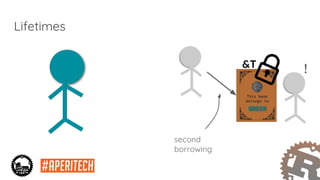

45. Lifetimes
&T
second
borrowing
!

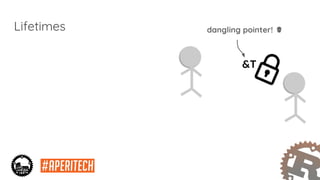

46. Lifetimes
&T
dangling pointer!

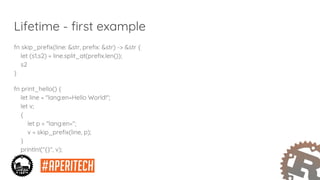

47. Lifetime - first example
fn skip_prefix(line: &str, prefix: &str) -> &str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}

48. Lifetime - first example
fn skip_prefix(line: &str, prefix: &str) -> &str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}

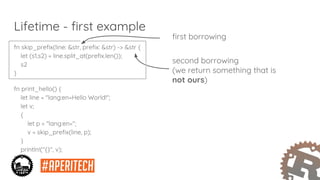

49. fn skip_prefix(line: &str, prefix: &str) -> &str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}
Lifetime - first example
first borrowing
second borrowing
(we return something that is
not ours)

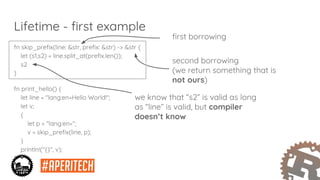

50. fn skip_prefix(line: &str, prefix: &str) -> &str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}
Lifetime - first example
first borrowing
second borrowing
(we return something that is
not ours)
we know that “s2” is valid as long
as “line” is valid, but compiler
doesn’t know

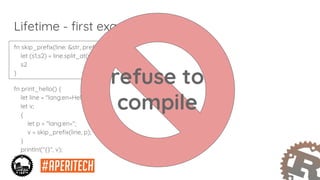

51. fn skip_prefix(line: &str, prefix: &str) -> &str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}
Lifetime - first example
refuse to
compile

52. fn skip_prefix(line: &str, prefix: &str) -> &str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}
Lifetime - first example

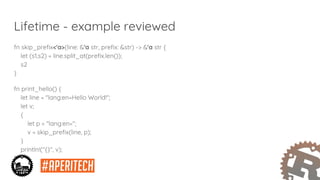

53. Lifetime - example reviewed
fn skip_prefix<'a>(line: &'a str, prefix: &str) -> &'a str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}

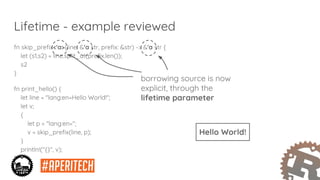

54. Lifetime - example reviewed
fn skip_prefix<'a>(line: &'a str, prefix: &str) -> &'a str {
let (s1,s2) = line.split_at(prefix.len());
s2
}
fn print_hello() {
let line = "lang:en=Hello World!";
let v;
{
let p = "lang:en=";
v = skip_prefix(line, p);
}
println!("{}", v);
}
borrowing source is now
explicit, through the
lifetime parameter
Hello World!

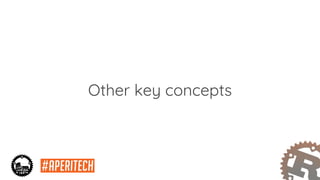

55. Other key concepts

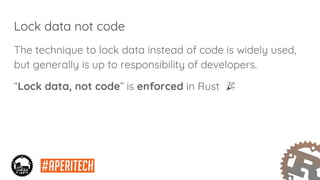

56. Lock data not code
The technique to lock data instead of code is widely used,
but generally is up to responsibility of developers.
“Lock data, not code” is enforced in Rust

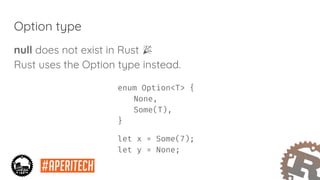

57. Option type
null does not exist in Rust
Rust uses the Option type instead.
enum Option<T> {
None,
Some(T),
}
let x = Some(7);
let y = None;

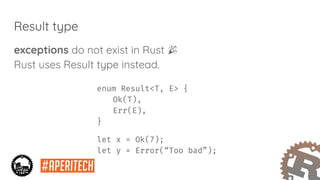

58. Result type
exceptions do not exist in Rust
Rust uses Result type instead.
enum Result<T, E> {
Ok(T),
Err(E),
}
let x = Ok(7);
let y = Error(“Too bad”);

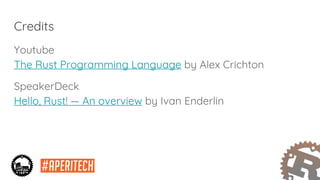

59. Credits
Youtube
The Rust Programming Language by Alex Crichton
SpeakerDeck
Hello, Rust! — An overview by Ivan Enderlin
