Uploaded byJohn Woodell
RubyConf 2009
The document discusses Google App Engine and options for building applications on it using Ruby and a new language called Duby. It provides an overview of App Engine architecture and billing models. It then covers using Ruby with App Engine via JRuby, frameworks like Rack and Sinatra, and the DataMapper ORM. Duby is introduced as a statically-typed language inspired by Ruby syntax that compiles to Java bytecode for the App Engine environment. Examples show a simple blog application built in both Ruby and Duby styles.
RubyConf 2009
- 1. + × n Saturday, November 21, 2009

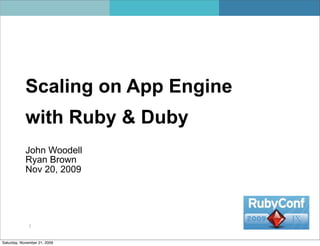

- 2. Scaling on AppEngine with Ruby & Duby John Woodell Ryan Brown Nov 20, 2009 2 Saturday, November 21, 2009

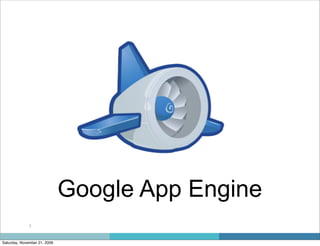

- 3. Google App Engine 3 Saturday, November 21, 2009
- 4. What is GoogleApp Engine? • A cloud-computing platform • Run your web apps on Google’s infrastructure • Platform as a Services (PaaS) 4 Saturday, November 21, 2009

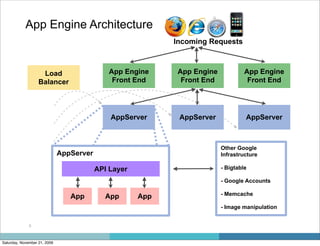

- 5. App Engine Architecture Incoming Requests Load App Engine App Engine App Engine Balancer Front End Front End Front End AppServer AppServer AppServer Other Google AppServer Infrastructure API Layer - Bigtable - Google Accounts - Memcache App App App - Image manipulation 5 Saturday, November 21, 2009

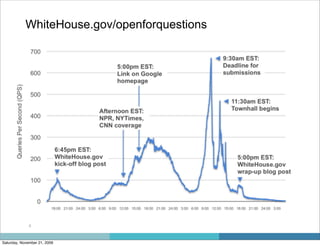

- 6. WhiteHouse.gov/openforquestions 6 Saturday, November 21, 2009

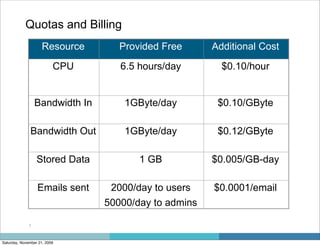

- 7. Quotas and Billing Resource Provided Free Additional Cost CPU 6.5 hours/day $0.10/hour Bandwidth In 1GByte/day $0.10/GByte Bandwidth Out 1GByte/day $0.12/GByte Stored Data 1 GB $0.005/GB-day Emails sent 2000/day to users $0.0001/email 50000/day to admins 7 Saturday, November 21, 2009
- 8. Ruby on AppEngine 8 Saturday, November 21, 2009

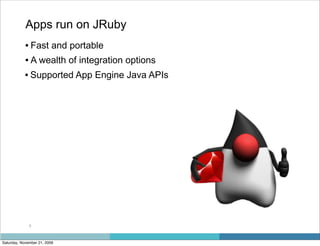

- 9. Apps run onJRuby • Fast and portable • A wealth of integration options • Supported App Engine Java APIs 9 Saturday, November 21, 2009

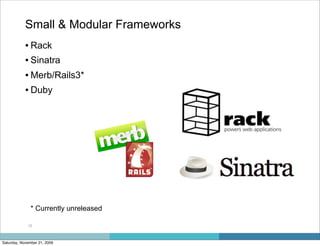

- 10. Small & ModularFrameworks • Rack • Sinatra • Merb/Rails3* • Duby * Currently unreleased 10 Saturday, November 21, 2009

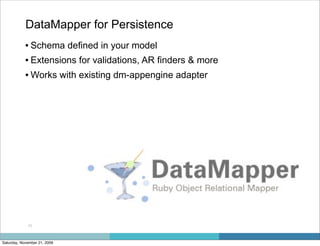

- 11. DataMapper for Persistence • Schema defined in your model • Extensions for validations, AR finders & more • Works with existing dm-appengine adapter 11 Saturday, November 21, 2009
- 12. Easy to Install sudo gem install google-appengine Everything you need installs as gems 12 Saturday, November 21, 2009

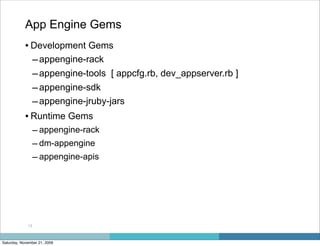

- 13. App Engine Gems • Development Gems – appengine-rack – appengine-tools [ appcfg.rb, dev_appserver.rb ] – appengine-sdk – appengine-jruby-jars • Runtime Gems – appengine-rack – dm-appengine – appengine-apis 13 Saturday, November 21, 2009

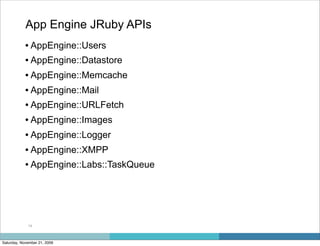

- 14. App Engine JRubyAPIs • AppEngine::Users • AppEngine::Datastore • AppEngine::Memcache • AppEngine::Mail • AppEngine::URLFetch • AppEngine::Images • AppEngine::Logger • AppEngine::XMPP • AppEngine::Labs::TaskQueue 14 Saturday, November 21, 2009

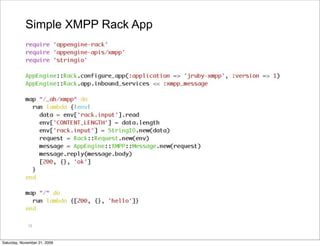

- 15. Simple XMPP RackApp 15 Saturday, November 21, 2009

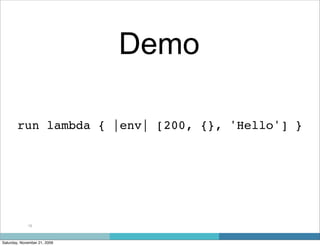

- 16. Demo run lambda { |env| [200, {}, 'Hello'] } 16 Saturday, November 21, 2009

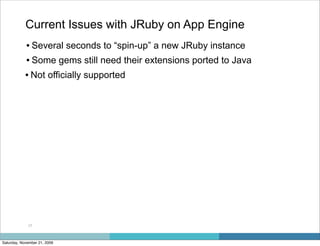

- 17. Current Issues withJRuby on App Engine • Several seconds to “spin-up” a new JRuby instance • Some gems still need their extensions ported to Java • Not officially supported 17 Saturday, November 21, 2009
- 18. Introducing Duby Saturday, November 21, 2009

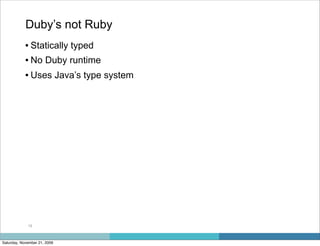

- 19. Duby’s not Ruby • Statically typed • No Duby runtime • Uses Java’s type system 19 Saturday, November 21, 2009

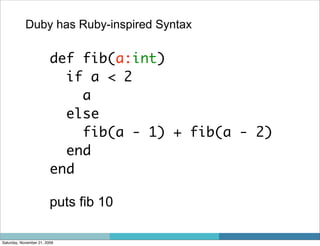

- 20. Duby has Ruby-inspiredSyntax def fib(a:int) if a < 2 a else fib(a - 1) + fib(a - 2) end end puts fib 10 Saturday, November 21, 2009

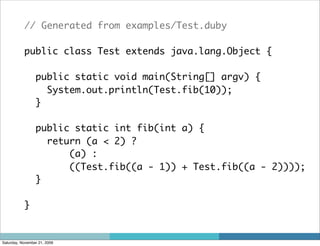

- 21. // Generated fromexamples/Test.duby public class Test extends java.lang.Object { public static void main(String[] argv) { System.out.println(Test.fib(10)); } public static int fib(int a) { return (a < 2) ? (a) : ((Test.fib((a - 1)) + Test.fib((a - 2)))); } } Saturday, November 21, 2009

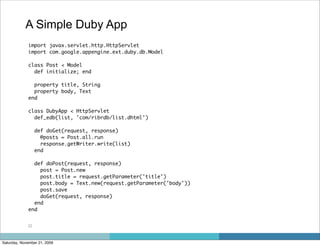

- 22. A Simple DubyApp import javax.servlet.http.HttpServlet import com.google.appengine.ext.duby.db.Model class Post < Model def initialize; end property title, String property body, Text end class DubyApp < HttpServlet def_edb(list, 'com/ribrdb/list.dhtml') def doGet(request, response) @posts = Post.all.run response.getWriter.write(list) end def doPost(request, response) post = Post.new post.title = request.getParameter('title') post.body = Text.new(request.getParameter('body')) post.save doGet(request, response) end end 22 Saturday, November 21, 2009

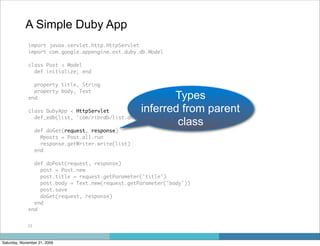

- 23. A Simple DubyApp import javax.servlet.http.HttpServlet import com.google.appengine.ext.duby.db.Model class Post < Model def initialize; end property title, String property body, Text end Types class DubyApp < HttpServlet inferred from parent def_edb(list, 'com/ribrdb/list.dhtml') class def doGet(request, response) @posts = Post.all.run response.getWriter.write(list) end def doPost(request, response) post = Post.new post.title = request.getParameter('title') post.body = Text.new(request.getParameter('body')) post.save doGet(request, response) end end 23 Saturday, November 21, 2009
- 24. A Simple DubyApp import javax.servlet.http.HttpServlet import com.google.appengine.ext.duby.db.Model class Post < Model def initialize; end property title, String property body, Text end Plugins class DubyApp < HttpServlet def_edb(list, 'com/ribrdb/list.dhtml') def doGet(request, response) @posts = Post.all.run response.getWriter.write(list) end def doPost(request, response) post = Post.new post.title = request.getParameter('title') post.body = Text.new(request.getParameter('body')) post.save doGet(request, response) end end 24 Saturday, November 21, 2009
- 25. Duby Supports Plugins Only form of metaprogramming (for now) require 'erb' Duby::AST.defmacro('def_edb') do |duby, fcall, p| name = fcall.args_node.get(0).name path = fcall.args_node.get(1).value erb = ERB::Compiler.new(nil) ... src = erb.compile(IO.read(path)) duby.eval(src, p, “(edb)”) end Saturday, November 21, 2009

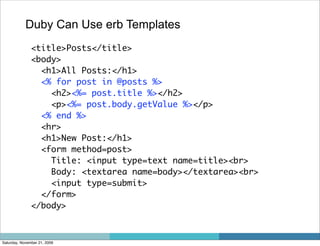

- 26. Duby Can Useerb Templates <title>Posts</title> <body> <h1>All Posts:</h1> <% for post in @posts %> <h2><%= post.title %></h2> <p><%= post.body.getValue %></p> <% end %> <hr> <h1>New Post:</h1> <form method=post> Title: <input type=text name=title><br> Body: <textarea name=body></textarea><br> <input type=submit> </form> </body> Saturday, November 21, 2009

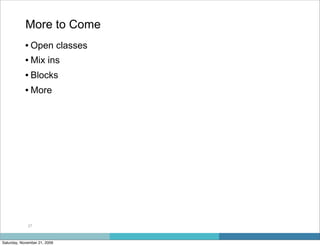

- 27. More to Come • Open classes • Mix ins • Blocks • More 27 Saturday, November 21, 2009
- 28. Resources • Ryan Brown, ribrdb@google.com John Woodell, woodie@google.com • Google App Engine for JRuby – http://code.google.com/p/appengine-jruby/ • Google Group – http://groups.google.com/group/appengine-jruby • Blog: JRuby on App Engine Blog – http://jruby-appengine.blogspot.com/ 28 Saturday, November 21, 2009
