The document discusses the RTView for TIBCO EMS Monitor, which provides insights into the health state of TIBCO EMS servers through dashboards and alerting features. It highlights SL Corporation's long-standing partnership with TIBCO and the capabilities of RTView for application performance monitoring. Resources for product information and training are also provided.

1. RTView for TIBCO EMS Monitor
Mark Bloomberg
mbloomberg@sl.com
Gopi Parimi
gparimi@sl.com

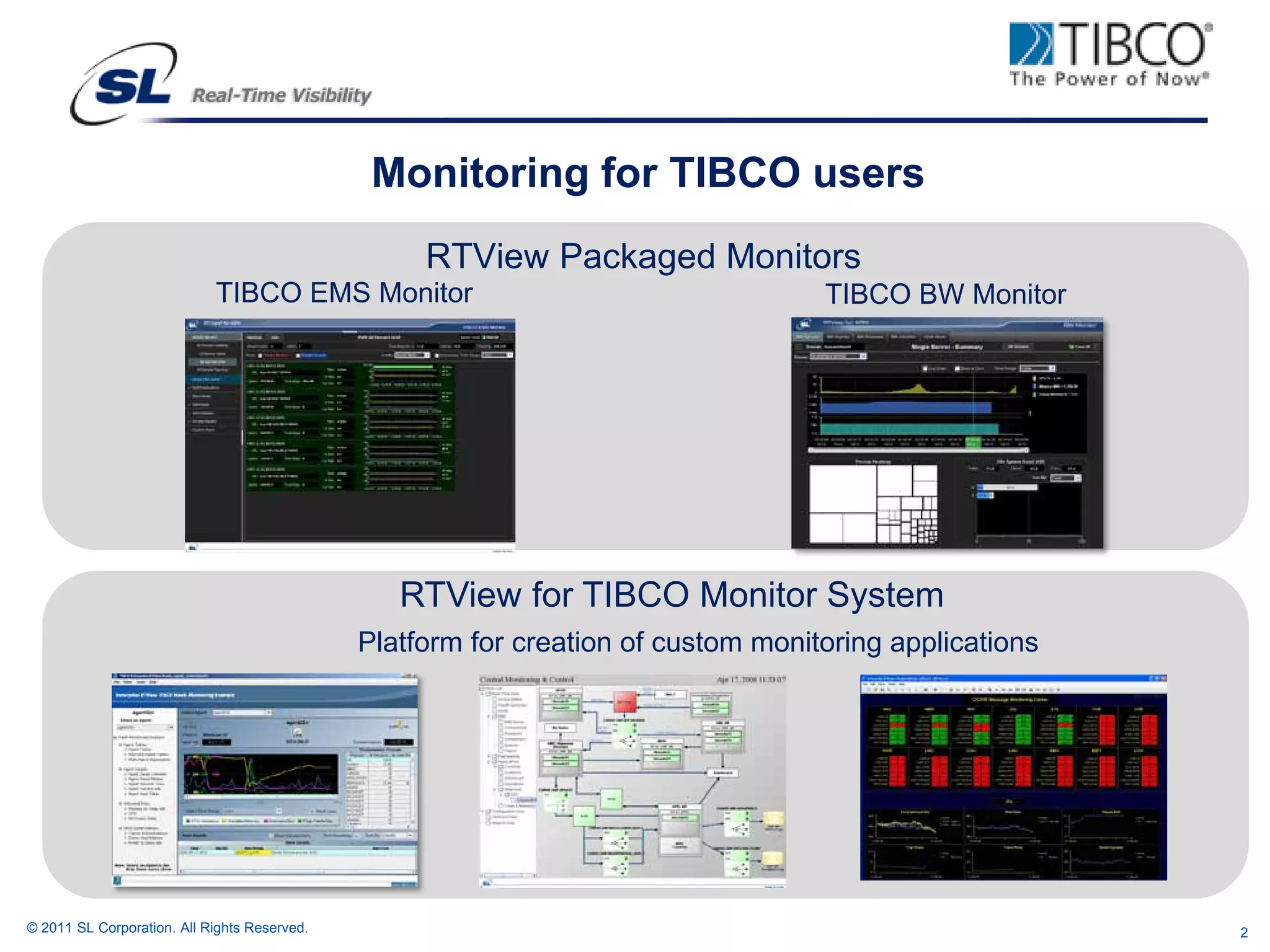

2. Monitoring for TIBCO users
RTView Packaged Monitors
TIBCO EMS Monitor TIBCO BW Monitor
RTView for TIBCO Monitor System
Platform for creation of custom monitoring applications
© 2011 SL Corporation. All Rights Reserved. 2

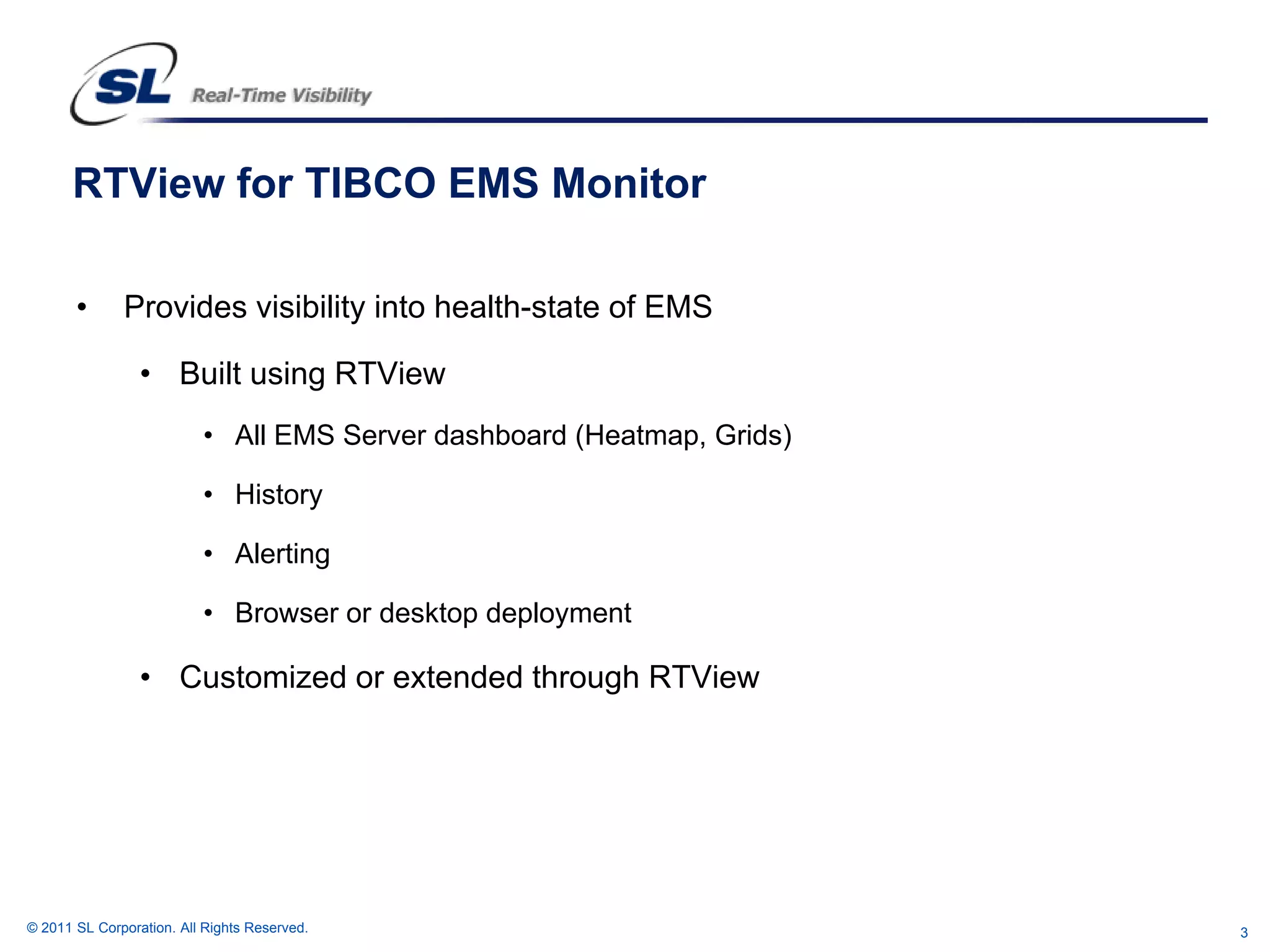

3. RTView for TIBCO EMS Monitor
• Provides visibility into health-state of EMS
• Built using RTView
• All EMS Server dashboard (Heatmap, Grids)
• History
• Alerting
• Browser or desktop deployment
• Customized or extended through RTView
© 2011 SL Corporation. All Rights Reserved. 3

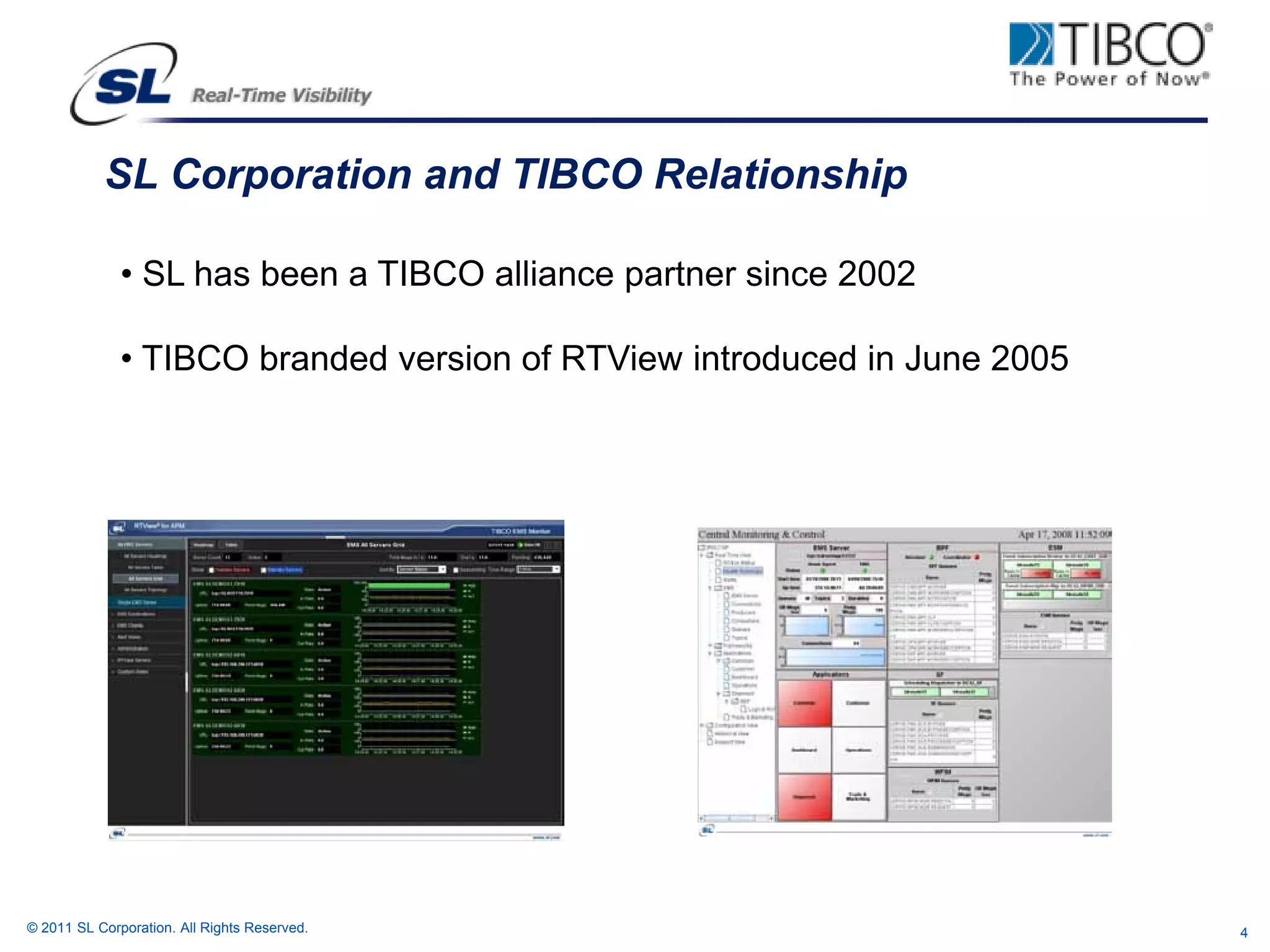

4. SL Corporation and TIBCO Relationship
• SL has been a TIBCO alliance partner since 2002
• TIBCO branded version of RTView introduced in June 2005
© 2011 SL Corporation. All Rights Reserved. 4

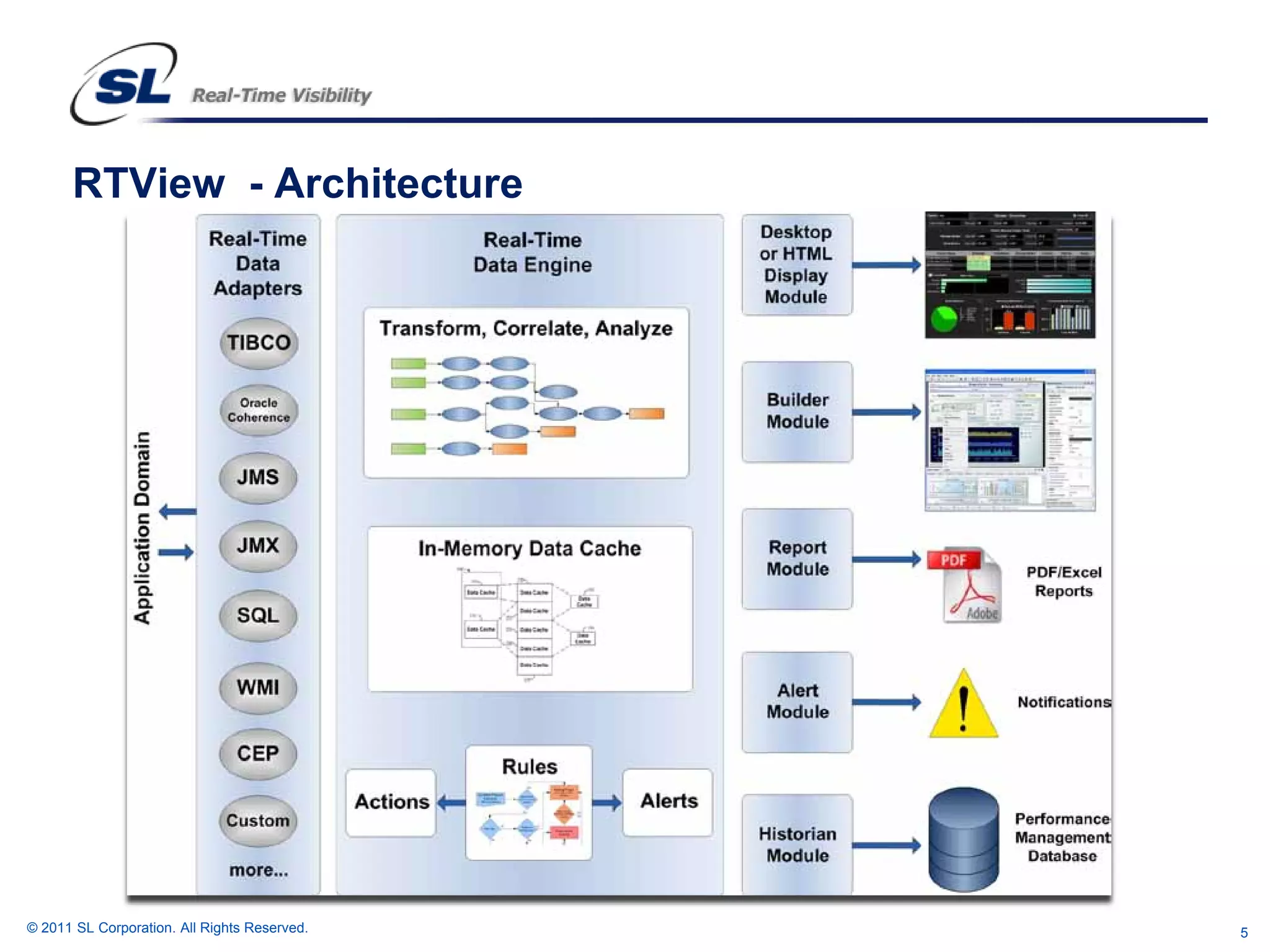

5. RTView - Architecture
© 2011 SL Corporation. All Rights Reserved. 5

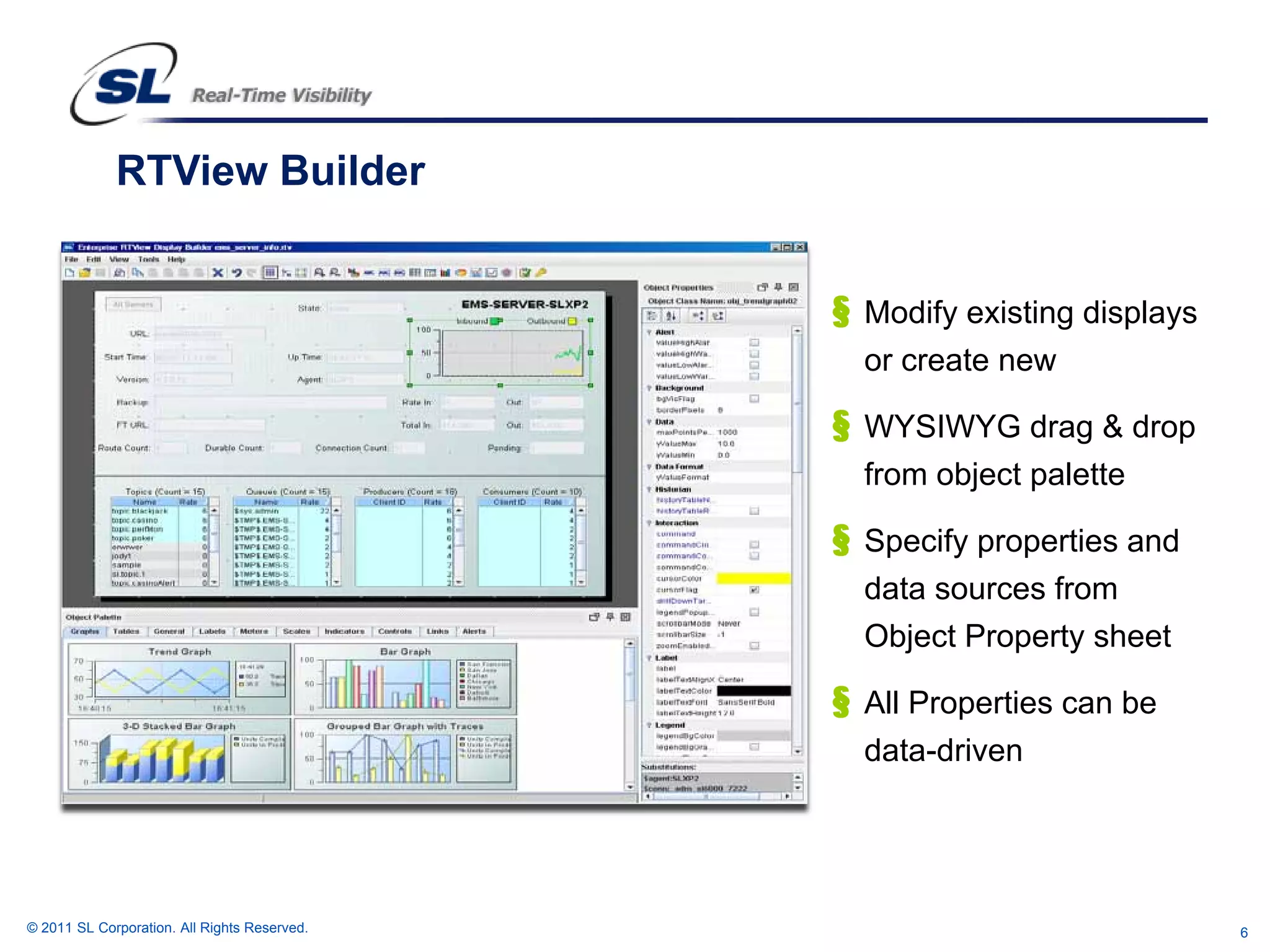

6. RTView Builder
§ Modify existing displays
or create new
§ WYSIWYG drag & drop
from object palette
§ Specify properties and
data sources from
Object Property sheet
§ All Properties can be
data-driven
© 2011 SL Corporation. All Rights Reserved. 6

7. RTView for Application Performance Monitoring
Single Pane of Glass User Experience Applications & Infrastructure
Retail Store Operations
Application-centric Application-centric SLA Performance
Web Server Farms Transportation & Logistics Services & Infrastructure
© 2011 SL Corporation. All Rights Reserved. 7

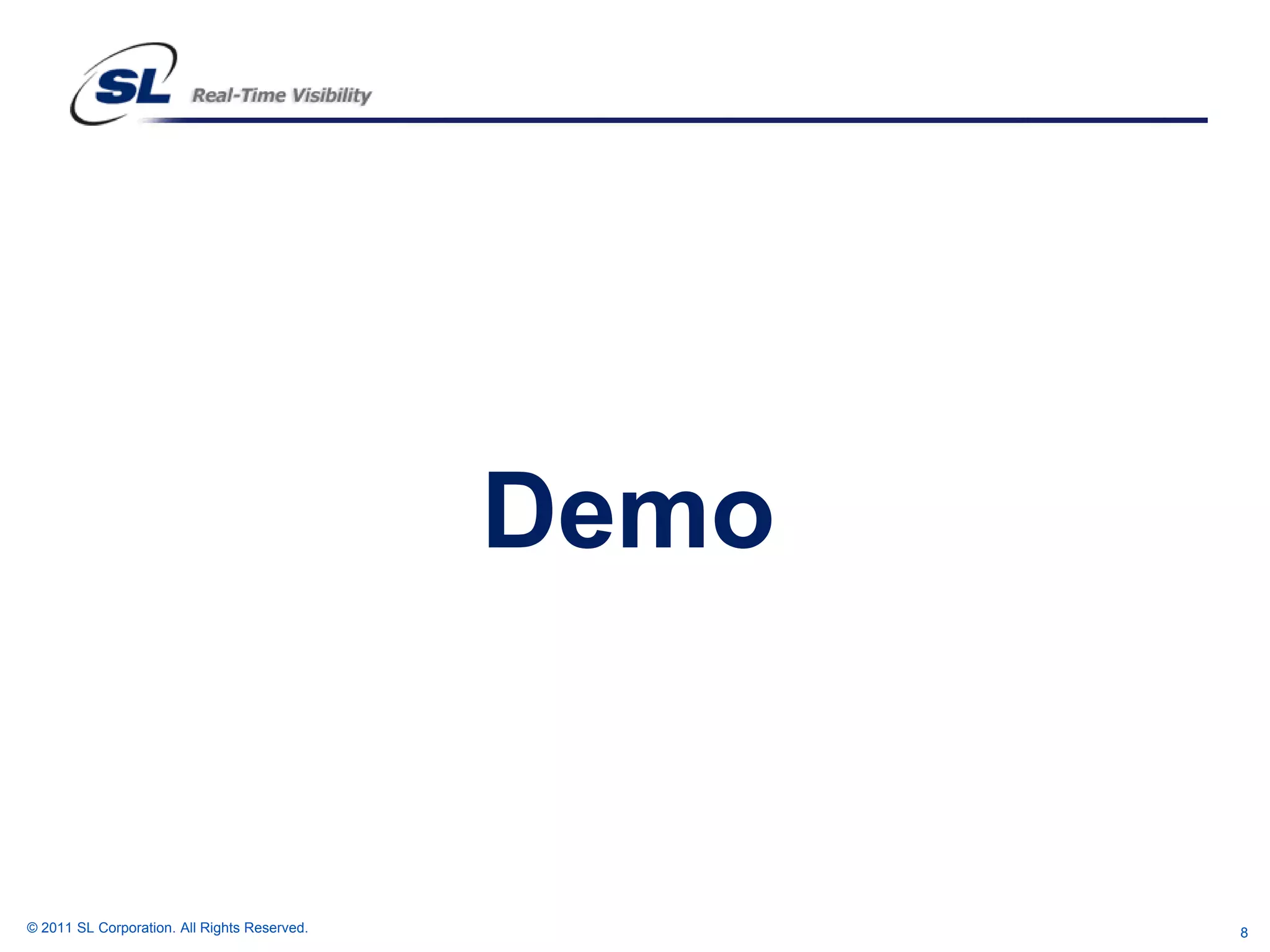

8. Demo
© 2011 SL Corporation. All Rights Reserved. 8

9. Resources
1. EMS Monitor Product Page
www.sl.com/products/rtviewtibco_emsmonitor_overview.shtml
2. RTView for TIBCO Product Page
www.sl.com/products/rtviewtibco.shtml
3. RTView for TIBCO Online training
http://www.sl.com/services/training_1.shtml
Request evaluation:
www.sl.com/products/downloads.shtml
© 2011 SL Corporation. All Rights Reserved. 9

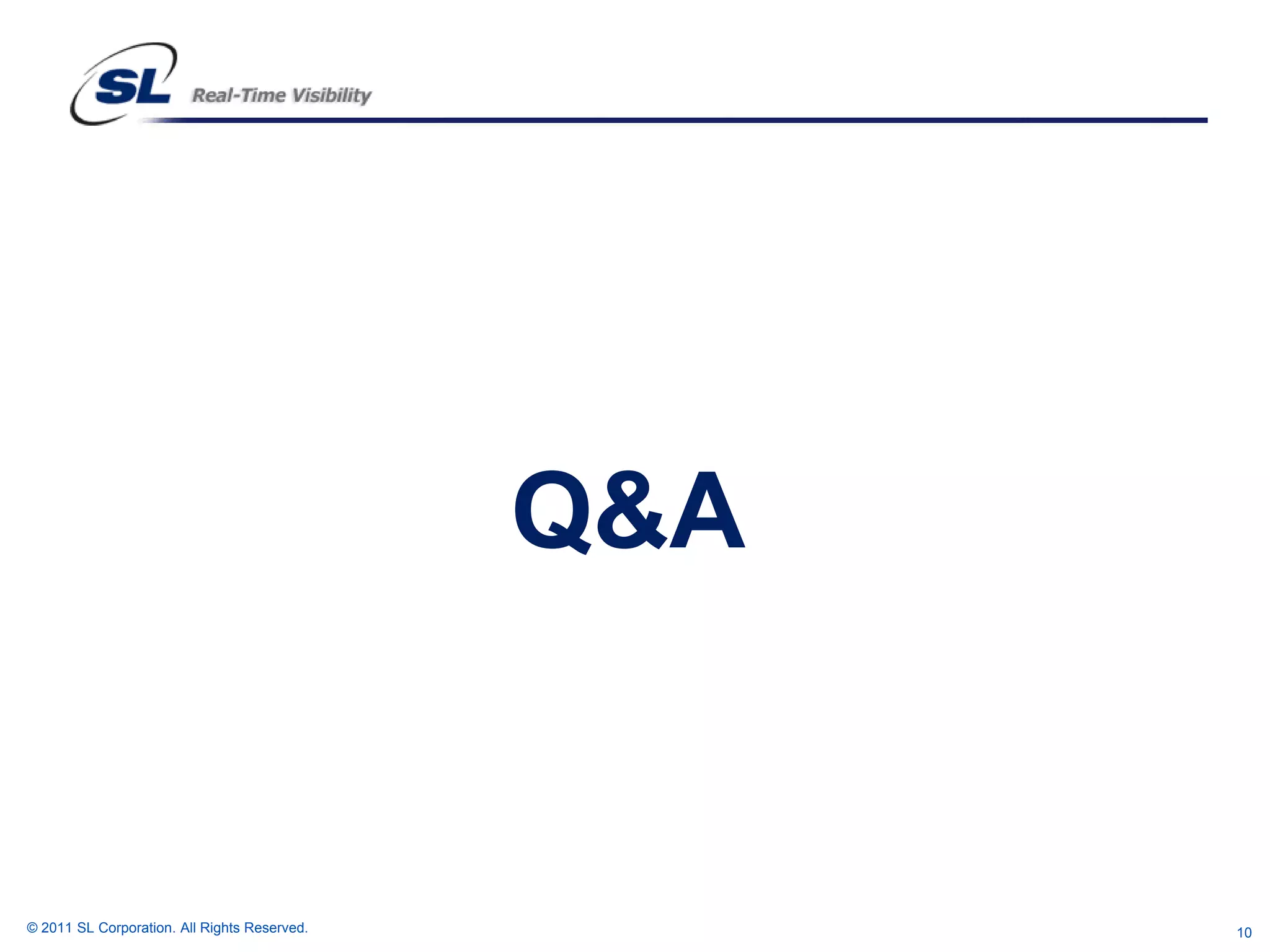

10. Q&A
© 2011 SL Corporation. All Rights Reserved. 10

11. Thank you!
Contact:
Mark Bloomberg
mbloomberg@sl.com
© 2011 SL Corporation. All Rights Reserved. 11
