DDS: A Next-Generation Approach to Building Distributed Real-Time Systems Gerardo Pardo-Castellote, Ph.D. Co-chair OMG DDS SIG CTO, Real-Time Innovations gerardo.pardo@rti.com The Real-Time 2010 Quickstart Middleware Experts http://www.rti.com

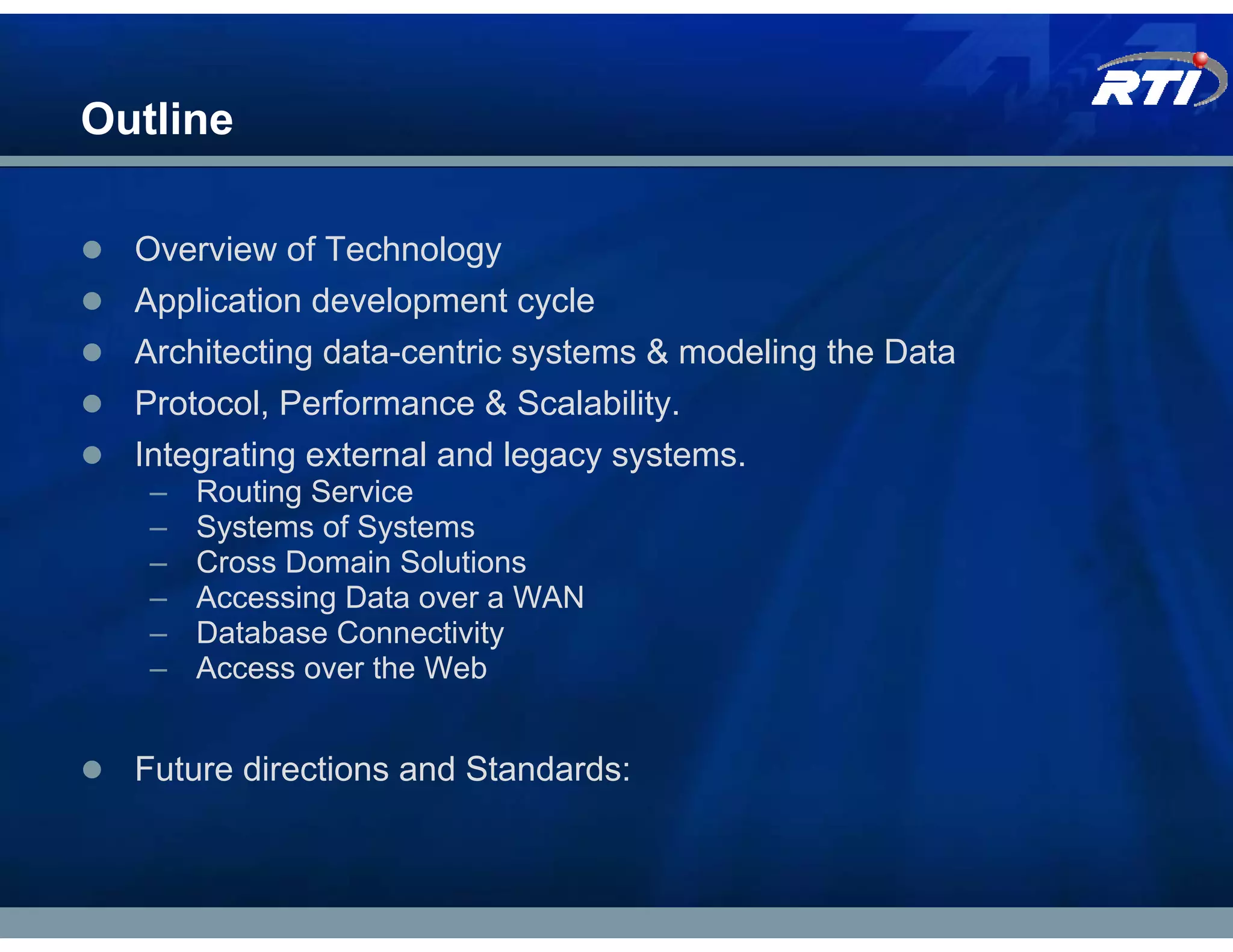

Outline Overview of Technology – Background – Applications – Data-Centric Pub-Sub – Quality of Service – Add-on components Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards:

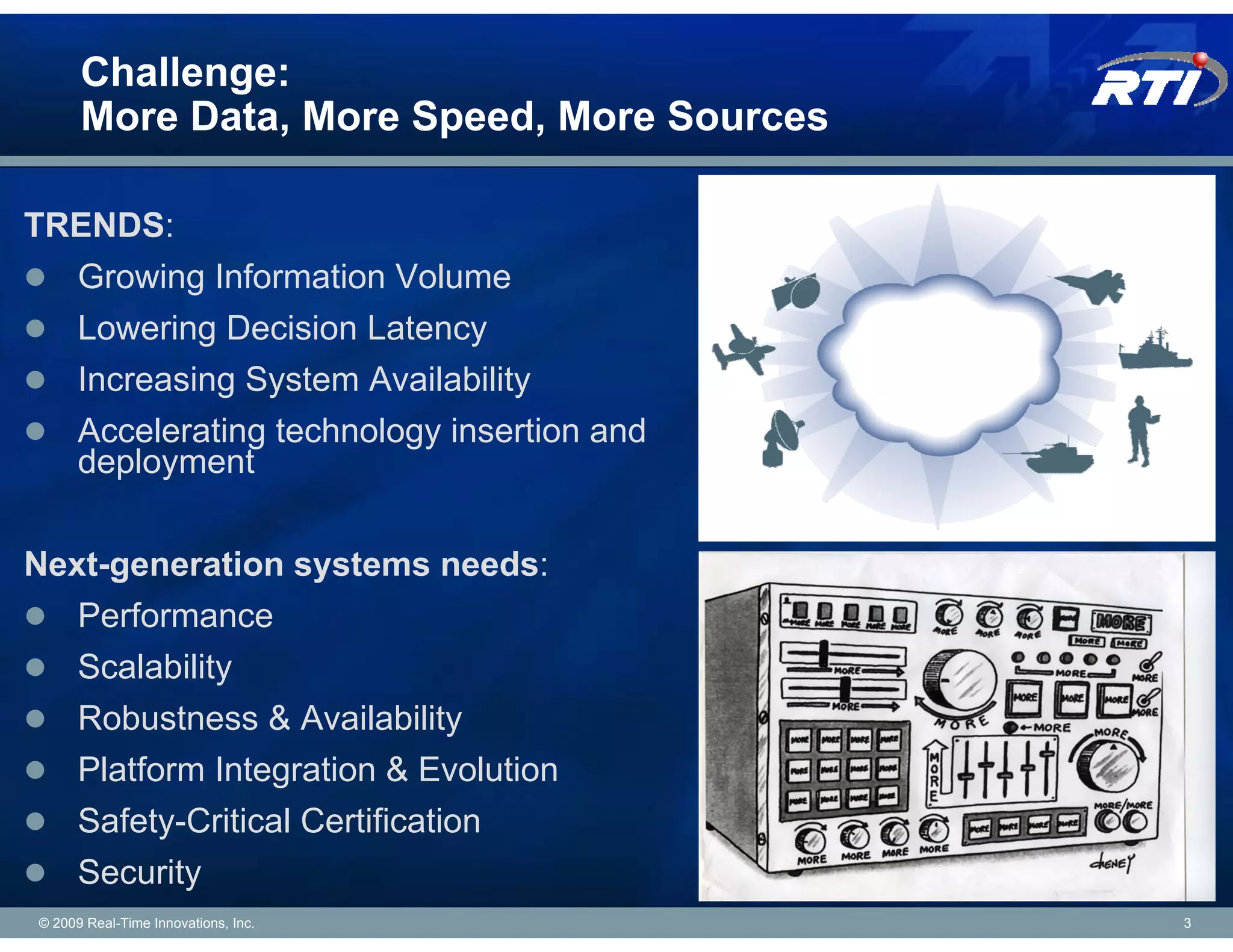

Challenge: More Data, More Speed, More Sources TRENDS: Growing Information Volume Lowering Decision Latency Increasing System Availability Accelerating technology insertion and deployment Next-generation systems needs: Performance Scalability Robustness & Availability Platform Integration & Evolution Safety-Critical Certification Security © 2009 Real-Time Innovations, Inc. 3

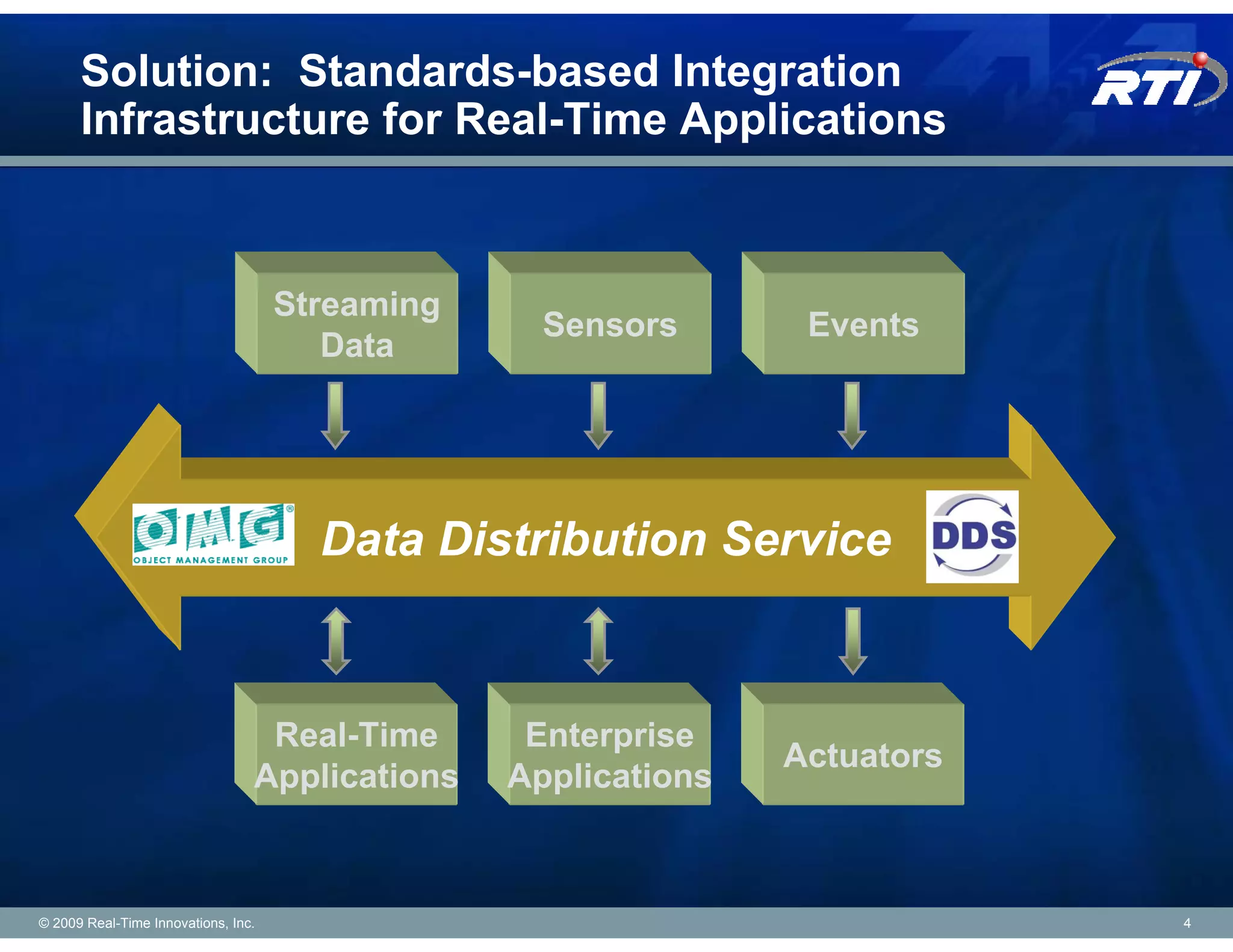

Solution: Standards-based Integration Infrastructure for Real-Time Applications Streaming Sensors Events Data Data Distribution Service Real-Time Enterprise Actuators Applications Applications © 2009 Real-Time Innovations, Inc. 4
Architecture for the next-generation systems Existing technologies are reaching robustness/performance/scalability limits RTI DDS brings a fundamental new architecture and approach – Fully decentralized, peer-to-peer, “no bottlenecks” architecture – Superior Wire Protocol – Powerful data-centric model – Built-in Robustness and High-Availability – Standards-based, multi-platform Brokers as choke-points RTI Approach Single-lane traffic No prioritization

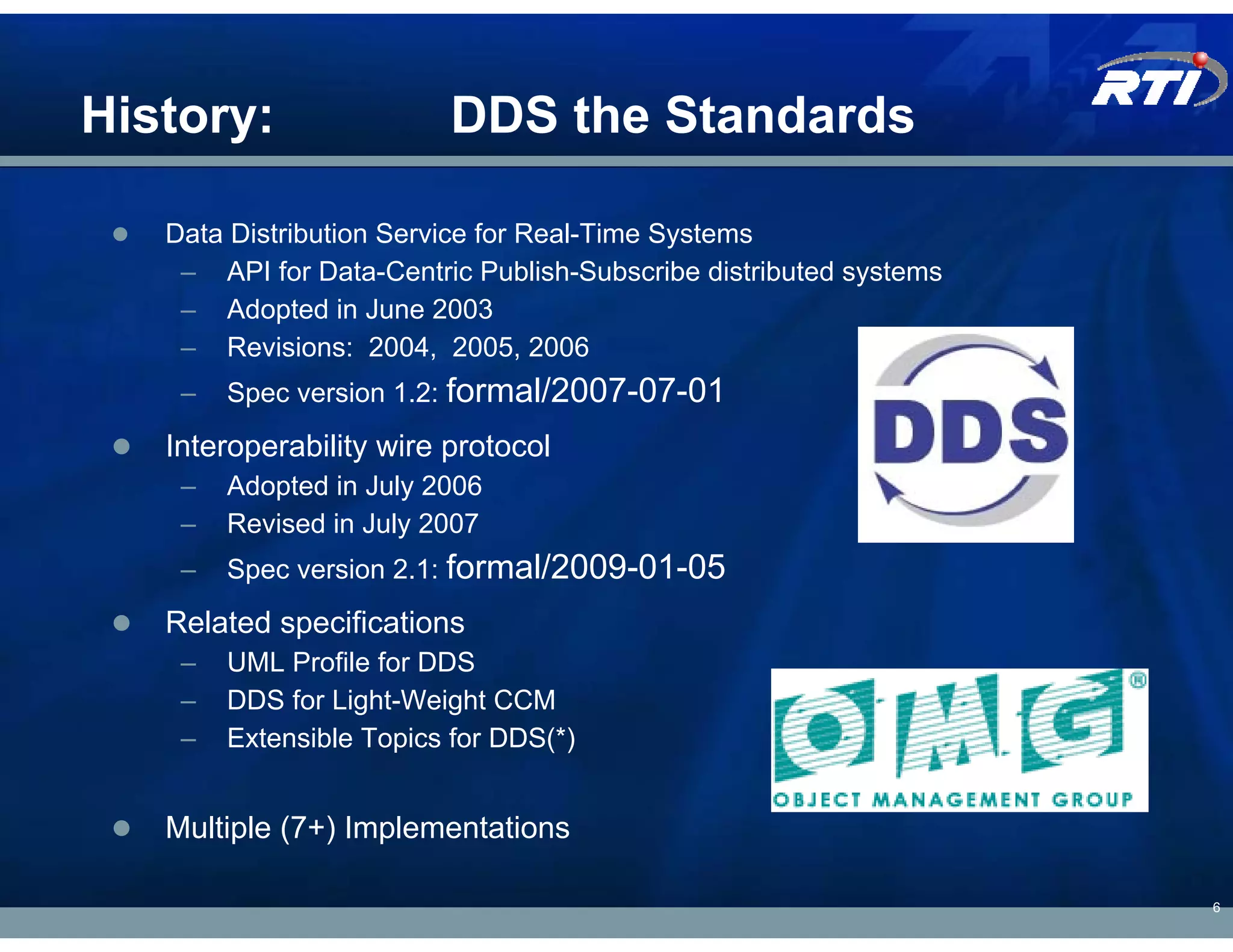

History: DDS the Standards Data Distribution Service for Real-Time Systems – API for Data-Centric Publish-Subscribe distributed systems – Adopted in June 2003 – Revisions: 2004, 2005, 2006 – Spec version 1.2: formal/2007-07-01 Interoperability wire protocol – Adopted in July 2006 – Revised in July 2007 – Spec version 2.1: formal/2009-01-05 Related specifications – UML Profile for DDS – DDS for Light-Weight CCM – Extensible Topics for DDS(*) Multiple (7+) Implementations 6

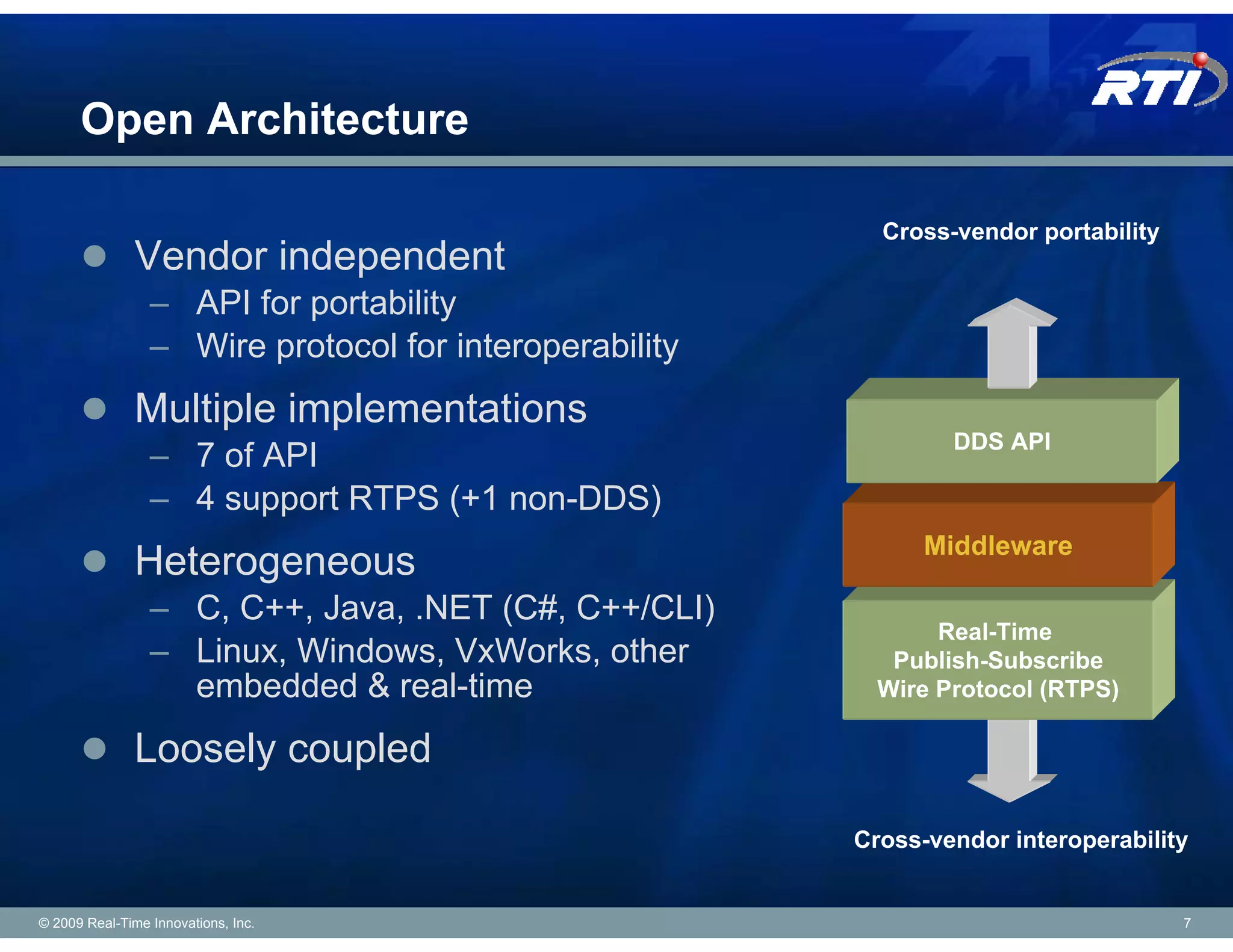

Open Architecture Cross-vendor portability Vendor independent – API for portability – Wire protocol for interoperability Multiple implementations DDS API – 7 of API – 4 support RTPS (+1 non-DDS) Middleware Heterogeneous – C, C++, Java, .NET (C#, C++/CLI) Real-Time – Linux, Windows, VxWorks, other Publish-Subscribe embedded & real-time Wire Protocol (RTPS) Loosely coupled Cross-vendor interoperability © 2009 Real-Time Innovations, Inc. 7

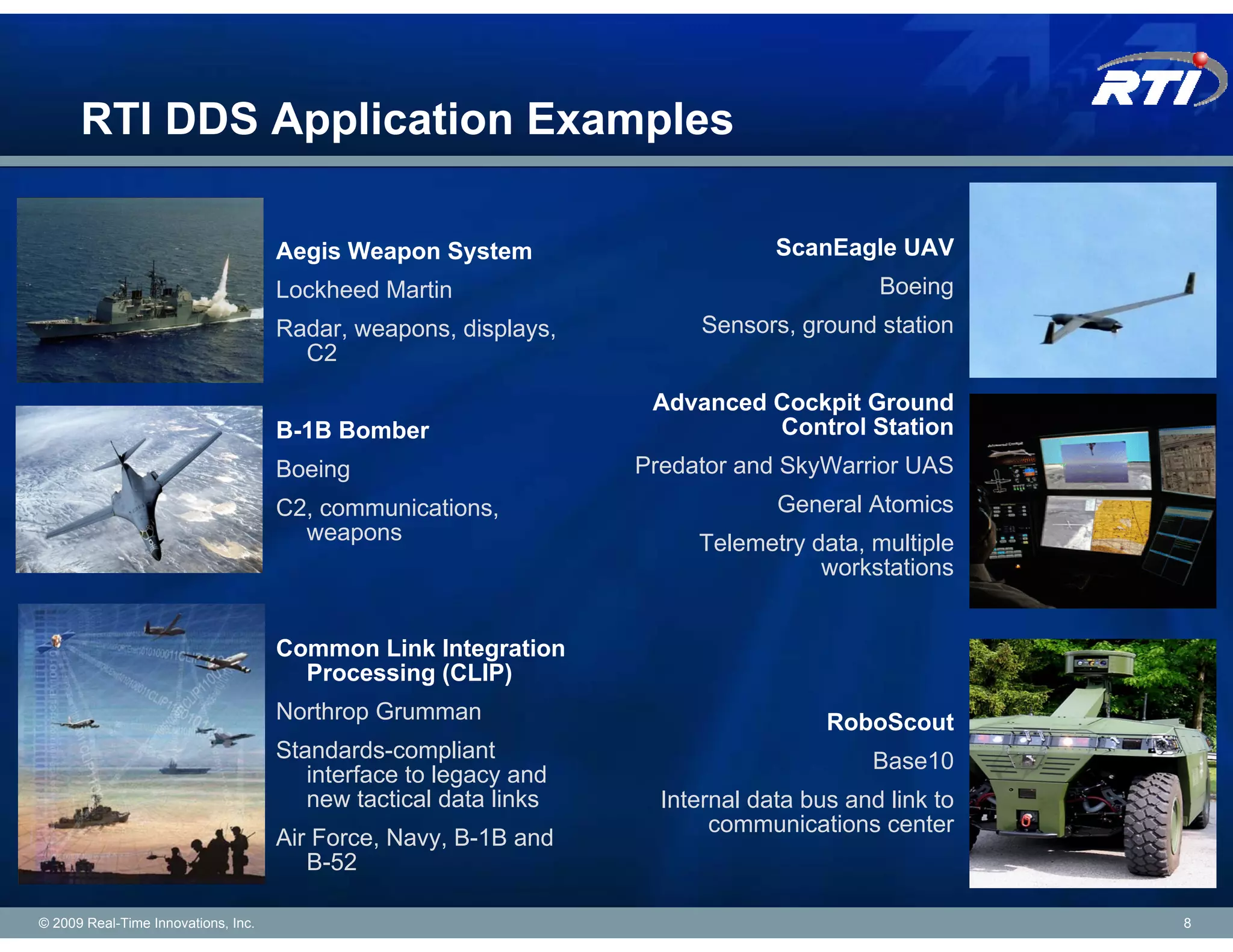

RTI DDS Application Examples Aegis Weapon System ScanEagle UAV Lockheed Martin Boeing Radar, weapons, displays, Sensors, ground station C2 Advanced Cockpit Ground B-1B Bomber Control Station Boeing Predator and SkyWarrior UAS C2, communications, General Atomics weapons Telemetry data, multiple workstations Common Link Integration Processing (CLIP) Northrop Grumman RoboScout Standards-compliant Base10 interface to legacy and new tactical data links Internal data bus and link to communications center Air Force, Navy, B-1B and B-52 © 2009 Real-Time Innovations, Inc. 8
RTI DDS Application Examples Driver safety Multi-ship simulator Volkswagen FORCE Technology vision systems, analysis, driver Controls, simulation display information systems Medical imaging Mobile asset tracking NMR and MRI Wi-Tronix Sensors, RF generators, user GPS, operational status interface, control computers over wireless links Automated trading Automated Trading Desk (ATD, Highway traffic monitoring now Citigroup) City of Tokyo Market data feed handlers, pricing engines, algorithmic Roadway sensors, roadside trading applications kiosks, control center © 2009 Real-Time Innovations, Inc. 9
RTI DDS Application Examples Full-immersion simulation Signal Processing National Highway Transportation PLATH GMBH Safety Authority RTI supports modular Migrated from CORBA, DCOM programming across for performance product line Air-Traffic Management INDRA. Deployed in Large Telescopes UK, Germany, Spain European Southern Standards, Performance, Observatory Scalability Performance & Scalability 1000 mirrors, 1sec loop Radar Systems Industrial Control AWACS upgrade Schneider Electric Evolvability, Mainteinability, VxWorks-based PLCs and supportability communicate via RTI-DDS © 2009 Real-Time Innovations, Inc. 10
Standards Focus Object Management Group – Board of Directors member – Authored DDS and RTPS specs, co-chair SIG Open Group Network Centric Operations Industry Consortium (NCOIC) – Chair Open Standards and Patterns Working Group STAC Benchmark Council Support and integrate with: – DDS, RTPS, JMS, SQL, Web Services, CORBA, UML, HLA, JAUS, Eclipse, IPv6… 11 © 2008 Real-Time Innovations, Inc.
Corporate Background Founded by Stanford researchers Focused on real-time middleware Solid financials – 16-year track record of growth Real-Time Market Leader – #1 market share in embedded middleware of all types1 – 70+% worldwide share of DDS market2 50/50 software and services 1Embedded Market Forecasters 2VDC Analyst Report 12

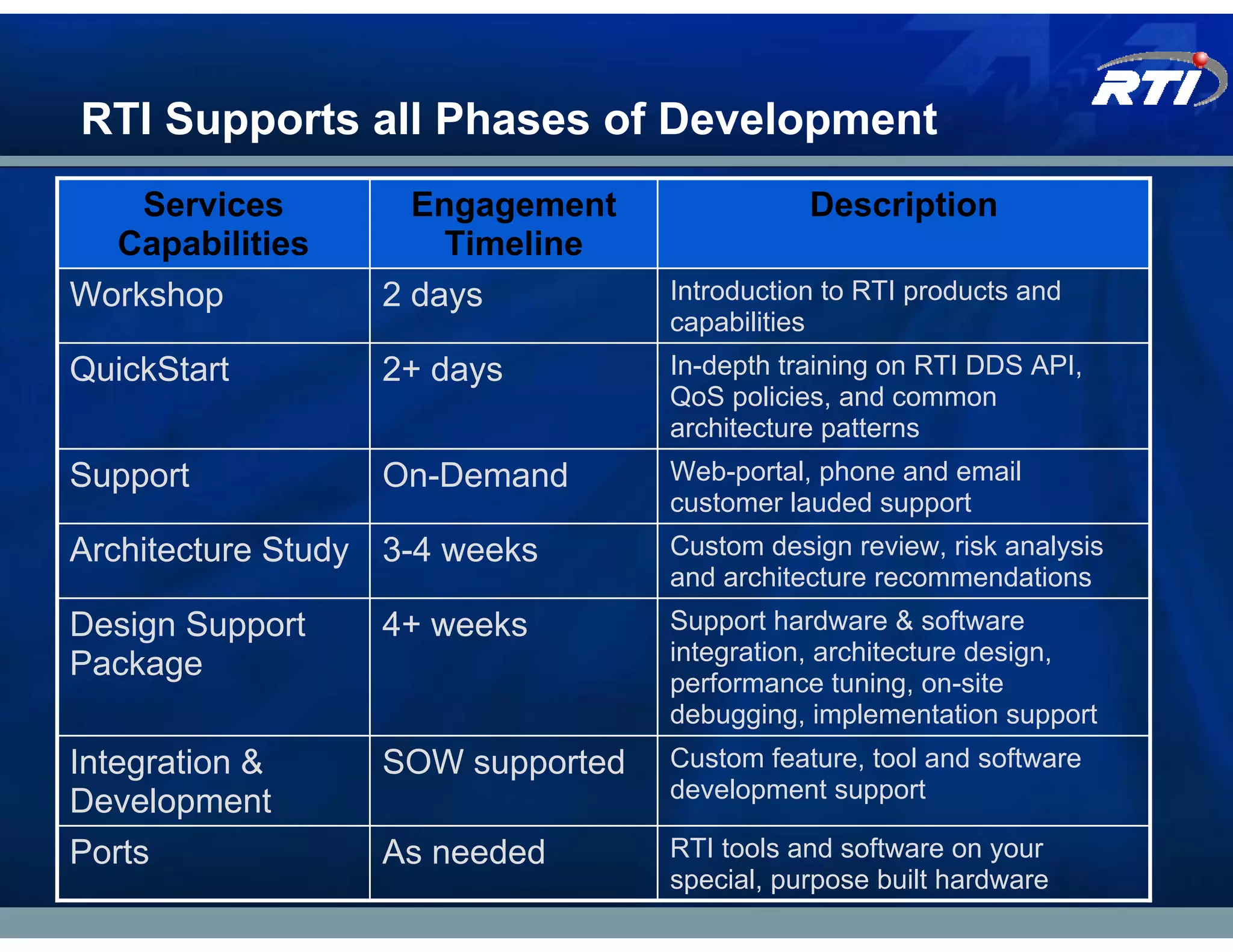

RTI Supports all Phases of Development Services Engagement Description Capabilities Timeline Workshop 2 days Introduction to RTI products and capabilities QuickStart 2+ days In-depth training on RTI DDS API, QoS policies, and common architecture patterns Support On-Demand Web-portal, phone and email customer lauded support Architecture Study 3-4 weeks Custom design review, risk analysis and architecture recommendations Design Support 4+ weeks Support hardware & software integration, architecture design, Package performance tuning, on-site debugging, implementation support Integration & SOW supported Custom feature, tool and software development support Development Ports As needed RTI tools and software on your special, purpose built hardware
RTI Global Presence

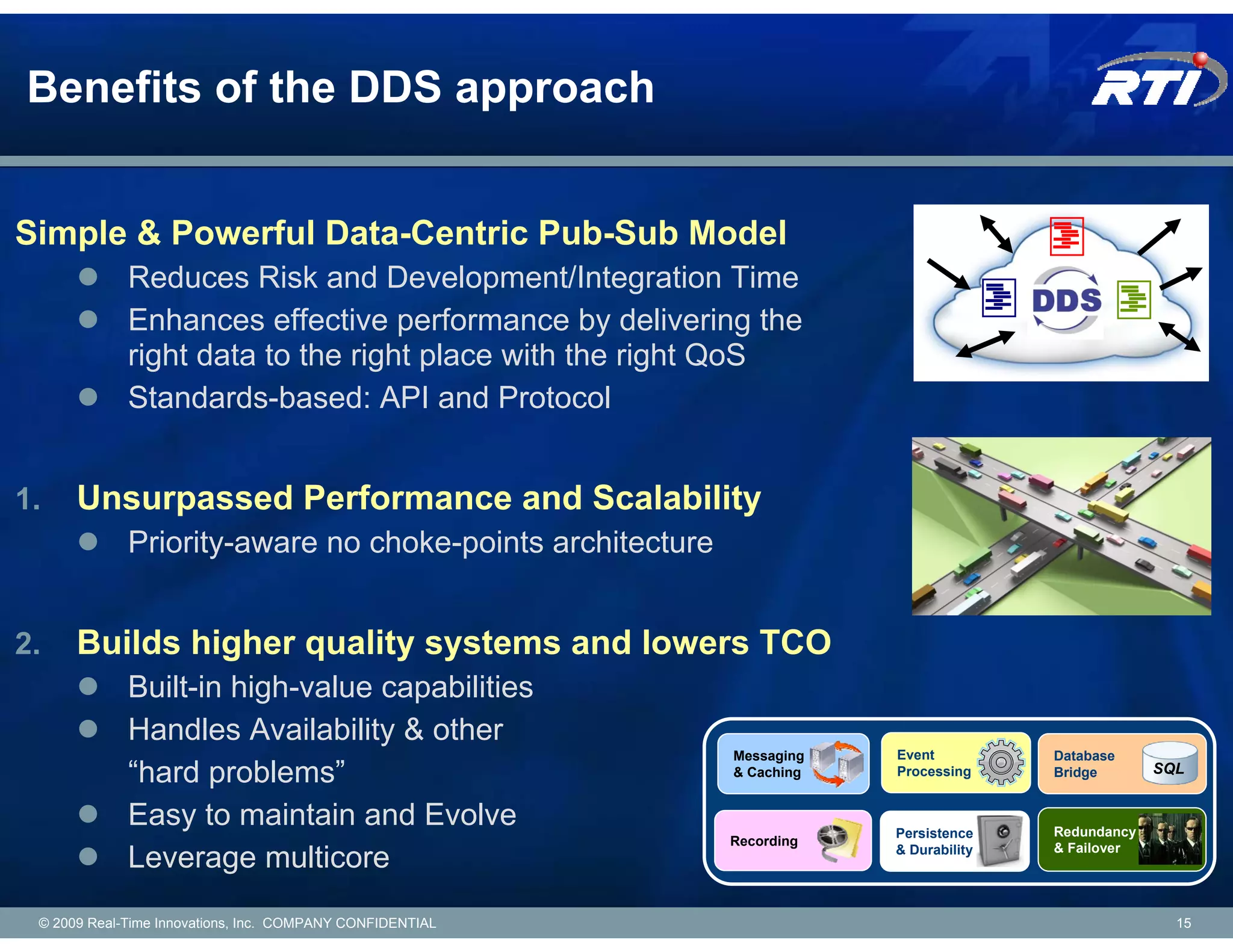

Benefits of the DDS approach Simple & Powerful Data-Centric Pub-Sub Model Reduces Risk and Development/Integration Time Enhances effective performance by delivering the right data to the right place with the right QoS Standards-based: API and Protocol 1. Unsurpassed Performance and Scalability Priority-aware no choke-points architecture 2. Builds higher quality systems and lowers TCO Built-in high-value capabilities Handles Availability & other Messaging Event Database “hard problems” & Caching Processing Bridge SQL Easy to maintain and Evolve Persistence Redundancy Recording & Durability & Failover Leverage multicore © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 15

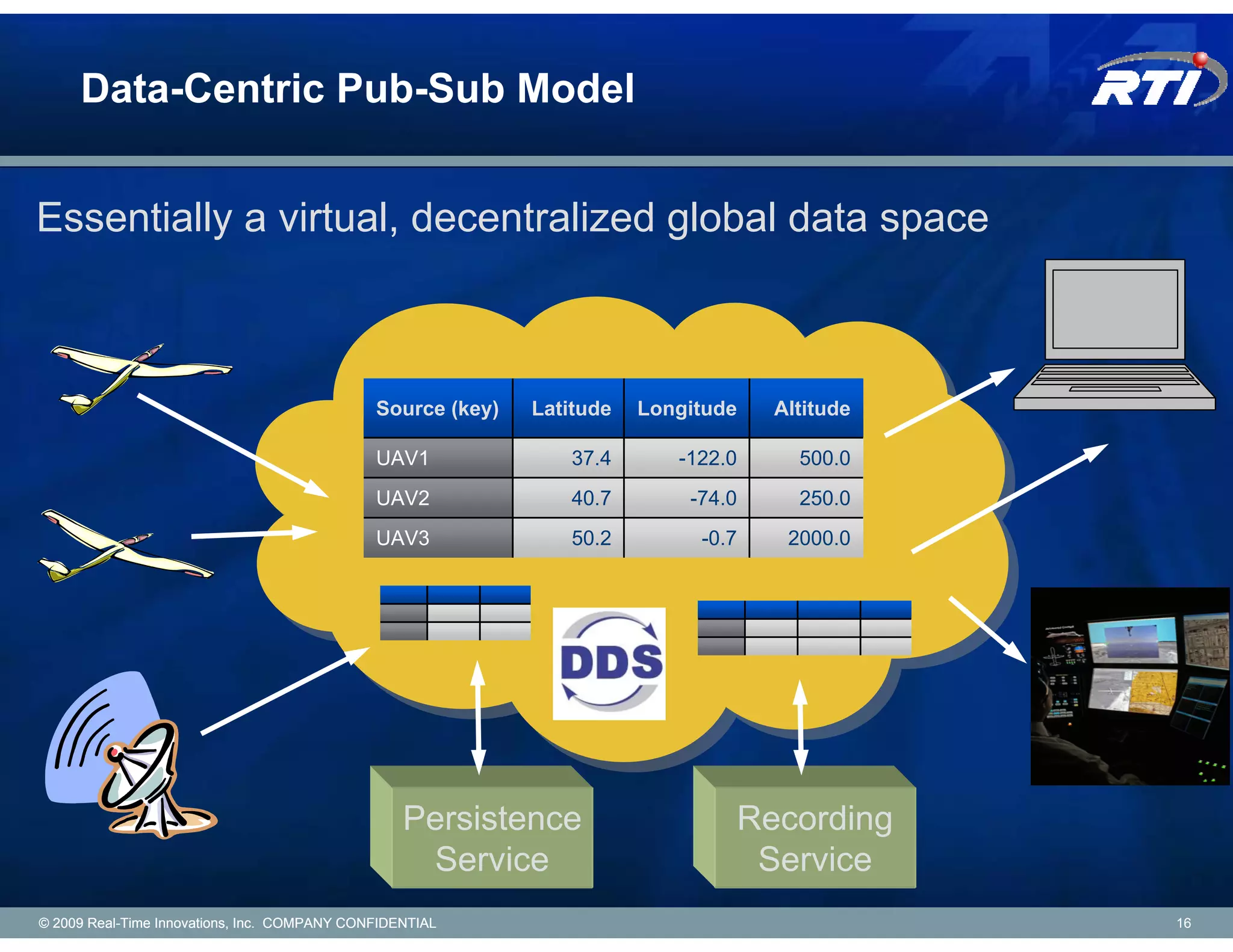

Data-Centric Pub-Sub Model Essentially a virtual, decentralized global data space Source (key) Latitude Longitude Altitude UAV1 37.4 -122.0 500.0 UAV2 40.7 -74.0 250.0 UAV3 50.2 -0.7 2000.0 Persistence Recording Service Service © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 16

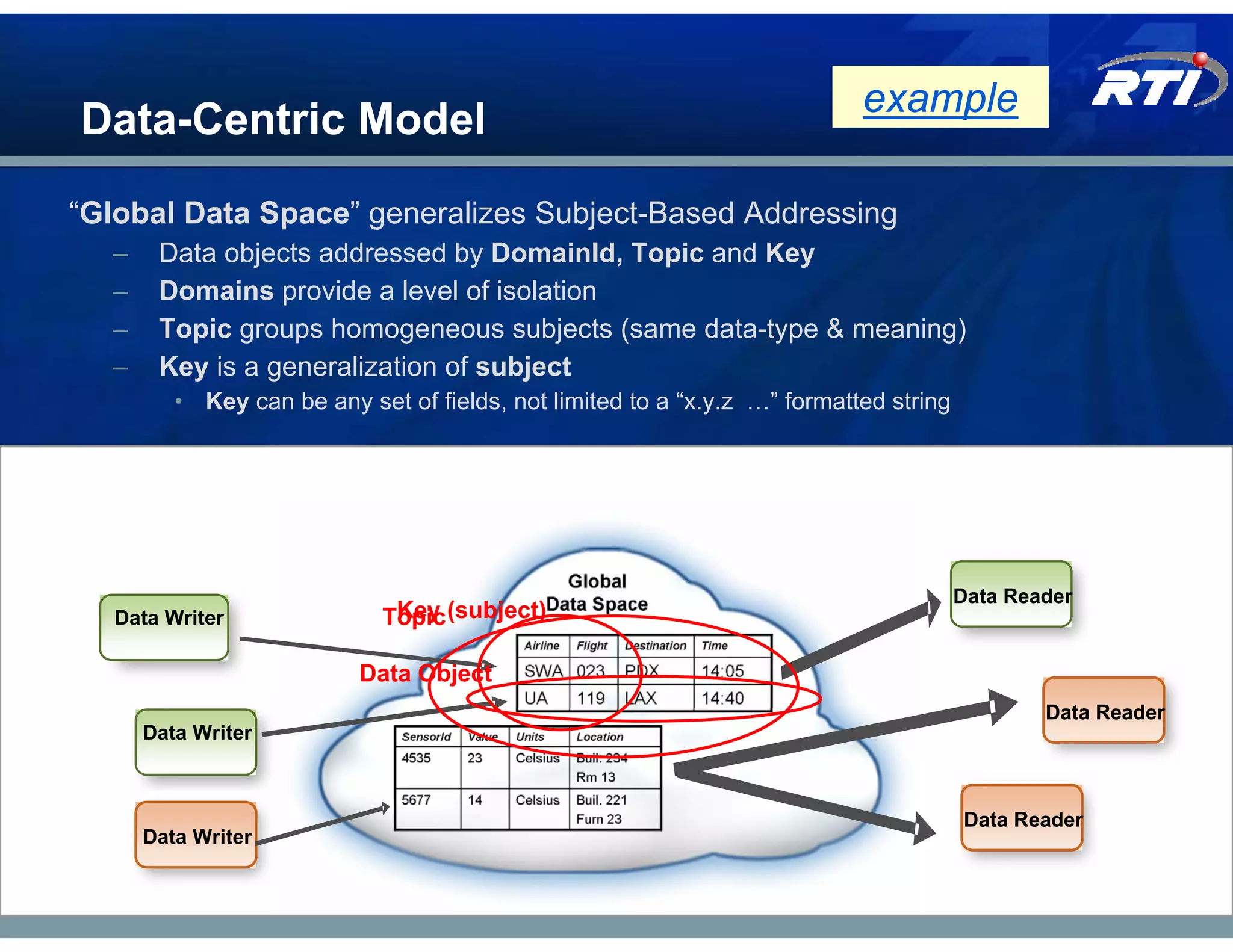

example Data-Centric Model “Global Data Space” generalizes Subject-Based Addressing – Data objects addressed by DomainId, Topic and Key – Domains provide a level of isolation – Topic groups homogeneous subjects (same data-type & meaning) – Key is a generalization of subject • Key can be any set of fields, not limited to a “x.y.z …” formatted string Data Reader Data Writer Topic (subject) Key Data Object Data Reader Data Writer Data Reader Data Writer

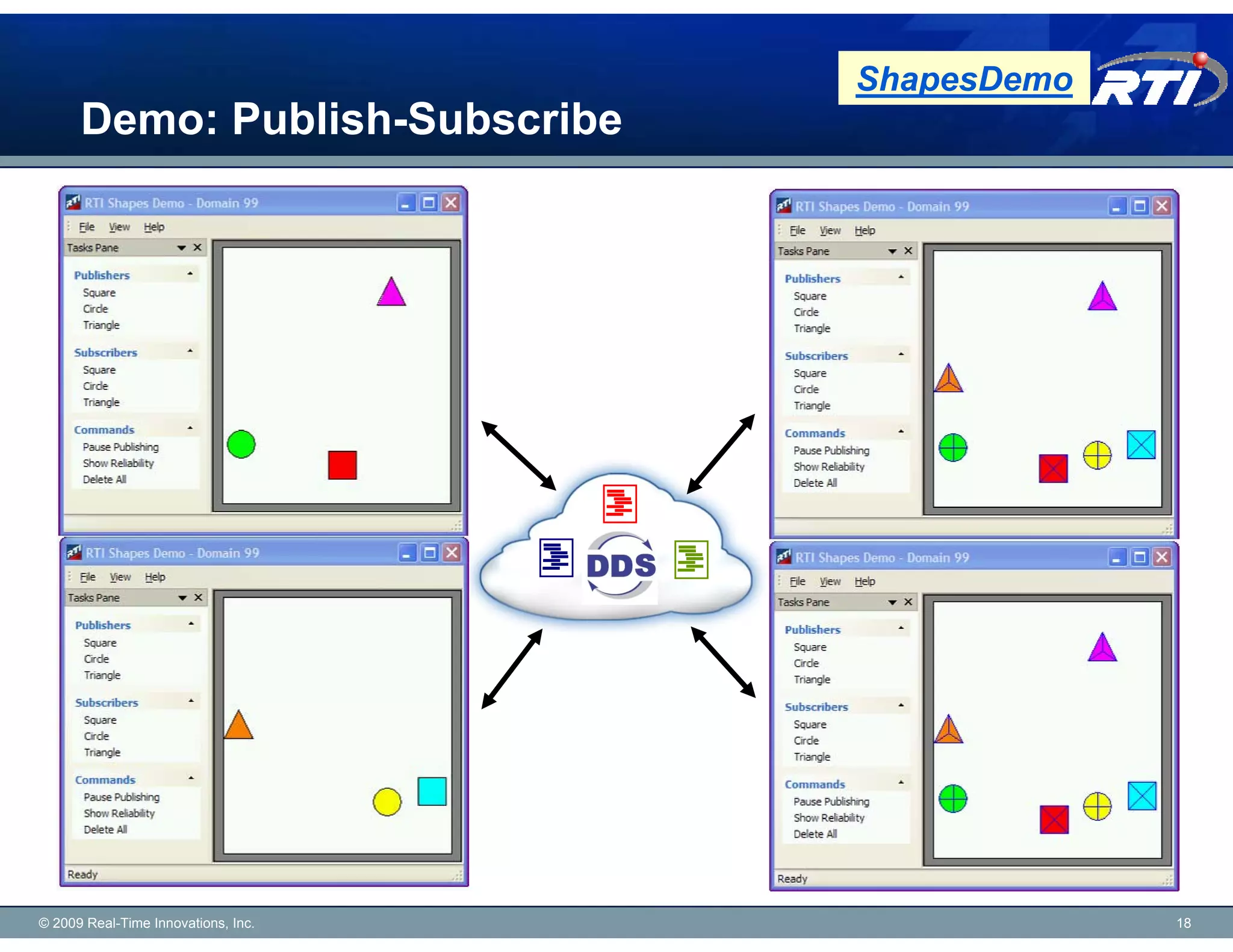

ShapesDemo Demo: Publish-Subscribe © 2009 Real-Time Innovations, Inc. 18

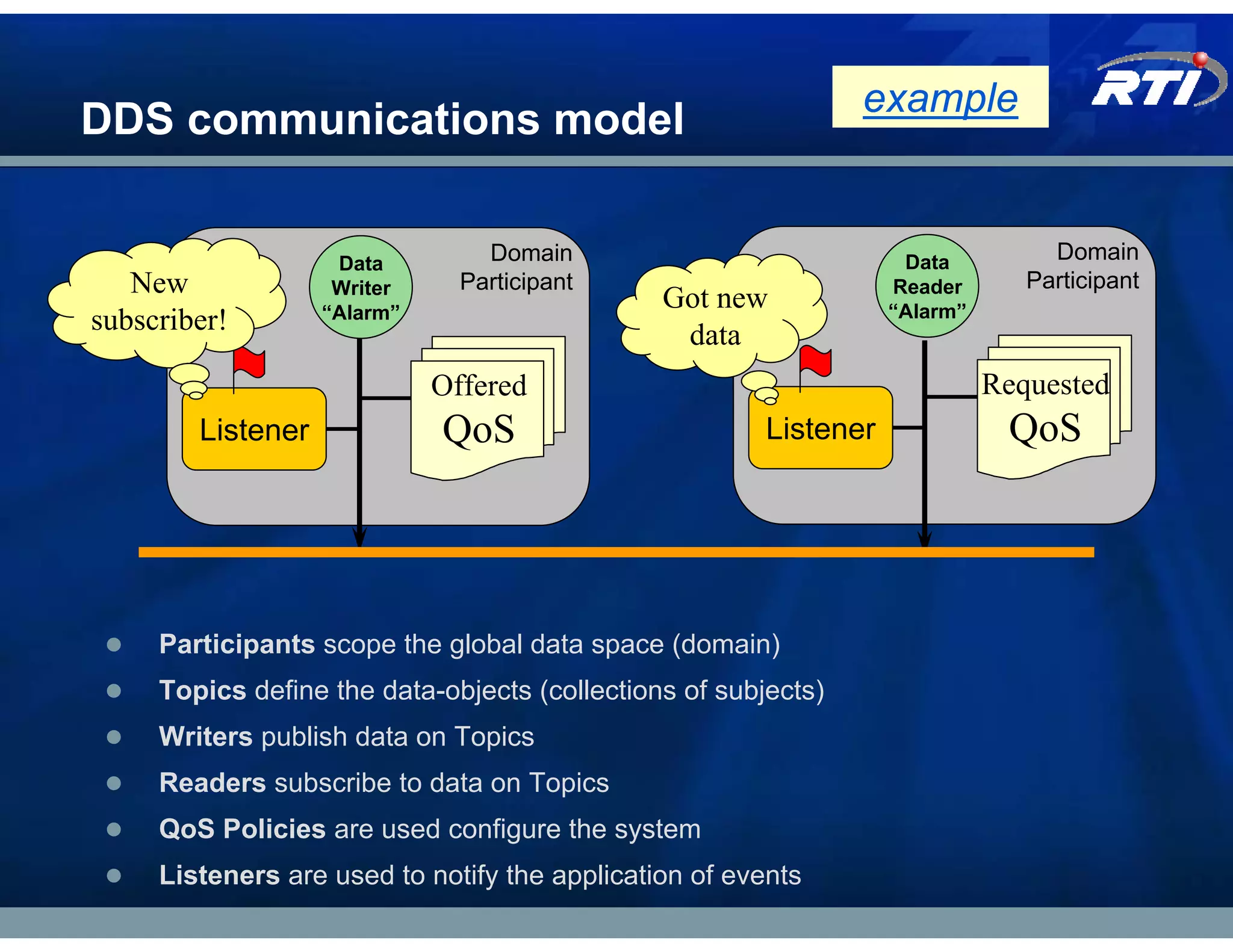

example DDS communications model Data Domain Data Domain New Writer Participant Reader Participant “Alarm” Got new “Alarm” subscriber! data Offered Requested Listener QoS Listener QoS Participants scope the global data space (domain) Topics define the data-objects (collections of subjects) Writers publish data on Topics Readers subscribe to data on Topics QoS Policies are used configure the system Listeners are used to notify the application of events

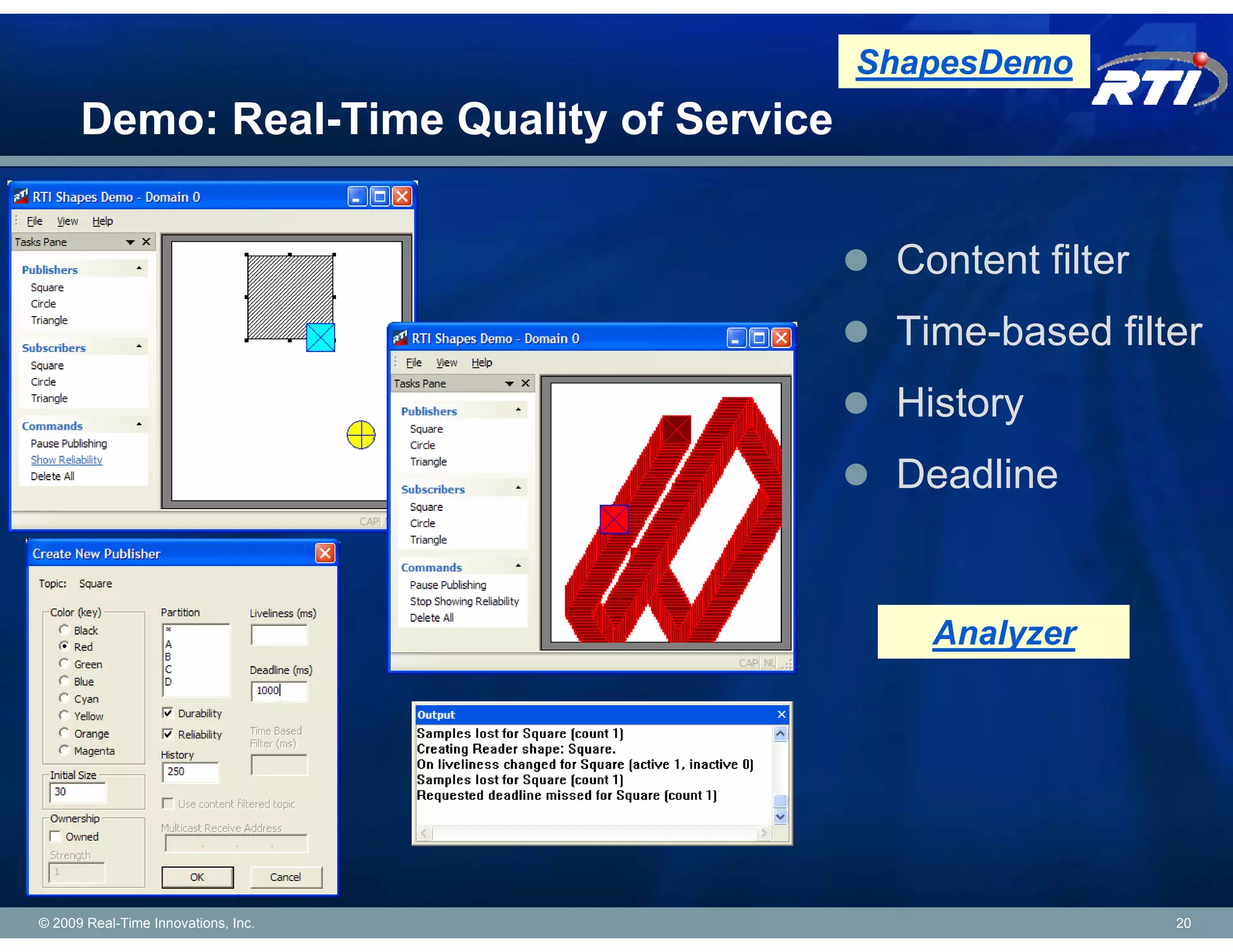

ShapesDemo Demo: Real-Time Quality of Service Content filter Time-based filter History Deadline Analyzer © 2009 Real-Time Innovations, Inc. 20

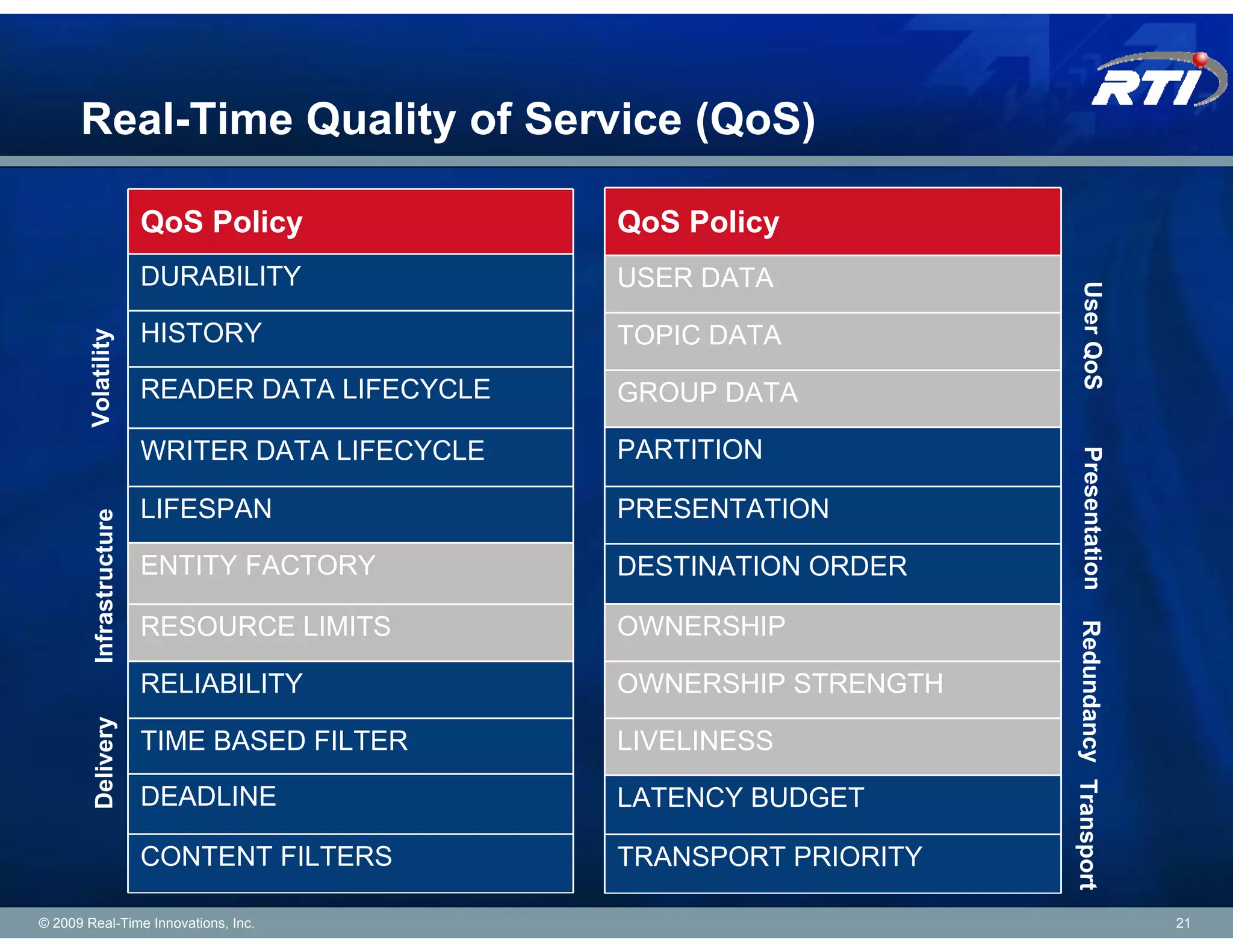

Real-Time Quality of Service (QoS) QoS Policy QoS Policy DURABILITY USER DATA User QoS HISTORY TOPIC DATA Volatility READER DATA LIFECYCLE GROUP DATA WRITER DATA LIFECYCLE PARTITION Presentation LIFESPAN PRESENTATION Infrastructure ENTITY FACTORY DESTINATION ORDER RESOURCE LIMITS OWNERSHIP Redundancy Transport RELIABILITY OWNERSHIP STRENGTH Delivery TIME BASED FILTER LIVELINESS DEADLINE LATENCY BUDGET CONTENT FILTERS TRANSPORT PRIORITY © 2009 Real-Time Innovations, Inc. 21

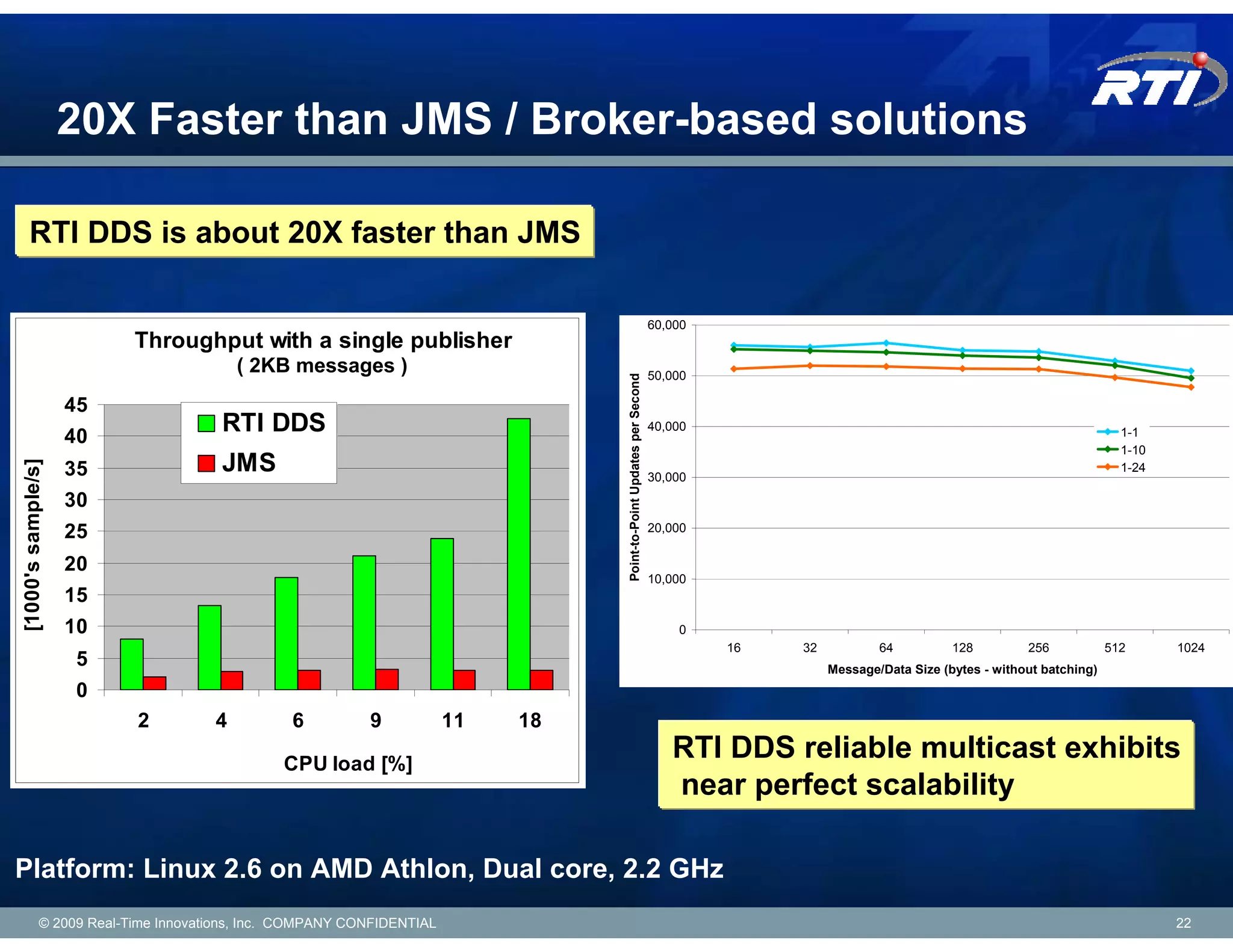

20X Faster than JMS / Broker-based solutions RTI DDS is about 20X faster than JMS 60,000 Throughput with a single publisher ( 2KB messages ) 50,000 Point-to-Point Updates per Second 45 40 RTI DDS 40,000 1-1 1-10 JMS [1000's sample/s] 35 30,000 1-24 30 25 20,000 20 10,000 15 10 0 16 32 64 128 256 512 1024 5 Message/Data Size (bytes - without batching) 0 2 4 6 9 11 18 CPU load [%] RTI DDS reliable multicast exhibits near perfect scalability Platform: Linux 2.6 on AMD Athlon, Dual core, 2.2 GHz © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 22

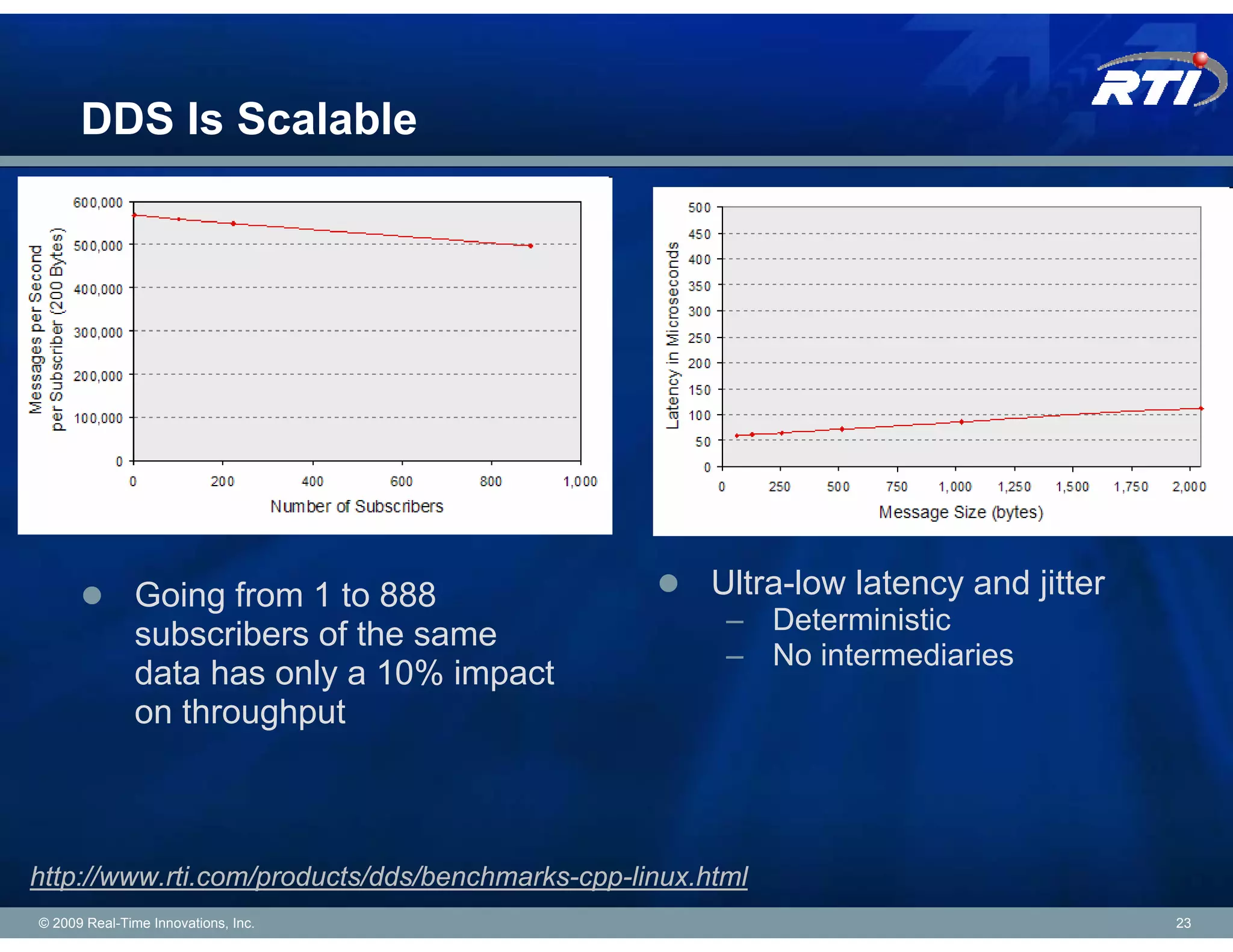

DDS Is Scalable Going from 1 to 888 Ultra-low latency and jitter subscribers of the same – Deterministic – No intermediaries data has only a 10% impact on throughput http://www.rti.com/products/dds/benchmarks-cpp-linux.html © 2009 Real-Time Innovations, Inc. 23
Realizing Performance & Scalability RTI DDS Approach Others: Broker-based middleware AMQP RTPS unspecified DDS operates peer-to-peer, without brokers DDS uses RTPS, an Advanced Multi-Session protocol supporting Reliable Multicast © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 24

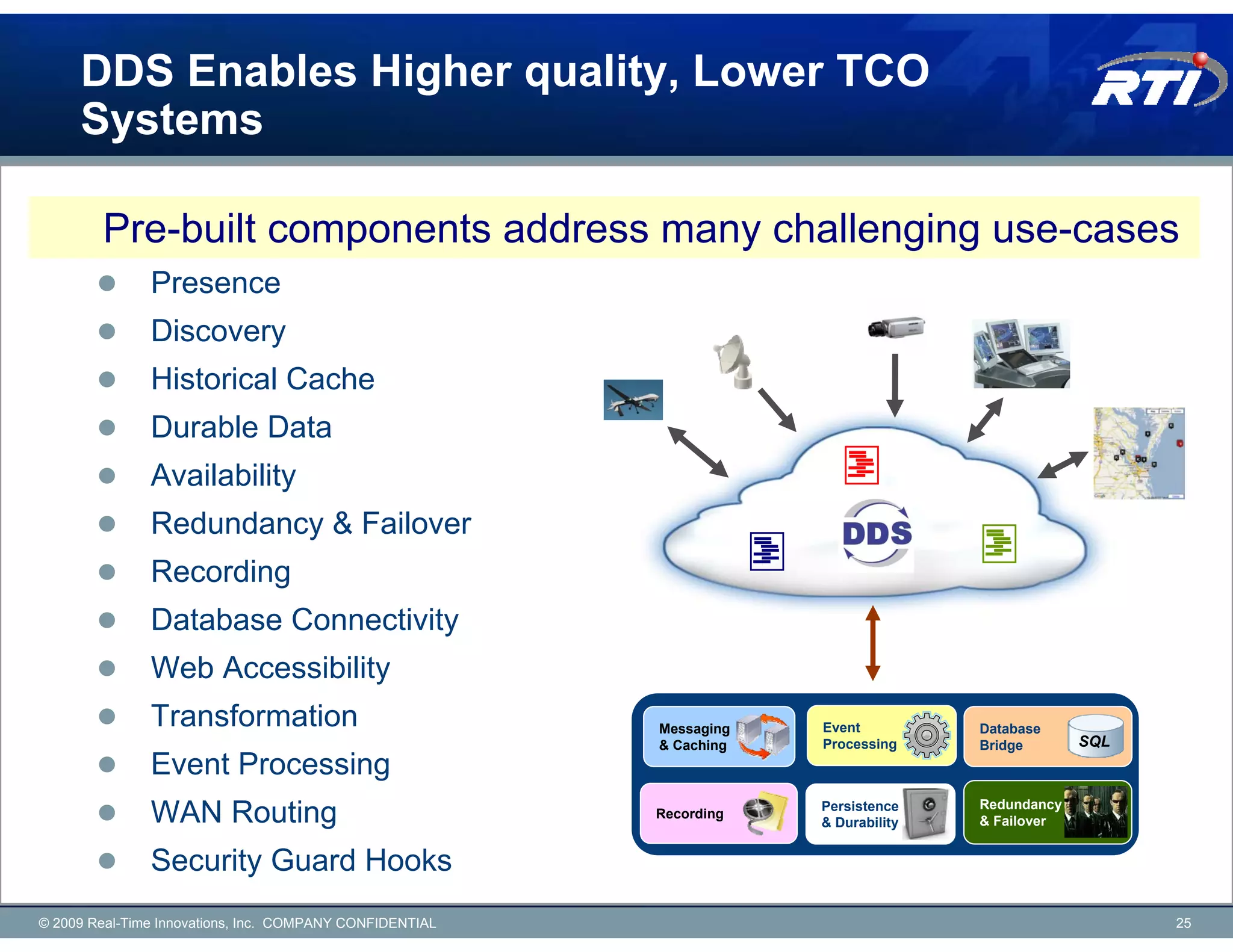

DDS Enables Higher quality, Lower TCO Systems Pre-built components address many challenging use-cases Presence Discovery Historical Cache Durable Data Availability Redundancy & Failover Recording Database Connectivity Web Accessibility Transformation Messaging Event Database & Caching Processing Bridge SQL Event Processing Redundancy WAN Routing Recording Persistence & Durability & Failover Security Guard Hooks © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 25

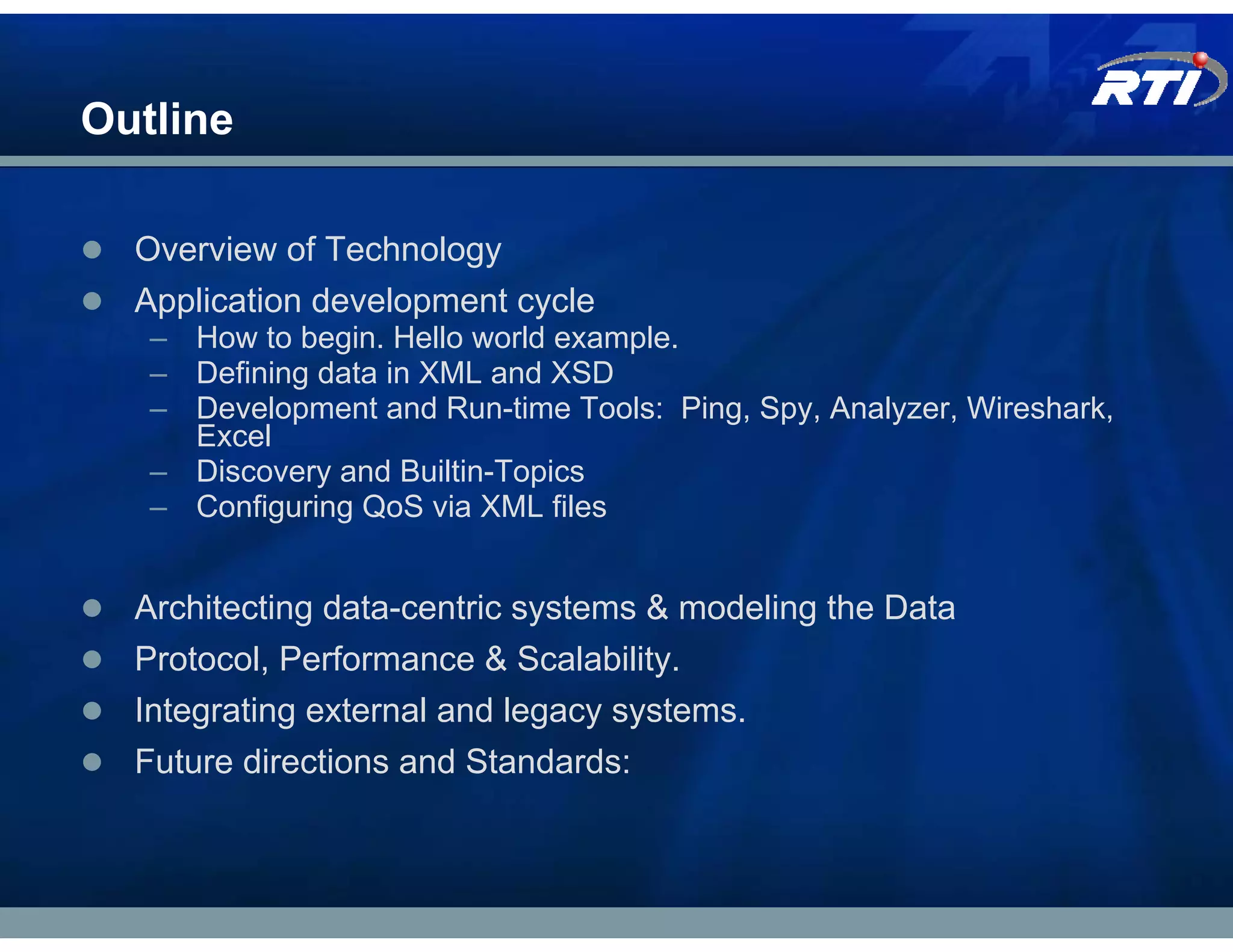

Outline Overview of Technology Application development cycle – How to begin. Hello world example. – Defining data in XML and XSD – Development and Run-time Tools: Ping, Spy, Analyzer, Wireshark, Excel – Discovery and Builtin-Topics – Configuring QoS via XML files Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards:

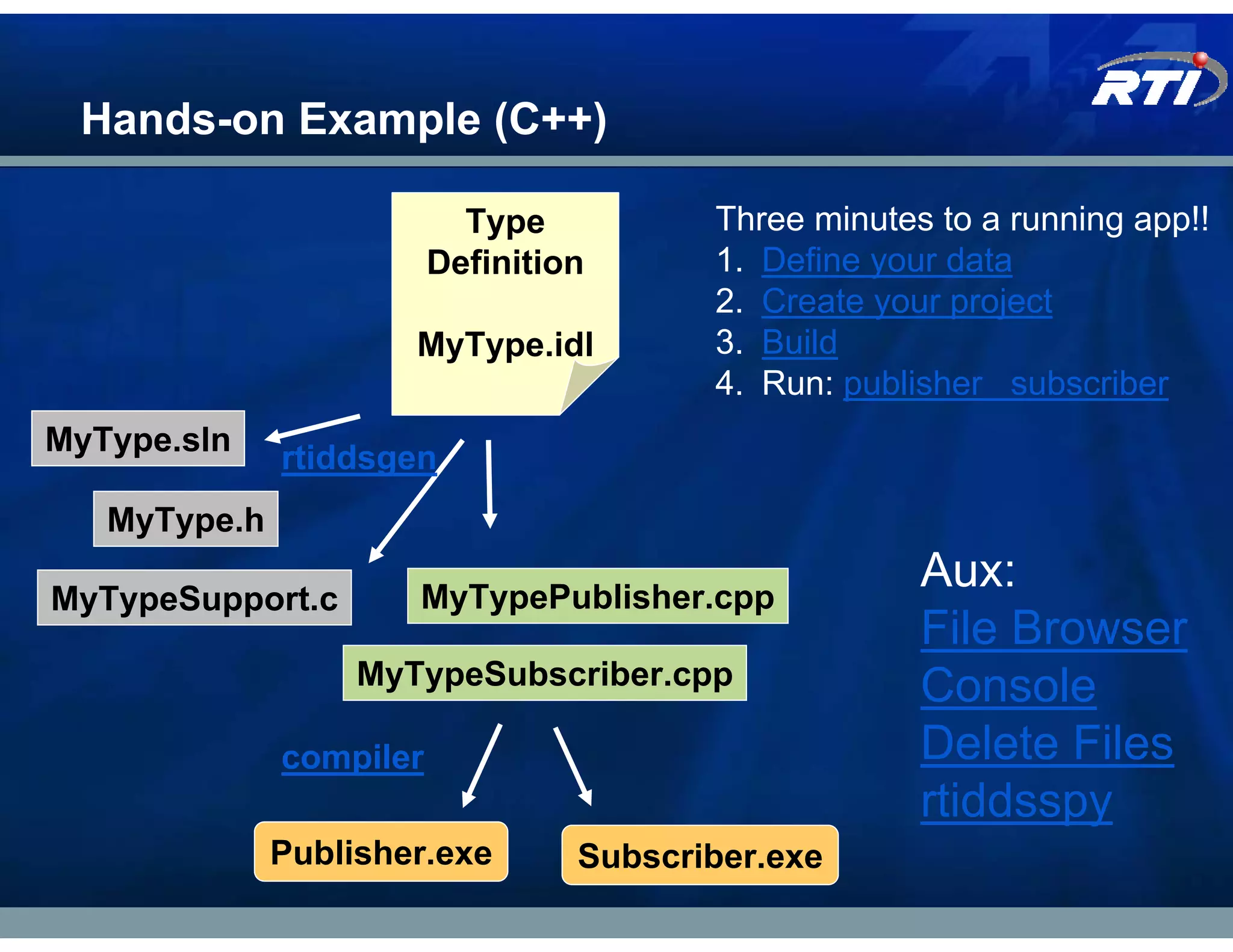

Hands-on Example (C++) Type Three minutes to a running app!! Definition 1. Define your data 2. Create your project MyType.idl 3. Build 4. Run: publisher subscriber MyType.sln rtiddsgen MyType.h MyTypePublisher.cpp Aux: MyTypeSupport.c File Browser MyTypeSubscriber.cpp Console compiler Delete Files rtiddsspy Publisher.exe Subscriber.exe

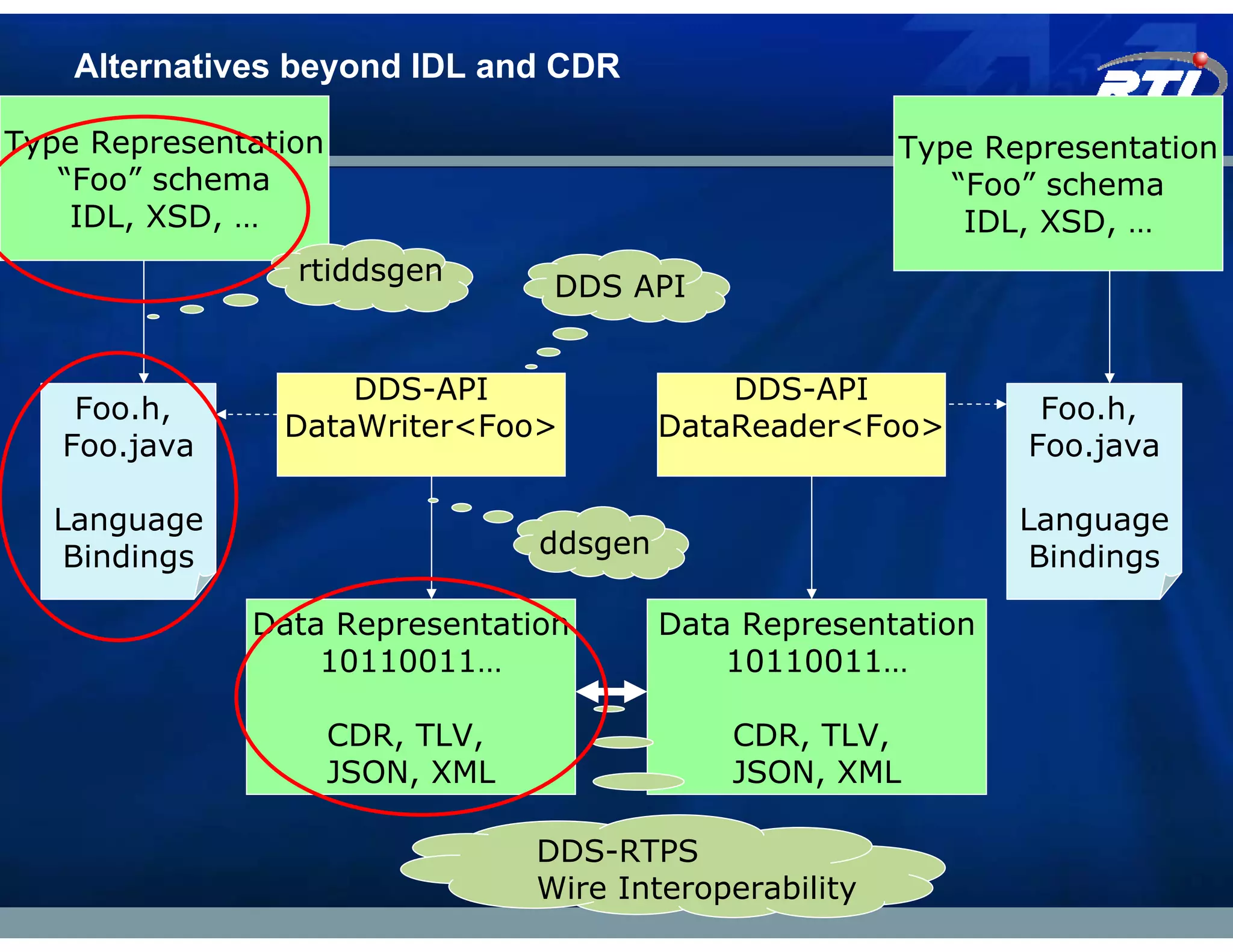

Alternatives beyond IDL and CDR Type Representation Type Representation “Foo” schema “Foo” schema IDL, XSD, … IDL, XSD, … rtiddsgen DDS API DDS-API DDS-API Foo.h, Foo.h, DataWriter<Foo> DataReader<Foo> Foo.java Foo.java Language Language Bindings ddsgen Bindings Data Representation Data Representation 10110011… 10110011… CDR, TLV, CDR, TLV, JSON, XML JSON, XML DDS-RTPS Wire Interoperability

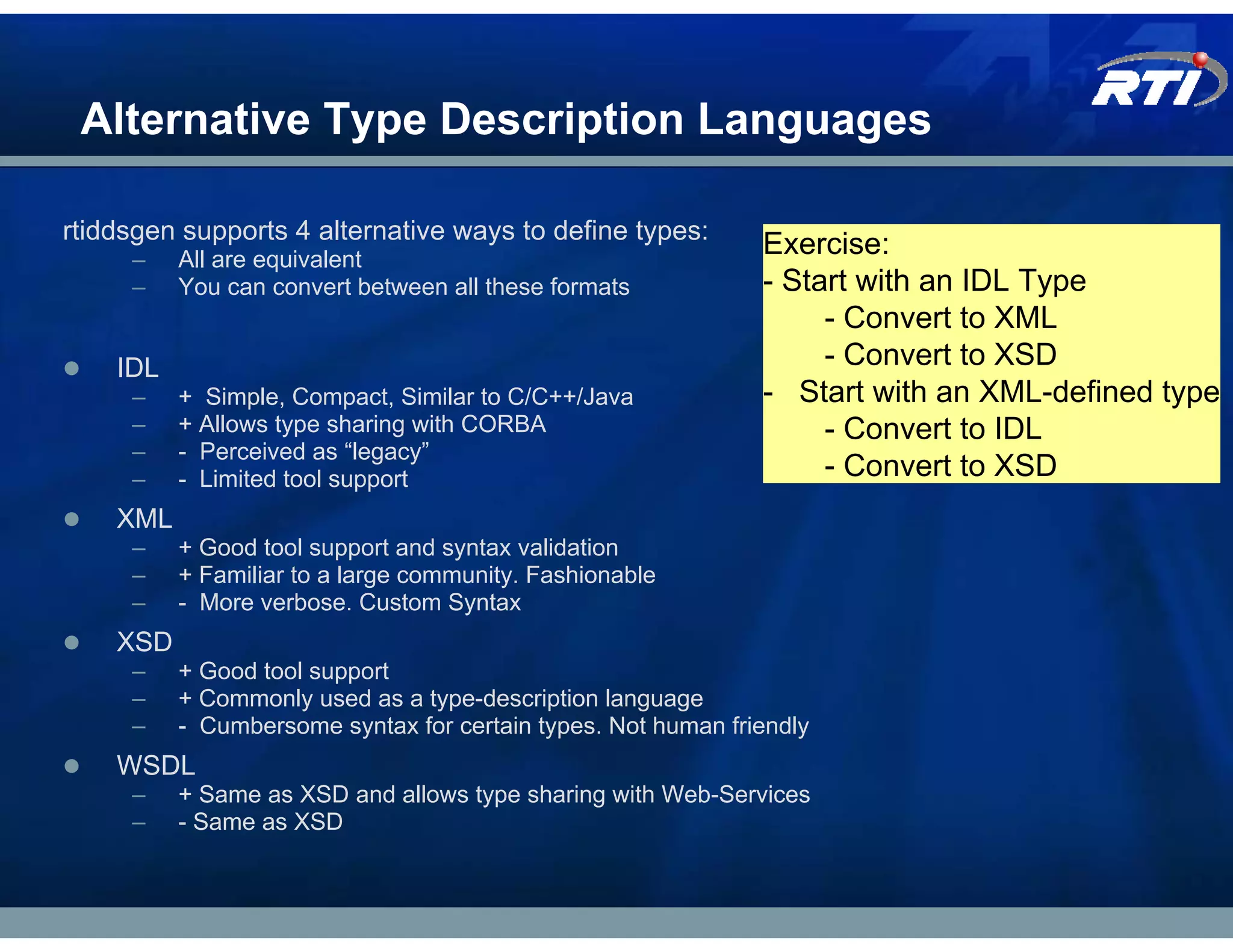

Alternative Type Description Languages rtiddsgen supports 4 alternative ways to define types: – All are equivalent Exercise: – You can convert between all these formats - Start with an IDL Type - Convert to XML IDL - Convert to XSD – + Simple, Compact, Similar to C/C++/Java - Start with an XML-defined type – + Allows type sharing with CORBA - Convert to IDL – - Perceived as “legacy” – - Limited tool support - Convert to XSD XML – + Good tool support and syntax validation – + Familiar to a large community. Fashionable – - More verbose. Custom Syntax XSD – + Good tool support – + Commonly used as a type-description language – - Cumbersome syntax for certain types. Not human friendly WSDL – + Same as XSD and allows type sharing with Web-Services – - Same as XSD

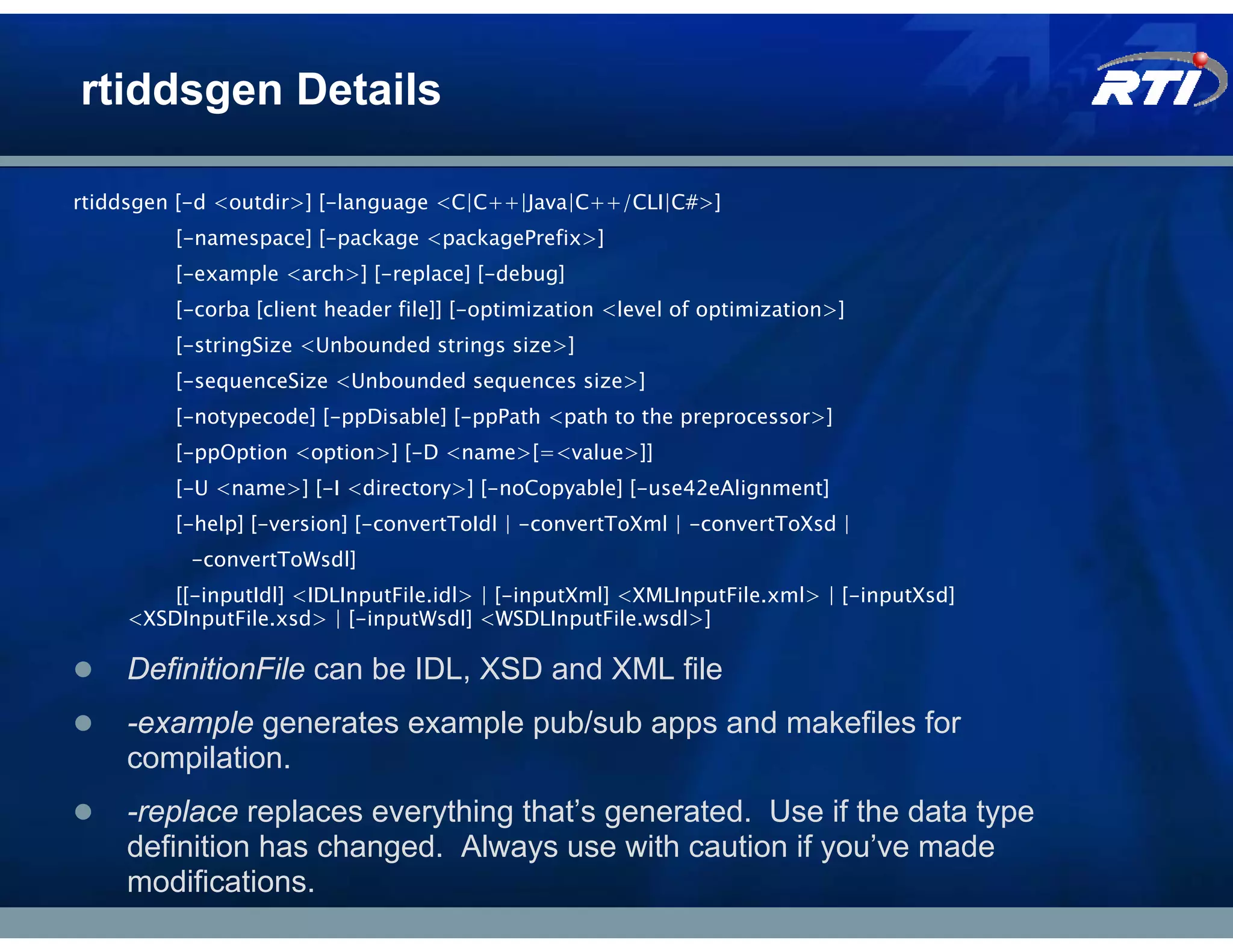

rtiddsgen Details rtiddsgen [-d <outdir>] [-language <C|C++|Java|C++/CLI|C#>] [-namespace] [-package <packagePrefix>] [-example <arch>] [-replace] [-debug] [-corba [client header file]] [-optimization <level of optimization>] [-stringSize <Unbounded strings size>] [-sequenceSize <Unbounded sequences size>] [-notypecode] [-ppDisable] [-ppPath <path to the preprocessor>] [-ppOption <option>] [-D <name>[=<value>]] [-U <name>] [-I <directory>] [-noCopyable] [-use42eAlignment] [-help] [-version] [-convertToIdl | -convertToXml | -convertToXsd | -convertToWsdl] [[-inputIdl] <IDLInputFile.idl> | [-inputXml] <XMLInputFile.xml> | [-inputXsd] <XSDInputFile.xsd> | [-inputWsdl] <WSDLInputFile.wsdl>] DefinitionFile can be IDL, XSD and XML file -example generates example pub/sub apps and makefiles for compilation. -replace replaces everything that’s generated. Use if the data type definition has changed. Always use with caution if you’ve made modifications.

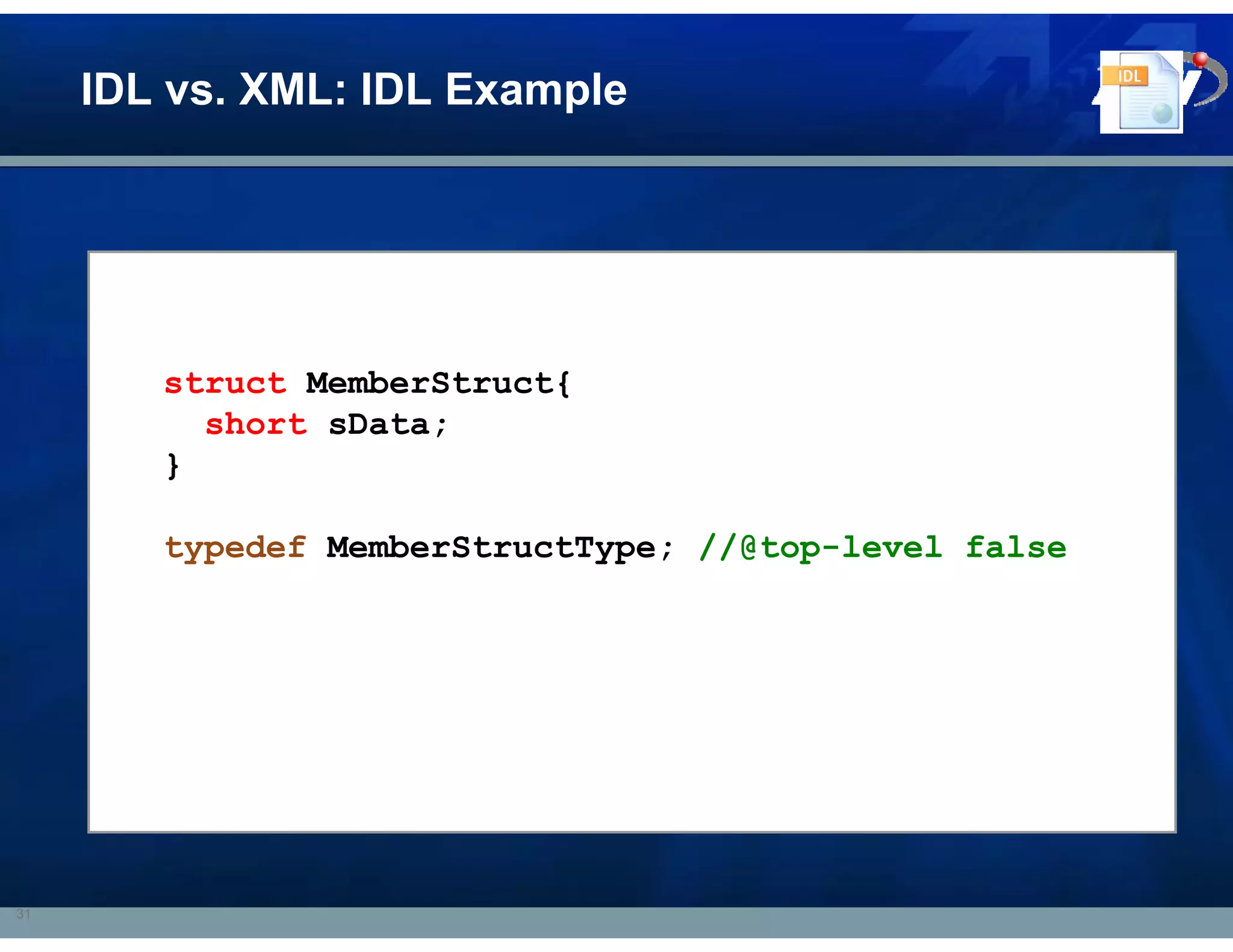

IDL vs. XML: IDL Example struct MemberStruct{ short sData; } typedef MemberStructType; //@top-level false 31

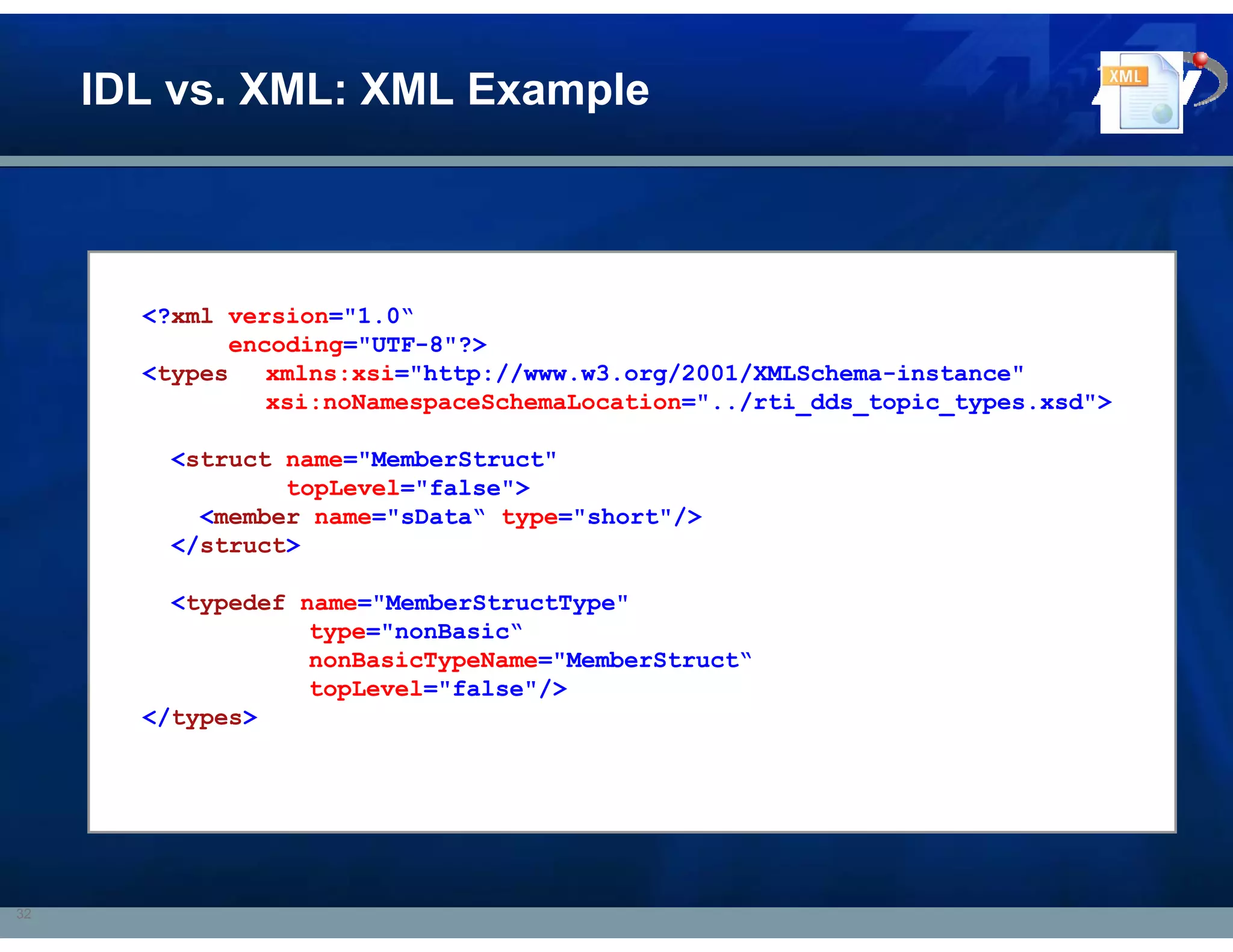

IDL vs. XML: XML Example <?xml version="1.0“ encoding="UTF-8"?> <types xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../rti_dds_topic_types.xsd"> <struct name="MemberStruct" topLevel="false"> <member name="sData“ type="short"/> </struct> <typedef name="MemberStructType" type="nonBasic“ nonBasicTypeName="MemberStruct“ topLevel="false"/> </types> 32

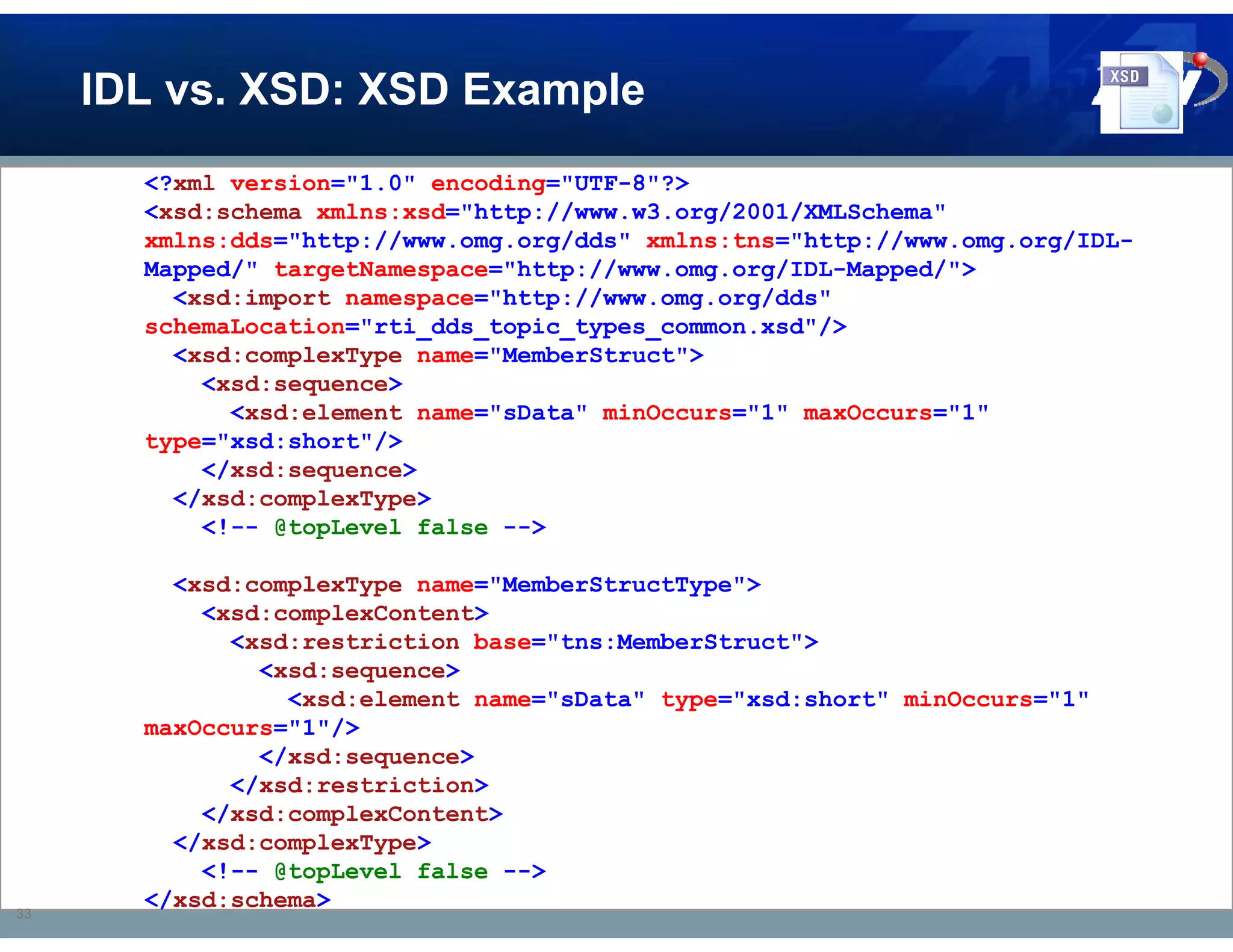

IDL vs. XSD: XSD Example <?xml version="1.0" encoding="UTF-8"?> <xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:dds="http://www.omg.org/dds" xmlns:tns="http://www.omg.org/IDL- Mapped/" targetNamespace="http://www.omg.org/IDL-Mapped/"> <xsd:import namespace="http://www.omg.org/dds" schemaLocation="rti_dds_topic_types_common.xsd"/> <xsd:complexType name="MemberStruct"> <xsd:sequence> <xsd:element name="sData" minOccurs="1" maxOccurs="1" type="xsd:short"/> </xsd:sequence> </xsd:complexType> <!-- @topLevel false --> <xsd:complexType name="MemberStructType"> <xsd:complexContent> <xsd:restriction base="tns:MemberStruct"> <xsd:sequence> <xsd:element name="sData" type="xsd:short" minOccurs="1" maxOccurs="1"/> </xsd:sequence> </xsd:restriction> </xsd:complexContent> </xsd:complexType> <!-- @topLevel false --> 33 </xsd:schema>

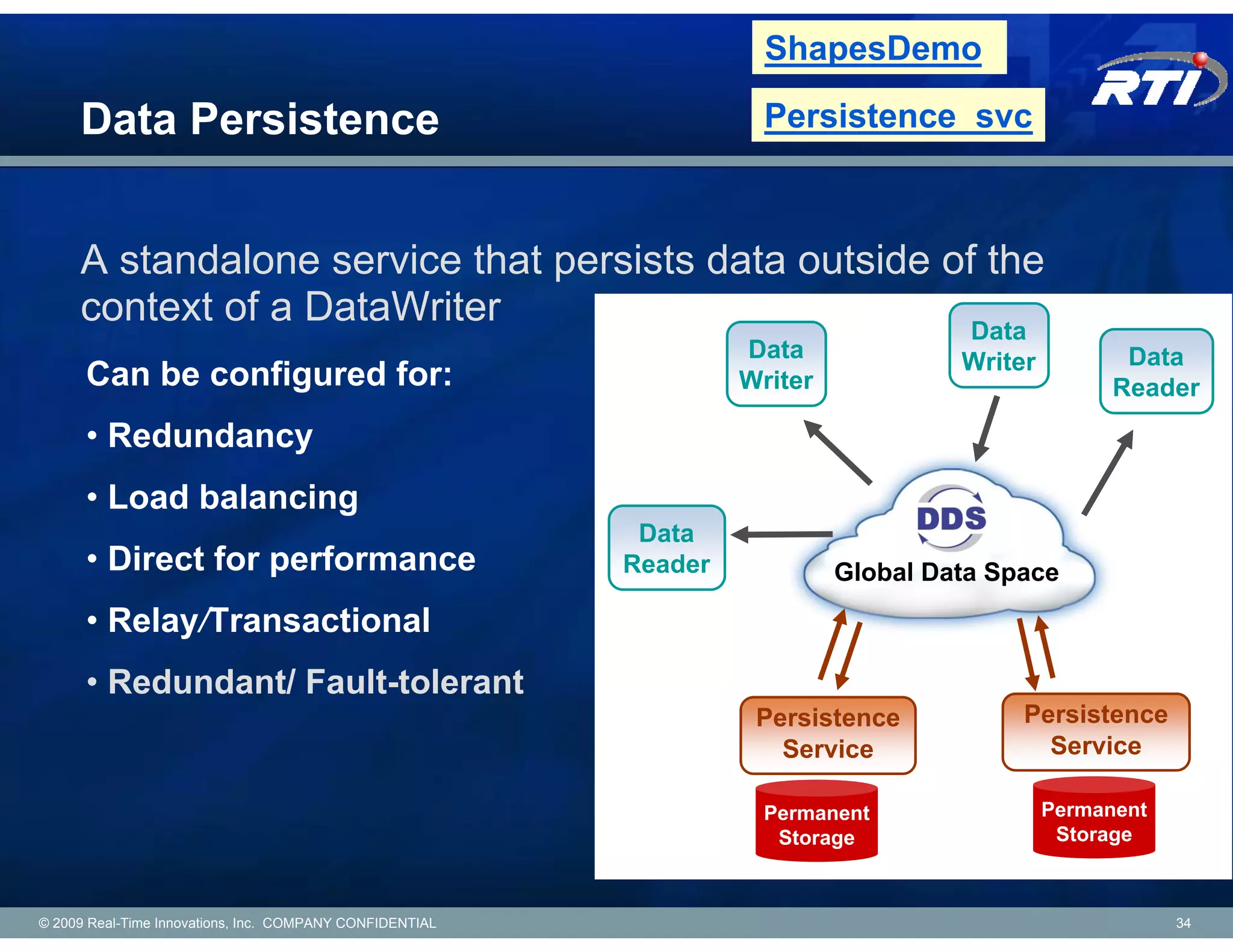

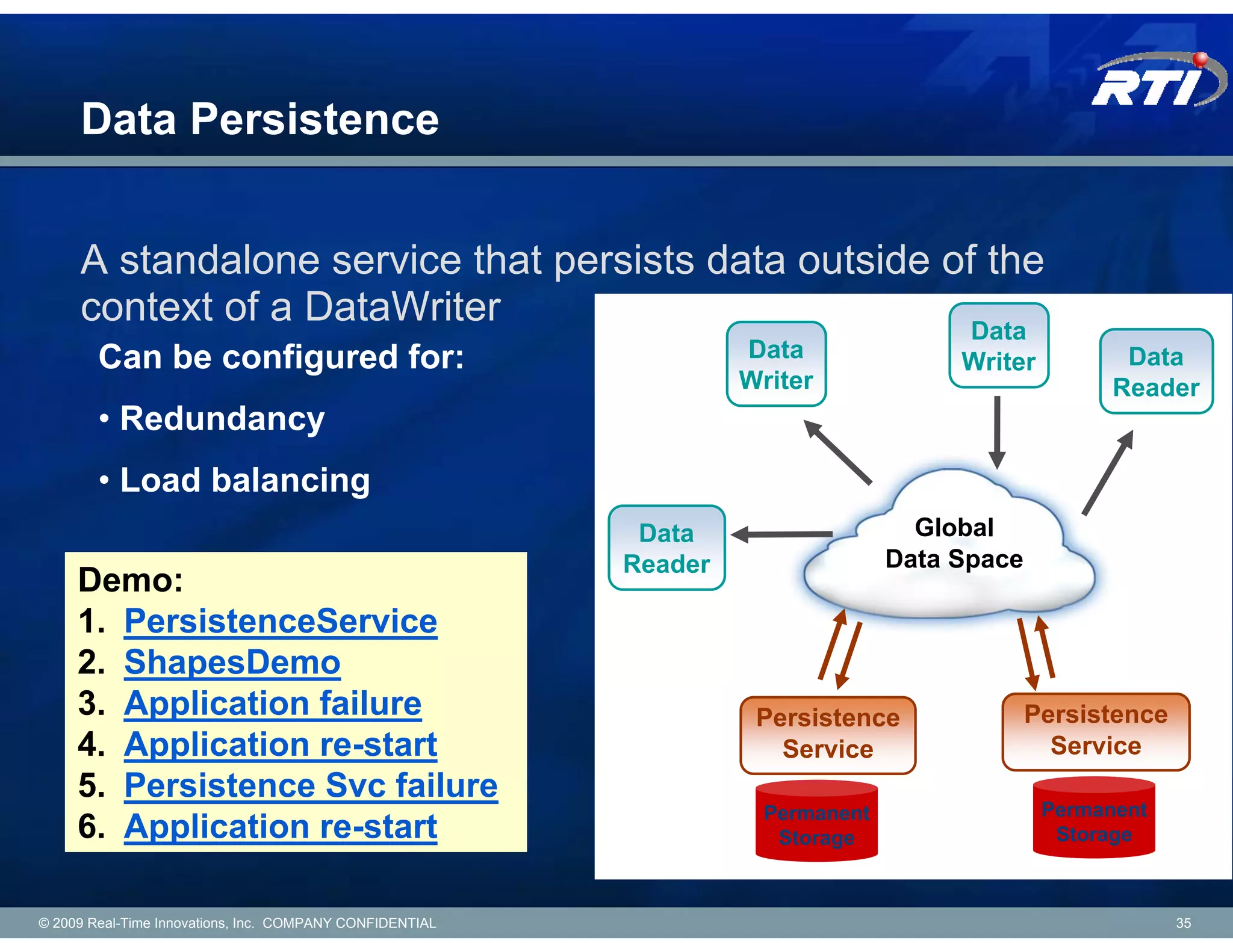

ShapesDemo Data Persistence Persistence_svc A standalone service that persists data outside of the context of a DataWriter Data Data Writer Data Can be configured for: Writer Reader • Redundancy • Load balancing Data • Direct for performance Reader Global Data Space • Relay/Transactional • Redundant/ Fault-tolerant Persistence Persistence Service Service Permanent Permanent Storage Storage © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 34
Data Persistence A standalone service that persists data outside of the context of a DataWriter Data Can be configured for: Data Writer Data Writer Reader • Redundancy • Load balancing Data Global Reader Data Space Demo: 1. PersistenceService 2. ShapesDemo 3. Application failure Persistence Persistence 4. Application re-start Service Service 5. Persistence Svc failure Permanent Permanent 6. Application re-start Storage Storage © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 35

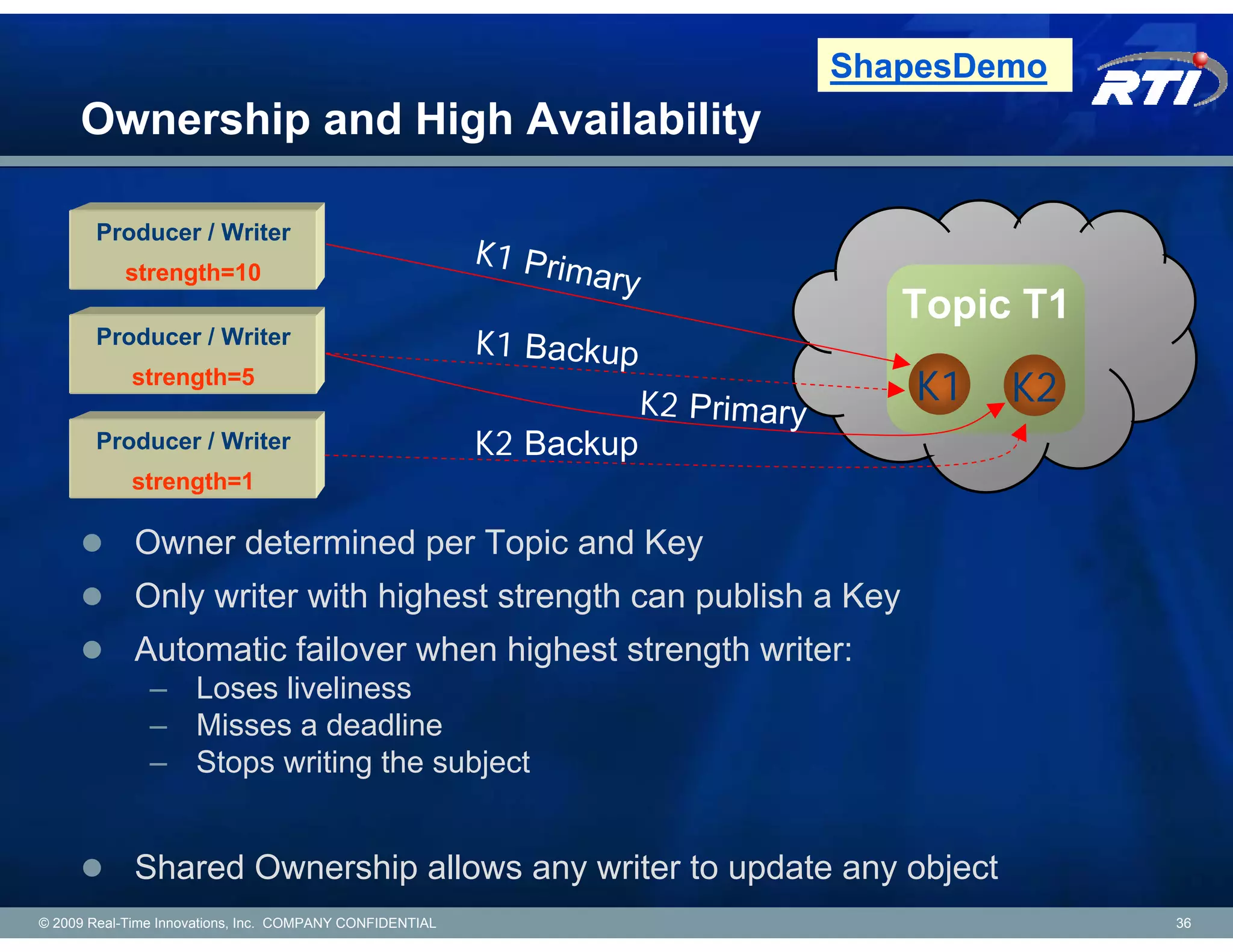

ShapesDemo Ownership and High Availability Producer / Writer K1 Pri strength=10 mary Topic T1 Producer / Writer K1 Backup strength=5 K2 Primary K1 K2 Producer / Writer K2 Backup strength=1 Owner determined per Topic and Key Only writer with highest strength can publish a Key Automatic failover when highest strength writer: – Loses liveliness – Misses a deadline – Stops writing the subject Shared Ownership allows any writer to update any object © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 36
Outline Overview of Technology Application development cycle Architecting data-centric systems & modeling the Data – Examples: News example, Data Streaming, Commands, Video – Data Persistence with Examples – Using DynamicData Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards:

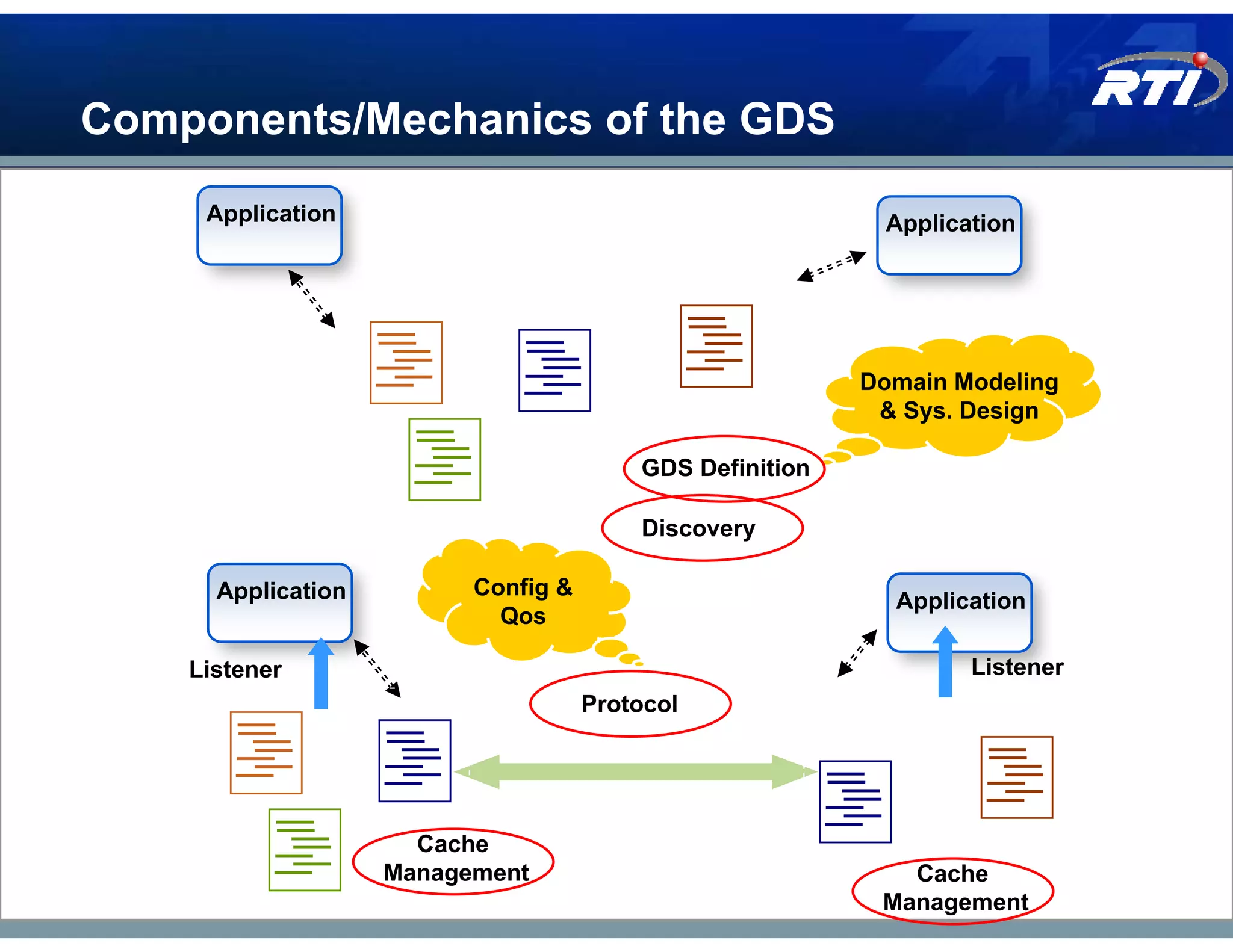

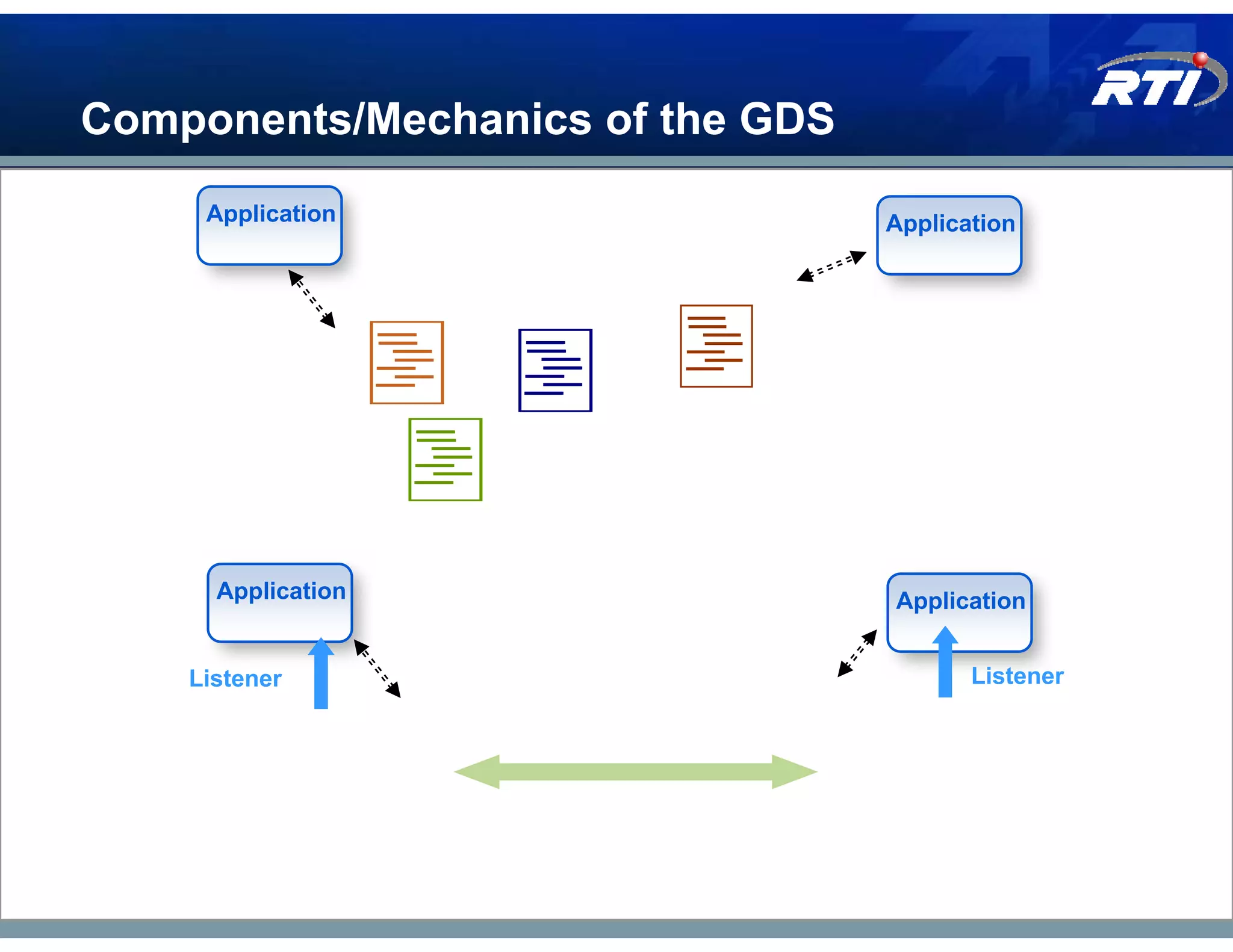

Components/Mechanics of the GDS Application Application GDS Definition Discovery Application Application Listener Listener Protocol Cache Management Cache Management
Components/Mechanics of the GDS Application Application Domain Modeling & Sys. Design GDS Definition Discovery Application Config & Application Qos Listener Listener Protocol Cache Management Cache Management
Designing a Data-Centric System Define/Model the Global Data Space Configure the Cache Management Configure Discovery Configure the Protocol Configure/Use hooks for – Fault detection – Controlled access

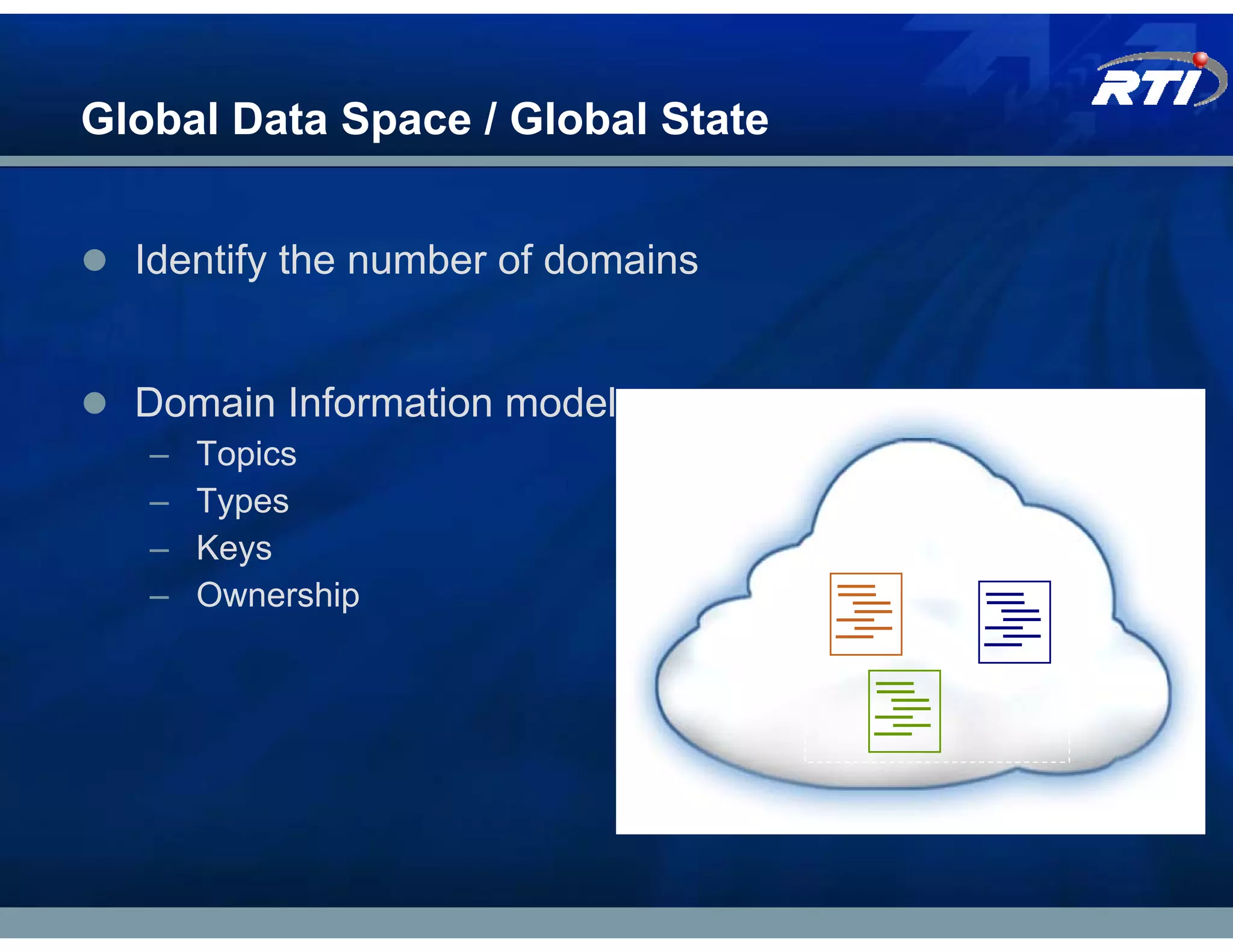

Global Data Space / Global State Identify the number of domains Domain Information model – Topics – Types – Keys – Ownership

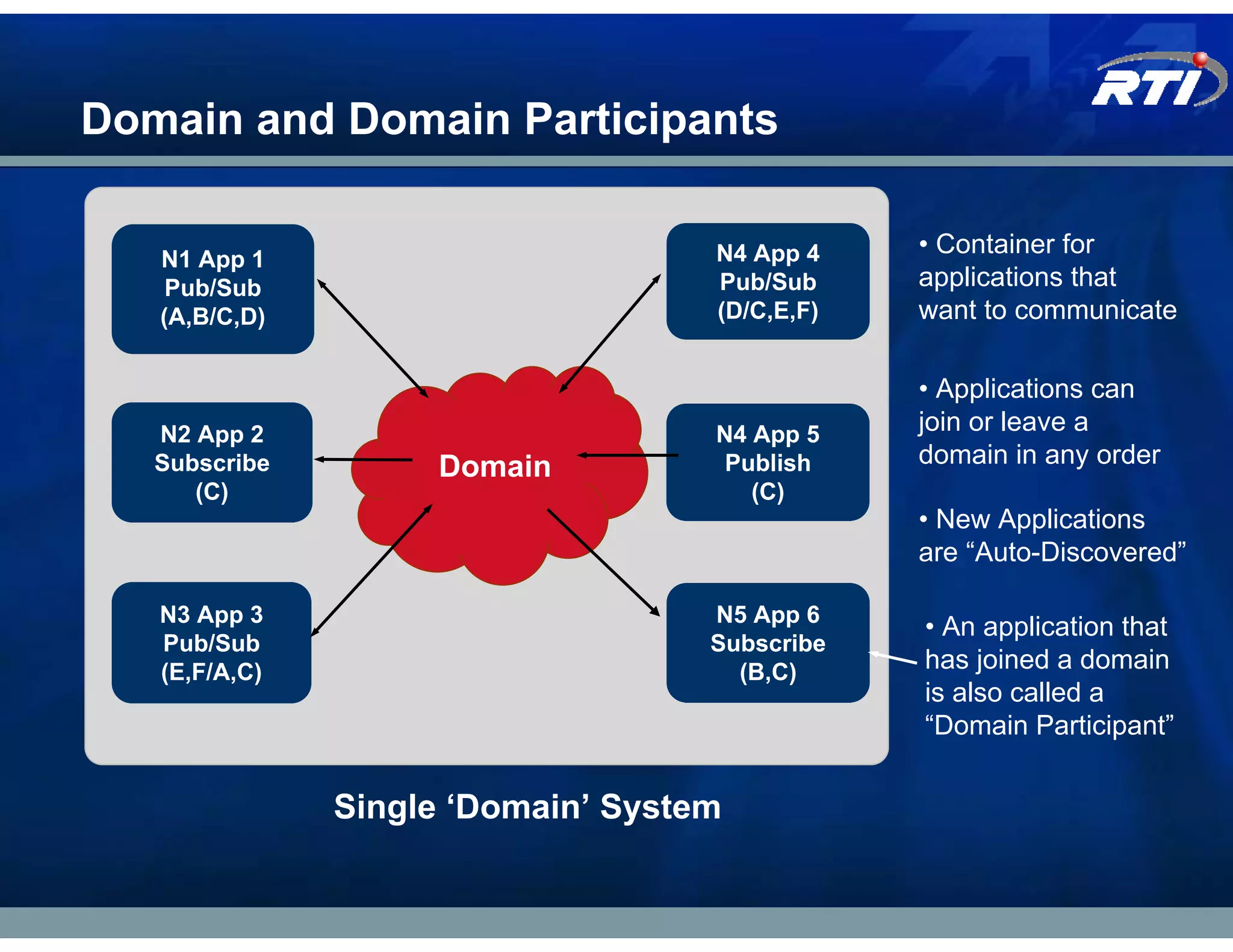

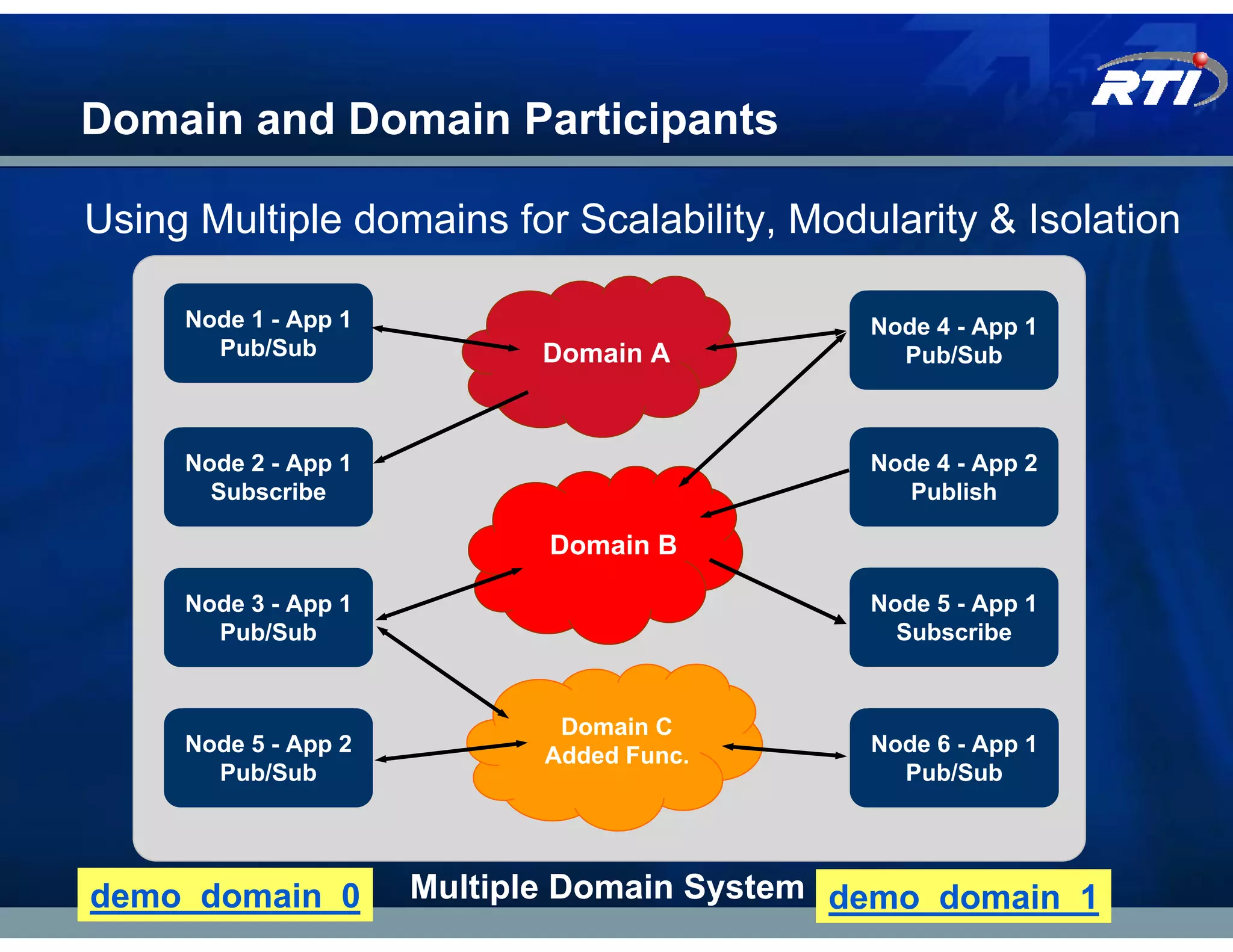

Domain and Domain Participants N4 App 4 • Container for N1 App 1 Pub/Sub Pub/Sub applications that (A,B/C,D) (D/C,E,F) want to communicate • Applications can N2 App 2 N4 App 5 join or leave a Subscribe Domain Publish domain in any order (C) (C) • New Applications are “Auto-Discovered” N3 App 3 N5 App 6 • An application that Pub/Sub Subscribe (E,F/A,C) (B,C) has joined a domain is also called a “Domain Participant” Single ‘Domain’ System
Domain and Domain Participants Using Multiple domains for Scalability, Modularity & Isolation Node 1 - App 1 Node 4 - App 1 Pub/Sub Domain A Pub/Sub Node 2 - App 1 Node 4 - App 2 Subscribe Publish Domain B Node 3 - App 1 Node 5 - App 1 Pub/Sub Subscribe Domain C Node 5 - App 2 Added Func. Node 6 - App 1 Pub/Sub Pub/Sub demo_domain_0 Multiple Domain System demo_domain_1

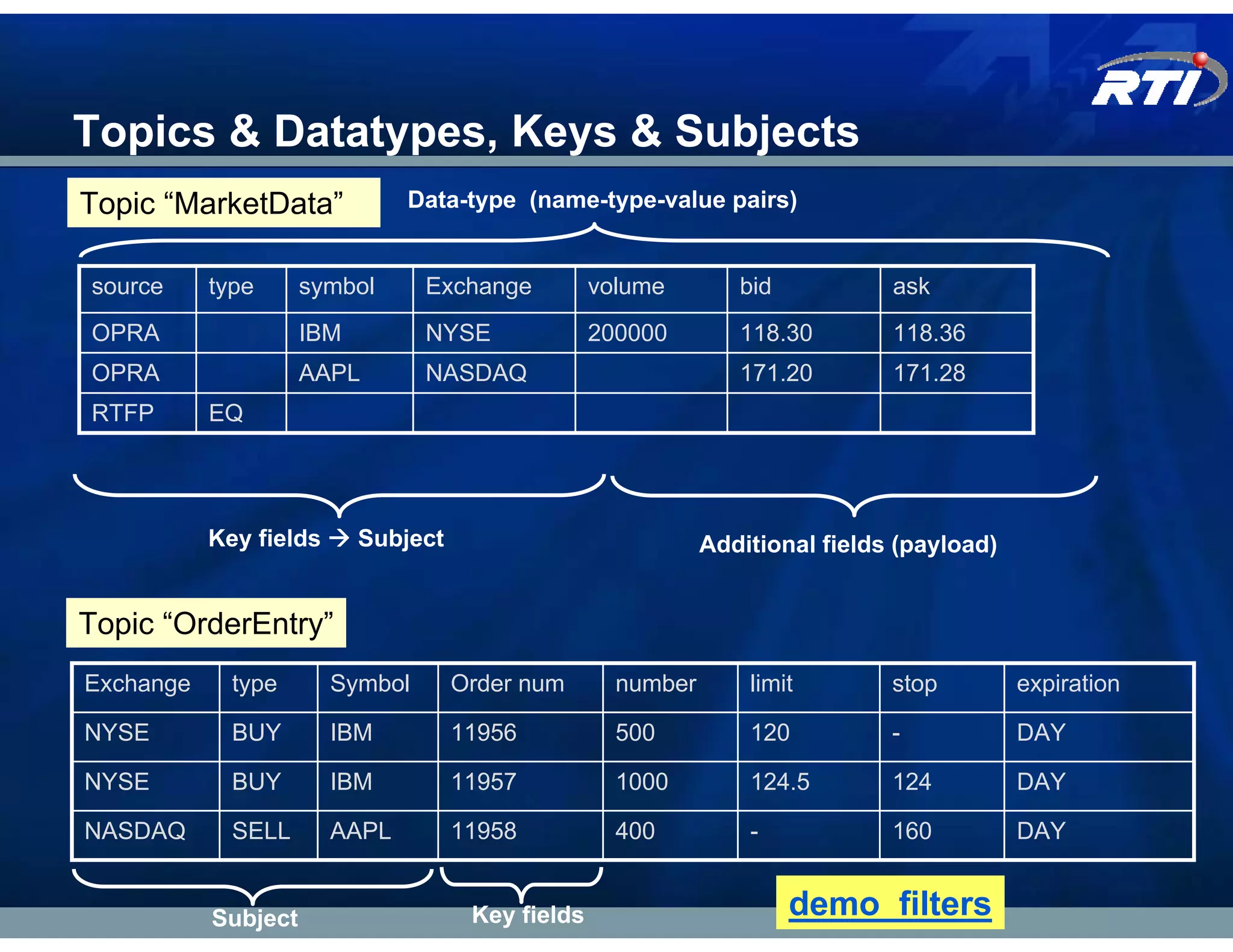

Topics & Datatypes, Keys & Subjects Topic “MarketData” Data-type (name-type-value pairs) source type symbol Exchange volume bid ask OPRA IBM NYSE 200000 118.30 118.36 OPRA AAPL NASDAQ 171.20 171.28 RTFP EQ Key fields Subject Additional fields (payload) Topic “OrderEntry” Exchange type Symbol Order num number limit stop expiration NYSE BUY IBM 11956 500 120 - DAY NYSE BUY IBM 11957 1000 124.5 124 DAY NASDAQ SELL AAPL 11958 400 - 160 DAY Subject Key fields demo_filters

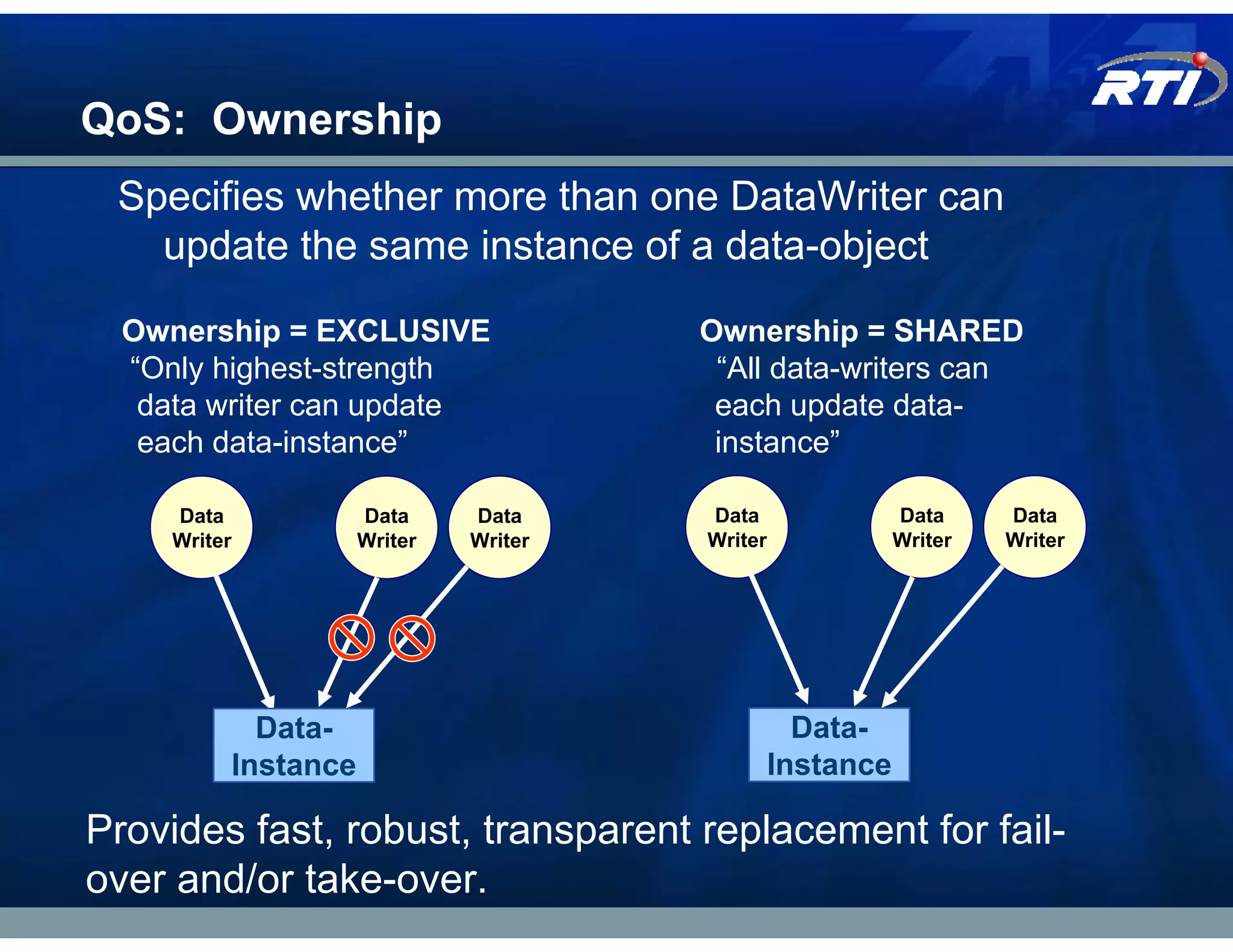

QoS: Ownership Specifies whether more than one DataWriter can update the same instance of a data-object Ownership = EXCLUSIVE Ownership = SHARED “Only highest-strength “All data-writers can data writer can update each update data- each data-instance” instance” Data Data Data Data Data Data Writer Writer Writer Writer Writer Writer Data- Data- Instance Instance Provides fast, robust, transparent replacement for fail- over and/or take-over.

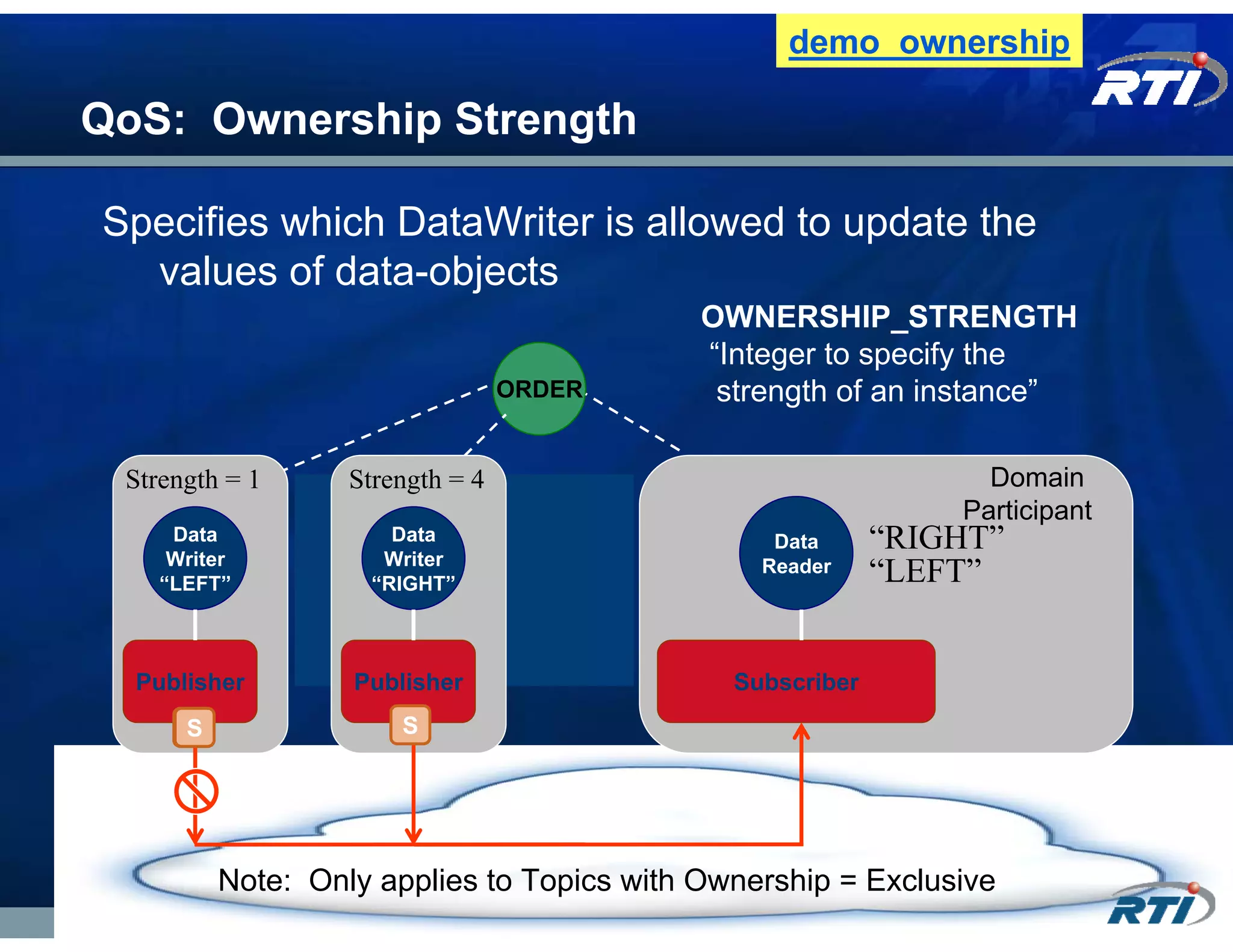

demo_ownership QoS: Ownership Strength Specifies which DataWriter is allowed to update the values of data-objects OWNERSHIP_STRENGTH “Integer to specify the ORDER strength of an instance” Strength = 1 Strength = 4 Domain Participant Data AfterData Expires QoS Data “RIGHT” Writer Writer Reader “LEFT” - Deadline “RIGHT” “LEFT” - Liveliness Publisher Publisher Subscriber S S Note: Only applies to Topics with Ownership = Exclusive

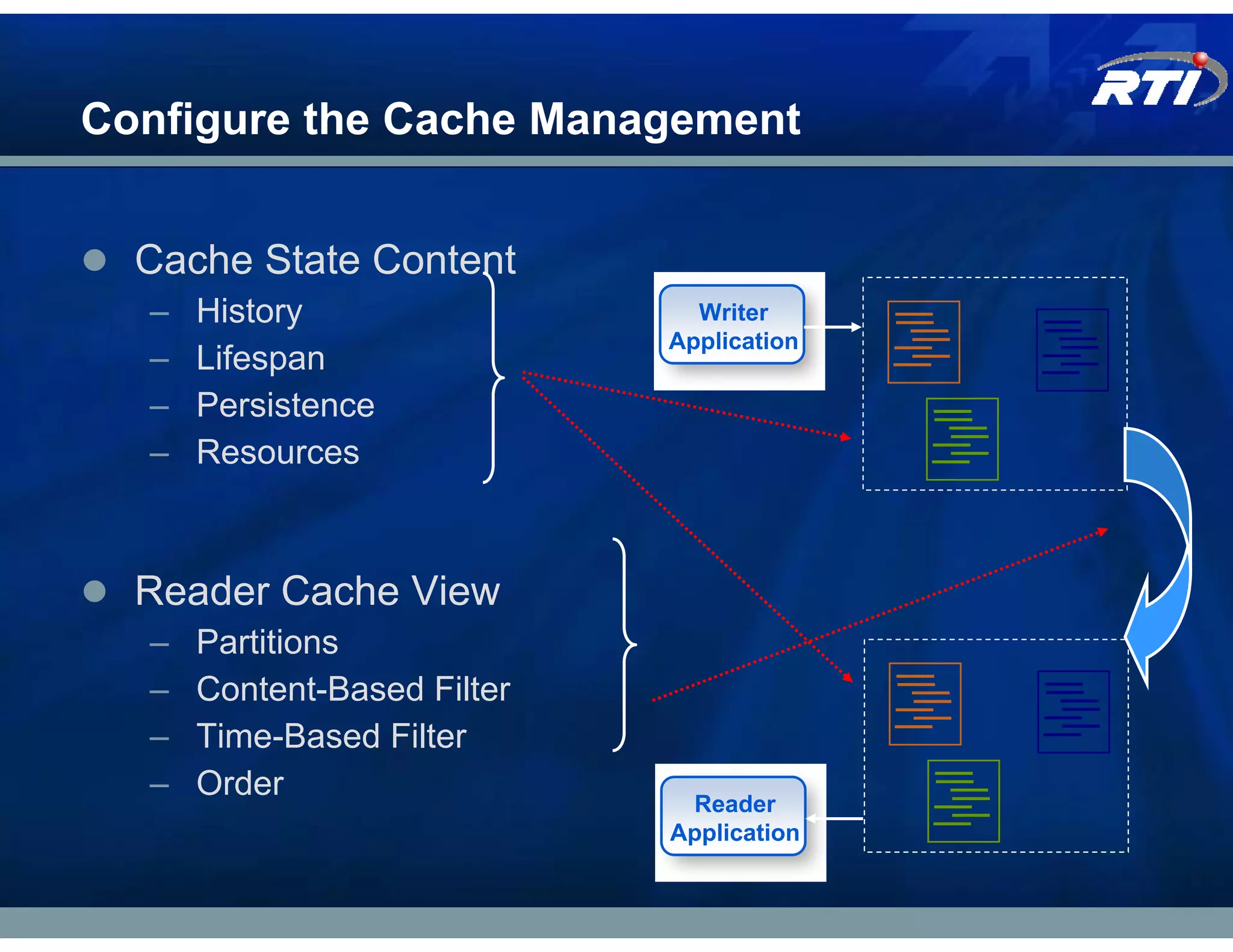

Configure the Cache Management Cache State Content – History Writer Application – Lifespan – Persistence – Resources Reader Cache View – Partitions – Content-Based Filter – Time-Based Filter – Order Reader Application

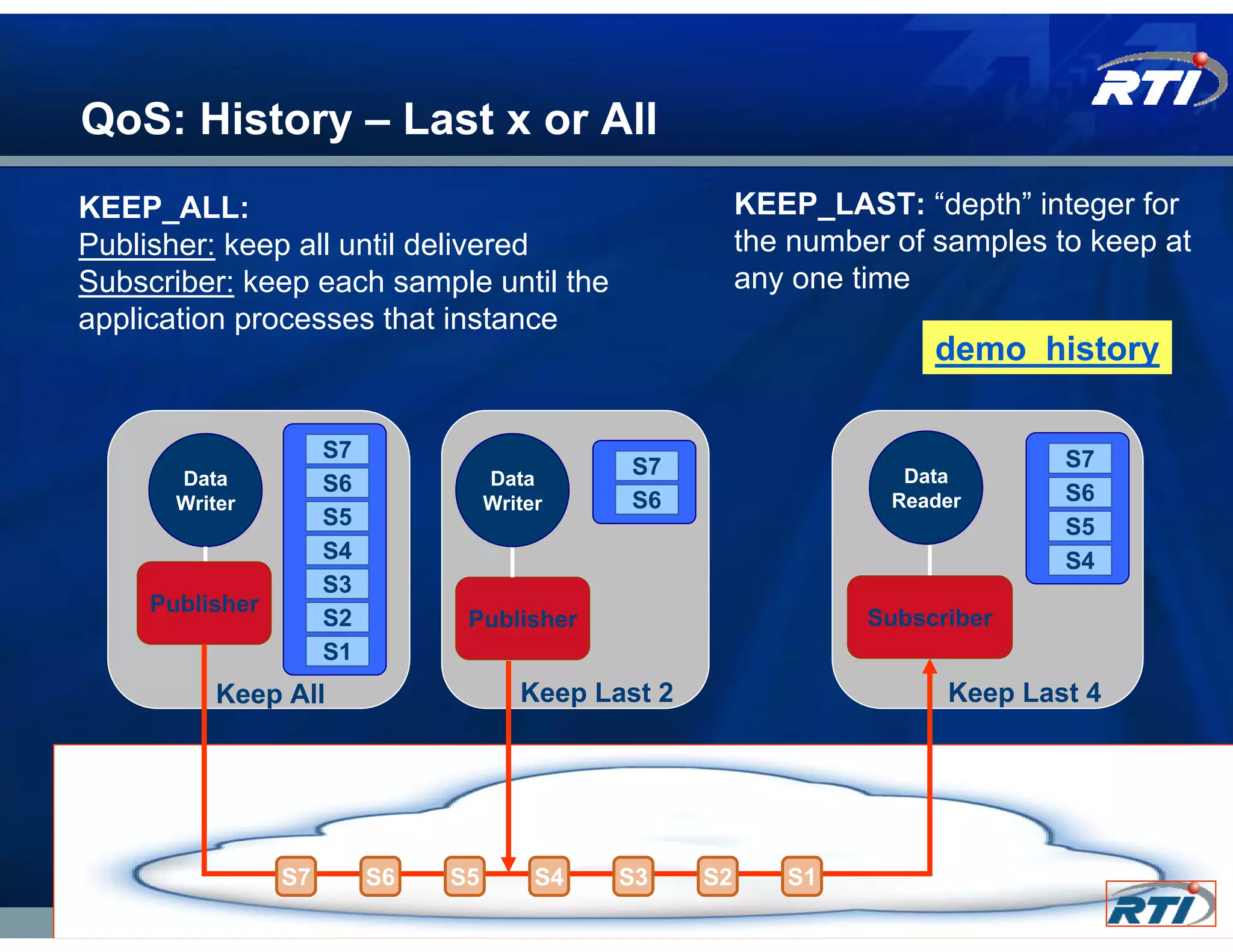

QoS: History – Last x or All KEEP_ALL: KEEP_LAST: “depth” integer for Publisher: keep all until delivered the number of samples to keep at Subscriber: keep each sample until the any one time application processes that instance demo_history S7 S7 Data Data S7 Data S6 S6 Writer Writer S6 Reader S5 S5 S4 S4 S3 Publisher S2 Publisher Subscriber S1 Keep All Keep Last 2 Keep Last 4 S7 S6 S5 S4 S3 S2 S1

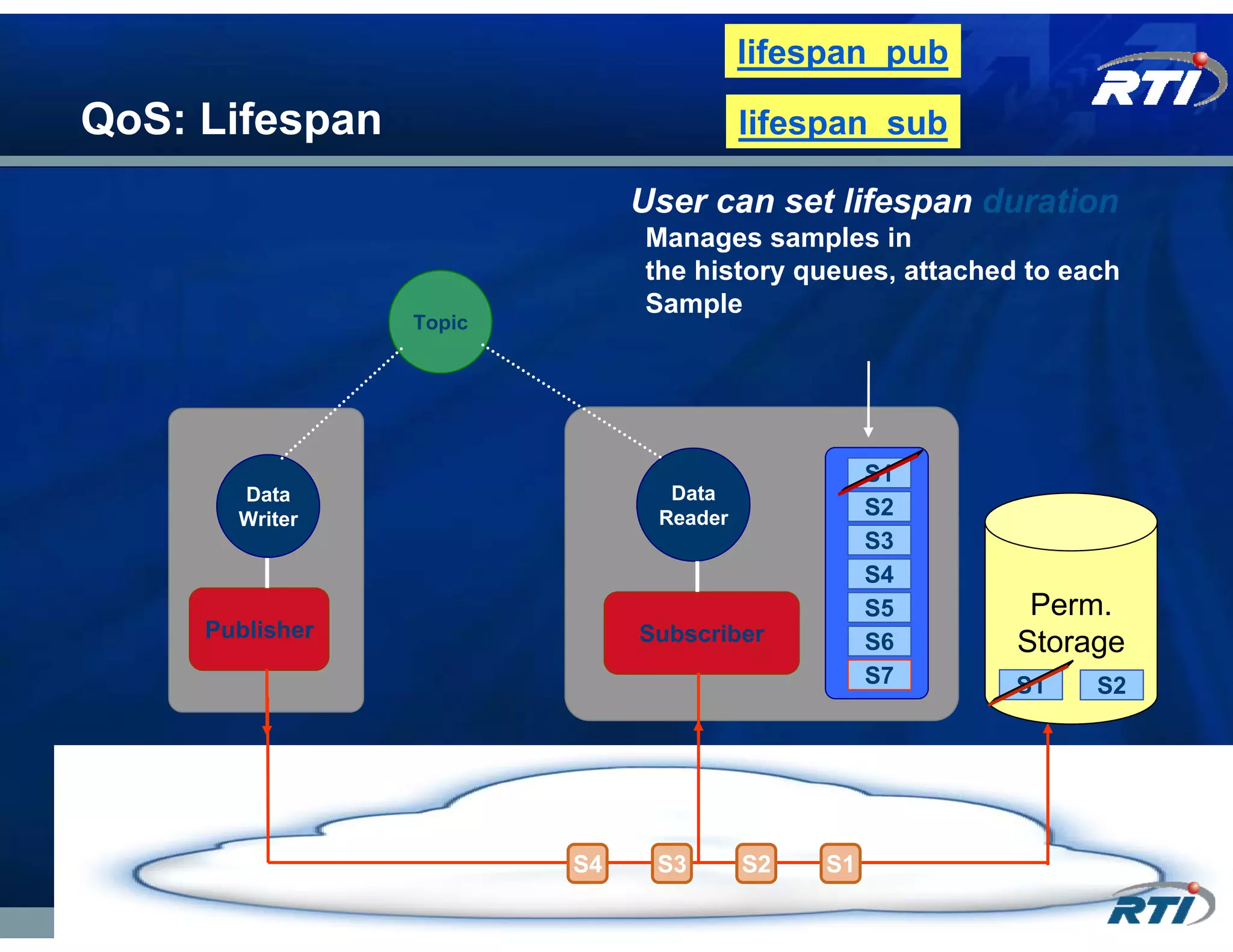

lifespan_pub QoS: Lifespan lifespan_sub User can set lifespan duration Manages samples in the history queues, attached to each Sample Topic S1 Data Data Writer Reader S2 S3 S4 S5 Perm. Publisher Subscriber S6 Storage S7 S1 S2 S4 S3 S2 S1

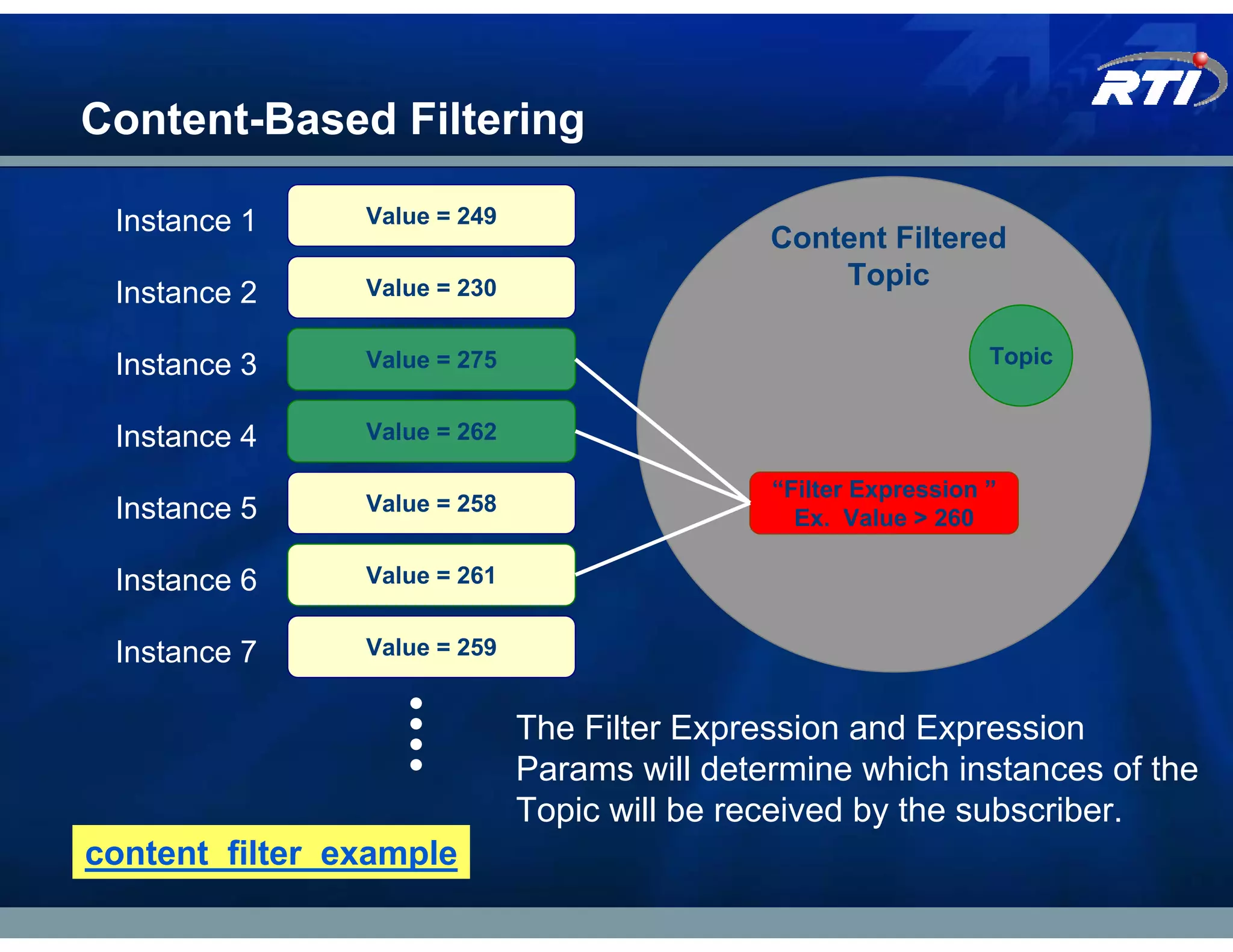

Content-Based Filtering Instance 1 Value = 249 Content Filtered Value = 230 Topic Instance 2 Instance 3 Value = 275 Topic Instance 4 Value = 262 “Filter Expression ” Instance 5 Value = 258 Ex. Value > 260 Instance 6 Value = 261 Instance 7 Value = 259 The Filter Expression and Expression Params will determine which instances of the Topic will be received by the subscriber. content_filter_example

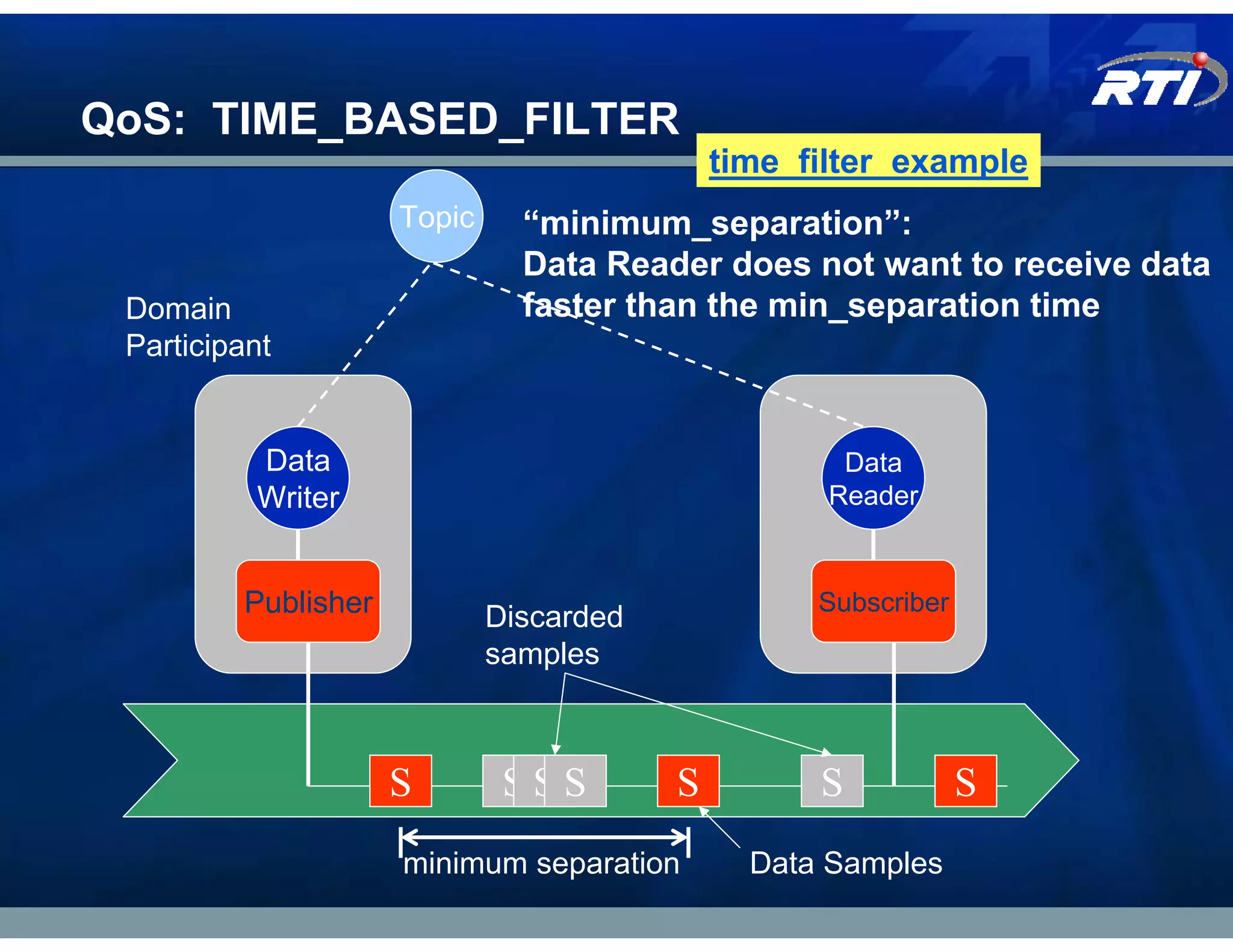

QoS: TIME_BASED_FILTER time_filter_example Topic “minimum_separation”: Data Reader does not want to receive data Domain faster than the min_separation time Participant Data Data Writer Reader Publisher Discarded Subscriber samples S SSS S S S minimum separation Data Samples

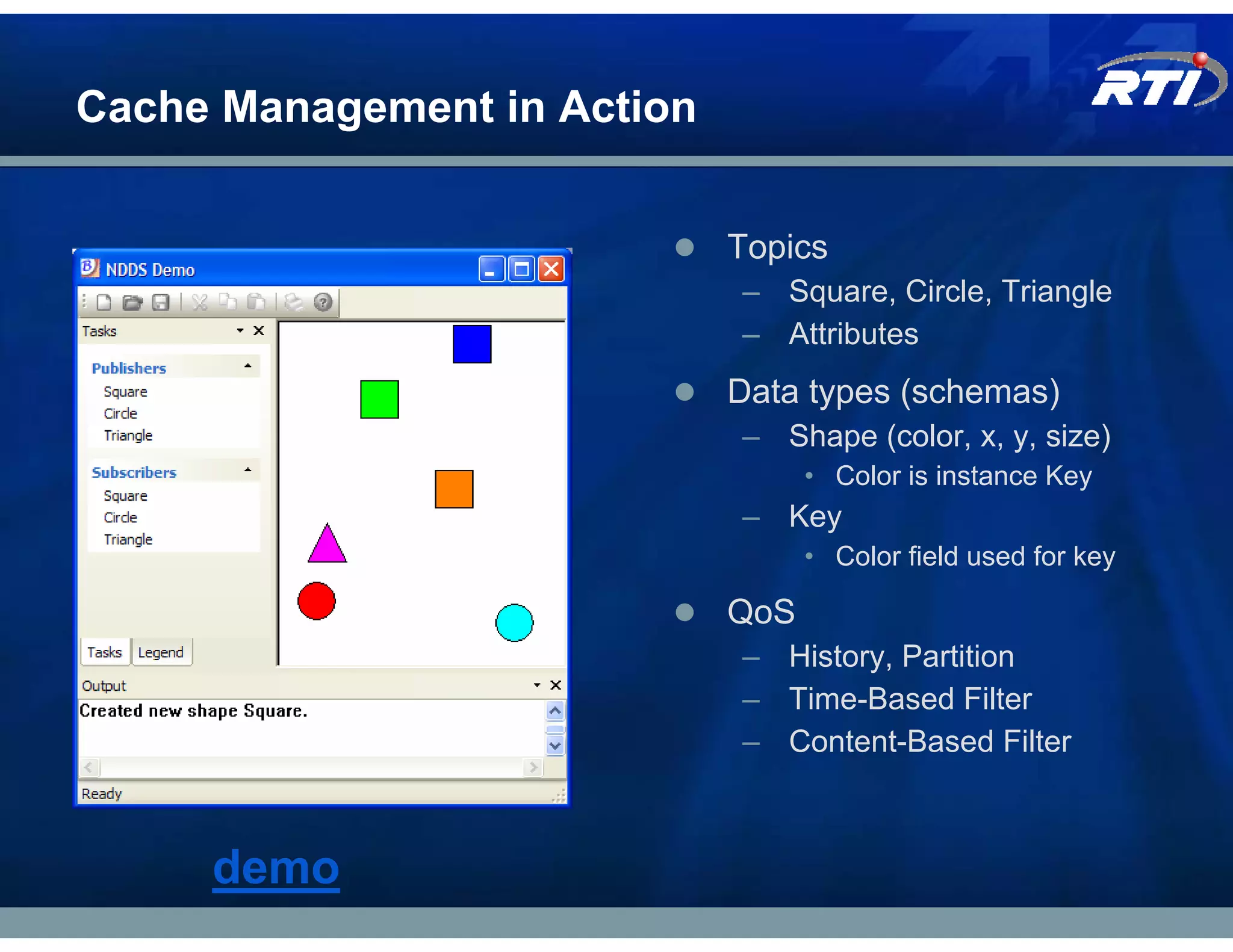

Cache Management in Action Topics – Square, Circle, Triangle – Attributes Data types (schemas) – Shape (color, x, y, size) • Color is instance Key – Key • Color field used for key QoS – History, Partition – Time-Based Filter – Content-Based Filter demo

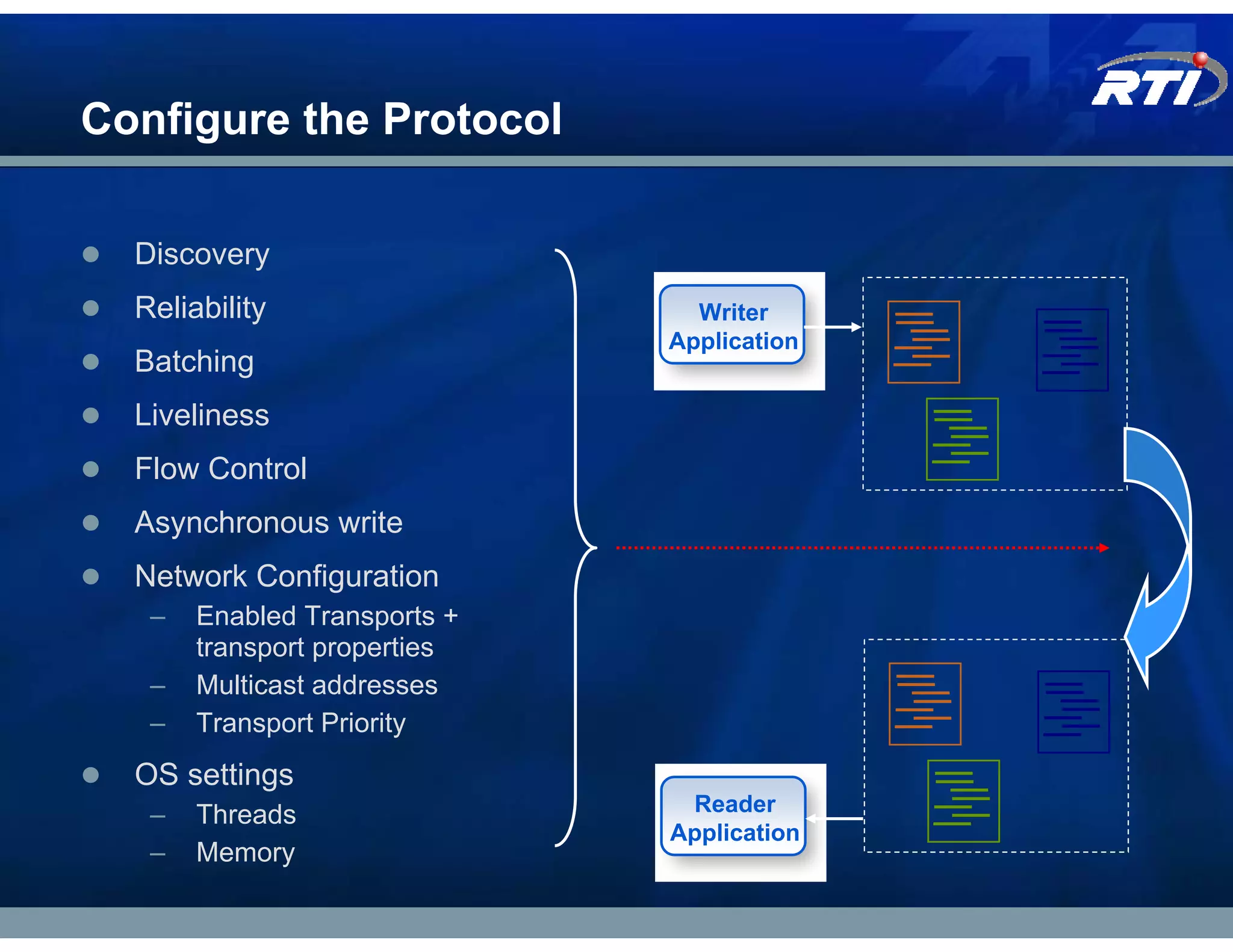

Configure the Protocol Discovery Reliability Writer Application Batching Liveliness Flow Control Asynchronous write Network Configuration – Enabled Transports + transport properties – Multicast addresses – Transport Priority OS settings – Threads Reader Application – Memory

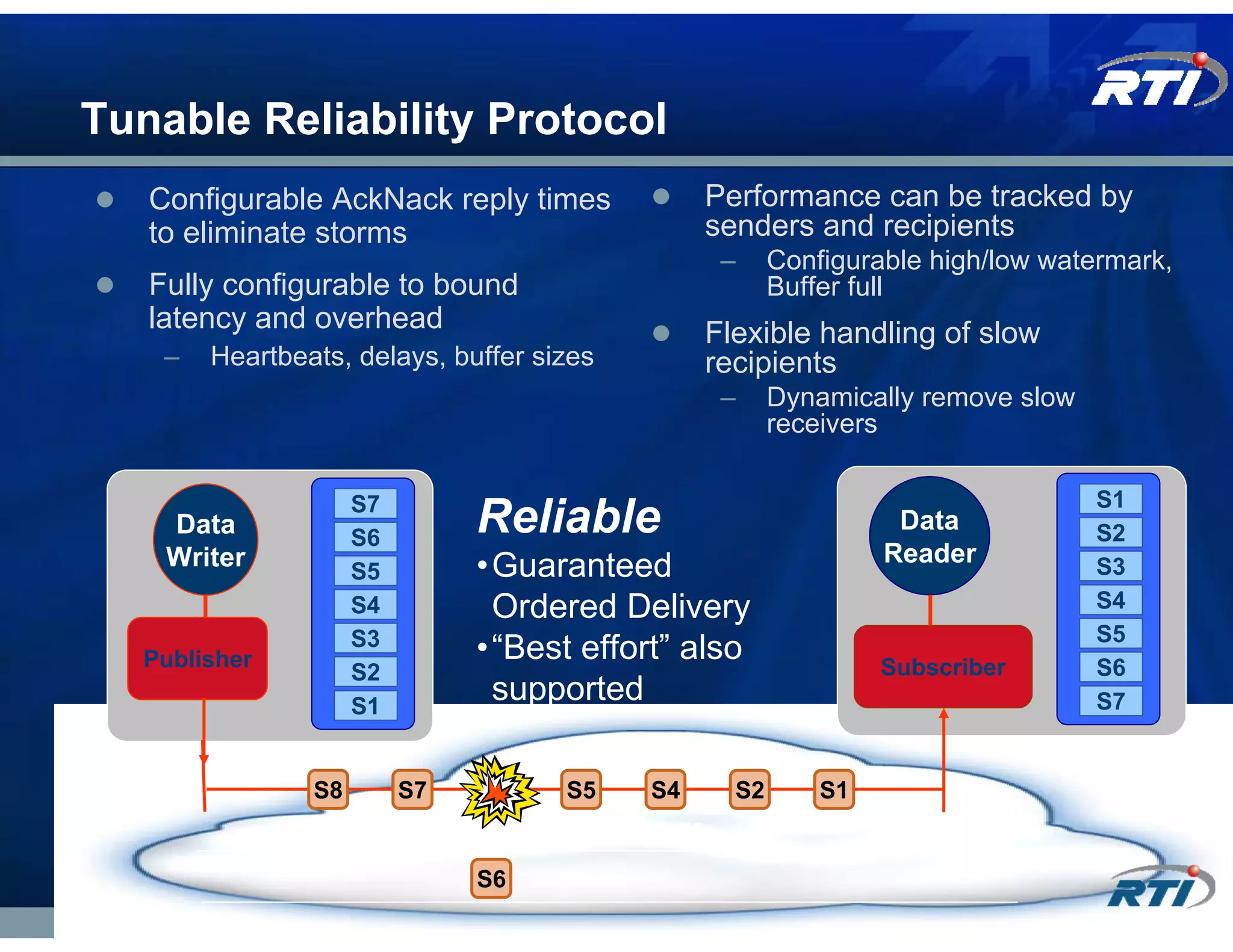

Tunable Reliability Protocol Configurable AckNack reply times Performance can be tracked by to eliminate storms senders and recipients – Configurable high/low watermark, Fully configurable to bound Buffer full latency and overhead Flexible handling of slow – Heartbeats, delays, buffer sizes recipients – Dynamically remove slow receivers S7 S1 Data S6 Reliable Data S2 Writer Reader S5 •Guaranteed S3 S4 Ordered Delivery S4 S3 S5 Publisher •“Best effort” also Subscriber S6 S2 S1 supported S7 S8 S7 S3 S5 S4 S2 S1 NACK #6 S6

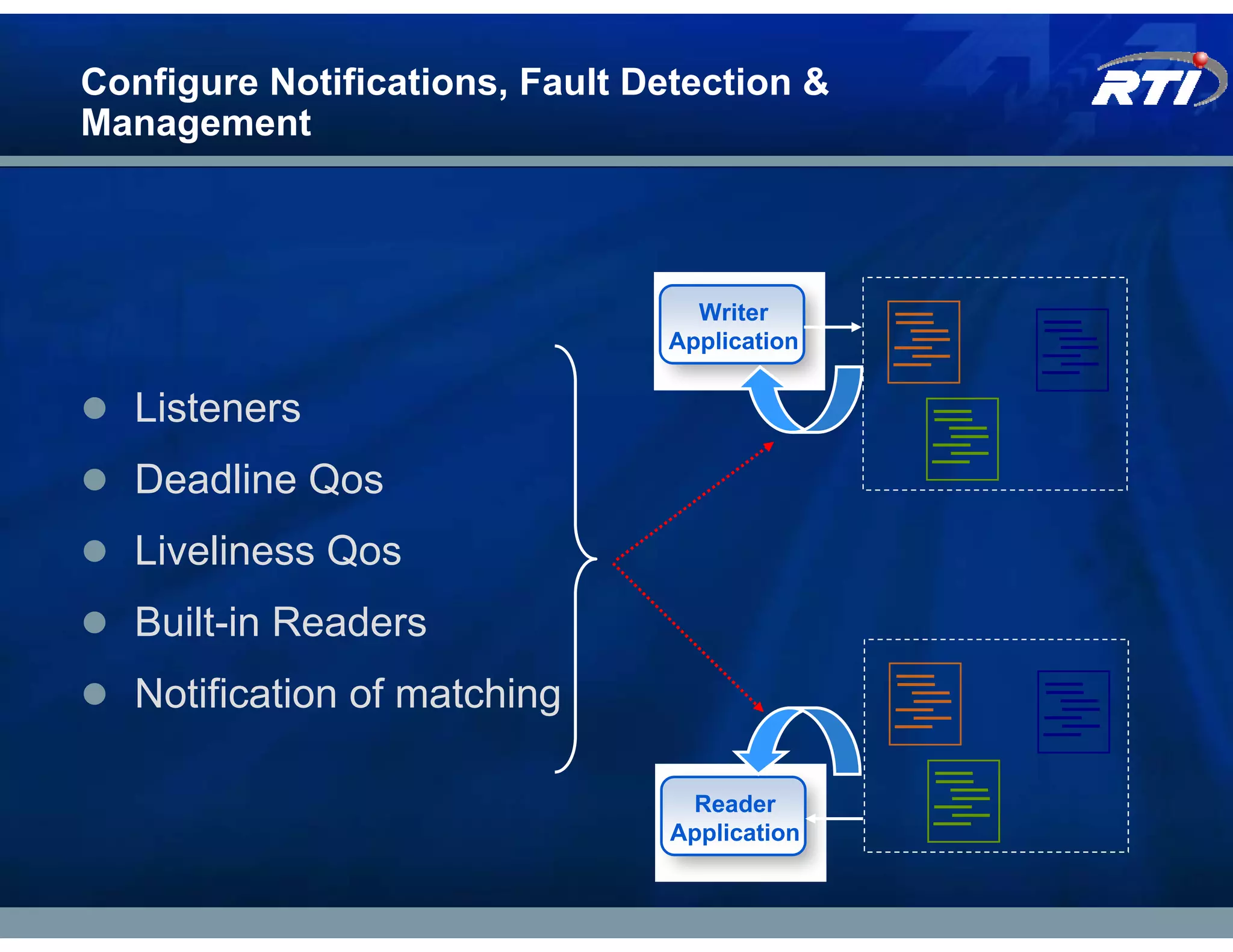

Configure Notifications, Fault Detection & Management Writer Application Listeners Deadline Qos Liveliness Qos Built-in Readers Notification of matching Reader Application

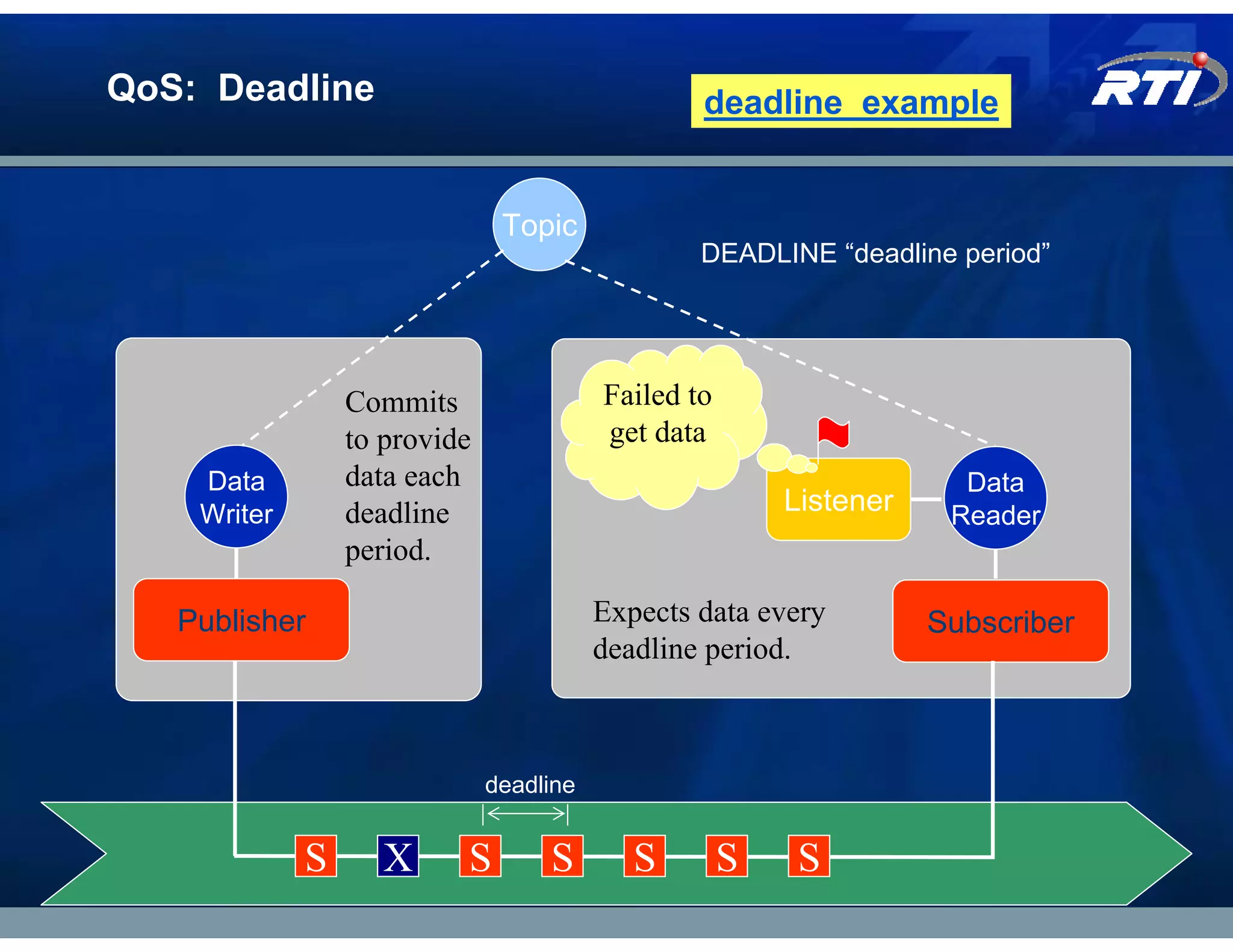

QoS: Deadline deadline_example Topic DEADLINE “deadline period” Commits Failed to to provide get data Data data each Data Writer deadline Listener Reader period. Publisher Expects data every Subscriber deadline period. deadline S X S S S S S

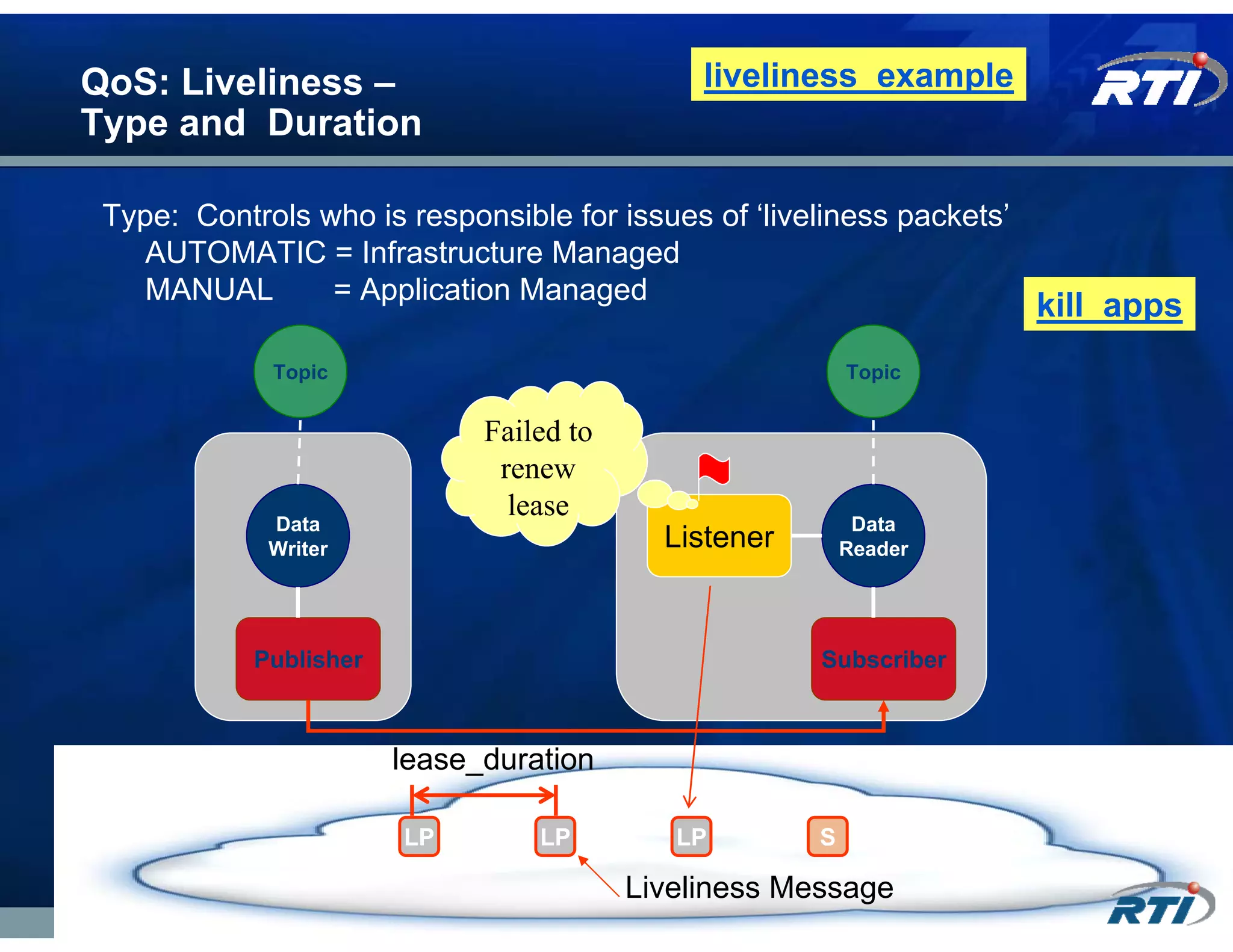

QoS: Liveliness – liveliness_example Type and Duration Type: Controls who is responsible for issues of ‘liveliness packets’ AUTOMATIC = Infrastructure Managed MANUAL = Application Managed kill_apps Topic Topic Failed to renew lease Data Data Writer Listener Reader Publisher Subscriber lease_duration LP LP LP S Liveliness Message

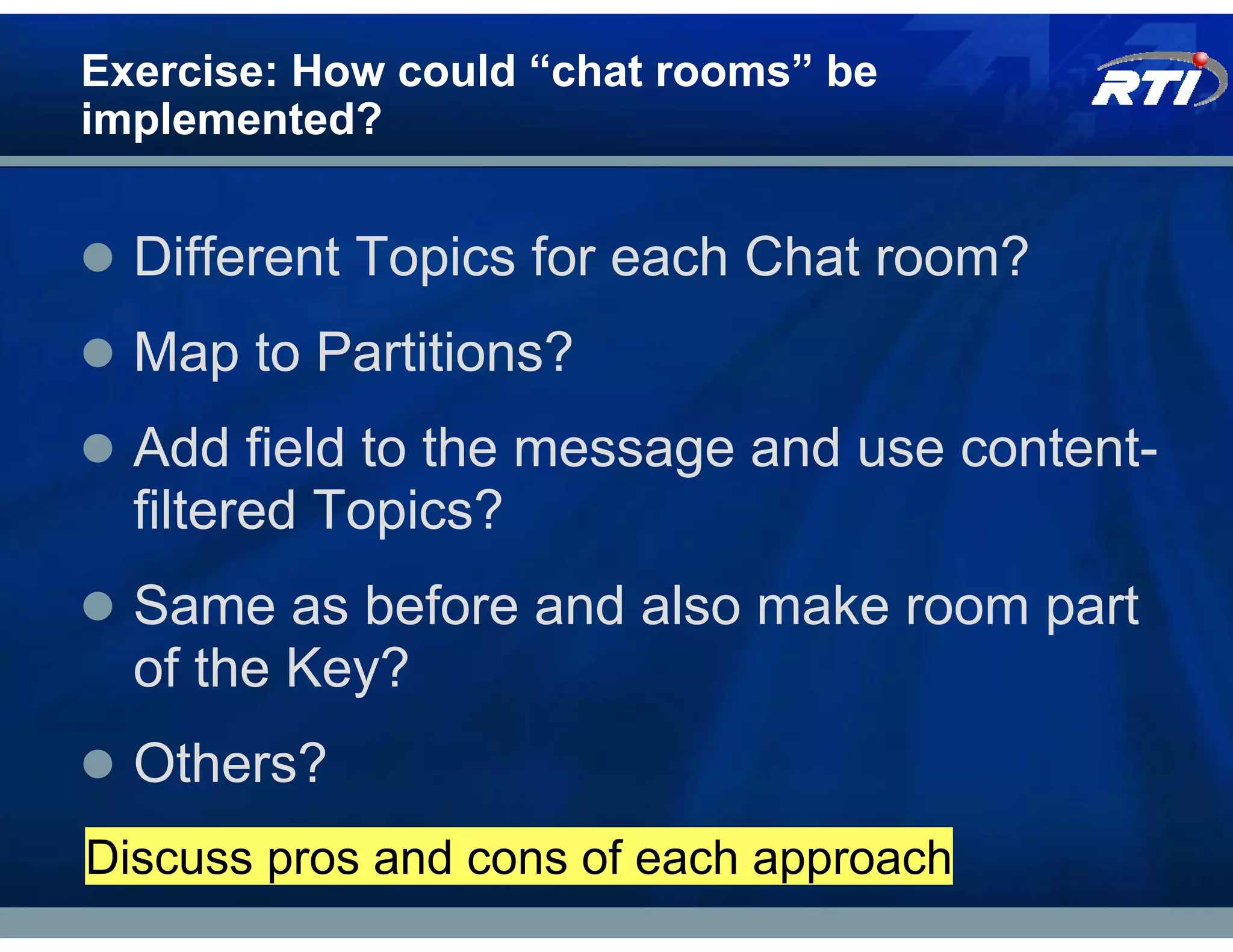

Exercise: How could “chat rooms” be implemented? Different Topics for each Chat room? Map to Partitions? Add field to the message and use content- filtered Topics? Same as before and also make room part of the Key? Others? Discuss pros and cons of each approach

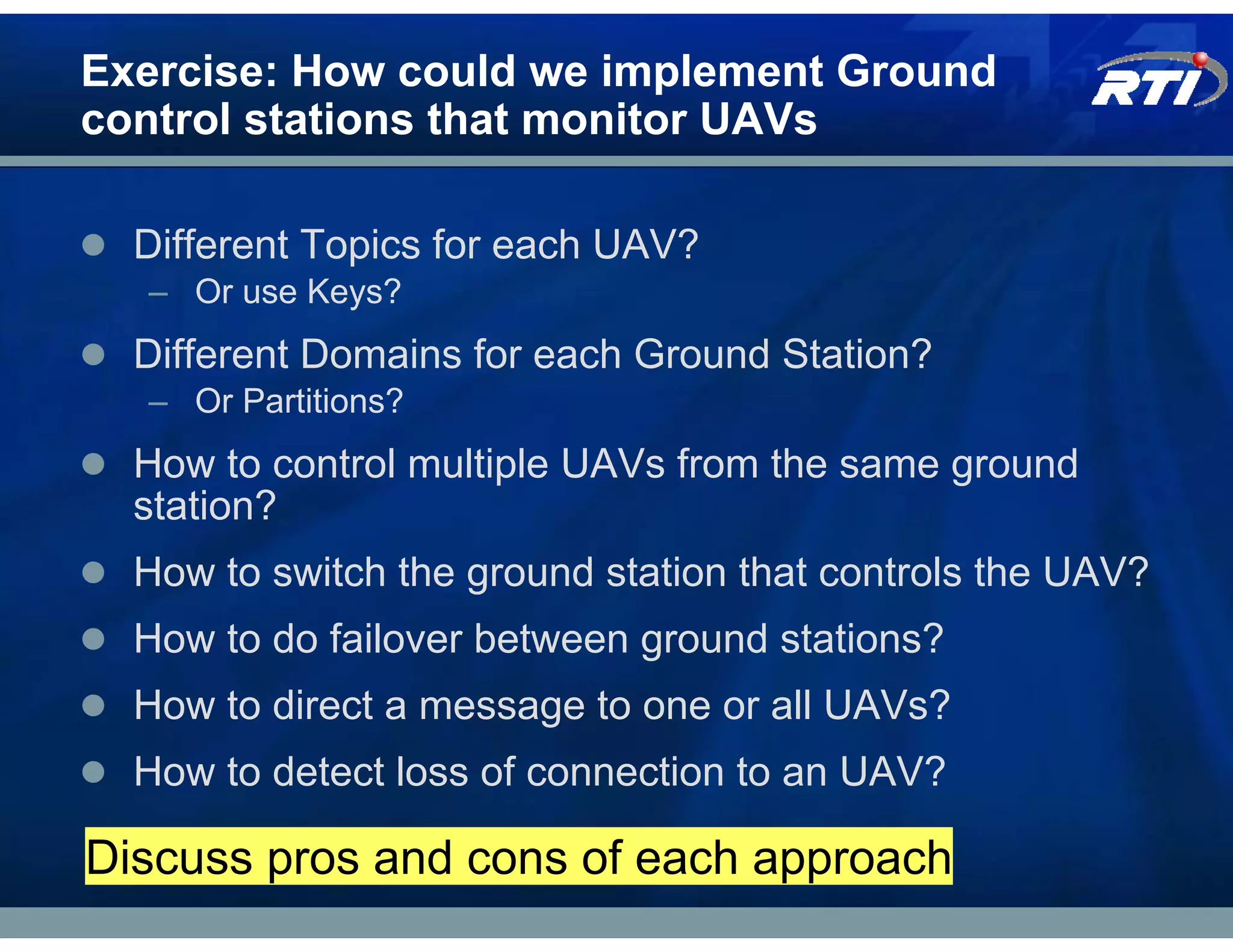

Exercise: How could we implement Ground control stations that monitor UAVs Different Topics for each UAV? – Or use Keys? Different Domains for each Ground Station? – Or Partitions? How to control multiple UAVs from the same ground station? How to switch the ground station that controls the UAV? How to do failover between ground stations? How to direct a message to one or all UAVs? How to detect loss of connection to an UAV? Discuss pros and cons of each approach
Outline Overview of Technology Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. – Details on Reliable Protocol – Latency and Throughput – Using RTI’s LatencyTest and Perftest – Batching – Asynchronous writes & FlowController – Maximizing latency and Throughput Integrating external and legacy systems. Future directions and Standards:

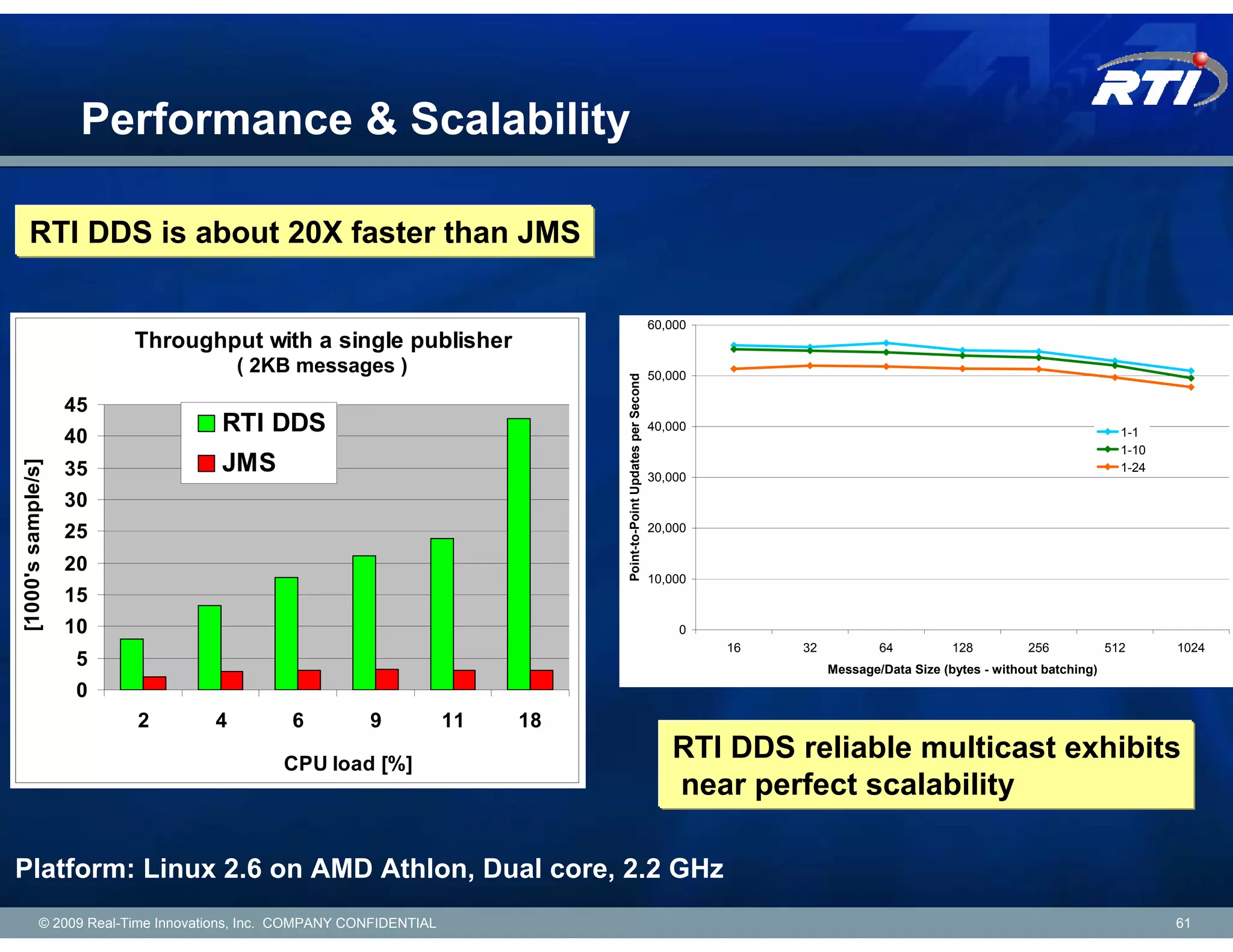

Performance & Scalability RTI DDS is about 20X faster than JMS 60,000 Throughput with a single publisher ( 2KB messages ) 50,000 Point-to-Point Updates per Second 45 40 RTI DDS 40,000 1-1 1-10 JMS [1000's sample/s] 35 30,000 1-24 30 25 20,000 20 10,000 15 10 0 16 32 64 128 256 512 1024 5 Message/Data Size (bytes - without batching) 0 2 4 6 9 11 18 CPU load [%] RTI DDS reliable multicast exhibits near perfect scalability Platform: Linux 2.6 on AMD Athlon, Dual core, 2.2 GHz © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 61

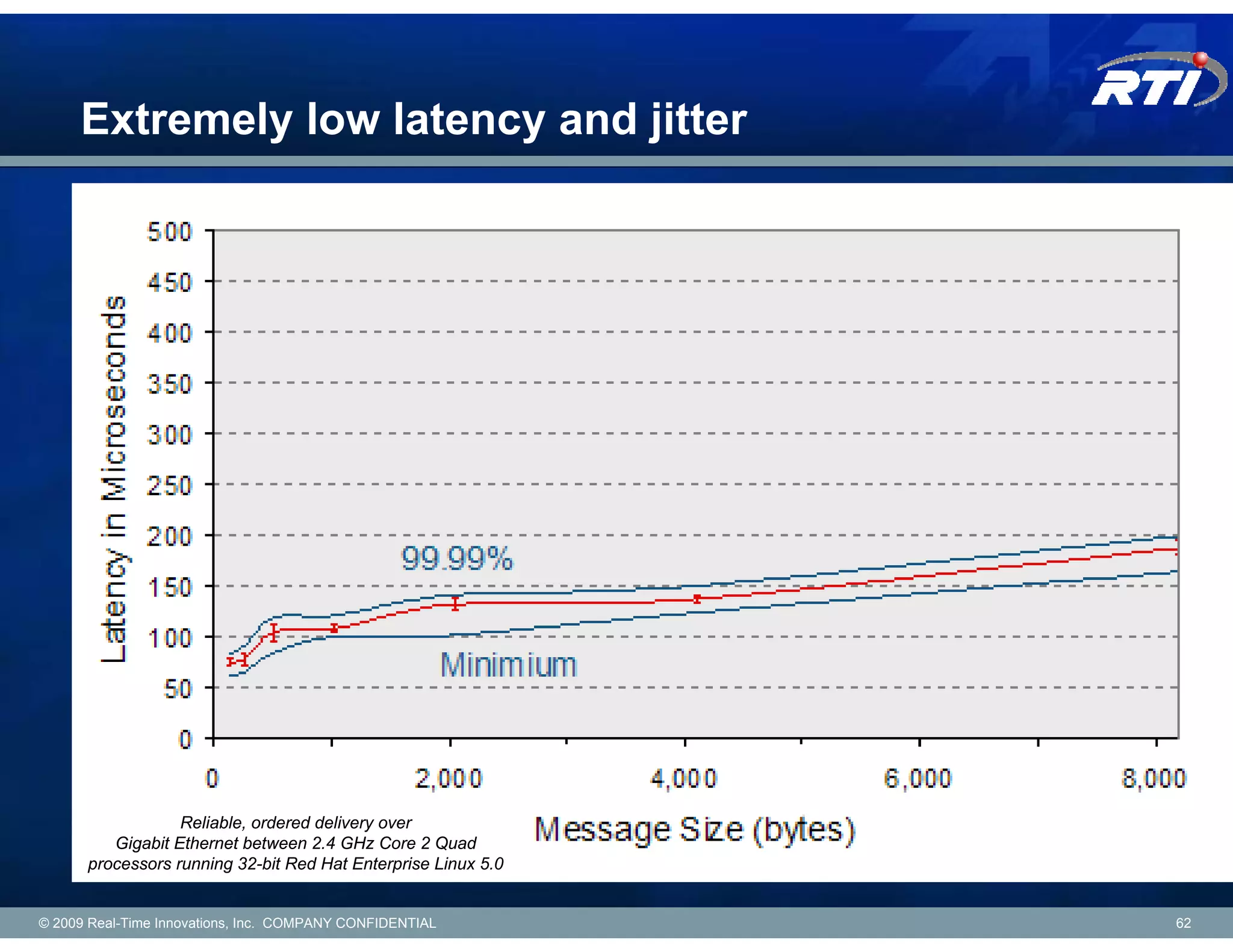

Extremely low latency and jitter Reliable, ordered delivery over Gigabit Ethernet between 2.4 GHz Core 2 Quad processors running 32-bit Red Hat Enterprise Linux 5.0 © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 62

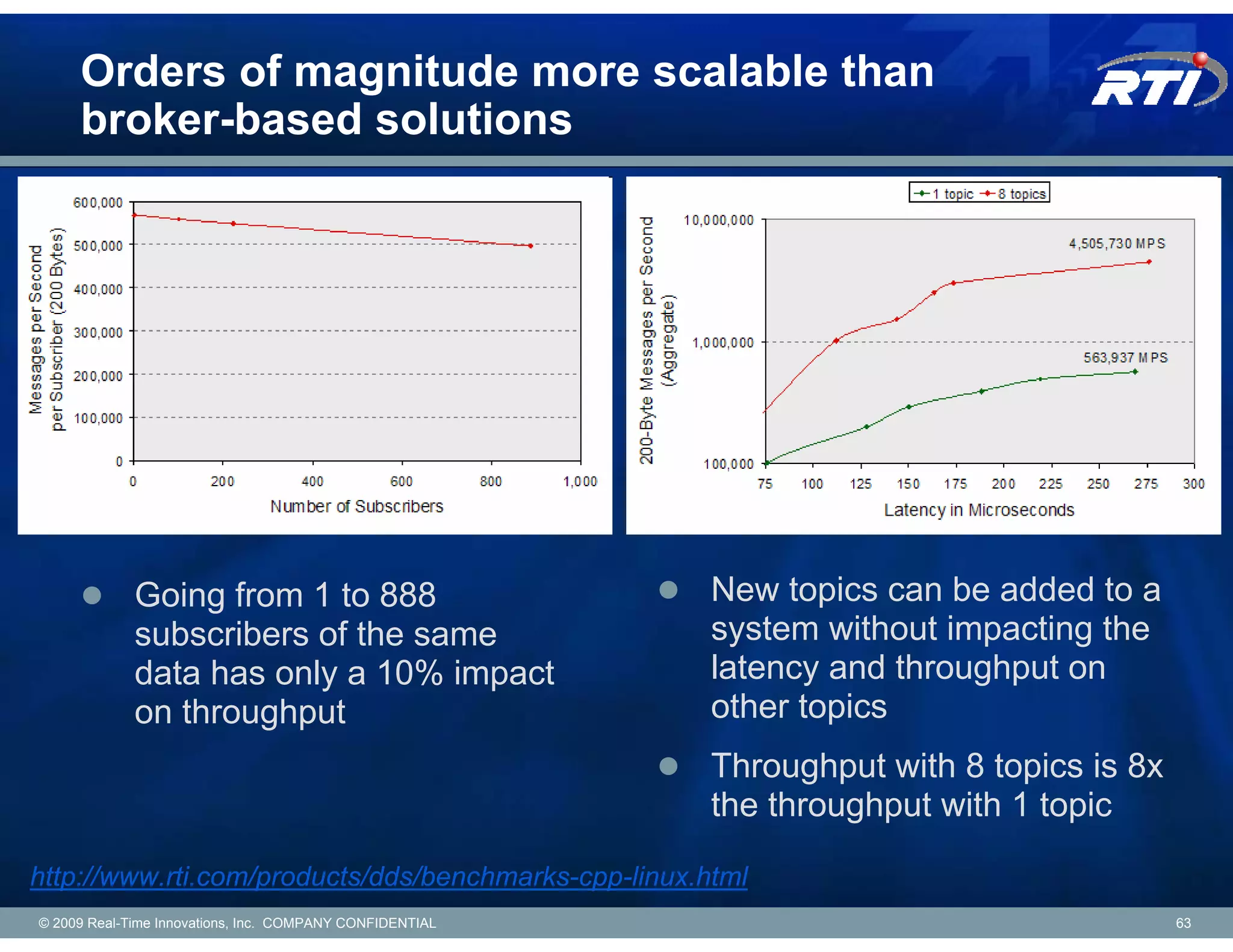

Orders of magnitude more scalable than broker-based solutions Going from 1 to 888 New topics can be added to a subscribers of the same system without impacting the data has only a 10% impact latency and throughput on on throughput other topics Throughput with 8 topics is 8x the throughput with 1 topic http://www.rti.com/products/dds/benchmarks-cpp-linux.html © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 63

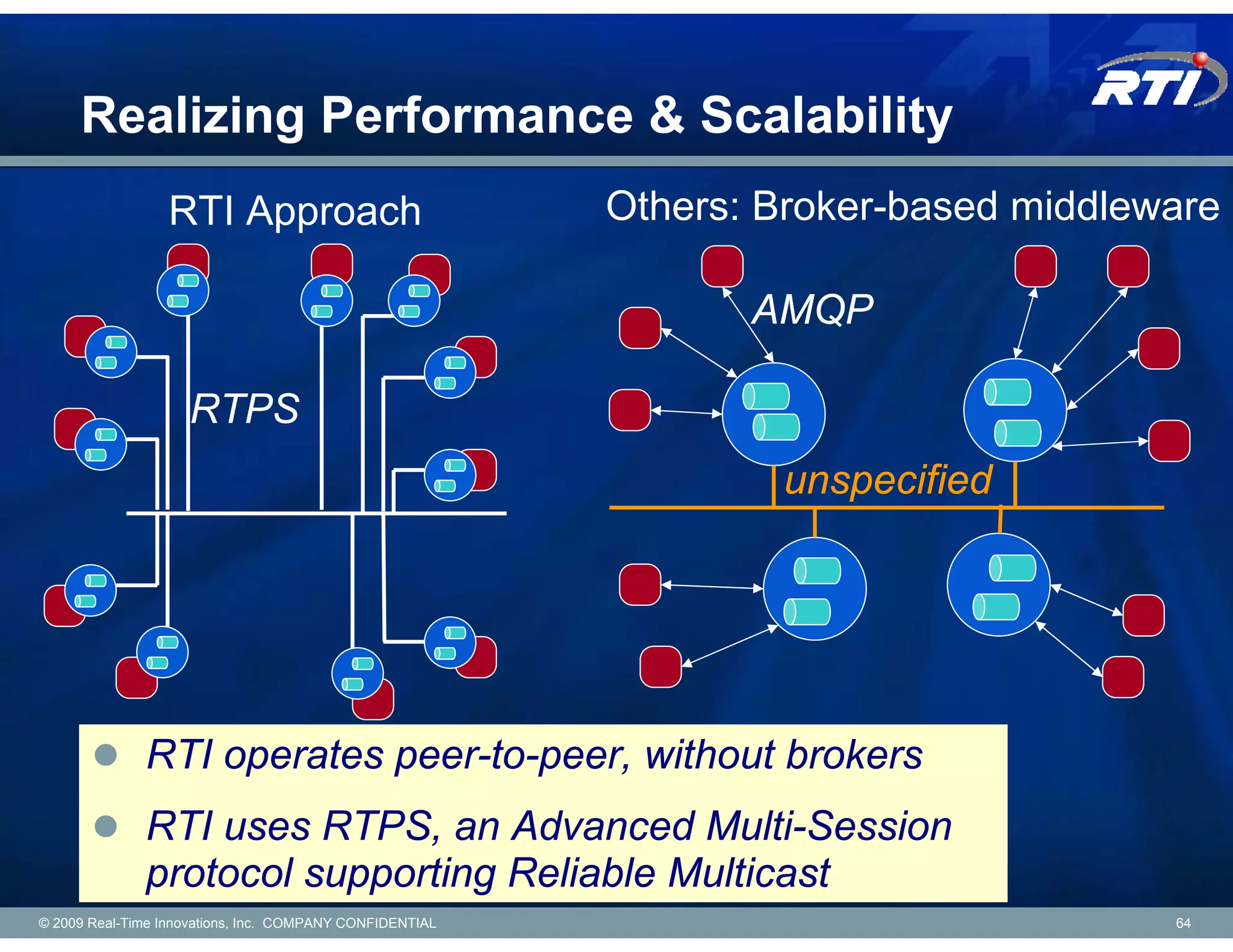

Realizing Performance & Scalability RTI Approach Others: Broker-based middleware AMQP RTPS unspecified RTI operates peer-to-peer, without brokers RTI uses RTPS, an Advanced Multi-Session protocol supporting Reliable Multicast © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 64

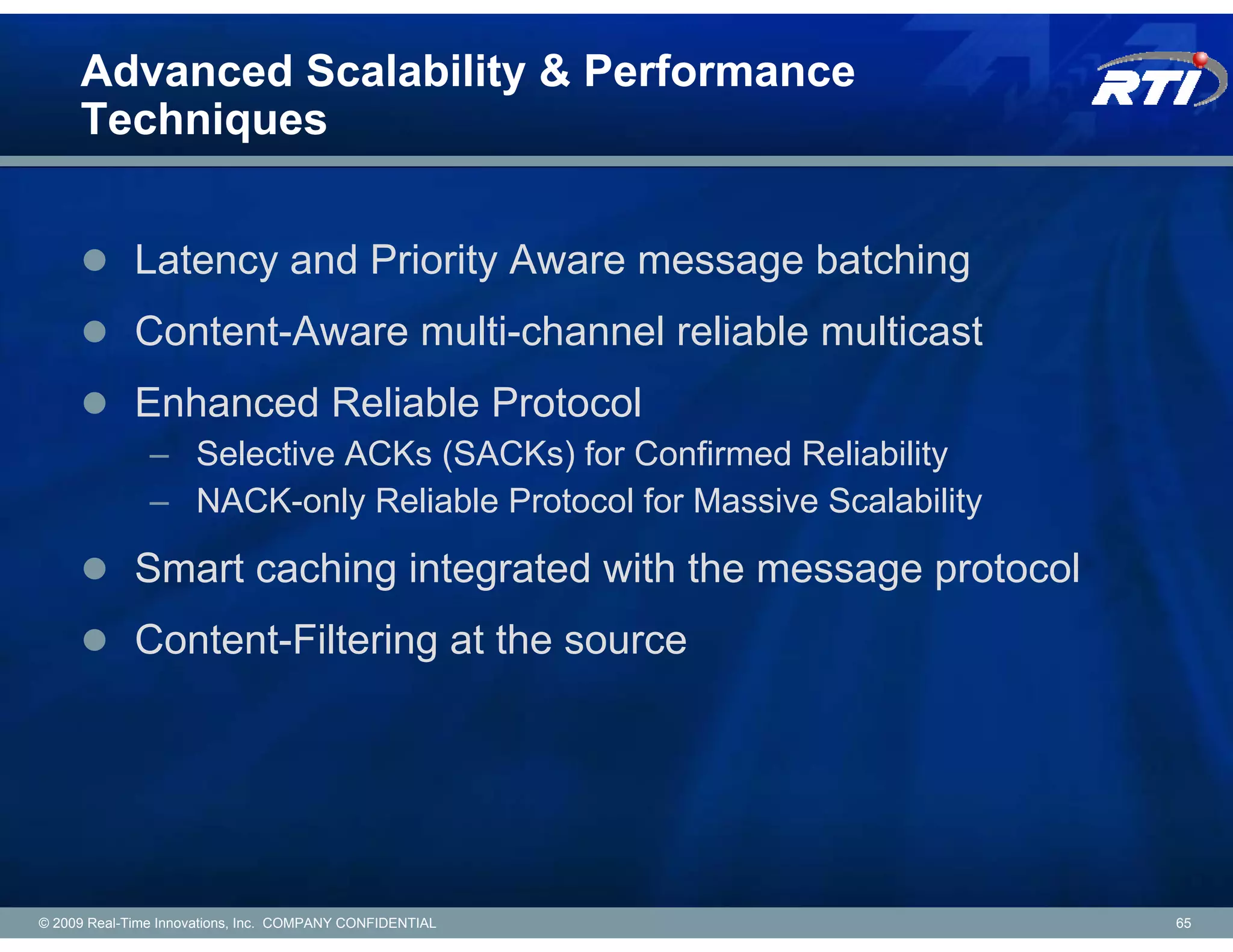

Advanced Scalability & Performance Techniques Latency and Priority Aware message batching Content-Aware multi-channel reliable multicast Enhanced Reliable Protocol – Selective ACKs (SACKs) for Confirmed Reliability – NACK-only Reliable Protocol for Massive Scalability Smart caching integrated with the message protocol Content-Filtering at the source © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 65

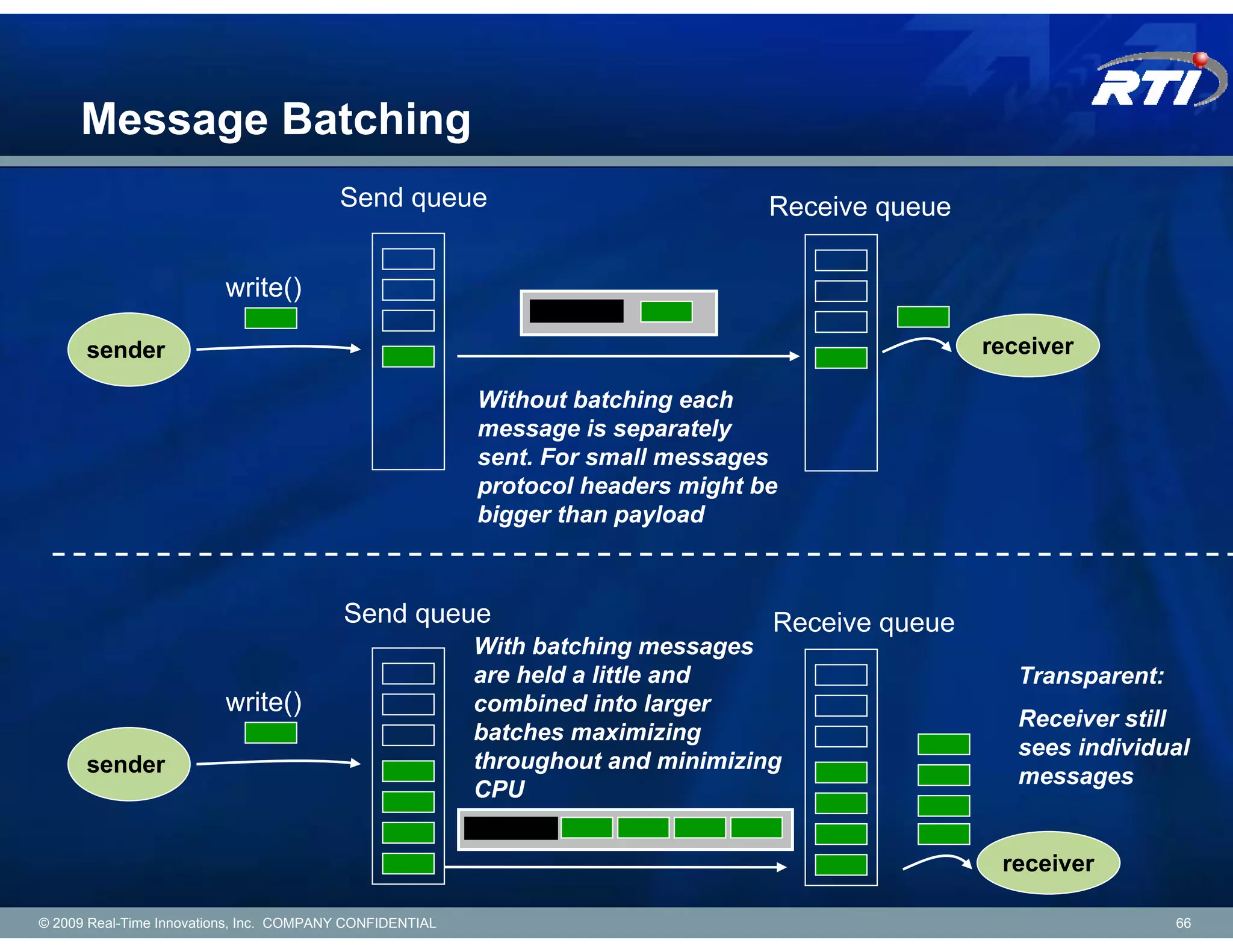

Message Batching Send queue Receive queue write() sender receiver Without batching each message is separately sent. For small messages protocol headers might be bigger than payload Send queue Receive queue With batching messages are held a little and Transparent: write() combined into larger Receiver still batches maximizing sees individual sender throughout and minimizing messages CPU receiver © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 66

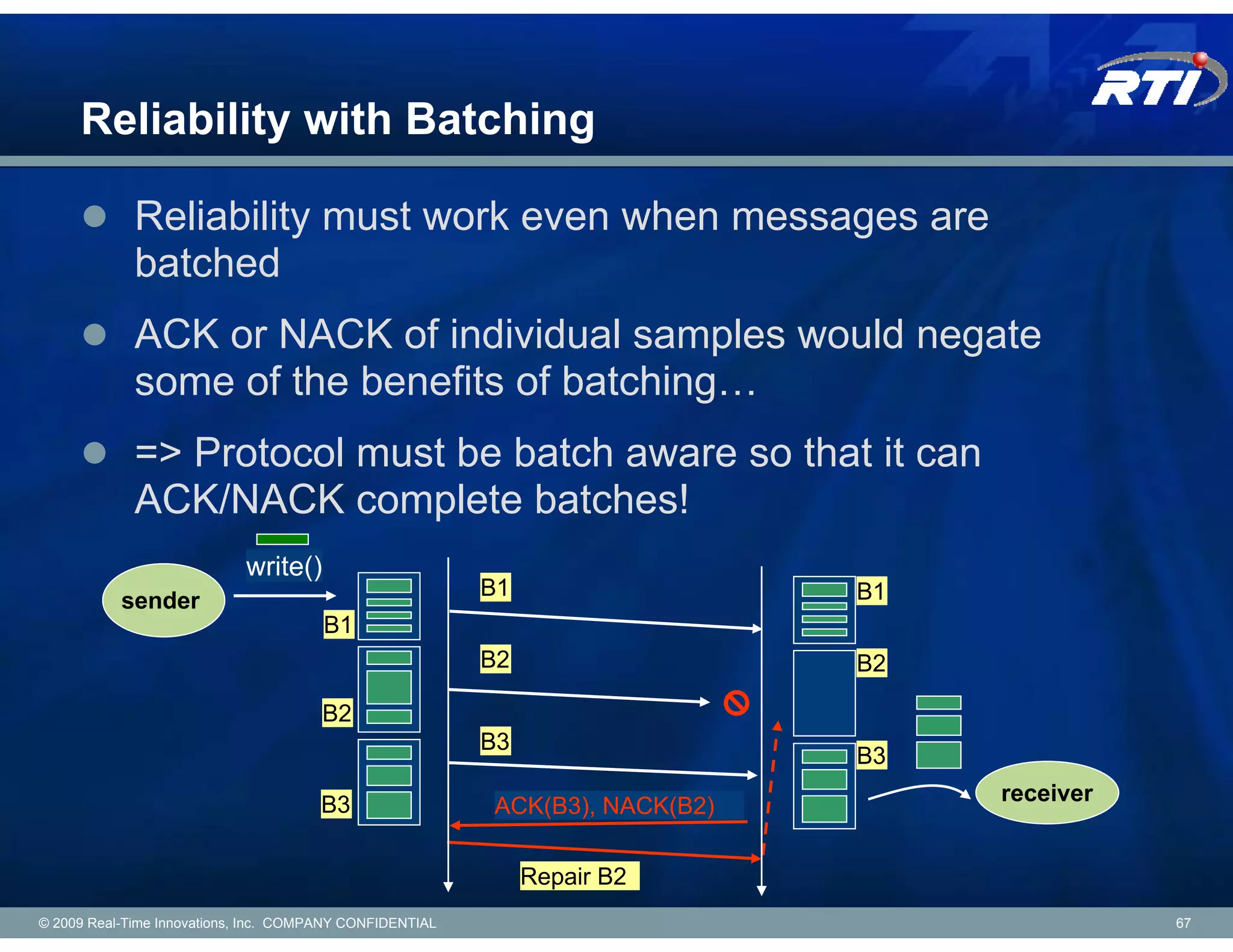

Reliability with Batching Reliability must work even when messages are batched ACK or NACK of individual samples would negate some of the benefits of batching… => Protocol must be batch aware so that it can ACK/NACK complete batches! write() B1 B1 sender B1 B2 B2 B2 B3 B3 B3 receiver ACK(B3), NACK(B2) Repair B2 © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 67

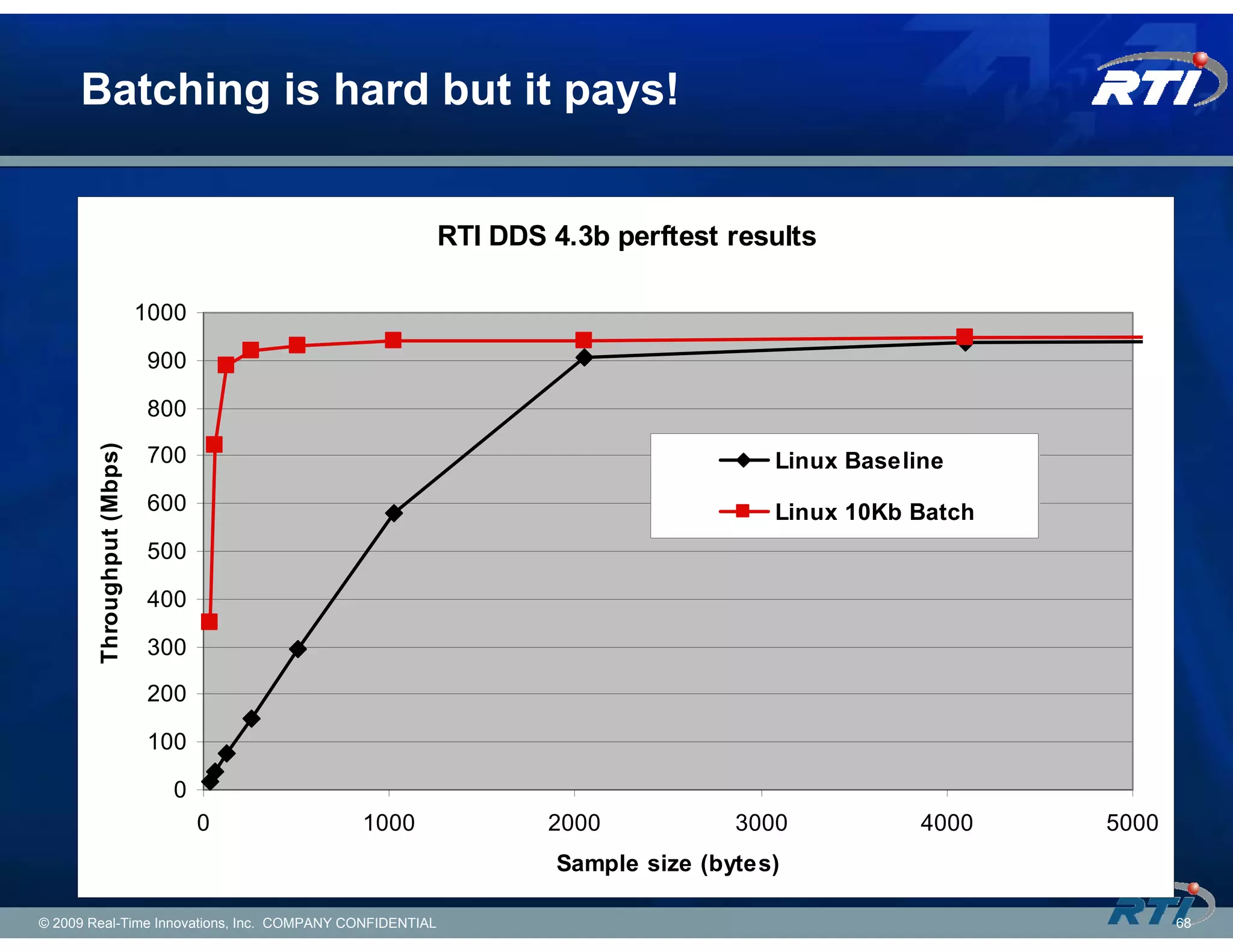

Batching is hard but it pays! RTI DDS 4.3b perftest results 1000 900 800 Throughput (Mbps) 700 Linux Baseline 600 Linux 10Kb Batch 500 400 300 200 100 0 0 1000 2000 3000 4000 5000 Intel Core2Duo Single-CPU Dual-Core 2.4GHz, 4MB cache Sample size (bytes) 32-bit CentOS 5 (RHEL 5), 2GB memory, Intel E1000 NIC © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 68

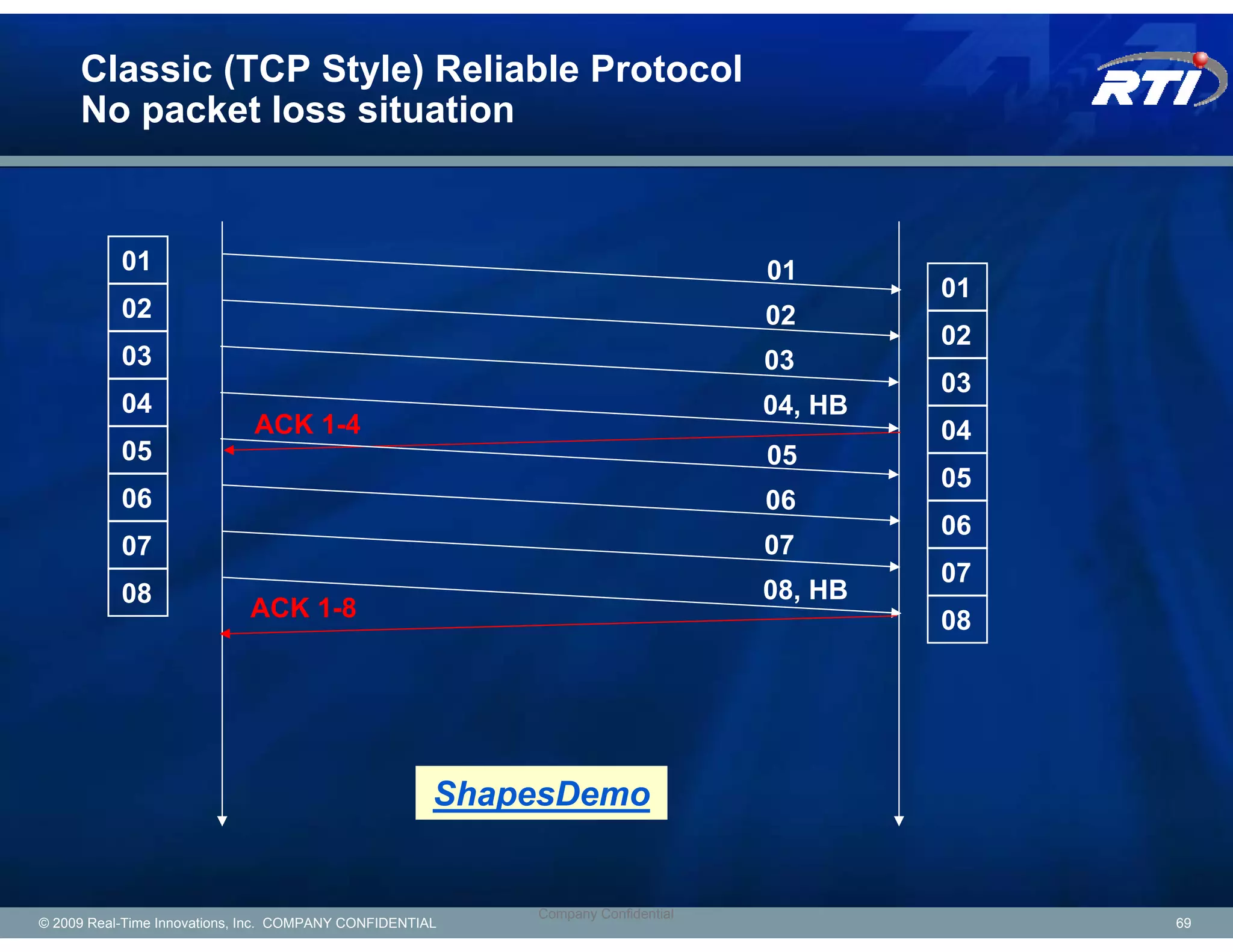

Classic (TCP Style) Reliable Protocol No packet loss situation 01 01 01 02 02 02 03 03 03 04 04, HB ACK 1-4 04 05 05 05 06 06 06 07 07 07 08 08, HB ACK 1-8 08 ShapesDemo Company Confidential © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 69

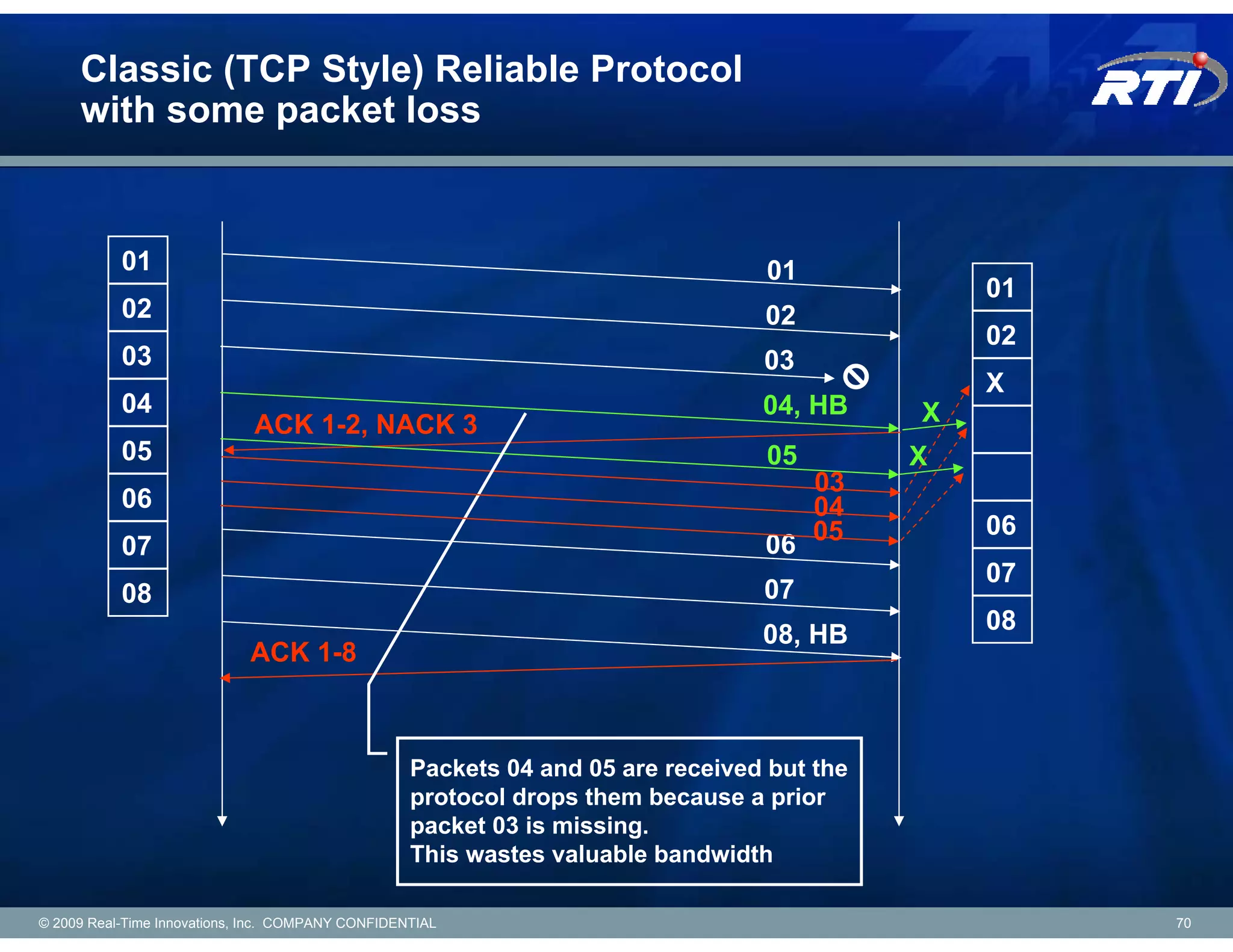

Classic (TCP Style) Reliable Protocol with some packet loss 01 01 01 02 02 02 03 03 X 04 04, HB X ACK 1-2, NACK 3 05 05 X 03 06 04 06 07 06 05 07 08 07 08 08, HB ACK 1-8 Packets 04 and 05 are received but the protocol drops them because a prior packet 03 is missing. This wastes valuable bandwidth © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 70

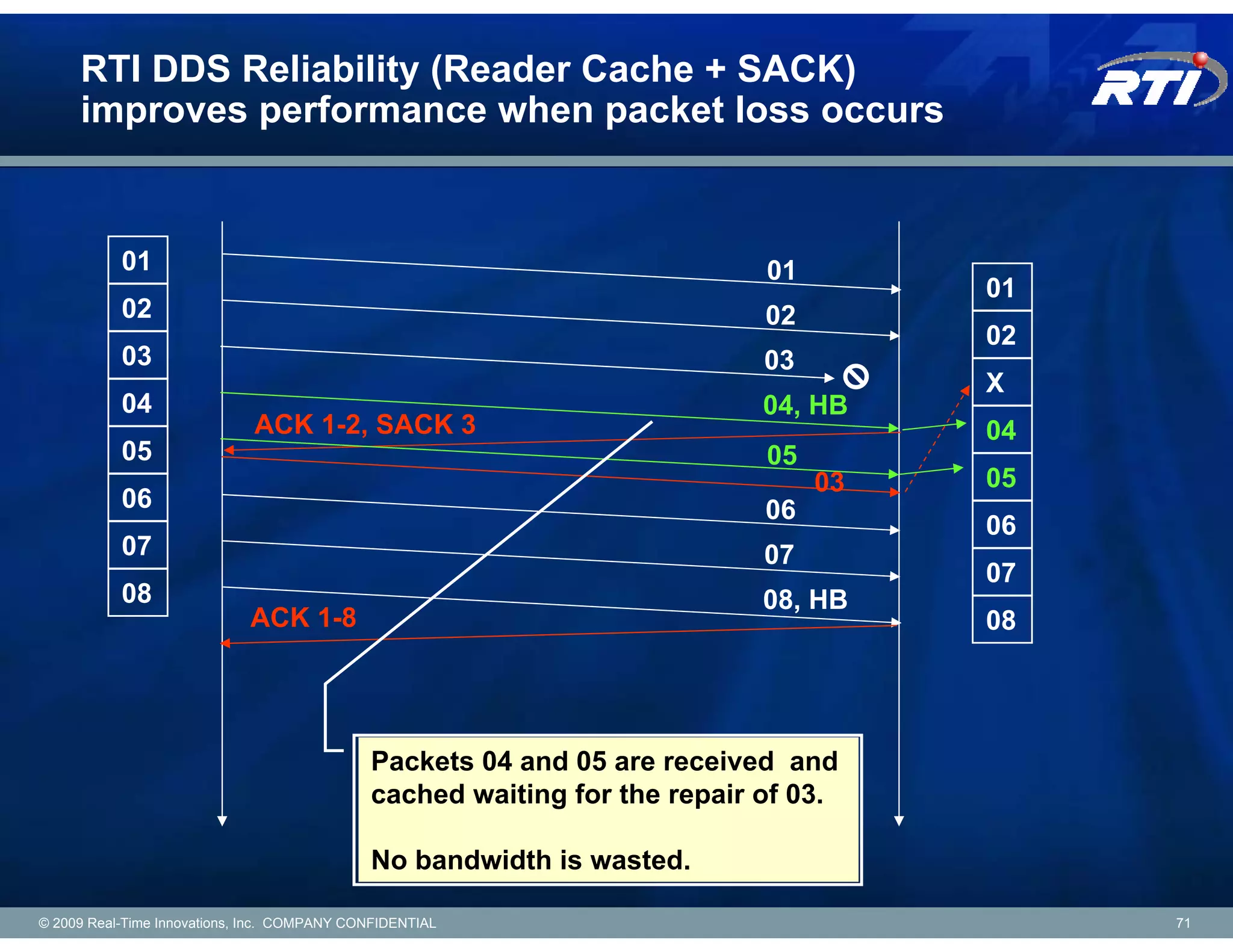

RTI DDS Reliability (Reader Cache + SACK) improves performance when packet loss occurs 01 01 01 02 02 02 03 03 X 04 04, HB ACK 1-2, SACK 3 04 05 05 03 05 06 06 06 07 07 07 08 08, HB ACK 1-8 08 Packets 04 and 05 are received and cached waiting for the repair of 03. No bandwidth is wasted. © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 71

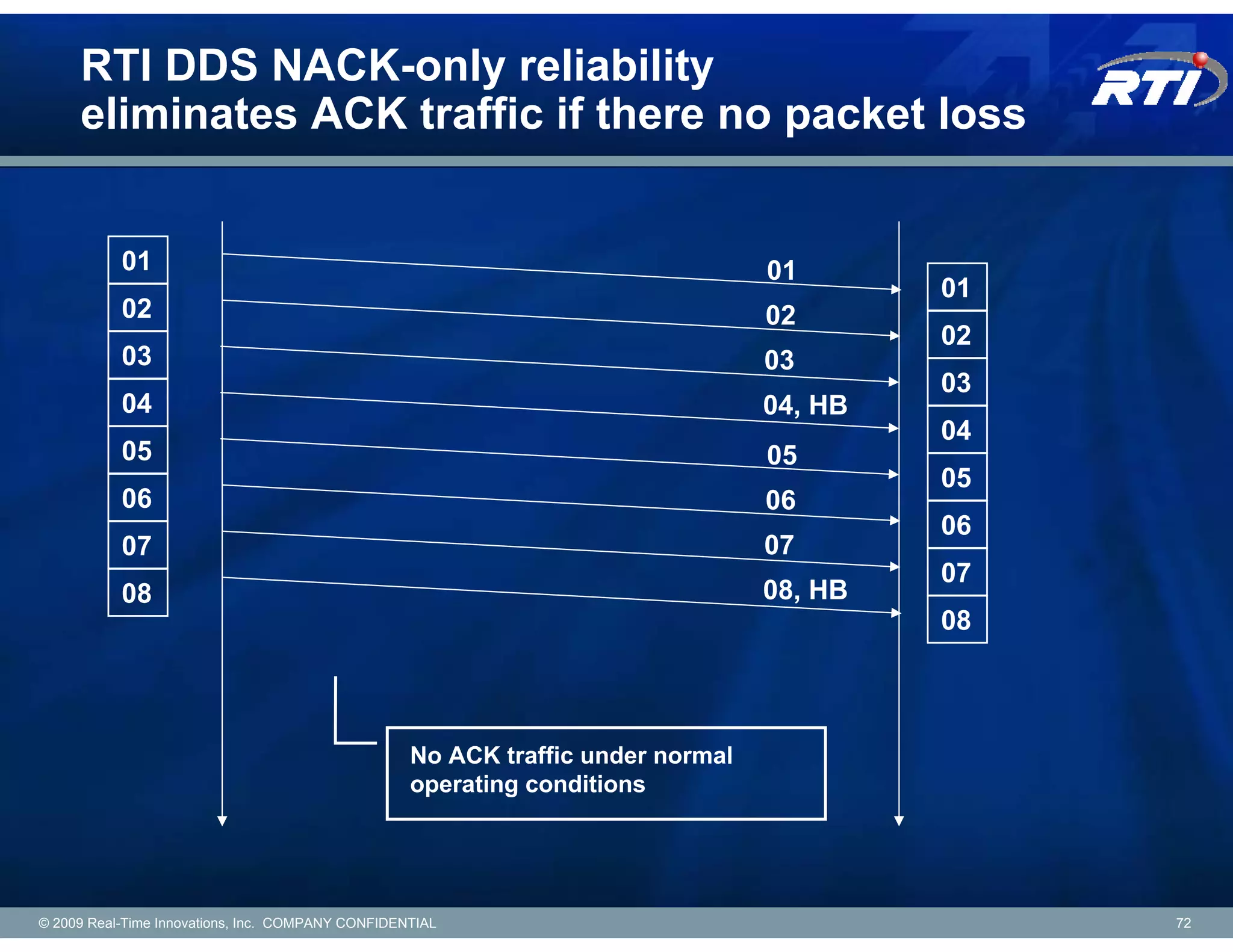

RTI DDS NACK-only reliability eliminates ACK traffic if there no packet loss 01 01 01 02 02 02 03 03 03 04 04, HB 04 05 05 05 06 06 06 07 07 07 08 08, HB 08 No ACK traffic under normal operating conditions © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 72

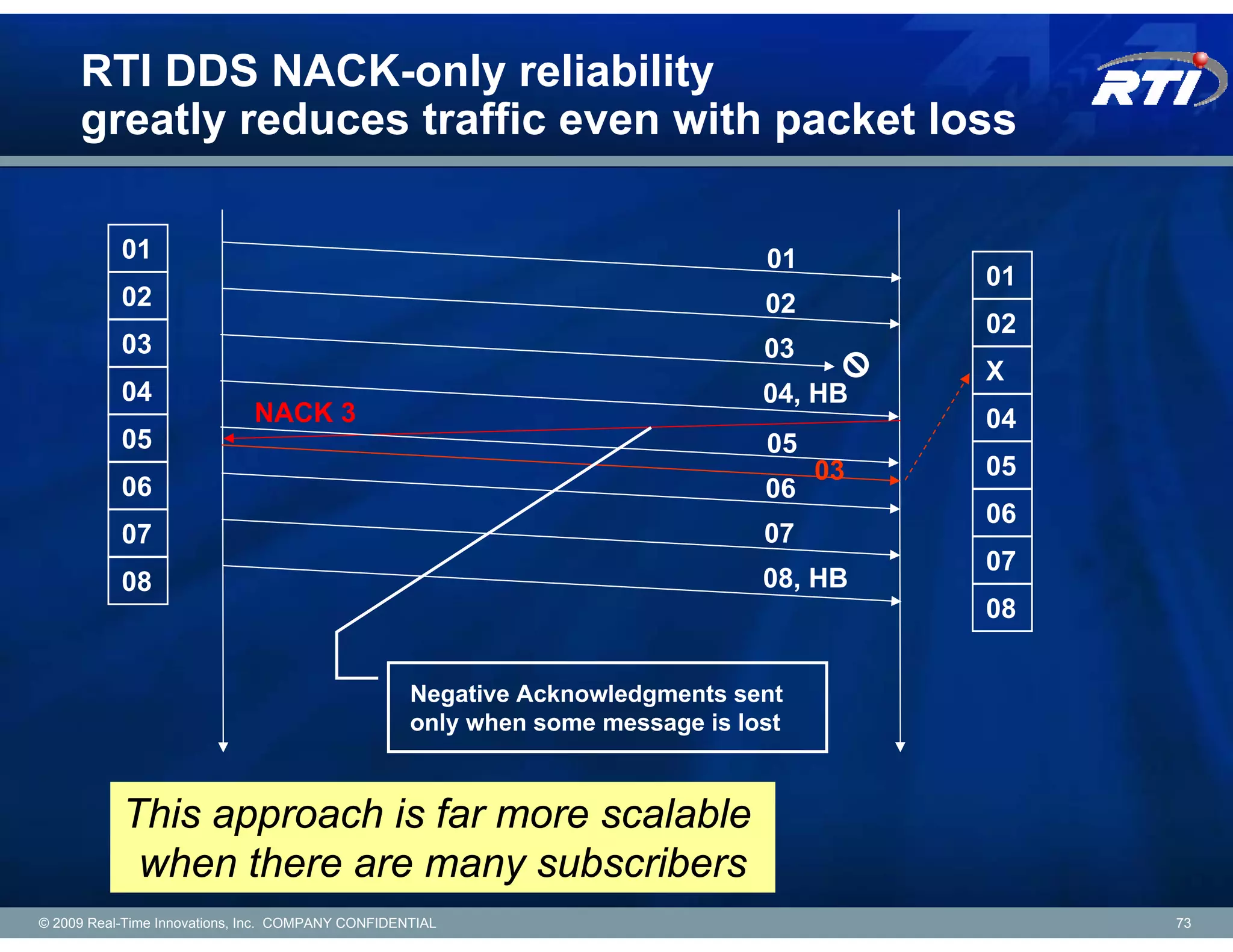

RTI DDS NACK-only reliability greatly reduces traffic even with packet loss 01 01 01 02 02 02 03 03 X 04 04, HB NACK 3 04 05 05 03 05 06 06 06 07 07 07 08 08, HB 08 Negative Acknowledgments sent only when some message is lost This approach is far more scalable when there are many subscribers © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 73

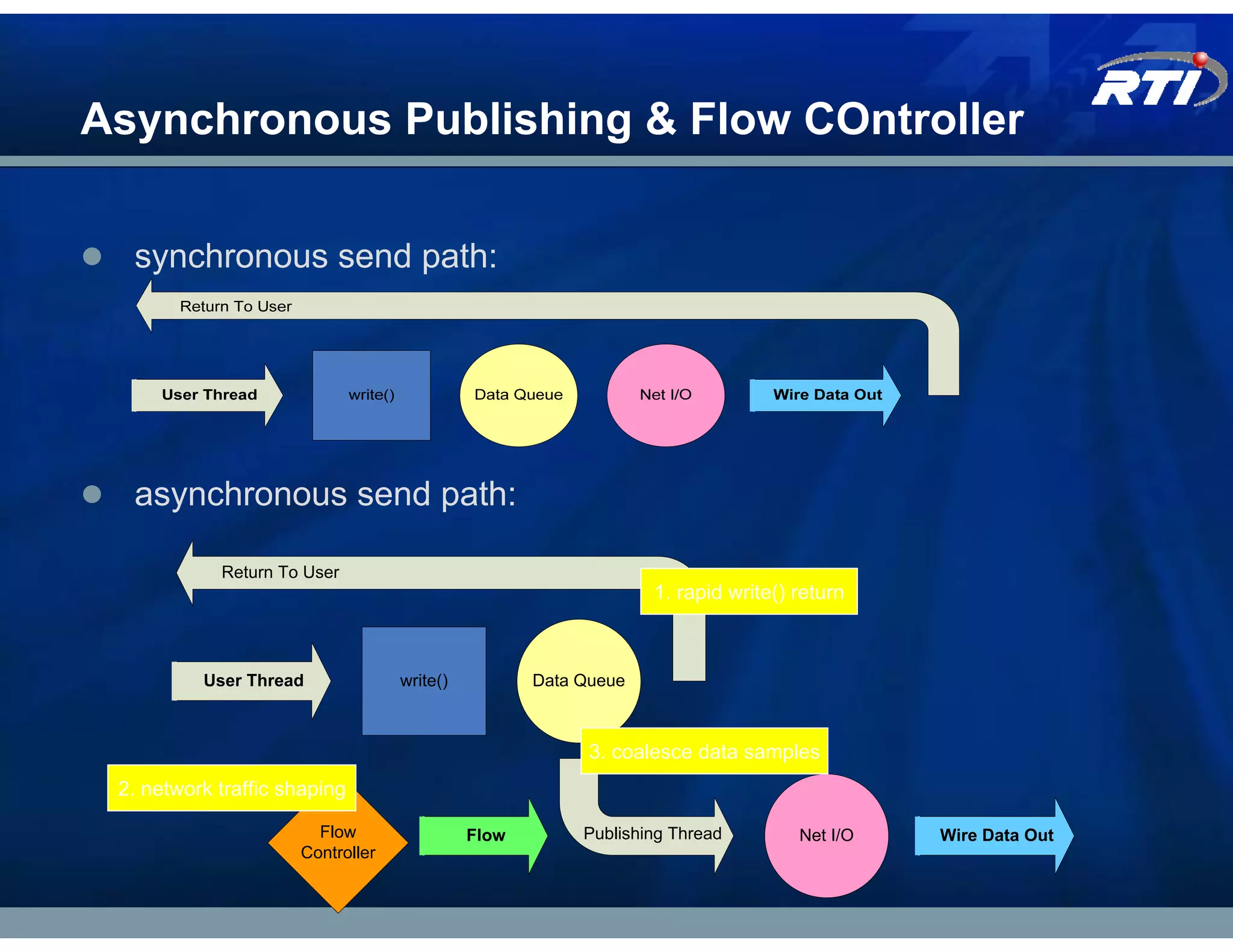

Asynchronous Publishing & Flow COntroller synchronous send path: asynchronous send path: Return To User 1. rapid write() return User Thread write() Data Queue 3. coalesce data samples 2. network traffic shaping Flow Flow Publishing Thread Net I/O Wire Data Out Controller

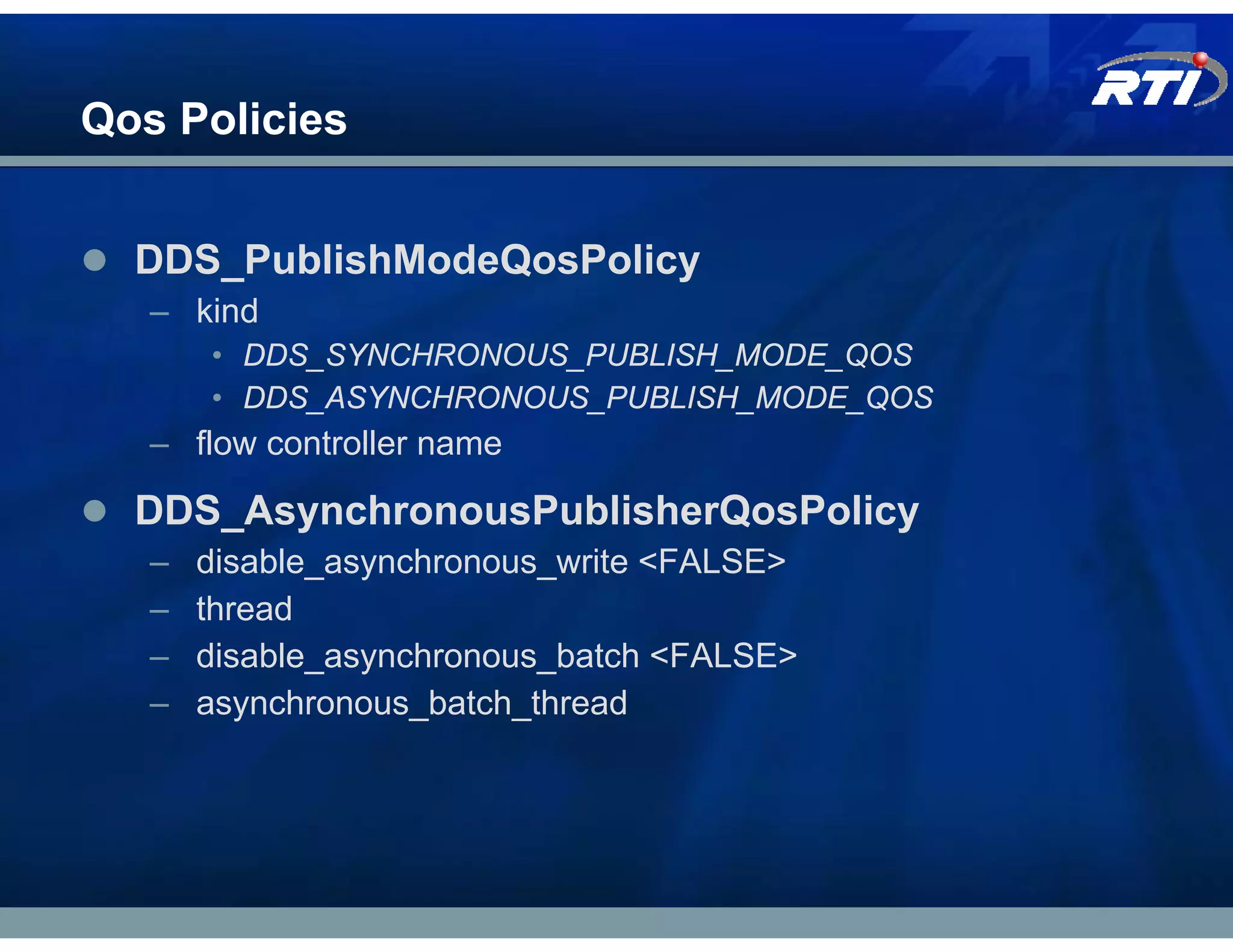

Qos Policies DDS_PublishModeQosPolicy – kind • DDS_SYNCHRONOUS_PUBLISH_MODE_QOS • DDS_ASYNCHRONOUS_PUBLISH_MODE_QOS – flow controller name DDS_AsynchronousPublisherQosPolicy – disable_asynchronous_write <FALSE> – thread – disable_asynchronous_batch <FALSE> – asynchronous_batch_thread

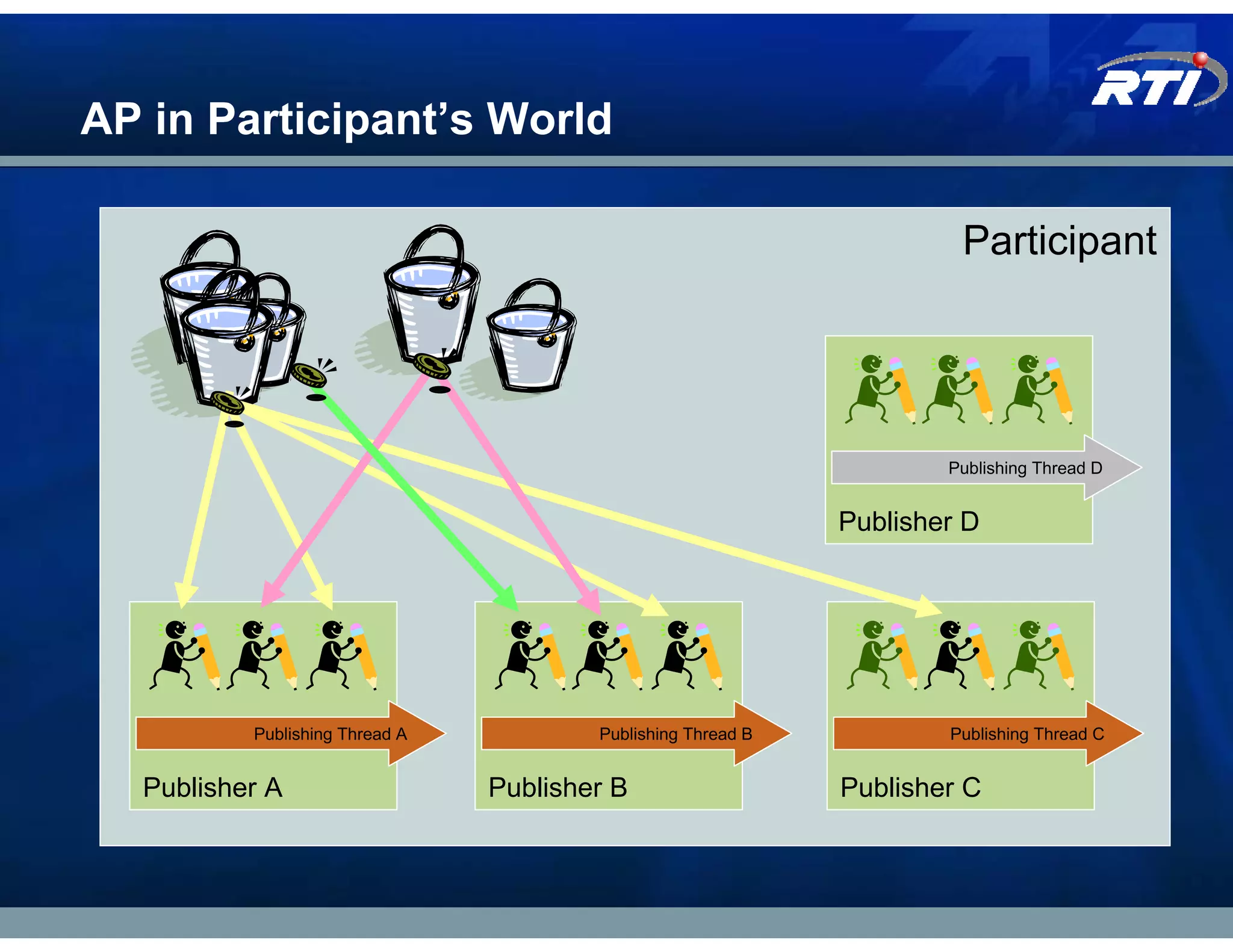

AP in Participant’s World Participant Publishing Thread D Publisher D Publishing Thread A Publishing Thread B Publishing Thread C Publisher A Publisher B Publisher C
Flow Controller Token Distribution basic token bucket – steady-state traffic • tokens_added_per_period • token_period – max burst control • max_tokens – Additional controls • tokens_leaked_per_period • all values can be DDS_LENGTH_UNLIMITED – piggyback discount (Token Exchange Rate) • bytes_per_token scheduling policy – round-robin (RR) – earliest-deadline-first (EDF) • deadline = time of write + DDS_DataWriterQos::latency_budget

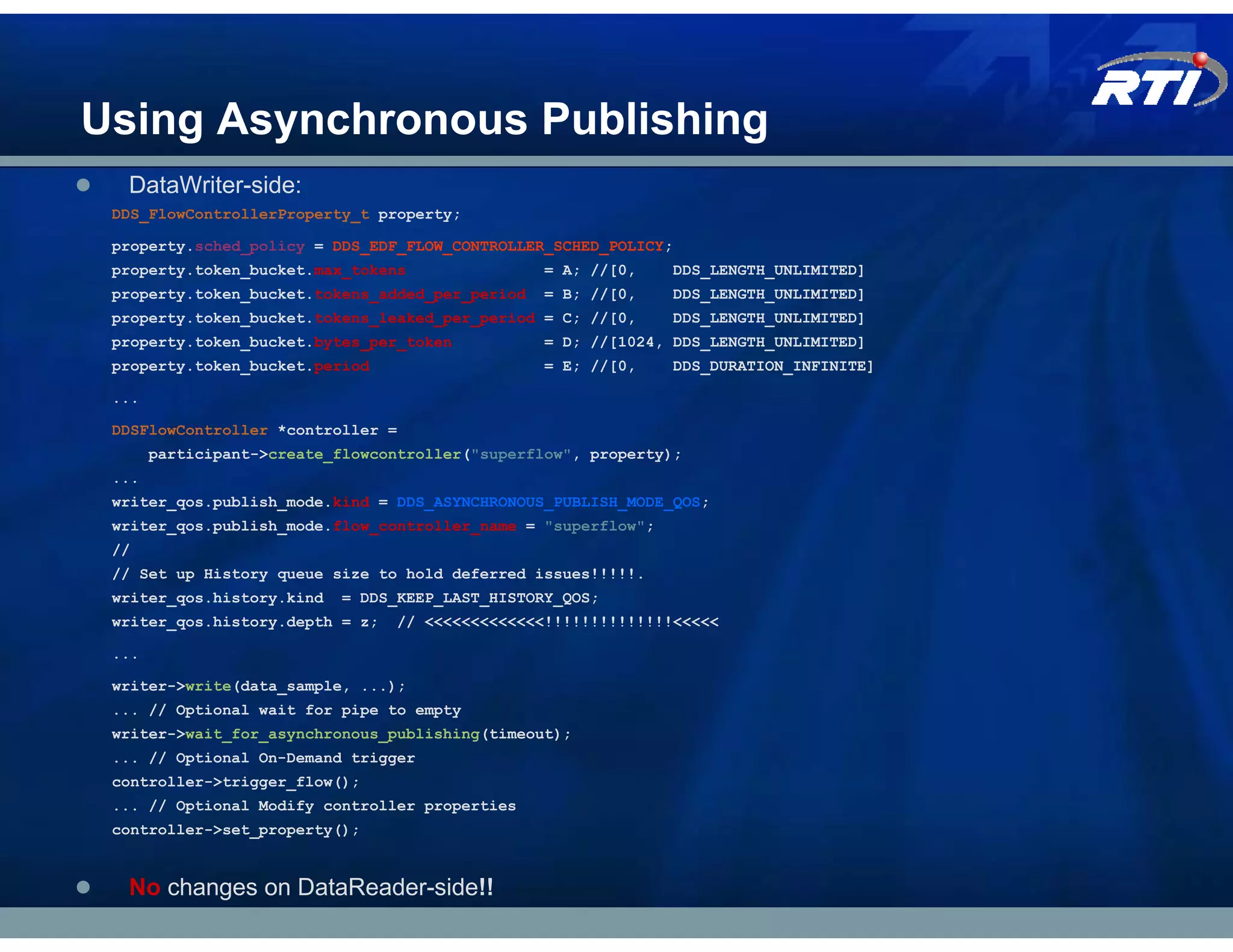

Using Asynchronous Publishing DataWriter-side: DDS_FlowControllerProperty_t property; property.sched_policy = DDS_EDF_FLOW_CONTROLLER_SCHED_POLICY; property.token_bucket.max_tokens = A; //[0, DDS_LENGTH_UNLIMITED] property.token_bucket.tokens_added_per_period = B; //[0, DDS_LENGTH_UNLIMITED] property.token_bucket.tokens_leaked_per_period = C; //[0, DDS_LENGTH_UNLIMITED] property.token_bucket.bytes_per_token = D; //[1024, DDS_LENGTH_UNLIMITED] property.token_bucket.period = E; //[0, DDS_DURATION_INFINITE] ... DDSFlowController *controller = participant->create_flowcontroller("superflow", property); ... writer_qos.publish_mode.kind = DDS_ASYNCHRONOUS_PUBLISH_MODE_QOS; writer_qos.publish_mode.flow_controller_name = "superflow"; // // Set up History queue size to hold deferred issues!!!!!. writer_qos.history.kind = DDS_KEEP_LAST_HISTORY_QOS; writer_qos.history.depth = z; // <<<<<<<<<<<<<!!!!!!!!!!!!!!<<<<< ... writer->write(data_sample, ...); ... // Optional wait for pipe to empty writer->wait_for_asynchronous_publishing(timeout); ... // Optional On-Demand trigger controller->trigger_flow(); ... // Optional Modify controller properties controller->set_property(); No changes on DataReader-side!!

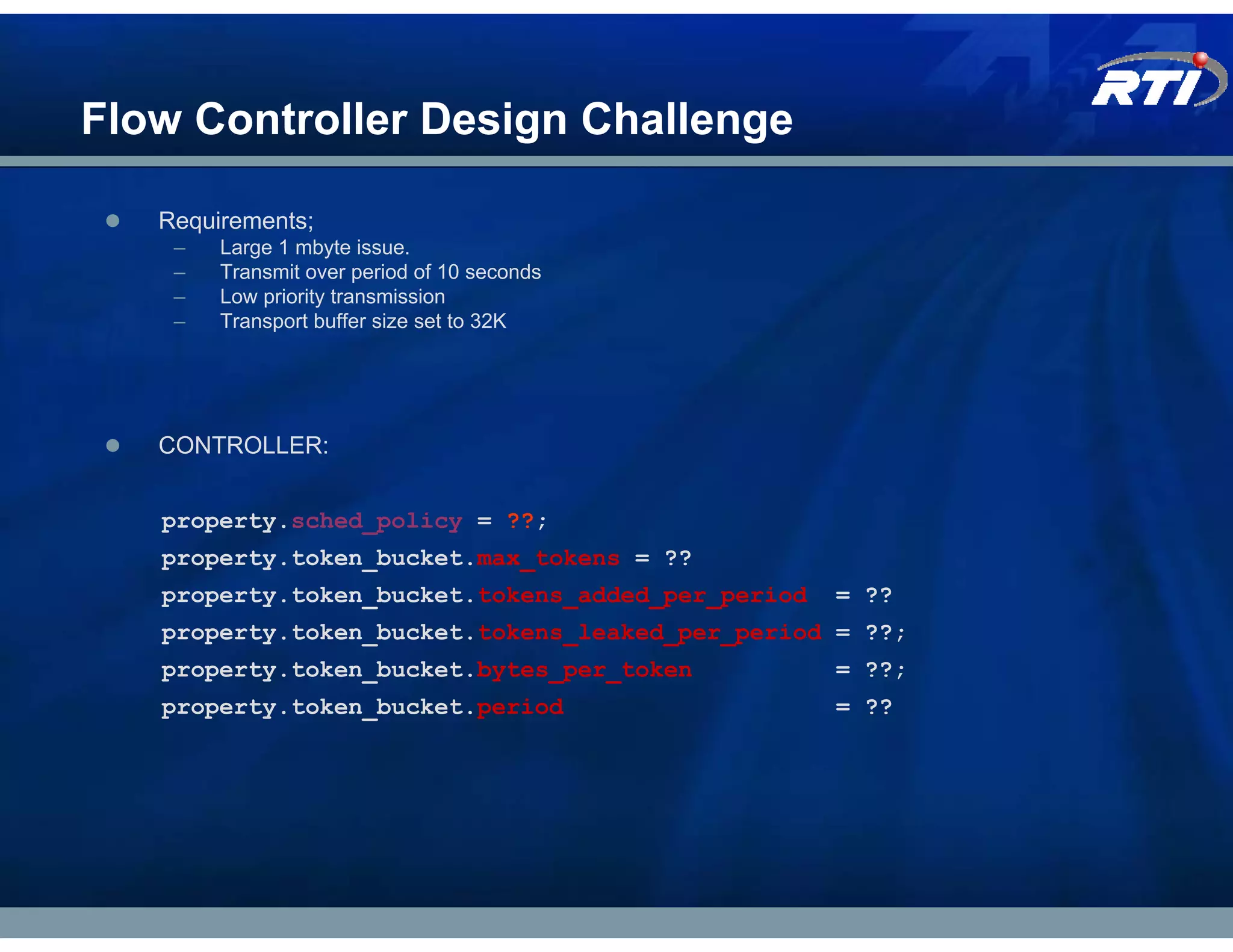

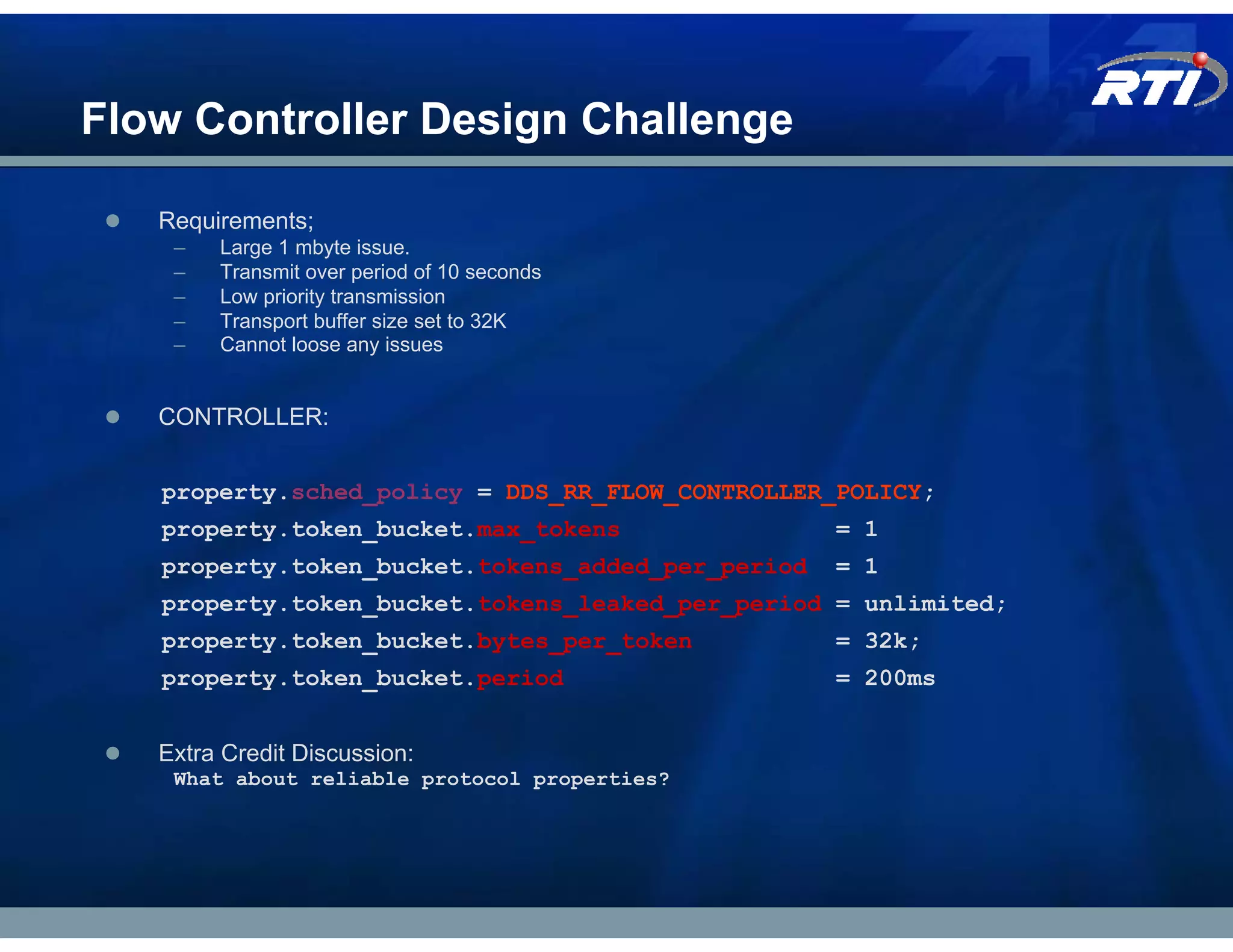

Flow Controller Design Challenge Requirements; – Large 1 mbyte issue. – Transmit over period of 10 seconds – Low priority transmission – Transport buffer size set to 32K CONTROLLER: property.sched_policy = ??; property.token_bucket.max_tokens = ?? property.token_bucket.tokens_added_per_period = ?? property.token_bucket.tokens_leaked_per_period = ??; property.token_bucket.bytes_per_token = ??; property.token_bucket.period = ??
Flow Controller Design Challenge Requirements; – Large 1 mbyte issue. – Transmit over period of 10 seconds – Low priority transmission – Transport buffer size set to 32K – Cannot loose any issues CONTROLLER: property.sched_policy = DDS_RR_FLOW_CONTROLLER_POLICY; property.token_bucket.max_tokens = 1 property.token_bucket.tokens_added_per_period = 1 property.token_bucket.tokens_leaked_per_period = unlimited; property.token_bucket.bytes_per_token = 32k; property.token_bucket.period = 200ms Extra Credit Discussion: What about reliable protocol properties?
Outline Overview of Technology Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. – Routing Service – Systems of Systems – Cross Domain Solutions – Accessing Data over a WAN – Database Connectivity – Access over the Web Future directions and Standards:

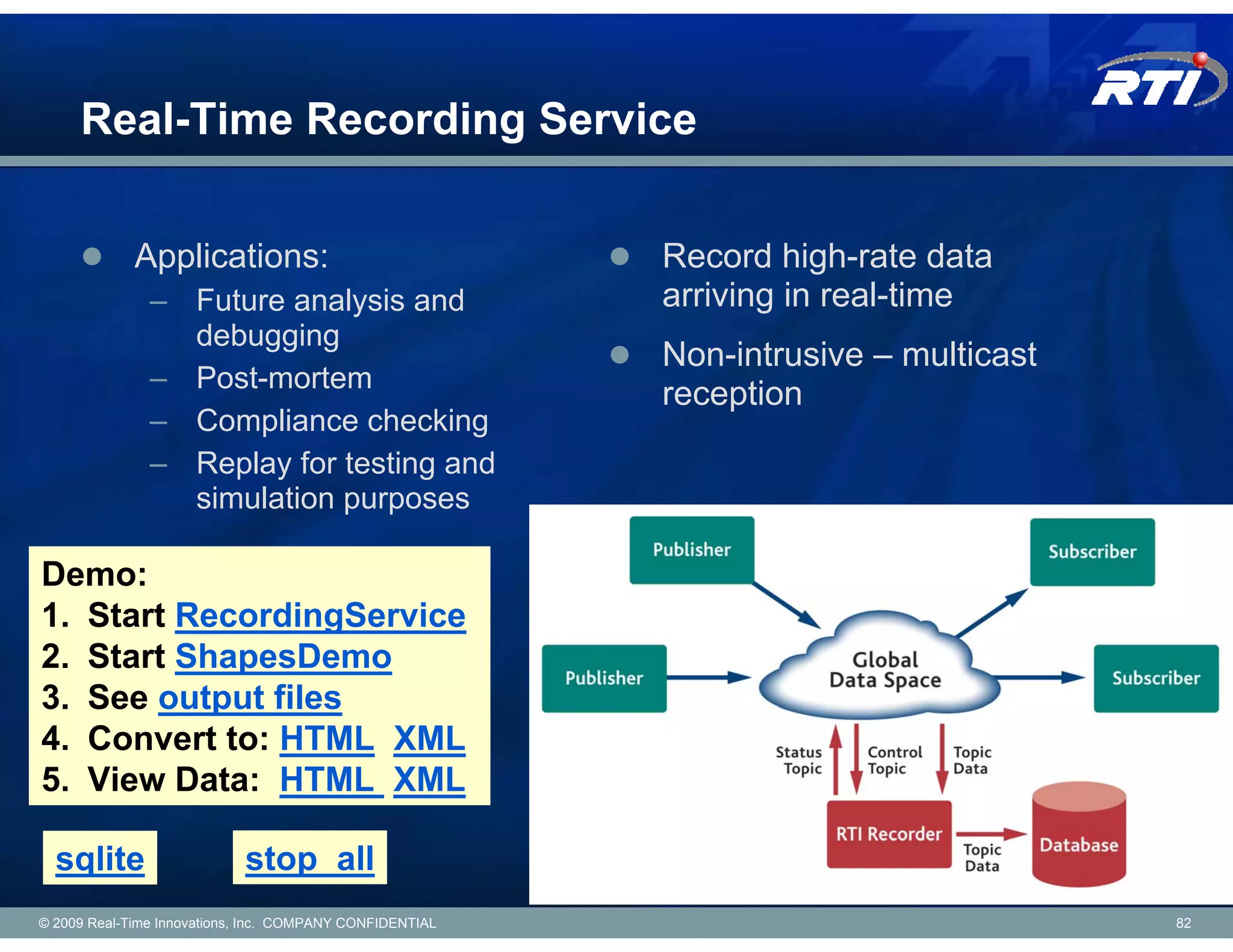

Real-Time Recording Service Applications: Record high-rate data – Future analysis and arriving in real-time debugging Non-intrusive – multicast – Post-mortem reception – Compliance checking – Replay for testing and simulation purposes Demo: 1. Start RecordingService 2. Start ShapesDemo 3. See output files 4. Convert to: HTML XML 5. View Data: HTML XML sqlite stop_all © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 82

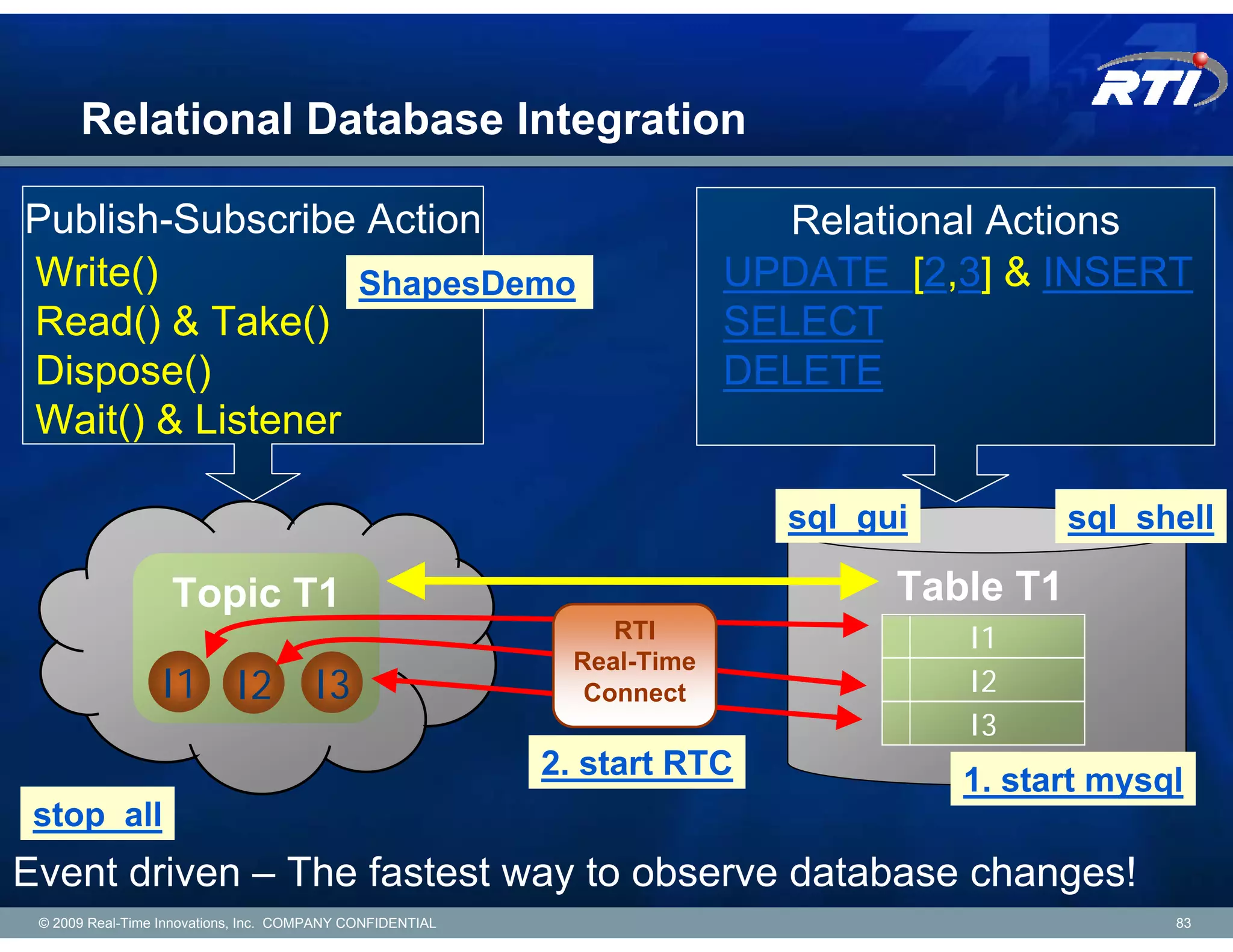

Relational Database Integration Publish-Subscribe Action Relational Actions Write() ShapesDemo UPDATE [2,3] & INSERT Read() & Take() SELECT Dispose() DELETE Wait() & Listener sql_gui sql_shell Topic T1 Table T1 RTI I1 Real-Time I1 I2 I3 Connect I2 I3 2. start RTC 1. start mysql stop_all Event driven – The fastest way to observe database changes! © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 83

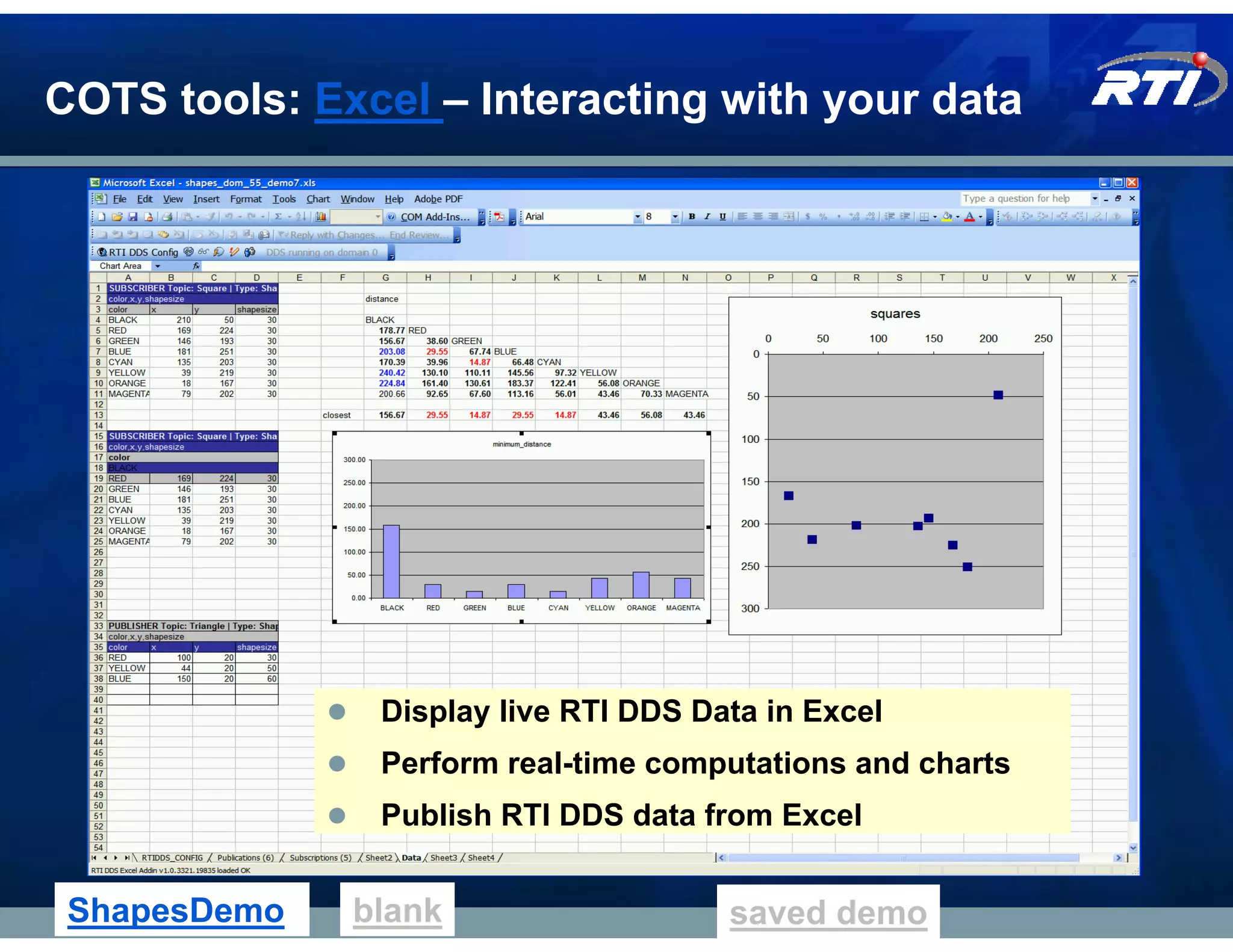

COTS tools: Excel – Interacting with your data Display live RTI DDS Data in Excel Perform real-time computations and charts Publish RTI DDS data from Excel ShapesDemo blank saved demo

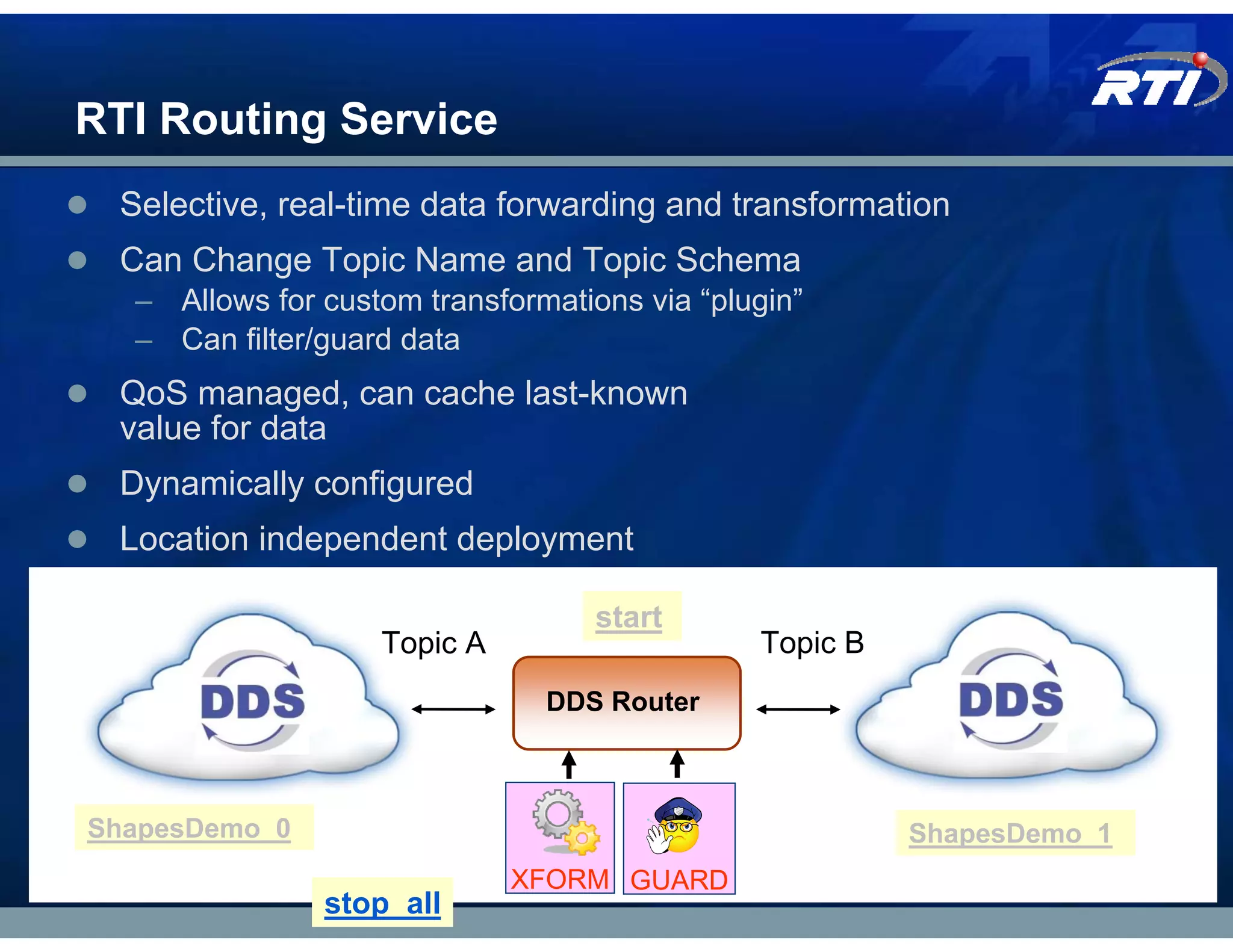

RTI Routing Service Selective, real-time data forwarding and transformation Can Change Topic Name and Topic Schema – Allows for custom transformations via “plugin” – Can filter/guard data QoS managed, can cache last-known value for data Dynamically configured Location independent deployment start Topic A Topic B DDS Router ShapesDemo_0 ShapesDemo_1 XFORM GUARD stop_all

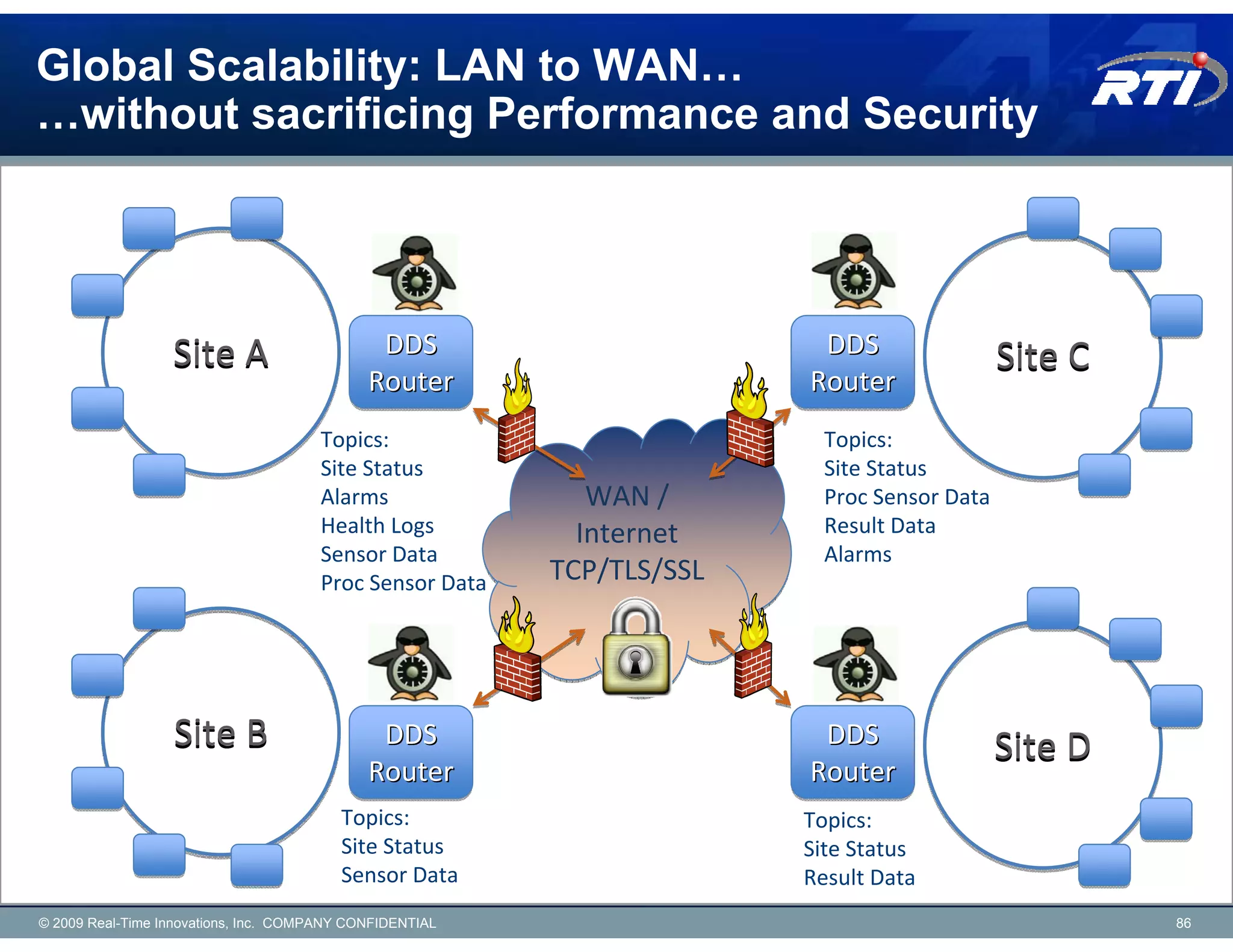

Global Scalability: LAN to WAN… …without sacrificing Performance and Security Site A DDS DDS Router Router Site C Topics: Topics: Site Status Site Status Alarms WAN /  Proc Sensor Data Health Logs Result Data Internet Sensor Data Alarms Proc Sensor Data TCP/TLS/SSL Site B DDS DDS Site D Router Router Topics: Topics: Site Status Site Status Sensor Data Result Data © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 86

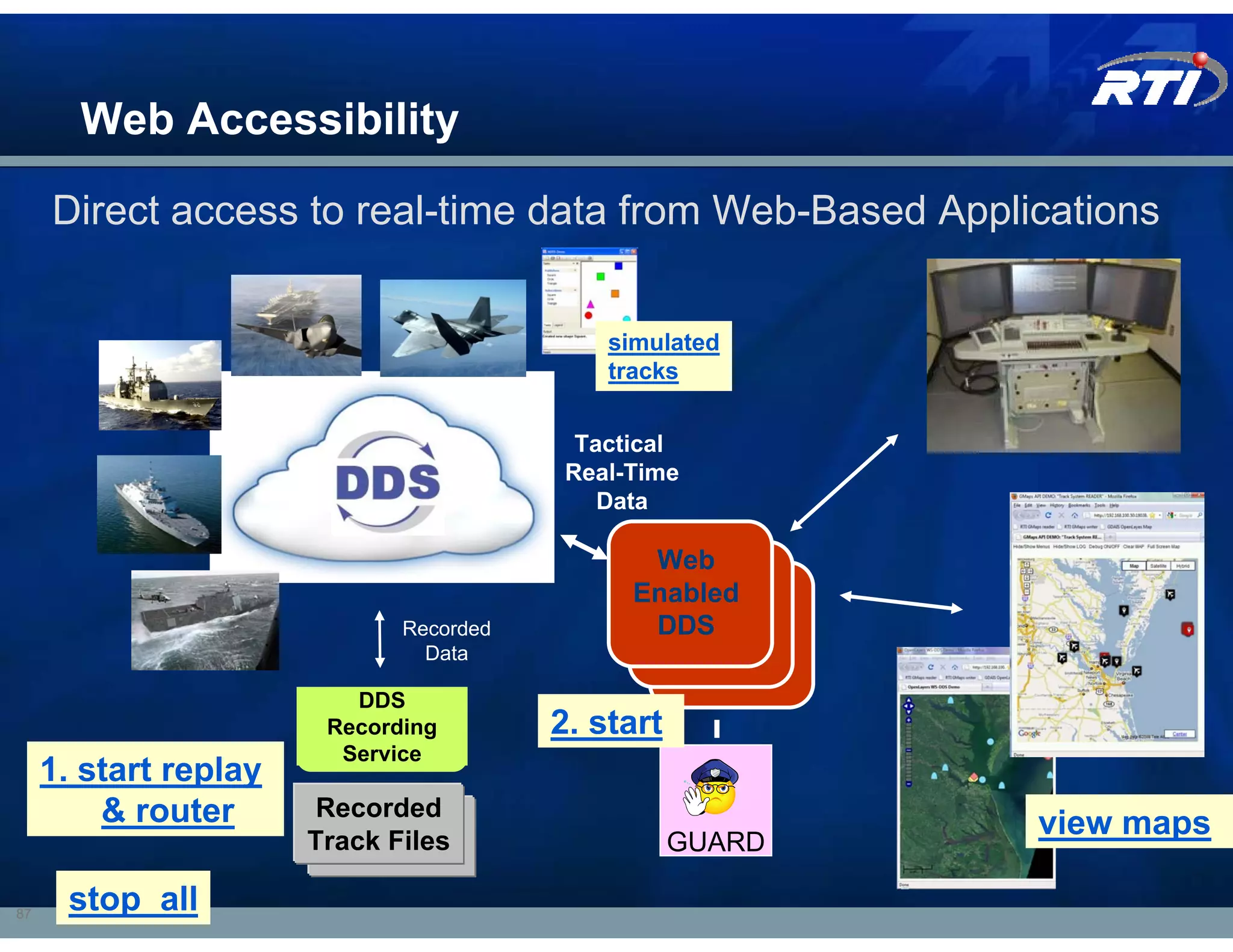

Web Accessibility Direct access to real-time data from Web-Based Applications simulated tracks Tactical Real-Time Data Web Web Enabled Web Enabled Recorded DDS Enabled Data DDS DDS DDS Recording 2. start Service 1. start replay & router Recorded Recorded Track Files view maps Data Files GUARD 87 stop_all
Outline Overview of Technology Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards: – Extensible Topics for DDS – Web Enabled DDS – Standard C++ PSM for DDS Q&A

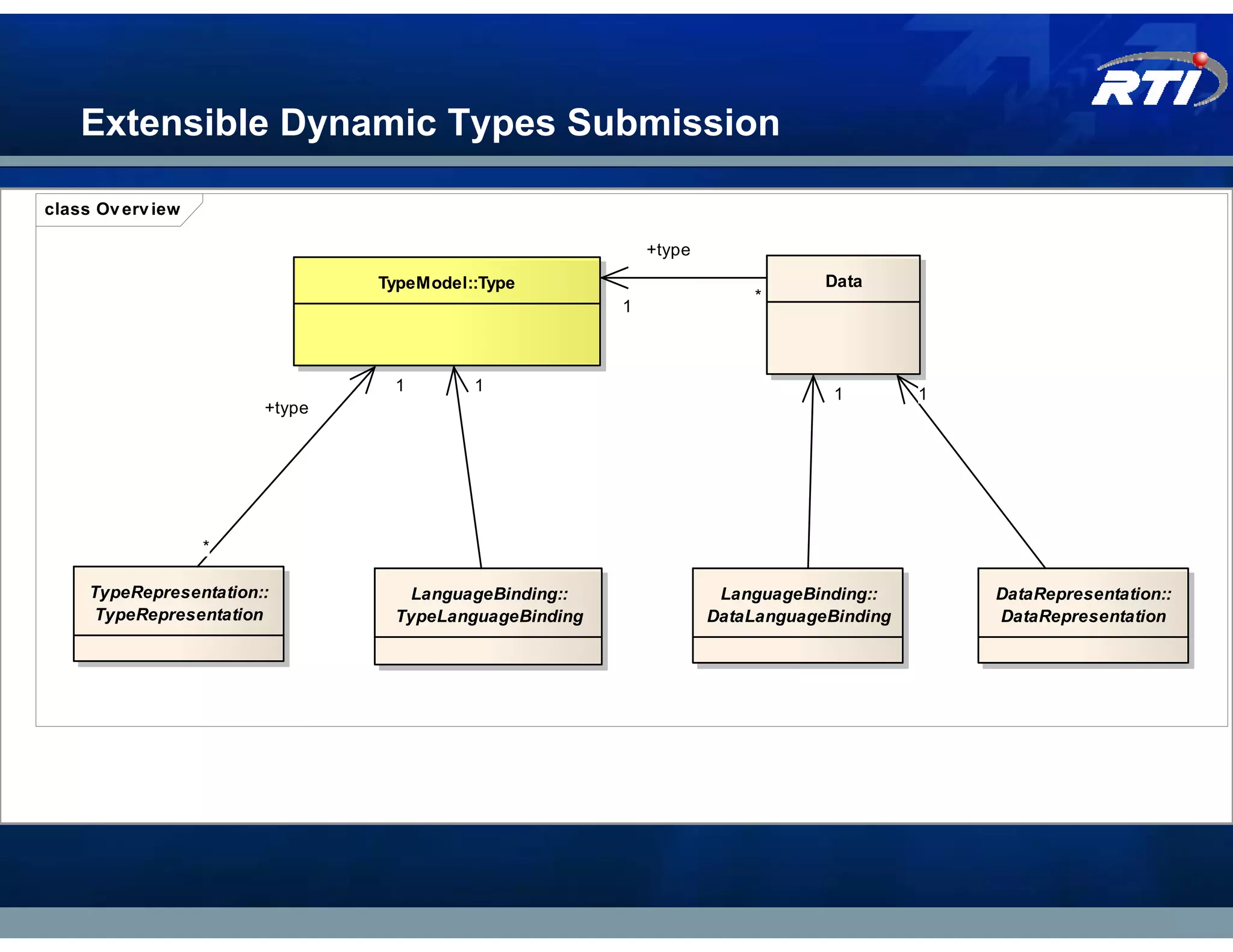

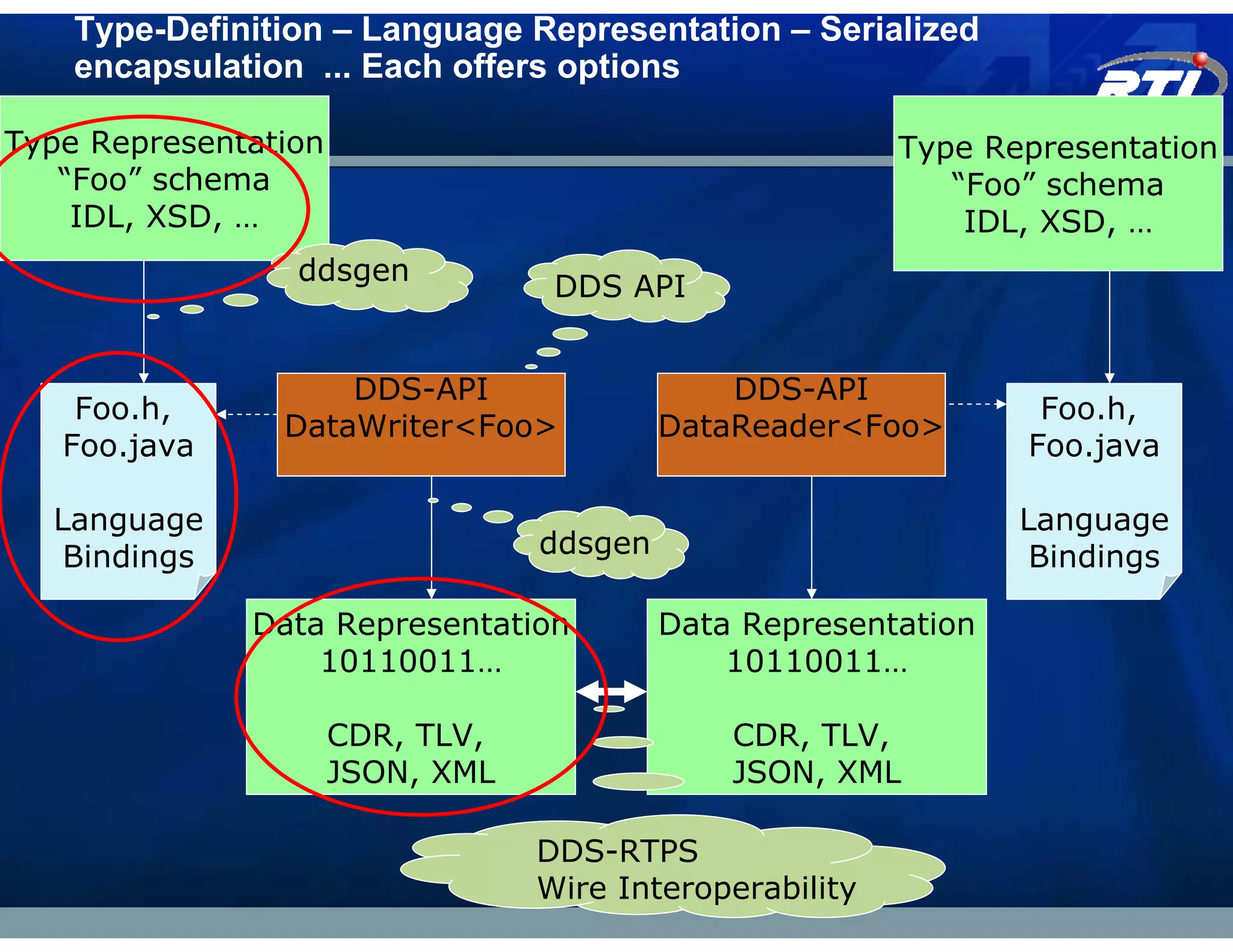

Extensible Dynamic Types Submission class Ov erv iew +type TypeModel::Type Data * 1 1 1 1 1 +type * TypeRepresentation:: LanguageBinding:: LanguageBinding:: DataRepresentation:: TypeRepresentation TypeLanguageBinding DataLanguageBinding DataRepresentation

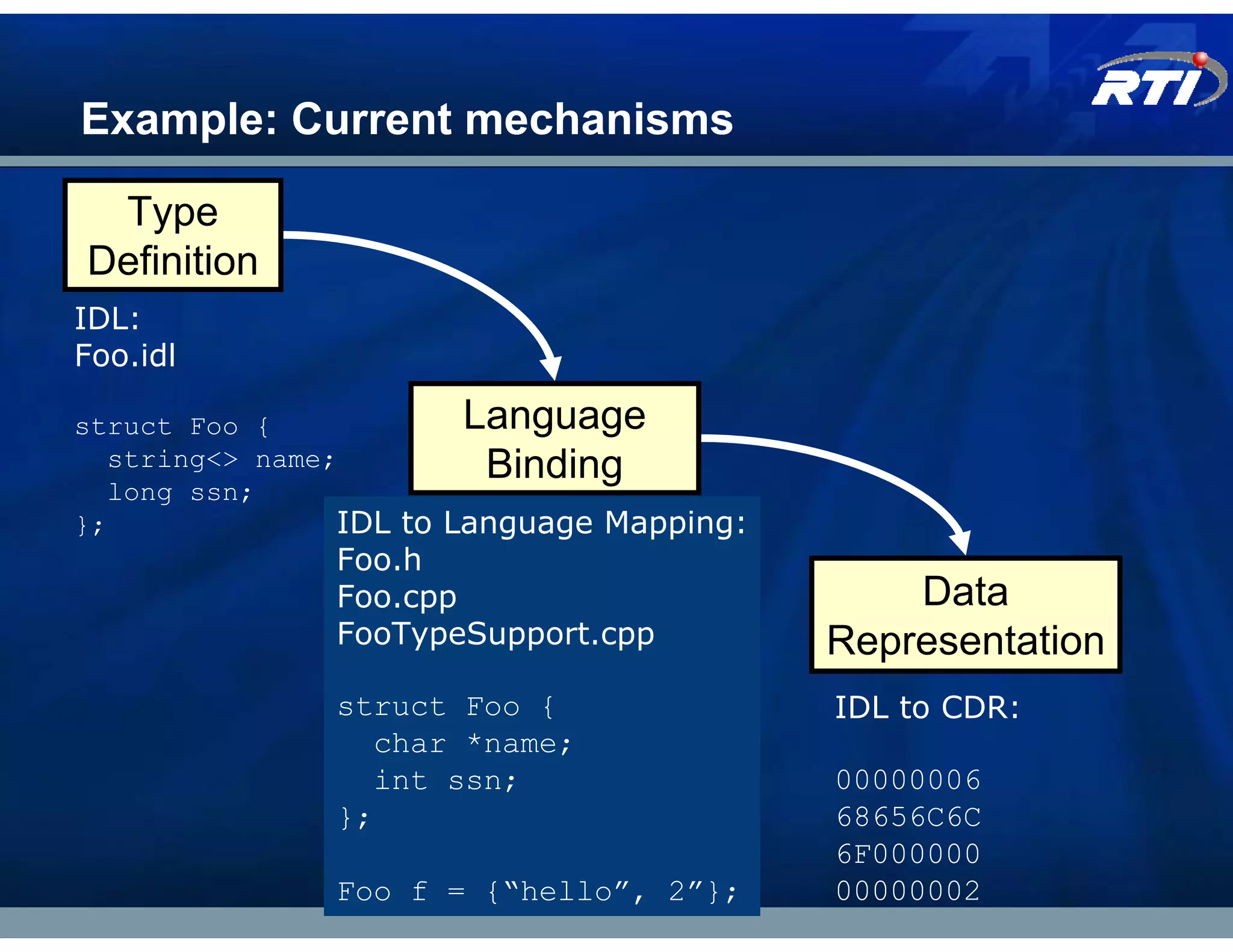

Example: Current mechanisms Type Definition IDL: Foo.idl struct Foo { Language string<> name; Binding long ssn; }; IDL to Language Mapping: Foo.h Foo.cpp Data FooTypeSupport.cpp Representation struct Foo { IDL to CDR: char *name; int ssn; 00000006 }; 68656C6C 6F000000 Foo f = {“hello”, 2”}; 00000002
Type-Definition – Language Representation – Serialized encapsulation ... Each offers options Type Representation Type Representation “Foo” schema “Foo” schema IDL, XSD, … IDL, XSD, … ddsgen DDS API DDS-API DDS-API Foo.h, Foo.h, DataWriter<Foo> DataReader<Foo> Foo.java Foo.java Language Language Bindings ddsgen Bindings Data Representation Data Representation 10110011… 10110011… CDR, TLV, CDR, TLV, JSON, XML JSON, XML DDS-RTPS Wire Interoperability

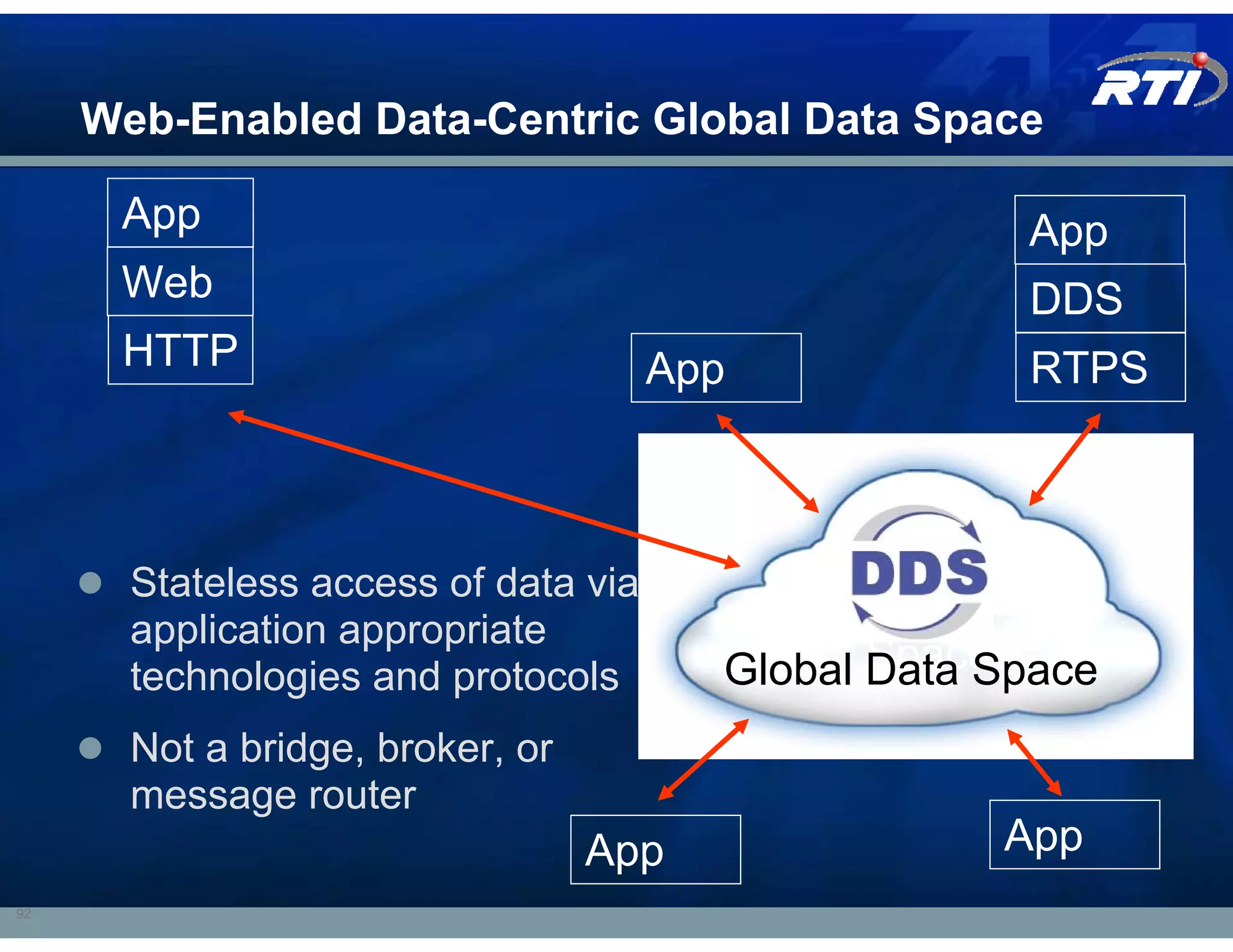

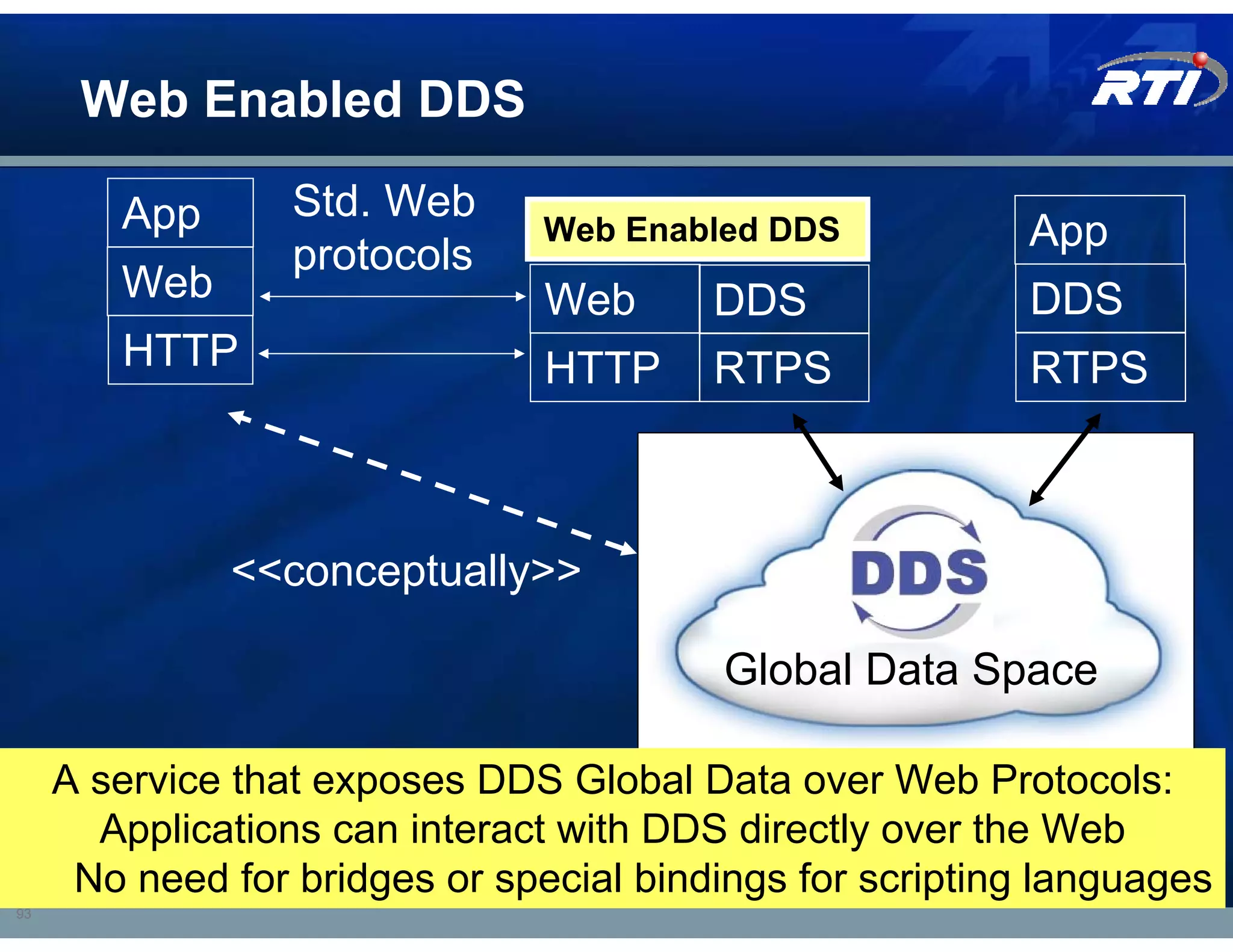

Web-Enabled Data-Centric Global Data Space App App Web DDS HTTP App RTPS Stateless access of data via Global Data application appropriate technologies and protocols Space Global Data Space Not a bridge, broker, or message router App App 92
Web Enabled DDS App Std. Web Web Enabled DDS App protocols Web Web DDS DDS HTTP HTTP RTPS RTPS <<conceptually>> Global Data Space A service that exposes DDS Global Data over Web Protocols: Applications can interact with DDS directly over the Web No need for bridges or special bindings for scripting languages 93
Day 2: Exercises Gerardo Pardo-Castellote, Ph.D. Co-chair OMG DDS SIG CTO, Real-Time Innovations gerardo.pardo@rti.com The Real-Time Middleware Experts http://www.rti.com

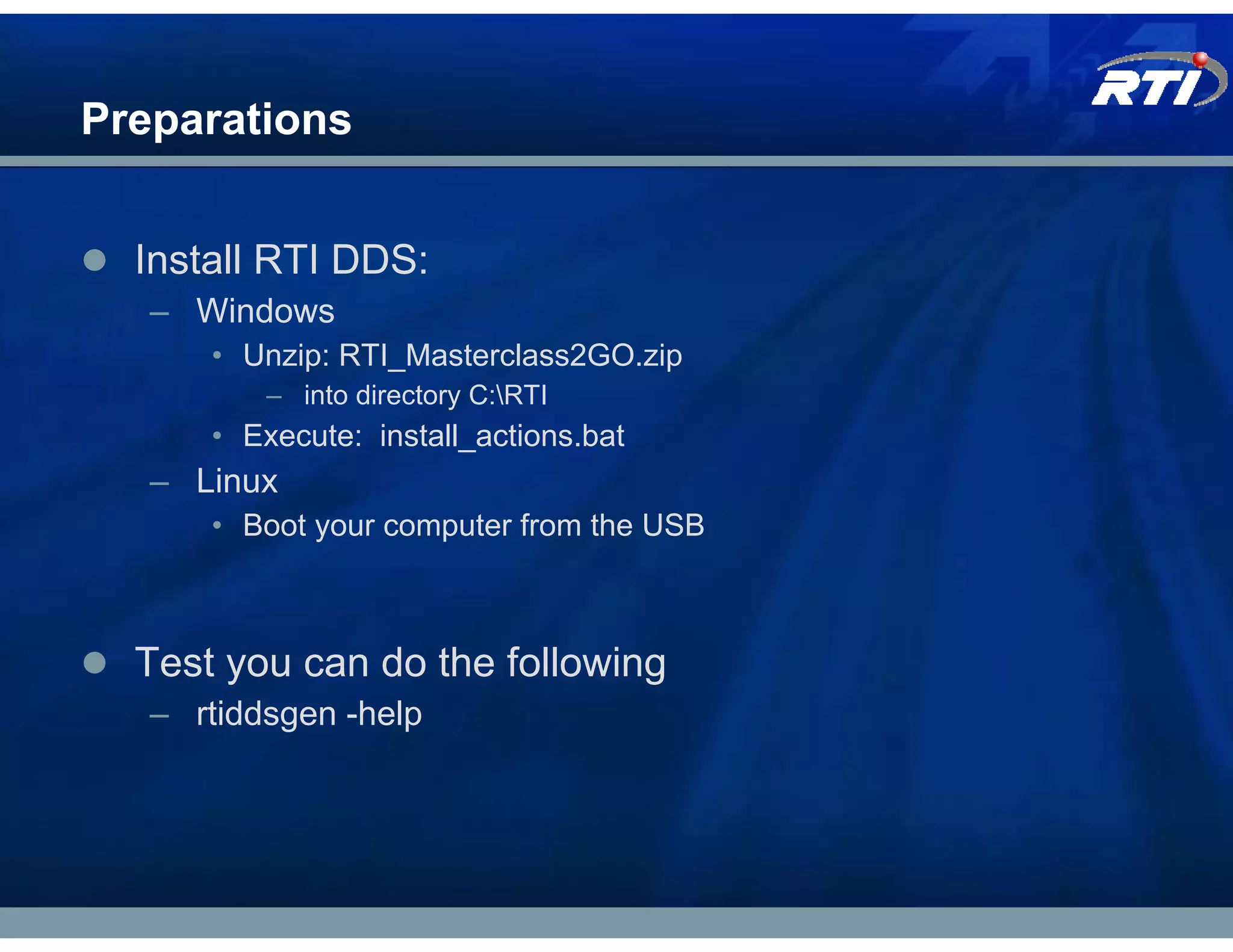

Preparations Install RTI DDS: – Windows • Unzip: RTI_Masterclass2GO.zip – into directory C:RTI • Execute: install_actions.bat – Linux • Boot your computer from the USB Test you can do the following – rtiddsgen -help

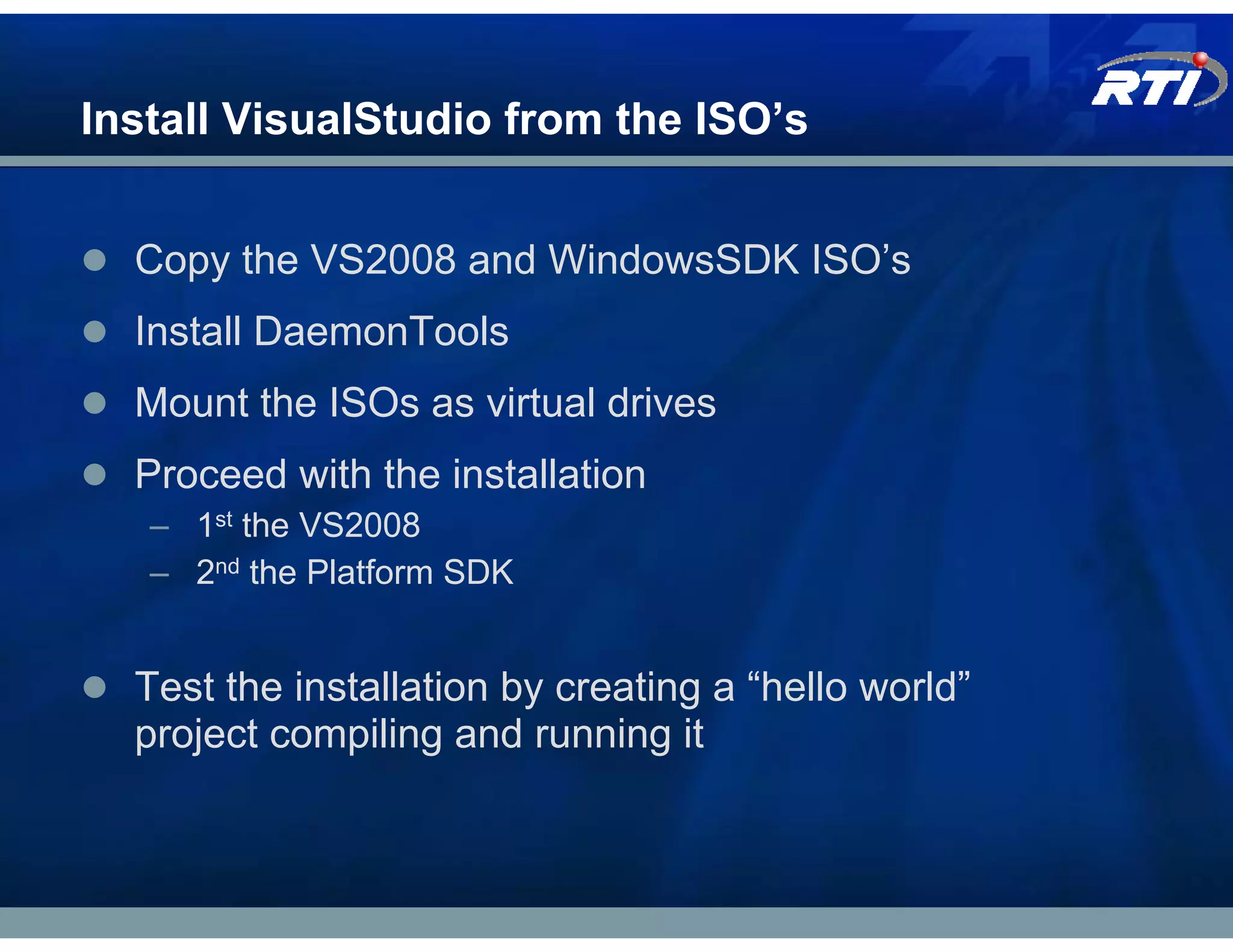

Install VisualStudio from the ISO’s Copy the VS2008 and WindowsSDK ISO’s Install DaemonTools Mount the ISOs as virtual drives Proceed with the installation – 1st the VS2008 – 2nd the Platform SDK Test the installation by creating a “hello world” project compiling and running it

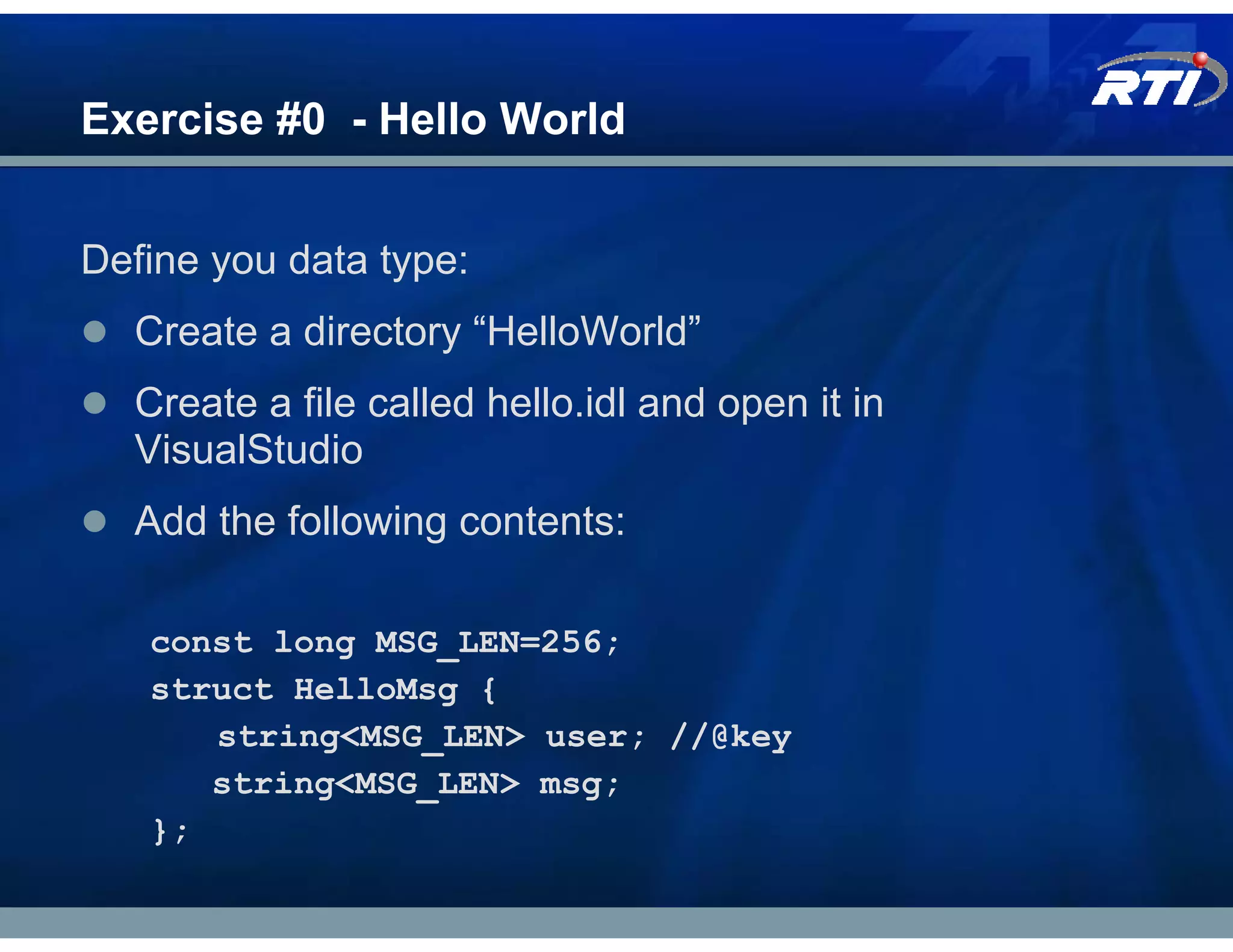

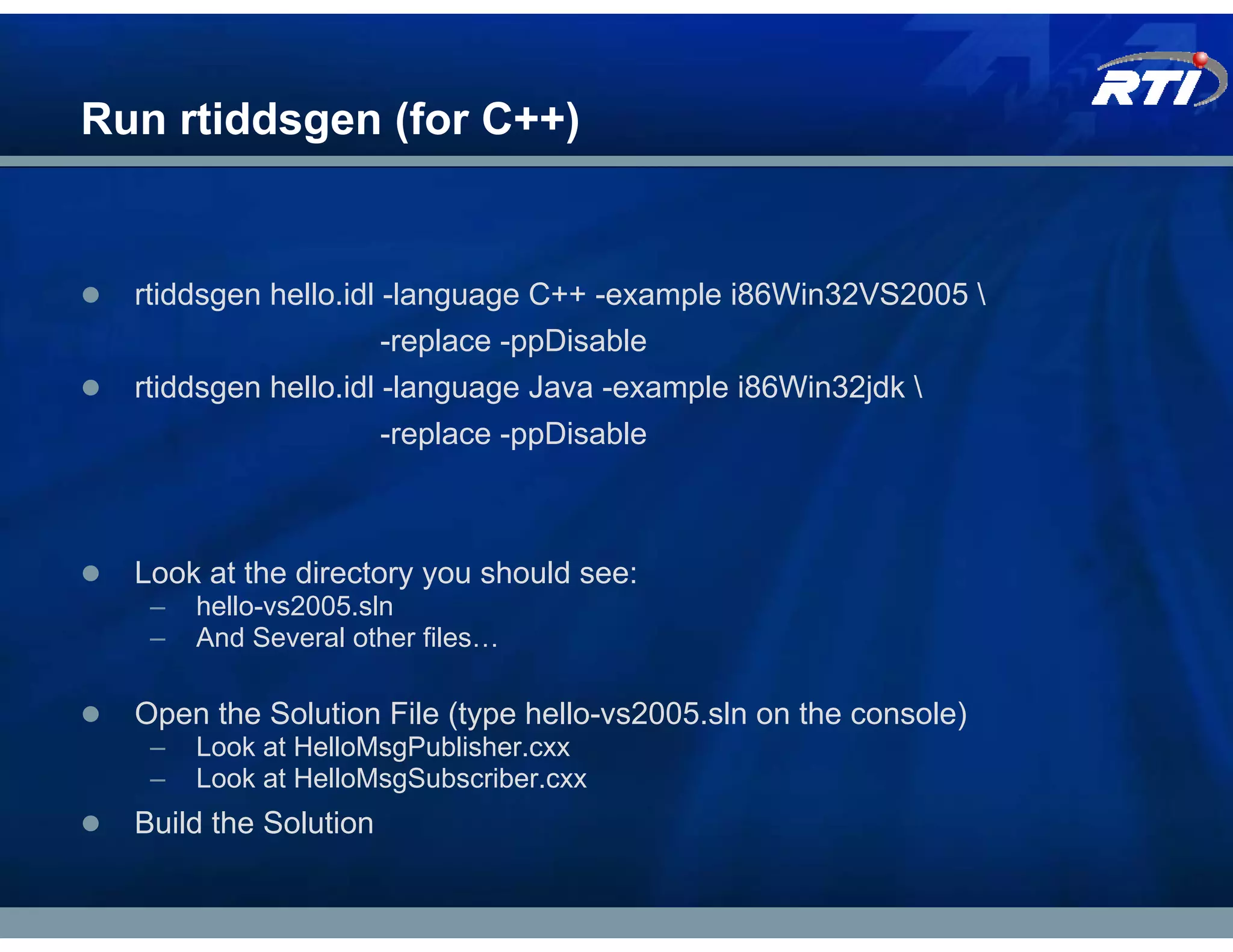

Exercise #0 - Hello World Define you data type: Create a directory “HelloWorld” Create a file called hello.idl and open it in VisualStudio Add the following contents: const long MSG_LEN=256; struct HelloMsg { string<MSG_LEN> user; //@key string<MSG_LEN> msg; };
Run rtiddsgen (for C++) rtiddsgen hello.idl -language C++ -example i86Win32VS2005 -replace -ppDisable rtiddsgen hello.idl -language Java -example i86Win32jdk -replace -ppDisable Look at the directory you should see: – hello-vs2005.sln – And Several other files… Open the Solution File (type hello-vs2005.sln on the console) – Look at HelloMsgPublisher.cxx – Look at HelloMsgSubscriber.cxx Build the Solution

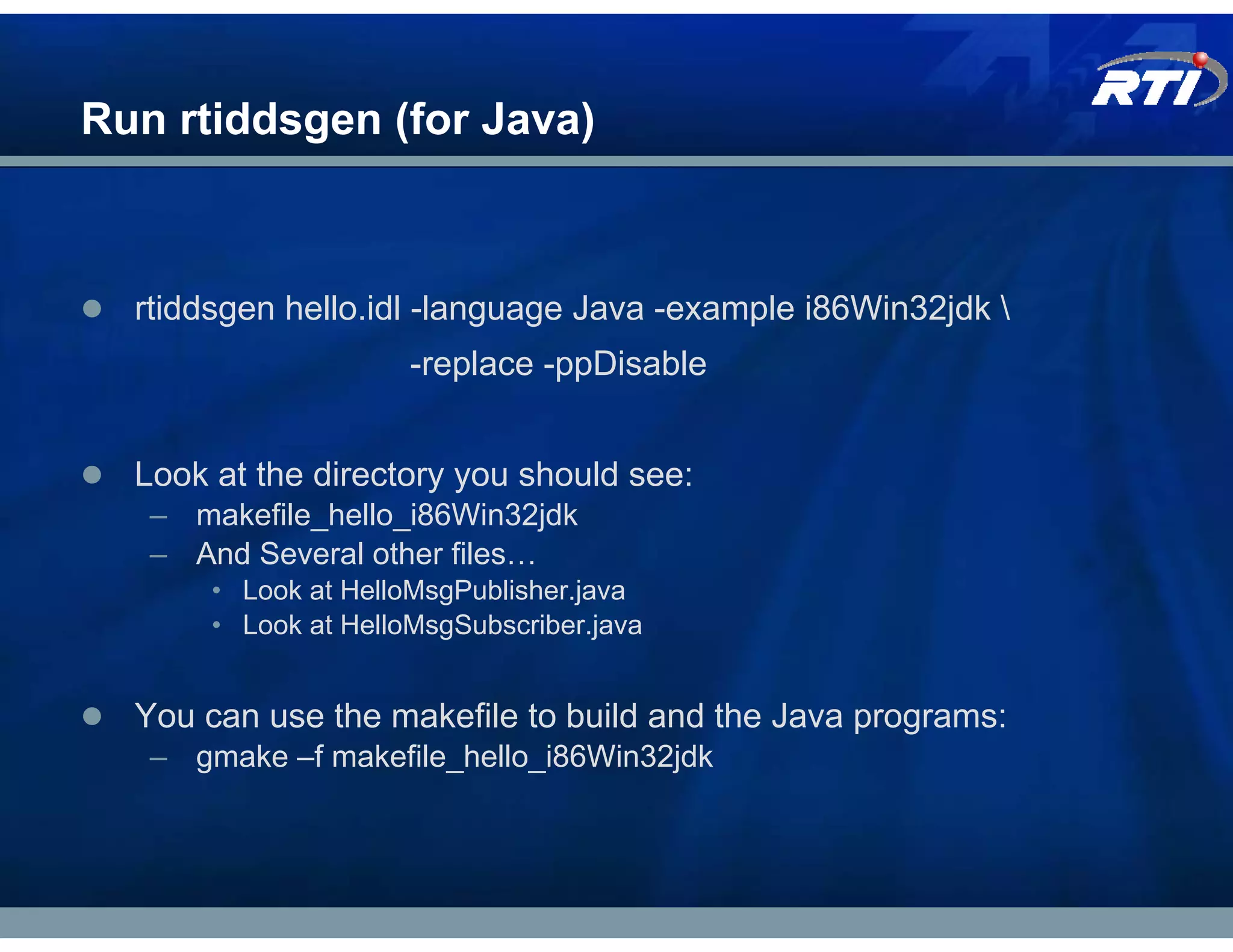

Run rtiddsgen (for Java) rtiddsgen hello.idl -language Java -example i86Win32jdk -replace -ppDisable Look at the directory you should see: – makefile_hello_i86Win32jdk – And Several other files… • Look at HelloMsgPublisher.java • Look at HelloMsgSubscriber.java You can use the makefile to build and the Java programs: – gmake –f makefile_hello_i86Win32jdk

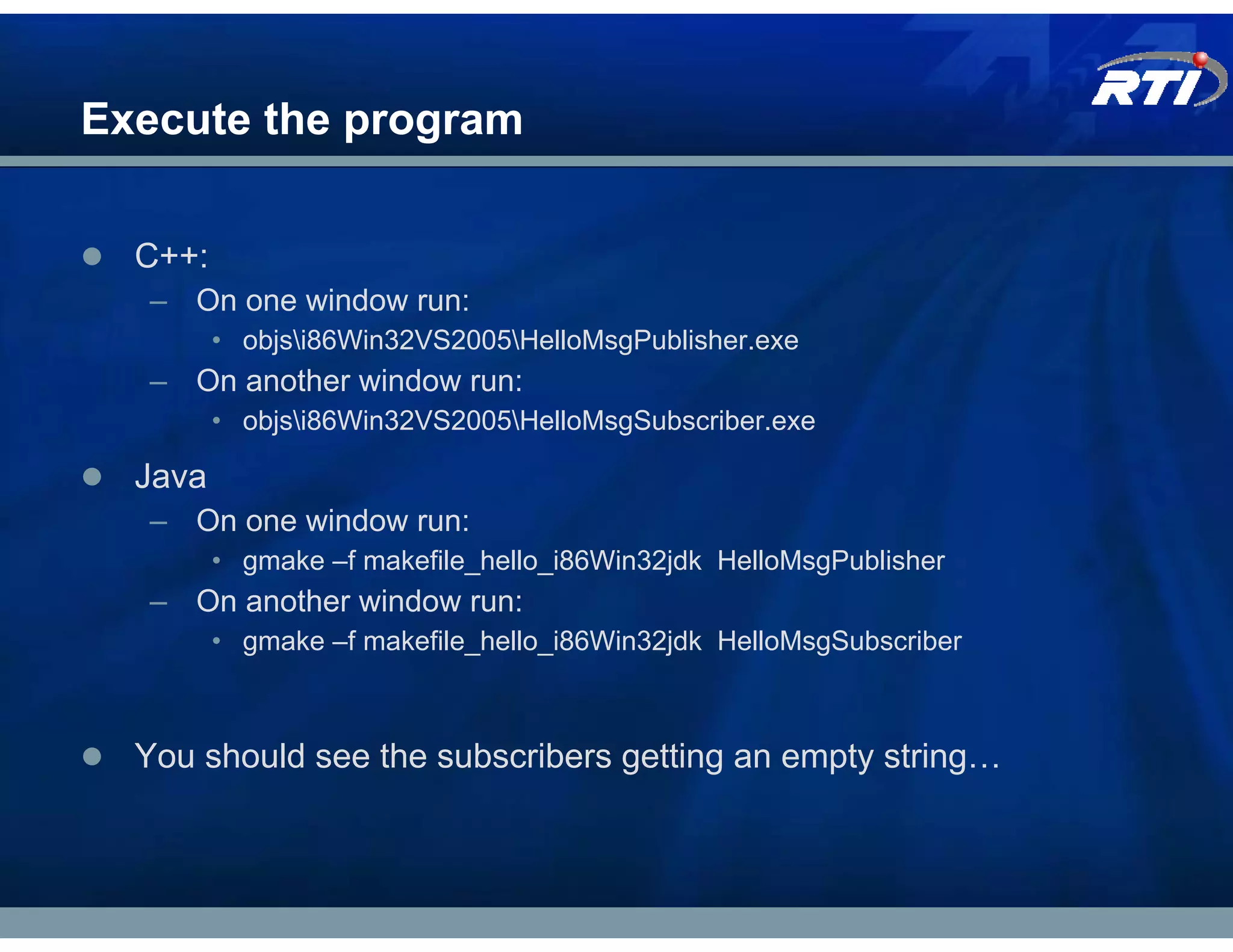

Execute the program C++: – On one window run: • objsi86Win32VS2005HelloMsgPublisher.exe – On another window run: • objsi86Win32VS2005HelloMsgSubscriber.exe Java – On one window run: • gmake –f makefile_hello_i86Win32jdk HelloMsgPublisher – On another window run: • gmake –f makefile_hello_i86Win32jdk HelloMsgSubscriber You should see the subscribers getting an empty string…

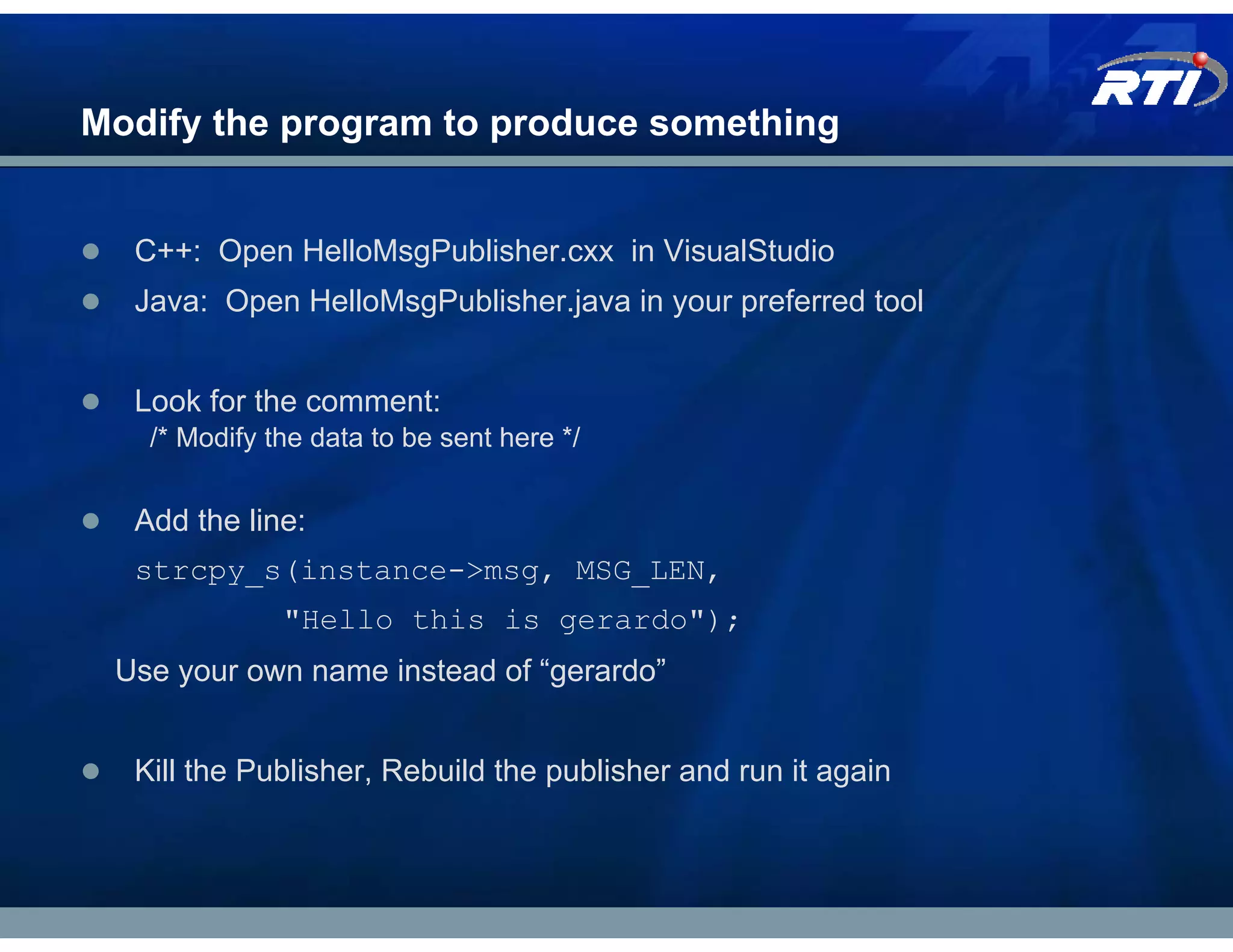

Modify the program to produce something C++: Open HelloMsgPublisher.cxx in VisualStudio Java: Open HelloMsgPublisher.java in your preferred tool Look for the comment: /* Modify the data to be sent here */ Add the line: strcpy_s(instance->msg, MSG_LEN, "Hello this is gerardo"); Use your own name instead of “gerardo” Kill the Publisher, Rebuild the publisher and run it again

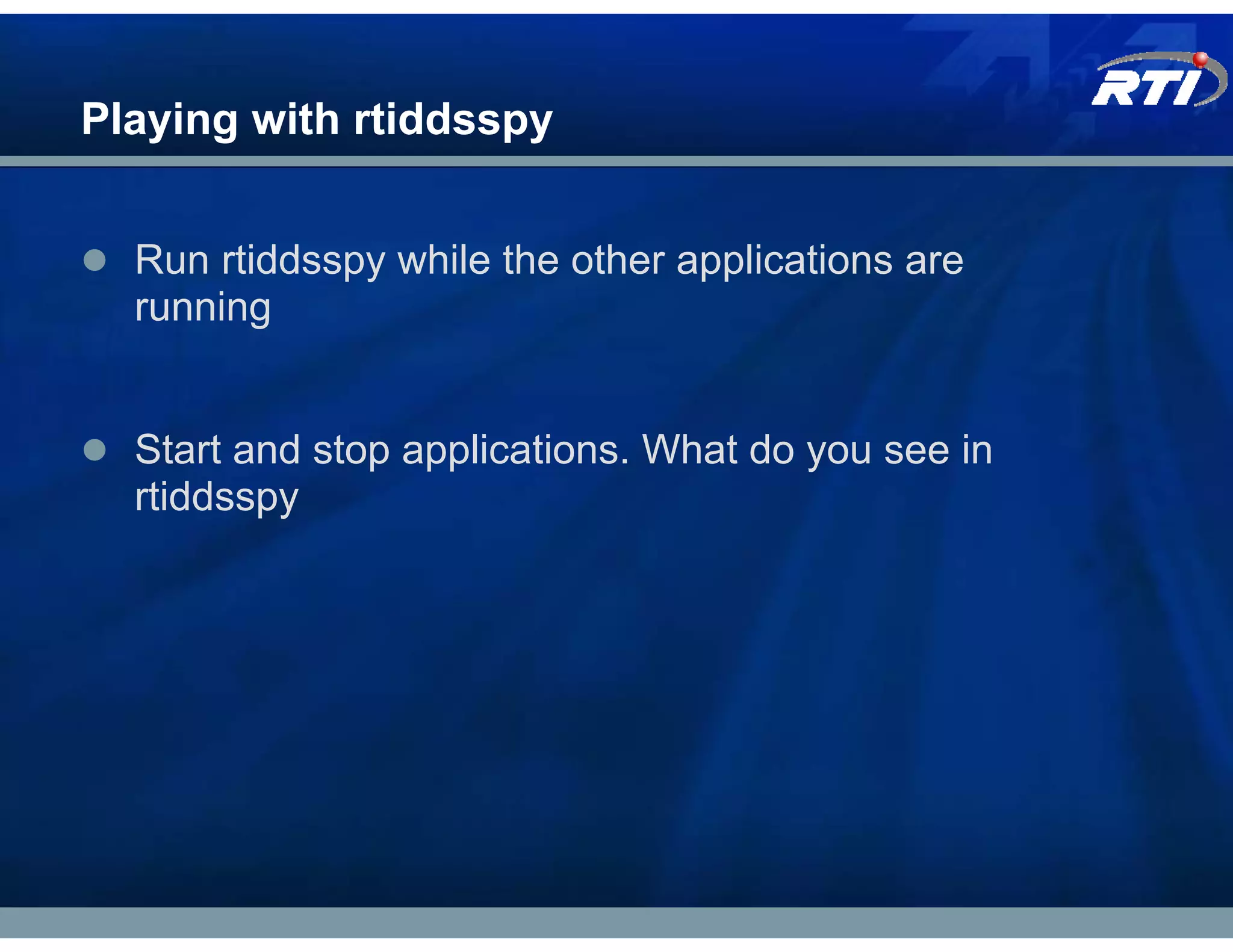

Playing with rtiddsspy Run rtiddsspy while the other applications are running Start and stop applications. What do you see in rtiddsspy

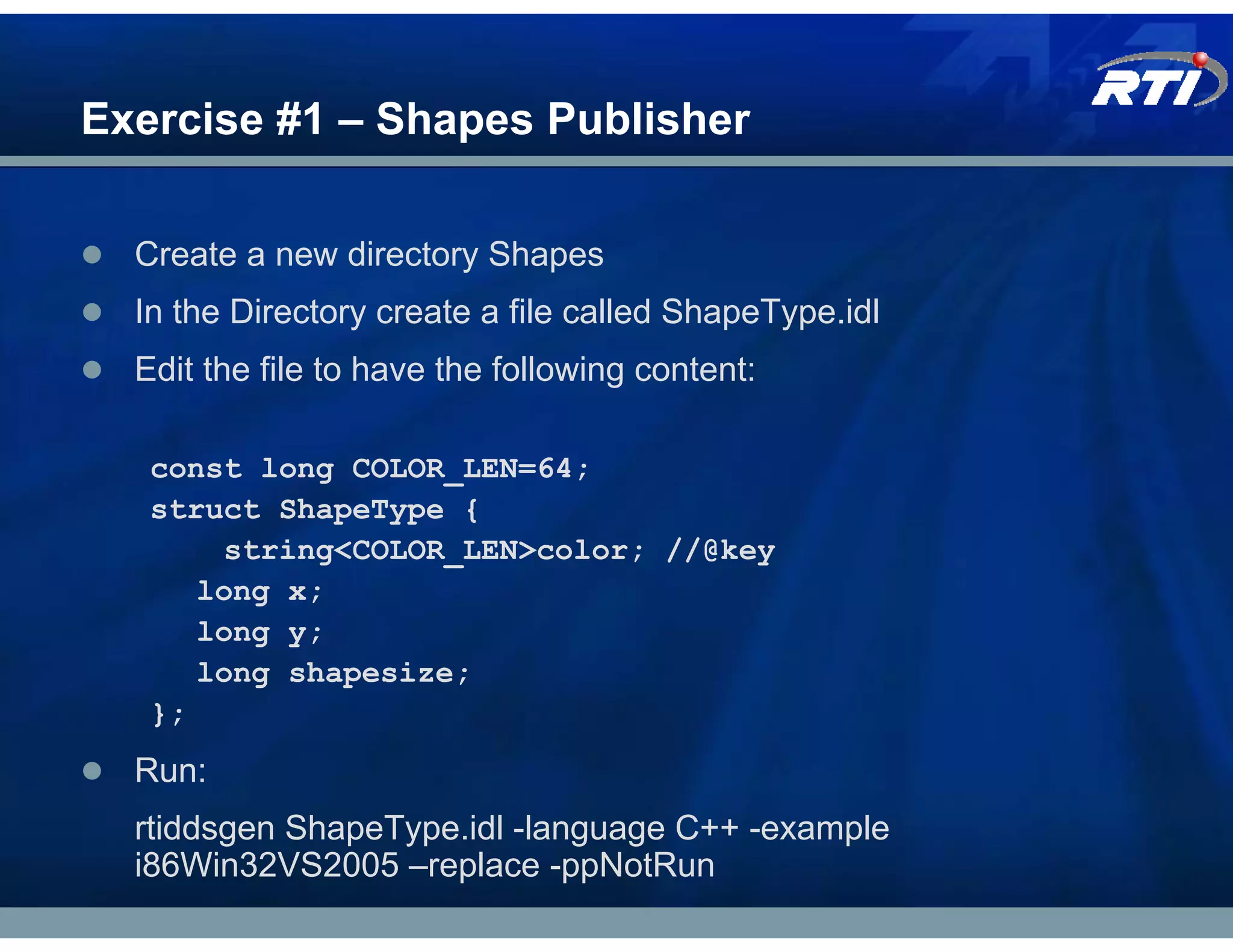

Exercise #1 – Shapes Publisher Create a new directory Shapes In the Directory create a file called ShapeType.idl Edit the file to have the following content: const long COLOR_LEN=64; struct ShapeType { string<COLOR_LEN>color; //@key long x; long y; long shapesize; }; Run: rtiddsgen ShapeType.idl -language C++ -example i86Win32VS2005 –replace -ppNotRun

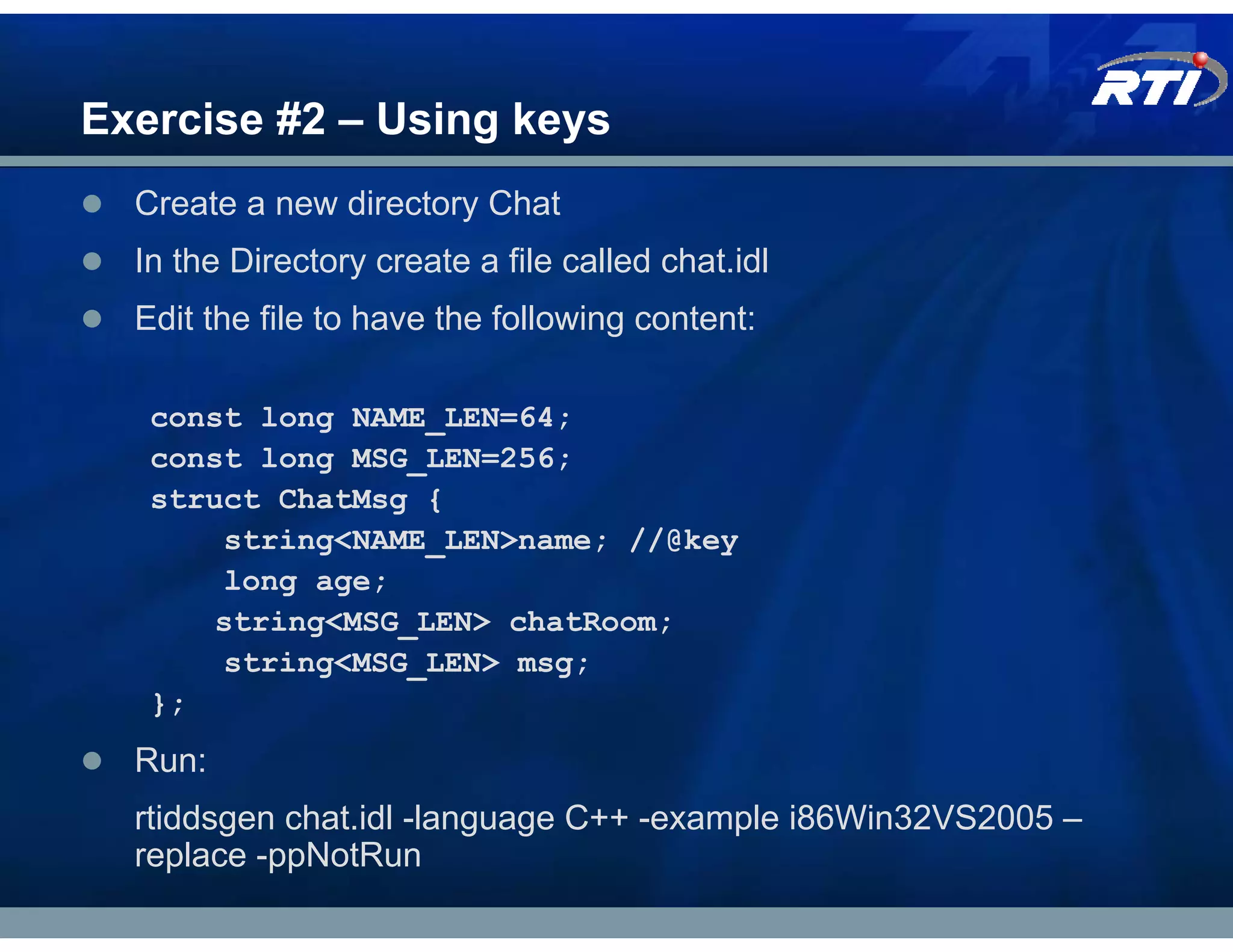

Exercise #2 – Using keys Create a new directory Chat In the Directory create a file called chat.idl Edit the file to have the following content: const long NAME_LEN=64; const long MSG_LEN=256; struct ChatMsg { string<NAME_LEN>name; //@key long age; string<MSG_LEN> chatRoom; string<MSG_LEN> msg; }; Run: rtiddsgen chat.idl -language C++ -example i86Win32VS2005 – replace -ppNotRun

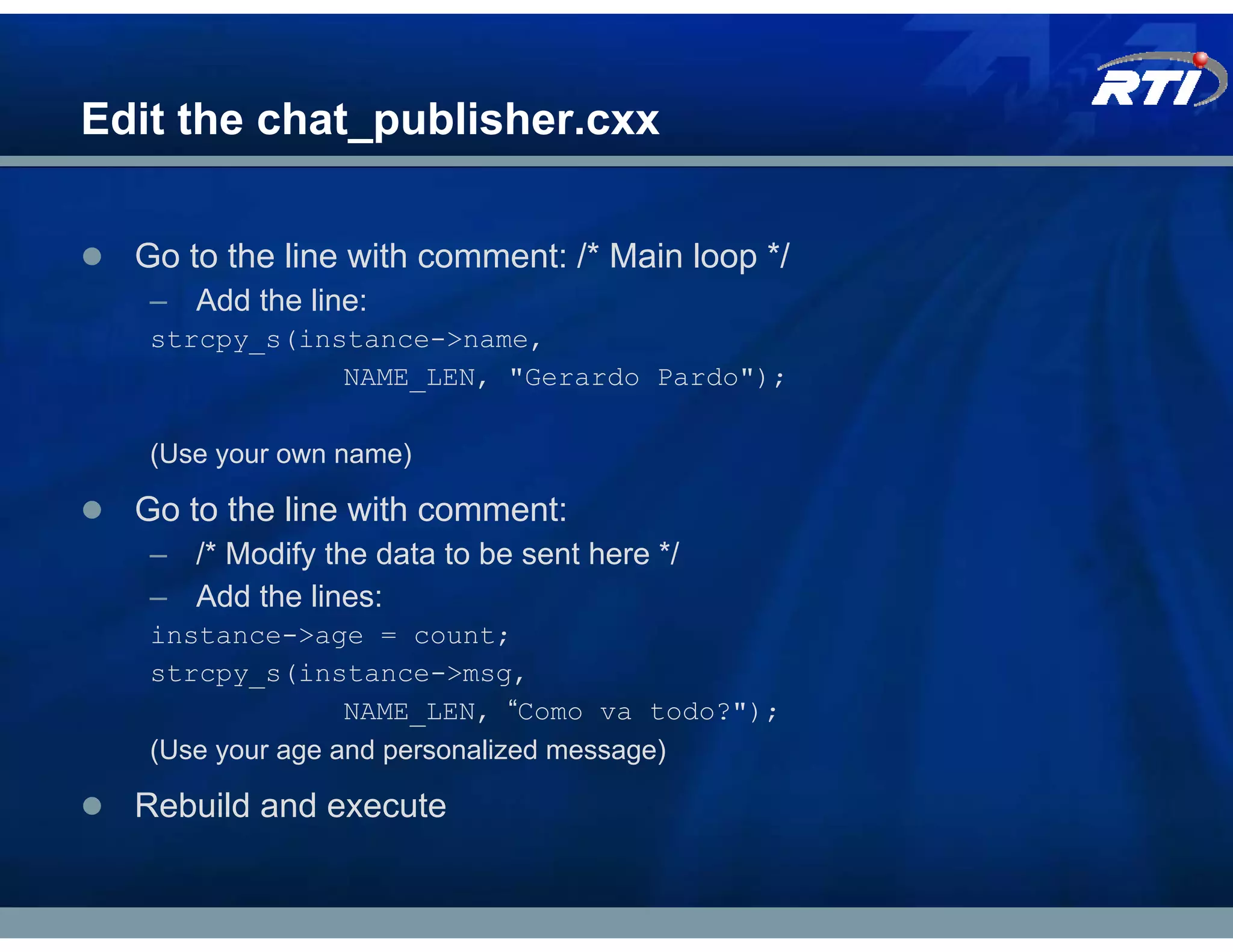

Edit the chat_publisher.cxx Go to the line with comment: /* Main loop */ – Add the line: strcpy_s(instance->name, NAME_LEN, "Gerardo Pardo"); (Use your own name) Go to the line with comment: – /* Modify the data to be sent here */ – Add the lines: instance->age = count; strcpy_s(instance->msg, NAME_LEN, “Como va todo?"); (Use your age and personalized message) Rebuild and execute

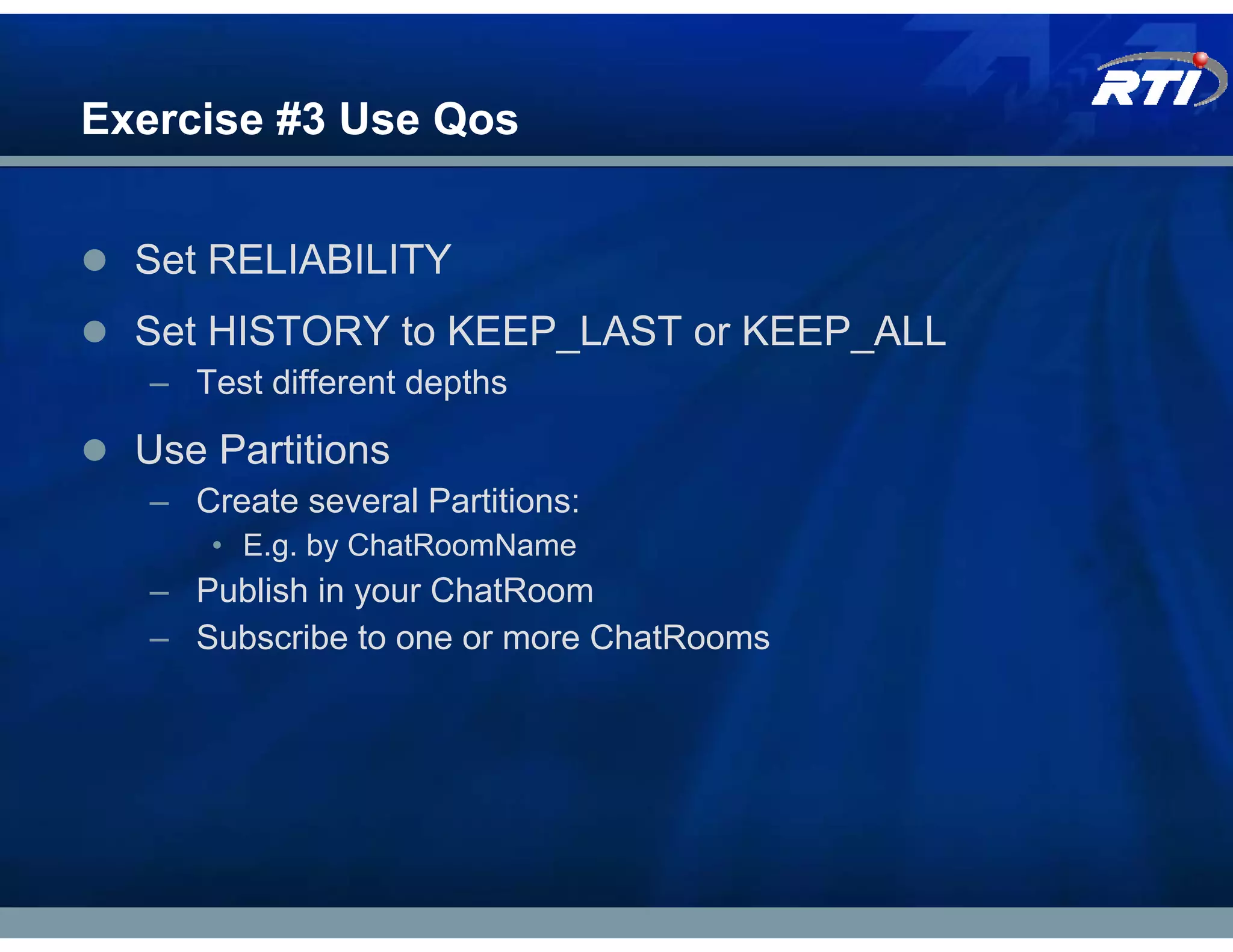

Exercise #3 Use Qos Set RELIABILITY Set HISTORY to KEEP_LAST or KEEP_ALL – Test different depths Use Partitions – Create several Partitions: • E.g. by ChatRoomName – Publish in your ChatRoom – Subscribe to one or more ChatRooms

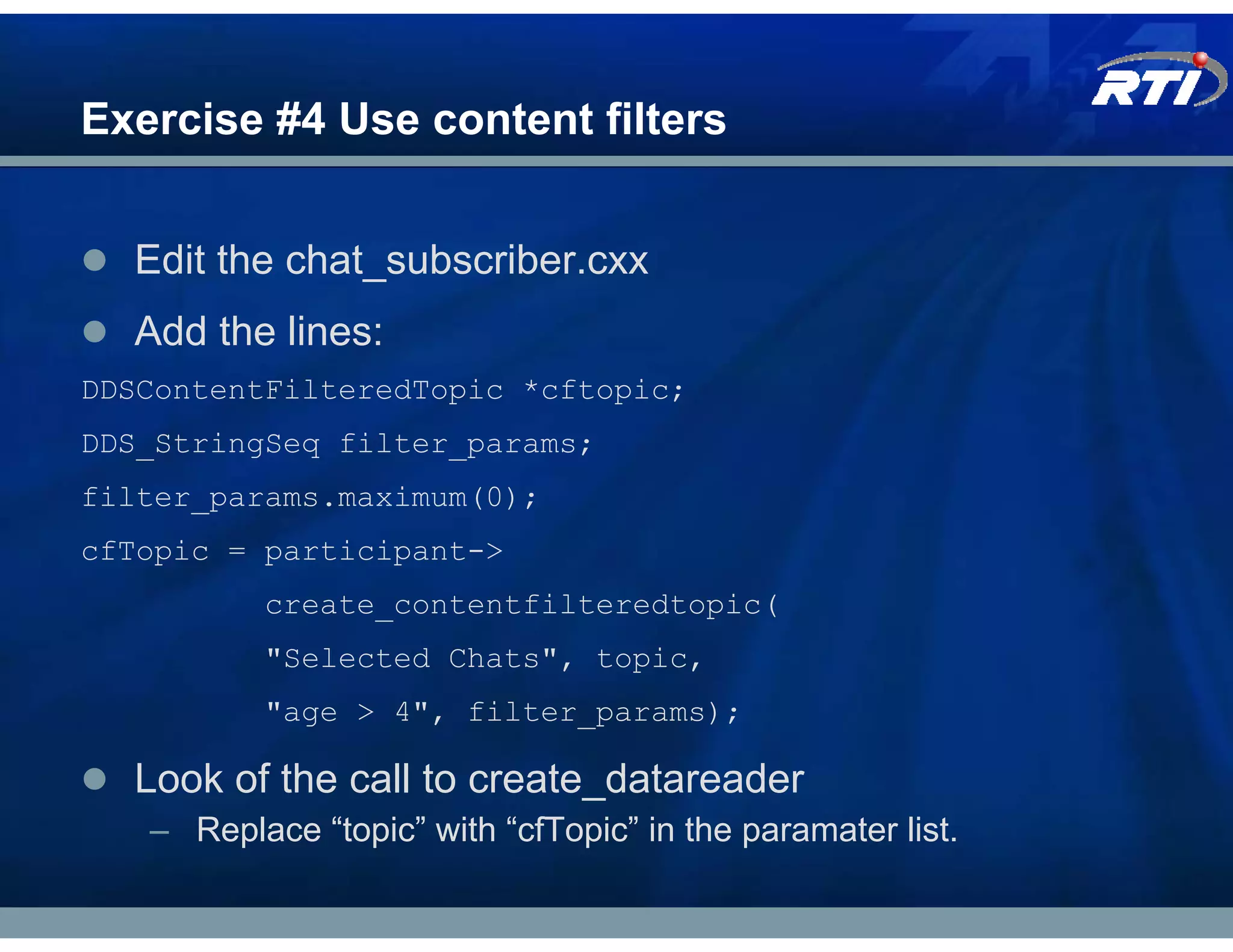

Exercise #4 Use content filters Edit the chat_subscriber.cxx Add the lines: DDSContentFilteredTopic *cftopic; DDS_StringSeq filter_params; filter_params.maximum(0); cfTopic = participant-> create_contentfilteredtopic( "Selected Chats", topic, "age > 4", filter_params); Look of the call to create_datareader – Replace “topic” with “cfTopic” in the paramater list.

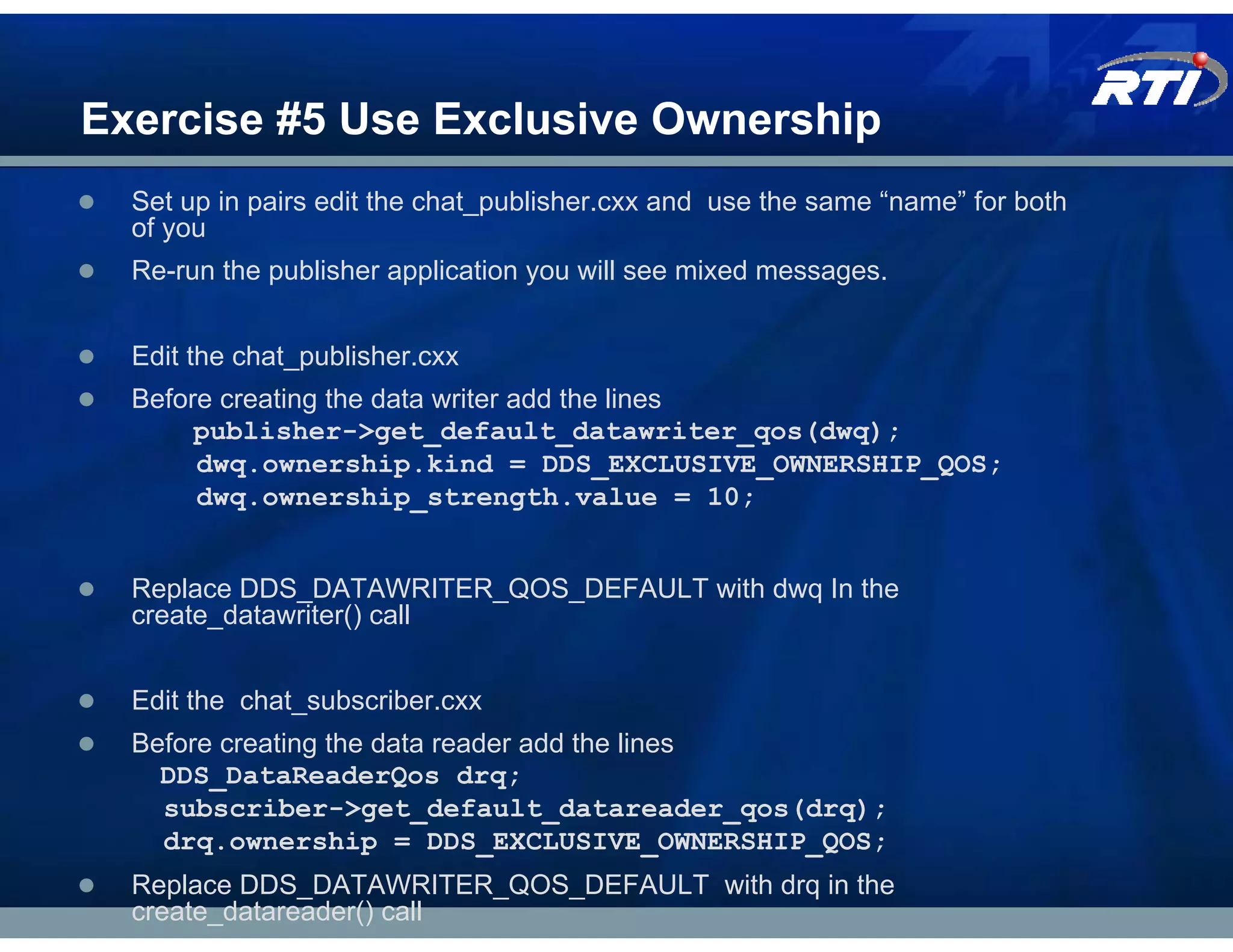

Exercise #5 Use Exclusive Ownership Set up in pairs edit the chat_publisher.cxx and use the same “name” for both of you Re-run the publisher application you will see mixed messages. Edit the chat_publisher.cxx Before creating the data writer add the lines publisher->get_default_datawriter_qos(dwq); dwq.ownership.kind = DDS_EXCLUSIVE_OWNERSHIP_QOS; dwq.ownership_strength.value = 10; Replace DDS_DATAWRITER_QOS_DEFAULT with dwq In the create_datawriter() call Edit the chat_subscriber.cxx Before creating the data reader add the lines DDS_DataReaderQos drq; subscriber->get_default_datareader_qos(drq); drq.ownership = DDS_EXCLUSIVE_OWNERSHIP_QOS; Replace DDS_DATAWRITER_QOS_DEFAULT with drq in the create_datareader() call
Summary Reduces software lifecycle Most widely proven and costs mature implementation – Loose coupling Highest performance – Replaces need for custom middleware in Industry-leading expertise high-performance, and services capability real-time applications Free trial, research and Reduces risk IR&D licenses – Standards-compliant API and wire protocol Comprehensive VxWorks – Multiple implementations support – Widely adopted

More Related Content

PPT
RTI Data-Distribution Service (DDS) Master Class 2011
byGerardo Pardo-Castellote

PDF
Cyclone DDS: Sharing Data in the IoT Age
byAngelo Corsaro

PPTX
Best Practices Using RTI Connext DDS
byReal-Time Innovations (RTI)

PDF
DDS Tutorial -- Part I
byAngelo Corsaro

PDF
The Data Distribution Service
byAngelo Corsaro

PDF
DDS in Action -- Part I
byAngelo Corsaro

PPTX
Introduction to DDS
byRick Warren

PDF
DDS In Action Part II
byAngelo Corsaro

RTI Data-Distribution Service (DDS) Master Class 2011
byGerardo Pardo-Castellote

Cyclone DDS: Sharing Data in the IoT Age
byAngelo Corsaro

Best Practices Using RTI Connext DDS
byReal-Time Innovations (RTI)

DDS Tutorial -- Part I
byAngelo Corsaro

The Data Distribution Service
byAngelo Corsaro

DDS in Action -- Part I
byAngelo Corsaro

Introduction to DDS
byRick Warren

DDS In Action Part II
byAngelo Corsaro


What's hot

PDF
The Art and Science of DDS Data Modelling
byAngelo Corsaro

PDF
OpenSplice DDS Tutorial -- Part II
byAngelo Corsaro

PPTX
Comparison of MQTT and DDS as M2M Protocols for the Internet of Things
byReal-Time Innovations (RTI)

PDF
UML Profile for DDS
byAngelo Corsaro

PDF
OMG DDS: The Data Distribution Service for Real-Time Systems
byAngelo Corsaro

PDF
The DDS Tutorial - Part I
byAngelo Corsaro

PDF
MPLS (Multiprotocol Label Switching)
byNetwax Lab

PDF
The DDS Tutorial Part II
byAngelo Corsaro

PDF
DDS QoS Unleashed
byAngelo Corsaro

PDF
DNS - Domain Name System
byPeter R. Egli

PPTX
DDS Over Low Bandwidth Data Links
byReal-Time Innovations (RTI)

PPTX
Introduction to vxlan
byMohammed Umair

PPTX
Multi-layer Control Plane
byMetaswitch NTD

PDF
The Data Distribution Service Tutorial
byAngelo Corsaro

PDF
OMG DDS Tutorial - Part I
byAngelo Corsaro

PDF
DDS: The IoT Data Sharing Standard
byAngelo Corsaro

PPTX
Failover cluster
byChinmoy Jena

PDF
Data Fabric如何简化数据治理和安全性
byDenodo

PDF
Getting Started with DDS in C++, Java and Scala
byAngelo Corsaro

PDF
IPv6 Transition Strategies Tutorial, by Philip Smith [APNIC 38]
byAPNIC

The Art and Science of DDS Data Modelling
byAngelo Corsaro

OpenSplice DDS Tutorial -- Part II
byAngelo Corsaro

Comparison of MQTT and DDS as M2M Protocols for the Internet of Things
byReal-Time Innovations (RTI)

UML Profile for DDS
byAngelo Corsaro

OMG DDS: The Data Distribution Service for Real-Time Systems
byAngelo Corsaro

The DDS Tutorial - Part I
byAngelo Corsaro

MPLS (Multiprotocol Label Switching)
byNetwax Lab

The DDS Tutorial Part II
byAngelo Corsaro

DDS QoS Unleashed
byAngelo Corsaro

DNS - Domain Name System
byPeter R. Egli

DDS Over Low Bandwidth Data Links
byReal-Time Innovations (RTI)

Introduction to vxlan
byMohammed Umair

Multi-layer Control Plane
byMetaswitch NTD

The Data Distribution Service Tutorial
byAngelo Corsaro

OMG DDS Tutorial - Part I
byAngelo Corsaro

DDS: The IoT Data Sharing Standard
byAngelo Corsaro

Failover cluster
byChinmoy Jena

Data Fabric如何简化数据治理和安全性
byDenodo

Getting Started with DDS in C++, Java and Scala
byAngelo Corsaro

IPv6 Transition Strategies Tutorial, by Philip Smith [APNIC 38]
byAPNIC


Similar to RTI Data-Distribution Service (DDS) Master Class - 2010

PDF
OMG DDS and its Relation to Unmanned Vehicle Interoperability
byGerardo Pardo-Castellote

PDF
OMG DDS: The data centric future beyond message-based integration
byGerardo Pardo-Castellote

PDF
Business Models for Interoperability
byReal-Time Innovations (RTI)

PDF
The Promise of Interoperability
byReal-Time Innovations (RTI)

PDF
Dds the ideal_bus_for_event_processing_engines
byGerardo Pardo-Castellote

PPTX
RTI Technical Road Show SPAWAR SD
byReal-Time Innovations (RTI)

PDF
DDS vs DDS4CCM
byRemedy IT

PDF
Introduction to OMG DDS (1 hour, 45 slides)
byGerardo Pardo-Castellote

PPTX
Intel_Intelligent Solutions for Military and Aerospace
byIşınsu Akçetin

PPT
Mil soft company_overview_2013
bymilsoftSDC

PDF
A&D Conf General Dynamics C4 Systems
byaztechcouncil

PPTX
How to Minimize Cost and Risk for Developing Safety-Certifiable Systems
byReal-Time Innovations (RTI)

PDF
Dham bangalore q407
byObsidian Software

PPTX
Simulation & CBTs: Mixing traditional CBT and low cost simulation in the same...
byJose Carlos Diaz

PPT
Gemkomsis 2012
bymilsoftSDC

PDF
Tetradyn Law Enforce Introduction11nov08
bymartindudziak

PDF
Applying MBSE to the Industrial IoT: Using SysML with Connext DDS and Simulink
byGerardo Pardo-Castellote

PDF
Universal FlashStorage Assocation Slide Deck 06 jul2012
byUniversalFlash

PPTX
Retrofitting a Factory Automation System to Address Market Needs and Societal...
byFAST-Lab. Factory Automation Systems and Technologies Laboratory, Tampere University of Technology

PDF
Developing Simulation &amp; Training Solutions With Cots
bySimware

OMG DDS and its Relation to Unmanned Vehicle Interoperability
byGerardo Pardo-Castellote

OMG DDS: The data centric future beyond message-based integration
byGerardo Pardo-Castellote

Business Models for Interoperability
byReal-Time Innovations (RTI)

The Promise of Interoperability
byReal-Time Innovations (RTI)

Dds the ideal_bus_for_event_processing_engines
byGerardo Pardo-Castellote

RTI Technical Road Show SPAWAR SD
byReal-Time Innovations (RTI)

DDS vs DDS4CCM
byRemedy IT

Introduction to OMG DDS (1 hour, 45 slides)
byGerardo Pardo-Castellote

Intel_Intelligent Solutions for Military and Aerospace
byIşınsu Akçetin

Mil soft company_overview_2013
bymilsoftSDC

A&D Conf General Dynamics C4 Systems
byaztechcouncil

How to Minimize Cost and Risk for Developing Safety-Certifiable Systems
byReal-Time Innovations (RTI)

Dham bangalore q407
byObsidian Software

Simulation & CBTs: Mixing traditional CBT and low cost simulation in the same...
byJose Carlos Diaz

Gemkomsis 2012
bymilsoftSDC

Tetradyn Law Enforce Introduction11nov08
bymartindudziak

Applying MBSE to the Industrial IoT: Using SysML with Connext DDS and Simulink
byGerardo Pardo-Castellote

Universal FlashStorage Assocation Slide Deck 06 jul2012
byUniversalFlash

Retrofitting a Factory Automation System to Address Market Needs and Societal...
byFAST-Lab. Factory Automation Systems and Technologies Laboratory, Tampere University of Technology

Developing Simulation &amp; Training Solutions With Cots
bySimware


More from Gerardo Pardo-Castellote

PDF
DDS-Security 1.2 - What's New? Stronger security for long-running systems
byGerardo Pardo-Castellote

PDF
DDS, the US Navy, and the Need for Distributed Software
byGerardo Pardo-Castellote

PDF
Introduction to DDS: Context, Information Model, Security, and Applications.
byGerardo Pardo-Castellote

PDF
DDS-TSN OMG Request for Proposals (RFP)
byGerardo Pardo-Castellote

PDF
A Converged Approach to Standards for Industrial Automation
byGerardo Pardo-Castellote

PPTX
Overview of the DDS-XRCE specification
byGerardo Pardo-Castellote

PDF
DDS-Security Interoperability Demo - March 2018
byGerardo Pardo-Castellote

PDF
Deep Dive into the OPC UA / DDS Gateway Specification
byGerardo Pardo-Castellote

PDF
OPC UA/DDS Gateway version 1.0 Beta
byGerardo Pardo-Castellote

PDF
DDS for eXtremely Resource Constrained Environments 1.0 Beta
byGerardo Pardo-Castellote

PDF
DDS-Security Interoperability Demo - December 2017
byGerardo Pardo-Castellote

PDF
DDS-Security Interoperability Demo - September 2017
byGerardo Pardo-Castellote

PDF
Extensible Types for DDS (DDS-XTYPES) version 1.2
byGerardo Pardo-Castellote

PDF
DDS-Security version 1.1
byGerardo Pardo-Castellote

PDF
Interface Definition Language (IDL) version 4.2
byGerardo Pardo-Castellote

PDF
DDS Security Specification version 1.0
byGerardo Pardo-Castellote

PDF
DDS for eXtremely Resource Constrained Environments
byGerardo Pardo-Castellote

PDF
DDS-XRCE - Revised Submission Presentation (September 2017)
byGerardo Pardo-Castellote

PDF
DDS-XRCE (Extremely Resource Constrained Environments)
byGerardo Pardo-Castellote

PDF
DDS - The Proven Data Connectivity Standard for the Industrial IoT (IIoT)
byGerardo Pardo-Castellote

DDS-Security 1.2 - What's New? Stronger security for long-running systems
byGerardo Pardo-Castellote

DDS, the US Navy, and the Need for Distributed Software
byGerardo Pardo-Castellote

Introduction to DDS: Context, Information Model, Security, and Applications.
byGerardo Pardo-Castellote

DDS-TSN OMG Request for Proposals (RFP)
byGerardo Pardo-Castellote

A Converged Approach to Standards for Industrial Automation
byGerardo Pardo-Castellote

Overview of the DDS-XRCE specification
byGerardo Pardo-Castellote

DDS-Security Interoperability Demo - March 2018
byGerardo Pardo-Castellote

Deep Dive into the OPC UA / DDS Gateway Specification
byGerardo Pardo-Castellote

OPC UA/DDS Gateway version 1.0 Beta
byGerardo Pardo-Castellote

DDS for eXtremely Resource Constrained Environments 1.0 Beta
byGerardo Pardo-Castellote

DDS-Security Interoperability Demo - December 2017
byGerardo Pardo-Castellote

DDS-Security Interoperability Demo - September 2017
byGerardo Pardo-Castellote

Extensible Types for DDS (DDS-XTYPES) version 1.2
byGerardo Pardo-Castellote

DDS-Security version 1.1
byGerardo Pardo-Castellote

Interface Definition Language (IDL) version 4.2
byGerardo Pardo-Castellote

DDS Security Specification version 1.0
byGerardo Pardo-Castellote

DDS for eXtremely Resource Constrained Environments
byGerardo Pardo-Castellote

DDS-XRCE - Revised Submission Presentation (September 2017)
byGerardo Pardo-Castellote

DDS-XRCE (Extremely Resource Constrained Environments)
byGerardo Pardo-Castellote

DDS - The Proven Data Connectivity Standard for the Industrial IoT (IIoT)
byGerardo Pardo-Castellote


Recently uploaded

PPTX
cybercrime in Information security .pptx
byismaeelsahib032

PPTX
Chapter 3 Introduction to number system.pptx
byGetachewAbera9

PDF
API-First Architecture in Financial Systems
bycyy111112

PDF
Eredità digitale sugli smartphone: cosa resta di noi nei dispositivi mobili
bySpeck&Tech

PPTX
From Backup to Resilience: How MSPs Are Preparing for 2026
byMSP360

PDF
Dev Dives: AI that builds with you - UiPath Autopilot for effortless RPA & AP...
byUiPathCommunity

PDF
TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

PDF
Energy Storage Landscape Clean Energy Ministerial
bySurajitBanerjee38

PPTX
Unit-4-ARTIFICIAL NEURAL NETWORKS.pptx ANN ppt Artificial neural network
byssuserd4481a

PDF
Vibe Coding vs. Spec-Driven Development [Free Meetup]
byHaim Michael

DOCX
iRobot Post‑Mortem and Alternative Paths - Discussion Document for Boards and...
byDave Litwiller

PDF
Real-Time Data Insight Using Microsoft Forms for Business
byElevate

PPTX
wob-report.pptxwob-report.pptxwob-report.pptx
byssuser0d171c

PDF
Day 2 - Network Security ~ 2nd Sight Lab ~ Cloud Security Class ~ 2020
by2nd Sight Lab

PDF
Data Virtualization in Action: Scaling APIs and Apps with FME
bySafe Software

PPTX
Cybersecurity Best Practices - Step by Step guidelines
byYasir Naveed Riaz

PDF
Is It Possible to Have Wi-Fi Without an Internet Provider
bySidra Jefferi

PPTX
Cybercrime in the Digital Age: Risks, Impact & Protection
byYasir Naveed Riaz

PPTX
AI in Cybersecurity: Digital Defense by Yasir Naveed Riaz
byYasir Naveed Riaz

PPTX
Protecting Data in an AI Driven World - Cybersecurity in 2026
byYasir Naveed Riaz

cybercrime in Information security .pptx
byismaeelsahib032

Chapter 3 Introduction to number system.pptx
byGetachewAbera9

API-First Architecture in Financial Systems
bycyy111112

Eredità digitale sugli smartphone: cosa resta di noi nei dispositivi mobili
bySpeck&Tech

From Backup to Resilience: How MSPs Are Preparing for 2026
byMSP360

Dev Dives: AI that builds with you - UiPath Autopilot for effortless RPA & AP...
byUiPathCommunity

TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

Energy Storage Landscape Clean Energy Ministerial
bySurajitBanerjee38

Unit-4-ARTIFICIAL NEURAL NETWORKS.pptx ANN ppt Artificial neural network
byssuserd4481a

Vibe Coding vs. Spec-Driven Development [Free Meetup]
byHaim Michael

iRobot Post‑Mortem and Alternative Paths - Discussion Document for Boards and...
byDave Litwiller

Real-Time Data Insight Using Microsoft Forms for Business
byElevate

wob-report.pptxwob-report.pptxwob-report.pptx
byssuser0d171c

Day 2 - Network Security ~ 2nd Sight Lab ~ Cloud Security Class ~ 2020
by2nd Sight Lab

Data Virtualization in Action: Scaling APIs and Apps with FME
bySafe Software

Cybersecurity Best Practices - Step by Step guidelines
byYasir Naveed Riaz

Is It Possible to Have Wi-Fi Without an Internet Provider
bySidra Jefferi

Cybercrime in the Digital Age: Risks, Impact & Protection
byYasir Naveed Riaz

AI in Cybersecurity: Digital Defense by Yasir Naveed Riaz
byYasir Naveed Riaz

Protecting Data in an AI Driven World - Cybersecurity in 2026
byYasir Naveed Riaz


RTI Data-Distribution Service (DDS) Master Class - 2010

  • 1.
    DDS: A Next-GenerationApproach to Building Distributed Real-Time Systems Gerardo Pardo-Castellote, Ph.D. Co-chair OMG DDS SIG CTO, Real-Time Innovations gerardo.pardo@rti.com The Real-Time 2010 Quickstart Middleware Experts http://www.rti.com
  • 2.
    Outline Overviewof Technology – Background – Applications – Data-Centric Pub-Sub – Quality of Service – Add-on components Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards:
  • 3.
    Challenge: More Data, More Speed, More Sources TRENDS: Growing Information Volume Lowering Decision Latency Increasing System Availability Accelerating technology insertion and deployment Next-generation systems needs: Performance Scalability Robustness & Availability Platform Integration & Evolution Safety-Critical Certification Security © 2009 Real-Time Innovations, Inc. 3
  • 4.
    Solution: Standards-based Integration Infrastructure for Real-Time Applications Streaming Sensors Events Data Data Distribution Service Real-Time Enterprise Actuators Applications Applications © 2009 Real-Time Innovations, Inc. 4
  • 5.
    Architecture for thenext-generation systems Existing technologies are reaching robustness/performance/scalability limits RTI DDS brings a fundamental new architecture and approach – Fully decentralized, peer-to-peer, “no bottlenecks” architecture – Superior Wire Protocol – Powerful data-centric model – Built-in Robustness and High-Availability – Standards-based, multi-platform Brokers as choke-points RTI Approach Single-lane traffic No prioritization
  • 6.
    History: DDS the Standards Data Distribution Service for Real-Time Systems – API for Data-Centric Publish-Subscribe distributed systems – Adopted in June 2003 – Revisions: 2004, 2005, 2006 – Spec version 1.2: formal/2007-07-01 Interoperability wire protocol – Adopted in July 2006 – Revised in July 2007 – Spec version 2.1: formal/2009-01-05 Related specifications – UML Profile for DDS – DDS for Light-Weight CCM – Extensible Topics for DDS(*) Multiple (7+) Implementations 6
  • 7.
    Open Architecture Cross-vendor portability Vendor independent – API for portability – Wire protocol for interoperability Multiple implementations DDS API – 7 of API – 4 support RTPS (+1 non-DDS) Middleware Heterogeneous – C, C++, Java, .NET (C#, C++/CLI) Real-Time – Linux, Windows, VxWorks, other Publish-Subscribe embedded & real-time Wire Protocol (RTPS) Loosely coupled Cross-vendor interoperability © 2009 Real-Time Innovations, Inc. 7
  • 8.
    RTI DDS ApplicationExamples Aegis Weapon System ScanEagle UAV Lockheed Martin Boeing Radar, weapons, displays, Sensors, ground station C2 Advanced Cockpit Ground B-1B Bomber Control Station Boeing Predator and SkyWarrior UAS C2, communications, General Atomics weapons Telemetry data, multiple workstations Common Link Integration Processing (CLIP) Northrop Grumman RoboScout Standards-compliant Base10 interface to legacy and new tactical data links Internal data bus and link to communications center Air Force, Navy, B-1B and B-52 © 2009 Real-Time Innovations, Inc. 8
  • 9.
    RTI DDS ApplicationExamples Driver safety Multi-ship simulator Volkswagen FORCE Technology vision systems, analysis, driver Controls, simulation display information systems Medical imaging Mobile asset tracking NMR and MRI Wi-Tronix Sensors, RF generators, user GPS, operational status interface, control computers over wireless links Automated trading Automated Trading Desk (ATD, Highway traffic monitoring now Citigroup) City of Tokyo Market data feed handlers, pricing engines, algorithmic Roadway sensors, roadside trading applications kiosks, control center © 2009 Real-Time Innovations, Inc. 9
  • 10.
    RTI DDS ApplicationExamples Full-immersion simulation Signal Processing National Highway Transportation PLATH GMBH Safety Authority RTI supports modular Migrated from CORBA, DCOM programming across for performance product line Air-Traffic Management INDRA. Deployed in Large Telescopes UK, Germany, Spain European Southern Standards, Performance, Observatory Scalability Performance & Scalability 1000 mirrors, 1sec loop Radar Systems Industrial Control AWACS upgrade Schneider Electric Evolvability, Mainteinability, VxWorks-based PLCs and supportability communicate via RTI-DDS © 2009 Real-Time Innovations, Inc. 10
  • 11.
    Standards Focus Object Management Group – Board of Directors member – Authored DDS and RTPS specs, co-chair SIG Open Group Network Centric Operations Industry Consortium (NCOIC) – Chair Open Standards and Patterns Working Group STAC Benchmark Council Support and integrate with: – DDS, RTPS, JMS, SQL, Web Services, CORBA, UML, HLA, JAUS, Eclipse, IPv6… 11 © 2008 Real-Time Innovations, Inc.
  • 12.
    Corporate Background Foundedby Stanford researchers Focused on real-time middleware Solid financials – 16-year track record of growth Real-Time Market Leader – #1 market share in embedded middleware of all types1 – 70+% worldwide share of DDS market2 50/50 software and services 1Embedded Market Forecasters 2VDC Analyst Report 12
  • 13.
    RTI Supports allPhases of Development Services Engagement Description Capabilities Timeline Workshop 2 days Introduction to RTI products and capabilities QuickStart 2+ days In-depth training on RTI DDS API, QoS policies, and common architecture patterns Support On-Demand Web-portal, phone and email customer lauded support Architecture Study 3-4 weeks Custom design review, risk analysis and architecture recommendations Design Support 4+ weeks Support hardware & software integration, architecture design, Package performance tuning, on-site debugging, implementation support Integration & SOW supported Custom feature, tool and software development support Development Ports As needed RTI tools and software on your special, purpose built hardware
  • 14.
  • 15.
    Benefits of theDDS approach Simple & Powerful Data-Centric Pub-Sub Model Reduces Risk and Development/Integration Time Enhances effective performance by delivering the right data to the right place with the right QoS Standards-based: API and Protocol 1. Unsurpassed Performance and Scalability Priority-aware no choke-points architecture 2. Builds higher quality systems and lowers TCO Built-in high-value capabilities Handles Availability & other Messaging Event Database “hard problems” & Caching Processing Bridge SQL Easy to maintain and Evolve Persistence Redundancy Recording & Durability & Failover Leverage multicore © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 15
  • 16.
    Data-Centric Pub-Sub Model Essentiallya virtual, decentralized global data space Source (key) Latitude Longitude Altitude UAV1 37.4 -122.0 500.0 UAV2 40.7 -74.0 250.0 UAV3 50.2 -0.7 2000.0 Persistence Recording Service Service © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 16
  • 17.
    example Data-Centric Model “Global DataSpace” generalizes Subject-Based Addressing – Data objects addressed by DomainId, Topic and Key – Domains provide a level of isolation – Topic groups homogeneous subjects (same data-type & meaning) – Key is a generalization of subject • Key can be any set of fields, not limited to a “x.y.z …” formatted string Data Reader Data Writer Topic (subject) Key Data Object Data Reader Data Writer Data Reader Data Writer
  • 18.
    ShapesDemo Demo: Publish-Subscribe © 2009 Real-Time Innovations, Inc. 18
  • 19.
    example DDS communications model Data Domain Data Domain New Writer Participant Reader Participant “Alarm” Got new “Alarm” subscriber! data Offered Requested Listener QoS Listener QoS Participants scope the global data space (domain) Topics define the data-objects (collections of subjects) Writers publish data on Topics Readers subscribe to data on Topics QoS Policies are used configure the system Listeners are used to notify the application of events
  • 20.
    ShapesDemo Demo: Real-Time Quality of Service Content filter Time-based filter History Deadline Analyzer © 2009 Real-Time Innovations, Inc. 20
  • 21.
    Real-Time Quality ofService (QoS) QoS Policy QoS Policy DURABILITY USER DATA User QoS HISTORY TOPIC DATA Volatility READER DATA LIFECYCLE GROUP DATA WRITER DATA LIFECYCLE PARTITION Presentation LIFESPAN PRESENTATION Infrastructure ENTITY FACTORY DESTINATION ORDER RESOURCE LIMITS OWNERSHIP Redundancy Transport RELIABILITY OWNERSHIP STRENGTH Delivery TIME BASED FILTER LIVELINESS DEADLINE LATENCY BUDGET CONTENT FILTERS TRANSPORT PRIORITY © 2009 Real-Time Innovations, Inc. 21
  • 22.
    20X Faster thanJMS / Broker-based solutions RTI DDS is about 20X faster than JMS 60,000 Throughput with a single publisher ( 2KB messages ) 50,000 Point-to-Point Updates per Second 45 40 RTI DDS 40,000 1-1 1-10 JMS [1000's sample/s] 35 30,000 1-24 30 25 20,000 20 10,000 15 10 0 16 32 64 128 256 512 1024 5 Message/Data Size (bytes - without batching) 0 2 4 6 9 11 18 CPU load [%] RTI DDS reliable multicast exhibits near perfect scalability Platform: Linux 2.6 on AMD Athlon, Dual core, 2.2 GHz © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 22
  • 23.
    DDS Is Scalable Going from 1 to 888 Ultra-low latency and jitter subscribers of the same – Deterministic – No intermediaries data has only a 10% impact on throughput http://www.rti.com/products/dds/benchmarks-cpp-linux.html © 2009 Real-Time Innovations, Inc. 23
  • 24.
    Realizing Performance &Scalability RTI DDS Approach Others: Broker-based middleware AMQP RTPS unspecified DDS operates peer-to-peer, without brokers DDS uses RTPS, an Advanced Multi-Session protocol supporting Reliable Multicast © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 24
  • 25.
    DDS Enables Higherquality, Lower TCO Systems Pre-built components address many challenging use-cases Presence Discovery Historical Cache Durable Data Availability Redundancy & Failover Recording Database Connectivity Web Accessibility Transformation Messaging Event Database & Caching Processing Bridge SQL Event Processing Redundancy WAN Routing Recording Persistence & Durability & Failover Security Guard Hooks © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 25
  • 26.
    Outline Overviewof Technology Application development cycle – How to begin. Hello world example. – Defining data in XML and XSD – Development and Run-time Tools: Ping, Spy, Analyzer, Wireshark, Excel – Discovery and Builtin-Topics – Configuring QoS via XML files Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards:
  • 27.
    Hands-on Example (C++) Type Three minutes to a running app!! Definition 1. Define your data 2. Create your project MyType.idl 3. Build 4. Run: publisher subscriber MyType.sln rtiddsgen MyType.h MyTypePublisher.cpp Aux: MyTypeSupport.c File Browser MyTypeSubscriber.cpp Console compiler Delete Files rtiddsspy Publisher.exe Subscriber.exe
  • 28.
    Alternatives beyond IDLand CDR Type Representation Type Representation “Foo” schema “Foo” schema IDL, XSD, … IDL, XSD, … rtiddsgen DDS API DDS-API DDS-API Foo.h, Foo.h, DataWriter<Foo> DataReader<Foo> Foo.java Foo.java Language Language Bindings ddsgen Bindings Data Representation Data Representation 10110011… 10110011… CDR, TLV, CDR, TLV, JSON, XML JSON, XML DDS-RTPS Wire Interoperability
  • 29.
    Alternative Type DescriptionLanguages rtiddsgen supports 4 alternative ways to define types: – All are equivalent Exercise: – You can convert between all these formats - Start with an IDL Type - Convert to XML IDL - Convert to XSD – + Simple, Compact, Similar to C/C++/Java - Start with an XML-defined type – + Allows type sharing with CORBA - Convert to IDL – - Perceived as “legacy” – - Limited tool support - Convert to XSD XML – + Good tool support and syntax validation – + Familiar to a large community. Fashionable – - More verbose. Custom Syntax XSD – + Good tool support – + Commonly used as a type-description language – - Cumbersome syntax for certain types. Not human friendly WSDL – + Same as XSD and allows type sharing with Web-Services – - Same as XSD
  • 30.
    rtiddsgen Details rtiddsgen [-d<outdir>] [-language <C|C++|Java|C++/CLI|C#>] [-namespace] [-package <packagePrefix>] [-example <arch>] [-replace] [-debug] [-corba [client header file]] [-optimization <level of optimization>] [-stringSize <Unbounded strings size>] [-sequenceSize <Unbounded sequences size>] [-notypecode] [-ppDisable] [-ppPath <path to the preprocessor>] [-ppOption <option>] [-D <name>[=<value>]] [-U <name>] [-I <directory>] [-noCopyable] [-use42eAlignment] [-help] [-version] [-convertToIdl | -convertToXml | -convertToXsd | -convertToWsdl] [[-inputIdl] <IDLInputFile.idl> | [-inputXml] <XMLInputFile.xml> | [-inputXsd] <XSDInputFile.xsd> | [-inputWsdl] <WSDLInputFile.wsdl>] DefinitionFile can be IDL, XSD and XML file -example generates example pub/sub apps and makefiles for compilation. -replace replaces everything that’s generated. Use if the data type definition has changed. Always use with caution if you’ve made modifications.
  • 31.
    IDL vs. XML:IDL Example struct MemberStruct{ short sData; } typedef MemberStructType; //@top-level false 31
  • 32.
    IDL vs. XML:XML Example <?xml version="1.0“ encoding="UTF-8"?> <types xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../rti_dds_topic_types.xsd"> <struct name="MemberStruct" topLevel="false"> <member name="sData“ type="short"/> </struct> <typedef name="MemberStructType" type="nonBasic“ nonBasicTypeName="MemberStruct“ topLevel="false"/> </types> 32
  • 33.
    IDL vs. XSD:XSD Example <?xml version="1.0" encoding="UTF-8"?> <xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:dds="http://www.omg.org/dds" xmlns:tns="http://www.omg.org/IDL- Mapped/" targetNamespace="http://www.omg.org/IDL-Mapped/"> <xsd:import namespace="http://www.omg.org/dds" schemaLocation="rti_dds_topic_types_common.xsd"/> <xsd:complexType name="MemberStruct"> <xsd:sequence> <xsd:element name="sData" minOccurs="1" maxOccurs="1" type="xsd:short"/> </xsd:sequence> </xsd:complexType> <!-- @topLevel false --> <xsd:complexType name="MemberStructType"> <xsd:complexContent> <xsd:restriction base="tns:MemberStruct"> <xsd:sequence> <xsd:element name="sData" type="xsd:short" minOccurs="1" maxOccurs="1"/> </xsd:sequence> </xsd:restriction> </xsd:complexContent> </xsd:complexType> <!-- @topLevel false --> 33 </xsd:schema>
  • 34.
    ShapesDemo Data Persistence Persistence_svc A standalone service that persists data outside of the context of a DataWriter Data Data Writer Data Can be configured for: Writer Reader • Redundancy • Load balancing Data • Direct for performance Reader Global Data Space • Relay/Transactional • Redundant/ Fault-tolerant Persistence Persistence Service Service Permanent Permanent Storage Storage © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 34
  • 35.
    Data Persistence A standalone service that persists data outside of the context of a DataWriter Data Can be configured for: Data Writer Data Writer Reader • Redundancy • Load balancing Data Global Reader Data Space Demo: 1. PersistenceService 2. ShapesDemo 3. Application failure Persistence Persistence 4. Application re-start Service Service 5. Persistence Svc failure Permanent Permanent 6. Application re-start Storage Storage © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 35
  • 36.
    ShapesDemo Ownership and High Availability Producer / Writer K1 Pri strength=10 mary Topic T1 Producer / Writer K1 Backup strength=5 K2 Primary K1 K2 Producer / Writer K2 Backup strength=1 Owner determined per Topic and Key Only writer with highest strength can publish a Key Automatic failover when highest strength writer: – Loses liveliness – Misses a deadline – Stops writing the subject Shared Ownership allows any writer to update any object © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 36
  • 37.
    Outline Overviewof Technology Application development cycle Architecting data-centric systems & modeling the Data – Examples: News example, Data Streaming, Commands, Video – Data Persistence with Examples – Using DynamicData Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards:
  • 38.
    Components/Mechanics of theGDS Application Application GDS Definition Discovery Application Application Listener Listener Protocol Cache Management Cache Management
  • 39.
    Components/Mechanics of theGDS Application Application Domain Modeling & Sys. Design GDS Definition Discovery Application Config & Application Qos Listener Listener Protocol Cache Management Cache Management
  • 40.
    Designing a Data-CentricSystem Define/Model the Global Data Space Configure the Cache Management Configure Discovery Configure the Protocol Configure/Use hooks for – Fault detection – Controlled access
  • 41.
    Global Data Space/ Global State Identify the number of domains Domain Information model – Topics – Types – Keys – Ownership
  • 42.
    Domain and DomainParticipants N4 App 4 • Container for N1 App 1 Pub/Sub Pub/Sub applications that (A,B/C,D) (D/C,E,F) want to communicate • Applications can N2 App 2 N4 App 5 join or leave a Subscribe Domain Publish domain in any order (C) (C) • New Applications are “Auto-Discovered” N3 App 3 N5 App 6 • An application that Pub/Sub Subscribe (E,F/A,C) (B,C) has joined a domain is also called a “Domain Participant” Single ‘Domain’ System
  • 43.
    Domain and DomainParticipants Using Multiple domains for Scalability, Modularity & Isolation Node 1 - App 1 Node 4 - App 1 Pub/Sub Domain A Pub/Sub Node 2 - App 1 Node 4 - App 2 Subscribe Publish Domain B Node 3 - App 1 Node 5 - App 1 Pub/Sub Subscribe Domain C Node 5 - App 2 Added Func. Node 6 - App 1 Pub/Sub Pub/Sub demo_domain_0 Multiple Domain System demo_domain_1
  • 44.
    Topics & Datatypes,Keys & Subjects Topic “MarketData” Data-type (name-type-value pairs) source type symbol Exchange volume bid ask OPRA IBM NYSE 200000 118.30 118.36 OPRA AAPL NASDAQ 171.20 171.28 RTFP EQ Key fields Subject Additional fields (payload) Topic “OrderEntry” Exchange type Symbol Order num number limit stop expiration NYSE BUY IBM 11956 500 120 - DAY NYSE BUY IBM 11957 1000 124.5 124 DAY NASDAQ SELL AAPL 11958 400 - 160 DAY Subject Key fields demo_filters
  • 45.
    QoS: Ownership Specifieswhether more than one DataWriter can update the same instance of a data-object Ownership = EXCLUSIVE Ownership = SHARED “Only highest-strength “All data-writers can data writer can update each update data- each data-instance” instance” Data Data Data Data Data Data Writer Writer Writer Writer Writer Writer Data- Data- Instance Instance Provides fast, robust, transparent replacement for fail- over and/or take-over.
  • 46.
    demo_ownership QoS: Ownership Strength Specifieswhich DataWriter is allowed to update the values of data-objects OWNERSHIP_STRENGTH “Integer to specify the ORDER strength of an instance” Strength = 1 Strength = 4 Domain Participant Data AfterData Expires QoS Data “RIGHT” Writer Writer Reader “LEFT” - Deadline “RIGHT” “LEFT” - Liveliness Publisher Publisher Subscriber S S Note: Only applies to Topics with Ownership = Exclusive
  • 47.
    Configure the CacheManagement Cache State Content – History Writer Application – Lifespan – Persistence – Resources Reader Cache View – Partitions – Content-Based Filter – Time-Based Filter – Order Reader Application
  • 48.
    QoS: History –Last x or All KEEP_ALL: KEEP_LAST: “depth” integer for Publisher: keep all until delivered the number of samples to keep at Subscriber: keep each sample until the any one time application processes that instance demo_history S7 S7 Data Data S7 Data S6 S6 Writer Writer S6 Reader S5 S5 S4 S4 S3 Publisher S2 Publisher Subscriber S1 Keep All Keep Last 2 Keep Last 4 S7 S6 S5 S4 S3 S2 S1
  • 49.
    lifespan_pub QoS: Lifespan lifespan_sub User can set lifespan duration Manages samples in the history queues, attached to each Sample Topic S1 Data Data Writer Reader S2 S3 S4 S5 Perm. Publisher Subscriber S6 Storage S7 S1 S2 S4 S3 S2 S1
  • 50.
    Content-Based Filtering Instance1 Value = 249 Content Filtered Value = 230 Topic Instance 2 Instance 3 Value = 275 Topic Instance 4 Value = 262 “Filter Expression ” Instance 5 Value = 258 Ex. Value > 260 Instance 6 Value = 261 Instance 7 Value = 259 The Filter Expression and Expression Params will determine which instances of the Topic will be received by the subscriber. content_filter_example
  • 51.
    QoS: TIME_BASED_FILTER time_filter_example Topic “minimum_separation”: Data Reader does not want to receive data Domain faster than the min_separation time Participant Data Data Writer Reader Publisher Discarded Subscriber samples S SSS S S S minimum separation Data Samples
  • 52.
    Cache Management inAction Topics – Square, Circle, Triangle – Attributes Data types (schemas) – Shape (color, x, y, size) • Color is instance Key – Key • Color field used for key QoS – History, Partition – Time-Based Filter – Content-Based Filter demo
  • 53.
    Configure the Protocol Discovery Reliability Writer Application Batching Liveliness Flow Control Asynchronous write Network Configuration – Enabled Transports + transport properties – Multicast addresses – Transport Priority OS settings – Threads Reader Application – Memory
  • 54.
    Tunable Reliability Protocol Configurable AckNack reply times Performance can be tracked by to eliminate storms senders and recipients – Configurable high/low watermark, Fully configurable to bound Buffer full latency and overhead Flexible handling of slow – Heartbeats, delays, buffer sizes recipients – Dynamically remove slow receivers S7 S1 Data S6 Reliable Data S2 Writer Reader S5 •Guaranteed S3 S4 Ordered Delivery S4 S3 S5 Publisher •“Best effort” also Subscriber S6 S2 S1 supported S7 S8 S7 S3 S5 S4 S2 S1 NACK #6 S6
  • 55.
    Configure Notifications, FaultDetection & Management Writer Application Listeners Deadline Qos Liveliness Qos Built-in Readers Notification of matching Reader Application
  • 56.
    QoS: Deadline deadline_example Topic DEADLINE “deadline period” Commits Failed to to provide get data Data data each Data Writer deadline Listener Reader period. Publisher Expects data every Subscriber deadline period. deadline S X S S S S S
  • 57.
    QoS: Liveliness – liveliness_example Type and Duration Type: Controls who is responsible for issues of ‘liveliness packets’ AUTOMATIC = Infrastructure Managed MANUAL = Application Managed kill_apps Topic Topic Failed to renew lease Data Data Writer Listener Reader Publisher Subscriber lease_duration LP LP LP S Liveliness Message
  • 58.
    Exercise: How could“chat rooms” be implemented? Different Topics for each Chat room? Map to Partitions? Add field to the message and use content- filtered Topics? Same as before and also make room part of the Key? Others? Discuss pros and cons of each approach
  • 59.
    Exercise: How couldwe implement Ground control stations that monitor UAVs Different Topics for each UAV? – Or use Keys? Different Domains for each Ground Station? – Or Partitions? How to control multiple UAVs from the same ground station? How to switch the ground station that controls the UAV? How to do failover between ground stations? How to direct a message to one or all UAVs? How to detect loss of connection to an UAV? Discuss pros and cons of each approach
  • 60.

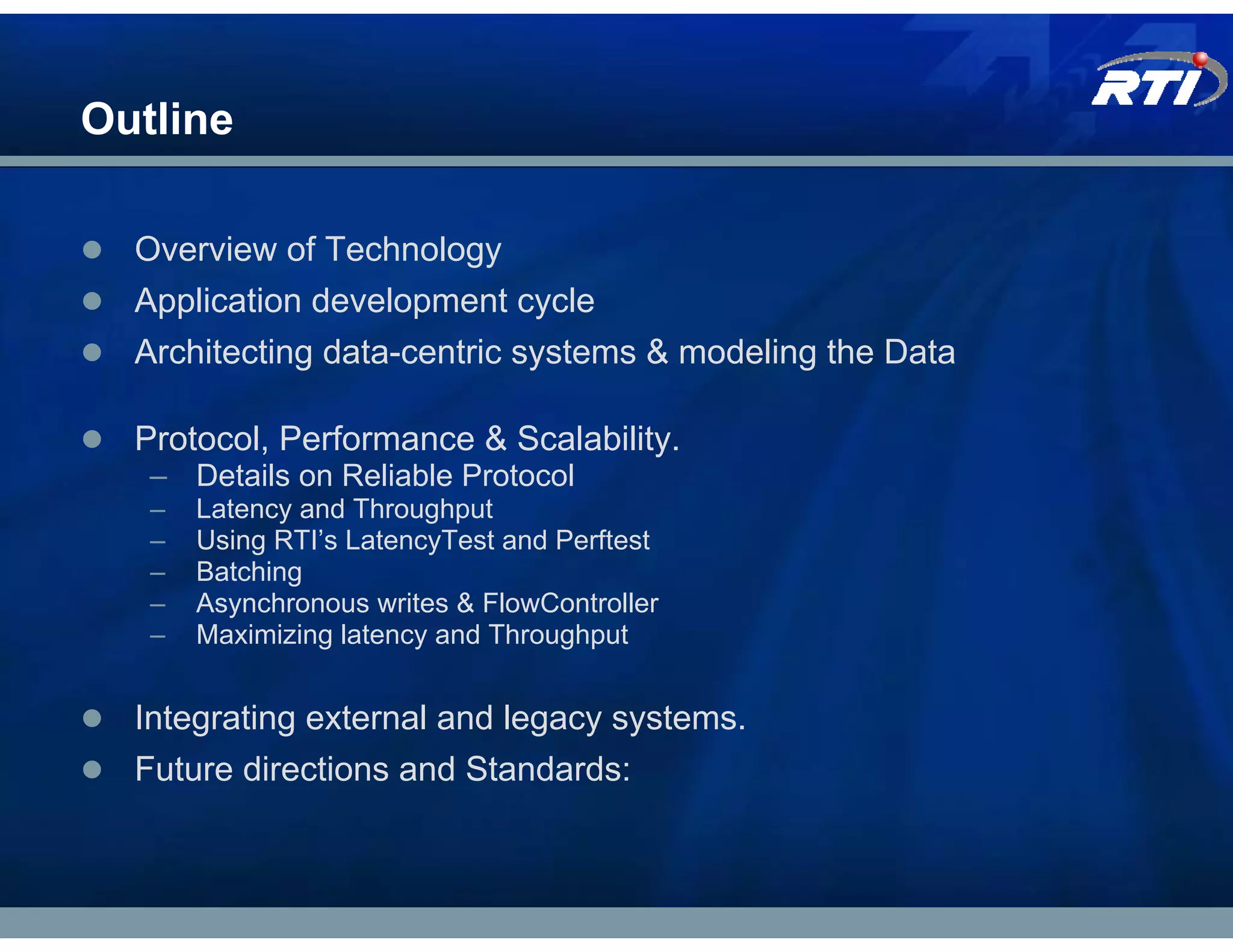

    Outline Overviewof Technology Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. – Details on Reliable Protocol – Latency and Throughput – Using RTI’s LatencyTest and Perftest – Batching – Asynchronous writes & FlowController – Maximizing latency and Throughput Integrating external and legacy systems. Future directions and Standards:
  • 61.
    Performance & Scalability RTI DDS is about 20X faster than JMS 60,000 Throughput with a single publisher ( 2KB messages ) 50,000 Point-to-Point Updates per Second 45 40 RTI DDS 40,000 1-1 1-10 JMS [1000's sample/s] 35 30,000 1-24 30 25 20,000 20 10,000 15 10 0 16 32 64 128 256 512 1024 5 Message/Data Size (bytes - without batching) 0 2 4 6 9 11 18 CPU load [%] RTI DDS reliable multicast exhibits near perfect scalability Platform: Linux 2.6 on AMD Athlon, Dual core, 2.2 GHz © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 61
  • 62.
    Extremely low latencyand jitter Reliable, ordered delivery over Gigabit Ethernet between 2.4 GHz Core 2 Quad processors running 32-bit Red Hat Enterprise Linux 5.0 © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 62
  • 63.
    Orders of magnitudemore scalable than broker-based solutions Going from 1 to 888 New topics can be added to a subscribers of the same system without impacting the data has only a 10% impact latency and throughput on on throughput other topics Throughput with 8 topics is 8x the throughput with 1 topic http://www.rti.com/products/dds/benchmarks-cpp-linux.html © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 63
  • 64.
    Realizing Performance &Scalability RTI Approach Others: Broker-based middleware AMQP RTPS unspecified RTI operates peer-to-peer, without brokers RTI uses RTPS, an Advanced Multi-Session protocol supporting Reliable Multicast © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 64
  • 65.
    Advanced Scalability &Performance Techniques Latency and Priority Aware message batching Content-Aware multi-channel reliable multicast Enhanced Reliable Protocol – Selective ACKs (SACKs) for Confirmed Reliability – NACK-only Reliable Protocol for Massive Scalability Smart caching integrated with the message protocol Content-Filtering at the source © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 65
  • 66.
    Message Batching Send queue Receive queue write() sender receiver Without batching each message is separately sent. For small messages protocol headers might be bigger than payload Send queue Receive queue With batching messages are held a little and Transparent: write() combined into larger Receiver still batches maximizing sees individual sender throughout and minimizing messages CPU receiver © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 66
  • 67.
    Reliability with Batching Reliability must work even when messages are batched ACK or NACK of individual samples would negate some of the benefits of batching… => Protocol must be batch aware so that it can ACK/NACK complete batches! write() B1 B1 sender B1 B2 B2 B2 B3 B3 B3 receiver ACK(B3), NACK(B2) Repair B2 © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 67
  • 68.
    Batching is hardbut it pays! RTI DDS 4.3b perftest results 1000 900 800 Throughput (Mbps) 700 Linux Baseline 600 Linux 10Kb Batch 500 400 300 200 100 0 0 1000 2000 3000 4000 5000 Intel Core2Duo Single-CPU Dual-Core 2.4GHz, 4MB cache Sample size (bytes) 32-bit CentOS 5 (RHEL 5), 2GB memory, Intel E1000 NIC © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 68
  • 69.
    Classic (TCP Style)Reliable Protocol No packet loss situation 01 01 01 02 02 02 03 03 03 04 04, HB ACK 1-4 04 05 05 05 06 06 06 07 07 07 08 08, HB ACK 1-8 08 ShapesDemo Company Confidential © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 69
  • 70.
    Classic (TCP Style)Reliable Protocol with some packet loss 01 01 01 02 02 02 03 03 X 04 04, HB X ACK 1-2, NACK 3 05 05 X 03 06 04 06 07 06 05 07 08 07 08 08, HB ACK 1-8 Packets 04 and 05 are received but the protocol drops them because a prior packet 03 is missing. This wastes valuable bandwidth © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 70
  • 71.
    RTI DDS Reliability(Reader Cache + SACK) improves performance when packet loss occurs 01 01 01 02 02 02 03 03 X 04 04, HB ACK 1-2, SACK 3 04 05 05 03 05 06 06 06 07 07 07 08 08, HB ACK 1-8 08 Packets 04 and 05 are received and cached waiting for the repair of 03. No bandwidth is wasted. © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 71
  • 72.
    RTI DDS NACK-onlyreliability eliminates ACK traffic if there no packet loss 01 01 01 02 02 02 03 03 03 04 04, HB 04 05 05 05 06 06 06 07 07 07 08 08, HB 08 No ACK traffic under normal operating conditions © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 72
  • 73.
    RTI DDS NACK-onlyreliability greatly reduces traffic even with packet loss 01 01 01 02 02 02 03 03 X 04 04, HB NACK 3 04 05 05 03 05 06 06 06 07 07 07 08 08, HB 08 Negative Acknowledgments sent only when some message is lost This approach is far more scalable when there are many subscribers © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 73
  • 74.
    Asynchronous Publishing &Flow COntroller synchronous send path: asynchronous send path: Return To User 1. rapid write() return User Thread write() Data Queue 3. coalesce data samples 2. network traffic shaping Flow Flow Publishing Thread Net I/O Wire Data Out Controller
  • 75.
    Qos Policies DDS_PublishModeQosPolicy – kind • DDS_SYNCHRONOUS_PUBLISH_MODE_QOS • DDS_ASYNCHRONOUS_PUBLISH_MODE_QOS – flow controller name DDS_AsynchronousPublisherQosPolicy – disable_asynchronous_write <FALSE> – thread – disable_asynchronous_batch <FALSE> – asynchronous_batch_thread
  • 76.
    AP in Participant’sWorld Participant Publishing Thread D Publisher D Publishing Thread A Publishing Thread B Publishing Thread C Publisher A Publisher B Publisher C
  • 77.
    Flow Controller TokenDistribution basic token bucket – steady-state traffic • tokens_added_per_period • token_period – max burst control • max_tokens – Additional controls • tokens_leaked_per_period • all values can be DDS_LENGTH_UNLIMITED – piggyback discount (Token Exchange Rate) • bytes_per_token scheduling policy – round-robin (RR) – earliest-deadline-first (EDF) • deadline = time of write + DDS_DataWriterQos::latency_budget
  • 78.
    Using Asynchronous Publishing DataWriter-side: DDS_FlowControllerProperty_t property; property.sched_policy = DDS_EDF_FLOW_CONTROLLER_SCHED_POLICY; property.token_bucket.max_tokens = A; //[0, DDS_LENGTH_UNLIMITED] property.token_bucket.tokens_added_per_period = B; //[0, DDS_LENGTH_UNLIMITED] property.token_bucket.tokens_leaked_per_period = C; //[0, DDS_LENGTH_UNLIMITED] property.token_bucket.bytes_per_token = D; //[1024, DDS_LENGTH_UNLIMITED] property.token_bucket.period = E; //[0, DDS_DURATION_INFINITE] ... DDSFlowController *controller = participant->create_flowcontroller("superflow", property); ... writer_qos.publish_mode.kind = DDS_ASYNCHRONOUS_PUBLISH_MODE_QOS; writer_qos.publish_mode.flow_controller_name = "superflow"; // // Set up History queue size to hold deferred issues!!!!!. writer_qos.history.kind = DDS_KEEP_LAST_HISTORY_QOS; writer_qos.history.depth = z; // <<<<<<<<<<<<<!!!!!!!!!!!!!!<<<<< ... writer->write(data_sample, ...); ... // Optional wait for pipe to empty writer->wait_for_asynchronous_publishing(timeout); ... // Optional On-Demand trigger controller->trigger_flow(); ... // Optional Modify controller properties controller->set_property(); No changes on DataReader-side!!
  • 79.
    Flow Controller DesignChallenge Requirements; – Large 1 mbyte issue. – Transmit over period of 10 seconds – Low priority transmission – Transport buffer size set to 32K CONTROLLER: property.sched_policy = ??; property.token_bucket.max_tokens = ?? property.token_bucket.tokens_added_per_period = ?? property.token_bucket.tokens_leaked_per_period = ??; property.token_bucket.bytes_per_token = ??; property.token_bucket.period = ??
  • 80.
    Flow Controller DesignChallenge Requirements; – Large 1 mbyte issue. – Transmit over period of 10 seconds – Low priority transmission – Transport buffer size set to 32K – Cannot loose any issues CONTROLLER: property.sched_policy = DDS_RR_FLOW_CONTROLLER_POLICY; property.token_bucket.max_tokens = 1 property.token_bucket.tokens_added_per_period = 1 property.token_bucket.tokens_leaked_per_period = unlimited; property.token_bucket.bytes_per_token = 32k; property.token_bucket.period = 200ms Extra Credit Discussion: What about reliable protocol properties?
  • 81.
    Outline Overviewof Technology Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. – Routing Service – Systems of Systems – Cross Domain Solutions – Accessing Data over a WAN – Database Connectivity – Access over the Web Future directions and Standards:
  • 82.
    Real-Time Recording Service Applications: Record high-rate data – Future analysis and arriving in real-time debugging Non-intrusive – multicast – Post-mortem reception – Compliance checking – Replay for testing and simulation purposes Demo: 1. Start RecordingService 2. Start ShapesDemo 3. See output files 4. Convert to: HTML XML 5. View Data: HTML XML sqlite stop_all © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 82
  • 83.
    Relational Database Integration Publish-SubscribeAction Relational Actions Write() ShapesDemo UPDATE [2,3] & INSERT Read() & Take() SELECT Dispose() DELETE Wait() & Listener sql_gui sql_shell Topic T1 Table T1 RTI I1 Real-Time I1 I2 I3 Connect I2 I3 2. start RTC 1. start mysql stop_all Event driven – The fastest way to observe database changes! © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 83
  • 84.
    COTS tools: Excel– Interacting with your data Display live RTI DDS Data in Excel Perform real-time computations and charts Publish RTI DDS data from Excel ShapesDemo blank saved demo
  • 85.
    RTI Routing Service Selective, real-time data forwarding and transformation Can Change Topic Name and Topic Schema – Allows for custom transformations via “plugin” – Can filter/guard data QoS managed, can cache last-known value for data Dynamically configured Location independent deployment start Topic A Topic B DDS Router ShapesDemo_0 ShapesDemo_1 XFORM GUARD stop_all
  • 86.
    Global Scalability: LANto WAN… …without sacrificing Performance and Security Site A DDS DDS Router Router Site C Topics: Topics: Site Status Site Status Alarms WAN /  Proc Sensor Data Health Logs Result Data Internet Sensor Data Alarms Proc Sensor Data TCP/TLS/SSL Site B DDS DDS Site D Router Router Topics: Topics: Site Status Site Status Sensor Data Result Data © 2009 Real-Time Innovations, Inc. COMPANY CONFIDENTIAL 86
  • 87.
    Web Accessibility Direct access to real-time data from Web-Based Applications simulated tracks Tactical Real-Time Data Web Web Enabled Web Enabled Recorded DDS Enabled Data DDS DDS DDS Recording 2. start Service 1. start replay & router Recorded Recorded Track Files view maps Data Files GUARD 87 stop_all
  • 88.
    Outline Overviewof Technology Application development cycle Architecting data-centric systems & modeling the Data Protocol, Performance & Scalability. Integrating external and legacy systems. Future directions and Standards: – Extensible Topics for DDS – Web Enabled DDS – Standard C++ PSM for DDS Q&A
  • 89.
    Extensible Dynamic TypesSubmission class Ov erv iew +type TypeModel::Type Data * 1 1 1 1 1 +type * TypeRepresentation:: LanguageBinding:: LanguageBinding:: DataRepresentation:: TypeRepresentation TypeLanguageBinding DataLanguageBinding DataRepresentation
  • 90.
    Example: Current mechanisms Type Definition IDL: Foo.idl struct Foo { Language string<> name; Binding long ssn; }; IDL to Language Mapping: Foo.h Foo.cpp Data FooTypeSupport.cpp Representation struct Foo { IDL to CDR: char *name; int ssn; 00000006 }; 68656C6C 6F000000 Foo f = {“hello”, 2”}; 00000002
  • 91.
    Type-Definition – LanguageRepresentation – Serialized encapsulation ... Each offers options Type Representation Type Representation “Foo” schema “Foo” schema IDL, XSD, … IDL, XSD, … ddsgen DDS API DDS-API DDS-API Foo.h, Foo.h, DataWriter<Foo> DataReader<Foo> Foo.java Foo.java Language Language Bindings ddsgen Bindings Data Representation Data Representation 10110011… 10110011… CDR, TLV, CDR, TLV, JSON, XML JSON, XML DDS-RTPS Wire Interoperability
  • 92.
    Web-Enabled Data-Centric GlobalData Space App App Web DDS HTTP App RTPS Stateless access of data via Global Data application appropriate technologies and protocols Space Global Data Space Not a bridge, broker, or message router App App 92
  • 93.
    Web Enabled DDS App Std. Web Web Enabled DDS App protocols Web Web DDS DDS HTTP HTTP RTPS RTPS <<conceptually>> Global Data Space A service that exposes DDS Global Data over Web Protocols: Applications can interact with DDS directly over the Web No need for bridges or special bindings for scripting languages 93
  • 94.
    Day 2: Exercises Gerardo Pardo-Castellote, Ph.D. Co-chair OMG DDS SIG CTO, Real-Time Innovations gerardo.pardo@rti.com The Real-Time Middleware Experts http://www.rti.com
  • 95.
    Preparations InstallRTI DDS: – Windows • Unzip: RTI_Masterclass2GO.zip – into directory C:RTI • Execute: install_actions.bat – Linux • Boot your computer from the USB Test you can do the following – rtiddsgen -help
  • 96.
    Install VisualStudio fromthe ISO’s Copy the VS2008 and WindowsSDK ISO’s Install DaemonTools Mount the ISOs as virtual drives Proceed with the installation – 1st the VS2008 – 2nd the Platform SDK Test the installation by creating a “hello world” project compiling and running it
  • 97.
    Exercise #0 -Hello World Define you data type: Create a directory “HelloWorld” Create a file called hello.idl and open it in VisualStudio Add the following contents: const long MSG_LEN=256; struct HelloMsg { string<MSG_LEN> user; //@key string<MSG_LEN> msg; };
  • 98.
    Run rtiddsgen (forC++) rtiddsgen hello.idl -language C++ -example i86Win32VS2005 -replace -ppDisable rtiddsgen hello.idl -language Java -example i86Win32jdk -replace -ppDisable Look at the directory you should see: – hello-vs2005.sln – And Several other files… Open the Solution File (type hello-vs2005.sln on the console) – Look at HelloMsgPublisher.cxx – Look at HelloMsgSubscriber.cxx Build the Solution
  • 99.
    Run rtiddsgen (forJava) rtiddsgen hello.idl -language Java -example i86Win32jdk -replace -ppDisable Look at the directory you should see: – makefile_hello_i86Win32jdk – And Several other files… • Look at HelloMsgPublisher.java • Look at HelloMsgSubscriber.java You can use the makefile to build and the Java programs: – gmake –f makefile_hello_i86Win32jdk
  • 100.
    Execute the program C++: – On one window run: • objsi86Win32VS2005HelloMsgPublisher.exe – On another window run: • objsi86Win32VS2005HelloMsgSubscriber.exe Java – On one window run: • gmake –f makefile_hello_i86Win32jdk HelloMsgPublisher – On another window run: • gmake –f makefile_hello_i86Win32jdk HelloMsgSubscriber You should see the subscribers getting an empty string…
  • 101.
    Modify the programto produce something C++: Open HelloMsgPublisher.cxx in VisualStudio Java: Open HelloMsgPublisher.java in your preferred tool Look for the comment: /* Modify the data to be sent here */ Add the line: strcpy_s(instance->msg, MSG_LEN, "Hello this is gerardo"); Use your own name instead of “gerardo” Kill the Publisher, Rebuild the publisher and run it again
  • 102.
    Playing with rtiddsspy Run rtiddsspy while the other applications are running Start and stop applications. What do you see in rtiddsspy
  • 103.
    Exercise #1 –Shapes Publisher Create a new directory Shapes In the Directory create a file called ShapeType.idl Edit the file to have the following content: const long COLOR_LEN=64; struct ShapeType { string<COLOR_LEN>color; //@key long x; long y; long shapesize; }; Run: rtiddsgen ShapeType.idl -language C++ -example i86Win32VS2005 –replace -ppNotRun
  • 104.
    Exercise #2 –Using keys Create a new directory Chat In the Directory create a file called chat.idl Edit the file to have the following content: const long NAME_LEN=64; const long MSG_LEN=256; struct ChatMsg { string<NAME_LEN>name; //@key long age; string<MSG_LEN> chatRoom; string<MSG_LEN> msg; }; Run: rtiddsgen chat.idl -language C++ -example i86Win32VS2005 – replace -ppNotRun
  • 105.
    Edit the chat_publisher.cxx Go to the line with comment: /* Main loop */ – Add the line: strcpy_s(instance->name, NAME_LEN, "Gerardo Pardo"); (Use your own name) Go to the line with comment: – /* Modify the data to be sent here */ – Add the lines: instance->age = count; strcpy_s(instance->msg, NAME_LEN, “Como va todo?"); (Use your age and personalized message) Rebuild and execute
  • 106.
    Exercise #3 UseQos Set RELIABILITY Set HISTORY to KEEP_LAST or KEEP_ALL – Test different depths Use Partitions – Create several Partitions: • E.g. by ChatRoomName – Publish in your ChatRoom – Subscribe to one or more ChatRooms
  • 107.
    Exercise #4 Usecontent filters Edit the chat_subscriber.cxx Add the lines: DDSContentFilteredTopic *cftopic; DDS_StringSeq filter_params; filter_params.maximum(0); cfTopic = participant-> create_contentfilteredtopic( "Selected Chats", topic, "age > 4", filter_params); Look of the call to create_datareader – Replace “topic” with “cfTopic” in the paramater list.
  • 108.
    Exercise #5 UseExclusive Ownership Set up in pairs edit the chat_publisher.cxx and use the same “name” for both of you Re-run the publisher application you will see mixed messages. Edit the chat_publisher.cxx Before creating the data writer add the lines publisher->get_default_datawriter_qos(dwq); dwq.ownership.kind = DDS_EXCLUSIVE_OWNERSHIP_QOS; dwq.ownership_strength.value = 10; Replace DDS_DATAWRITER_QOS_DEFAULT with dwq In the create_datawriter() call Edit the chat_subscriber.cxx Before creating the data reader add the lines DDS_DataReaderQos drq; subscriber->get_default_datareader_qos(drq); drq.ownership = DDS_EXCLUSIVE_OWNERSHIP_QOS; Replace DDS_DATAWRITER_QOS_DEFAULT with drq in the create_datareader() call
  • 109.
    Summary Reduces softwarelifecycle Most widely proven and costs mature implementation – Loose coupling Highest performance – Replaces need for custom middleware in Industry-leading expertise high-performance, and services capability real-time applications Free trial, research and Reduces risk IR&D licenses – Standards-compliant API and wire protocol Comprehensive VxWorks – Multiple implementations support – Widely adopted
