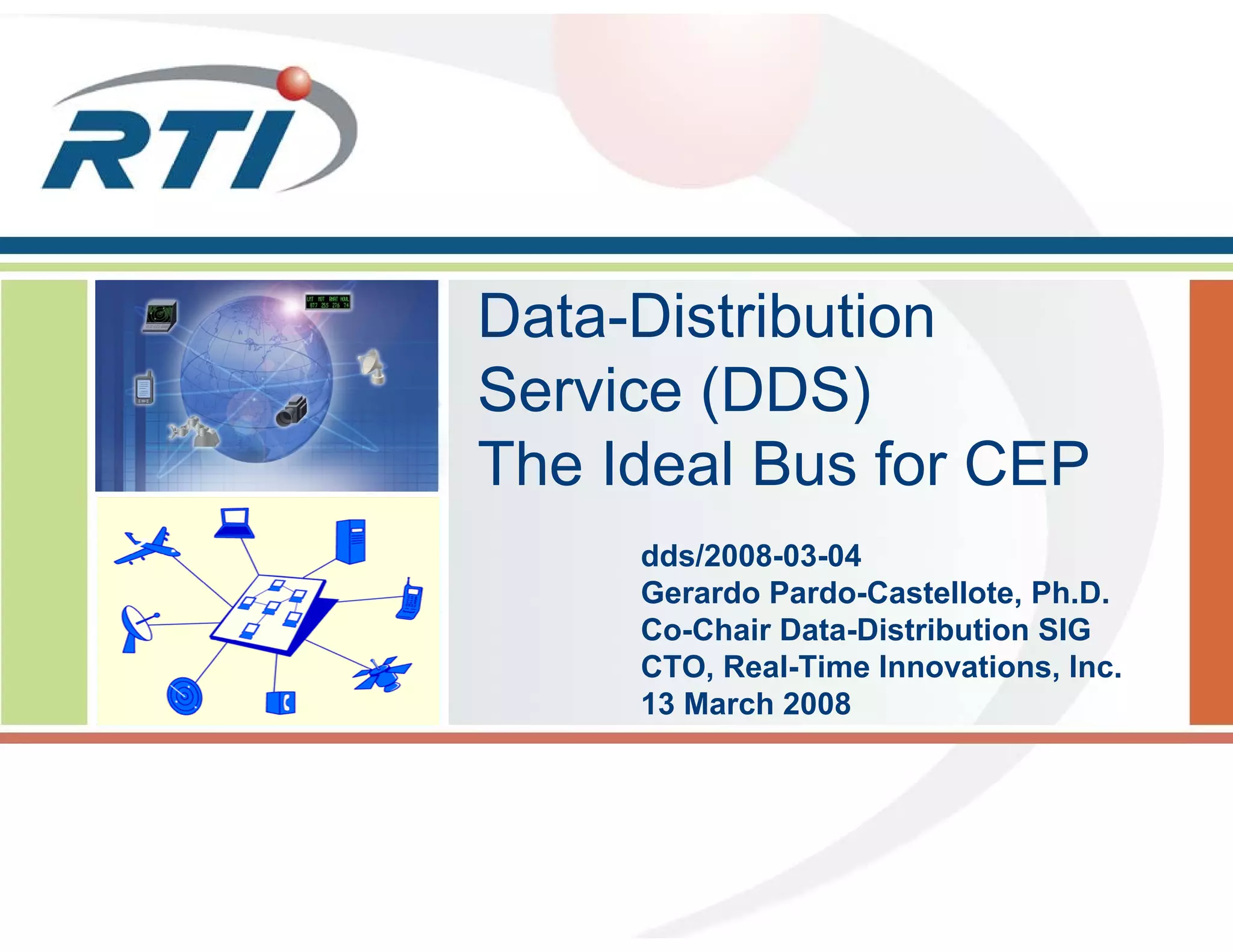

1. Data-Distribution
Service (DDS)
The Ideal Bus for CEP
dds/2008-03-04
Gerardo Pardo-Castellote, Ph.D.
Co-Chair Data-Distribution SIG
CTO, Real-Time Innovations, Inc.
13 March 2008

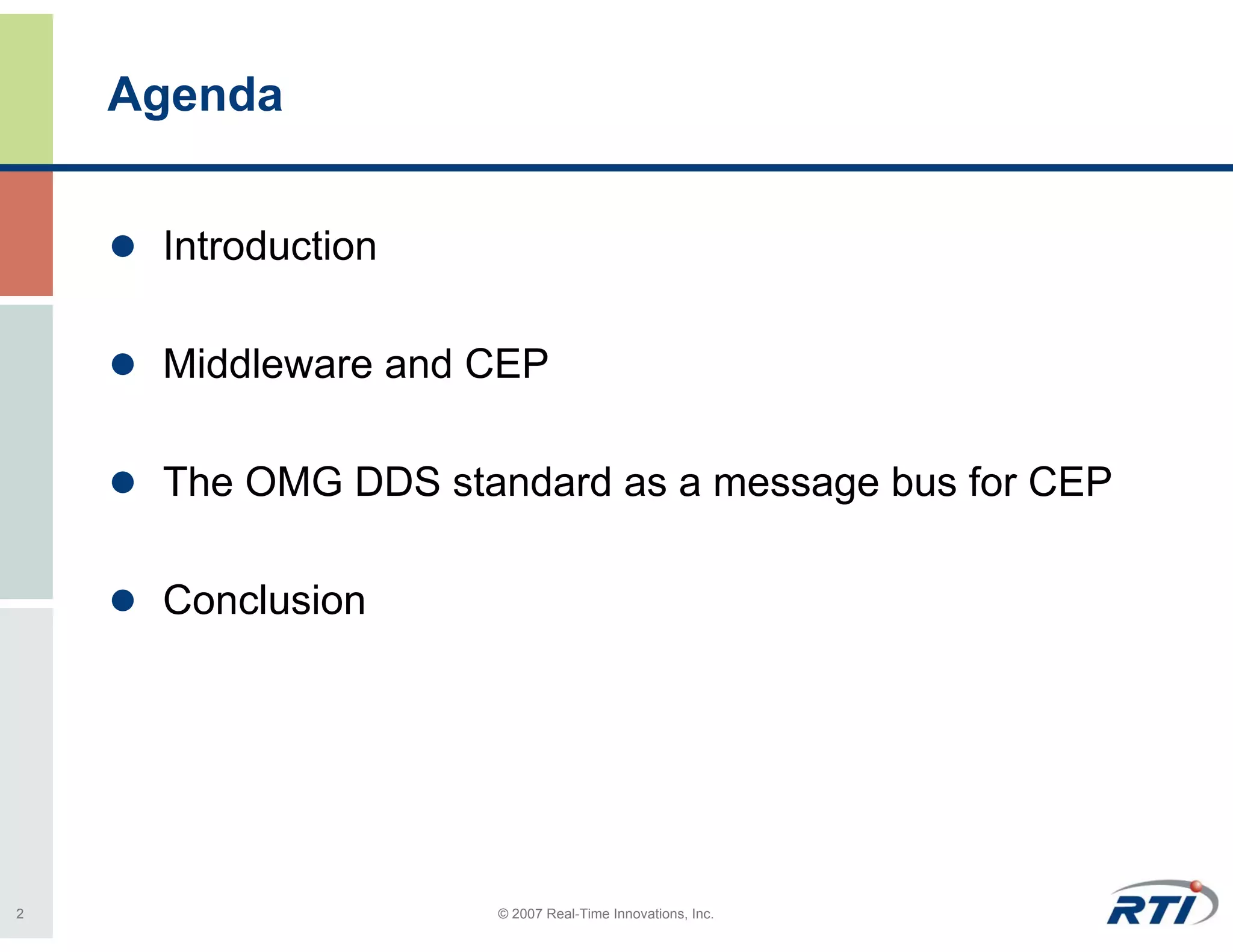

2. Agenda
Introduction
Middleware and CEP
The OMG DDS standard as a message bus for CEP
Conclusion
2 © 2007 Real-Time Innovations, Inc.

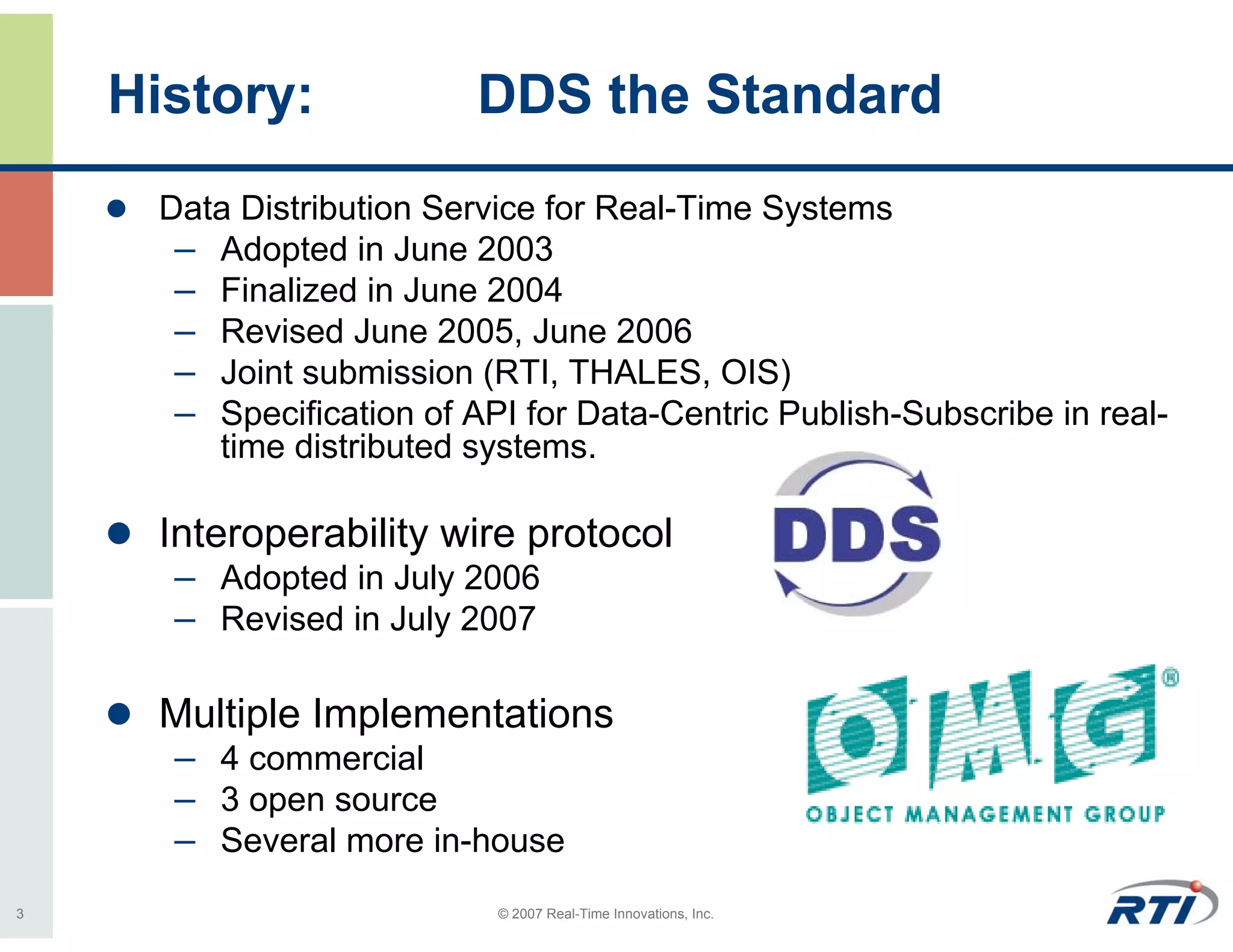

3. History: DDS the Standard
Data Distribution Service for Real-Time Systems
– Adopted in June 2003
– Finalized in June 2004
– Revised June 2005, June 2006
– Joint submission (RTI, THALES, OIS)
– Specification of API for Data-Centric Publish-Subscribe in real-
time distributed systems.
Interoperability wire protocol
– Adopted in July 2006
– Revised in July 2007
Multiple Implementations
– 4 commercial
– 3 open source
– Several more in-house
3 © 2007 Real-Time Innovations, Inc.

4. DDS Adoption – Aerospace & Defense
Boeing
AWAKS Northtrop
E2C
Hawkeye
Boeing
Future Combat
Systems
Raytheon
SSDS
Lockheed
AEGIS Insitu
Unmanned
Air Vehicles
4

5. DDS Adoption – Transportation, Industrial
WiTronix
Train and vehicle Schneider Electric
Tracking Industrial Automation
Tokyo Japan
Traffic Control Kuka
Robotics
EU and US
Air Traffic
Management Varian
Medical Instruments
5

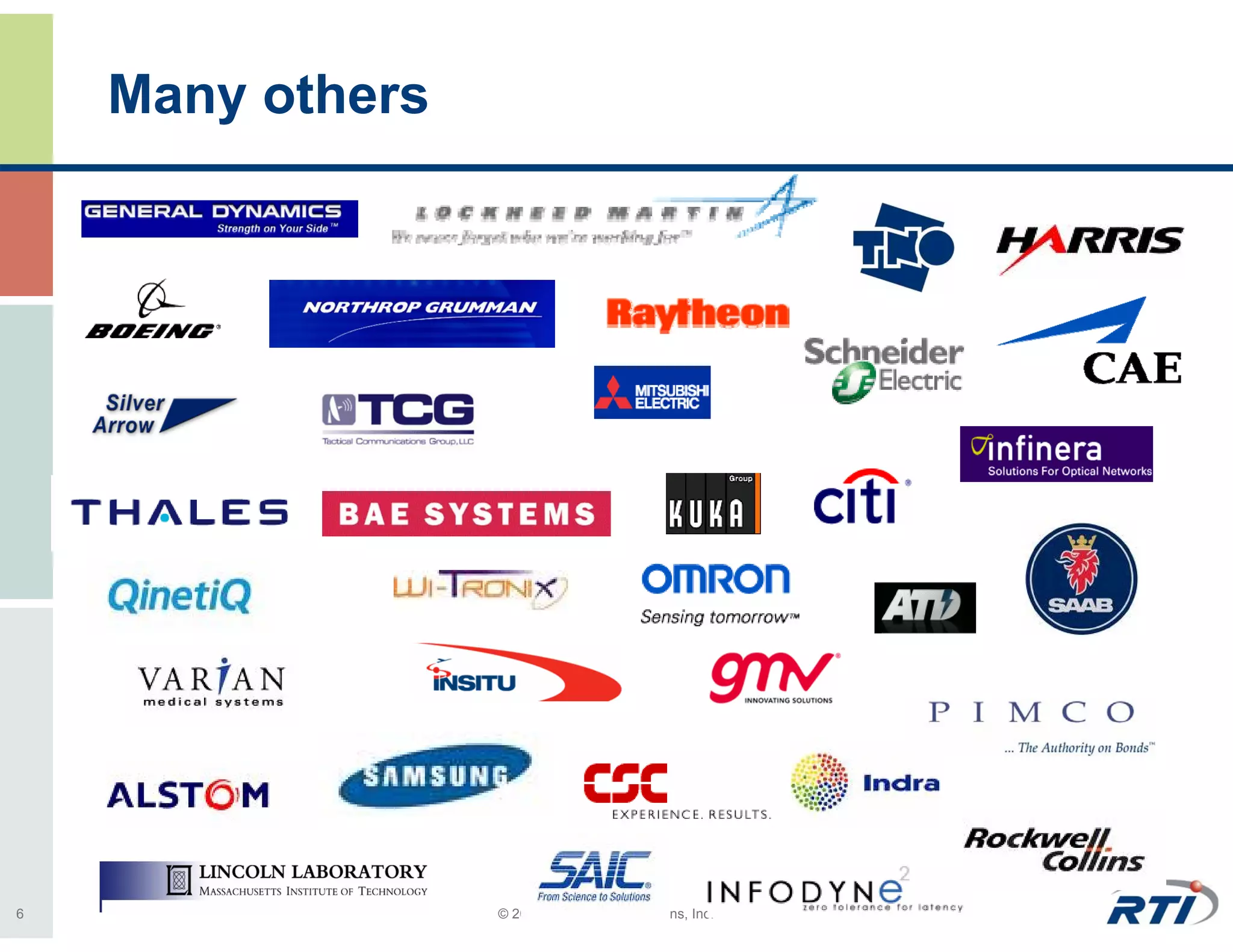

6. Many others
6 © 2007 Real-Time Innovations, Inc.

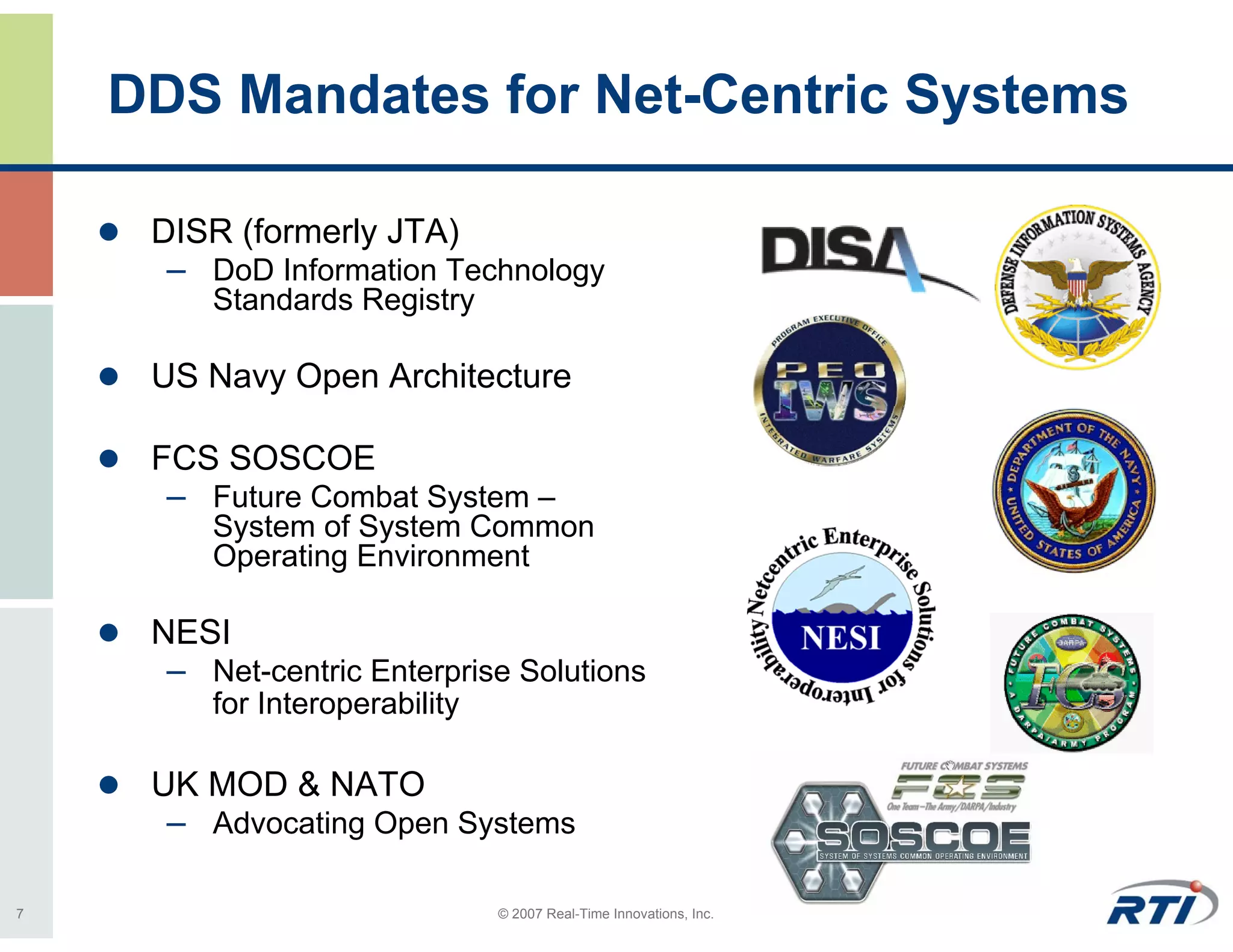

7. DDS Mandates for Net-Centric Systems
DISR (formerly JTA)
– DoD Information Technology
Standards Registry
US Navy Open Architecture
FCS SOSCOE
– Future Combat System –
System of System Common
Operating Environment
NESI
– Net-centric Enterprise Solutions
for Interoperability
UK MOD & NATO
– Advocating Open Systems
7 © 2007 Real-Time Innovations, Inc.

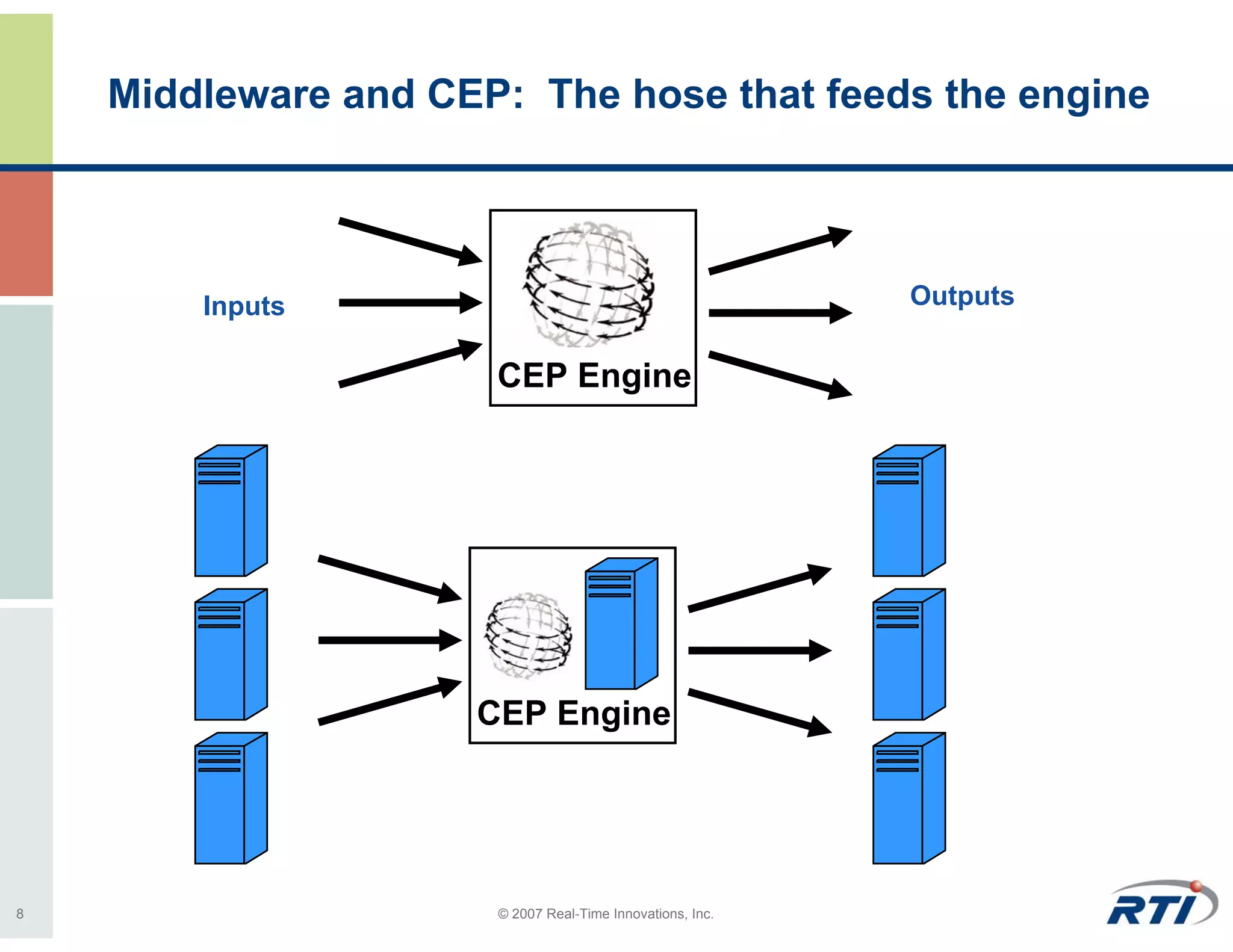

8. Middleware and CEP: The hose that feeds the engine
Inputs Outputs
CEP Engine
CEP Engine
8 © 2007 Real-Time Innovations, Inc.

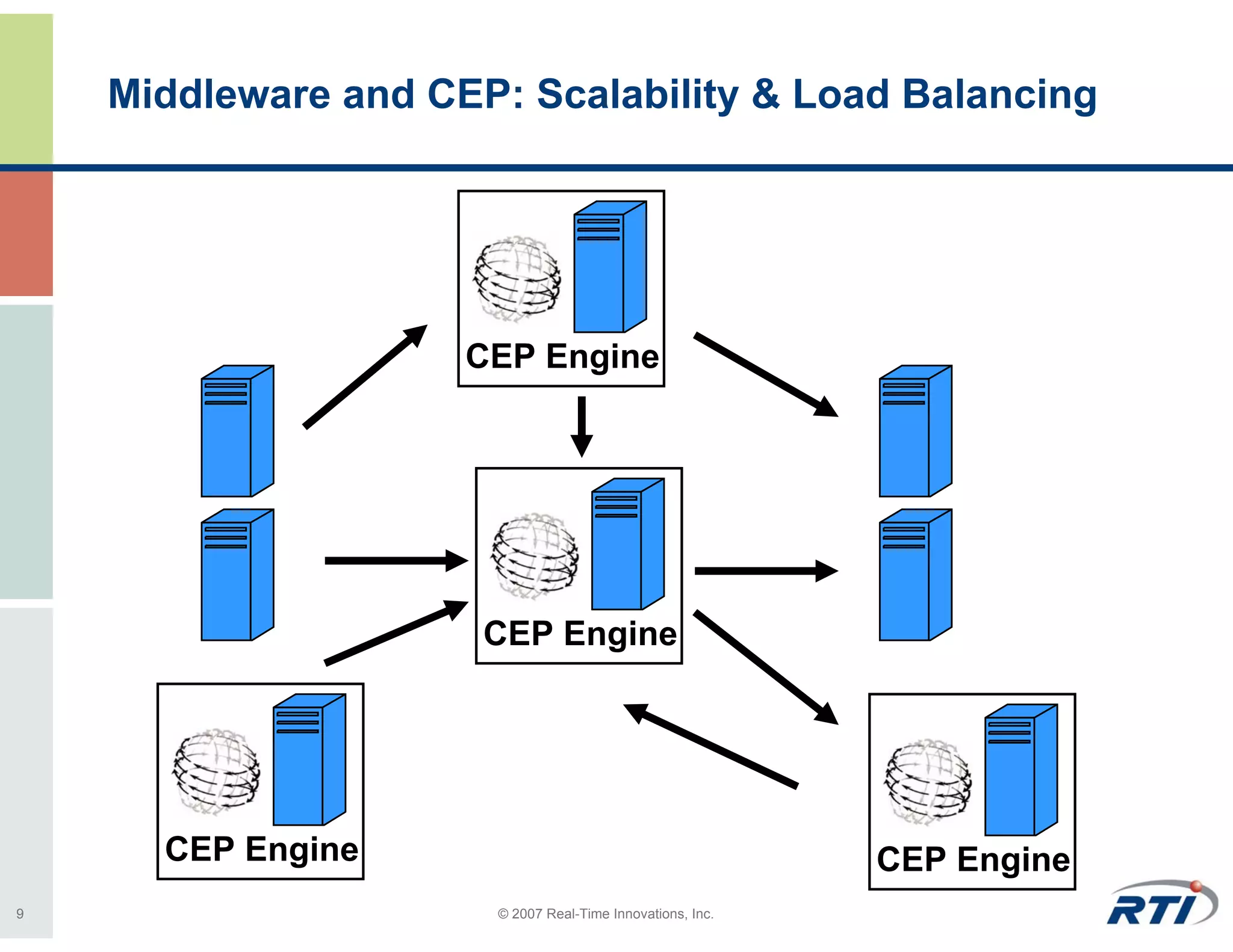

9. Middleware and CEP: Scalability & Load Balancing
CEP Engine
CEP Engine
CEP Engine CEP Engine
9 © 2007 Real-Time Innovations, Inc.

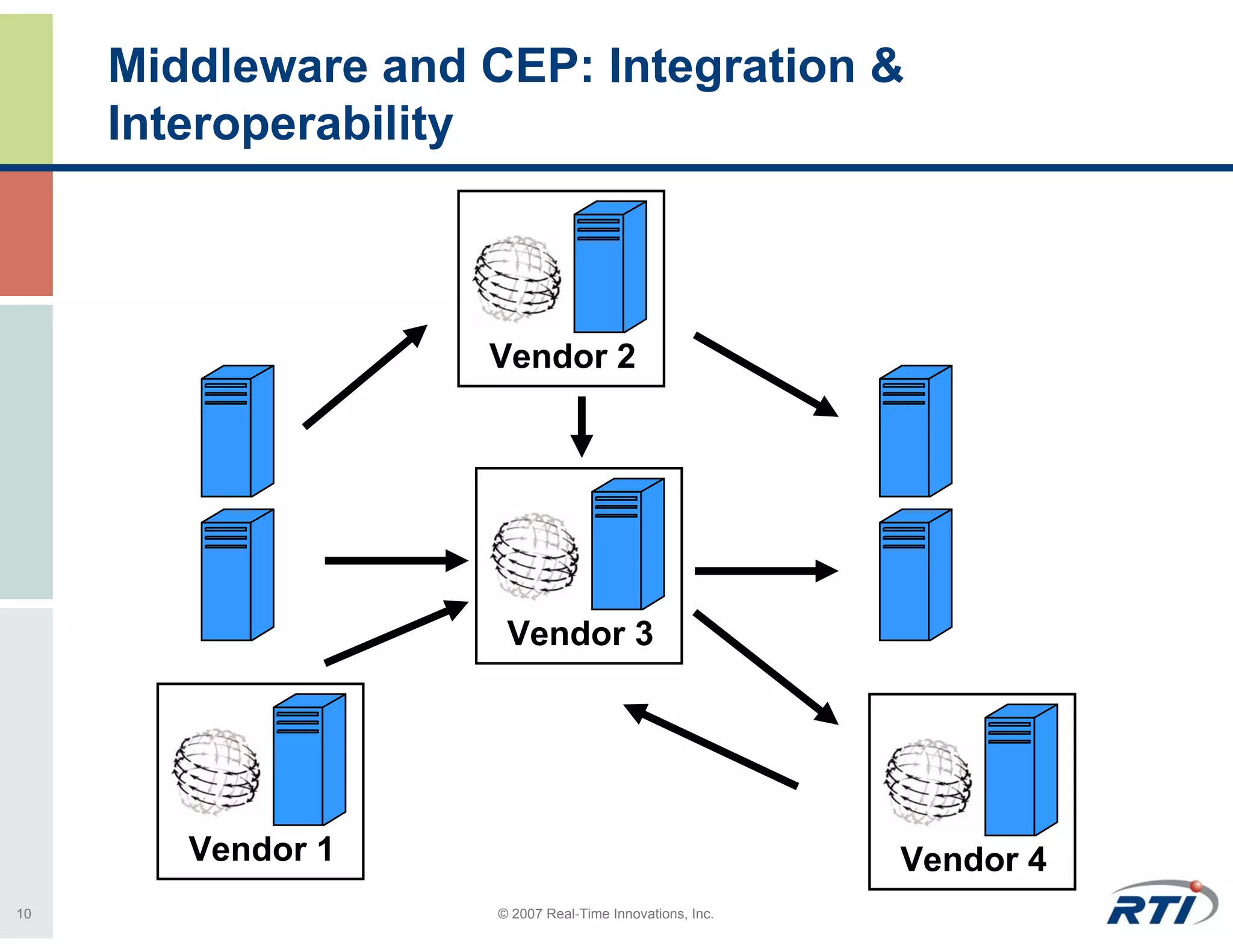

10. Middleware and CEP: Integration &
Interoperability
Vendor 2
Vendor 3
Vendor 1 Vendor 4
10 © 2007 Real-Time Innovations, Inc.

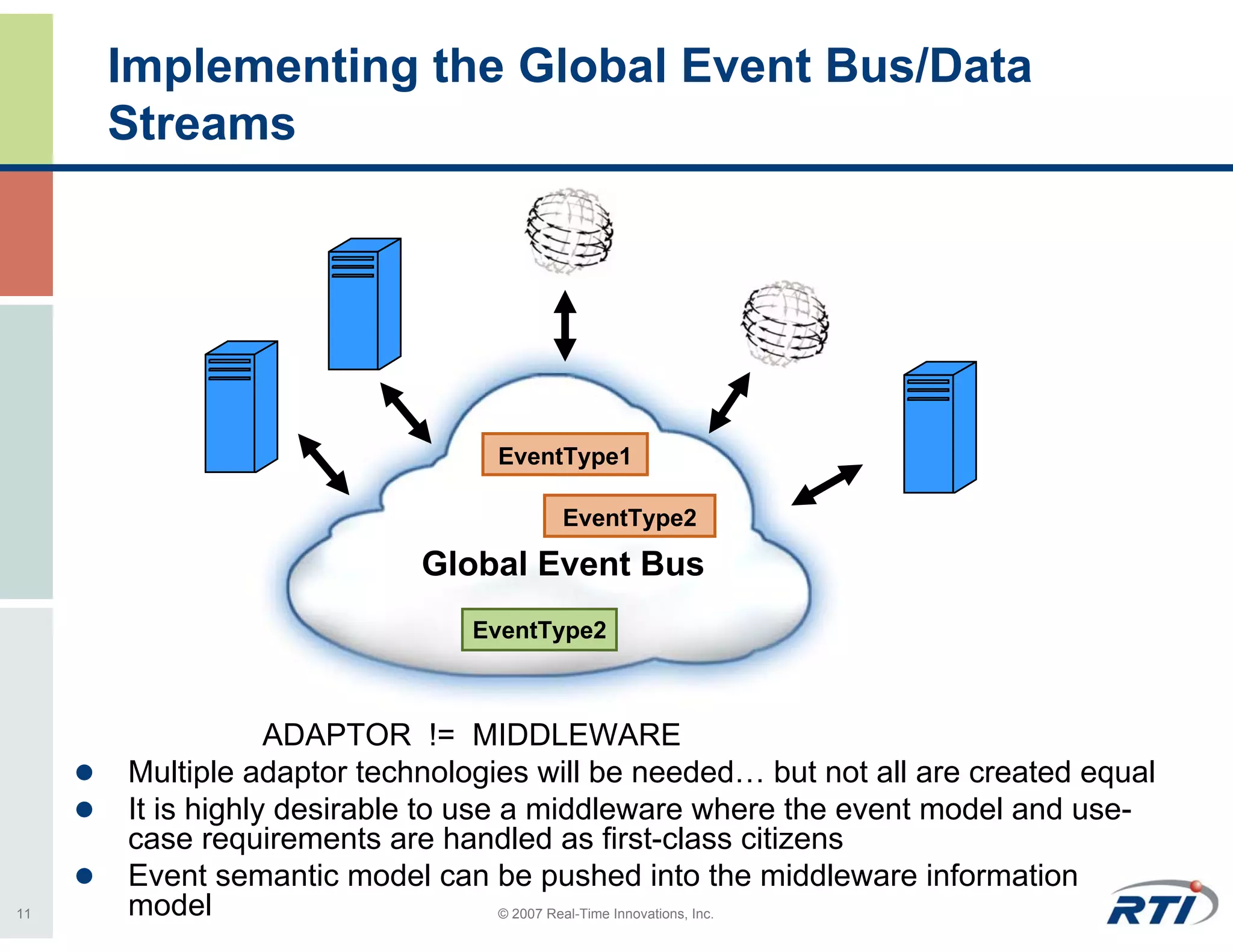

11. Implementing the Global Event Bus/Data
Streams
EventType1
EventType2
Global Event Bus
EventType2
ADAPTOR != MIDDLEWARE
Multiple adaptor technologies will be needed… but not all are created equal
It is highly desirable to use a middleware where the event model and use-
case requirements are handled as first-class citizens
Event semantic model can be pushed into the middleware information
11 model © 2007 Real-Time Innovations, Inc.

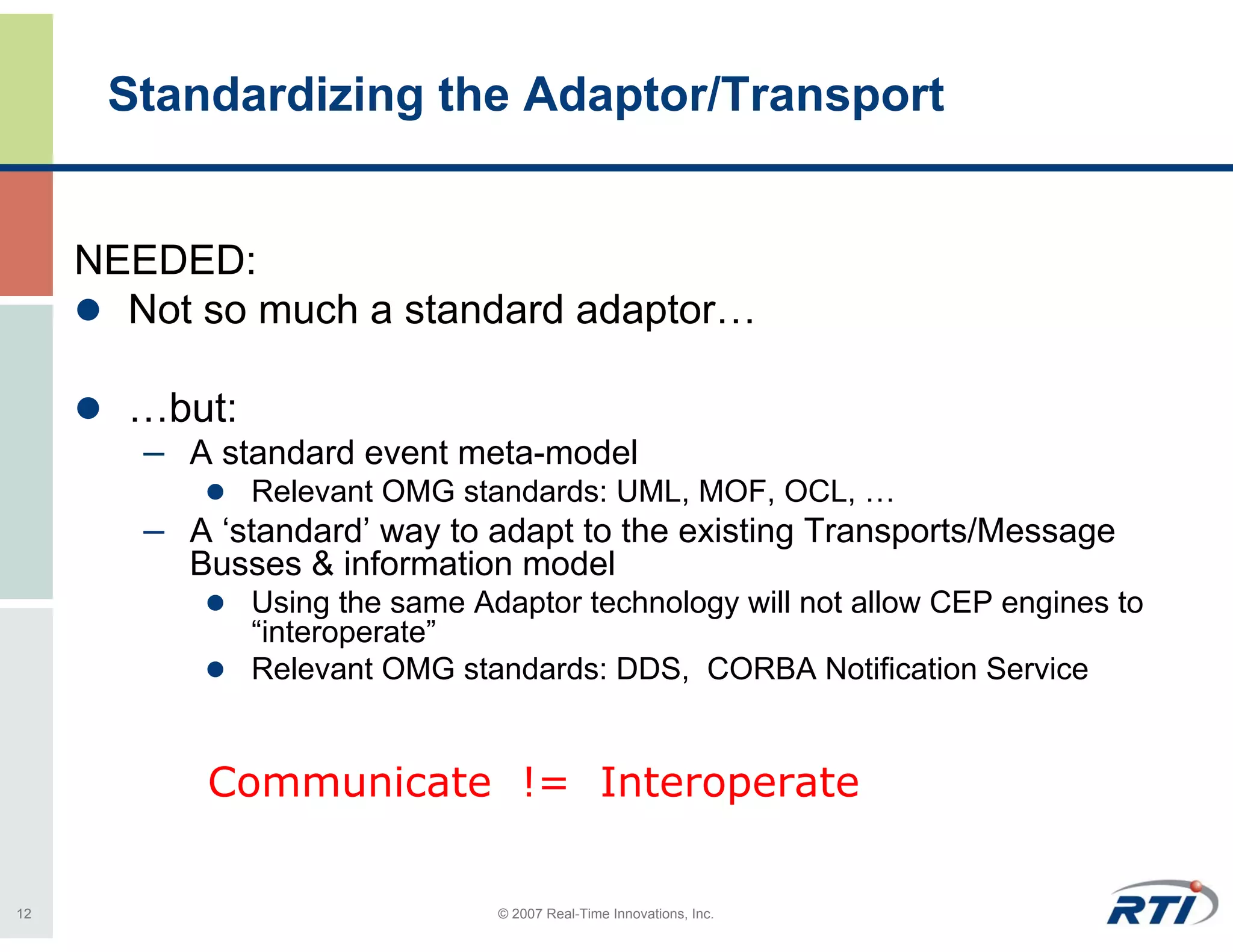

12. Standardizing the Adaptor/Transport
NEEDED:
Not so much a standard adaptor…
…but:
– A standard event meta-model
Relevant OMG standards: UML, MOF, OCL, …
– A ‘standard’ way to adapt to the existing Transports/Message
Busses & information model
Using the same Adaptor technology will not allow CEP engines to
“interoperate”
Relevant OMG standards: DDS, CORBA Notification Service
Communicate != Interoperate
12 © 2007 Real-Time Innovations, Inc.

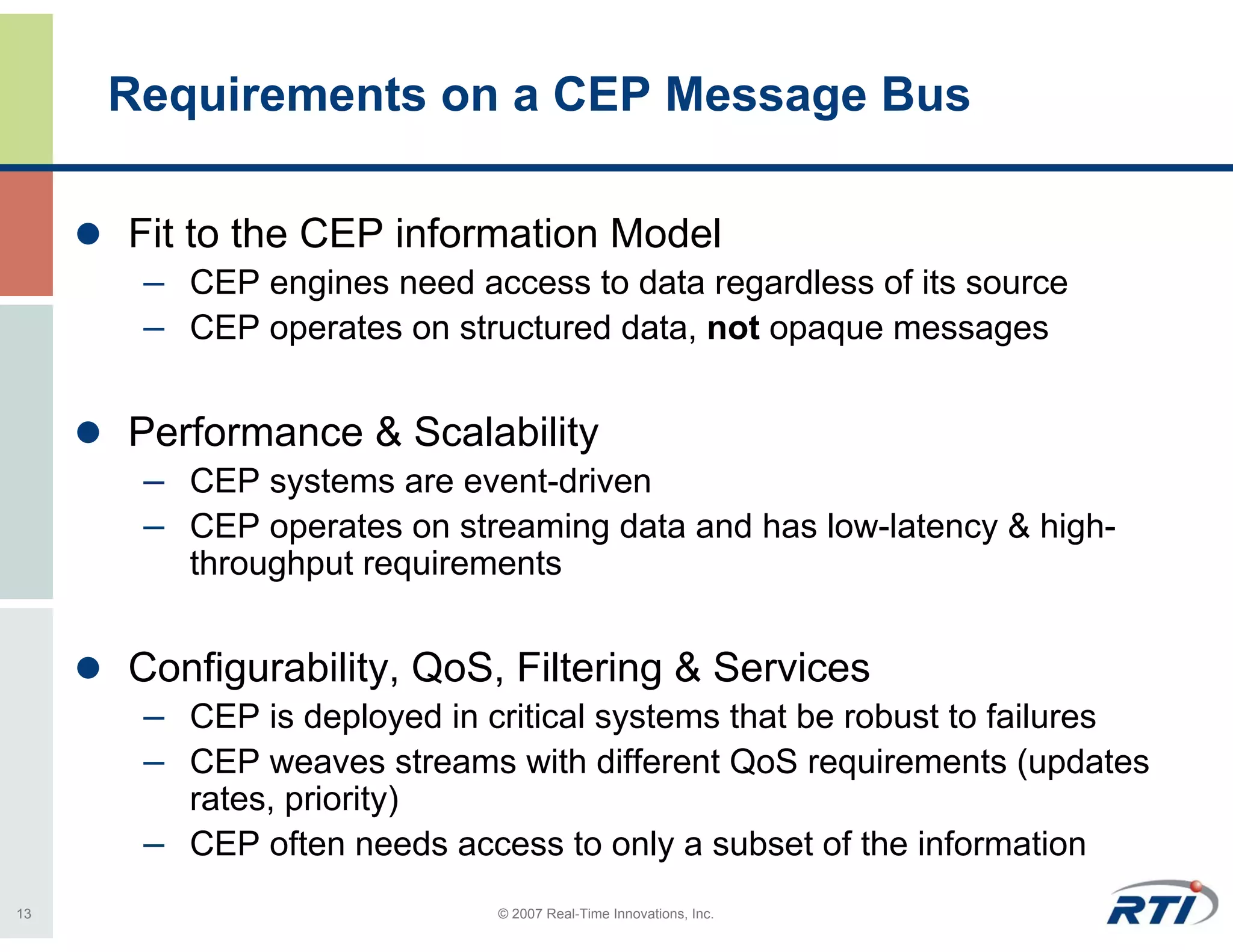

13. Requirements on a CEP Message Bus
Fit to the CEP information Model
– CEP engines need access to data regardless of its source
– CEP operates on structured data, not opaque messages
Performance & Scalability
– CEP systems are event-driven
– CEP operates on streaming data and has low-latency & high-
throughput requirements
Configurability, QoS, Filtering & Services
– CEP is deployed in critical systems that be robust to failures
– CEP weaves streams with different QoS requirements (updates
rates, priority)
– CEP often needs access to only a subset of the information
13 © 2007 Real-Time Innovations, Inc.

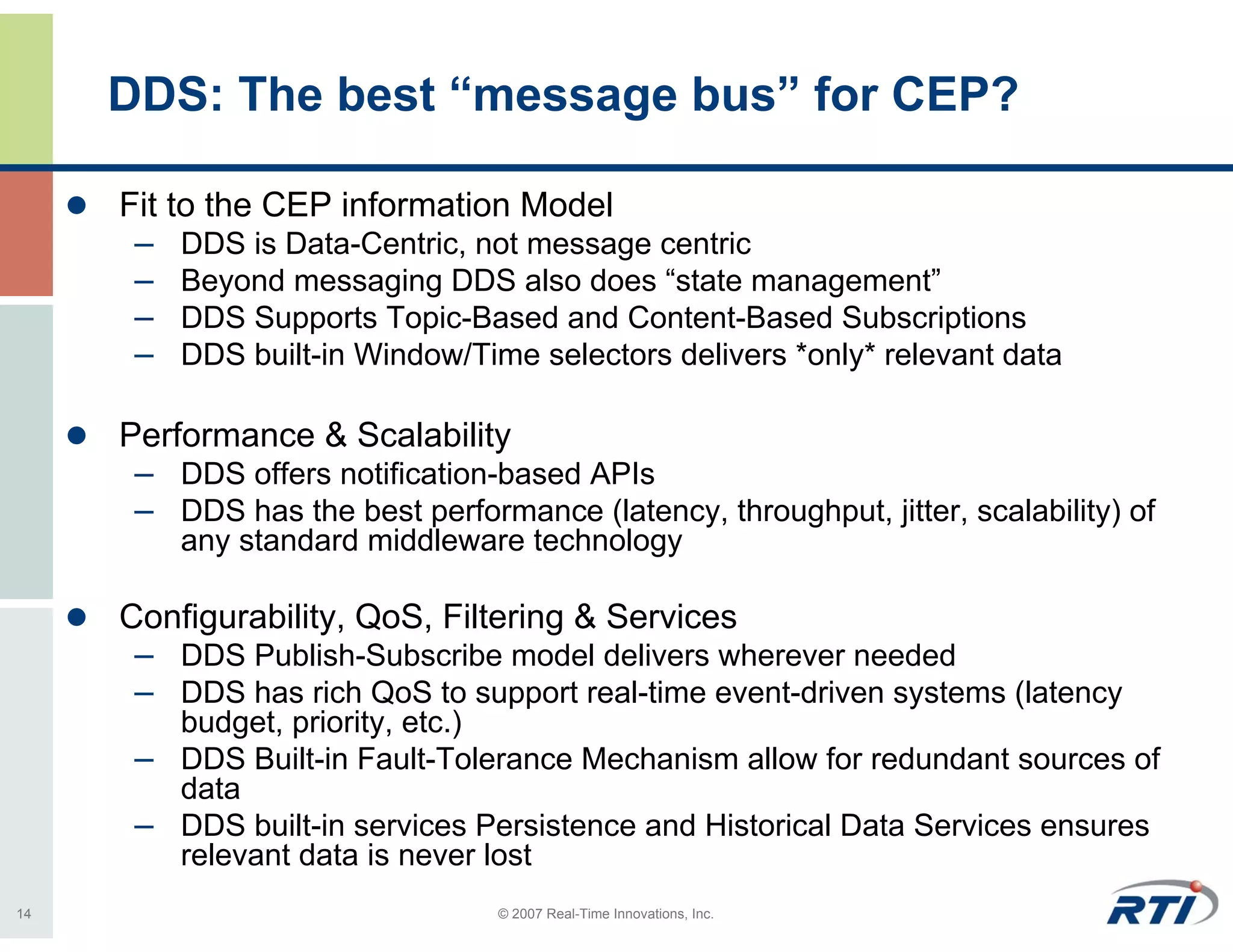

14. DDS: The best “message bus” for CEP?
Fit to the CEP information Model
– DDS is Data-Centric, not message centric
– Beyond messaging DDS also does “state management”
– DDS Supports Topic-Based and Content-Based Subscriptions
– DDS built-in Window/Time selectors delivers *only* relevant data
Performance & Scalability
– DDS offers notification-based APIs
– DDS has the best performance (latency, throughput, jitter, scalability) of
any standard middleware technology
Configurability, QoS, Filtering & Services
– DDS Publish-Subscribe model delivers wherever needed
– DDS has rich QoS to support real-time event-driven systems (latency
budget, priority, etc.)
– DDS Built-in Fault-Tolerance Mechanism allow for redundant sources of
data
– DDS built-in services Persistence and Historical Data Services ensures
relevant data is never lost
14 © 2007 Real-Time Innovations, Inc.

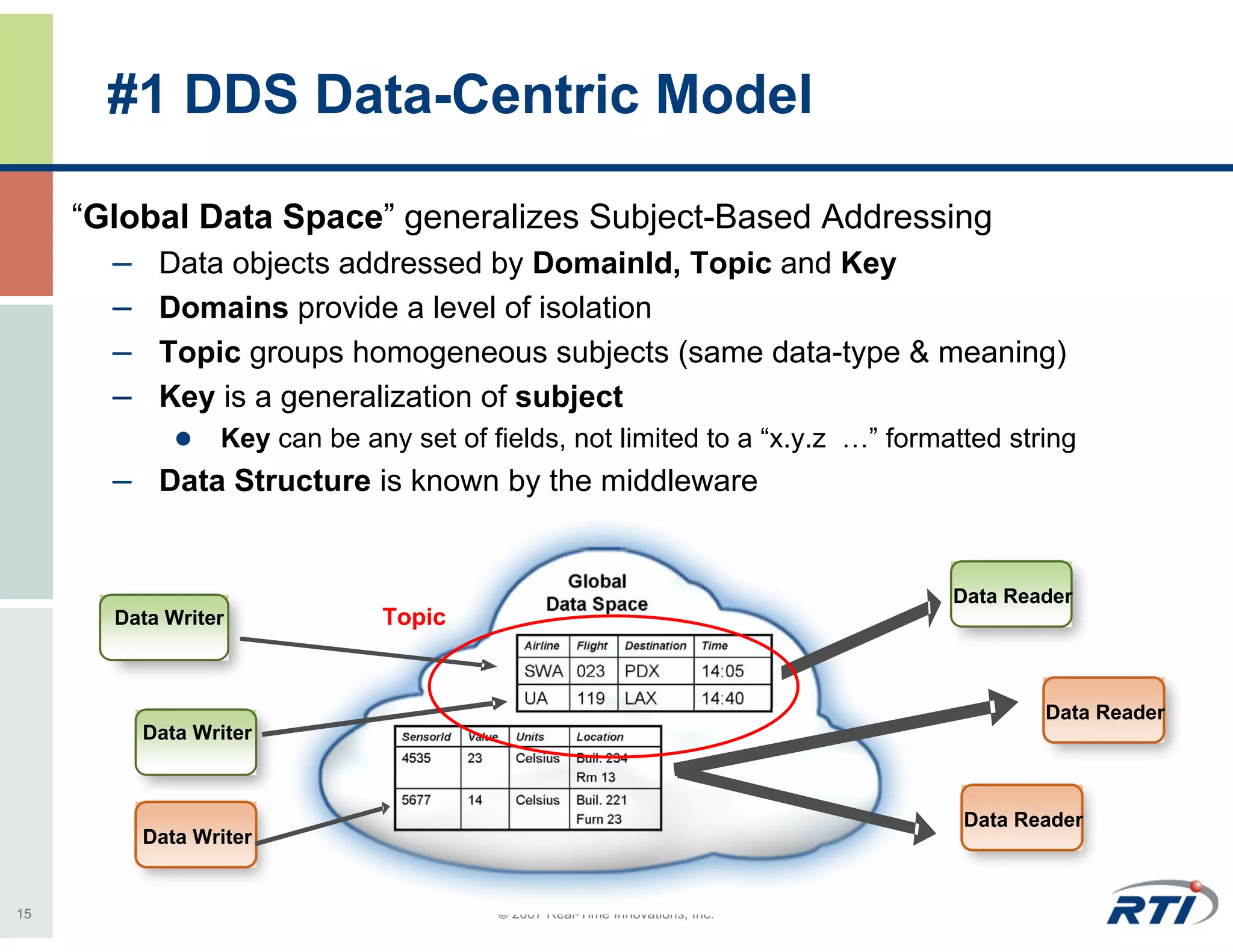

15. #1 DDS Data-Centric Model
“Global Data Space” generalizes Subject-Based Addressing
– Data objects addressed by DomainId, Topic and Key
– Domains provide a level of isolation
– Topic groups homogeneous subjects (same data-type & meaning)
– Key is a generalization of subject
Key can be any set of fields, not limited to a “x.y.z …” formatted string
– Data Structure is known by the middleware
Data Reader
Data Writer Topic
Data Reader
Data Writer
Data Reader
Data Writer
15 © 2007 Real-Time Innovations, Inc.

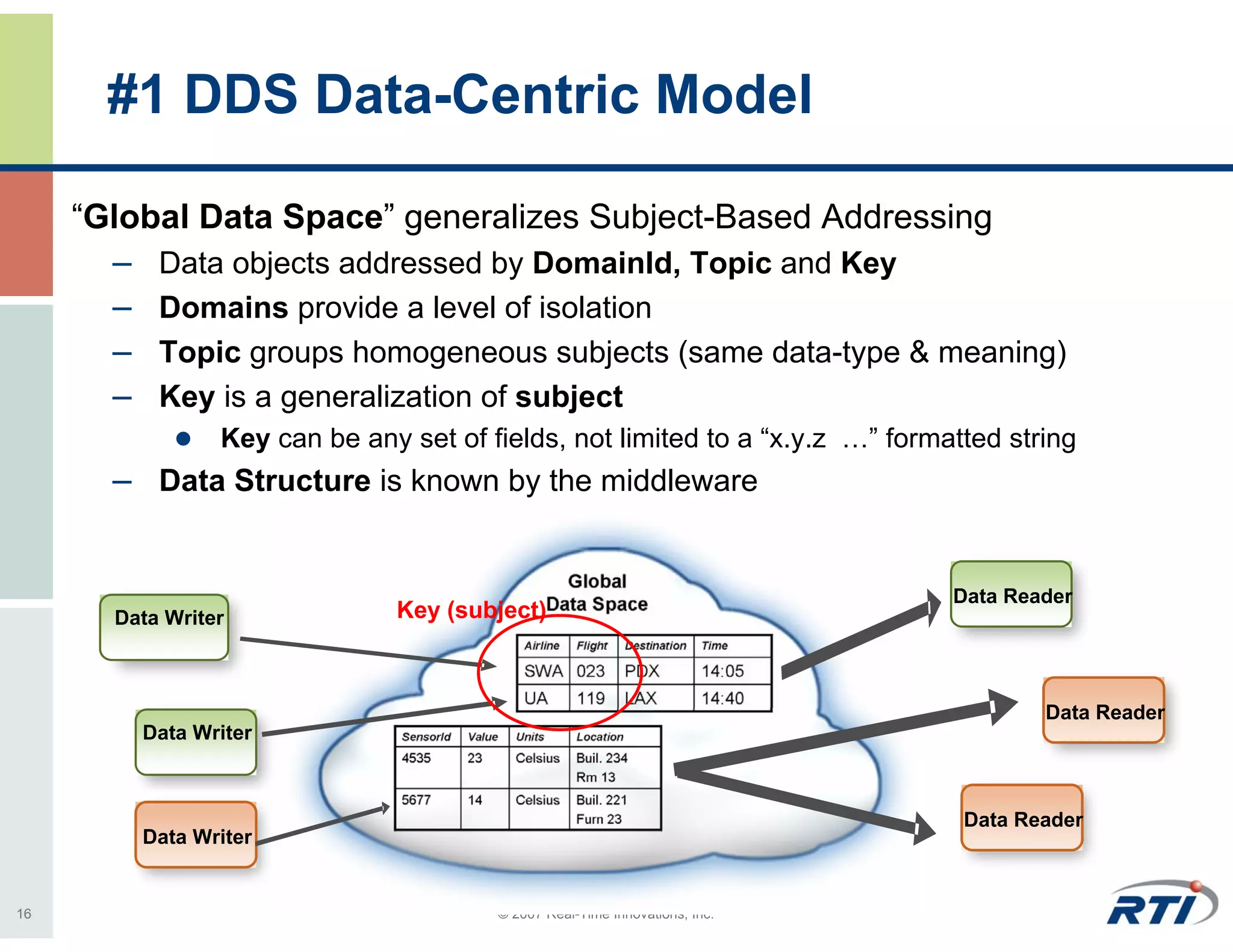

16. #1 DDS Data-Centric Model
“Global Data Space” generalizes Subject-Based Addressing
– Data objects addressed by DomainId, Topic and Key
– Domains provide a level of isolation
– Topic groups homogeneous subjects (same data-type & meaning)
– Key is a generalization of subject
Key can be any set of fields, not limited to a “x.y.z …” formatted string
– Data Structure is known by the middleware
Data Reader
Data Writer Key (subject)
Data Reader
Data Writer
Data Reader
Data Writer
16 © 2007 Real-Time Innovations, Inc.

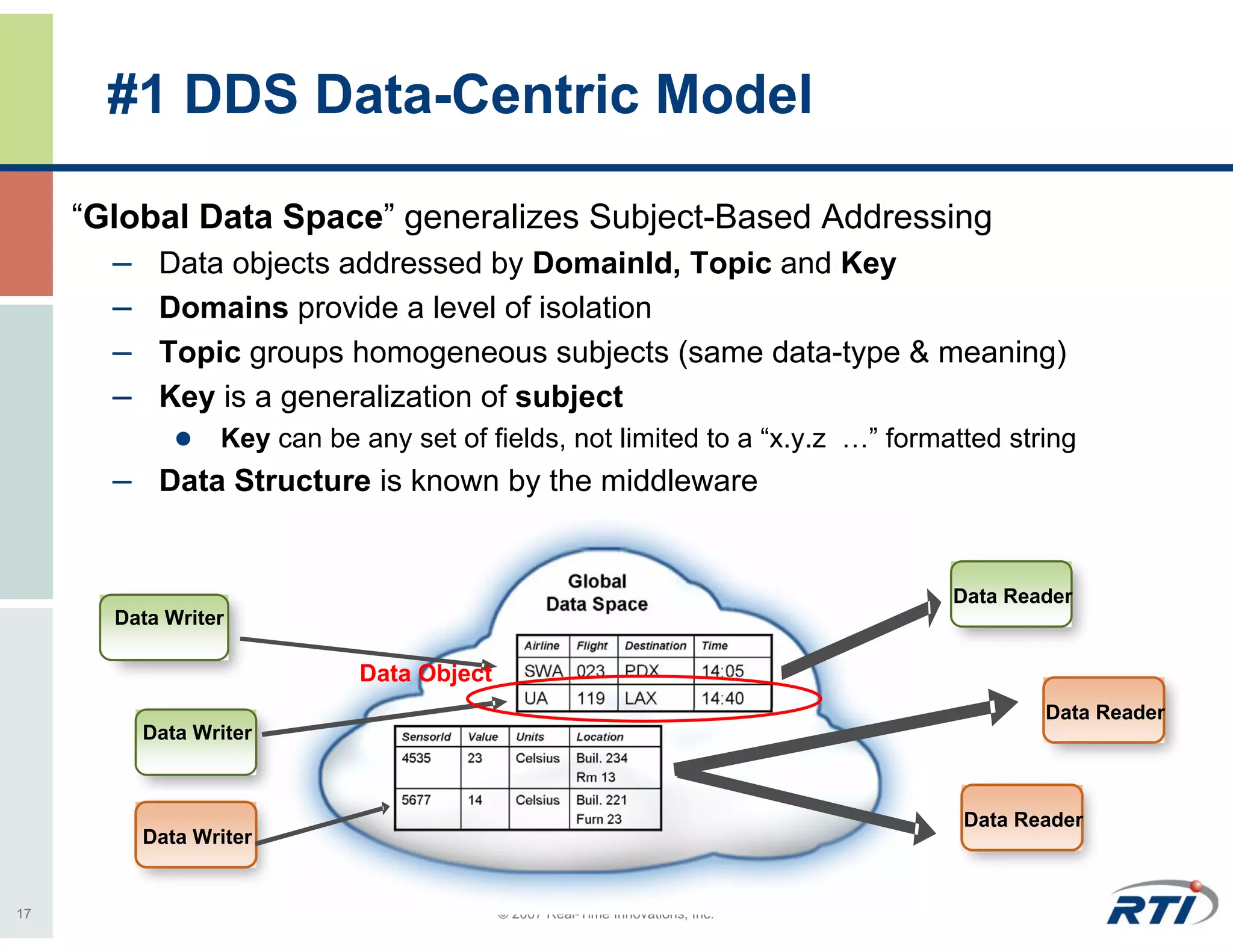

17. #1 DDS Data-Centric Model
“Global Data Space” generalizes Subject-Based Addressing
– Data objects addressed by DomainId, Topic and Key
– Domains provide a level of isolation
– Topic groups homogeneous subjects (same data-type & meaning)
– Key is a generalization of subject
Key can be any set of fields, not limited to a “x.y.z …” formatted string
– Data Structure is known by the middleware
Data Reader
Data Writer
Data Object
Data Reader
Data Writer
Data Reader
Data Writer
17 © 2007 Real-Time Innovations, Inc.

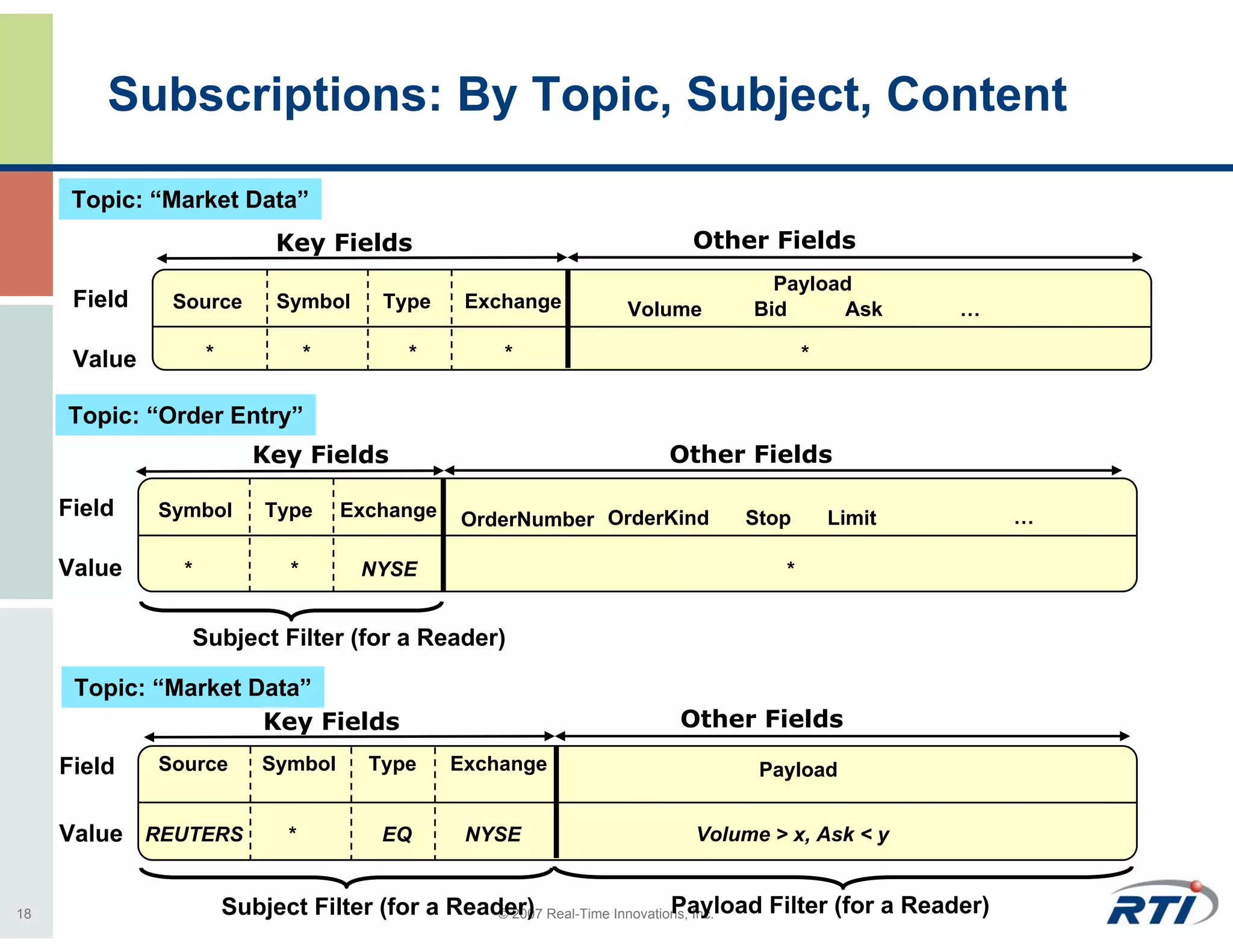

18. Subscriptions: By Topic, Subject, Content
Topic: “Market Data”
Key Fields Other Fields
Payload
Field Source Symbol Type Exchange Volume Bid Ask …
Value * * * * *
Topic: “Order Entry”
Key Fields Other Fields
Field Symbol Type Exchange OrderNumber OrderKind Stop Limit …
Value * * NYSE *
Subject Filter (for a Reader)
Topic: “Market Data”
Key Fields Other Fields
Field Source Symbol Type Exchange Payload
Value REUTERS * EQ NYSE Volume > x, Ask < y
18 © 2007 Payload Filter (for a Reader)
Subject Filter (for a Reader) Real-Time Innovations, Inc.

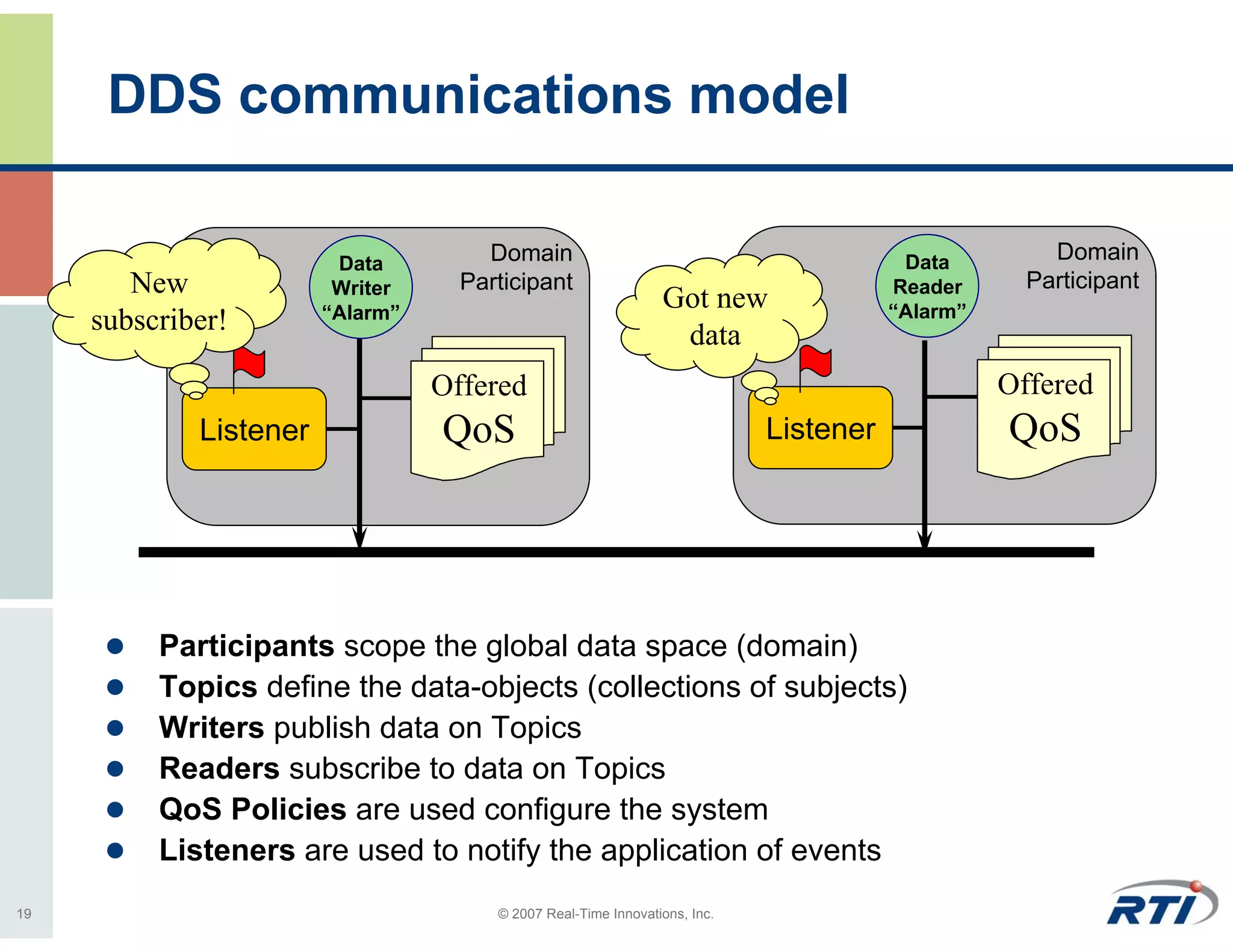

19. DDS communications model
Data Domain Data Domain
New Writer Participant Reader Participant
“Alarm”
Got new “Alarm”
subscriber! data
Offered Offered
Listener QoS Listener QoS
Participants scope the global data space (domain)
Topics define the data-objects (collections of subjects)
Writers publish data on Topics
Readers subscribe to data on Topics
QoS Policies are used configure the system
Listeners are used to notify the application of events
19 © 2007 Real-Time Innovations, Inc.

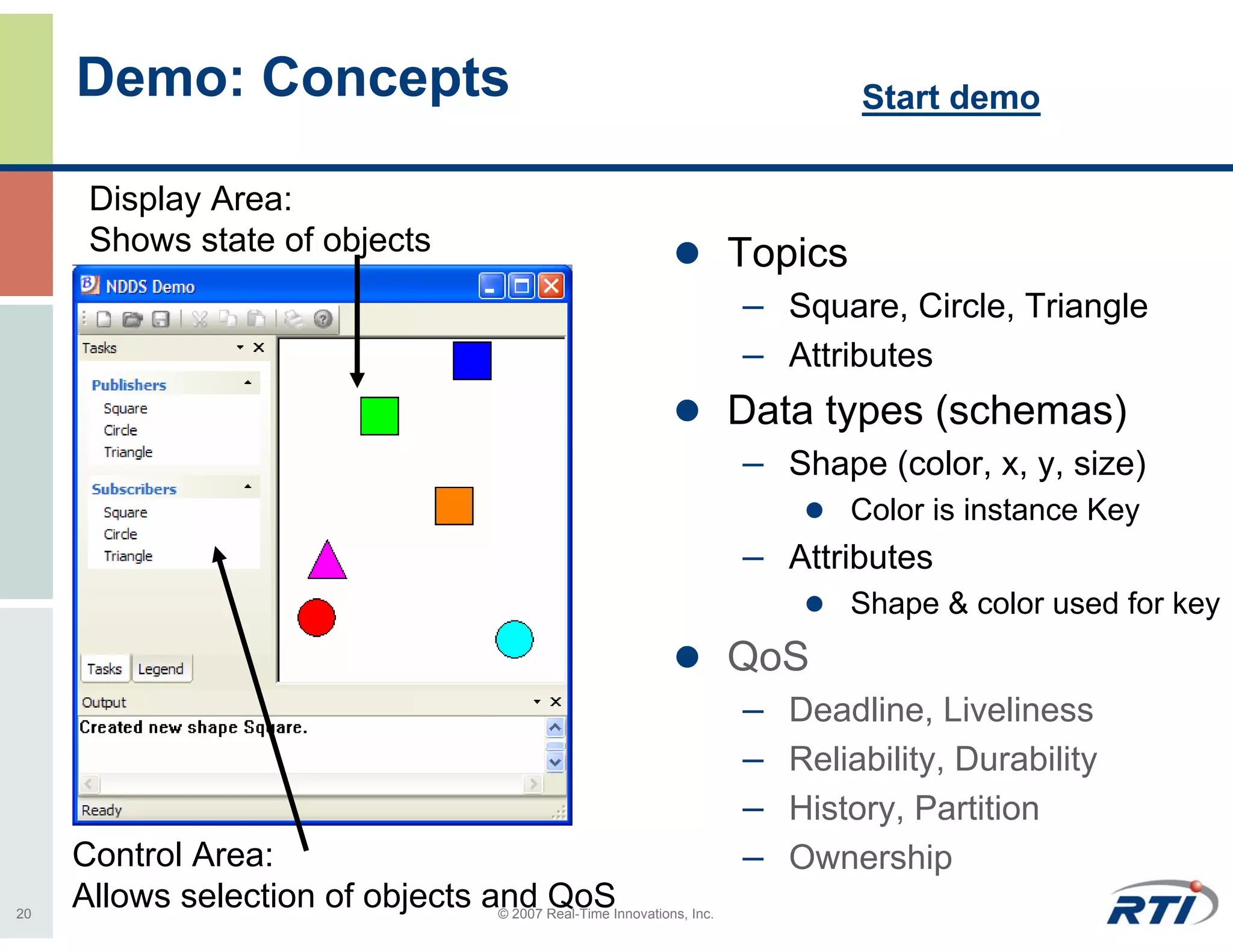

20. Demo: Concepts Start demo
Display Area:
Shows state of objects Topics
– Square, Circle, Triangle
– Attributes
Data types (schemas)
– Shape (color, x, y, size)
Color is instance Key
– Attributes
Shape & color used for key
QoS
– Deadline, Liveliness
– Reliability, Durability
– History, Partition
Control Area: – Ownership
20
Allows selection of objects and Real-Time Innovations, Inc.
© 2007
QoS

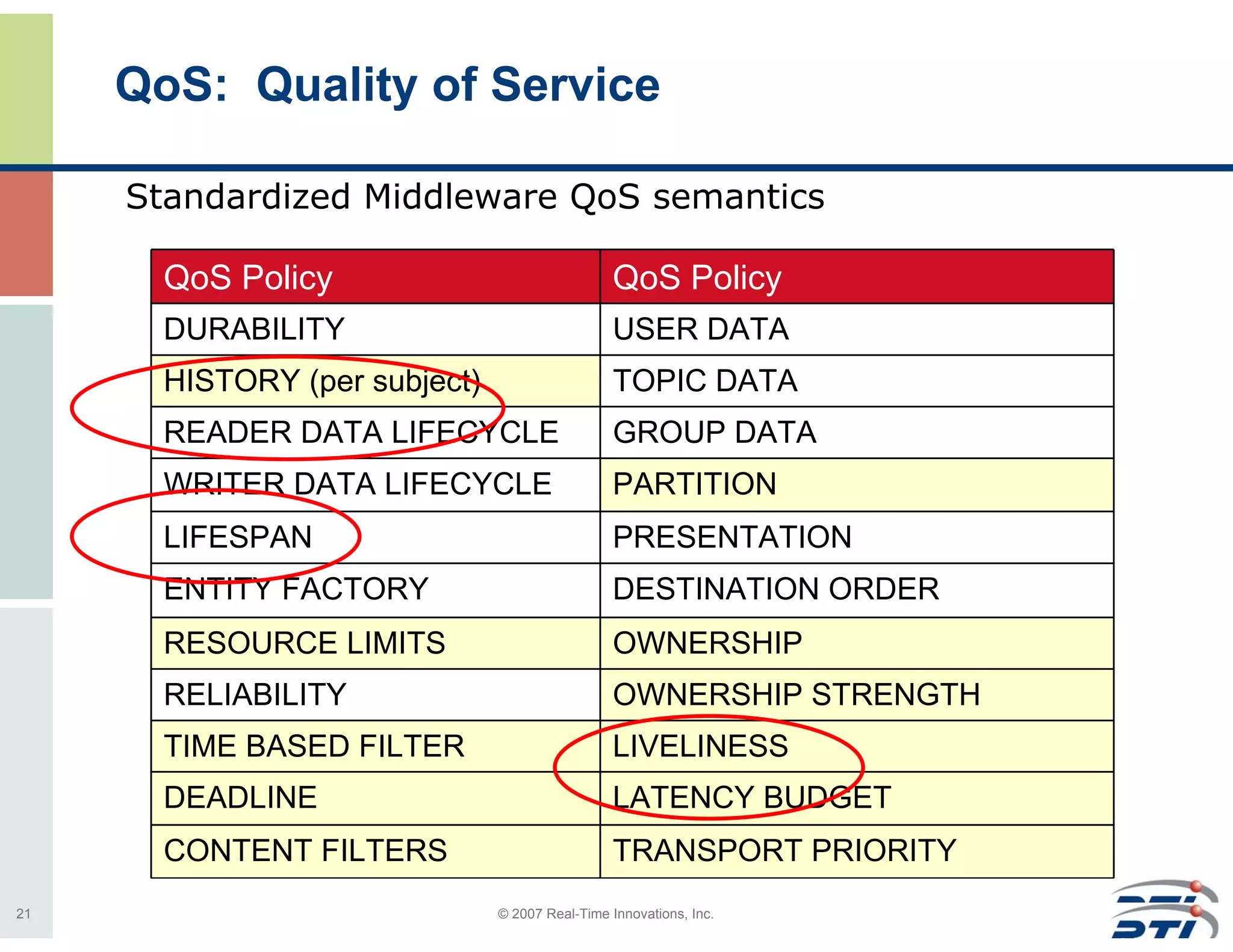

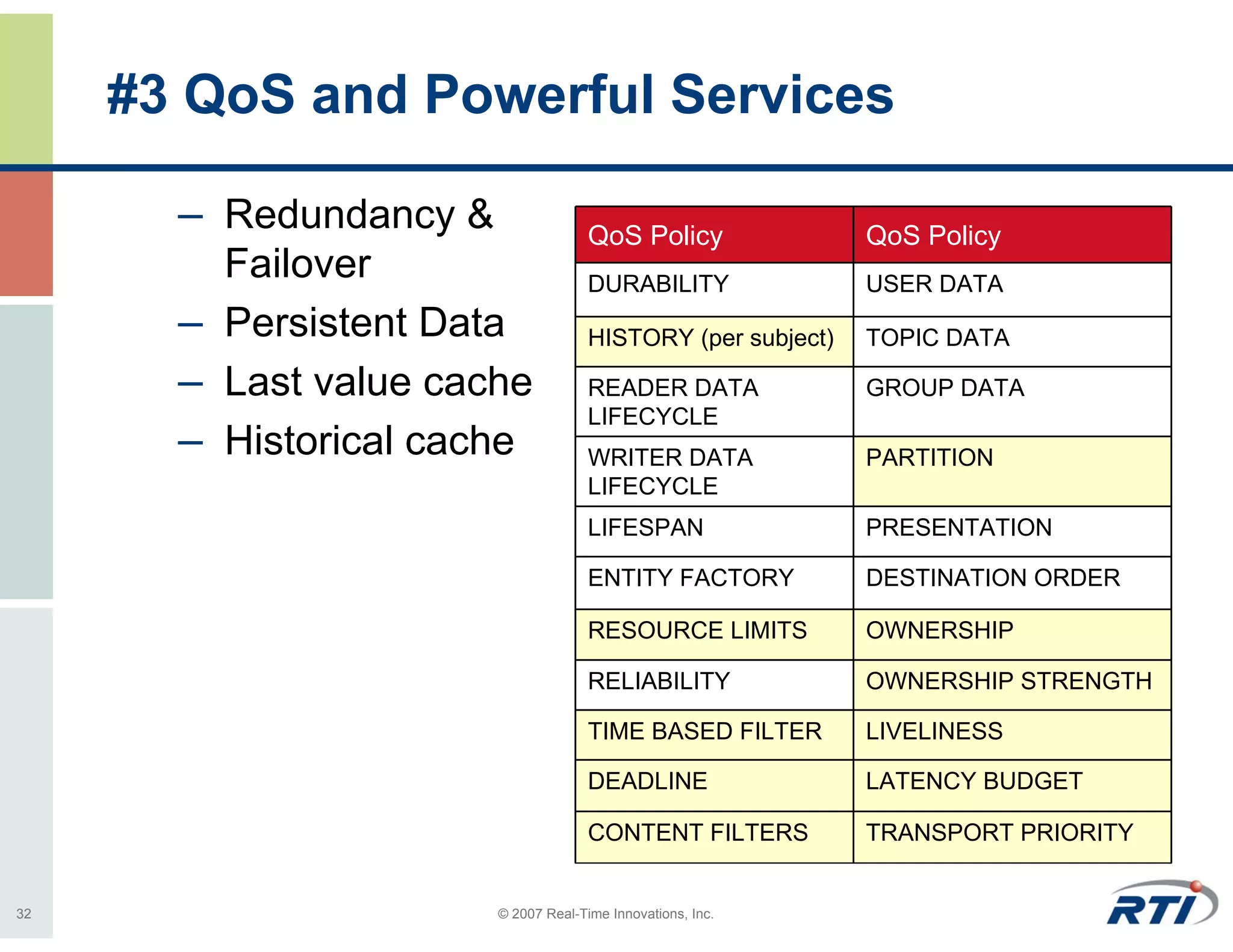

21. QoS: Quality of Service
Standardized Middleware QoS semantics
QoS Policy QoS Policy
DURABILITY USER DATA
HISTORY (per subject) TOPIC DATA
READER DATA LIFECYCLE GROUP DATA
WRITER DATA LIFECYCLE PARTITION
LIFESPAN PRESENTATION
ENTITY FACTORY DESTINATION ORDER
RESOURCE LIMITS OWNERSHIP
RELIABILITY OWNERSHIP STRENGTH
TIME BASED FILTER LIVELINESS
DEADLINE LATENCY BUDGET
CONTENT FILTERS TRANSPORT PRIORITY
21 © 2007 Real-Time Innovations, Inc.

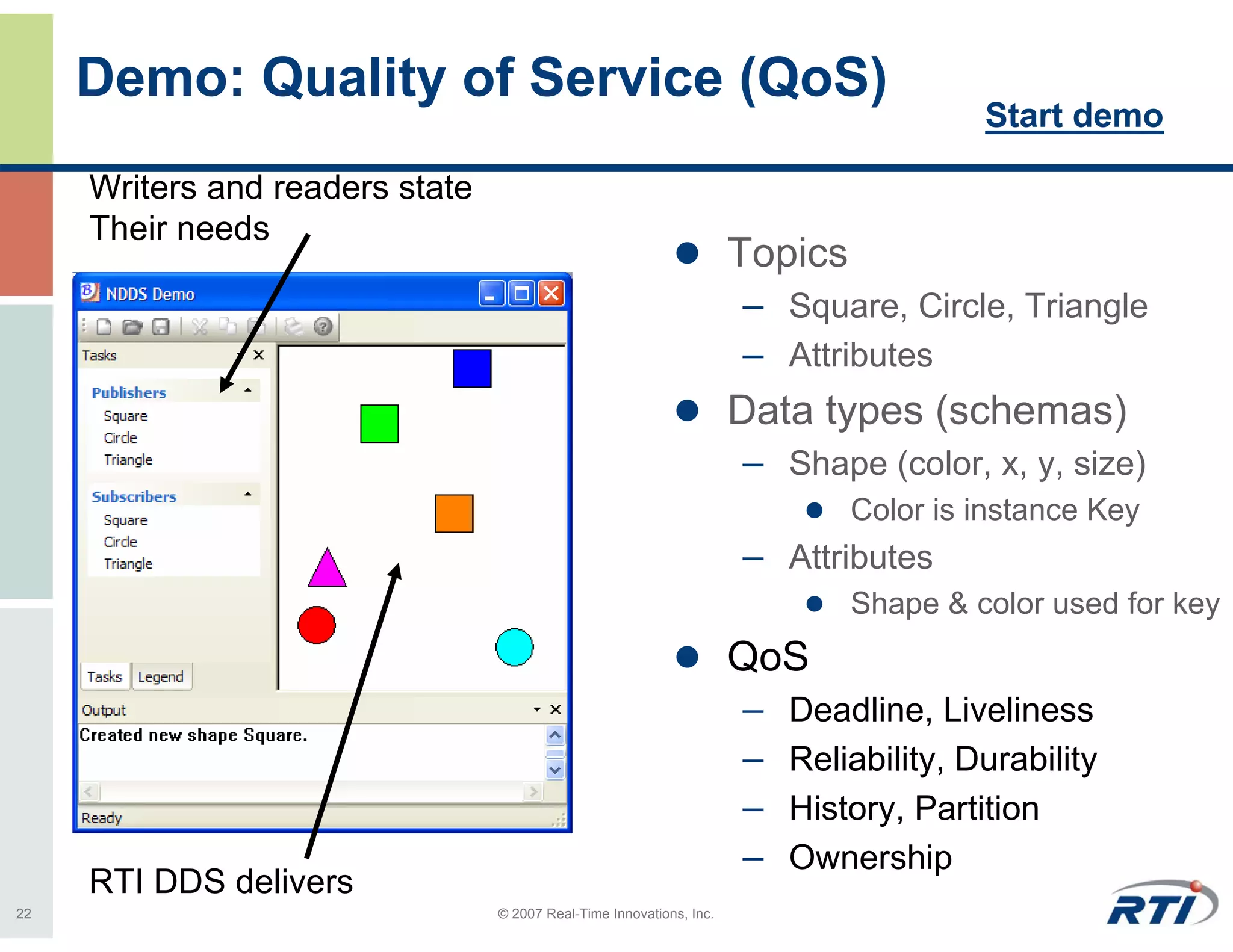

22. Demo: Quality of Service (QoS)
Start demo
Writers and readers state
Their needs
Topics
– Square, Circle, Triangle
– Attributes
Data types (schemas)
– Shape (color, x, y, size)
Color is instance Key
– Attributes
Shape & color used for key
QoS
– Deadline, Liveliness
– Reliability, Durability
– History, Partition
– Ownership
RTI DDS delivers
22 © 2007 Real-Time Innovations, Inc.

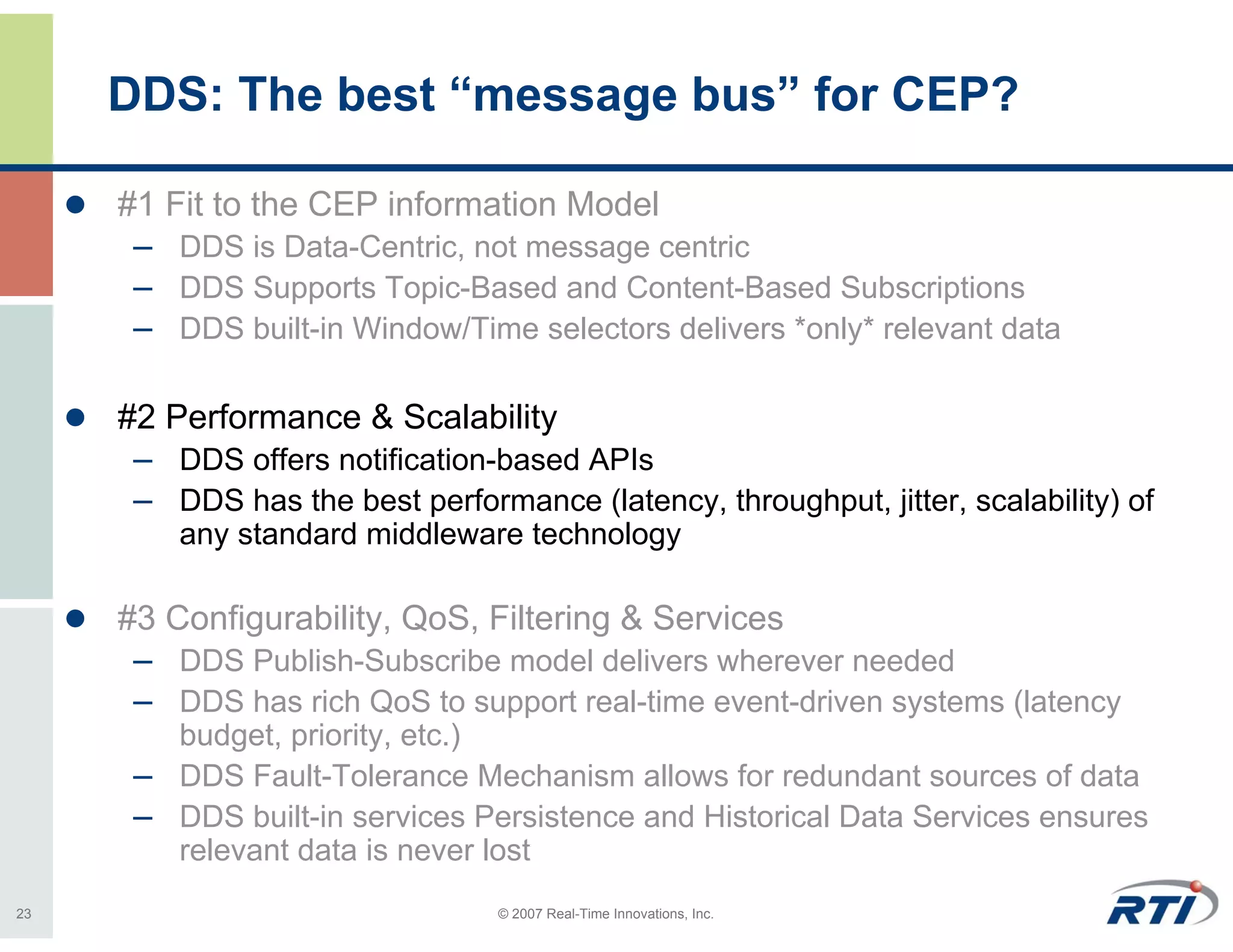

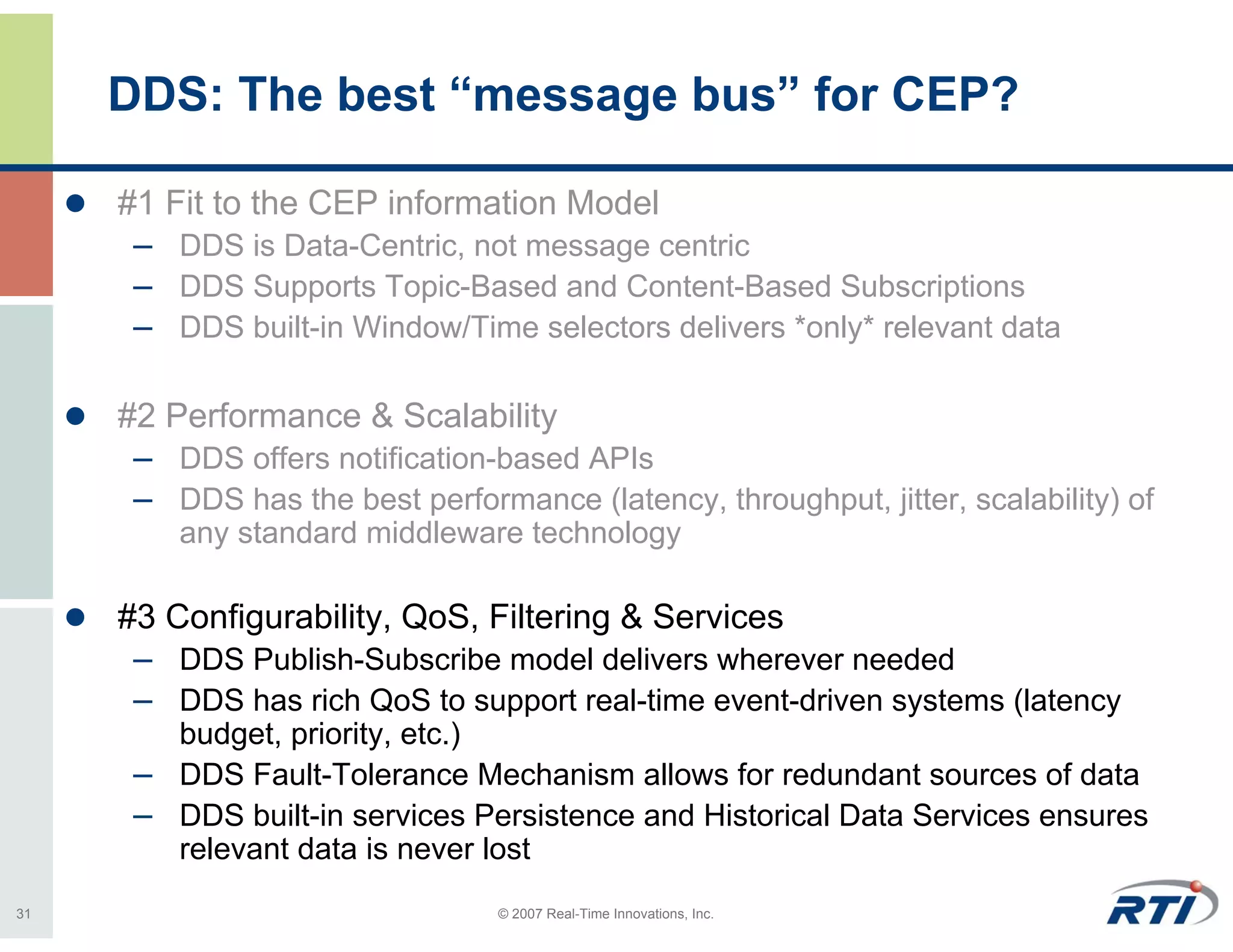

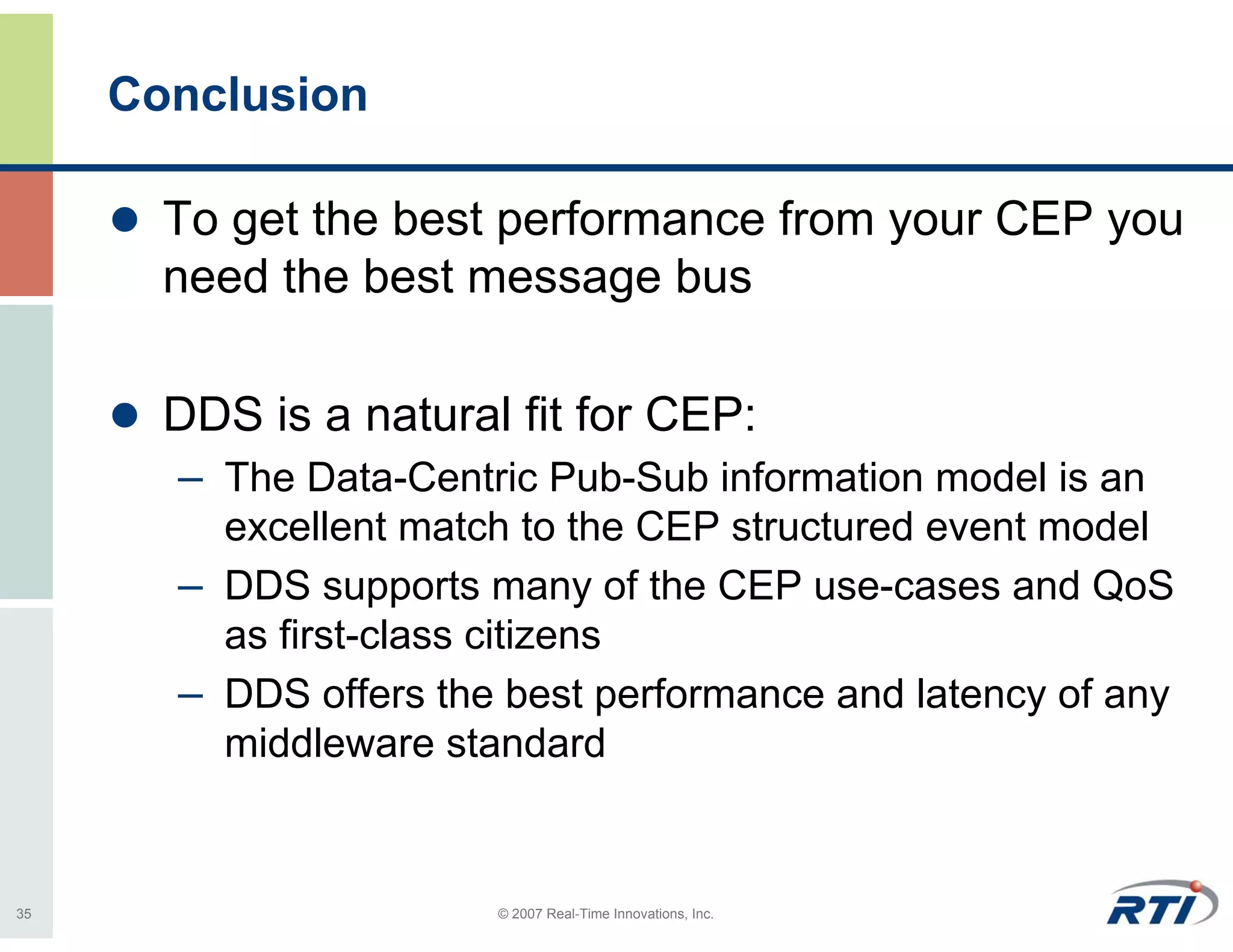

23. DDS: The best “message bus” for CEP?
#1 Fit to the CEP information Model
– DDS is Data-Centric, not message centric
– DDS Supports Topic-Based and Content-Based Subscriptions
– DDS built-in Window/Time selectors delivers *only* relevant data
#2 Performance & Scalability
– DDS offers notification-based APIs
– DDS has the best performance (latency, throughput, jitter, scalability) of
any standard middleware technology
#3 Configurability, QoS, Filtering & Services
– DDS Publish-Subscribe model delivers wherever needed
– DDS has rich QoS to support real-time event-driven systems (latency
budget, priority, etc.)
– DDS Fault-Tolerance Mechanism allows for redundant sources of data
– DDS built-in services Persistence and Historical Data Services ensures
relevant data is never lost
23 © 2007 Real-Time Innovations, Inc.

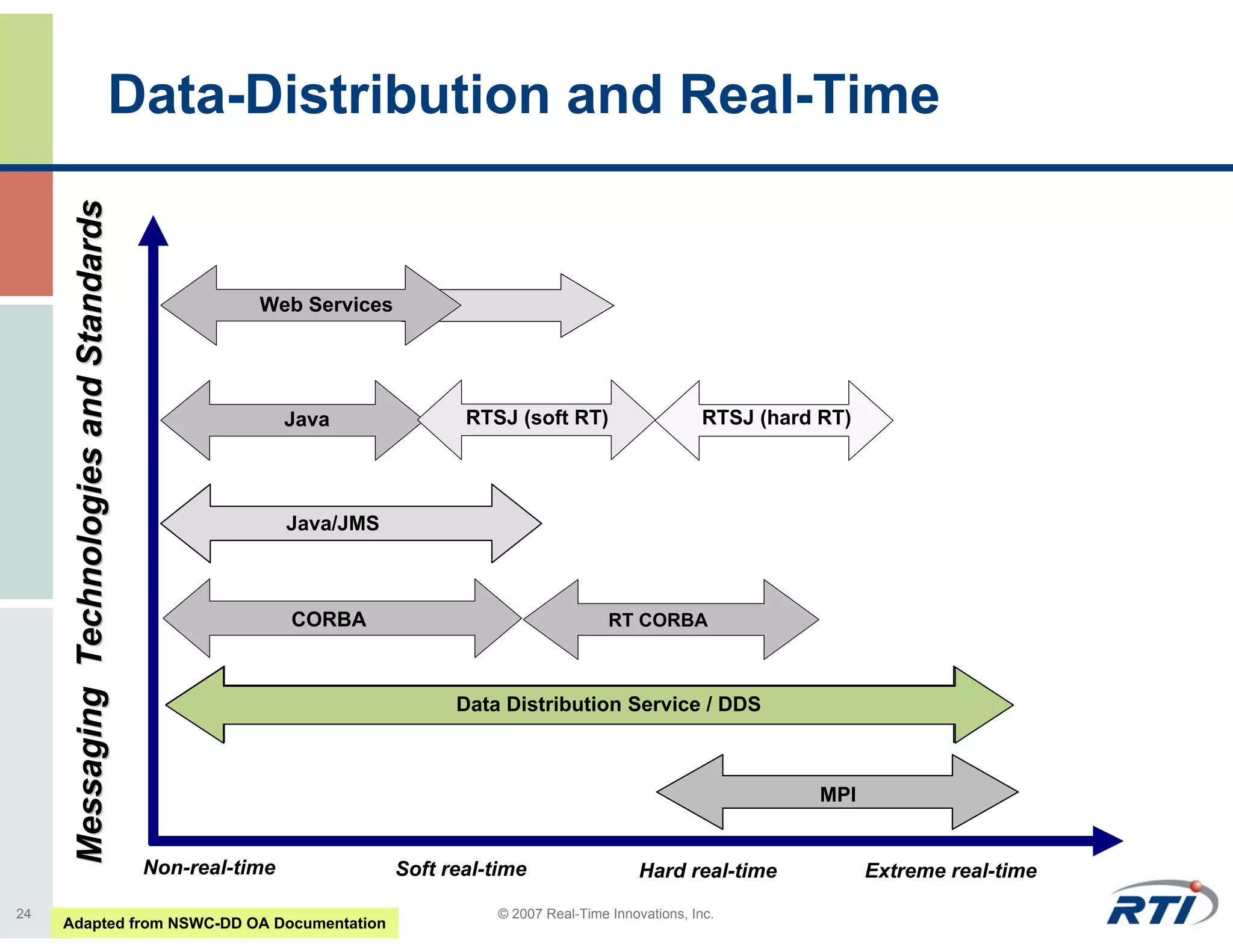

24. Data-Distribution and Real-Time
Messaging Technologies and Standards
Web Services
Java RTSJ (soft RT) RTSJ (hard RT)
Java/RMI
Java/JMS
CORBA RT CORBA
Data Distribution Service / DDS
MPI
Non-real-time Soft real-time Hard real-time Extreme real-time
24 © 2007 Real-Time Innovations, Inc.
Adapted from NSWC-DD OA Documentation

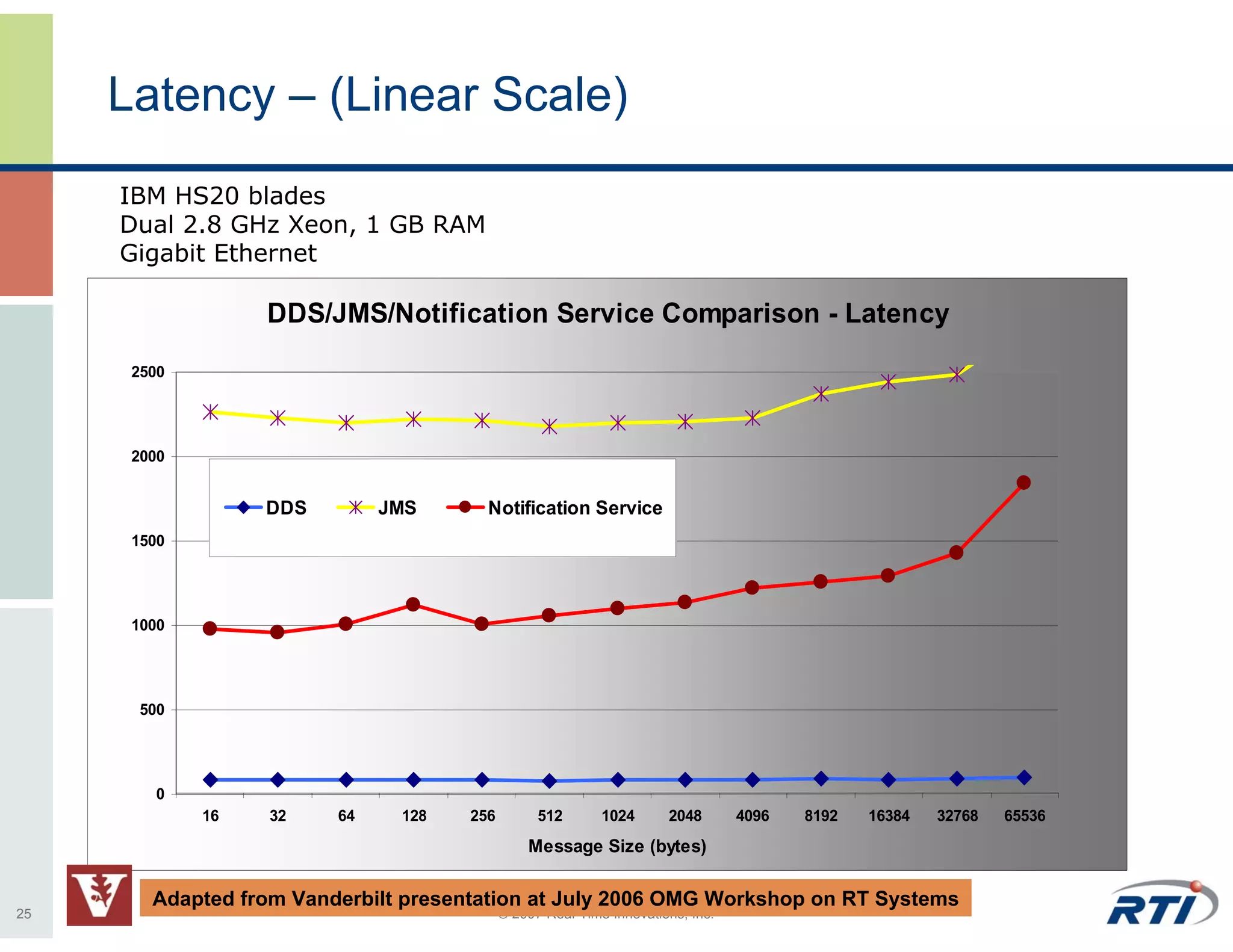

25. Latency – (Linear Scale)
IBM HS20 blades
Dual 2.8 GHz Xeon, 1 GB RAM
Gigabit Ethernet
DDS/JMS/Notification Service Comparison - Latency
2500
2000
DDS JMS Notification Service
1500
1000
500
0
16 32 64 128 256 512 1024 2048 4096 8192 16384 32768 65536
Message Size (bytes)
Adapted from Vanderbilt presentation at July 2006 OMG Workshop on RT Systems
25 © 2007 Real-Time Innovations, Inc.

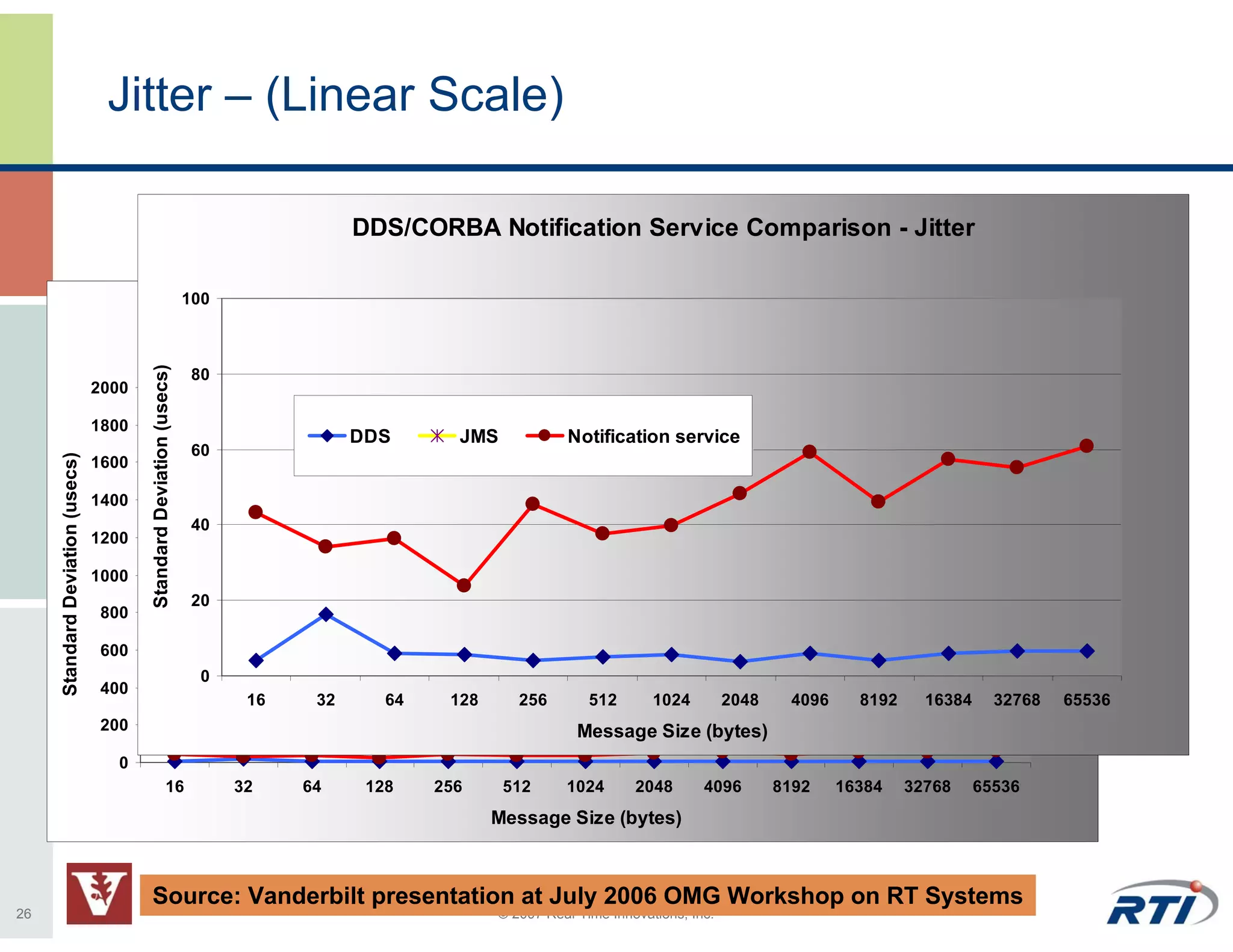

26. Jitter – (Linear Scale)
DDS/CORBA Notification Service Comparison - Jitter
100
DDS/JMS/CORBA Notification Service Comparison - Jitter
Standard Deviation (usecs)
80
2000
1800
DDS JMS Notification service
60
Standard Deviation (usecs)
1600
1400
40 DDS JMS Notification service
1200
1000
20
800
600
0
400
16 32 64 128 256 512 1024 2048 4096 8192 16384 32768 65536
200 Message Size (bytes)
0
16 32 64 128 256 512 1024 2048 4096 8192 16384 32768 65536
Message Size (bytes)
Source: Vanderbilt presentation at July 2006 OMG Workshop on RT Systems
26 © 2007 Real-Time Innovations, Inc.

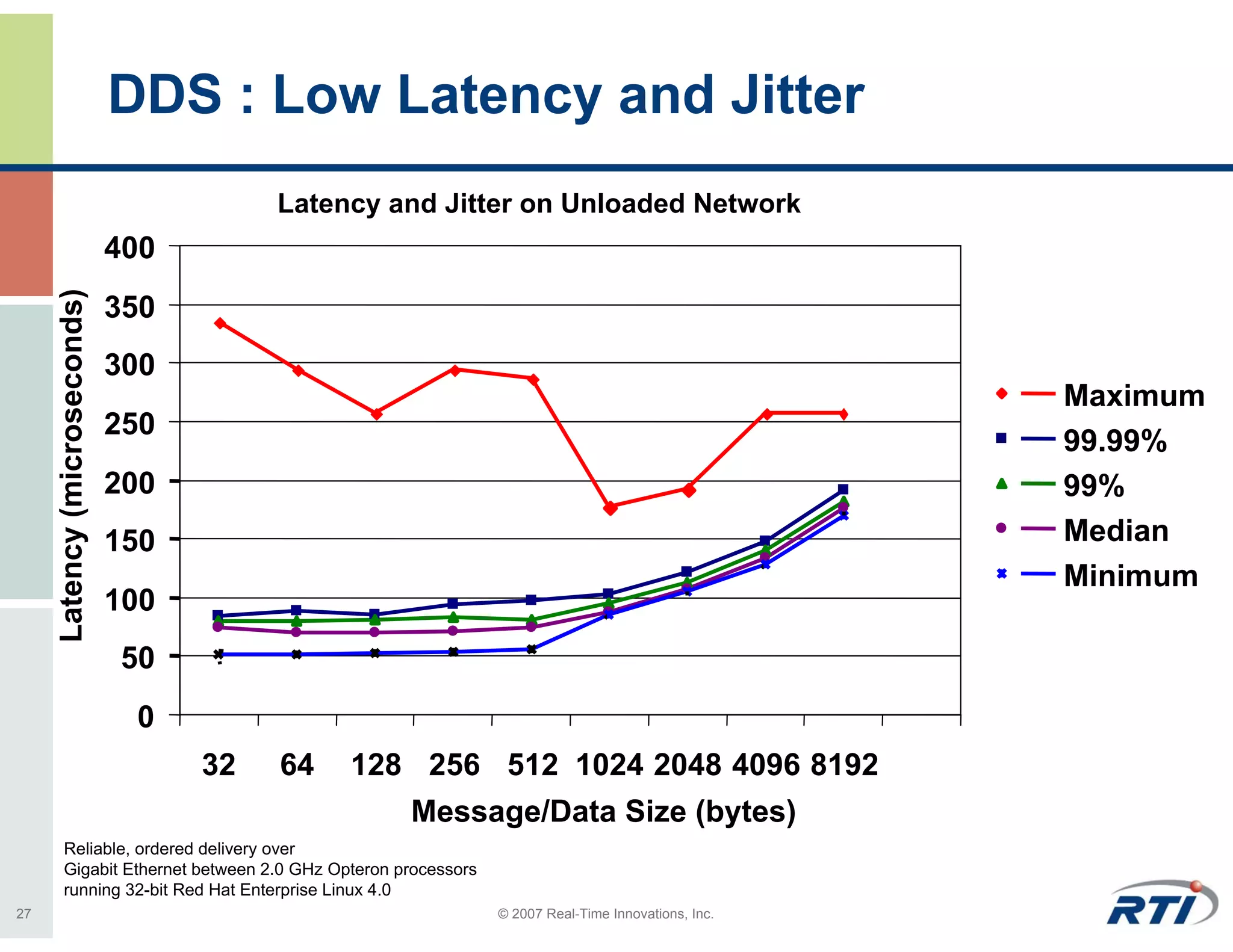

27. DDS : Low Latency and Jitter
Latency and Jitter on Unloaded Network
400
Latency (microseconds)
350
300
Maximum
250
99.99%
200 99%
150 Median
Minimum
100
50
0
32 64 128 256 512 1024 2048 4096 8192
Message/Data Size (bytes)
Reliable, ordered delivery over
Gigabit Ethernet between 2.0 GHz Opteron processors
running 32-bit Red Hat Enterprise Linux 4.0
27 © 2007 Real-Time Innovations, Inc.

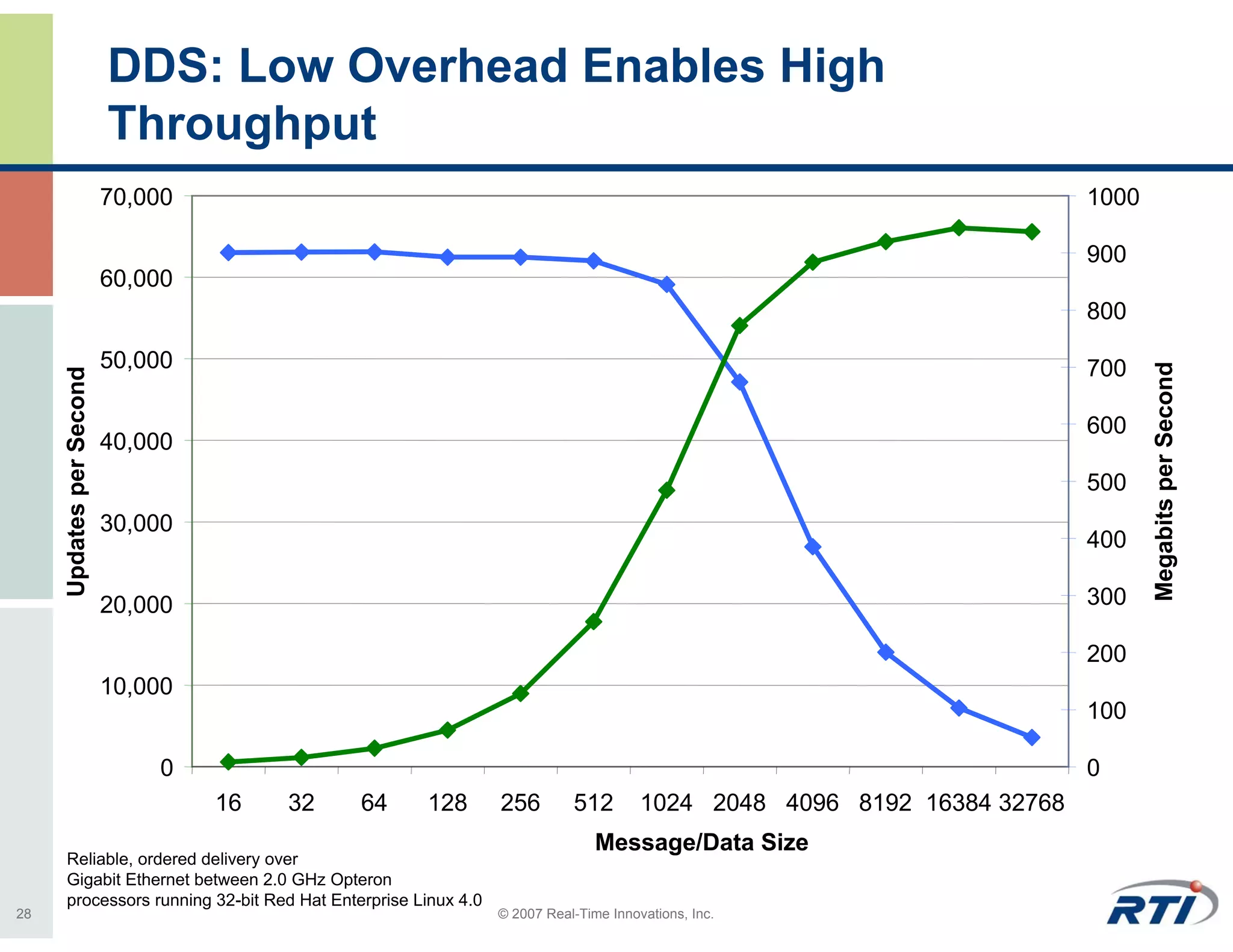

28. DDS: Low Overhead Enables High
Throughput
70,000 1000
900
60,000
800
50,000 700
Megabits per Second
Updates per Second
600
40,000
500
30,000
400
20,000 300
200
10,000
100
0 0
16 32 64 128 256 512 1024 2048 4096 8192 16384 32768
Message/Data Size
Reliable, ordered delivery over
Gigabit Ethernet between 2.0 GHz Opteron
processors running 32-bit Red Hat Enterprise Linux 4.0
28 © 2007 Real-Time Innovations, Inc.

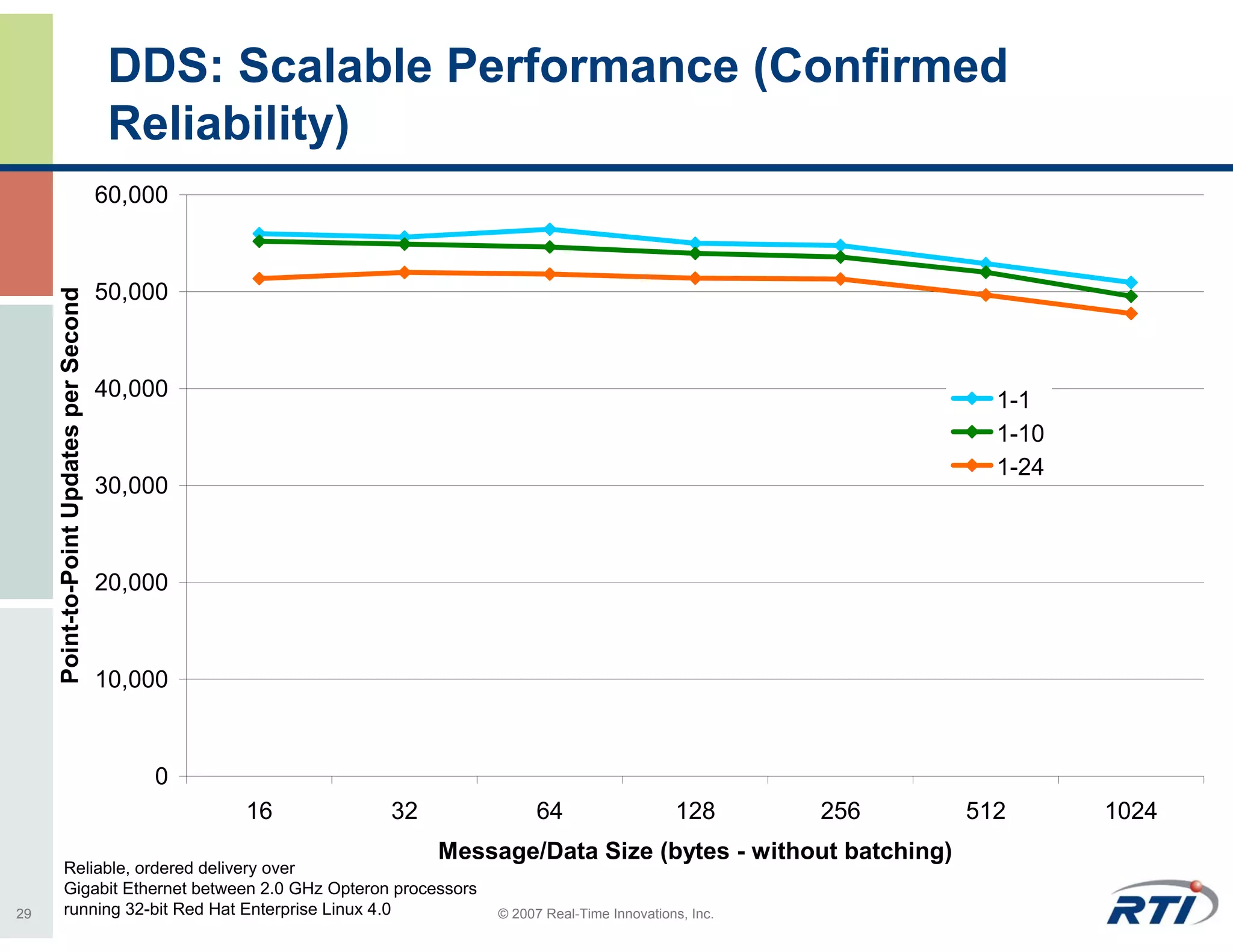

29. DDS: Scalable Performance (Confirmed
Reliability)
60,000
50,000
Point-to-Point Updates per Second
40,000 1-1
1-10
1-24
30,000
20,000
10,000
0
16 32 64 128 256 512 1024
Message/Data Size (bytes - without batching)
Reliable, ordered delivery over
Gigabit Ethernet between 2.0 GHz Opteron processors
29 running 32-bit Red Hat Enterprise Linux 4.0 © 2007 Real-Time Innovations, Inc.

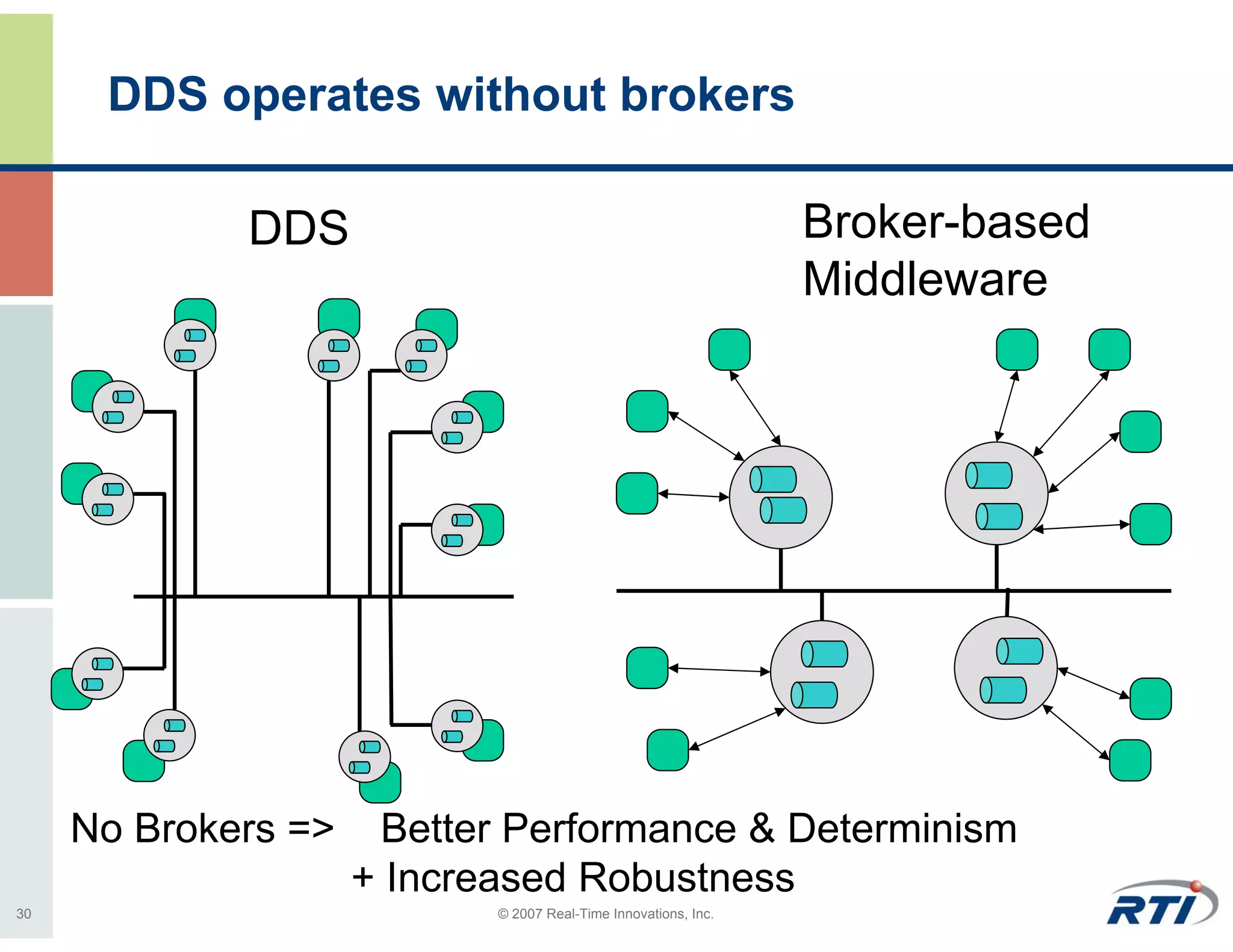

30. DDS operates without brokers
DDS Broker-based
Middleware
No Brokers => Better Performance & Determinism
+ Increased Robustness
30 © 2007 Real-Time Innovations, Inc.

31. DDS: The best “message bus” for CEP?
#1 Fit to the CEP information Model
– DDS is Data-Centric, not message centric
– DDS Supports Topic-Based and Content-Based Subscriptions
– DDS built-in Window/Time selectors delivers *only* relevant data
#2 Performance & Scalability
– DDS offers notification-based APIs
– DDS has the best performance (latency, throughput, jitter, scalability) of
any standard middleware technology
#3 Configurability, QoS, Filtering & Services
– DDS Publish-Subscribe model delivers wherever needed
– DDS has rich QoS to support real-time event-driven systems (latency
budget, priority, etc.)
– DDS Fault-Tolerance Mechanism allows for redundant sources of data
– DDS built-in services Persistence and Historical Data Services ensures
relevant data is never lost
31 © 2007 Real-Time Innovations, Inc.

32. #3 QoS and Powerful Services
– Redundancy & QoS Policy QoS Policy
Failover DURABILITY USER DATA
– Persistent Data HISTORY (per subject) TOPIC DATA
– Last value cache READER DATA GROUP DATA
LIFECYCLE
– Historical cache WRITER DATA PARTITION
LIFECYCLE
LIFESPAN PRESENTATION
ENTITY FACTORY DESTINATION ORDER
RESOURCE LIMITS OWNERSHIP
RELIABILITY OWNERSHIP STRENGTH
TIME BASED FILTER LIVELINESS
DEADLINE LATENCY BUDGET
CONTENT FILTERS TRANSPORT PRIORITY
32 © 2007 Real-Time Innovations, Inc.

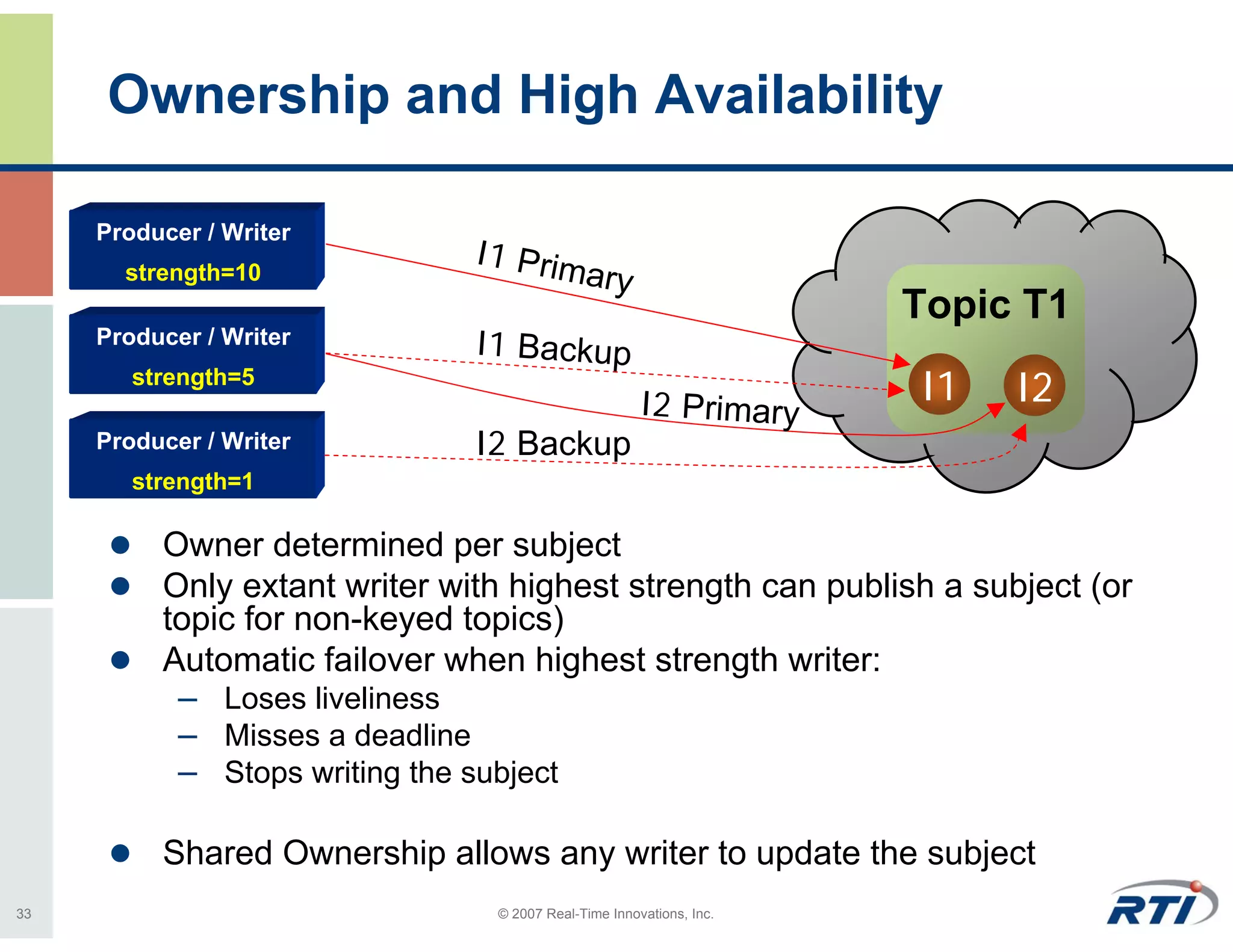

33. Ownership and High Availability
Producer / Writer
I1 Prim
strength=10 ary
Topic T1
Producer / Writer I1 Backup
strength=5
I2 Primary I1 I2
Producer / Writer I2 Backup
strength=1
Owner determined per subject
Only extant writer with highest strength can publish a subject (or
topic for non-keyed topics)
Automatic failover when highest strength writer:
– Loses liveliness
– Misses a deadline
– Stops writing the subject
Shared Ownership allows any writer to update the subject
33 © 2007 Real-Time Innovations, Inc.

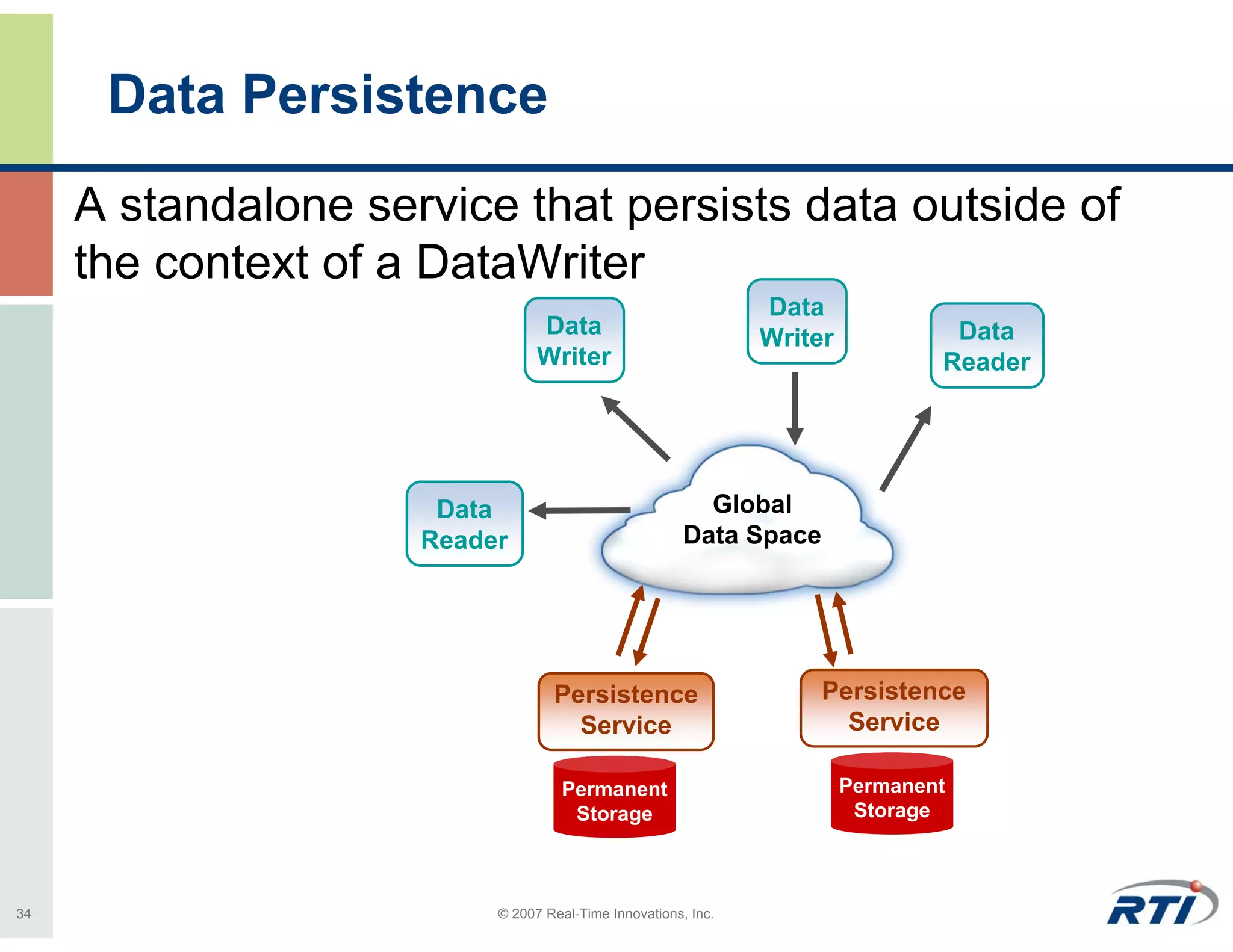

34. Data Persistence
A standalone service that persists data outside of
the context of a DataWriter
Data
Data Writer Data
Writer Reader
Data Global
Reader Data Space
Persistence Persistence
Service Service
Permanent Permanent
Storage Storage
34 © 2007 Real-Time Innovations, Inc.

35. Conclusion
To get the best performance from your CEP you
need the best message bus
DDS is a natural fit for CEP:
– The Data-Centric Pub-Sub information model is an
excellent match to the CEP structured event model
– DDS supports many of the CEP use-cases and QoS
as first-class citizens
– DDS offers the best performance and latency of any
middleware standard
35 © 2007 Real-Time Innovations, Inc.
