1. RF HACKING: IT’S NOT JUST
FM/AM BROADCAST RADIO
Anocha Upontian, PTT Digital Solution
Keerati Torach, KPMG Thailand

2. CAUTION & DISCLAIMER
▪ Be careful for using Software Defined Radio peripheral that signal will be transmitted on illegal frequency
(depend on country regulations)
▪ Signal interference (Jamming) is illegal
▪ Content on this presentation for EDUCATION PURPOSE ONLY
▪ It’s recommended to test on permitted system or laboratory environment
▪ You are responsible for using this stuff legally
http://www.thedailysheeple.com/wp-content/uploads/2014/08/faraday-cage.jpg
http://www.wovenwirecloth.org/img/shielding-screen.jpghttps://greatscottgadgets.com/hackrf/
https://nuand.com/
https://www.crowdsupply.com/lime-micro/limesdr

3. AGENDA
▪ Thailand’s spectrum regulations
▪ Radio frequency in communication
▪ RF security assessment tools
▪ Gnu Radio Companion
▪ Case study 1: Wireless doorbell
▪ Case study 2: Beyond a doorbell
▪ Case study 3: Dealing with rolling code
▪ Lesson learned

4. THAILAND’S SPECTRUM REGULATIONS
▪ พระราชบัญญัติ วิทยุคมนาคม พ.ศ. ๒๔๙๘
▪ มาตรา ๑๕ ผู้ใดกระทําให้้เกิดการรบกวนหรือขัดขวางต่อการวิทยุคมนาคมโดยมิได้เจตนา เจ้าพนักงานผู้ออก
ใบอนุญาตหรือผู้ที่ได้รับมอบหมายมีอํานาจสั่งให้ผู้นั้นระงับการกระทํานั้นหรือให้แก้ไขเปลี่ยนแปลงสิ่งที่ใช้ใน
การกระทํานั้นเสีย หรือให้ย้ายสิ่งดังกล่าวนั้นออกไปให้พ้นเขตรบกวนได
▪ มาตรา ๑๘ เพื่อตรวจเครื่องวิทยุคมนาคม ส่วนแห่งเครื่องวิทยุคมนาคม สถานีวิทยุคมนาคม สิ่งที่ก่อให้เกิด
การรบกวนหรือขัดขวางต่อการวิทยุคมนาคม หรือใบอนุญาต เจ้าพนักงานผู้ออกใบอนุญาตหรือผู้ที่ได้รับมอบ
หมายมีอํานาจเข้าไปในอาคารสถานที่ หรือยานพาหนะของบุคคลใดๆ ได้ในเวลาอันสมควร
https://broadcast.nbtc.go.th/data/document/law/doc/th/560400000027.pdf

5. RADIO FREQUENCY IN COMMUNICATION
▪ Absolutely, it’s wireless
▪ Long distance communication
https://en.wikipedia.org/wiki/Radio_frequency

6. RADIO FREQUENCY IN COMMUNICATION
▪ Analog Signal Processing
▪ Amplitude Modulation (AM)
▪ Frequency Modulation (FM)
▪ Phase Modulation (PM)
https://en.wikipedia.org/wiki/Amplitude_modulation
https://en.wikipedia.org/wiki/Phase_modulation
https://upload.wikimedia.org/wikipedia/commons/8/8d/Illustration_of_Amplitude_Modulation.png
https://www.scienceabc.com/wp-content/uploads/2016/08/Illustration_of_Frequency_Modulation.jpg

7. RADIO FREQUENCY IN COMMUNICATION
▪ Digital Signal Processing
▪ Amplitude Shift Keying (ASK)
▪ On-Off Keying (OOK)
▪ Frequency Shift Keying (FSK)
▪ Phase Shift Keying (PSK)
OOK
ASK
https://www.owasp.org/images/2/29/AppSecIL2016_HackingTheIoT-PenTestingRFDevices_ErezMetula.pdf
https://web.stanford.edu/class/ee102b/contents/DigitalModulation.pdf

8. RF SECURITY ASSESSMENT TOOLS (HARDWARE)
▪ RTL-SDR with dongle
▪ Only RX (simplex)
▪ 24 MHz – 1766 MHz
▪ 433 MHz or 315 MHz transmitter (only TX) module
▪ Usually come together with receiver (only RX)
▪ Modulation: ASK/OOK
▪ 3-12 working voltage
▪ DIY antenna
▪ Appropriated length
▪ Raspberry Pi 3 Model B
▪ Controlling transmitter
▪ Electronics prototype maker
▪ Breadboards
▪ Jumper wires
▪ 9 Voltage battery
▪ Resistors
▪ YARD Stick One with female antenna (buy separately)
▪ Transceiver (able to half duplex)
▪ Modulations: ASK, OOK, GFSK, 2-FSK, 4-FSK and MSK
▪ 300-348 MHz, 391-464 MHz, and 782-928 MHz operating frequencies

9. RF SECURITY ASSESSMENT TOOLS (SOFTWARE)
▪ Gnu Radio Companion
▪ Powerful signal processing blocks
▪ Support any SDR peripherals (RTL-SDR, HackRF, BladeRF)
▪ SDR#
▪ Analyze
▪ demodulation
▪ streaming
▪ GQRX
▪ As well as SDR#
▪ Rfcat
▪ For controlling Yard Stick One
▪ Audacity
▪ Pulse analysis
▪ Buadline
▪ Spectrum analysis
▪ Rtl_433
▪ Demodulation and decoding data automatically
▪ Python (basic)
▪ General purpose input output (GPIO) of Raspberry Pi
▪ Rfcat

10. GRC
▪ Signal source
▪ RTL-SDR
▪ File sink
https://en.wikipedia.org/wiki/File:Signal_Sampling.png
Sampling is conversion
process from continuous
to discrete

11. GRC
▪ Digital filtering
▪ Filter only interested bandwidth
http://www.aimagin.com/learn/images/thumb/7/72/Transferfunction.png/600px-Transferfunction.png
https://en.wikipedia.org/wiki/File:Butterworth_response.svg
https://upload.wikimedia.org/wikipedia/commons/7/76/Butterworth_lowpass.png

12. GRC

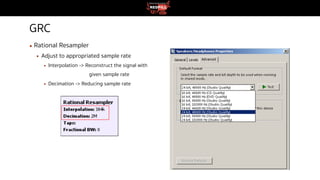

▪ Rational Resampler
▪ Adjust to appropriated sample rate
▪ Interpolation -> Reconstruct the signal with
given sample rate
▪ Decimation -> Reducing sample rate

13. GRC
▪ Demodulator
▪ Usually convert data type from complex to float
ASK Demodulator
FSK Demodulator
…1011001…
…10110…

14. GRC
▪ Instruments

15. GRC
▪ Video: Listening FM radio vimeo.com/236269734

16. GRC
▪ Easier one: GQRX or SDR#

17. CASE STUDY 1: WIRELESS DOORBELL

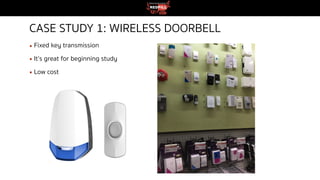

▪ Fixed key transmission
▪ It’s great for beginning study
▪ Low cost

18. CASE STUDY 1: WIRELESS DOORBELL
▪ Information gathering

19. CASE STUDY 1: WIRELESS DOORBELL
▪ Capture transmitted data and save to file

20. CASE STUDY 1: WIRELESS DOORBELL
▪ Capture signal from original remote and determining a modulation
▪ Buadline
https://greatscottgadgets.com/tr/gsg-tr-2016-1.pdf

21. CASE STUDY 1: WIRELESS DOORBELL
▪ Demodulation

22. CASE STUDY 1: WIRELESS DOORBELL

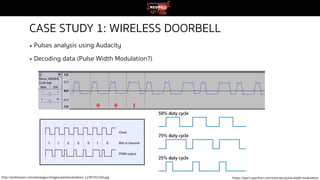

▪ Pulses analysis using Audacity
▪ Decoding data (Pulse Width Modulation?)
0 0 1
http://pcbheaven.com/wikipages/images/pwmmodulation_1236701204.jpg https://learn.sparkfun.com/tutorials/pulse-width-modulation

23. CASE STUDY 1: WIRELESS DOORBELL

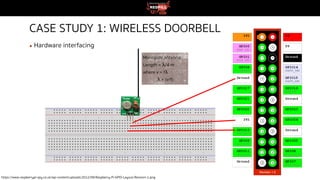

▪ Hardware interfacing
https://www.raspberrypi-spy.co.uk/wp-content/uploads/2012/09/Raspberry-Pi-GPIO-Layout-Revision-1.png
Monopole antenna:
Length = λ/4 m
where v = fλ
λ = (v/f)

24. CASE STUDY 1: WIRELESS DOORBELL

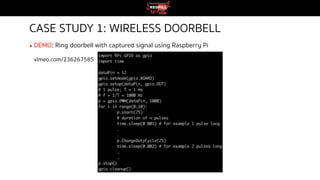

▪ DEMO: Ring doorbell with captured signal using Raspberry Pi
vimeo.com/236267585

25. CASE STUDY 1: WIRELESS DOORBELL
▪ Alternatively
▪ YARD Stick One
▪ Buad rate (bit/sec) instead of time delay
▪ For example, 1 bit -> 0.001 s
▪ Buad = 1/0.001 = 1000
1 0 1 1 10 0 0 0

26. CASE STUDY 2: BEYOND A DOORBELL

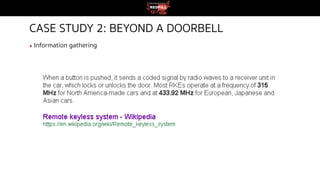

▪ What about key fob use to lock, unlock, arm, and disarm a car?

27. CASE STUDY 2: BEYOND A DOORBELL
▪ Car Alarm System

28. CASE STUDY 2: BEYOND A DOORBELL
▪ Information gathering

29. CASE STUDY 2: BEYOND A DOORBELL

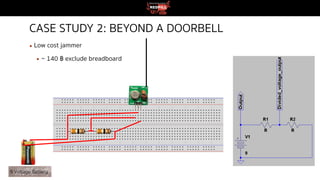

▪ Low cost jammer
▪ ~ 140 ฿ exclude breadboard
9 Voltage Battery

30. CASE STUDY 2: BEYOND A DOORBELL

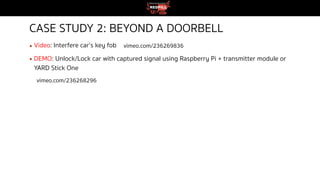

▪ Video: Interfere car’s key fob
▪ DEMO: Unlock/Lock car with captured signal using Raspberry Pi + transmitter module or
YARD Stick One
vimeo.com/236269836
vimeo.com/236268296

31. CASE STUDY 3: DEALING WITH ROLLING CODE
▪ A rolling code for preventing replay attacks
▪ Always send out different data for each time
Rtl_433
https://www.youtube.com/user/Hak5Darren

32. CASE STUDY 3: DEALING WITH ROLLING CODE
▪ Defeating rolling code
▪ Samy Kamkar’s RollJam that publish in DefCon 23 (2015)
https://samy.pl/defcon2015/2015-defcon.pdf

33. CASE STUDY 3: DEALING WITH ROLLING CODE
▪ Improper rolling code implemented on automatic sliding gate opener
▪ Sets of code store in pool
▪ Code will rotate every time when receive a valid length of code whether match or mismatch
P
O
O
L
1001
1101
0101
0011
1111
1000
1011
P
O
O
L
1101
01010001
1001
0011
1111
1000
P
O
O
L
0101
0001
0111
1101
1001
0011
1111
P
O
O
L
0001
0111
0000
0101
1101
1001
0011
0101 0101 0101 0101

34. CASE STUDY 3: DEALING WITH ROLLING CODE
▪ Video: Open automatic sliding gate using Raspberry Pi
vimeo.com/236268904

35. LESSON LEARNED
▪ Frequency hopping implementation in order to prevent pulse jamming
▪ Spread spectrum
▪ Bidirectional communication (challenge-response) instead of unidirectional
▪ Along with encryption

36. SPECIAL THANKS
▪ Low cost project due to …
▪ Mr.Krit Saengkyongam – Raspberry Pi
▪ Mr.Prathan Phongthiproek – YARD Stick One
▪ Mom - Everything

37. HAPPY HACKING !!! http://fb.com/boazus
