1. Reuse for Research
Curating Astrophysical Datasets
for Future Researchers
Practice Paper, IDCC17
Anders Conrad, Royal Danish Library
Michael Svendsen, Royal Danish Library
Rasmus Handberg, Aarhus University

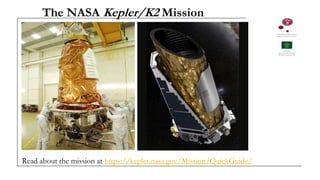

2. The NASA Kepler/K2 Mission
Read about the mission at https://kepler.nasa.gov/Mission/QuickGuide/

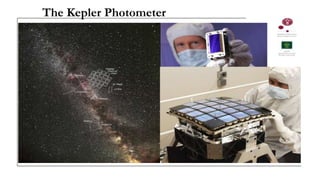

3. The Kepler Photometer

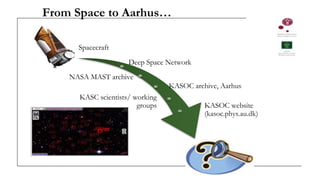

4. From Space to Aarhus…
Spacecraft
Deep Space Network
NASA MAST archive
KASOC archive, Aarhus
KASC scientists/ working
groups KASOC website
(kasoc.phys.au.dk)

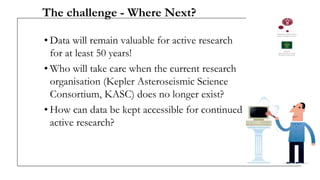

5. The challenge - Where Next?
• Data will remain valuable for active research
for at least 50 years!
• Who will take care when the current research
organisation (Kepler Asteroseismic Science
Consortium, KASC) does no longer exist?
• How can data be kept accessible for continued
active research?

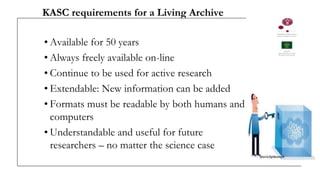

6. KASC requirements for a Living Archive
• Available for 50 years
• Always freely available on-line
• Continue to be used for active research
• Extendable: New information can be added
• Formats must be readable by both humans and
computers
• Understandable and useful for future
researchers – no matter the science case

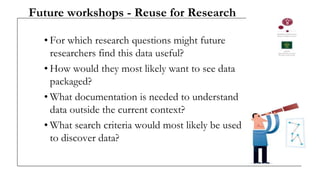

7. Future workshops - Reuse for Research
• For which research questions might future
researchers find this data useful?
• How would they most likely want to see data
packaged?
• What documentation is needed to understand
data outside the current context?
• What search criteria would most likely be used
to discover data?

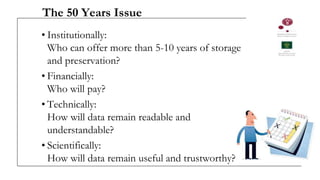

8. The 50 Years Issue
• Institutionally:
Who can offer more than 5-10 years of storage
and preservation?
• Financially:
Who will pay?
• Technically:
How will data remain readable and
understandable?
• Scientifically:
How will data remain useful and trustworthy?

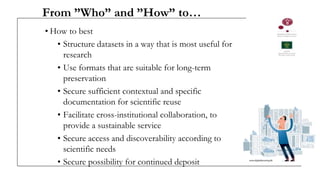

9. From ”Who” and ”How” to…
• How to best
• Structure datasets in a way that is most useful for
research
• Use formats that are suitable for long-term
preservation
• Secure sufficient contextual and specific
documentation for scientific reuse
• Facilitate cross-institutional collaboration, to
provide a sustainable service
• Secure access and discoverability according to
scientific needs
• Secure possibility for continued deposit

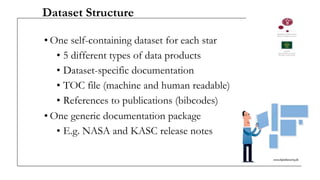

10. Dataset Structure
• One self-containing dataset for each star
• 5 different types of data products
• Dataset-specific documentation
• TOC file (machine and human readable)
• References to publications (bibcodes)
• One generic documentation package
• E.g. NASA and KASC release notes

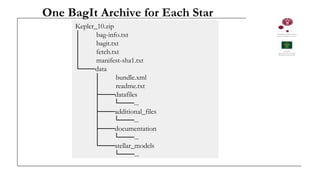

11. One BagIt Archive for Each Star
Kepler_10.zip
│ bag-info.txt
│ bagit.txt
│ fetch.txt
│ manifest-sha1.txt
└───data
│ bundle.xml
│ readme.txt
├───datafiles
│ └───...
├───additional_files
│ └───...
├───documentation
│ └───...
└───stellar_models
└───...

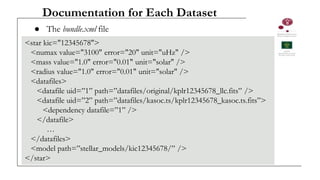

12. Documentation for Each Dataset
<star kic="12345678">
<numax value="3100" error="20" unit="uHz" />
<mass value="1.0" error="0.01" unit="solar" />
<radius value="1.0" error="0.01" unit="solar" />
<datafiles>
<datafile uid=”1” path=”datafiles/original/kplr12345678_llc.fits” />
<datafile uid=”2” path=”datafiles/kasoc.ts/kplr12345678_kasoc.ts.fits”>
<dependency datafile=”1” />
</datafile>
…
</datafiles>
<model path=”stellar_models/kic12345678/” />
</star>
● The bundle.xml file

13. Proof-of-concept - Repository Setup
• Using Dataverse repository software
• Support for astrophysics metadata
• Discoverability and citability (Datacite DOI’s)
• API’s for automatic ingest workflow
• Versioning – allowing redeposit of extended
versions of datasets
• Issues:
• Missing numeric fields for celestial coordinates (for
discovery)
• Limited options for mapping to external storage (we
use erda.dk)

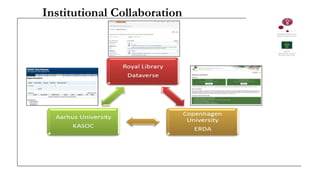

14. Institutional Collaboration

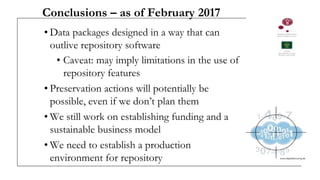

15. Conclusions – as of February 2017
• Data packages designed in a way that can
outlive repository software
• Caveat: may imply limitations in the use of
repository features
• Preservation actions will potentially be
possible, even if we don’t plan them
• We still work on establishing funding and a
sustainable business model
• We need to establish a production
environment for repository

16. Reuse for Research
Contact: Michael Svendsen, @tullemich, Royal Danish Library
