1. Web Service: REST 原則與實作分享 簡報者：許登傑、林宗茂 更新日期： 2008-09-01

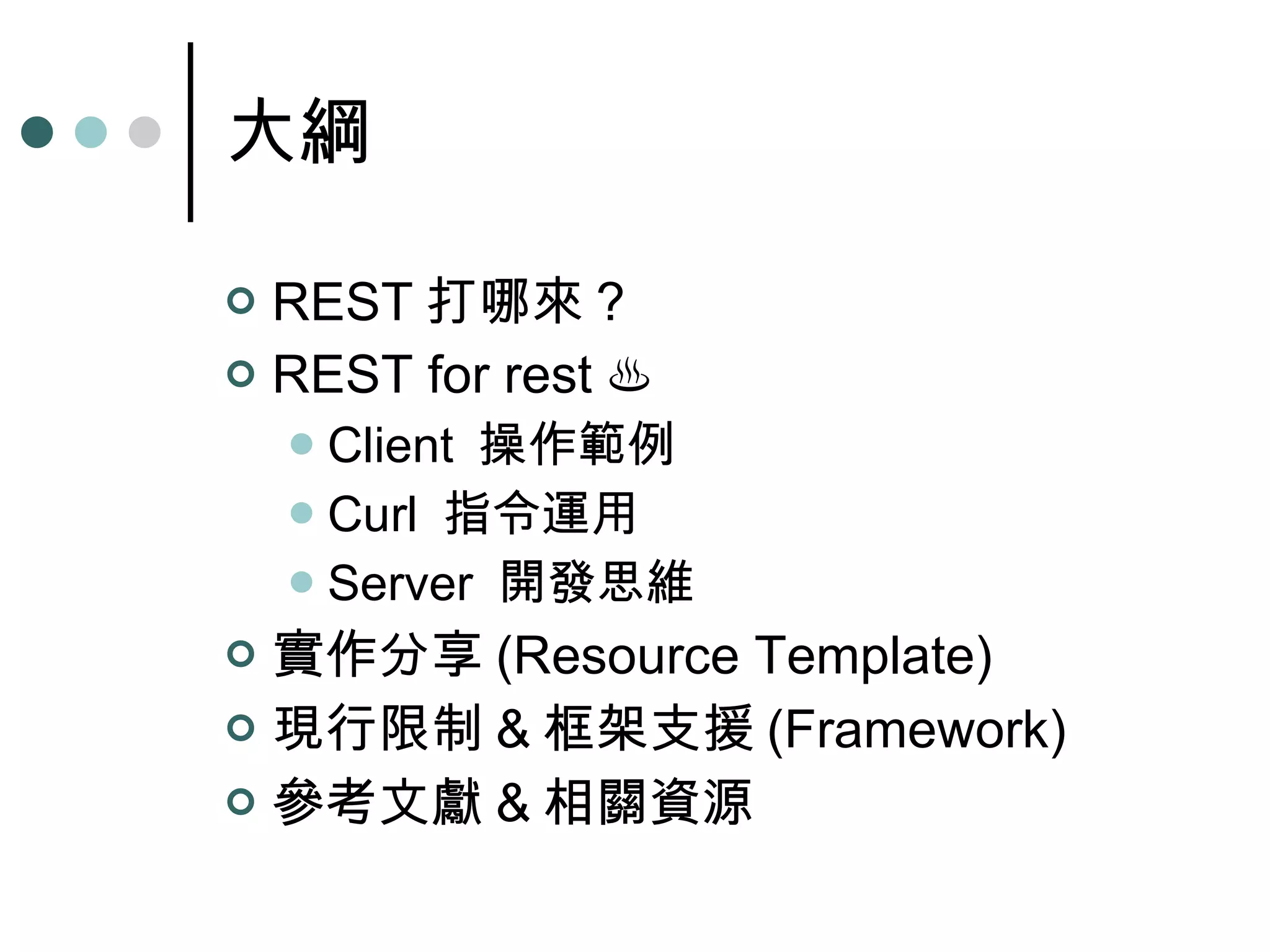

2. 大綱 REST 打哪來 ? REST for rest ♨ Client 操作範例 Curl 指令運用 Server 開發思維 實作分享 (Resource Template) 現行限制 & 框架支援 (Framework) 參考文獻 & 相關資源

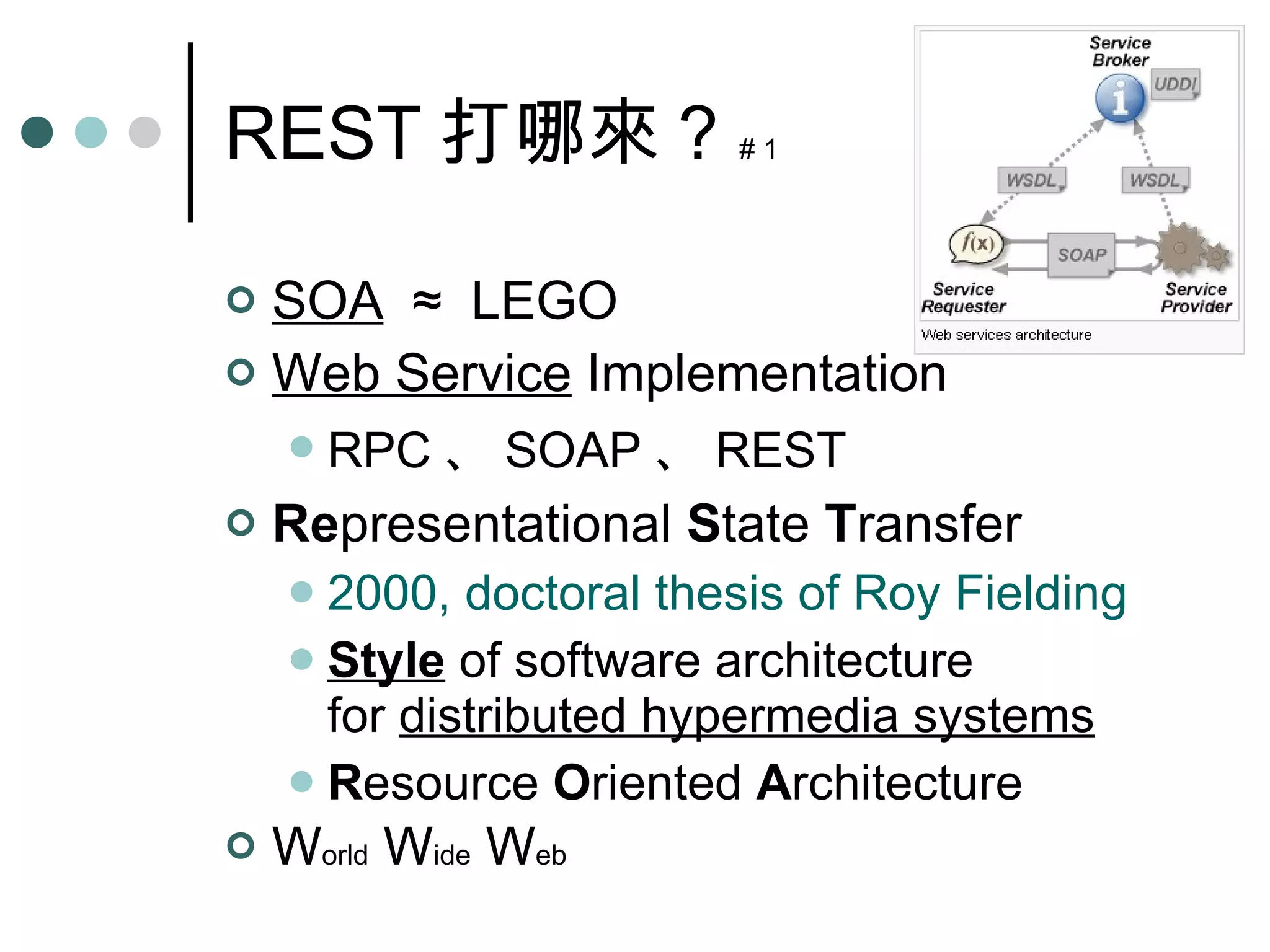

3. REST 打哪來 ? # 1 SOA ≈ LEGO Web Service Implementation RPC 、 SOAP 、 REST Re presentational S tate T ransfer 2000, doctoral thesis of Roy Fielding Style of software architecture for distributed hypermedia systems R esource O riented A rchitecture W orld W ide W eb

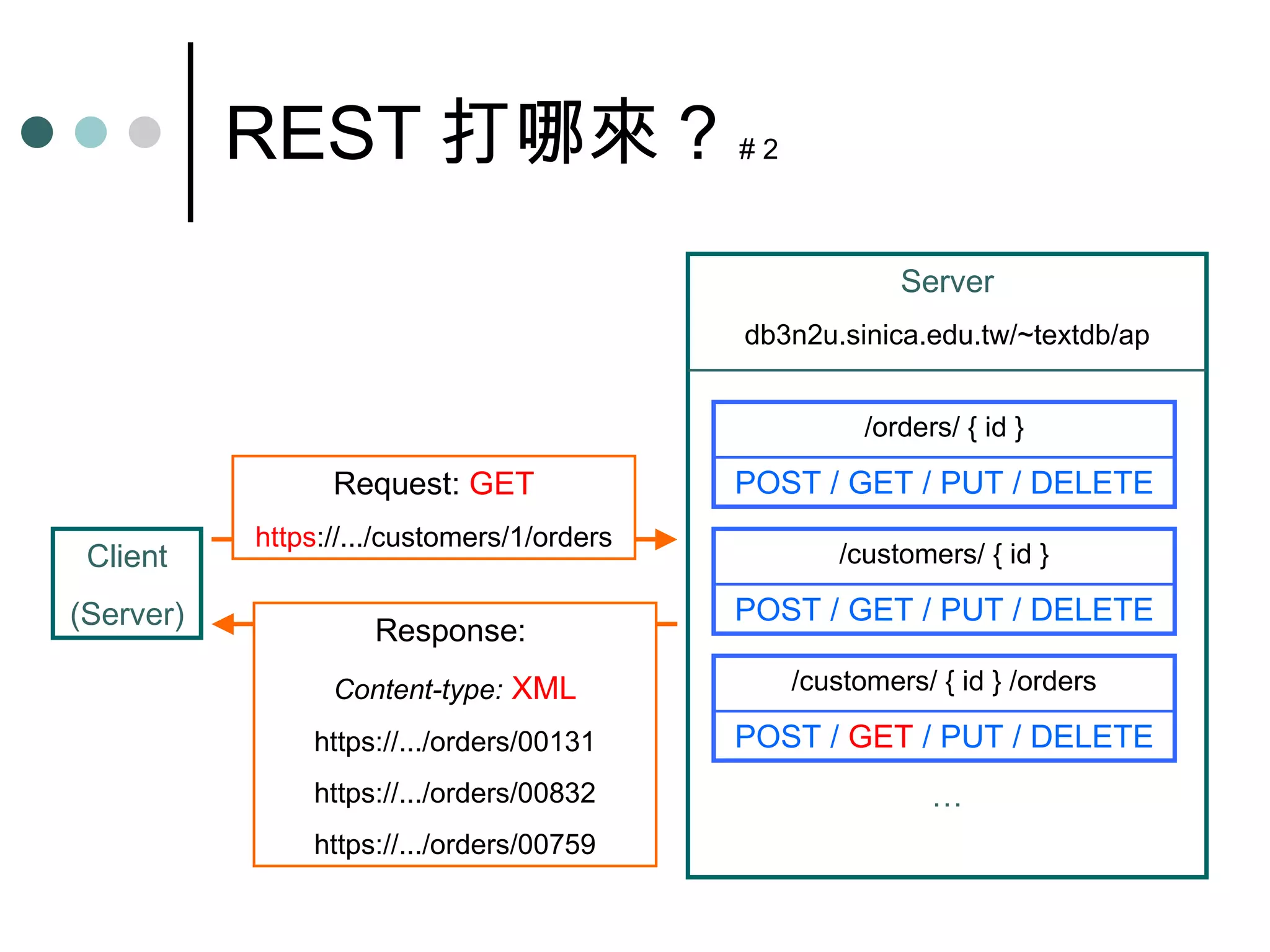

4. REST 打哪來 ? # 2 Client (Server) Request: GET https ://.../customers/1/orders Response: Content-type: XML https://.../orders/00131 https://.../orders/00832 https://.../orders/00759 Server db3n2u.sinica.edu.tw/~textdb/ap … /orders/ { id } POST / GET / PUT / DELETE /customers/ { id } POST / GET / PUT / DELETE /customers/ { id } /orders POST / GET / PUT / DELETE

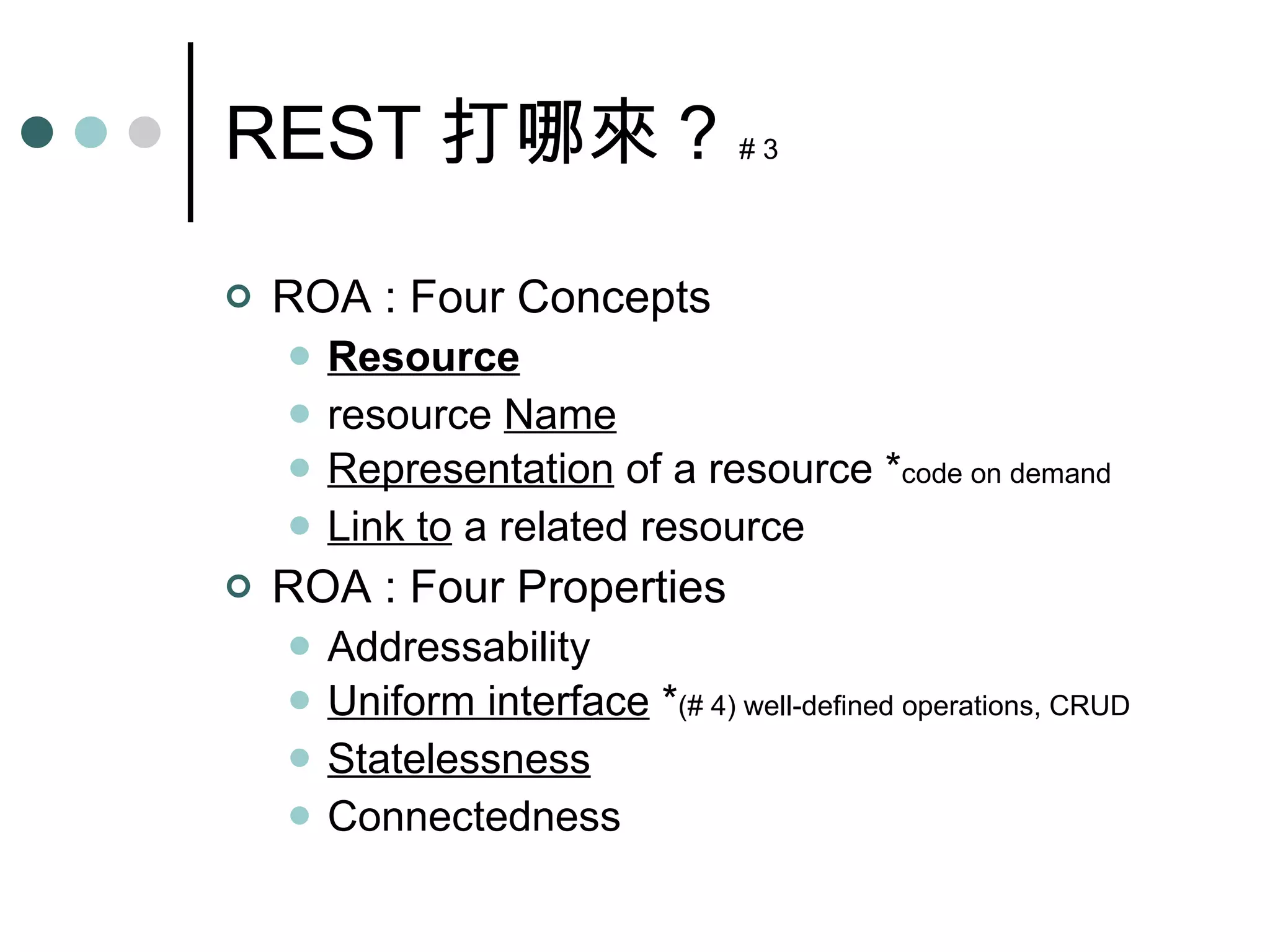

5. REST 打哪來 ? # 3 ROA : Four Concepts Resource resource Name Representation of a resource * code on demand Link to a related resource ROA : Four Properties Addressability Uniform interface * (# 4) well-defined operations, CRUD Statelessness Connectedness

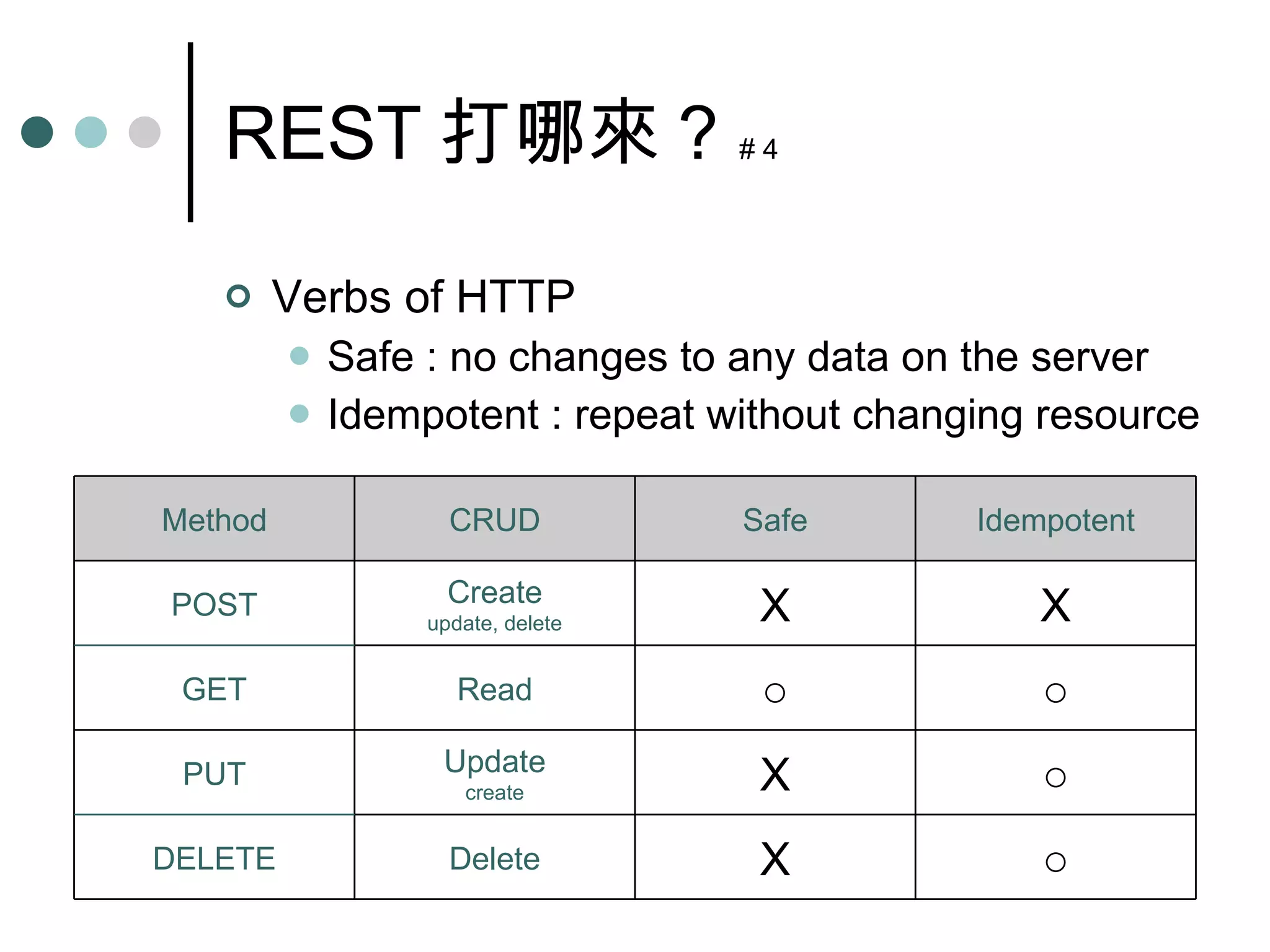

6. REST 打哪來 ? # 4 Verbs of HTTP Safe : no changes to any data on the server Idempotent : repeat without changing resource DELETE GET ○ X Delete ○ X Update create PUT ○ ○ Read X X Create update, delete POST Idempotent Safe CRUD Method

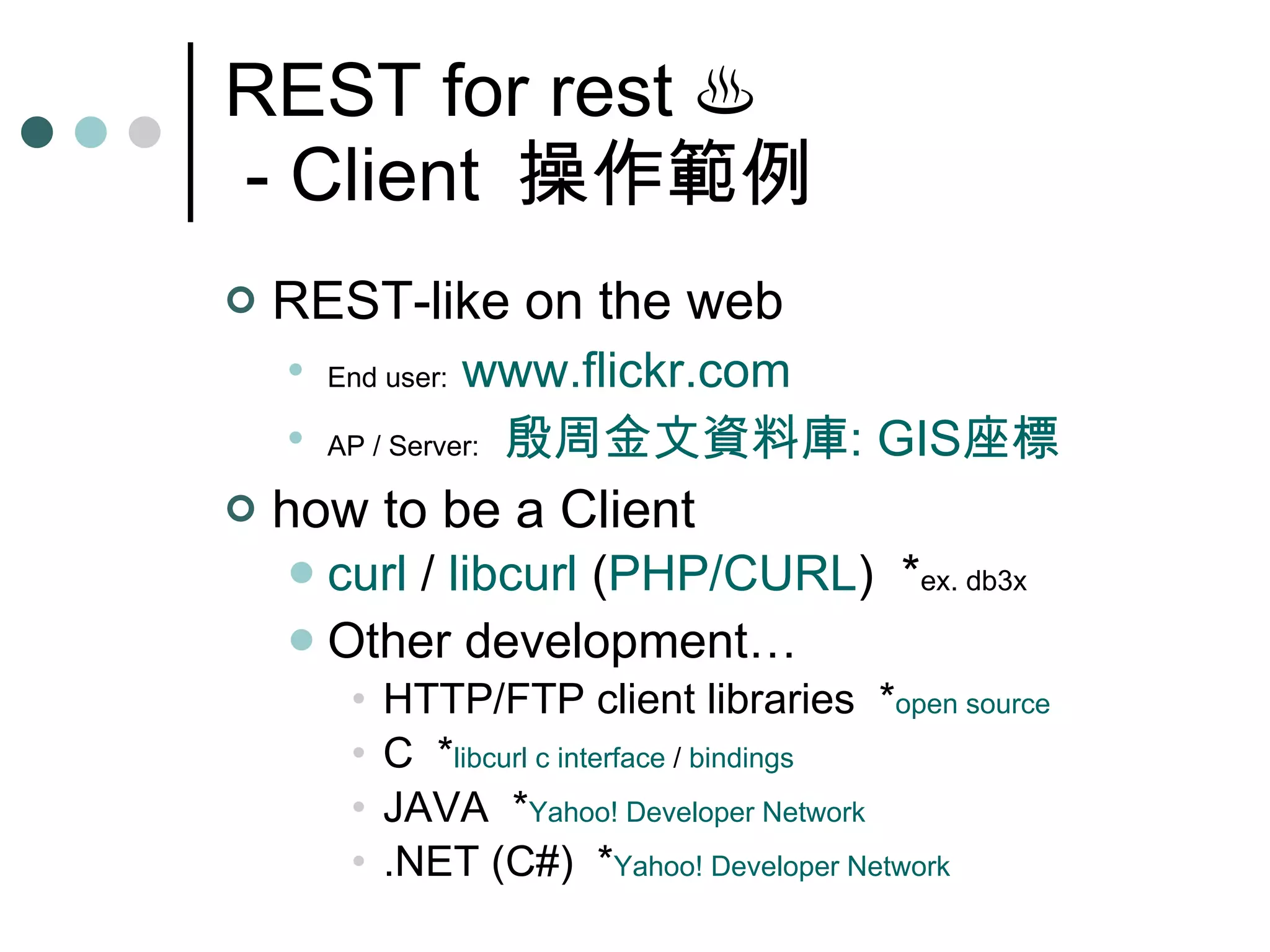

7. REST for rest ♨ - Client 操作範例 REST-like on the web End user: www.flickr.com AP / Server: 殷周金文資料庫 : GIS 座標 how to be a Client curl / libcurl ( PHP/CURL ) * ex. db3x Other development… HTTP/FTP client libraries * open source C * libcurl c interface / bindings JAVA * Yahoo! Developer Network .NET (C#) * Yahoo! Developer Network

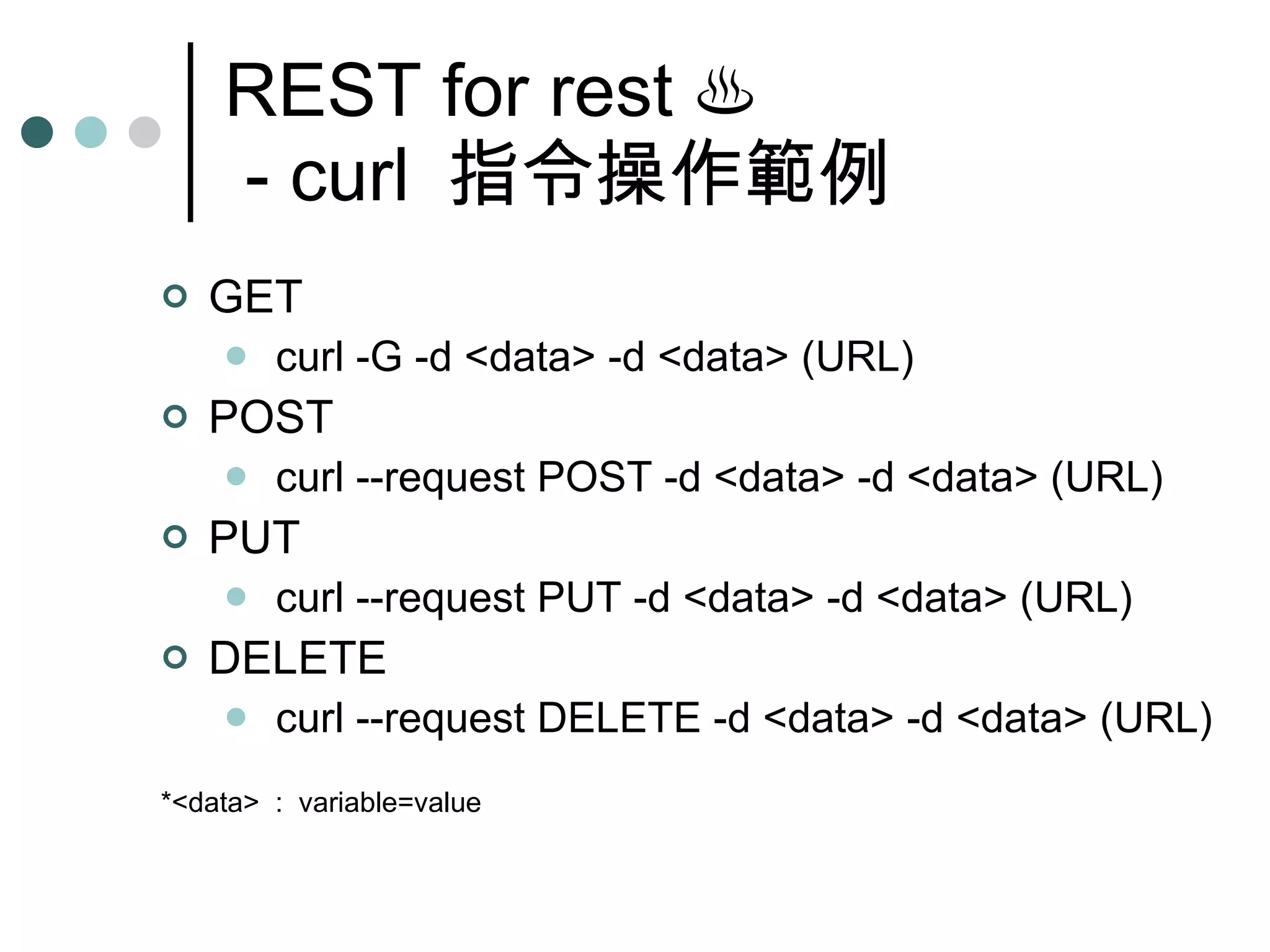

8. REST for rest ♨ - curl 指令操作範例 GET curl -G -d <data> -d <data> (URL) POST curl --request POST -d <data> -d <data> (URL) PUT curl --request PUT -d <data> -d <data> (URL) DELETE curl --request DELETE -d <data> -d <data> (URL) *<data> : variable=value

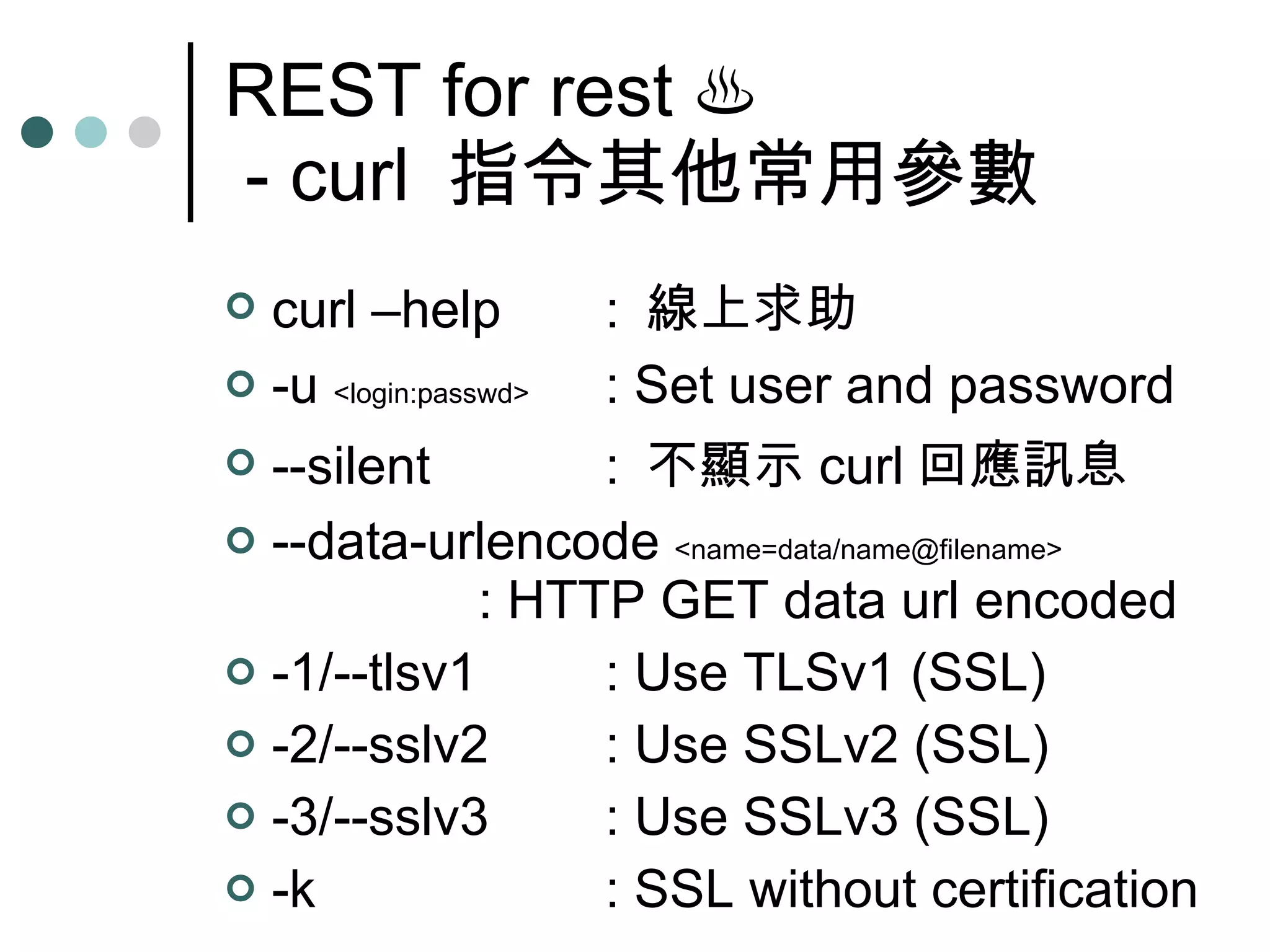

9. REST for rest ♨ - curl 指令其他常用參數 curl –help : 線上求助 -u <login:passwd> : Set user and password --silent : 不顯示 curl 回應訊息 --data-urlencode <name=data/name@filename> : HTTP GET data url encoded -1/--tlsv1 : Use TLSv1 (SSL) -2/--sslv2 : Use SSLv2 (SSL) -3/--sslv3 : Use SSLv3 (SSL) -k : SSL without certification

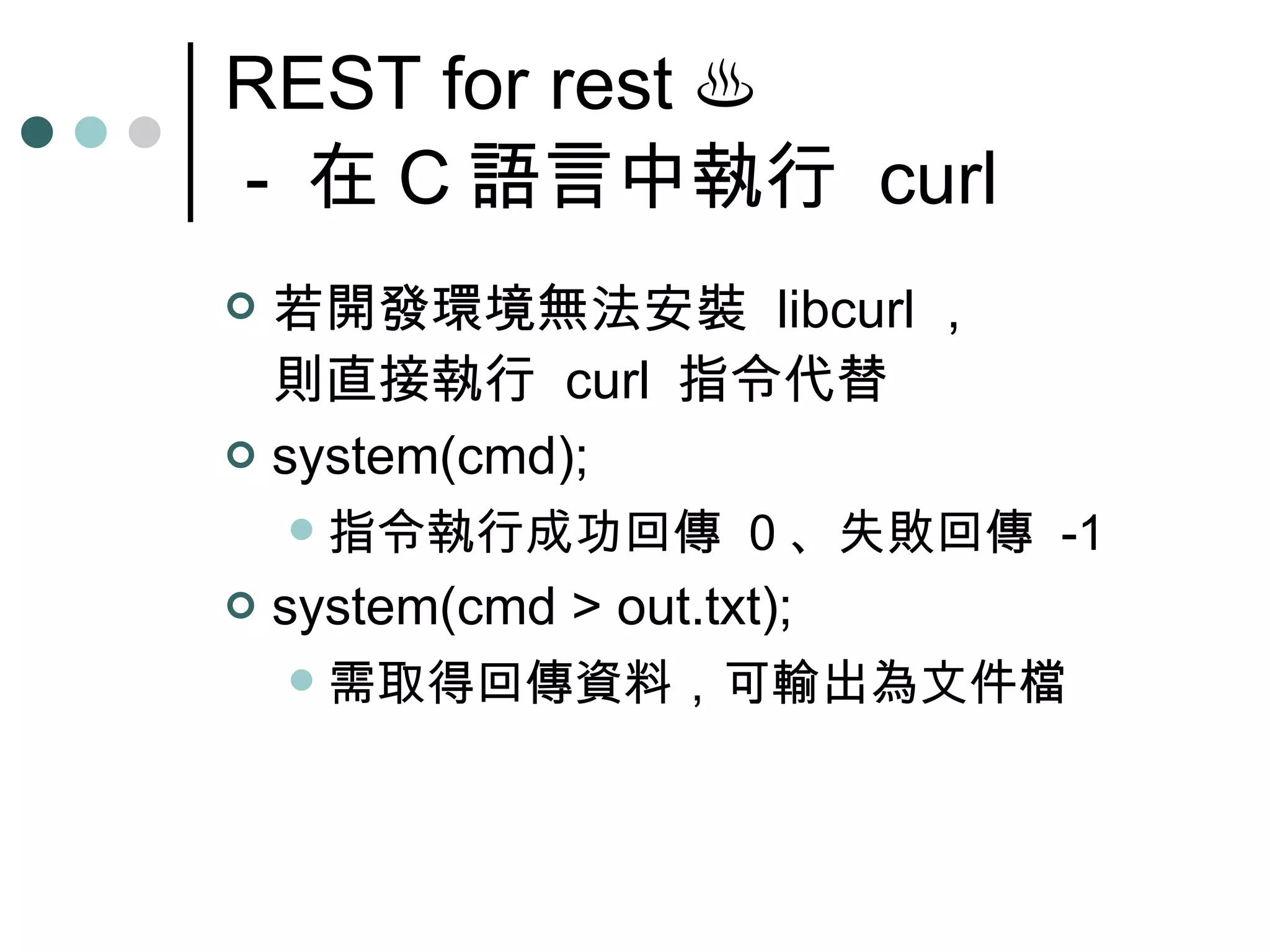

10. REST for rest ♨ - 在 C 語言中執行 curl 若開發環境無法安裝 libcurl ， 則直接執行 curl 指令代替 system(cmd); 指令執行成功回傳 0 、失敗回傳 -1 system(cmd > out.txt); 需取得回傳資料，可輸出為文件檔

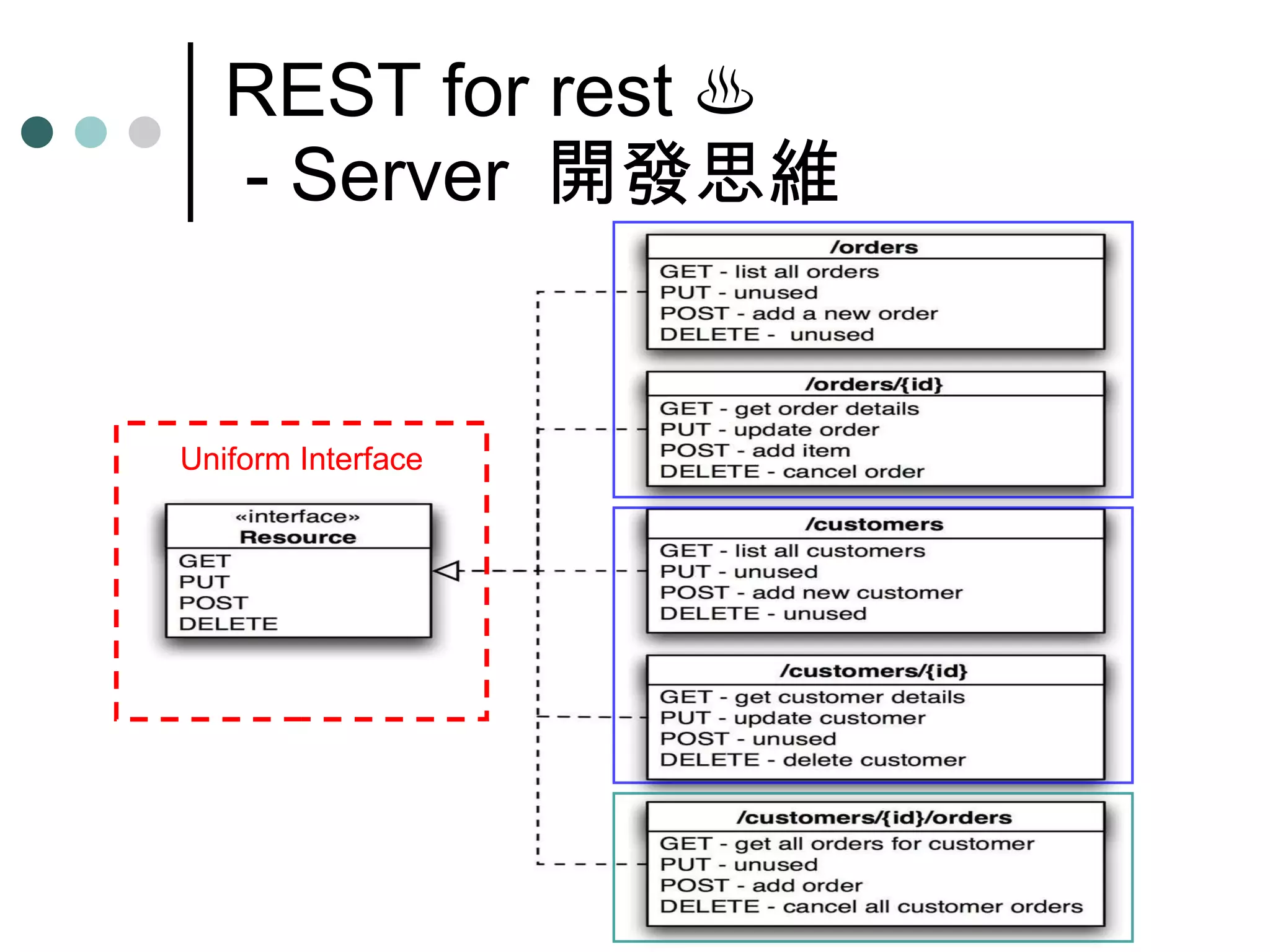

11. REST for rest ♨ - Server 開發思維 Uniform Interface

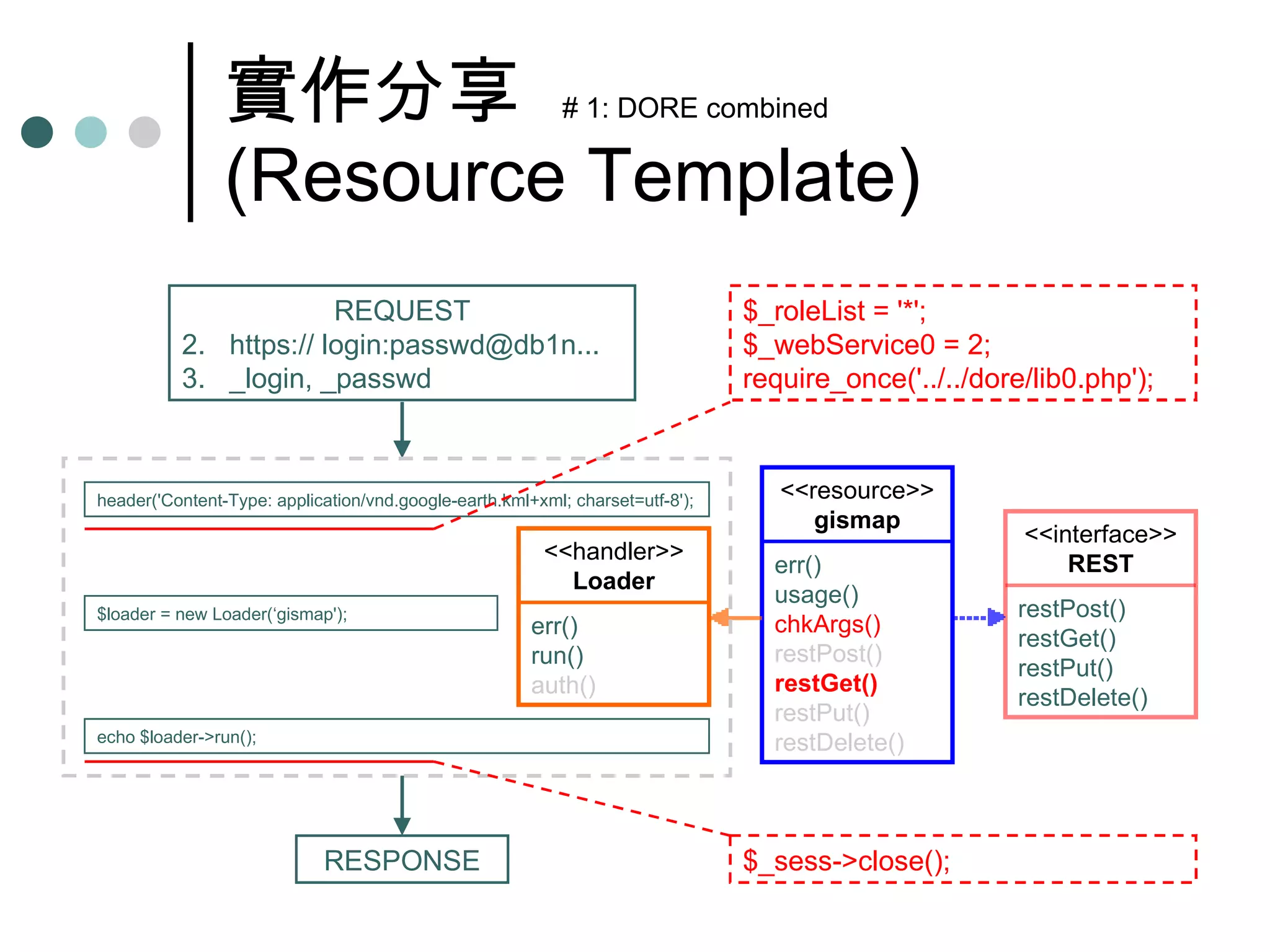

12. 實作分享 # 1: DORE combined (Resource Template) header('Content-Type: application/vnd.google-earth.kml+xml; charset=utf-8'); echo $loader->run(); REQUEST https:// login:passwd@db1n... _login, _passwd RESPONSE $loader = new Loader(‘gismap'); $_roleList = '*'; $_webService0 = 2; require_once('../../dore/lib0.php'); $_sess->close(); <<interface>> REST restPost() restGet() restPut() restDelete() <<resource>> gismap err() usage() chkArgs() restPost() restGet() restPut() restDelete() <<handler>> Loader err() run() auth()

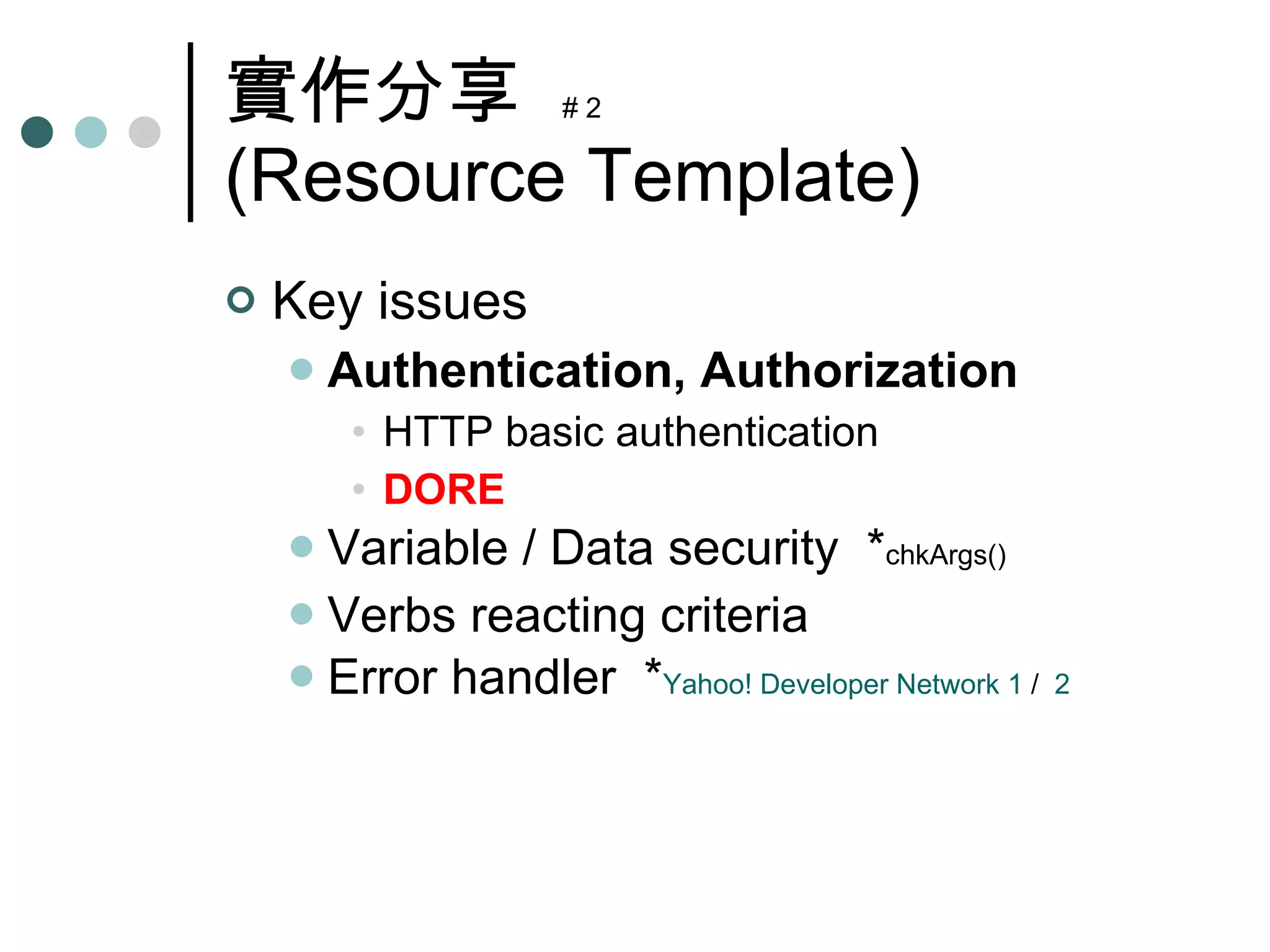

13. 實作分享 # 2 (Resource Template) Key issues Authentication, Authorization HTTP basic authentication DORE Variable / Data security * chkArgs() Verbs reacting criteria Error handler * Yahoo! Developer Network 1 / 2

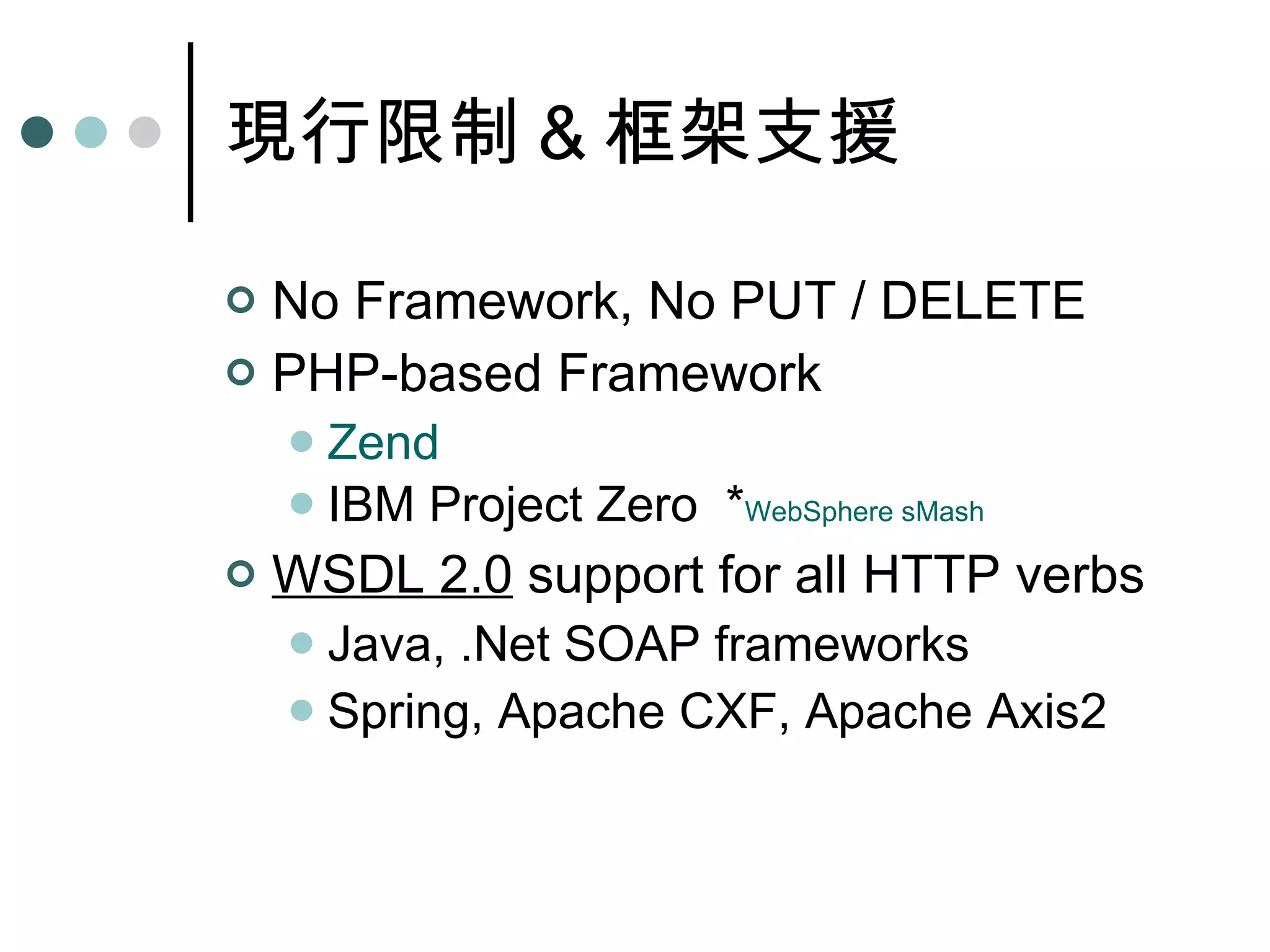

14. 現行限制 & 框架支援 No Framework, No PUT / DELETE PHP-based Framework Zend IBM Project Zero * WebSphere sMash WSDL 2.0 support for all HTTP verbs Java, .Net SOAP frameworks Spring, Apache CXF, Apache Axis2

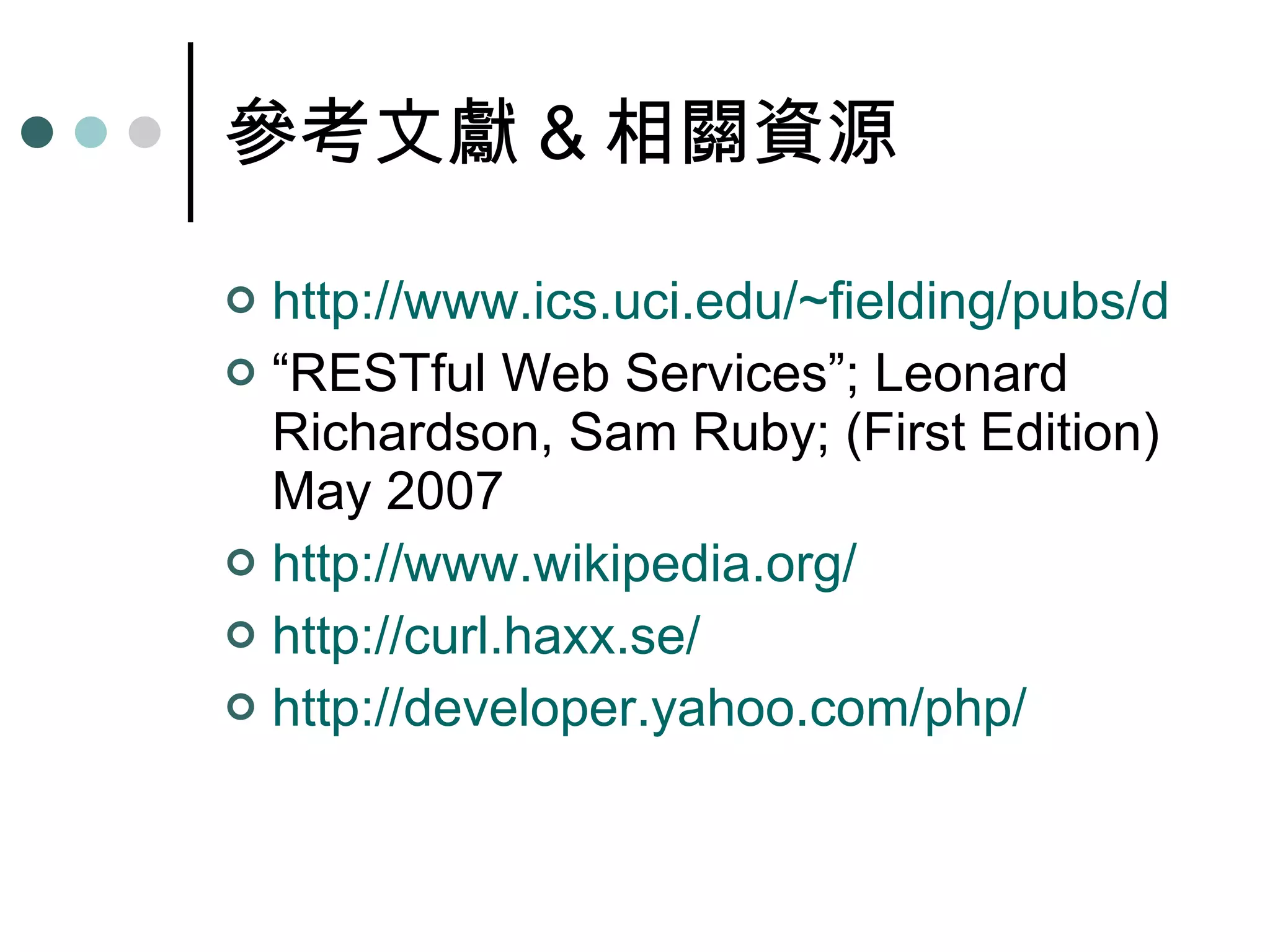

15. 參考文獻 & 相關資源 http://www.ics.uci.edu/~fielding/pubs/dissertation/rest_arch_style.htm “ RESTful Web Services”; Leonard Richardson, Sam Ruby; (First Edition) May 2007 http:// www.wikipedia.org / http://curl.haxx.se/ http:// developer.yahoo.com/php /
