This design specification document outlines a device that uses an adjustable arm band with multiple LEDs and detectors to monitor blood oxygen levels. It will use two pulse oximeters simultaneously, one to get a baseline reading and the other to identify crises. Preliminary testing proved this dual method viable. The device also aims to recreate vaso-occlusion conditions by slowing blood flow to extremities, and will assign pain levels from 1 to 10 based on numerical readings from the device.

1. Design Specification
• Our device will utilize an
adjustable arm-band design.
• We will use multiple LEDs
and detectors

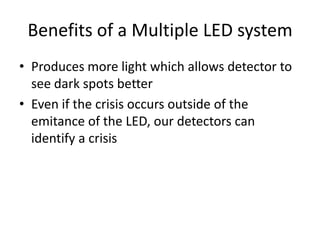

2. Benefits of a Multiple LED system
• Produces more light which allows detector to
see dark spots better
• Even if the crisis occurs outside of the
emitance of the LED, our detectors can
identify a crisis

3. Technique
• We will use two pulse oximeters
• This can allow us to get a baseline reading
while simultaneously attempting to identify a
crisis
• Preliminary testing has proven this method to
be viable

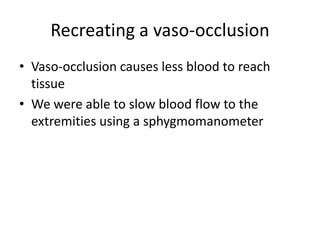

4. Recreating a vaso-occlusion
• Vaso-occlusion causes less blood to reach
tissue
• We were able to slow blood flow to the
extremities using a sphygmomanometer

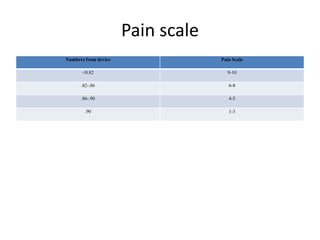

5. Pain scale
Numbers from device Pain Scale
<0.82 9-10
.82-.86 6-8
.86-.90 4-5
.90 1-3
