Report from the trenches:
Using SOA integrated gateway at the
city of Rotterdam
Lonneke Dikmans
October 15th 2013 | UKOUG Apps

2. 2
|
28

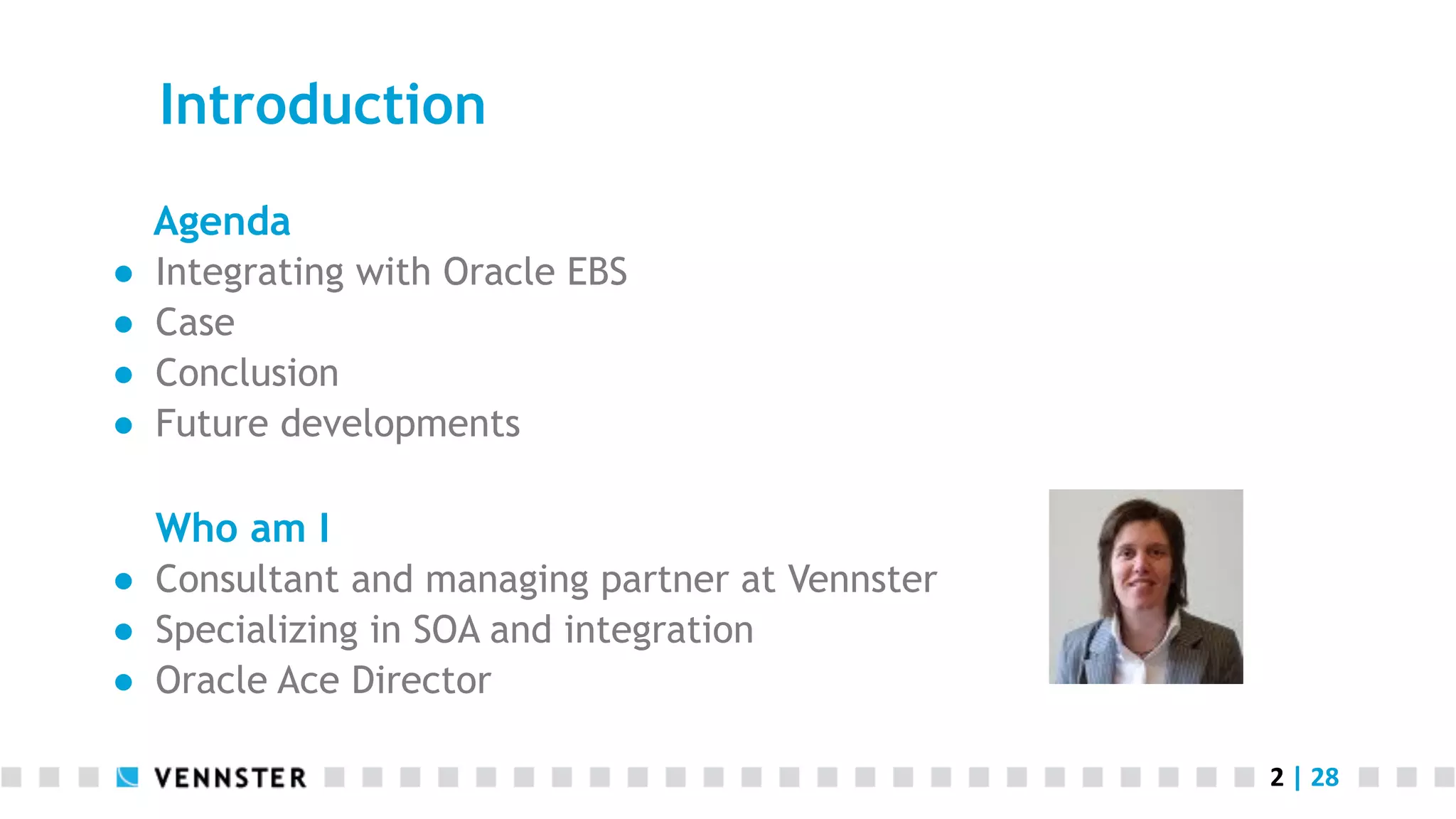

Introduction
Agenda
● Integrating with Oracle EBS
● Case
● Conclusion
● Future developments
Who am I
● Consultant and managing partner at Vennster
● Specializing in SOA and integration
● Oracle Ace Director

3. 3
|
28

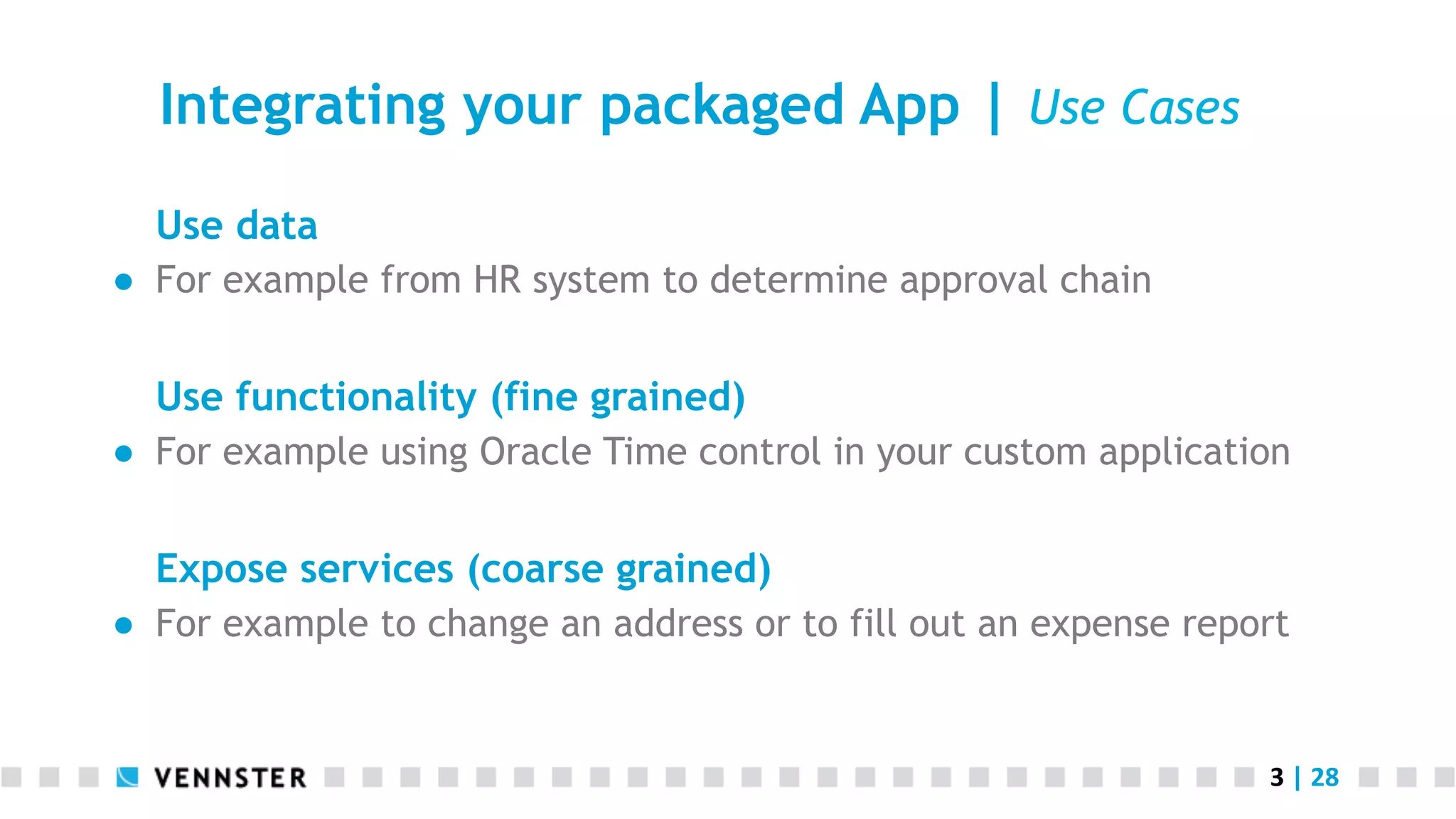

Integrating your packaged App | Use Cases
Use data
● For example from HR system to determine approval chain
Use functionality (fine grained)
● For example using Oracle Time control in your custom application
Expose services (coarse grained)
● For example to change an address or to fill out an expense report

4. 4
|
28

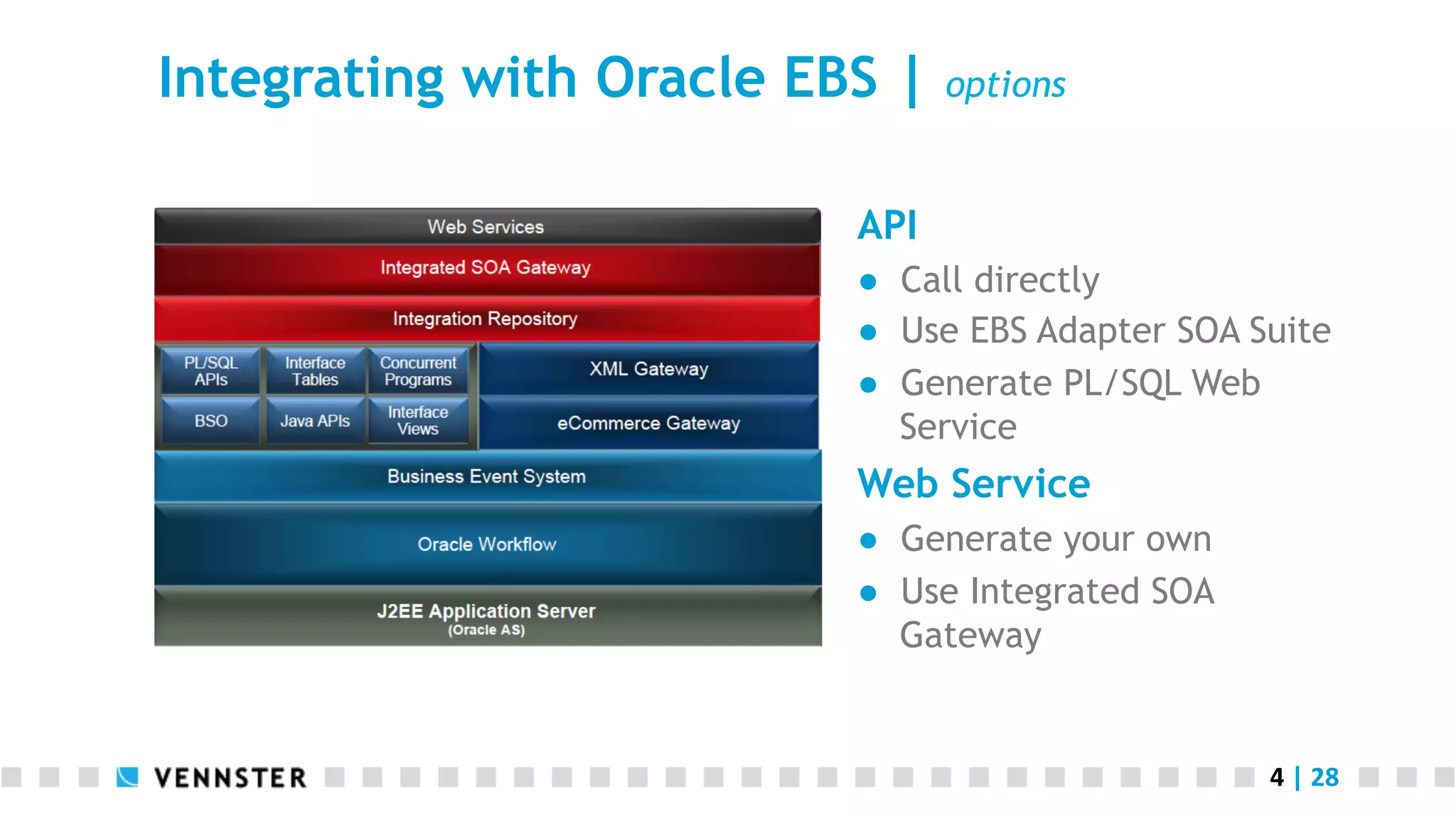

Integrating with Oracle EBS | options
API
● Call directly
● Use EBS Adapter SOA Suite
● Generate PL/SQL Web
Service
Web Service
● Generate your own
● Use Integrated SOA
Gateway

5. 5
|
28

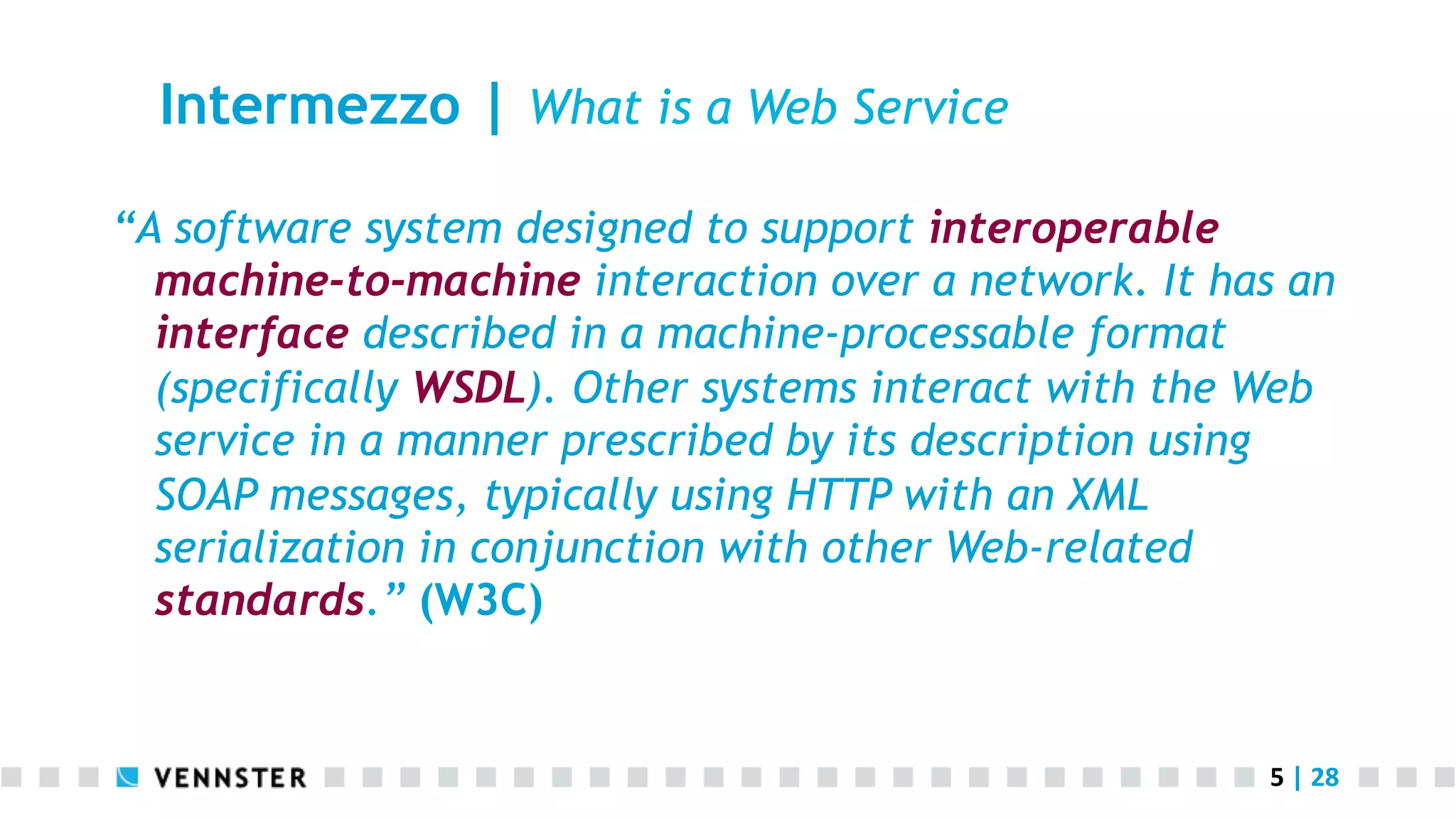

Intermezzo | What is a Web Service
“A software system designed to support interoperable
machine-to-machine interaction over a network. It has an
interface described in a machine-processable format
(specifically WSDL). Other systems interact with the Web
service in a manner prescribed by its description using
SOAP messages, typically using HTTP with an XML
serialization in conjunction with other Web-related
standards.” (W3C)

6. 6
|
28

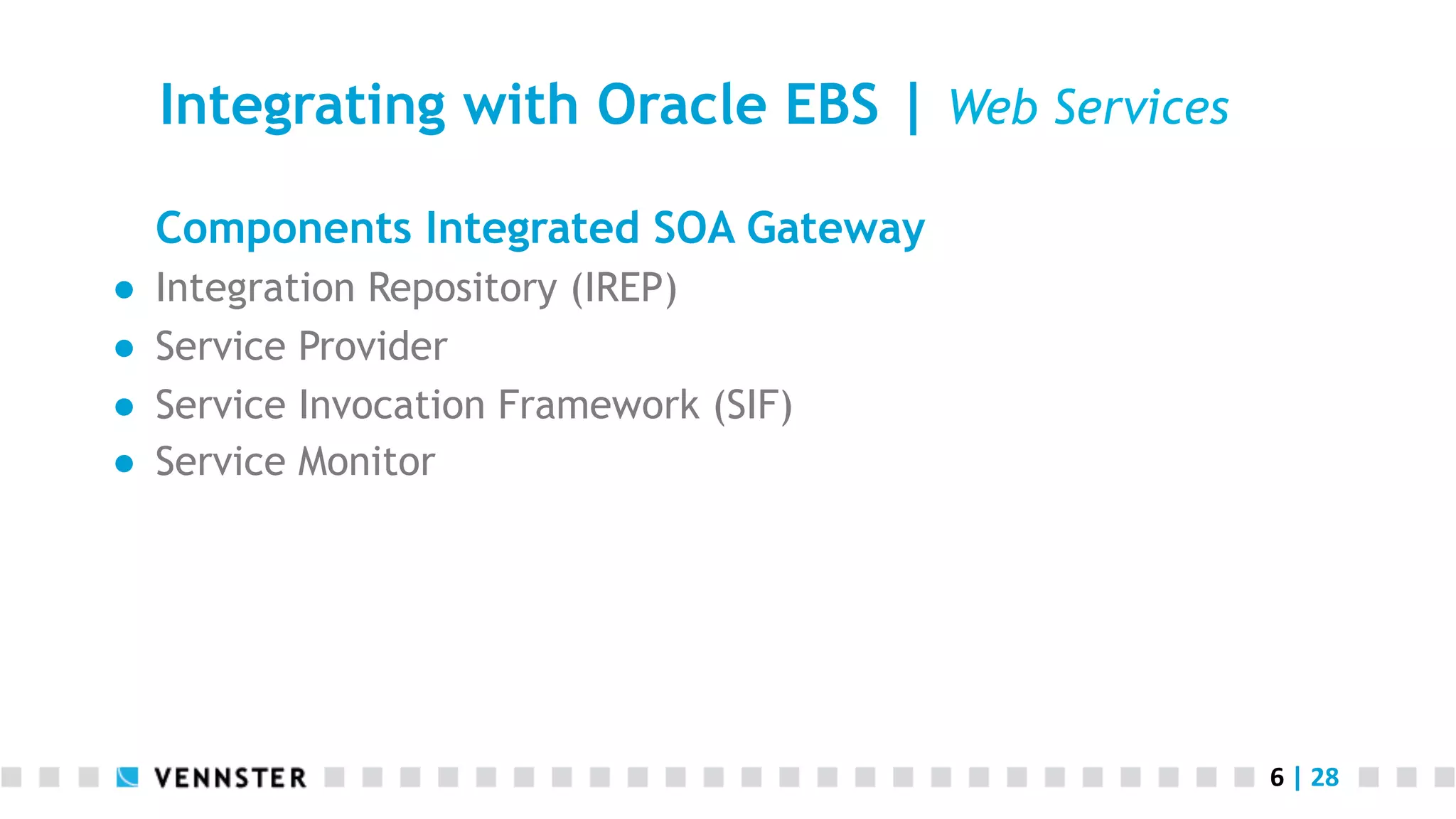

Integrating with Oracle EBS | Web Services
Components Integrated SOA Gateway
● Integration Repository (IREP)
● Service Provider
● Service Invocation Framework (SIF)
● Service Monitor

7. 7
|
28

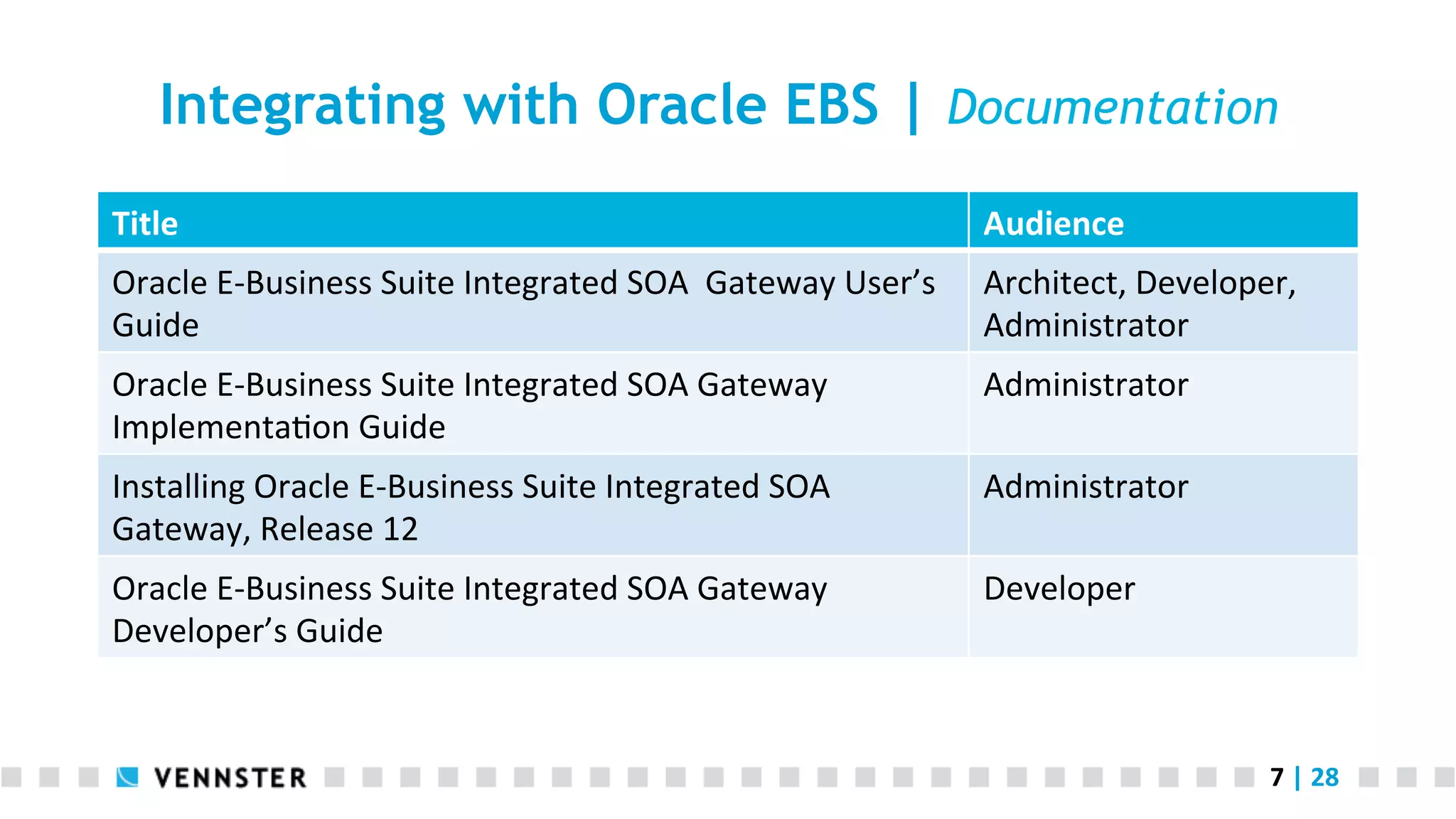

Integrating with Oracle EBS | Documentation
Title
Audience
Oracle
E-­‐Business
Suite
Integrated
SOA
Gateway
User’s
Guide
Architect,
Developer,
Administrator
Oracle
E-­‐Business
Suite
Integrated
SOA
Gateway
ImplementaAon
Guide
Administrator
Installing
Oracle
E-­‐Business
Suite
Integrated
SOA
Gateway,
Release
12
Administrator
Oracle
E-­‐Business
Suite
Integrated
SOA
Gateway
Developer’s
Guide
Developer

8. 8
|
28

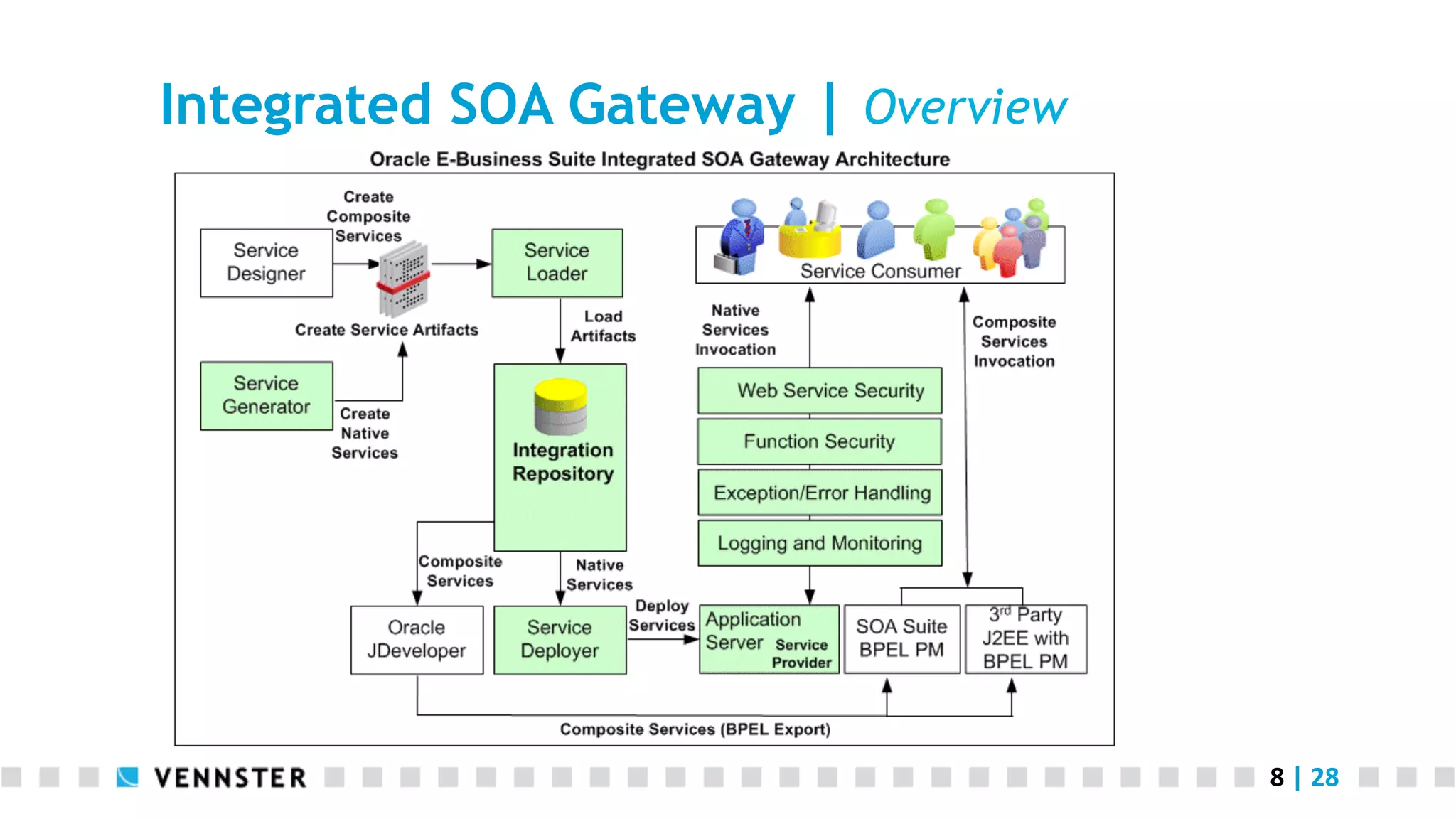

Integrated SOA Gateway | Overview

9. 9
|
28

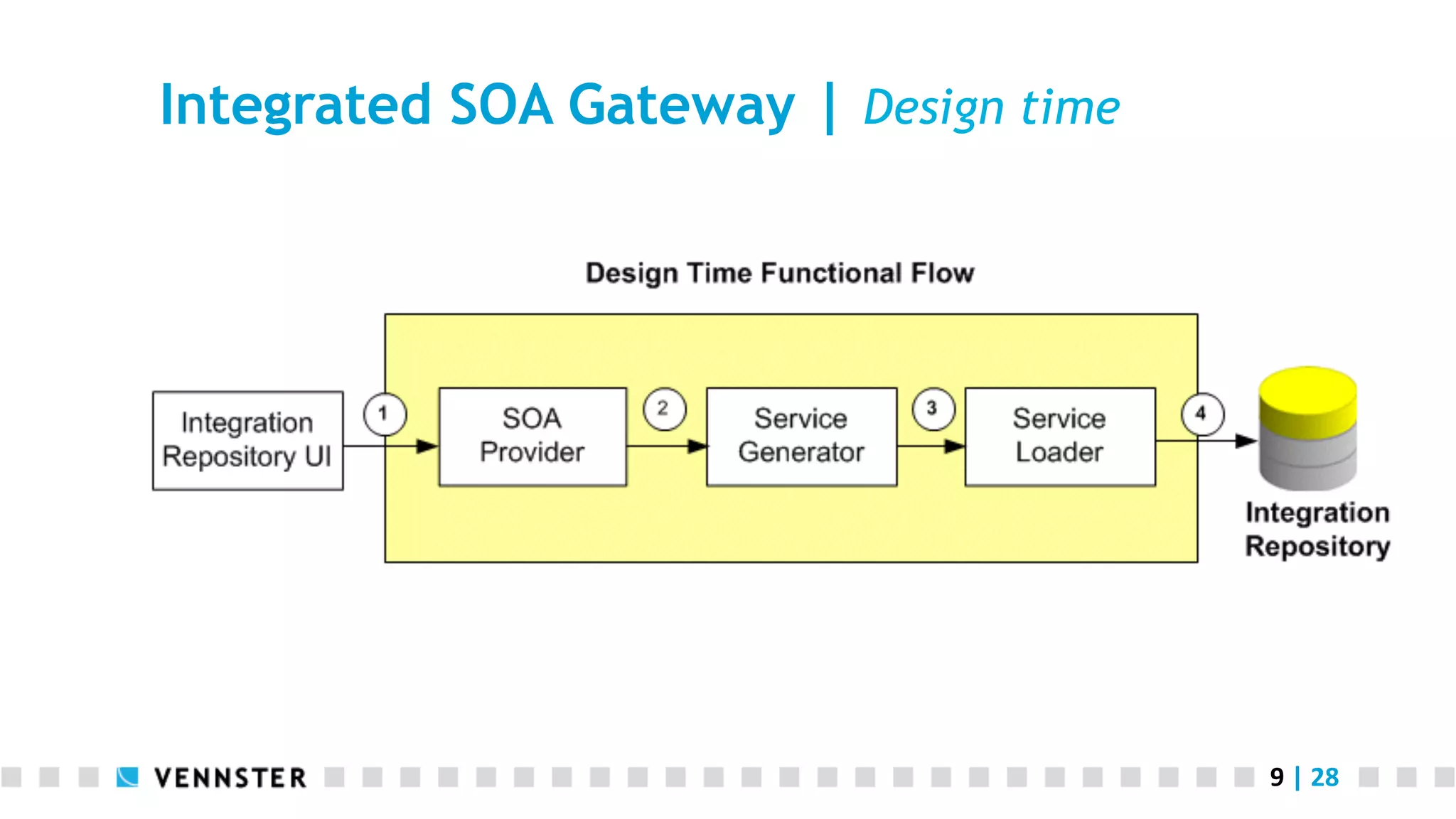

Integrated SOA Gateway | Design time

10. 10
|
28

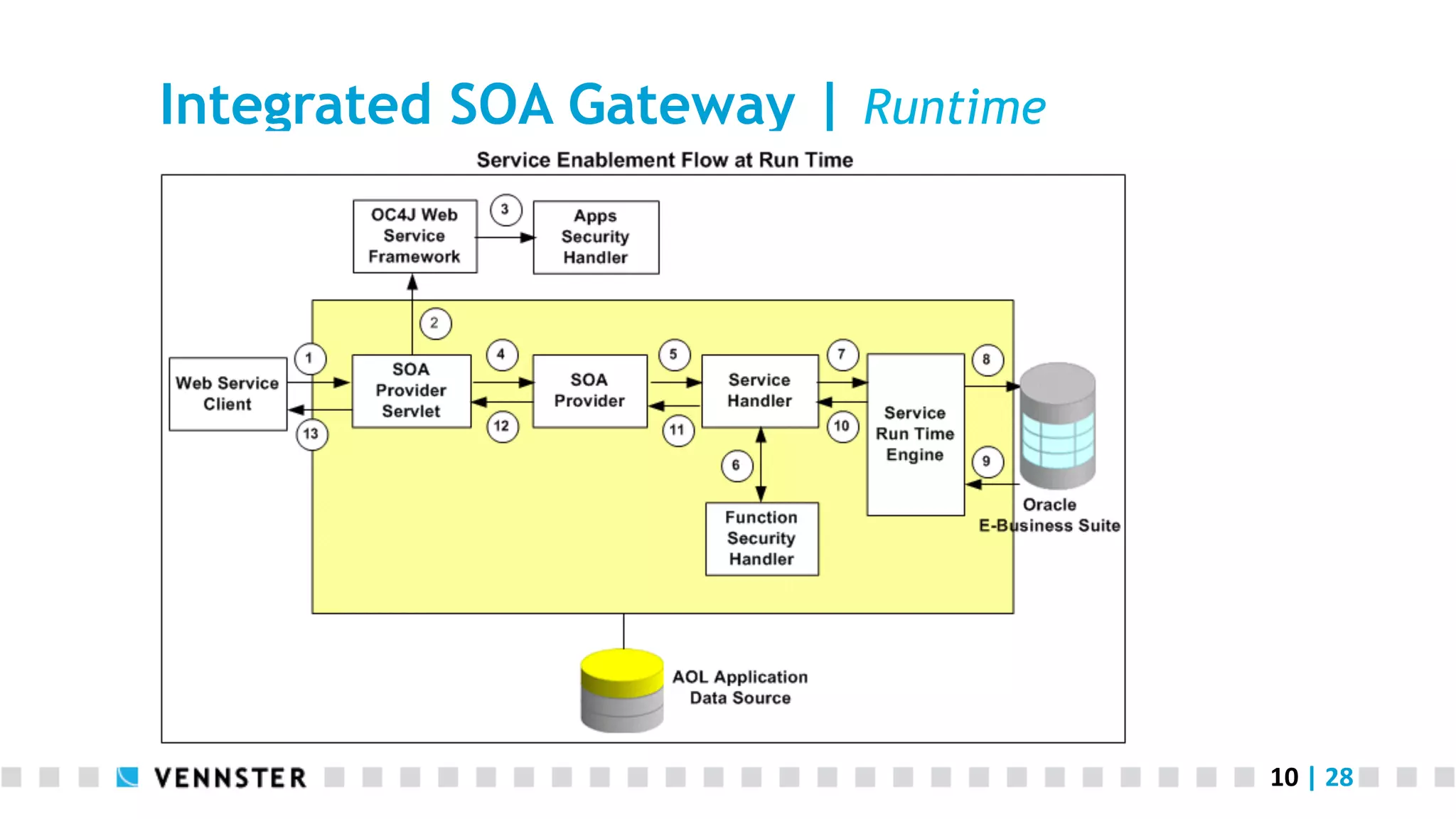

Integrated SOA Gateway | Runtime

11. 11
|
28

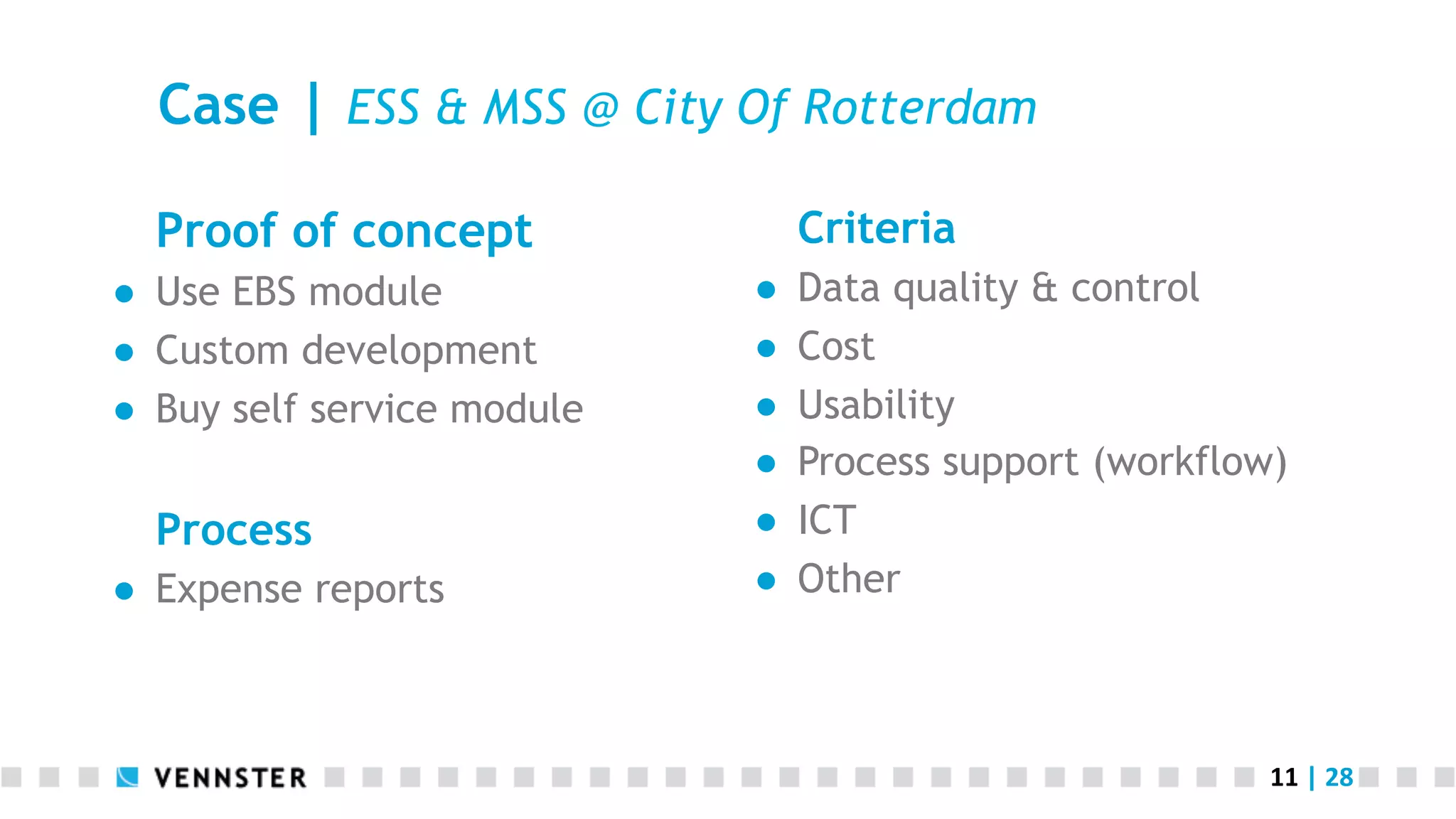

Case | ESS & MSS @ City Of Rotterdam
Proof of concept
● Use EBS module
● Custom development
● Buy self service module
Process
● Expense reports
Criteria
● Data quality & control
● Cost
● Usability
● Process support (workflow)
● ICT
● Other

12. 12
|
28

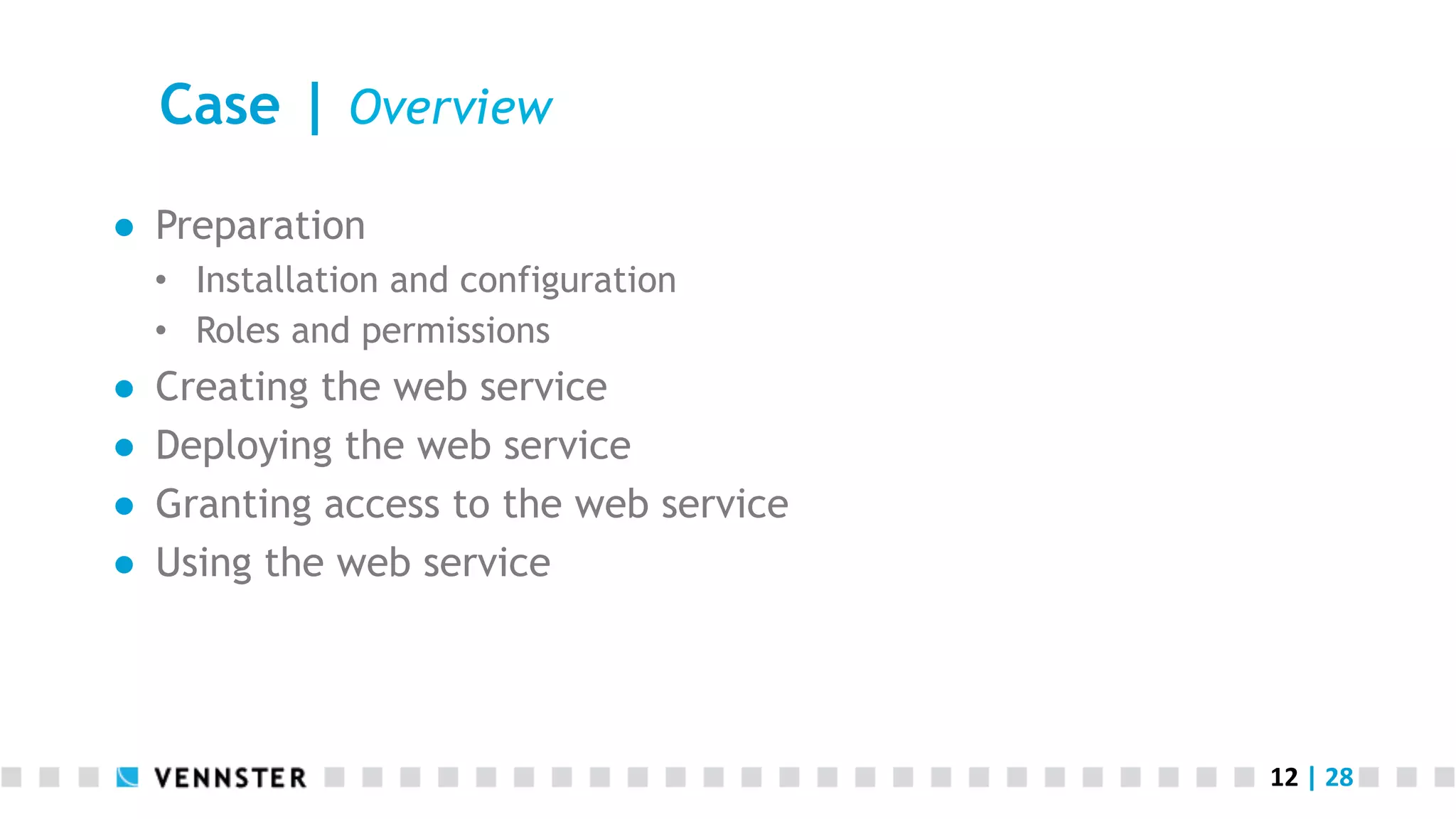

Case | Overview
● Preparation
• Installation and configuration
• Roles and permissions
● Creating the web service
● Deploying the web service
● Granting access to the web service
● Using the web service

13. 13
|
28

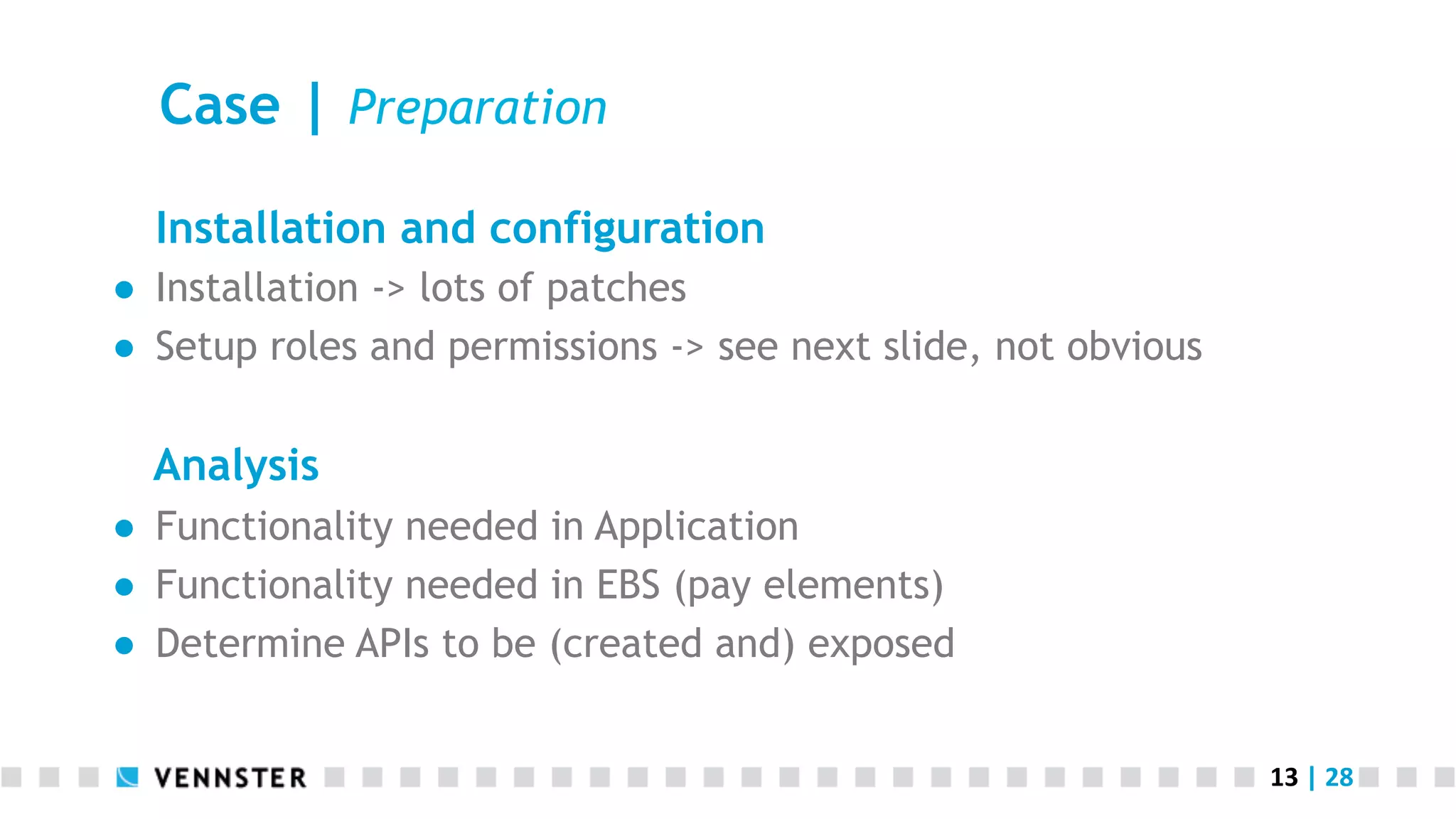

Case | Preparation
Installation and configuration
● Installation -> lots of patches
● Setup roles and permissions -> see next slide, not obvious
Analysis
● Functionality needed in Application
● Functionality needed in EBS (pay elements)
● Determine APIs to be (created and) exposed

14. 14
|
28

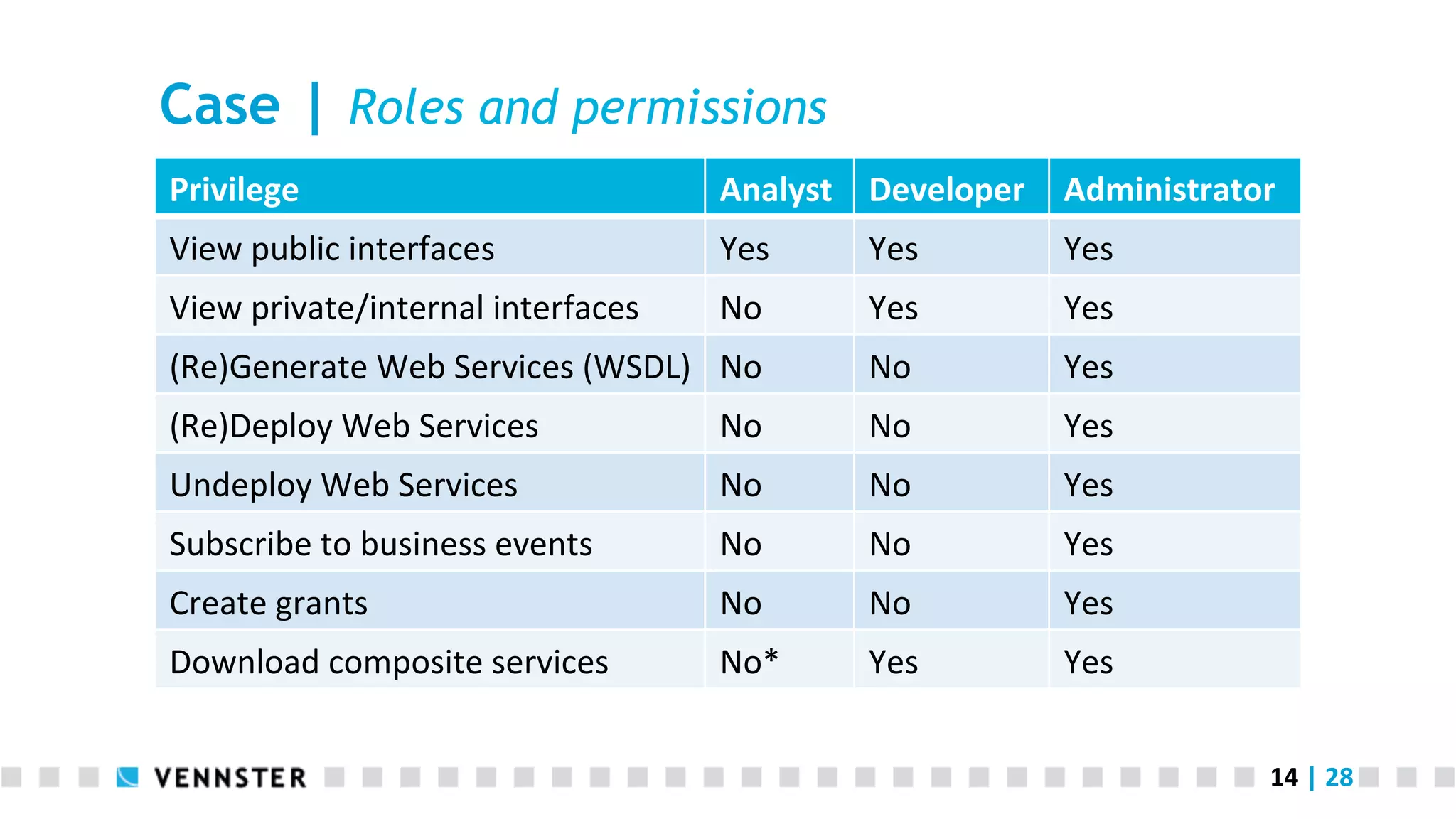

Case | Roles and permissions
Privilege
Analyst
Developer
Administrator
View
public
interfaces
Yes
Yes
Yes
View
private/internal
interfaces
No
Yes
Yes
(Re)Generate
Web
Services
(WSDL)
No
No
Yes
(Re)Deploy
Web
Services
No
No
Yes
Undeploy
Web
Services
No
No
Yes
Subscribe
to
business
events
No
No
Yes
Create
grants
No
No
Yes
Download
composite
services
No*
Yes
Yes

15. 15
|
28

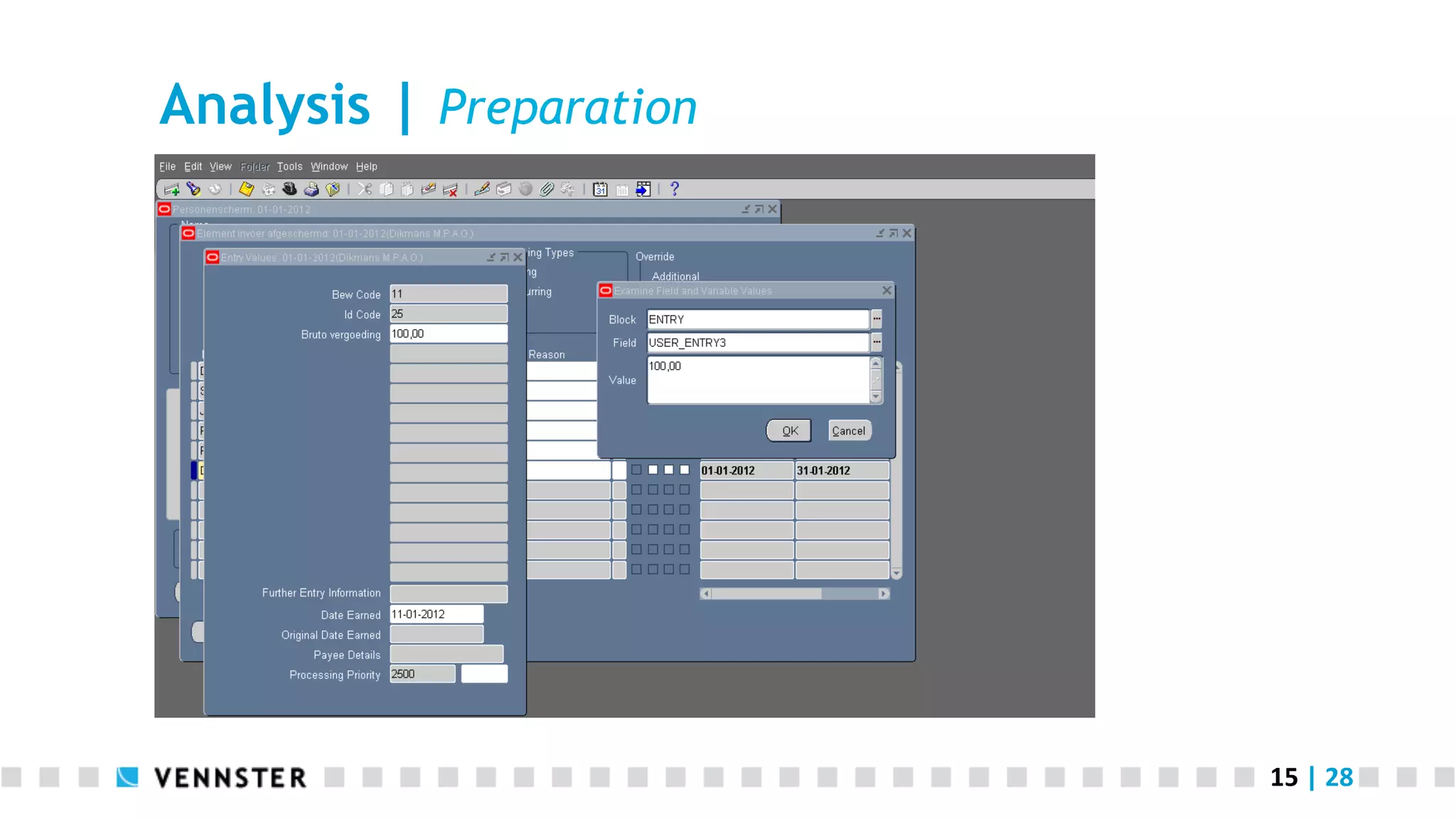

Analysis | Preparation

16. 16
|
28

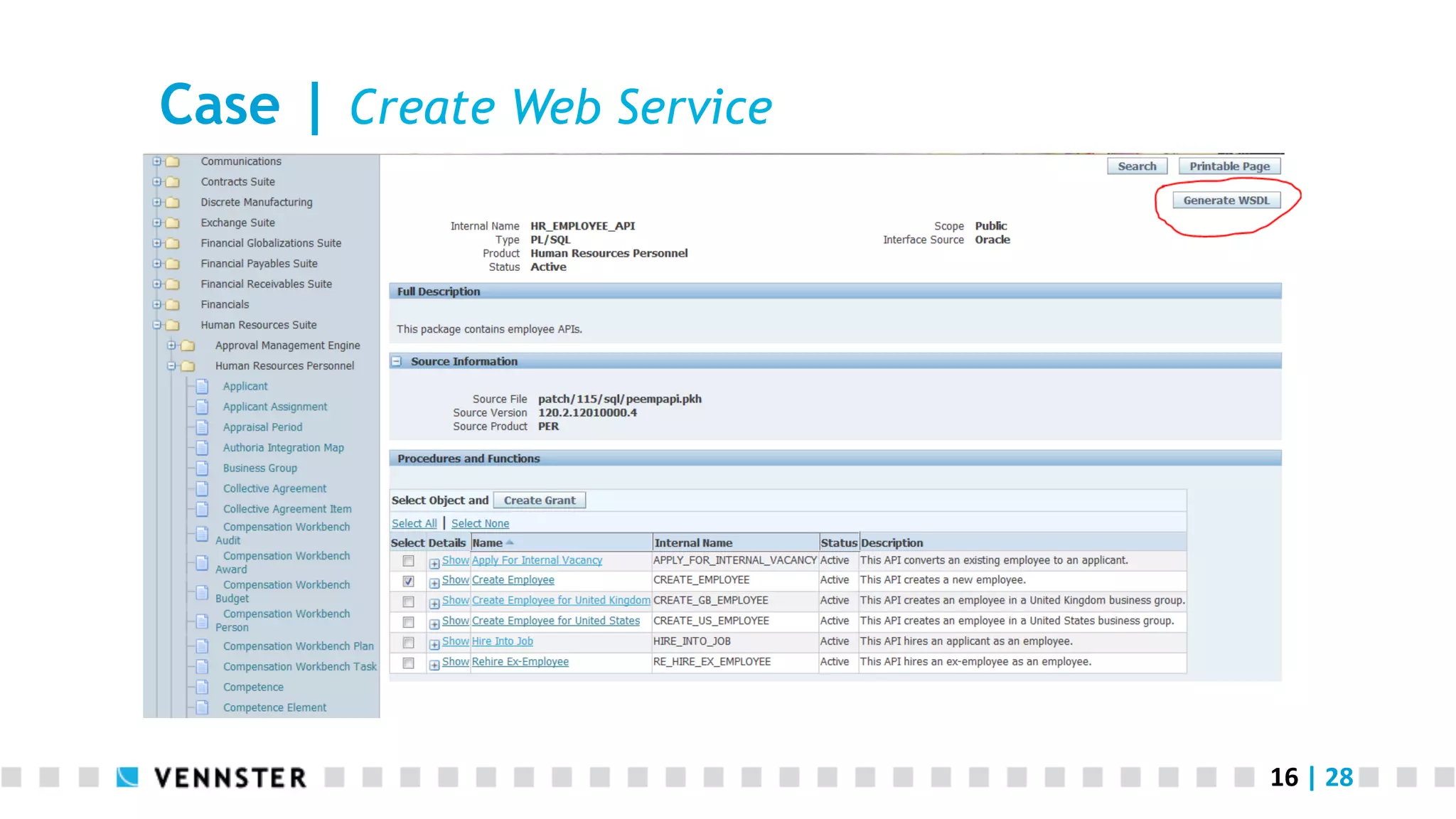

Case | Create Web Service

17. 17
|
28

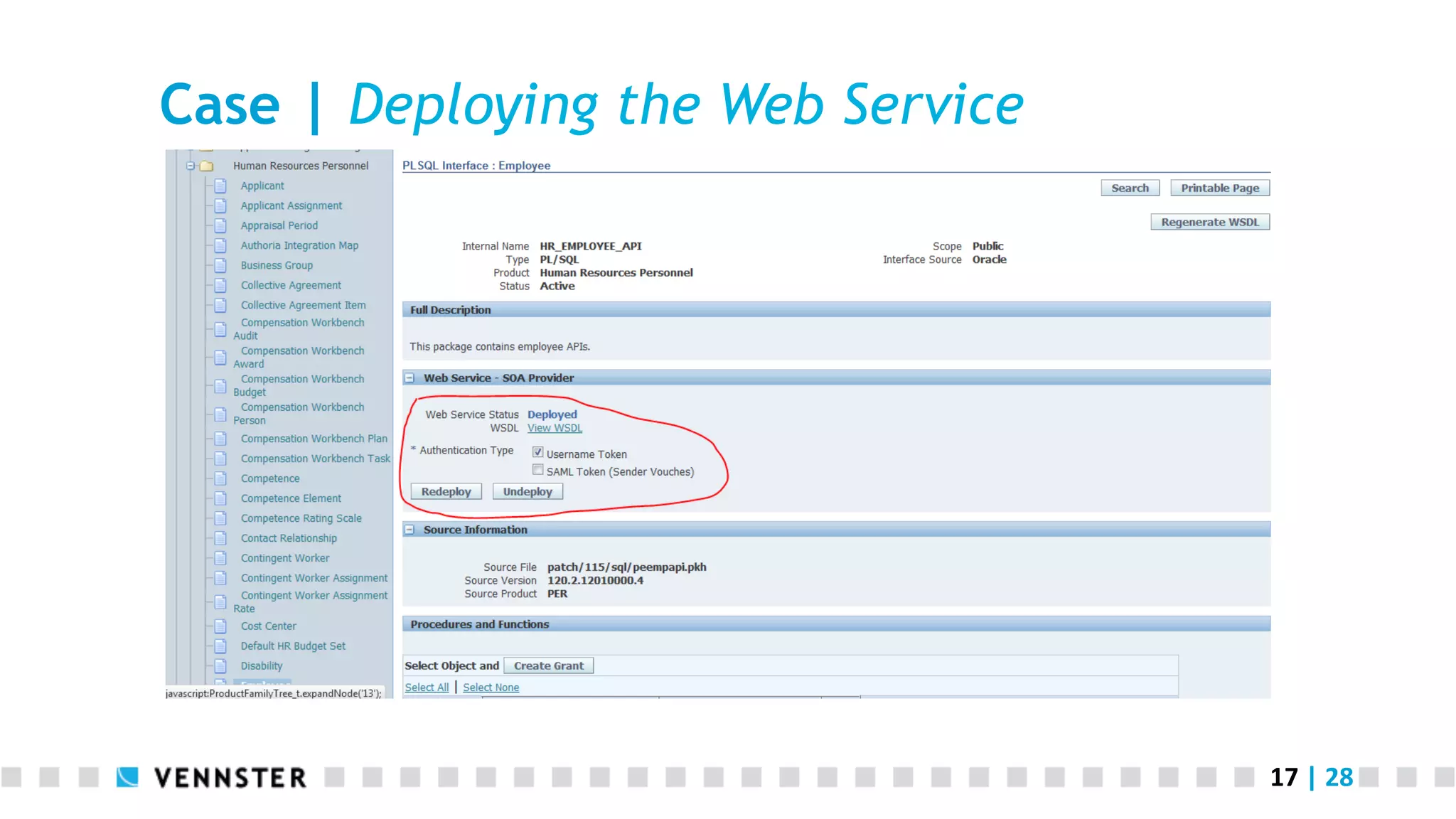

Case | Deploying the Web Service

18. 18
|
28

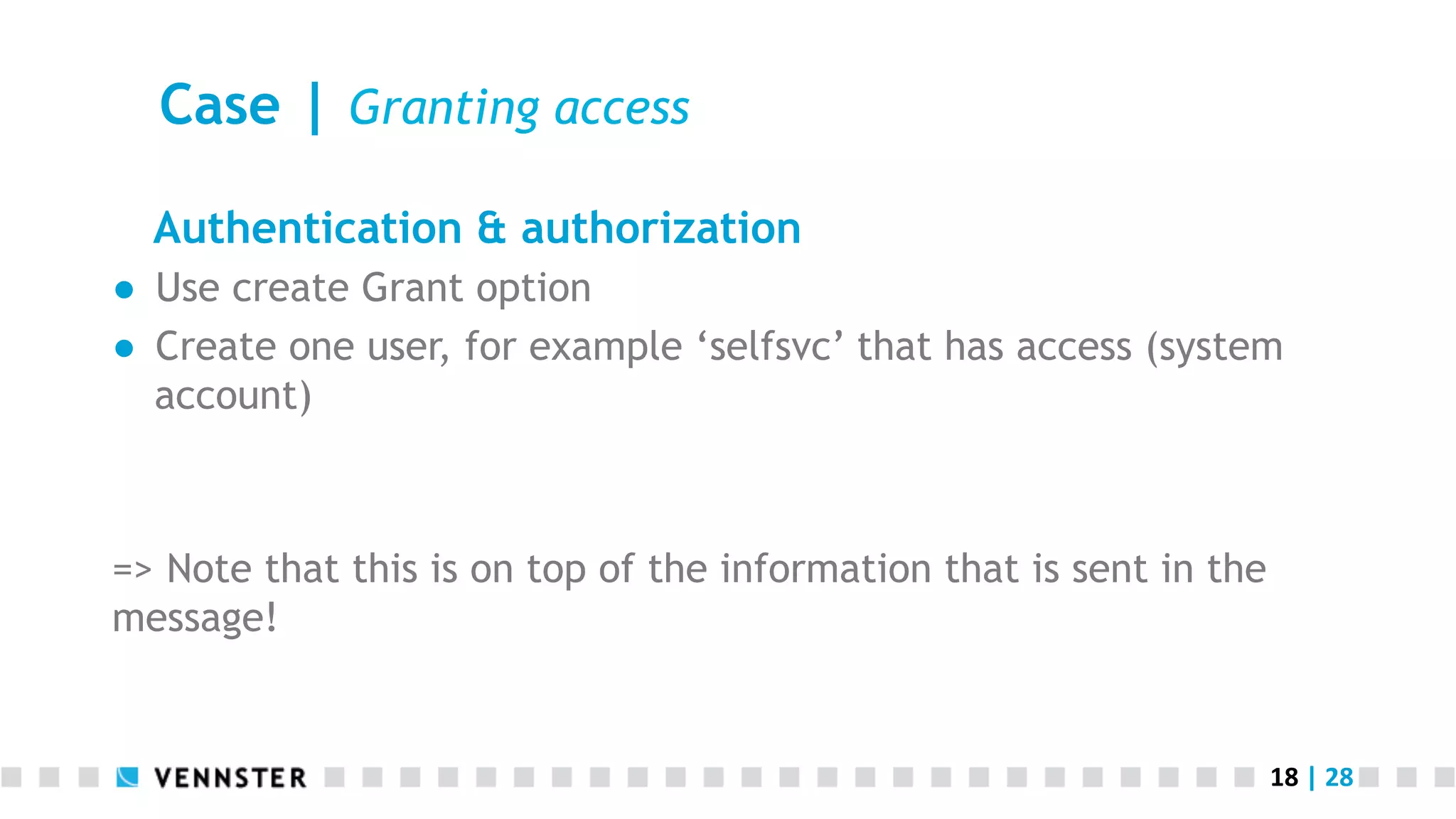

Case | Granting access
Authentication & authorization
● Use create Grant option
● Create one user, for example ‘selfsvc’ that has access (system
account)
=> Note that this is on top of the information that is sent in the
message!

19. 19
|
28

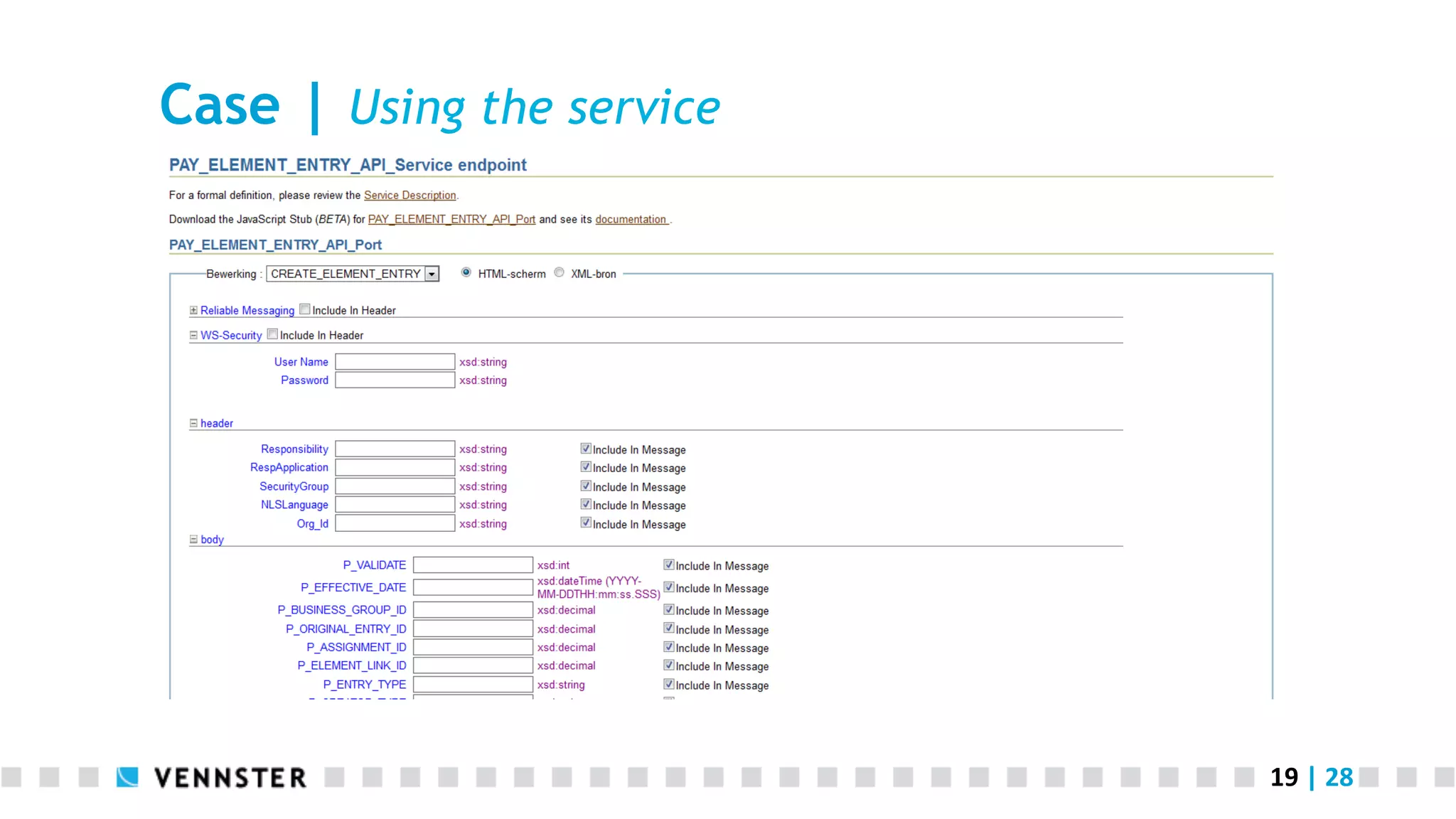

Case | Using the service

20. 20
|
28

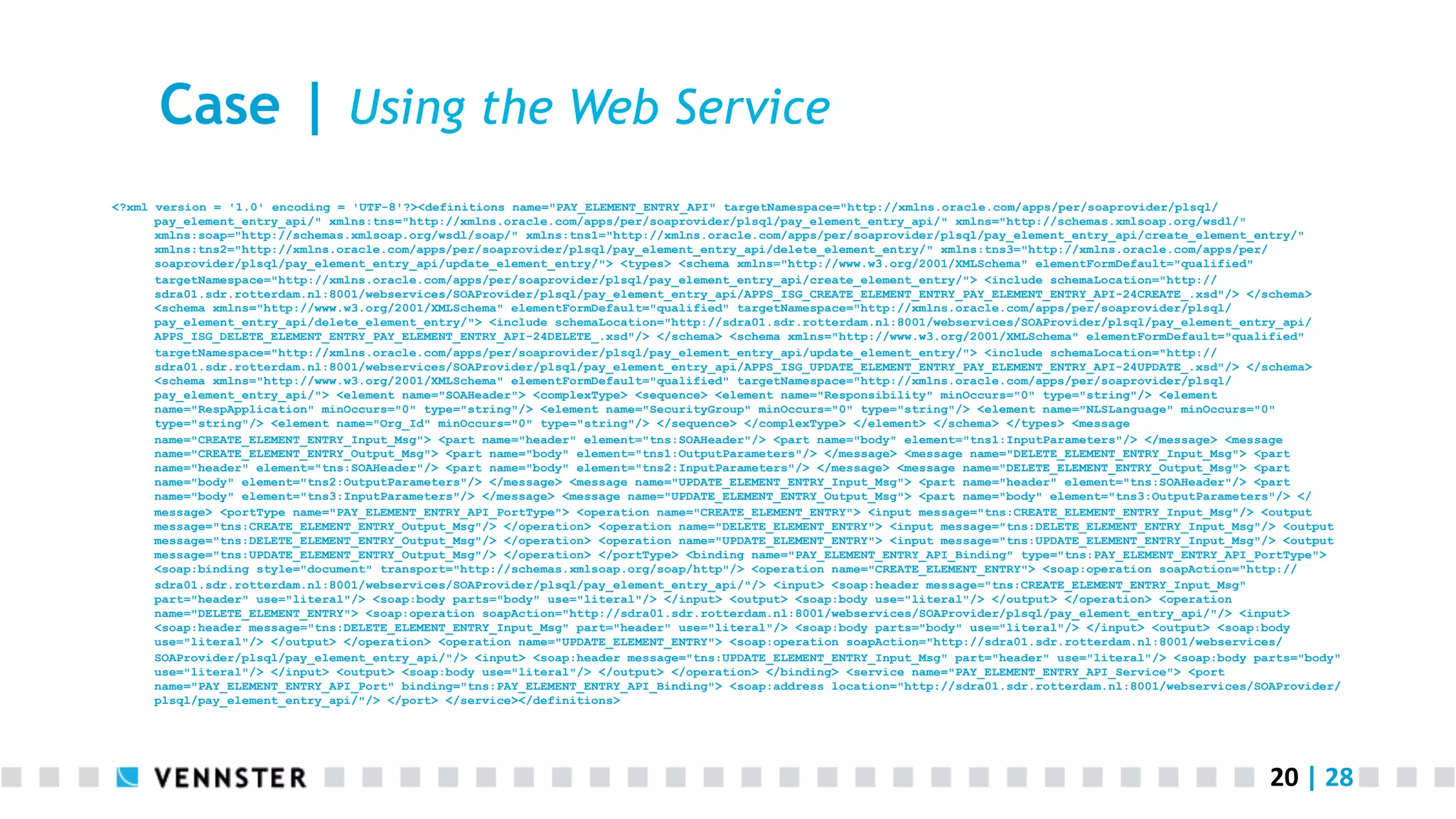

Case | Using the Web Service
<?xml version = '1.0' encoding = 'UTF-8'?><definitions name="PAY_ELEMENT_ENTRY_API" targetNamespace="http://xmlns.oracle.com/apps/per/soaprovider/plsql/
pay_element_entry_api/" xmlns:tns="http://xmlns.oracle.com/apps/per/soaprovider/plsql/pay_element_entry_api/" xmlns="http://schemas.xmlsoap.org/wsdl/"
xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:tns1="http://xmlns.oracle.com/apps/per/soaprovider/plsql/pay_element_entry_api/create_element_entry/"
xmlns:tns2="http://xmlns.oracle.com/apps/per/soaprovider/plsql/pay_element_entry_api/delete_element_entry/" xmlns:tns3="http://xmlns.oracle.com/apps/per/
soaprovider/plsql/pay_element_entry_api/update_element_entry/"> <types> <schema xmlns="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified"
targetNamespace="http://xmlns.oracle.com/apps/per/soaprovider/plsql/pay_element_entry_api/create_element_entry/"> <include schemaLocation="http://
sdra01.sdr.rotterdam.nl:8001/webservices/SOAProvider/plsql/pay_element_entry_api/APPS_ISG_CREATE_ELEMENT_ENTRY_PAY_ELEMENT_ENTRY_API-24CREATE_.xsd"/> </schema>
<schema xmlns="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified" targetNamespace="http://xmlns.oracle.com/apps/per/soaprovider/plsql/
pay_element_entry_api/delete_element_entry/"> <include schemaLocation="http://sdra01.sdr.rotterdam.nl:8001/webservices/SOAProvider/plsql/pay_element_entry_api/
APPS_ISG_DELETE_ELEMENT_ENTRY_PAY_ELEMENT_ENTRY_API-24DELETE_.xsd"/> </schema> <schema xmlns="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified"
targetNamespace="http://xmlns.oracle.com/apps/per/soaprovider/plsql/pay_element_entry_api/update_element_entry/"> <include schemaLocation="http://
sdra01.sdr.rotterdam.nl:8001/webservices/SOAProvider/plsql/pay_element_entry_api/APPS_ISG_UPDATE_ELEMENT_ENTRY_PAY_ELEMENT_ENTRY_API-24UPDATE_.xsd"/> </schema>
<schema xmlns="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified" targetNamespace="http://xmlns.oracle.com/apps/per/soaprovider/plsql/
pay_element_entry_api/"> <element name="SOAHeader"> <complexType> <sequence> <element name="Responsibility" minOccurs="0" type="string"/> <element
name="RespApplication" minOccurs="0" type="string"/> <element name="SecurityGroup" minOccurs="0" type="string"/> <element name="NLSLanguage" minOccurs="0"
type="string"/> <element name="Org_Id" minOccurs="0" type="string"/> </sequence> </complexType> </element> </schema> </types> <message
name="CREATE_ELEMENT_ENTRY_Input_Msg"> <part name="header" element="tns:SOAHeader"/> <part name="body" element="tns1:InputParameters"/> </message> <message
name="CREATE_ELEMENT_ENTRY_Output_Msg"> <part name="body" element="tns1:OutputParameters"/> </message> <message name="DELETE_ELEMENT_ENTRY_Input_Msg"> <part
name="header" element="tns:SOAHeader"/> <part name="body" element="tns2:InputParameters"/> </message> <message name="DELETE_ELEMENT_ENTRY_Output_Msg"> <part
name="body" element="tns2:OutputParameters"/> </message> <message name="UPDATE_ELEMENT_ENTRY_Input_Msg"> <part name="header" element="tns:SOAHeader"/> <part
name="body" element="tns3:InputParameters"/> </message> <message name="UPDATE_ELEMENT_ENTRY_Output_Msg"> <part name="body" element="tns3:OutputParameters"/> </
message> <portType name="PAY_ELEMENT_ENTRY_API_PortType"> <operation name="CREATE_ELEMENT_ENTRY"> <input message="tns:CREATE_ELEMENT_ENTRY_Input_Msg"/> <output
message="tns:CREATE_ELEMENT_ENTRY_Output_Msg"/> </operation> <operation name="DELETE_ELEMENT_ENTRY"> <input message="tns:DELETE_ELEMENT_ENTRY_Input_Msg"/> <output
message="tns:DELETE_ELEMENT_ENTRY_Output_Msg"/> </operation> <operation name="UPDATE_ELEMENT_ENTRY"> <input message="tns:UPDATE_ELEMENT_ENTRY_Input_Msg"/> <output
message="tns:UPDATE_ELEMENT_ENTRY_Output_Msg"/> </operation> </portType> <binding name="PAY_ELEMENT_ENTRY_API_Binding" type="tns:PAY_ELEMENT_ENTRY_API_PortType">
<soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/> <operation name="CREATE_ELEMENT_ENTRY"> <soap:operation soapAction="http://
sdra01.sdr.rotterdam.nl:8001/webservices/SOAProvider/plsql/pay_element_entry_api/"/> <input> <soap:header message="tns:CREATE_ELEMENT_ENTRY_Input_Msg"
part="header" use="literal"/> <soap:body parts="body" use="literal"/> </input> <output> <soap:body use="literal"/> </output> </operation> <operation
name="DELETE_ELEMENT_ENTRY"> <soap:operation soapAction="http://sdra01.sdr.rotterdam.nl:8001/webservices/SOAProvider/plsql/pay_element_entry_api/"/> <input>
<soap:header message="tns:DELETE_ELEMENT_ENTRY_Input_Msg" part="header" use="literal"/> <soap:body parts="body" use="literal"/> </input> <output> <soap:body
use="literal"/> </output> </operation> <operation name="UPDATE_ELEMENT_ENTRY"> <soap:operation soapAction="http://sdra01.sdr.rotterdam.nl:8001/webservices/
SOAProvider/plsql/pay_element_entry_api/"/> <input> <soap:header message="tns:UPDATE_ELEMENT_ENTRY_Input_Msg" part="header" use="literal"/> <soap:body parts="body"
use="literal"/> </input> <output> <soap:body use="literal"/> </output> </operation> </binding> <service name="PAY_ELEMENT_ENTRY_API_Service"> <port
name="PAY_ELEMENT_ENTRY_API_Port" binding="tns:PAY_ELEMENT_ENTRY_API_Binding"> <soap:address location="http://sdra01.sdr.rotterdam.nl:8001/webservices/SOAProvider/
plsql/pay_element_entry_api/"/> </port> </service></definitions>

21. 21
|
28

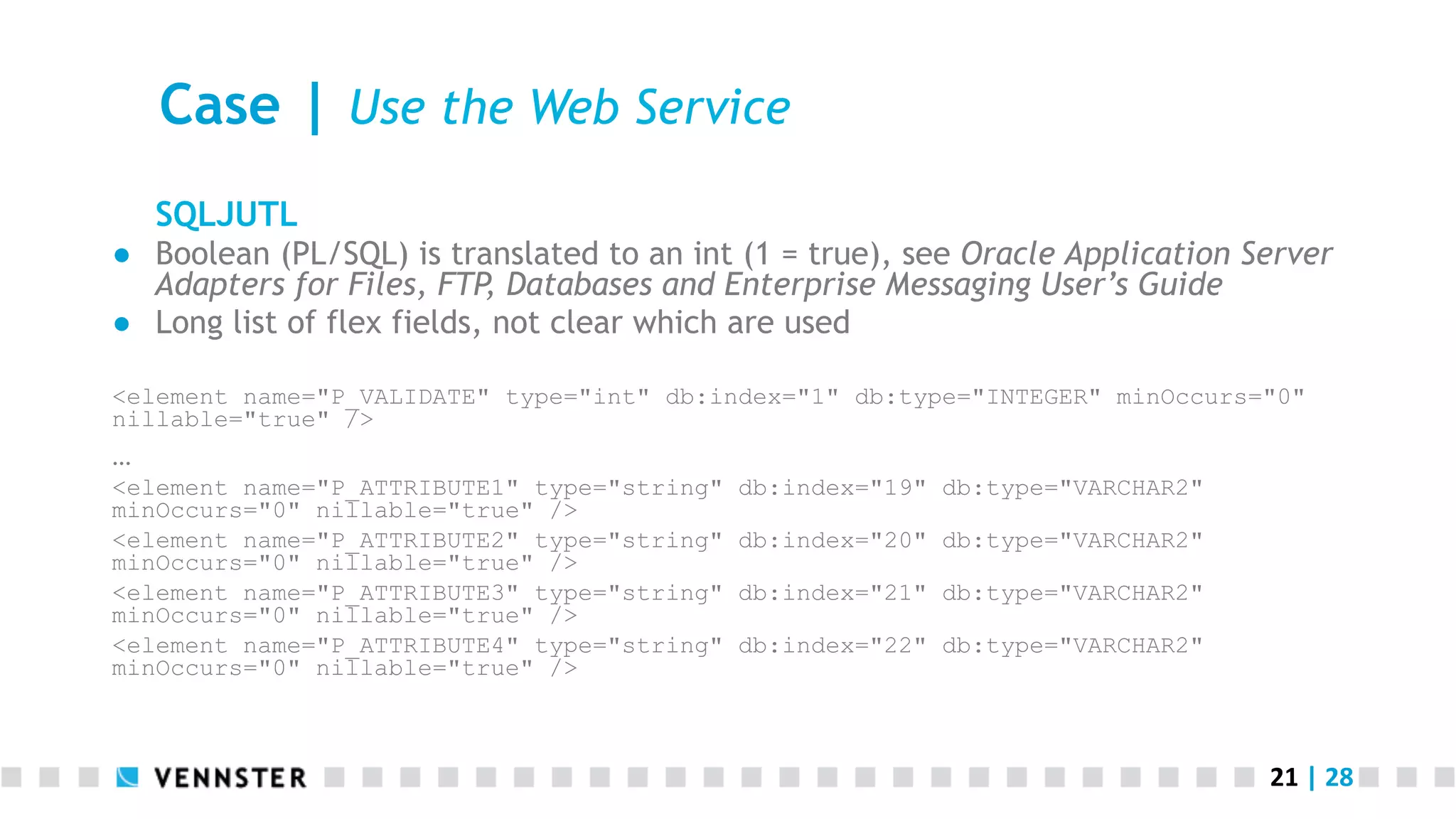

Case | Use the Web Service
SQLJUTL
● Boolean (PL/SQL) is translated to an int (1 = true), see Oracle Application Server
Adapters for Files, FTP, Databases and Enterprise Messaging User’s Guide
● Long list of flex fields, not clear which are used
<element name="P_VALIDATE" type="int" db:index="1" db:type="INTEGER" minOccurs="0"
nillable="true" />
…
<element name="P_ATTRIBUTE1" type="string" db:index="19" db:type="VARCHAR2"
minOccurs="0" nillable="true" />
<element name="P_ATTRIBUTE2" type="string" db:index="20" db:type="VARCHAR2"
minOccurs="0" nillable="true" />
<element name="P_ATTRIBUTE3" type="string" db:index="21" db:type="VARCHAR2"
minOccurs="0" nillable="true" />
<element name="P_ATTRIBUTE4" type="string" db:index="22" db:type="VARCHAR2"
minOccurs="0" nillable="true" />

22. 22
|
28

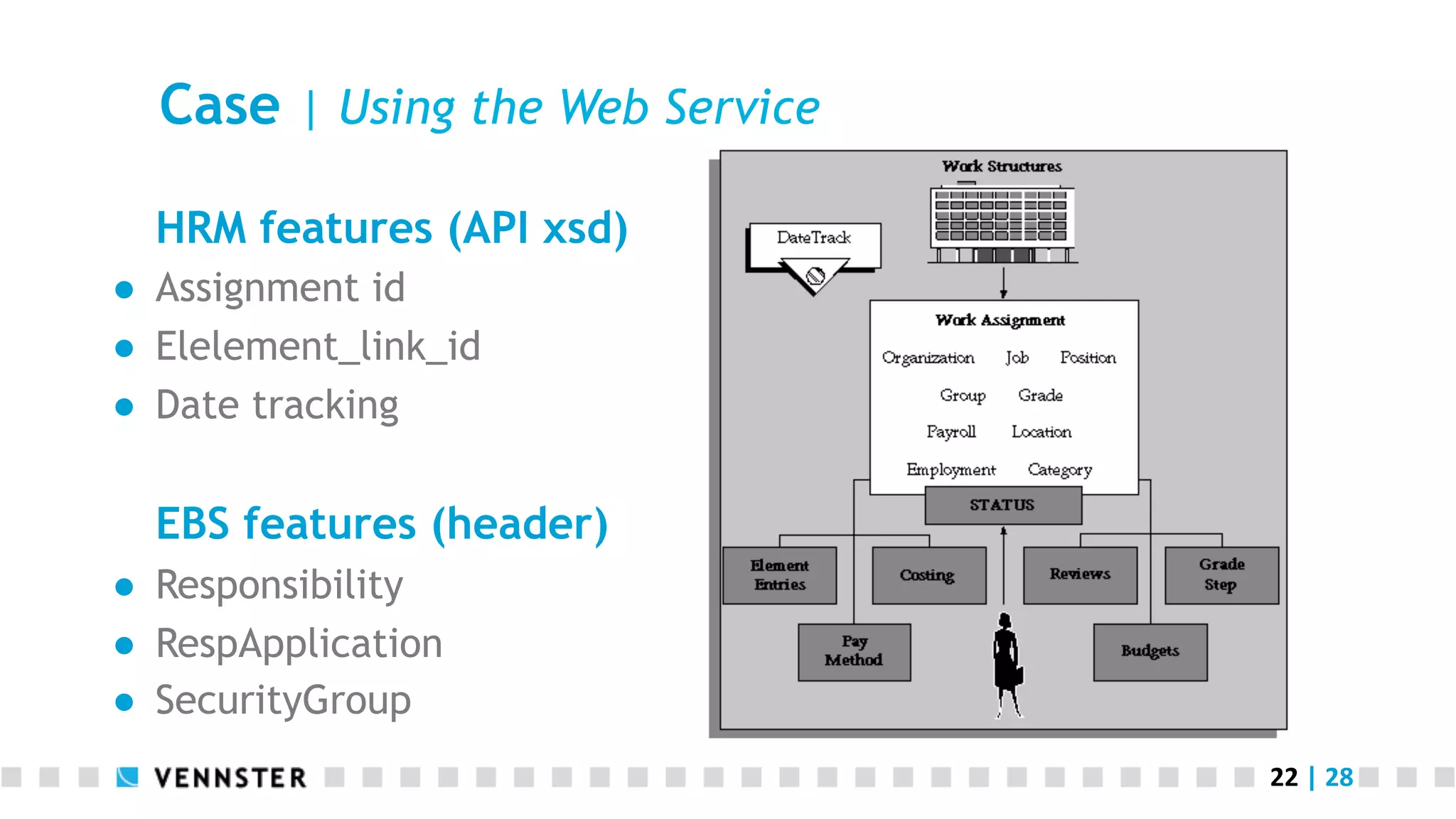

Case | Using the Web Service
HRM features (API xsd)
● Assignment id
● Elelement_link_id
● Date tracking
EBS features (header)
● Responsibility
● RespApplication
● SecurityGroup

23. 23
|
28

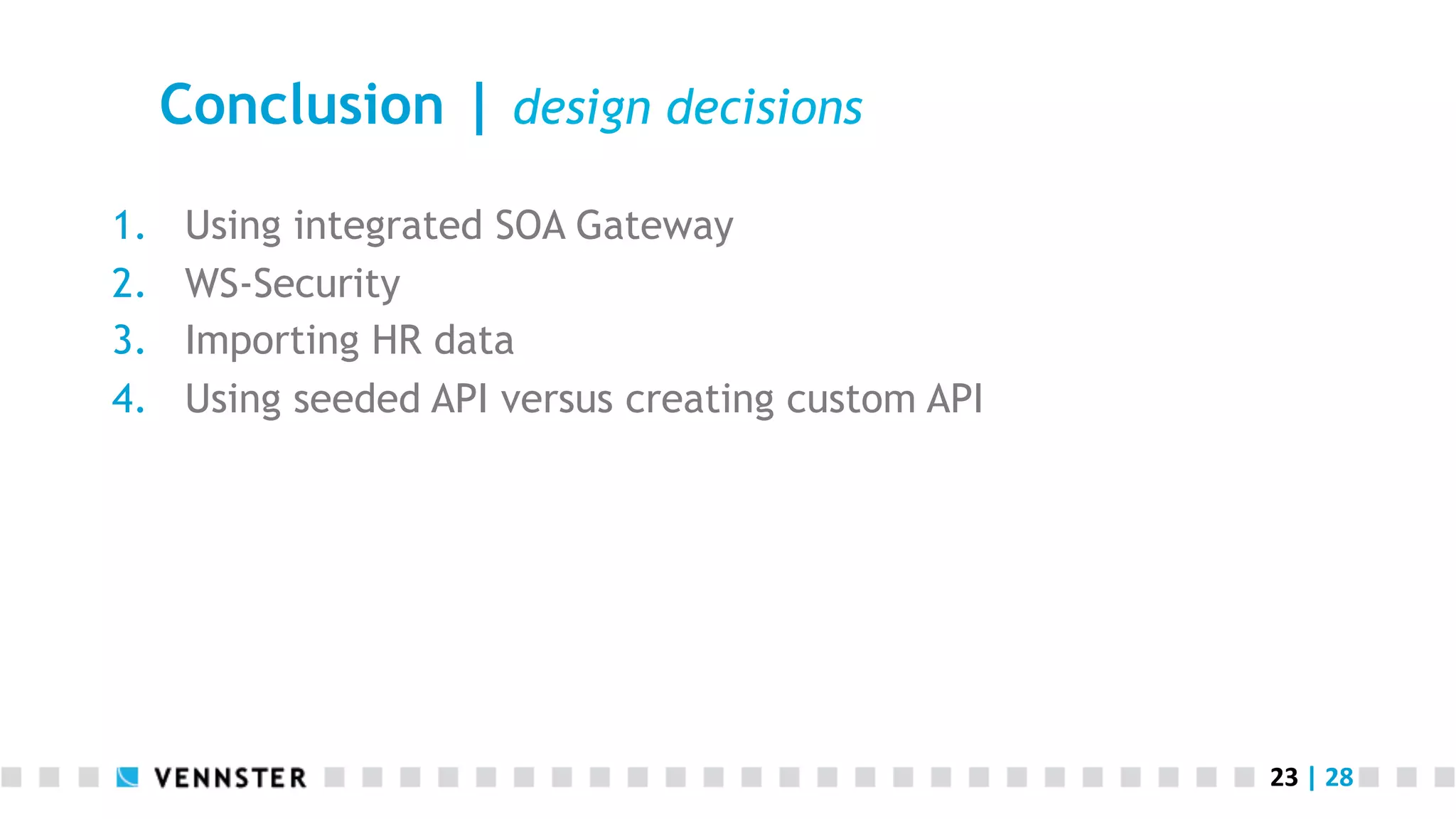

Conclusion | design decisions
1. Using integrated SOA Gateway
2. WS-Security
3. Importing HR data
4. Using seeded API versus creating custom API

24. 24
|
28

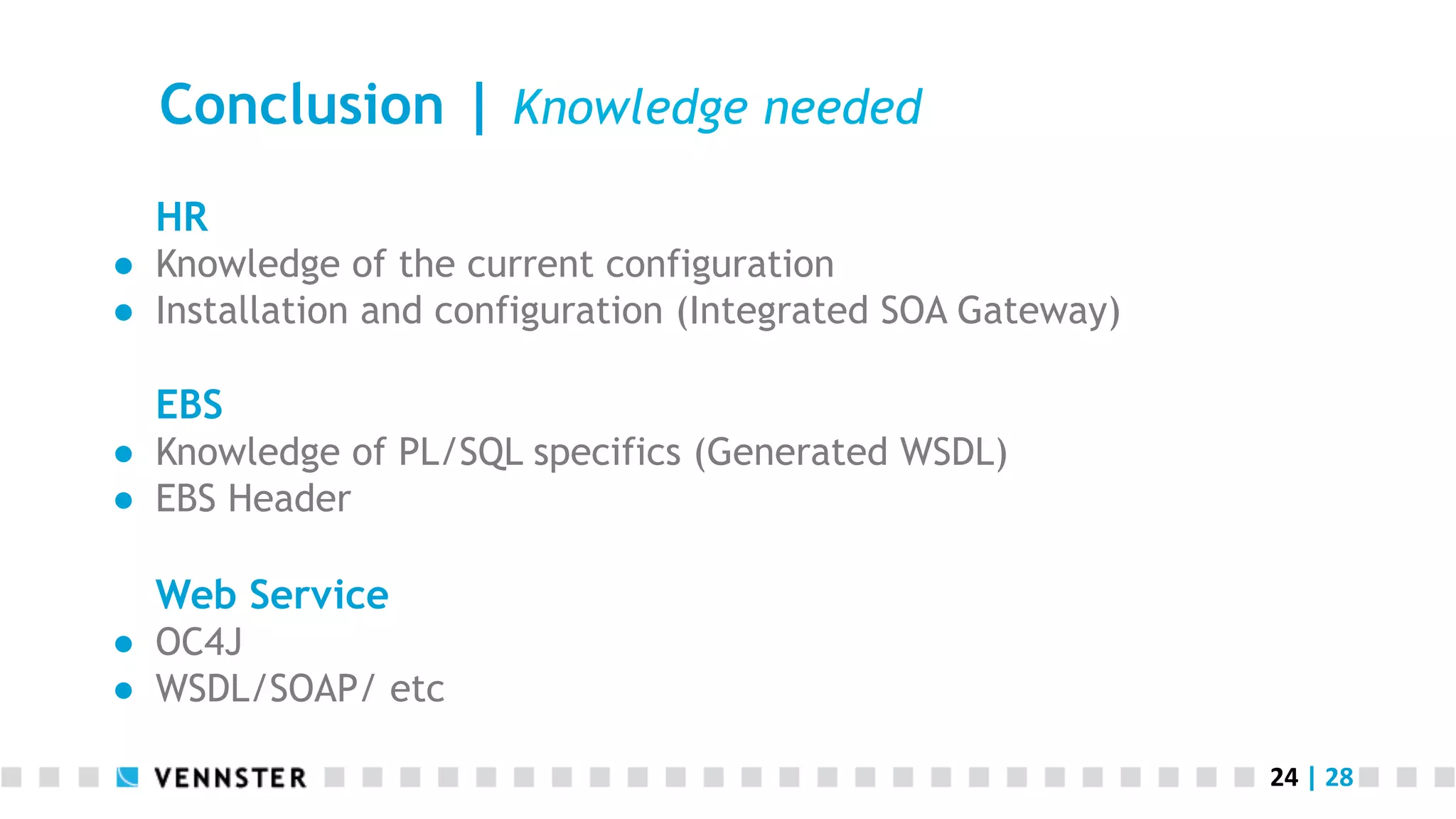

Conclusion | Knowledge needed
HR
● Knowledge of the current configuration
● Installation and configuration (Integrated SOA Gateway)
EBS
● Knowledge of PL/SQL specifics (Generated WSDL)
● EBS Header
Web Service
● OC4J
● WSDL/SOAP/ etc

25. 25
|
28

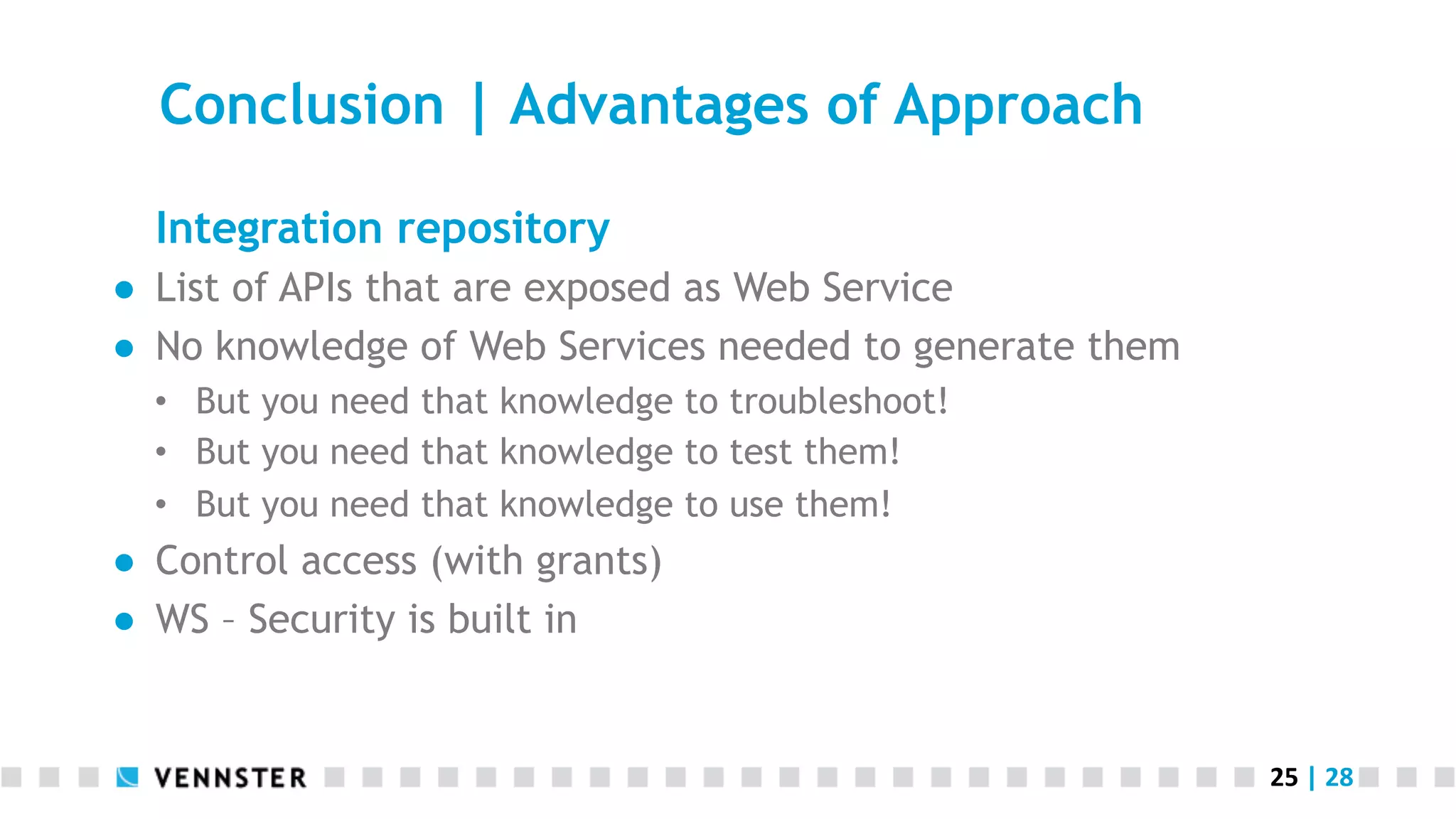

Conclusion | Advantages of Approach
Integration repository
● List of APIs that are exposed as Web Service
● No knowledge of Web Services needed to generate them
• But you need that knowledge to troubleshoot!
• But you need that knowledge to test them!
• But you need that knowledge to use them!
● Control access (with grants)
● WS – Security is built in

26. 26
|
28

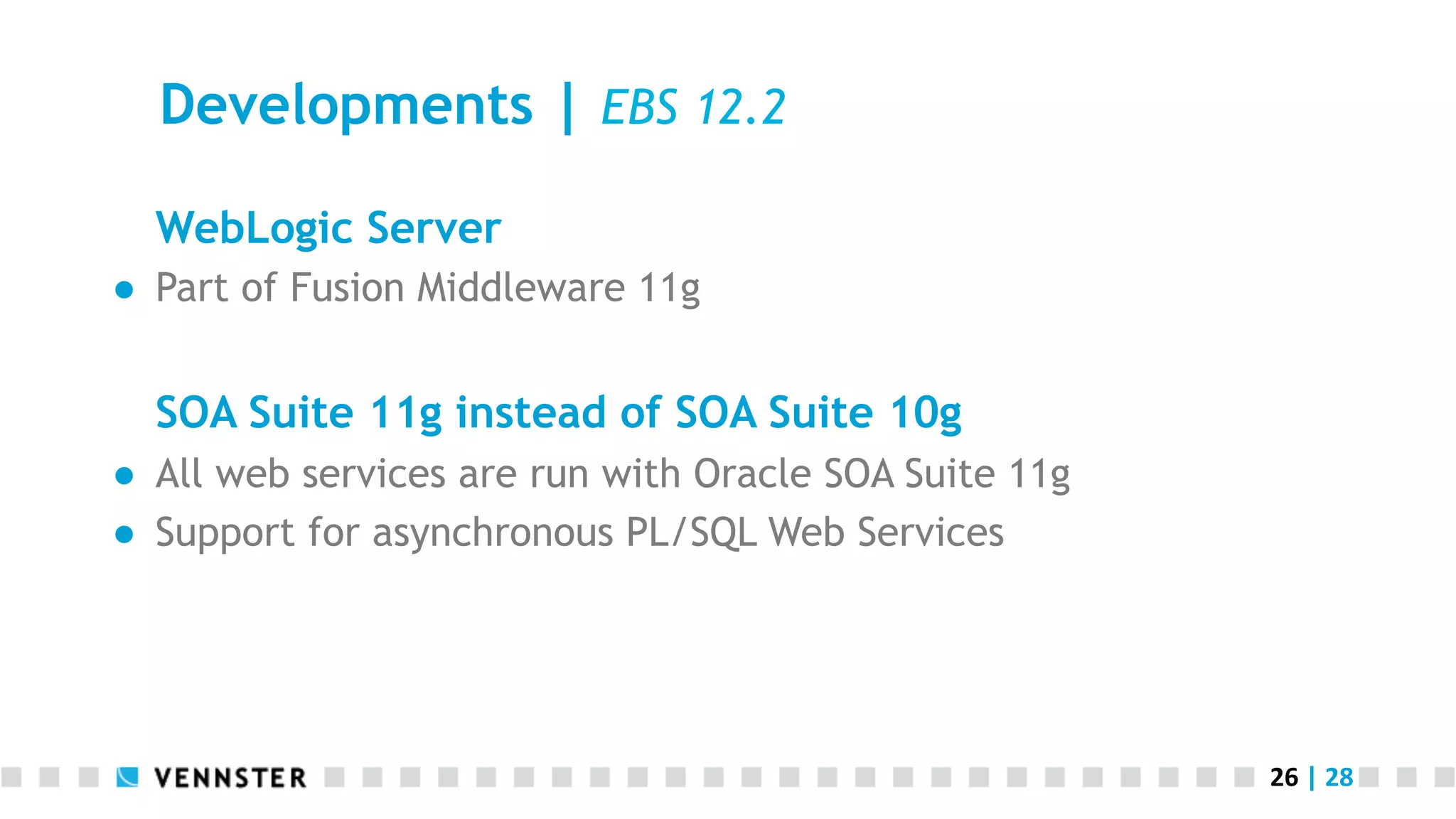

Developments | EBS 12.2
WebLogic Server
● Part of Fusion Middleware 11g
SOA Suite 11g instead of SOA Suite 10g
● All web services are run with Oracle SOA Suite 11g
● Support for asynchronous PL/SQL Web Services

27. 27
|
28

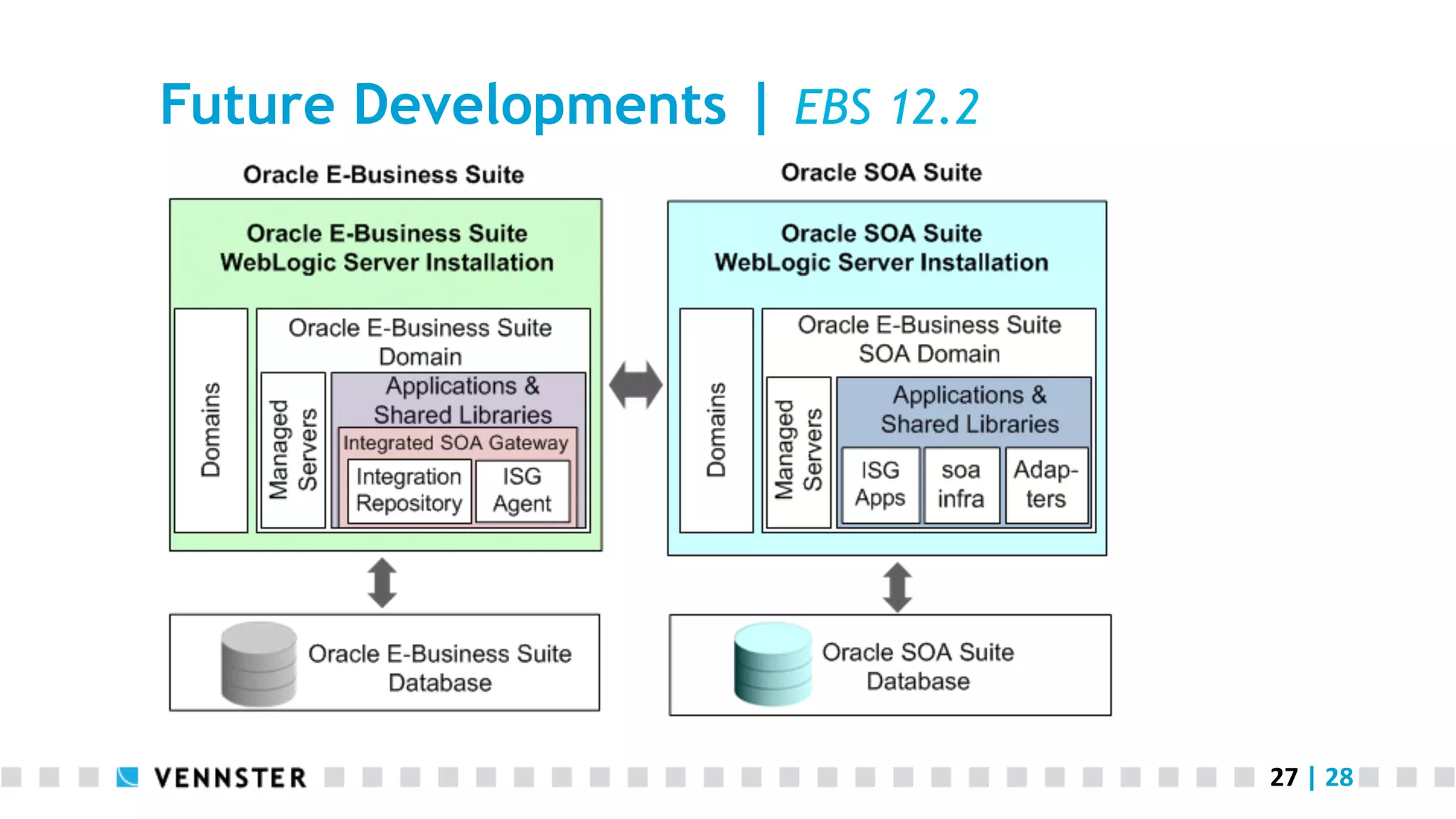

Future Developments | EBS 12.2

28. 28
|
28

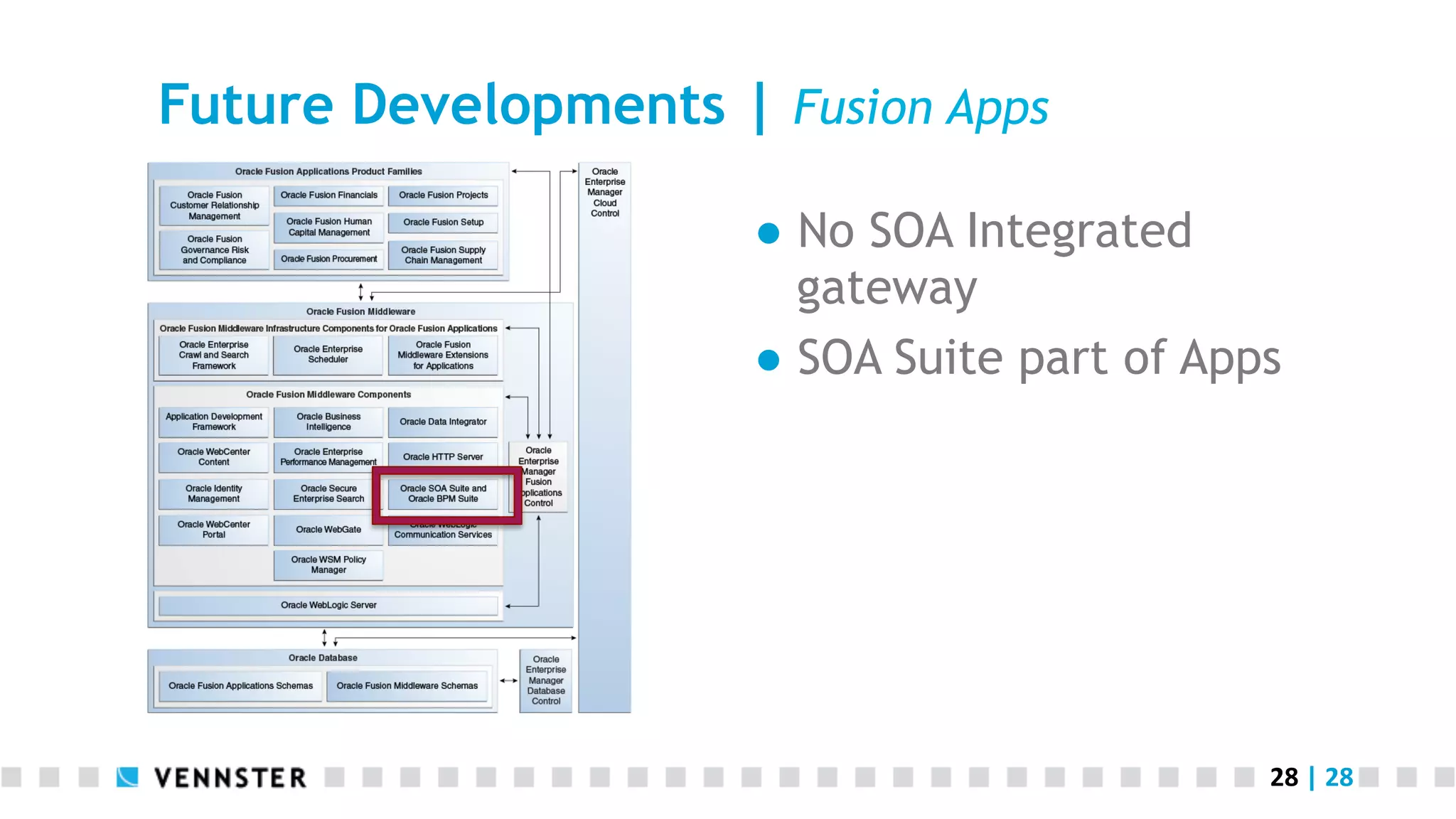

Future Developments | Fusion Apps
● No SOA Integrated
gateway
● SOA Suite part of Apps

29. 29
|
28
Report from the trenches:
Using SOA integrated gateway at the
city of Rotterdam
Lonneke Dikmans
October 15th 2013 | UKOUG Apps
