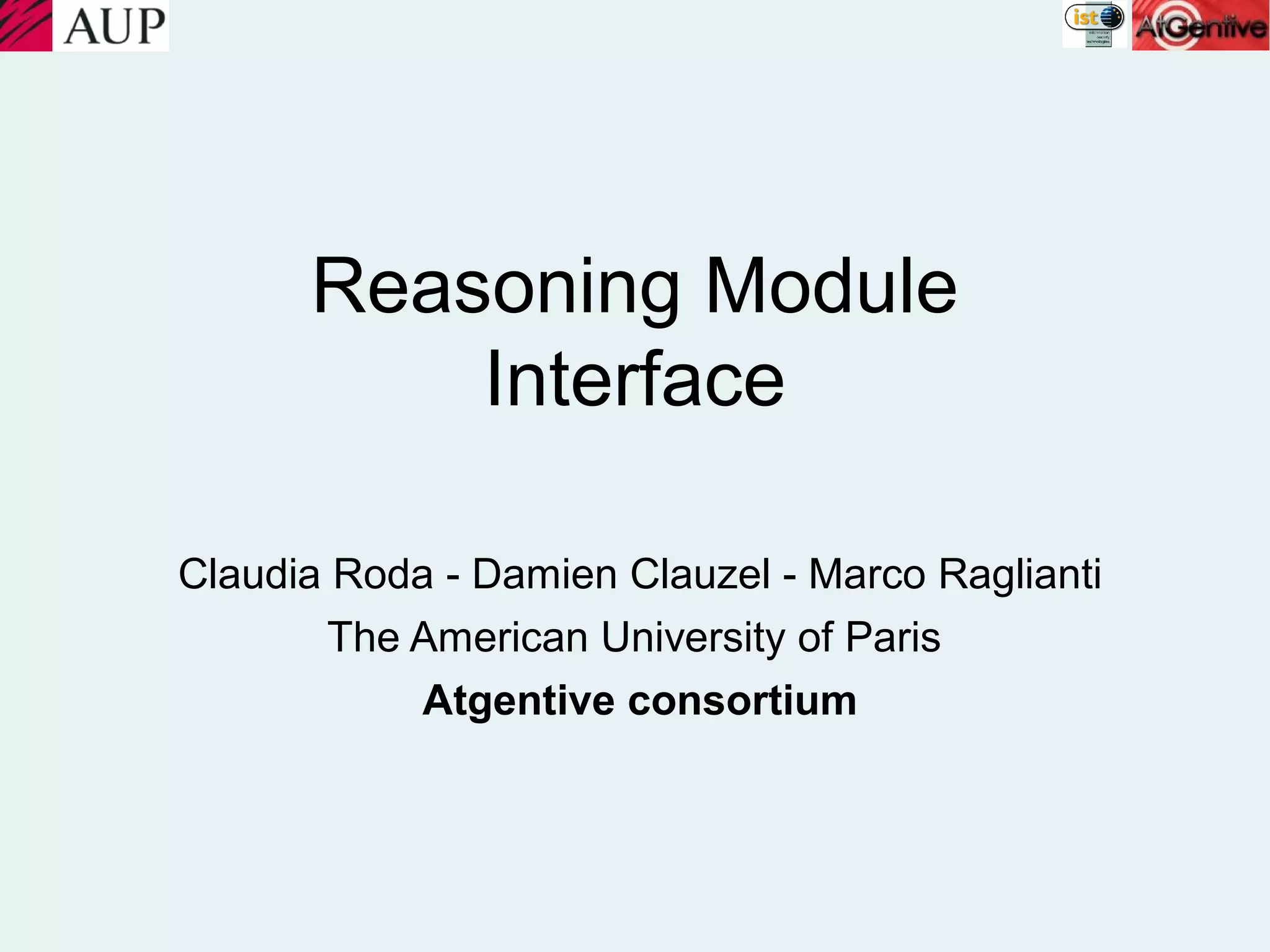

Communication interface and protocol for AtGentive's reasoning module

1. Reasoning Module
Interface
Claudia Roda - Damien Clauzel - Marco Raglianti
The American University of Paris
Atgentive consortium

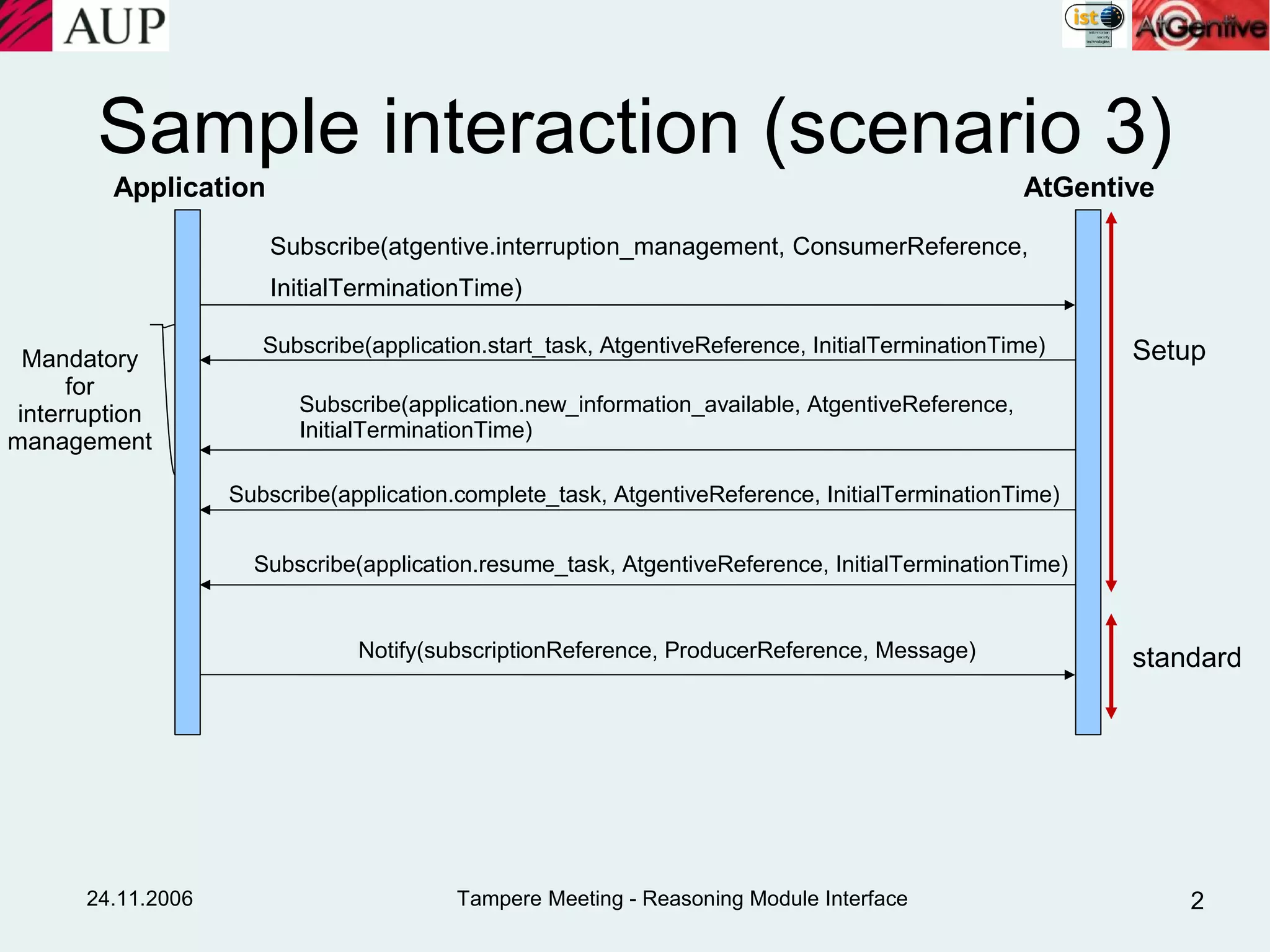

2. Sample interaction (scenario 3)
Application AtGentive
Subscribe(atgentive.interruption_management, ConsumerReference,
InitialTerminationTime)
Subscribe(application.start_task, AtgentiveReference, InitialTerminationTime) Setup
Mandatory
for
interruption Subscribe(application.new_information_available, AtgentiveReference,
InitialTerminationTime)
management
Subscribe(application.complete_task, AtgentiveReference, InitialTerminationTime)
Subscribe(application.resume_task, AtgentiveReference, InitialTerminationTime)
Notify(subscriptionReference, ProducerReference, Message) standard
24.11.2006 Tampere Meeting - Reasoning Module Interface 2

3. Set-up phase
• Subscriptions from Application to AtGentive
(service request)
 Conditioned to:
• Subscriptions from AtGentive to
Application (event notification request)

4. Supported notification services
●
Management of interruption on external event
●
Management of task urgency
●
Management of task continuation
●
Management of task feedback
●
Management of idle user
24.11.2006 Tampere Meeting - Reasoning Module Interface 4

5. Standard Exchange
●
From Application to AtGentive
Notify(subscriptionReference, ProducerReference, Message)
Where Message is an event
●
From AtGentive to Application
Notify(subscriptionReference, ProducerReference, Message)
…
Notify(subscriptionReference, ProducerReference, Message)
Where Message is an intervention
24.11.2006 Tampere Meeting - Reasoning Module Interface 5

6. Event
<EVENT>
<TYPE> new information available </TYPE>
<KEYWORDS> <list_of_keywords> </KEYWORDS>
<ORIGINATOR> <originator_id> </ORIGINATOR>
<RELATED_TASK> <task> </RELATED_TASK>
<CONTENT> <applic. Content> </CONTENT>
<EVENT_ID> <applic. id> </EVENT_ID>
</EVENT>
24.11.2006 Tampere Meeting - Reasoning Module Interface 6

7. Example: Start Task Event
<EVENT>
<TYPE> start task </TYPE>
<TASK> <task> </TASK>
<CONTENT> <applic. content> </CONTENT>
<EVENT_ID> <applic. id> </EVENT_ID>
</EVENT>
24.11.2006 Tampere Meeting - Reasoning Module Interface 7

8. Example:Complete Task Event
<EVENT>
<TYPE> complete task </TYPE>
<TASK_ID> <task_id> </TASK_ID>
<CONTENT> <applic. content> </CONTENT>
<EVENT_ID> <applic. id> </EVENT_ID>
</EVENT>
24.11.2006 Tampere Meeting - Reasoning Module Interface 8

9. Intervention
<INTERVENTION>
<TYPE> propose task </TYPE>
<RELATED EVENTS> <event id list> </RELATED
EVENTS>
<TASK> <task> <TASK>
<CONTENT> <applic. content> </CONTENT>
<JUSTIFICATION> <justification> </JUSTIFICATION>
<MODE> <recommendations> </MODE>
</INTERVENTION>
24.11.2006 Tampere Meeting - Reasoning Module Interface 9

10. Sample interaction
Application AtGentive AskMe
Subscribe(atgentive.interruption_management,
ConsumerReference, InitialTerminationTime)
Subscription to the
Subscription to the services needed by AtGentive services needed by
in order to provide the required service. AtGentive in order
to provide the
required service.
ReferenceParameter of type EndPointReference
Will be used by the NotificationConsumer to unsubscribe
24.11.2006 Tampere Meeting - Reasoning Module Interface 10
