Richmor Industry Co., Ltd manufactures the RCM-SP5800, a portable MDVR designed for various law enforcement and management applications. It features a robust design including IP65 waterproofing, 4G network capability, and extensive audio-video functionalities. Additionally, it offers advanced networking, GPS support, and flexible storage options, making it suitable for various operational environments.

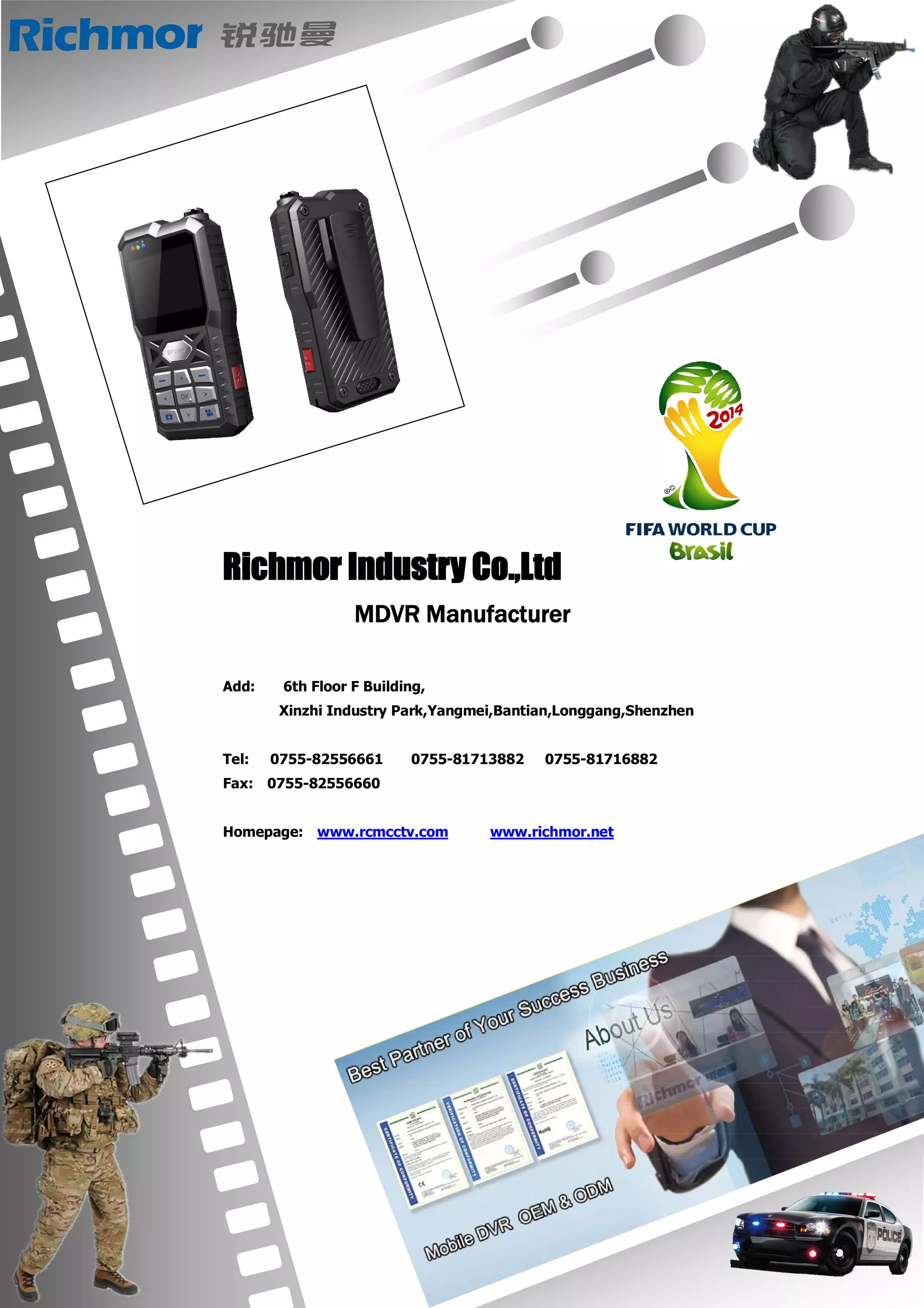

1. Richmor Industry Co.,Ltd
MDVR Manufacturer
Add: 6th Floor F Building,
Xinzhi Industry Park,Yangmei,Bantian,Longgang,Shenzhen
Tel: 0755-82556661 0755-81713882 0755-81716882
Fax: 0755-82556660
Homepage: www.rcmcctv.com www.richmor.net

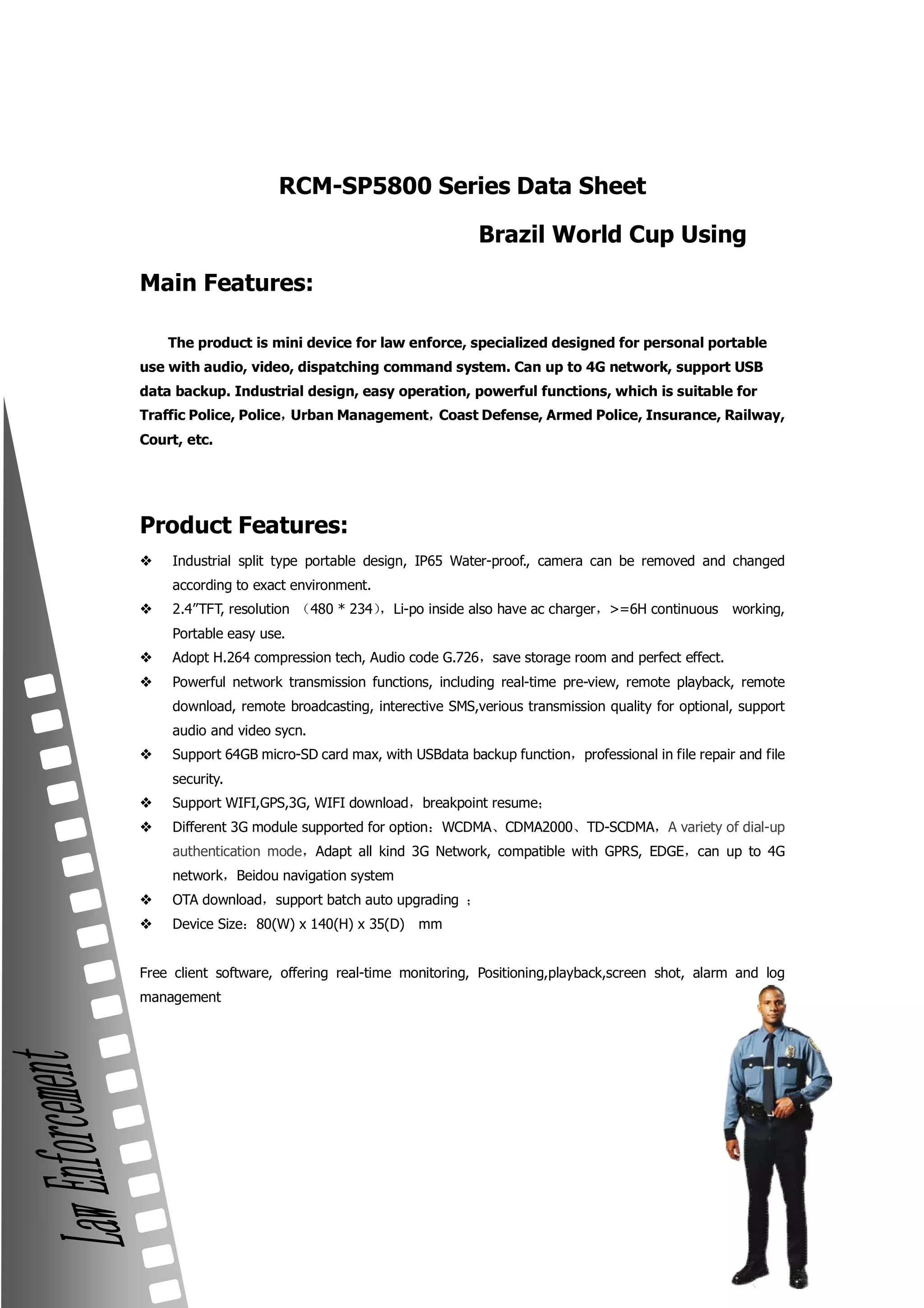

2. RCM-SP5800 Series Data Sheet
Brazil World Cup Using
Main Features:
The product is mini device for law enforce, specialized designed for personal portable
use with audio, video, dispatching command system. Can up to 4G network, support USB
data backup. Industrial design, easy operation, powerful functions, which is suitable for
Traffic Police, Police，Urban Management，Coast Defense, Armed Police, Insurance, Railway,
Court, etc.
Product Features:
 Industrial split type portable design, IP65 Water-proof., camera can be removed and changed
according to exact environment.
 2.4”TFT, resolution （480 * 234），Li-po inside also have ac charger，>=6H continuous working,
Portable easy use.
 Adopt H.264 compression tech, Audio code G.726，save storage room and perfect effect.
 Powerful network transmission functions, including real-time pre-view, remote playback, remote
download, remote broadcasting, interective SMS,verious transmission quality for optional, support
audio and video sycn.
 Support 64GB micro-SD card max, with USBdata backup function，professional in file repair and file
security.
 Support WIFI,GPS,3G, WIFI download，breakpoint resume；
 Different 3G module supported for option：WCDMA、CDMA2000、TD-SCDMA，A variety of dial-up
authentication mode，Adapt all kind 3G Network, compatible with GPRS, EDGE，can up to 4G
network，Beidou navigation system
 OTA download，support batch auto upgrading ；
 Device Size：80(W) x 140(H) x 35(D) mm
Free client software, offering real-time monitoring, Positioning,playback,screen shot, alarm and log
management

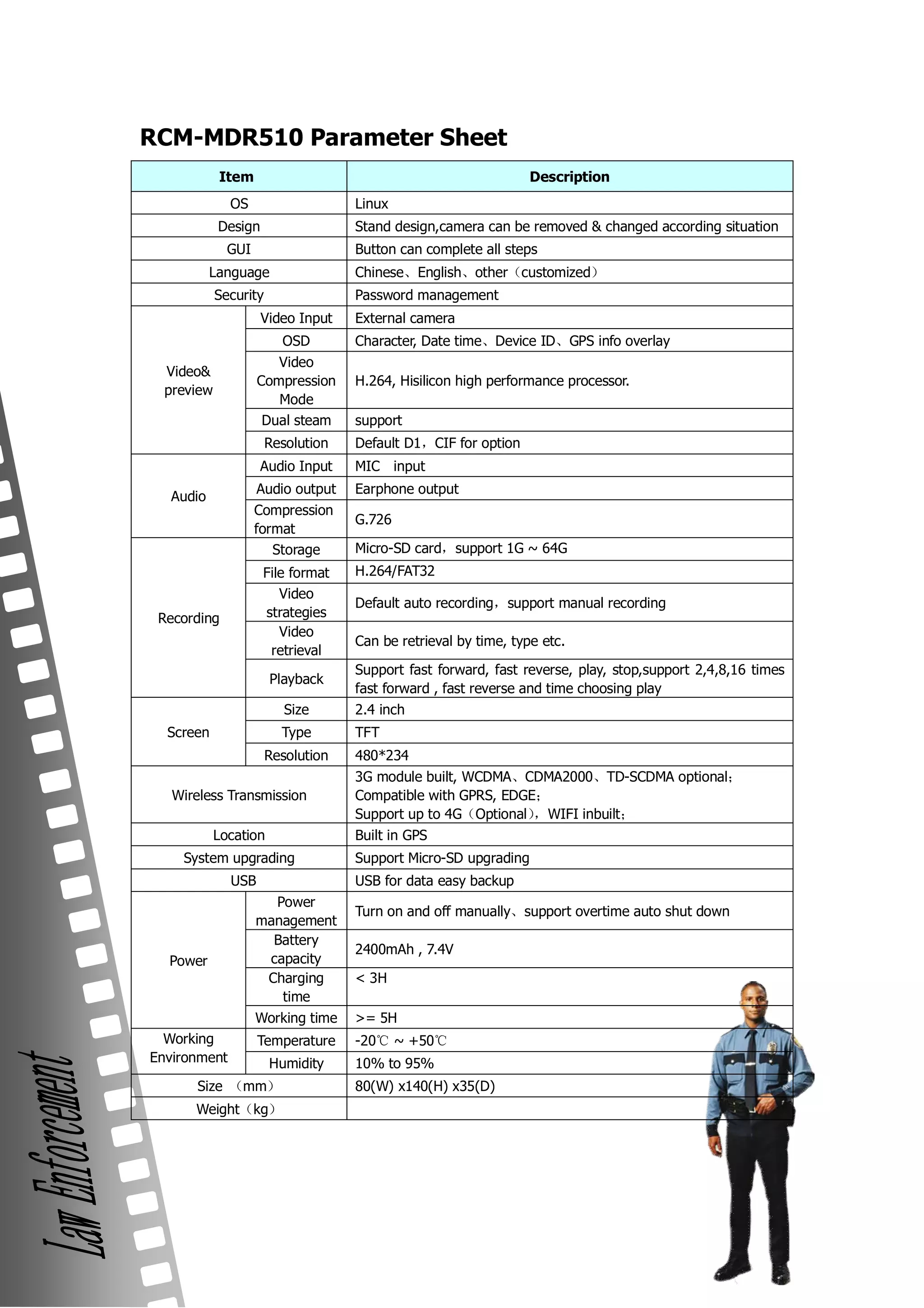

3. RCM-MDR510 Parameter Sheet
Item Description
OS Linux
Design Stand design,camera can be removed & changed according situation
GUI Button can complete all steps
Language Chinese、English、other（customized）
Security Password management
Video&
preview
Video Input External camera
OSD Character, Date time、Device ID、GPS info overlay
Video
Compression
Mode
H.264, Hisilicon high performance processor.
Dual steam support
Resolution Default D1，CIF for option
Audio
Audio Input MIC input
Audio output Earphone output
Compression
format
G.726
Recording
Storage Micro-SD card，support 1G ~ 64G
File format H.264/FAT32
Video
strategies
Default auto recording，support manual recording
Video
retrieval
Can be retrieval by time, type etc.
Playback
Support fast forward, fast reverse, play, stop,support 2,4,8,16 times
fast forward , fast reverse and time choosing play
Screen
Size 2.4 inch
Type TFT
Resolution 480*234
Wireless Transmission
3G module built, WCDMA、CDMA2000、TD-SCDMA optional；
Compatible with GPRS, EDGE；
Support up to 4G（Optional），WIFI inbuilt；
Location Built in GPS
System upgrading Support Micro-SD upgrading
USB USB for data easy backup
Power
Power
management
Turn on and off manually、support overtime auto shut down
Battery
capacity
2400mAh , 7.4V
Charging
time
< 3H
Working time >= 5H
Working
Environment
Temperature -20 ~ +50℃ ℃
Humidity 10% to 95%
Size （mm） 80(W) x140(H) x35(D)
Weight（kg）

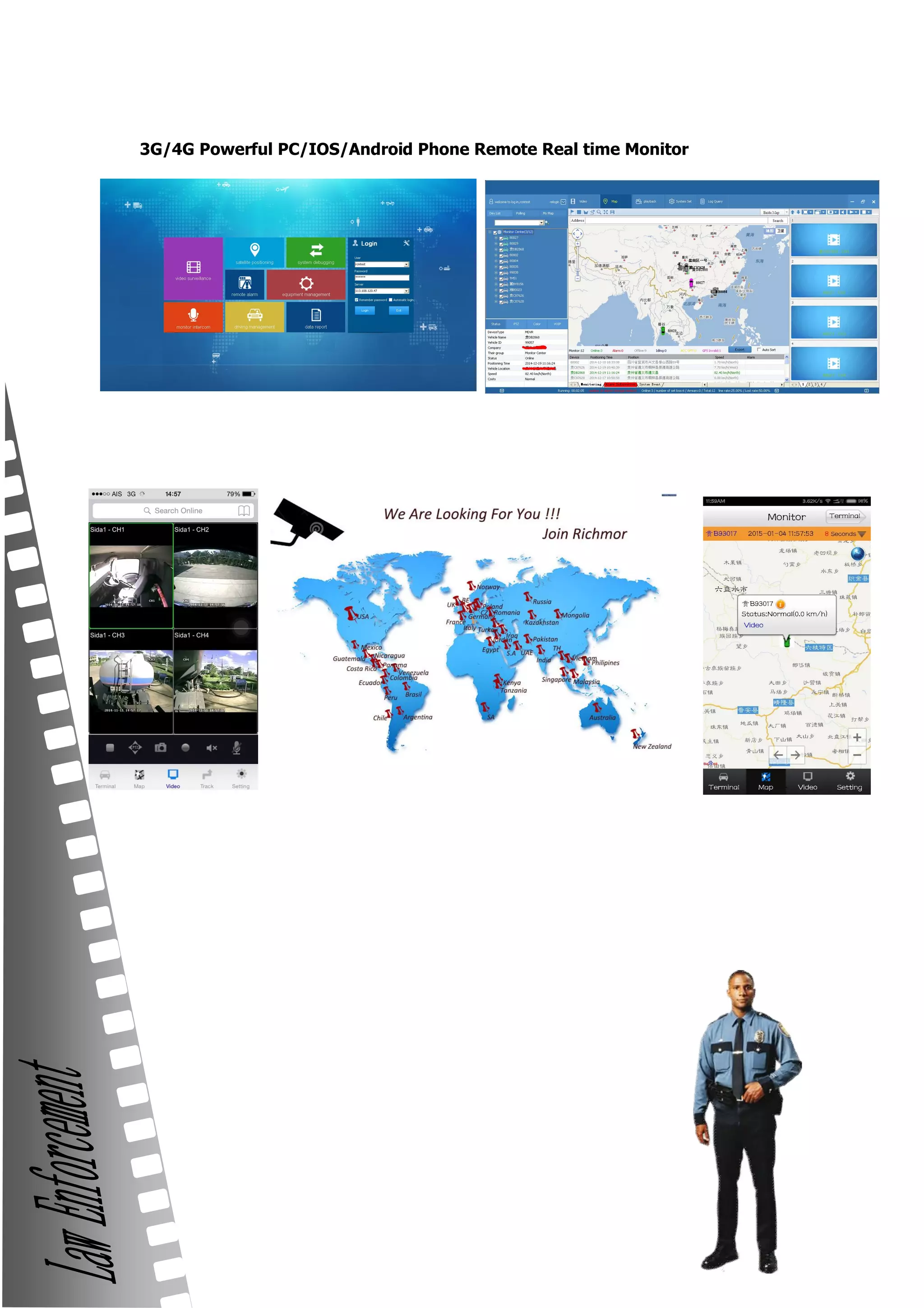

4. 3G/4G Powerful PC/IOS/Android Phone Remote Real time Monitor
