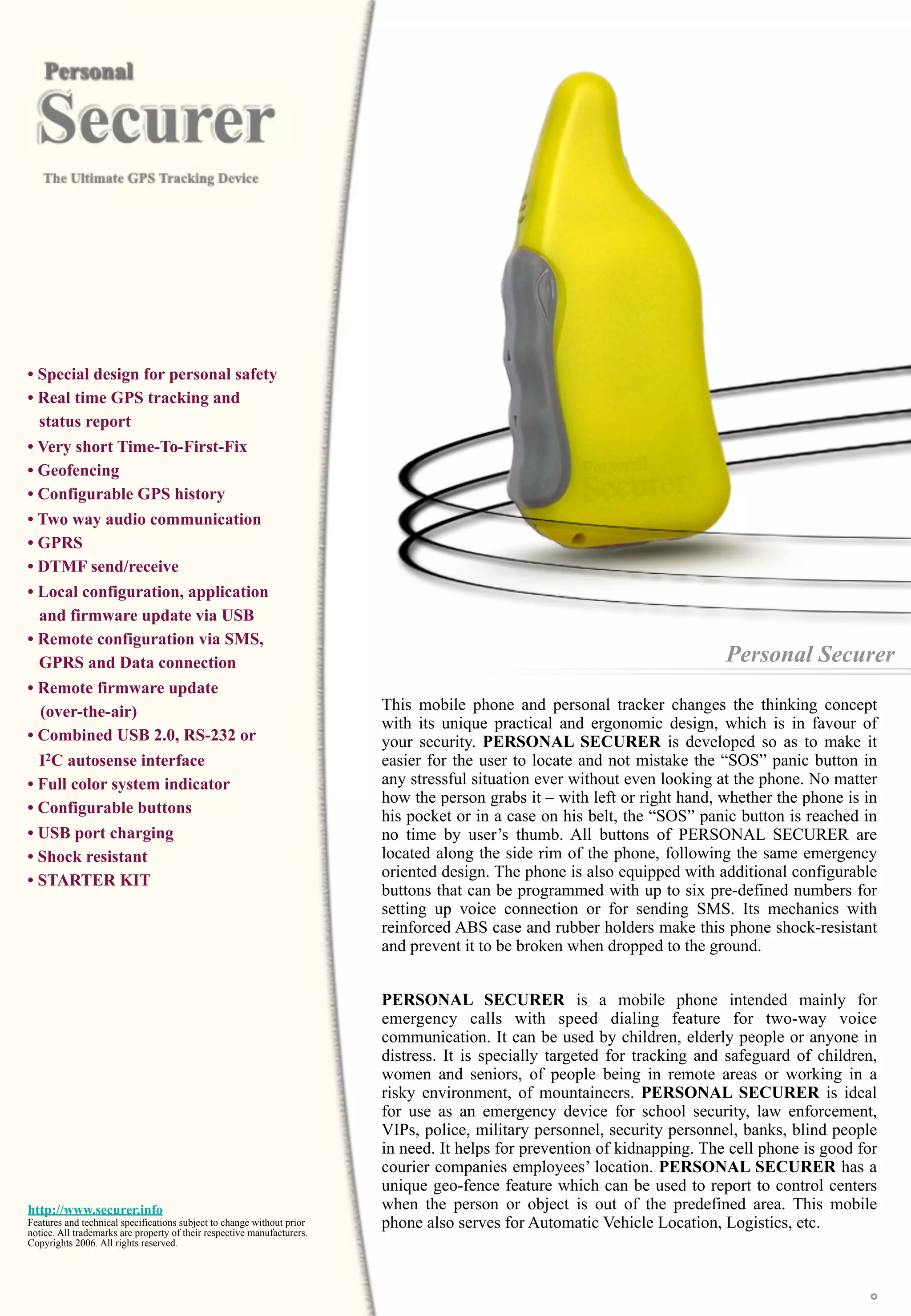

Personal Securer

http://www.securer.info
Features and technical specifications subject to change without prior
notice. All trademarks are property of their respective manufacturers.
Copyrights 2006. All rights reserved.
• Special design for personal safety
• Real time GPS tracking and
status report
• Very short Time-To-First-Fix
• Geofencing
• Configurable GPS history
• Two way audio communication
• GPRS
• DTMF send/receive
• Local configuration, application
and firmware update via USB
• Remote configuration via SMS,
GPRS and Data connection
• Remote firmware update
(over-the-air)
• Combined USB 2.0, RS-232 or
I2C autosense interface
• Full color system indicator
• Configurable buttons
• USB port charging
• Shock resistant
• STARTER KIT
This mobile phone and personal tracker changes the thinking concept
with its unique practical and ergonomic design, which is in favour of
your security. PERSONAL SECURER is developed so as to make it
easier for the user to locate and not mistake the “SOS” panic button in
any stressful situation ever without even looking at the phone. No matter
how the person grabs it – with left or right hand, whether the phone is in
his pocket or in a case on his belt, the “SOS” panic button is reached in
no time by user’s thumb. All buttons of PERSONAL SECURER are
located along the side rim of the phone, following the same emergency
oriented design. The phone is also equipped with additional configurable
buttons that can be programmed with up to six pre-defined numbers for
setting up voice connection or for sending SMS. Its mechanics with
reinforced ABS case and rubber holders make this phone shock-resistant
and prevent it to be broken when dropped to the ground.
PERSONAL SECURER is a mobile phone intended mainly for
emergency calls with speed dialing feature for two-way voice
communication. It can be used by children, elderly people or anyone in
distress. It is specially targeted for tracking and safeguard of children,
women and seniors, of people being in remote areas or working in a
risky environment, of mountaineers. PERSONAL SECURER is ideal
for use as an emergency device for school security, law enforcement,
VIPs, police, military personnel, security personnel, banks, blind people
in need. It helps for prevention of kidnapping. The cell phone is good for
courier companies employees’ location. PERSONAL SECURER has a
unique geo-fence feature which can be used to report to control centers
when the person or object is out of the predefined area. This mobile
phone also serves for Automatic Vehicle Location, Logistics, etc.
Personal Securer

Click on the icons to manipulate the model, keep the left button pressed and move the
mouse
Personal Securer
Click on the picture to view 3D model
Minimum requirement to view is Acrobat reader 7.07.
Right hand
Left hand
Attached to the PC PERSONAL SECURER phone can be used as a
GSM/GPRS modem and GPS receiver. Due to its extended features you
may connect to it and power medical devices for monitoring the health
conditions of people in need, multimedia devices such as digital
camera*, a bar code reader device* or other additional devices.
The mechanical design protects the access to the SIM card holder and to
the battery as the phone sends an alert message before one can access
these areas.
The PERSONAL SECURER phone provides the possibility for remote
firmware update (over-the-air) without even the end user to do anything
from his side (at available GPRS or CSD connectivity).
Using DTMF signals a person can send and receive configuration data
and commands through a voice connection.
The PERSONAL SECURER mobile phone supports all type of
connectivity: Voice, SMS, Data, GPRS. It contains a standard
embedded application that enables GPRS connectivity for exchanging
data between the PERSONAL SECURER and a service centre in real
time on given time intervals or on demand.
With the help of PERSONAL SECURER’s STARTER KIT System
Integrators and Developers can elaborate additional functions or even
develop their own customized PERSONAL SECURER application.
Special ergonomic design
Small size factor
* For more information on how and where from to purchase the appropriate digital camera and bar code reader
please contact our sales department.

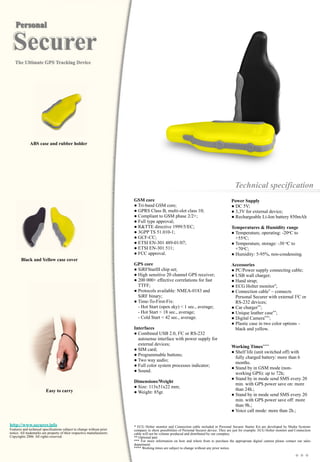

Power Supply
● DC 5V;
● 3,3V for external device;
● Rechargeable Li-Ion battery 850mAh
Temperatures & Humidity range
● Temperature, operating: -20oC to
+55oC;
● Temperature, storage: -30 oC to
+70oC;
● Humidity: 5-95%, non-condensing.
Accessories
● PC/Power supply connecting cable;
● USB wall charger;
● Hand strap;
● ECG Holter monitor*;
● Connection cable* – connects
Personal Securer with external I2C or
RS-232 devices;
● Car charger**;
● Unique leather case**;
● Digital Camera***;
● Plastic case in two color options –
black and yellow.
Working Times****
● Shelf life (unit switched off) with
fully charged battery: more than 6
months.
● Stand by in GSM mode (non-
working GPS): up to 72h;
● Stand by in mode send SMS every 20
min. with GPS power save on: more
than 24h.;
● Stand by in mode send SMS every 20
min. with GPS power save off: more
than 9h.;
● Voice call mode: more than 2h.;
Technical specification
GSM core
● Tri-band GSM core;
● GPRS Class B, multi-slot class 10;
● Compliant to GSM phase 2/2+;
● Full type approval;
● R&TTE directive 1999/5/EC;
● 3GPP TS 51.010-1;
● GCF-CC;
● ETSI EN-301 489-01/07;
● ETSI EN-301 511;
● FCC approval.
GPS core
● SiRFStarIII chip set;
● High sensitive 20 channel GPS receiver;
● 200 000+ effective correlations for fast
TTFF;
● Protocols available: NMEA-0183 and
SiRF binary;
● Time-To-First-Fix:
- Hot Start (open sky) < 1 sec., average;
- Hot Start < 18 sec., average;
- Cold Start < 42 sec., average.
Interfaces
● Combined USB 2.0, I2C or RS-232
autosense interface with power supply for
external devices;
● SIM card;
● Programmable buttons;
● Two way audio;
● Full color system processes indicator;
● Sound.
Dimensions/Weight
● Size: 113x51x22 mm;
● Weight: 85gr.
Easy to carry
* ECG Holter monitor and Connection cable included in Personal Securer Starter Kit are developed by Media Systems
company to show possibilities of Personal Securer device. They are just for example. ECG Holter monitor and Connection
cable will not be volume produced and distributed by our company.
** Optional part.
*** For more information on how and where from to purchase the appropriate digital camera please contact our sales
department.
**** Working times are subject to change without any prior notice.
Black and Yellow case cover
ABS case and rubber holder

Software features
● Button functions:
- Panic;
- Volume control;
- Voice call (dial/accept/reject);
- Send SMS, and etc.
● Remote firmware update (over-
the-air).
● On/Off button;
● Local device setting, updated via
PC On-Screen Control Panel
application;
● Remote device setting update via
SMS, Data connection or GPRS;
● Predefined maximum time for
satellite searching;
● Cyclic history logging;
● History overflow alarm;
● Data sending/receiving/command
execution via SMS, Data
connection, GPRS or DTMF;
● Storing of last valid GPS position;
● Sending data on predefined time
interval;
● Data sending on demand;
● Incoming call notification;
● On-Line GPS tracking;
● Battery level and temperature
control;
● Watchdog;
Hardware features
● Tri-band GSM module;
● Native 20-channel SiRFStarIII based
GPS receiver;
● Very short GPS hot start time;
● Internal GSM/GPS antenna;
● GSM/GPRS modem;
● Integrated NV-RAM events and
parameters storage;
● Mini USB interface for
configuration, software update and
battery charging;
● Combined USB 2.0, I2C or RS-232
autosense interface with power
supply for external devices;
● Two way audio interface;
● 5 buttons with programmable
functions;
● Internal push/push SIM card holder;
● Rechargeable Li-Ion battery 3.7 V
850 mAh;
● Integrated charging and monitoring
electronics;
● Automatic SMS sending in case of
disassembly;
● Full color system status indicator;
● Alarm activation after pressed Panic
Button;
● 3D Accelerometer;
● DTMF send/receive;
● Loudspeaker.
Mechanical and Ergonomic features
● Special ergonomic design and small
form factor;
● GPS antenna always in position
(turned to the sky);
● Reinforced ABS case and rubber
holder;
● Shock resistant.
Features in details
Local device settings update via PC
On-Screen Control Panel application
Device status example
configuration
Securer Family Programming
Adapter

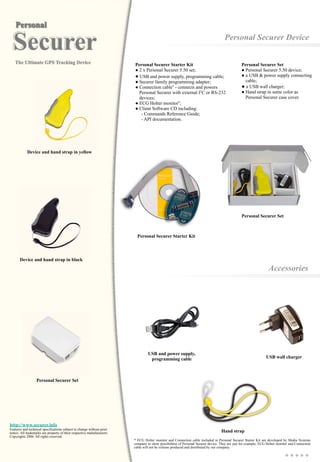

Personal Securer Device
Accessories
USB wall charger
Hand strap
Personal Securer Set
● Personal Securer 5.50 device;
● a USB & power supply connecting
cable;
● a USB wall charger;
● Hand strap in same color as
Personal Securer case cover.
Device and hand strap in black
Personal Securer Starter Kit
● 2 x Personal Securer 5.50 set;
● USB and power supply, programming cable;
● Securer family programming adapter;
● Connection cable* - connects and powers
Personal Securer with external I2C or RS-232
devices;
● ECG Holter monitor*;
● Client Software CD including:
- Commands Reference Guide;
- API documentation.
USB and power supply,
programming cable
Personal Securer Starter Kit
Device and hand strap in yellow

Connection cable*
Digital camera**
USB Car charger

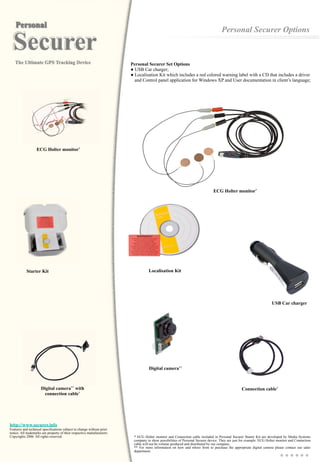

Personal Securer Options
Localisation Kit
** For more information on how and where from to purchase the appropriate digital camera please contact our sales
department.
Personal Securer Set Options
● USB Car charger;
● Localisation Kit which includes a red colored warning label with a CD that includes a driver
and Control panel application for Windows XP and User documentation in client’s language;
ECG Holter monitor*
Digital camera** with
connection cable*
ECG Holter monitor*
Starter Kit

Personal Securer
