this my documentation

1. 2nd
MEETING CLASS
September 18th
,2012
Friska Miftahkur A.
Semolowaru Bahari XII avenue, number 46|  Post card 60111|Sub-district of Sukolilo |
District of Surabaya | Province of East Java | Indonesia |  Mobile number : +6285731959259 |
 email address : miftahkur@yahoo.com, avijanto@gmail.com

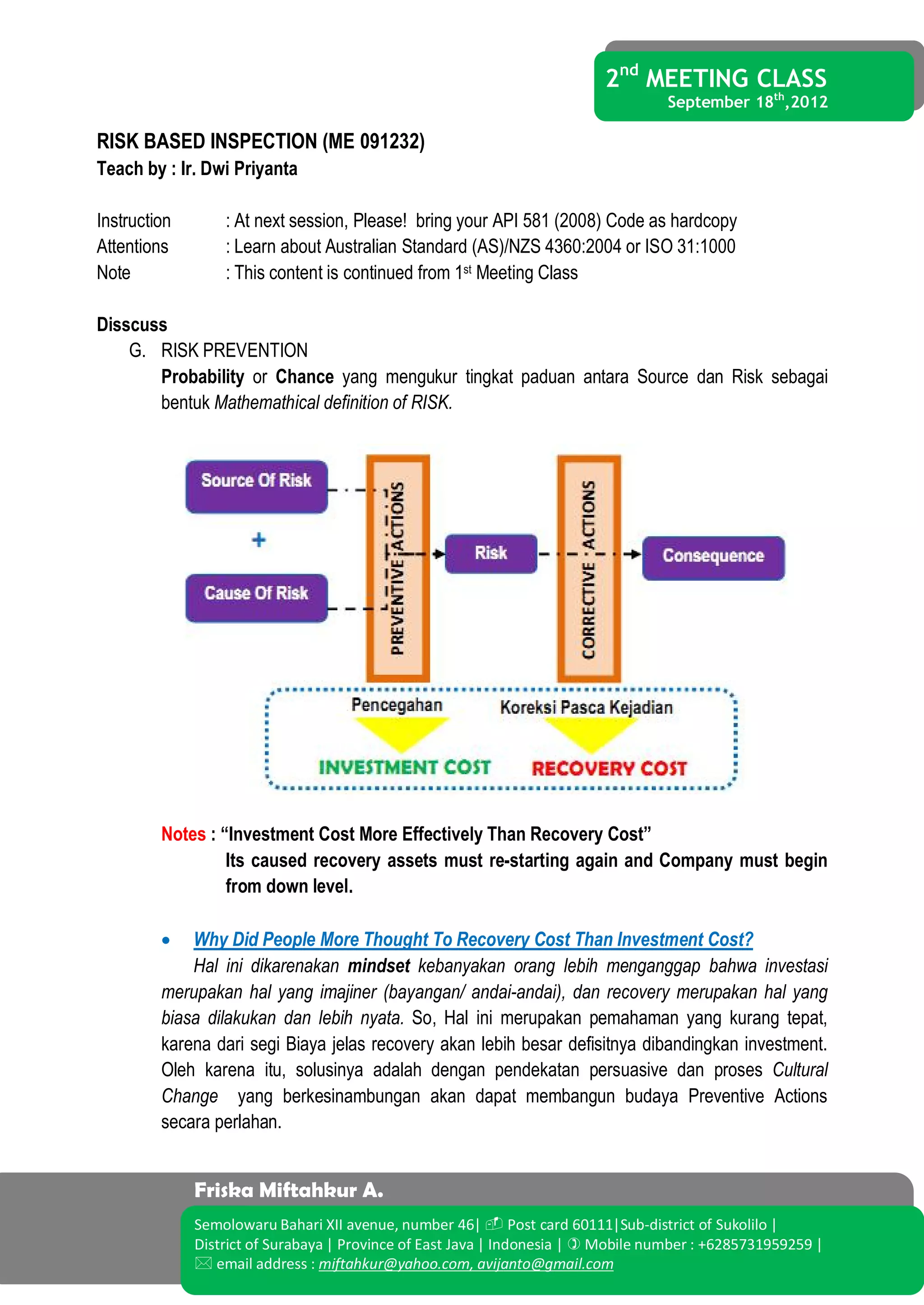

RISK BASED INSPECTION (ME 091232)
Teach by : Ir. Dwi Priyanta
Instruction : At next session, Please! bring your API 581 (2008) Code as hardcopy
Attentions : Learn about Australian Standard (AS)/NZS 4360:2004 or ISO 31:1000
Note : This content is continued from 1st Meeting Class
Disscuss
G. RISK PREVENTION
Probability or Chance yang mengukur tingkat paduan antara Source dan Risk sebagai
bentuk Mathemathical definition of RISK.
Notes : “Investment Cost More Effectively Than Recovery Cost”
Its caused recovery assets must re-starting again and Company must begin
from down level.
 Why Did People More Thought To Recovery Cost Than Investment Cost?
Hal ini dikarenakan mindset kebanyakan orang lebih menganggap bahwa investasi
merupakan hal yang imajiner (bayangan/ andai-andai), dan recovery merupakan hal yang
biasa dilakukan dan lebih nyata. So, Hal ini merupakan pemahaman yang kurang tepat,
karena dari segi Biaya jelas recovery akan lebih besar defisitnya dibandingkan investment.
Oleh karena itu, solusinya adalah dengan pendekatan persuasive dan proses Cultural
Change yang berkesinambungan akan dapat membangun budaya Preventive Actions
secara perlahan.

2. 2nd
MEETING CLASS
September 18th
,2012
Friska Miftahkur A.
Semolowaru Bahari XII avenue, number 46|  Post card 60111|Sub-district of Sukolilo |
District of Surabaya | Province of East Java | Indonesia |  Mobile number : +6285731959259 |
 email address : miftahkur@yahoo.com, avijanto@gmail.com

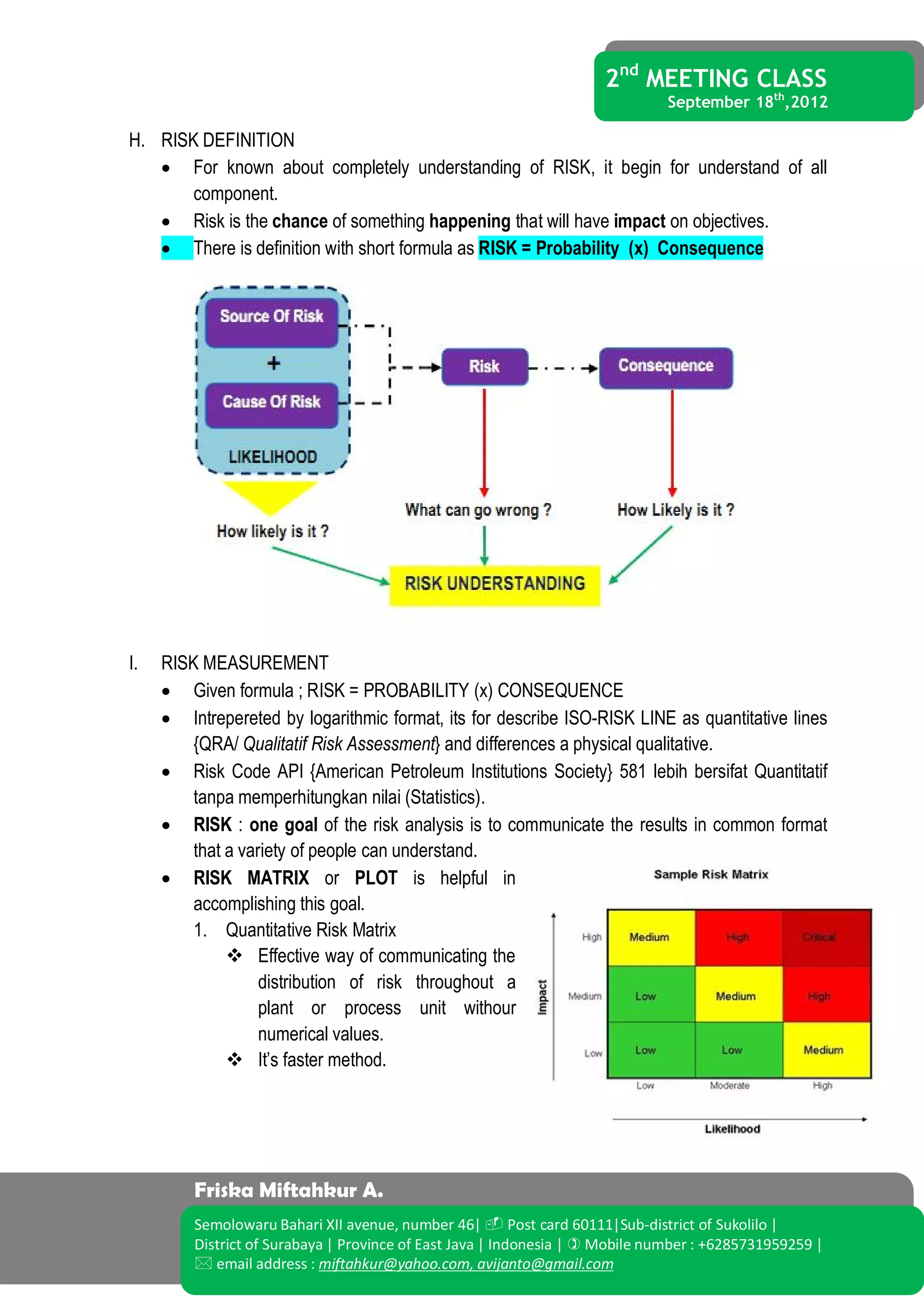

H. RISK DEFINITION
 For known about completely understanding of RISK, it begin for understand of all
component.
 Risk is the chance of something happening that will have impact on objectives.
 There is definition with short formula as RISK = Probability (x) Consequence
I. RISK MEASUREMENT
 Given formula ; RISK = PROBABILITY (x) CONSEQUENCE
 Intrepereted by logarithmic format, its for describe ISO-RISK LINE as quantitative lines
{QRA/ Qualitatif Risk Assessment} and differences a physical qualitative.
 Risk Code API {American Petroleum Institutions Society} 581 lebih bersifat Quantitatif
tanpa memperhitungkan nilai (Statistics).
 RISK : one goal of the risk analysis is to communicate the results in common format
that a variety of people can understand.
 RISK MATRIX or PLOT is helpful in
accomplishing this goal.
1. Quantitative Risk Matrix
 Effective way of communicating the
distribution of risk throughout a
plant or process unit withour
numerical values.
 It’s faster method.

3. 2nd
MEETING CLASS
September 18th
,2012
Friska Miftahkur A.
Semolowaru Bahari XII avenue, number 46|  Post card 60111|Sub-district of Sukolilo |
District of Surabaya | Province of East Java | Indonesia |  Mobile number : +6285731959259 |
 email address : miftahkur@yahoo.com, avijanto@gmail.com

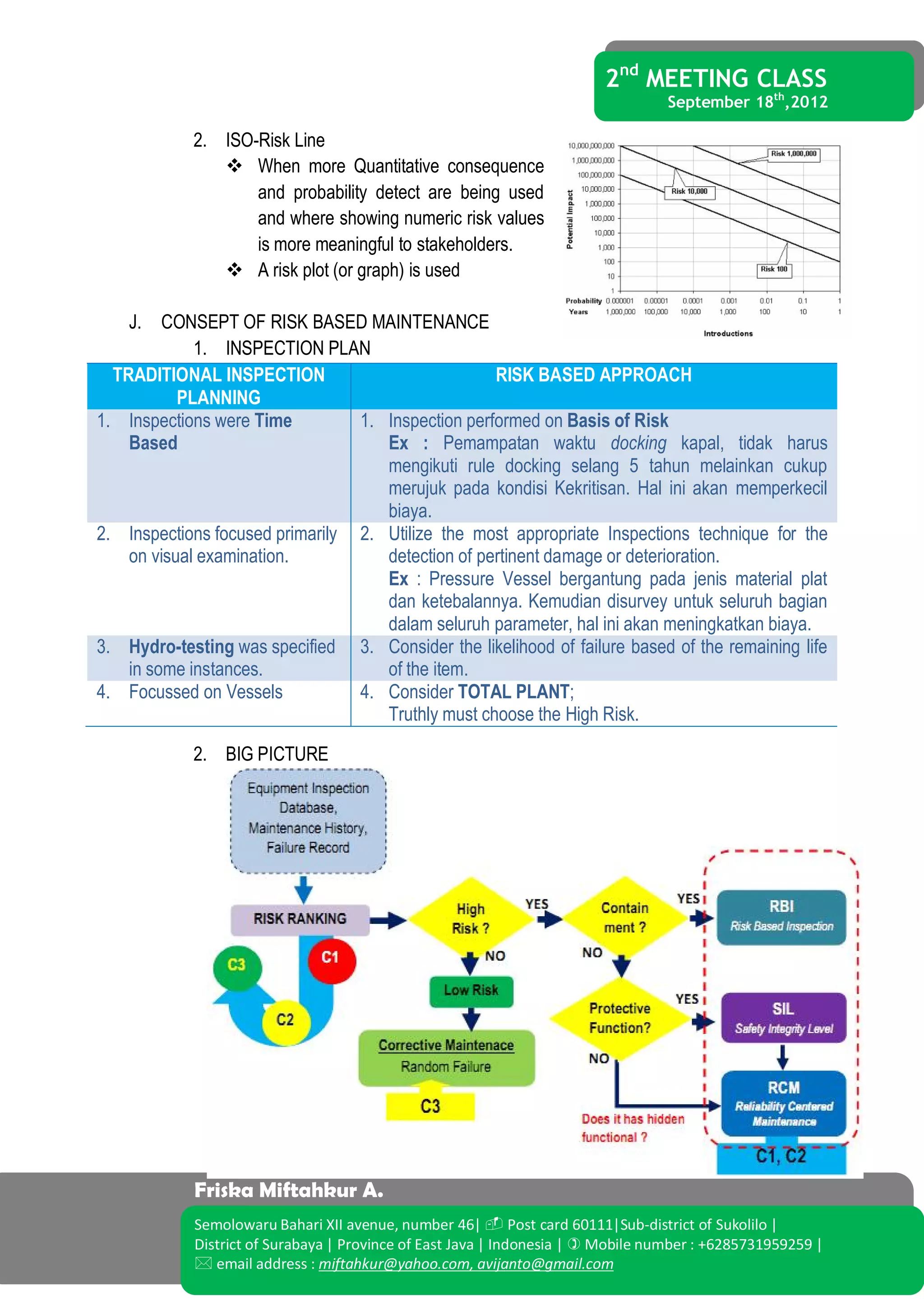

2. ISO-Risk Line
 When more Quantitative consequence
and probability detect are being used
and where showing numeric risk values
is more meaningful to stakeholders.
 A risk plot (or graph) is used
J. CONSEPT OF RISK BASED MAINTENANCE
1. INSPECTION PLAN
TRADITIONAL INSPECTION
PLANNING
RISK BASED APPROACH
1. Inspections were Time
Based
1. Inspection performed on Basis of Risk
Ex : Pemampatan waktu docking kapal, tidak harus
mengikuti rule docking selang 5 tahun melainkan cukup
merujuk pada kondisi Kekritisan. Hal ini akan memperkecil
biaya.
2. Inspections focused primarily
on visual examination.
2. Utilize the most appropriate Inspections technique for the
detection of pertinent damage or deterioration.
Ex : Pressure Vessel bergantung pada jenis material plat
dan ketebalannya. Kemudian disurvey untuk seluruh bagian
dalam seluruh parameter, hal ini akan meningkatkan biaya.
3. Hydro-testing was specified
in some instances.
3. Consider the likelihood of failure based of the remaining life
of the item.
4. Focussed on Vessels 4. Consider TOTAL PLANT;
Truthly must choose the High Risk.
2. BIG PICTURE
