1. IEEE Gas-Turbine(SGT)
Thistypeof governor and turbinesystem representstheIEEE gas-turbinegoverning systems.

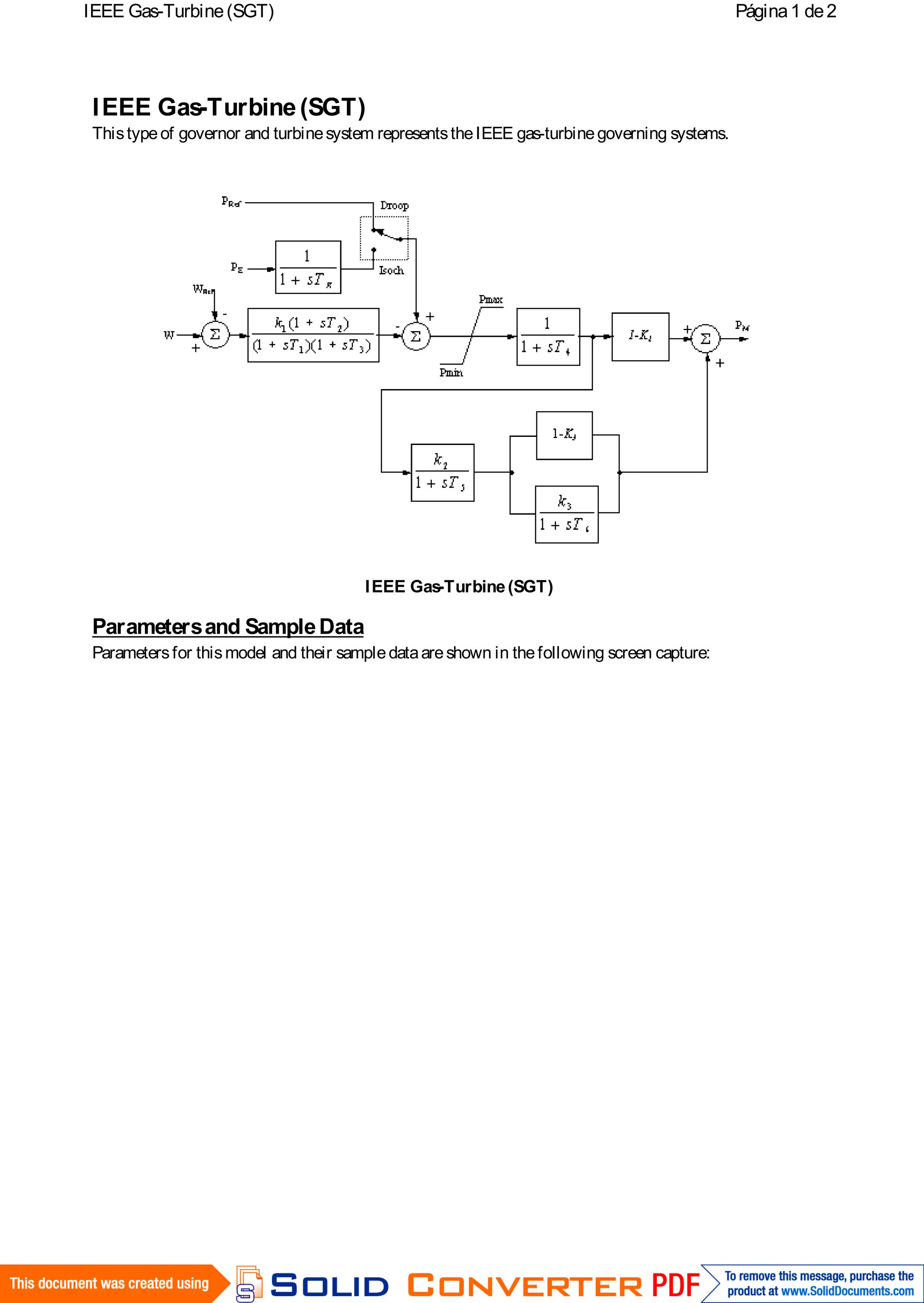

IEEE Gas-Turbine(SGT)
Parametersand SampleData
Parametersfor thismodel and their sampledataareshown in thefollowing screen capture:
Página1 de2IEEE Gas-Turbine(SGT)
25/01/2014mk:@MSITStore:C:ETAP%20700AEtaps.chm::/Chapter_13___Dynamic_Models_...

2. Parameter Definitionsand Units
Parameter definitionsand their unitsaregiven in thefollowing table:
Governor and TurbineModels
Parameter Definition Unit
Pref Load reference p.u.
Pmax Maximum power limit p.u.
Pmin Minimum power limit p.u.
K1 Gain 1 p.u.
K2 Gain 2 p.u
K3 Gain 3 p.u.
T1 Governor timeconstant 1 Sec.
T2 Governor timeconstant 2 Sec
T3 Governor timeconstant 3 Sec.
T4 Turbinetimeconstant 1 Sec.
T5 Turbinetimeconstant 2 Sec.
T6 Turbinetimeconstant 3 Sec.
TR Load sensing timeconstant Sec.
