Rational Developer for System z is an Eclipse-based IDE that allows for modern composite application development while supporting existing runtimes like CICS, IMS, and Batch. It provides interactive access to z/OS resources to aid in development, debugging, job generation and monitoring. It supports transforming legacy applications to web services and SOA through tools that enable CICS and IMS applications for web services.

1. Rational Developer for System z Version 7.5

2. Rational Developer for System z (RDz) overview What is RDz Eclipse-based IDE speeding modern composite (SOA) application development RDz supports Enterprise Modernization Supports common IDE for COBOL, PL/I, C, C++, HL ASSEMBLER, Java , and Web Services Provides interactive access to z/OS for development, debug, job generation, submission, monitoring, command execution Supports new and existing runtimes ( CICS, IMS, Batch, USS, DB2 Stored Procedure, Application Servers . Transforms UML to COBOL source code Integration with z/OS tools RDz supports SOA Enables CICS and IMS applications for Web Services and SOA Supports for J2EE, JCA, XML, Web Services Rational Developer for System z version 7.5

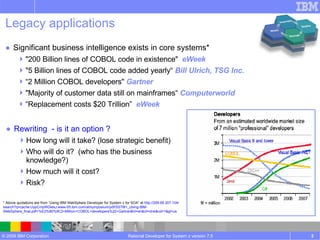

3. Legacy applications Rewriting - is it an option ? How long will it take? (lose strategic benefit) Who will do it? (who has the business knowledge?) How much will it cost? Risk? Rational Developer for System z version 7.5 Significant business intelligence exists in core systems* "200 Billion lines of COBOL code in existence" eWeek "5 Billion lines of COBOL code added yearly“ Bill Ulrich, TSG Inc. “ 2 Million COBOL developers" Gartner "Majority of customer data still on mainframes“ Computerworld “ Replacement costs $20 Trillion” eWeek * Above quotations are from “Using IBM WebSphere Developer for System z for SOA” at http://209.85.207.104/search?q=cache:UypCmpWGlesJ:www-05.ibm.com/at/symposium/pdf/SSTM1_Using-IBM-WebSphere_final.pdf+%E2%80%9C2+Million+COBOL+developers%22+Gartner&hl=en&ct=clnk&cd=1&gl=us

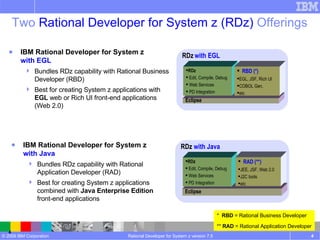

4. Two Rational Developer for System z (RDz) Offerings Rational Developer for System z version 7.5 RDz with EGL Eclipse RDz Edit, Compile, Debug Web Services PD Integration RBD (*) EGL, JSF, Rich UI COBOL Gen, etc RDz with Java Eclipse RDz Edit, Compile, Debug Web Services PD Integration RAD (**) JEE, JSF, Web 2.0 J2C tools etc IBM Rational Developer for System z with EGL Bundles RDz capability with Rational Business Developer (RBD) Best for creating System z applications with EGL web or Rich UI front-end applications (Web 2.0) IBM Rational Developer for System z with Java Bundles RDz capability with Rational Application Developer (RAD) Best for creating System z applications combined with Java Enterprise Edition front-end applications * RBD = Rational Business Developer ** RAD = Rational Application Developer

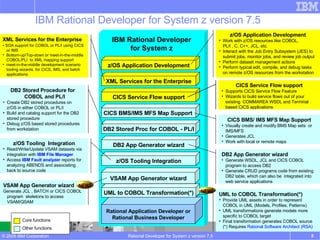

5. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) Core functions Other functions

6. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

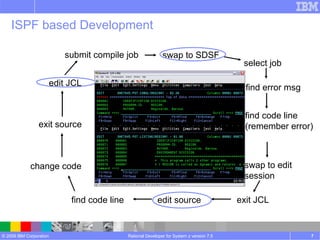

7. Rational Developer for System z version 7.5 submit compile job swap to SDSF select job find error msg find code line (remember error) swap to edit session exit JCL edit source find code line change code exit source edit JCL ISPF based Development

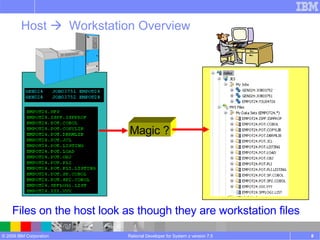

8. Rational Developer for System z version 7.5 Host  Workstation Overview Magic ? PDS 'A' PGMA PGMB PDS 'B' PGMX PGMY z/OS Project Folder 'A' PGMA PGMB Folder 'B' PGMX PGMY Files on the host look as though they are workstation files

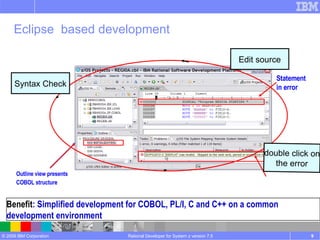

9. Rational Developer for System z version 7.5 Benefit : Simplified development for COBOL, PL/I, C and C++ on a common development environment Error list in Tasks view Statement in error Outline view presents COBOL structure Eclipse based development double click on the error Syntax Check Edit source

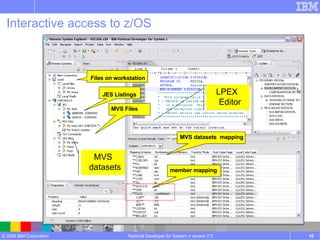

10. Interactive access to z/OS Rational Developer for System z version 7.5 JES Listings MVS Files MVS datasets mapping LPEX Editor MVS datasets Files on workstation member mapping

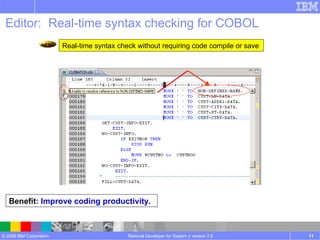

11. Editor: Real-time syntax checking for COBOL Rational Developer for System z version 7.5 Benefit : Improve coding productivity. Real-time syntax check without requiring code compile or save

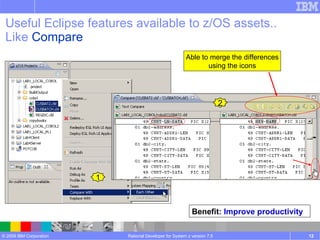

12. Useful Eclipse features available to z/OS assets.. Like Compare Rational Developer for System z version 7.5 Benefit : Improve productivity 1 Able to merge the differences using the icons 2

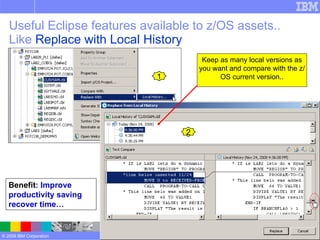

13. Useful Eclipse features available to z/OS assets.. Like Replace with Local History Rational Developer for System z version 7.5 Benefit : Improve productivity saving recover time… 1 Keep as many local versions as you want and compare with the z/OS current version.. 2

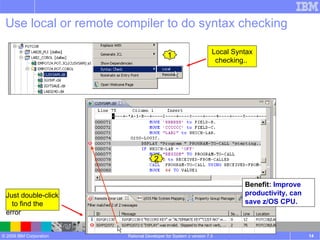

14. Use local or remote compiler to do syntax checking Rational Developer for System z version 7.5 Local Syntax checking.. 1 Benefit : Improve productivity, can save z/OS CPU. Just double-click to find the error 2

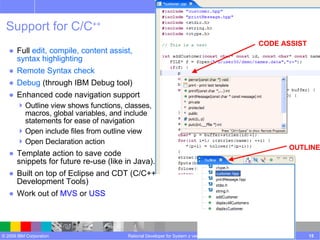

15. Support for C/C ++ Full edit, compile, content assist, syntax highlighting Remote Syntax check Debug (through IBM Debug tool) Enhanced code navigation support Outline view shows functions, classes, macros, global variables, and include statements for ease of navigation Open include files from outline view Open Declaration action Template action to save code snippets for future re-use (like in Java). Built on top of Eclipse and CDT (C/C++ Development Tools) Work out of MVS or USS Rational Developer for System z version 7.5 CODE ASSIST OUTLINE

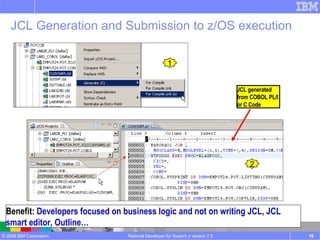

16. Rational Developer for System z version 7.5 Benefit: Developers focused on business logic and not on writing JCL, JCL smart editor, Outline… JCL Generation and Submission to z/OS execution 1 JCL generated from COBOL PL/I or C Code 2

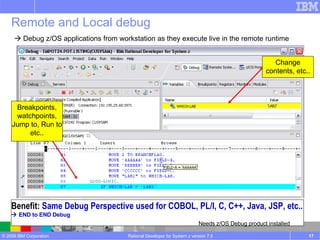

17. Rational Developer for System z version 7.5 Remote and Local debug Breakpoints, watchpoints, Jump to, Run to etc.. Change contents, etc.. Benefit: Same Debug Perspective used for COBOL, PL/I, C, C++, Java, JSP, etc..  END to END Debug  Debug z/OS applications from workstation as they execute live in the remote runtime Needs z/OS Debug product installed .

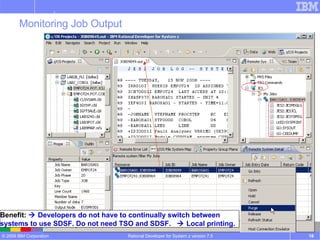

18. Rational Developer for System z version 7.5 Monitoring Job Output Benefit:  Developers do not have to continually switch between systems to use SDSF. Do not need TSO and SDSF.  Local printing.

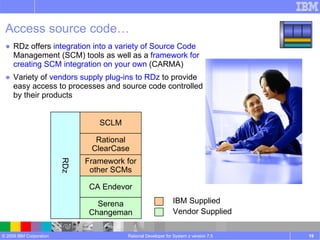

19. Access source code… RDz offers integration into a variety of Source Code Management (SCM) tools as well as a framework for creating SCM integration on your own (CARMA) Variety of vendors supply plug-ins to RDz to provide easy access to processes and source code controlled by their products Rational Developer for System z version 7.5 RDz CA Endevor Serena Changeman SCLM Rational ClearCase Framework for other SCMs Vendor Supplied IBM Supplied

20. Rational Developer for System z version 7.5 Working Offline  Allows users to edit and Syntax Checking on files while disconnected from the host.  Detects Conflicts and changes 1 2 3 4 5

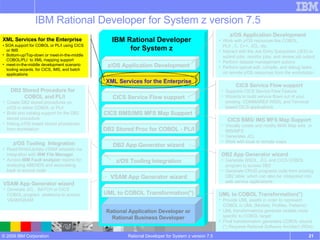

21. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

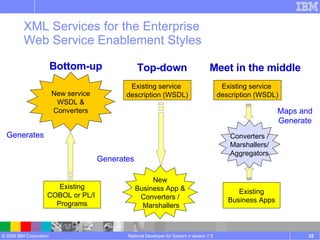

22. XML Services for the Enterprise Web Service Enablement Styles Rational Developer for System z version 7.5 Generates New service WSDL & Converters Bottom-up Existing service description (WSDL) New Business App & Converters / Marshallers Top-down Maps and Generate Meet in the middle Existing Business Apps Existing service description (WSDL) Converters / Marshallers/ Aggregators Generates Existing COBOL or PL/I Programs

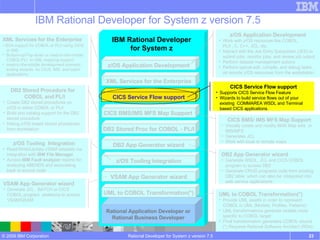

23. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

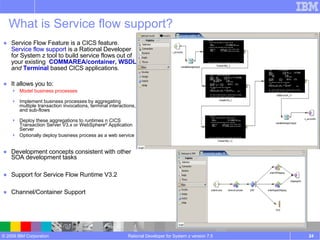

24. What is Service flow support? Service Flow Feature is a CICS feature. Service flow support is a Rational Developer for System z tool to build service flows out of your existing COMMAREA/container, WSDL and Terminal based CICS applications. It allows you to: Model business processes Implement business processes by aggregating multiple transaction invocations, terminal interactions, and sub-flows Deploy these aggregations to runtimes n CICS Transaction Server V3.x or WebSphere ® Application Server Optionally deploy business process as a web service Development concepts consistent with other SOA development tasks Support for Service Flow Runtime V3.2 Channel/Container Support Rational Developer for System z version 7.5

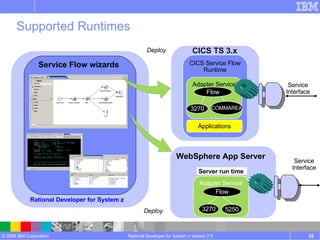

25. Supported Runtimes Rational Developer for System z version 7.5 Deploy CICS TS 3.x Server run time CICS Service Flow Runtime Applications Service Flow wizards Rational Developer for System z Adapter Service Flow 3270 COMMAREA Service Interface HATS Deploy WebSphere App Server Server run time Adapter Service Flow 3270 5250 Service Interface

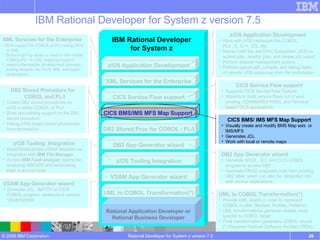

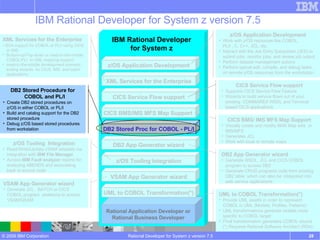

26. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

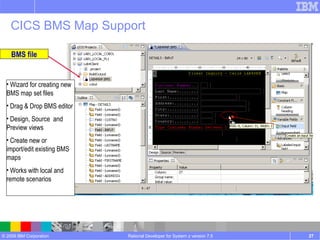

27. CICS BMS Map Support Rational Developer for System z version 7.5 BMS file Wizard for creating new BMS map set files Drag & Drop BMS editor Design, Source and Preview views Create new or import/edit existing BMS maps Works with local and remote scenarios

28. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

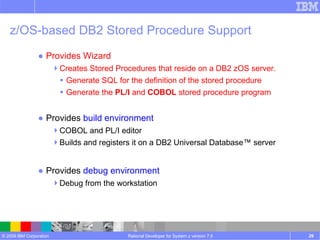

29. z/OS-based DB2 Stored Procedure Support Provides Wizard Creates Stored Procedures that reside on a DB2 zOS server. Generate SQL for the definition of the stored procedure Generate the PL/I and COBOL stored procedure program Provides build environment COBOL and PL/I editor Builds and registers it on a DB2 Universal Database™ server Provides debug environment Debug from the workstation Rational Developer for System z version 7.5

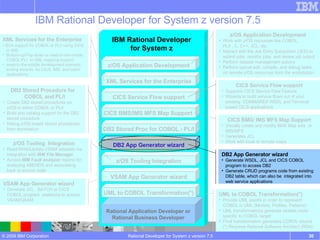

30. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

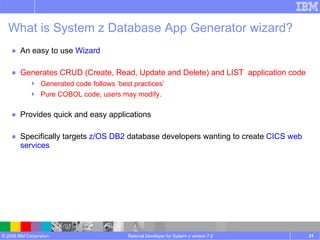

31. An easy to use Wizard Generates CRUD (Create, Read, Update and Delete) and LIST application code Generated code follows ‘best practices’ Pure COBOL code, users may modify. Provides quick and easy applications Specifically targets z/OS DB2 database developers wanting to create CICS web services Rational Developer for System z version 7.5 What is System z Database App Generator wizard?

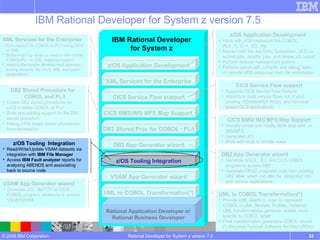

32. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL , BATCH or CICS COBOL program skeletons to access VSAM/QSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

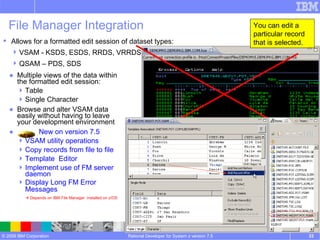

33. File Manager Integration Multiple views of the data within the formatted edit session: Table Single Character Browse and alter VSAM data easily without having to leave your development environment New on version 7.5 VSAM utility operations Copy records from file to file Template Editor Implement use of FM server daemon Display Long FM Error Messages  Depends on IBM File Manager installed on z/OS Rational Developer for System z version 7.5 Allows for a formatted edit session of dataset types: VSAM - KSDS, ESDS, RRDS, VRRDS QSAM – PDS, SDS You can edit a particular record that is selected.

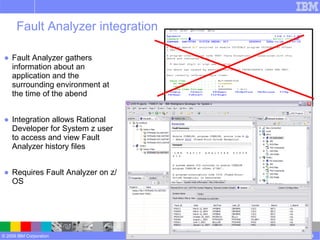

34. Fault Analyzer integration Fault Analyzer gathers information about an application and the surrounding environment at the time of the abend Integration allows Rational Developer for System z user to access and view Fault Analyzer history files Requires Fault Analyzer on z/OS Rational Developer for System z version 7.5

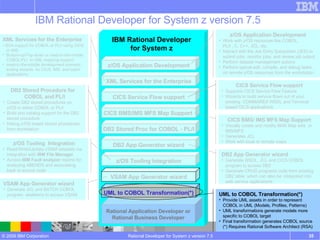

35. IBM Rational Developer for System z version 7.5 Rational Developer for System z version 7.5 IBM Rational Developer for System z Rational Application Developer or Rational Business Developer CICS BMS/IMS MFS Map Support CICS BMS/ IMS MFS Map Support Visually create and modify BMS Map sets or IMS/MFS Generates JCL Work with local or remote maps XML Services for the Enterprise XML Services for the Enterprise - SOA support for COBOL or PL/I using CICS or IMS Bottom-up/Top-down or meet-in-the-middle COBOL/PLI to XML mapping support meet-in-the-middle development scenario tooling wizards. for CICS, IMS, and batch applications CICS Service Flow support CICS Service Flow support Supports CICS Service Flow Feature Wizards to build service flows out of your existing COMMAREA WSDL and Terminal based CICS applications. DB2 Stored Proc for COBOL - PL/I DB2 Stored Procedure for COBOL and PL/I Create DB2 stored procedures on z/OS in either COBOL or PL/I Build and catalog support for the DB2 stored procedure Debug z/OS based stored procedures from workstation z/OS Tooling Integration z/OS Tooling Integration Read/Write/Update VSAM datasets via integration with IBM File Manager Access IBM Fault analyzer reports for analyzing ABENDS and associating back to source code DB2 App Generator wizard DB2 App Generator wizard Generate WSDL, JCL and CICS COBOL program to access DB2 Generate CRUD programs code from existing DB2 table, which can also be integrated into web service applications VSAM App Generator wizard VSAM App Generator wizard Generate JCL and BATCH COBOL program skeletons to access VSAM UML to COBOL Transformation(*) UML to COBOL Transformation(*) Provide UML assets in order to represent COBOL in UML (Models, Profiles, Patterns) UML transformations generate models more specific to COBOL target Final transformation generates COBOL source (*) Requires Rational Software Architect (RSA) z/OS Application Development z/OS Application Development Work with z/OS resources like COBOL, PL/I , C, C++, JCL, etc. Interact with the Job Entry Subsystem (JES) to submit jobs, monitor jobs, and review job output Perform dataset management actions Perform typical edit, compile, and debug tasks on remote z/OS resources from the workstation

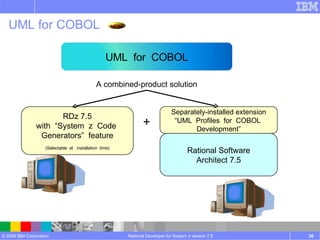

36. UML for COBOL Rational Developer for System z version 7.5 UML for COBOL A combined-product solution RDz 7.5 with “System z Code Generators” feature (Selectable at installation time) Separately-installed extension “ UML Profiles for COBOL Development” Rational Software Architect 7.5 +

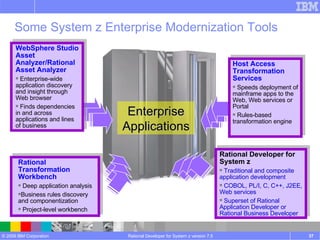

37. Some System z Enterprise Modernization Tools Rational Developer for System z version 7.5 WebSphere Studio Asset Analyzer/Rational Asset Analyzer Enterprise-wide application discovery and insight through Web browser Finds dependencies in and across applications and lines of business Rational Transformation Workbench Deep application analysis Business rules discovery and componentization Project-level workbench Enterprise Applications Host Access Transformation Services Speeds deployment of mainframe apps to the Web, Web services or Portal Rules-based transformation engine Rational Developer for System z Traditional and composite application development COBOL, PL/I, C, C++, J2EE, Web services Superset of Rational Application Developer or Rational Business Developer
