This paper has been presented at the ISWC2012. It has become common to use RDF to store the results of Natural Language Processing (NLP) as a graph of the entities mentioned in the text with the relationships mentioned in the text as links between them. These NLP graphs can be measured with Precision and Recall against a ground truth graph representing what the documents actually say. When asking conjunctive queries on NLP graphs, the Recall of the query is expected to be roughly the product of the Recall of the relations in each conjunct. Since Recall is typically less than one, conjunctive query Recall on NLP graphs degrades geometrically with the number of conjuncts. We present an approach to address this Recall problem by hypothesizing links in the graph that would improve query Recall, and then attempting to find more evidence to support them. Using this approach, we confirm that in the context of answering queries over NLP graphs, we can use lower confidence results from NLP components if they complete a query result.

1. “30 are better than one”
Query-Driven Hypothesis Generation for
Answering Queries over NLP Graphs
Chris Welty, Ken Barker, Lora Aroyo, Shilpa Arora
Tex
Answering Conjunctive SPARQL Queries over NLP Graphs

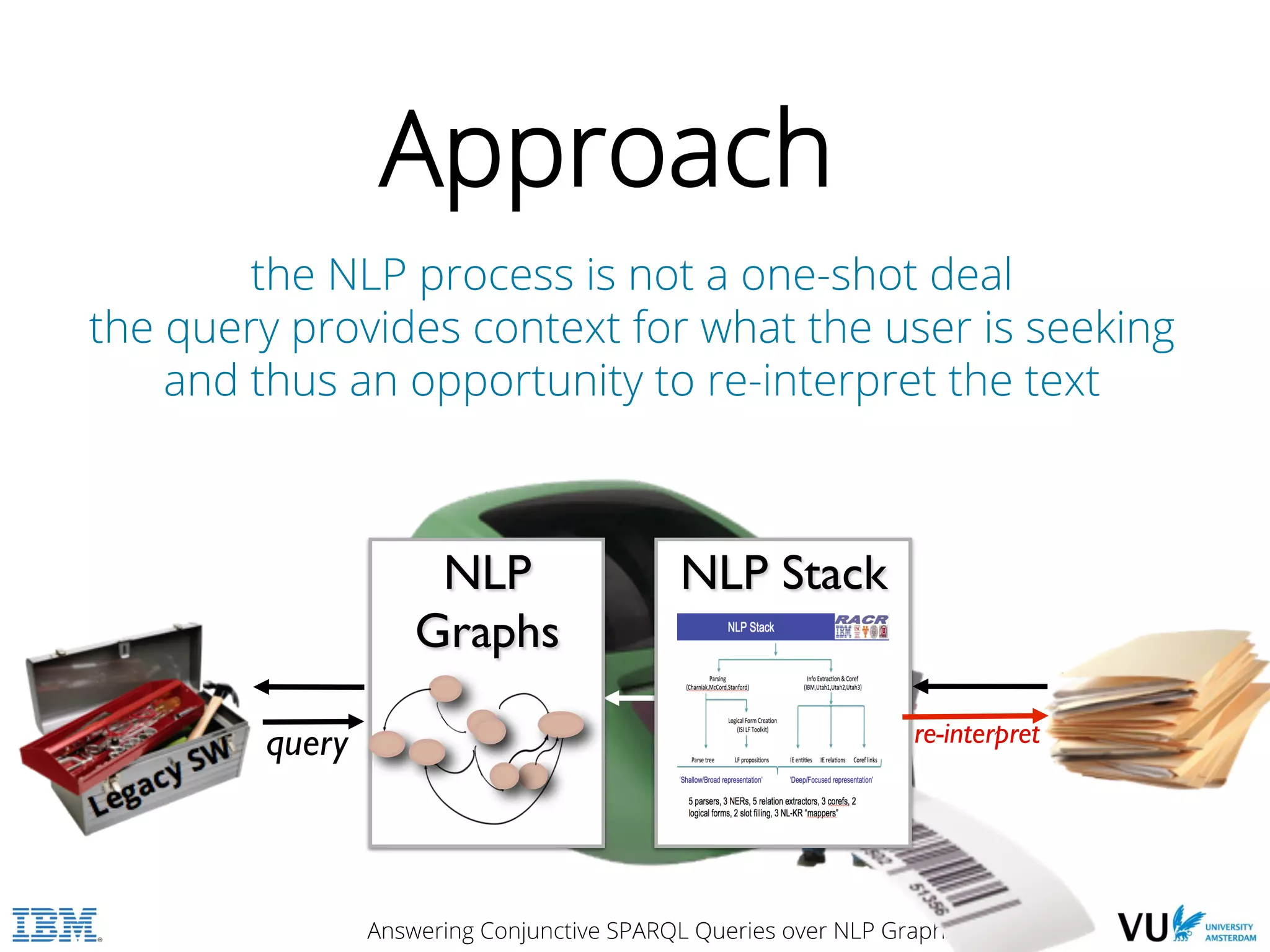

2. Approach
the NLP process is not a one-shot deal
to decrease the cost of maintaining critical system DBs
the query provides context without changing the LSW
can we replace the human for what the user is seeking
andcan we build a machine re-interpret the text
thus an opportunity to reader for this
NLP NLP Stack
Graphs
query
re-interpret
Answering Conjunctive SPARQL Queries over NLP Graphs

3. NLP Stack
• Contains NER, CoRef, RelEx, entity disambiguation
• RelEx: SVM learner with output score: probabilities/
confidences for each known relation that the
sentence expresses it between each pair of
mentions
• Run over target corpus producing NLP graph
• nodes are entities (clusters of mentions produced
by coref)
• edges are type statements between entities and
classes in the ontology, or relations detected
between mentions of these entities in the corpus
Answering Conjunctive SPARQL Queries over NLP Graphs

4. NLP Graph
citizenOf
Person Country
citizenOf
…
Mr.
X
of
India
…
coref
…
in
places
like
India,
Iraq,
…
citizenOf
GPE Country
subPlace

5. NLP Graph
citizenOf
Person Country
Mr.
X
India
coref
India
Iraq
GPE Country
subPlace

6. NLP Graph
Mr. X rdf:type
rdf:type
citizenOf
India Country
India
Person
GPE rdf:type
subPlaceOf
rdf:type
Iraq
rdf:subClassOf

7. Relation Extraction by RelEx
• RelEx: a set of SVM binary classifiers, one per relation
• for each sentence in the corpus,
• for each pair of mentions in that sentence,
• for each known relation
• produce a probability that that pair is related by the
relation
• NLP graphs are generated by selecting relations from RelEx output
in two ways:
• Primary: takes only the top scoring relation between any
mention pair above a confidence threshold
• Secondary: takes all relations between all mention pairs above
a threshold
Answering Conjunctive SPARQL Queries over NLP Graphs

8. RelEx Secondary Graph
Mr. X rdf:type
rdf:type
causes
locatedIn
subPlaceOf
citizenOf
India Country
India
Person
GPE rdf:type
subPlaceOf
rdf:type
Iraq
rdf:subClassOf

9. Primary vs. Secondary
P R F
Primary @ 0.1 0.19 0.39 0.26
Primary @ 0.2 0.29 0.33 0.30
Secondary @ 0 0.01 0.95 0.02
Recall of max-F configuration

10. Conjunctive Queries
find all terrorist organizations that were agents of bombings
in Lebanon on October 23, 1983:
SELECT
?t
WHERE
{
?t
rdf:type
mric:TerroristOrganization
.
?b
rdf:type
mric:Bombing
.
R
=
.65
?b
mric:mediatingAgent
?t
.
R
=
.09
?b
mric:eventLocation
mric:Lebanon
.
R
=
.97
?b
mric:eventDate
"1983-­‐10-­‐23"
.
}
R
=
.057

11. Problem with Conjunctive Queries
n
• [Π Recall(Rk) ] x Recallcoref
k=1
• Recall for n term query O(Recalln)
• for complex queries Recall becomes
dominating factor
• in our experiments: query recall <.1 for n>3
• To get any particular correct answer, all NLP
components had to get it right

12. Hypothesis Generation
• For queries of size N
– For each term
• relax the query by removing the term H
• for each solution
– bind the variables in H from the solution forming a hypothesis
– If no solutions for size N-1 are found, then try for N-2
• appropriate for queries that are almost answerable,
e.g. missing one of the terms
• biased towards generating more answers to queries,
e.g. perform poorly on queries for which the corpus
does not contain the answer

13. mric:bombing
mric:TerroristOrganiza=on
rdf:type
rdf:type
SELECT
?t
t
mric:mediatingAgent b
WHERE
{
?t
rdf:type
mric:TerroristOrganization
.
?b
rdf:type
mric:Bombing
.
mric:eventLocation
?b
mric:mediatingAgent
?t
.
mric:eventDate
?b
mric:eventLocation
mric:Lebanon
.
?b
mric:eventDate
"1983-­‐10-­‐23"
.
}
mric:Lebanon
1983-­‐10-­‐23
find all bombings by terrorist orgs in Lebanon
(hypothesize that the bombings were on 1983-10-23)

14. This subgraph matches
find all bombings by the relaxed query
terrorist orgs in Lebanon
mric:org-­‐16
mric:event-­‐3
mric:eventDate
1983-­‐10-­‐23
hypothesize that event-3 was on 1983-10-23

15. Hypothesis Validation
• Once generated, a hypothesis must be validated
– gather evidence that it is true
– the probability of a triple being true increases
• We utilize a stack of hypothesis checkers that provide
– confidence whether a hypothesis holds
– provenance: a pointer to a span of text that supports it
• Can be used to bind complex computational tasks
– e.g. formal reasoning/choosing between low-confidence extractions
– such tasks are made more tractable by using hypotheses as
goals, e.g. a reasoner may be used effectively by constraining to
only a part of the graph connected to a hypothesis

16. Secondary Graph for Validation
• Hypotheses can be validated by looking for the
tuple in the secondary graph
• a tuple will appear in SG if the subject and object entities
occur in the same sentence somewhere in the corpus
• With precision at .02, it is important to find a
productive threshold for accepting hypotheses
• we conducted several experiments to find this threshold

17. Experiments
• 3 for dev, 3 for test
• each experiment compares query results from
only PG to query results using the PG+SG for
hypothesis validation
• the three experiments compare performance
at different primary graph thresholds

18. 0-threshold primary graph
with & without secondary graph
secondary graph: all@0
for a given PG threshold we vary the SG threshold for validated hypotheses (x-axis)

19. .1-threshold primary graph
with & without secondary graph
secondary graph: all@0
best performance point
(.01 SG threshold)
red line indicates the PG threshold - the PG-only flattens below this threshold as expected

20. .2-threshold primary graph
with & without secondary graph
secondary graph: all@0
best performance point
(.01 SG threshold)
if a triple in the SG completes a query that is mostly answered by the PG
it is very likely to be true
the best performing configuration for dev is .2 threshold PG with SG
hypotheses validated at .01 threshold

21. Performance
Text
the difference at the chosen threshold on the test set
significantly outperforms the baseline on the same set

22. Conclusions
• the secondary graph can be exploited for getting answers
• the probability that a relation is true between two entities
increases significantly when that relation completes a query
answer that is partially satisfied in the primary graph
• able to target discarded interpretations when they will meet
some user need
• the NLP process is not a one-shot deal, the query provides
context for what the user is seeking and thus an opportunity to
re-interpret the text
