This document provides information about quality metrics project management including definitions, tools, and other related topics. It defines quality as meeting the customer's requirements and expectations. Metrics are used to measure quality and determine if it is improving. Common quality management tools discussed include check sheets, control charts, Pareto charts, scatter plots, Ishikawa diagrams, and histograms. These tools help identify issues, determine causes of defects, and monitor processes. Additional downloadable resources on related quality management topics are also listed.

1. Quality metrics project management
In this file, you can ref useful information about quality metrics project management such as
quality metrics project managementforms, tools for quality metrics project management, quality
metrics project managementstrategies … If you need more assistant for quality metrics project
management, please leave your comment at the end of file.
Other useful material for quality metrics project management:
• qualitymanagement123.com/23-free-ebooks-for-quality-management
• qualitymanagement123.com/185-free-quality-management-forms
• qualitymanagement123.com/free-98-ISO-9001-templates-and-forms
• qualitymanagement123.com/top-84-quality-management-KPIs
• qualitymanagement123.com/top-18-quality-management-job-descriptions
• qualitymanagement123.com/86-quality-management-interview-questions-and-answers
I. Contents of quality metrics project management
==================
Quality is ultimately defined by the customer and represents how close the project and
deliverables come to meeting the customer’s requirements and expectations.
The old adage about quality being in the eyes of the beholder is true - quality is ultimately
measured by your customer. It is not up to the project team to determine the level of quality
required for the project. The project team needs to understand the customer's requirements and
expectations - and then meet those expectations.
High-level process flow
This is a critical concept about quality. Sometimes there is a tendency to think that 'quality'
means the best material, the best equipment and absolutely zero defects. However, in most cases,
the sponsor does not expect, and cannot afford, a perfect solution. If there are a few bumps in the
project or a few defects in the deliverable, the customer can still say that the solution was

2. delivered with a high level of quality. On the other hand, a flawlessly designed, defect-free
solution that does not meet the customer's needs is not considered high quality. The purpose of
quality management is to first understand the expectations of the customer in terms of quality
and then put a proactive plan in place to meet those expectations.
Since quality is defined by the customer, it may seem that it is completely subjective. However,
there is a lot about quality that can be made objective. This requires first breaking down the
generic term of 'quality' into the specific aspects of quality that are important to the customer.
Then, you look at each of the individual aspects and determine one or more metrics that can be
collected to measure the characteristic. For instance, one of the features of a quality solution may
be that it has a minimum amount of errors. This characteristic can be measured by counting
errors and defects after the solution goes live.
In addition to understanding the customer’s definition of quality, it is important to recognize
other stakeholder’s interests as well. Depending on the roles of the stakeholders, they may have
other quality requirements that need to be satisfied. For instance:
 The company – The solution meets strategic goals
 Buyers - The solution meets specifications
 End users – The solution helps them do their job better, faster, easier
 IT support organization – The solution is stable, has few bugs, is understandable and can
be modified easily
Managing metrics and managing quality are related. It is very difficult to improve the quality of
your deliverables or your efficiency of your processes if you are not gathering metrics. Metrics
are used to give some indication of the beginning state of quality (quality of deliverables and
quality of project processes) and whether quality is increasing or decreasing. In addition to
determining the level of quality on a project, metrics can also be used to provide objective
criteria to determine if your project was successful. This is the purpose of the project scorecard.
==================
III. Quality management tools
1. Check sheet

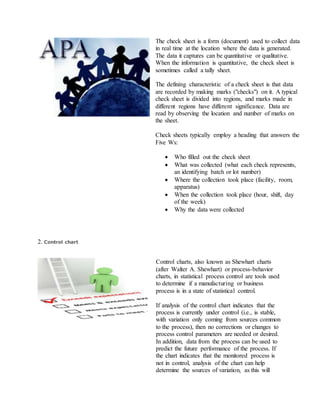

3. The check sheet is a form (document) used to collect data
in real time at the location where the data is generated.
The data it captures can be quantitative or qualitative.
When the information is quantitative, the check sheet is
sometimes called a tally sheet.
The defining characteristic of a check sheet is that data
are recorded by making marks ("checks") on it. A typical
check sheet is divided into regions, and marks made in
different regions have different significance. Data are
read by observing the location and number of marks on
the sheet.
Check sheets typically employ a heading that answers the
Five Ws:
 Who filled out the check sheet
 What was collected (what each check represents,
an identifying batch or lot number)
 Where the collection took place (facility, room,
apparatus)
 When the collection took place (hour, shift, day
of the week)
 Why the data were collected
2. Control chart
Control charts, also known as Shewhart charts
(after Walter A. Shewhart) or process-behavior
charts, in statistical process control are tools used
to determine if a manufacturing or business
process is in a state of statistical control.
If analysis of the control chart indicates that the
process is currently under control (i.e., is stable,
with variation only coming from sources common
to the process), then no corrections or changes to
process control parameters are needed or desired.
In addition, data from the process can be used to
predict the future performance of the process. If
the chart indicates that the monitored process is
not in control, analysis of the chart can help
determine the sources of variation, as this will

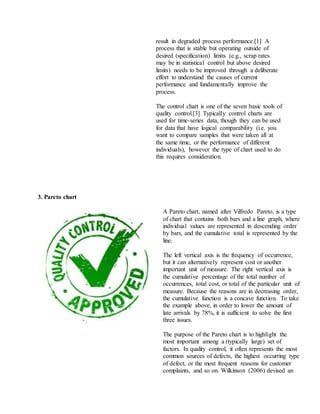

4. result in degraded process performance.[1] A
process that is stable but operating outside of
desired (specification) limits (e.g., scrap rates
may be in statistical control but above desired
limits) needs to be improved through a deliberate
effort to understand the causes of current
performance and fundamentally improve the
process.
The control chart is one of the seven basic tools of
quality control.[3] Typically control charts are
used for time-series data, though they can be used
for data that have logical comparability (i.e. you
want to compare samples that were taken all at
the same time, or the performance of different
individuals), however the type of chart used to do
this requires consideration.
3. Pareto chart
A Pareto chart, named after Vilfredo Pareto, is a type
of chart that contains both bars and a line graph, where
individual values are represented in descending order
by bars, and the cumulative total is represented by the
line.
The left vertical axis is the frequency of occurrence,
but it can alternatively represent cost or another
important unit of measure. The right vertical axis is
the cumulative percentage of the total number of
occurrences, total cost, or total of the particular unit of
measure. Because the reasons are in decreasing order,
the cumulative function is a concave function. To take
the example above, in order to lower the amount of
late arrivals by 78%, it is sufficient to solve the first
three issues.
The purpose of the Pareto chart is to highlight the
most important among a (typically large) set of
factors. In quality control, it often represents the most
common sources of defects, the highest occurring type
of defect, or the most frequent reasons for customer
complaints, and so on. Wilkinson (2006) devised an

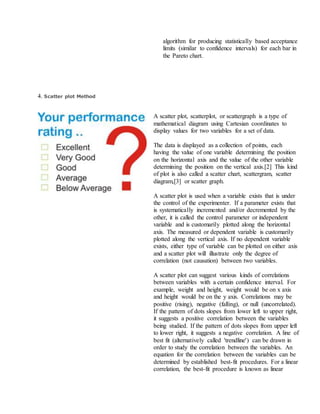

5. algorithm for producing statistically based acceptance
limits (similar to confidence intervals) for each bar in
the Pareto chart.
4. Scatter plot Method
A scatter plot, scatterplot, or scattergraph is a type of
mathematical diagram using Cartesian coordinates to
display values for two variables for a set of data.
The data is displayed as a collection of points, each
having the value of one variable determining the position
on the horizontal axis and the value of the other variable
determining the position on the vertical axis.[2] This kind
of plot is also called a scatter chart, scattergram, scatter
diagram,[3] or scatter graph.
A scatter plot is used when a variable exists that is under
the control of the experimenter. If a parameter exists that
is systematically incremented and/or decremented by the
other, it is called the control parameter or independent
variable and is customarily plotted along the horizontal
axis. The measured or dependent variable is customarily
plotted along the vertical axis. If no dependent variable
exists, either type of variable can be plotted on either axis
and a scatter plot will illustrate only the degree of
correlation (not causation) between two variables.
A scatter plot can suggest various kinds of correlations
between variables with a certain confidence interval. For
example, weight and height, weight would be on x axis
and height would be on the y axis. Correlations may be
positive (rising), negative (falling), or null (uncorrelated).
If the pattern of dots slopes from lower left to upper right,
it suggests a positive correlation between the variables
being studied. If the pattern of dots slopes from upper left
to lower right, it suggests a negative correlation. A line of
best fit (alternatively called 'trendline') can be drawn in
order to study the correlation between the variables. An
equation for the correlation between the variables can be
determined by established best-fit procedures. For a linear
correlation, the best-fit procedure is known as linear

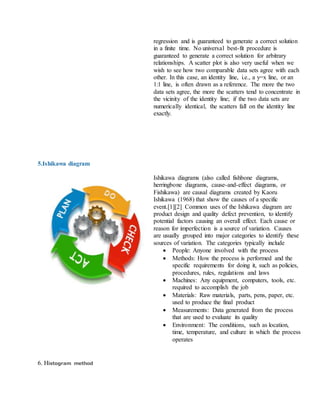

6. regression and is guaranteed to generate a correct solution
in a finite time. No universal best-fit procedure is
guaranteed to generate a correct solution for arbitrary
relationships. A scatter plot is also very useful when we
wish to see how two comparable data sets agree with each
other. In this case, an identity line, i.e., a y=x line, or an
1:1 line, is often drawn as a reference. The more the two
data sets agree, the more the scatters tend to concentrate in
the vicinity of the identity line; if the two data sets are
numerically identical, the scatters fall on the identity line
exactly.
5.Ishikawa diagram
Ishikawa diagrams (also called fishbone diagrams,
herringbone diagrams, cause-and-effect diagrams, or
Fishikawa) are causal diagrams created by Kaoru
Ishikawa (1968) that show the causes of a specific
event.[1][2] Common uses of the Ishikawa diagram are
product design and quality defect prevention, to identify
potential factors causing an overall effect. Each cause or
reason for imperfection is a source of variation. Causes
are usually grouped into major categories to identify these
sources of variation. The categories typically include
 People: Anyone involved with the process
 Methods: How the process is performed and the
specific requirements for doing it, such as policies,
procedures, rules, regulations and laws
 Machines: Any equipment, computers, tools, etc.
required to accomplish the job
 Materials: Raw materials, parts, pens, paper, etc.
used to produce the final product
 Measurements: Data generated from the process
that are used to evaluate its quality
 Environment: The conditions, such as location,
time, temperature, and culture in which the process
operates
6. Histogram method

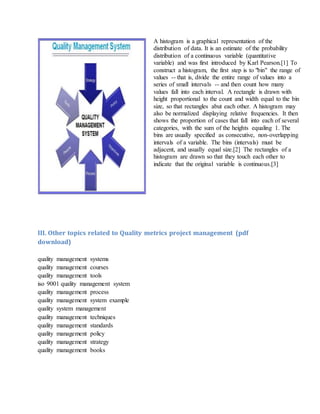

7. A histogram is a graphical representation of the
distribution of data. It is an estimate of the probability
distribution of a continuous variable (quantitative
variable) and was first introduced by Karl Pearson.[1] To
construct a histogram, the first step is to "bin" the range of
values -- that is, divide the entire range of values into a
series of small intervals -- and then count how many
values fall into each interval. A rectangle is drawn with
height proportional to the count and width equal to the bin
size, so that rectangles abut each other. A histogram may
also be normalized displaying relative frequencies. It then
shows the proportion of cases that fall into each of several
categories, with the sum of the heights equaling 1. The
bins are usually specified as consecutive, non-overlapping
intervals of a variable. The bins (intervals) must be
adjacent, and usually equal size.[2] The rectangles of a
histogram are drawn so that they touch each other to
indicate that the original variable is continuous.[3]
