QUALITY MANAGEMENT FOR SPACE PROJECTS
Paavo Heiskanen
Aalto University
2019-10-25

2. 2ESA UNCLASSIFIED - For Official Use

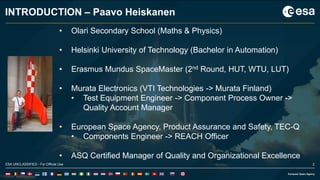

INTRODUCTION – Paavo Heiskanen
ESA UNCLASSIFIED - For Official Use 2
• Olari Secondary School (Maths & Physics)
• Helsinki University of Technology (Bachelor in Automation)
• Erasmus Mundus SpaceMaster (2nd Round, HUT, WTU, LUT)
• Murata Electronics (VTI Technologies -> Murata Finland)
• Test Equipment Engineer -> Component Process Owner ->
Quality Account Manager
• European Space Agency, Product Assurance and Safety, TEC-Q
• Components Engineer -> REACH Officer
• ASQ Certified Manager of Quality and Organizational Excellence

3. 3ESA UNCLASSIFIED - For Official Use

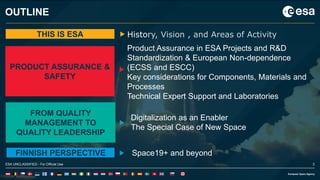

OUTLINE
THIS IS ESA History, Vision , and Areas of Activity
ESA UNCLASSIFIED - For Official Use 3
PRODUCT ASSURANCE &
SAFETY
Product Assurance in ESA Projects and R&D
Standardization & European Non-dependence
(ECSS and ESCC)
Key considerations for Components, Materials and
Processes
Technical Expert Support and Laboratories
FROM QUALITY
MANAGEMENT TO
QUALITY LEADERSHIP
FINNISH PERSPECTIVE
Digitalization as an Enabler
The Special Case of New Space
Space19+ and beyond

4. 4ESA UNCLASSIFIED - For Official Use
1975 SIGNING OF ESA CONVENTION
10MEMBER STATES
ESA UNCLASSIFIED - For Official Use 4

5. 5ESA UNCLASSIFIED - For Official Use
2019 TODAY
22MEMBER STATES
ESA UNCLASSIFIED - For Official Use 5

6. 6ESA UNCLASSIFIED - For Official Use
THE EXPLORERS AND THEIR CHALLENGE
ESA UNCLASSIFIED - For Official Use 6

7. 7ESA UNCLASSIFIED - For Official Use
THE EXPLORERS AND THEIR CHALLENGE
1. EXPLORE THE UNIVERSE
2. IMPROVE LIFE ON EARTH
…WHILE SERVING
PEACEFUL PURPOSES
ESA UNCLASSIFIED - For Official Use 7

8. 8ESA UNCLASSIFIED - For Official Use
ENABLING AND SUPPORTING
ESA UNCLASSIFIED - For Official Use 8

9. 9ESA UNCLASSIFIED - For Official Use
ENABLING AND SUPPORTING
ESA UNCLASSIFIED - For Official Use 9

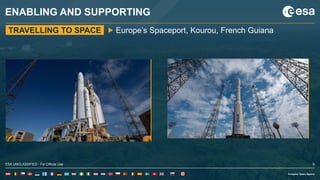

TRAVELLING TO SPACE Europe’s Spaceport, Kourou, French Guiana

10. 10ESA UNCLASSIFIED - For Official Use
ENABLING AND SUPPORTING
ESA’S TECHNICAL HEART ESTEC, Netherlands
ESA UNCLASSIFIED - For Official Use 10

11. 11ESA UNCLASSIFIED - For Official Use
ENABLING AND SUPPORTING

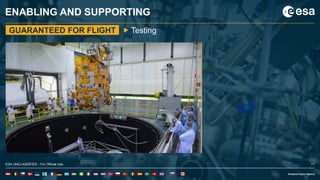

GUARANTEED FOR FLIGHT Testing
ESA UNCLASSIFIED - For Official Use 11

12. 12ESA UNCLASSIFIED - For Official Use
ENABLING AND SUPPORTING

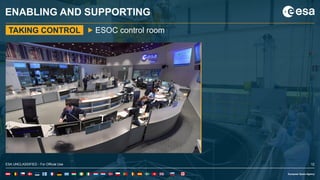

TAKING CONTROL ESOC control room
ESA UNCLASSIFIED - For Official Use 12

13. 13ESA UNCLASSIFIED - For Official Use
ENABLING AND SUPPORTING

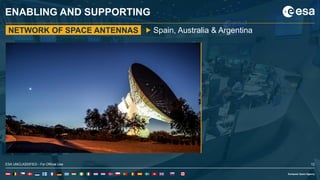

NETWORK OF SPACE ANTENNAS Spain, Australia & Argentina
ESA UNCLASSIFIED - For Official Use 13

14. 14ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 14
SCIENCE AND EXPLORATION

15. 15ESA UNCLASSIFIED - For Official Use
SCIENCE AND EXPLORATION

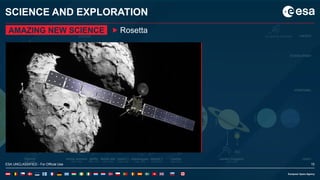

AMAZING NEW SCIENCE Rosetta
ESA UNCLASSIFIED - For Official Use 15

16. 16ESA UNCLASSIFIED - For Official Use
SCIENCE AND EXPLORATION
BEYOND THE SOLAR SYSTEM The origins of our universe
ESA UNCLASSIFIED - For Official Use 16

17. 17ESA UNCLASSIFIED - For Official Use
SCIENCE AND EXPLORATION

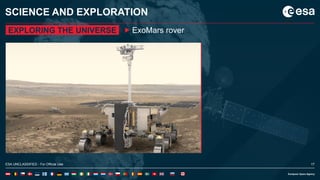

EXPLORING THE UNIVERSE ExoMars rover
ESA UNCLASSIFIED - For Official Use 17

18. 18ESA UNCLASSIFIED - For Official Use
SCIENCE AND EXPLORATION
WHERE NEXT Human spaceflight
ESA UNCLASSIFIED - For Official Use 18

19. 19ESA UNCLASSIFIED - For Official Use
APPLICATIONS
ESA UNCLASSIFIED - For Official Use 19

20. 20ESA UNCLASSIFIED - For Official Use
APPLICATIONS

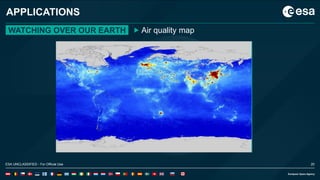

WATCHING OVER OUR EARTH Air quality map
ESA UNCLASSIFIED - For Official Use 20

21. 21ESA UNCLASSIFIED - For Official Use
APPLICATIONS

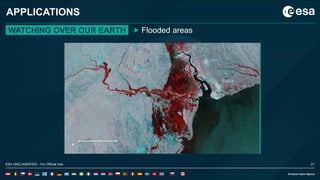

WATCHING OVER OUR EARTH Flooded areas
ESA UNCLASSIFIED - For Official Use 21

22. 22ESA UNCLASSIFIED - For Official Use
APPLICATIONS

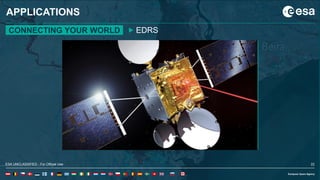

CONNECTING YOUR WORLD EDRS
ESA UNCLASSIFIED - For Official Use 22

23. 23ESA UNCLASSIFIED - For Official Use
APPLICATIONS

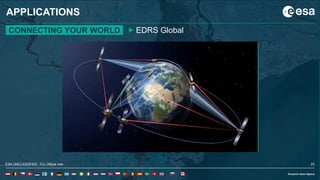

CONNECTING YOUR WORLD EDRS Global
ESA UNCLASSIFIED - For Official Use 23

24. 24ESA UNCLASSIFIED - For Official Use
APPLICATIONS

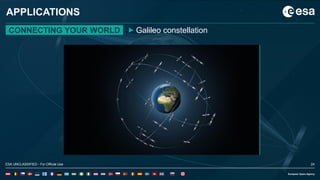

CONNECTING YOUR WORLD Galileo constellation
ESA UNCLASSIFIED - For Official Use 24

25. 25ESA UNCLASSIFIED - For Official Use
SAFETY AND SECURITY
ESA UNCLASSIFIED - For Official Use 25

26. 26ESA UNCLASSIFIED - For Official Use
SAFETY AND SECURITY
MAKING IT SAFE Hera
ESA UNCLASSIFIED - For Official Use 26

27. 27ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 27
PRODUCT
ASSURANCE &
SAFETY

28. 28ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 28
- Attributed to Captain Alfred Gilmer
Lamplugh
Historical context
- Gene Kranz, Failure is not an
option, describing the
aftermath of Apollo I fire.

29. 29ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 29
Origins of Product Assurance 1/3

30. 30ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 30

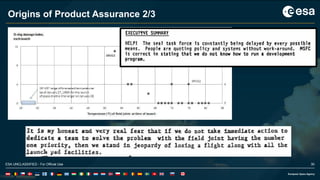

Origins of Product Assurance 2/3

31. 31ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 31

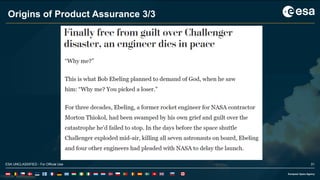

Origins of Product Assurance 3/3

32. 32ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 32

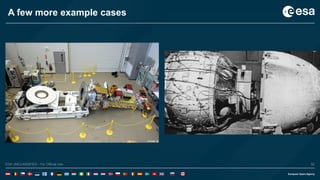

A few more example cases

33. 33ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 33

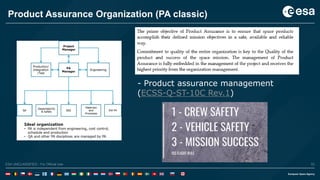

Product Assurance Organization (PA classic)
- Product assurance management
(ECSS-Q-ST-10C Rev.1)

34. 34ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 34
Lack of Quality is easy to recognize…

35. 35ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 35
… but proving an item has Quality is something different.
Customer Requirements
Achiveable?
Verifiable?
Complete?
Unchanging?
Knowledge?
Quality
mindset?
Item
Testable?
Acceptable?
Repeatable?

36. 36ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 36

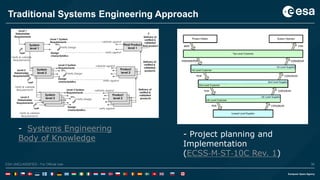

Traditional Systems Engineering Approach
- Project planning and
Implementation
(ECSS‐M‐ST‐10C Rev. 1)
- Systems Engineering
Body of Knowledge

37. 37ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 37

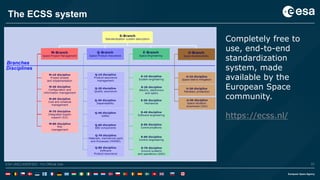

The ECSS system
Completely free to
use, end-to-end
standardization
system, made
available by the
European Space
community.
https://ecss.nl/

38. 38ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 38

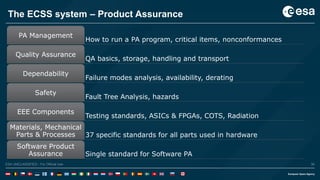

The ECSS system – Product Assurance
How to run a PA program, critical items, nonconformances
PA Management
QA basics, storage, handling and transport
Quality Assurance
Failure modes analysis, availability, derating
Dependability
Fault Tree Analysis, hazards
Safety
Testing standards, ASICs & FPGAs, COTS, Radiation
EEE Components
37 specific standards for all parts used in hardware
Materials, Mechanical
Parts & Processes
Single standard for Software PA
Software Product
Assurance

39. 39ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 39

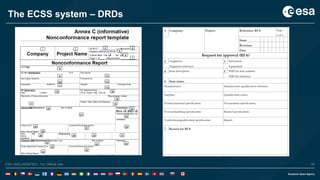

The ECSS system – DRDs

40. 40ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 40

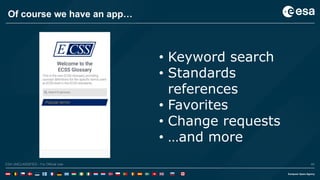

Of course we have an app…
• Keyword search
• Standards
references
• Favorites
• Change requests
• …and more

41. 41ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 41

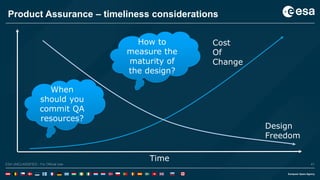

Product Assurance – timeliness considerations
Time
Cost
Of
Change
Design
Freedom
When
should you
commit QA
resources?
How to
measure the
maturity of
the design?

42. 42ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 42

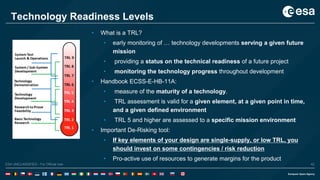

Technology Readiness Levels
• What is a TRL?
• early monitoring of … technology developments serving a given future
mission
• providing a status on the technical readiness of a future project
• monitoring the technology progress throughout development
• Handbook ECSS-E-HB-11A:
• measure of the maturity of a technology.
• TRL assessment is valid for a given element, at a given point in time,
and a given defined environment
• TRL 5 and higher are assessed to a specific mission environment
• Important De-Risking tool:
• If key elements of your design are single-supply, or low TRL, you
should invest on some contingencies / risk reduction
• Pro-active use of resources to generate margins for the product

43. 43ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 43

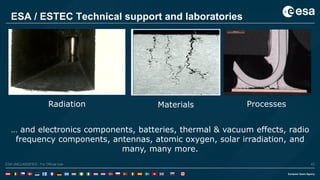

ESA / ESTEC Technical support and laboratories
Radiation Materials Processes
… and electronics components, batteries, thermal & vacuum effects, radio
frequency components, antennas, atomic oxygen, solar irradiation, and
many, many more.

44. 44ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 44

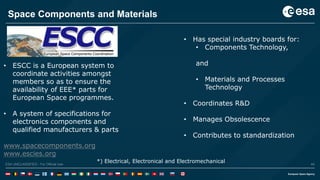

Space Components and Materials
• ESCC is a European system to
coordinate activities amongst
members so as to ensure the
availability of EEE* parts for
European Space programmes.
• A system of specifications for
electronics components and
qualified manufacturers & parts
www.spacecomponents.org
www.escies.org
*) Electrical, Electronical and Electromechanical
• Has special industry boards for:
• Components Technology,
and
• Materials and Processes
Technology
• Coordinates R&D
• Manages Obsolescence
• Contributes to standardization

45. 45ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 45
So with all this infrastructure, nothing can go wrong, right?
Legacy code
& Heritage
Emergent failuresCosts and delays

46. 46ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 46
Some attempts to cope with these (and other) issues
Digital twins Agile development Public-Private Partnerships
Advanced Manufacturing Commercial electronics
New
Space

47. 47ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 47

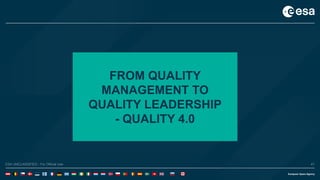

FROM QUALITY
MANAGEMENT TO
QUALITY LEADERSHIP
- QUALITY 4.0

48. 48ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 48

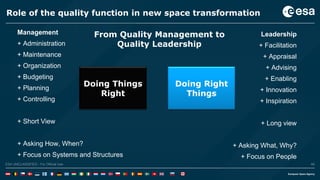

Role of the quality function in new space transformation
Management
+ Administration
+ Maintenance
+ Organization
+ Budgeting
+ Planning
+ Controlling
+ Short View
+ Asking How, When?
+ Focus on Systems and Structures
Leadership
+ Facilitation
+ Appraisal
+ Advising
+ Enabling
+ Innovation
+ Inspiration
+ Long view
+ Asking What, Why?
+ Focus on People
Doing Things
Right
Doing Right
Things
From Quality Management to
Quality Leadership

49. 49ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 49

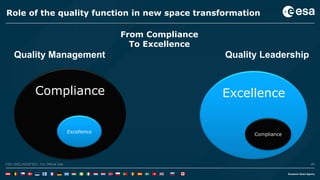

Role of the quality function in new space transformation
From Compliance
To Excellence
Quality Management
Compliance
Excellence
Quality Leadership
Excellence
Compliance

50. 50ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 50
Role of the quality function in new space transformation

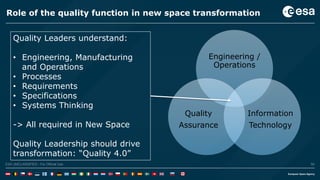

Quality Leaders understand:
• Engineering, Manufacturing
and Operations
• Processes
• Requirements
• Specifications
• Systems Thinking
-> All required in New Space
Quality Leadership should drive
transformation: “Quality 4.0”
Engineering /
Operations
Information
Technology
Quality
Assurance

51. 51ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 51

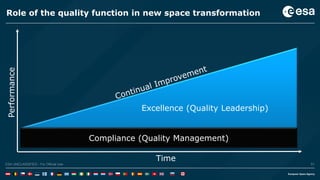

Role of the quality function in new space transformation
Time
Performance
Compliance (Quality Management)
Excellence (Quality Leadership)

52. 52ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 52

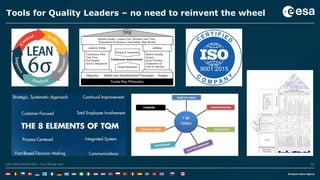

Tools for Quality Leaders – no need to reinvent the wheel

53. 53ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 53

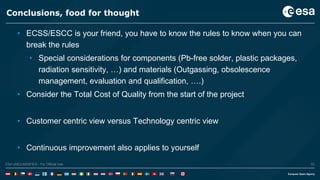

Conclusions, food for thought
• ECSS/ESCC is your friend, you have to know the rules to know when you can
break the rules
• Special considerations for components (Pb-free solder, plastic packages,
radiation sensitivity, …) and materials (Outgassing, obsolescence
management, evaluation and qualification, ….)
• Consider the Total Cost of Quality from the start of the project
• Customer centric view versus Technology centric view
• Continuous improvement also applies to yourself

54. 54ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 54
FINNISH PERSPECTIVE
Space19+ and beyond

55. 55ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 55

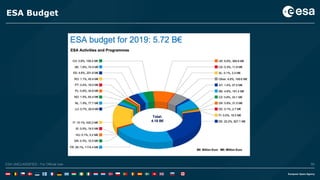

ESA Budget

56. 56ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 56
(Some) Finnish companies participating in ESA projects

57. 57ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 57

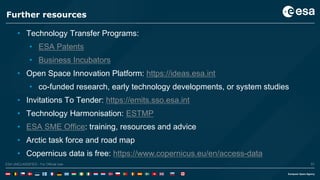

Further resources
• Technology Transfer Programs:
• ESA Patents
• Business Incubators
• Open Space Innovation Platform: https://ideas.esa.int
• co-funded research, early technology developments, or system studies
• Invitations To Tender: https://emits.sso.esa.int
• Technology Harmonisation: ESTMP
• ESA SME Office: training, resources and advice
• Arctic task force and road map
• Copernicus data is free: https://www.copernicus.eu/en/access-data

58. 58ESA UNCLASSIFIED - For Official UseESA UNCLASSIFIED - For Official Use 58

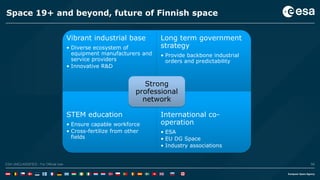

Space 19+ and beyond, future of Finnish space
Vibrant industrial base
• Diverse ecosystem of
equipment manufacturers and
service providers
• Innovative R&D
Long term government
strategy
• Provide backbone industrial
orders and predictability
STEM education
• Ensure capable workforce
• Cross-fertilize from other
fields
International co-
operation
• ESA
• EU DG Space
• Industry associations
Strong
professional
network

59. 59ESA UNCLASSIFIED - For Official Use
DISCOVER MORE
ESA UNCLASSIFIED - For Official Use 59
www.esa.int
Are you ready to discover more?
