Puppet buero20 presentation

Puppet
Automated System Conﬁguration Management

Martin Alfke <martin.alfke@buero20.org>

1
Wednesday, December 8, 2010

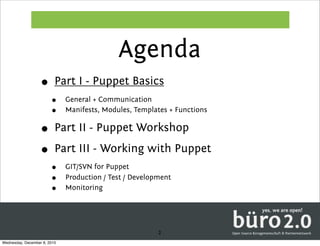

Agenda
• Part I - Puppet Basics
• General + Communication
• Manifests, Modules, Templates + Functions

• Part II - Puppet Workshop
• Part III - Working with Puppet
• GIT/SVN for Puppet
• Production / Test / Development
• Monitoring

2

General
• “Put simply, Puppet is a system for automating
system administration tasks”

• Puppet...

• is a declarative language for expressing system
conﬁguration

• is a client-server distribution

• Requirements:

• Ruby > 1.8.1 < 1.9

• Facter

3

Communication
• Security

• SSL certificate based authentication

• manual signing of certificate requests

• Layers:

• Configuration Language

• Transaction layer

• Resource Abstraction Layer

4

Supported Platforms
• Linux

• Debian / Ubuntu / Fedora / CentOS / RHEL /
OEL / Mandriva / SuSE / Gentoo

• BSD

• FreeBSD / OpenBSD

• Other Unix

• OS X / Solaris / HP-UX

• Windows - coming in 2010

5

Functional Overview
• Clients connect to
Puppet Master
• Puppet Master send
clients description of
tasks
• Puppet Master stores
Clients reports
• Reports can be imported
into dashboard database
• Dashboard web interface
to reports

6

Facter
/usr/bin/facter
architecture => amd64
domain => buero20.local
facterversion => 1.5.7
fqdn => puppet.buero20.local
...
interfaces => eth0,eth1
ipaddress => 10.0.2.15
...
operatingsystem => Debian
processorcount => 1

7

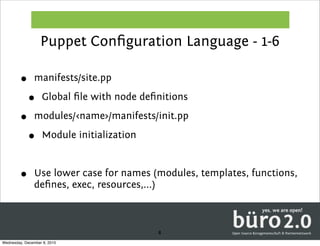

Puppet Configuration Language - 1-6

• manifests/site.pp

• Global file with node definitions

• modules/<name>/manifests/init.pp

• Module initialization

• Use lower case for names (modules, templates, functions,
defines, exec, resources,...)

8


• Resources

• user - create or remove users

• group - create or remove groups

• package install or remove distribution packages

• ﬁle - create directories, symlinks, copy ﬁles

• cron - add cron jobs

• service - run or stop services like daemons

9


• Classes

• aggregate resources for easier use

• subclasses (=nested classes) for modularity

• parameterised classes for more ﬂexible handling

• classes support inheritance

10


• Deﬁnitions

• reusable objects

• Modules

• combine collections of resources, classes and
deﬁnitions

11


• Chaining resources

• make sure that a service is restarted after
filechange

• make sure that config file is copied prior
starting a service

• make sure that a package is installed prior
starting the service

12

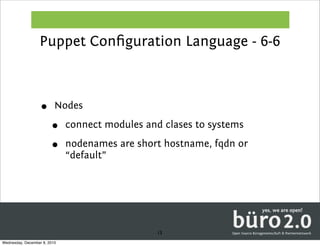

• Nodes

• connect modules and clases to systems

• nodenames are short hostname, fqdn or
“default”

13

Manifests

• Deﬁne static resources
ﬁle { “/etc/passwd”: • Static resources have
owner => root, full path and name.
group => root,
mode => 644,
}

14

Manifests with facter Variables
• Using facter
variables inside
file { “sshconfig”:
a definition
name => $operatingsystem ? {
solaris => “/usr/local/etc/ssh/sshd_config”,
default => “/etc/ssh/sshd_config”,
},
owner => root,
group => root,
mode => 644,
}

15

Manifest with Sub-Classes
class mysql {
class client {
class packages {
package { "mysql-client": ensure => installed }
}
}
class server {
class packages {
package { "mysql-server": ensure => installed }
package { "mysql-common": ensure => installed }

16

Manifests with Exec

ﬁle {"/etc/apt/keys/pgp_key.asc":
owner => root, group => root, mode => 640,
source => "puppet://$server/ﬁles/etc/apt/keys/pgp_key.asc"
}
exec { "/usr/bin/apt-key add /etc/apt/keys/pgp_key.asc":
unless => "/bin/sh -c '[ `/usr/bin/apt-key list | grep buildd |
wc -l` -eq 1 ]'"
}

17

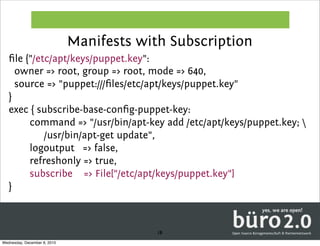

Manifests with Subscription
file {"/etc/apt/keys/puppet.key":
owner => root, group => root, mode => 640,
source => "puppet:///files/etc/apt/keys/puppet.key"
}
exec { subscribe-base-config-puppet-key:
command => "/usr/bin/apt-key add /etc/apt/keys/puppet.key;
/usr/bin/apt-get update",
logoutput => false,
refreshonly => true,
subscribe => File["/etc/apt/keys/puppet.key"]
}

18

Modules - Directory structure

• Directory structure - e.g. /etc/ssh/sshd_config
module/sshd/
manifests/
init.pp
files/
etc/ • Modules require strict
directories naming.
ssh/
sshd_config

19

Modules - Initialization Manifest

• init.pp manifest will be integrated
automatically when class name is
equal to module name
• modules/manifests/sshd/init.pp
class sshd {
file { “/etc/ssh/sshd_config”:
mode => 644,
source => “puppet:///modules/sshd/etc/ssh/sshd_config”,
}
}

20

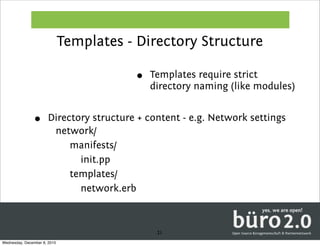

Templates - Directory Structure

• Templates require strict
directory naming (like modules)

• Directory structure + content - e.g. Network settings
network/
manifests/
init.pp
templates/
network.erb

21

Templates - Initialization Manifest
• Templates may use facter variables

• Manifests - init.pp
ﬁle { “/etc/sysconﬁg/network”:
content => template(“templates/network.erb”),
}
• Templatess - network.erb
NETWORKING=yes
HOSTNAME=<%= hostname %>
NOZEROCONF=yes

22

Functions
• Directory structure e.g. read parameter
from conﬁguration ﬁle using facter:
lib/
facter/
function.rb
• Content of library functions function.rb:
require ‘facter’
Facter.add(“PUPPET_FUNCTION”) do
%x{/bin/grep -E “^PUPPET_FUNCTION=” /etc/
puppet_function | sed -e ‘s/*.=//’ } .chomp
end
end

23

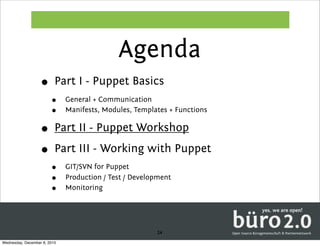

Agenda

• Monitoring

24

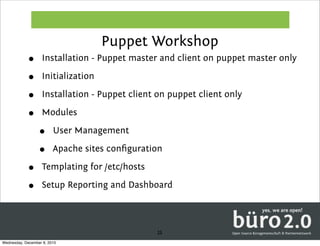

Puppet Workshop
• Installation - Puppet master and client on puppet master only

• Initialization

• Installation - Puppet client on puppet client only

• Modules

• User Management

• Apache sites conﬁguration

• Templating for /etc/hosts

• Setup Reporting and Dashboard

25

Puppet Workshop - Installation - 1-5

•check requirements:
• ruby --version
• ruby -rshadow -e’print “OKn”’

26

•from source
• fetch and extract source
• wget http://puppetlabs.com/downloads/facter/
facter-1.5.8.tar.gz

• wget http://puppetlabs.com/downloads/puppet/
puppet-2.6.2.tar.gz

27


• install

• ruby install.rb

• mkdir /etc/puppet

28

•conﬁguration
• puppet --mkuser
• puppet --genconﬁg > /etc/puppet/puppet.conf
• vi /etc/hosts - add entry for nodename puppet if
not existing

29

•manifests/site.pp
• add empty section for default node
node default {
notice(“default node”)
}

30

Puppet Workshop - Initialization
•ﬁrst start of puppet:
• puppetd --test
•puppet CA
• check client certiﬁcate
• puppetca --list
• puppetca --list --all

31

Puppet Workshop - Modules - 1-2
•File Structure
• mkdir -p modules/<name>/{manifests,ﬁles}

•modules/<name>/manifests/init.pp
class <name> {
notice(“module <name>”)
}

32

Puppet Workshop - Modules - 2-2

•including modules in manifests/site.pp
node default {
include <name>
}

33

Puppet Workshop - Account Module - 1-6
• User Management

• create your personal login

• create home directory

1. Module directories
mkdir -p modules/users/{manifests,ﬁles}

34

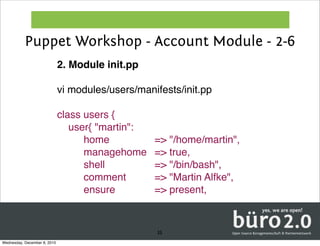

2. Module init.pp

vi modules/users/manifests/init.pp

class users {
user{ "martin":
! home!! ! ! ! ! => "/home/martin",
! managehome! => true,
! shell! ! ! ! ! ! => "/bin/bash",
! comment!! ! ! => "Martin Alfke",
! ensure!! ! ! ! => present,

35


#!uid! ! ! ! ! ! => 0,
#!gid !! ! ! ! ! => 0,
# password ! ! => '0OfNn.f5krlF2',
#!allowdupe !! => true,
}
}

36


3. modify site.pp

vi manifests/site.pp

node default {
! include users
}

37

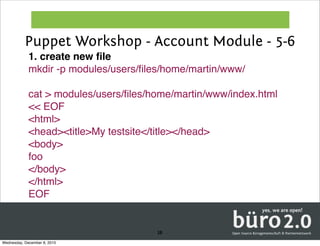

1. create new file
mkdir -p modules/users/files/home/martin/www/

cat > modules/users/files/home/martin/www/index.html
<< EOF
<html>
<head><title>My testsite</title></head>
<body>
foo
</body>
</html>
EOF

38

2. Module init.pp
add to modules/users/manifests/init.pp
class users {
......
ﬁle {“/home/martin/www”:
! ensure => directory,
}
ﬁle{“home/martin/www/index.html”:
! source => “puppet:///modules/users/home/martin/
www/index.html”,
}
}

39

Puppet Workshop - Apache Module - 1-6
• Apache sites Management

• packages

• your own vhost config

mkdir -p modules/apache/{manifests,files}
mkdir -p modules/apache/files/etc/apache2/sites-available/

40

2. your vhost deﬁnition

cat > modules/apache/ﬁles/etc/apache2/sites-available/blit-
test << EOF
Listen 88
NameVirtualHost *:88
<VirtualHost *:88>
! DocumentRoot /home/martin/www
</VirtualHost>
EOF

41

2. Module init.pp
vi modules/apache/manifests/init.pp

class apache {
! package{“apache2”: ensure! ! => present }
!
! package{“php5-mysql”: ensure! => present }
! ﬁle{“/etc/apache2/sites-available/blit-test”:
! ! source => “puppet:///modules/apache/etc/apache2/sites-
available/blit-test”,
! }
}

42


3. Add to node default manifest site.pp

include apache

43

• Apache sites Management

1. Add to apache init.pp • enabling sites with function
class apache {
...
deﬁne vhost ($ensure = ʻpresentʼ) {
! case $ensure {
! ! ʻpresentʼ: {
! ! exec { “/usr/sbin/a2ensite $name”:
! ! ! unless => “/bin/readlink -e /etc/apache2/sites-enabled/$name”
! ! }
! ! }

44


! ! ʻabsentʼ: {
! ! ! exec { “/usr/sbin/a2dissite $name”:
! ! ! ! onlyif => “/bin/readlink -e /etc/apache2/sites-enabled/$name”
! ! ! }
! ! }
! ! default: { err (“Unknown ensure value: $ensure) }
! }

45


! vhost {“blit-test”:
! ! ensure => “present”,
! }
! vhost{“000-default”:
! ! ensure => absent,
! }
}

46

Puppet Workshop - Templates - 1-2

• File Structure

• mkdir -p modules/<name>/{manifests,templates}

• modules/<name>/manifests/init.pp
class <name> {
notice(“module <name>”)
}

47

Puppet Workshop - Templates - 2-2

• including modules in manifests/site.pp
node default {
include <name>
}

48

Puppet Workshop - Hosts Template - 1-3
• Hosts Template

• conﬁgure entries in /etc/host

mkdir -p modules/hosts/{manifests,templates}

49

2. Module init.pp

vi modules/hosts/manifests/init.pp

class hosts {
! ﬁle{“/etc/hosts”:
! ! owner! => root,
! ! group! => root,
!
! ! content!=> template(hosts.erb),
! }
}

50


3. template hosts.erb

vi templates/hosts.erb

127.0.0.1!localhost
<%= ipaddress %>!<%= fqdn %> <%= hostname %>
192.168.0.2! puppet
192.168.0.4! mysql! mysqlmaster

51

Puppet Workshop - Functions - 1-2

• File Structure

• mkdir -p modules/<name>/lib/

52

Puppet Workshop - Functions - 2-2

• including modules in manifests/site.pp
node default {
include <name>
}

53

Puppet Workshop - Facter Function - 1-4
• Facter Function

• provide additional fact

mkdir -p modules/facter/lib/facter

54

2. function.rb

vi modules/facter/lib/facter/function.rb

require ʻfacterʼ
Facter.add(“PUPPET_FUNCTION”) do
! setcode do
! ! %x{/bin/grep -E “^PUPPET_FUNCTION=” /etc/puppet_function |
sed -e ʻs/.*=//ʼ}.chomp
! end
end

55


3. puppet.conf
section [main]
pluginsync = true

4. puppet run
puppetd --test

5. call facter puppet function
facter --puppet | grep puppet_function

56


3. use custom facts in manifests
case $puppet_function {
! “MYSQL”:! ! { include mysql }
! “APACHE”:!! { include apache }
! “PROXY”:! ! { include proxy }
...
}

57

Puppet Workshop - Dashboard - 1-5

• Installation

• fetch and extract sourc

• wget http://puppetlabs.com/downloads/
dashboard/puppet-dashboard-1.0.4.tgz

• install mysql-server

58


• Conﬁguration

• edit /usr/share/puppet-dashboard/conﬁg/database.yaml

• Create Database

• cd /usr/share/puppet-dashboard; rake RAILS_ENV
db:create or

• mysql -Ne ‘create database dashboard;’

59


• Initialize Database

• cd /usr/share/puppet-dashboard; rake
RAILS_ENV db:migrate

• Import Reports

RAILS_ENV=production reports:import

60


• Start service

• cd /usr/share/puppet-dashboard; ./bin/server
-e production -d

• Review your Dashboard in browser

• http://<your puppetmaster ip>:3000/

61

• add error to manifest (e.g. point source to a
non existing ﬁle)

• run puppetd

• puppetd --test

• import data

RAILS_ENV=production reports:import

• review dashboard

62

Agenda

• Monitoring

63

Puppet into GIT/SVN

• Why revision control system?

• Co-working

• Branches

• Which RCS System?

• Which ever you prefer

64

Puppet Staging
• Production, Test and Development

• /etc/puppet/puppet.conf

• [main] - environment = ...

• [development] - modulepath=/etc/puppet/
development/modules

• [testing] - modulepath=/etc/puppet/testing/
modules

• [production] - modulepath=/etc/puppet/
production/modules

65

Puppet Monitoring

• Puppet Dashboard

• Conﬁgure puppet to store results

• [master] section: reports=http, store

• [agent] (v2.6) or [puppetd] section: report=true

• Conﬁgure Database (e.g. MySQL)

66

Puppet Dashboard

67

Puppet
Automated System Conﬁguration Management

Thank you !
Questions ?

Martin Alfke <martin.alfke@buero20.org>

68

Puppet buero20 presentation

More Related Content

Similar to Puppet buero20 presentation

More from Martin Alfke

Recently uploaded

Puppet buero20 presentation
