The document describes an algorithm to find the shortest path through a maze to reach a key using backtracking. It uses a stack to store the visited path and an array to store multiple maze inputs. It finds all unvisited paths and settles on the minimum path. The main functions are maze(), which recursively solves the maze, findNearestTrap(), which locates walls in the four directions, and neighbourTravel(), which moves to adjacent empty spaces and recursively searches from there.

1. getMeOutOfTheRoom
PSG College of Technology
MurtazaA
NageswaranS

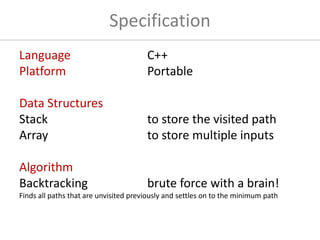

2. Specification
Language C++
Platform Portable
Data Structures
Stack to store the visited path
Array to store multiple inputs
Algorithm
Backtracking brute force with a brain!
Finds all paths that are unvisited previously and settles on to the minimum path

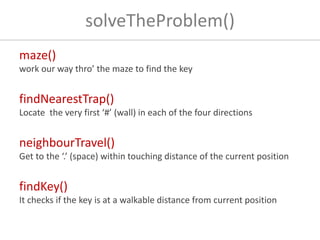

3. solveTheProblem()
maze()
work our way thro’ the maze to find the key
findNearestTrap()
Locate the very first ‘#’ (wall) in each of the four directions
neighbourTravel()
Get to the ‘.’ (space) within touching distance of the current position
findKey()
It checks if the key is at a walkable distance from current position

4. maze()
maze (testcase_no, input_graph, rows, cols, currentPosition,
keyPosition, move, visited_stack)
if currentPosition == keyPosition {
minmoves = move;
return 1
}
findNearestTrap (graph, distances, currentPosition, outPositions)
min = minimum(distances)
……. //next slide

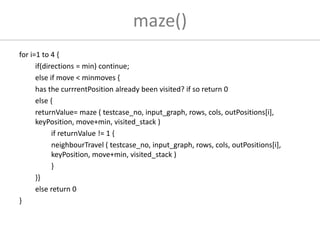

5. maze()
for i=1 to 4 {
if(directions = min) continue;
else if move < minmoves {
has the currrentPosition already been visited? if so return 0
else {
returnValue= maze ( testcase_no, input_graph, rows, cols, outPositions[i],
keyPosition, move+min, visited_stack )
if returnValue != 1 {
neighbourTravel ( testcase_no, input_graph, rows, cols, outPositions[i],
keyPosition, move+min, visited_stack )
}
}}
else return 0
}

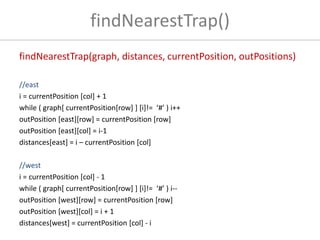

6. findNearestTrap()
findNearestTrap(graph, distances, currentPosition, outPositions)
//east
i = currentPosition [col] + 1
while ( graph[ currentPosition[row] ] [i]!= ‘#’ ) i++
outPosition [east][row] = currentPosition [row]
outPosition [east][col] = i-1
distances[east] = i – currentPosition [col]
//west
i = currentPosition [col] - 1
while ( graph[ currentPosition[row] ] [i]!= ‘#’ ) i--
outPosition [west][row] = currentPosition [row]
outPosition [west][col] = i + 1
distances[west] = currentPosition [col] - i

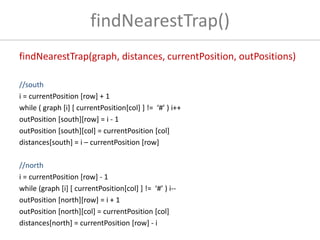

7. findNearestTrap()
findNearestTrap(graph, distances, currentPosition, outPositions)
//south
i = currentPosition [row] + 1
while ( graph [i] [ currentPosition[col] ] != ‘#’ ) i++
outPosition [south][row] = i - 1
outPosition [south][col] = currentPosition [col]
distances[south] = i – currentPosition [row]
//north
i = currentPosition [row] - 1
while (graph [i] [ currentPosition[col] ] != ‘#’ ) i--
outPosition [north][row] = i + 1
outPosition [north][col] = currentPosition [col]
distances[north] = currentPosition [row] - i

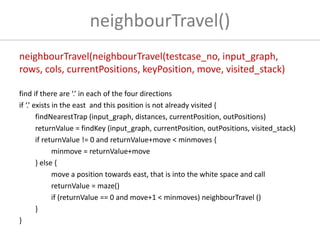

8. neighbourTravel()
neighbourTravel(neighbourTravel(testcase_no, input_graph,
rows, cols, currentPositions, keyPosition, move, visited_stack)
find if there are ‘.’ in each of the four directions
if ‘.’ exists in the east and this position is not already visited {
findNearestTrap (input_graph, distances, currentPosition, outPositions)
returnValue = findKey (input_graph, currentPosition, outPositions, visited_stack)
if returnValue != 0 and returnValue+move < minmoves {
minmove = returnValue+move
} else {
move a position towards east, that is into the white space and call
returnValue = maze()
if (returnValue == 0 and move+1 < minmoves) neighbourTravel ()
}
}
