PRESS RELEASE
LDU62-HG, 10 to 30Wrms (DVB-T/T2), broadband Super Driver
or
Final Power Amplifier
You decide how to use it !
LDU62-HG + LDU688XLD,
the most flexible, simple, powerful and efficient pallet-system solution available today

Orvieto, Decembrer 2012,

with the massive production launch of the new LDU62-HG RES-Ingenium complete his
UHF pallet “System Solution” Line. LDU62-HG can be used as a very linear super-driver,
in order to pilot up to four (4) high Power pallets, or as 35dB typical gain / 30Wrms final
Power Amplifier.

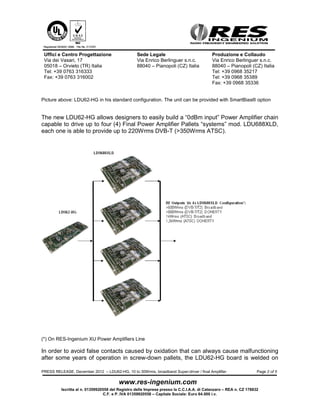

Picture above: LDU62-HG in his standard configuration. The unit can be provided with SmartBias® option

PRESS RELEASE, December 2012 – LDU62-HG, 10 to 30Wrms, broadband Super-driver / final Amplifier Page 1 of 4

Iscritta al n. 01359920558 del Registro delle Imprese presso la C.C.I.A.A. di Catanzaro – REA n. CZ 178832
C.F. e P. IVA 01359920558 – Capitale Sociale: Euro 64.000 i.v.

Tel: +39 0763 316333 Tel: +39 0968 35217
Fax: +39 0763 316002 Tel: +39 0968 35389
Fax: +39 0968 35336

The new LDU62-HG allow designers to easily build a “0dBm input” Power Amplifier chain
capable to drive up to four (4) Final Power Amplifier Pallets “systems” mod. LDU688XLD,
each one able to provide up to 220Wrms DVB-T (>350Wrms ATSC).

LDU688XLD

RF Outputs Vs 4x LDU688XLD Configuration*:
>600Wrms (DVB-T/T2) Broadband
LDU62-HG
>800Wrms (DVB-T/T2) DOHERTY
1kWrms (ATSC) Broadband
1,3kWrms (ATSC) DOHERTY

(*) On RES-Ingenium XU Power Amplifiers Line

In order to avoid false contacts caused by oxidation, that can always cause malfunctioning

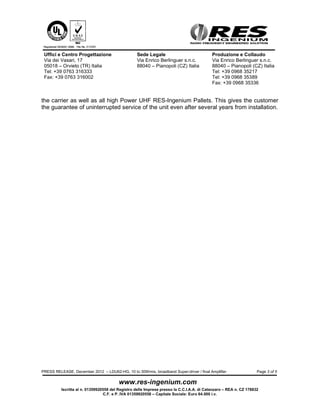

after some years of operation in screw-down pallets, the LDU62-HG board is welded on
the carrier as well as all high Power UHF RES-Ingenium Pallets. This give the customer
the guarantee of uninterrupted service of the unit even after several years from installation.



Tel: +39 0763 316333 Tel: +39 0968 35217
Fax: +39 0763 316002 Tel: +39 0968 35389
Fax: +39 0968 35336

LDU62-HG is the perfect solution to drive the ultimate High Power Pallet from RES-
Ingenium, the LDU688XLD, in both broad-band or Doherty configuration system.

The LDU688XLD offers the flexibility of the broadband version and the high efficiency of
the Doherty circuitry (>40% typical RF efficiency) in a Fast & Easy product configuration,
“all-in-one”, becoming a real innovative “Pallet-system” solution.

Thanks to the

system by RES-Ingenium, our customer can buy either a broad-band pallet and then
reconfigure it into a Doherty solution or can buy directly a Doherty solution and then
change the frequency on the field, if it become necessary.

LDU688XLD has been defined - by expert broadcasting engineers – “The most flexible,
simple, powerful and efficient pallet-system available today for digital application”
(220Wrms in DVB and 350Wrms in ATSC).

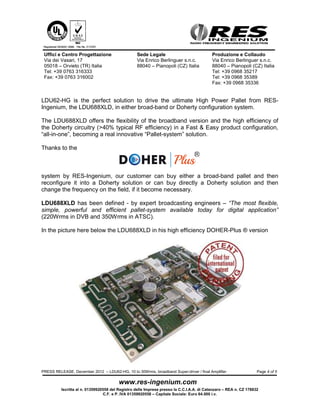

In the picture here below the LDU688XLD in his high efficiency DOHER-Plus ® version



Tel: +39 0763 316333 Tel: +39 0968 35217
Fax: +39 0763 316002 Tel: +39 0968 35389
Fax: +39 0968 35336

LDU688XLD can be supplied either with Manual or SMARTBIAS® option (IR Control).

LDU688XLD can be supplied already tuned on the customer working channel (Picture
here above) or in his broadband version, covering the entire UHF broadcasting band (470-
862MHz).

If purchased in his broadband version the unit can be converted any time to a high
efficiency Doherty Power Amplifier pallet just changing the combining board at the output
and resetting the bias of the two amplifier section. A simple operation that can be done by
a normal skilled technician in few minutes, with basic tools.

Here below the LDU688XLD in his broadband version.
