The document details a comprehensive cost and material breakdown for a construction project, listing various components such as sole plates, wall elements, insulation, and roofing with their respective quantities and prices. The total estimated cost for the project is $131,478, which includes a 25% VAT. Additional information includes delivery terms and contact details for the sales representative.

17. TP Engineering $4 329
TOTAL Quantity Measure
1 Sole plate $2 209
1.1 Sole plate (70x150) $791,42 2,11 m³
1.2 Sole plate (70x90) $501,23 1,33 m³
1.3 Montage insulation on the ends $832,22 23,90 l
1.4 Concrete screws (200) $84,40 311,85 pcs
3 External wall elements with pine cladding $30 685 245,72 m²
3.1 Thermowood Cladding Boards, painted (18x120) $11 298,83 270,30 m²
3.2 Staples $214,09 5,41 packs
3.3 Lathing (25x45) $837,70 0,30 m³
3.4 Staples $214,09 5,41 packs
3.5 Lathing (45x45) $924,01 0,53 m³
3.6 Impregnation, Treatment $621,59 17,85 l
3.7 Rodent trap $500,52 113,75 run.m.
3.8 Nails (70) $372,21 2255,75 pcs
3.9 Adhesive tape $315,18 175,69 run.m.
3.10 Wind barrier $351,92 309,61 m²
3.11 Wind Board (10) $2 101,36 270,30 m²
3.12 Staples $214,09 5,41 packs
3.13 Timber frame, CE graded(45x195) $5 951,21 12,10 m³
3.14 Wood Screws $404,38 2162,37 pcs
3.15 Insulation ROCKWOOL (250) $3 167,99 67,57 m³
3.16 Adhesive tape $315,18 175,69 run.m.
3.17 Vapour barrier $930,92 309,61 m²
3.18 Lathing (45x45) $1 577,12 2,33 m³
3.19 Nails (90) $372,21 2255,75 pcs
House finished
from outside

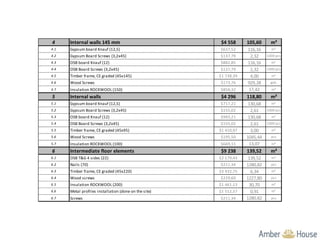

18. 4 Internal walls 145 mm $4 558 105,60 m²
4.1 Gypsum board Knauf (12,5) $637,52 116,16 m²
4.2 Gypsum Board Screws (3,2x45) $137,79 2,32 1000 pcs
4.3 OSB board Knauf (12) $882,85 116,16 m²
4.4 OSB Board Screws (3,2x45) $137,79 2,32 1000 pcs
4.5 Timber frame, CE graded (45x145) $1 738,39 4,00 m³
4.6 Wood Screws $173,76 929,28 gab.
4.7 Insulation ROCKWOOL (150) $850,32 17,42 m³
5 Internal walls $4 296 118,80 m²
5.1 Gypsum board Knauf (12,5) $717,21 130,68 m²
5.2 Gypsum Board Screws (3,2x45) $155,02 2,61 1000 pcs
5.3 OSB board Knauf (12) $993,21 130,68 m²
5.4 OSB Board Screws (3,2x45) $155,02 2,61 1000 pcs
5.5 Timber frame, CE graded (45x95) $1 410,97 3,00 m³
5.6 Wood Screws $195,50 1045,44 pcs
5.7 Insulation ROCKWOOL (100) $669,11 13,07 m³
6 Intermediate floor elements $9 238 139,52 m²
6.1 OSB T&G 4 sides (22) $2 179,43 139,52 m²
6.2 Nails (70) $211,34 1280,82 pcs
6.3 Timber frame, CE graded (45x220) $3 432,75 6,34 m³
6.4 Wood screws $229,60 1227,80 pcs
6.5 Insulation ROCKWOOL (200) $1 461,13 30,70 m³
6.6 Metal profiles installation (done on the site) $1 512,57 0,91 m³
6.7 Screws $211,34 1280,82 pcs

19. 9 Roof elements $17 014 139,52 m²
9.1 OSB T&G 4 sides (22) $2 378,96 153,48 m²
9.2 Counter lathing (25x95) $1 067,78 1,80 m³
9.3 Nails (70) $225,43 1280,82 pcs
9.4 Lathing (45x45) $775,21 0,99 m³
9.5 Nails (90) $225,43 1280,82 pcs
9.6 Adhesive tape $178,97 99,76 run.m.
9.7 Diffusion membrane $672,25 184,17 m²
9.8 Timber frame, CE graded (45x95) $2 191,68 3,35 m³
9.9 Timber frame, CE graded (45x245) $4 110,95 8,64 m³
9.10 Wood Screws $229,60 1227,80 pcs
9.11 Insulation ROCKWOOL (350) $2 474,12 53,72 m³
9.12 Adhesive tape $178,97 99,76 run.m.
9.13 Vapour barrier $550,67 184,17 m²
9.14 Metal profiles installation (done on the site) $1 542,62 0,99 m³
9.15 Nails (70) $211,34 1280,82 pcs
10 Car port/Open garage/Shed $8 739 142,40 m²
Roof section
10.1 Counter lathing (25x95) $393,18 0,66 m³
10.2 Nails (70) $83,01 471,63 pcs
10.3 Lathing (45x45) $285,46 0,37 m³
10.4 Nails (90) $83,01 471,63 pcs
10.5 Adhesive tape $65,90 56,51 m²
10.6 Diffusion membrane Pro Clima SOLITEX MENTO $344,52 67,82 m²
10.7 Timber frame, CE graded (45x145) $1 042,60 1,88 m³
10.8 Wood Screws $84,55 452,11 pcs
Wall section
10.9 Pine Cladding Boards, painted (18x120) $2 863,61 100,12 m²
10.10 Counter lathing (25x95) $696,59 1,17 m³
10.11 Nails (70) $147,07 835,56 pcs
10.12 Lathing (45x45) $505,73 0,65 m³
10.13 Nails (90) $147,07 835,56 pcs
10.14 Timber frame, CE graded (45x145) $1 847,14 3,33 m³
10.15 Wood Screws $149,78 800,98 pcs

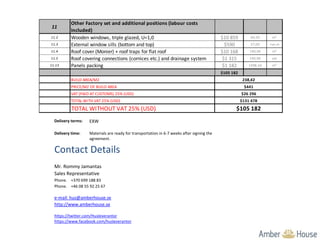

20. 11
Other Factory set and additional positions (labour costs
included)
11.2 Wooden windows, triple glazed, U=1,0 $10 859 64,50 m²
11.3 External window sills (bottom and top) $590 57,00 run.m
11.4 Roof cover (Monier) + roof traps for flat roof $10 168 190,90 m²
11.5 Roof covering connections (cornices etc.) and drainage system $1 315 190,90 set
11.13 Panels packing $1 182 1498,34 m²
$105 182
BUILD AREA/M2
PRICE/M2 OF BUILD AREA
VAT (PAID AT CUSTOMS) 25% (USD)
TOTAL WITH VAT 25% (USD)
TOTAL WITHOUT VAT 25% (USD)
$131 478
$26 296
$441
238,42
$105 182
Delivery terms: EXW
Delivery time: Materials are ready for transportation in 6-7 weeks after signing the
agreement.
