NOSQL and mongodb and the kind of

1. NOSQL

2. WHAT’S NOSQL?
-NOT ONLY SQL .

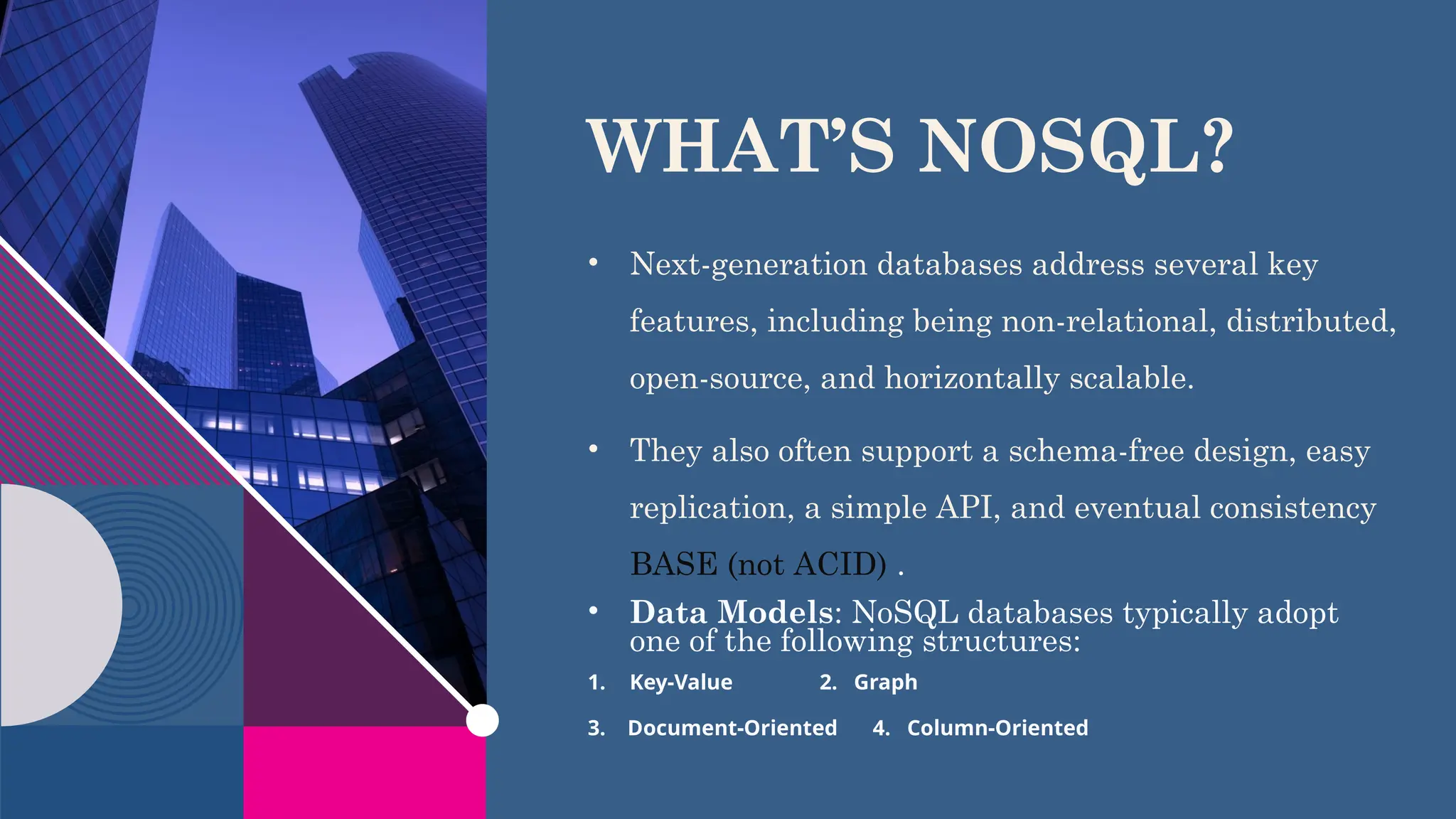

3. WHAT’S NOSQL?
​
• Next-generation databases address several key
features, including being non-relational, distributed,
open-source, and horizontally scalable.
• They also often support a schema-free design, easy
replication, a simple API, and eventual consistency
BASE (not ACID) .
• Data Models: NoSQL databases typically adopt
one of the following structures:
1. Key-Value 2. Graph
3. Document-Oriented 4. Column-Oriented

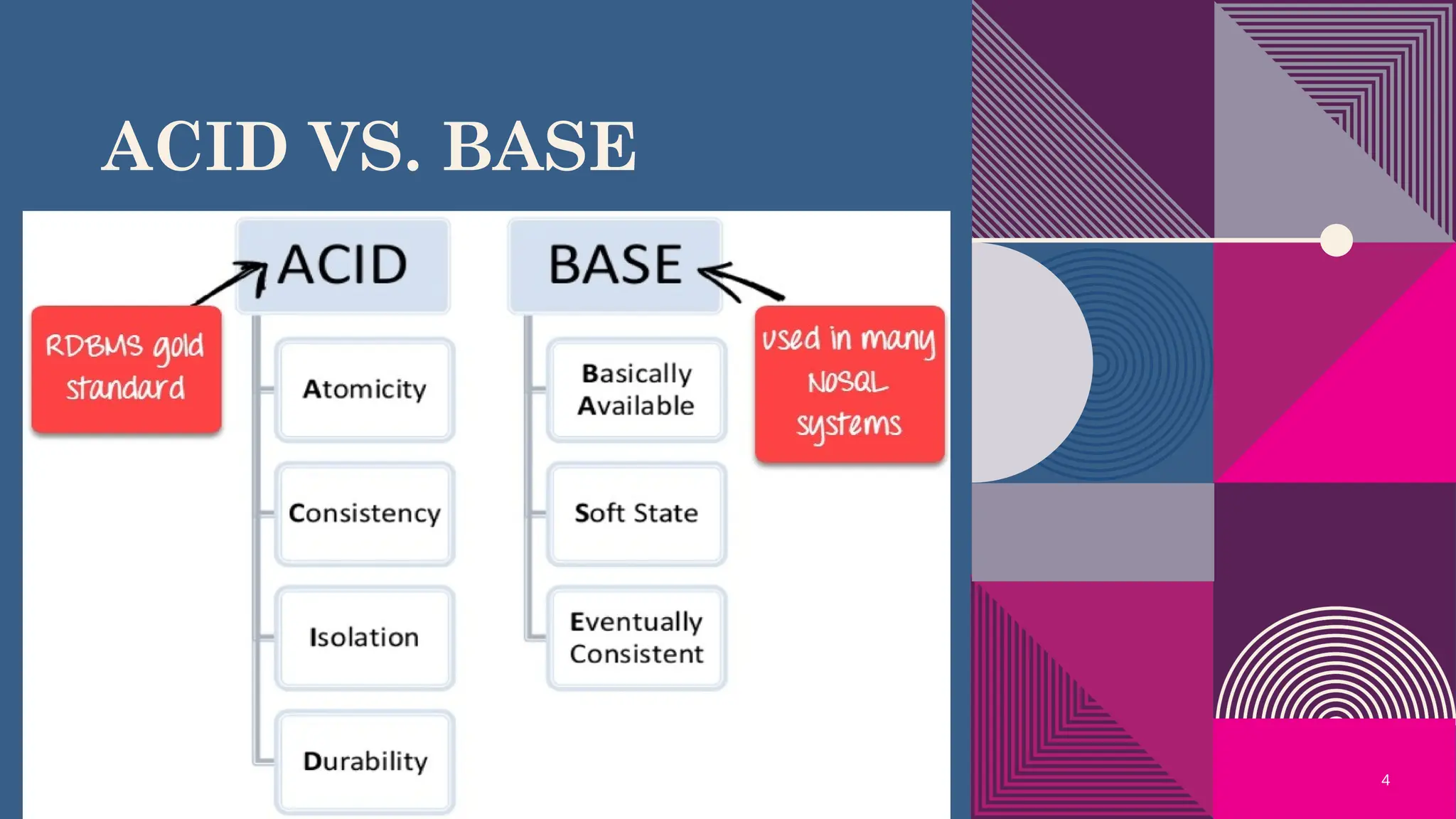

4. ACID VS. BASE
4

5. 5

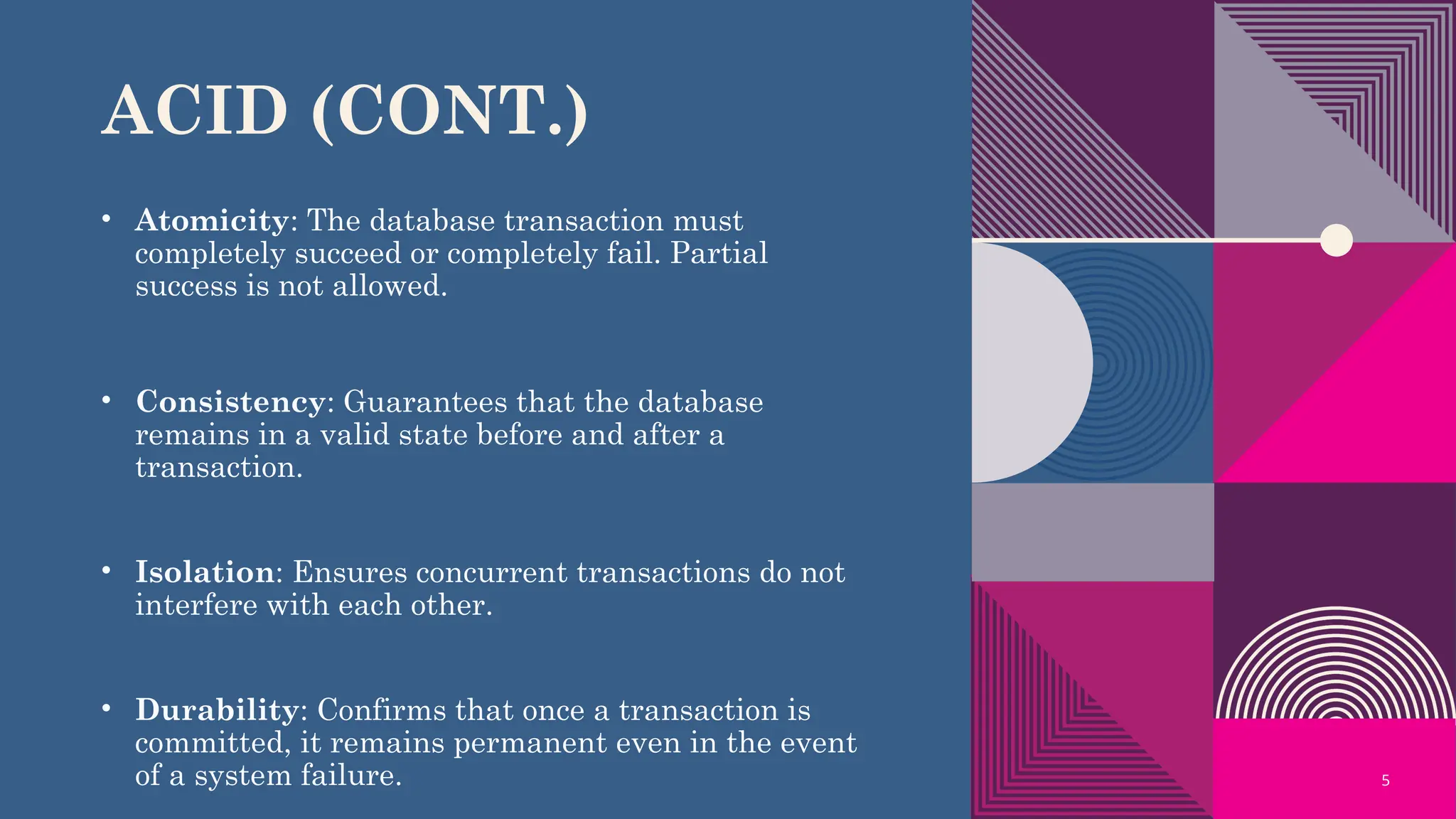

ACID (CONT.)
• Atomicity: The database transaction must
completely succeed or completely fail. Partial
success is not allowed.
• Consistency: Guarantees that the database
remains in a valid state before and after a
transaction.
• Isolation: Ensures concurrent transactions do not
interfere with each other.
• Durability: Confirms that once a transaction is
committed, it remains permanent even in the event
of a system failure.

6. 6

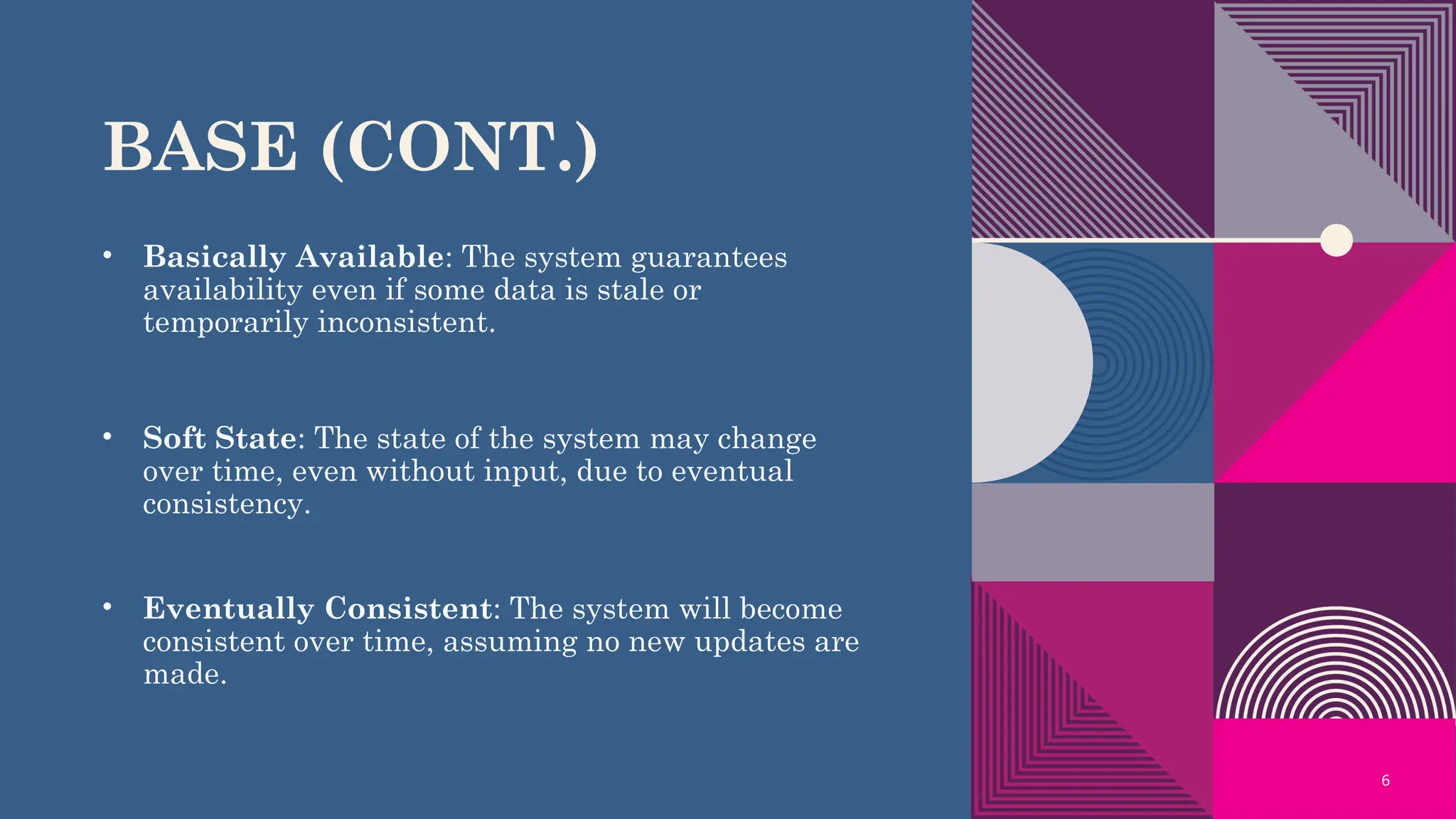

BASE (CONT.)
• Basically Available: The system guarantees
availability even if some data is stale or
temporarily inconsistent.
• Soft State: The state of the system may change
over time, even without input, due to eventual
consistency.
• Eventually Consistent: The system will become
consistent over time, assuming no new updates are
made.

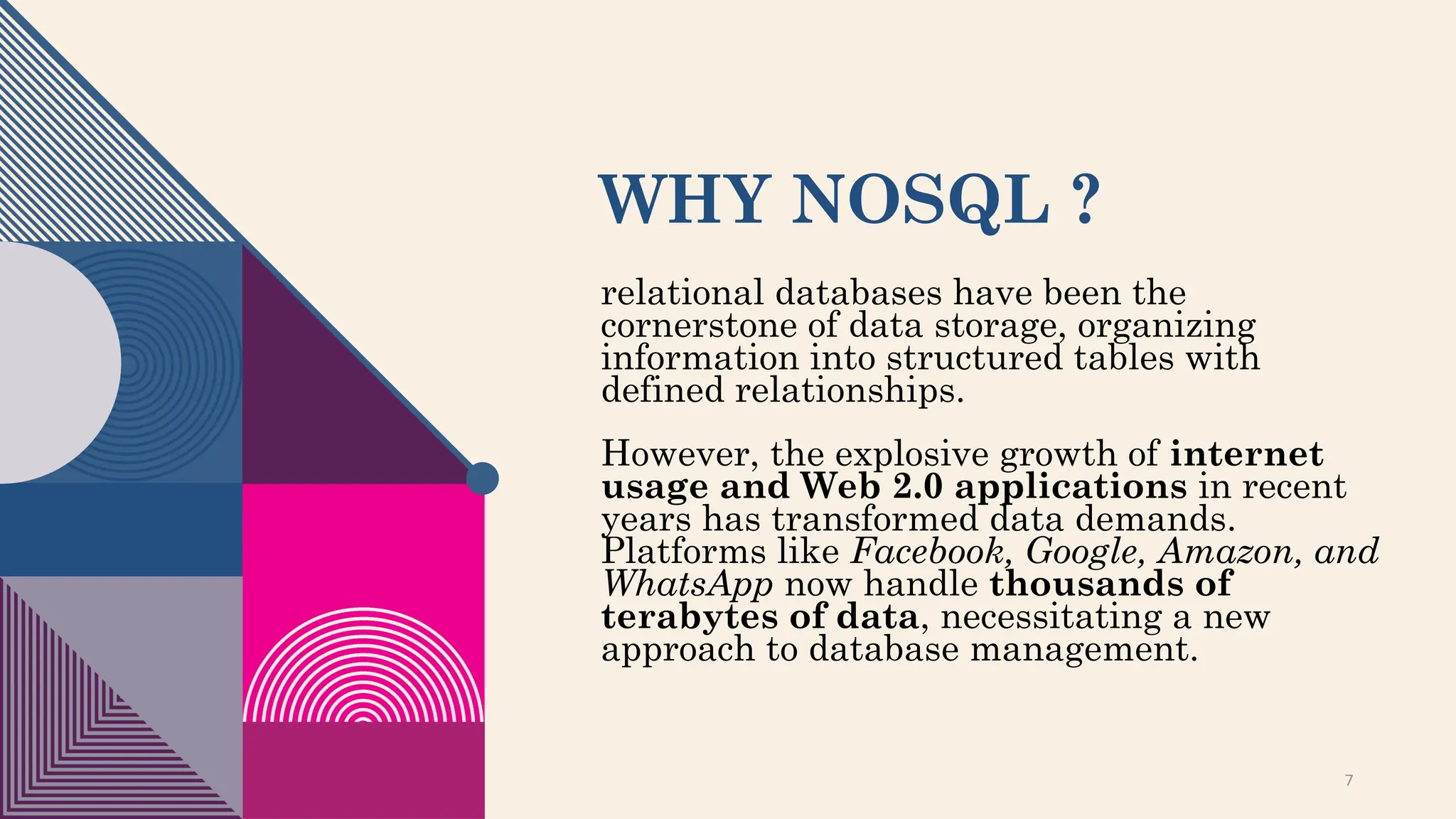

7. WHY NOSQL ?
relational databases have been the
cornerstone of data storage, organizing
information into structured tables with
defined relationships.
However, the explosive growth of internet
usage and Web 2.0 applications in recent
years has transformed data demands.
Platforms like Facebook, Google, Amazon, and
WhatsApp now handle thousands of
terabytes of data, necessitating a new
approach to database management.
7

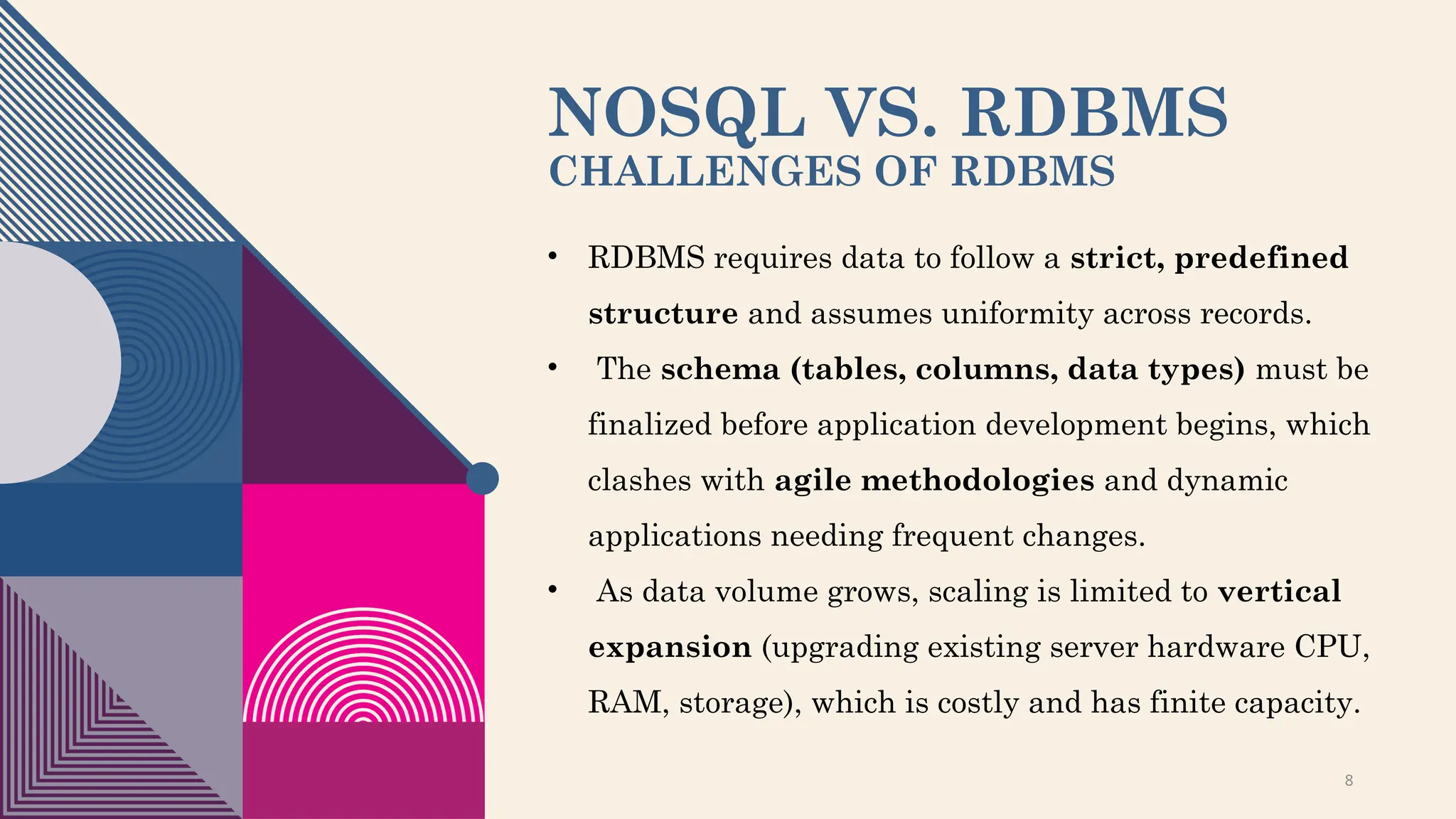

8. NOSQL VS. RDBMS
CHALLENGES OF RDBMS
• RDBMS requires data to follow a strict, predefined
structure and assumes uniformity across records.
• The schema (tables, columns, data types) must be
finalized before application development begins, which
clashes with agile methodologies and dynamic
applications needing frequent changes.
• As data volume grows, scaling is limited to vertical
expansion (upgrading existing server hardware CPU,
RAM, storage), which is costly and has finite capacity.
8

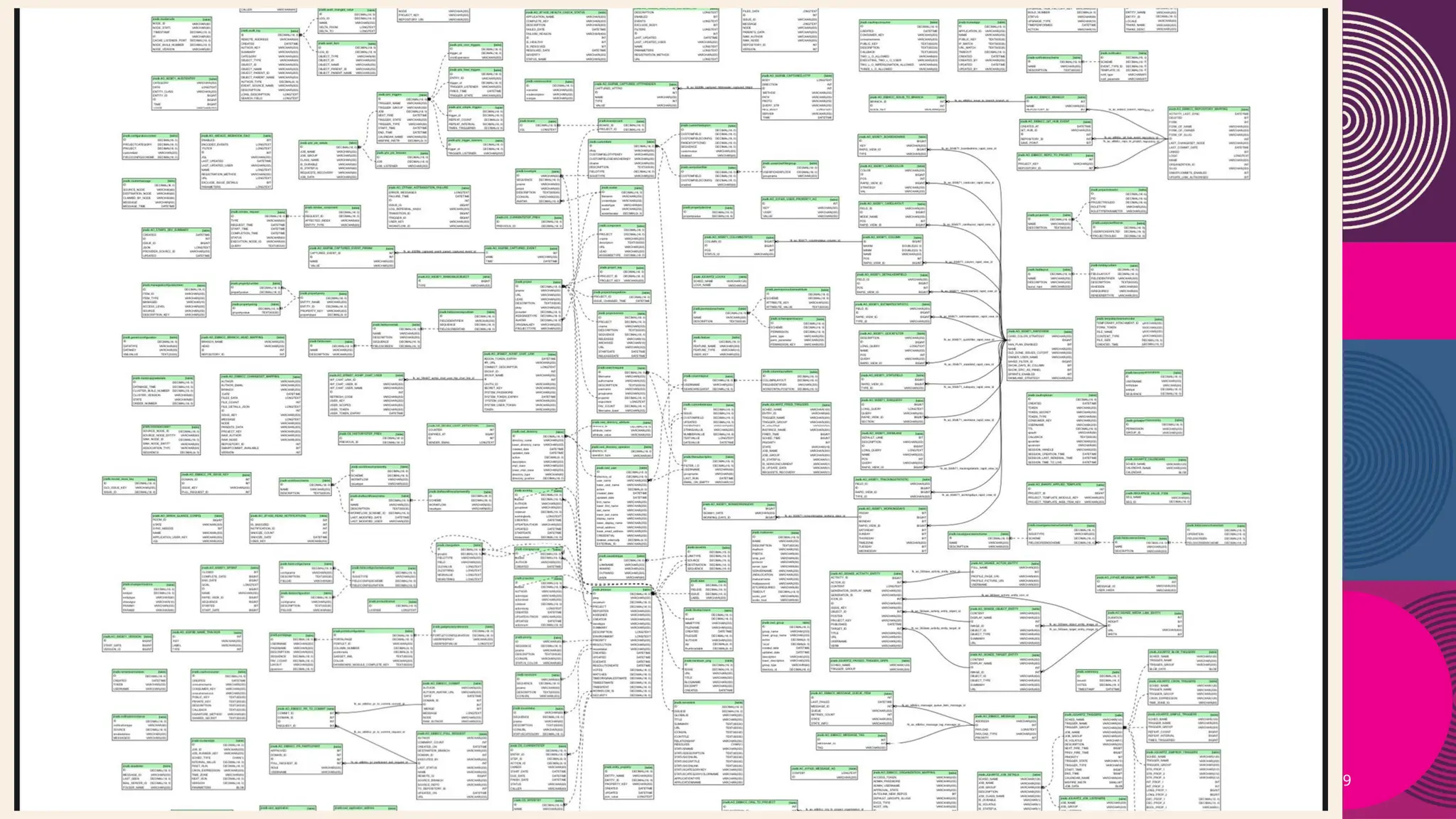

9. 9

10. 10

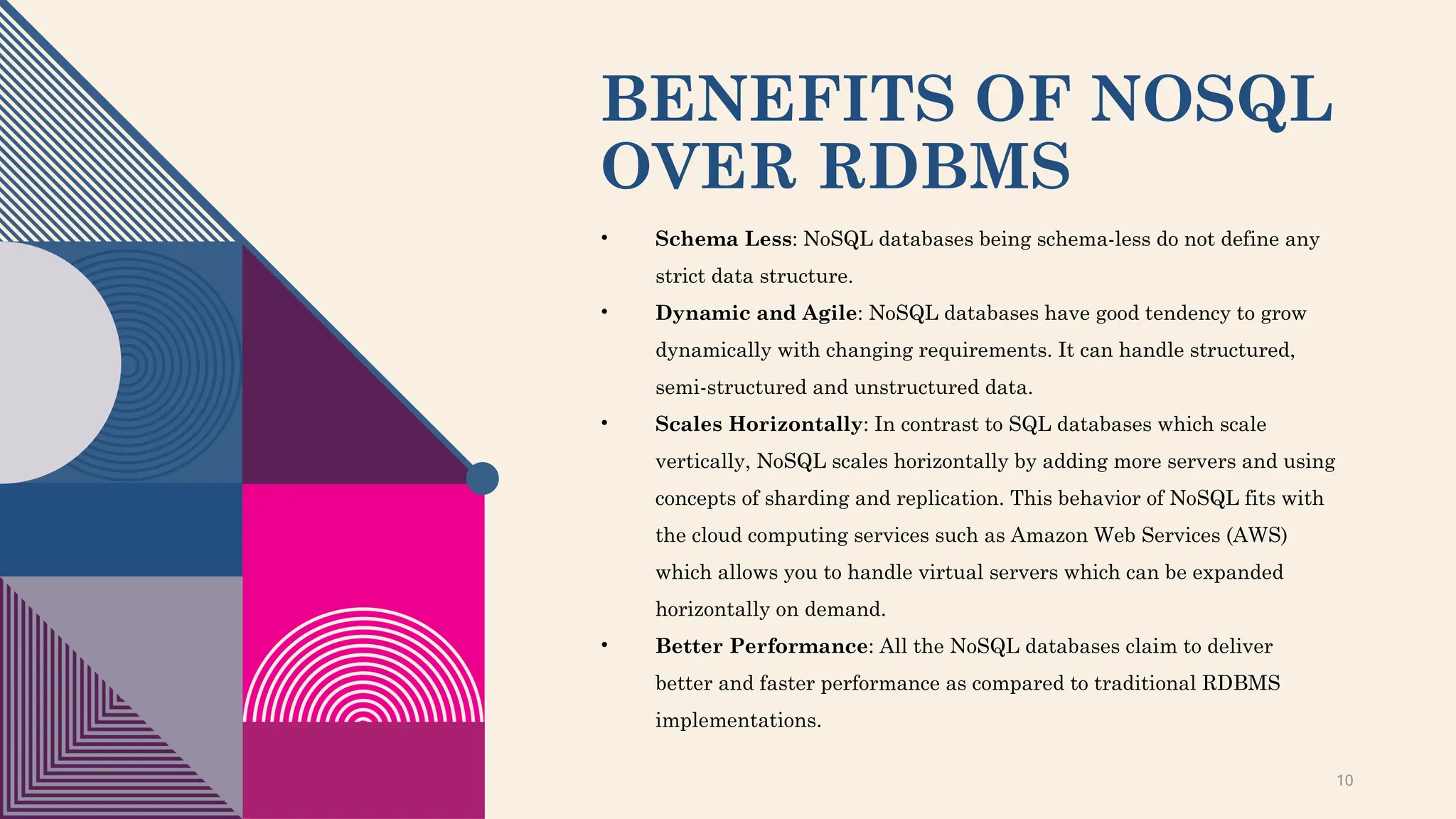

BENEFITS OF NOSQL
OVER RDBMS
• Schema Less: NoSQL databases being schema-less do not define any
strict data structure.
• Dynamic and Agile: NoSQL databases have good tendency to grow
dynamically with changing requirements. It can handle structured,
semi-structured and unstructured data.
• Scales Horizontally: In contrast to SQL databases which scale
vertically, NoSQL scales horizontally by adding more servers and using
concepts of sharding and replication. This behavior of NoSQL fits with
the cloud computing services such as Amazon Web Services (AWS)
which allows you to handle virtual servers which can be expanded
horizontally on demand.
• Better Performance: All the NoSQL databases claim to deliver
better and faster performance as compared to traditional RDBMS
implementations.

11. 11
NOSQL LIMITATIONS:
• Since NoSQL is an entire set of databases (and not a single database),
the limitations differ from database to database.
• Some of these databases do not support ACID (Atomicity, Consistency,
Isolation, Durability) transactions while some of them might be lacking
in reliability.
• But each one of them has their own strengths due to which they are
well suited for specific requirements.
• Nostandardization.
• Limited query capabilities (so far).

12. 12

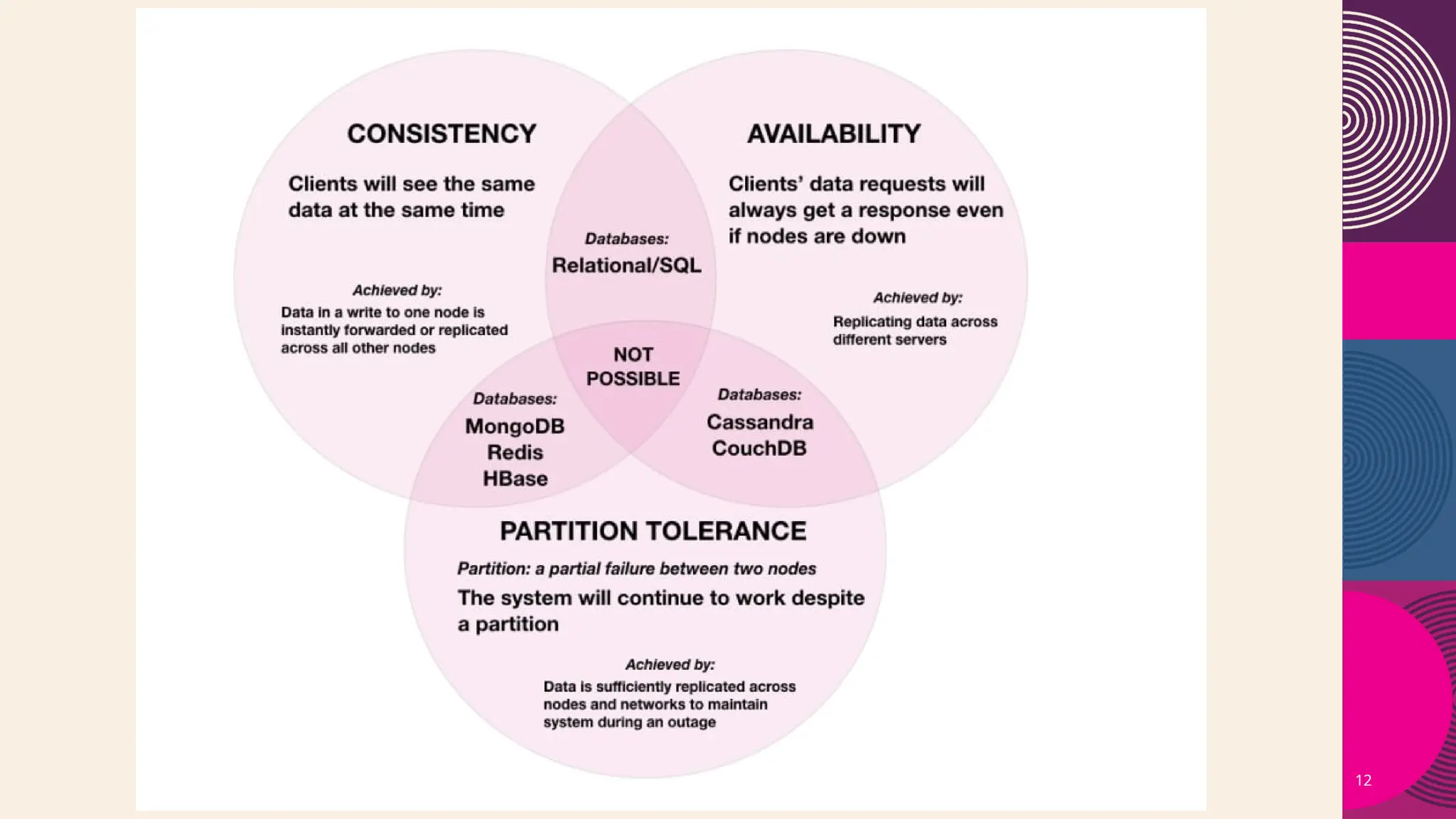

13. INTRODUCTION TO CAP THEOREM
13

14. 14

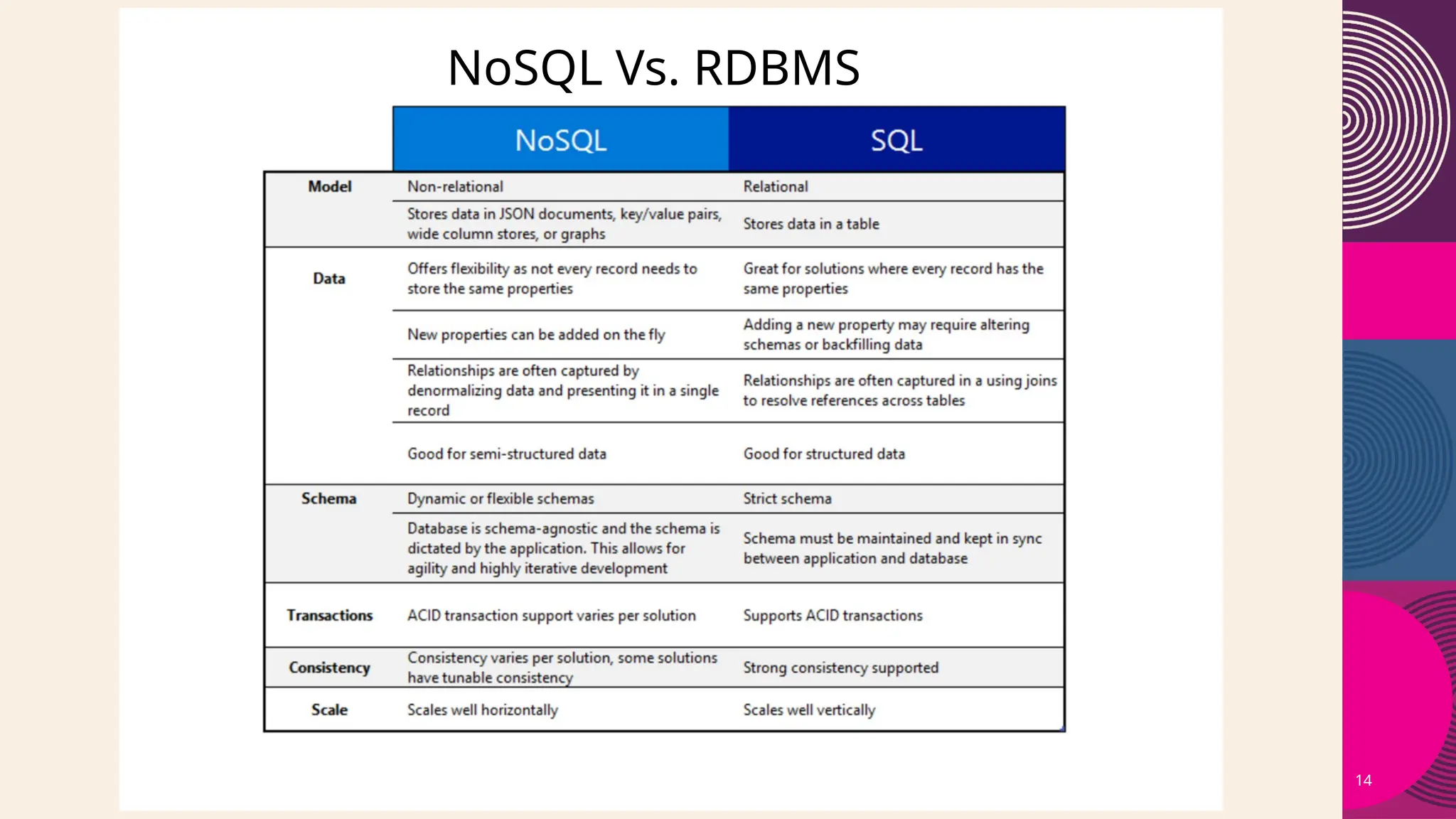

NoSQL Vs. RDBMS

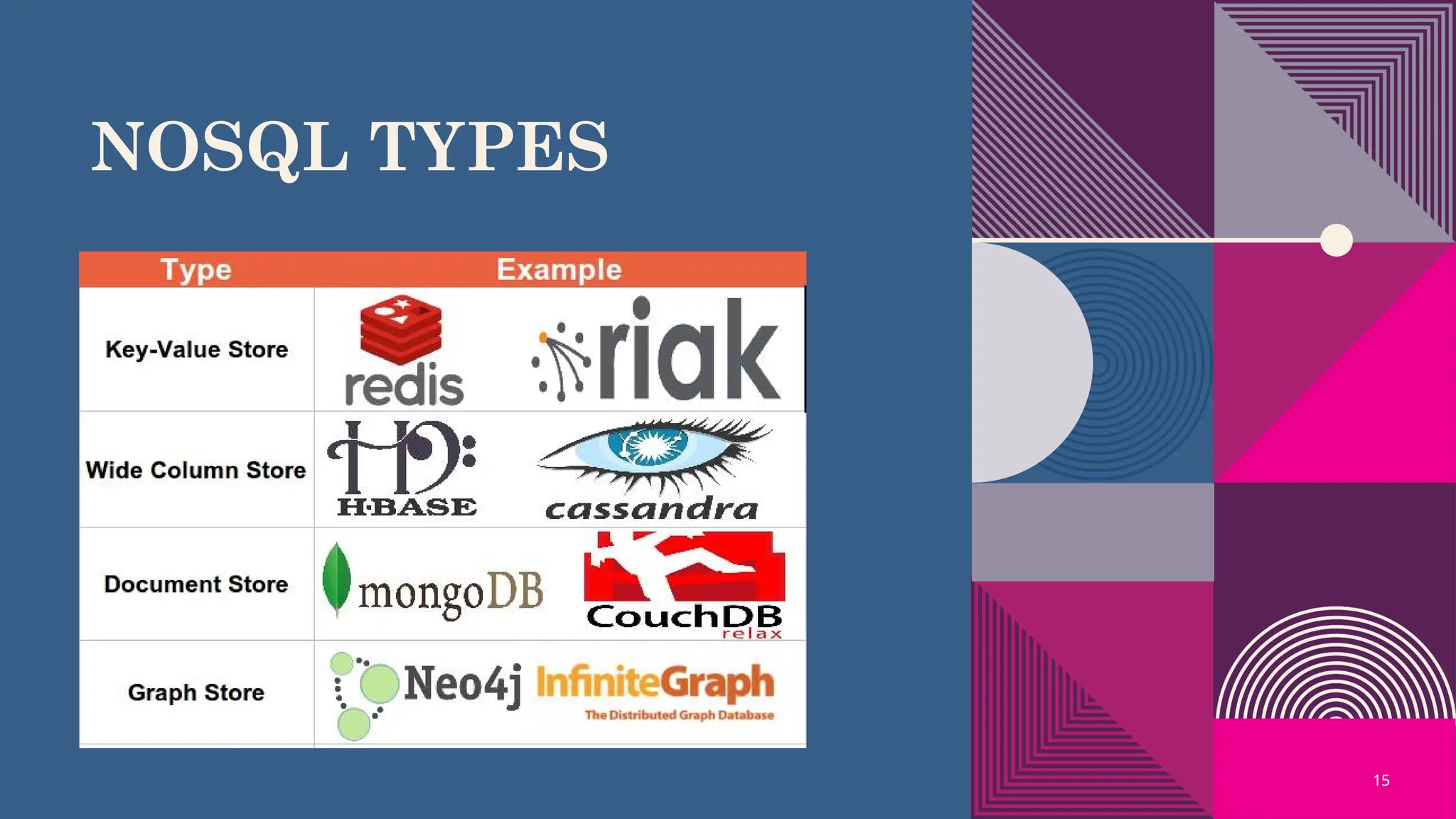

15. NOSQL TYPES
15
15

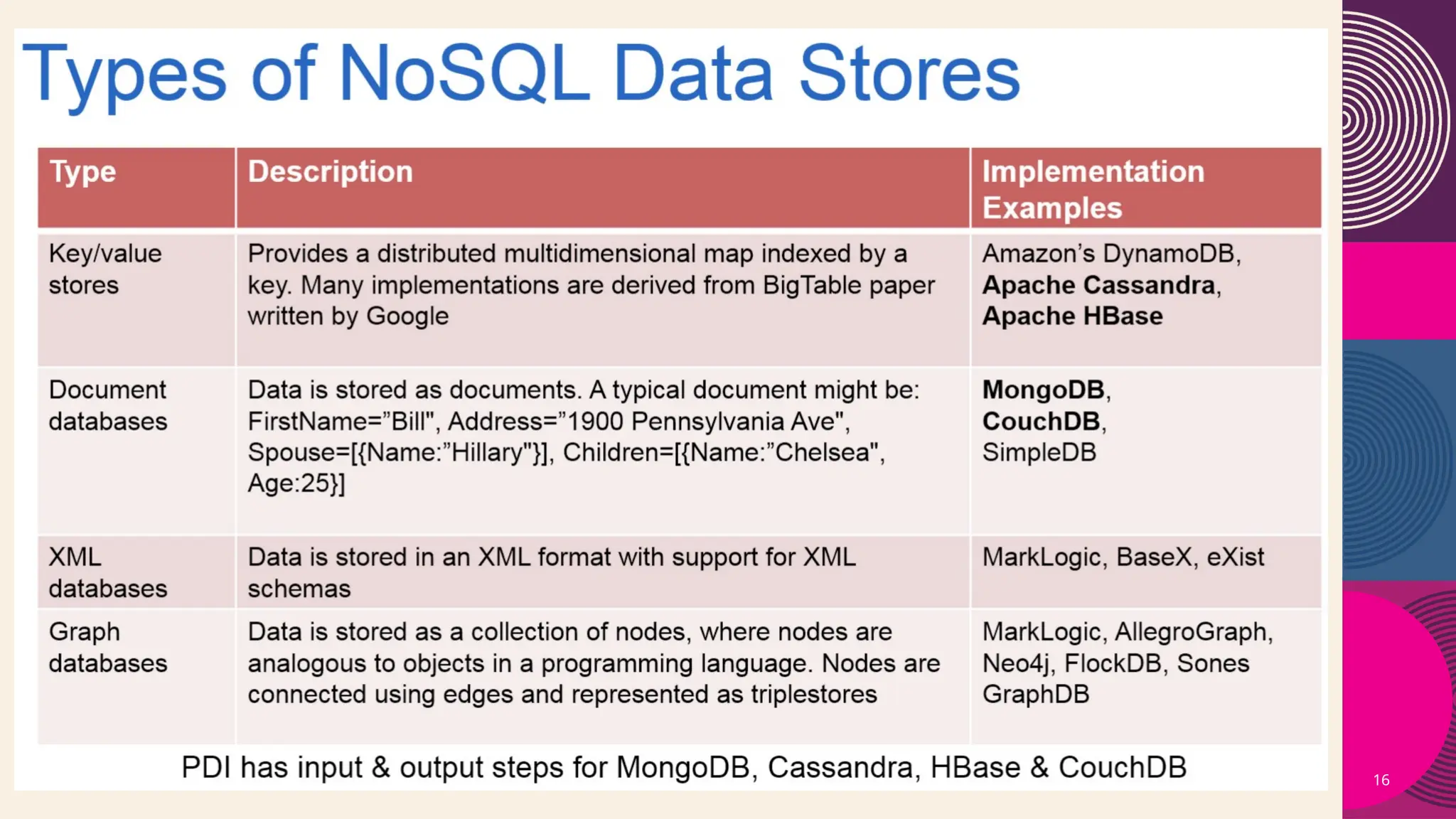

16. 16

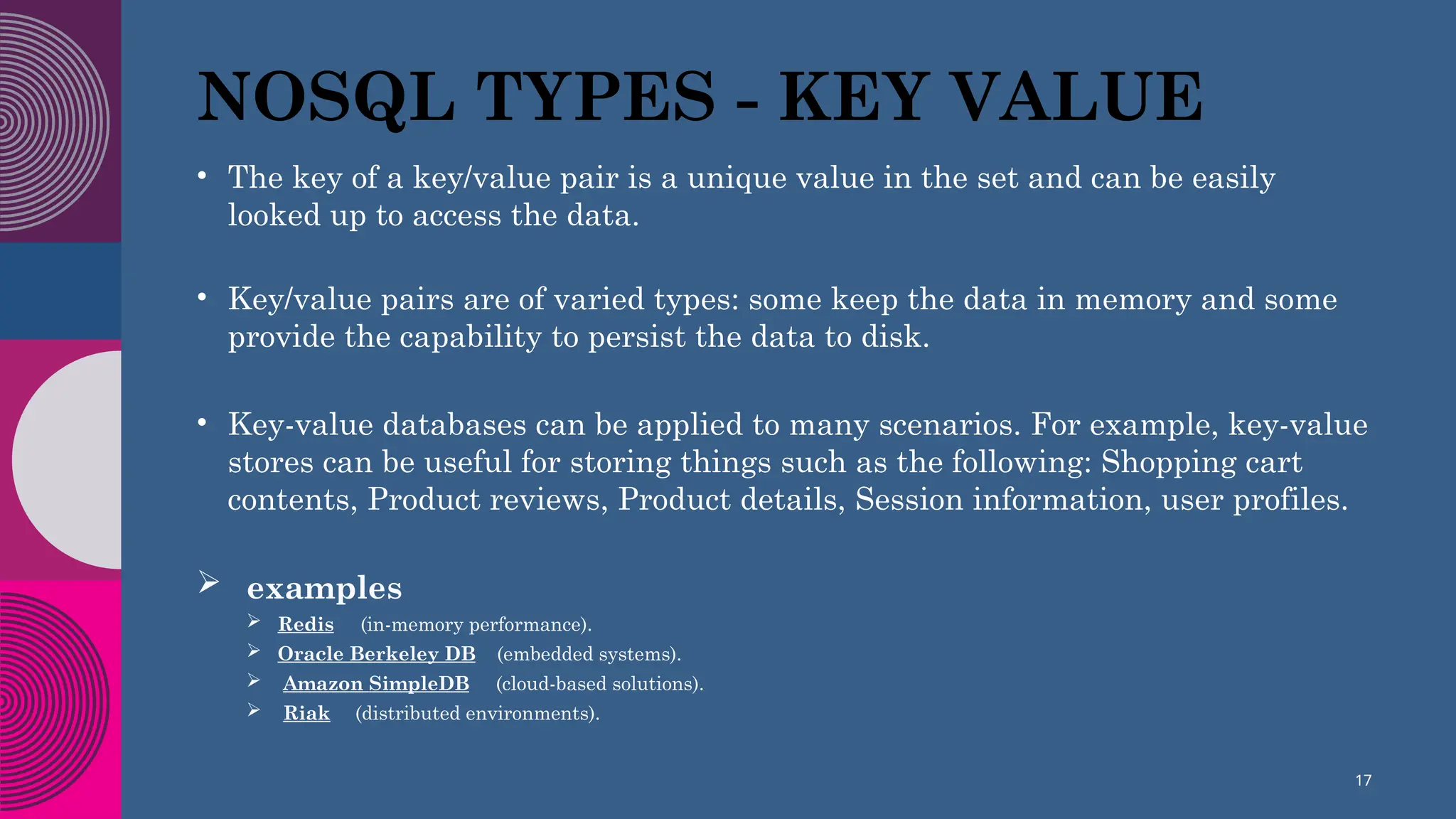

17. NOSQL TYPES - KEY VALUE
• The key of a key/value pair is a unique value in the set and can be easily
looked up to access the data.
• Key/value pairs are of varied types: some keep the data in memory and some
provide the capability to persist the data to disk.
• Key-value databases can be applied to many scenarios. For example, key-value
stores can be useful for storing things such as the following: Shopping cart
contents, Product reviews, Product details, Session information, user profiles.
 examples
 Redis (in-memory performance).
 Oracle Berkeley DB (embedded systems).
 Amazon SimpleDB (cloud-based solutions).
 Riak (distributed environments).
17

18. 18

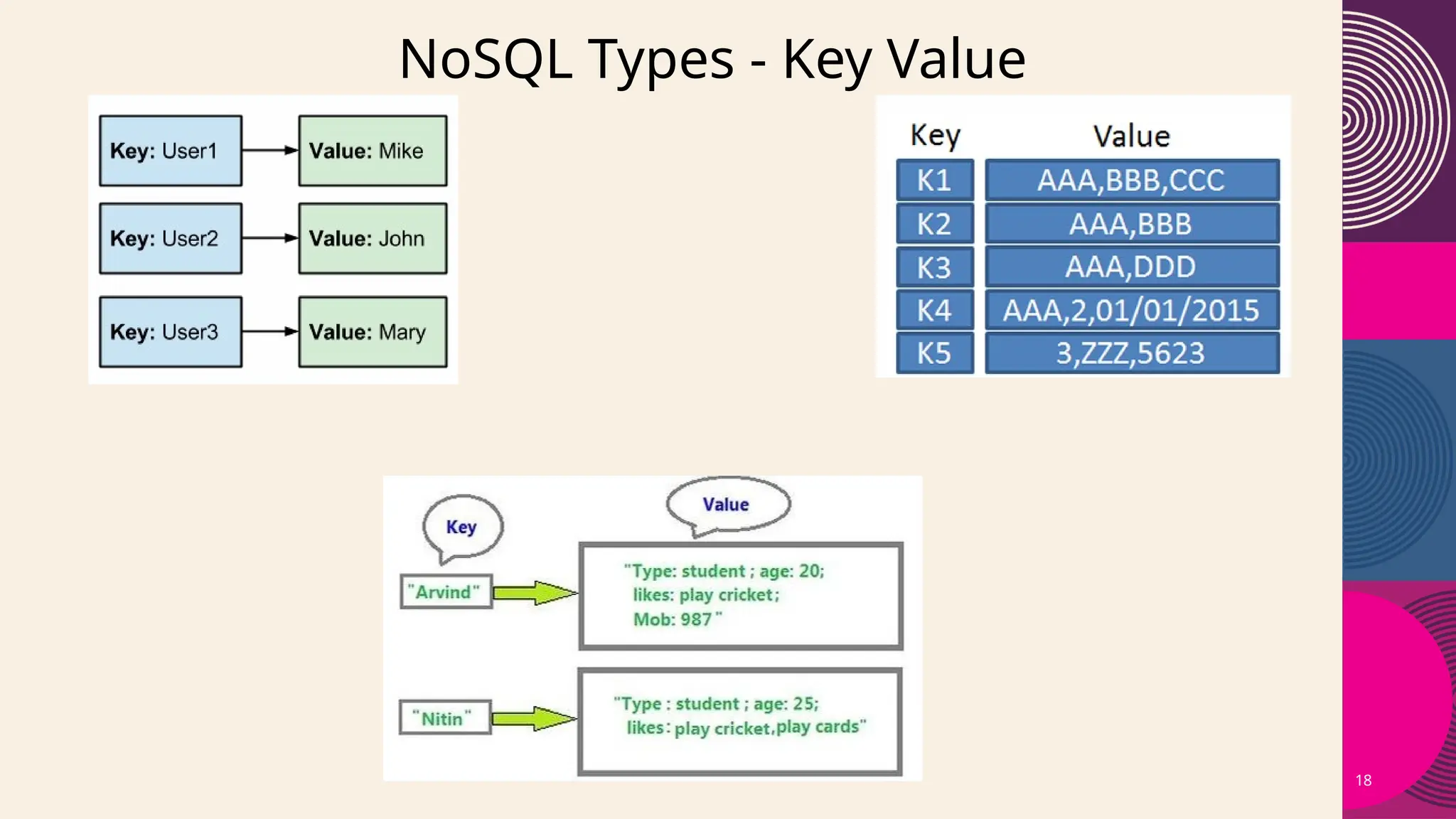

NoSQL Types - Key Value

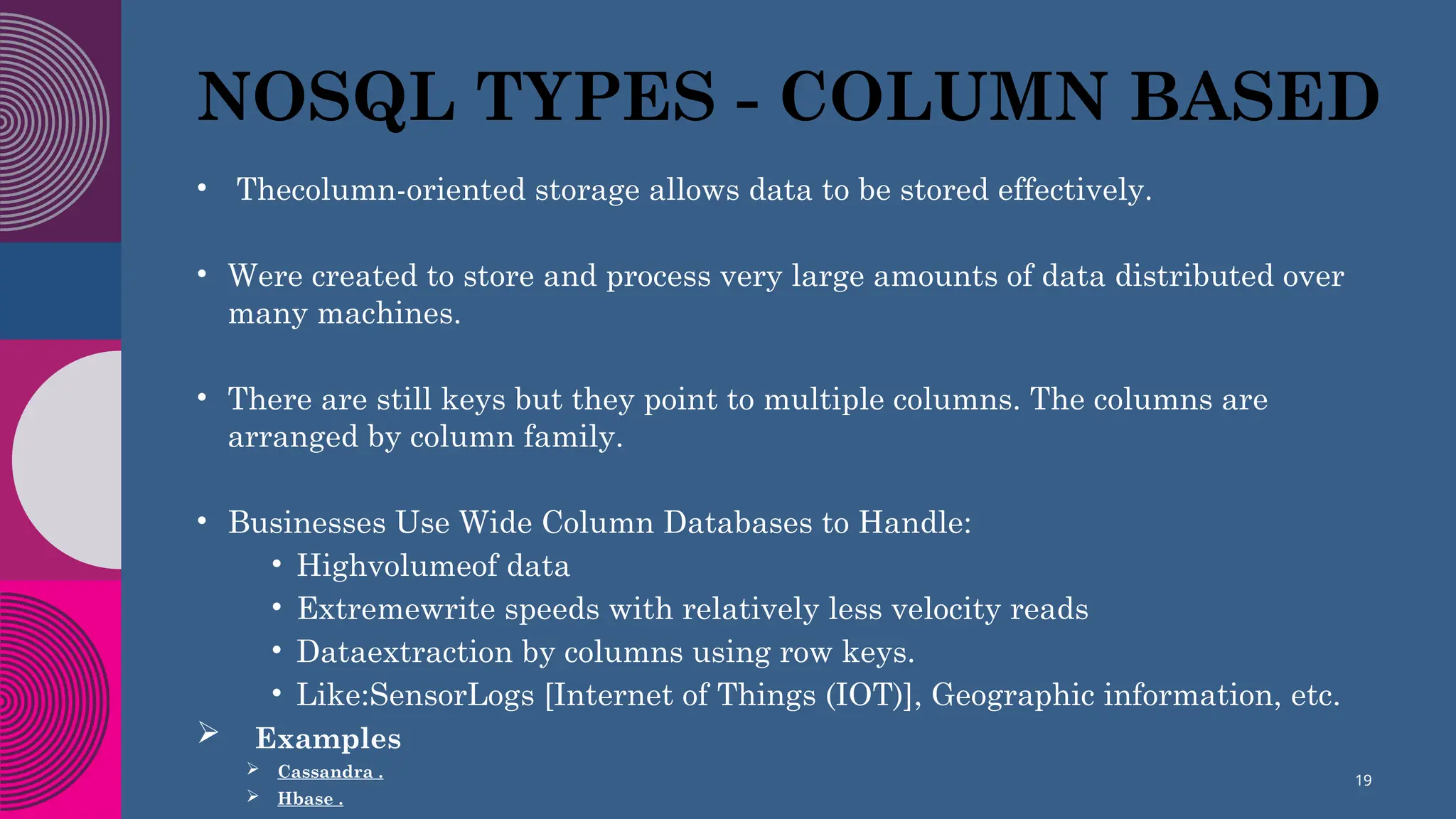

19. NOSQL TYPES - COLUMN BASED
• Thecolumn-oriented storage allows data to be stored effectively.
• Were created to store and process very large amounts of data distributed over
many machines.
• There are still keys but they point to multiple columns. The columns are
arranged by column family.
• Businesses Use Wide Column Databases to Handle:
• Highvolumeof data
• Extremewrite speeds with relatively less velocity reads
• Dataextraction by columns using row keys.
• Like:SensorLogs [Internet of Things (IOT)], Geographic information, etc.
 Examples
 Cassandra .
 Hbase .
19

20. 20

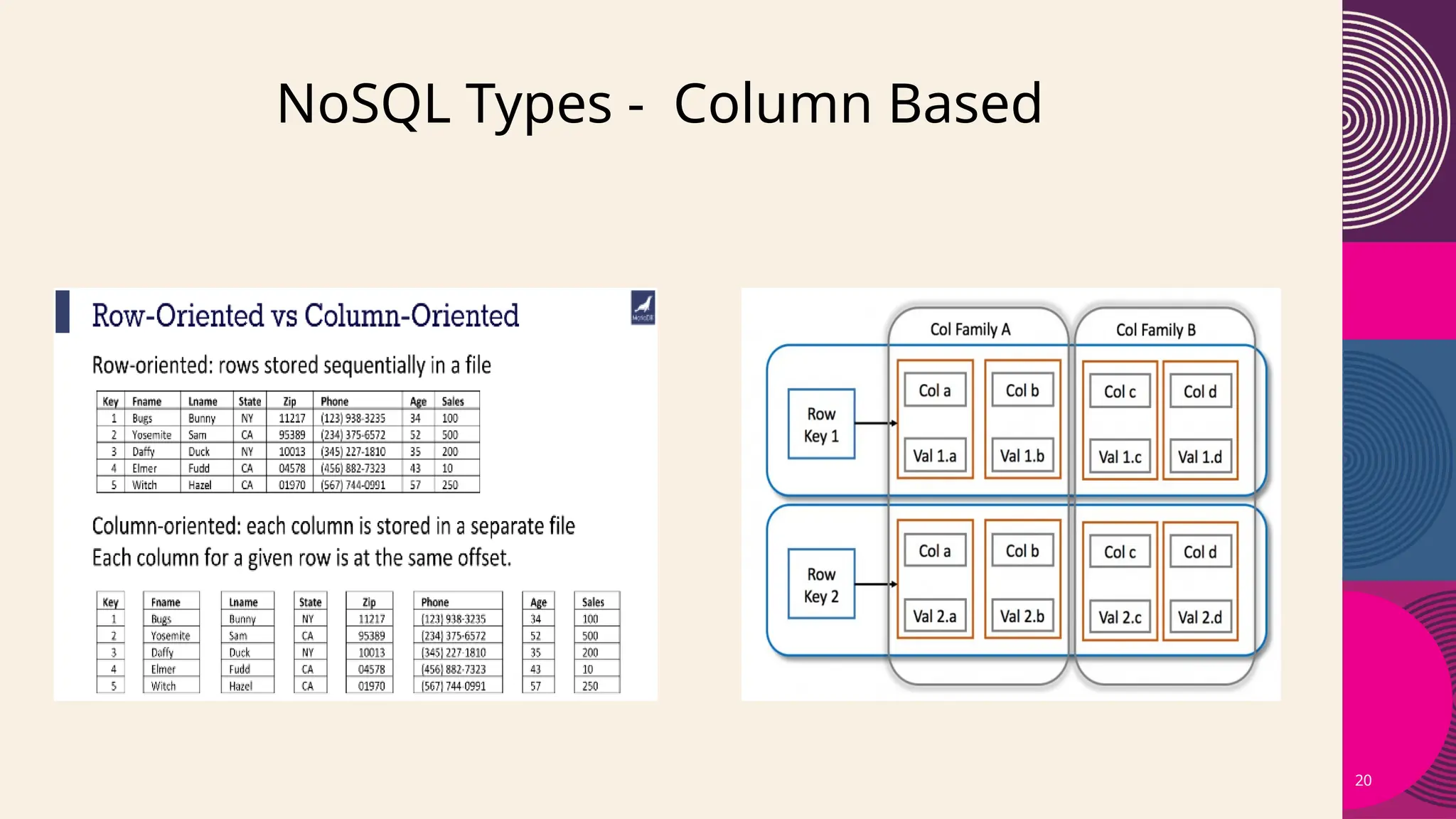

NoSQL Types - Column Based

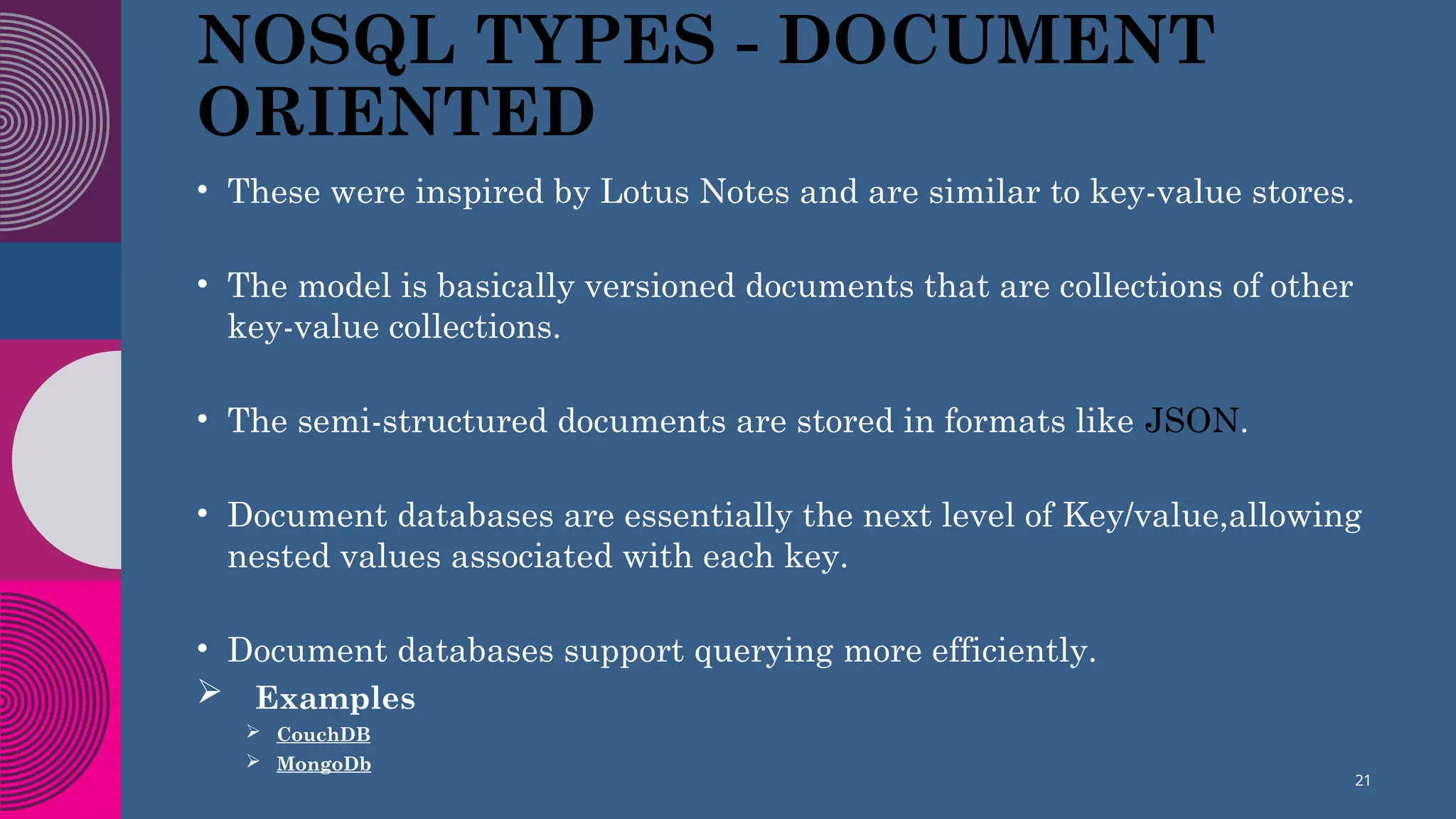

21. NOSQL TYPES - DOCUMENT
ORIENTED
• These were inspired by Lotus Notes and are similar to key-value stores.
• The model is basically versioned documents that are collections of other
key-value collections.
• The semi-structured documents are stored in formats like JSON.
• Document databases are essentially the next level of Key/value,allowing
nested values associated with each key.
• Document databases support querying more efficiently.
 Examples
 CouchDB
 MongoDb
21

22. 22

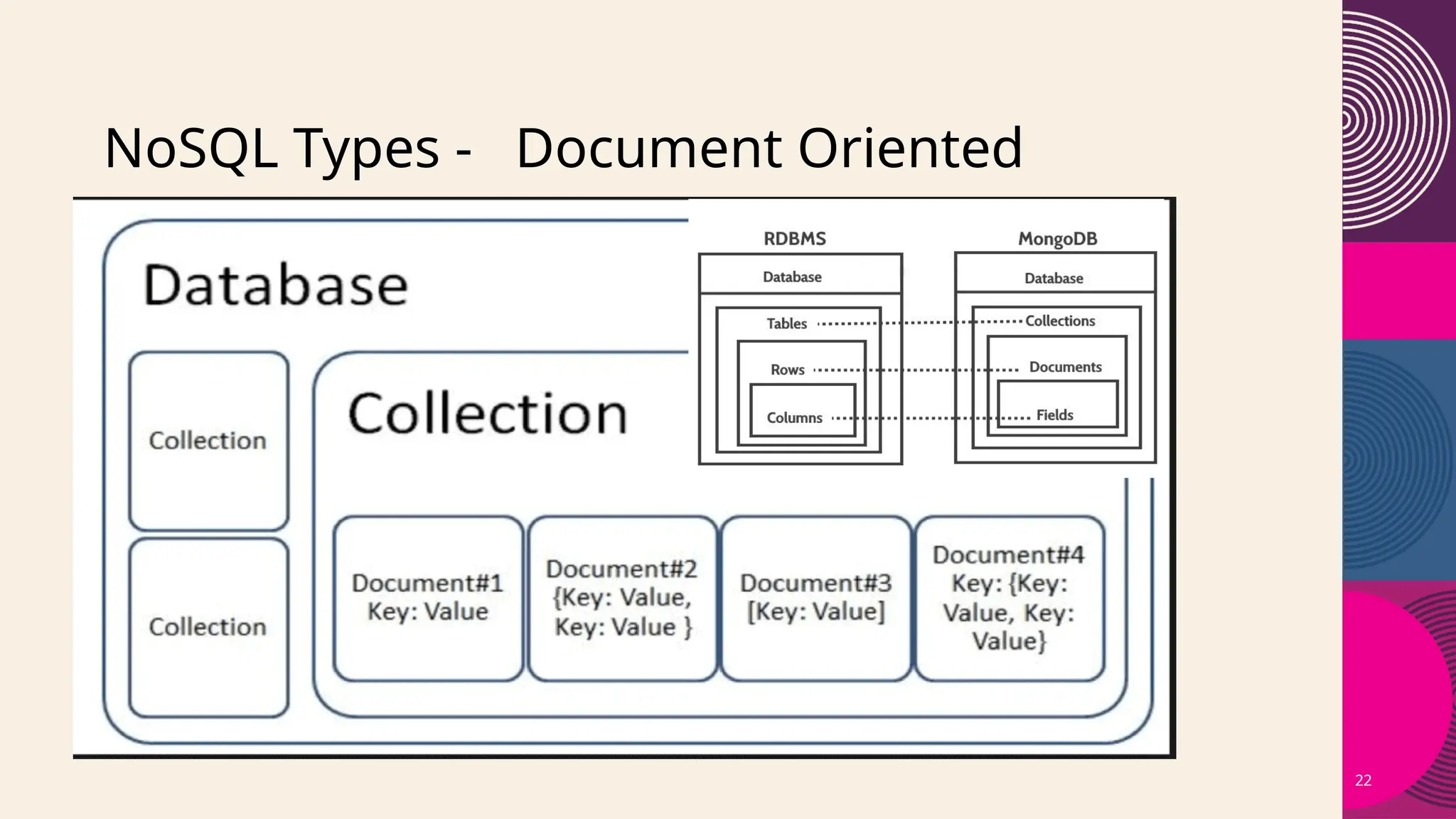

NoSQL Types - Document Oriented

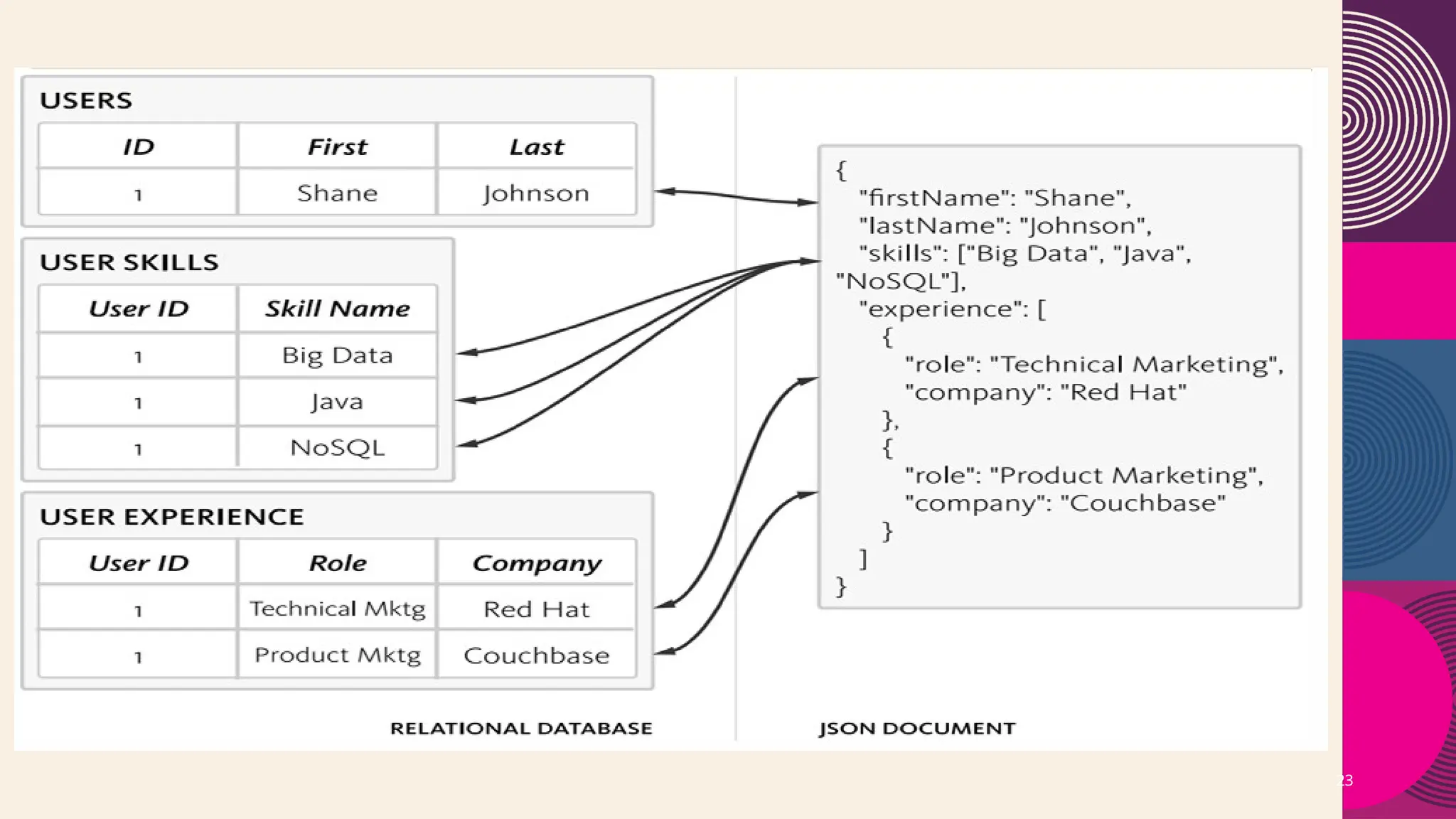

23. 23

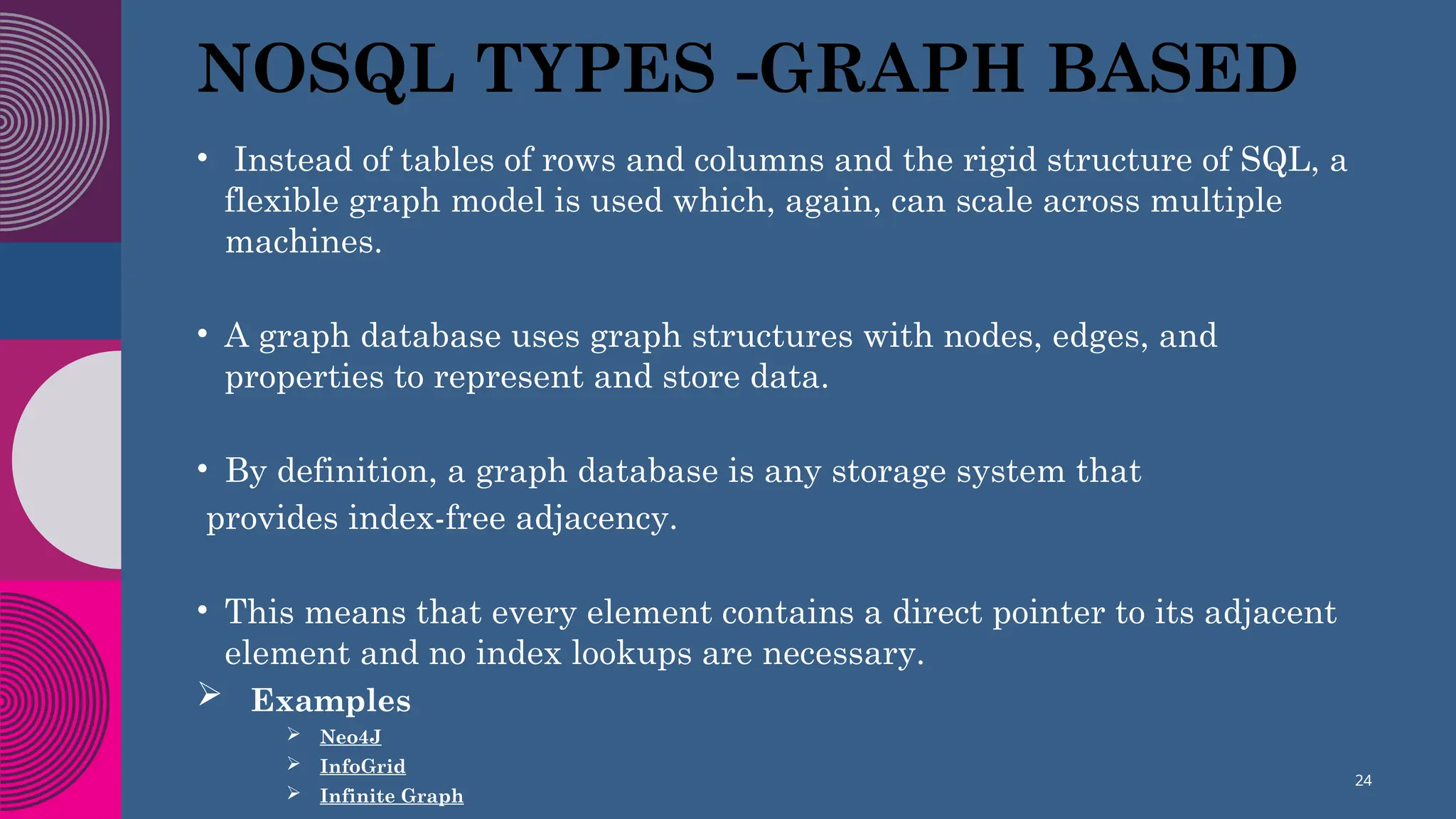

24. NOSQL TYPES -GRAPH BASED
• Instead of tables of rows and columns and the rigid structure of SQL, a
flexible graph model is used which, again, can scale across multiple
machines.
• A graph database uses graph structures with nodes, edges, and
properties to represent and store data.
• By definition, a graph database is any storage system that
provides index-free adjacency.
• This means that every element contains a direct pointer to its adjacent
element and no index lookups are necessary.
 Examples
 Neo4J
 InfoGrid
 Infinite Graph
24

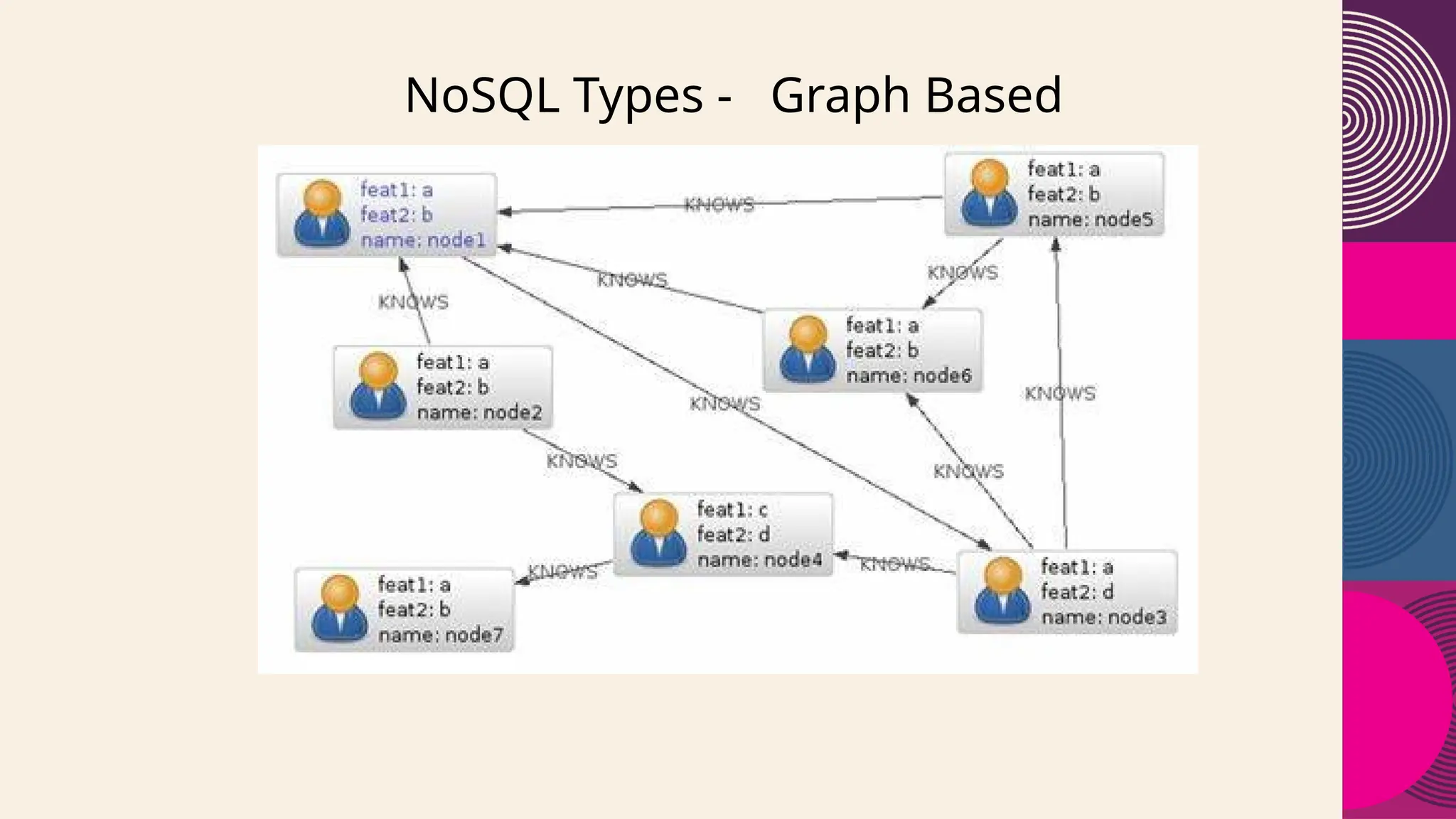

25. NoSQL Types - Graph Based

27. THANK YOU
Muhammed El-Taweel
