This document discusses the materials, energy systems, water efficiency strategies, and safety features proposed for a breathing tower project. It includes the following key points: - Double brick walls with foam filling and green walls/roofs to provide insulation and reduce energy needs. Solar panels and a modified water chiller are also proposed for the energy system. - Water efficiency would be achieved through dual flush toilets, low flow shower heads, waterless urinals, harvesting rainwater, greywater reuse, and drip irrigation. - Fire safety includes stair and entrance designs, smoke/heat detectors, sprinklers, and fire rated panels/hose cabinets to meet code requirements. - The project aims to

1. BREATHING TOWER

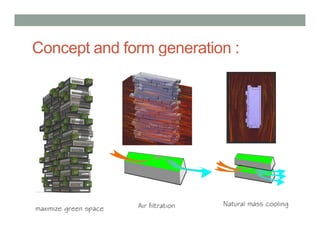

2. Concept and form generation :

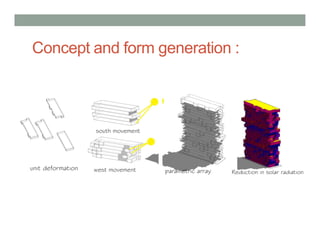

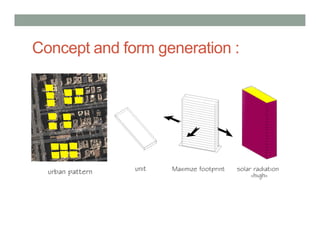

3. Concept and form generation :

4. Concept and form generation :

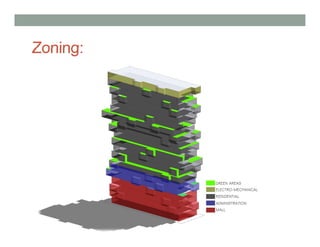

5. Zoning:

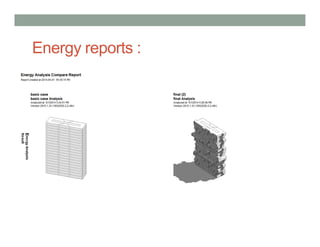

6. Energy reports :

7. Material :

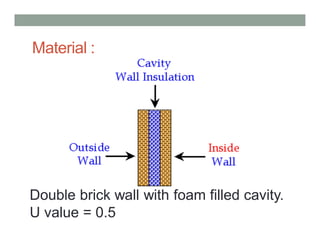

Double brick wall with foam filled cavity.
U value = 0.5

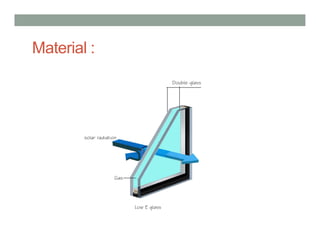

8. Material :

9. Material : Green wall instalation

10. Material :

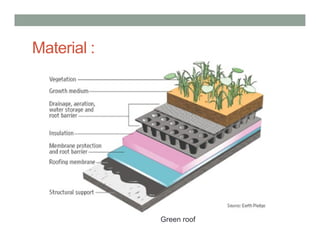

Green roof

11. Material :
• Eco paints.
• Advantages: less harmful – Gas less –low voc “Volatile
organic compound”
• Type : Benjamin Moore's Pristine Eco-Spec
• Price :is roughly 10%-20% more than normal paint.

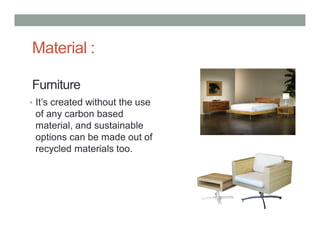

12. Furniture
• It’s created without the use
of any carbon based
material, and sustainable
options can be made out of
recycled materials too.
Material :

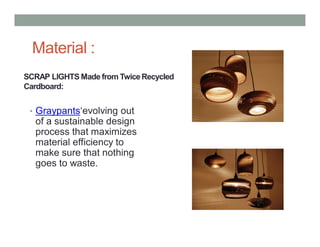

13. SCRAP LIGHTS Made from TwiceRecycled
Cardboard:
• Graypants‘evolving out
of a sustainable design
process that maximizes
material efficiency to
make sure that nothing
goes to waste.
Material :

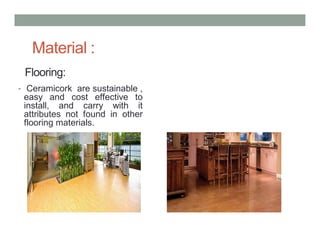

14. Flooring:
• Ceramicork are sustainable ,
easy and cost effective to
install, and carry with it
attributes not found in other
flooring materials.
Material :

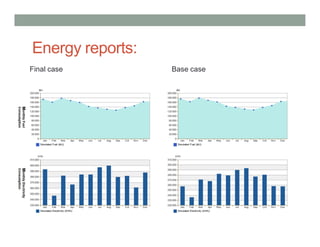

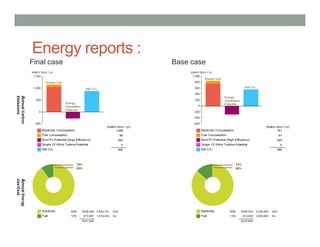

15. Energy reports :
Final case Base case

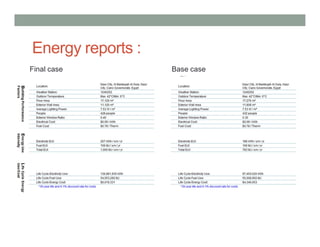

16. Energy reports :
Final case Base case

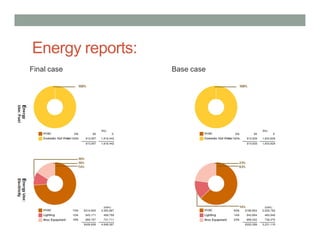

17. Energy reports:
Final case Base case

18. Energy reports:
Final case Base case

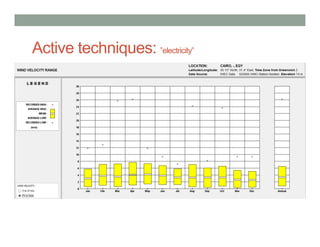

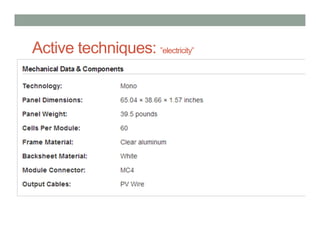

19. Active techniques: ”electricity”

20. Active techniques: ”electricity”

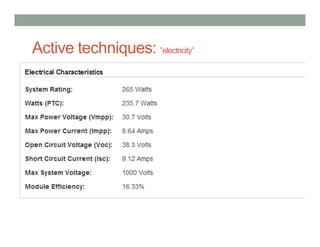

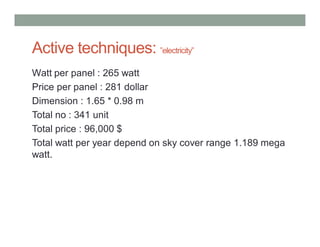

Watt per panel : 265 watt
Price per panel : 281 dollar
Dimension : 1.65 * 0.98 m
Total no : 341 unit
Total price : 96,000 $
Total watt per year depend on sky cover range 1.189 mega
watt.

21. Active techniques: ”electricity”

22. Active techniques: ”electricity”

23. Active techniques: ”electricity”

24. HVAC :
• All water system chiller central unit traditional water
system .

25. HVAC :

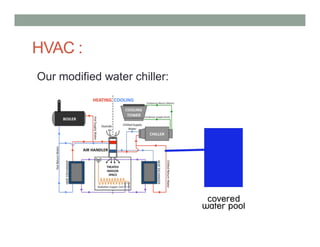

Our modified water chiller:

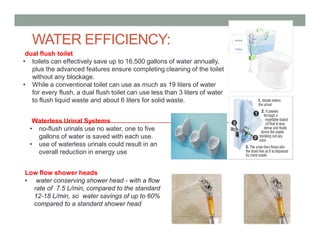

26. dual flush toilet
• toilets can effectively save up to 16,500 gallons of water annually,
plus the advanced features ensure completing cleaning of the toilet
without any blockage.
• While a conventional toilet can use as much as 19 liters of water
for every flush, a dual flush toilet can use less than 3 liters of water
to flush liquid waste and about 6 liters for solid waste.
Low flow shower heads
• water conserving shower head - with a flow
rate of 7.5 L/min, compared to the standard
12-18 L/min, so water savings of up to 60%
compared to a standard shower head
Waterless Urinal Systems
• no-flush urinals use no water, one to five
gallons of water is saved with each use.
• use of waterless urinals could result in an
overall reduction in energy use
WATER EFFICIENCY:

27. water efficient landscape:
Faucet Aerators
• Compared to the standard faucet aerator with a flow rate of 2.2
gallons per minute the flow rate reduction will be
0.5 gpm = up to 77%
Harvested water:
• The purpose of rain water harvesting is to
catch the water and store It after filtering
• the rainwater is then stored in underground
storage tanks
Using grey water in irrigation:
Using local greenery:
Mulberry trees Lotus flowerSycamore Doum Palm
WATER EFFICIENCY:

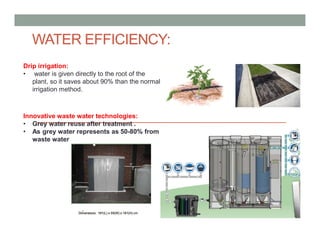

28. Drip irrigation:
• water is given directly to the root of the
plant, so it saves about 90% than the normal
irrigation method.
Innovative waste water technologies:
• Grey water reuse after treatment .
• As grey water represents as 50-80% from
waste water
WATER EFFICIENCY:

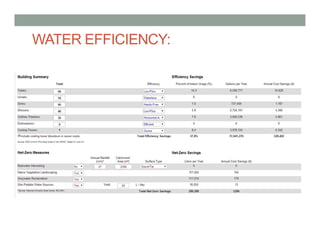

29. WATER EFFICIENCY:

30. Life safety:

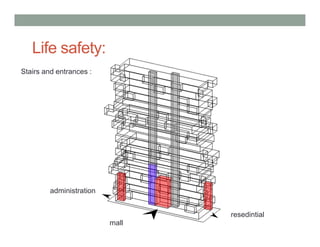

Stairs and entrances :
mall
resedintial
administration

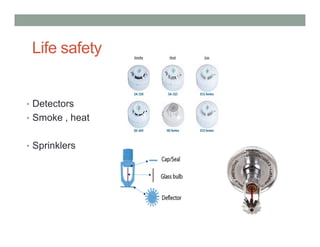

31. Life safety
• Detectors
• Smoke , heat
• Sprinklers

32. Fire rated panels
n hours for vertical shafts ducts elevators stairs
egress ways
3 hours fire rated for high hazard areas like
generators transformers and control rooms
Fire hose cabinet located at stairs
Manual alarm located at stairs
Visual alarm and sound alarm
Life safety

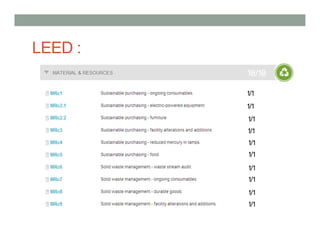

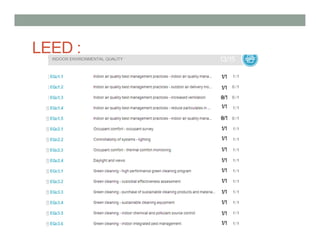

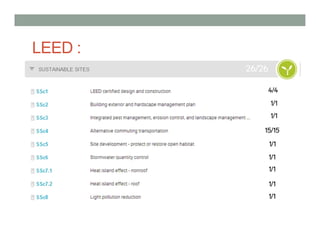

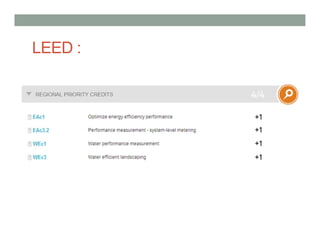

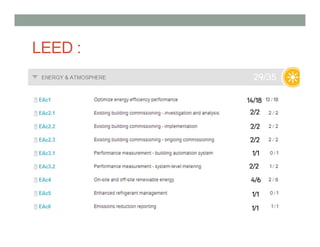

33. LEED :

34. LEED :

35. LEED :

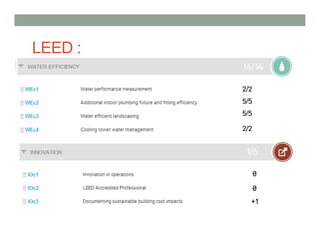

36. LEED :

37. LEED :

38. LEED :
