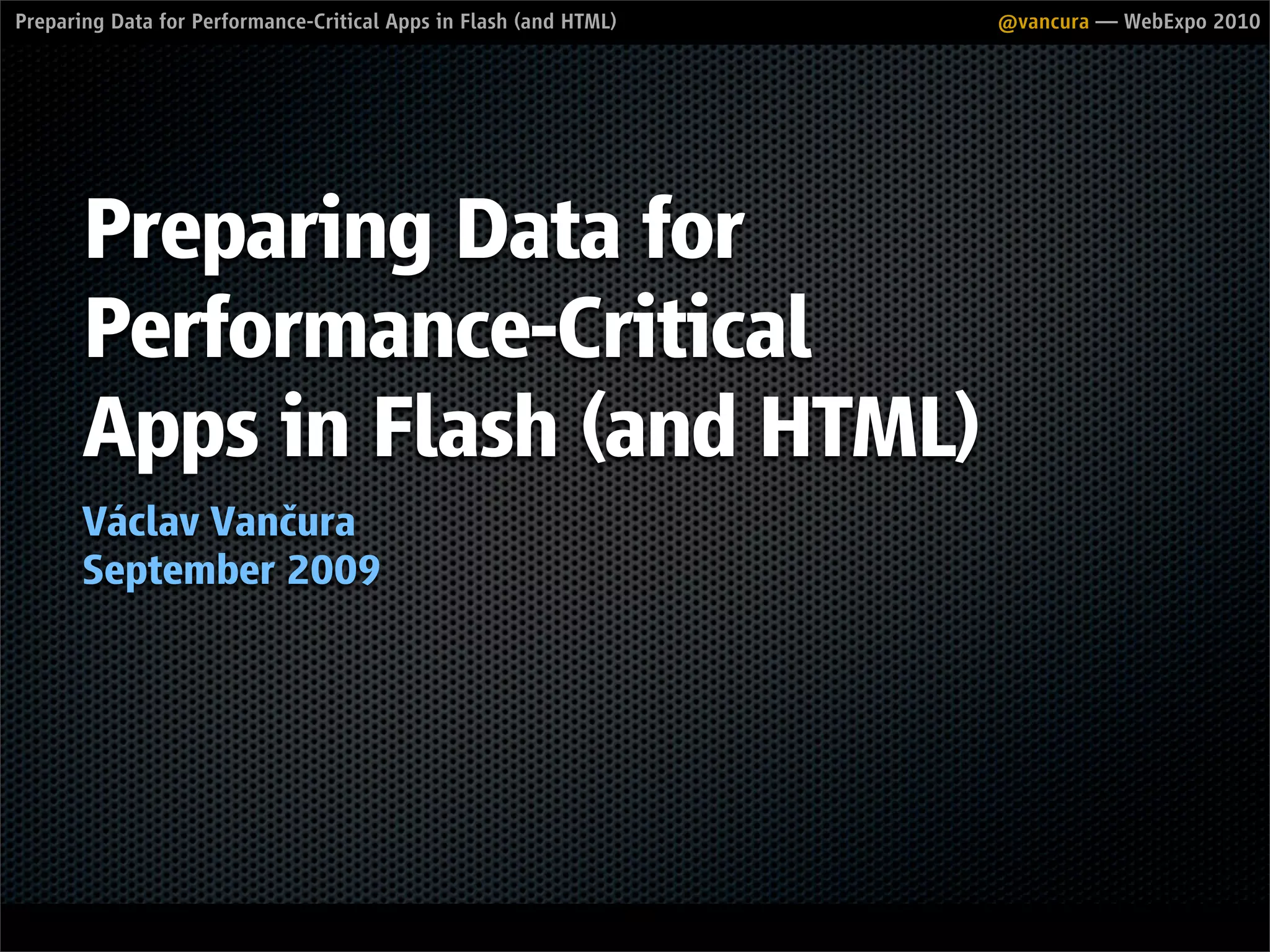

Preparing Data for Performance-Critical Apps in Flash (and HTML)
1. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Preparing Data for
Performance-Critical
Apps in Flash (and HTML)
Václav Vančura
September 2009
@vancura
2. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010

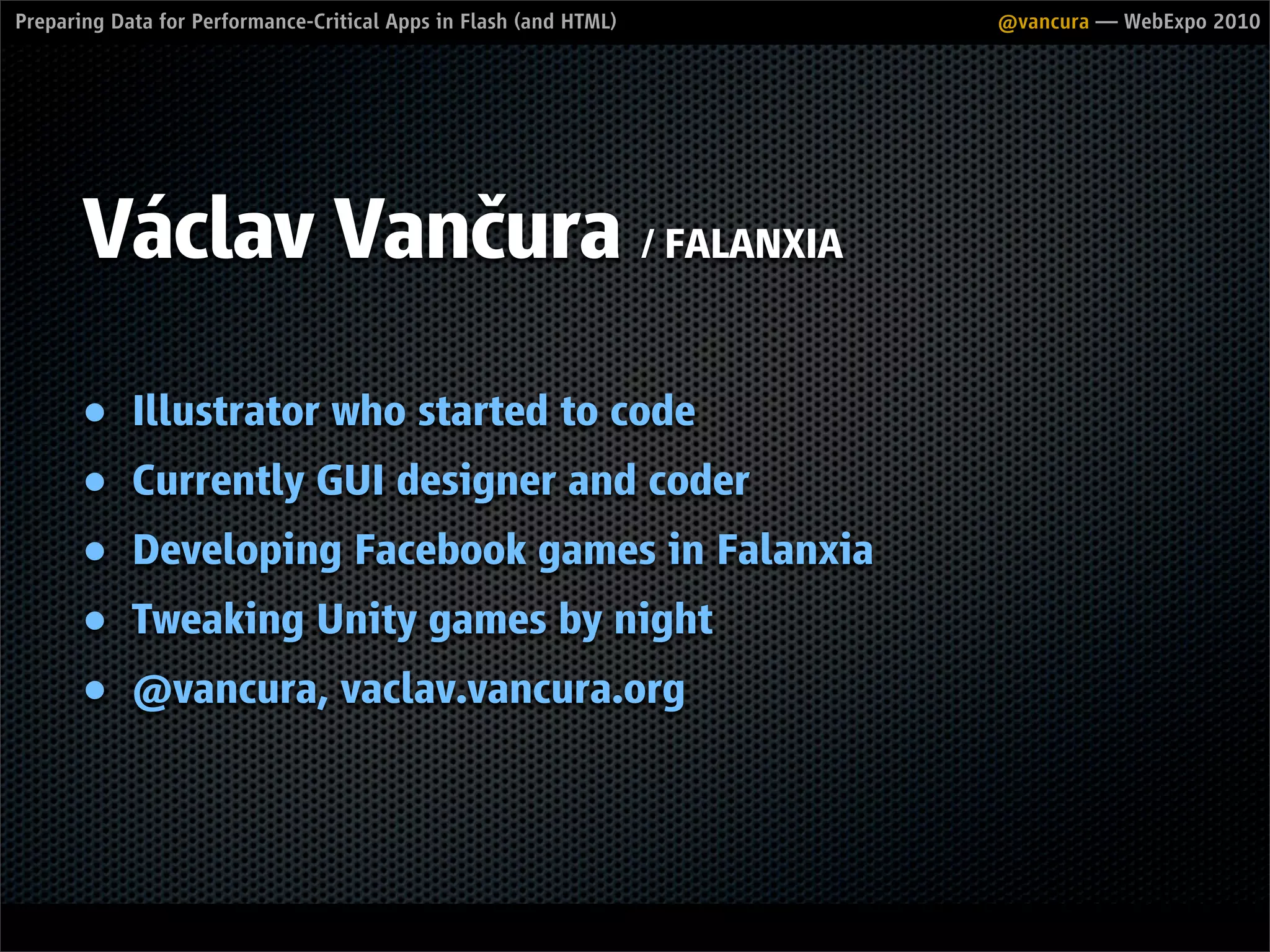

Václav Vančura / FALANXIA
● Illustrator who started to code
● Currently GUI designer and coder
● Developing Facebook games in Falanxia
● Tweaking Unity games by night
● @vancura, vaclav.vancura.org
3. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
➊ Data basics
➋ Advanced data production
➌ Why to bother to optimize?
➍ Optimization basics
➎ Testing & profiling
➏ Advanced optimization
➐ Falanxia loves Github
Data basics
4. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Static images
Data basics
5. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Benefits OF STATIC IMAGES
● Easy to create and maintain
● A lot of apps
● A lot of formats
But Flash Player internally knows just a few
● Established and proven algorithms
Except recent Internet Explorer PNG exploit
Data basics
6. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010

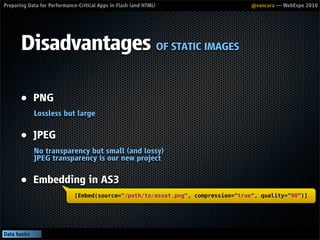

Disadvantages OF STATIC IMAGES
● PNG
Lossless but large
● JPEG
No transparency but small (and lossy)
JPEG transparency is our new project
● Embedding in AS3
[Embed(source="/path/to/asset.png", compression="true", quality="90")]
Data basics
7. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Marginal or outdated
file formats
OF STATIC IMAGES
● MNG
Basically an animated PNG
● JPEG2000
Better (fractal) compression
● GIF, BMP, PCX
Data basics
8. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Sprites & MovieClips
IN FLASH
Data basics
9. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Benefits OF SPRITES & MOVIECLIPS
● Easy to create
● Rendering speed
● Transparency & dynamic blending modes
Multiply, Screen, Overlay, …
● Dynamic effects
Filters like drop shadow, glow, blur, bevel, …
● Vector
Better scaling
Data basics
10. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Disadvantages OF SPRITES & MOVIECLIPS
● Problematic compilation
Needs Flash IDE (or Illustrator, kind of)
● Difficult to maintain
Hard to change structure once it’s done
● Compiler strips out AS3 code
● Vector
Problems with bitmaps, antialiasing
Pixel perfection is painful
Data basics
11. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Sound and Music
IN HTML5 & FLASH
Data basics
12. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Features OF SOUND IN FLASH
● Painless implementation
● Selective compression
● Dynamic sound
AS3/FP10
● Only 32 sound channels at once
● Compilation problems
Windows (!) Flash IDE is actually a must.
Haxe is a solution, but is painful to set up. http://haxe.org
Data basics
13. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Music
● Still only MP3
OGG Vorbis in Flash (and HTML) is a lot of work
(mainly because of Alchemy)
● Multitracks & sequencers
Procedural realtime mixing
● Trackers
MOD, S3M, XM, IT etc.
Unity 3 now has tracker support
Data basics
14. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
CFXR
● Awesome tool
when you need
retro sounds
http://thirdcog.eu/apps/cfxr
● Sonoport
http://www.sonoport.com
15. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Video
IN HTML5 & FLASH
Data basics
16. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Video in HTML5
● Speed
Using GPU
● Cross-platform
Desktop, mobile OS
● But too many formats
WebM, MP4/H.264, OGG Theora
Flash fallback
● Very difficult to encode
● No streaming so far
Data basics
17. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Video in Flash
● Formats
FLV (Sorenson Spark / FLP 6+, ON2 VP6 / FLP 8+), F4V (H.264 / FLP9+)
● Painless implementation in Flash
● Streaming with Flash Media Server
Streaming from camera
And alternatives: Wowza Media Server, Red5
● DRM
● Transparency via VP6
● Encoding via FFmpeg and Adobe Media Encoder
● But CPU hog
Flash Player 10.1 brings some optimizations (~30 %)
Data basics
18. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Fonts
IN HTML5 & FLASH
Data basics
19. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Fonts in HTML5
● Google Font API
http://code.google.com/intl/cs/apis/webfonts
● TypeKit
http://typekit.com
● sIFR
http://en.wikipedia.org/wiki/Scalable_Inman_Flash_Replacement
● Cufón
http://cufon.shoqolate.com
The only solution if you need accented glyphs
Data basics
20. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Fonts in Flash
● Antialiasing tweaking
Lovely feature for pixel perverts like me
● Optimization of fonts
UTF8 subset and simple fonts
● Problems with accented characters and locale
It’s hard and expensive to find the right font
Data basics
21. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
➊ Data basics
➋ Advanced data production
➌ Why to bother to optimize?
➍ Optimization basics
➎ Testing & Profiling
➏ Advanced optimization
➐ Falanxia loves Github
Advanced data production
22. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Scale9
● Elemental slicing method
● Adobe Flash: vector scale9 only
● ScaleBitmap http://www.bytearray.org/?p=1206
Advanced data production
23. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Atlas
Advanced data production
24. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Examples OF ATLAS
Advanced data production
25. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Examples OF ATLAS
Advanced data production
26. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Benefits OF ATLAS
● Speed
When rendering to one and only BitmapData
● Easy to create
Easy to split and combine when using scripts
● Crossplatform
HTML/CSS
Cocos2D, Sparrow
Pro games: PlayStation, XBOX
Advanced data production
27. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Disadvantages OF ATLAS
● Speed
When using multiple BitmapDatas
● Somewhat difficult to maintain without scripting
● No layers
Redundant compression of all pixels in each frame
● Update from one place
Use only single Event.ENTER_FRAME
Advanced data production
28. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
GUI
Advanced data production
29. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Benefits OF FLEX WIDGETS
● Flash Builder
As WYSIWYG editor
● A lot of coders
Advanced data production
30. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Disadvantages OF FLEX WIDGETS
● Data hog
Button + edit box + dropdown = 50 kB
● Speed hog
Slow rendering and no caching
● Not pixel perfect
Vectors everywhere
Pixel hinting glitches when animating
● Difficult and slow animation
● Painful skinning
● Impossible 3D
Advanced data production
31. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
3rd party widgets
● Liquid Components http://j.mp/liquid-components
Difficult skinning, data hog
● Yahoo Astra Components http://j.mp/yahoo-astra-components
Data hog
● Bit Components http://j.mp/bit-components
License issues
● Minimal Components http://j.mp/minimal-components
No skinning (currently a few skins available)
Advanced data production
32. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Falanxia widgets FEATURES
● Easy skinning
Skinning without Flash, fully open source workflow
● Pixel perfect animation
Inspired by CoreAnimation technology
● Optimized for size
~30 kB
● Optimized for speed
● Data loading via providers
SWF, FAR, Librarium
Advanced data production
33. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Examples OF BARS
Advanced data production
34. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Examples OF BUTTONS
Advanced data production
35. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Examples OF GLYPHS
Advanced data production
36. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
➊ Data basics
➋ Advanced data production
➌ Why to bother to optimize?
➍ Optimization basics
➎ Testing & Profiling
➏ Advanced optimization
➐ Falanxia loves Github
Why to bother to optimize?
37. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Why to bother TO OPTIMIZE?
● Impatient user
User hates waiting – and usually has a crappy computer
● CPU
CPU hates being hot
● Memory
Memory hates being full
● Server and bandwidth
Making a world better place
● Progressive loading
It’s always better when the user is able to do something during loading
Why to bother to optimize?
38. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
➊ Data basics
➋ Advanced data production
➌ Why bother with optimizations?
➍ Optimization basics
➎ Testing & Profiling
➏ Advanced optimization
➐ Falanxia loves Github
Optimization basics
39. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Runtime RECYCLATION
● GUI prefabs
● Textures
● Game elements
● Avatars
● Skins
● Subcomponents
Optimization basics
40. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Filesystem OPTIMIZATIONS
● Less server requests
● Better compression
● Better data maintenance
● But recompression on a change needed
Possible to handle server-side
● ZIP, FAR (Flash Archive), Librarium
Optimization basics
41. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
➊ Data basics
➋ Advanced data production
➌ Why bother with optimizations?
➍ Optimization basics
➎ Testing & Profiling
➏ Advanced optimization
➐ Falanxia loves Github
Testing & Profiling
42. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Testing & Profiling
● A slower computer
Even better with OSX
● Debug vs. Release Flash Player
● Flash profiling
Flash Builder, FDT Enterprise, FlashPreloadProfiler
http://jpauclair.net/flashpreloadprofiler
● mm.cfg http://jpauclair.net/2010/02/10/mmcfg-treasure
Testing & Profiling
43. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Charles Proxy http://vaclav.vancura.org/aplikace-1-charles
Testing & Profiling
44. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Charles Proxy http://vaclav.vancura.org/aplikace-1-charles
Testing & Profiling
45. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Charles Proxy http://vaclav.vancura.org/aplikace-1-charles
Testing & Profiling
46. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Charles Proxy http://vaclav.vancura.org/aplikace-1-charles
Testing & Profiling
47. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
➊ Data basics
➋ Advanced data production
➌ Why bother with optimizations?
➍ Optimization basics
➎ Testing & Profiling
➏ Advanced optimization
➐ Falanxia loves Github
Advanced optimization
48. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Image Optimization
● It’s better to have fewer colors
● Posterization
Client or server-side
● Procedural effects in Flash
Noise, gradients, …
● Runtime layer simulation
Possible combination of JPEG and PNG
But don’t hold your breath:
Flash has a layer count limit
● Photoshop problems
Beware the color profiles and dithering
Advanced optimization
49. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010

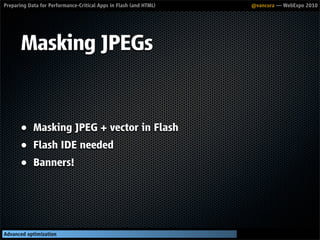

Masking JPEGs
● Masking JPEG + vector in Flash
● Flash IDE needed
● Banners!
Advanced optimization
50. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
ImageOptim
● PNG, GIF & JPEG optimization
Look at the screenshot
Advanced optimization
51. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
ImageMagick
● Join images vertically, bottom aligned
convert -background transparent -gravity south NWimg.png NEimg2.png SEimg3.png
SWimg3.png +append output.png
● Join images into an atlas
convert -background transparent -gravity south $(ls -1 *.png) +append output.png
● Split atlas into a list of files
convert -crop 22x34 +repage -background transparent altas_image.png frame_%02d.png
Advanced optimization
52. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Splitting Files
● Browsers have a cache limit per file
It’s safe to consider 1 MB as a hard limit
However Chrome is able to cache larger files
Advanced optimization
53. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
➊ Data basics
➋ Advanced data production
➌ Why bother with optimizations?
➍ Optimization basics
➎ Testing & Profiling
➏ Advanced optimization
➐ Falanxia loves Github
Falanxia loves Github
54. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Github Projects
● Moderatrix
http://github.com/falanxia/moderatrix
● Emitor
http://github.com/falanxia/emitor
● Utilitaris
http://github.com/falanxia/utilitaris
Falanxia loves Github
55. Preparing Data for Performance-Critical Apps in Flash (and HTML) @vancura — WebExpo 2010
Thanks.
Questions?
vaclav@vancura.org @vancura
Play Bzoonk Bar at http://apps.facebook.com/bzoonkbar
❧
Icons: Flurry System by the Iconfactory (http://iconfactory.com/freeware/preview/flrs)
@vancura
