3. The site for this project was the former location of Abbeydale
Grange School, a secondary school. It is located in South West
Sheffield in the ward of Nether Edge, adjacent to Spring Wood
ancient woodland and lies on steep topography.
The concept, plan and model I produced illustrates a specific
approach to site planning for housing. I needed to respond to
the characteristics of the site and the sustainable living agenda.
Furthermore I was required to developed a sketch masterplan
for the site with complementary drawings to illustrate the design
proposals.
Skills: Sketchup, Photoshop, Indesign, Conceptual Modelling.
0 1 S U S T A I N A B L E H O U S I N G P R O J E C T :
T H E G R E E N Q U A R T E R
3 R D Y E A R U N D E R G R A D U A T E
4 0 4 8 16 24 40 56m
KEY
EXISTING TREES
PROPOSED TREES
DWELLINGS
FOOTPATHS AND CYCLE
ROUTES
EDUCATION CENTRE
BIKE & RECYCLING STORES
COMPOSTING AREAS
PONDS
GRASS
SOIL
SHRUBS
SWALES
PERGOLAS
WALLS
WATER BUTTS
ADVENTURE PLAY
OPEN AIR STAGE
URBAN FARM
OUTDOOR GYM
NATURE AREA
EDUCATION CENTRE
COMMUNITY CENTRE
MULTI-USE GREENSPACE
PLAY AREA
ORCHARD
1:500 at A1
M A S T E R P L A N
1 : 5 0 0 a t A 1
V I S I O N
My vision was to create a
development which follows
the concept of 'cluster
housing', in which dwellings
form a number of smaller
neighbourhood blocks. Social
interaction and ownership of
space are heavily encouraged
by encompassing communal
spaces which are connected
to a larger central greenspace.
Partial self-sufficiency is
targetted through food
production and resource re-
use and recycling and use of
renewable energy. Greenspace
dominates the development to
benefit biodiversity and provide
comfortable liveable spaces.

4. CIRCULATION STRATEGY
PRIMARY ROUTES
SECONDARY ROUTES
MINOR ROUTES
MAIN ROADS
VEGETATION STRATEGY
EXISTING TREES
PROPOSED TREES
MOWN GRASS
MEDIUM GRASS
LONG GRASS
SHRUBS
LAND OWNERSHIP
PRIVATE LAND
COMMUNAL LAND
SEMI-PUBLIC LAND
Housing Typology,
Density and Social Mix
Myproposeddevelopmentincludes
79 dwellings and a relatively low
density of 42 dwellings per hectare,
which fits with the surrounding
area and its urban fringe location.
The dwellings offer a diverse social
mix, with a strong integration of
affordable housing. The diversity
of housing typology and garden
size should ensure mix of family
sizes and age groups.
A community building is included
at the heart of the site offering
a place for meetings and groups
events.
Attention to existing
FEATURES
The topography remains largely
unchanged, and hence retains
views over the Sheaf Valley.
Existing access points have also
been retained.
Much of the existing vegetation will
be kept, including Spring Wood
ancient woodland and the lime
avenues enclosing the site. The
current community planting area
will be developed into a community
orchard. Existing grassland will be
improved to benefit biodiversity,
particularly in the nature area.
1 : 5 0 0 a t A 1
A X O N O T M E T R I C V I E W
S T R A T E G I E S
6
C O N C E P T U A L M O D E L
7

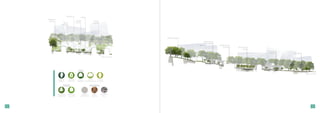

5. SPRING WOOD
COMMUNAL
GARDEN
COMMUNITY
CENTRE RETENTION
POND
COMMUNAL
GARDEN ORCHARD
1:500 at A1 B-B'
POND
LAWN
SPACE
PERGOLA
BACK
GARDEN
PRIMARY
ROUTE FRONT
GARDEN
1:500 at A1 A-A'
TREES
SHRUBS MATERIALS
QUERCUS
ROBUR
FRAXINUS
EXCELSIOR
TILIA X
EUROPAEA
ACER
PSEUDOPLATANUS
FAGUS
SYLVATICA
CRATAEGUS
MONOGYNA
CORYLLUS
AVELLANA
CONCRETE
(FOOTPATHS)
BARK
CHIPPING
GRITSTONE
WALL
8 9

6. 0 2S H E F F I E L D M O T O R W A Y S E R V I C E A R E A :
H A B I T A T C O N N E C T I V I T Y
3 R D Y E A R U N D E R G R A D U A T E
The site for this project was located in Smithy Wood, an area of
ancient woodland adjacent to Junction 35 of the M1, north of
Sheffield. There are plans to develop a new motorway service area
here which are controversial due to the destruction they would
cause to the ancient woodland.
I was asked to develop a new large-scale masterplan, showing
details of a revised layout, paying specific attention to ecology,
biodiversity vegetation and surface water management. I also
needed to develop detailed and technical design proposals for
specified components of the masterplan including the green
roof to the visitor centre, a SUDS feature, vegetation design
for a specific area of the site, habitat and biodiversity features.
These technical details should be tailored to encourage three to
four appropriate target species; I chose the common toad, dingy
skipper, grass snake and song thrush.
Skills: Photoshop, InDesign, AutoCAD, Ecological knowledge.
11

7. FORECOURT
Can be used to relax and eat,
or learn about the ecological
features of the site.
VISITOR CENTRE
At the heart of the site, it will
create a vibrant focal point and
habitats for wildlife.
PETROL STATION
Topped with a green roof
designed to support wildlife.
WOODLAND EDGE
Complex ecotones maximise
habitat for wildlife.
ADVENTURE PLAYGROUND
Will offer an adventure through
the ancient woodland for children.
WOODLAND PATH AND
FITNESS TRAIL
Visitors and locals can walk or
run through the network of
paths which connect to the wider
footpaths.
WOODLAND PICNIC AREA
May appeal to those seeking a
quieter spot for a break.
12
M A S T E R P L A N
R E V I S I O N
1 : 1 2 5 0 a t A 1
EXISTING TREES
Proposed Trees
Wet Woodland
Scrub
Lowland Dry Grassland
Lowland Heathland
Bare Ground
Standing Water
Tarmac
K E Y
PYLON CORRIDOR
Will benefit species which thrive off
of woodland edge.
PONDS AND NATURE HIDE
The two ponds will provide amenity
and habitats for wildlife, and can be
observed from the nature hide.
MARSH/SWAMP
This valuable habitat surrounds the
wetland and a fun boardwalk is used
to traverse it.
BIOSWALE
A green wave of wildlife activity will
convey water from the car park
to the pond, appealing to all the
senses.
NATIVE PLANTED TREES
Will create a fuller canopy for
biodiversity.
INTERPRETATION BOARDS
Scattered across the site, these will
inform visitors about the biodiversity
of the site.
OUTDOOR LEARNING AREA
A woodland glade will create a
place where visitors can take part in
woodland workshops.
13

8. MOUNDS
Provide a sunny, dry
environment and burrowing
opportunities for small
mammals and invertebrates.
ARTIFICIAL HABITAT FEATURES
Bird feeders, log piles, rubble piles and
bug hotels are located on the roof.
PLANTING DENSITY
Vegetation will be planted
at different densities and
heights to suit different
species.

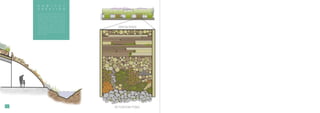

G R E E N R O O F
P L A N
1 : 5 0 0
I aimed to create a semi-
intensive green roof for the visitor
centre. I wanted to include a
number of functions including
habitat creation, stormwater
management, visual appeal,
ecological education and limiting
habitat fragmentation. The
roof consists of native and
locally appropriate vegetation
communities, including MG5
grassland.
CANOPY
CONNECTION
Shrubs, mainly
Crataegus monogyna,
provide a connection
to the tree canopy and
forage for birds and
invertebrates.
LIVING WALL
Allows fauna to
access the roof from
the ground.
1:500
SUN EXPOSURE
The south side benefits from
sunlight. Grassland is dominant
to encourage pollinating
insects, with areas of bare
ground for basking species.
DEADWOOD
SCULPTURE
A series of art
structures located
around the site give
the site a subtle
sense of human
intervention.
MOSAIC STRUCTURE
A mosaic of heathland
and acidic grassland
encourage lichens and
bryophytes.
SHELTER
A hollow provides
a sheltered, damp
or wet area for
flora and fauna.
14
Piles of limestone, crushed
brick, sand and concrete
provide a useful habitat.
The clifflet provides
shade and niches
for invertebrates.
Deeper soil allows
gorse and heather
to grow bigger. A pipe dug into the
soil provides shelter
for ground nesting
birds.
Some bare ground
is left for natural
colonisation.
Bird's-foot
trefoil, vital
for the dingy
skipper, is
present in short
sward.
LOWLAND HEATHLAND
LOWLAND DRY ACID GRASSLAND
LOWLAND NEUTRAL GRASSLAND
OPEN MOSAIC ON PREVIOUSLY DEVELOPED LAND
15
G R E E N R O O F S E C T I O N SV E G E T A T I O N P L A N

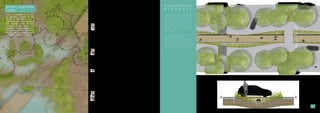

9. This is an example of an area
of vegetation designed for the
benefit of biodiversity. It is a
transitional space from woodland
into standing water including
grassland, swamp, marsh and
grassland. The pond is located in a
currently bare area of land where
woodland edge is already present
so that intervention is minimal.
DEADWOOD
Existing and new, lying and standing
deadwood provide habitat for
a range of funghi, mosses and
saproxylic invertebrates.
SHADED WATER
Provided by occasional shrubs
and trees. Over half of the
water is in sunlight.
STRUCTURAL DIVERSITY
The grassland contains a mosaic of
dense and sparse, tall and short sward
to maximise structural diversity.
WETLAND DIVERSITY
There will be vegetated and
bare islands in the water and
shallow areas of water for pond
skaters, snails, water beetles,
birds and grass snakes.
SPECIFIC VEGETATION
DESIGN
S U D S F E A T U R E
B I O S W A L E
The bioswale stores and carries
excess water from the green roof
and car park to the wetland areas,
simultaneously bio-filtering the
water along its course. Smaller
swales will flow into it, providing
valuable habitat connections for
flora and fauna.
The swale also provides amenity
value, allowing people to get
closer to nature and benefit from
its sensory aspects. A boardwalk
above it acts as the main route
from the car park to the visitor
centre.
17

10. H A B I T A T
C R E A T I O N
A series of 'living walls' have the
key functions of providing various
habitats and connections to the
green roof whilst being engaging
for visitors. The walls include
deadwood to appeal to saproxylic
invertebrates. Features are made
of reused material where possible,
and create shade, moisture, food
and niches.
18

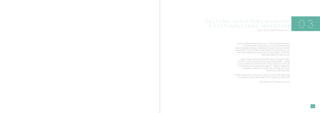

11. 0 3C U L T U R A L I N D U S T R I E S Q U A R T E R :
A P O S T - I N D U S T R I A L A D V E N T U R E
2 N D Y E A R U N D E R G R A D U A T E
The site is within an area known as the Cultural Industries Quarter
of Sheffield, near the city centre. It is a post-industrial area
characterised by workshops, factories and studios, aiming to achieve
gentrification. The site itself includes derelict former factories, a car
park on brownfield land and student accommodation. The Porter
Brook also weaves through the site.
I was to design outdoor places and routes that support public
creativity, social interaction and ecological sustainability. I needed
to use concepts that stem from the unique experience of the site
and explore ideas of public participation. In addition, addressing
the balance between temporary uses and long term green
infrastructure was important.
Finally I was required to produce a series of construction details and
an accompanying plan that explain how my design would be built.
Skills: Sketchup, Photoshop, AutoCAD.
21

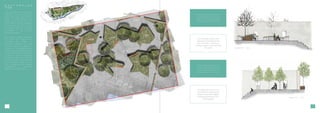

12. M A S T E R P L A N
1 : 1 0 0
The initial theme 'Post Industrial
Adventure' resulted from group
work where our vision was to
create a multi-functional area
which should benefit the local
community. It retains the heritage
and character of the site but with
a modern edge and increases
greenspace in the Cultural
Industries Quarter.
My detailed design continues
this theme. The angular form
resembles the rooftops of
industrial buildings. The walls
of the old factory are kept as a
reminder of industrial heritage,
but they are painted white to give
a clean, light and refreshed look
as well as a sense of ownership
of the place. Selective graffiti will
be kept to retain what I believe
is a prominent theme on the
site. The pathways are relatively
unrestricting to encourage
adventure and exploration.
22
Raised vegetated areas can be
used for sitting, perching or
climbing. The changes in height
control the views of the user.
Betula utilis was chosen as
its white bark fits in with the
simplistic look created by the
white walls and concrete.
Section B-B' 1:100
Section C-C' 1:100
The geometric lines in the
concrete floor break up the
space. The surface edging
seamlessly blends into the
retaining walls.
The materials relate to the
theme and character of the
site. Concrete, a dominant
material, relates to the industrial
character.
23

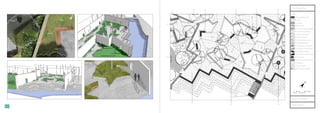

13. 24
UTODESKEDUCATIONALPRODUCT
N
0 10.5 2 3m
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
15)14)4)
1) Existing Brick Wall
2) Grass
3) Gabions
4) Wall Light
5) Concrete Retaining Wall
6) Concrete Surfacing
7) Fraxinus excelsior
8) Alnus glutinosa
9) Betula utilis var. jacq.
10) Buddleja davidii
11) Crataegus monogyna
12) Surface Channel Drain
13) Wooden Seating
14) Corduroy Hazard Paving
15) Tree Grille
16) Mesh Reinforced Grass
17) Planting
18) Spot Height
19) Drainage Gradient
16)
3)
1) 18) 19) 12) 13) 17)
Title: Proposed Plan
Project: CIQ, Sheffield
Scale: 1:50 at A1
Key:

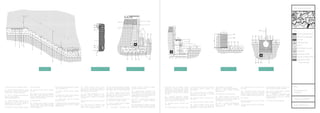

14. 1) 30mm sharp sand. Supplier: Wickes.
2) Hazard Warning Corduroy Tactile
Paving. L400 W400 D50mm. Standard
Natural Colour. Supplier: Marshalls.
3) MOT 1, crushed limestone/granite.
40mm to dust. Supplier:
Mainland Aggregates Ltd.
4) GEN1 Concrete. Poured in-situ.
Old concrete crushed and re-used as
aggregate for new concrete (40mm to
dust). Supplier: Concrete2you.
5) Rockport PowerLED Lights. Supplier:
Imtra Corporation.
5a) 80mm concrete screws. Supplier:
Screwfix.
5b) Rockport PowerLED. Stainless Steel,
white light. Outer Diameter 87.1mm,
Cut-out Diameter 64mm. Screw Mount.
Supplier: Imtra Corporation.
6) Metal handrail.
6a) Stainless Steel Handrail. Diameter
38mm. Supplier: Fineline Welding Ltd.6b)
Stainless Steel Wall Mount. Supplier:
Fineline Welding Ltd.
6b) Stainless Steel Wall Mount. Supplier:
Fineline Welding Ltd.
6c) 80mm concrete screws. Supplier:
Screwfix.
7) Existing brick wall. Smooth Masonry
Paint White. Supplier: Wickes.
8) Multi-Purpose Top Soil. 5.5-6.0pH.
Supplier: Wickes.
9) Bradstone 20mm Permeable Drainage
Aggregate. Minimum 300mm. Supplier:
Simply Paving.
10) RC30 Concrete. Poured in-situ.
Old concrete crushed and re-used as
aggregate for new concrete (40mm to
dust). Supplier: Concrete2you.
11) #4 Rebar Reinforcement Steel.
Diameter 12.7mm. Welded to form
300mm squares. Supplier: Harris Supply
Solutions
12) Expansion Gap for concrete. 1mm per
metre.
13) Pave Drain Top. Standard Grey
colour. L500 W200 D113mm. Invert
Width 100mm. Supplier: Marshalls.
14) Pave Drain Base Channel. Standard
grey colour. L1000 W200 D360mm(Max).
Invert Width 100mm. Supplier: Marshalls.
15) GEN1 Concrete. Poured in-situ.
Old concrete crushed and re-used as
aggregate for new concrete (40mm to
dust). Supplier: Concrete2you.
16) Geotextile Filter Fabric T1000: 1.1mm
thick. 4.5x100m. Supplier: TERRAM.
17) 10mm Drainage Gravel. Supplier:
Mainland Aggregates Ltd.
18) Corrugated Perforated pipe.
Diameter 100mm, L25/100m. Flexible.
Supplier: Drainage Online.
19) Retaining wall foundation with
downstand toe. RC30 Concrete. Poured
in-situ. Old concrete crushed and re-used
as aggregate for new concrete (40mm to
dust). Supplier: Concrete2you.
20) MOT 1, crushed limestone/granite.
40mm to dust. Supplier: Mainland
Aggregates Ltd.
21) Teak Hardwood. 1" Sheets, cut to size:
11 slats, W25 L(Varies) D50mm. Supplier:
Whitmores Timber Ltd. Protected with
400
800
150
150
150
160
280
900
150
400
200
75
200
200
300
150150
300
200
400
500
200
300
200
113
1870
150150
400
200
500
149.89
450
150150
400
900
200
200
900
100
1000150150
1000
500
50
38
38
60
80
36.5
87.1
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
A-A' B-B' C-C'
400
150
150
15
160
150
400
150150
500
150150
400
900
200
200
900
100
1000
150150
1000
500
50
38
38
60
80
36.5
87.1
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
EDBYANAUTODESKEDUCATIONALPRODUCT
150
150
1
150
400
200
75
200
200
300
150150
300
200
400
500
200
300
200
113
1870
500
150150
400
900
200
200
900
100
1000
150150
1000
500
50
38
38
60
80
36.5
87.1
PRODUCEDBYANAUTODESKEDUCATIONAL
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
DBYANAUTODESKEDUCATIONALPRODUCT
C-C’RETAINING WALL
1:20
STEPS
1:20
LIGHT & HANDRAIL
1:10
RETAINING WALL
1:20
Title: Sections and Details
400
800
150
150
150
160
280
900
150
400
200
300
0
200400
113
150150
400
200
500
149.89
450
150150
400
1000
1000
500
38
38
60
80
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
10mm Drainage Gravel
20mm Drainage Aggr.
Top Soil
#4 Rebar Steel
MOT 1
RC30/GEN1 Concrete
Sub-grade
Existing Brick Wall
Corduroy Hazard Paving
Existing Brick Wall
(Cross Section)
Notes:
All measurements in
millimetres.
Scale: 1:10/1:20 at A2
Project: CIQ, Sheffield
Key:
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
Semi-Gloss Teak Oil. Supplier: Wickes.
Attached to metal bar with 40mm
wood screws. 12.5mm spacing. Supplier:
Screwfix. Metal bars attached to concrete
with 80mm concrete screws. Supplier:
Screwfix.
22) Rockport PowerLED. Stainless
Steel, Warm white light. Outer Diameter
87.1mm, Cut-out Diameter 64mm. Screw
Mount. Supplier: Imtra Corporation.
23) Expansion Gap for concrete. 1mm
per metre.
24) Gabion Baskets. 4mm Galfan Wire.
H1 W1 D0.5m (x10) and H1 W0.5 D0.5m
(x2). 76.2mm squares. Supplier: Fine
Mesh Metals
25) Re-used bricks from demolished
buildings on site. Creates a changing
experience from old to new.
26) Expansion Gap for concrete. 1mm
per metre.
27) 30mm sharp sand. Supplier: Wickes.
28) GEN1 Concrete. Poured in-situ.
Old concrete crushed and re-used as
aggregate for new concrete (40mm to
dust). Supplier: Concrete2you.
29) MOT 1, crushed limestone/granite.
40mm to dust. Supplier: Mainland
Aggregates Ltd.
30) Betula utilis var. jacquemontii
31) GEN1 Concrete. Poured in-situ.
Old concrete crushed and re-used as
aggregate for new concrete (40mm to
dust). Supplier: Concrete2you.
32) MOT 1, crushed limestone/granite.
40mm to dust. Supplier: Mainland
Aggregates Ltd.
33) Expansion Gap for concrete. 1mm
per metre.
34) Imperial 68 Series Tree grille.
Cast Iron, Black Gloss Finish. Diameter
1000mm, Aperture 400mm. Load Class
A (15kN). Supplier: External Works Index.
35) Rootball.
36) Multi-Purpose Top Soil. 5.5-6.0pH.
Supplier: Wickes.
37) Root Guard. 2.25x25m Roll. Supplier:
TERRAM.
38) Geotextile Filter Fabric T1000: 1.1mm
thick. 4.5x100m. Supplier: TERRAM.
39) 10mm Drainage Gravel. Supplier:
Mainland Aggregates Ltd.
40) Corrugated Perforated pipe.
Diameter 100mm, L25/100m. Flexible.
Passes through all tree pits. Supplier:
Drainage Online.
41) 100mm loosened subgrade.
D-D' E-E' F-F'
400
800
150
150
150
160
280
900
150
400
200
75
200
200
300
150150
300
200
400
500
500
149.89
200
300
200
113
1870
150150
400
200
500
149.89
450
150150
400
900
200
200
900
100
1000
150150
1000
500
50
38
38
60
80
36.5
87.1
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
400
800
150
150
150
160
280
150
400
200
75
200
200
300
150150
300
200
400
500
200
300
200
113
1870
150
500
149.89
150150
400
900
200
200
900
100
1000
150150
1000
500
50
38
38
60
80
36.5
87.1
PRODUCEDBYANAUTODESKEDUCATIONALPROD
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
DUCEDBYANAUTODESKEDUCATIONALPRODUCT
400
800
150
150
150
160
280
150
400
200
75
200
200
300
150150
300
200
400
500
500
149.89
200
300
200
113
1870
1150
500
149.89
150150
400
900
200
200
900
100
1000
150150
1000
500
50
38
38
60
80
36.5
87.1
PRODUCEDBYANAUTODESKEDUCATIONALPRODU
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
ODUCEDBYANAUTODESKEDUCATIONALPRODUCT
SEATING
1:20
GABION WALL
1:20
TREE GRILLE
1:20

15. 0 4C O P E N H A G E N
F I E L D S T U D Y
3 R D Y E A R U N D E R G R A D U A T E
At the start of the year we took a visit to Copenhagen. I found
the city to be a really exciting place and exploring landscape
architecural projects in the city really opened my mind up to the
possibilities of design.
I was asked to produce a portfolio of analytical drawings based
on my observations and interpretations of landscape architecture
projects in Copenhagen. This involved exploration and critique
of current issues related to landscape architecture practice and
reflection upon my personal opinions regarding them.
I decided to look into how edge detail is used to define spaces, as I
felt form is used much more thoughtfully here in comparison to in
the UK.
Skills: Photoshop, Hand-drawing, Analytical skills.
29

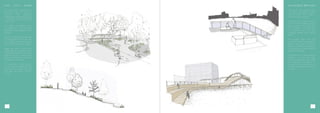

16. T H E C I T Y D U N E
The contrast of vegetation and
concrete creates an intriguing
transition. The vegetation
softens the hard edges and acts
functionally to stop people finding
a desire line.
The fingers of vegetation form
a snaking path to encourage
exploration and engagement with
the site.
A series of sitting steps deal with
the topography of the site and
offer edges for social activities
socialise in sunlight and in shade.
Edges are used to reduce the
appearance of the gradient of the
site, by creating steep sections of
vegetation and a snaking path
because the space is often used
by people as a shortcut.
In my opinion, it is the contrast
of concrete and vegetation that
gives the site its unique character
and gives the space a distinct
identity.
30
K A L V E B O D B R Y G G E
'The Wave' uses straight edges
to create an impressive structure
over the water. This makes it
minimal but very effective.
Personally, the contrast of water
and the timber walkway has a
special quality. The wooden edge
has a feeling of permanence
in comparison with the ever
changing ebbing and flowing
water.
This wooden edge forms one
of three stacked topographical
edges. This creates different
paths and different experiences,
it also creates an opportunity for
clambering and play.
The absence of a handrail allows
people to sit over the edge
making it a peaceful, idyllic edge
for socialising or unwinding. It
also adds a sense of risk and fun
and there is a greater connection
to water.
31

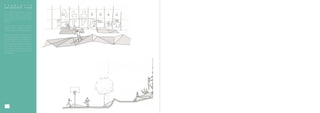

17. C H A R L O T T E
A M U N D S E N S P A R K
This park is inspired by rugged
mountains of Japan. In my opinion
it is a little too hard-landscaped
but this gives the park its urban
identity.
The geometric, mountain-inspired
edges create opportunities for
social and experimental activities.
Buildings enclose the space. One
of which features a climbing wall,
giving this edge a new dimension,
rather than it being simply a
boundary of the park. The facades
have also been used as a canvas
for street art and graffiti, which
I think gives the park a sense of
ownership.
32

18. 0 5W A R D S E N D
C E M E T E R Y
2 N D Y E A R U N D E R G R A D U A T E
Wardsend Cemetery is in Hillsborough ward in north Sheffield. It
is adjacent to the River Don and connected to Livesey Street. It
faces problems from vandalism and unauthorised motocross use.
I was required to develop detailed design proposals for Wardsend
Cemetery using a plan at 1:500 to explain them. Furthermore, I
needed to think about how my proposals would be developed to
enhance the site for biodiversity and people through creation and
management. I was to focus on an ecological design approach
and show inter-relationships between habitats and human uses
for these habitats. Identification of the main vegetation types and
biodiversity they bring was also required.
Skills: Photoshop, Hand-rendering, Ecological knowledge.
35

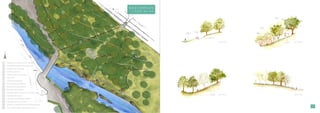

19. Viewpoint across River Don to cemetery
Old chapel reinstated as an event area
Straight, formal pathway
Cemetery entrance
Viewpoint over the cemetery
Nature hide
Unimproved grassland
Dense deciduous woodland
Boardwalk through wetland
River Don walk/cycleway
Restored historic approach to mortuary/chapel
Improved river access
Less dense woodland/open glades
Coppiced deciduous woodland
Woodland underplanted with woodland planting
Central, open glade in woodland for views
M A S T E R P L A N
1 : 5 0 0 a t A 2
SECTION A SECTION B
SECTION C SECTION D
37

20. 0 6P H O T O G R A P H Y
O N G O I N G
I have always had a passion for the outdoors and I like to record
my experiences with my camera creatively. I haven't had any
training and currently photography is just a hobby, but in the
future I would love to become develop my skills and become more
accomplished.
39

21. 40 41

22. T H A
N K Y
O U
T i m o t h y F o x f o r d
0 7 5 4 7 4 7 2 2 2 5
t i m f o x f o r d @ b t i n t e r n e t . c o m
