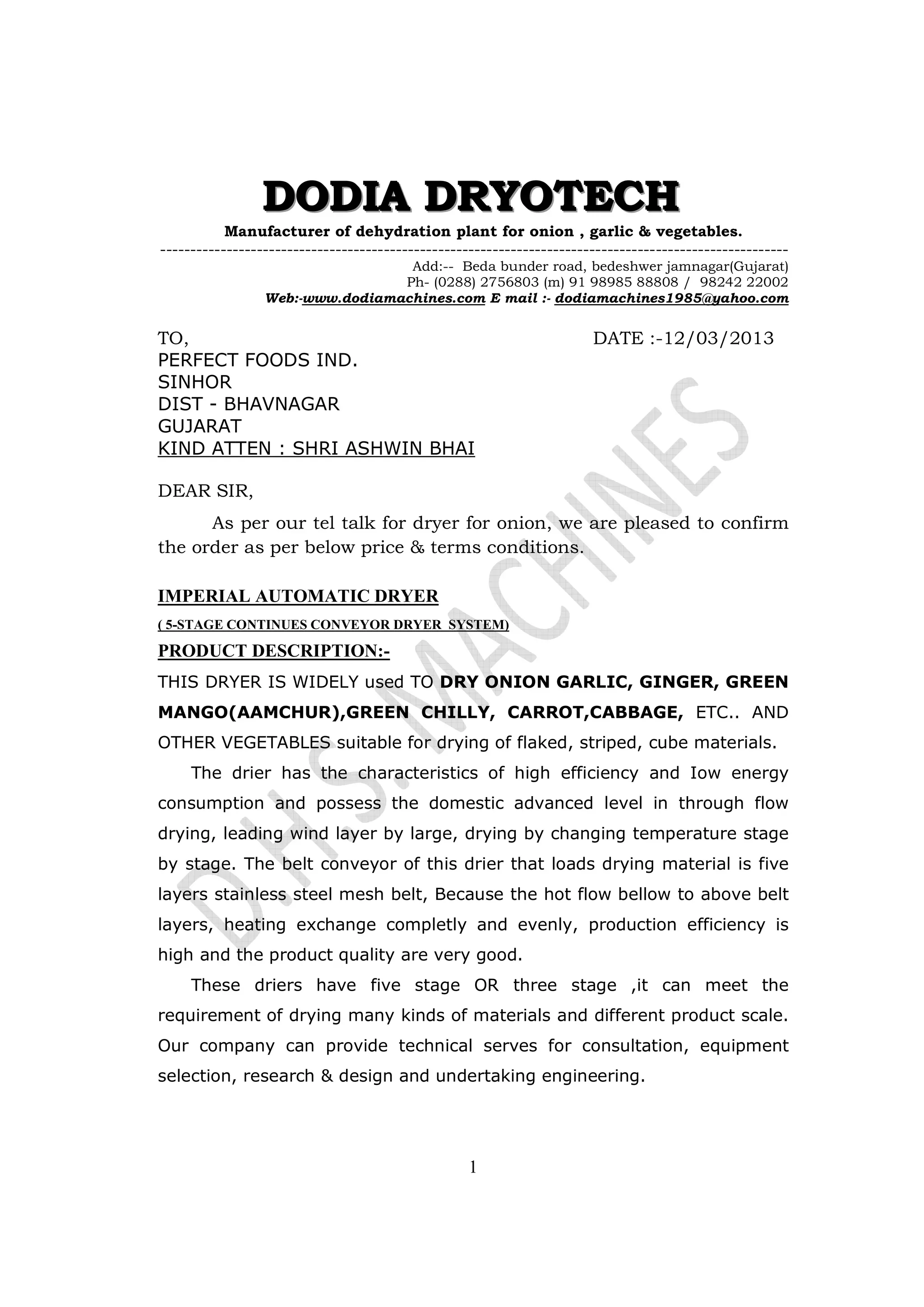

DDDOOODDDIIIAAA DDDRRRYYYOOOTTTEEECCCHHH
Manufacturer of dehydration plant for onion , garlic & vegetables.
--------------------------------------------------------------------------------------------------------
Add:-- Beda bunder road, bedeshwer jamnagar(Gujarat)
Ph- (0288) 2756803 (m) 91 98985 88808 / 98242 22002
Web:-www.dodiamachines.com E mail :- dodiamachines1985@yahoo.com
TO, DATE :-12/03/2013
PERFECT FOODS IND.
SINHOR
DIST - BHAVNAGAR
GUJARAT
KIND ATTEN : SHRI ASHWIN BHAI
1
DEAR SIR,
As per our tel talk for dryer for onion, we are pleased to confirm
the order as per below price & terms conditions.
IMPERIAL AUTOMATIC DRYER
( 5-STAGE CONTINUES CONVEYOR DRYER SYSTEM)
PRODUCT DESCRIPTION:-
THIS DRYER IS WIDELY used TO DRY ONION GARLIC, GINGER, GREEN
MANGO(AAMCHUR),GREEN CHILLY, CARROT,CABBAGE, ETC.. AND
OTHER VEGETABLES suitable for drying of flaked, striped, cube materials.
The drier has the characteristics of high efficiency and Iow energy
consumption and possess the domestic advanced level in through flow
drying, leading wind layer by large, drying by changing temperature stage
by stage. The belt conveyor of this drier that loads drying material is five
layers stainless steel mesh belt, Because the hot flow bellow to above belt
layers, heating exchange completly and evenly, production efficiency is
high and the product quality are very good.
These driers have five stage OR three stage ,it can meet the
requirement of drying many kinds of materials and different product scale.
Our company can provide technical serves for consultation, equipment
selection, research & design and undertaking engineering.
DDDOOODDDIIIAAA DDDRRRYYYOOOTTTEEECCCHHH
Manufacturer of dehydration plant for onion , galic & vegetables.
--------------------------------------------------------------------------------------------------------

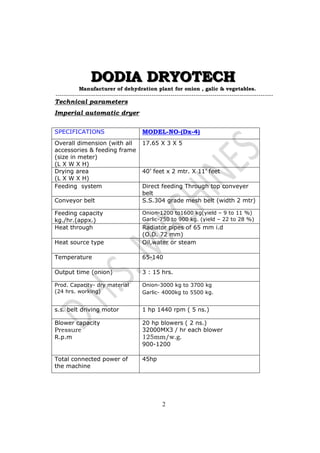

Technical parameters
Imperial automatic dryer
SPECIFICATIONS MODEL-NO-(Dx-4)
Overall dimension (with all
17.65 X 3 X 5
accessories & feeding frame
(size in meter)
(L X W X H)
2
Drying area
(L X W X H)
40’ feet x 2 mtr. X 11’ feet
Feeding system Direct feeding Through top conveyer
belt
Conveyor belt S.S.304 grade mesh belt (width 2 mtr)
Feeding capacity
kg./hr.(appx.)
Onion-1200 to1600 kg(yield – 9 to 11 %)
Garlic-750 to 900 kg. (yield – 22 to 28 %)
Heat through
Radiator pipes of 65 mm i.d
(O.D. 72 mm)
Heat source type
Oil,water or steam
Temperature
65-140
Output time (onion) 3 : 15 hrs.
Prod. Capacity- dry material
(24 hrs. working)
Onion-3000 kg to 3700 kg
Garlic- 4000kg to 5500 kg.
s.s. belt driving motor 1 hp 1440 rpm ( 5 ns.)
Blower capacity
Pressure
R.p.m
20 hp blowers ( 2 ns.)
32000MX3 / hr each blower
125mm/w.g.
900-1200
Total connected power of
the machine
45hp
DDDOOODDDIIIAAA DDDRRRYYYOOOTTTEEECCCHHH
Manufacturer of dehydration plant for onion , galic & vegetables.
--------------------------------------------------------------------------------------------------------
3
• Standard Supply
 Heavy M.S. MAIN Frame dryer of 75mm x 10mm Angle, and whole
structure of 100MM x 50MM channel, and 50 MM x 6 MM Angle.
and main pillar of 125 MM x 65 MM channel and foudation of
75MM x 40 MM channel.
 Gear box(NEW IMPROVED):-- Heavy casting body and Brownz
metal  Fosfurus-400 material made Varum gear and Carbon steel
Varum shafting , leakage proof. (New Design)
o Ratio  700 : 1
o Electric motor  1 H.P.1440 R.P.M. (5 Nos.)
o Gear Box  5 Nos.
(Gear box supply with electric motor)
 12” in diameter x 2 meter M.S. Pipe for S.S. Belt driving with M.S
cast Gear, chain wheel (bearing pillow block U.C.P. 208) total pipe-
10 Nos.
 S.S. belt of 16 gauge wire 304 grade s.s. mesh belt,
Total belt 5-NS.
 S.S. Belt supporting roller pipe --40mm x 2 mtr (total pipe 86 Nos.)
 40 mm I.D. feeding leveling pipe with wooden brush attached—1no.
 RADIATORS:-- 2 ½” ID m.s. pipe (‘B’-class) feens with 20 gauge
c.r.c. strip and welded with U-band(seamless) shot-band, F-class
Flanchesh–leakage tasted welding, Total pipe--380ns.
 Counter unit with chain wheel and chain (bearing UCP 207)-4 Ns.
 S.S. Belt cleaning pipe :- Brush and plastic nobe attached 40mm
I.D. x 2 mtr M.S. Pipe for S.S. belt cleaning (8 Nos.)
DDDOOODDDIIIAAA DDDRRRYYYOOOTTTEEECCCHHH
Manufacturer of dehydration plant for onion , galic  vegetables.
--------------------------------------------------------------------------------------------------------

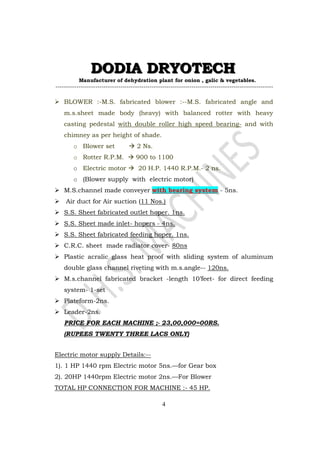

 BLOWER :-M.S. fabricated blower :--M.S. fabricated angle and
m.s.sheet made body (heavy) with balanced rotter with heavy
casting pedestal with double roller high speed bearing- and with
chimney as per height of shade.
4
o Blower set  2 Ns.
o Rotter R.P.M.  900 to 1100
o Electric motor  20 H.P. 1440 R.P.M.- 2 ns.
o (Blower supply with electric motor)
 M.S.channel made conveyer with bearing system - 5ns.
 Air duct for Air suction (11 Nos.)
 S.S. Sheet fabricated outlet hoper. 1ns.
 S.S. Sheet made inlet- hopers - 4ns.
 S.S. Sheet fabricated feeding hoper. 1ns.
 C.R.C. sheet made radiator cover- 80ns
 Plastic acralic glass heat proof with sliding system of aluminum
double glass channel riveting with m.s.angle-- 120ns.
 M.s.channel fabricated bracket -length 10’feet- for direct feeding
system- 1-set
 Plateform-2ns.
 Leader-2ns.
PRICE FOR EACH MACHINE ;- 23,00,000=00RS.
(RUPEES TWENTY THREE LACS ONLY)
Electric motor supply Details:--
1). 1 HP 1440 rpm Electric motor 5ns.—for Gear box
2). 20HP 1440rpm Electric motor 2ns.—For Blower
TOTAL HP CONNECTION FOR MACHINE :- 45 HP.
DDDOOODDDIIIAAA DDDRRRYYYOOOTTTEEECCCHHH
Manufacturer of dehydration plant for onion , galic  vegetables.
--------------------------------------------------------------------------------------------------------

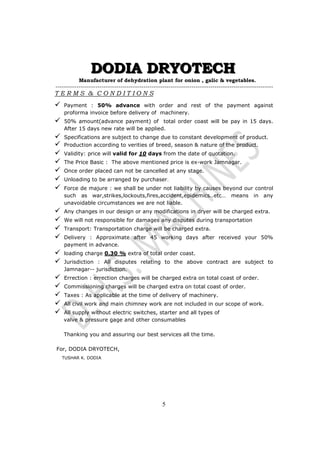

T E R M S  C O N D I T I O N S
 Payment : 50% advance with order and rest of the payment against
proforma invoice before delivery of machinery.
 50% amount(advance payment) of total order coast will be pay in 15 days.
After 15 days new rate will be applied.
 Specifications are subject to change due to constant development of product.
 Production according to verities of breed, season  nature of the product.
 Validity: price will valid for 10 days from the date of quotation.
 The Price Basic : The above mentioned price is ex-work Jamnagar.
 Once order placed can not be cancelled at any stage.
 Unloading to be arranged by purchaser.
 Force de majure : we shall be under not liability by causes beyond our control
such as war,strikes,lockouts,fires,accident,epidemics..etc… means in any
unavoidable circumstances we are not liable.
 Any changes in our design or any modifications in dryer will be charged extra.
 We will not responsible for damages any disputes during transportation
 Transport: Transportation charge will be charged extra.
 Delivery : Approximate after 45 working days after received your 50%
5
payment in advance.
 loading charge 0.30 % extra of total order coast.
 Jurisdiction : All disputes relating to the above contract are subject to
Jamnagar-- jurisdiction.
 Errection : errection charges will be charged extra on total coast of order.
 Commissioning charges will be charged extra on total coast of order.
 Taxes : As applicable at the time of delivery of machinery.
 All civil work and main chimney work are not included in our scope of work.
 All supply without electric switches, starter and all types of
valve  pressure gage and other consumables
Thanking you and assuring our best services all the time.
For, DODIA DRYOTECH,
TUSHAR K. DODIA
