The document summarizes two commercial pouch laminating systems, the PS-320 and PS-450. Both systems offer laminating speeds up to 250-1200 mm/min, laminating thickness up to 500 microns, and operating temperatures from 0-175 degrees Celsius. The PS-450 has a larger maximum width of 450mm compared to 320mm for the PS-320. Both systems have a 2 year warranty and feature a new patented Teflon carrier that eliminates jams and repairs.

1. Reverse
Mode
Temperature
Control
in-plant print departments
commercial printers
instant printers
reprographics
copy shops

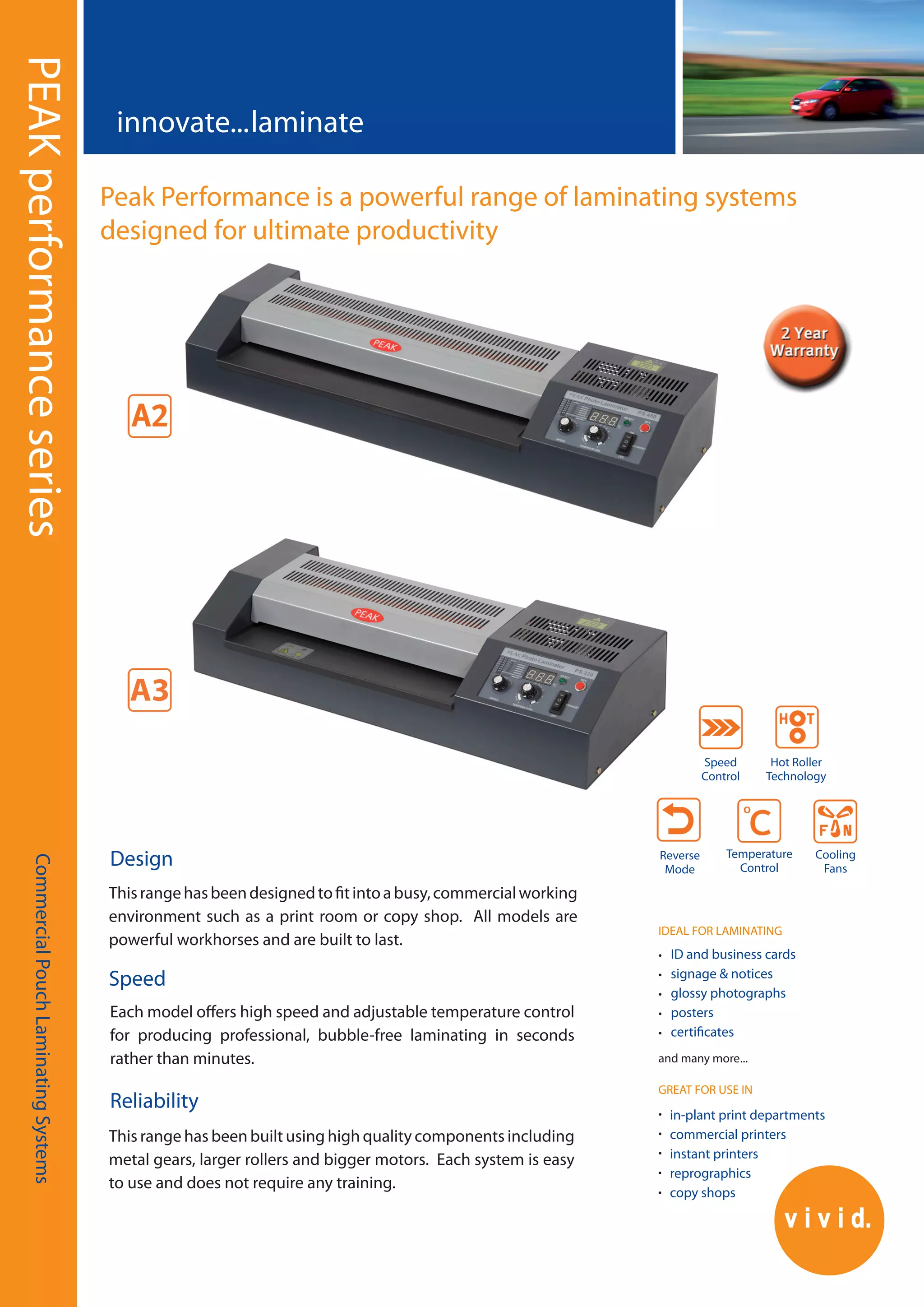

PEAKperformanceseries
Peak Performance is a powerful range of laminating systems
designed for ultimate productivity
CommercialPouchLaminatingSystems

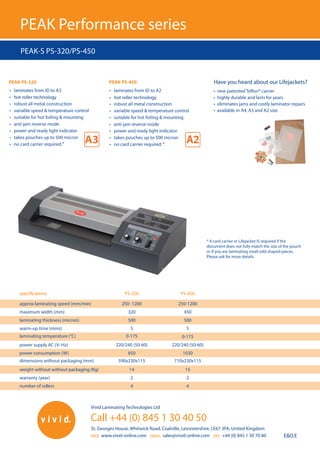

2. Call +44 (0) 845 1 30 40 50
WEB EMAIL FAX
approx laminating speed (mm/min) 250 -1200 250-1200
maximum width (mm) 320 450
laminating thickness (micron) 500 500
warm-up time (mins) 5 5
laminating temperature (°C) 0-175 0-175
power supply AC (V–Hz) 220/240 (50-60) 220/240 (50-60)
power consumption (W) 850 1030
dimensions without packaging (mm) 590x230x115 710x230x115
weight without without packaging (Kg) 14 15
warranty (year) 2 2
number of rollers 4 4
Have you heard about our Lifejackets?
• new patented Teflon® carrier
• highly durable and lasts for years
• eliminates jams and costly laminator repairs
• available in A4, A3 and A2 size
PEAK-S PS-320/PS-450
E&O.E
PEAK PS-320 PEAK PS-450
specifications PS-320 PS-450
Vivid Laminating Technologies Ltd
St. Georges House, Whitwick Road, Coalville, Leicestershire, LE67 3FA, United Kingdom
www.vivid-online.com sales@vivid-online.com +44 (0) 845 1 30 70 80
