The document discusses new features and capabilities in Microsoft technologies including Windows Communication Foundation (WCF), Windows Server App Fabric, Windows Workflow Foundation (WF), and Silverlight. Key points include: - WCF 4.0 includes improvements to configuration, monitoring, routing, and discovery. Windows Server App Fabric provides hosting and management of WCF and WF services. - App Fabric supports WCF and WF services through runtime databases and capabilities for monitoring, persistence, hosting, caching and management tooling. - Workflow services are well-suited for business processes. App Fabric supports durable workflows through persistence of instance state and recovery. - Silverlight 4 beta includes new media and interaction features such as printing, dragging

1. PDC Highlights Dave Glover Microsoft Australia, Developer Platform Group 0403809914 [email_address] http://blogs.msdn.com/dglover , www.twitter.com/dglover Catherine Eibner Microsoft Australia, Developer Platform Group [email_address] http:// blogs.msdn.com/ceibner , www.twitter.com/ceibner

2. PDC Highlights

3. New in WCF Windows Server Application Fabric

4. New in WCF 4

5. New in WCF 4.0 Improvements to things you do today Configuration Monitoring New scenarios enabled Routing Discovery

6. Endpoint Configuration in 3.x Web. config Echo. svc http://host vdir2 vdir1 vdir2 A B C

7. Default Bindings Web. config Echo. svc http://host vdir2 vdir1 Endpoint using BasicHttpBinding picks up default binding configuration from higher in the config hierarchy <system.serviceModel> <bindings> <basicHttpBinding> <binding maxBufferSize=&quot;2147483647&quot; maxReceivedMessageSize=&quot;2147483647&quot;/> </basicHttpBinding> </bindings> </system.serviceModel> A B C vdir2

8. Default Behaviors Web. config Echo. svc http://host vdir2 vdir1 A Service or Endpoint picks up default behaviors from higher in the config hierarchy Web. config <system.serviceModel> <behaviors> <serviceBehaviors> <behavior> <serviceThrottling maxConcurrentCalls=&quot;32&quot;/> </behavior> </serviceBehaviors> </behaviors> </system.serviceModel> A B C Bv vdir2

9. Default Behaviors Web. config http://host Behaviors from higher in the config hierarchy are merged with behaviors in a local config file Echo. svc vdir2 vdir1 Web. config <system.serviceModel> <behaviors> <serviceBehaviors> <behavior> <serviceMetadata httpGetEnabled=&quot;true&quot;/> </behavior> </serviceBehaviors> </behaviors> </system.serviceModel> A B C Bv Bv vdir2

10. Message Pump as a Service Scenarios Basic Message Routing Protocol Bridging Service Aggregation Versioning … Concerns Connection State Security Delivery Failure Transactions … Message Pump Routing Service

11. Message Routing Client Time Service Routing Service Echo IRequestReplyRouter BasicHttp http://routinghost/router A B C Supported Message Exchange Patterns Multicast Interface Request Reply, Sessionful Request Reply No IRequestReplyRouter OneWay Yes ISimplexDatagramRouter Sessionful OneWay Yes ISimplexSessionRouter Sessionful Duplex Yes IDuplexSessionRouter

12. Message Routing MessageFilter Endpoint action == http://PDC/Echo Echo action == http://PDC/GetCurrentTime TimeService Client Time Service Routing Service Echo Filter On MessageFilter Action ActionMessageFilter Address header AddressMessageFilter Address header – longest prefix matching AddressPrefixMessageFilter Endpoint Name EndpointNameMessageFilter No Filter – matches everything MatchAllMessageFilter Logical And of two filters StrictAndMessageFilter XPath expression XPathMessageFilter Custom Custom

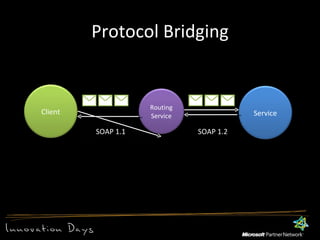

13. Protocol Bridging BasicHttp Net.Tcp SOAP 1.1 SOAP 1.2 Client Service Routing Service

14. Security Message sent using Client Identity Message sent using Routing Service Identity Message sent using Client Identity Impersonation using WindowsIdentityToken Client Service Routing Service

15. Error Handling Client Backup Echo Service Routing Service Echo Service MessageFilter Endpoint Alternate Endpoints action == http://PDC/Echo Echo Backup EchoService

16. Discovery The ability to publish a service’s endpoint metadata and discover services using well defined criteria Design time Find available services Runtime Reduced Config Location agility Dynamic / self healing apps 2 Modes – adhoc and managed proxy service WS-Discovery – Standard interoperable discovery protocol

17. Ad-hoc Discovery Chat App: Ed Hello Hello Chat App: Steve Chat App: Jurgen Hello

18. Ad-hoc Discovery Chat App: Ed Chat App: Steve Chat App: Jurgen Probe Probe Probe ProbeMatch ProbeMatch

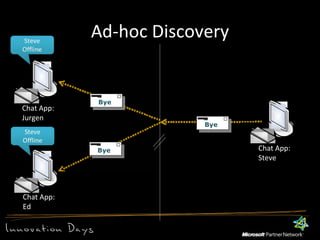

19. Ad-hoc Discovery Chat App: Ed Bye Bye Chat App: Steve Chat App: Jurgen Bye

20. Managed Discovery Probe Probe Hello Probe Hello ProbeMatch Jurgen

21. Discovery Runtime

22. Dallas “ Data as a Service” Built on Windows Azure & SQL Azure Discover Public Data Sources, Explore them & Use them Aim is to encourage greater innovation & apps to be created rapidly http://www.sqlazureservices.com /

23. Power Pivot Formerly known as Project “Gemini” Data Analysis add-in that delivers unmatched computational power within Excel 2010 http://www.powerpivot.com/

24. Pivot Live Labs latest experiment – available to trial by invitation Pivot is an interaction model for viewing data collections Pivot makes it easier to interact with massive amounts of data in ways that are powerful, informative, and fun http ://www.getpivot.com/

25. Windows Server AppFabric http:// www.microsoft.com/windowsserver2008/en/us/app-main.aspx Download Windows Server AppFabric Beta 1 http://msdn.microsoft.com/appfabric

26. WCF and WF in .NET 4 Persistence (Instances) Monitoring Activity Library Receive Send ... Workflow Service Host Management Endpoint Persistence Behavior Tracking Behavior

27. Windows Server AppFabric (formerly codename “Dublin”) Evolution of WAS/IIS and Windows Application Server role to run and manage WCF and WF services Ships as part of 2010 Wave Runtime Databases Windows Server .NET Framework Windows Server AppFabric Services Management Tools IIS/WAS Workflows Persistence Monitoring Hosting Persistence Caching Monitoring IIS Manager Modules PowerShell

28. Coordination of Work Asynchronous Messaging Add/Remove Item Calculate Best Price Get Price Get Price Supplier One Service Supplier Two Service Best Price Workflow Service Purchase Service

29. Message Correlation The mechanism for relating messages to each other or to application instance state Context Based Correlation Content Based Correlation <-New in .NET 4 1. Start 3. Send (key 3) 4. Receive (key 3) Receive Send Receive Persistence DB (Instances) 2. Save (key 3) 5. Load (key 3) 6.Complete Instance 123 | data 456 | data 789 | data A11 | data Key 123 | key 1 456 | key 2 789 | key 3 A11 | key 4 create correlation key3 Workflow Service

30. Message Correlation The mechanism for relating messages to each other or to application instance state Persistence DB (Instances) Instance 123 | data 456 | data 789 | data A11 | data Key 123 | userid 1 456 | userid 2 789 | userid 3 A11 | userid4 1. Add item (userId 3) 3. View items (userId 3) 5. Best Price (userId 3) Receive Receive Receive 2. Save (userId 3) 4. Load (userId 3) 6. Load (userId 3) create correlation

31. Monitoring Runtime Databases Windows Server .NET Framework Windows Server AppFabric Services Management Tools IIS/WAS Workflows Persistence Monitoring Hosting Persistence Caching Monitoring IIS Manager Modules PowerShell

32. Monitoring Windows Server AppFabric Monitoring Database Monitoring Tools Event Collector Service A Windows Service installed with the Windows Server AppFabric Collects WCF and WF instrumentation events into the Monitoring DB Workflow Service Event Collector Service WCF Trace Tracking Participant Tracking Profile

33. Persistence Runtime Databases Windows Server .NET Framework Windows Server AppFabric Services Management Tools IIS/WAS Workflows Persistence Monitoring Hosting Persistence Caching Monitoring IIS Manager Modules PowerShell

34. Persistence Storing WF Application State Ensures that durable Workflows can be recovered and processing resumed Scenarios Reliability - Long running workflows Availability - Recovery when application or machine crashes Scalability - A workflow unloads idle instances from memory; the retry loading of locked instances

35. Persistence Windows Server AppFabric Workflow Service Instance 123 | data 456 | data 789 | data 011 | data Workflow Management Service for IIS/WAS A Windows Service installed with the Windows Server AppFabric that monitors the Persistence DB Instance restart including graceful shutdown Activates durable timers Executes instance control commands Persistence DB Workflow Management Service Management Endpoint

36. Instance Availability in a Farm Windows Server AppFabric Windows Server AppFabric Load Balancer Workflow Service Workflow Service Windows Server AppFabric Workflow Service Instance 123 | data 456 | data 789 | data 011 | data Persistence DB Workflow Management Service Workflow Management Service Workflow Management Service

37. Summary Workflow is ideally suited for business services Workflow services handle complex coordination Composition of services Message correlation to instances The Windows Server AppFabric supports WCF and Workflow services by Providing runtime databases Capabilities for monitoring, persistence, hosting and caching Tooling and scripting to manage and monitor WCF and WF services

38. Silverlight 4 Beta New Media Features Printing Dragging Files/Desktop interactions Right Click Support Webcam & Microphone Support Multicast/UDP Rich Text Box Support Programmatic Clipboard access Channel 9 Training: http:// channel9.msdn.com/learn/courses/Silverlight4
