This is a presentation for WhereCamp 2010 on how patch.com created a custom map stack

1. PATCH MAPS
Who, What, When, Where, Why, How?
Aubrey Holland

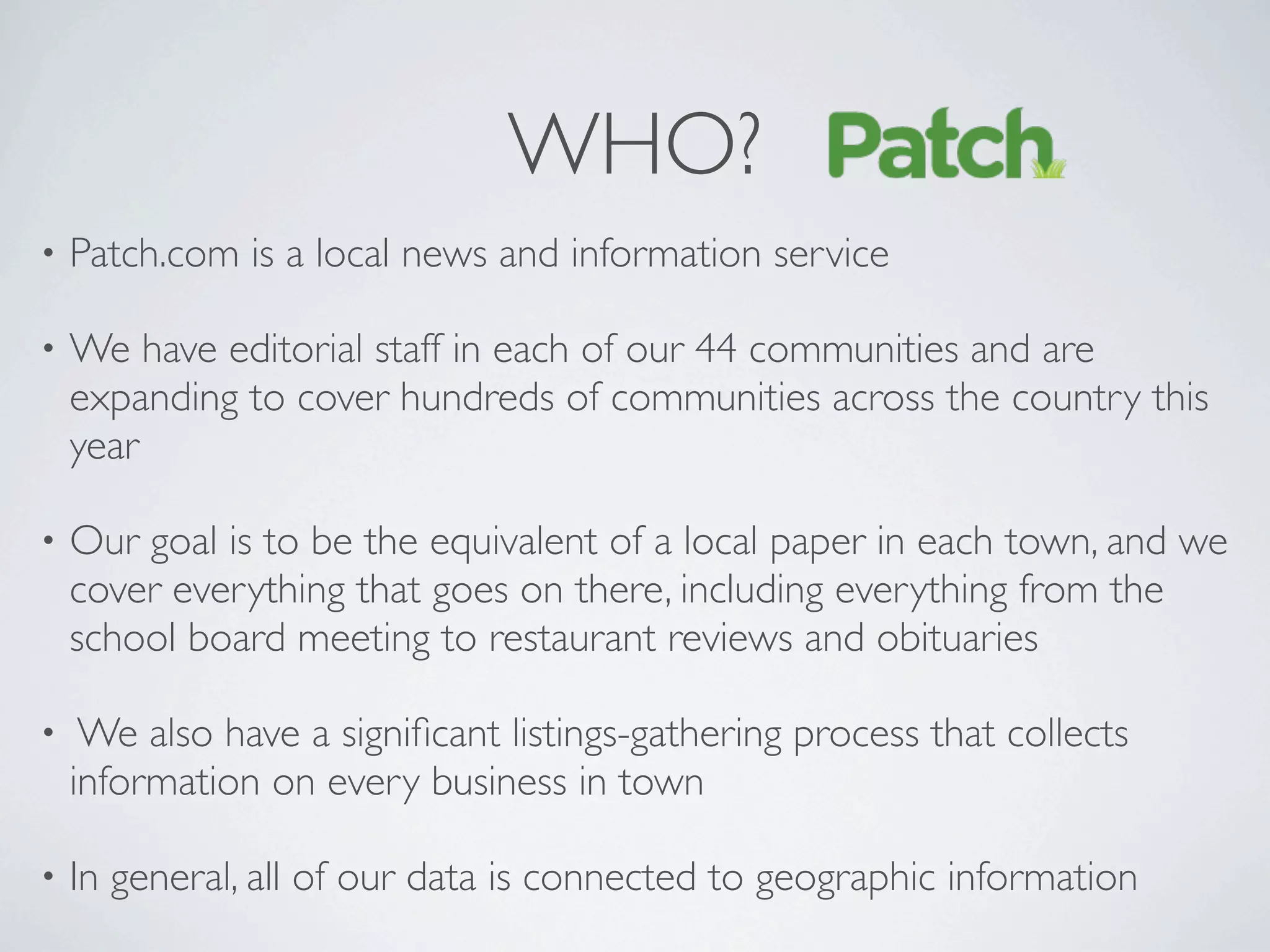

2. WHO?
• Patch.com is a local news and information service
• We have editorial staff in each of our 44 communities and are
expanding to cover hundreds of communities across the country this
year
• Our goal is to be the equivalent of a local paper in each town, and we
cover everything that goes on there, including everything from the
school board meeting to restaurant reviews and obituaries
• We also have a significant listings-gathering process that collects
information on every business in town
• In general, all of our data is connected to geographic information

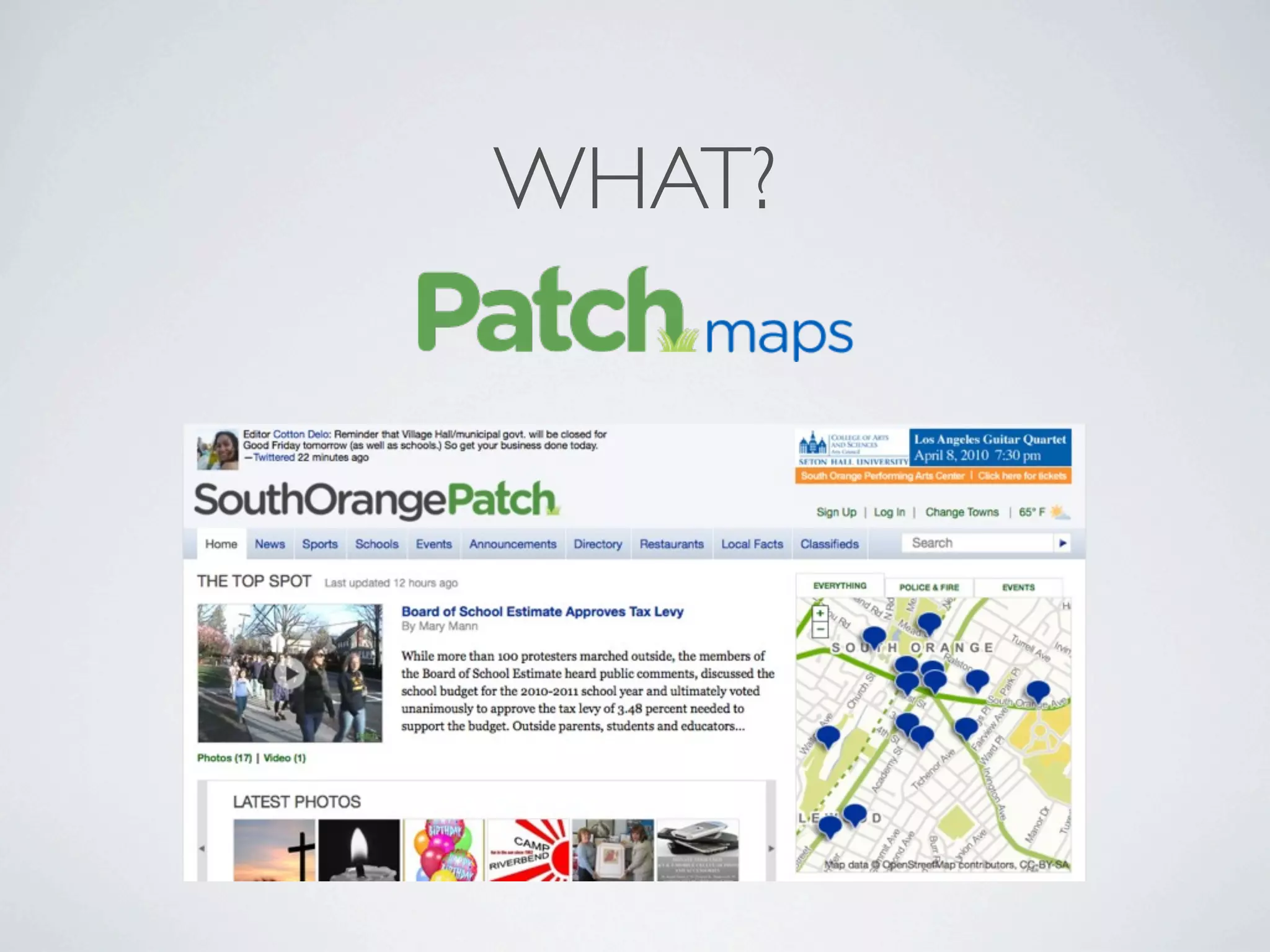

3. WHAT?

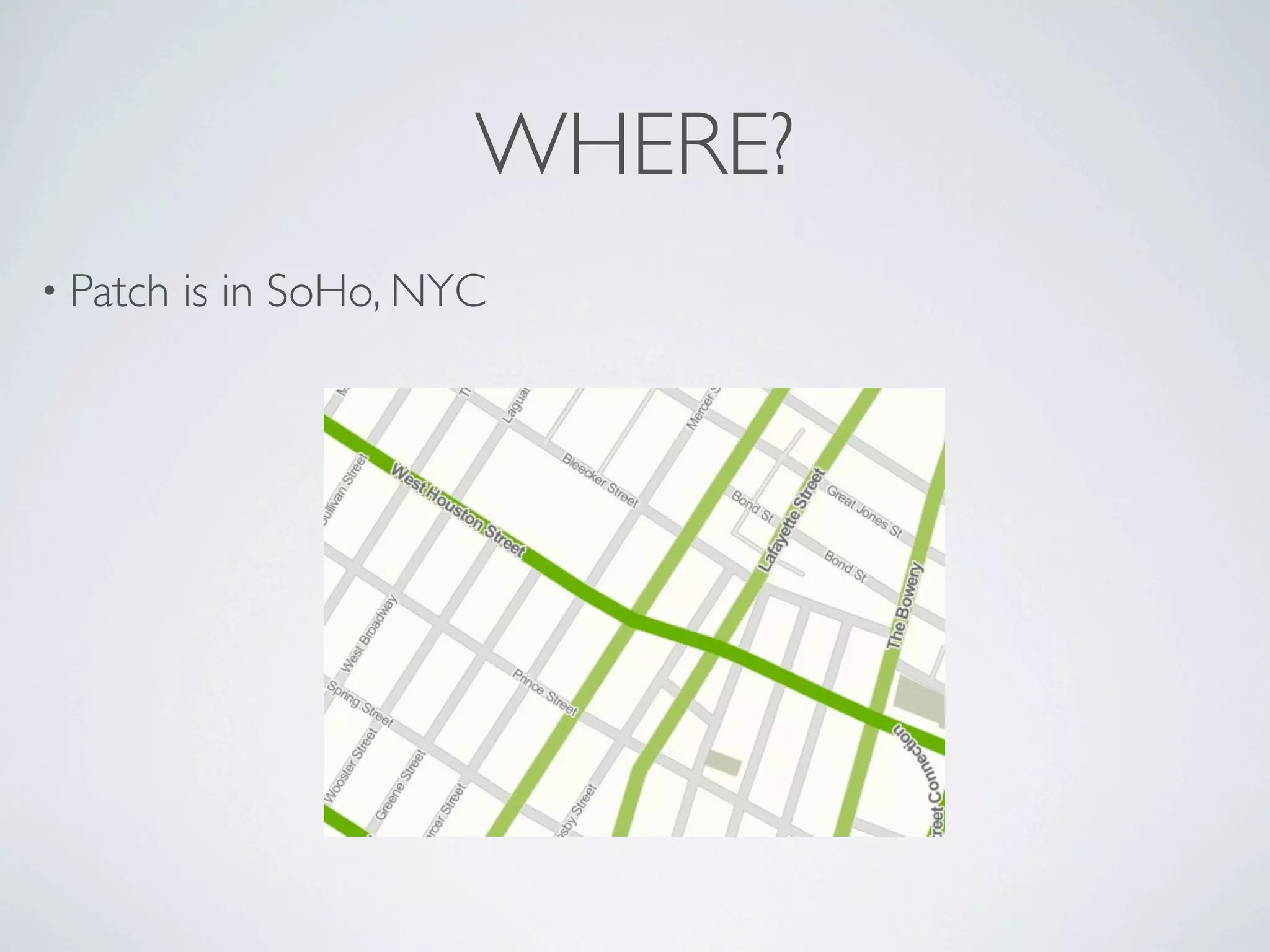

4. WHERE?
• Patch is in SoHo, NYC

5. WHEN?
• We started considering this project after seeing Paul Smith’s
“Take Control of Your Maps” article on A List Apart in April,
2008
• The
project really took shape in August, 2009 and launched in
November

6. WHY?
• Ourpainful design process left us with a custom page, and a
map that looks just like everybody else’s
• Map data at the highly local level still kinda sucks
• You can’t integrate data directly into a Google (etc.) map

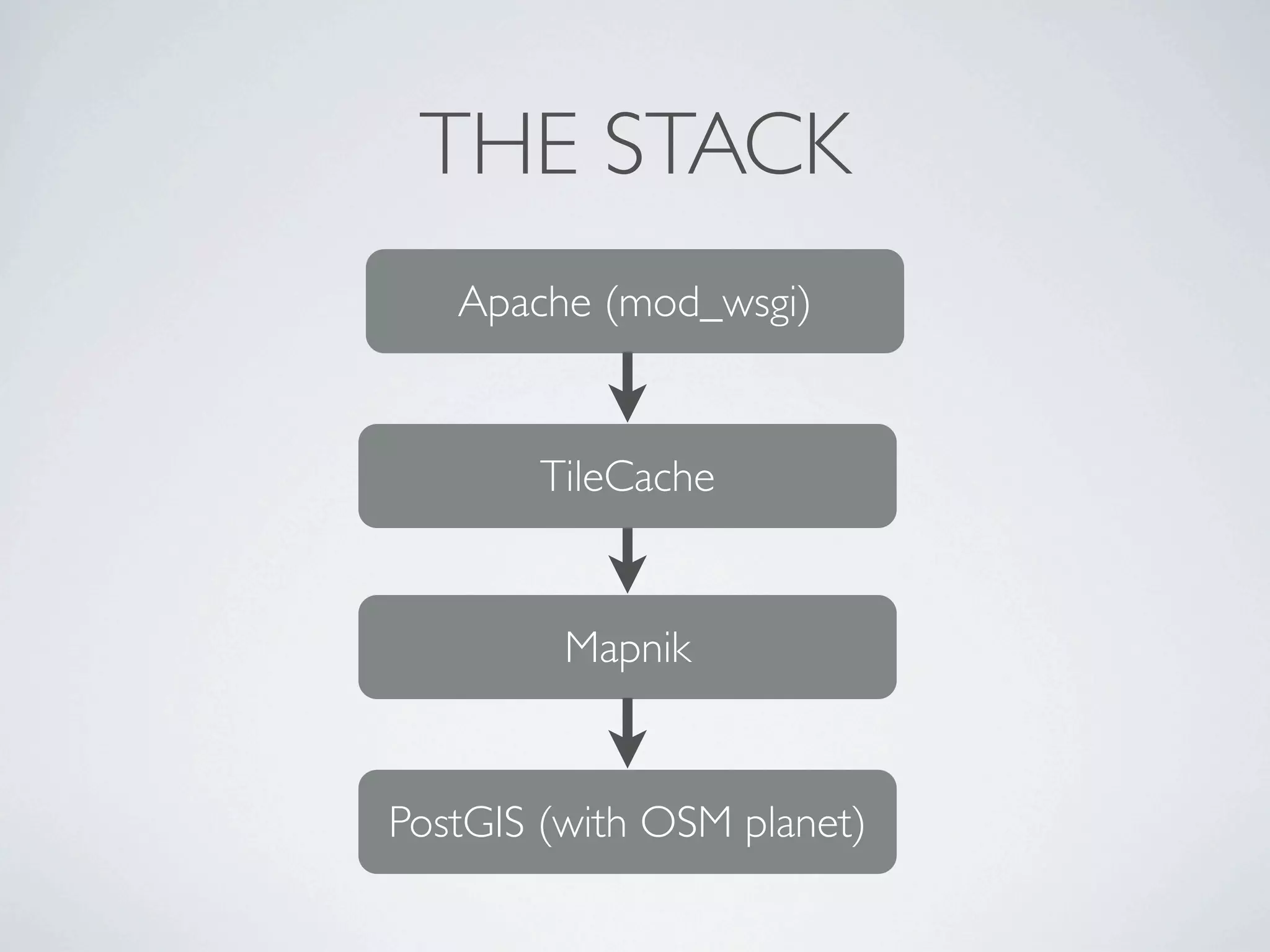

7. THE STACK
Apache (mod_wsgi)
TileCache
Mapnik
PostGIS (with OSM planet)

8. APACHE CONFIG
In httpd.conf:
LoadModule wsgi_module modules/mod_wsgi.so
In your sites-available/config:
WSGIDaemonProcess patch processes=25 threads=1 display-
name=%{GROUP}
WSGIProcessGroup patch
WSGIScriptAlias /tilecache
/data/servers/patch_maps-fe-apache/wsgi/tilecache.wsgi
Now, you can restart the WSGI service simply by
touching this file

9. TILECACHE WSGI CONFIG
This is the application that is executed with each request:
#!/opt/bcs/python2.6
#
# In Apache2's config:
# WSGIScriptAlias /tilecache /var/www/mapserver/tilecache/tilecache.wsgi
#
import os, sys
tilecachepath = '/srv/data/servers/patch_maps-fe-apache/tilecache'
sys.path.append(tilecachepath)
from TileCache.Service import Service, wsgiHandler
cfgfiles = (os.path.join(tilecachepath, 'tilecache.cfg'))
theService = None
def application(environ, start_response):
global theService
cfgs = cfgfiles
if not theService:
theService = Service.load(cfgs)
return wsgiHandler(environ, start_response, theService)

10. TILECACHE CONFIG
[cache]
type=Disk
base=/data/servers/dr1nas-a-v1b/shared/common/map_tiles
expire=21600
[osm]
type=Mapnik
mapfile=/opt/bcs/packages/map_style-0.0.1/mapfile.xml
spherical_mercator=true
tms_type=google
metaTile=yes
metaSize=1,1
metaBuffer=256
levels=19
extension=png256

11. MAPNIK
• Mapnikrequires a mapfile telling it how to render tiles as
requests come in
• Ourswas built using cascadenik, with help from Stamen
Design, and we compiled the file to the mapfile format
• Thatstylesheet contains all of the queries to make against the
database in order to render each layer, along with information
on how to style them
• Cascadeniklets you write this in a CSS/HTML-like format,
where the style is separated from the content

12. OPTIMIZING QUERIES
From this:
(SELECT way, name FROM osm_polygon WHERE amenity IN ('school',
'college', 'university', 'bus_station', 'ferry_terminal',
'hospital', 'kindergarten', 'place_of_worship',
'public_building', 'townhall') ORDER BY z_order ASC, way_area
DESC) AS civic
To this:
(SELECT way, name FROM osm_polygon_civic_areas_mv ORDER BY
z_order ASC, way_area DESC) AS civic

13. BUILDING THE DATABASE
• Weuse the full planet.osm, though we’re only focused in
North America at the moment
• The initial import was done by downloading the planet file
and importing it using osm2pgsql. This took four days!!!
• We have a replicated slave database, as well as a static copy
that we back up to once per month

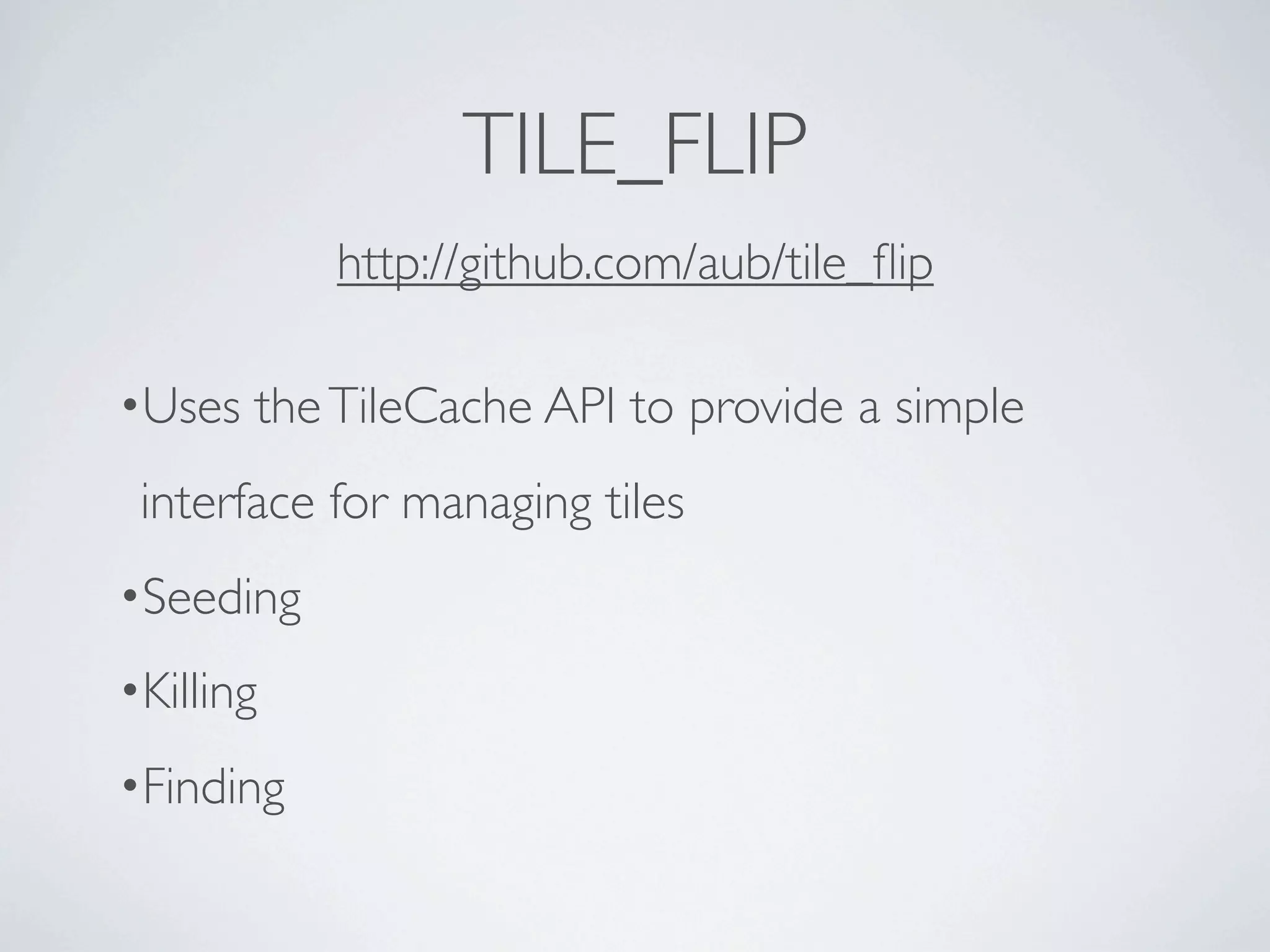

14. TILE_FLIP
http://github.com/aub/tile_flip
•Uses the TileCache API to provide a simple
interface for managing tiles
•Seeding
•Killing
•Finding

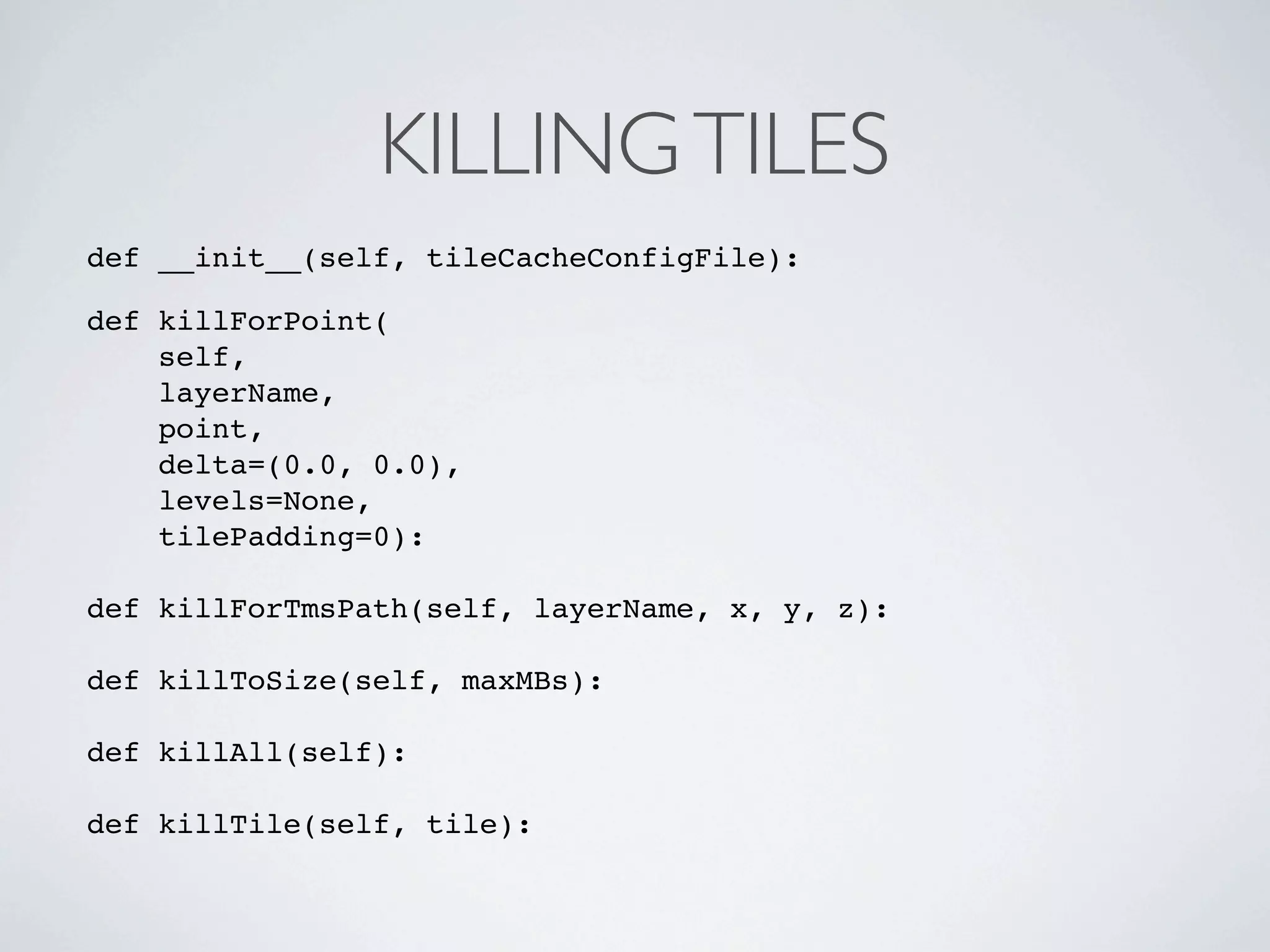

15. KILLING TILES
def __init__(self, tileCacheConfigFile):
def killForPoint(
self,
layerName,
point,
delta=(0.0, 0.0),
levels=None,
tilePadding=0):
def killForTmsPath(self, layerName, x, y, z):
def killToSize(self, maxMBs):
def killAll(self):
def killTile(self, tile):

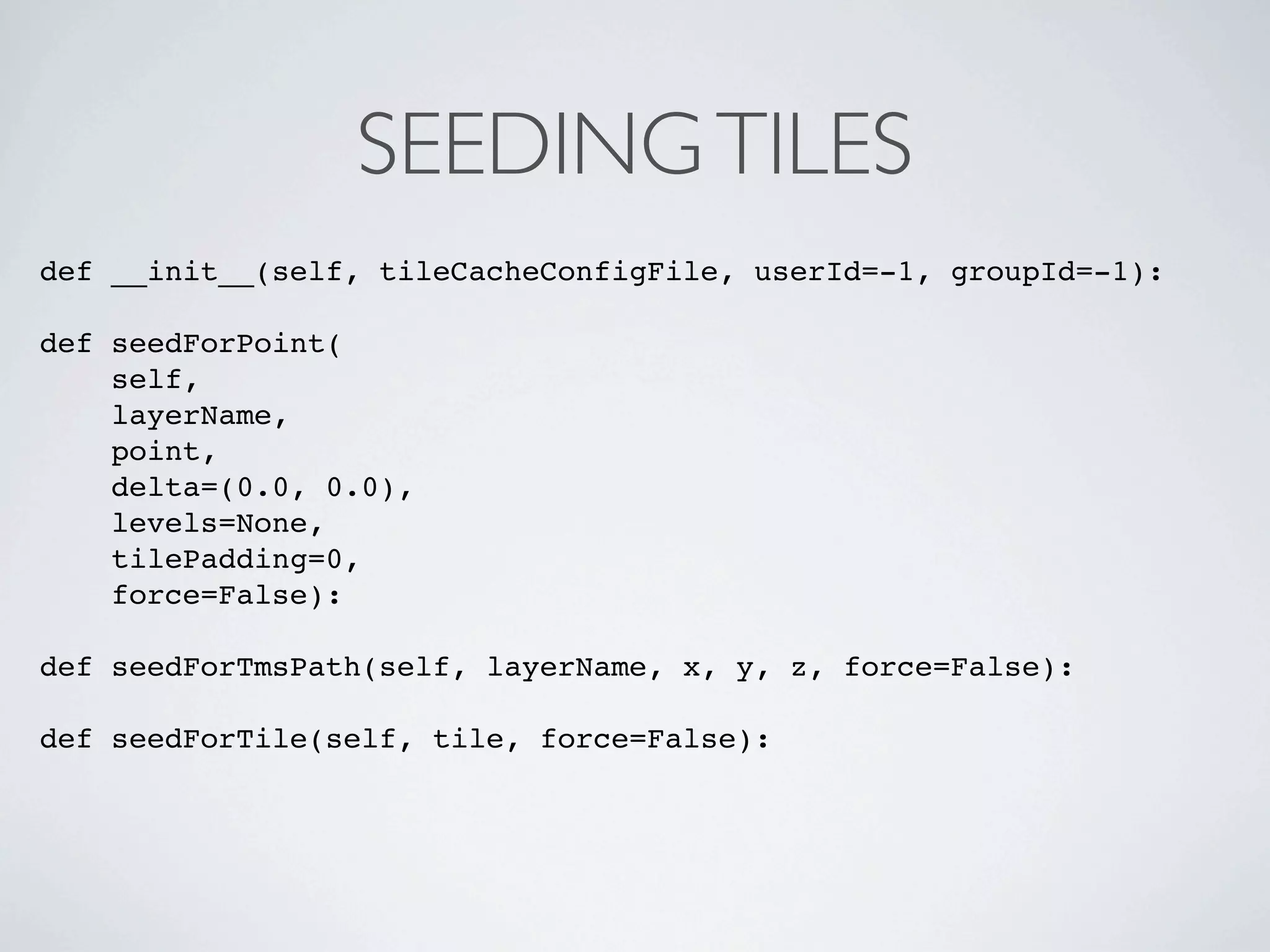

16. SEEDING TILES
def __init__(self, tileCacheConfigFile, userId=-1, groupId=-1):
def seedForPoint(
self,
layerName,
point,
delta=(0.0, 0.0),
levels=None,
tilePadding=0,
force=False):
def seedForTmsPath(self, layerName, x, y, z, force=False):
def seedForTile(self, tile, force=False):

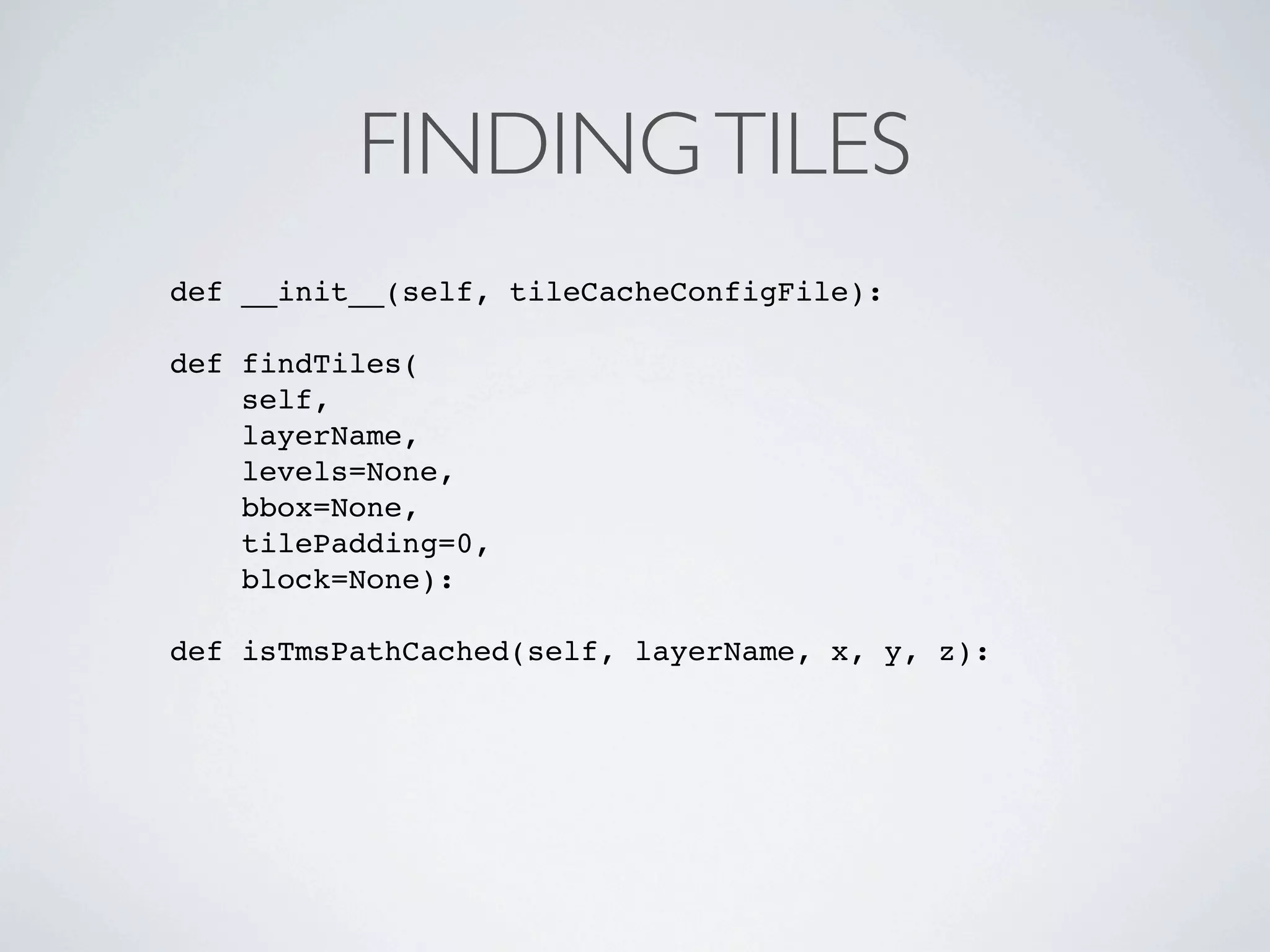

17. FINDING TILES
def __init__(self, tileCacheConfigFile):
def findTiles(
self,
layerName,
levels=None,
bbox=None,
tilePadding=0,
block=None):
def isTmsPathCached(self, layerName, x, y, z):

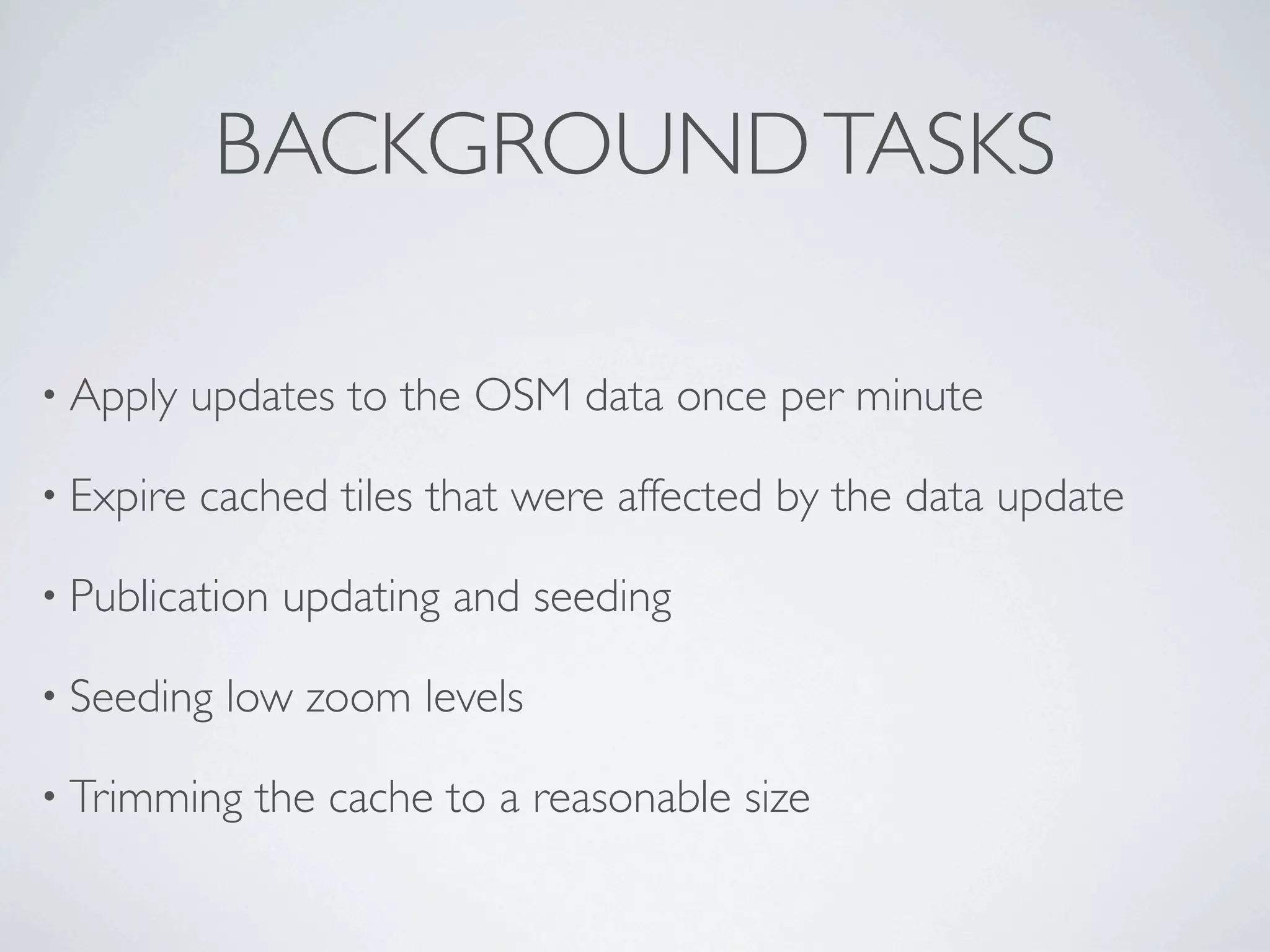

18. BACKGROUND TASKS
• Apply updates to the OSM data once per minute
• Expire cached tiles that were affected by the data update
• Publication updating and seeding
• Seeding low zoom levels
• Trimming the cache to a reasonable size

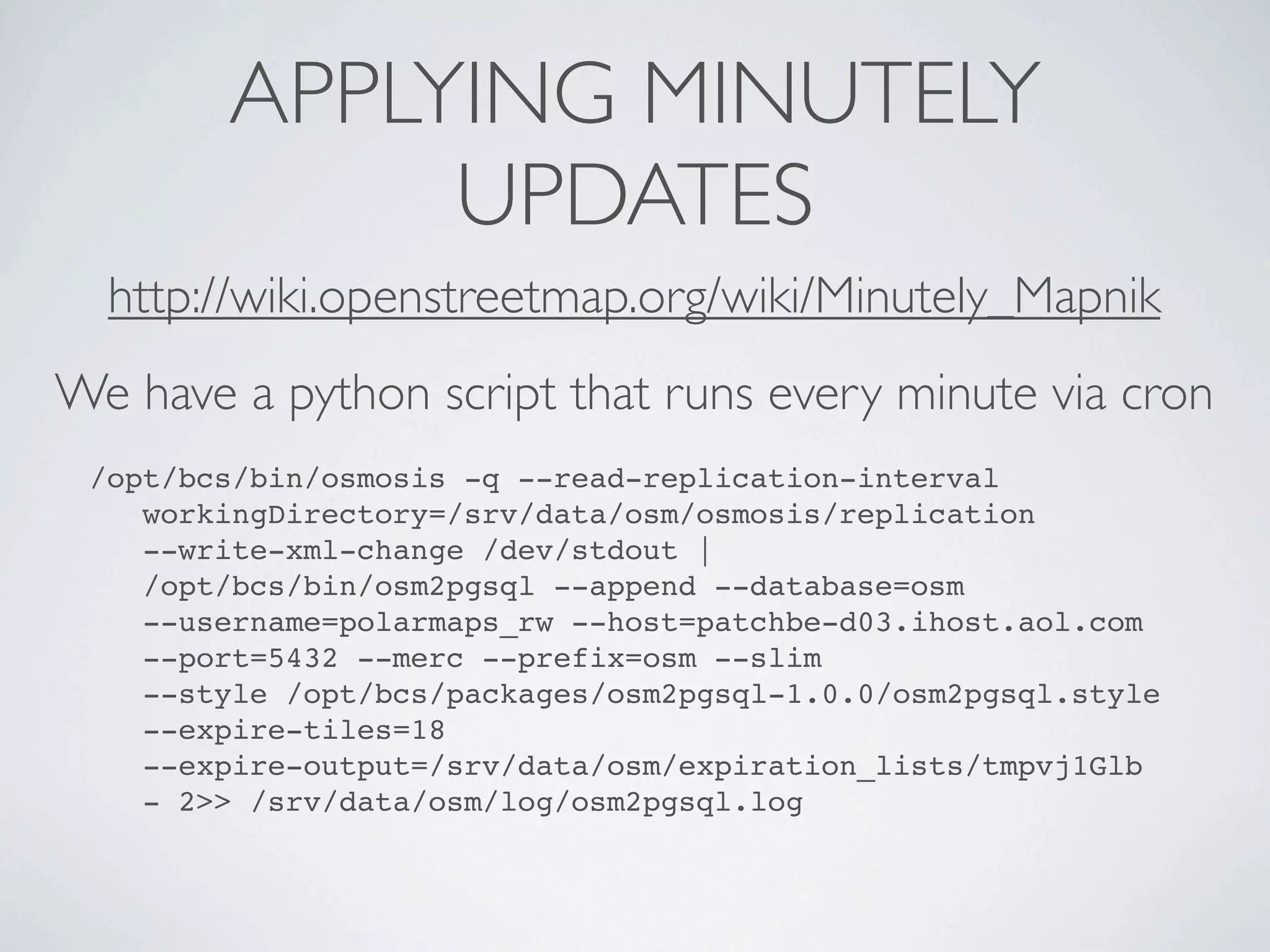

19. APPLYING MINUTELY
UPDATES
http://wiki.openstreetmap.org/wiki/Minutely_Mapnik
We have a python script that runs every minute via cron
/opt/bcs/bin/osmosis -q --read-replication-interval
workingDirectory=/srv/data/osm/osmosis/replication
--write-xml-change /dev/stdout |
/opt/bcs/bin/osm2pgsql --append --database=osm
--username=polarmaps_rw --host=patchbe-d03.ihost.aol.com
--port=5432 --merc --prefix=osm --slim
--style /opt/bcs/packages/osm2pgsql-1.0.0/osm2pgsql.style
--expire-tiles=18
--expire-output=/srv/data/osm/expiration_lists/tmpvj1Glb
- 2>> /srv/data/osm/log/osm2pgsql.log

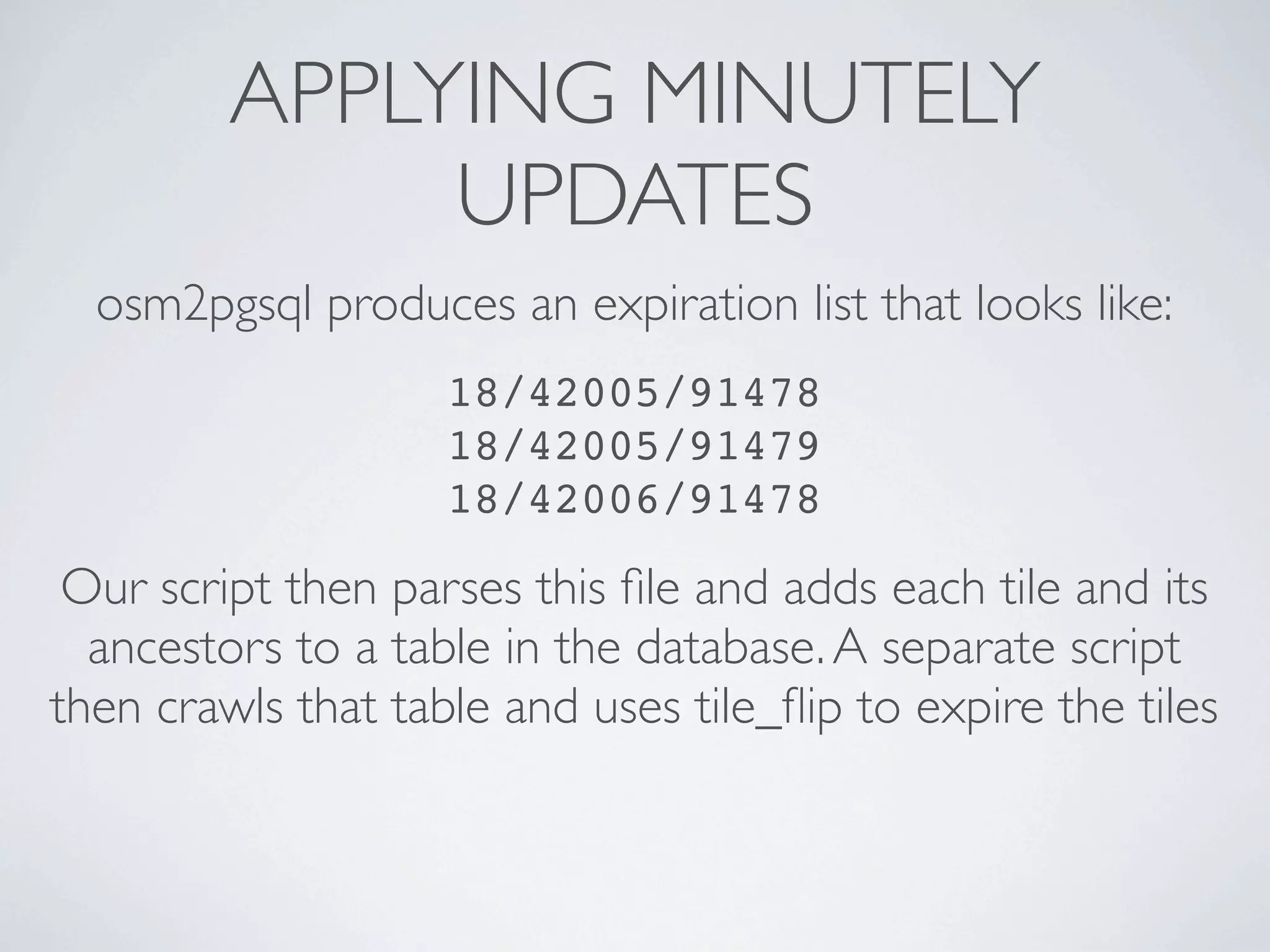

20. APPLYING MINUTELY
UPDATES
osm2pgsql produces an expiration list that looks like:
18/42005/91478
18/42005/91479
18/42006/91478
Our script then parses this file and adds each tile and its
ancestors to a table in the database. A separate script
then crawls that table and uses tile_flip to expire the tiles

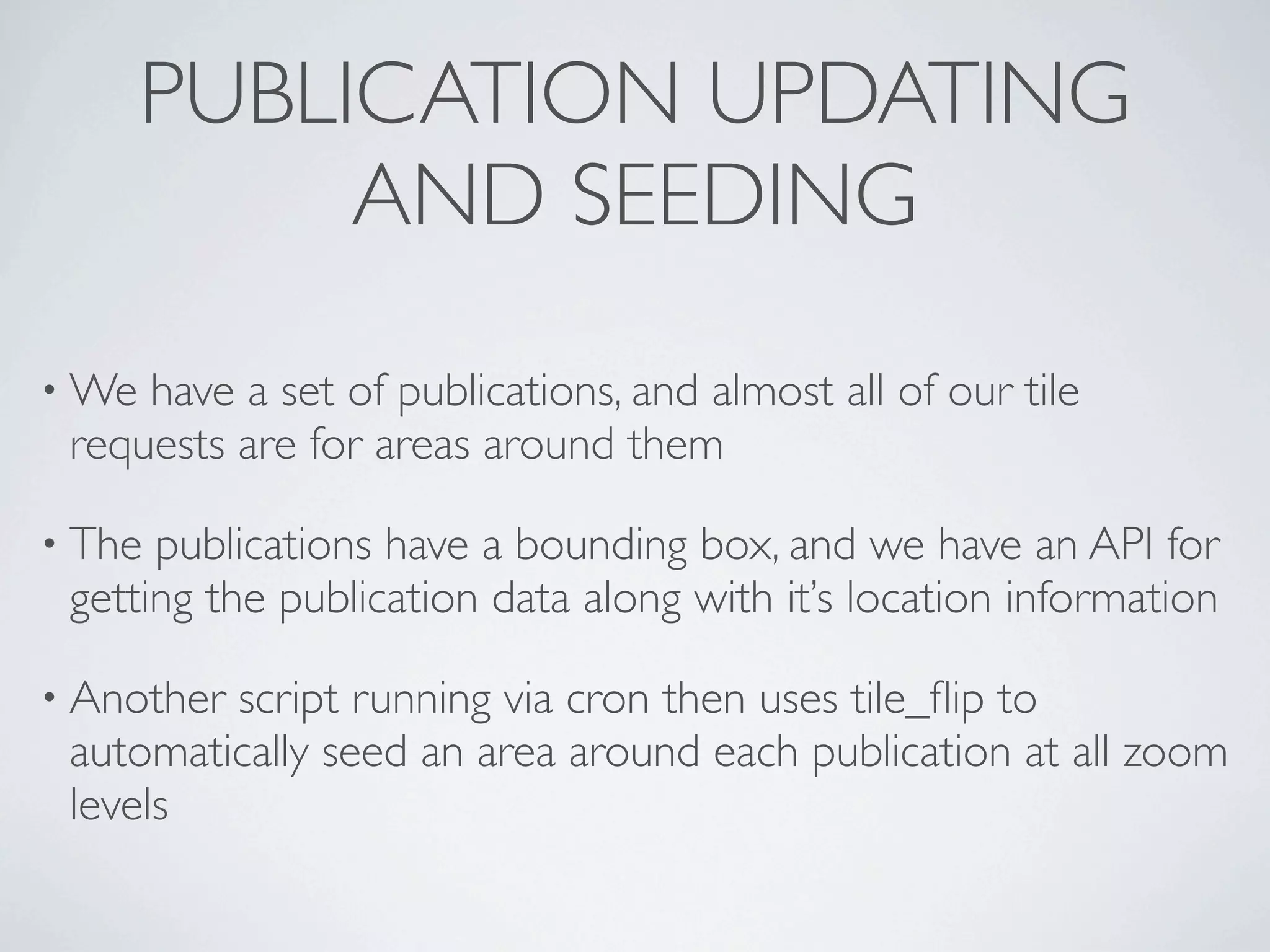

21. PUBLICATION UPDATING
AND SEEDING
• We have a set of publications, and almost all of our tile
requests are for areas around them
• The publications have a bounding box, and we have an API for
getting the publication data along with it’s location information
• Anotherscript running via cron then uses tile_flip to
automatically seed an area around each publication at all zoom
levels

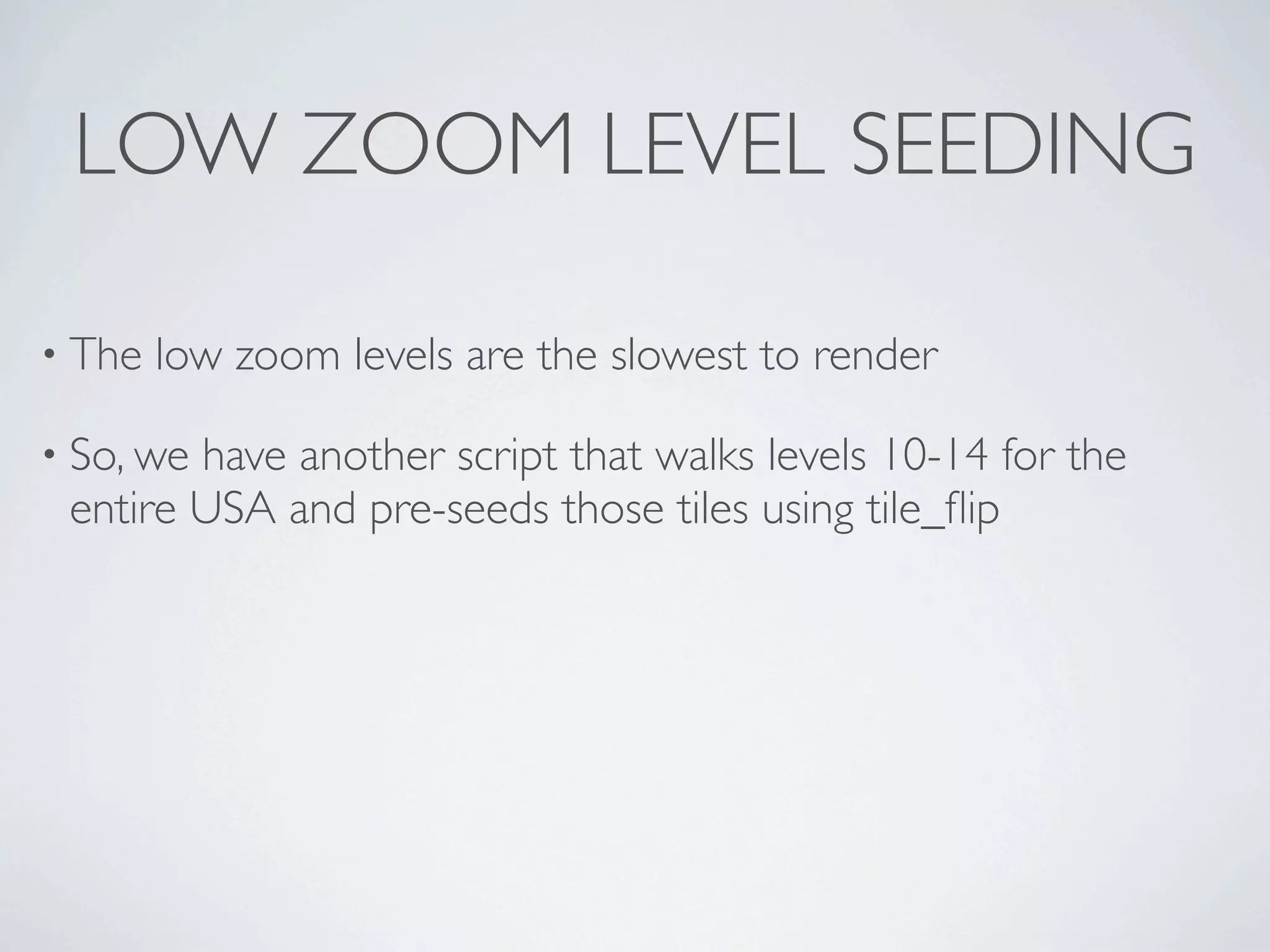

22. LOW ZOOM LEVEL SEEDING
• The low zoom levels are the slowest to render
• So, wehave another script that walks levels 10-14 for the
entire USA and pre-seeds those tiles using tile_flip

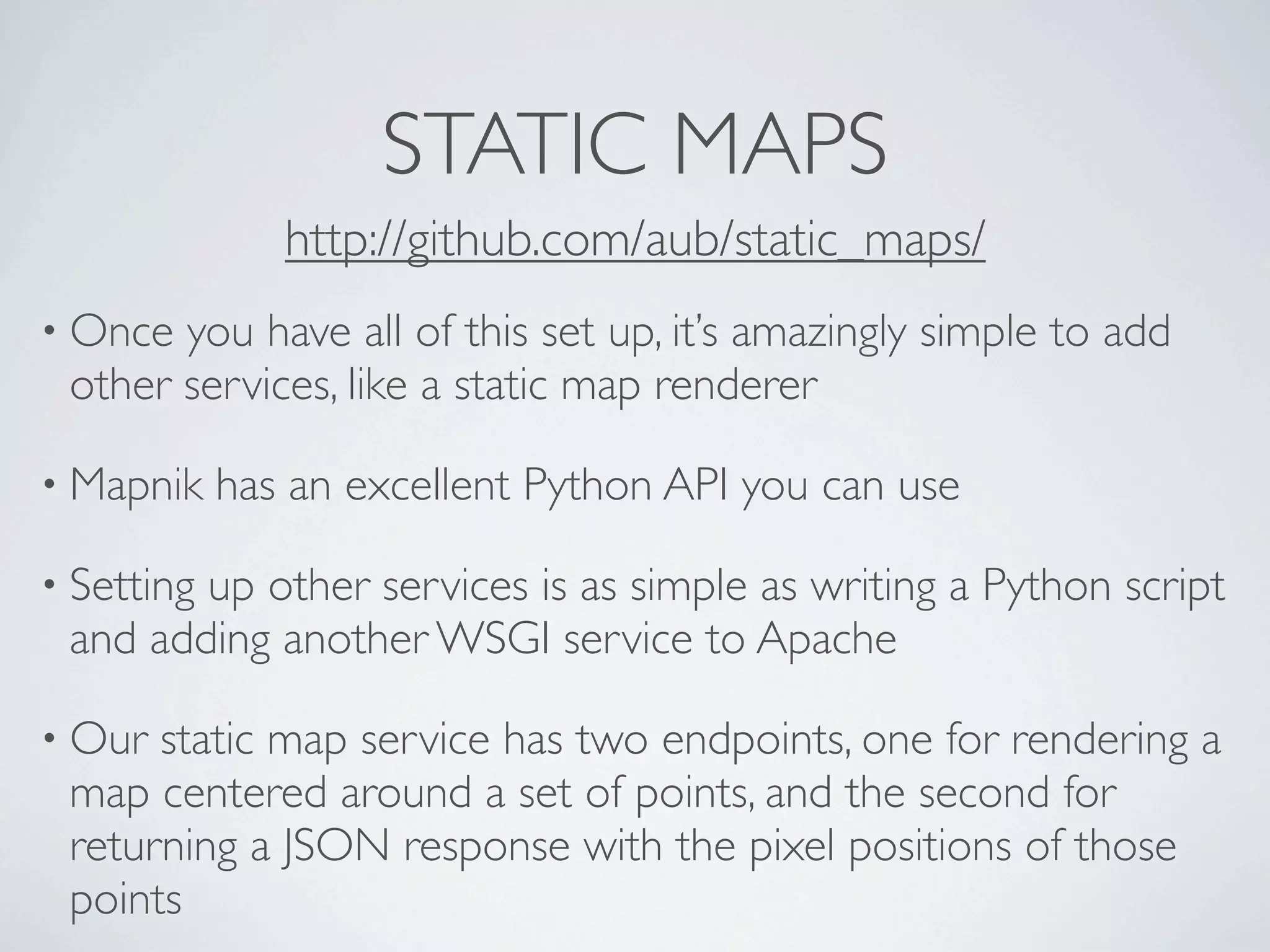

23. STATIC MAPS
http://github.com/aub/static_maps/
• Once you have all of this set up, it’s amazingly simple to add
other services, like a static map renderer
• Mapnik has an excellent Python API you can use
• Setting
up other services is as simple as writing a Python script
and adding another WSGI service to Apache
• Our static map service has two endpoints, one for rendering a
map centered around a set of points, and the second for
returning a JSON response with the pixel positions of those
points

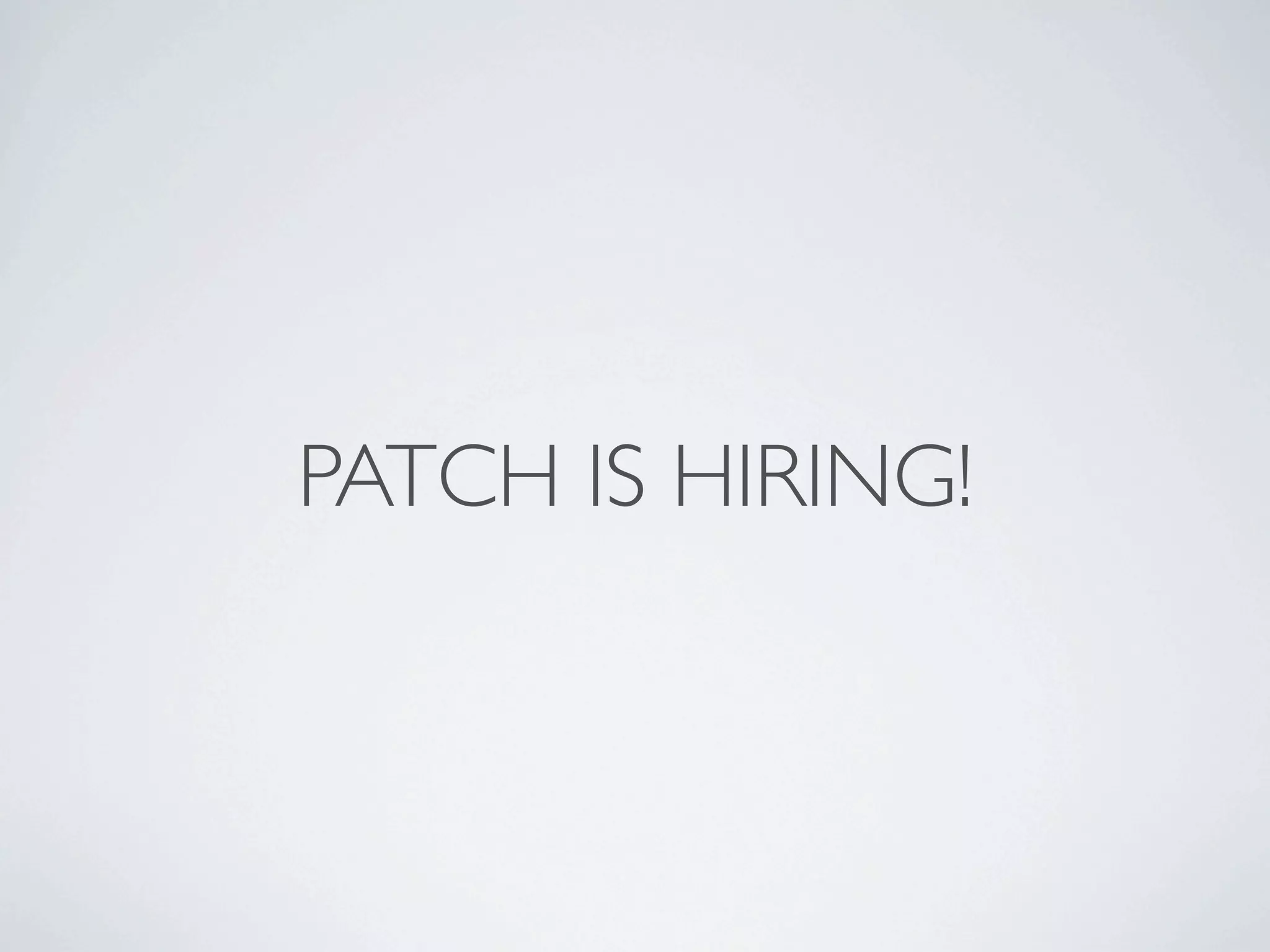

24. PATCH IS HIRING!

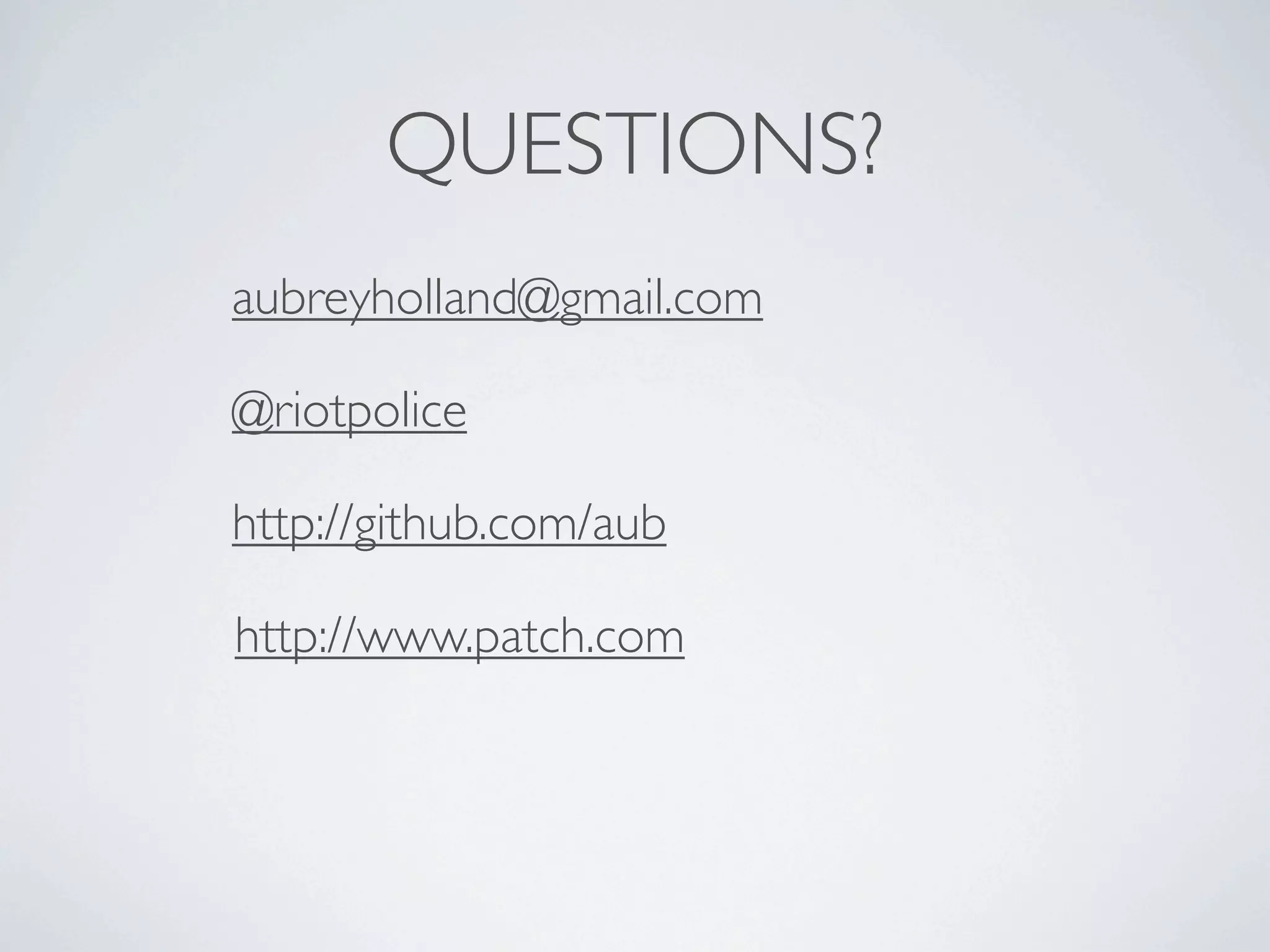

25. QUESTIONS?
aubreyholland@gmail.com
@riotpolice
http://github.com/aub
http://www.patch.com
