This document provides the technical specifications for an armored patch cord that uses a small-caliber stainless steel tube for protection. It avoids damage from twisting and has high tensile and stress coefficients, making it convenient for highly secure applications without damaging the cable. The cord can be used in machine rooms, FTTH, area networks, test equipment, national defense, sensors, communications, and antenna TV systems. Specifications include single-mode PC, UPC, and APC options with low insertion attenuation and high return loss and repeatability, an operating temperature range of -40°C to +80°C, and an outer diameter of 3.0mm.

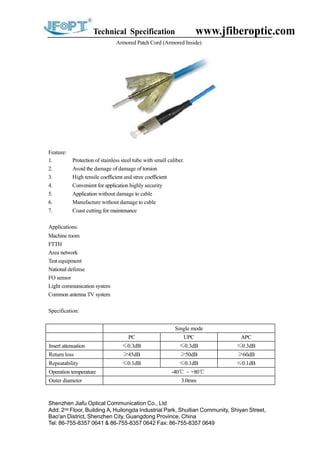

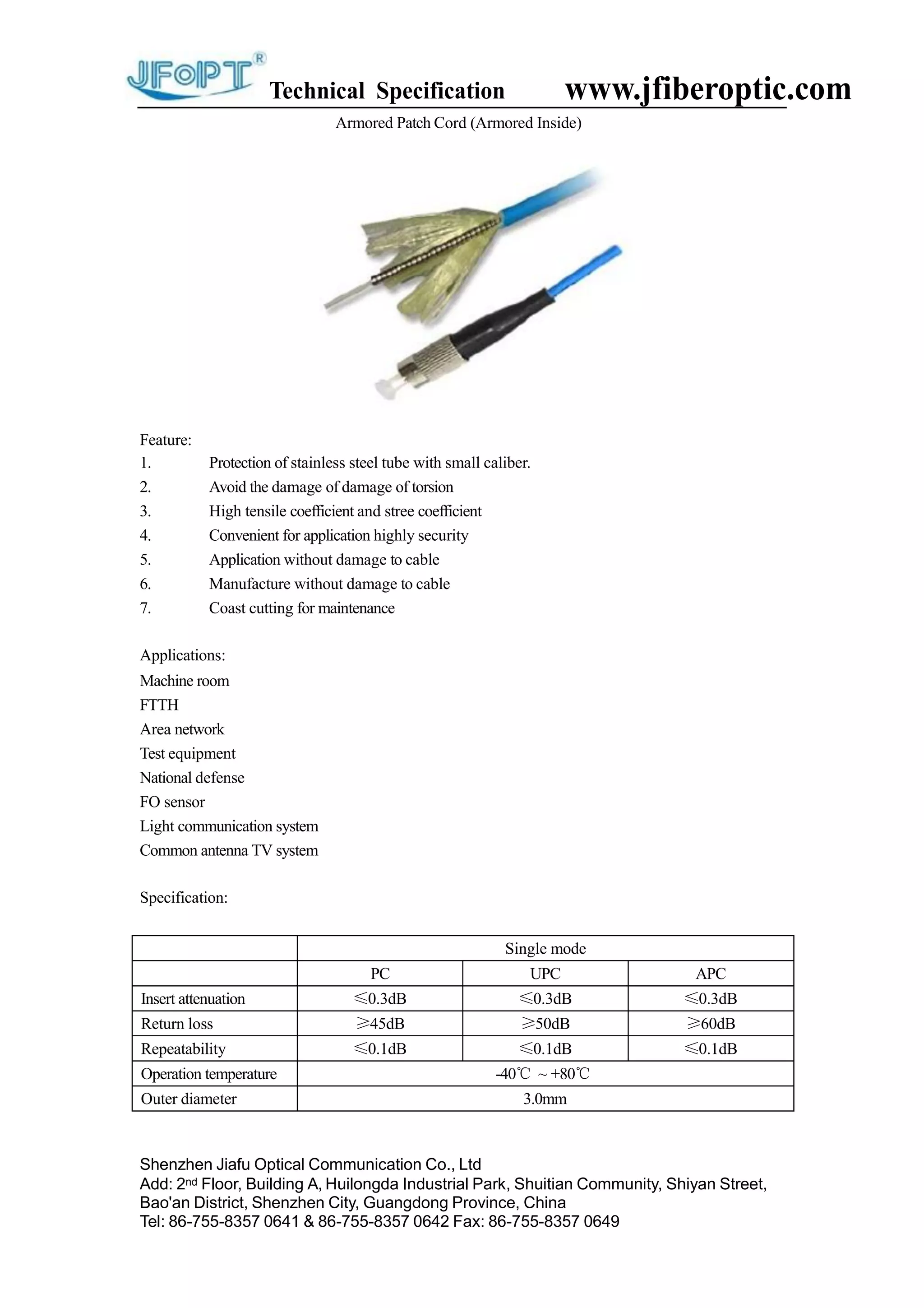

1. Technical Specification www.jfiberoptic.com
Armored Patch Cord (Armored Inside)
Feature:
1. Protection of stainless steel tube with small caliber.
2. Avoid the damage of damage of torsion
3. High tensile coefficient and stree coefficient
4. Convenient for application highly security
5. Application without damage to cable
6. Manufacture without damage to cable
7. Coast cutting for maintenance
Applications:
Machine room
FTTH
Area network
Test equipment
National defense
FO sensor
Light communication system
Common antenna TV system
Specification:
Shenzhen Jiafu Optical Communication Co., Ltd
Add: 2nd Floor, Building A, Huilongda Industrial Park, Shuitian Community, Shiyan Street,
Bao'an District, Shenzhen City, Guangdong Province, China
Tel: 86-755-8357 0641 & 86-755-8357 0642 Fax: 86-755-8357 0649
Single mode
PC UPC APC
Insert attenuation ≤0.3dB ≤0.3dB ≤0.3dB
Return loss ≥45dB ≥50dB ≥60dB
Repeatability ≤0.1dB ≤0.1dB ≤0.1dB
Operation temperature -40℃ ~ +80℃
Outer diameter 3.0mm
