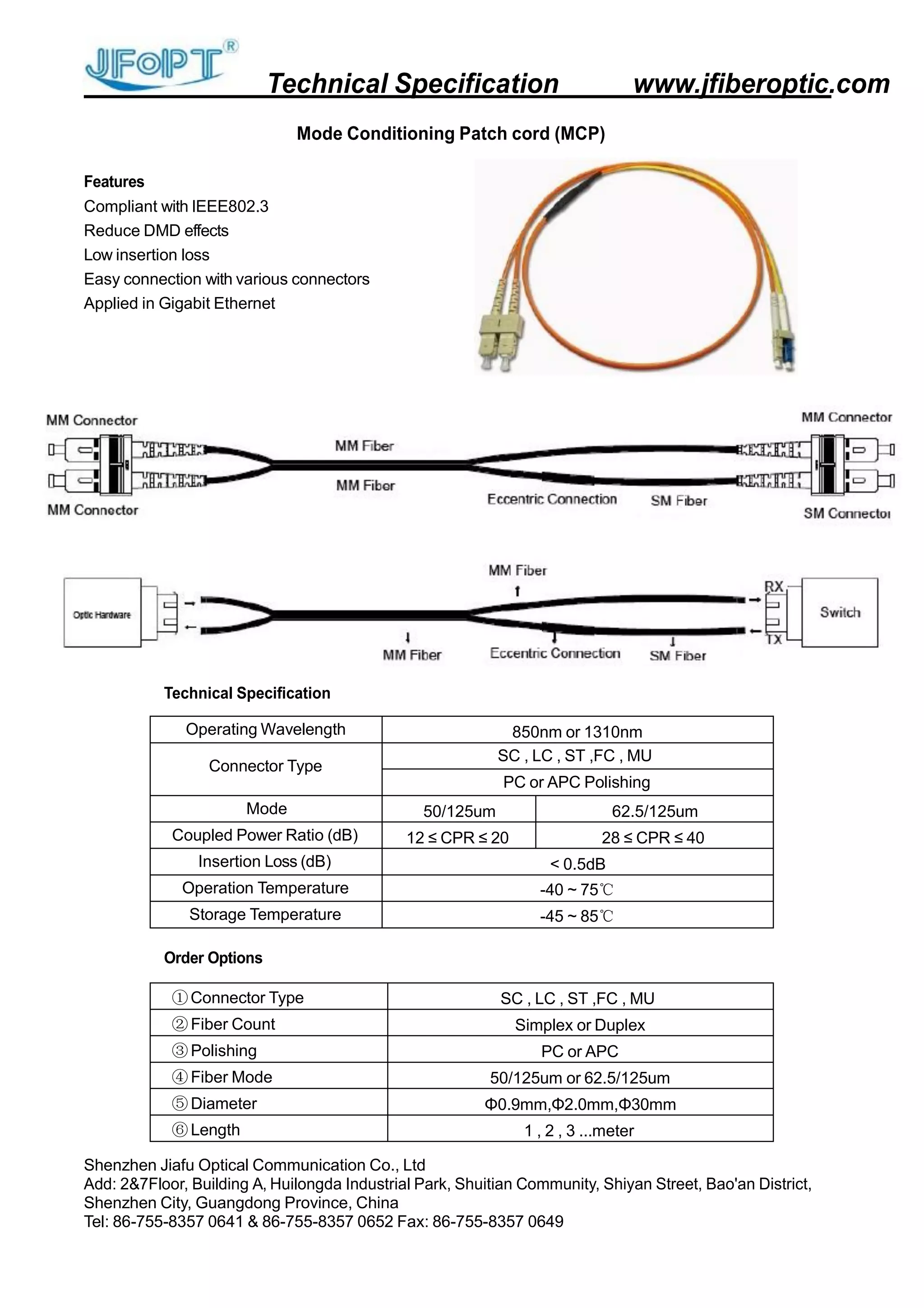

1. Technical Specification www.jfiberoptic.com
Mode Conditioning Patch cord (MCP)
Features
Compliant with IEEE802.3
Reduce DMD effects
Low insertion loss
Easy connection with various connectors
Applied in Gigabit Ethernet
Technical Specification
Order Options
Shenzhen Jiafu Optical Communication Co., Ltd
Add: 2&7Floor, Building A, Huilongda Industrial Park, Shuitian Community, Shiyan Street, Bao'an District,
Shenzhen City, Guangdong Province, China
Tel: 86-755-8357 0641 & 86-755-8357 0652 Fax: 86-755-8357 0649
Operating Wavelength 850nm or 1310nm
Connector Type
SC , LC , ST ,FC , MU
PC or APC Polishing
Mode 50/125um 62.5/125um
Coupled Power Ratio (dB) 12 ≤ CPR ≤ 20 28 ≤ CPR ≤ 40
Insertion Loss (dB) < 0.5dB
Operation Temperature -40 ~ 75℃
Storage Temperature -45 ~ 85℃
①Connector Type SC , LC , ST ,FC , MU
② Fiber Count Simplex or Duplex
③ Polishing PC or APC
④ Fiber Mode 50/125um or 62.5/125um
⑤ Diameter Φ0.9mm,Φ2.0mm,Φ30mm
⑥ Length 1 , 2 , 3 ...meter
