OSLC-CM connector in SD

Cassiopee Project 2012

Implementing the support of OSLC-CM
in Simple Defects
Cliquez pour modifier le style des sous-titres du
masque

Stéphanie Ouillon - Mentor : Olivier Berger

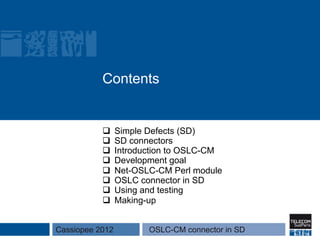

Contents

q  Simple Defects (SD)
q  SD connectors
q  Introduction to OSLC-CM
q  Development goal
q  Net-OSLC-CM Perl module
q  OSLC connector in SD
q  Using and testing
q  Making-up

Cassiopee 2012 OSLC-CM connector in SD

Specifications

q  Implementing a OSLC-CM adaptator
for the bugtracker Simple Defects

q  Open Source contribution

q  Publishing content on the web

Base de données Pro

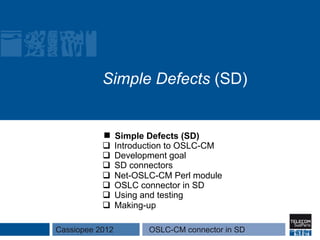

Simple Defects (SD)

Simple Defects (SD)
q  Introduction to OSLC-CM
q  Making-up

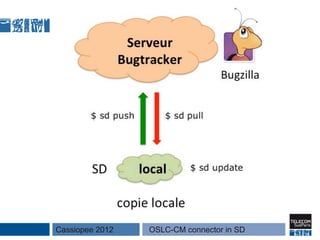

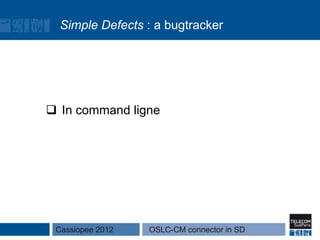

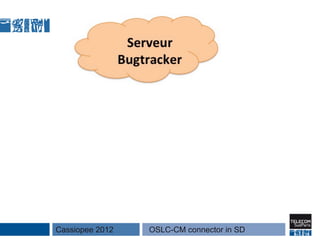

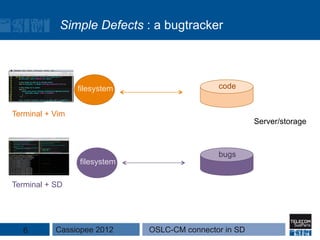

Simple Defects : a bugtracker

q  In command ligne

Prophet database



filesystem code

IDE
Server/storage

bugs

Web browser

5 Cassiopee 2012 OSLC-CM connector in SD


filesystem code

Terminal + Vim
Server/storage

bugs
filesystem

Terminal + SD

6 Cassiopee 2012 OSLC-CM connector in SD

Simple Defects : un bugtracker

q  In command ligne

q  Prophet database

https://gitorious.org/prophet/prophet

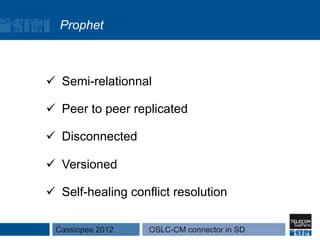

Prophet

ü  Semi-relationnal

ü  Peer to peer replicated

ü  Disconnected

ü  Versioned

ü  Self-healing conflict resolution

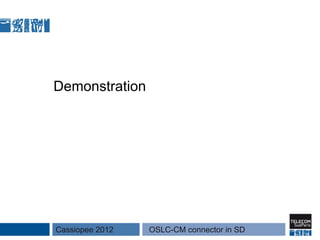

Demonstration

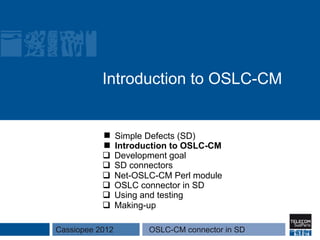

Introduction to OSLC-CM

Simple Defects (SD)
q  Making-up

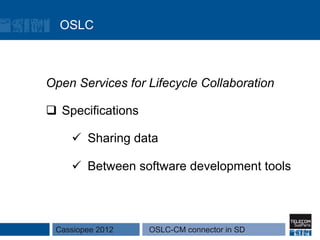

OSLC

Open Services for Lifecycle Collaboration

q  Specifications

ü  Sharing data

ü  Between software development tools

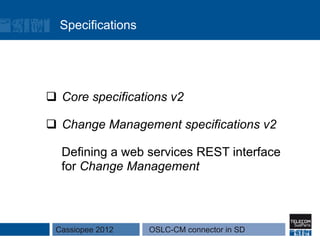

Specifications

q  Core specifications v2

q  Change Management specifications v2

Defining a web services REST interface
for Change Management


Change Management

q  Defects, bugs

q  Change requests, tasks

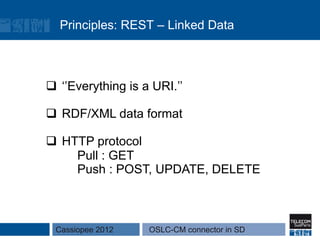

Principles: REST – Linked Data

q  ‘’Everything is a URI.’’

q  RDF/XML data format

q  HTTP protocol
Pull : GET
Push : POST, UPDATE, DELETE


Development goal

Simple Defects (SD)
Development goal
q  Making-up

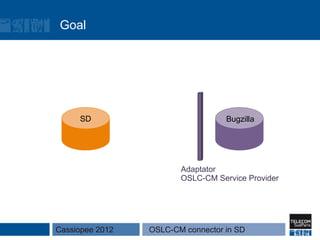

Goal

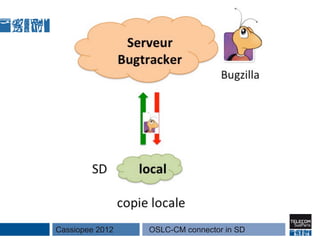

SD Bugzilla

Adaptator
OSLC-CM Service Provider

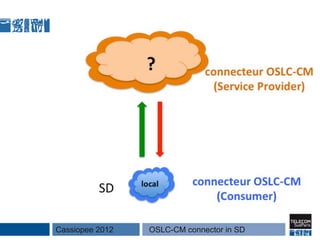

Goal

Adaptator
OSLC-CM Consumer

SD Bugzilla

Adaptator

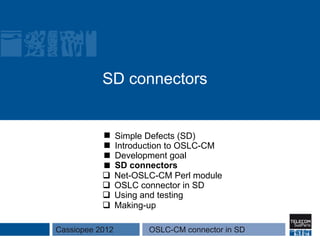

SD connectors

Simple Defects (SD)
Development goal
SD connectors
q  Making-up

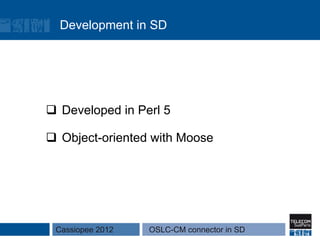

Development in SD

q  Developed in Perl 5

q  Object-oriented with Moose

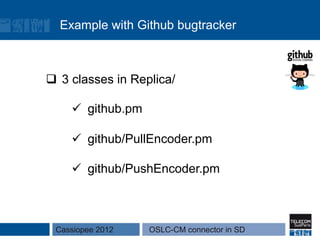

Example with Github bugtracker

q  3 classes in Replica/

ü  github.pm

ü  github/PullEncoder.pm

ü  github/PushEncoder.pm

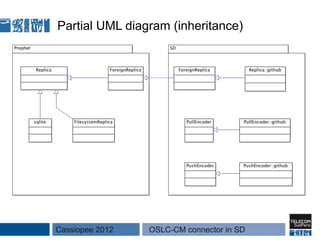

Partial UML diagram (inheritance)

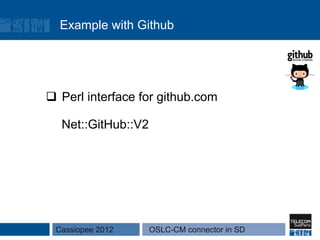

Example with Github

q  Perl interface for github.com

Net::GitHub::V2

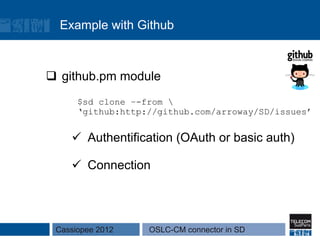

Example with Github

q  github.pm module
$sd clone –-from
‘github:http://github.com/arroway/SD/issues’

ü  Authentification (OAuth or basic auth)

ü  Connection


Example with Github

q  github/PullEncoder.pm module

find_matching_tickets

calls

github->issue->list(‘open’)
github->issue->list(‘closed’)

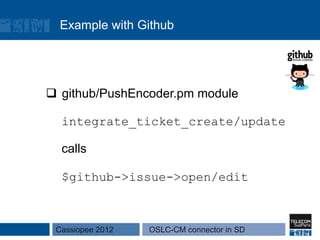

Example with Github

q  github/PushEncoder.pm module

integrate_ticket_create/update

calls

$github->issue->open/edit

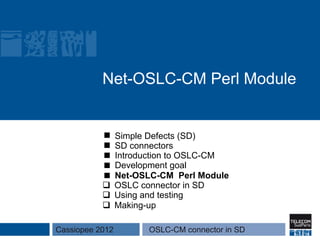

Net-OSLC-CM Perl Module

Simple Defects (SD)
SD connectors
Development goal
q  Making-up

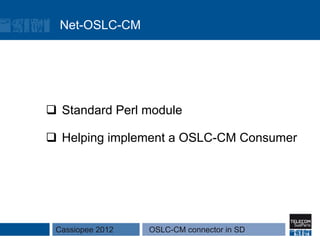

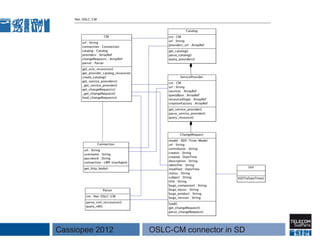

Net-OSLC-CM

q  Standard Perl module

q  Helping implement a OSLC-CM Consumer

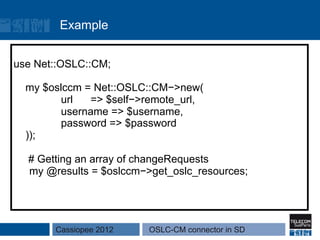

Example

use Net::OSLC::CM;

my $oslccm = Net::OSLC::CM−>new(
url => $self−>remote_url,
username => $username,
password => $password
));

# Getting an array of changeRequests
my @results = $oslccm−>get_oslc_resources;

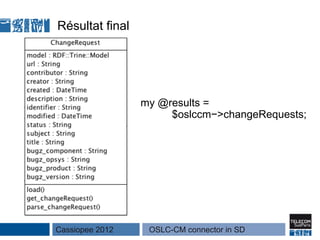

Résultat final

my @results =
$oslccm−>changeRequests;

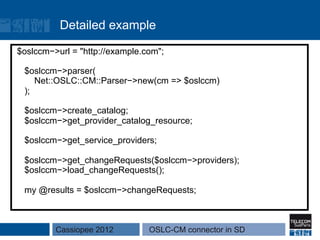

Detailed example

$oslccm−>url = "http://example.com";

$oslccm−>parser(
Net::OSLC::CM::Parser−>new(cm => $oslccm)
);

$oslccm−>create_catalog;
$oslccm−>get_provider_catalog_resource;

$oslccm−>get_service_providers;

$oslccm−>get_changeRequests($oslccm−>providers);
$oslccm−>load_changeRequests();

my @results = $oslccm−>changeRequests;

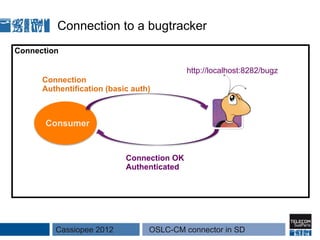

Connection to a bugtracker
Connection

http://localhost:8282/bugz
Connection
Authentification (basic auth)

Consumer

Connection OK
Authenticated

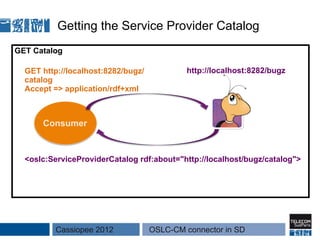

Getting the Service Provider Catalog
GET Catalog

GET http://localhost:8282/bugz/ http://localhost:8282/bugz
catalog
Accept => application/rdf+xml

Consumer

<oslc:ServiceProviderCatalog rdf:about="http://localhost/bugz/catalog">

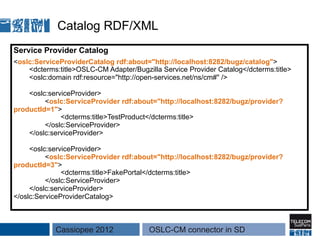

Catalog RDF/XML
Service Provider Catalog
<oslc:ServiceProviderCatalog rdf:about="http://localhost:8282/bugz/catalog">
<dcterms:title>OSLC-CM Adapter/Bugzilla Service Provider Catalog</dcterms:title>
<oslc:domain rdf:resource="http://open-services.net/ns/cm#" />

<oslc:serviceProvider>
<oslc:ServiceProvider rdf:about="http://localhost:8282/bugz/provider?
productId=1">
<dcterms:title>TestProduct</dcterms:title>
</oslc:ServiceProvider>
</oslc:serviceProvider>

<oslc:serviceProvider>
<oslc:ServiceProvider rdf:about="http://localhost:8282/bugz/provider?
productId=3">
<dcterms:title>FakePortal</dcterms:title>
</oslc:ServiceProvider>
</oslc:serviceProvider>
</oslc:ServiceProviderCatalog>

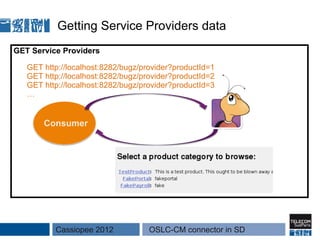

Getting Service Providers data
GET Service Providers

GET http://localhost:8282/bugz/provider?productId=1
…

Consumer

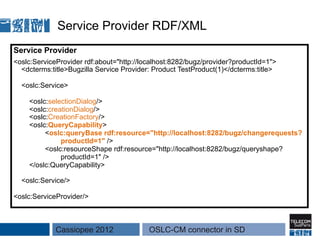

Service Provider RDF/XML
Service Provider
<oslc:ServiceProvider rdf:about="http://localhost:8282/bugz/provider?productId=1">
<dcterms:title>Bugzilla Service Provider: Product TestProduct(1)</dcterms:title>

<oslc:Service>

<oslc:selectionDialog/>
<oslc:creationDialog/>
<oslc:CreationFactory/>
<oslc:QueryCapability>
<oslc:queryBase rdf:resource="http://localhost:8282/bugz/changerequests?
productId=1" />
<oslc:resourceShape rdf:resource="http://localhost:8282/bugz/queryshape?
productId=1" />
</oslc:QueryCapability>

<oslc:Service/>

<oslc:ServiceProvider/>

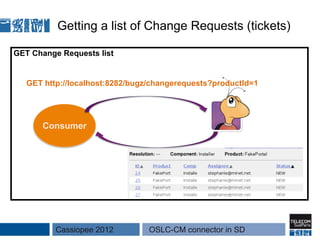

Getting a list of Change Requests (tickets)

GET Change Requests list

GET http://localhost:8282/bugz/changerequests?productId=1

Consumer

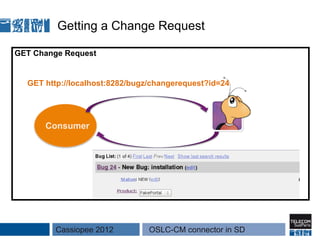

Getting a Change Request

GET Change Request

GET http://localhost:8282/bugz/changerequest?id=24

Consumer

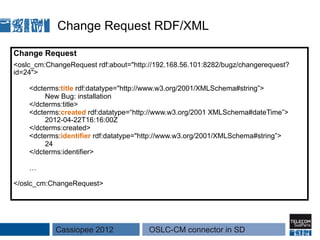

Change Request RDF/XML

Change Request
<oslc_cm:ChangeRequest rdf:about="http://192.168.56.101:8282/bugz/changerequest?
id=24">

<dcterms:title rdf:datatype="http://www.w3.org/2001/XMLSchema#string”>
New Bug: installation
</dcterms:title>
<dcterms:created rdf:datatype=“http://www.w3.org/2001 XMLSchema#dateTime”>
2012-04-22T16:16:00Z
</dcterms:created>
<dcterms:identifier rdf:datatype="http://www.w3.org/2001/XMLSchema#string”>
24
</dcterms:identifier>

…

</oslc_cm:ChangeRequest>


OSLC connector in SD

Simple Defects (SD)
SD Connectors
Development goal
q  Making-up

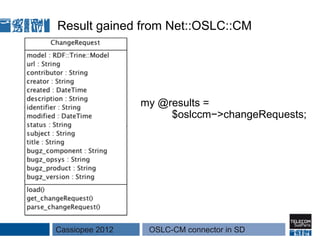

Result gained from Net::OSLC::CM

my @results =


Result gained from Net::OSLC::CM

my @results =

List of tickets in SD

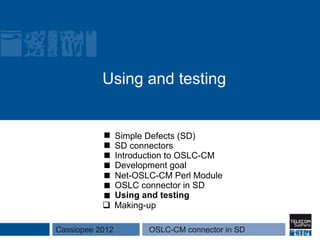

Using and testing

Simple Defects (SD)
SD connectors
Development goal
Using and testing
q  Making-up


Test environment

Adaptator
OSLC-CM Consumer

SD Bugzilla

Adaptator

Host


Test environment

Adaptator Debian virtual machine
OSLC-CM Consumer

SD Bugzilla

Adaptator

Host

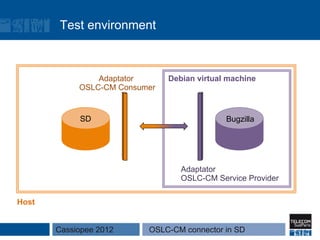

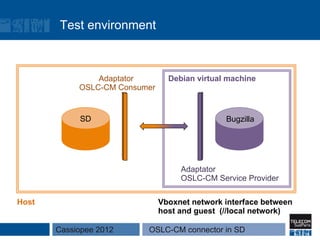

Test environment

Adaptator Debian virtual machine
OSLC-CM Consumer

SD Bugzilla

Adaptator

Host Vboxnet network interface between
host and guest (//local network)

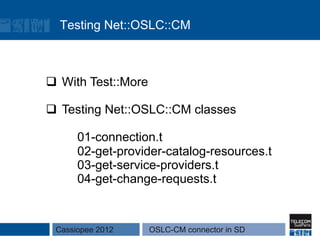

Testing Net::OSLC::CM

q  With Test::More

q  Testing Net::OSLC::CM classes

01-connection.t
02-get-provider-catalog-resources.t
03-get-service-providers.t
04-get-change-requests.t

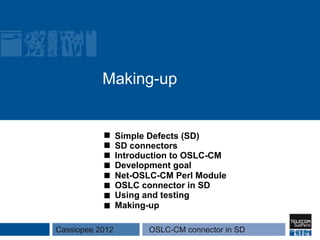

Making-up

Simple Defects (SD)
SD connectors
Development goal
Using and testing
Making-up


Commits in Net-OSLC-CM

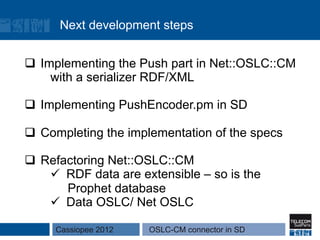

Next development steps

q  Implementing the Push part in Net::OSLC::CM
with a serializer RDF/XML

q  Implementing PushEncoder.pm in SD

q  Completing the implementation of the specs

q  Refactoring Net::OSLC::CM
ü  RDF data are extensible – so is the
Prophet database
ü  Data OSLC/ Net OSLC

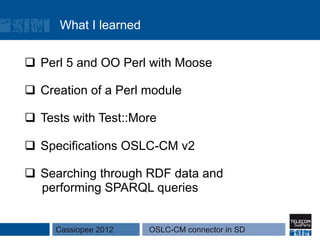

What I learned

q  Perl 5 and OO Perl with Moose

q  Creation of a Perl module

q  Tests with Test::More

q  Specifications OSLC-CM v2

q  Searching through RDF data and
performing SPARQL queries

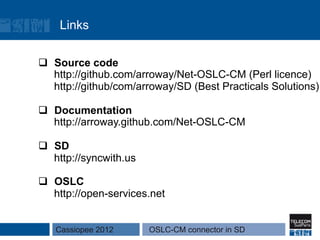

Links

q  Source code
http://github.com/arroway/Net-OSLC-CM (Perl licence)
http://github/com/arroway/SD (Best Practicals Solutions)

q  Documentation
http://arroway.github.com/Net-OSLC-CM

q  SD
http://syncwith.us

q  OSLC
http://open-services.net
