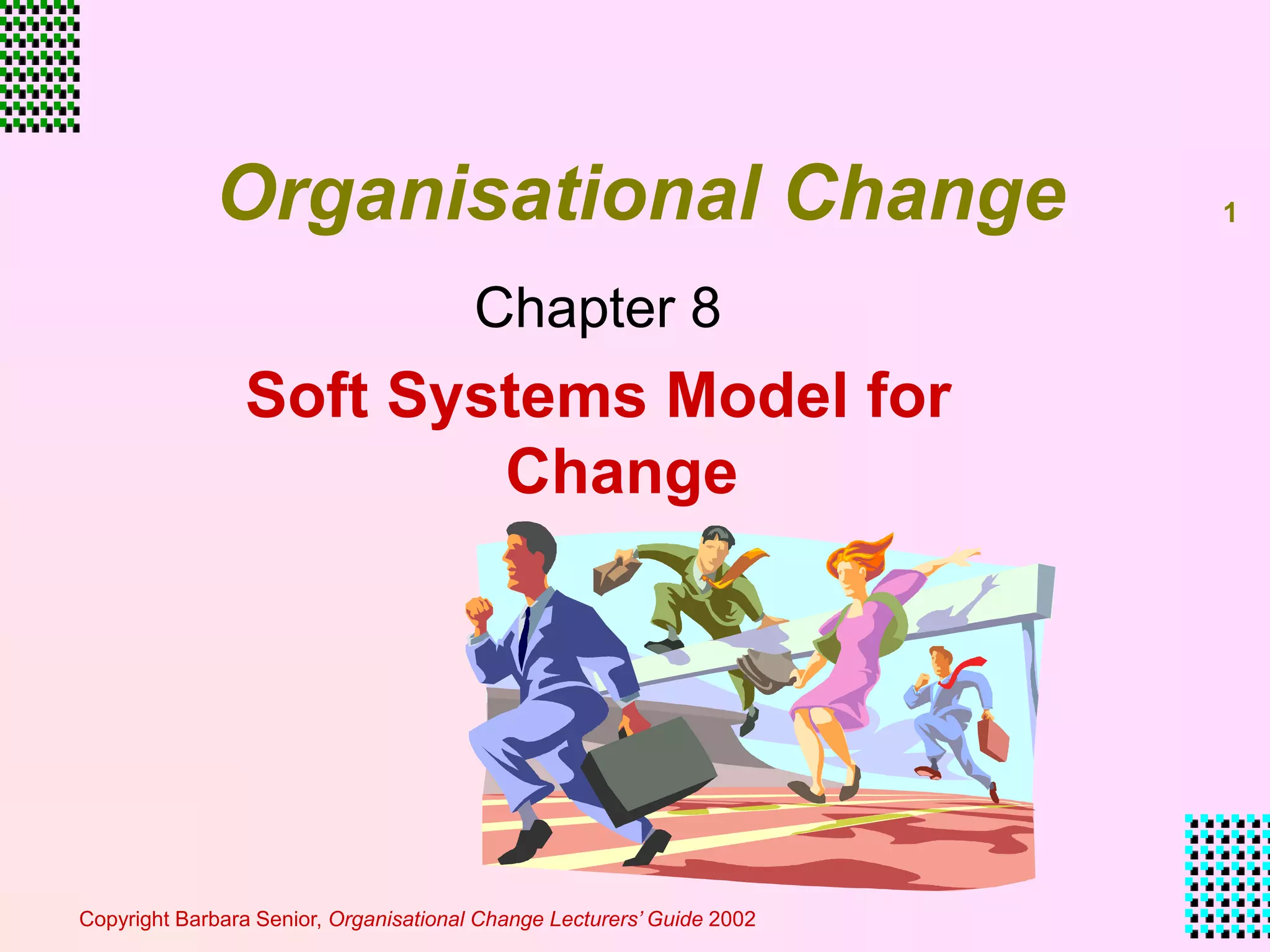

1. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
1
Organisational Change
Chapter 8
Soft Systems Model for
Change

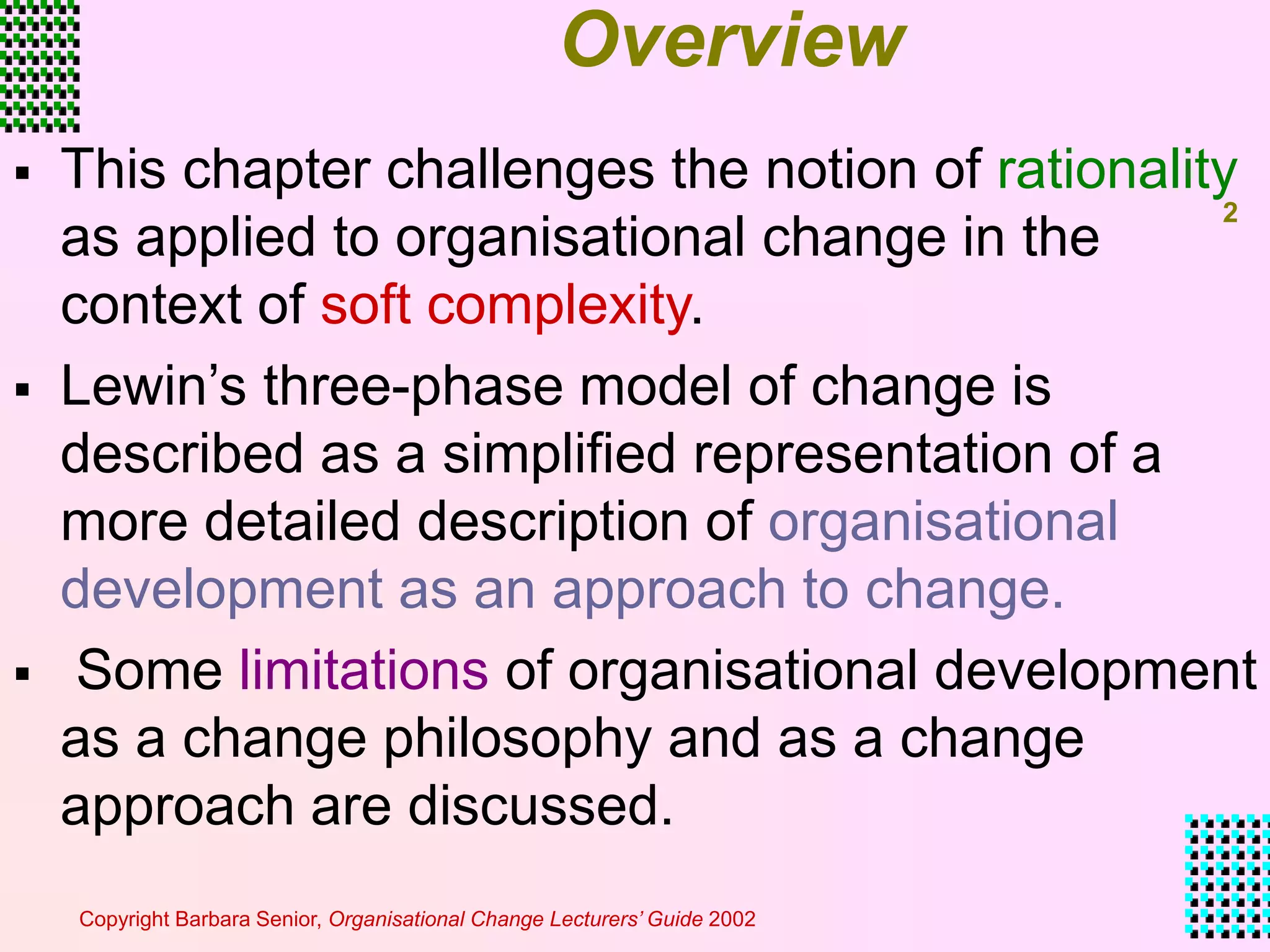

2. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
2
Overview
This chapter challenges the notion of rationality
as applied to organisational change in the
context of soft complexity.
Lewin’s three-phase model of change is
described as a simplified representation of a
more detailed description of organisational
development as an approach to change.
Some limitations of organisational development
as a change philosophy and as a change
approach are discussed.
3. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
3
Objectives
To:
recognise that some change situations
(problems/opportunities), by nature of their
complexity and particular characteristics, require
soft rather than hard systems approaches to
change;
consider the philosophy, value orientation and
theoretical underpinnings of Organisation
Development (OD) as a generalised example of soft
systems models for change;
outline and describe the processes and practices
which comprise most OD approaches to designing
and implementing organisational change;
discuss the limitations of OD approaches to
managing change.
4. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
4
Why Mess Management Is Needed - 1
Various factors such as power
bases, organisational culture,
leadership styles, and changes in
the organisation’s environment, can
in many cases make organisational
change a lot more technically
complex and emotionally charged
(therefore messy) than the Hard
Systems Model of Change can
adequately deal with.
5. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
5
• People act in accordance with their
own view of what is rational for
them.
• They are not puppets, dummies,
cogs, cattle.
Why Mess Management Is Needed - 2
6. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
6
Why Mess Management Is Needed - 3
The Hard Systems model of change
is not likely to be effective:
where the nature of the presenting
problems is defined differently by
different people (stakeholders) in the
situation.
and where quantitative criteria cannot
readily be agreed upon.
and where systems are complex.
and where a pluralist ideology of
relationships prevails.
7. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
7
So how can managers
deal with messes?
8. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
8
The Art and Science of Mess
Management - 1
Ackoff (1993:47) suggests there are 3 ‘kinds of
things’ which can be done about messes. The first
two are:
• Resolve them
• Select a hunch that yields a “good enough”
outcome - one that satisfices (satisfies and
suffices). Patch and mend, survival-oriented.
• Solve them
• Select quantitative approaches based on research
and rational-logical methods of analysis. Focuses
on the trees rather than on the wood; atomistic.
Ackoff, R.L. (1993). The art and science of mess management, in Mabey, C. and Mayon-White, B. (eds) Managing Change. London, P.C.P.
9. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
9
The Art and Science of Mess Management - 2
The third of Ackoff’s (1993: 47) ways of
tackling messes is:
•Dissolve them - idealising
• Change the nature of the problem context
(or system involved) so as to remove the
problem.
• Development oriented – eager to improve
quality of life for self and others.
• Resigning systems at various levels of the
organisation to dissolve the problem
• This is what the soft systems approach
tries to do.
Ackoff, R.L. (1993). The art and science of mess management, in Mabey, C. and Mayon-White, B. (eds) Managing Change. London, P.C.P.
10. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
10
• Change is only effective when
people’s feelings, needs,
perceptions, ways of doing things &
hopes are addressed. AND
• messy situations require managers
to dissolve existing problems, by
challenging underlying purposes
and assumptions.
The Art and Science of Mess Management - 3
11. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
11
The Art and Science of Mess Management - 4
For the manager who wishes to dissolve
problems, Buchanan and Boddy (1992)
suggest:
• ‘backstaging’, not just ‘public
performance’
• ‘political skills’ behind the scenes
• ‘intervening in political and cultural
systems’
• ‘managing meaning’ – ‘selling the
change’
Ackoff, R.L. (1993). The art and science of mess management, in Mabey, C. and Mayon-White, B. (eds) Managing Change. London, P.C.P.
12. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
12
Differences Between Hard & Soft Change Approaches
HARD
Clear goals and objectives
Quantifiable data
Control mechanisms are
clear
Power is clear, known to
work
Unitary view of
organisation
Evolved first to meet
needs of modern
engineering and industrial
systems
Aims to solve problems
Analyst detached from
situation
SOFT
Organisations as social
entities
Goals need negotiation
Different perspectives
Power diffuse and
frequently unknown
Consensus view/conflict
view of organisation
Evolved later (1960s) in
response to difficulties in
using hard approaches
Aims to appreciate and
improve problems
Analyst part of the situation
13. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
13
Organisation Development - 1
‘Organization development (OD) is a long term
effort, led and supported by top management, to
improve an organization’s visioning,
empowerment, learning, and problem-solving
processes, through an ongoing, collaborative
management of the organization culture - with
special emphasis on the culture of intact work
teams and other team configurations - utilizing the
consultant-facilitator role and the theory and
technology of applied behavioural science,
including action research.’
(French, W.L. and Bell, C.H, (1995). Organization Development:
Behavioural Science Interventions for Organization
Improvement, Fifth edition, Prentice-Hall, p.28.).
14. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
14
Organisation Development - 2
‘Organization development is an ongoing
process of change aimed at resolving issues
within an organization through the effective
diagnosis and management of the organization’s
culture. This development process uses
behavioral and social science techniques and
methodologies through a consultant facilitator
and employs action-research as one of the main
mechanism for instigating change in
organizational groups.’
(McCalman, J & Paton, R (1992). Change Management Guide to Effective
Implementation, London, P.C.P. p 131).
15. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
15
Basic Assumptions of OD as a Model
for Change - 1
It emphasises goals and processes with
emphasis on processes
It deals with change over medium and
long-term
It is about people and recognises their
worth
It involves the organisation as a whole
as well as its parts
It emphasises the concept of a change
agent/facilitator
16. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
16
Basic Assumptions of OD as a Model
for Change - 2
It uses action research as a means of
intervention
It is participative, drawing on theory and
practices of the behavioural sciences
It subscribes to a humanistic philosophy
of openness
It is a process of facilitation at the
individual, group and organisational level
It has top-management support and
involvement
17. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
17
Learning Organisation - 1
More recently, the concept of a learning
organisation has been blended in with
OD.
Central ideas of the LO:
– A process approach to change in which
everything, including existing goals and the
goal setting processes, is subject to
challenge.
– Double-loop learning.
– Change is continuous.
– Development of the organisation is treated
as being central to its well-being.
18. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
18
Learning Organisation - 2
More central ideas of the LO:
–Shared visioning
–Proactive learning
–Continuous experimentation & risk
taking
–Leaders as facilitators and learning
leaders
–Team learning
19. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
19
Source: Mintzberg, H. (1973), The Nature of Managerial Work, Harper & Row.
Why Organisation Development Is
So Important - 1
The volume of change in many organisations is
massive
The economic scene places demands on managers
while they are reluctant to change from tried and
tested methods
The role of management is changing and new models
are needed
Change management takes time
Some changes challenge basic assumptions, for
example, the role of supervisory staff
20. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
20
Source: Mintzberg, H. (1973), The Nature of Managerial Work, Harper & Row.
Why Organisation Development Is
So Important - 2
The need for control remains - the skill is remaining
in control when so much change is going on.
More comprehensive strategic pictures are needed
which integrate different changes in the
organisation and alleviate confusion.
Organisation design and re-design are as important
and necessary as product, process or system
design and are the responsibility of management
and people in organisations, not just specialists.
21. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
21
Lewin’s Three Step Process to Changing
Behaviour
UNFREEZING
Resistance to change lessened,
need for change created
(Equilibrium disturbed)
MOVING
From old behaviour
to the new
(Changes)
REFREEZING
Change made
permanent
22. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
22
Unfreezing
‘Shaking up’
Disconfirmation of old ways of doing
things
Questioning & challenging of
established wisdom
23. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
23
Moving
Making the actual changes to move to
the new state of existence.
Includes the development of new
strategies, structures, systems &
responsibilities and the shedding of old
ones.
24. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
24
Refreezing
Stabilizing, institutionalising the
changes.
Making sure the organisation doesn't go
backwards to the old state.
Reinforcement of the changes through
symbols, such as changed logos, dress,
building design, structures.
25. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
25
Refreezing???
Re-freezing may not be appropriate in
an era of continuous change, so maybe
this stage involves something more like
stabilising.
26. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
26
Effective Management of
Change
‘An effective manager...: anticipates the need for
change as opposed to reacting after the event to
the emergency; diagnoses the nature of change
that is required and carefully considers a number
of alternatives that might improve organisational
functioning, as opposed to taking the fastest way
to escape the problem; and manages the change
process over a period of time so that it is
effective and accepted as opposed to lurching
from one crisis to another.’
(Pugh, D. (1993). Understanding and managing change. In Maybey, C. and Mayon-White,
B. (Eds.) Managing Change, Second edition. London, P.C.P.).
27. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
27
The OD Model for Change - 1
A number of elements distinguish this
approach from the hard systems model
of change discussed in Chapter 7.
Change is not a ‘one-off’ event, but is
rather an iterative, cyclical process which
is continuous as part of everyday
organisational life.
Components of the model are diagnosis,
data gathering, feedback to the client
group, data discussion and work by the
client group, action planning and action.
28. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
28
The OD Model for Change - 2
These components may form cycles of activity
within each stage of the OD process.
The OD approach to change is firmly embedded in
the assumption that all who are or who might be
involved in any change should be part of the
decision-making process to decide what that
change might be and to bring it about.
It is not a project planned and implemented by
senior managers with the assumption that other
workers in the organisation will automatically go
along with it.
29. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
29
Action Research - 1
Action research is central to EACH
STAGE of the OD process.
It is a collaborative effort between the
leaders and facilitators of any change
and those who have to enact it.
It involves data gathering, feedback of
data to the client group, data
discussion, action planning, and action.
Therefore, action research is, as its
name suggests, a combination of
research and action.
30. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
30
Action Research - 2
Action research involves collecting data
relevant to the situation of interest,
feeding back the results to those who
must take action, collaboratively
discussing the data to formulate an
action plan, and finally, taking the
necessary action.
31. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
31
The OD model for change
PRESENT STATE
(1a)
Diagnose current
situation
FUTURE STATE
(1b)
Develop a vision
for change
(5)
Assess and
reinforce
change
(2)
Gain
commitment
to the vision
(3)
Develop an
action plan
(4)
Implement
change
JOURNEY TO THE FUTURE
32. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
32
Stage 1 - Understanding Present &
Future States
At stages 1a and 1b the issues, problems
and opportunities are to be fully explored
and the (generally) multiple perspectives of
people in the change situation should be
understood.
Diagnosing the current situation should not
be rushed through without sufficient
consideration of the underlying issues as
well as the presenting ones.
33. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
33
Stage 2 - Gaining Commitment to the
Vision
Once the vision for change has taken shape
(stage 1b), commitment to it has to be gained.
Consequently, sharing the vision with all
concerned is important, which might mean a
review, again, of the vision for change.
It is vital to ‘listen to the organisation - people's
responses in words and deeds to the vision
proposal.
34. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
34
Stage 3: Develop an Action
Plan (1)
Stage 3 is complex and requires
much consultation and gaining the
participation of those who must
enact the change.
Possible resistance to change must
be addressed.
35. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
35
Pugh’s Principles of Change -1
Principle 1:
–Organisations are organisms
– adequacy of planning
– adequacy of persuasion
– adequacy of ‘digestion’
36. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
36
Pugh’s Principles of Change - 2
Principle 2: Organisations are
occupational and political systems
–account taken of occupational
impact
–account taken of political
impact
37. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
37
Pugh’s Principles of Change - 3
Principle 3: All members of an
organisation operate simultaneously in all
three systems - the rational, the
occupational, the political
–appropriateness of starting site
–appropriateness of methods used
38. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
38
Stage 3: Develop an Action Plan (2)
The role of the change agent is important in the
whole of stage 3. Debates occur as to whether the
use of an internal or external change agent is
preferable.
Buchanan and Boddy (1992) have written about
CHANGE AGENTS’ competencies.
– Sensitive, clear, flexible goal setting.
– Team building, networking, handling ambiguity.
– Communicating, dealing with people and
meetings,enthusing, motivating.
– Selling, negotiating.
– Dealing with the politics, influencing, the broader
view.
39. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
39
Stage 3: Develop an Action Plan (3)
CHANGE AGENTS help the
organisation to:
Define the problem.
Examine and diagnose the problem.
Come up with alternative solutions.
Direct implementation of solutions.
Crystallise the learning.
40. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
40
Stage 3: Develop an Action Plan (4)
‘Responsibility charting’ helps in the
assessment of the alternative behaviours for
those involved in the series of actions for
change.
It involves identifying and assigning the
specific people involved in each action or
decision.
– who is responsible (one person).
– who are the approval givers (not too many).
– who are the supporters, resource providers (vital).
– who should be be informed.
41. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
41
Actors
Actions
A B C D E F G
1 R A A I I S
2 S R A I I I
3 S R A S
4 S I A R I
5 S A R A
6 I A R S
R= responsible
A = approval giver, can veto
S = must support; provide resources
I = to be informed
A Responsibility Chart
42. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
42
Stage 3: Develop an Action Plan (5)
Possible stakeholders who are starting
points for change:
Top management.
Groups who are ‘management-ready’, i.e.
ready for change.
– Includes ‘hurting systems. Those in pain.
New teams or systems.
Change agents. Staff members who will
facilitate subsequent change.
Temporary change implementation project
teams.
43. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
43
Stage 3: Develop an Action Plan (6)
Pugh’s (1986) OD matrix on p. 323 is
very useful in deciding where, in an
organisation, change efforts should start
and be planned.
– start with desired behaviour that needs to
change.
– move to organising the system, structure,
info. flows, etc. that may need to change.
– move to organise the contextual setting
that may also need to change.
44. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
44
The Pugh OD Matrix
Problems
Behaviour Structure
etc.
Context
Org level Poor org
climate
Wrong
structure
Wrong
strategy
Inter-
group
Lack of
cooperation
Poor co-
ordination
Distance
Group
level
Poor team
spirit
Unclear
group task
Poor
resources
Individual
level
Dissatisfied
person
Poorly
defined job
Poor
application
of HRM
45. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
45
The Pugh OD Matrix
Remedies
Behaviour Structure
etc.
Context
Org level Survey
feedback
Change
structure
Change
strategy
Inter-
group
Role
negotiation
Improve
liaison
Bring
groups
closer
Group
level
Team
building
Redesign
work
system
Change
technology
or staffing
Individual
level
Counselling Job
enrichment
Improve
HRM
46. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
46
Stage 3: Develop an Action Plan (7)
Decide what needs to change:
– behaviour
– systems/structure,
– or contexts
Action plan must be:
relevant
specific
integrated
in the right time frame
adaptable
47. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
47
Stage 4 Implement the Change
Stages 4 (and 5) of the OD process
‘Implementing and assessing and
reinforcing the change’ can make use of
a range of techniques, some of them
identified on the Pugh OD matrix.
48. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
48
Implement the Change (2) - Facilitated
Activities 1
Survey feedback. Employee opinion
survey.
Organisational mirroring. Focal group gets
feedback from other groups about how it
is perceived and regarded. Reciprocal.
‘Fishbowl technique’.
Inter-group confrontation. Each group lists
its complaints about the other as well as
what it thinks the other group has as a
complaint against itself.
49. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
49
Implement the Change (2) - Facilitated
Activities 2
Role negotiation. Focus on each
other’s behaviours and negotiate an
increase, decrease or status quo.
Process consultation. The consultant
engages in feedback,coaching,
counselling, and helps individuals and
groups finds their own solutions.
50. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
50
Implement the Change (3) - Facilitated
Activities 3
Team Building - focus on the team
processes, culture and responsibilities.
Life and career planning - ‘Life line’
drawing, connecting past, present &
future. Write your own obituary.
Plus various other methods for designing
structures and contexts.
51. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
51
Implement the Change (4)
Go for a series of SHORT-TERM WINS, visible
outcomes (short term goals) that:
– show that sacrifices are worthwhile
– reward change agents
– help fine tune the visions and strategies
– counterbalance the cynics
– keep bosses happy
– build momentum
52. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
52
Stage 5: Assessing and Reinforcing
Change
‘Hard’ change is relatively easy to
assess
– Set hard objectives and quantifiable
performance measures
‘Soft’ change is more difficult to
assess
53. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
53
Assessing the ‘Soft’ Elements of Change
Survey or cultural audit.
Interviews with individuals or focus
groups.
Examination of turnover and absenteeism
rates.
Analysis (through observation or
questionnaire) of group performance.
“Picturing” the organisation - ask staff to
portray the org in pictures, not words.
54. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
54
Reinforcing and Consolidating Change
Design appraisal, career and reward systems
which help reinforce desired behaviours.
Orientate staff training and development to
the new vision and the new situation.
Hold people accountable for maintaining the
vision and continuing to implement the
change.
55. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
55
Iteration
At all these stages, as Figure 8.2 on p.
312 shows, the requirement of iteration
back to previous stages and then
forwards again with modified plans and
actions is crucial to the way the OD
process operates.
56. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
56
An Assessment of the OD Model for
Change (1)
Three of the criticisms that have been
aimed at this model for change are:
1. OD does not always face up to the harsh ‘realities’ of
change. (‘Rather than unfreezing, people need to be
shaken up’.)
2. OD is limited when change situations are
‘constrained’. (Diagnosis and vision already set).
3.OD does not always fit with the policies and practices
of bureaucracy, political systems
57. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
57
An Assessment of the OD Model for
Change (2)
A fourth criticism of the soft systems model
for change is
4. The claim that OD cannot be applied in the same way
across all cultures.
Supposedly it is not suited to high Power Distance, high
Uncertainty Avoidance, and high Masculinity cultures.
58. Copyright Barbara Senior, Organisational Change Lecturers’ Guide 2002
58
An Assessment of the OD Model for
Change (3)
Given these criticisms, care has to be taken
that the OD process is modified to suit different
circumstances.
It must also be recognised that, in times of
crisis, managers may have to act very fast
and...
– it may not be possible to put into practice the full
consultation and participation that is built into the
OD process.
