OptaSense and VicRoads Monash Freeway Project 2015
The Monash Freeway project utilizes Optasense's Distributed Acoustic Sensing (DAS) technology to provide real-time traffic monitoring over 40 km using existing fibre optic infrastructure. The system enables various functionalities such as incident detection, speed estimation, and congestion monitoring, all while minimizing installation requirements and costs compared to traditional methods. This innovative approach offers enhanced situational awareness and safer traffic management without the need for extensive physical infrastructure.
OptaSense and VicRoads Monash Freeway Project 2015
- 1. Monash Freeway Project2015 wmblewett@qinetiq.com.au www.OptaSense.com
- 2. Distributed Acoustic Sensing(DAS) The fibre is the sensor - Real-time situational awareness via light Achieved via the utilization of existing VicRoads fibre optic assets - OptaSense© provides a real time, linear sensing capability to better and more safely manage traffic conditions. ©OptaSense Ltd 2015
- 3. • Speed Estimation •Incident Detection • Congestion Monitoring • Journey Times • Vehicle Counting • Bridge and Tunnel monitoring • Low flow monitoring • Fibre Break • Personnel Intrusion Detection • Rock Fall • Seismic activity Connected to a single dedicated core on the VicRoads Fibre Optic network, OptaSense is deployed in less than a week to monitoring 40 km of the Monash Freeway traffic in real time. Time Distance VicRoads approached OptaSense to trial our DAS technology and to test our Automated Incident Detection capability. ©OptaSense Ltd 2015 OptaSense and VicRoads
- 4. OptaSense Installation OptaSense FieldRack The OptaSense Field Rack is connected directly to a dark fibre on the VicRoads network. Installation and Commissioning activities completed in less than One Week for 40km of traffic monitoring capability. ©OptaSense Ltd 2015
- 5. OptaSense Installation Geo-referencing, Mappingand User Interface Fibre optic cable is located by a work crew via GPS and matched to the optical distance on the fibre. Safe to Install and Operate • No roadside infrastructure • Minimal installation requirements for work crews on carriageways • Maintenance activities required on rack mounted equipment only VicRoads Freeway Condition Thresholds loaded into OptaSense. Settings updated remotely as the system evolves. ©OptaSense Ltd 2015
- 6. Verification & Validation VicRoads STREAMSData OptaSense VicRoads Ground Sensors OptaSense Data feed to User Interface ©OptaSense Ltd 2015

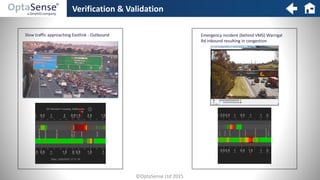

- 7. Verification & Validation Slowtraffic approaching Eastlink - Outbound Emergency incident (behind VMS) Warrigal Rd inbound resulting in congestion ©OptaSense Ltd 2015

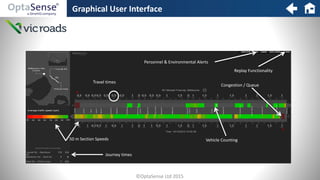

- 8. Graphical User Interface Traveltimes Congestion / Queue 50 m Section Speeds Journey times Vehicle Counting Replay Functionality Personnel & Environmental Alerts ©OptaSense Ltd 2015

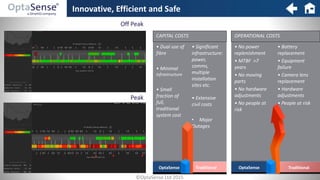

- 9. Innovative, Efficient andSafe Peak Off Peak • Dual use of fibre • Minimal infrastructure • Small fraction of full, traditional system cost OptaSense • Significant infrastructure: power, comms, multiple installation sites etc. • Extensive civil costs • Major Outages Traditional • No power replenishment • MTBF >7 years • No moving parts • No hardware adjustments • No people at risk OptaSense • Battery replacement • Equipment failure • Camera lens replacement • Hardware adjustments • People at risk Traditional CAPITAL COSTS OPERATIONAL COSTS ©OptaSense Ltd 2015
- 10. Find out moreabout OptaSense at www.OptaSense.com Contact William Blewett at wmblewett@qinetiq.com.au for information on this project. ©OptaSense Ltd 2015
