1. © 2015 NTT Software Innovation Center
仮想マシンの高可用性と
異常系試験フレームワーク
Sampath Priyankara
SIC I三P I方D

2. 2Copyright©2015 NTT corp. All Rights Reserv
仮想マシンの高可用性
Masakari

3. 3Copyright©2015 NTT corp. All Rights Reserv
What is Masakari?
Service : Instances High Availability Service
Mission:
Provide instances high availability service
for OpenStack clouds by automatically
recovering the instances from failures.
https://governance.openstack.org/tc/refer
ence/projects/masakari.html

4. 4Copyright©2015 NTT corp. All Rights Reserv
Masakri in action
Virtual Machine High Availability
with Platform9 OpenStack
• https://platform9.com/blog/virtual-machine-high-
availability-platform9-openstack/
• https://www.openstack.org/summit/boston-
2017/summit-schedule/events/17502/zero-touch-
high-availability-with-masakari-and-consul

5. 5Copyright©2015 NTT corp. All Rights Reserv
Project History
[2015 Jul] Started on Github
https://github.com/ntt-sic/masakari [no longer maintained]
[2016 Jun] Moved into OpenStack name space and rebuild
[2017 Oct] Became official OpenStack project
Related work:
[openstack-ha team]
Define spcs for converged upstream solution for VMHA
Wiki: https://wiki.openstack.org/wiki/Meetings/HATeamMeeting
spec: https://review.openstack.org/#/q/project:openstack/openstack-resource-agents-
specs
[OpenStack Product Working Group]
Development Proposal for VMHA
Wiki: https://wiki.openstack.org/wiki/ProductTeam
Feature: http://featuretracker.openstack.org/projectDetail/0003

6. 6Copyright©2015 NTT corp. All Rights Reserv
Project Structure
Masakari
• Masakari
• Masakari Engine and APIs
• Repositories: openstack/masakari
• masakari-monitors
• Monitors to detect failures and send notifications to masakari API
• Repositories: openstack/masakari-monitors
• python-masakariclient
• Python wrapper for masakari APIs
• Repositories: openstack/python-masakariclient
• Masakari Specifications
• masakari-specs
• Specifications for all masakari projects
• Repositories: openstack/masakari-specs

7. 7Copyright©2015 NTT corp. All Rights Reserv

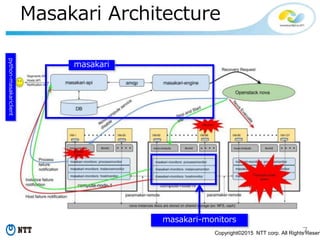

Masakari Architecture
masakari
masakari-monitors
python-masakariclient

8. 8Copyright©2015 NTT corp. All Rights Reserv

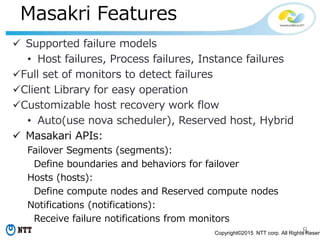

Masakri Features
 Supported failure models
• Host failures, Process failures, Instance failures
Full set of monitors to detect failures
Client Library for easy operation
Customizable host recovery work flow
• Auto(use nova scheduler), Reserved host, Hybrid
 Masakari APIs:
Failover Segments (segments):
Define boundaries and behaviors for failover
Hosts (hosts):
Define compute nodes and Reserved compute nodes
Notifications (notifications):
Receive failure notifications from monitors

9. 9Copyright©2015 NTT corp. All Rights Reserv

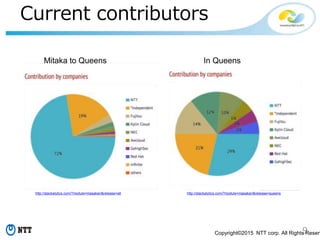

Current contributors
Mitaka to Queens In Queens
http://stackalytics.com/?module=masakari&release=all http://stackalytics.com/?module=masakari&release=queens

10. 1
0Copyright©2015 NTT corp. All Rights Reserv

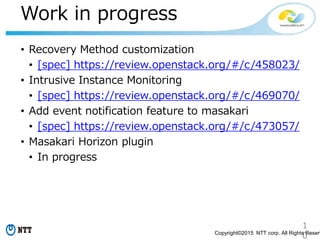

Work in progress
• Recovery Method customization
• [spec] https://review.openstack.org/#/c/458023/
• Intrusive Instance Monitoring
• [spec] https://review.openstack.org/#/c/469070/
• Add event notification feature to masakari
• [spec] https://review.openstack.org/#/c/473057/
• Masakari Horizon plugin
• In progress

11. 1
1Copyright©2015 NTT corp. All Rights Reserv

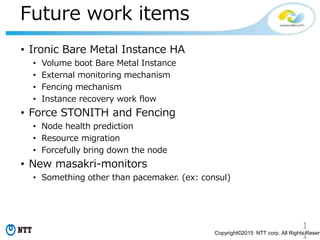

Future work items
• Ironic Bare Metal Instance HA
• Volume boot Bare Metal Instance
• External monitoring mechanism
• Fencing mechanism
• Instance recovery work flow
• Force STONITH and Fencing
• Node health prediction
• Resource migration
• Forcefully bring down the node
• New masakri-monitors
• Something other than pacemaker. (ex: consul)

12. 1
2Copyright©2015 NTT corp. All Rights Reserv

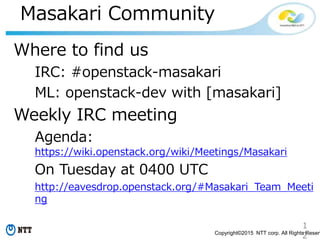

Masakari Community
Where to find us
IRC: #openstack-masakari
ML: openstack-dev with [masakari]
Weekly IRC meeting
Agenda:
https://wiki.openstack.org/wiki/Meetings/Masakari
On Tuesday at 0400 UTC
http://eavesdrop.openstack.org/#Masakari_Team_Meeti
ng

13. 1
3Copyright©2015 NTT corp. All Rights Reserv
異常系試験フレームワーク
Eris

14. 1
4Copyright©2015 NTT corp. All Rights Reserv

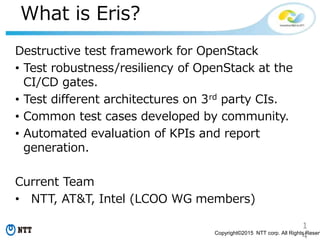

What is Eris?
Destructive test framework for OpenStack
• Test robustness/resiliency of OpenStack at the
CI/CD gates.
• Test different architectures on 3rd party CIs.
• Common test cases developed by community.
• Automated evaluation of KPIs and report
generation.
Current Team
• NTT, AT&T, Intel (LCOO WG members)

15. 1
5Copyright©2015 NTT corp. All Rights Reserv

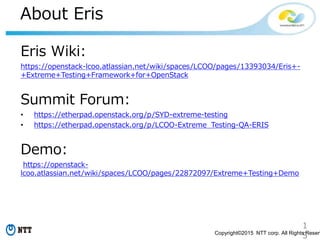

About Eris
Eris Wiki:
https://openstack-lcoo.atlassian.net/wiki/spaces/LCOO/pages/13393034/Eris+-
+Extreme+Testing+Framework+for+OpenStack
Summit Forum:
• https://etherpad.openstack.org/p/SYD-extreme-testing
• https://etherpad.openstack.org/p/LCOO-Extreme_Testing-QA-ERIS
Demo:
https://openstack-
lcoo.atlassian.net/wiki/spaces/LCOO/pages/22872097/Extreme+Testing+Demo

16. 1
6Copyright©2015 NTT corp. All Rights Reserv

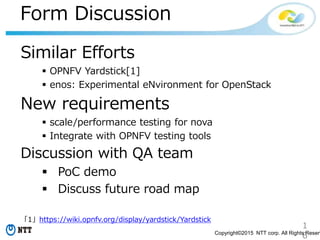

Form Discussion
Similar Efforts
 OPNFV Yardstick[1]
 enos: Experimental eNvironment for OpenStack
New requirements
 scale/performance testing for nova
 Integrate with OPNFV testing tools
Discussion with QA team
 PoC demo
 Discuss future road map
「1」https://wiki.opnfv.org/display/yardstick/Yardstick

17. 1
7Copyright©2015 NTT corp. All Rights Reserv

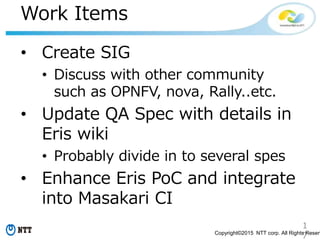

Work Items
• Create SIG
• Discuss with other community
such as OPNFV, nova, Rally..etc.
• Update QA Spec with details in
Eris wiki
• Probably divide in to several spes
• Enhance Eris PoC and integrate
into Masakari CI

18. 1
8Copyright©2015 NTT corp. All Rights Reserv
Self-healing SIG

19. 1
9Copyright©2015 NTT corp. All Rights Reserv
Self-healing SIG
Manage OpenStack infrastructure in a policy-driven
fashion, reacting to failures and other events by
automatically healing or optimize services.

20. 2
0Copyright©2015 NTT corp. All Rights Reserv

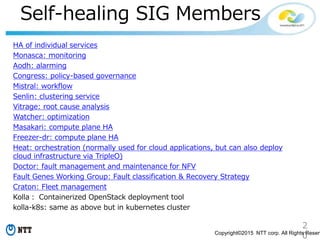

Self-healing SIG Members
HA of individual services
Monasca: monitoring
Aodh: alarming
Congress: policy-based governance
Mistral: workflow
Senlin: clustering service
Vitrage: root cause analysis
Watcher: optimization
Masakari: compute plane HA
Freezer-dr: compute plane HA
Heat: orchestration (normally used for cloud applications, but can also deploy
cloud infrastructure via TripleO)
Doctor: fault management and maintenance for NFV
Fault Genes Working Group: Fault classification & Recovery Strategy
Craton: Fleet management
Kolla： Containerized OpenStack deployment tool
kolla-k8s: same as above but in kubernetes cluster
