1. Bogdan Andrei Iancu
- 2 May 2017 -
Keynotes
OpenSIPS 2.3

2. Bogdan Iancu - OpenSIPS Project
Welcome
2

3. Bogdan Iancu - OpenSIPS Project 3

4. Bogdan Iancu - OpenSIPS Project 4

5. Bogdan Iancu - OpenSIPS Project 5

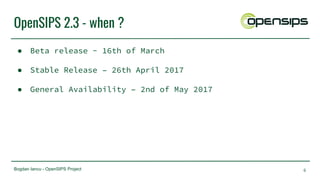

6. Bogdan Iancu - OpenSIPS Project
OpenSIPS 2.3 - when ?
● Beta release - 16th of March
● Stable Release – 26th April 2017
● General Availability – 2nd of May 2017
6

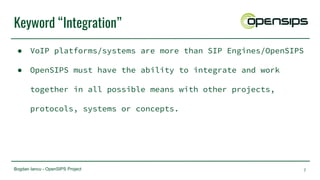

7. Bogdan Iancu - OpenSIPS Project
Keyword “Integration”
● VoIP platforms/systems are more than SIP Engines/OpenSIPS
● OpenSIPS must have the ability to integrate and work
together in all possible means with other projects,
protocols, systems or concepts.
7

8. Bogdan Iancu - OpenSIPS Project

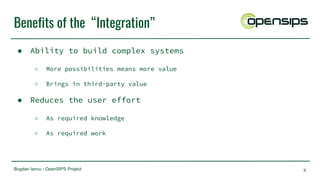

Benefits of the “Integration”
● Ability to build complex systems
○ More possibilities means more value
○ Brings in third-party value
● Reduces the user effort
○ As required knowledge
○ As required work
8

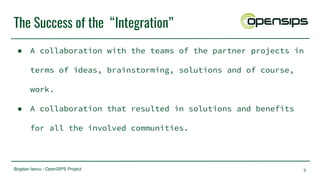

9. Bogdan Iancu - OpenSIPS Project
The Success of the “Integration”
● A collaboration with the teams of the partner projects in
terms of ideas, brainstorming, solutions and of course,
work.
● A collaboration that resulted in solutions and benefits
for all the involved communities.
9

10. SIPCapturing/HOMER Integration

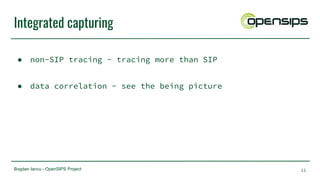

11. Bogdan Iancu - OpenSIPS Project
Integrated capturing
● non-SIP tracing - tracing more than SIP
● data correlation - see the being picture
11

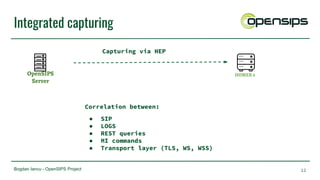

12. Bogdan Iancu - OpenSIPS Project
Integrated capturing
12
OpenSIPS
Server
HOMER 6
Correlation between:
● SIP
● LOGS
● REST queries
● MI commands
● Transport layer (TLS, WS, WSS)
Capturing via HEP

13. Bogdan Iancu - OpenSIPS Project
Global view
13

14. FreeSWITCH integration

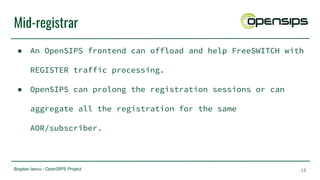

15. Bogdan Iancu - OpenSIPS Project
Mid-registrar
● An OpenSIPS frontend can offload and help FreeSWITCH with
REGISTER traffic processing.
● OpenSIPS can prolong the registration sessions or can
aggregate all the registration for the same
AOR/subscriber.
15

16. Bogdan Iancu - OpenSIPS Project

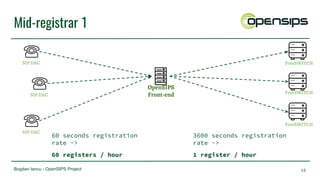

Mid-registrar 1
16
OpenSIPS
Front-end
FreeSWITCH
SIP UAC
SIP UAC
SIP UAC
FreeSWITCH
FreeSWITCH
60 seconds registration
rate ->
60 registers / hour
3600 seconds registration
rate ->
1 register / hour

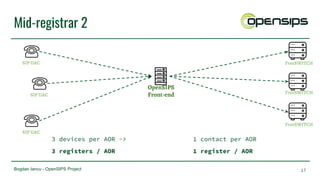

17. Bogdan Iancu - OpenSIPS Project
Mid-registrar 2
17
OpenSIPS
Front-end
SIP UAC
SIP UAC
SIP UAC
3 devices per AOR ->
3 registers / AOR
1 contact per AOR
1 register / AOR
FreeSWITCH
FreeSWITCH
FreeSWITCH

18. Bogdan Iancu - OpenSIPS Project
FreeSWITCH driven LB
● get load feedback from FreeSWITCH via ESL
● do an accurate load-balancing over a FreeSWITCH cluster
● Adjust the load distributions to correct external
influence
18

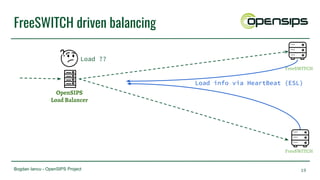

19. Bogdan Iancu - OpenSIPS Project
FreeSWITCH driven balancing
19
OpenSIPS
Load Balancer
FreeSWITCH
FreeSWITCH
Load ??
Load info via HeartBeat (ESL)

20. CGRates Integration

21. Bogdan Iancu - OpenSIPS Project
CGRates
● SIP without billing is like a dinner without a good wine
● CGRateS is an open-source rating engine used for
○ carrier-grade, multi-tenant, real-time billing
○ Post and pre paid
21

22. Bogdan Iancu - OpenSIPS Project
CGRates Integration
● Call authorization
● Accounting and charging
● CDR generation
22

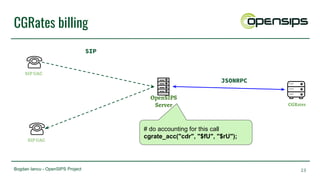

23. Bogdan Iancu - OpenSIPS Project
CGRates billing
23
OpenSIPS
Server CGRates
SIP UAC
SIP UAC
SIP
JSONRPC
# do accounting for this call
cgrate_acc("cdr", "$fU", "$rU");

24. SIP-I Integration

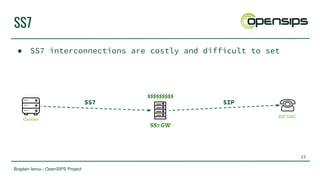

25. Bogdan Iancu - OpenSIPS Project
SS7
25
SS7 GW
Carrier
SIP UAC
SS7 SIP
$$$$$$$$$
● SS7 interconnections are costly and difficult to set

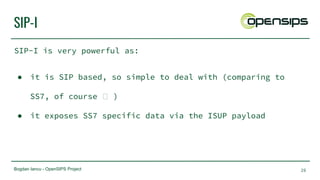

26. Bogdan Iancu - OpenSIPS Project
SIP-I
SIP-I is very powerful as:
● it is SIP based, so simple to deal with (comparing to
SS7, of course )
● it exposes SS7 specific data via the ISUP payload
26

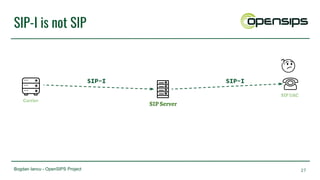

27. Bogdan Iancu - OpenSIPS Project
SIP-I is not SIP
27
SIP Server
Carrier
SIP UAC
SIP-I SIP-I

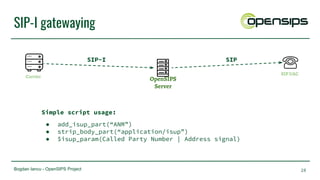

28. Bogdan Iancu - OpenSIPS Project
SIP-I gatewaying
28
OpenSIPS
Server
Carrier
SIP UAC
SIP-I SIP
Simple script usage:
● add_isup_part(“ANM”)
● strip_body_part(“application/isup”)
● $isup_param(Called Party Number | Address signal)

29. Event Based Routing

30. Bogdan Iancu - OpenSIPS Project
Event Based Routing
Addressed problems:
● communicate and exchange data with the processing of a
different SIP message
● synchronize or wait for actions related to the
processing of a different SIP message
30

31. Bogdan Iancu - OpenSIPS Project

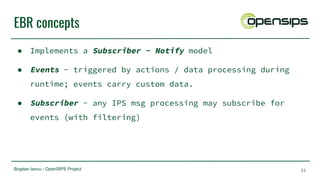

EBR concepts
● Implements a Subscriber - Notify model
● Events - triggered by actions / data processing during
runtime; events carry custom data.
● Subscriber - any IPS msg processing may subscribe for
events (with filtering)
31

32. Bogdan Iancu - OpenSIPS Project
Event async waiting
32
Time
SIP packet arrivals
Thread
1
Thread
2
SIP msg A
SIP msg B
wait(event X) resume()
event X

33. Bogdan Iancu - OpenSIPS Project

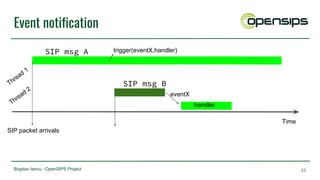

Event notification
33
Time
SIP packet arrivals
Thread
1
Thread
2
SIP msg A
SIP msg B
trigger(eventX,handler)
eventX
handler

34. Bogdan Iancu - OpenSIPS Project
EBR scenarios
● Push notification
● Call pickup
● DTMF call driving
34

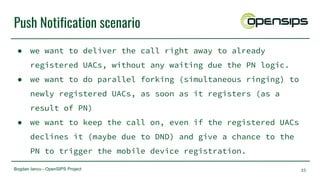

35. Bogdan Iancu - OpenSIPS Project
Push Notification scenario
● we want to deliver the call right away to already
registered UACs, without any waiting due the PN logic.
● we want to do parallel forking (simultaneous ringing) to
newly registered UACs, as soon as it registers (as a
result of PN)
● we want to keep the call on, even if the registered UACs
declines it (maybe due to DND) and give a chance to the
PN to trigger the mobile device registration.
35

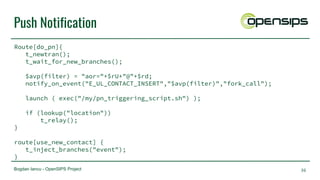

36. Bogdan Iancu - OpenSIPS Project
Push Notification
Route[do_pn]{
t_newtran();
t_wait_for_new_branches();
$avp(filter) = "aor="+$rU+"@"+$rd;
notify_on_event("E_UL_CONTACT_INSERT","$avp(filter)","fork_call");
launch ( exec("/my/pn_triggering_script.sh") );
if (lookup("location"))
t_relay();
}
route[use_new_contact] {
t_inject_branches("event");
}
36

37. And More….

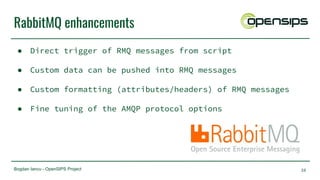

38. Bogdan Iancu - OpenSIPS Project
RabbitMQ enhancements
● Direct trigger of RMQ messages from script
● Custom data can be pushed into RMQ messages
● Custom formatting (attributes/headers) of RMQ messages
● Fine tuning of the AMQP protocol options
38

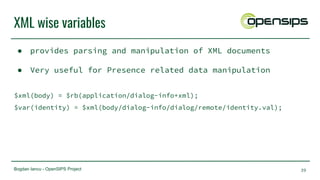

39. Bogdan Iancu - OpenSIPS Project
XML wise variables
● provides parsing and manipulation of XML documents
● Very useful for Presence related data manipulation
$xml(body) = $rb(application/dialog-info+xml);
$var(identity) = $xml(body/dialog-info/dialog/remote/identity.val);
39

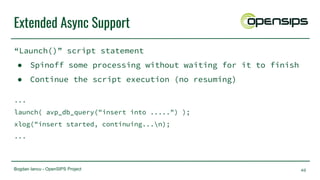

40. Bogdan Iancu - OpenSIPS Project
Extended Async Support
“Launch()” script statement
● Spinoff some processing without waiting for it to finish
● Continue the script execution (no resuming)
...
launch( avp_db_query("insert into .....") );
xlog("insert started, continuing...n);
...
40

41. Bogdan Iancu - OpenSIPS Project

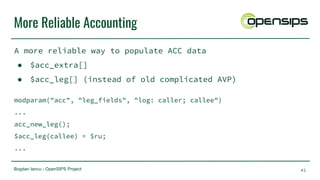

More Reliable Accounting
A more reliable way to populate ACC data
● $acc_extra[]
● $acc_leg[] (instead of old complicated AVP)
modparam("acc", "leg_fields", "log: caller; callee")
...
acc_new_leg();
$acc_leg(callee) = $ru;
...
41

42. ● Bogdan Iancu
○ OpenSIPS Project: www.opensips.org
○ Email: bogdan@opensips.org
Enjoy OpenSIPS 2.3
