Online Media Data Stream Processing with Kafka
This document discusses streaming data and the Kafka messaging system. It provides an overview of what streaming data is, why Kafka is useful for streaming data use cases, Kafka's architecture including its publish-subscribe and persistent messaging design, and an example use case of prospective search that utilizes Kafka to process and analyze streaming data in real-time.
Online Media Data Stream Processing with Kafka
- 1. CC 2.0 byWilliam Brawley | http://flic.kr/p/7PdUP3

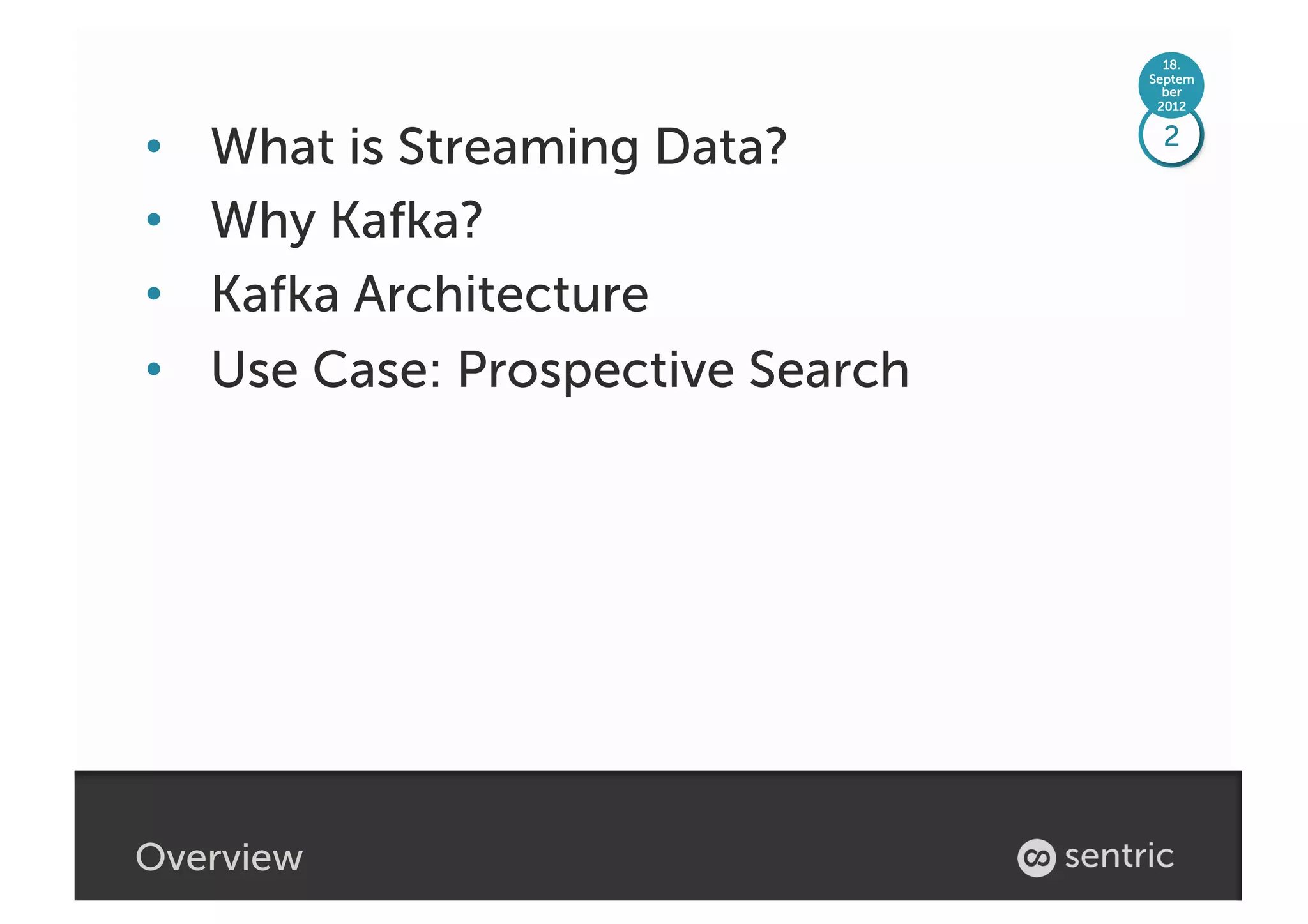

- 2. 18. Septem ber 2012 • What is Streaming Data? 2 • Why Kafka? • Kafka Architecture • Use Case: Prospective Search Overview

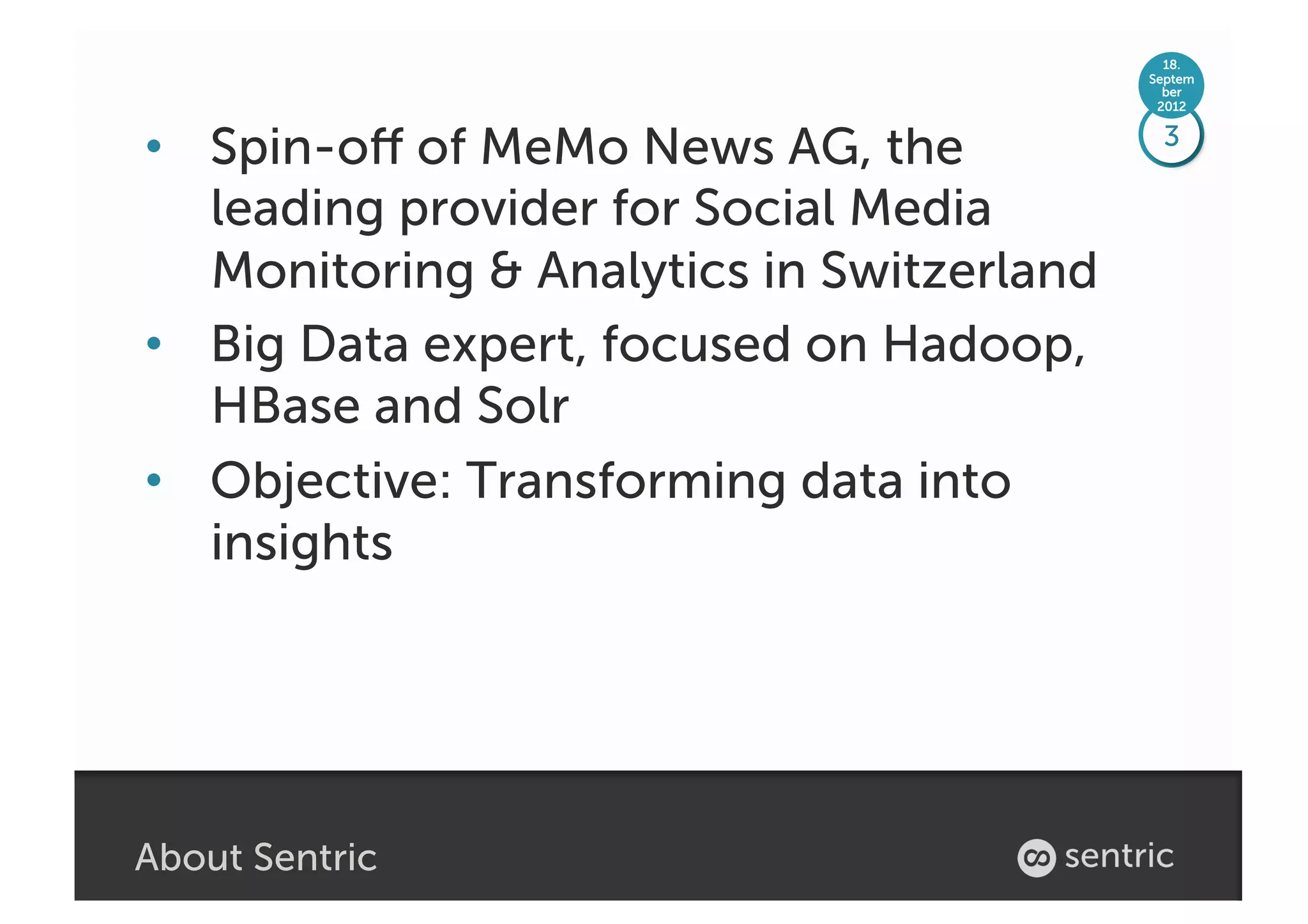

- 3. 18. Septem ber 2012 • Spin-off of MeMo News AG, the 3 leading provider for Social Media Monitoring & Analytics in Switzerland • Big Data expert, focused on Hadoop, HBase and Solr • Objective: Transforming data into insights About Sentric
- 4. CC 2.0 byaudreyjm529| http://flic.kr/p/mNMtL

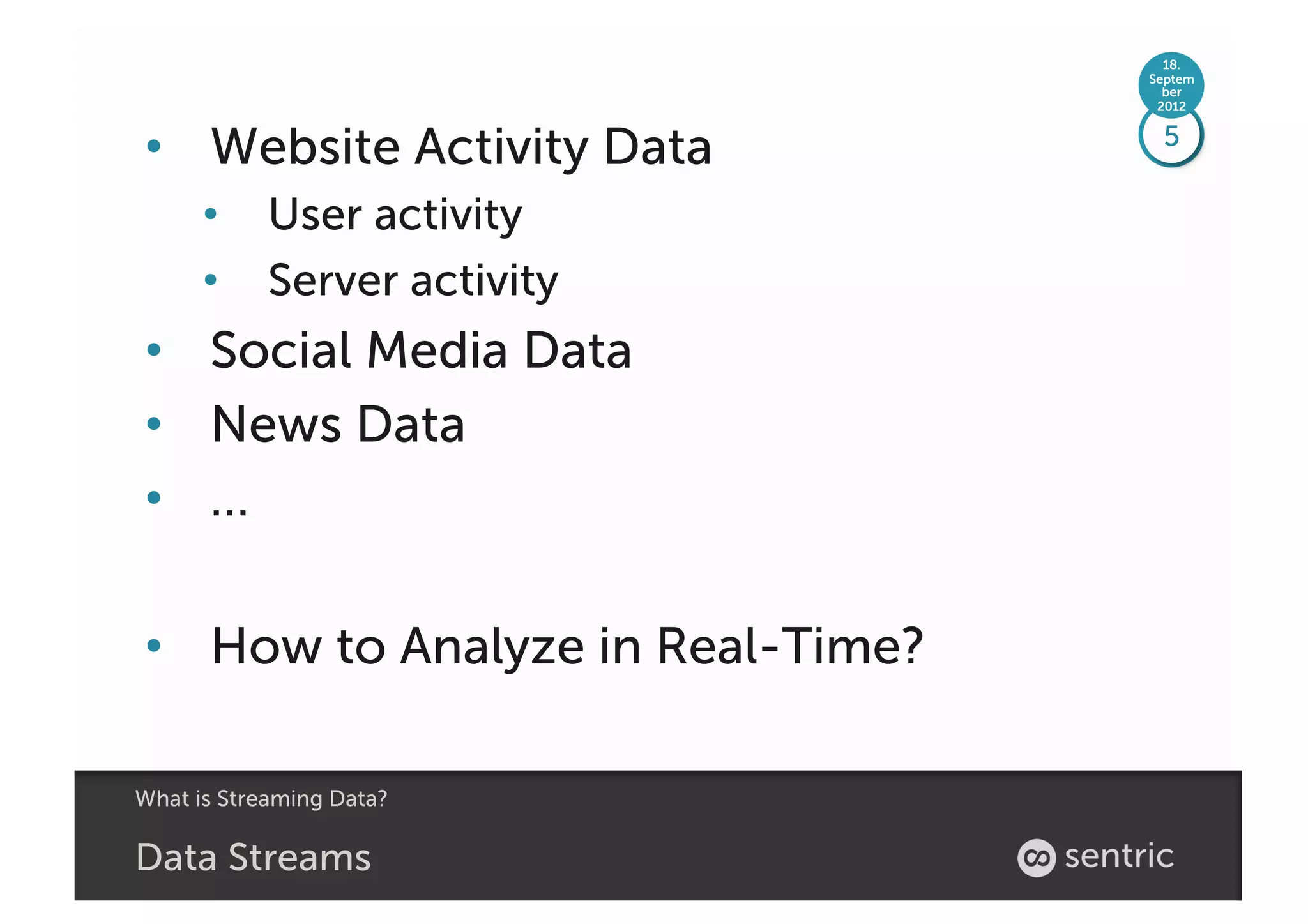

- 5. 18. Septem ber 2012 • Website Activity Data 5 • User activity • Server activity • Social Media Data • News Data • … • How to Analyze in Real-Time? What is Streaming Data? Data Streams

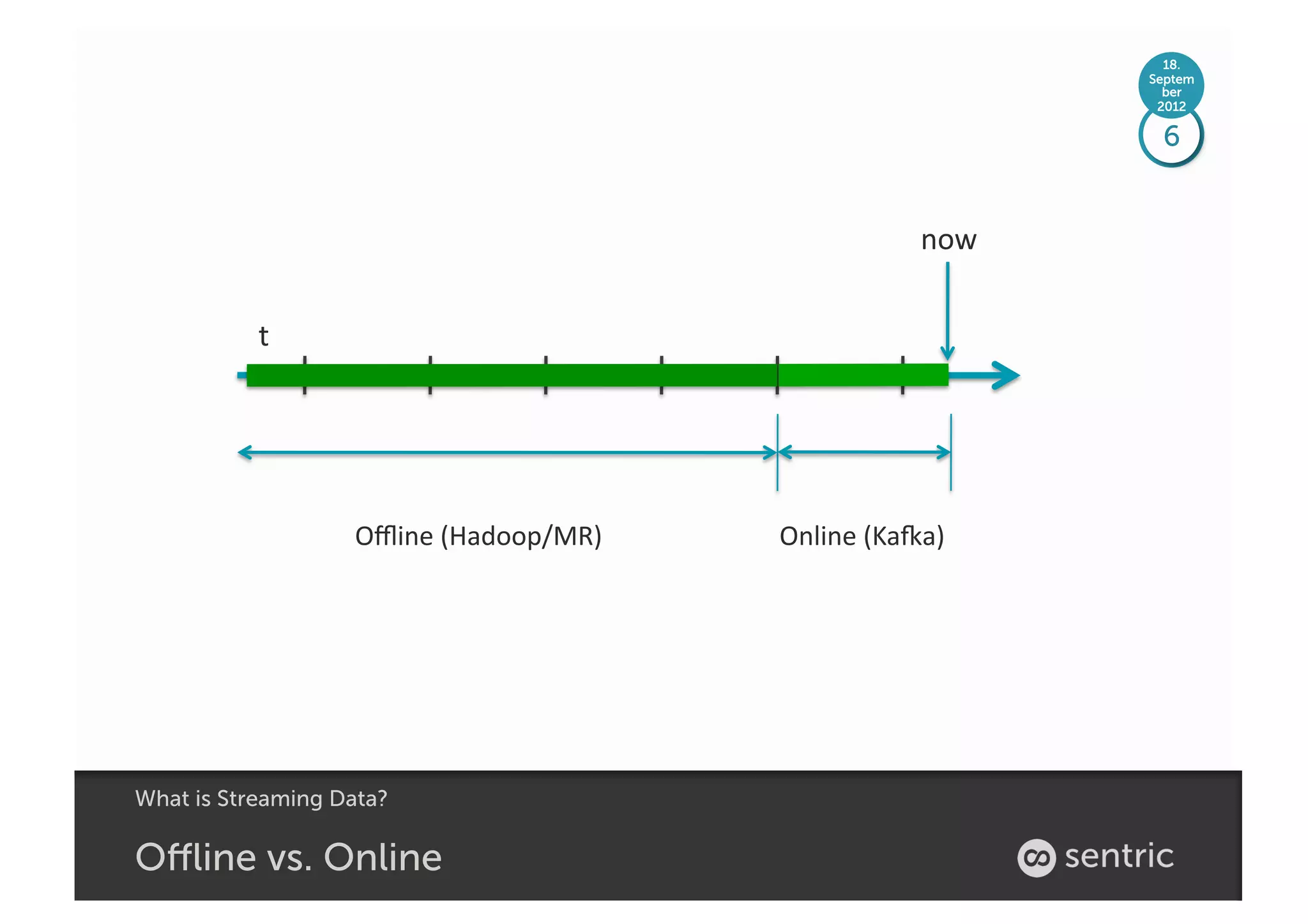

- 6. 18. Septem ber 2012 6 now t Offline (Hadoop/MR) Online (Ka5a) What is Streaming Data? Offline vs. Online
- 7. CC 2.0 byTom Hilton | http://flic.kr/p/54KSXy

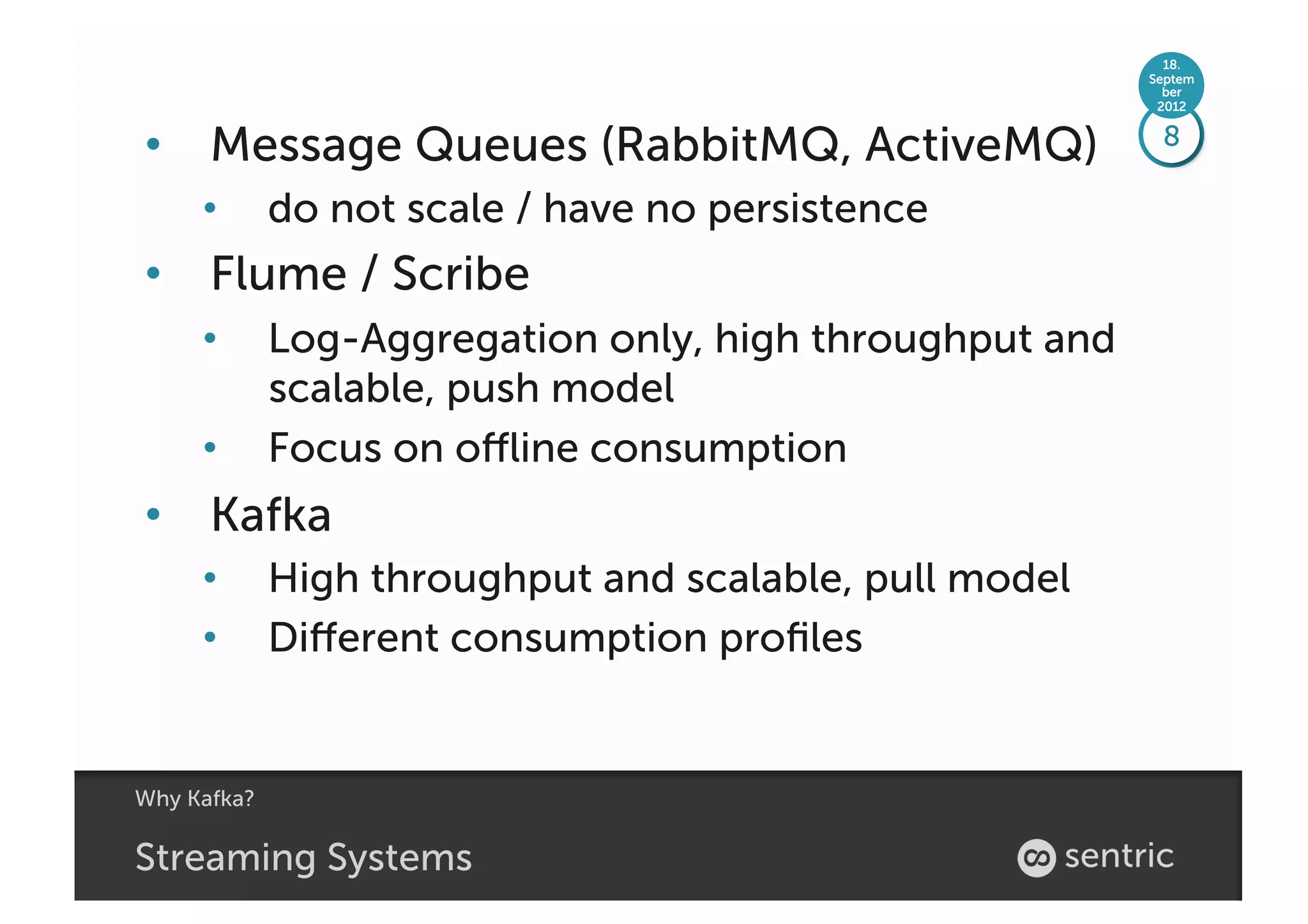

- 8. 18. Septem ber 2012 • Message Queues (RabbitMQ, ActiveMQ) 8 • do not scale / have no persistence • Flume / Scribe • Log-Aggregation only, high throughput and scalable, push model • Focus on offline consumption • Kafka • High throughput and scalable, pull model • Different consumption profiles Why Kafka? Streaming Systems

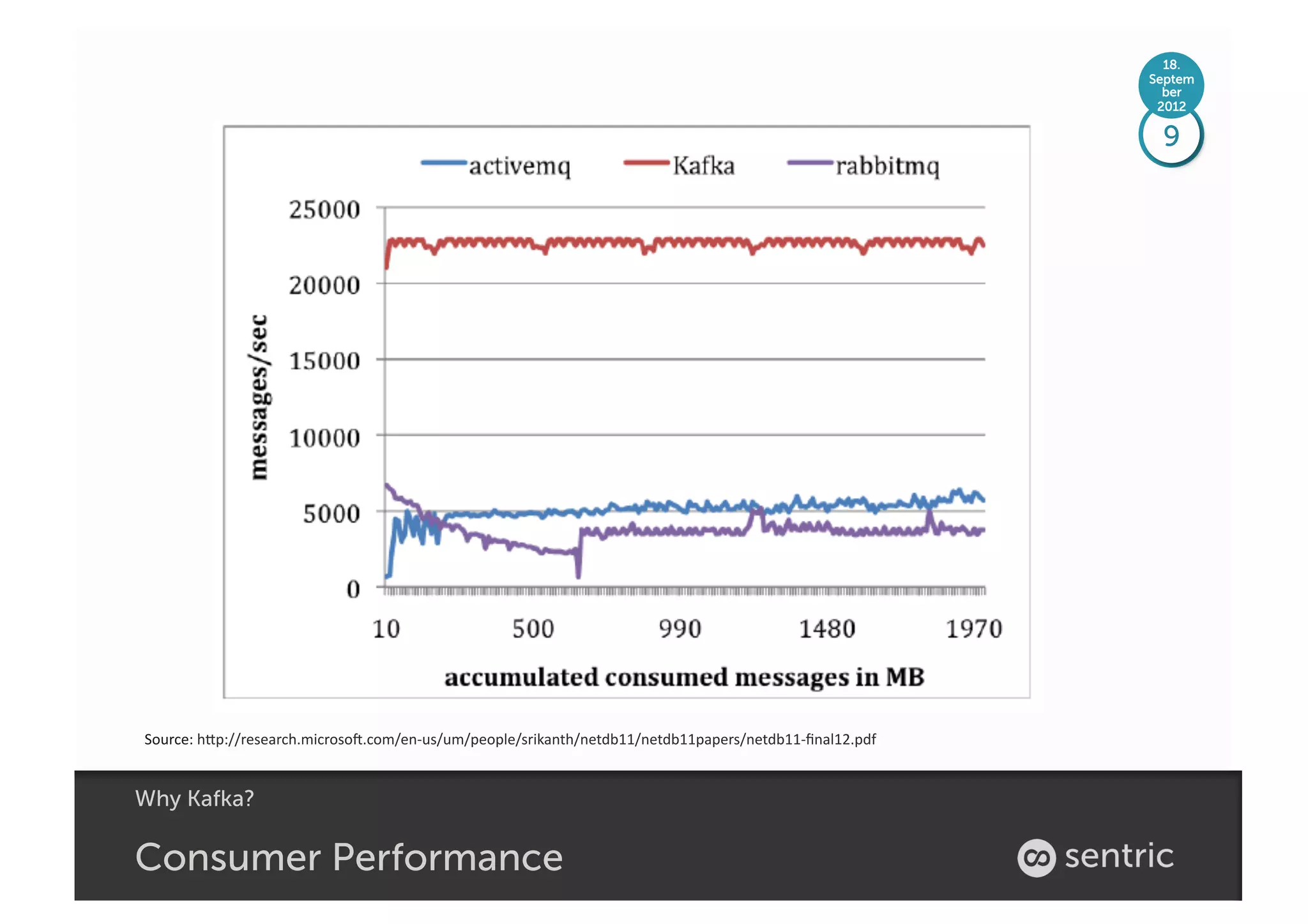

- 9. 18. Septem ber 2012 9 Source: h<p://research.microso@.com/en-‐us/um/people/srikanth/netdb11/netdb11papers/netdb11-‐final12.pdf Why Kafka? Consumer Performance
- 10. CC 2.0 byPresidente | http://flic.kr/p/2ptSZ

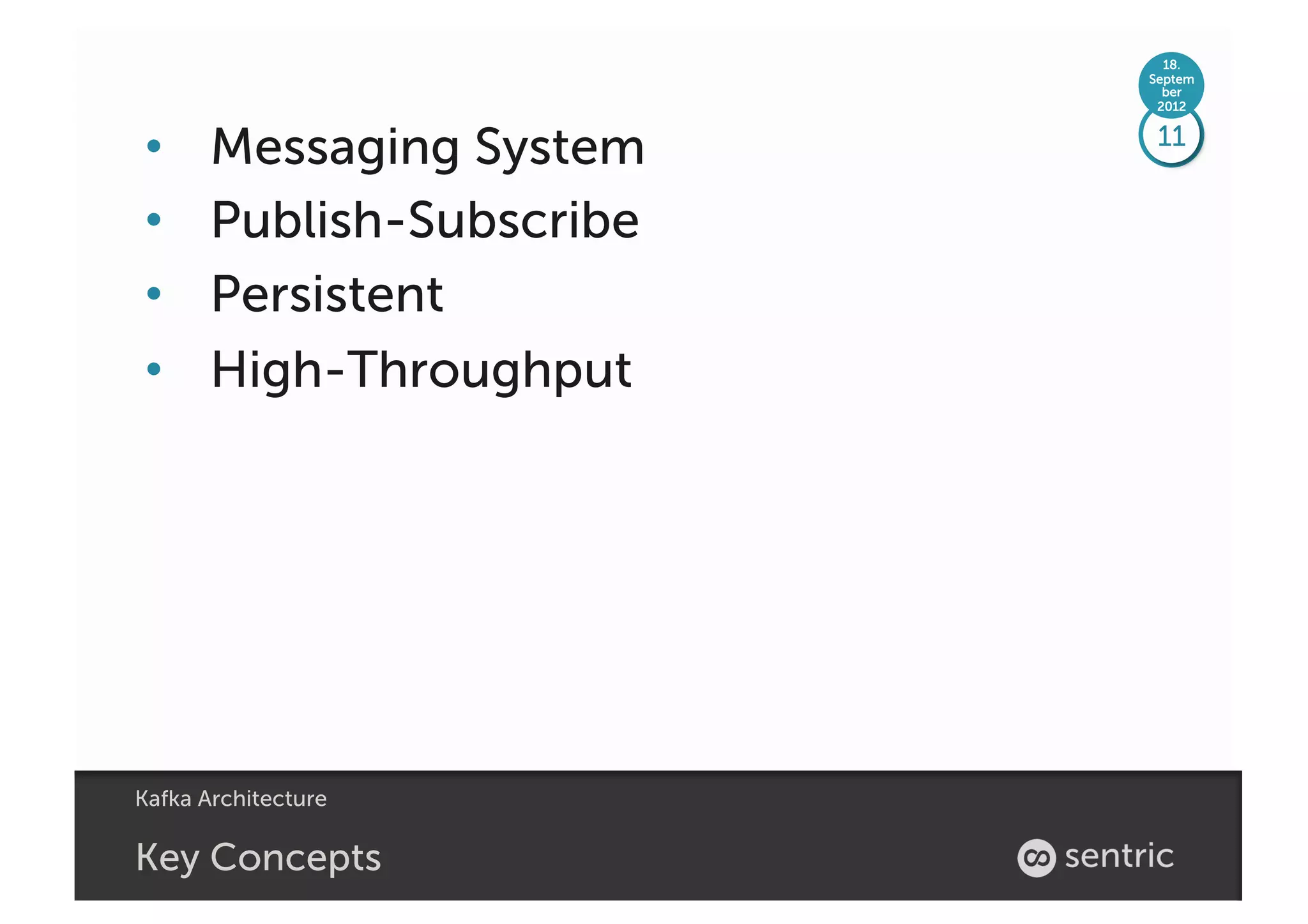

- 11. 18. Septem ber 2012 • Messaging System 11 • Publish-Subscribe • Persistent • High-Throughput Kafka Architecture Key Concepts

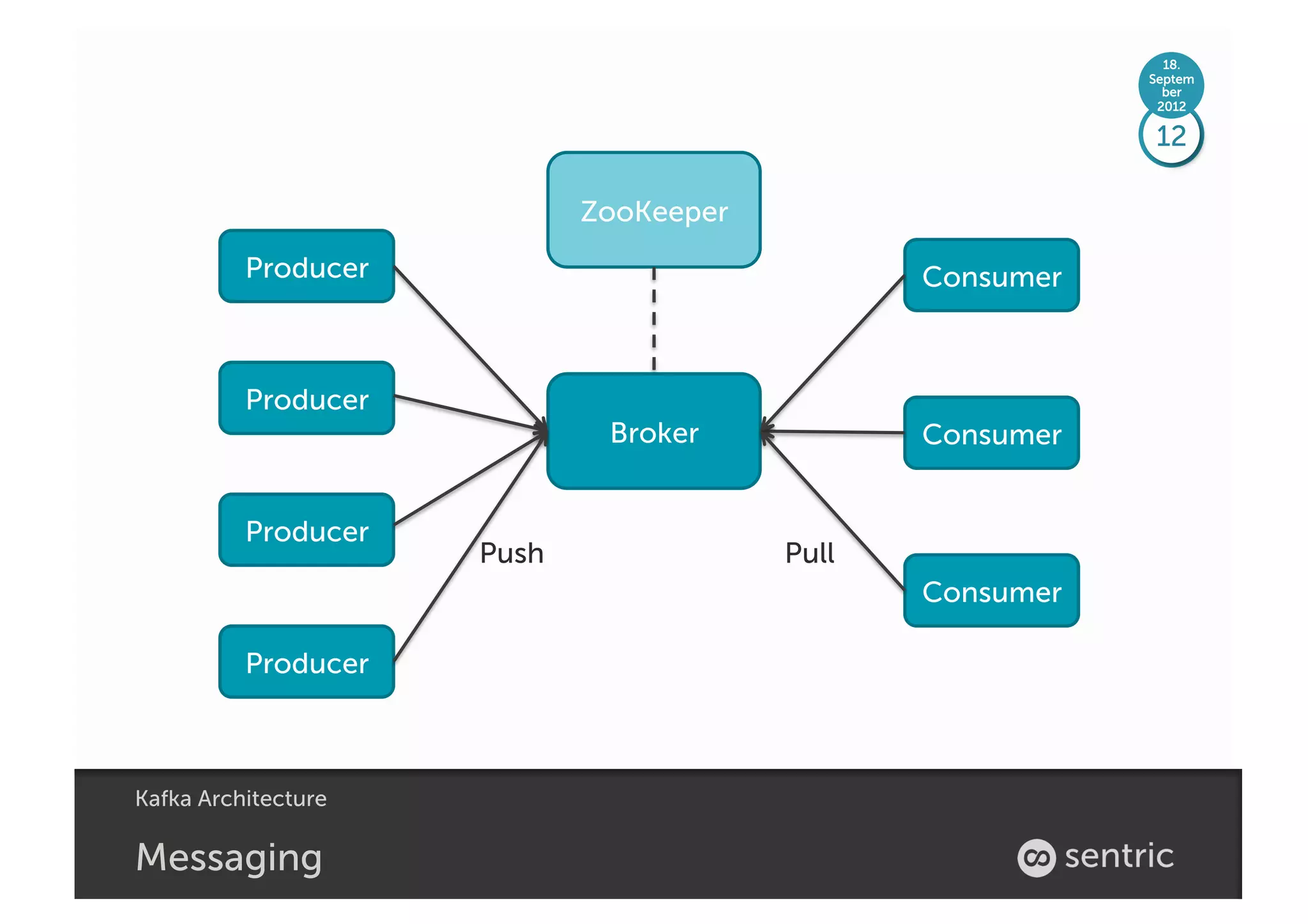

- 12. 18. Septem ber 2012 12 ZooKeeper Producer Consumer Producer Broker Consumer Producer Push Pull Consumer Producer Kafka Architecture Messaging

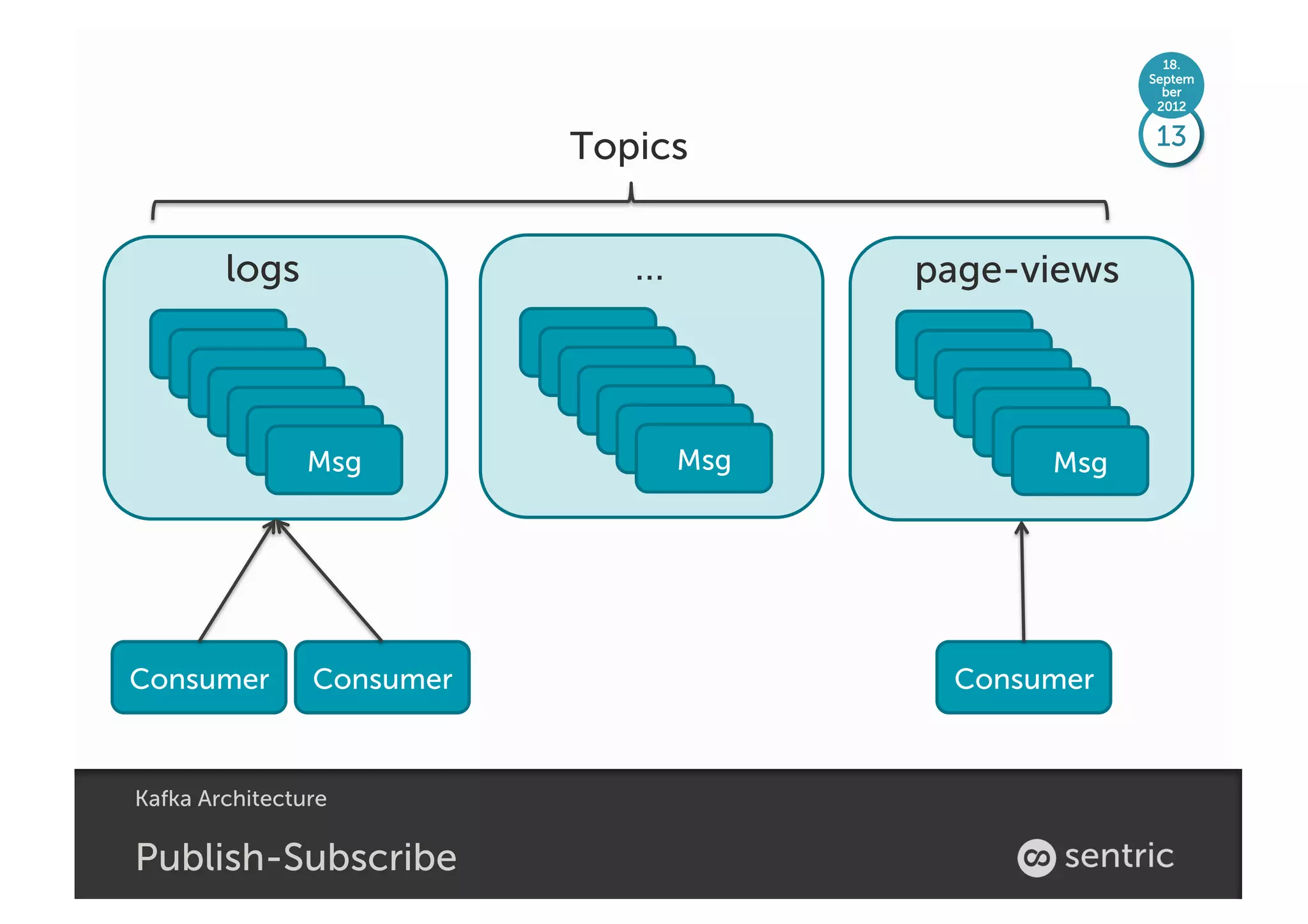

- 13. 18. Septem ber 2012 Topics 13 logs … page-views Msg Msg Msg Consumer Consumer Consumer Kafka Architecture Publish-Subscribe

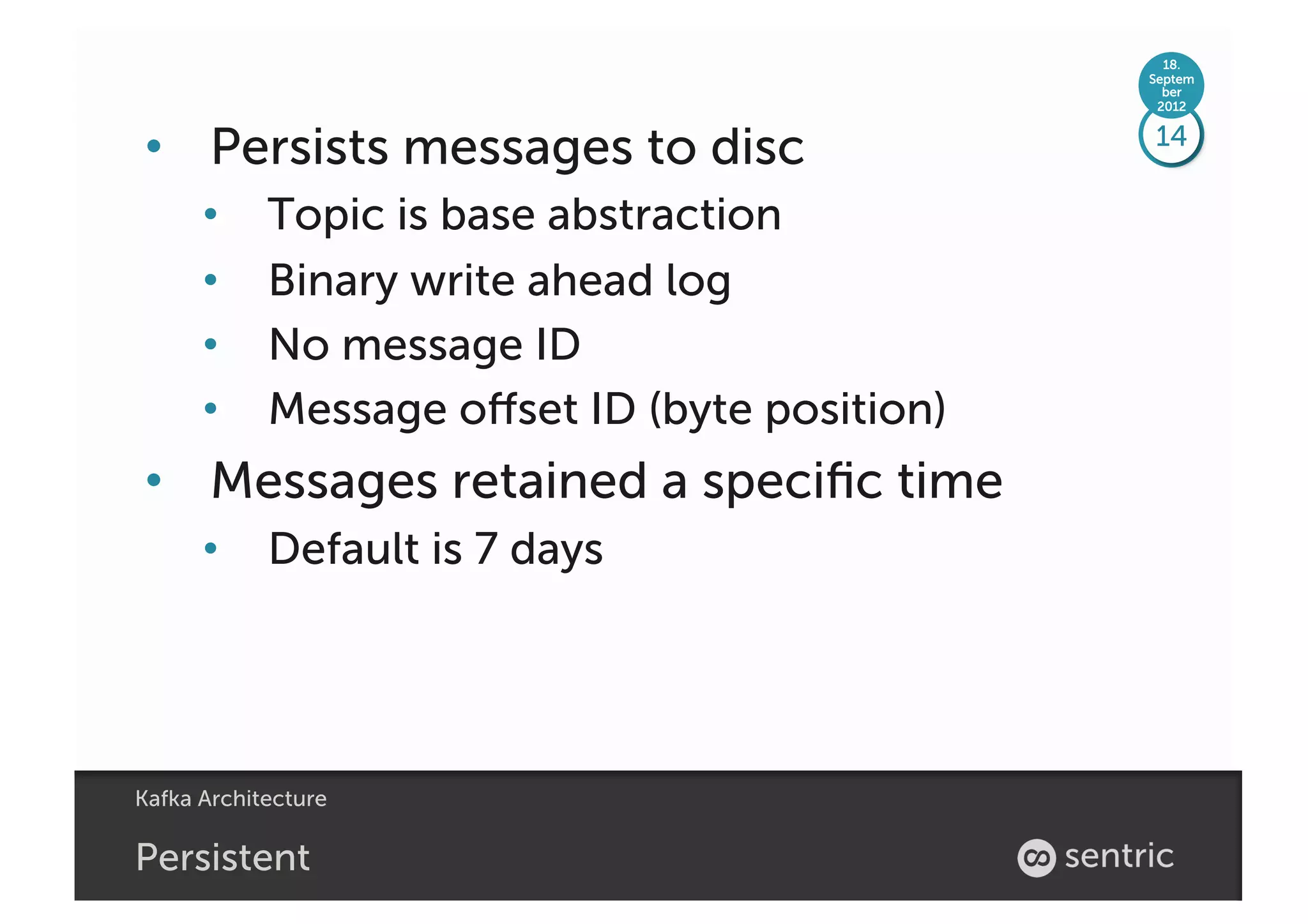

- 14. 18. Septem ber 2012 • Persists messages to disc 14 • Topic is base abstraction • Binary write ahead log • No message ID • Message offset ID (byte position) • Messages retained a specific time • Default is 7 days Kafka Architecture Persistent

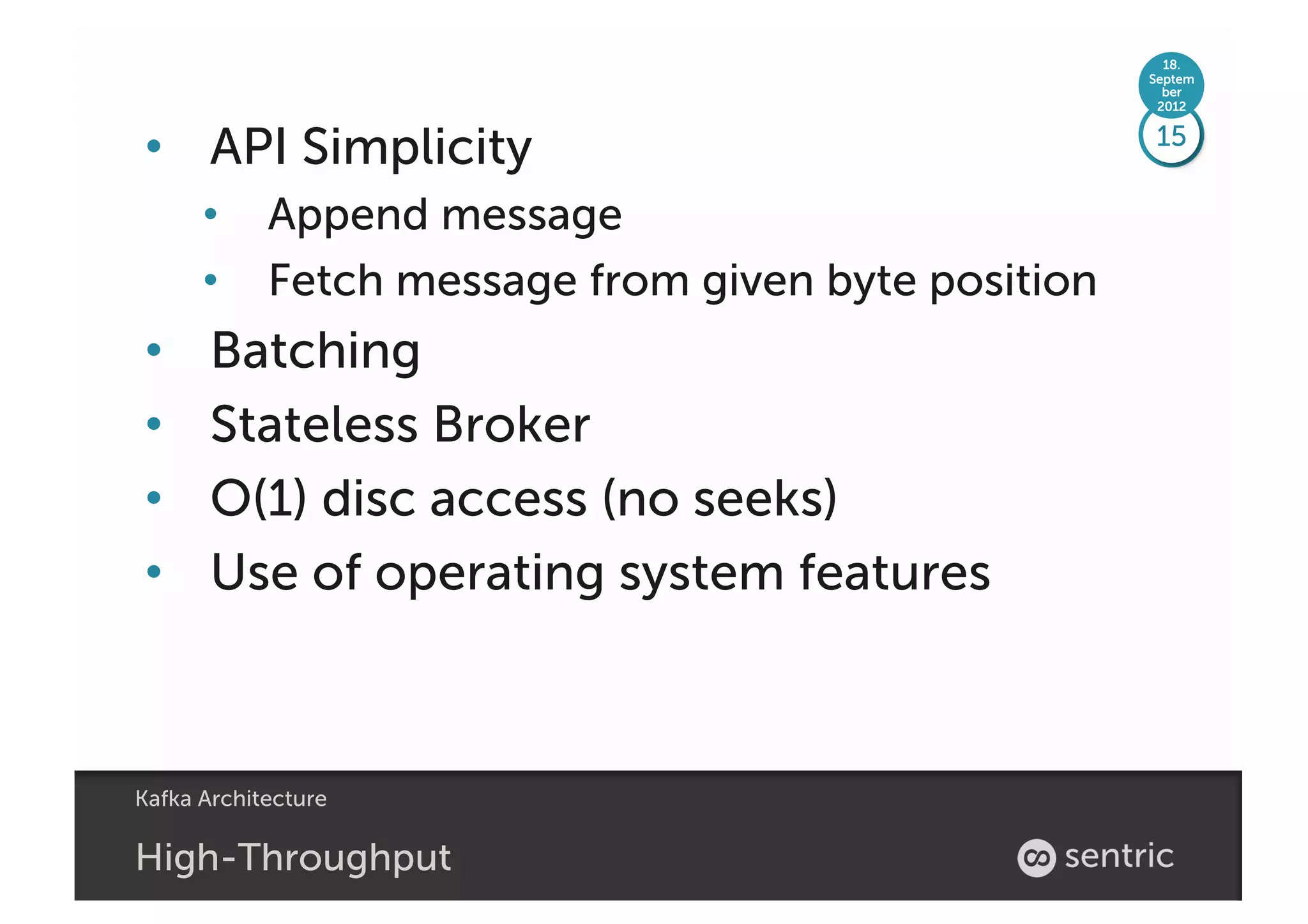

- 15. 18. Septem ber 2012 • API Simplicity 15 • Append message • Fetch message from given byte position • Batching • Stateless Broker • O(1) disc access (no seeks) • Use of operating system features Kafka Architecture High-Throughput
- 16. CC 2.0 bynolifebeforecoffee | http://flic.kr/p/c1UTf

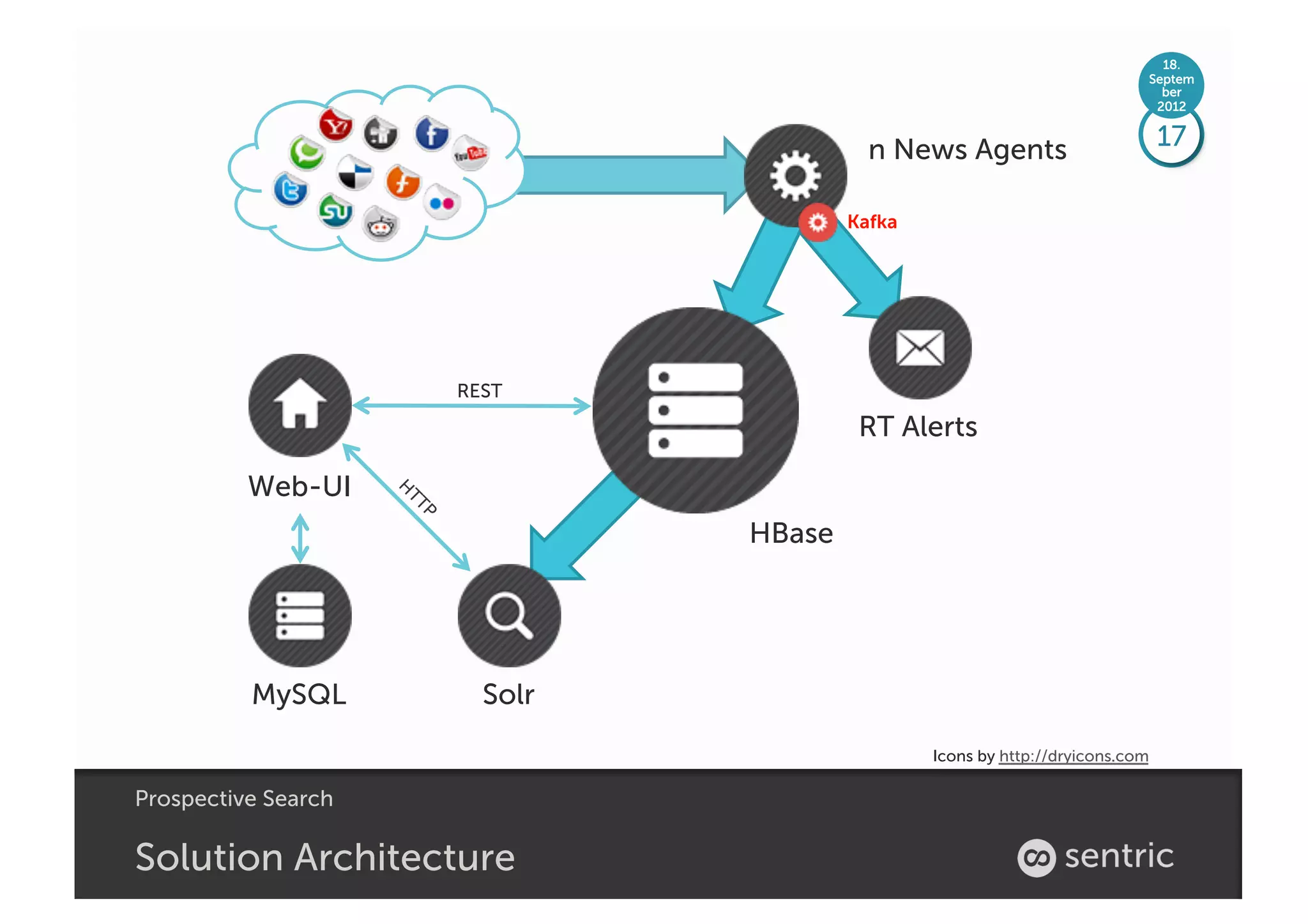

- 17. 18. Septem ber 2012 n News Agents 17 Kafka REST RT Alerts Web-UI HBase MySQL Solr Icons by http://dryicons.com Prospective Search Solution Architecture

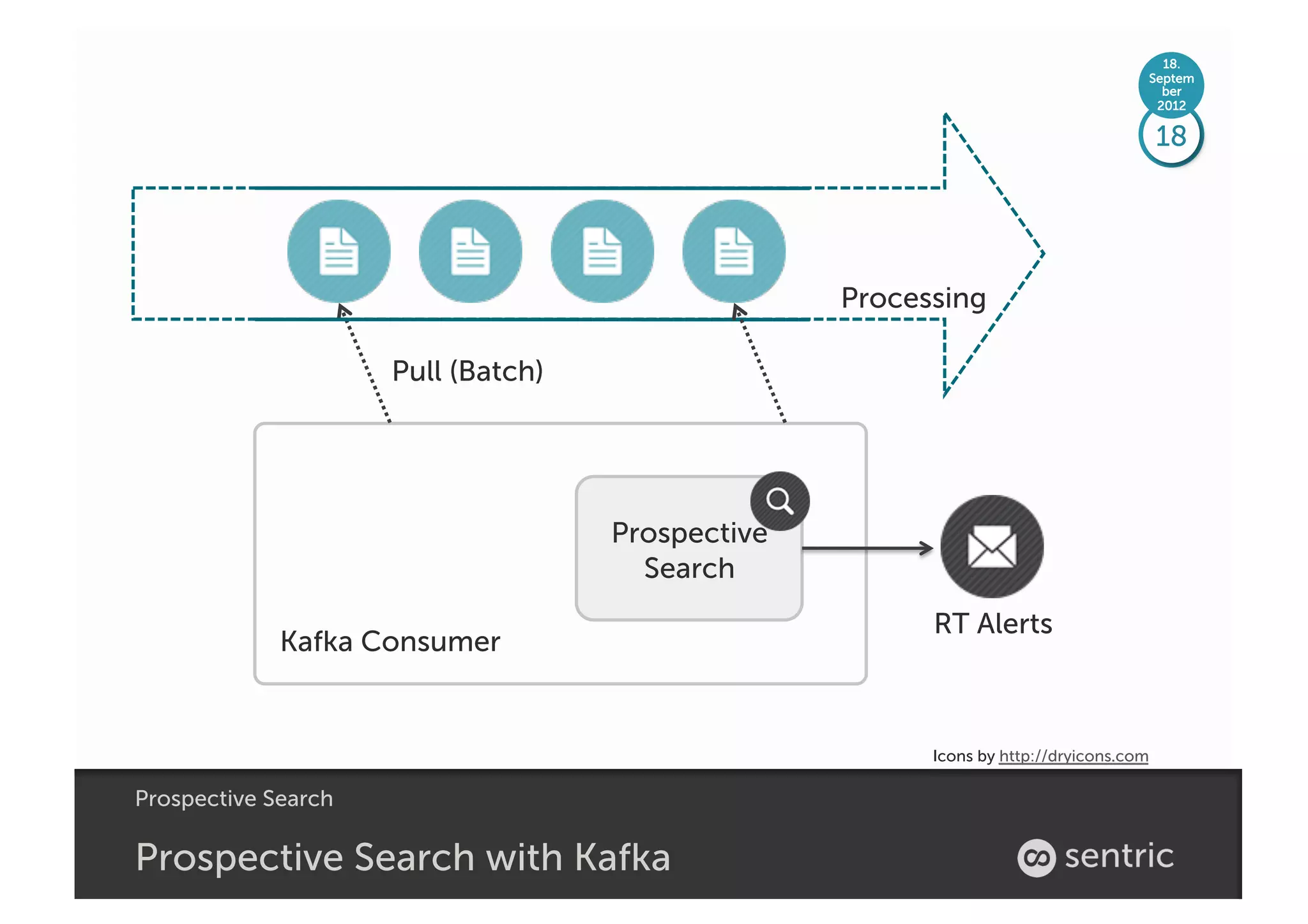

- 18. 18. Septem ber 2012 18 Processing Pull (Batch) Prospective Search RT Alerts Kafka Consumer Icons by http://dryicons.com Prospective Search Prospective Search with Kafka

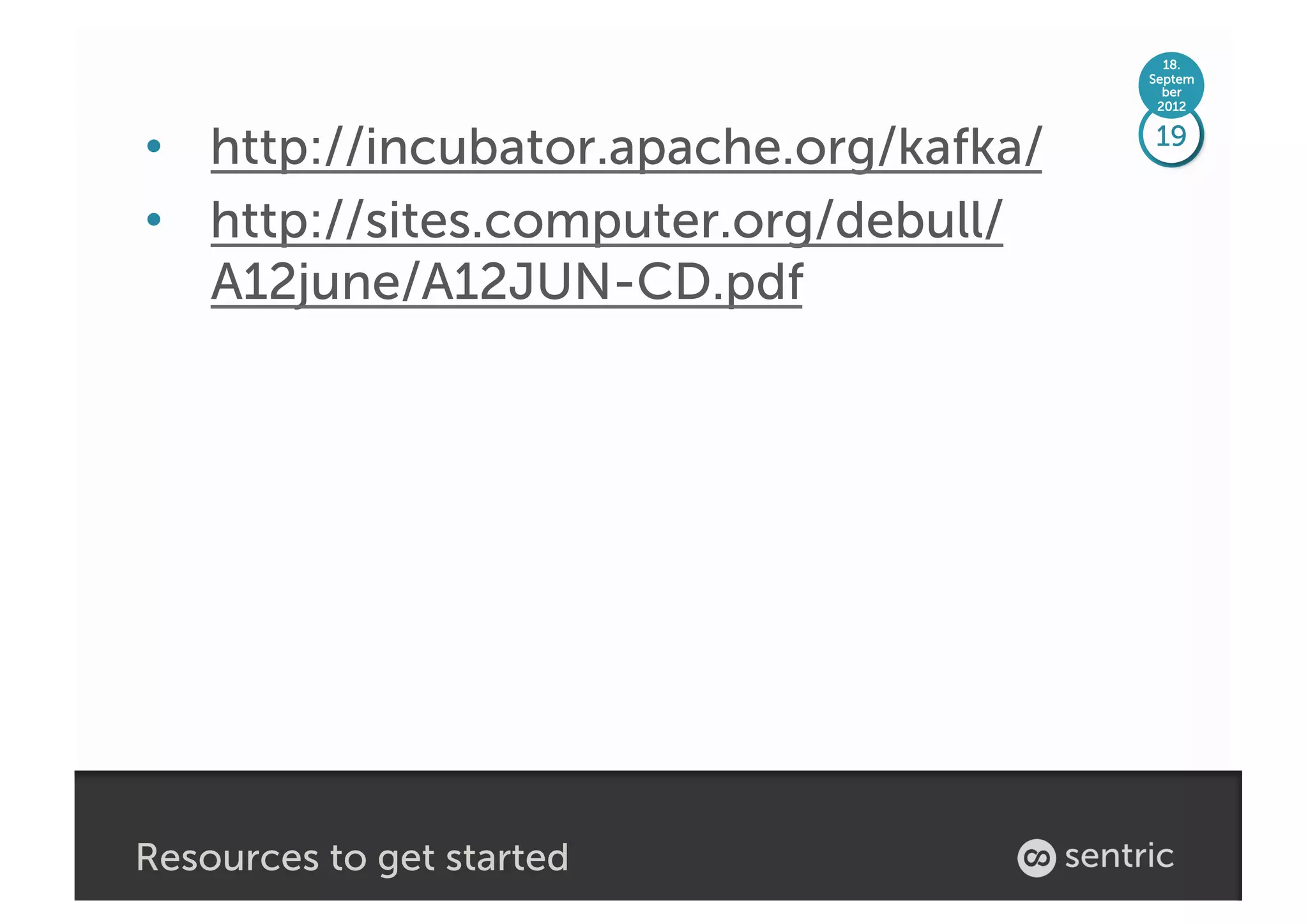

- 19. 18. Septem ber 2012 • http://incubator.apache.org/kafka/ 19 • http://sites.computer.org/debull/ A12june/A12JUN-CD.pdf Resources to get started
- 20. 18. Septem ber 2012 20 Questions? Christian Gügi, christian.guegi@sentric.ch Swiss Big Data User Group Thank you!
